Lighted Liquor dispLay
instaLLation & operation information - LLd, LLds, LLd3
Please review all the information in this manual before installation
and operation. Long term, trouble-free service will follow if good
housekeeping and maintenance procedures are followed. Thank you
for selecting Glastender, Inc. products.
• Electrical: 115 Volt AC, 1 Phase, 60 Hz, less than 5 Full Load
Amps. A 9-foot grounded cord is included.
U
ncrating and Start-Up inStrUctionS
1. Unwrap power cord.
2. Position the Lighted Liquor Display.
3. Units up to 54" are shipped as a single unit and need no further
assembly, skip to step 4. For units 60" and longer (LLDS
shown):
• Remove six screws from each top, remove tops. (Fig. 1)
• Put the left LLD power cord through the side hole. (Fig. 2)
• Align the two ends of the Lighted Liquor Displays. (Fig. 3)
• Put the power cord into the right LLD. (Fig. 3)
• Secure the tops of the units together with four provided
screws. (Fig. 4)
• Carefully lay both units on back side. Secure the
bottoms of the units with four provided screws.
(Fig. 5) NOTE: LLD3 model requires 10 screws
(provided).
• Plug the power cord into the right LLD. (Fig. 5)
• Carefully upright connected units.
• Reinstall tops with six screws each.
4. Remove clear protective film from plexiglass tops and
discard.
5. Plug into 115 volt AC outlet.
6. Through the power cord side hole, turn the switch ON.
7. Your Glastender Lighted Liquor Display is now ready
for use.
Figure 2
Top - secure units together
6 screws for top installation
Power cord through
side hole
with 4 screws
LLD3
Figure 1
Align ends
Power cord into
right unit
Figure 3
Figure 5
c
hanging a Light BULB
1. Disconnect the electrical power.
Figure 4
2. Unscrew and remove the top.
3. Twist the bulb, and remove.
4. Align the new bulb pins, set in and twist into position.
5. Put the top back in place and secure with screws.
Lay both units on back
side and secure together
with 4 screw holes
Plug in power cord
IMPORTANT!!
No labor warranty. One year parts warranty only. If any issues occur contact the factory
immediately for assistance at 800.748.0423, 8AM to 5PM EST, Monday through Friday.
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com
© 2009 Glastender, Inc. 02-05-14
important Safety inStrUctionS
save these instructions
Read all instructions before using this device.
When using a lighted liquor display, basic precautions should always be followed, including the following:
danger - To reduce the risk of electric shock:
1. Always unplug this device from the electrical outlet before cleaning or servicing.
WARNING - To reduce the risk of burns, fire, electric shock or injury to persons:
1. Unplug from outlet before changing bulb assemblies, or otherwise servicing.
2. Use this device only for its intended use as described in these instructions.
3. Never operate this device if it has a damaged cord or plug, if it is not working properly, if it has been
dropped or damaged, or if it has been saturated with liquid. Contact the factory for return authorization and
repair options.
4. Never operate this device with the air openings blocked. Keep the air openings free of lint, dust, and the
like.
5. To disconnect, turn unit off then remove the plug from outlet.
6. Keep cord away from heated surfaces.
7. Do not use outdoors.
WARNING - Risk of electrical shock – connect this furnishing to a properly grounded outlet
only. See Grounding Instructions.
grounding instructions
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
danger - Improper connection of the equipment-
grounding conductor can result in a risk of electric shock. Check
with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug
provided with the product - if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit and has a 3prong grounding plug. Make sure that the product is connected to
an outlet having the same 3-prong configuration as the plug. No
adapter should be used with this product.
Grounding Pin
Grounded
Outlet
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com
Wiring diagram for 24" LLd, LLdS, and LLd3
SWITCH
MALE
PLUG
GROUND
EYELET
Black
Green
White
GROUND
TO
FRAME
2 POLE
DISCONNECT
Black
White
Male
Female
14-16 BLUE
BARREL
CONNECTOR
Black
White
Yellow
Yellow
Black
Yellow
Yellow
BALLAST
Lampholder
Red
Red
Wiring diagram for 30"-54" LLd, LLdS, and LLd3
Blue
Blue
SWITCH
MALE
PLUG
GROUND
TO
FRAME
Black
Green
Red
2 POLE
DISCONNECT
White
GROUND
EYELET
Black
White
14-16 BLUE
CONNECTOR
Male
Female
BARREL
Black
White
Black
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com
BALLAST
Lampholder
Red
Blue
Blue
Wiring diagram for 60"-108" LLd, LLdS, and LLd3
SWITCH
MALE
PLUG
GROUND
TO
FRAME
Black
Green
White
GROUND
EYELET
2 POLE
DISCONNECT
Black
White
Male
Female
14-16 BLUE
BARREL
CONNECTOR
Black
White
Lampholder
Red
Black
White
10-12 YELLOW
BARREL
CONNECTOR
BALLAST
Red
GROUND
EYELET
Blue
Black
White
Green
GROUND
TO
Blue
FRAME
FEMALE
PLUG
MALE
PLUG
GROUND
EYELET
Black
Green
GROUND
TO
Red
2 POLE
DISCONNECT
Male
Female
BARREL
Black
White
Black
BALLAST
White
Black
WhiteWhite
14-16 BLUE
CONNECTOR
FRAME
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com
Lampholder
Red
Blue
Blue

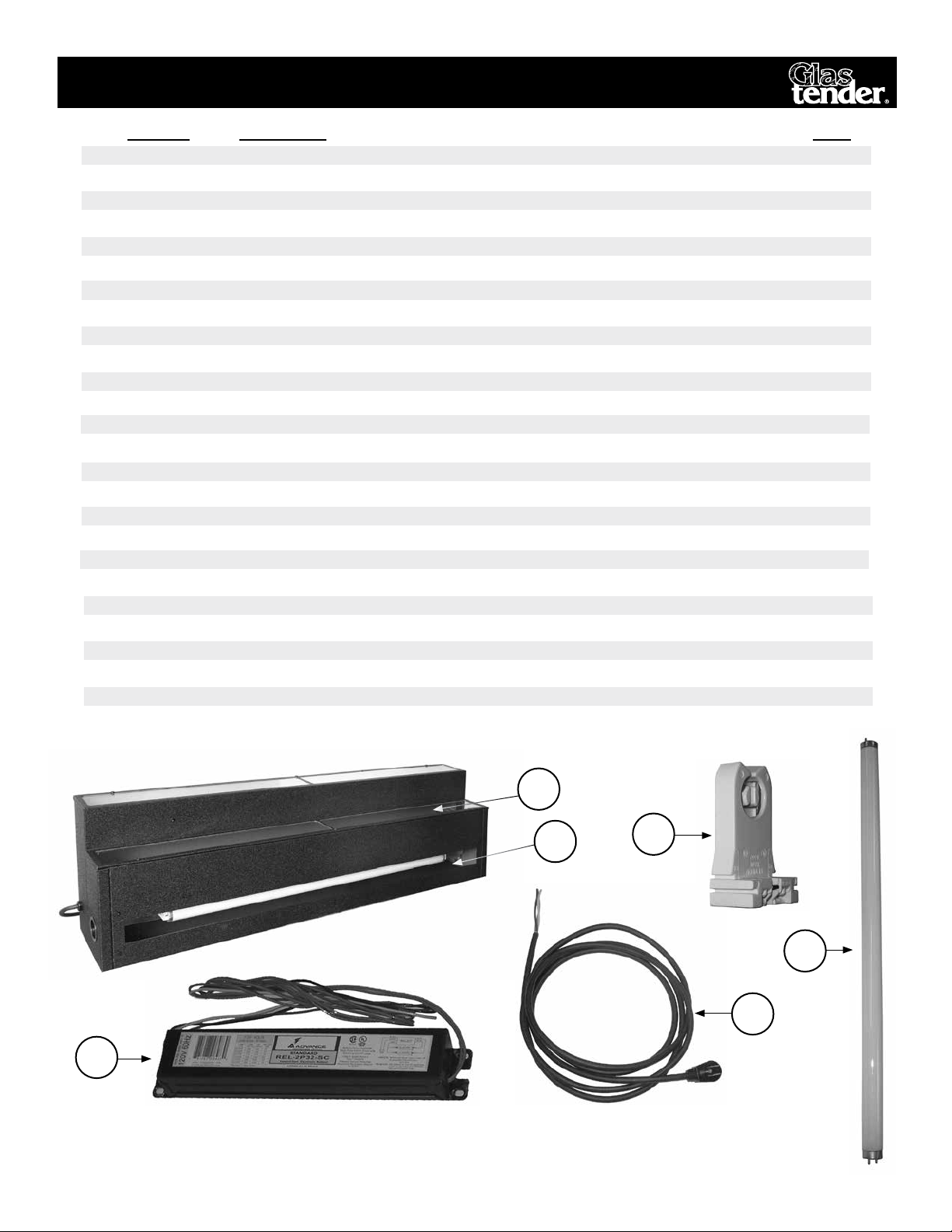

repLacement partS
Part No. Description Price
1. 06001422 Ballast, 2 lamp, (LLD24) 140.00
12000323 Ballast, 2 lamp, 32W T8 for use with 24”, 36” &48” bulbs 76.00
2. 12000530 Lamp holder, Fluorescent light, set of 2 9.50
3. 12000324 Bulb, Fluorescent 18” T8 (LLD24) 14.00
12000325 Bulb, Fluorescent 24”, 17W T8 (LLD30, LLD36) 14.00
12000326 Bulb, Fluorescent 36”, 25W T8 (LLD42, LLD48) 14.00
12000322 Bulb, Fluorescent 48”, 32W T8 (LLD54) 10.00
4. 06001314 Power cord, 132” long 35.00
5. 12000314 Panel, front, LLD24 1/8” x 2-7/8” x 21-5/8”, clear plexiglass 8.00
12000315 Panel, front, LLD30 1/8” x 2-7/8” x 27-5/8”, clear plexiglass 10.00
12000316 Panel, front, LLD36 1/8” x 2-7/8” x 33-5/8”, clear plexiglass 12.00
12000317 Panel, front, LLD42 1/8” x 2-7/8” x 39-5/8”, clear plexiglass 14.00
12000318 Panel, front, LLD48 1/8” x 2-7/8” x 45-5/8”, clear plexiglass 16.00
12000319 Panel, front, LLD54 1/8” x 2-7/8” x 51-5/8”, clear plexiglass 18.00
6. 12000103 Panel, top, LLD24, clear plexiglass 8.00
12000095 Panel, top, LLD24 translucent plexiglass 8.00
12000104 Panel, top, LLD30, clear plexiglass 10.00
12000096 Panel, top, LLD30, translucent plexiglass 10.00
12000109 Panel, top, LLD36, clear plexiglass 12.00
12000097 Panel, top, LLD36, translucent plexiglass 12.00
12000110 Panel, top, LLD42, clear plexiglass 14.00
12000098 Panel, top, LLD42, translucent plexiglass 14.00
12000111 Panel, top, LLD48, clear plexiglass 16.00
12000105 Panel, top, LLD48, translucent plexiglass 16.00
12000112 Panel, top, LLD54, clear plexiglass 18.00
12000106 Panel, top, LLD54, translucent plexiglass 18.00
6
5
1
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
800.748.0423 • 989.752.4275 • Fax 989.752.4444 • www.glastender.com
2
3
4
