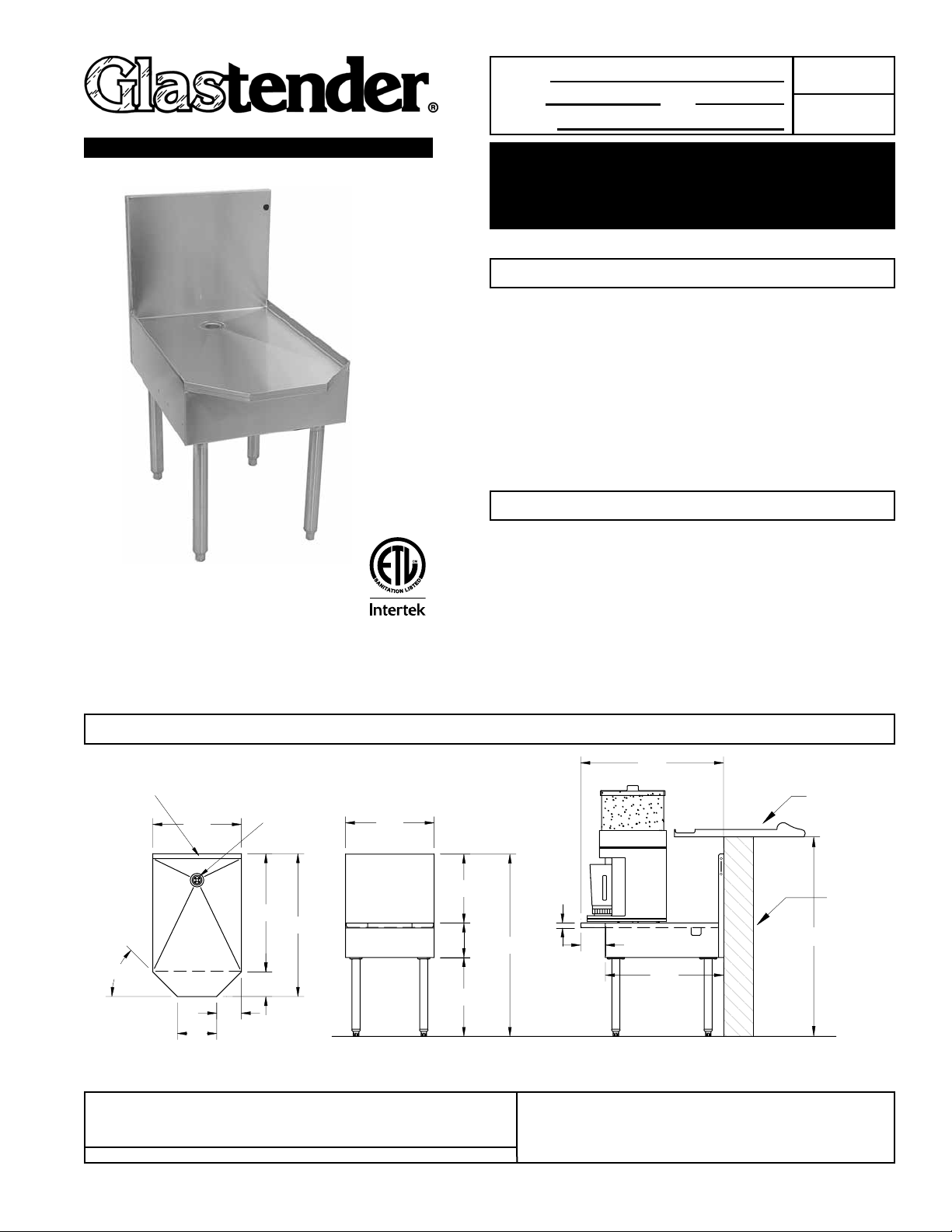

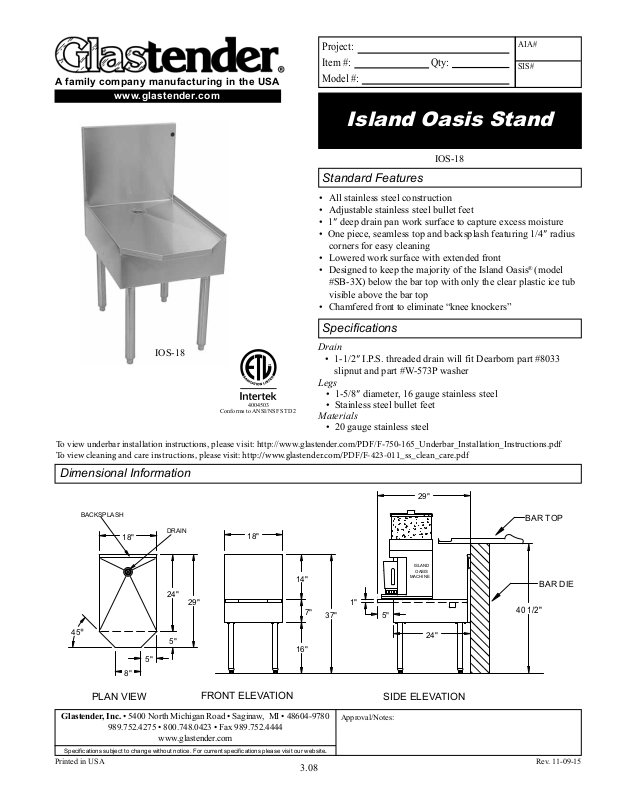

Island Oasis Stand
IOS-18
Standard Features
• All stainless steel construction
• Adjustable stainless steel bullet feet
• 1″ deep drain pan work surface to capture excess moisture
• One piece, seamless top and backsplash featuring 1/4″ radius
corners for easy cleaning
• Lowered work surface with extended front
• Designed to keep the majority of the Island Oasis
#SB-3X) below the bar top with only the clear plastic ice tub
visible above the bar top
• Chamfered front to eliminate “knee knockers”
Specications
®
(model
IOS-18
Drain
• 1-1/2″ I.P.S. threaded drain will fit Dearborn part #8033
slipnut and part #W-573P washer
Legs
• 1-5/8″ diameter, 16 gauge stainless steel
4004503
Conforms to ANSI/NSF STD 2
• Stainless steel bullet feet
Materials
• 20 gauge stainless steel
To view underbar installation instructions, please visit: http://www.glastender.com/PDF/F-750-165_Underbar_Installation_Instructions.pdf
To view cleaning and care instructions, please visit: http://www.glastender.com/PDF/F-423-011_ss_clean_care.pdf
Dimensional Information
29"
BACKSPLASH
45
°
18"
8"
DRAIN
24"
29"
5"
5"
18"
14"
16"
ISLAND
OASIS
MACHINE
37"
1"
5"
24"
7"
BAR TOP
BAR DIE
40 1/2"
PLAN VIEW
Glastender, Inc. • 5400 North Michigan Road • Saginaw, MI • 48604-9780
989.752.4275 • 800.748.0423 • Fax 989.752.4444
www.glastender.com
Specications subject to change without notice. For current specications please visit our website.
Printed in USA
FRONT ELEVATION
3.08
SIDE ELEVATION
Approval/Notes:
Rev. 11-09-15
