Page 1

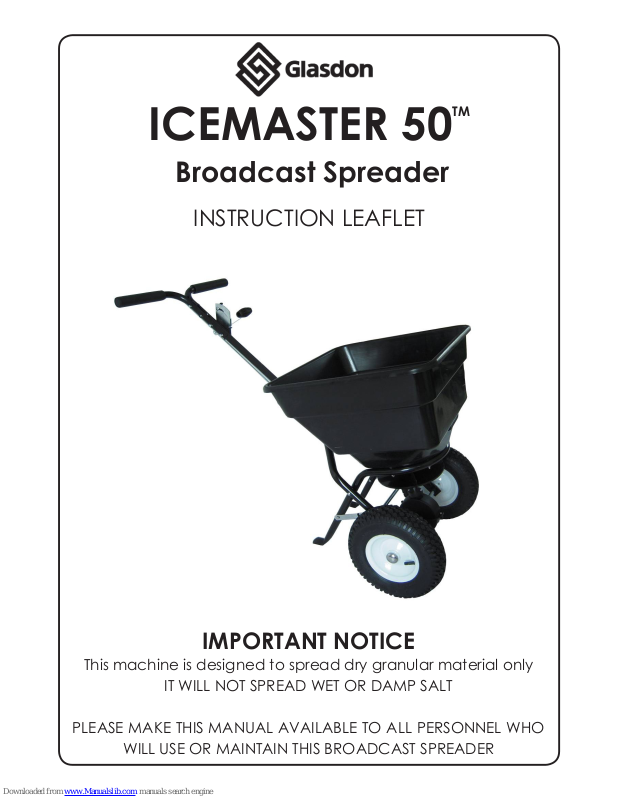

ICEMASTER 50

Broadcast Spreader

INSTRUCTION LEAFLET

IMPORTANT NOTICE

This machine is designed to spread dry granular material only

IT WILL NOT SPREAD WET OR DAMP SALT

PLEASE MAKE THIS MANUAL AVAILABLE TO ALL PERSONNEL WHO

WILL USE OR MAINTAIN THIS BROADCAST SPREADER

Page 2

ITEM 1 SPINNER PLATE QTY 1

ITEM 2 GEARBOX AND AXLE ASSEMBLY QTY 1

ITEM 3 M4 X 20MM SCREW QTY 1

ITEM 4 WHEEL ASSEMBLY FRAME QTY 2

ITEM 5 AXLE BUSH QTY 2

ITEM 6 FRAME BRACE QTY 2

ITEM 7 HOPPER FRAME QTY 1

ITEM 8 M6 X 35MM BOLT QTY 4

ITEM 9 M6 LOCK NUT QTY 14

ITEM 10 CONNECTOR ROD QTY 1

ITEM 11 M6 X 55MM BOLT QTY 2

ITEM 12 INNER AXLE BUSH QTY 2

ITEM 13 WHEEL QTY 2

ITEM 14 M5 X 45MM BOLT QTY 1

ITEM 15 M5 LOCK NUT QTY 1

ITEM 16 AXLE END CAP QTY 2

ITEM 17 16MM FLAT WASHER QTY 1

ITEM 18 HANDLE SHAFT QTY 1

ITEM 19 PIVOT BRACKET ASSEMBLY QTY 1

ITEM 20 M6 X 50MM BOLT QTY 3

ITEM 21 UPPER HANDLE QTY 2

ITEM 22 HANDLE SPACER QTY 1

ITEM 23 6MM FLAT WASHER QTY 3

ITEM 24 GUAGE AND LEVER ASSEMBLY QTY 1

ITEM 25 HOPPER ASSEMBLY QTY 1

ITEM 26 M6 X 45MM BOLT QTY 4

ITEM 27 6MM LARGE WASHER QTY 4

ITEM 28 CONTROL ROD QTY 1

ITEM 29 FLOW CONTROL PLATE QTY 1

ITEM 30 R-CLIP QTY 1

ITEM 31 GRILLE QTY 1

ITEM 32 M6 X 60MM BOLT QTY 2

ITEM 33 WHEEL WASHER QTY 4

Page 3

Remove the bag of xings and identify the following components:

M4 X 20MM

ROUND HEAD SCREW

(ITEM 3 - 1 OFF)

M5 X 45MM

HEX HEAD BOLT

(ITEM 14 - 1 OFF)

M6 X 45MM

HEX HEAD BOLT

(ITEM 26 - 4 OFF)

M6 X 50MM

HEX HEAD BOLT

(ITEM 20 - 3 OFF)

M6 X 55MM

HEX HEAD BOLT

(ITEM 11 - 2 OFF)

M6 X 35MM

HEX HEAD BOLT

(ITEM 8 - 4 OFF)

M5 LOCK NUT

(ITEM 15 - 1 OFF)

16MM FLAT WASHER

(ITEM 17 - 1 OFF)

6MM LARGE WASHER

(ITEM 27 - 4 OFF)

6MM FLAT WASHER

(ITEM 23 - 3 OFF)

M6 LOCK NUT

(ITEM 9 - 14 OFF)

R-CLIP

(ITEM 30 - 1 OFF)

HANDLE SPACER

(ITEM 22 - 1 OFF)

AXLE END CAP

(ITEM 16 - 2 OFF)

INNER AXLE BUSH

(ITEM 12 - 2 OFF)

Ensure the following components have been received:

SPINNER PLATE

(ITEM 1 - 1 OFF)

GEARBOX AND AXLE

ASSEMBLY

(ITEM 2 - 1 OFF)

FRAME BRACE

(ITEM 6 - 2 OFF)

WHEEL ASSEMBLY FRAME

(ITEM 4 - 2 OFF)

HOPPER FRAME

(ITEM 7 - 1 OFF)

CONNECTOR ROD

(ITEM 10 - 1 OFF)

WHEELS

(ITEM 13 - 2 OFF)

GRILLE

(ITEM 31 - 1 OFF)

CONTROL ROD

(ITEM 28 - 1 OFF)

HOPPER ASSEMBLY

(ITEM 25 - 1 OFF)

GUAGE & LEVER

ASSEMBLY

(ITEM 24 - 1 OFF)

UPPER HANDLE

(ITEM 21 - 2 OFF)

PIVOT BRACKET

ASSEMBLY

(ITEM 19 - 1 OFF)

HANDLE SHAFT

(ITEM 18 - 1 OFF)

M6 X 60MM

HEX HEAD BOLT

(ITEM 32 - 2 OFF)

WHEEL WASHER

(ITEM 33 - 4 OFF)

Page 4

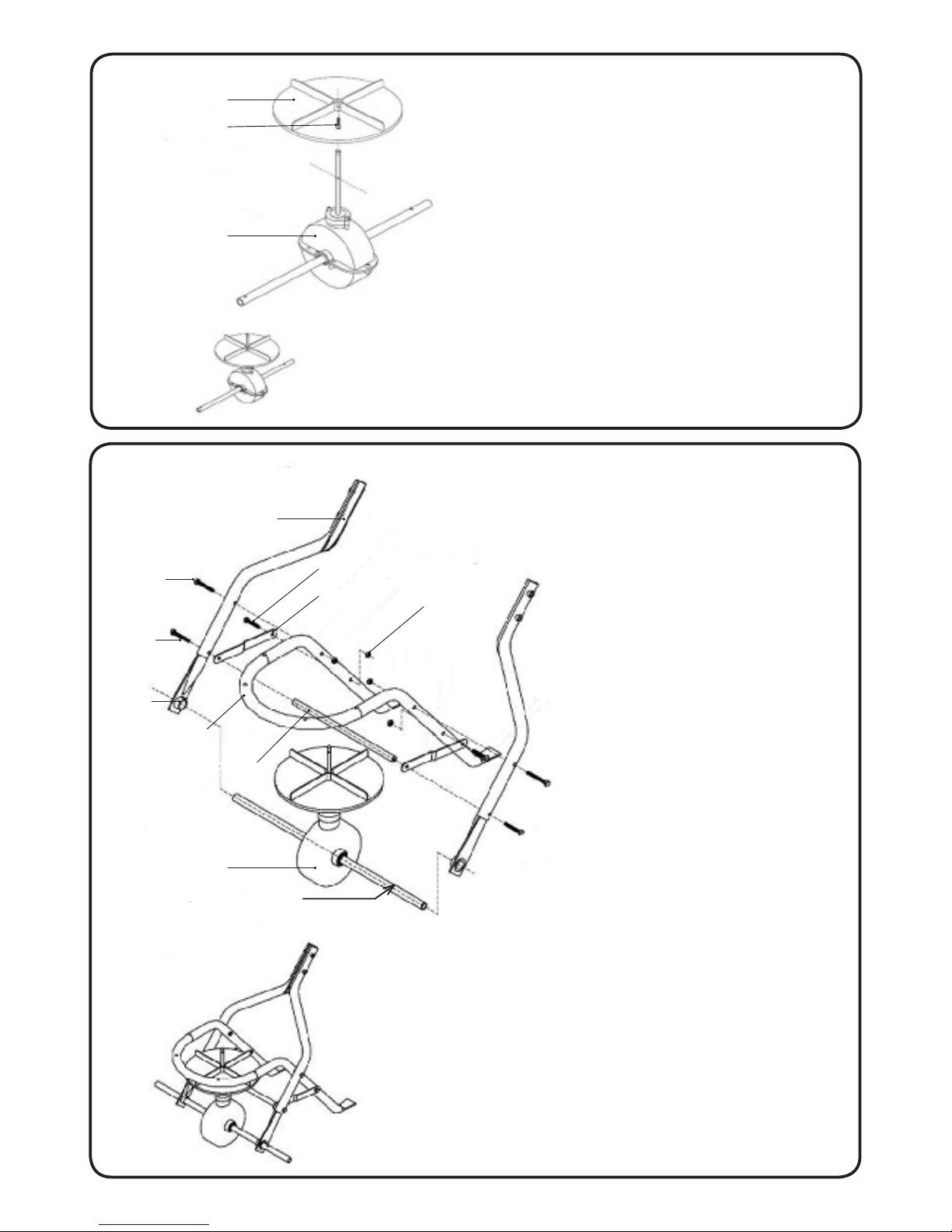

Insert the Spinner Plate (ITEM 1) onto the

vertical shaft of the Gear Box and Axle

Assembly (ITEM 2).

Insert the M4 x 20mm Screw (ITEM 3) to

secure the Spinner Plate in position.

ITEM 1

ITEM 3

ITEM 2

ITEM 4

Take the Wheel Assembly Frame (ITEM 4 - 2 off) and locate on each end of the Gear Box and Axle Assembly (ITEM 2). Ensure Axle Bush (ITEM 5 - 2 off) are in position.

IMPORTANT: Ensure the hole in the

Gearbox and Axle Assembly is positioned on the right hand side.

Attach one end of the Frame Brace (ITEM 6 - 2 off) to the Hopper Frame (ITEM 7), in the

orientation shown, using M6 x

35mm Bolt (ITEM 8 - 2 off) and M6 Lock Nut (ITEM 9 - 2 off).

Secure the Connector Rod (ITEM

10) in position by inserting M6 x 35mm Bolt (ITEM 8 - 2 off) through each Wheel Assembly Frame (ITEM 4) and Frame Brace (ITEM

6).

Insert the M6 x 60mm Bolt (ITEM 32 - 2 off) through each Wheel Assembly Frame (ITEM 4) and Hopper Frame (ITEM 7). Secure in position using M6 Lock Nut (ITEM 9 - 2 off) - Do not fully tighten.

ITEM 2

IMPORTANT HOLE

ITEM 6

ITEM 7

ITEM 8

ITEM 9

ITEM 10

ITEM 8

ITEM 5

ITEM 32

Page 5

ITEM 15

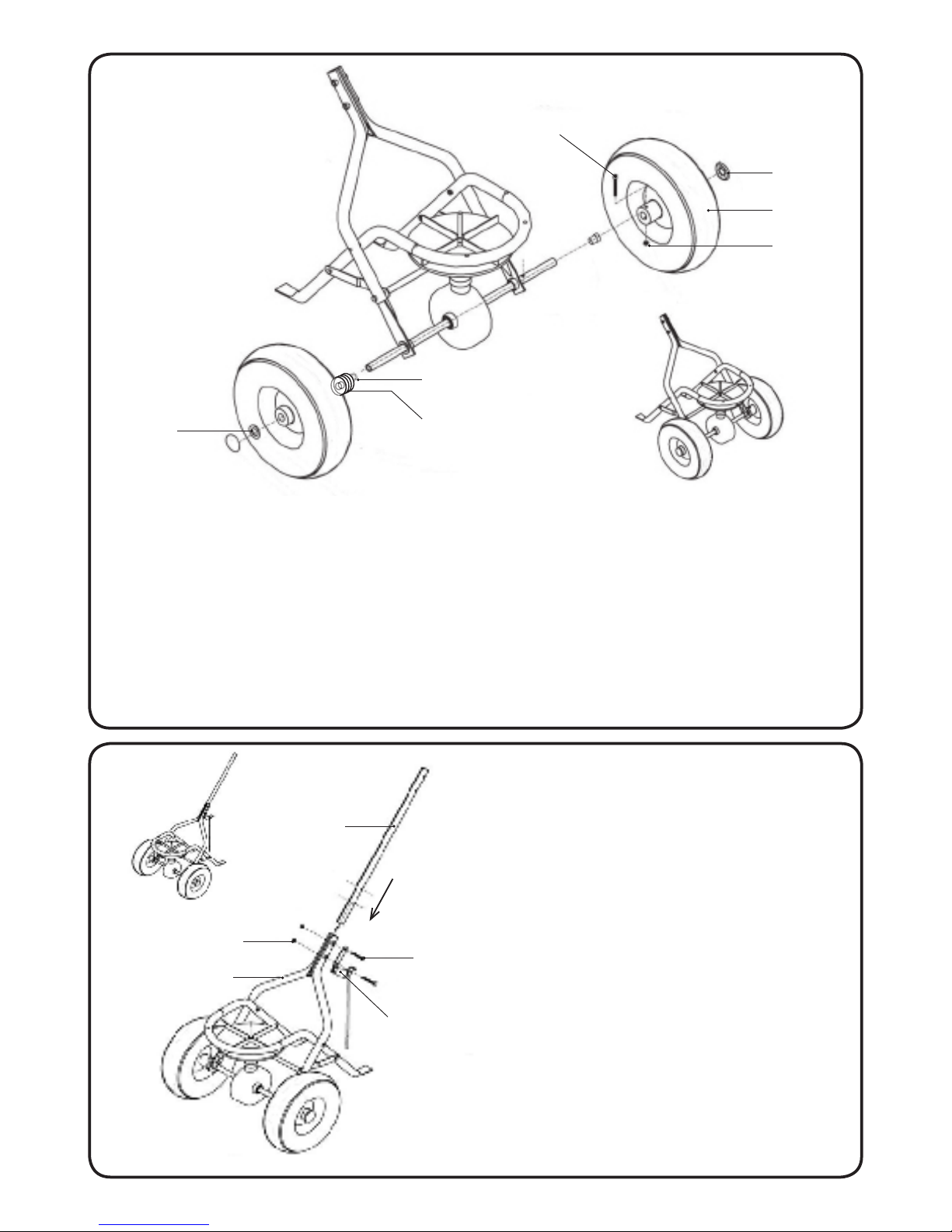

Slide Inner Axle Bush (ITEM 12 - 2 off) over each end of the Gearbox and Axle Assembly (ITEM 2) and fully insert into the Axle Bush (ITEM 5 - 2 off).

Locate Wheel (ITEM 13) onto the right hand Axle and align the hole in the wheel hub with the hole in the axle. Insert M5 x 45mm Bolt (ITEM 14) and M5 Lock Nut (ITEM 15) to

secure the Drive Wheel. Gently tap the Axle End Cap (ITEM 16) into position.

Locate the 4 x Wheel Washers (ITEM 33’s) onto the left hand Axle followed by the Free

Wheel (ITEM 13) and 16mm Flat Washer (ITEM 17). Tap the Axle End Cap in position to secure the Wheel.

ITEM 12

ITEM 13

ITEM 14

ITEM 16

ITEM 17

Insert the Handle Shaft (ITEM 18) between the two Wheel Assembly Frames (ITEM 4)

ensuring the Handle Shaft is in the correct

orientation. The lower holes are further

from the end of the Handle Shaft.

Take the Pivot Bracket Assembly (ITEM

19) and align with the holes in the Wheel

Assembly Frames and Handle Shaft.

Secure in position using M6 x 55mm Bolt (ITEM 11 - 2 off) and M6 Lock Nut (ITEM 9).

FULLY TIGHTEN ALL NUTS AND BOLTS

WITHIN THE ASSEMBLY FROM STEP A

- DO NOT OVER TIGHTEN -

ITEM 18

ITEM 4

ITEM 19

ITEM 9

ITEM 11

ITEM 33 (x 4)

Page 6

ITEM 21

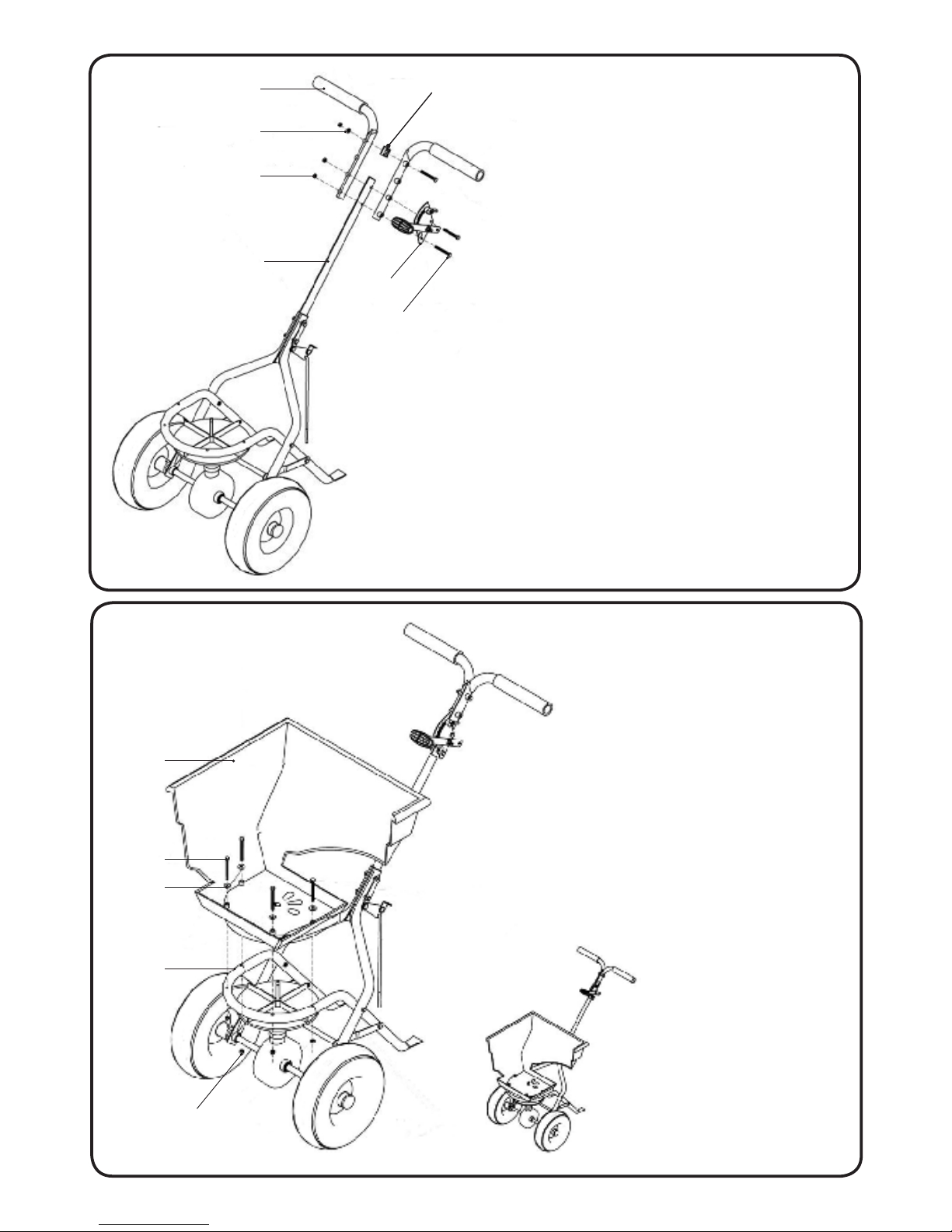

The Upper Handle (ITEM 21 - 2 off) can

be tted in three positions on along

the Handle Shaft (ITEM 18).

Select the most comfortable position

for use. Should either of the two higher positions be chosen, t the Handle Spacer (ITEM 22) in the top xing hole of the Upper Handles with M6 x 50mm

bolt (ITEM 20), 6mm Flat Washer (ITEM

23) and M6 Lock Nut (ITEM 9).

Take the Gauge and Lever Assembly

(ITEM 24) and align the holes with

the holes in the Upper Handles and Handle Shaft.

Ensure the Gauge and Lever Assembly is on the right hand side and the

Handle Lever is facing forward.

Secure in position using M6 x 50mm Bolt (2 off), 6mm Flat Washer (2 off) and M6 Lock Nut (2 off).

ITEM 18

ITEM 9

ITEM 23

ITEM 22

ITEM 24

ITEM 20

ITEM 25

ITEM 26

ITEM 27

ITEM 9

Position the Hopper (ITEM 25) onto the Hopper Frame (ITEM 7) and align the four holes.

Ensure the vertical shaft of the Gearbox and Axle Assembly (ITEM 2) is located in the hole in the base of the Hopper.

Secure in position using M6 x 45mm Bolt (ITEM 26 - 4 off), Large 6mm Washer (ITEM 27 - 4 off) and M6 Lock Nut (ITEM 9 - 4 off).

ITEM 7

Page 7

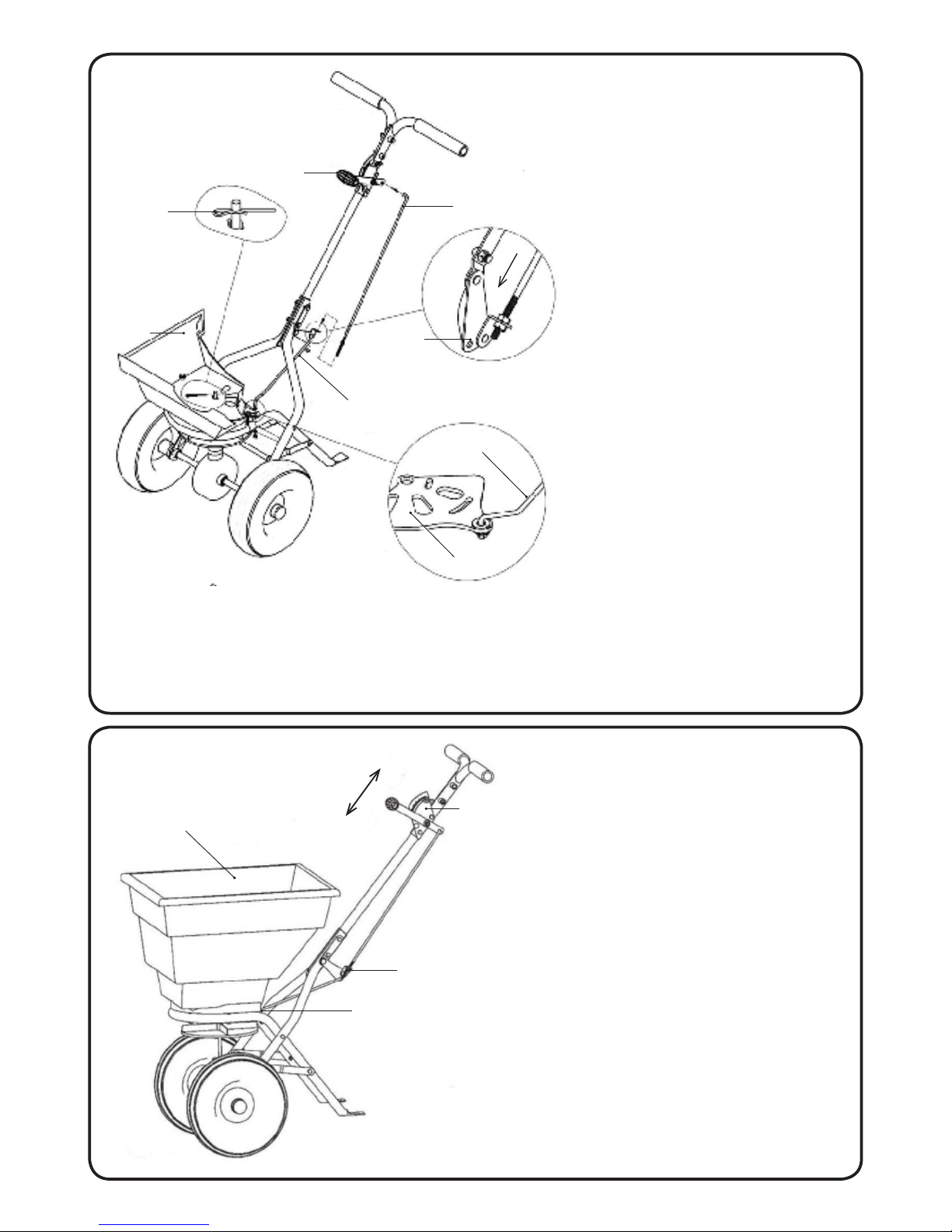

Push the Handle of the Gauge and Lever Assembly (ITEM 24) to

its lowest position and insert the

upper end of the Control Rod (ITEM 28) into the hole at the rear of the Handle.

Take off one of the nuts on the Control Rod (ITEM 28) and insert the threaded end into the angled bracket of the Pivot Bracket Assembly (ITEM 19)

and afx the nut back onto the

threaded Control Rod.

Take the Rod of the Pivot Bracket Assembly (ITEM 19) and insert the threaded end into

the Flow Control Plate (ITEM 29)

located on the underside of the Hopper (ITEM 25).

ITEM 30

ITEM 28

ITEM 19

ITEM 19 (ROD)

ITEM 29

ITEM 25

ITEM 19

Ensure a 6mm Flat Washer (ITEM 23 - 2 off) is positioned on either side of the Flow Control Plate and secure in position with an M6 Lock Nut (ITEM 9).

To complete the assembly, insert the R Clip (ITEM 30) into the hole in the vertical shaft of the Gear Box and Axle Assembly (ITEM 2) from the inside of the Hopper (ITEM 25).

OPEN

CLOSED

ITEM 24

Before use, push the Lever (ITEM 24)

downwards to close the apertures in

the base of the Hopper (ITEM 25) and

pull the Lever upwards to open the

apertures.

If the apertures in the base of the Hopper do not match the apertures in

the Flow Control Plate (ITEM 29), adjust the position of the two nuts along the

threaded Control Rod (ITEM 28).

Once the apertures are aligned, fully tighten both nuts.

To limit the size of the open apertures

when operating the Lever, move the

position of the Wing Nut (ITEM 24).

ITEM 25

ITEM 28

ITEM 29

ITEM 24

Page 8

Ensure the Flow Control Lever is pushed downwards and the apertures in the base of the Hopper are closed before lling the Hopper with the spreading material.

We recommend Glasdon Icemelt or other dry granular material. Do not use damp or

wet grit/salt and do not overload the hopper (maximum capacity approximately 50kg).

To operate the spreader, pull the Flow Control Lever upwards and push the spreader forward. The recommended operating speed is approximately 3mph, that of a brisk walk. The spinner plate speed and spread width are controlled by the speed at which

you push the spreader.

OPERATION:

• Do not overll the hopper.

• Break up any lumps as you ll the hopper.

• Do not ll the hopper and transport over long distances.

• Fill the hopper at the operating location just prior to use.

OPERATING TIPS:

MAINTENANCE:

• To maximise the life of your spreader and to ensure it performs when you need it,

please maintain your spreader regularly.

• Never allow your spreading material to remain in the hopper for extended periods of time - salt is hygroscopic, it will absorb moisture in the air and can set hard like

concrete!

• Periodically check all xtures and ttings for tightness.

• Rinse/dry inside and outside of the spreader after each use.

• Move the Flow Control Lever and Spinner Plate as you rinse to avoid build up of

material.

• Spray with maintenance spray (e.g. WD40) which will drive out highly corrosive saltwater from the working parts and metal surfaces and will protect and lubricate.

AND ICEMASTER ARE TRADEMARKS OR REGISTERED TRADEMARKS OF GLASDON GROUP OR IT’S SUBSIDIARIES IN THE U.K. AND OTHER COUNTRIES.

• A planned maintenance schedule or regular inspection is recommended, replacing

components as necessary.

• Replacement components are available from GLASDON.

• GLASDON cannot be held responsible for claims arising from incorrect installation or assembly, unauthorised modications or misuse of the product.

• Glasdon UK Limited reserve the right to alter specications without prior notice

DWG No. 14B019-06
