Magnetic Stripe Reader
JC-1290 SERIES
OPERATION
MANUAL
1
MSR JC-1290 series User’s Manual
This equipment has been tested and found to comply with the limits for Class
A digital device. Pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in aresidential
installation. This equipment generates, uses, and if not installed and used in
accordance with the instructions may cause harmful interference will not occur in
a particular installation. If this equipment does causeharmful interference to radio
or television reception, which can be determined by turning the equipment off and
on.
The user is encouraged to try correct interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. This booklet
is available from the U.S. government Printing Office, Washington, DC 20402,
Stock NO.004-000-00345-4.
CAUTION:
Any changes of modifications not
expressly approved by the grantee of this device
could void the user’s authority to operate the
equipment.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received including interference that
may cause undesired operation.
2
Table of Contents:
Chapter 1 Appearance............................................................................3
Chapter 2 Installation
2-1. JC-1290 KB Series ..............................................................4
2-2. JC-1290 RS232 Series.........................................................5
2-3. JC-1290 USB Series............................................................6
Chapter 3 Driver Installation................................................................7
Chapter 4 Programming Tools
4-1. Install Programming Tool................................................10
4-2. Execution Programming Tool..........................................15
4-3. Main Setting......................................................................20
4-4. MSR right side button function........................................21
4-5. Track 1~3 Setting..............................................................22
4-6. MSR ISO Standard Setting...............................................23
4-7. Firmware Update..............................................................24
4-8. Switch Setting....................................................................26
Appendix I – Specification.................................................................27
Troubleshooting....................................................................................28
MSR JC-1290 series User’s Manual
3
RJ-45 Connector
MSR 1290
MSR JC-1290 series User’s Manual
CHAPTER 1
Appearance
4
PS/2 Keyboard
JARLTECH
Touch POS 8802
JARLTECH
JC-1290
Keyboard
MSR JC-1290 series User’s Manual
CHAPTER 2
Installation
2-1. JC-1290 KB series
The MD-6M side of KB cable, shall be connected to PC PS/2 Keyboard port.
The MD-6F side of KB cable can be connected to normal PC keyboard, PC keyboard can
work with the product together.
5
JARLTECH
Touch POS 8802
JARLTECH
JC-1290
RS232
MSR JC-1290 series User’s Manual
2-2. JC-1290 RS232 series
The DB-9F side of RS232 cable connects
, and power connects to USB .
to PC COM port (COM 1 or COM 2 or other COMs)
6
JARLTECH
Touch POS 8802
JARLTECH
JC-1290
OR
USB-KB
USB-RS232
MSR JC-1290 series User’s Manual
2-3. JC-1290 USB series (USB-KB & USB-RS232)
Step 1: Connect to the computer
Plug the USB-connector into the USB port of your computer.
MSR USB will have “Beep” sound to indicate that it is ready for operation.
MSR USB simulates
RS232 and Keyboard interface by USB with COM port selected.
Following sections are MSR USB driver, utilities installation.
7
JC-1290 KB series : Standard PS/2 keyboard interface.(no driver needed)
JC-1290 RS232 series : Standard com port interface.(no driver needed)
JC-1290 USB-KB series : Standard usb keyboard interface.(no driver needed
in Win2K/XP/2003/Vista )
JC-1290 USB-RS232 series : CP210x Visual COM V5.0 for Win2K/XP/2003/Vista
Please refer to the following picture to install USB-RS232 driver
Insert CD-ROM and select "CP210x windows_2K_XP_S2K3_Vista" folder.
MSR JC-1290 series User’s Manual
CHAPTER 3
Driver Installation
1290 USB Driver for Windows
Specification.:
1. Support Microsoft Windows 2K/XP/2003/Vista
2. Support Visual COM port.
3. Plug and Play.
How to Install:
Setting COM port as 9600-N-8-1.
3. Swiping the magnetic card, tracks data will be shown on the screen.
1.When you plug-in 1290 USB, Windows operating system will detect
new hardware.
a. Follow indicated steps to install the drivers (Please select the driver in the
disk) and finish the installation.
How to Test Visual COM:
1. After you installed 1290USB driver, then hardware will assign an USB
simulated COM for 1290USB. So, you have to check the USB
assigned COM port from “Device Manager” of windows operating
system before you starting to get data from 1290USB .
2. Use COM test software to open simulated com port .
8

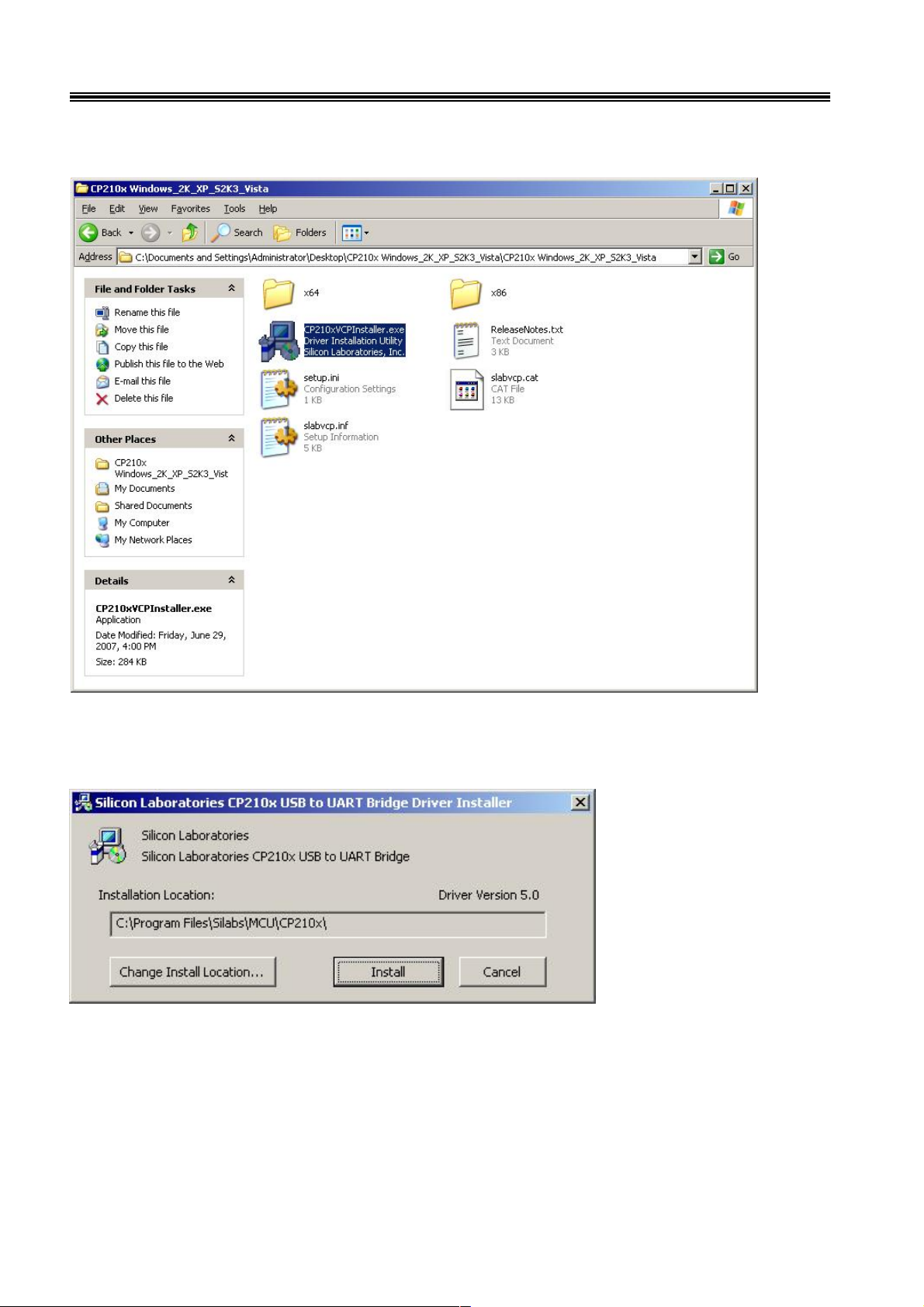

Please select the "CP210xVCPInstaller.exe"
When the setup screen appears than to select "Install" step.
MSR JC-1290 series User’s Manual
9
After installation complete select “OK”.
Please connect the 1290 USB-RS232 to computer, then check the device
installed normally in device manager.
"Silicon Labs CP210x USB to UART Bridge(COM6)"
Notes: COM number may be different on each computer.
MSR JC-1290 series User’s Manual
10
Insert CD-ROM and select "1290_Programming_Tool_V1.exe".
When the setup screen appears than to select "Next" step.
4-1. Install Programming Tool
Note: Please install Microsoft .NET Framework 2.0 first.
Download Web site:
http://www.microsoft.com/downloads/details.aspx?
familyid=0856EACB-4362-4B0D-8EDD-AAB15C5E04F5&displaylang=zh-tw
MSR JC-1290 series User’s Manual
CHAPTER 4
Programming Tool
11
When the setup screen appears than to select "Next" step.
Please select "I agree.." than to select "Next"step.
MSR JC-1290 series User’s Manual
12
When the setup screen appears than to select "Next" step.
When the setup screen appears than to select "Yes".
MSR JC-1290 series User’s Manual
13
When the setup screen appears than to select "Start" step.
When the setup screen appears than to select "Next" step.
MSR JC-1290 series User’s Manual
14
After installation complete select “Exit”.
MSR JC-1290 series User’s Manual
15

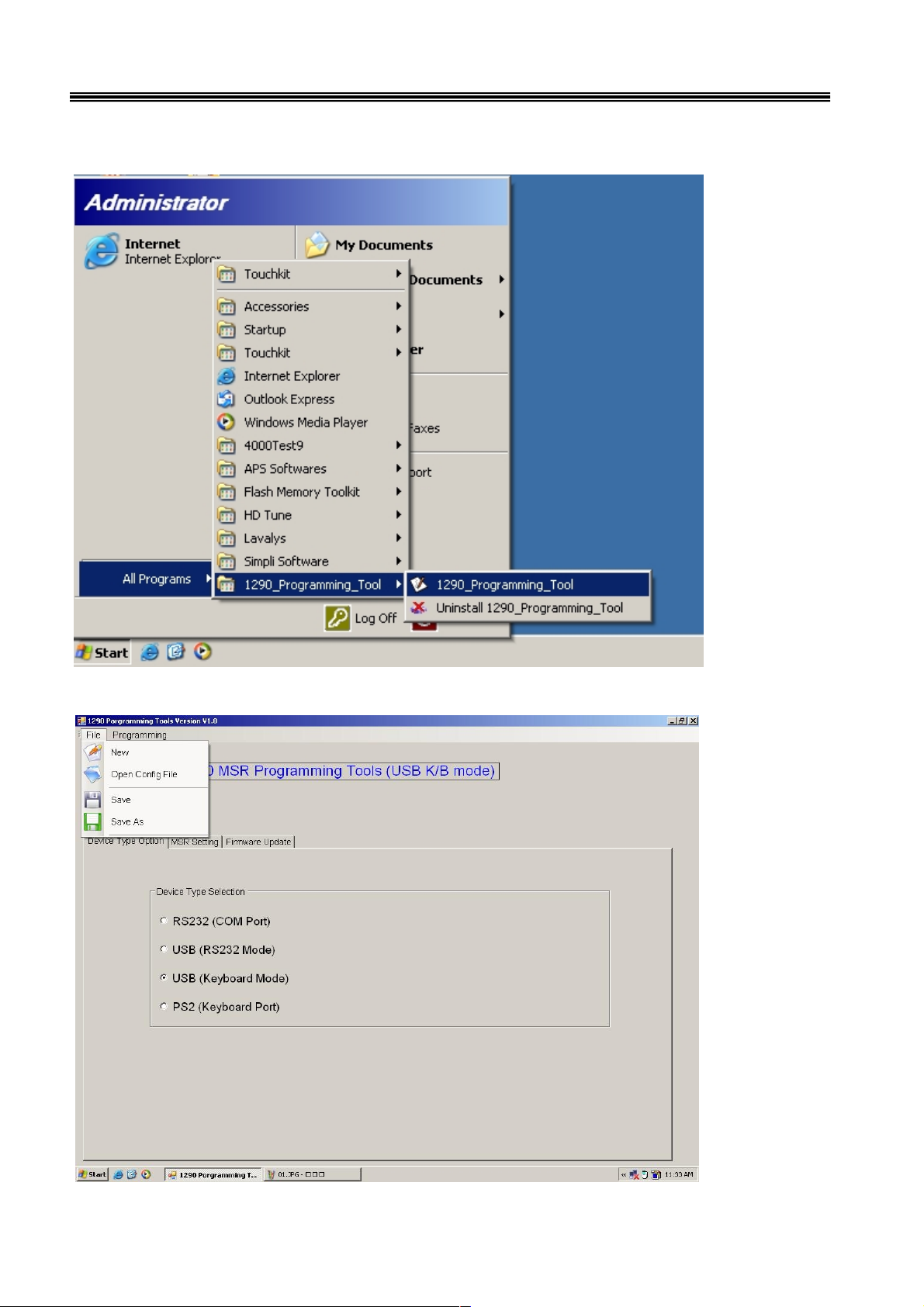

Please click the"File" on the functionality.
Please Executive the "1290_programming_Tool"
4-2. Execution Programming Tool
MSR JC-1290 series User’s Manual
16

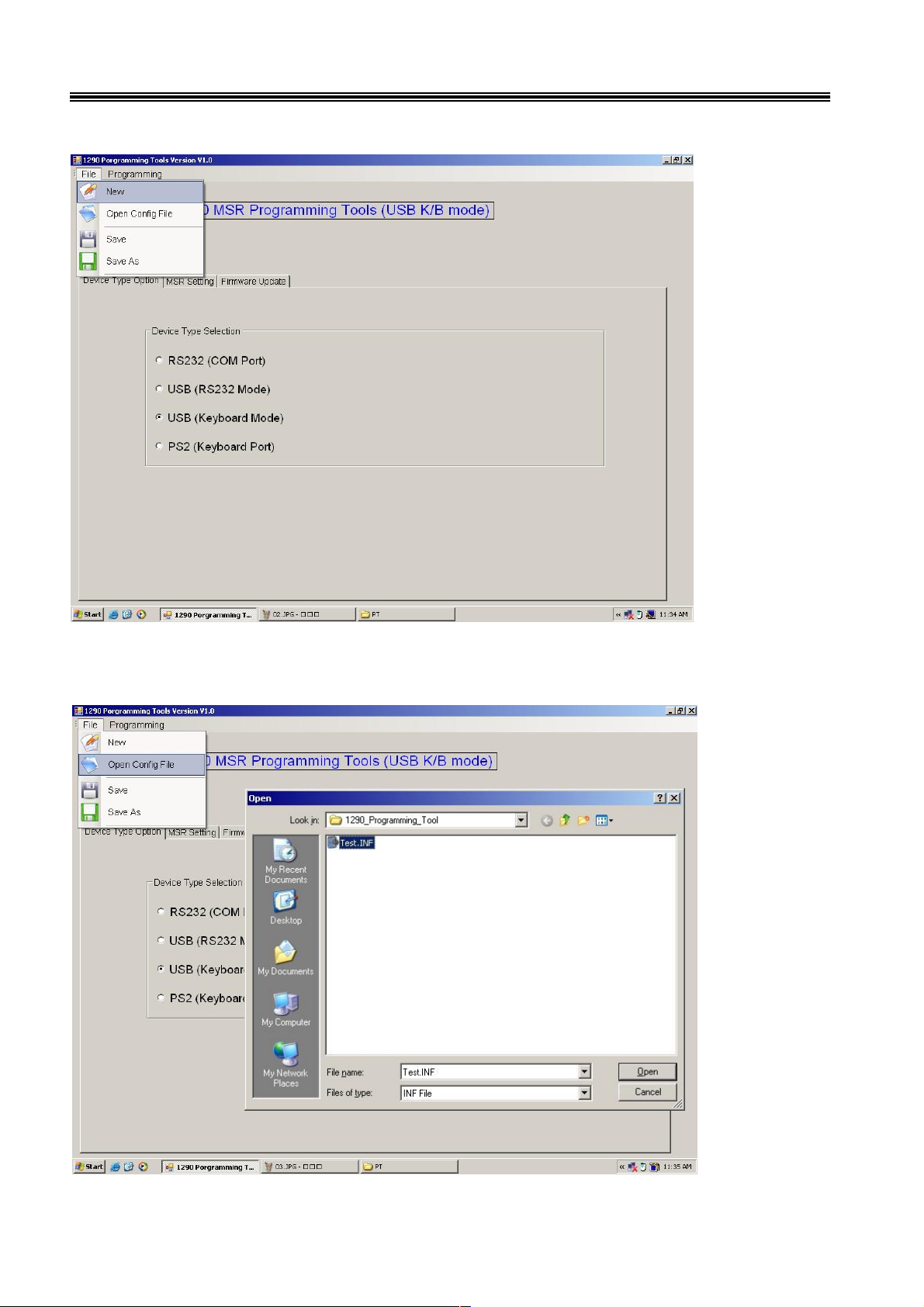

Please choose the device type first, USB(Keyboard) is for example.
Please Click "New" to create a new file.
Please Click "Open config File" to open the saved file.
MSR JC-1290 series User’s Manual
17
Please Click "Save" to save the file.
Please Click "Save As" to save a another file.
MSR JC-1290 series User’s Manual
18

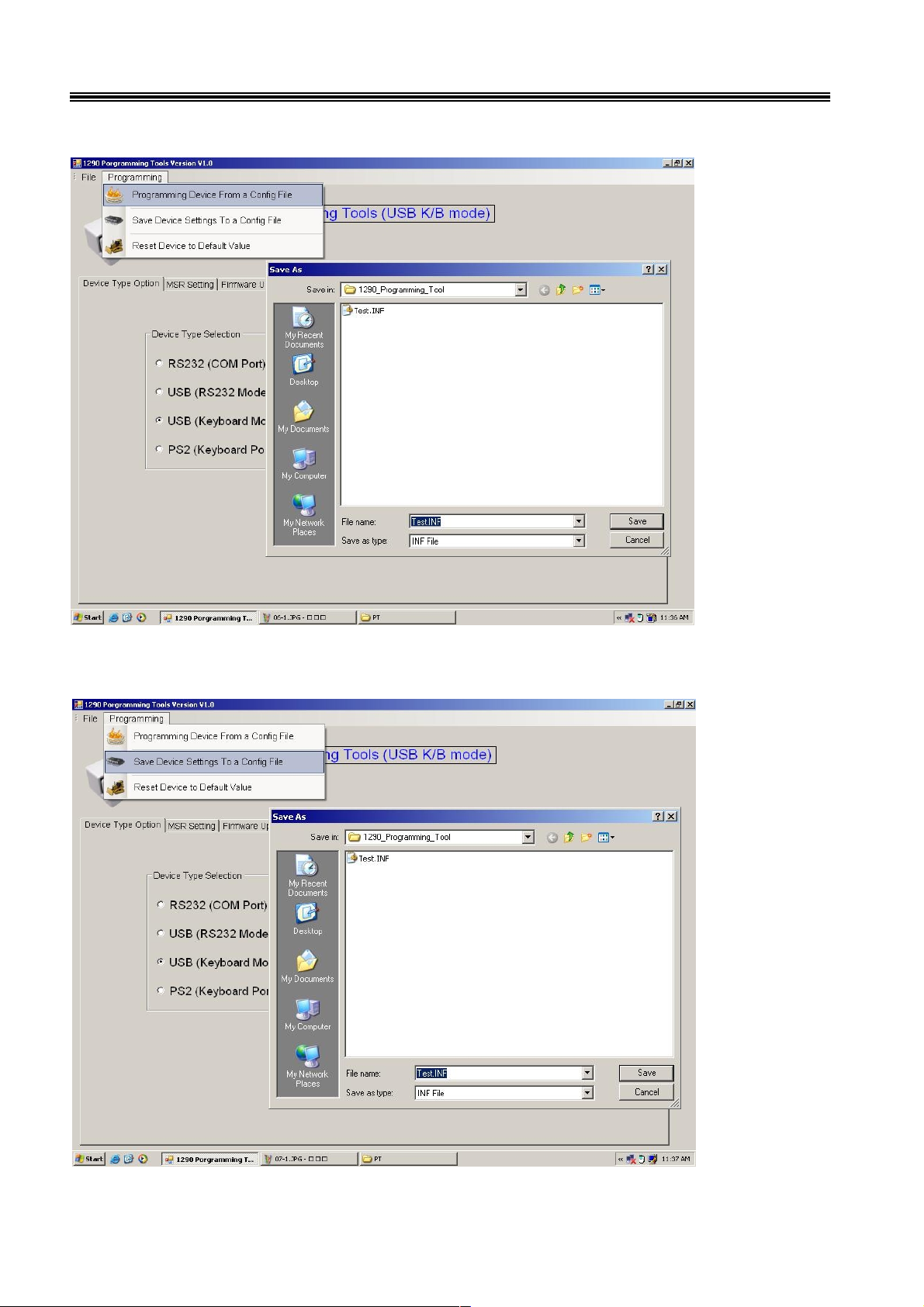

This function can programming device form a config file.
This function can save device setting to a config file.
MSR JC-1290 series User’s Manual
19

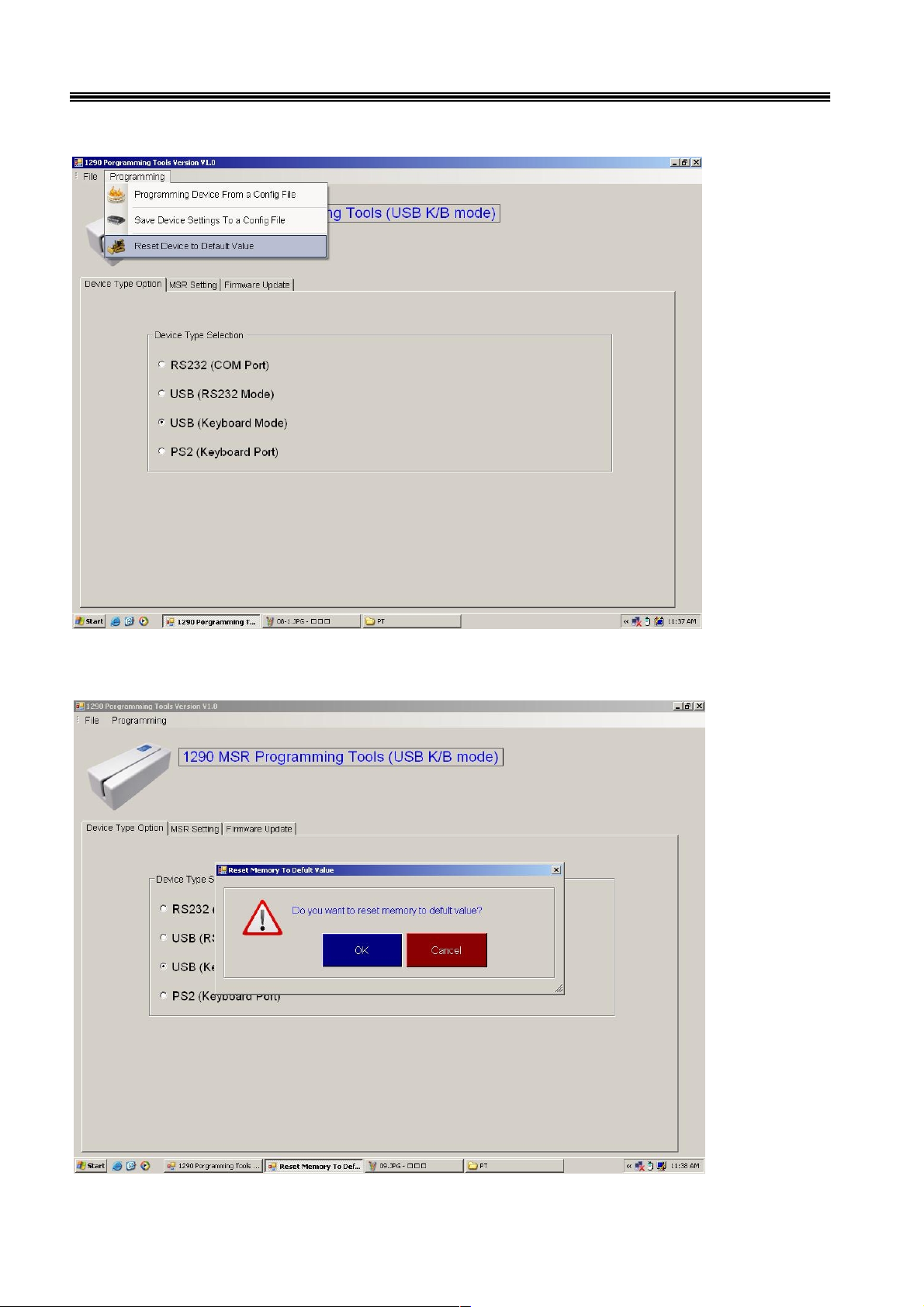

This function can reset device to default value.
Please choose whether to reset in this screen.
MSR JC-1290 series User’s Manual
20
Error Beep Sound:
Enable / disable sound when MSR reading error.
Prefix / Suffix:
Enable or disable prefix / suffix for MSR data
When the check box on, you can edit the prefix / suffix,every fields in up to 7 characters.
Note: The format of output data is:
[MSR Prefix] [Track1 data] [Track2 data] [Track3 data] [MSR Suffix]
4-3. Main Setting
MSR JC-1290 series User’s Manual
21
MSR Write:
This Button is for write the data settings to MSR JC-1290.
Set Default:
This Button is for set the data to default.
Load Key Setting:
This Button is for load the setting from MSR device.
Test:
This button is for show test window.
4-4. MSR right side button function
MSR JC-1290 series User’s Manual
22

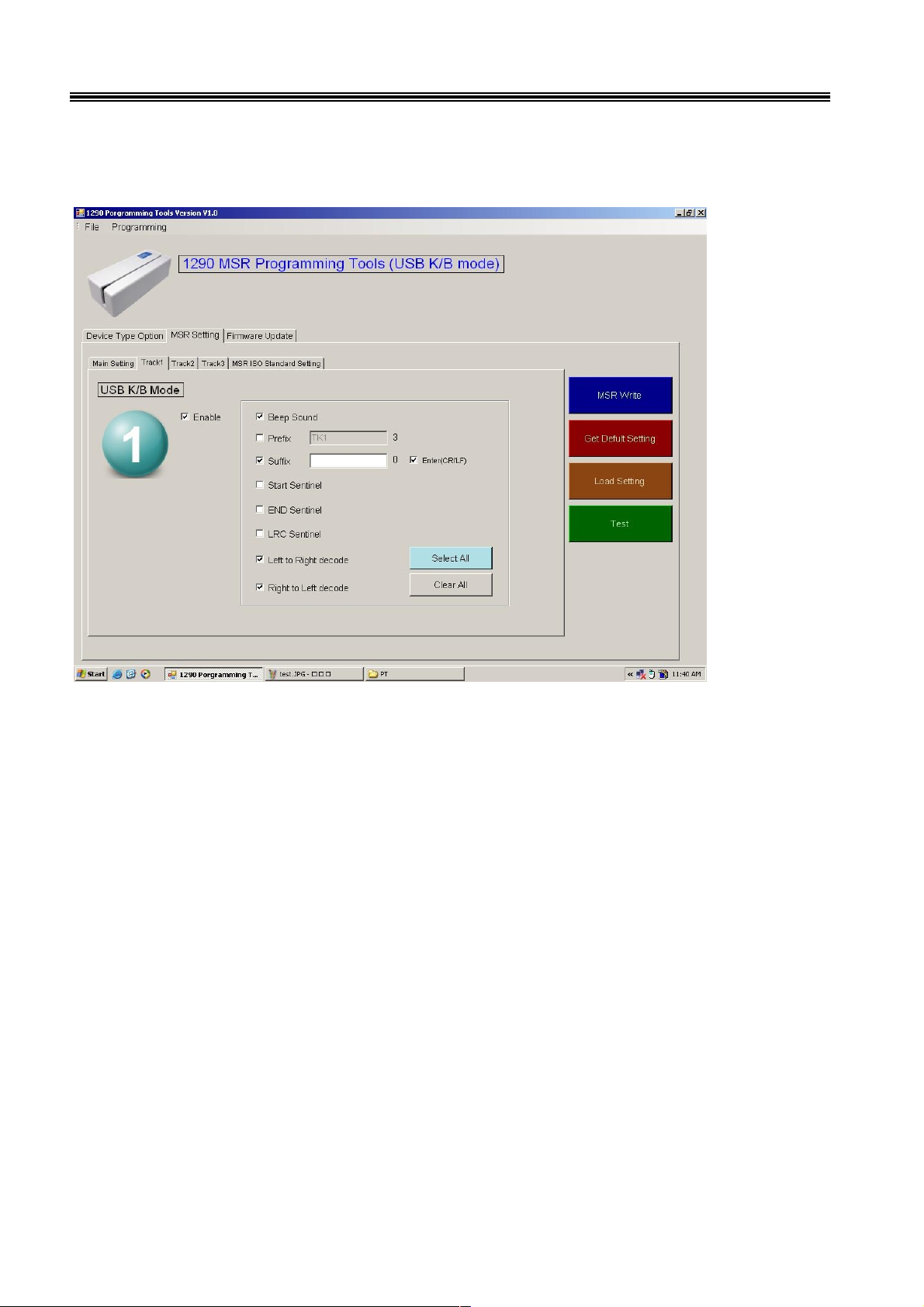

4-5. Track1~3 Setting
Beep Sound
Enable / disable sound when MSR reads the data of card track.
Prefix / Suffix
Enable or disable prefix / suffix for the data of card track.
Start Sentinel
Enable / Disable track start sentinel
(Track 1 start sentinel is “% “, Track 2 / 3 start sentinel is “; “ )
End sentinel
Enable / Disable track end sentinel
(The end sentinel is “? “ for all tracks)
LRC sentinel
Enable / Disable the LRC sentinel is the checksum character for the data of card track.
Left to Right decode and Right to Left decode
You can make choice to decide the user to swipe card and read data only from left to right
or from right to left or both ways
i.e: Track1 data output.
[Track1 Prefix][Start][Track1 Data][END][LRC][Track1 Suffix]
Track2 & Track3 so on..
MSR JC-1290 series User’s Manual
23

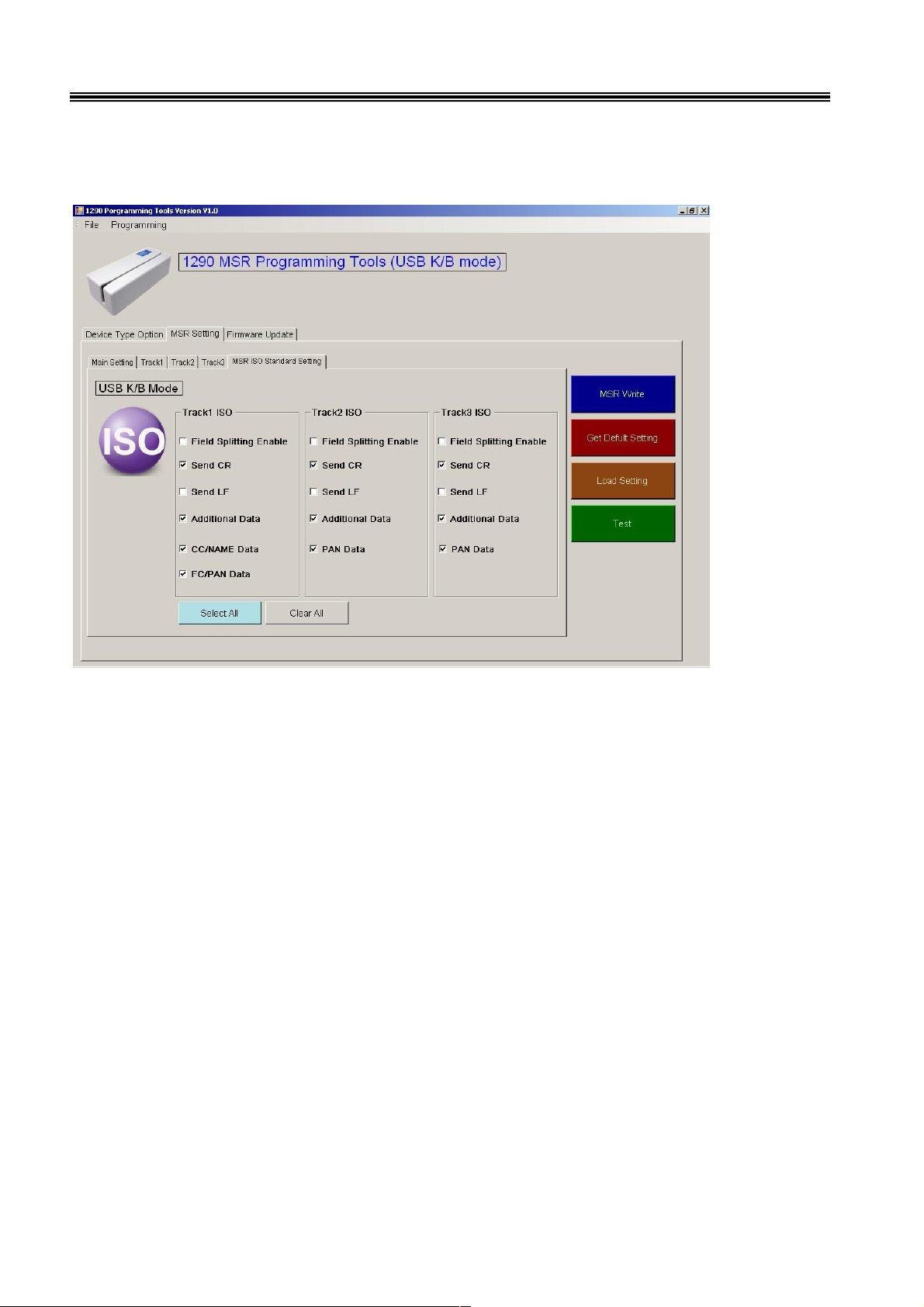

4-6. MSR ISO Standard Setting
For the ISO standard field settings, you need to set the check box of "Field
Splitting Enable" for ON, then the data of card track will be outputted and
follow the ISO standard fields.
You can set the "Send CR" or/and "Send LF" for every ISO fields.
Block Format
i.e: Track1 data output when ISO Field Splitting Enable.
[Additional Data][CC/NAME Data][FC/PAN Data][CR][LF]
Track2 &Track3 so on..
MSR JC-1290 series User’s Manual
24
4-7. Firmware Update
Special Note:
The JC-1290 provides new features update or modification
from the programming tool, please visit Jarltech web site or
contacts the suppliers for the information.

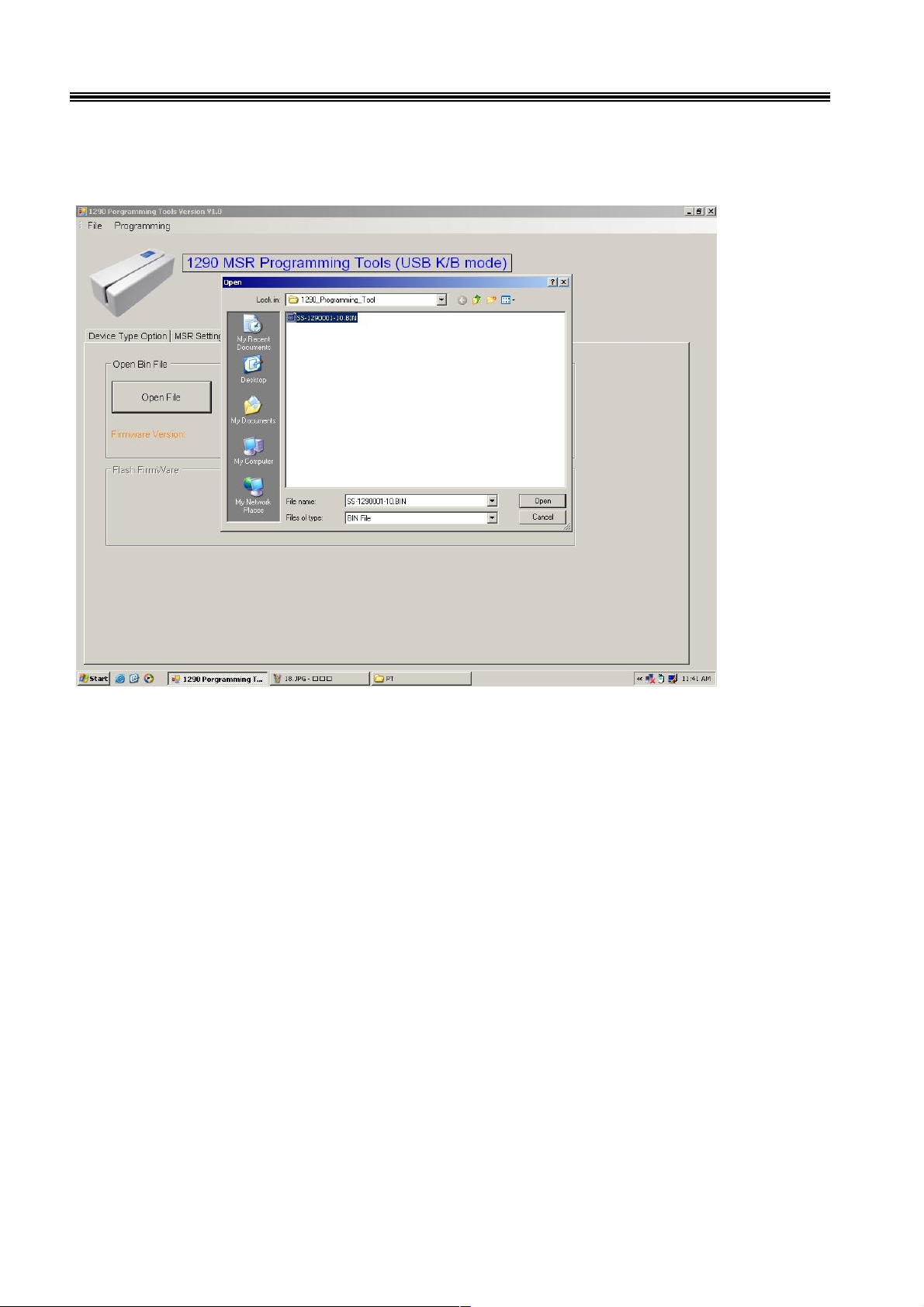

Step 1.
When you click "Open File" button will pop up the window, select the BIN file
then click "Open".(Picture on the "SS-1290001-10.bin" is an example)
MSR JC-1290 series User’s Manual
25
Step 2.
When the picture show on F/W Version after the press "Flash Firmware"
button to update.
Note:
Please do not power off the JC-1290 or removal the usb cable
when updating firmware.
MSR JC-1290 series User’s Manual
26
4-8. Switch Settings
This switch is provides the user for fast settings.
MSR JC-1290 series User’s Manual
Default is all OFF
OFF ON
SW1 Track data sets by software Fixed track data output:
1. Fully track data.
2. Fixed prefix: Track1 “%” , Track2 “;” , Track3 “+”
3. Send [ENTER] (KB mode)
or <0Dh><0Ah> (RS232 mode) after each track.
SW2 Normal ISO Track 2 Track2 for Credit Card (Only Show Card number)
SW3 Auto Caps lock ON (USB-KB) when
Card data output
SW4 Prefix/suffix output in ASCII mode Prefix/Suffix output in Scan code mode
SW5 Enable Buzzer Disable Buzzer
SW6 Software sets RS232 Baud RS232 Baud rate fix to 9600
SW7 Normal Operation Reset all settings to default
SW8 Card Data output in ASCII mode Card Data output in Scan code mode
Disable Auto caps lock ON
27
MSR JC-1290 series User’s Manual
Appendix I : Specifications
Model
Decoding Capability
Card Reading
Magnetic Head Life
Card Format Supports
Status Indicator
Programming Capabilities
System Compatibilities
Interfa
ce
Power Consumption
Dimension
(L)x(W)x(H)mm
Speed
MSR JC-1290
Triple-tracks: Tracks 1 & 2 & 3
7.5 to 125 cm/sec
Bi-directional
300,000 passes
ISO standard 7810,7811,7812,7813
Audible beep for each
Successful reading
Track selection
Prefix (7 characters max.)
Suffix (7 characters max.)
Field selection
Start and end sentinel
LRC selection
Inter-character delay
Inter-scan code delay
RS232 parameters (baud rate,)
RS232C interface : IBM AT, Compatibles.
USB interface : USB port on IBM AT or compatibles
Keyboard Wedge Interface : IBM AT, PS/2
Standard RS232
Standard PS/2 Keyboard
USB-KB (USB Keyboard Mode)
SB-RS232 (USB RS232 Mode)
U
During operation: max 100 mA
While idle: 30 mA
Physical Dimension
Physical: 115mm x 46mm x 34mm
Package: 238mm x 146nn x 47mm
Weight
Color
N.W: 100g
G.W: 110g
Black, White
Environment
Operating Temperature
Operating Humidity
EMC & Safety
0℃~ 45℃ (32℉ ~ 113℉)
0% ~ 80% RH non condensing Storage Humidity 10% ~ 90% RH non condensing
Certification
FCC, CE, RoHS, Class A
Storage Temperature
-20℃~ 60℃ (-4℉~ 140℉)
28
Troubleshooting
Q1. When 1290 USB plug-in the USB port, the operating system will require
to install the driver?
Ans: It needs to install the specialized driver of 1290 USB. After installation,
it will produce a virtual COM port in the administrator.
Q2: 1290 USB swipes with “Beep” sound, but the data can’t show up on the
screen.
Ans: Step 1. Confirm the 1290 driver installation properly.
Step 2. Confirm the testing program of RS232 or COM operating properly
and the opened COM port is correct.
Step 3. Confirm the Baud Rate of opening COM port is 9600.
Step 4. Confirm there is no application program using the COM port.
Step 5. If the “Beep” sound is long-short-short, it means the card reader
can’t read the data from the card. Please check the card status
in advance is available or change new card for testing.
Q3.1290 USB plug-in to USB port, there is no reaction.
Ans: A. Use other USB devices for testing the USB port is available or not.
B. If the USB port is ok, use new 1290 USB for testing the unit is available
or not. If not available, it means the 1290 USB is damaged.
Q4. The 1290 USB transmission speed?
Ans: Please note the USB communication Interface is 1.1 Version. The
transmission Baud Date of the virtual RS232 COM port is 9600bps-N-8-1.
Q5. Why 1290 RS232 needs to connect the 5V Power supply?
Ans: Because the PC Standard COM port doesn’t provide the output of power.
MSR JC-1290 series User’s Manual
29
Q6. After connecting the cable of 1290 K keyboard to PC, the swiping data
can’t show up on the screen?
Ans: A. The connection of 1290 K keyboard cable should be ready before you
turn on the computer. Otherwise, the keyboard device is no action.
B. Please use the software which can receive from the keyboard data for
testing, such as Note pad, Microsoft Word…so on.
Q7. Installation of 1290 Series, how about the normal “Beep” sound?
Ans: Plug-in the power supply, it will have the response of sound, “Beep”.
After 1290 device automatically checks, 1290 will have 2 short sounds,
1290 USB/R will have 2 long sounds. The led indicator will present “Green.”
If the sound is 1 short and 1 long sound, the led indicator is glimmering
and exchanging. It means the 1290 firmware is wrong. Please check the
firmware version and upgrade it. (Please return Jarltech and make tough
body to upgrade firmware)
MSR JC-1290 series User’s Manual
Jarltech Internaional Inc.
Taipei Office: 3F, No.1, Lane 538, Chunng Cheng Road, Hsin Tien City,Taipei ,Taiwan ROC.
Website: www.jarltech.com.tw
E-mail: service@jarltech.com.tw
Loading...
