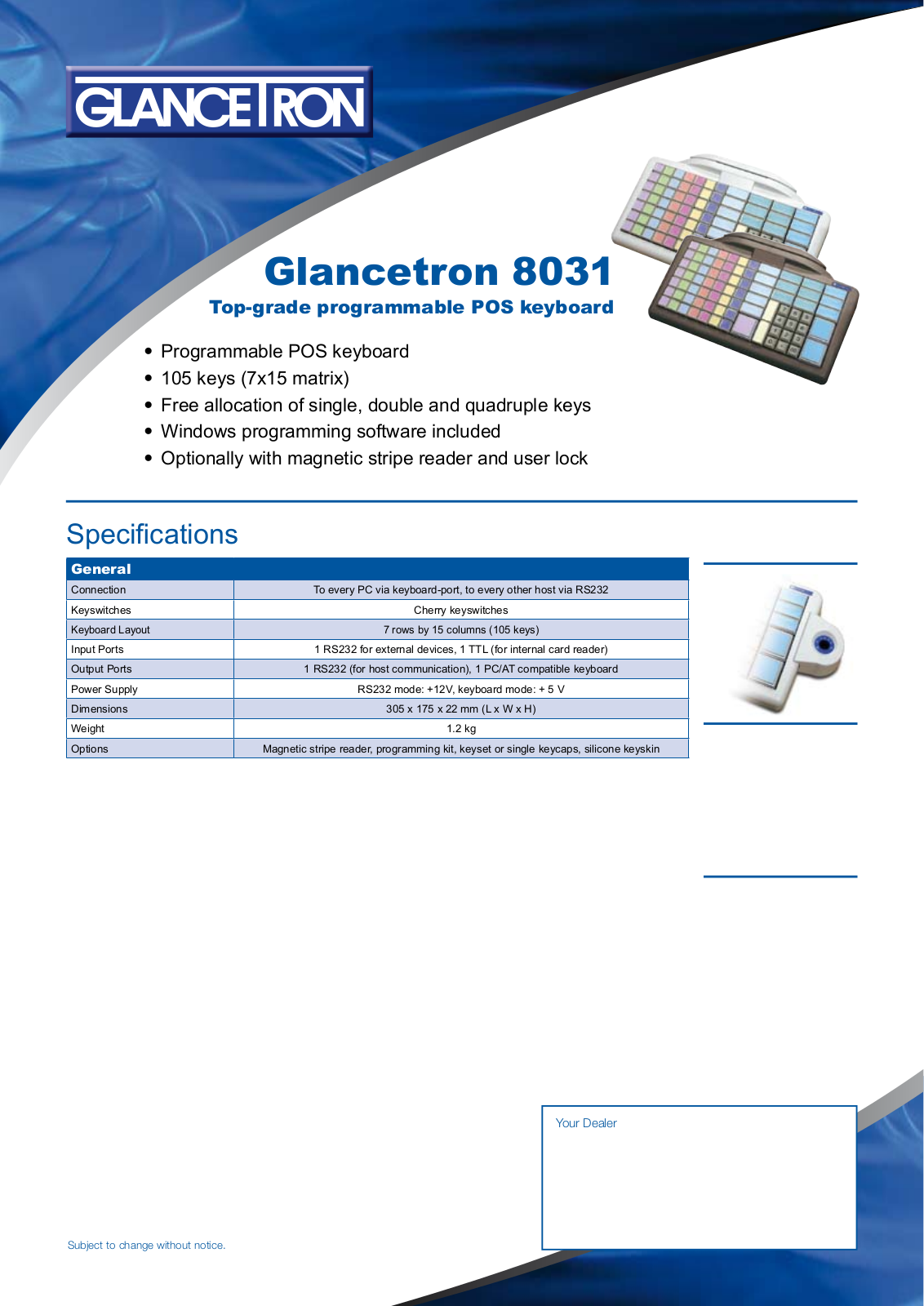

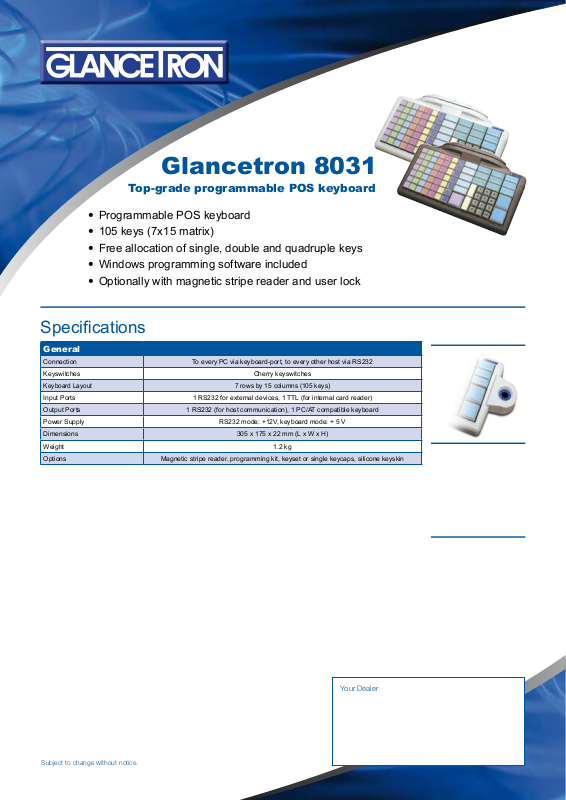

Glancetron 8031 Specifications

Top-grade programmable POS keyboard

• Programmable POS keyboard

• 105 keys (7x15 matrix)

• Free allocation of single, double and quadruple keys

• Windows programming software included

• Optionally with magnetic stripe reader and user lock

Specications

Glancetron 8031

General

Connection To every PC via keyboard-port, to every other host via RS232

Keyswitches Cherry keyswitches

Keyboard Layout

Input Ports 1 RS232 for external devices, 1 TTL (for internal card reader)

Output Ports 1 RS232 (for host communication), 1 PC/AT compatible keyboard

Power Supply RS232 mode: +12V, keyboard mode: + 5 V

Dimensions 305 x 175 x 22 mm (L x W x H)

Weight 1.2 kg

Options Magnetic stripe reader, programming kit, keyset or single keycaps, silicone keyskin

7 rows by 15 columns (105 keys)

Subject to change without notice.

Your Dealer
