Gladiator GGW1215 Installation & Assembly

Page 1

32" (81.3 cm), 42" (106.7 cm)

Prepare the GearTrack®Channels

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

• Stud nder

• AC nder

• Square

• Pencil

Screw Length for Wall Type

Screw

Length*

Masonry

Wall

Bare Wood

Studs

Drywall over Wood Studs

⁄2"

(1.27 cm)

⁄8"

(1.59 cm)

⁄4"

(1.91 cm)

⁄4" (3.18 cm)

32" (81.3 CM) AND 48" (121.9 CM) AND 53.15" (135 CM) GEARTRACK®CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(for use with Gladiator®GarageWorks products only)

Prepare the GearTrack®Channels

IMPORTANT:Use correct screw length for your wall type. See chart

below.

*For bare wood studs and covered walls, use an all-weather flat-head type deck screw.

For concrete block and poured masonry, use a flat-head type masonry screw. For drywall of a thickness not listed in the chart above, see graphic below.

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

Additional Tools and Parts Needed for Masonry Block/Poured Concrete Wall Installation:

• Hammer drill

• Caulk gun

•

⁄ 16" x 13⁄ 4" (4.45 cm) Flat-head masonry screws (6 screws per channel)

NOTE:GearTrack® Channels can be cut and drilled with ordinary woodworking equipment. Additional tools may be needed.

Use Requirements

• Maximum coverage per wall is 33% of the wall surface area.

• Maximum weight limit is 75 lbs (34 kg) per linear ft (30.48 cm).

• GearTrack®Channels can be mounted directly to masonry wall, ov

drywall to wooden studs, or to bare wooden studs.

• Intended for use in a garage or basement.

NOTE:Before installing GearTrack®Channels to masonry walls, you must waterproof the wall to avoid mildew or foundation damage. Walls that appear dry may actually become damp when enclosed b

y paneling. Install the channel in accordance with all local codes and ordinances.

• Stud nder

• AC nder

• Square

• Pencil

• Construction adhesive

•

⁄ 32" Masonry drill bit

Screw Length for Wall Type

Screw

Length*

Masonry

Wall

Bare Wood

Studs

Drywall over Wood Studs

⁄2"

(1.27 cm)

⁄8"

(1.59 cm)

⁄4"

(1.91 cm)

#8 X 1

⁄4" (3.18 cm)

#8 X 2" (5.08 cm)

⁄16" X 13⁄4" (4.45 cm)

(Screw Not Included)

32" (81.3 CM) AND 48" (121.9 CM) AND 53.15" (135 CM) GEARTRACK®CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(for use with Gladiator®GarageWorks products only)

(Screw Not Included)

Prepare the GearTrack®Channels

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

Additional Tools and Parts Needed for Masonry Block/Poured Concrete Wall Installation:

• Hammer drill

• Stud nder

• AC nder

• Square

• Pencil

• Construction adhesive

Screw Length for Wall Type

Screw

Length*

Masonry

Wall

Bare Wood

Studs

Drywall over Wood Studs

⁄2"

(1.27 cm)

⁄8"

(1.59 cm)

⁄4"

(1.91 cm)

⁄4" (3.18 cm)

32" (81.3 CM) AND 48" (121.9 CM) AND 53.15" (135 CM) GEARTRACK®CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(for use with Gladiator®GarageWorks products only)

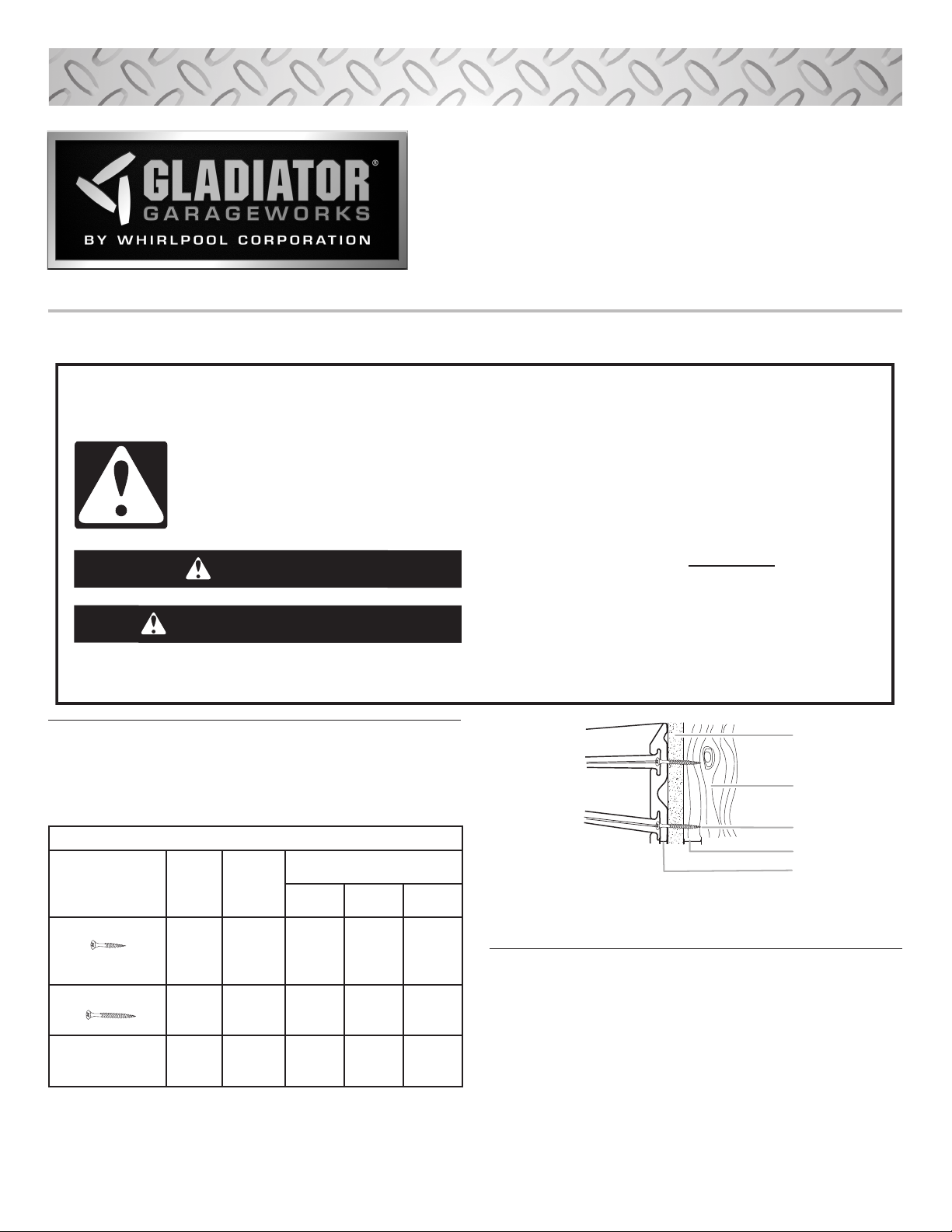

AND 48" (121.9 cm) GEARTRACK® CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(For use with Gladiator® GarageWorks products only)

SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

follow instructions.

You

can be killed or seriously injured if you don't

instructions.

Prepare the GearTrack®

IMPORTANT: Use correct screw length for your wall type. See chart below.

Screw

#8 x 1

(screw not included)

#8 x 2" (5.08 cm)

⁄16" x 13⁄4" (4.45 cm)

(screw not included)

* For bare wood studs and covered walls, use an all-weather ﬂat-head type deck screw.

For concrete block and poured masonry, use a ﬂat-head type masonry screw. For drywall of a thickness not listed in the chart above, see graphic below.

W10343308D

Length*

⁄4" (3.18 cm)

Channels

Screw Length for Wall Type

Masonry

Wall

Bare Wood Studs

(1.27 cm)

Drywall over Wood Studs

⁄2"

✓

✓ ✓ ✓

✓

(1.59 cm)

⁄8"

⁄4"

(1.91 cm)

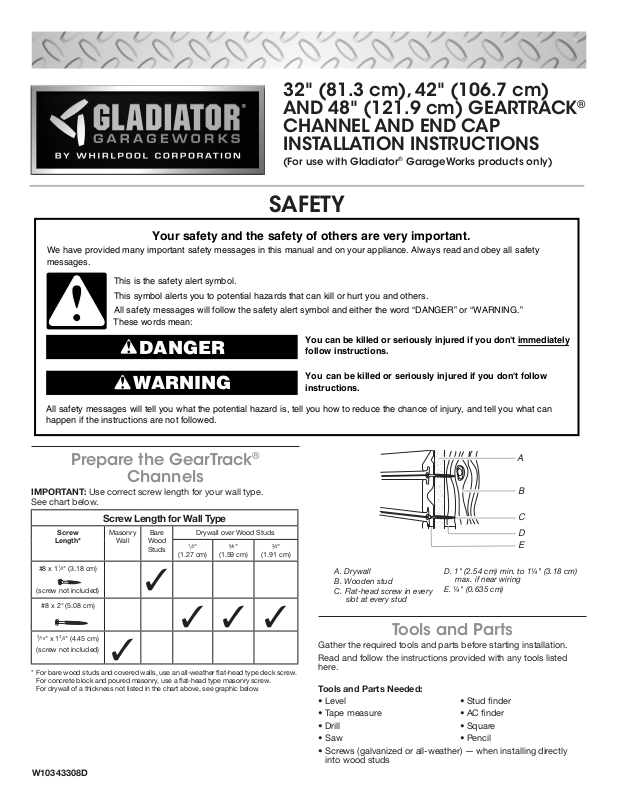

A. Drywall B. Wooden stud C. Flat-head screw in every

slot at every stud

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed

here.

D. 1" (2.54 cm) min. to 1¼" (3.18 cm)

max. if near wiring

E. ¼" (0.635 cm)

Tools and Parts

Tools and Parts Needed:

• Level • Stud ﬁnder

• Tape measure • AC ﬁnder

• Drill • Square

• Saw • Pencil

• Screws (galvanized or all-weather) — when installing directly into wood studs

Page 2

Install the GearTrack® Channel End Caps

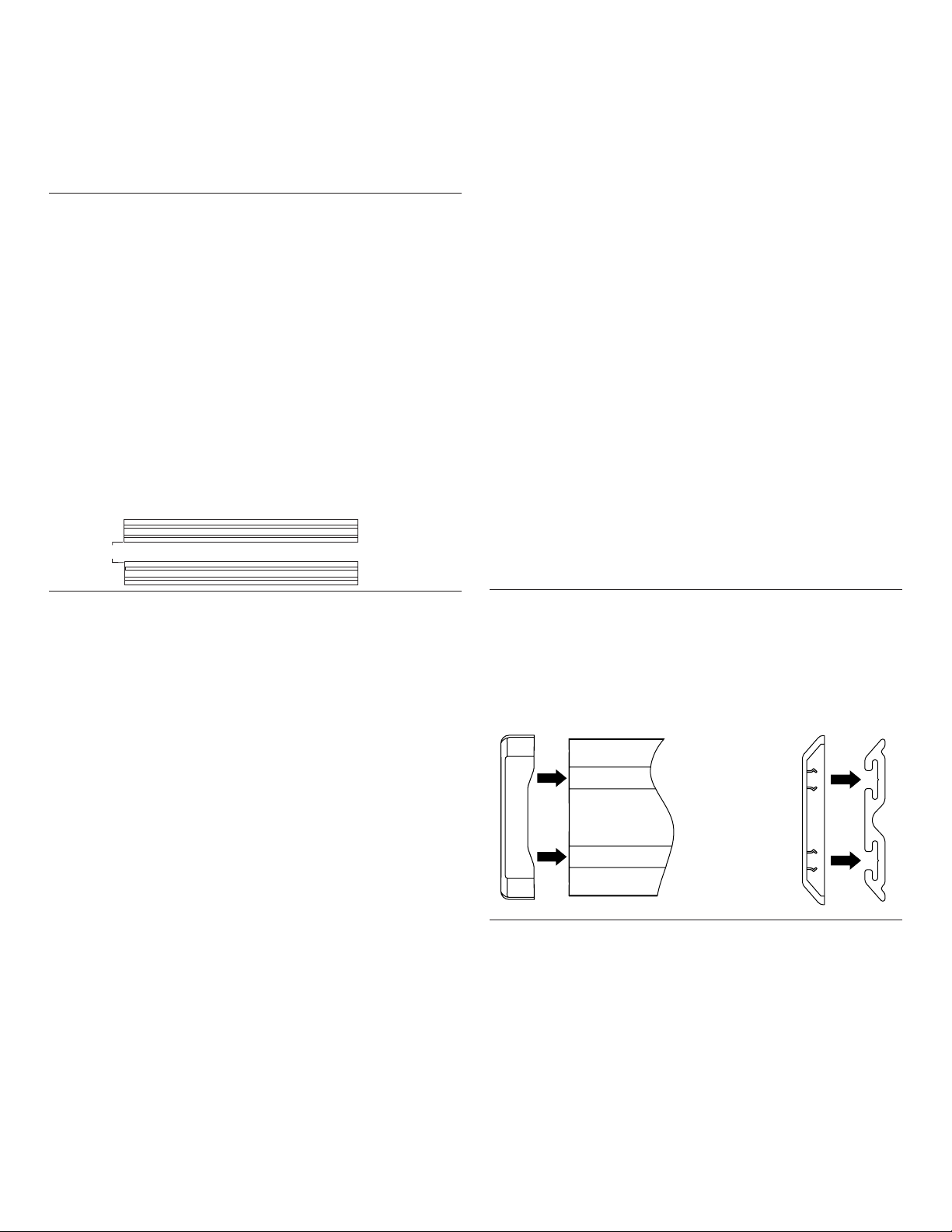

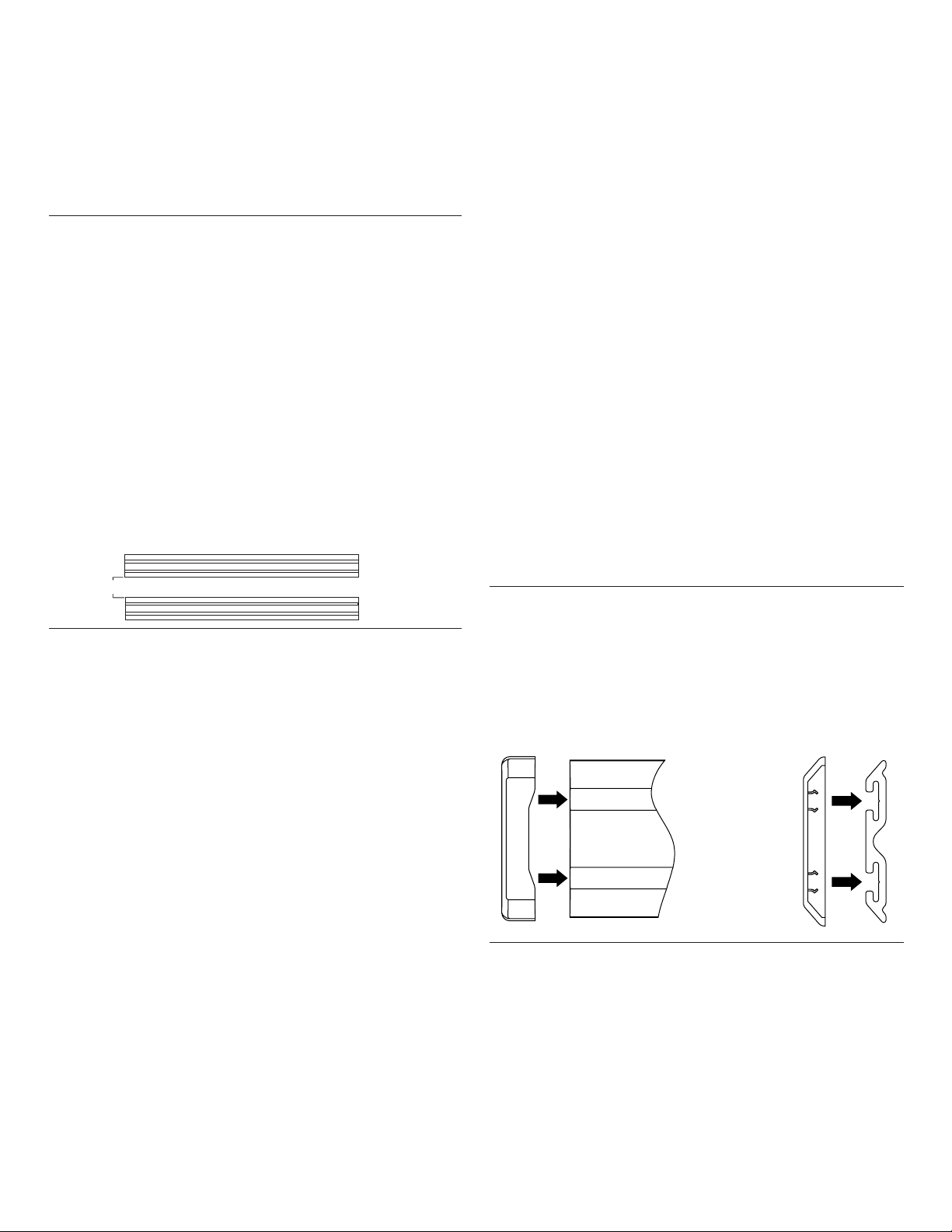

From the side, slide the end cap onto each end of the GearTrack® Channel.

From the front, snap the end cap onto each end of the GearTrack® Channel.

Install the GearTrack® Channel End Caps

Warranty

For warranty information: In the U.S.A., visit our website at www.GladiatorGW.com or call

1-866-342-4089. In Canada, visit our website at www.gladiatorgarageworks.ca or call

1-800-807-6777.

From the side, slide the end cap onto each end of the GearTrack® Channel.

From the front, snap the end cap onto each end of the GearTrack® Channel.

Additional Tools and Parts Needed for Masonry Block/

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

Additional Tools and Parts Needed for Masonry Block/Poured Concrete Wall Installation:

• Hammer drill

• Caulk gun

•

⁄ 16" x 13⁄ 4" (4.45 cm) Flat-head masonry screws (6 screws per channel)

NOTE:GearTrack® Channels can be cut and drilled with ordinary woodworking equipment. Additional tools may be needed.

Use Requirements

• Maximum coverage per wall is 33% of the wall surface area.

• Maximum weight limit is 75 lbs (34 kg) per linear ft (30.48 cm).

• GearTrack®Channels can be mounted directly to masonry wall, ov

drywall to wooden studs, or to bare wooden studs.

• Intended for use in a garage or basement.

NOTE:Before installing GearTrack®Channels to masonry walls, you must waterproof the wall to avoid mildew or foundation damage. Walls that appear dry may actually become damp when enclosed b

y paneling. Install the channel in accordance with all local codes and ordinances.

Channel Spacing

If channels are to be used to support accessory hooks and/or small item bins, they may be spaced in any way desired. If channels are to

used to support Gladiator® Wall GearBoxes, they must be installed 18" (46 cm) apart.

• Stud nder

• AC nder

• Square

• Pencil

• Construction adhesive

•

⁄ 32" Masonry drill bit

Poured Concrete Wall Installation:

• Hammer drill • Construction adhesive

• Caulk gun •

•

⁄16" x 13⁄4" (4.45 cm) ﬂat-head masonry screws

⁄32" masonry drill bit

(6 screws per channel)

NOTE: GearTrack

Channels can be cut and drilled with ordinary

woodworking equipment. Additional tools may be needed.

• Maximum coverage per wall is 33% of the wall surface area.

• Maximum weight limit is 75 lbs (34 kg) per linear ft (30.48 cm).

• GearTrack over drywall to wooden studs, or to bare wooden studs.

NOTE: Before installing GearTrack

you must waterproof the wall to avoid mildew or foundation damage. Walls that appear dry may actually become damp when enclosed by paneling. Install the channel in accordance with all local codes and ordinances.

Channel Spacing

If channels are to be used to support accessory hooks and/or small item bins, they may be spaced in any way desired. If channels are to be used to support Gladiator Wall GearBoxes, they must be installed 18" (46 cm) apart.

Use Requirements

Channels can be mounted directly to masonry wall,

Channels to masonry walls,

Masonry Block/Poured Concrete Wall

1. Use a level to position the GearTrack® Channel at the desired

2. Drill a hole through the GearTrack

3. Secure the GearTrack

4. For extra hold, you may put construction adhesive on the

5. Repeat this process for the next desired application area.

6. Make sure all screws are installed and ﬂush with the channel.

Drywall over Wooden Studs or Bare Wooden Studs For 32" (81.3 cm) and 48" (121.9 cm) GearTrack

1. Locate all wooden studs and electrical wiring. Mark the wall(s).

2. GearTrack

3. If necessary, cut the ﬁrst channel to this length, making sure

4. Check that the GearTrack

18" (46 cm)

Install the GearTrack® Channels

height on the wall.

surface.

⁄16" x 1¾" (4.45 cm) ﬂat-head masonry screws every

24" (60.96 cm) in every slot. NOTE: Channels cut to shorter than 24" (60.96 cm) long

should not be used.

GearTrack

Channel before attaching it to the wall.

IMPORTANT: Compare screw length to electrical wiring locations. Be sure the screw will not pierce electrical wiring.

Channels should be mounted to the wall so that they begin and end at wooden studs. Measure from the edge of the stud at the beginning of the desired coverage area to the center of the last wooden stud that is within 32" (81.3 cm) or 48" (121.9 cm), depending on the length of your GearTrack Channel.

the cut is square. NOTE: Channels cut to shorter than 24" (60.96 cm) long

should not be used.

a screw in every slot at every stud location. NOTE: Drive the screws through the slot groove until they are

ﬂush. If splitting occurs, predrill and countersink the screw holes near channel ends.

Channel to the wall by placing

Channel and into the wall

Channel is level. Then place

5. Repeat this process for the next desired application area.

6. Make sure all screws are installed and ﬂush with the channel.

For 42" (106.7 cm) GearTrack

1. Locate all wooden studs and electrical wiring. Mark the wall(s).

IMPORTANT: Compare screw length to electrical wiring

locations. Be sure the screw will not pierce electrical wiring.

2. Mark the center of the GearTrack GearTrack

Channel center point is mounted to a wooden

Channels. Make sure the

stud. Drive only 1 screw through the slot groove at this time.

3. Check that the GearTrack screw in every slot at every stud location.

Channel is level. Then place a

NOTE: Drive the screws through the slot groove until they are ﬂush. If splitting occurs, predrill and countersink the screw holes near channel ends.

4. Make sure all screws are installed and ﬂush with the channel.

Install the GearTrack®

Channel End Caps

From the side, slide the end cap onto each end of the GearTrack

Channel.

From the front, snap the end

cap onto each end of the GearTrack® Channel.

Warranty

For warranty information: In the U.S.A., visit our website at www.GladiatorGW.com or call

1-866-342-4089. In Canada, visit our website at www.gladiatorgarageworks.ca

or call 1-800-807-6777.

W10343308D

/™ ©

5/16

Page 3

INSTRUCCIONES DE INSTALACIÓN

Prepare the GearTrack®Channels

IMPORTANT:Use correct screw length for your wall type. See chart

below.

*For bare wood studs and covered walls, use an all-weather flat-head type deck screw.

For concrete block and poured masonry, use a flat-head type masonry screw. For drywall of a thickness not listed in the chart above, see graphic below.

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

Additional Tools and Parts Needed for Masonry Block/Poured Concrete Wall Installation:

• Hammer drill

• Caulk gun

•

⁄ 16" x 13⁄ 4" (4.45 cm) Flat-head masonry screws (6 screws per channel)

NOTE:GearTrack® Channels can be cut and drilled with ordinary woodworking equipment. Additional tools may be needed.

Use Requirements

• Maximum coverage per wall is 33% of the wall surface area.

• Maximum weight limit is 75 lbs (34 kg) per linear ft (30.48 cm).

• GearTrack®Channels can be mounted directly to masonry wall, ov

drywall to wooden studs, or to bare wooden studs.

• Intended for use in a garage or basement.

NOTE:Before installing GearTrack®Channels to masonry walls, you must waterproof the wall to avoid mildew or foundation damage. Walls that appear dry may actually become damp when enclosed b

y paneling. Install the channel in accordance with all local codes and ordinances.

• Stud nder

• AC nder

• Square

• Pencil

• Construction adhesive

•

⁄ 32" Masonry drill bit

Screw Length for Wall Type

Screw

Length*

Masonry

Wall

Bare Wood

Studs

Drywall over Wood Studs

⁄2"

(1.27 cm)

⁄8"

(1.59 cm)

⁄4"

(1.91 cm)

#8 X 1

⁄4" (3.18 cm)

#8 X 2" (5.08 cm)

⁄16" X 13⁄4" (4.45 cm)

(Screw Not Included)

32" (81.3 CM) AND 48" (121.9 CM) AND 53.15" (135 CM) GEARTRACK®CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(for use with Gladiator®GarageWorks products only)

(Screw Not Included)

Prepare the GearTrack®Channels

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

• Stud nder

• AC nder

• Square

• Pencil

Screw Length for Wall Type

Screw

Length*

Masonry

Wall

Bare Wood

Studs

Drywall over Wood Studs

⁄2"

(1.27 cm)

⁄8"

(1.59 cm)

⁄4"

(1.91 cm)

⁄4" (3.18 cm)

32" (81.3 CM) AND 48" (121.9 CM) AND 53.15" (135 CM) GEARTRACK®CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(for use with Gladiator®GarageWorks products only)

Prepare the GearTrack®Channels

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

Additional Tools and Parts Needed for Masonry Block/Poured Concrete Wall Installation:

• Hammer drill

• Stud nder

• AC nder

• Square

• Pencil

• Construction adhesive

Screw Length for Wall Type

Screw

Length*

Masonry

Wall

Bare Wood

Studs

Drywall over Wood Studs

⁄2"

(1.27 cm)

⁄8"

(1.59 cm)

⁄4"

(1.91 cm)

⁄4" (3.18 cm)

32" (81.3 CM) AND 48" (121.9 CM) AND 53.15" (135 CM) GEARTRACK®CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(for use with Gladiator®GarageWorks products only)

PARA LOS CANALES DE 32" (81,3 cm), 42" (106,7 cm) Y 48" (121,9 cm) Y LAS CUBIERTAS DE LOS EXTREMOS DE LA MARCA GEARTRACK

(Para usar solamente con los productos Gladiator® GarageWorks)

SEGURIDAD

Su seguridad y la seguridad de los demás es muy importante.

Hemos incluido muchos mensajes importantes de seguridad en este manual y en su electrodoméstico. Lea y obedezca siempre todos los mensajes de seguridad.

Este es el símbolo de alerta de seguridad.

Este símbolo le llama la atención sobre peligros potenciales que pueden ocasionar la muerte o una lesión a usted y a los demás.

Todos los mensajes de seguridad irán a continuación del símbolo de advertencia de seguridad y de la palabra “PELIGRO” o “ADVERTENCIA”. Estas palabras significan:

PELIGRO

Si no sigue las instrucciones de inmediato, usted puede morir o sufrir una lesión grave.

ADVERTENCIA

Todos los mensajes de seguridad le dirán el peligro potencial, le dirán cómo reducir las posibilidades de sufrir una lesión y lo que puede suceder si no se siguen las instrucciones.

Preparación de los canales

GearTrack

IMPORTANTE: Use el tornillo con el largo correcto para el tipo de pared. Vea el cuadro a continuación.

N.° 8 x 1

Largo del tornillo para el tipo de pared

Largo del

tornillo*

⁄4" (3,18 cm)

(no se incluye

el tornillo)

N.° 8 x 2" (5,08 cm)

Pared de

albañilería

Vástagos

de madera

sin

cubrimiento

✓

Placa de yeso sobre

vástagos de madera

⁄2"

(1,27 cm)

✓ ✓ ✓

⁄16" x 13⁄4" (4,45 cm)

(no se incluye

el tornillo)

* Para vástagos de madera sin recubrimiento y paredes recubiertas, use

W10343308D

un tornillo para todo clima de cabeza plana para cubierta. Para bloques de concreto y albañilería vaciada, use un tornillo de albañilería de cabeza plana. Para placa de yeso de un espesor no indicado en la tabla de arriba, vea la ilustración debajo.

✓

⁄8"

(1,59 cm)

Si no sigue las instrucciones, usted puede morir o sufrir una lesión grave.

⁄4"

(1,91 cm)

A. Placa de yeso B. Placa de madera C. Tornillo de cabeza plana en

cada ranura y en cada vástago

Herramientas y piezas

Reúna todas las herramientas y piezas necesarias antes de comenzar la instalación.

Lea y siga las instrucciones provistas con cualquiera de las herramientas enlistadas aquí.

Piezas y herramientas necesarias:

• Nivel • Detector de vástagos

• Cinta para medir • Detector de corriente CA

• Taladro • Escuadra

• Sierra • Lápiz

• Tornillos (galvanizados o para todo clima); cuando se instale directamente en vástagos de madera

D. 1" (2,54 cm) mín. a 1¼" (3,18 cm)

máx. si está cerca del cableado

E. ¼" (0,635 cm)

Page 4

Install the GearTrack® Channel End Caps

From the side, slide the end cap onto each end of the GearTrack® Channel.

From the front, snap the end cap onto each end of the GearTrack® Channel.

Instale las cubiertas de los extremos

del canal GearTrack®

O BIEN

Garantía

Para información sobre la garantía: En EE.UU., visite nuestro sitio de internet en www.GladiatorGW.com o

llame al 1-866-342-4089. En Canadá, visite nuestro sitio de internet en

www.gladiatorgarageworks.ca o llame al 1-800-807-6777.

Desde el lado, deslice la cubierta del extremo sobre cada extremo del canal GearTrack®.

Desde la parte frontal, encaje la cubierta del extremo sobre cada extremo del canal GearTrack®.

Piezas y herramientas adicionales necesarias para la

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

Additional Tools and Parts Needed for Masonry Block/Poured Concrete Wall Installation:

• Hammer drill

• Caulk gun

•

⁄ 16" x 13⁄ 4" (4.45 cm) Flat-head masonry screws (6 screws per channel)

NOTE:GearTrack® Channels can be cut and drilled with ordinary woodworking equipment. Additional tools may be needed.

Use Requirements

• Maximum coverage per wall is 33% of the wall surface area.

• Maximum weight limit is 75 lbs (34 kg) per linear ft (30.48 cm).

• GearTrack®Channels can be mounted directly to masonry wall, ov

drywall to wooden studs, or to bare wooden studs.

• Intended for use in a garage or basement.

NOTE:Before installing GearTrack®Channels to masonry walls, you must waterproof the wall to avoid mildew or foundation damage. Walls that appear dry may actually become damp when enclosed b

y paneling. Install the channel in accordance with all local codes and ordinances.

Channel Spacing

If channels are to be used to support accessory hooks and/or small item bins, they may be spaced in any way desired. If channels are to

used to support Gladiator® Wall GearBoxes, they must be installed 18" (46 cm) apart.

• Stud nder

• AC nder

• Square

• Pencil

• Construction adhesive

•

⁄ 32" Masonry drill bit

instalación en pared de bloques de albañilería/concreto vaciado:

• Taladro de percusión • Adhesivo para construcción

• Pistola para masilla • Broca para albañilería de

• Tornillos para albañilería de cabeza plana de (6 tornillos por canal)

NOTA: Los canales GearTrack equipo común de carpintería. Se pueden necesitar herramientas adicionales.

Requisitos de uso

• La cobertura máxima por pared es del 33 % del área de la

superﬁcie de la pared.

• El límite de peso máximo es de 75 lb (34 kg) por pie lineal

(30,48 cm).

• Los canales GearTrack

pared de albañilería, a través de placa de yeso en vástagos de madera o en vástagos de madera sin recubrimiento.

NOTA: Antes de instalar los canales GearTrack

albañilería, deberá impermeabilizar la pared para evitar que se cubra de moho o que haya daños en los cimientos. Las paredes que parecen estar secas pueden ponerse húmedas cuando se cubren con paneles. Instale el canal siguiendo todos los códigos y ordenanzas locales.

pueden cortarse y perforarse con

pueden montarse directamente en la

⁄16" x 1¾" (4,45 cm)

en paredes de

Espacio entre los canales

Si se van a usar los canales para apoyar ganchos para accesorios y/o cajones para artículos pequeños, se pueden colocar a la distancia que se desee. Si los canales se van a utilizar para montar las cajas para herramientas para la pared Gladiator deberán instalarse a una distancia de 18" (46 cm).

Pared de bloque de albañilería/concreto vaciado

1. Use un nivel para colocar el canal GearTrack® en la pared,

a la altura deseada.

2. Taladre un oriﬁcio a través del canal GearTrack

de la superﬁcie de la pared.

3. Asegure el canal GearTrack

de albañilería de cabeza plana de cada 24" (60,96 cm) en cada ranura.

NOTA: No deben usarse canales cortados a menos de 24" (60,96 cm) de largo.

4. Para el máximo soporte, puede poner adhesivo para

construcción sobre el canal GearTrack a la pared.

5. Repita este proceso para la siguiente área de aplicación

que desee.

6. Cerciórese de que todos los tornillos estén instalados y

alineados con el canal.

Placa de yeso sobre vástagos de madera o vástagos de madera sin recubrimiento Para GearTrack® de 32" (81,3 cm) y 48" (121,9 cm)

1. Ubique todos los vástagos de madera y el cableado eléctrico.

Marque la(s) pared(es). IMPORTANTE: Compare el largo de los tornillos con las

ubicaciones de los cables eléctricos. Asegúrese de que el tornillo no perfore los cables eléctricos.

2. Los canales GearTrack

de manera que comiencen y terminen en los vástagos de madera. Mida desde el borde del vástago, al comienzo del área que desee cubrir, hasta el centro del último vástago de madera que esté a no más de 32" (81,3 cm) o 48" (121,9 cm), dependiendo del largo de su canal GearTrack

W10343308D

18" (46 cm)

Instalación de los canales

GearTrack

a la pared colocando tornillos

deberán ser montados a la pared

⁄16" x 1¾" (4,45 cm) por

antes de sujetarlo

/™ © 2

. 016 Gladiator. Usada en Canadá bajo licencia.

y dentro

⁄32"

3. Si es necesario, corte el primer canal a este largo y asegúrese de que el corte sea a escuadra.

NOTA: No deben usarse canales cortados a menos de 24" (60,96 cm) de largo.

4. Veriﬁque que el canal GearTrack un tornillo en cada ranura de cada lugar en donde esté ubicado cada vástago.

NOTA: Enrosque los tornillos a través de las ranuras hasta que queden al ras. Si hay ﬁsuras, perfore previamente y avellane los oriﬁcios de los tornillos cerca de los extremos del canal.

5. Repita este proceso para la siguiente área de aplicación que desee.

6. Cerciórese de que todos los tornillos estén instalados y alineados con el canal.

esté nivelado. Luego coloque

Para GearTrack® de 42" (106,7 cm)

1. Ubique todos los vástagos de madera y el cableado eléctrico.

Marque la(s) pared(es). IMPORTANTE: Compare el largo de los tornillos con las

ubicaciones de los cables eléctricos. Asegúrese de que el tornillo no perfore los cables eléctricos.

2. Marque el centro de los canales GearTrack que el punto central de los canales GearTrack en un vástago de madera. Instale solo 1 tornillo a través de la ranura en este momento.

3. Veriﬁque que el canal GearTrack un tornillo en cada ranura de cada lugar en donde esté ubicado cada vástago.

NOTA: Enrosque los tornillos a través de las ranuras hasta que queden al ras. Si hay ﬁsuras, perfore previamente y avellane los oriﬁcios de los tornillos cerca de los extremos del canal.

4. Cerciórese de que todos los tornillos estén instalados y alineados con el canal.

esté nivelado. Luego coloque

. Asegúrese de

esté montado

Instalación de las cubiertas

de los extremos del canal

GearTrack

Desde el lado, deslice la cubierta del extremo sobre cada extremo del canal GearTrack

BIEN

Desde la parte frontal, encaje la cubierta del extremo sobre cada extremo del canal GearTrack®.

Garantía

Para información sobre la garantía: En EE. UU., visite nuestro sitio de Internet en

www.GladiatorGW.com o llame al 1-866-342-4089. En Canadá, visite nuestro sitio de Internet en

www.gladiatorgarageworks.ca o llame al 1-800-807-6777.

5/16

Page 5

INSTRUCTIONS D’INSTALLATION DES

Prepare the GearTrack®Channels

IMPORTANT:Use correct screw length for your wall type. See chart

below.

*For bare wood studs and covered walls, use an all-weather flat-head type deck screw.

For concrete block and poured masonry, use a flat-head type masonry screw. For drywall of a thickness not listed in the chart above, see graphic below.

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

Additional Tools and Parts Needed for Masonry Block/Poured Concrete Wall Installation:

• Hammer drill

• Caulk gun

•

⁄ 16" x 13⁄ 4" (4.45 cm) Flat-head masonry screws (6 screws per channel)

NOTE:GearTrack® Channels can be cut and drilled with ordinary woodworking equipment. Additional tools may be needed.

Use Requirements

• Maximum coverage per wall is 33% of the wall surface area.

• Maximum weight limit is 75 lbs (34 kg) per linear ft (30.48 cm).

• GearTrack®Channels can be mounted directly to masonry wall, ov

drywall to wooden studs, or to bare wooden studs.

• Intended for use in a garage or basement.

NOTE:Before installing GearTrack®Channels to masonry walls, you must waterproof the wall to avoid mildew or foundation damage. Walls that appear dry may actually become damp when enclosed b

y paneling. Install the channel in accordance with all local codes and ordinances.

• Stud nder

• AC nder

• Square

• Pencil

• Construction adhesive

•

⁄ 32" Masonry drill bit

Screw Length for Wall Type

Screw

Length*

Masonry

Wall

Bare Wood

Studs

Drywall over Wood Studs

⁄2"

(1.27 cm)

⁄8"

(1.59 cm)

⁄4"

(1.91 cm)

#8 X 1

⁄4" (3.18 cm)

#8 X 2" (5.08 cm)

⁄16" X 13⁄4" (4.45 cm)

(Screw Not Included)

32" (81.3 CM) AND 48" (121.9 CM) AND 53.15" (135 CM) GEARTRACK® CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(for use with Gladiator®GarageWorks products only)

(Screw Not Included)

Prepare the GearTrack®Channels

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

• Stud nder

• AC nder

• Square

• Pencil

Screw Length for Wall Type

Screw

Length*

Masonry

Wall

Bare Wood

Studs

Drywall over Wood Studs

⁄2"

(1.27 cm)

⁄8"

(1.59 cm)

⁄4"

(1.91 cm)

⁄4" (3.18 cm)

32" (81.3 CM) AND 48" (121.9 CM) AND 53.15" (135 CM) GEARTRACK® CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(for use with Gladiator®GarageWorks products only)

Prepare the GearTrack®Channels

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

Additional Tools and Parts Needed for Masonry Block/Poured Concrete Wall Installation:

• Hammer drill

• Stud nder

• AC nder

• Square

• Pencil

• Construction adhesive

Screw Length for Wall Type

Screw

Length*

Masonry

Wall

Bare Wood

Studs

Drywall over Wood Studs

⁄2"

(1.27 cm)

⁄8"

(1.59 cm)

⁄4"

(1.91 cm)

⁄4" (3.18 cm)

32" (81.3 CM) AND 48" (121.9 CM) AND 53.15" (135 CM) GEARTRACK® CHANNEL AND END CAP INSTALLATION INSTRUCTIONS

(for use with Gladiator®GarageWorks products only)

PROFILÉS DE 32" (81,3 cm), 42" (106,7 cm) ET 48" (121,9 cm) ET DES CAPUCHONS D’EXTRÉMITÉS GEARTRACK

(Pour utilisation avec les produits Gladiator® Garageworks uniquement)

SÉCURITÉ

Votre sécurité et celle des autres est très importante.

Nous donnons de nombreux messages de sécurité importants dans ce manuel et sur votre appareil ménager. Assurez-vous de toujours lire tous les messages de sécurité et de vous y conformer.

Voici le symbole d’alerte de sécurité.

Ce symbole d’alerte de sécurité vous signale les dangers potentiels de décès et de blessures graves à vous et à d’autres.

Tous les messages de sécurité suivront le symbole d’alerte de sécurité et le mot “DANGER” ou “AVERTISSEMENT”. Ces mots signifient :

DANGER

AVERTISSEMENT

Tous les messages de sécurité vous diront quel est le danger potentiel et vous disent comment réduire le risque de blessure et ce qui peut se produire en cas de non-respect des instructions.

Préparer les prolés GearTrack

IMPORTANT : Utiliser la longueur de vis adaptée au type de mur. Voir le tableau ci-dessous.

Longueur des vis en fonction du type de mur

n° 8 x 11⁄4" (3,18 cm)

(vis non comprise)

n° 8 x 2" (5,08 cm)

⁄16" x 13⁄4" (4,45 cm) (vis non comprise)

* Pour des poteaux de colombage de bois nu ou des murs garnis de panneaux,

utiliser une vis pour terrasse à tête fraisée résistant aux intempéries. Pour un mur en parpaing ou en béton, utiliser une vis à maçonnerie à tête fraisée. Pour un mur en panneaux de gypse dont l’épaisseur ne ﬁgure pas dans le tableau ci-dessus, consulter l’illustration ci-dessous.

W10343308D

Longueur

de vis*

Mur de

maçonnerie

✓

Poteaux de colombage

de bois nu

Panneaux de gypse sur poteaux

⁄2"

(1,27 cm)

✓

✓ ✓ ✓

de colombage de bois

⁄8"

(1,59 cm)

Risque possible de décès ou de blessure grave si vous ne suivez pas immédiatement les instructions.

Risque possible de décès ou de blessure grave si vous ne suivez pas les instructions.

⁄4"

(1,91 cm)

A. Panneau de gypse B. Poteau de colombage de bois C. Vis à tête fraisée dans chaque rainure,

au niveau de chaque poteau

Rassembler les outils et pièces nécessaires avant de commencer l’installation.

Lire et suivre les instructions fournies avec les outils indiqués ici.

Outillage et pièces nécessaires :

• Niveau • Localisateur de clou/vis (pour colombage)

• Mètre ruban • Détecteur de tension CA

• Perceuse • Équerre

• Scie • Crayon

• Vis (galvanisées ou résistantes aux intempéries) — pour montage direct sur des poteaux de colombage

Outillage et pièces

D. De 1" (2,54 cm) min. à 1¼"

E. ¼" (0,635 cm)

(3,18 cm) max. si à proximité d’un câble

Page 6

Install the GearTrack® Channel End Caps

From the side, slide the end cap onto each end of the GearTrack® Channel.

From the front, snap the end cap onto each end of the GearTrack® Channel.

4. Vérifier que le profilé GearTrack®est bien de niveau. Placer ensuite une vis dans chaque rainure, au niveau de chaque poteau du colombage.

REMARQUE : Enfoncer chaque vis dans la rainure, jusqu’à ce que la tête soit en affleurement. En cas de fissuration, percer un avant-trou et fraiser chaque trou de vis situé à proximité des extrémités du profilé.

5. Répéter ce processus pour chaque zone d'application souhaitée.

6. Vérifier que toutes les vis ont été installées et qu’elles sont en affleurement avec le profilé.

Installation des capuchons d’extrémité pour

profilés GearTrack®

Garantie

Pour des informations sur la garantie : Aux É.-U., consulter notre site Web à www.GladiatorGW.com ou composer le 1-866-342-4089. Au Canada, consulter notre site Web à www.gladiatorgarageworks.ca ou composer le 1-800-807-6777.

Insérer un capuchon dans chaque extrémité du profilé GearTrack® par translation (de côté).

Insérer un capuchon dans chaque extrémité du profilé GearTrack® par pression (de face).

Autres outils et pièces nécessaires pour la pose sur un mur

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools and Parts Needed:

• Level

• Tape measure

• Drill

• Saw

• Screws (galvanized or all-weather)

Additional Tools and Parts Needed for Masonry Block/Poured Concrete Wall Installation:

• Hammer drill

• Caulk gun

•

⁄ 16" x 13⁄ 4" (4.45 cm) Flat-head masonry screws (6 screws per channel)

NOTE:GearTrack® Channels can be cut and drilled with ordinary woodworking equipment. Additional tools may be needed.

Use Requirements

• Maximum coverage per wall is 33% of the wall surface area.

• Maximum weight limit is 75 lbs (34 kg) per linear ft (30.48 cm).

• GearTrack®Channels can be mounted directly to masonry wall, ov

drywall to wooden studs, or to bare wooden studs.

• Intended for use in a garage or basement.

NOTE:Before installing GearTrack®Channels to masonry walls, you must waterproof the wall to avoid mildew or foundation damage. Walls that appear dry may actually become damp when enclosed b

y paneling. Install the channel in accordance with all local codes and ordinances.

Channel Spacing

If channels are to be used to support accessory hooks and/or small item bins, they may be spaced in any way desired. If channels are to

used to support Gladiator® Wall GearBoxes, they must be installed 18" (46 cm) apart.

• Stud nder

• AC nder

• Square

• Pencil

• Construction adhesive

•

⁄ 32" Masonry drill bit

en parpaings ou en béton :

• Perceuse à percussion • Adhésif de construction

• Pistolet de calfeutrage • Foret à maçonnerie de

• Vis à maçonnerie à tête fraisée de

⁄16" x 1 3⁄4" (4,45 cm)

(6 vis par proﬁlé)

REMARQUE : Il est possible de couper et de percer les proﬁlés GearTrack D’autres outils peuvent être nécessaires.

avec un équipement ordinaire de travail du bois.

Spécications d’utilisation

• Recouvrement maximum : ne pas recouvrir plus de 33 % de la surface murale.

• Charge maximale : 75 lb (34 kg) par pied linéaire (30,48 cm).

• Il est possible de monter les proﬁlés GearTrack un mur de maçonnerie ou sur un mur de poteaux de colombage de bois nu ou garni de panneaux de gypse.

REMARQUE : Avant d’installer les proﬁlés GearTrack

un mur de maçonnerie, on doit assurer l’étanchéité du mur

directement sur

sur

pour éviter la formation de moisissure ou la détérioration des fondations. Un mur qui semble être sec peut en fait accumuler de l’humidité après avoir été garni de panneaux. Lors de l’installation des proﬁlés, veiller à respecter les dispositions de tous les codes et règlements locaux en vigueur.

Espacement des proﬁlés

Si les proﬁlés sont destinés à supporter des crochets porte-outils et/ou des casiers permettant de ranger de petits objets, ils peuvent être espacés comme on le désire. Si les proﬁlés sont destinés à soutenir des boîtes à outils murales Gladiator

GearBoxes,

l’espacement entre les proﬁlés doit être de 18" (46 cm).

18" (46 cm)

Mur en parpaings ou en béton

1. Utiliser un niveau pour positionner le proﬁlé GearTrack

2. Percer un trou à travers le proﬁlé GearTrack

3. Fixer le proﬁlé GearTrack

4. Pour une résistance accrue, on peut également appliquer

Installation des prolés

GearTrack

à la hauteur souhaitée.

la surface murale.

à maçonnerie de chaque rainure, tous les 24" (60,96 cm).

REMARQUE : Ne pas utiliser de proﬁlés d’une longueur

⁄16" x 1¾" (4,45 cm) (à tête fraisée) dans

sur le mur en plaçant des vis

inférieure à 24" (60,96 cm).

un adhésif de construction sur le proﬁlé GearTrack

et dans

avant

de le ﬁxer sur le mur.

5. Répéter ce processus pour chaque zone d’application

souhaitée.

6. Vériﬁer que toutes les vis ont été installées et qu’elles sont

en afﬂeurement avec le proﬁlé.

Poteaux de colombage de bois nu ou recouverts par un mur garni de panneaux de gypse Pour les proﬁlés de 32" (81,3 cm) et 48" (121,9 cm) GearTrack

1. Déterminer l’emplacement des poteaux de colombage de

bois et des câbles électriques. Tracer les marques nécessaires sur le(s) mur(s).

IMPORTANT : Choisir la longueur des vis en fonction de l’emplacement des câbles électriques. Veiller à ce qu’aucune vis ne puisse endommager l’isolant d’un câble électrique.

2. Installer les proﬁlés GearTrack

extrémité soit ﬁxée à un poteau du colombage de bois. Mesurer depuis le bord du poteau au début de la zone de couverture jusqu’au centre du dernier poteau en bois situé à moins de 32" (81,3 cm) ou de 48" (121,9 cm), selon la longueur de votre proﬁlé GearTrack

de manière à ce que chaque

⁄32"

3. Si nécessaire, couper la première section de proﬁlé à cette longueur (veiller à l’équerrage).

REMARQUE : Ne pas utiliser de proﬁlés d’une longueur inférieure à 24" (60,96 cm).

4. Vériﬁer que le proﬁlé GearTrack

est bien de niveau. Placer ensuite une vis dans chaque rainure, au niveau de chaque poteau du colombage.

REMARQUE : Enfoncer chaque vis dans la rainure, jusqu’à ce que la tête soit en afﬂeurement. En cas de ﬁssuration, percer un avant-trou et fraiser chaque trou de vis situé à proximité des extrémités du proﬁlé.

5. Répéter ce processus pour chaque zone d’application souhaitée.

6. Vériﬁer que toutes les vis ont été installées et qu’elles sont en afﬂeurement avec le proﬁlé.

Pour les proﬁlés de 42" (106,7 cm) GearTrack

1. Déterminer l’emplacement des poteaux de colombage de bois

et des câbles électriques. Tracer les marques nécessaires sur le(s) mur(s).

IMPORTANT : Choisir la longueur des vis en fonction de l’emplacement des câbles électriques. Veiller à ce qu’aucune vis ne puisse endommager l’isolant d’un câble électrique.

2. Marquer le centre des proﬁlés GearTrack point central du proﬁlé GearTrack

. S’assurer que le

est monté sur un poteau de colombage. Visser une seule vis dans la rainure en ce moment.

3. Vériﬁer que le proﬁlé GearTrack

est bien de niveau. Placer ensuite une vis dans chaque rainure, au niveau de chaque poteau du colombage.

4. Vériﬁer que toutes les vis ont été installées et qu’elles sont en afﬂeurement avec le proﬁlé.

Installation des capuchons

d’extrémité pour prolés GearTrack

Insérer un capuchon dans chaque extrémité du proﬁlé GearTrack

par

translation (de côté).

Pour des informations sur la garantie :

Garantie

Aux É.-U., consulter notre site Web à www.GladiatorGW.com ou composer le 1-866-342-4089.

Au Canada, consulter notre site Web à www.gladiatorgarageworks.ca ou composer le 1-800-807-6777.

Insérer un capuchon dans chaque extrémité du proﬁlé

GearTrack® par pression (de face).

W10343308D

/™

5/16
