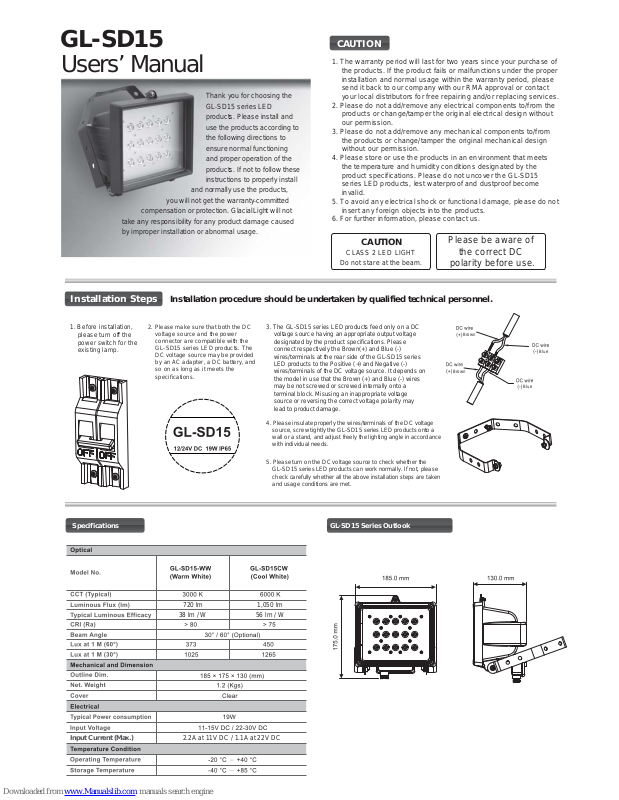

GlacialLight GL-SD15 User Manual
Users’ Manual
GL-SD15
Specifications
GL-SD15 Series Outlook
CAUTION
Thank you for choosing the
GL
-SD15 series LED
products. Please install and
use the products according to
the following directions to
ensure normal functioning
and proper operation of the
products. If not to follow these
instructions to properly install
and normally use the products,
you will not get the warranty
-committed
compensation or protection. GlacialLight will not
take any responsibility for any product damage caused
by improper installation or abnormal usage.
1. Before installation,
please turn off the
power switch for the
existing lamp.
2. Please make sure that both the DC
voltage source and the power
connector are compatible with the
GL
-SD15 series LED products. The
DC voltage source may be provided
by an AC adapter, a DC battery, and
so on as long as it meets the
specifications.
4. Please insulate properly the wires/terminals of the DC voltage
source, screw tightly the GL
-SD15 series LED products onto a
wall or a stand, and adjust freely the lighting angle in accordance
with individual needs.
5. Please turn on the DC voltage source to check whether the
GL
-SD15 series LED products can work normally. If not, please
check carefully whether all the above installation steps are taken
and usage conditions are met.
Installation Steps
Blue
Blue
Brown
Brown
3. The GL-SD15 series LED products feed only on a DC
voltage source having an appropriate output voltage
designated by the product specifications. Please
connect respectively the Brown(+) and Blue (-)
wires/terminals at the rear side of the GL-SD15 series
LED products to the Positive (+) and Negative (-)
wires/terminals of the DC voltage source. It depends on
the model in use that the Brown (+) and Blue (-) wires
may be not screwed or screwed internally onto a
terminal block. Misusing an inappropriate voltage
source or reversing the correct voltage polarity may
lead to product damage.
CAUTION
CLASS 2 LED LIGHT
Do not stare at the beam.
Installation procedure should be undertaken by qualified technical personnel.
38 lm / W 56 lm / W
Input Current (Max.)
2.2A at 11V DC / 1.1A at 22V DC
1. The warranty period will last for two years since your purchase of
the products. If the product fails or malfunctions under the proper
installation and normal usage within the warranty period, please
send it back to our company with our RMA approval or contact
your local distributors for free repairing and/or replacing services.
2. Please do not add/remove any electrical components to/from the
products or change/tamper the original electrical design without
our permission.
3. Please do not add/remove any mechanical components to/from
the products or change/tamper the original mechanical design
without our permission.
4. Please store or use the products in an environment that meets
the temperature and humidity conditions designated by the
product specifications. Please do not uncover the GL
-SD15
series LED products, lest waterproof and dustproof become
invalid.
5. To avoid any electrical shock or functional damage, please do not
insert any foreign objects into the products.
6. For further information, please contact us.
720 lm 1,050 lm
Please be aware of
the correct DC
polarity before use.
Candle Power Distribution Curve ( 15 W / 3 M)
All rights reserved. All brand names and trademarks are the properties of their
respective owners. The specifications are subject to change without notice.
17-SD15S000001
IP65
-
