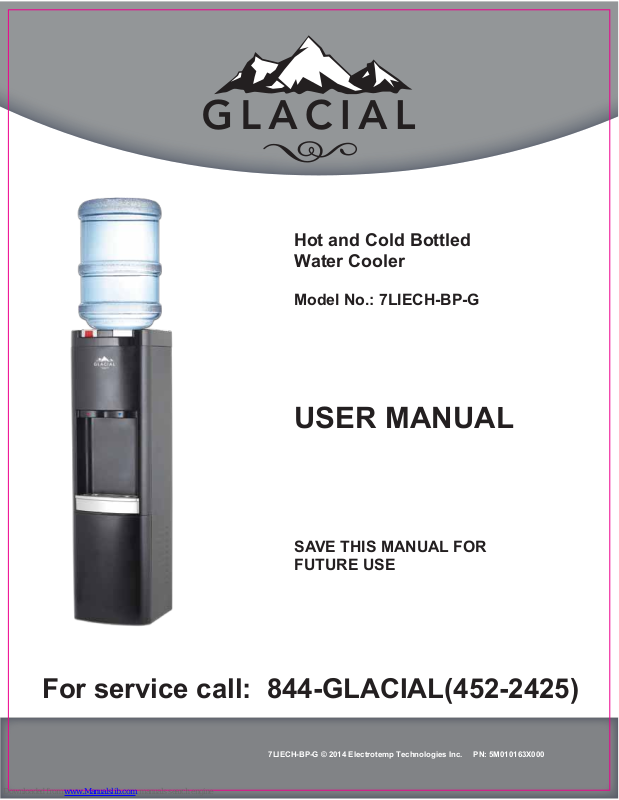

Glacial 7LIECH-BP-G User Manual
USER MANUAL
7LIECH-BP-G © 2014 Electrotemp Technologies Inc. PN: 5M010163X000
SAVE THIS MANUAL FOR
FUTURE USE
For service call: 844-GLACIAL(452-2425)
Hot and Cold Bottled
Water Cooler
Model No.: 7LIECH-BP-G
Model # 7LIECH-BP-G: Page 2
SAFETY PRECAUTIONS
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 844-GLACIAL(452-2425) for assistance.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
To reduce the risk of fire, electric shock, or injury when using your water cooler, follow these basic precautions:
■ Plug it into a grounded 3-prong outlet.
■ Do not remove the ground prong.
■ Do not use an adapter.
■ Disconnect the power before servicing.
SAVE THESE INSTRUCTIONS
■ Replace all the parts and the panels before operating.
■ Do not use an extension cord.
■ Two or more people should move and install the water cooler
and the bottles.
WARNING
DANGER
All safety instructions will inform you what the potential hazard is, how to reduce the chance of injury, and what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and your appliance. Always read and follow all
safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER”or “WARNING”
These words mean:
You can be killed or seriously injured if you don′t immediately
the follow instructions.
You can be killed or seriously injured if you don′t follow the
instructions.
When operating this dispenser, please observe the following:
• Prior to use, this dispenser must be properly assembled and installed in accordance with
this manual.
• This dispenser is intended only for water dispensing. Do NOT use other liquids. Do NOT
use for other purposes. Never use other liquids in the dispenser other than known and
microbiologically safe bottled water. Warranty is void if used with any other liquids, such
as coffee, tea, juices, beer or wine.
Location Requirements:
• Install in the area where it is protected from the elements including direct sun.
• Install and use only on a hard, flat and level surface.
• Do NOT place the dispenser inside an enclosed space or cabinet.
• Position the dispenser no closer than 4 inches from the wall with at least 4 inches clearance on the sides to permit free airflow.
• Service should only be performed by a certified technician. Please contact us at 844GLACIAL(452-2425) for assistance.
Model # 7LIECH-BP-G: Page 3
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 844-GLACIAL(452-2425) for assistance.
SAFETY PRECAUTIONS ---Electrical Requirements
PRODUCT FEATURES
Congratulations! You have chosen an Advanced Technology State of the Art Water
Cooler.
The refrigeration system on this cooler cools the cold water by internal evaporator of commercial design flat forms the ice around it. This feature is called an "Ice Bank". It allows for ice
cold water and keeps the water temperature consistently cold, however a Longer time in
forming the Ice Bank is required. Since ice is an insulator, the more ice is built up, the slower
next layer is made.
WHEN UNIT IS PLUGGED IN FOR THE FIRST TIME WAIT FOR UP TO 6 HOURS FOR
COLD WATER TEMPERATURES TO REACH THE COLDEST SETTINGS.
Electrical shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
WARNING
A 120 volt, 60 Hz., AC only, 15 amp, fused electrical supply is required. A time-delay fuse or
circuit breaker is recommended.
If codes permit and a separate ground wire is used, it is recommended that a qualified
electrician determine that the ground path is adequate.
Check with a qualified electrician if you are not sure if the water cooler is properly grounded.
TABLE OF CONTENTS
KEY INFORMATION FOR FUTURE USE
Product Hot and Cold Bottled Water Cooler
Model Number 7LIECH-BP-G
Serial ID Number
Date of Purchase
Safety Precautions ...............................................................
Safety Precautions-Electrical Requirements ........................
Product Features ..............................................................
Key Information for Future Use ............................................
Specifications ......................................................................
Parts & Features ..................................................................
Unpacking and Assembly ....................................................
Installation ...........................................................................
Cleaning Prior to Initial Use ...............................................
Installing the Correct Bottle Receptacle ..............................
Operation ............................................................................
Proper Care & Cleaning .....................................................
Troubleshooting .................................................................
Limited Warranty .................................................................
2
3
3
4
5
5
6
6
8
9
10
12
14
15
Please register your dispenser immediately at
www.e lectrote mp. com
For future support, please record your serial number (located on
label on back of dispenser) and date purchased. Staple your
receipt to manual.
You will need this information to obtain warranty service.
Model # 7LIECH-BP-G: Page 4
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 844-GLACIAL(452-2425) for assistance.
SPECIFICATIONS
PARTS & FEATURES
1
2
3
4
5
6
7
8
9
10
11
12
13
Back
Front
Power Supply
Refrigerant Type
Cold Water Power
Cold Capacity / Hour
Cold Temp Range
Hot Water Power
Hot Capacity / Hour
Hot Temp Range
Dimensions
Net Weight
4.5 Amp
R-134 A
100 Watts
5 L / 1.32 Gallon
3°C - 10°C / 37.4°F - 50°F
425 Watts
4 L / 1.05 Gallon
80°C - 92°C / 176°F - 197.6°F
91.3 H × 27.5 W × 28.6 D(cm)
35.9 H × 10.8 W × 11.3 D (inch)
26.5 Ibs / 12 Kg
Model # 7LIECH-BP-G: Page 5
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 844-GLACIAL(452-2425) for assistance.
13
4
10
9
1
3
6
5
7
12
8
11
2
Bottle Probe
Hot Water Control
Child Safety Latch
Cold Water Control
Hot Water Tap
Cold Water Tap
Drip Tray
Energy Saving Switch
Cooling Thermostat
Carry Handle
Power Cord
Drain Plug
LED Night Light
The wall mount strap
and the collar for plain,
capped bottles are
not shown.
Model # 7LIECH-BP-G: Page 6
IMPORTANT: Do NOT Return Dispenser To Store.
If you have a question or problem, please contact 844-GLACIAL(452-2425) for assistance.
UNPACKING AND ASSEMBLY
Remove the dispenser from packaging:
1. Lay dispenser on its side.
2. Open bottom flaps of the cardboard box.
3. Stand cooler up with flaps unfolded.
4. Pull box straight up.
5. Unpack the drip tray and insert it into the dispenser.
(See illustration )
6. Keep original packing for the duration of warranty.
TO OPEN:
TOP
TOP
TOP
TOP
INSTALLATION
Excessive Weight Hazard
Use two or more people to move and install bottles.
Failure to do so can result in back or other injury.
WARNING
Tip Over Hazard
Do not use water cooler until base is attached to
bottom of water cooler.
Failure to do so can result in death or serious injury.
WARNING
1. Locate the dispenser on a hard and level surface in a cool
shaded location near a grounded wall outlet.
2. Position dispenser so that the back is at least 4 inches from
the wall and there are at least 4 inches of clearance on both
sides.
3. To minimize vibration and noise, make sure that all 4 feet are
adjusted to keep dispenser levelled.
4in. Min
4 adjustable feet
