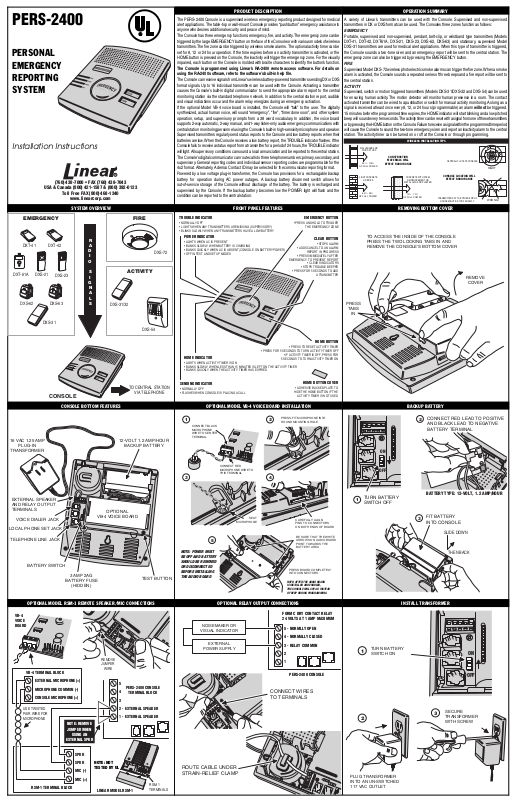

Gitzo PERS-2400 User Manual

PERS-2400

PERSONAL
EMERGENCY
REPORTING
SYSTEM

Installation Instructions

PRODUCT DESCRIPTION

The PERS-2400 Console is a supervised wireless emergency reporting product designed for medical
alert applications. The table-top or wall-mount Console provides “pushbutton” emergency assistance to
anyone who desires additional security and peace of mind.
The Console has three emergency functions: emergency, fire, and activity. The emergency zone can be
triggered by the large EMERGENCY button on the face of the Console or with various models of wireless
transmitters. The fire zone can be triggered by wireless smoke alarms. The optional activity timer can be
set for 8, 12 or 24 hour operation. If the time expires before an activity transmitter is activated, or the
HOME button is pressed on the Console, the inactivity will trigger the emergency zone. For the visually
impaired, each button on the Console is molded with braille characters to identify the button’s function.

The Console is programmed using Linear’s RA-2400 remote access software. For details on
using the RA-2400 software, refer to the software’s built-in help file.

The Console can receive signals from Linear’s wireless battery-powered transmitters sending DX or DXS
format signals. Up to 16 individual transmitters can be used with the Console. Activating a transmitter
causes the Console’s built-in digital communicator to send the appropriate alarm report to the central
monitoring station via the standard telephone network. In addition to the central station report, audible
and visual indications occur and the alarm relay energizes during an emergency activation.
If the optional Model VB-4 voice board is installed, the Console will “talk” to the user. The digitally
synthesized, actual human voice, will sound “emergency”, “fire”, “timer done soon”, and other system
operation, setup, and supervisory prompts from a 38 word vocabulary. In addition, the voice board
supports 2-way automatic, 2-way manual, and 1-way listen-only audio emergency communications with
central station monitoring personnel using the Console’s built-in high-sensivity microphone and speaker.
Supervised transmitters regularly send status reports to the Console and low battery reports when their
batteries are low. When the Console receives a low battery report, the TROUBLE indicator flashes. If the
Console fails to receive a status report from a transmitter for a period of 24 hours, the TROUBLE indicator
will light. All supervisory conditions can sound a local annunciation and be reported to the central station.
The Console’s digital communicator can route calls to three telephone numbers: primary, secondary, and
supervisory. General reporting codes and individual sensor reporting codes are programmable for the
4x2 format. Alternately, Ademco Contact ID may be selected for the communicator reporting format.
Powered by a low voltage plug-in transformer, the Console has provisions for a recharagable backup
battery for operation during AC power outages. A backup battery disconnect switch allows for
out-of-service storage of the Console without discharge of the battery. The battery is recharged and
supervised by the Console. If the backup battery becomes low the POWER light will flash and the
condition can be reported to the central station.

OPERATION SUMMARY

A variety of Linear’s transmitters can be used with the Console. Supervised and non-supervised
transmitters in DX or DXS format can be used. The Consoles three zones function as follows:

EMERGENCY

Portable, supervised and non-supervised, pendant, belt-clip, or wristband type transmitters (Models
DXT-41, DXT-42, DXT-61A, DXS-21, DXS-23, DXS-62, DXS-63) and stationary, supervised Model
DXS-31 transmitters are used for medical alert applications. When this type of transmitter is triggered,
the Console sounds a two-tone siren and an emergency report will be sent to the central station. The
emergency zone can also be triggered by pressing the EMERGENCY button.

FIRE

Supervised Model DXS-72 wireless photoelectric smoke alarms can trigger the fire zone. When a smoke
alarm is activated, the Console sounds a repeated series of three beeps and a fire report will be sent to
the central station.

ACTIVITY

Supervised, switch or motion triggered transmitters (Models DXS-31/DXS-32 and DXS-54) can be used
for ensuring human activity. The motion detector will monitor human presence in a room. The contact
activated transmitter can be wired to a pushbutton or switch for manual activity monitoring. As long as a
signal is received at least once every 8, 12, or 24 hours (programmable) an alarm

will not

be triggered.
15 minutes before the programmed time expires, the HOME indicator will start blinking and a low pitched
beep will sound every ten seconds. The activity timer can be reset with a signal from one of these transmitters
or by pressing the HOME button on the Console. Failure to receive a signal within the programmed time period
will cause the Console to sound the two-tone emergency siren and report an inactivity alarm to the central
station. The activity timer can be turned on or off at the Console or through programming.

SYSTEM OVERVIEW FRONT PANEL FEATURES REMOVING BOTTOM COVER

CONSOLE BOTTOM FEATURES OPTIONAL MODEL VB-4 VOICE BOARD INSTALLATION BACKUP BATTERY

[phone] • FAX [phone]

USA & Canada [phone] & [phone]

Toll Free FAX [phone]

www.linearcorp.com

OPTIONAL MODEL RSM-1 REMOTE SPEAKER/MIC CONNECTIONS OPTIONAL RELAY OUTPUT CONNECTIONS INSTALL TRANSFORMER

CONSOLE

EMERGENCY

DXT-61A

DXS-21

DXS-23

DXT-41 DXT-42

FIRE

ACTIVITY

DXS-31

DXS-72

DXS-31/32

DXS-54

R
A
D

I

O

S

I
G
N
A
L
S

TO CENTRAL STATION

VIA TELEPHONE

DXS-62 DXS-63

EMERGENCY BUTTON

• PRESS AND HOLD TO TRIGGER
THE EMEREGNCY ZONE

POWER INDICATOR

TROUBLE INDICATOR

SENDING INDICATOR

HOME INDICATOR

• LIGHTS WHEN AC IS PRESENT

• BLINKS SLOWLY WHEN BATTERY IS CHARGING

• BLINKS QUICKLY WHEN AC IS ABSENT (CONSOLE ON BATTERY POWER)

• OFF IN TEST AND SETUP MODES

• NORMALLY OFF

• LIGHTS WHEN ANY TRANSMITTERS ARE MISSING (SUPERVISORY)

• BLINKS SLOWLY WHEN ANY TRANSMITTERS HAVE A LOW BATTERY

• NORMALLY OFF

• FLASHES WHEN CONSOLE IS PLACING A CALL

• LIGHTS WHEN ACTIVITY TIMER IS ON

• BLINKS SLOWLY WHEN LESS THAN 15 MINUTES IS LEFT ON THE ACTIVITY TIMER

• BLINKS QUICKLY WHEN THE ACTIVITY TIMER HAS EXPIRED

CLEAR BUTTON

HOME BUTTON

• STOPS ALARM

• ADDS CANCEL TO AN ALARM
REPORT IN PROGRESS

• PRESS IMMEDIATELY AFTER

EMERGENCY TO PREVENT REPORT

• CLEARS INDICATORS

• STOPS TROUBLE BEEPER

• PRESS FOR 5 SECONDS TO ADD
A TRANSMITTER

• PRESS TO RESET ACTIVITY TIMER

• PRESS FOR 5 SECONDS TO TURN ACTIVITY TIMER OFF

• IF ACTIVITY TIMER IS OFF, PRESS FOR

5 SECONDS TO TURN ACTIVITY TIMER ON

HOME BUTTON COVER

• ADHESIVE BACKED PLATE TO

HIDE THE HOME BUTTON IF THE

ACTIVITY TIMER IS NOT USED

TO ACCESS THE INSIDE OF THE CONSOLE
PRESS THE TWO LOCKING TABS IN AND
REMOVE THE CONSOLE'S BOTTOM COVER

PRESS

TABS

IN

REMOVE

COVER

16 VAC 1.25 AMP

PLUG-IN

TRANSFORMER

EXTERNAL SPEAKER
AND RELAY OUTPUT
TERMINALS

VOICE DIALER JACK

LOCAL PHONE SET JACK

TELEPHONE LINE JACK

12-VOLT 1.2 AMP/HOUR

BACKUP BATTERY

BATTERY SWITCH

3 AMP 2AG

BATTERY FUSE

(HIDDEN)

TEST BUTTON

OPTIONAL

VB-4 VOICE BOARD

CONNECT BLACK
MICROPHONE
WIRE TO CENTER
TERMINAL

CONNECT RED
MICROPHONE WIRE TO
THIS TERMINAL

1

2

3 4

5

PRESS-FIT MICROPHONE INTO
ROUND MOUNTING HOLE

SEAT

MICROPHONE

CAREFULLY ALIGN
PINS TO CONNECTORS
ON BOTH ENDS OF BOARD

NOTE: POWER MUST
BE OFF AND BATTERY
SHOULD BE REMOVED
OR DISCONNECTED
BEFORE INSTALLING
THE AUDIO BOARD

BE SURE THAT THE WHITE
ARROWS ON AUDIO BOARD
POINT TOWARDS THE
BATTERY AREA

PRESS BOARD COMPLETELY
INTO CONNECTORS

NOTE: AFTER THE AUDIO BOARD
IS INSTALLED AND ENABLED,
THE CONSOLE WILL SPEAK INSTEAD
OF BEEP DURING PROGRAMMING

1

2

3 - RELAY COMMON

4 - NORMALLY CLOSED

5 - NORMLLY OPEN

FORM C DRY CONTACT RELAY
24 VOLTS AT 1 AMP MAXIMUM

NOISEMAKER OR

VISUAL INDICATOR

EXTERNAL

POWER SUPPLY

PERS-2400 CONSOLE

CONNECT WIRES
TO TERMINALS

ROUTE CABLE UNDER
STRAIN-RELIEF CLAMP

1 - EXTERNAL SPEAKER

2 - EXTERNAL SPEAKER

3

4

5

PERS-2400 CONSOLE

TERMINAL BLOCK

VB-4 TERMINAL BLOCK

EXTERNAL MICROPHONE (+)

MICROPHONE COMMON (-)

CONSOLE MICROPHONE (+)

LINEAR MODEL RSM-1

RSM-1 TERMINAL BLOCK

SPKR

SPKR

MIC (-)

MIC (+)

VB-4
VOICE
BOARD

RSM-1
TERMINALS

USE TWISTED
PAIR WIRE FOR
MICROPHONE

NOTE: REMOVE
JUMPER WHEN

USING AN

EXTERNAL SPKR

REMOVE
JUMPER

WIRE

NOTE: NOT
TESTED BY UL

1

2

TURN BATTERY
SWITCH OFF

OFF

ON

BATTERY TYPE: 12-VOLT, 1.2 AMP/HOUR

CONNECT RED LEAD TO POSITIVE
AND BLACK LEAD TO NEGATIVE
BATTERY TERMINAL

3

FIT BATTERY
INTO CONSOLE

SLIDE DOWN

THEN BACK

LIGHT CONCRETE

OR BRICK

65% - 95%

OF FULL POWER

10% - 70%

OF FULL POWER

CONCRETE WITH STEEL

REINFORCEMENT OR

METAL LATH AND PLASTER

WALLBOARD AND

WOOD STUDS

90% - 100%

OF FULL POWER

CONSTRUCTION

MATERIALS WILL

EFFECT RADIO RANGE

WIRELESS INSTALLATION TIPS

WRONG!

RIGHT

CENTRALLY LOCATE CONSOLE

TRANSMITTERS AT THE OTHER END OF

HOUSE MIGHT BE TOO FAR AWAY

CONSOLE LOCATION WILL

EFFECT RADIO RANGE

OFF

ON

1

PLUG TRANSFORMER
INTO AN UN-SWITCHED
117 VAC OUTLET

2

3

TURN BATTERY
SWITCH ON

SECURE
TRANSFORMER
WITH SCREW

INSTALLING TRANSMITTERS (FROM FRONT PANEL) INSTALLING TRANSMITTERS (FROM INSIDE CONSOLE) TESTING TRANSMITTERS

ERASING TRANSMITTERS CONNECTING TO RA-2400 FOR LOCAL CABLE PROGRAMMING TELEPHONE CONNECTIONS

SYSTEM OPERATION SUPERVISORY CONDITIONS ACTIVITY TIMER

AUDIO BOARD OPERATION SPECIFICATIONS

CODING FORMATS

DX CODE 24-BIT A1D PPM 1,048,567 CODES

DXS CODE 24-BIT A1D PPM 1,048,567 CODES

POWER REQUIREMENTS

PRIMARY SUPPLY 16 VAC 1.25 AMP PLUG-IN TRANSFORMER

BACKUP SUPPLY 12 VOLT 1.2 AMP/HOUR BATTERY

NORMAL OPERATING CURRENT 80 mA

ALARM OPERATING CURRENT 120 mA

BACKUP OPERATION DURATION 12 HOURS MINUMUM

BATTERY LIFE EXPECTED 3 YEARS

RF CHARACTERISTICS

RECEIVER TYPE DUAL-DIVERSITY SUPERHETERODYNE

RF SENSITIVITY -100 dBm TYPICAL

RADIO FREQUENCY 315 Mhz

MAXIMUM RANGE 400 FEET LINE-OF-SIGHT, OPEN RANGE

UL LISTED FOR 150’

COMMUNICATOR

COMMUNICATOR FORMATS 4 BY 2 (GENERAL OR POINT-TO-POINT), ADEMCO

CONTACT ID
UL TESTED WITH SURGARD SGMLRG-DG CENTRAL
STATION RECEIVER

DIALING TONE OR PULSE

DIALING DELAY 0 OR 15 SECONDS

REMOTE ACCESS PASSWORD 6 DIGITS

ACCOUNT NUMBER LENGTH 4 DIGITS

PRIMARY TELEPHONE NUMBER 20 DIGITS

SECONDARY TELEPHONE NUMBER 20 DIGITS

SUPERVISORY TELEPHONE NUMBER 20 DIGITS

CONSOLE STATUS REPORT OPTIONAL 1, 7 OR 30 DAY REPORT

CONSOLE

OPERATING TEMPERATURE 32°-100° F (0-50° C)

EMERGENCY ALARM DURATION 1-30 MINUTES

ACTIVITY TIMER PERIOD 8, 12, OR 24 HOURS

AUDIO LISTEN-ONLY, 2-WAY MANUAL, 2-WAY DUPLEX

RELAY OUTPUT N.O./N.C. (FORM C) @ 24 VOLT AC/DC 1 AMP

MAXIMUM, NEC CLASS II CIRCUITRY

IMPORTANT !!!

Linear radio controls provide a reliable communications link and fill an important need in portable
wireless signaling. However, there are some limitations which must be observed.

•

For U.S. installations only: The radios are required to comply with FCC Rules and Regulations
as Part 15 devices. As such, they have limited transmitter power and therefore limited range.

•

A receiver cannot respond to more than one transmitted signal at a time and may be blocked by
radio signals that occur on or near their operating frequencies, regardless of code settings.

•

Changes or modifications to the device may void FCC compliance.

•

Infrequently used radio links should be tested regularly to protect against undetected interference
or fault.

•

A general knowledge of radio and its vagaries should be gained prior to acting as a wholesale
distributor or dealer, and these facts should be communicated to the ultimate users.

INSTALL WITH
JUMPER SET
FOR INSTANT

ACTIVATES
AS ACTIVITY

NOTE: FOR DXS-31 STATIONARY TRANSMITTERS

INSTALL WITH
JUMPER SET
FOR DELAY

ACTIVATES
AS EMERGENCY

INSTALL
WITH
RIGHT
BUTTON

ACTIVATE
WITH
BOTH
BUTTONS

NOTE: FOR ALL TWO-BUTTON TX'S EXCEPT DXS-63

INSTALL
WITH
LEFT
BUTTON

ACTIVATE
WITH
EITHER
BUTTON

ADDS ONE TRANSMITTER AT A TIME

PRESS CLEAR BUTTON
FOR 5 SECONDS
5 BEEPS SOUND
(TX ADD MODE)

1

2

ACTIVATE TRANSMITTER
1 BEEP SOUNDS
(TX ADDED)
CONSOLE REVERTS
TO OPERATE MODE

NOTE: IF THE CONSOLE'S MEMORY
IS FULL, ONE LONG BEEP SOUNDS WHEN
TRYING TO ADD A TRANSMITTER

3

REPEAT STEPS 1 & 2
FOR ADITIONAL
TRANSMITTERS
(UP TO 16 TOTAL)

NOTE: PRESS CLEAR BEFORE
TRANSMITTING TO RETURN
TO OPERATE MODE WITHOUT ENTERING
A TRANSMITTER (2 BEEPS SOUND WITH
ACTIVITY TIMER ENABLED, 3 BEEPS
SOUND WITH ACTIVITY TIMER DISABLED)
THE CONSOLE WILL RESUME OPERATE
MODE AUTOMATICALLY AFTER
30 SECONDS

DXS-32: CUT JUMPER (INSTANT TX) FOR USE AS AN
ACTIVITY TX. SEE DXS-32 INSTALLATION INSTRUCTIONS

ADDS MULTIPLE TRANSMITTERS

PRESS TEST BUTTON
4 BEEPS SOUND
(TEST MODE)

3

2

ACTIVATE TRANSMITTER
1 BEEP SOUNDS
(TX ADDED)

REPEAT STEPS 2 & 3 FOR
ADDITIONAL TRANSMITTERS
(UP TO 16 TOTAL)

1

PRESS TEST BUTTON
AGAIN 5 BEEPS SOUND
(TX ADD MODE)

4

NOTE: IF THE CONSOLE'S MEMORY
IS FULL, ONE LONG BEEP SOUNDS
WHEN TRYING TO ADD A TRANSMITTER

PRESS CLEAR TO RETURN
TO OPERATE MODE (2 BEEPS SOUND
WITH ACTIVITY TIMER ENABLED, 3 BEEPS
SOUND WITH ACTIVITY TIMER DISABLED)
OTHERWISE, THE CONSOLE WILL RESUME OPERATE
MODE AUTOMATICALLY AFTER 3 MINUTES

5

3

2

1

PRESS TEST BUTTON
4 BEEPS SOUND
(TEST MODE)

ACTIVATE EACH OF
THE CONSOLE'S
TRANSMITTERS,
ONE AT A TIME

COUNT THE NUMBER
OF BEEPS THAT THE
CONSOLE SOUNDS
WHEN THE TRANSMITTER
IS ACTIVATED

NOTE: WITH THE MODEL VB-4 VOICE BOARD
INSTALLED, THE CONSOLE WILL ANNOUNCE
THE TRANSMITTER STATUS

PRESS CLEAR TO RETURN TO
OPERATE MODE (2 BEEPS SOUND
WITH ACTIVITY TIMER ENABLED,
3 BEEPS SOUNDS WITH ACTIVITY TIMER
DISABLED) OTHERWISE, THE CONSOLE WILL RESUME
OPERATE MODE AUTOMATICALLY AFTER 3 MINUTES

4

1-BEEP = TX OK
2-BEEPS = TX HAD ALARM
3-BEEPS = TX MISSED STATUS
4-BEEPS = TX HAS LOW BATTERY

PRESS AND HOLD TEST
BUTTON FOR 5 SECONDS
6 BEEPS SOUND
(ALL TRANSMITTERS
WERE ERASED)

1

NOTE: ALL TRANSMITTERS WILL BE ERASED!

PRESS CLEAR TO RETURN TO OPERATE
MODE (2 BEEPS SOUND WITH ACTIVITY
TIMER ENABLED, 3 BEEPS SOUND WITH
ACTIVITY TIMER DISABLED) THE CONSOLE
WILL RESUME OPERATE MODE AUTOMATICALLY
AFTER 3 MINUTES

2

PRESS TEST BUTTON
MOMENTARILY, 4 BEEPS
SOUND (TEST MODE)

NOTE: CONSOLE WILL EXIT TEST MODE
AUTOMATICALLY AFTER 3 MINUTES
OR BY PRESSING THE CLEAR BUTTON

2

3

WHEN RA-2400 CONNECTION TIMER
STARTS COUNTING DOWN, PRESS
THE EMERGENCY BUTTON
4 BEEPS SOUND (RA-2400 ANSWER)

1

TO LOCALLY PROGRAM
THE CONSOLE, CONNECT
THE MODEM'S LINE JACK
TO THE CONSOLE'S LINE
JACK

4

PERFORM THE STEPS DETAILED IN THE
RA-2400/PERS-2400 REFERENCE GUIDE (P/N 217163)
TO SET UP THE RA-2400 PROGRAM

LINE-TO-LINE

5

PERFORM PROGRAMMING IN
THE RA-2400 SOFTWARE, THEN
DISCONNECT FROM THE CONSOLE

CONSOLE

STANDING BY

CONSOLE

IN ALARM

POWER LIGHT IS ON

OTHER LIGHTS ARE OFF

- IN CASE OF EMERGENCY -

PRESS AND
MOMENTIARLY
HOLD
EMERGENCY
BUTTON

- OR ­ACTIVATE
EMERGENCY
TRANSMITTER

SIREN SOUNDS
UNTIL CLEAR BUTTON
IS PRESSED,
CENTRAL STATION
REPORT IS COMPLETE,
OR SIREN TIME EXPIRES

PRESS CLEAR TO
STOP SIREN
(ADDS CANCEL TO
ALARM REPORT IN
PROGRESS)

SENDING LIGHT
FLASHES DURING
COMMUNICATION

PRESS TRANSMITTER
BUTTON FOR AT LEAST
2 SECONDS

TRANSMITTER LOW BATTERY TROUBLE

TRANSMITTER SUPERVISORY TROUBLE

NOTE: THE CONSOLE WILL ANNOUNCE
THE SUPERVISORY CONDITIONS WITH
THE OPTIONAL MODEL VB-4 VOICE
BOARD INSTALLED. THE VOICE CAN
BE DISABLED THROUGH
PROGRAMMING

WHEN A TRANSMITTER SENDS A LOW BATTERY SIGNAL THE
CONSOLE'S TROUBLE INDICATOR WILL BLINK SLOWLY.

IF A TRANSMITTER PROGRAMMED AS SUPERVISED FAILS
TO REPORT STATUS IN A 24 HOUR PERIOD, THE CONSOLE'S
TROUBLE INDICATOR WILL LIGHT.

CONSOLE BACKUP BATTERY TROUBLE

THE CONSOLE WILL TEST ITS BACKUP BATTERY EVERY 8 HOURS.
IF THE BATTERY TESTS LOW, THE POWER INDICATOR WILL BLINK
SLOWLY WHILE THE CONSOLE CHARGES THE BATTERY.

CLEARING TROUBLE INDICATIONS

PRESS THE CLEAR BUTTON TO STOP TROUBLE
INDICATORS AND SOUNDERS

THE CONSOLE WILL REPORT
TROUBLE AND/OR 30-DAY STATUS
TO THE CENTRAL STATION IF
ENABLED IN THE COMMUNICATOR
PROGRAMMING

NOTE: THE TROUBLE CONDITION WILL LIKELY OCCUR AGAIN UNTIL THE PROBLEM IS FIXED

WHEN TROUBLE EXISTS,

THE CONSOLE WILL BEEP EVERY

HOUR UNTIL CLEARED:

2-BEEPS = CONSOLE LOW BATTERY

3-BEEPS = TRANSMITTER SUPERVISORY

4-BEEPS = TRANSMITTER LOW BATTERY

3

TIME RUNNING OUT

2

1

ENABLING THE ACTIVITY TIMER

PRESS THE HOME BUTTON FOR 5 SECONDS
TO TURN THE ACTIVITY TIMER ON

THE HOME INDICATOR WILL LIGHT, SHOWING
THAT THE ACTIVITY TIMER IS ENABLED

ACTIVITY TIMER RUNNING

NOTE: TO TURN THE ACTIVITY
TIMER OFF, PRESS THE HOME BUTTON
FOR FIVE SECONDS

THE SUBSCRIBER NEEDS TO PRESS
THE HOME BUTTON OR TRIGGER AN
ACTIVITY TRANSMITTER BEFORE THE
TIMER EXPIRES TO PREVENT
AN INACTIVITY REPORT

PRESSING THE HOME BUTTON
RESTARTS THE TIMER

RESETING ACTIVITY TIMER

NOTE: THE ACTIVITY TIMER CAN
BE ENABLED FOR 8, 12, OR 24 HOURS,
OR DISABLED BY PROGRAMMING

4

THE HOME INDICATOR WILL BLINK & A SHORT
BEEP SOUNDS EVERY 10 SECONDS WHEN
LESS THAN 15 MINUTES OF TIME REMAIN

PRESS "9" TO DISCONNECT THE CALL

PRESS "3" TO LISTEN

PRESS "1" TO TALK

ALL

AUDIO

MODES

2-WAY MANUAL

AUDIO MODE

THE "1" AND "3" KEYS ARE NOT USED IN LISTEN-ONLY AUDIO MODE

THE "1" AND "3" KEYS CAN BE USED IN FULL DUPLEX MODE,
ALTHOUGH THE MODULE WILL SWITCH TO 2-WAY MANUAL
MODE. PRESS "8" TO RETURN TO DUPLEX MODE.

PRESSING ANY KEY OTHER THAN "9" WILL EXTEND THE AUDIO TIME 90 MORE SECONDS

NOTE: TO USE THE AUDIO FEATURES
THE MODEL VB-4 AUDIO MODULE
MUST BE INSTALLED IN THE CONSOLE

CENTRAL STATION OPERATOR:

USE THESE KEYS ON A TELEPHONE SET

CONNECTED TO THE COMMUNICATOR LINE

TO CONTROL THE AUDIO MODULE

3

• LISTEN-ONLY

• 2-WAY MANUAL

• 2-WAY FULL DUPLEX

PROGRAM THE CONSOLE FOR
THE DESIRED AUDIO MODE

2

1

AFTER THE CENTRAL STATION
OPERATOR ACKNOWLEDGES
THE COMMUNICATOR'S REPORT,
THE CONSOLE WILL STOP ITS
SIREN AND SWITCH TO THE
AUDIO MODE FOR 90 SECONDS

CONNECT TELEPHONE
LINE TO THIS JACK

CONNECT LOCAL
TELEPHONE TO
THIS JACK

TELEPHONE
JACK

LOCAL
TELEPHONE

ROUTE CABLES UNDER
STRAIN-RELIEF TABS

PERS-2400

CONSOLE WITH

REAR COVER

INSTALLED
