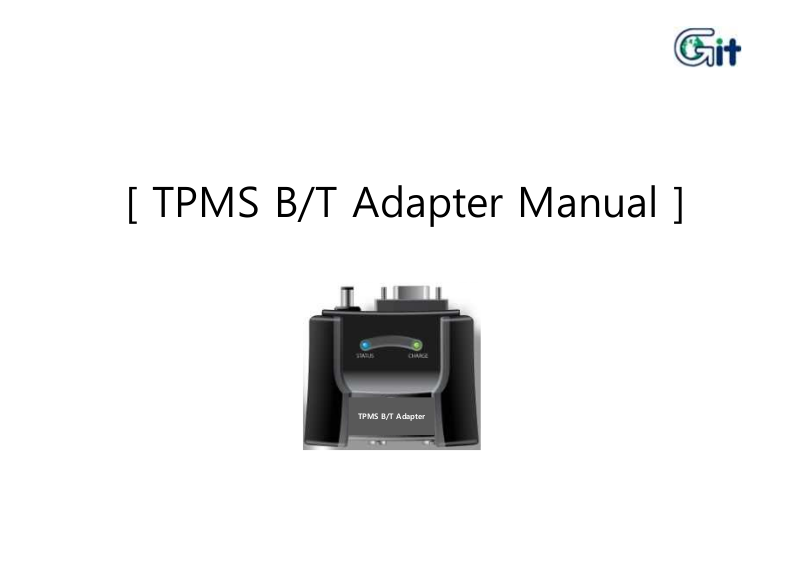

[ TPMS B/T Adapter Manual ]
TPMS B/T Adapter
1. TPMS B/T Adapter is adapter for B/T commnuication TPMS with PAD.
2. Connect the TPMS and TPMS B/T Adapter like as a picture for use.
3. TPMS B/T Adapter is not used without TPMS.
● DESCRIPTION
4. For the power ON, press the RED button at top right side of TPMS.
- Red LED of top left side of TPMS is on,
And, Red LED is on at top left side of TPMS BTA
5. For the power OFF, Press the RED button about 3 seconds at top
right side of TPMS.
- The POWER LED of top left side of TPMS is off,
And, Red LED is off at top left side of TPMS BTA
TPMS B/T Adapter
• AC/DC adapter is not supplied.
ITEM Specification
POWER DC 3.7V
• Supply power from LI-ION BATTERY
• BATTERY : 1,000mA 653745
- Charge : 0~45℃
- Discharge : -20 ~ 60℃
Temperature Active Temperature • Active : 0 ~ 40℃
Power Consumption Power • Status : Active ( Max. 180mA )
Charge DC 7V – 35V
• Input power from DC-JACK pin
• When TPMS connect to TPMS_BTA
Both able to be charged.
● TPMS B/T Adapter
CPU
Main CPU • STM32F205RGT6(LQFP64) - STMicroelectronics
Processing speed • 32Bit Cortex120MHz
Internal Memory
Volume
• Flash 1M Byte, RAM 128K Byte
Interface • UART (TPMS/PC)
BLUETOOTH
IC • BlueCore4 (BT 2.1+EDR)
Module • MBL0402E (12.9x10.xX2.2) - ADANIS
Frequency • 2.4GHz
Display
Interface •
Support ratings
LED1 • POWER ON/OFF / Low Battery warning / BT communication
LED2 • Status of charging(charging/full charged)
Communication with CPU by UART
• CLASS2
3
CAUTION:
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
Changes or modifications not expressly approved by the party responsible for compliance
Could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is suject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
NOTE:
4
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection againt harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interferende to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interferende by
one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This product is CE marked according to the provision of the R&TTE Directive (99/5/EC). Here
by G.I.T co., Ltd.. declares that this product is in compliance with the essential requirements
and other relevant provisions of Directive 1999/5/EC
