G I T G1NDDMN002 User Manual

Download

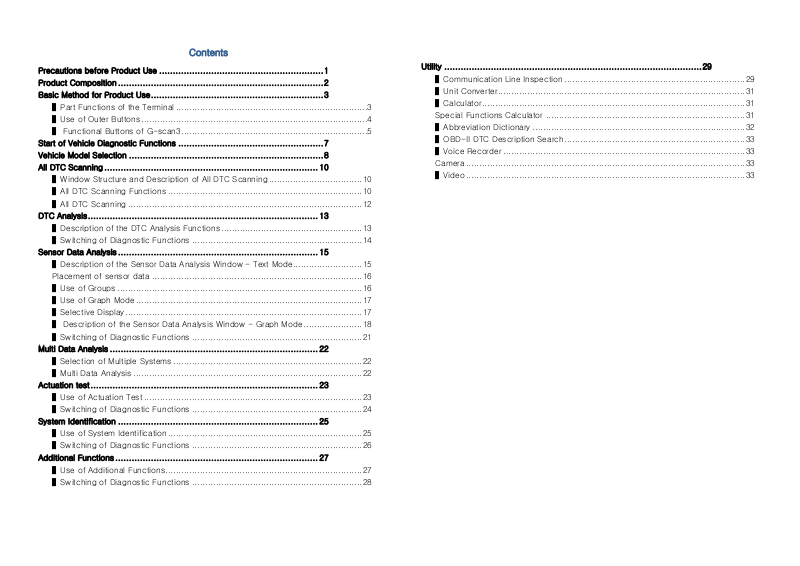

Contents

Precautions before Product Use ............................................................ 1

Product Composition ........................................................................... 2

Basic Method for Product Use ............................................................... 3

▌Part Functions of the Terminal ........................................................................ 3

▌Use of Outer Buttons ..................................................................................... 4

▌ Functional Buttons of G-scan3 ...................................................................... 5

Start of Vehicle Diagnostic Functions ..................................................... 7

Vehicle Model Selection ....................................................................... 8

All DTC Scanning .............................................................................. 10

▌Window Structure and Description of All DTC Scanning ................................... 10

▌All DTC Scanning Functions ......................................................................... 10

▌All DTC Scanning ........................................................................................ 12

DTC Analysis .................................................................................... 13

▌Description of the DTC Analysis Functions ..................................................... 13

▌Switching of Diagnostic Functions ................................................................ 14

Sensor Data Analysis ......................................................................... 15

Utility .............................................................................................. 29

▌Communication Line Inspection .................................................................... 29

▌Unit Converter ............................................................................................. 31

▌Calculator ................................................................................................... 31

Special Functions Calculator ........................................................................... 31

▌Abbreviation Dictionary ................................................................................ 32

▌OBD-II DTC Description Search .................................................................... 33

▌Voice Recorder ........................................................................................... 33

Camera ......................................................................................................... 33

▌Video ......................................................................................................... 33

▌Description of the Sensor Data Analysis Window - Text Mode .......................... 15

Placement of sensor data ............................................................................... 16

▌Use of Groups ............................................................................................ 16

▌Use of Graph Mode ..................................................................................... 17

▌Selective Display ......................................................................................... 17

▌ Description of the Sensor Data Analysis Window - Graph Mode ...................... 18

▌Switching of Diagnostic Functions ................................................................ 21

Multi Data Analysis ............................................................................ 22

▌Selection of Multiple Systems ....................................................................... 22

▌Multi Data Analysis ...................................................................................... 22

Actuation test ................................................................................... 23

▌Use of Actuation Test .................................................................................. 23

▌Switching of Diagnostic Functions ................................................................ 24

System Identification ......................................................................... 25

▌Use of System Identification ......................................................................... 25

▌Switching of Diagnostic Functions ................................................................ 26

Additional Functions .......................................................................... 27

▌Use of Additional Functions.......................................................................... 27

▌Switching of Diagnostic Functions ................................................................ 28

Precautions before Product Use

G3180203

User safety

 When using this product near a driving part of a vehicle, ensure that any cable or

Any product faults caused by installation of an application not recommended by GIT or any modification of the operating system made arbitrarily by a user may invalidate the product warranty. The applications and services included in this product are subject to change or be discontinued without prior notice because of inevitable circumstances.

Precautions regarding environment of product use

Overheating may occur because of ambient environmental aspects if the following precautions are not made. Make the following precautions when using this product, because failure to do so may lead to reduced battery life, product damages, or fire accidents.

 Do not keep this product at a place that is too high or with a too low temperature.  Do not expose this product to direct sunlight for an extended time.  Do not keep or use this product at a hot place, such as the inside of a car parked in

direct sunlight during summer.

instrument part of this product will not be in contact with the driving part.x`

Actions to be taken against overheating during product use

A function or an application that consumes a large amount of battery power may lead to overheating. Although it is not because of a product defect, turn off the power of this product for a short time to ensure user safety.

Actions to be taken against continuous overheating

 Disconnect the charger, and completely turn off the power of the G-scan3.  Remove all the cables connected to this product.

 Do not put this product near or inside an electric heater, heat-generating cooking device,

or high-pressure container.

 Do not put this product in a microwave oven.  Do not keep or use this product at a place of high temperature and high humidity.  Do not keep this product inside a closed space for an extended time while its power is on.  Do not use a faulty charging adapter or battery.  Do not connect the charging adapter into a power outlet with a wet hand.

Precautions during product use

 Use this product at a safe place so that it may not be damaged by impact or falling.  Use the dedicated pen when touching the screen. The use of a sharp tool, such as a

screwdriver or a gimlet, may damage the screen.

Safety when charging and using the battery

 When connecting the AC/DC adapter, make sure to connect it firmly.  Make sure to use the AC/DC adapter that is provided with this product.  A swelling of the battery part of this product may lead to fire or explosion. Therefore, if

swelling is found, contact the seller or the manufacturer immediately.

 When replacing the battery, make sure to use a battery provided by the product

manufacturer.

Product Composition

G3180203

Item Code

Item Name

Specification

G1CDDPA008

Adapter

Self Test

G1NDDMN002

G-scan3 Main Module

G-scan3 for AM (Black)

G1NZDCA001

Cable

DLC_G-scan3 (AM for general)

G1CDDPA013

Adapter

For AC/DC (KPL-040F)_GDS

G1PDDCA002

Cable

For CIGAR_G-scan

G1NDDHA002

Hard-carrying Case

For G-scan3

G-scan3 Quick Manual

G-scan3 AM (English Common)

G2SDDCA003

Cable

For Battery_HG

Item Code

Item Name

Specification

G0PDDCN001

Cable

Power (P-06061D)_For Australia

G1CDECA001

Cable

Power (2961)_For Europe

G1CDNCA001

Cable

Power(P04117A)_For North America

G0PDDCN001

Cable

Power (P-06061D)_For Australia

G1FDDPA001

Adapter

For 16-20A_G-scan2

G1FDDPA002

Adapter

For 16-20B_G-scan2

G1PZDPA001

Adapter

Toyota 17P S+1

G1PZDPA002

Adapter

Mitsubishi/Hyundai 12P+16P

G1PZDPA005

Adapter

J1939-9P

G1PZDPA006

Adapter

Isuzu 20P-10P-3P

G1PZEPA001

Adapter

BMW 20P

G1PZEPA002

Adapter

Audi/VW 4P

G1PZFPA002

Adapter

Toyota 17P R

G1PZFPA003

Adapter

Honda/Accura 3P

G1PZFPA004

Adapter

Mazda 17P

G1PZFPA005

Adapter

Subaru 9P

G1PZFPA007

Adapter

Nissan 14P

G2WDDCN006

Adapter

Ssangyong 14P

G1CDDPA007

Adapter

10-3-3

G1PZDPA007

Adapter

Hino 12P-5P

The product composition varies depending on the specifications of the package you purchase. For purchase of additional components, contact the seller.

Basic Composition

Components of Packages

Basic Method for Product Use

G3180203

No.

Description

Quantity

Power button

Power on/off, and restarting of G-scan3 terminal

2 Volume control button

F1: Speaker volume up F2: Speaker volume down

DLC connection terminal

Terminal for connection of the DLC cable for communications with a vehicle

External device connection terminal 1

①

LAN cable port for Internet connection

②

HDMI cable connection port Monitor/TV set connection

External device connection terminal 2

①

USB device connection

②

Micro-SD card

1 ③

USB device connection port

④

Headphone connection jack

Power connection terminal

Power connection with a car battery or an AC/DC adapter

Rear camera

Speaker

9 Dedicated fan

Some memory cards may not be fully compatible with this product, and use of an incompatible memory card may lead to damages of this product, SD cards, or SD card data.

①

② ③ ②

①

5 6 9

④

This section describes the part names and functions of G-scan3.

▌Part Functions of the Terminal

▌Use of Outer Buttons

Power off/restarting

When G-scan3 is turned on, and the window is on, a long press of the power button will display the popup window for selecting “Shutoff” or “Restart.” Clicking of the "Shutoff" or the "Restart" button will change to the selected status of the power.

Power-saving mode

While G-scan3 is turned on and the window is off, a short press of the power button will change the power mode to power-saving mode, and will shut off the window. To resume the use of G-scan3, a short press of the power button is needed to release the product from the power-saving mode.

Shutoff

Restart

Power button

You can turn on/off the power of G-scan3 by using the power button placed at the top of the main module.

Power on

When G-scan3 is turned off, a long press of the power button will turn on its power.

Volume control buttons

You can change the volume level with the volume control buttons. The volume level is displayed on the window as follows:

▌ Functional Buttons of G-scan3

No.

Icon

Button Name

Description

Cancel

This returns the current window to the previous window.

Home

This returns the current window to the desktop window.

App Running

This displays the applications that are running.

Web Browser

This runs the Internet browser.

Setting

This enables setting of the body and configuration of G-scan3.

Screen Capture

This enables screen capture and image editing.

The functional buttons placed at the bottom of the first window of G-scan3 provide various convenience functions for the user.

“Home” button

This returns the current window to the desktop window of the Android OS of G-scan3.

"App Running" button

This displays the applications that are running on G-scan3.

"Web Browser" button

"Screen Capture" button

This runs the Internet browser to connect G-scan3 to the Internet with wired/wireless network.

This enables an instant screen capture during G-scan3 use, and a simple memo or drawing on captured images with a dedicated pen. Captured images can be saved in files, or printed out.

Start of Vehicle Diagnostic Functions

G3180203

No.

Icon

Function Name

Description

FCS

This enables scanning of the diagnostic trouble codes (DTCs) that are saved for all the systems of a vehicle that support diagnostic communications.

DTC Analysis

This enables scanning of the DTCs that are saved for a single selected system, and displays the trouble information of a vehicle.

Data Analysis

This enables communication with a single selected system, and displays the status value of sensor items.

Multi Data Analysis

This applies only to CAN communications systems. It establishes communications with multiple systems, and displays the status value of sensor items.

Actuation Test

This enables checking of normal operation by forcibly driving or stopping the actuators mounted on a vehicle.

System Identification

This displays the identification of the systems mounted on a vehicle.

S/W Management

This enables additional setting, inspection, initialization, etc., after maintenance of a vehicle.

When using the vehicle diagnostic functions of G-scan3, select [Diagnosis] on the initial window. Then a window will be displayed for selecting an automaker. Select the maker that matches the vehicle to be diagnosed.

The structure of the diagnostic functions available on the main window of G-scan3 is as follows. Read the descriptions of the functions before using them.

Vehicle Model Selection

G3180203

Click [Auto VIN] in the left button tab.

Communication with the vehicle will be established, and the VIN will be read.

The model, manufacture year, and engine specifications will be selected automatically, and the VIN will be displayed at the top of the diagnostic program.

Note:

When no VIN can be read in the "Auto VIN" mode, the following VIN input popup window will be displayed: Enter the 17-digit (numbers + alphabets) code of the vehicle and click the [OK] button, and the vehicle selection will be completed automatically.

This is the stage where a vehicle model to be diagnosed is selected. A vehicle model can be selected by the "Auto VIN" or the manual selection method.

 Auto VIN: This method reads the vehicle identification number (VIN) from the ECU of the

vehicle, and selects the VIN automatically.

 Manual selection: In this method, vehicle identification should be selected manually in the

following sequence: manufacturer, vehicle model, manufacture year, engine type, and system.

Auto VIN

This method reads the vehicle identification number (VIN) from the ECU of the vehicle, and selects the VIN automatically.

Manual selection

Select the model of the vehicle to be diagnosed.

Select the manufacture year of the vehicle to be diagnosed.

Select the engine type of the vehicle to be diagnosed.

Select the system to be diagnosed.

For the following diagnostic functions selected on the main window, you can select multiple systems:

- FCS

- Multidata Analysis

- System Identification

- S/W Management

In this method, identification of the vehicle to be diagnosed should be selected manually for the diagnostic communications. Vehicle identification should be selected manually in the following sequence: manufacturer, vehicle model, manufacture year, engine type, and system. In the case of some diagnostic functions for multiple systems, you can add systems to be diagnosed.

All DTC Scanning

G3180203

This function displays the overall diagnostic results of the vehicle by making diagnostic communications with multiple control systems mounted on a vehicle, and shows the DTCs saved in the systems.

No.

Description of Result Display

This indicates the number of systems in which DTCs have been found.

If any DTCs are found, they will be indicated in red, and the number of DTCs found in the system will be displayed.

This will be indicated when the system does not respond.

If no DTC is found, it will be indicated in green.

1 2 3

▌Window Structure and Description of All DTC Scanning

The result of the “All DTC” scanning will display the number and the status of the scanned DTCs on the right of the window after making diagnostic communications with the systems.

▌All DTC Scanning Functions

Rescan This rescans DTCs of all the selected systems, and updates the information on DTC occurrence.

Result display of DTC scanning

Erase all DTC This erases all DTCs found in the “All DTC” scanning.

All DTC This displays all DTCs found in the “All DTC” scanning.

DTC Analysis

Sensor data Analysis

On the "All DTC” scanning window, after a system is selected, clicking of the [DTC Analysis] button will change the window to the one for the DTC analysis functions.

On the "All DTC" scanning window, after a system is selected, clicking the [Sensor data Analysis] button will change the window to the one for the sensor data analysis functions.

* For the method that uses the DTC analysis functions, see [DTC Analysis].

* For the method that uses the sensor data analysis functions, see [Sensor data Analysis].

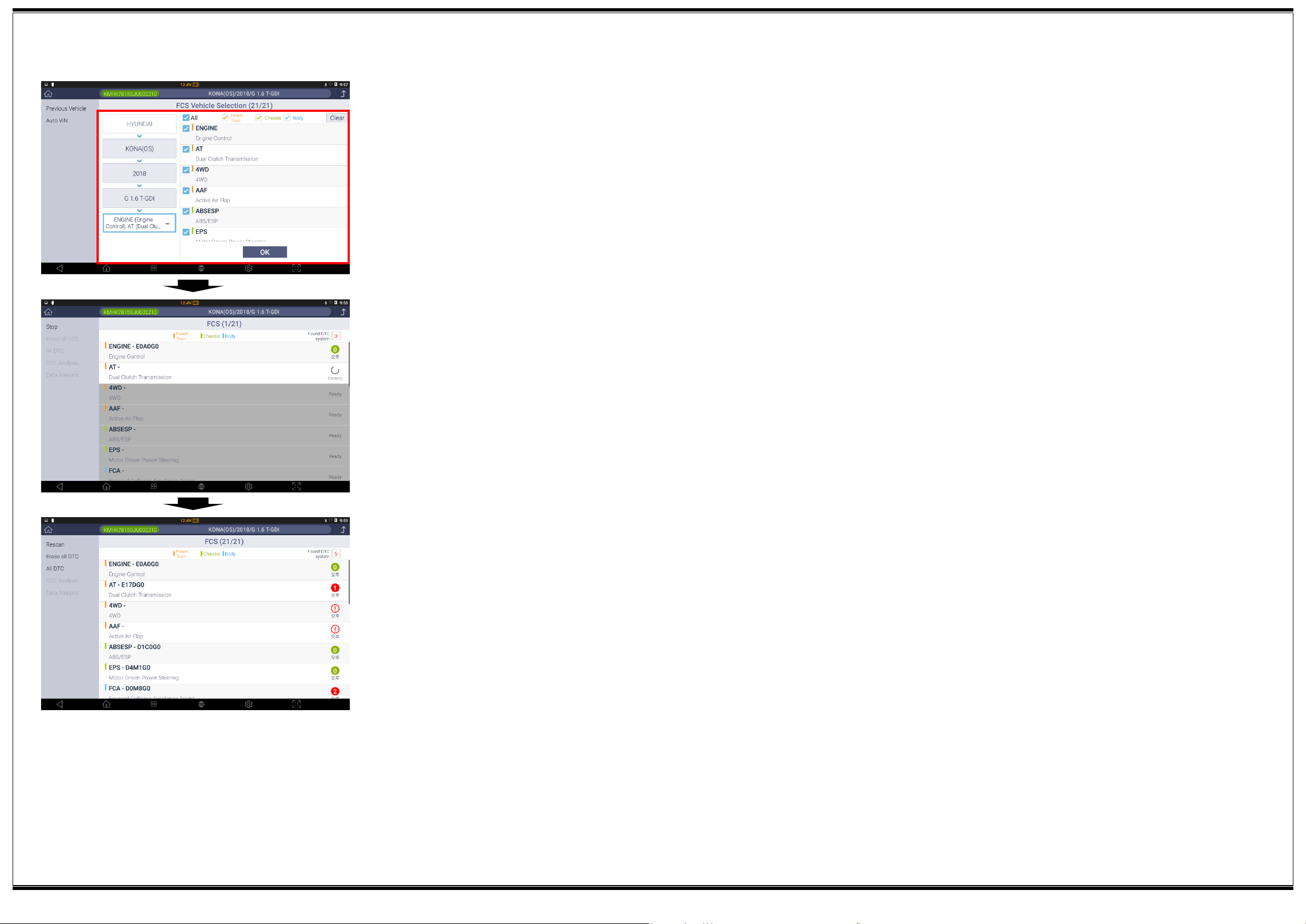

▌All DTC Scanning

Select the manufacturer, vehicle model, manufacture year, engine type, and system. Then click the [OK] button to start "All DTC" scanning. * FCS is one of the functions for which multiple systems can be selected.

It will scan the control systems sequentially.

It will display the DTC occurrence status of the control systems.

DTC Analysis

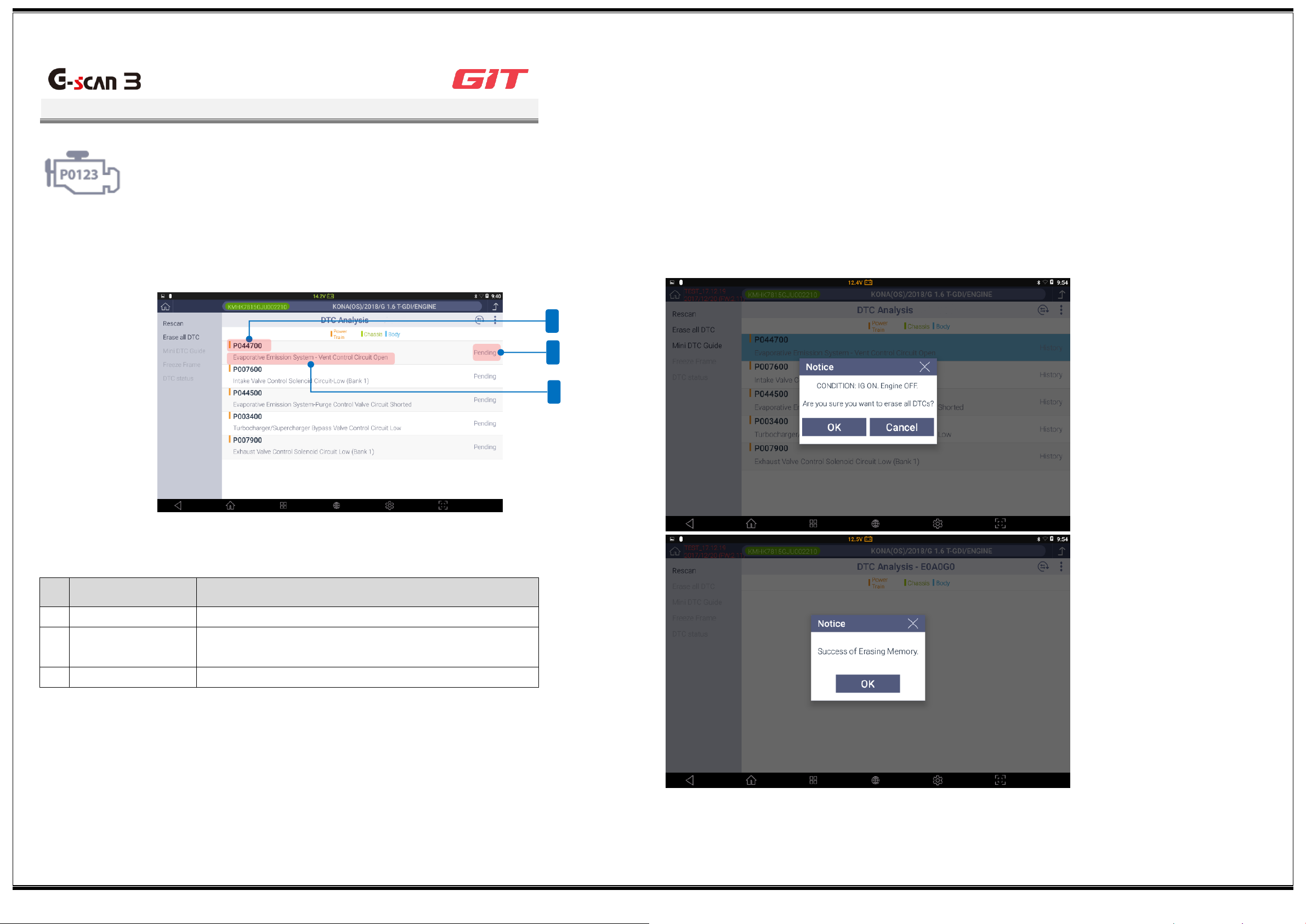

G3180203

It will scan the DTCs saved in the control systems of the vehicle, and display the detailed information on the DTCs.

Function Icon

Description

DTC

This displays the DTC of the control system.

DTC status

This displays the status of the DTC of the control system (ACTIVE, HISTORY, or PENDING).

DTC description

This describes the DTC of the control system.

▌Description of the DTC Analysis Functions

Rescan

This rescans the DTCs of the selected system. This button has the same function as the "Insert Button Icon" at the top of the window.

▌Checking on System DTC Information

Erase all DTC

This erases all the DTCs saved in the control system. The status of the vehicle should be such that the start key is in the “ON” position and the engine is off.

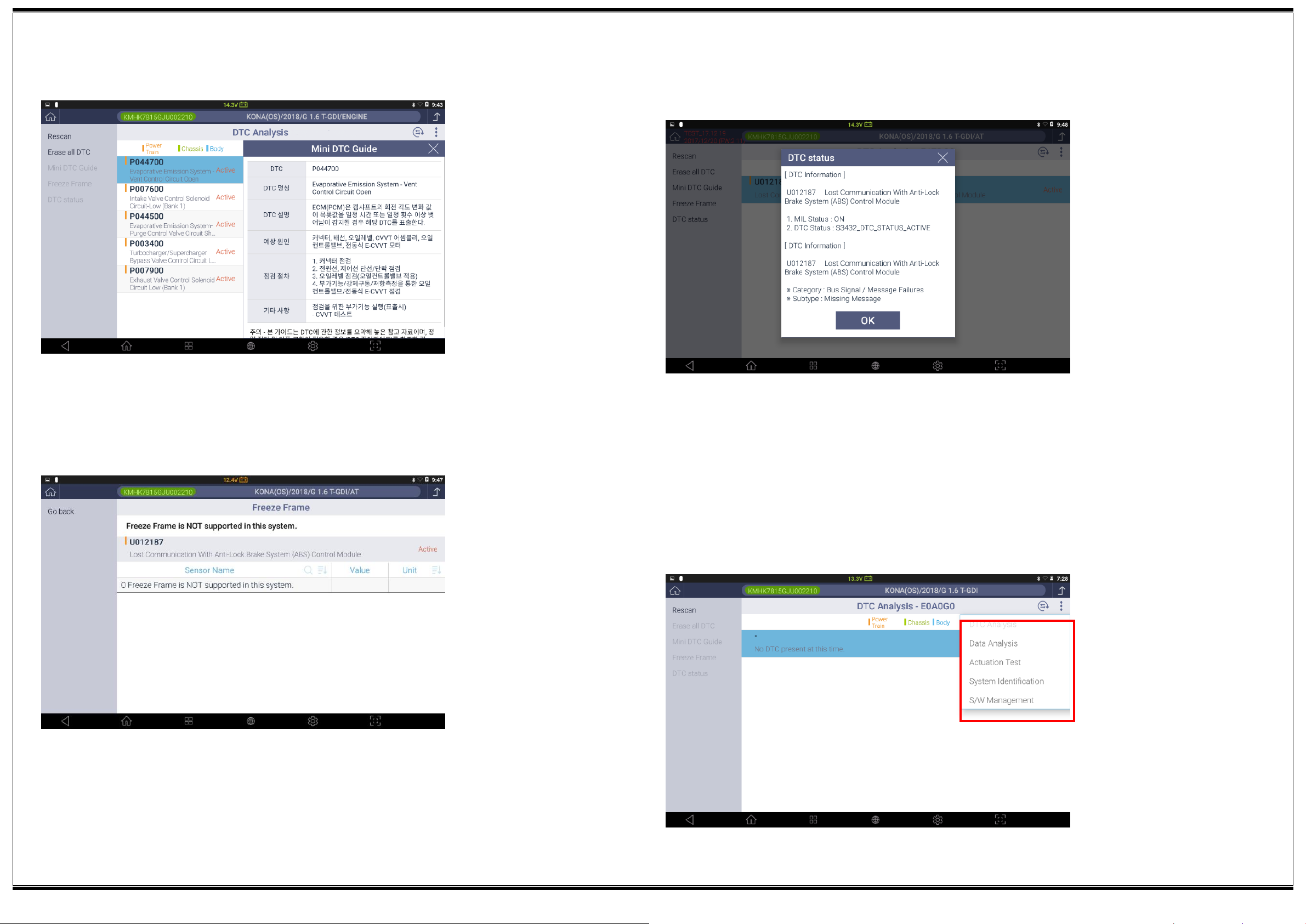

Mini DTC Guide

This provides a simple guide to the DTCs scanned in the DTC Analysis.

DTC status

This shows a short description of the DTC, and its current status.

Trouble status data

This enables a query to the status value of the related sensor data items saved during DTC occurrence.

* Clicking of the [Go back] button will change the window back to the DTC Analysis window.

▌Switching of Diagnostic Functions

While diagnostic communications between G-scan3 and the vehicles are established, you may switch to different diagnostic functions:

 Data Analysis  Actuation Test  System Identification  S/W Management

Sensor Data Analysis

G3180203

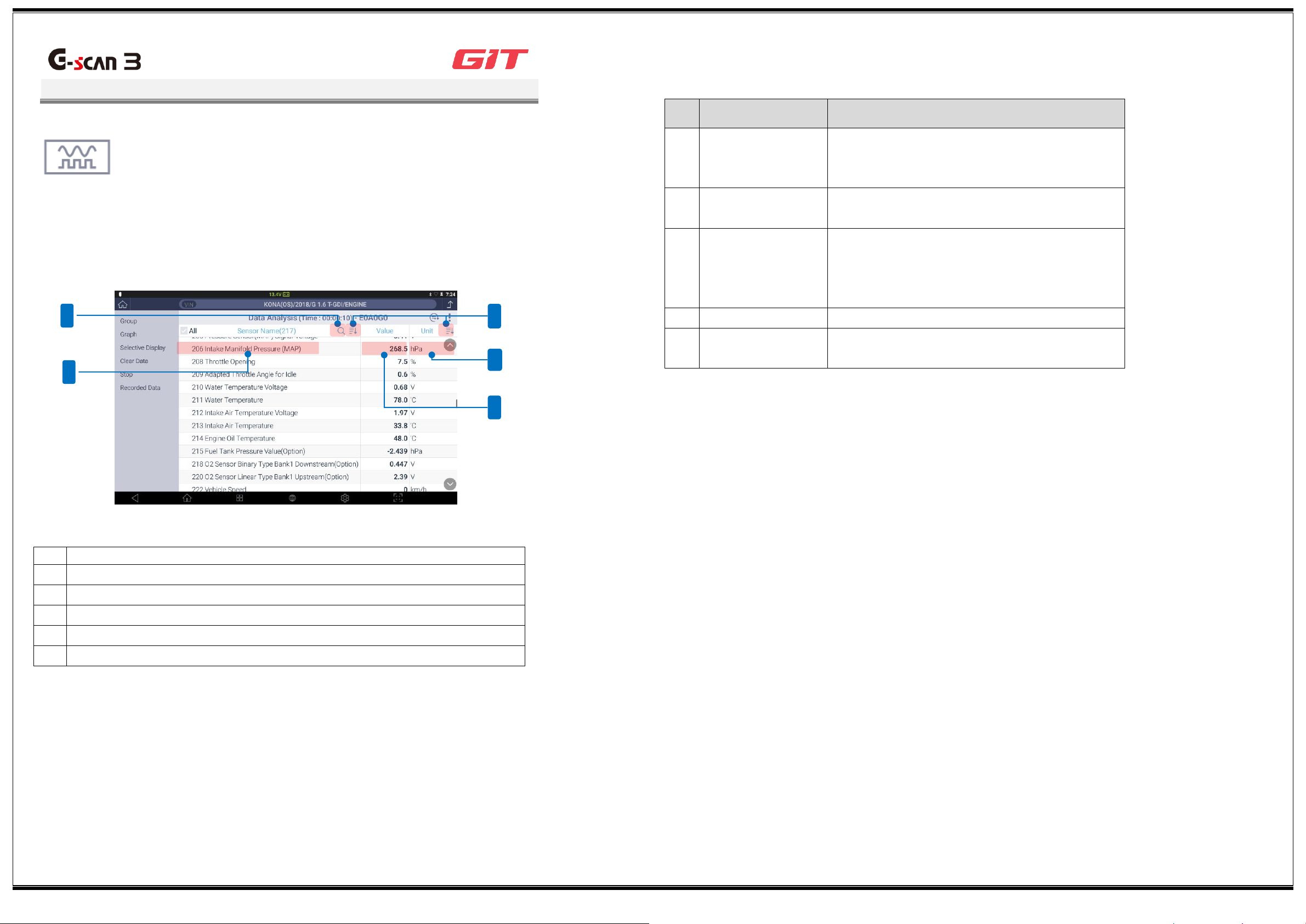

This function displays the operating status of the sensors and the actuators of the control systems mounted on the current vehicle through communications with the control systems.

No.

Description

Sensor data group name

Sensor data value

Sensor data unit

Scan

Sort

No.

Function Icon

Description

Group

This displays the sensor data items that belong to the selected type of the group list on the window.

Graph

This displays the selected items of the group in graph.

Selective Display

This displays only the sensor data items selected at the top. The smaller the number of the selected items, the more precise the displayed data.

Clear Data

This clears the sensor data being recorded.

Recorded Data

This displays the data viewer for analyzing the data recorded in the past.

▌Description of the Sensor Data Analysis Window - Text Mode

Description of function buttons

Scan sensor data

This scans sensor data items, and displays them at the top.

Sort sensor data

This carries out user-defined sorting of sensor data. The sorting criteria available are item name and unit.

Placement of sensor data

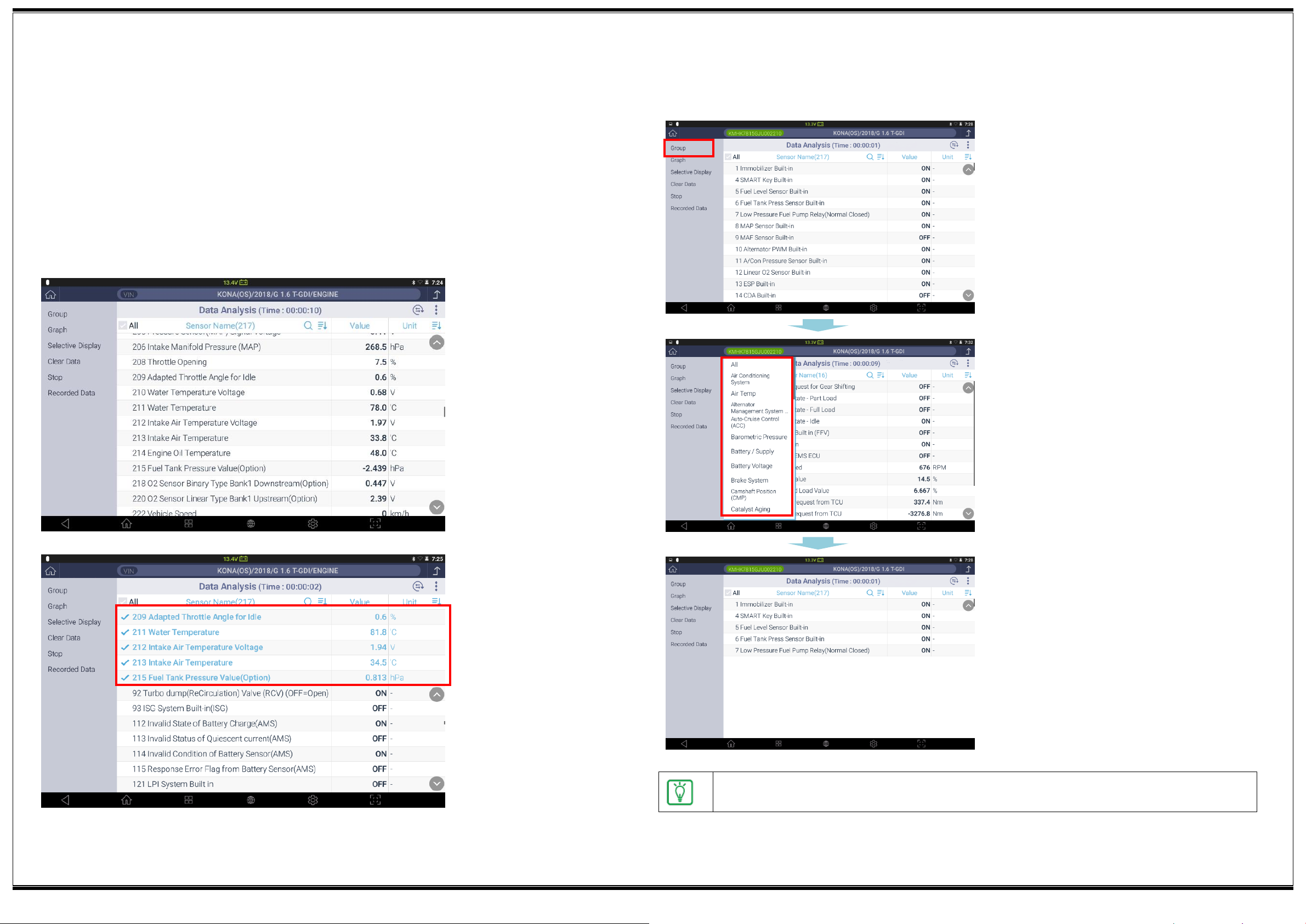

Click the [Group] button in the left list.

Click a group to be diagnosed among the list of the groups supported by the control systems.

Only the sensor data items defined for the selected group will be displayed on the window.

To view all the groups in the list of the groups of sensor data items, click [All] for the group list.

▌Use of Groups

You can place the necessary items selected among the ECM data under communication at the top. Fixation of sensor data items is a prerequisite when converting to the graphic mode.

Method for fixating/clearing items

Clicking of the sensor data items on the window will place them at the top, which are indicated in blue. Similarly, clicking of the sensor data items placed at the top will clear its placement from the said position.

Sensor data items are categorized according to group attributes, and it is possible to analyze data by categorizing sensor data into groups.

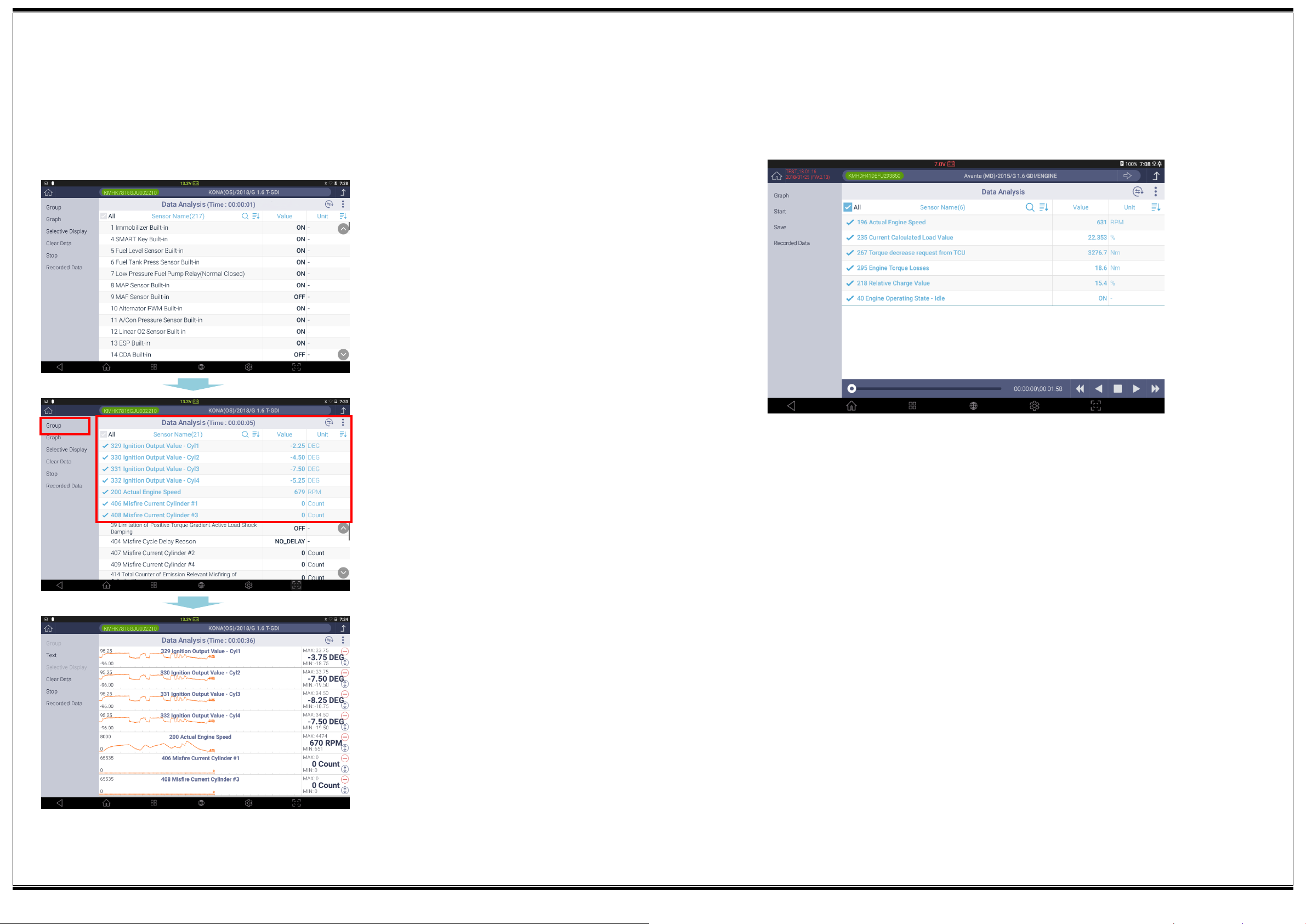

▌Use of Graph Mode

Select and place the sensor data items at the top.

After the sensor data items are selected, click the [Graph] button.

Then the sensor data items placed at the top will be displayed in a graph.

The graph mode displays the values of sensor data items in a graph so that the user may visually identify the changes in sensor data values.

Viewing in graph mode

▌Selective Display

This function displays only the sensor data items selected by the user to increase the accuracy of the sensor data display.

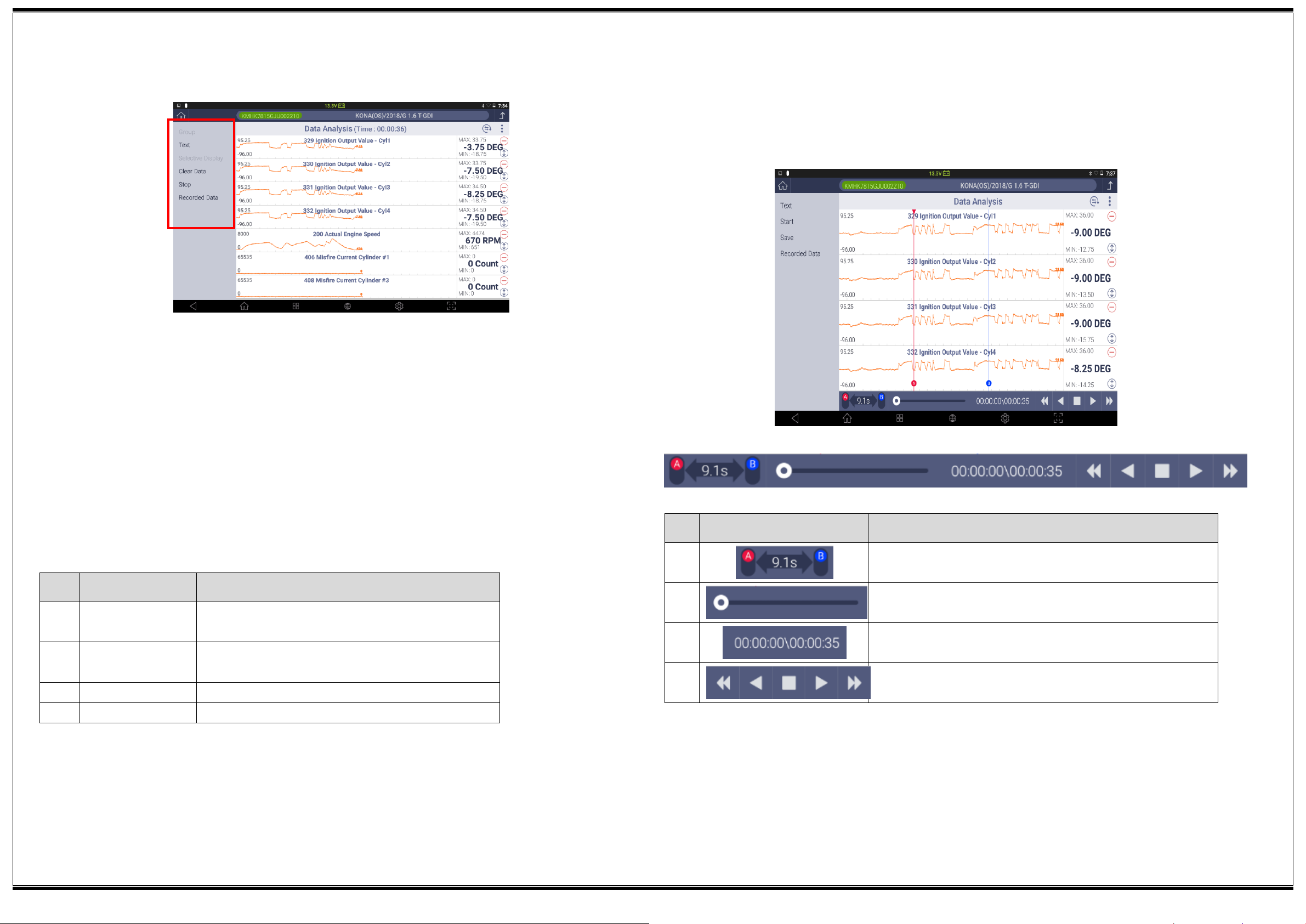

▌ Description of the Sensor Data Analysis Window - Graph Mode

No.

Function Icon

Description

Text

This switches the graph mode to the text mode.

Clear Data

This clears the collected sensor data values, and restarts data recording.

Stop

This stops sensor data recording.

Recorded Data

This displays the recorded data.

No.

Function Icon

Description

This enables activation of cursors A and B, and displays the time gap between Cursor A and Cursor B.

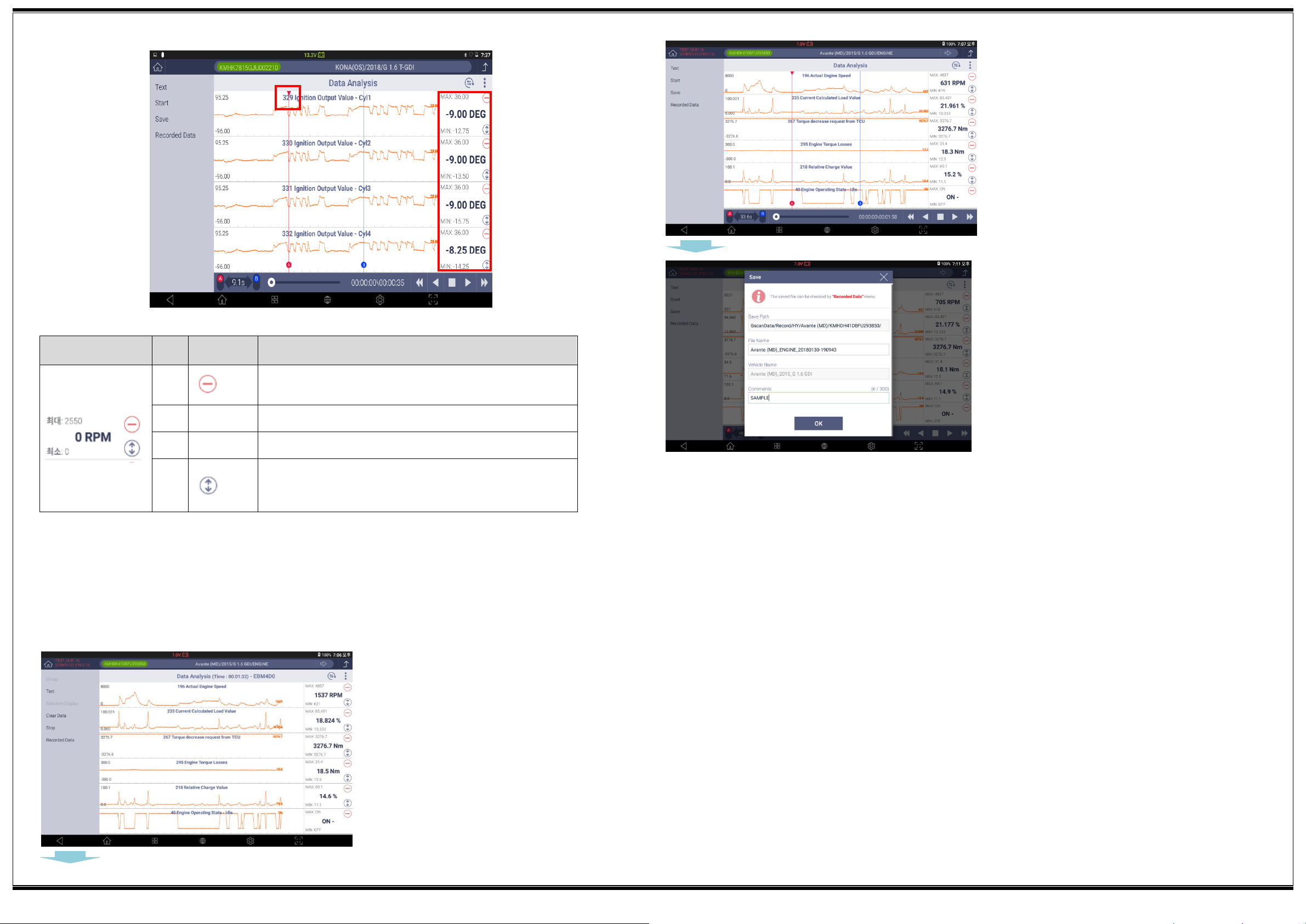

This indicates the playback position of the sensor data recording on a bar.

This indicates the playback position of the sensor data recording in the time unit.

This plays/stops sensor data records in the regular/reverse direction.

Text

This switches the window display from the graph mode to the text mode.

Description of the graph analysis function

While sensor data are collected in the graph mode, clicking of the [Stop] button will switch the window to the data analysis mode.

Clear Data

This clears the data collected through communications with the control systems of the vehicle, and restarts data collection.

Stop

This stops the process of collecting sensor data from the control systems of the vehicle.

Recorded Data

No.

Icon

Description

This excludes the item from the list of graph display.

Maximum

This indicates the maximum value on the current graph display window.

Minimum

This indicates the minimum value on the current graph display window.

This enlarges the graph of the pertaining item to the maximum. However, it will not exceed the graph display area.

Click the [Stop] button to stop data reception.

When data reception is stopped, the "Data Analysis" window will appear as shown in the left figure.

Clicking of the [Save] button will prompt a window for designating the file saving path and inputting remarks. After inputting remarks, click the [OK] button.

To the left of the sensor data;

Save data

This saves the sensor data acquired in this the sensor data function in a file. The data can be retrieved with the "Stored Data Analysis" function.

Save data

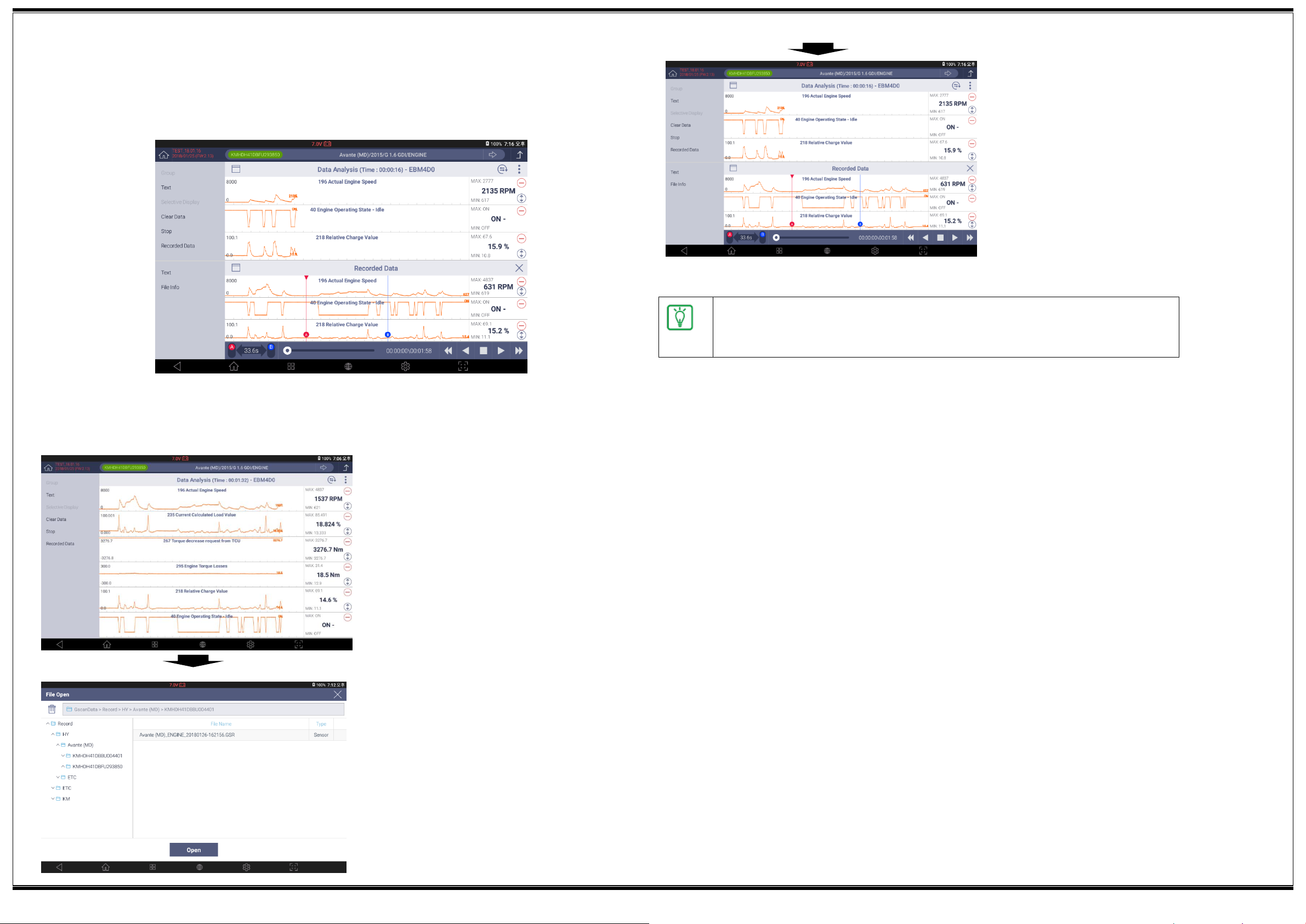

Retrieving of stored data

Click the [Recorded Data] button.

Go to the data saving path, find a file, and click the [Open] button.

Clicking of the [Save] button will prompt a window for designating the file saving path and inputting remarks. After inputting remarks, click the [OK] button. The sensor data will be stored in a file with *.GSR format, which can be rechecked at the [Data] function of the initial window, or [Recorded Data] in the “Sensor Data Analysis” function.

In the graph mode, you can call the existing sensor data records, and compare them. At this time, the top part of the window will display sensor data values and the bottom part will display the saved data playback bar.

▌Switching of Diagnostic Functions

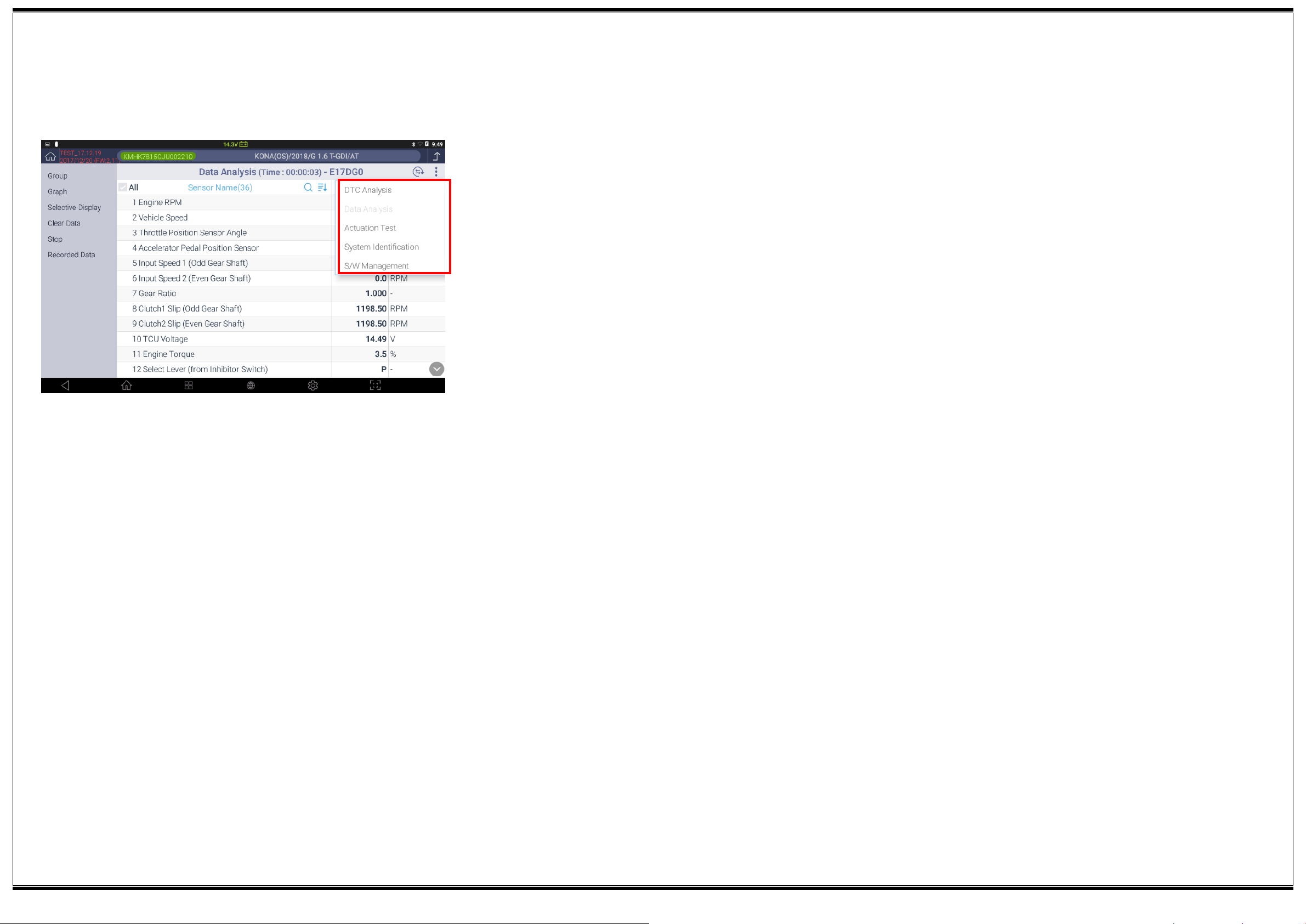

From the DTC diagnostic function, it is possible to short-switch to the following diagnostic functions:

 Data Analysis  Actuation Test  System Identification  S/W Management

Multi Data Analysis

G3180203

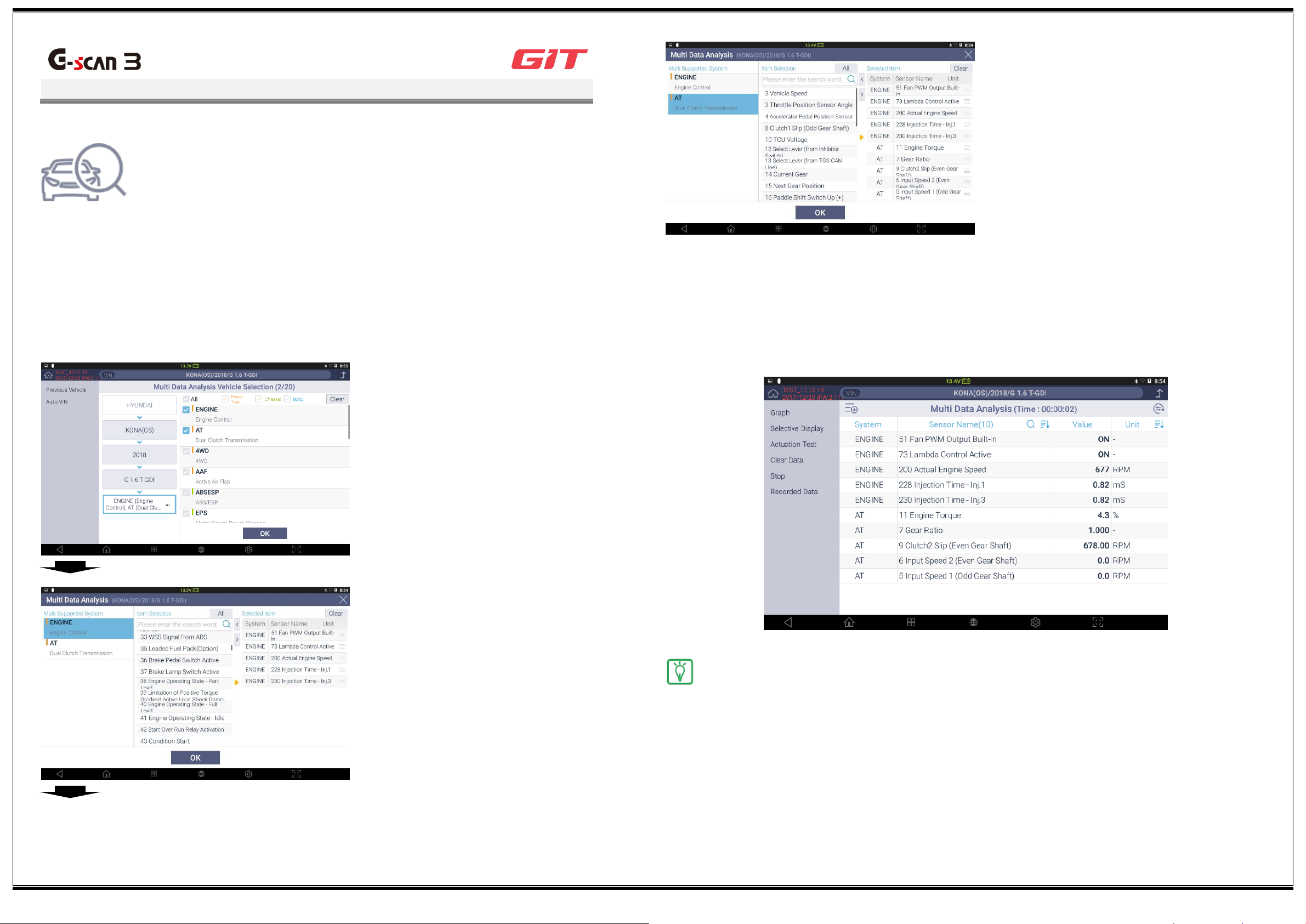

This function enables concurrent communications with multiple ECMs, and displays sensor data items designated for multiple systems on the window. The [Multi Data Analysis] function supports only the ECM systems under diagnosis that use the CAN protocol.

Select a control system to be subjected to diagnostic communications, and click the [OK] button.

When sensor data items of the control system are selected, they will be registered in the left list.

After selecting sensor data items of the control system to be registered as selected items, click the [OK] button to complete the sensor data item selection.

The structure of the window and the method for using this function are the same as those of the "Sensor Data Analysis" function.

▌Selection of Multiple Systems

In Step 2 of the multisystem selection, sensor data items will be listed for the "Multi Supported System" in blue shade in the left column. Select a system, and then select sensor data items.

▌Multi Data Analysis

In the "Multi Data Analysis" function, the listing of sensor items and sensor values is the same as that of the "Sensor Data Analysis" function. The system information of the sensor data items is listed on the left.

Actuation test

G3180203

This function drives the actuators of the systems of a vehicle by controlling the ECU of the vehicle with G-scan3, and enables checking the faults on the actuators. * The supported actuation test items may vary depending on the control systems of vehicles.

Item

Description

Actuation test

Along with the actuation test items supported by the control systems of the vehicle, actuation “condition," "duration," and "result" are displayed.

Sensor data analysis

The sensor data items supported by the control systems of the vehicle and their status values are displayed.

Select a control system to be subjected to diagnostic communications, and click the [OK] button.

Select the sensor data items related with the actuation test. To facilitate the reading, you may set the window in graphic mode.

After selecting an actuation test item, click the [Start] button at the upper-left part.

* Depending on the actuation test items, you may stop the actuation by clicking the [Stop] button.

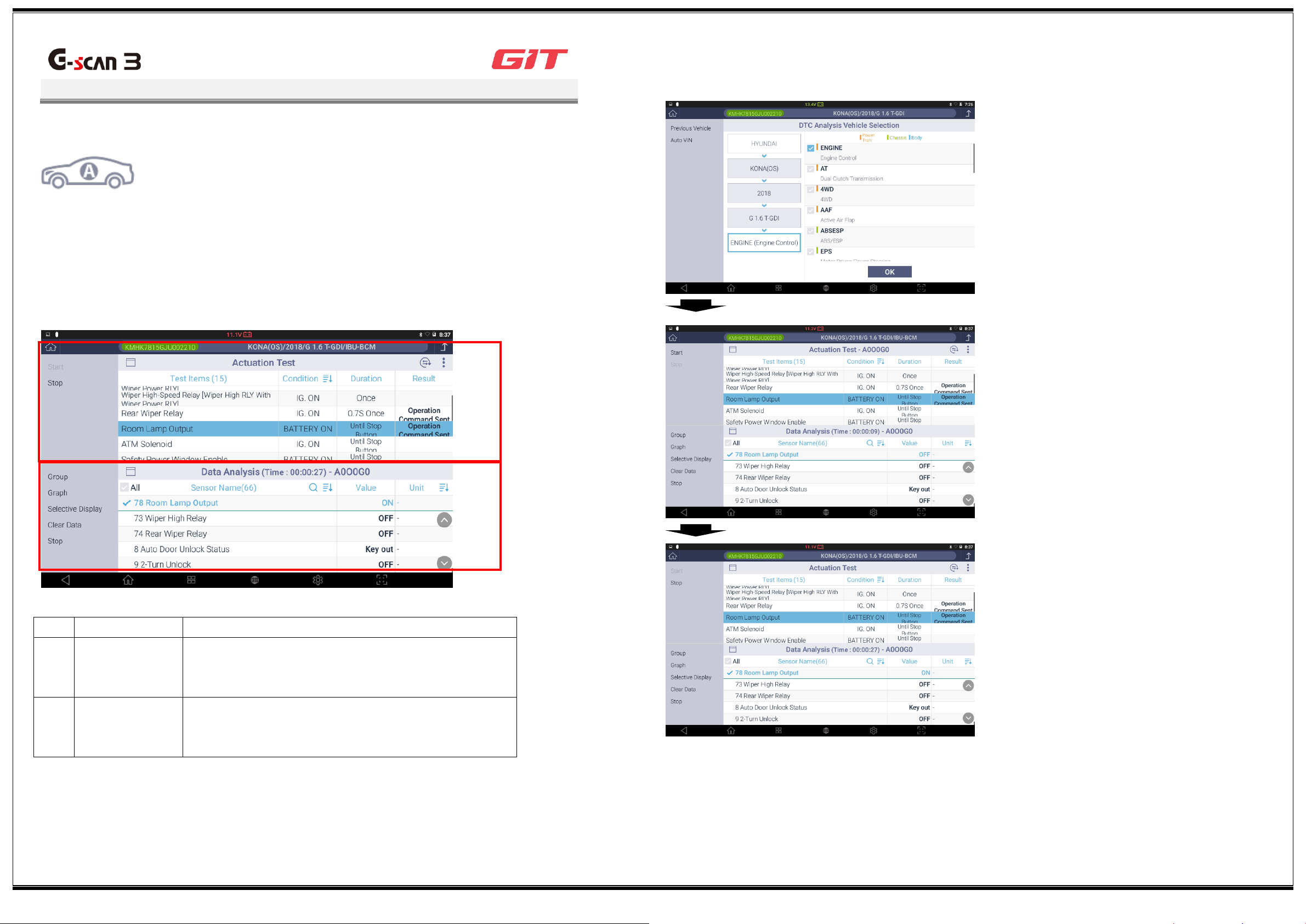

The actuation test window comprises "Actuation Test" at the top and "Data Analysis" at the bottom. Its purpose is to identify changes in the related sensor items by forcibly operating actuators.

▌Use of Actuation Test

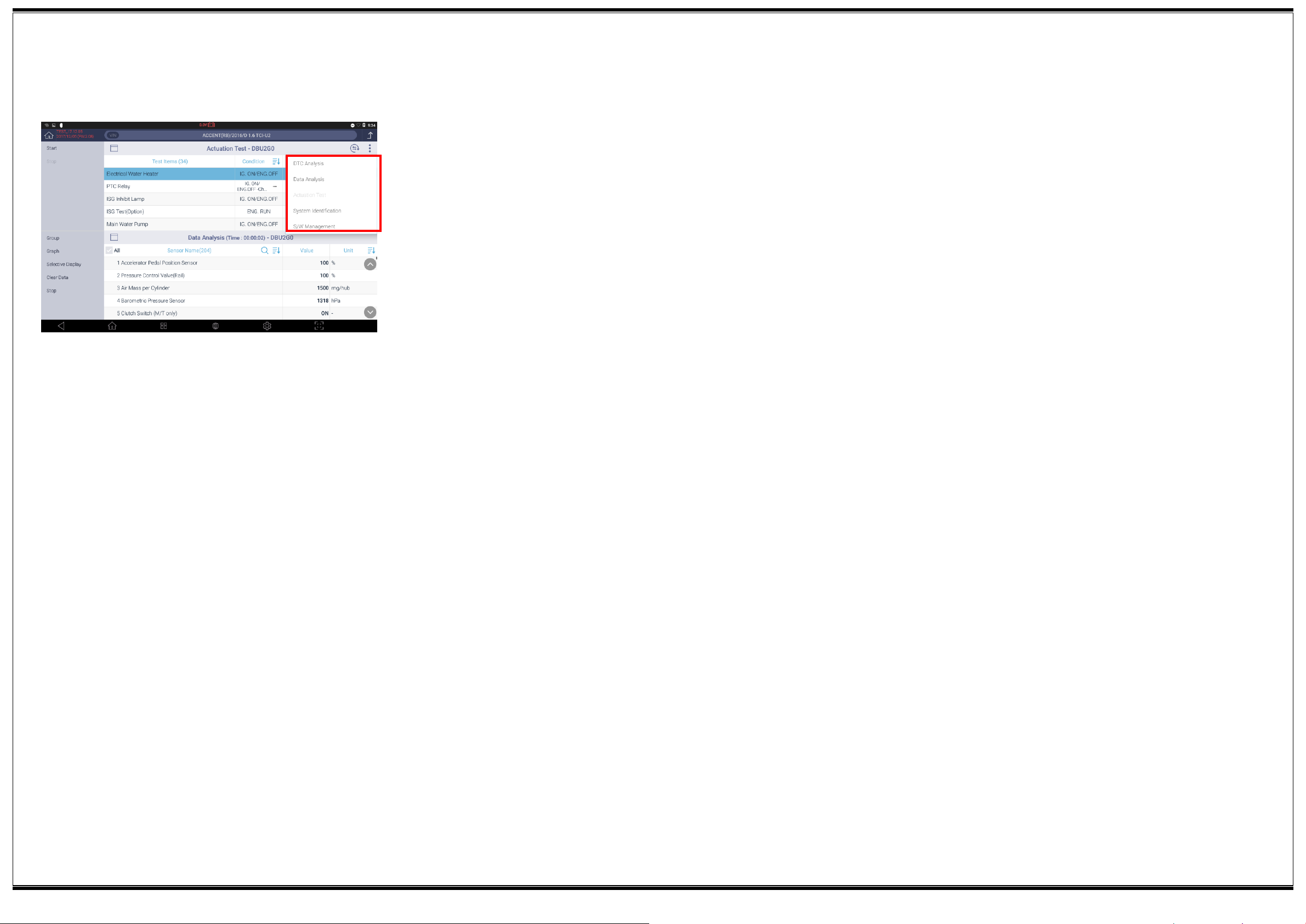

▌Switching of Diagnostic Functions

From the actuation test function, it is possible to short-switch to the following diagnostic functions:

 Data Analysis  DTC Analysis  System Identification  S/W Management

System Identification

G3180203

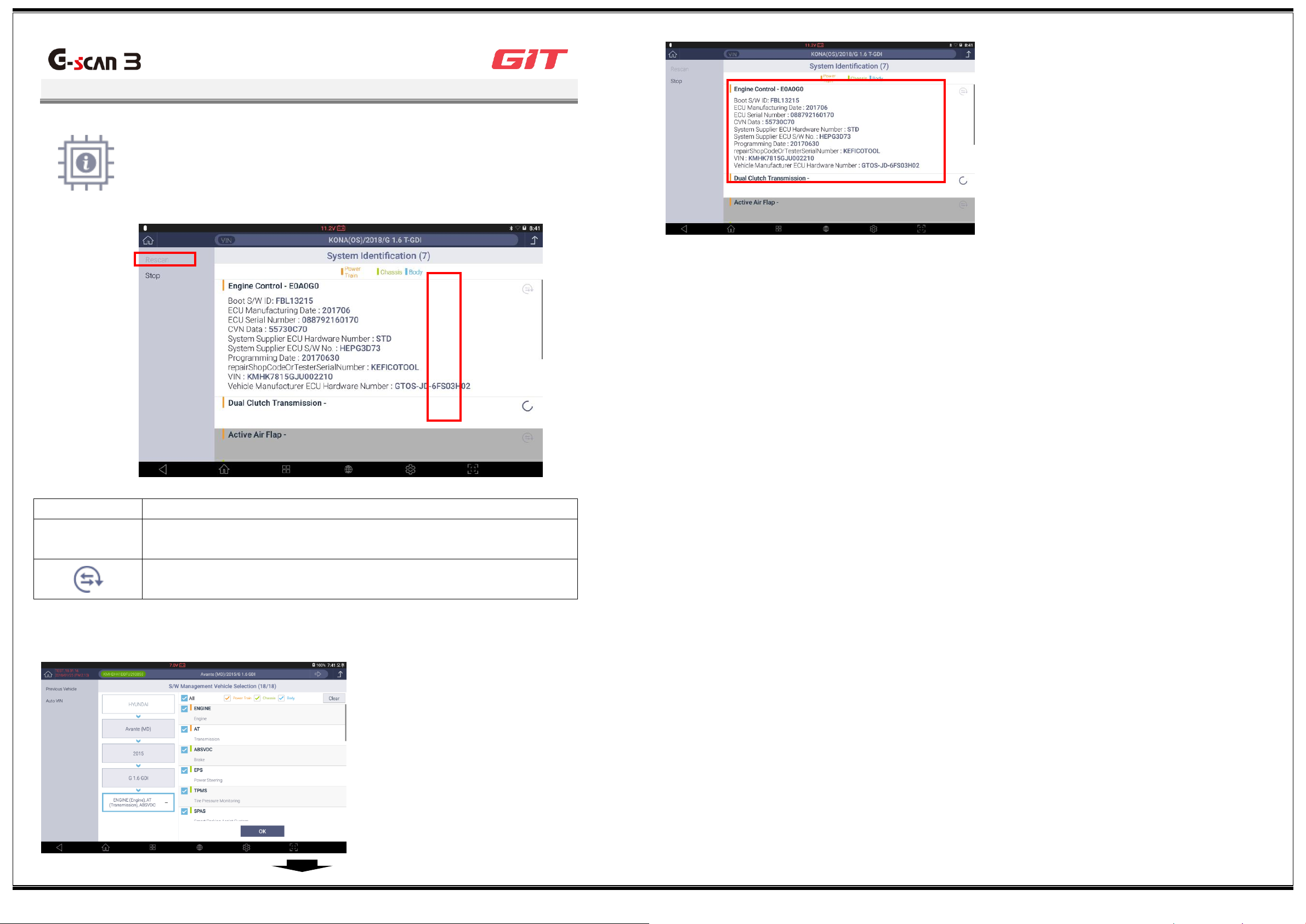

This function reads and displays the identification of the control systems mounted on a vehicle. The system identification function on the initial window enables selection and identification of multiple systems.

Item

Description

Rescan

This rescans identification of all the control systems selected during the vehicle selection.

The rescanning will be done only for the control systems on which the "rescan" button is indicated.

Select all the control systems to be scanned in terms of system identification, and click the [OK] button.

The identification information on the control systems selected during the vehicle selection will be displayed on the window.

▌Use of System Identification

▌Switching of Diagnostic Functions

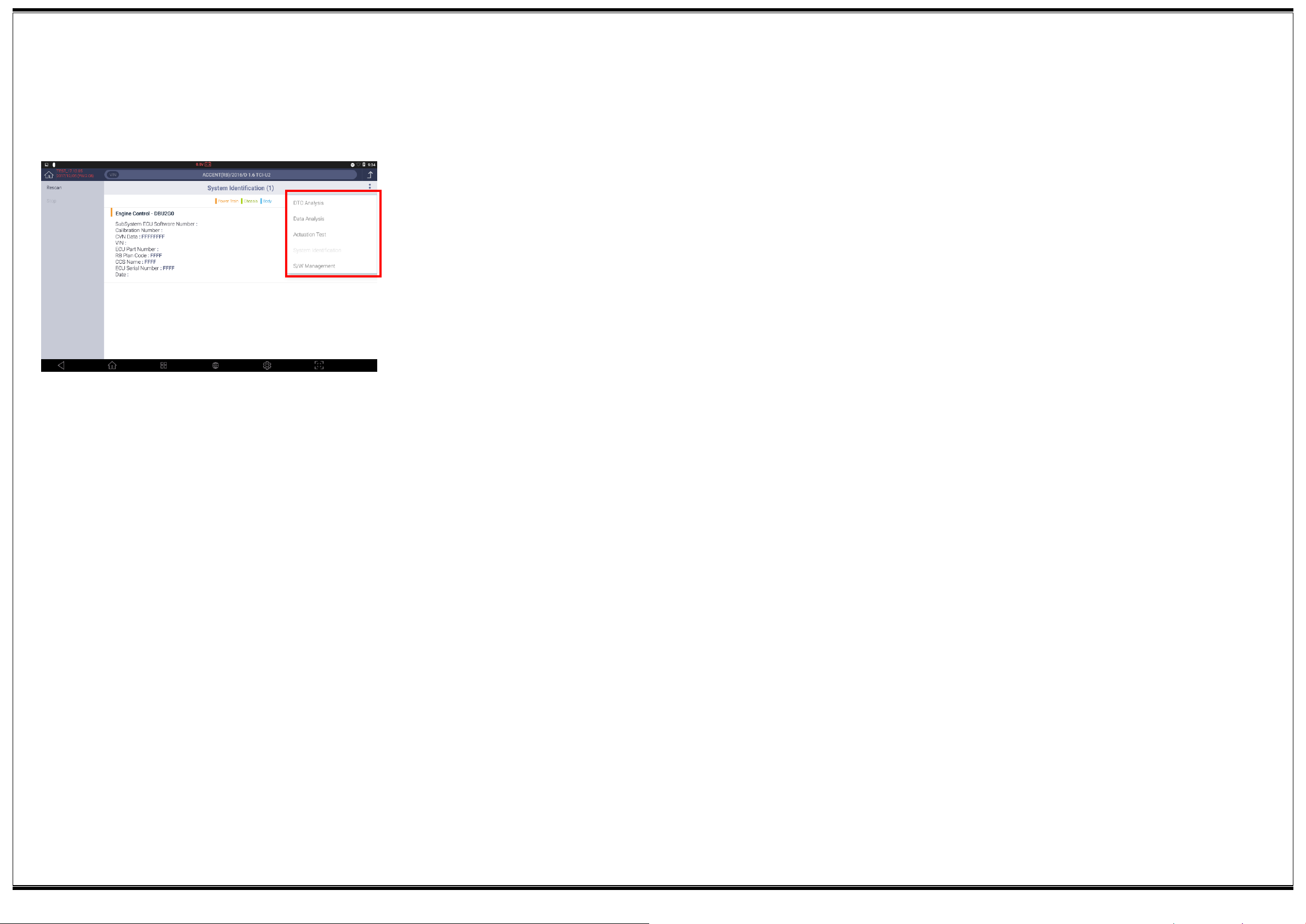

From the system identification function, it is possible to short-switch to the following diagnostic functions:

 Data Analysis  DTC Analysis  Actuation Test  S/W Management

Note: Switching among the diagnostic functions is possible only when a single system is selected during the model selection. If multiple systems are selected, the function switching buttons will not appear.

Additional Functions

G3180203

In addition to vehicular diagnostics, additional setting/testing functions are supported, including "learning value initialization," "immobilizer registration," and "injector data input" for the control systems of vehicles, as well as "tire pressure monitoring" and "evaporative gas leakage test."

Item

Description

By system

This displays the list of additional functions that support the control systems of the vehicle.

By work category

This displays the list of additional functions that support vehicle maintenance works.

Open all

This displays the full list of additional functions by system.

Additional function

execution window

This enables execution of a selected additional function.

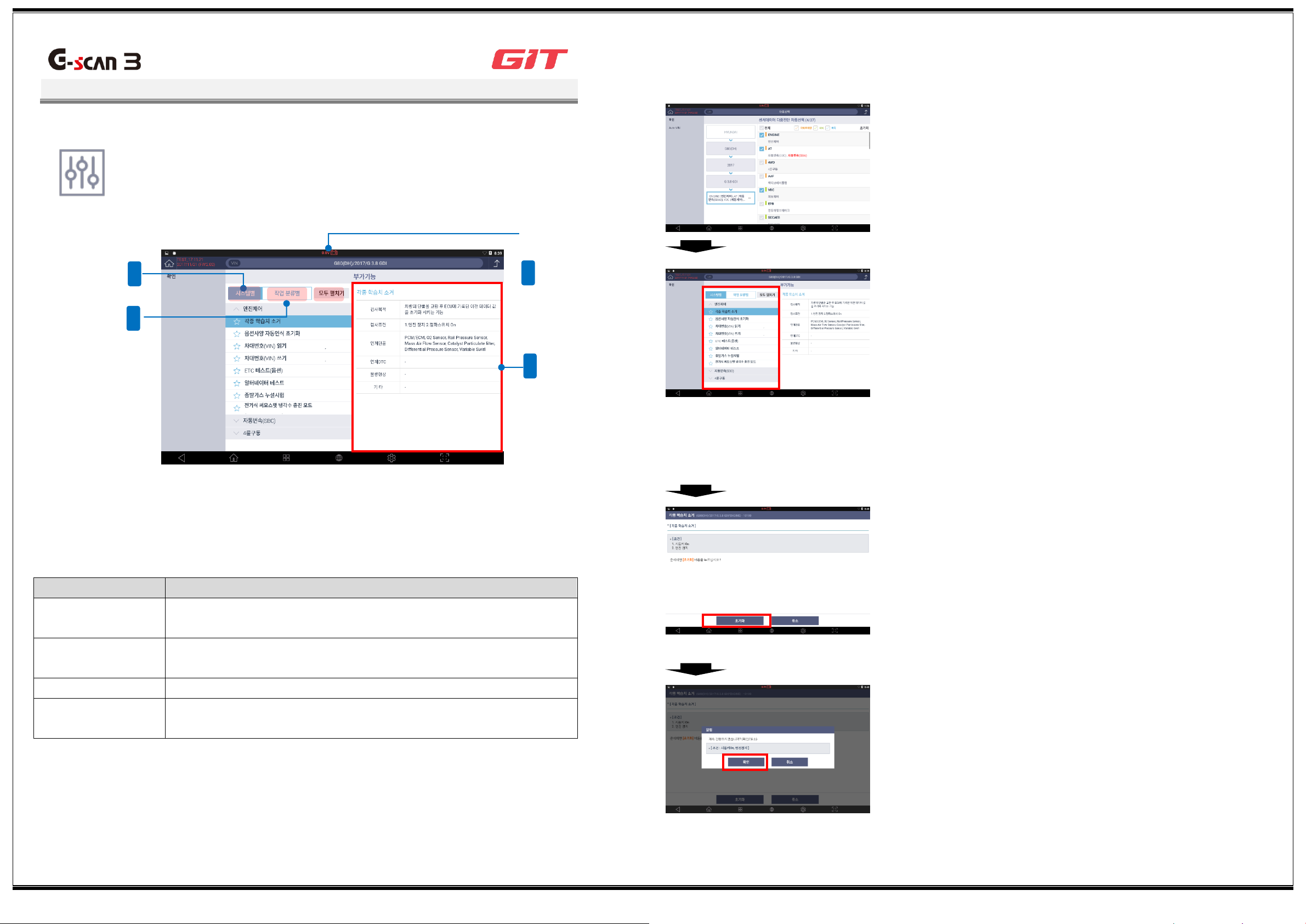

▌Use of Additional Functions

Select all the control systems to be scanned in terms of system identification, and click the [OK] button.

After selecting an additional work item at the lower part of the "By system" or "By work" tab, click the [OK] button at the upper-left part.

* For the sake of safe work, make sure to read, before selecting a work item, the details relating to the additional function that is displayed on the left of the window such as test purposes, test conditions, and related components.

After making the conditions of the vehicle match the conditions for the execution of the additional function, click the [Run] button at the lower part. * The button structure may vary depending on items of additional functions.

On the popup window, click the [OK] button for automatic execution of the additional function.

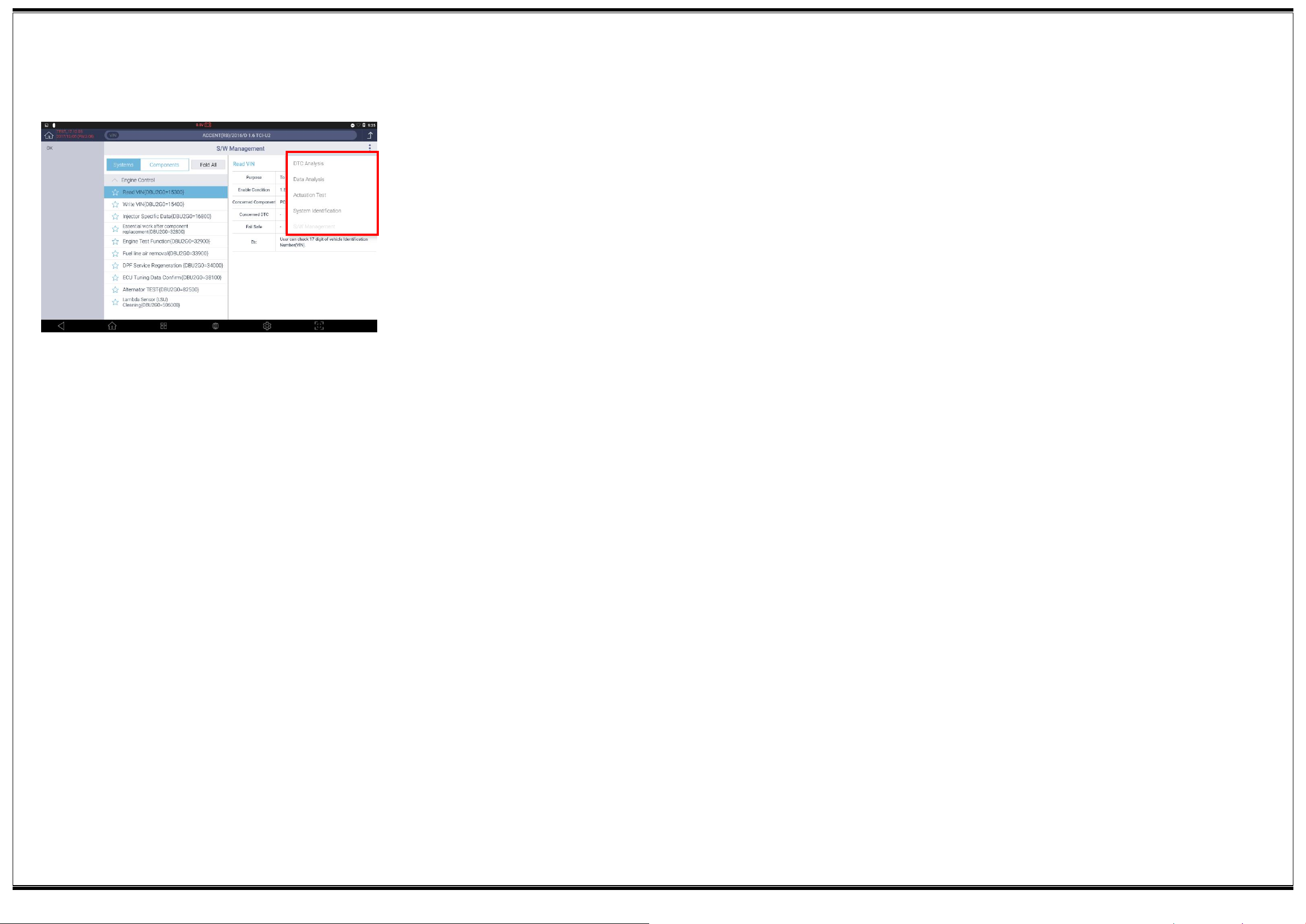

▌Switching of Diagnostic Functions

From the SW management function, it is possible to short-switch to the following diagnostic functions:

 Data Analysis  DTC Analysis  Actuation Test  System Identification

Utility

G3180203

Item

Description

High line

These enable changes in the setting of a selected communication line.

Low line

Reset

This resets the communication line setting.

Save

This saves changed communication line setting.

Cancel

This cancels changed communication line setting.

On the initial window of G-scan3, clicking "Utility" will open the utility functions.

▌Communication Line Inspection

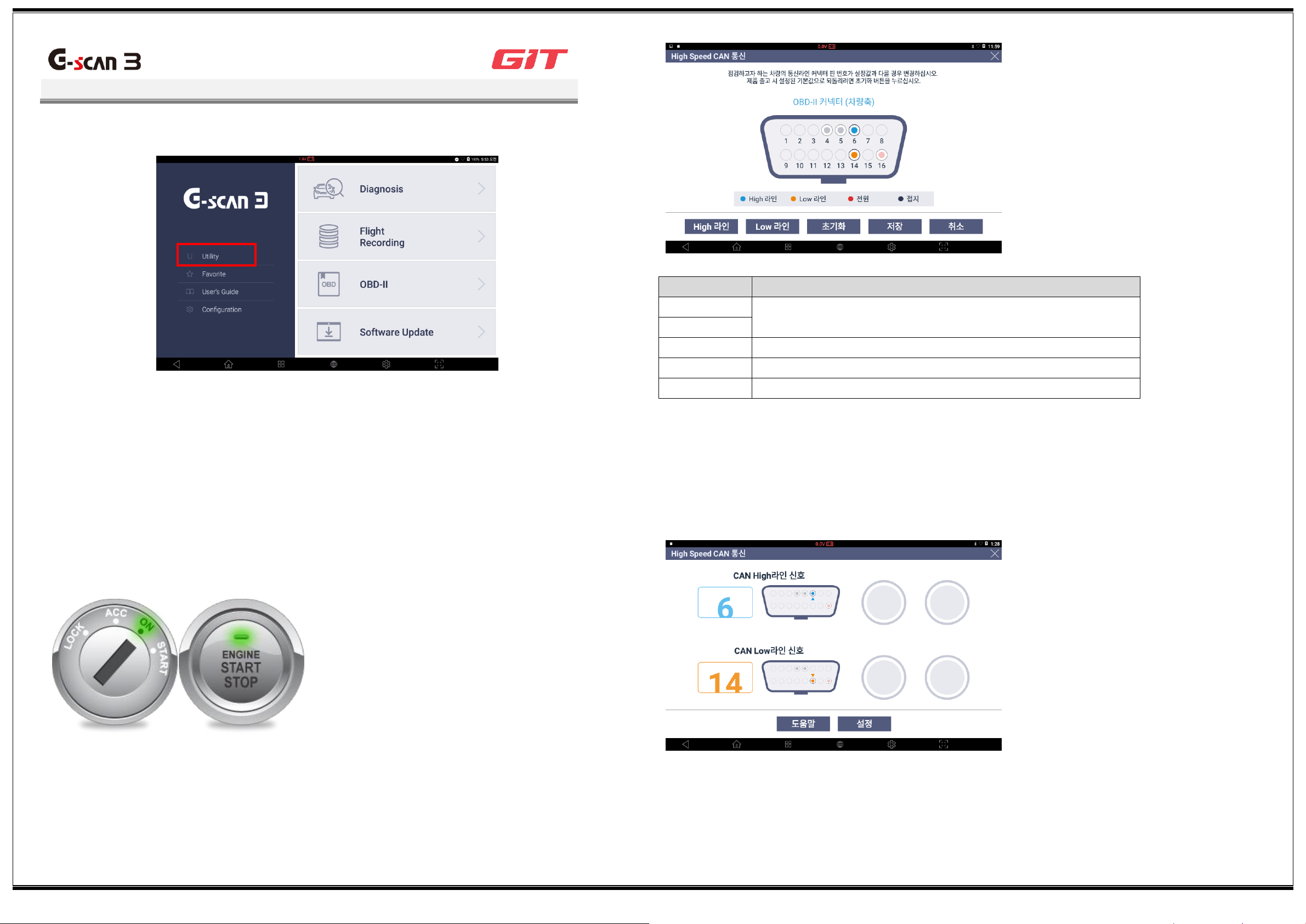

This measures the voltage changes in the communications line of the DLC cable, and displays whether signals are received by on-off lighting. The on-off lights only indicate signal reception, and do not indicate signal accuracy.

Driving condition

The start key of the vehicle should be in the "ON" position.

Setting of the communication line inspection function

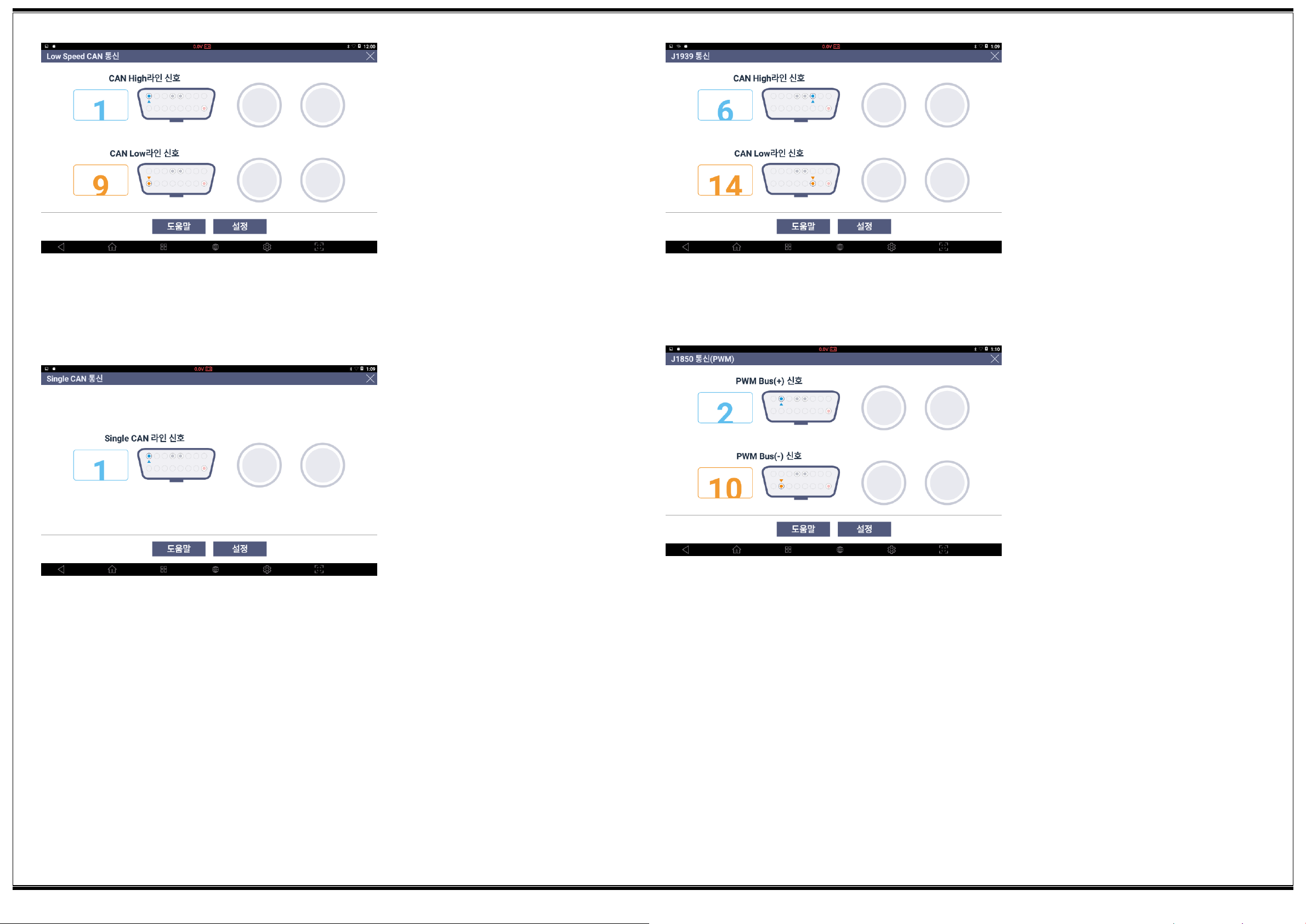

The communication lines set for the OBD-II connector may vary depending on vehicles. Therefore, refer to the maintenance guide of the vehicle, and set the communication line according to the following guide before using the communication line inspection function.

High Speed CAN Communication

This enables an inspection of the high-speed CAN communication line. If the on-off display does not run, check the driving condition (start key in the "ON" position) and the connector pin number of the OBD terminal on the circuit diagram, and conduct a close check of the circuit.

Low-speed CAN Communication

This enables an inspection of the low-speed CAN communication line. If the on-off display does not run, check the driving condition (start key in the "ON" position) and the connector pin number of the OBD terminal on the circuit diagram, and conduct a close check of the circuit.

J1850 (PWM)

Single CAN

This enables an inspection of the single CAN communication line. If the on-off display does not run, check the driving condition (start key in the "ON" position) and the connector pin number of the OBD terminal on the circuit diagram, and conduct a close check of the circuit.

This enables an inspection of the J1850 (PWM) communication line. If the on-off display does not run, check the driving condition (start key in the "ON" position) and the connector pin number of the OBD terminal on the circuit diagram, and conduct a close check of the circuit.

J1939

This enables an inspection of the J1939 communication line. If the on-off display does not run, check the driving condition (start key in the "ON" position) and the connector pin number of the OBD terminal on the circuit diagram, and conduct a close check of the circuit.

▌Unit Converter

Special Functions Calculator

This allows easy conversion of units such as length, weight, volume, pressure, velocity, temperature, and fuel efficiency.

▌Calculator

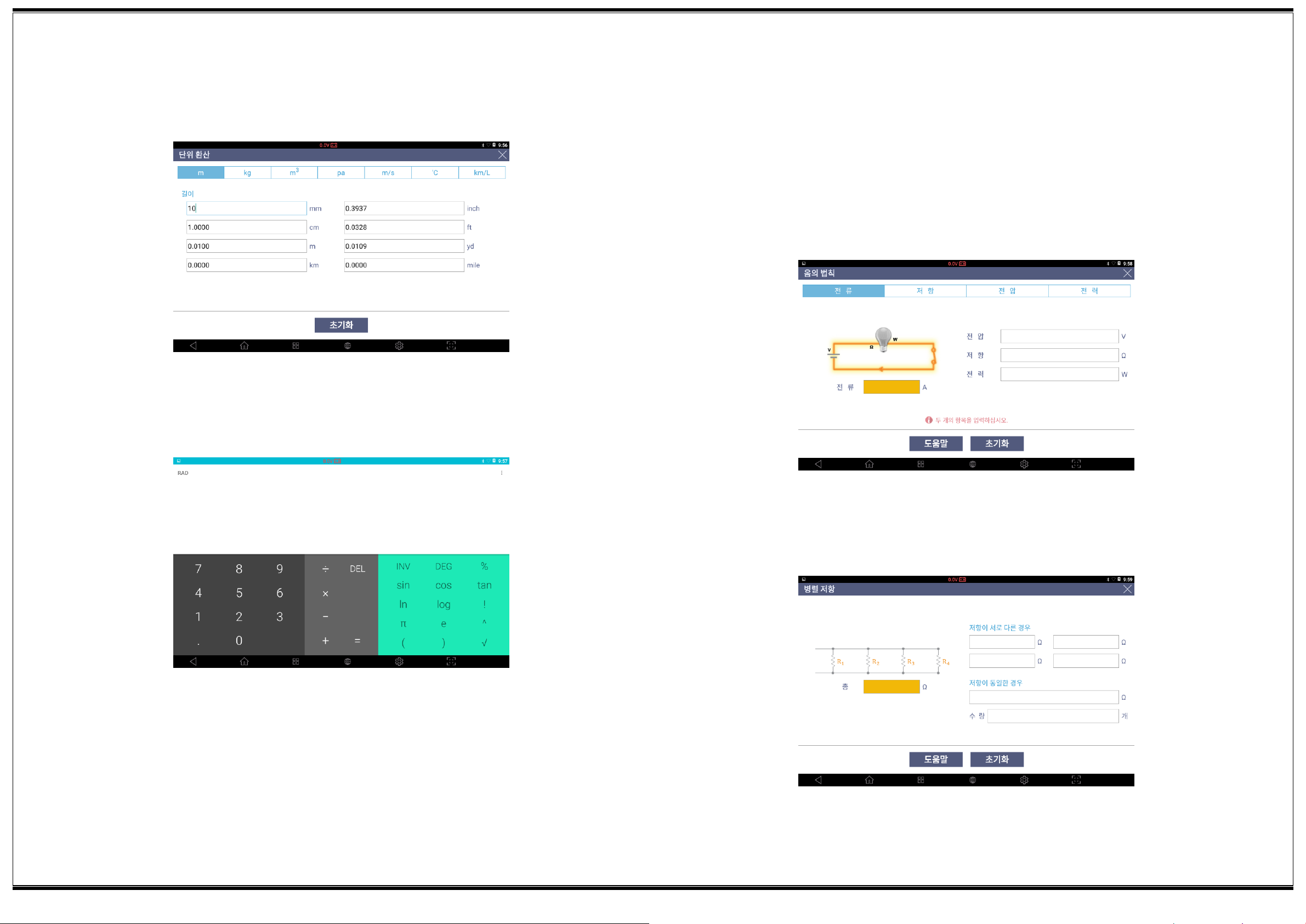

This provides the special calculation functions including Ohm's law, parallel resistance, frequency and period, tire distance per rotation, and percentage based on defined calculation formulae.

Ohm’s Law

This calculates the necessary value when you enter two values from voltage, resistance, wattage, and ampere identified for a circuit. The necessary value is the item that is selected on the top categories.

This functions as a simple calculator.

Parallel Resistances

This calculates the overall resistance value when you enter the values of parallel-connected resistors.

Frequency and Period

This calculates required frequency time and required duty (+) time when you enter the values of frequency and duty.

Percentage

Tire Distance per Rotation

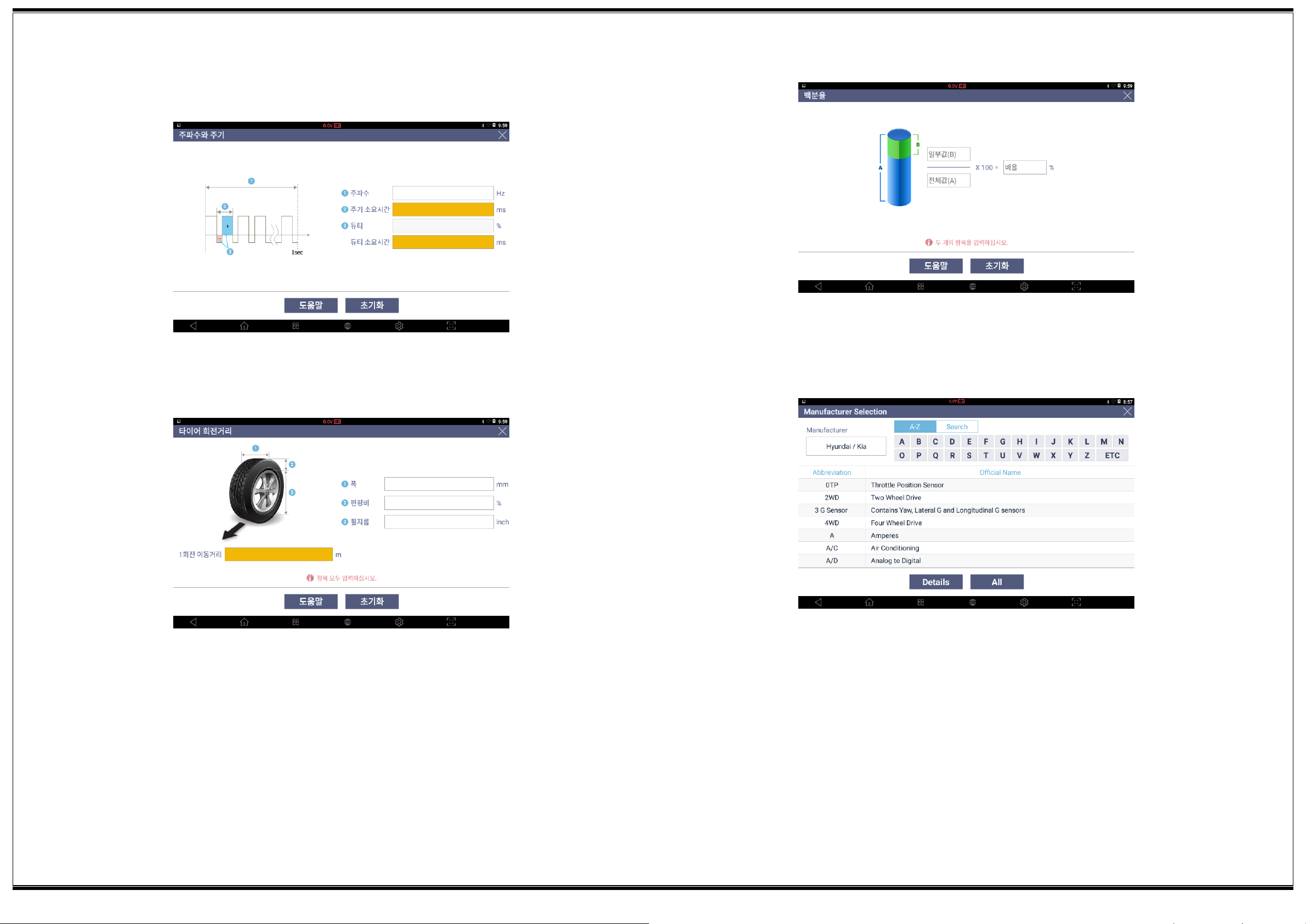

This calculates the moving distance per rotation of a tire when you enter the tire data.

▌Abbreviation Dictionary

This enables the search of the full definition of the abbreviations used by automakers.

▌OBD-II DTC Description Search

Button shape

Description

This starts recording in a voice recording standby mode.

This stops recording while voice recording is in progress.

This plays recorded data.

This changes to the voice recording standby mode.

SAVE

This saves recorded voice data in a file.

Button shape

Description

This takes an image with the camera.

This saves an image in a file.

This changes to the camera standby mode.

Button

Shape

Description

This takes a video with the camera.

This stops video recording.

This saves a video in a file.

This plays a recorded video.

This changes to the camera standby mode.

▌Video

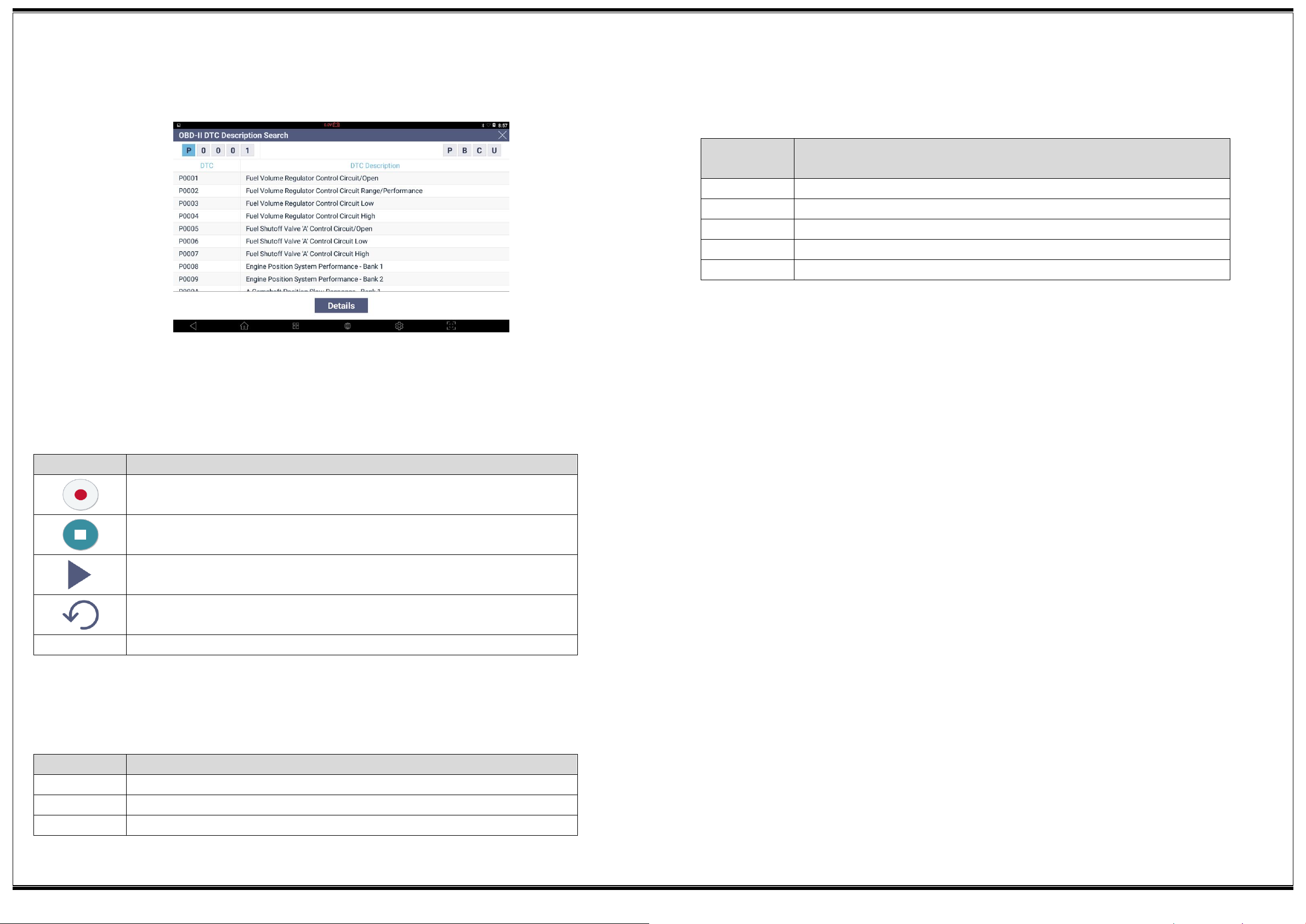

This enables a description search of OBD-II DTCs.

▌Voice Recorder

This enables saving of videos in video (MP4) files through the camera and the microphone embedded in the G-scan3 terminal.

This enables recording of voice data through the microphone embedded in the G-scan3 terminal.

▌Camera

This enables saving of images in files through the camera embedded in the G-scan3 terminal.

Specifications

G3180203

G I T G1NDDMN002 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
