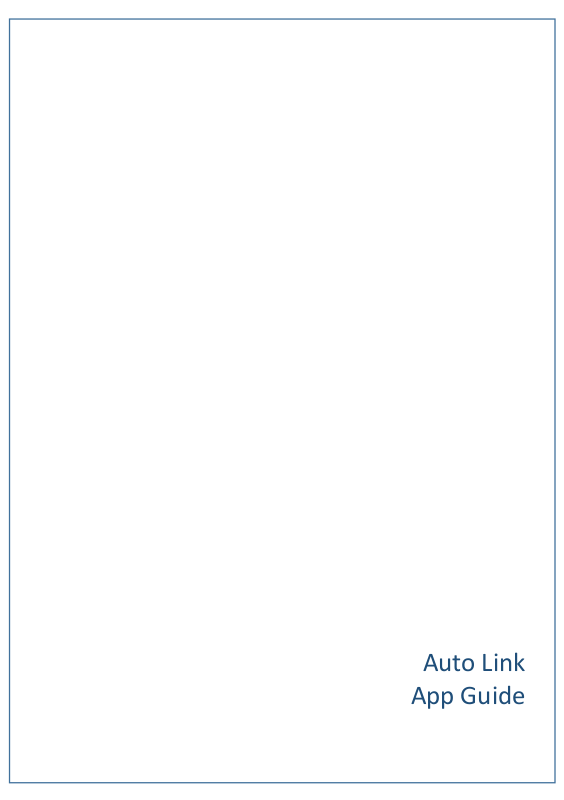

Auto Link

App Guide

Contents

1. Introduction

2. Setup

3. Screen layout

4. Remote Control

5. Main functions

1) Vehicle management

2) Book a service

3) Customer care

4) myHyundai

6. Configuration

7. Appendix

8. FAQs

1. Introduction

 About Auto Link

 Downloading The Application

Connect to the App Store or Google Play Store to download the Hyundai Auto Link application.

 Component (already installed in your vehicle)

DIAGNOSIS

MODULE

Only available on iOS and Android smartphones which support Bluetooth® 4.0. The DIAGNOSIS MODULE is designed to communicate with the user’s smartphone through BLE (Bluetooth Low Energy).

 Compatibility

Hyundai Auto Link analyzes your driving behaviour and monitors your vehicle for any fault codes. If any problems are detected with the vehicle, it automatically sends diagnostic data to the Hyundai Auto Link application. It also provides a convenient way to book your vehicle in for a service with your Hyundai dealer.

 DIAGNOSIS MODULE

The DIAGNOSIS MODULE is inserted into the vehicle OBD port with the OBD ADAPTER, and stores the driving history of the vehicle and transfers recorded data to your smartphone such as mileage, vehicle status and fault codes.

The Auto Link may collect information regarding the services used and methods to use such services. The following information is included.

• Vehicle information: Vehicle Identification Number(VIN), License Plate Number, Odometer(ODO), Date of Purchase.

• smartphone information: Number, Wi-Fi Mac, Model, OS version, UUID, GPS (Personal Location Data)

• DIAGNOSIS MODULE information: Bluetooth Mac, Serial number

• Favorite dealer (Service centre) information

• Driving information: Distance, Travel time, Average fuel efficiency, Fuel

consumption.

• Driving history: Distance, Travel time, Average fuel efficiency, Fuel consumption

• Statistics (ECO driving): Fuel efficiency, Fuel Consumption, Hard Braking, Rapid Acceleration.

• Statistics (Speed): Less than 40 km/h, ~80 km/h, ~120 km/h, ~160 km/h,

over 160 km/h, Maximum RPM, Average RPM.

 Gathering User Information

1. Introduction

 Minimum Requirement

Below is the minimum requirement to run the Auto Link application,

① Android OS - 4.3 version (After Galaxy S3 Model) ② iPhone - iOS 8.1

2. Setup

 Application Setup

[Note]

• Airplane mode must be turned off.

• Bluetooth and Location services must be turned on.

Search for “Hyundai Auto Link” in the App Store or Google Play Store and

download the application for free.

To use Hyundai Auto Link you must accept the terms and conditions and confirm Hyundai’s Privacy Policy by pressing the “I accept” button.

2. Setup

 Terms and conditions

2. Setup

Press the “Start” button on the application to search for the DIAGNOSIS MODULE in your vehicle.

 DIAGNOSIS MODULE – Connect (Step 1)

 DIAGNOSIS MODULE – Searching (Step 2)

Once the DIAGNOSIS MODULE is detected and displayed, select it and press the ‘Next’ button. The Vehicle Identification Number (VIN) is automatically detected by the DIAGNOSIS MODULE. If the DIAGNOSIS MODULE is not able to obtain the VIN from the vehicle, retry the setup process or the user may insert the VIN manually.

2. Setup

 DIAGNOSIS MODULE Settings – Login (Step 3)

Link Hyundai Auto Link to the myHyundai account. ① To link to your myHyundai account, check the box and press the “Next” button. Press the “Register” button and follow the instructions to become a myHyundai member. ② Leave the box unchecked and press the “Next” button to skip logging in with myHyundai account.

2. Setup

To become a myHyundai member, press the “Register” button and follow the instructions. It is important you are the vehicle owner. After registration, login to myHyundai to complete the setup process as per step ① shown above. Login using myHyundai account details to use the Hyundai Auto Link application.

• Insert ID /Username and Password to Login to myHyundai.

• Press ‘Forgotten your password?’ to retrieve myHyundai password

• Press “Register” button to become a member of myHyundai.

2. Setup

① Link to myHyundai – The user information will be automatically retrieved

from the myHyundai account. Complete the last few fields and press ‘Next ’ to continue.

 DIAGNOSIS MODULE Settings – Information (Step 4)

2. Setup

② Enter your information and press ‘Next’ to use the Hyundai Auto Link

without linking to myHyundai.

 DIAGNOSIS MODULE Settings – Submit (Step 5)

To complete the setup process, review the details and press the “Submit” button.

2. Setup

3. Screen composition

1 2

① Menu: Allows navigation to other functions.

② Roadside assistance (RSA): Allows the user to call the RSA centre.

③ Hot keys (Bottom):

• Back – return to previous screen

• Dealer network

• myHyundai Home

• Message box

• Map

④ Main functions: Displays each function of the Hyundai Auto Link application.

• Vehicle management

• Book a service

• Customer care

• myHyundai

• Configuration

This describes the basic functions available on the Hyundai Auto Link application. * The default screen is the driving information screen.

3. Screen composition

 Menu

Allows the user to check the login status on the Menu.

① Login screen

② Logout screen

3. Screen composition

 RSA (Roadside assistance)

Calls the RSA centre directly if a problem occurs with the vehicle.

① Call to RSA centre ② Information about RSA

3. Screen composition

1. Back button

Allows the user to navigate back to the previous screen.

2. Hyundai Dealer network

Shows Hyundai dealer information on the map.

 Hot Key (Bottom)

Allows easy navigation – Back button, Dealer network, myHyundai home, Message box and Map.

3. Screen composition

3. myHyundai

Opens myHyundai (Note: user must be logged onto myHyundai)

Messages can be deleted as follows: ① Press the button on the upper left corner to activate

the Message check boxes

② Check the box next to the message you want to delete.

③ Press the button on the upper right corner to

delete selected message/s.

3. Screen composition

4. Message box

Shows messages and notification sent from Hyundai.

3. Screen composition

5. Map

Shows the current location on the map (where the user has activated

location services on the smartphone).

 Main page

*Consists of three screens containing information about the vehicle. Swipe left or right to switch screens.

3. Screen composition

4. Remote Control

 Remote

① Engine start

• Remote start condition

 Shift lever P-stage  Doors locked by smart key/ smart phone app  Doors, trunk and hood are closed  Not in start-up status

② Engine stop ③ Door lock

④ Door unlock ⑤ Hazard ⑥ Hazard & Horn ⑦ Temperature – Temperature will be set when the engine starts. ⑧ On/Off Defroster - Defroster status will be set when the engine starts.

3 4

5 6

7 8

This page explains regarding remote control. You can remote your vehicle by Hyundai Auto Link. All remote functions have to enter the password for the security.

4. Remote Control

① Perform remote control. ② Enter PIN code. ③ Competed sending remote control order.

④ Remote control result.

• Success

• Failure

Remote control will work as the steps below.

 Driving Information (default screen)

5. Main function > 1) Vehicle management

Shows Driving information, Tyre pressure, Driving history, Vehicle health check and Parking management screens.

*Swipe the screen left or right to switch screens.

① Current

- Distance: The distance travelled for the current driving trip.

- Travel time: The time elapsed for the current driving trip.

② Today

- Distance: The total distance travelled for the day’s driving trips.

- Travel time: The total time elapsed for the day’s driving trips.

③ Fuel

- Efficiency: measured from engine start to engine off

- Consumption: measured from engine start to engine off

④ ECO

- Hard braking: The number of times hard braking occurred during current driving trip.

- Rapid acceleration: The number of times rapid acceleration occurred during current driving trip.

5. Main function > 1) Vehicle management

Driving information result will display when the engine is turned off after the drive. Driving result will appear when the driving is over 30 minutes (time) or 20Km (distance). The result is decided as the result condition table below.

Condition

(Driving 20Km or

30min)

Good Normal Bad

Maximum speed

(Under 100Km)

O X X X X

Fuel efficiency

(Over 6.5km/l)

O X X X X

Rapid

acceleration/brea

(Under 3 times)

O X X X X

*Result condition table

 Tyre pressure

Shows the pressure for each of the vehicle tyres. The tyre pressure value will appear after a few minutes of driving.

5. Main function > 1) Vehicle management

 Driving history

The driving history is sorted by date. Each item consists of

 Departure  Arrive  Maximum speed  Average speed

 Average fuel efficiency

 Fuel consumption  Rapid acceleration  Hard braking  Distance and travel time.

5. Main function > 1) Vehicle management

1. Check Driving history

Shows driving history in the latest order.

① Select the driving type.

② Select the driving history for details.

③ For detailed information, press the button at the bottom.

5. Main function > 1) Vehicle management

2. Delete, Share, Change Driving history

① Press the button on the upper left corner to activate the check

box.

② Select the box next to the driving history.

③ Press the button to delete the driving history.

④ Press the button to share the driving history.

⑤ Press the button to change the driving type.

5. Main function > 1) Vehicle management

① Initiating system inspection

• Place the gear lever to “P” position

• Turn the ignition ON

• When ready, press the button.

 Vehicle health check

Diagnoses the vehicle health. If a fault code is detected, it is captured automatically for diagnosis by Hyundai.

5. Main function > 1) Vehicle management

② Fault code detected

The alert notification will appear when a fault code is detected. Press the “Call”

button to call the favourite dealer and make a reservation for vehicle

maintenance.

* When a fault code is detected, the diagnosis data will be sent to Hyundai for

vehicle maintenance.

5. Main function > 1) Vehicle management

 Parking management

Provides the parking management of the user’s vehicle through parking location,

time setting and uploading parking photos by using locations services on the

user’s smartphone.

5. Main function > 2) Book a service

 Book a service

A convenient way to book a service for the vehicle.

5. Main function > 3) Customer care

 Customer care

Provides easy access to Customer care, browse FAQs, complete an online request or call customer care directly.

5. Main function > 3) Customer care

 Emergency assist

Notifies pre-registered recipients of location and information when a ‘Crash Signal’ is detected on the vehicle’s BCM.

① Explanation on Emergency assist service. ② Settings provide RSA No., contact, Rescue message.

 RSA number is displayed as default.  User may add up to 5 phone numbers. Press to load contacts from the phone.  Rescue message can be specified through edit. If not, the default phrase will be sent.

5. Main function > 3) Customer care

③ When a crash signal is detected, a notice pops up and counts 15 seconds before message

transfer.

④ A message example.

5. Main function > 3) Customer care

 Accident assist

Records the event of an accident or breakdown to save on the smartphone.

① My vehicle – Vehicle plate number, Driver license number(registered at first time only) ② The event – Date, Location, What happened? ③ At the scene – Other drivers and vehicles, Other people involved, Add photo, Other vehicle’s

condition (Memo)

5. Main function > 3) Customer care

The event

• Date – Date and time can be set up by pressing the icon

• Location – Location can be set up by pressing the icon

• What happened? – provides drop down menu to select the event.

5. Main function > 3) Customer care

At the scene

• Other drivers and vehicles – save other drivers and vehicle information.

• Other people involved – save other people who are involved in the event.

• Add photo – take a photo to save the scene by pressing the button.

• Other vehicles condition (Memo)

5. Main function > 4) myHyundai

 myHyundai

Opens the myHyundai portal.

 Vehicle health report

Provides report on the vehicle health.

① Select the report item for details.

② Press the button to check the full detail of the diagnosed items.

5. Main function > 4) myHyundai

Provides statistics of the user’s driving pattern that can be viewed in daily, weekly or monthly. Swipe the screen left or right to show Statistics (ECO Driving)

or Statistics (Speed).

① Statistics grouped: Daily, Weekly or Monthly.

② ECO Driving Information

• Community average

• My fuel efficiency

③ Driving Pattern Analysis: Provides statistics for

• Efficiency

• fuel consumption

• hard braking

• rapid acceleration

④ Share provides sharing function on the shareable applications created at the

bottom of the page.

 Statistics (ECO Driving)

Provides statistics of the user’s driving pattern, results can be viewed in daily, weekly or monthly.

5. Main function > 4) myHyundai

① Statistics Period Types: Daily, Weekly and Monthly.

② Driving Pattern Analysis

: Less than 40 km/h, ~80 km/h, ~120 km/h, ~160 km/h, over 160 km/h

③ Driving Pattern Analysis

: Maximum Speed, Average Speed, Maximum RPM and Average RPM.

 Statistics (Speed)

Provides statistics of the user’s driving pattern, results are grouped in daily, weekly or monthly.

5. Main function > 4) myHyundai

 New car

Provides new car search and quotation comparison on myHyundai website .

5. Main function > 4) myHyundai

 Demo / Pre-owned cars

Provides used car search and quotation comparison on myHyundai website .

5. Main function > 4) myHyundai

The user can check the Auto Link information such as Module setup, User Information, Driving type, Application settings, Program version, Unit Settings,

User guide, and Module diagnosis.

6. Configuration

 Module setup

6. Configuration

1 2

Turn the engine on and press the ‘Start’ button to begin the module search. Select the detected DIAGNOSIS MODULE and press ‘Next’ to start the vehicle

information retrieval step.

3 4

 User information

Shows the user’s information.

① Only partial user information can be modified when linked to

myHyundai.

② All user information except VIN can be modified if not linked to

myHyundai.

6. Configuration

 Driving type

6. Configuration

Function to enable and select driving type.

① Enable/disable driving type display. Driving type will be displayed on

driving information when enabled.

② Select the driving type as Private or Business.

 Application settings

6. Configuration

Provides application settings for Driving history, Emergency assist service, and Notification settings.

① Enable/disable displaying driving history.

② Enable/disable saving driving history.

③ Enable/disable displaying Emergency assist service notification.

④ Enable/disable receiving notifications.

 Program version

Provides program version information

• Resource version

• Module firmware version

• Module database version

• Last successful data connection.

6. Configuration

 Unit settings

Set the units for Fuel efficiency and Tyre pressure in the application.

6. Configuration

 Module diagnosis

1. Provides a self-test function to check modules operation.

① Press button in the Bluetooth section to check the

Bluetooth function with the DIAGNOSIS MODULE.

② Press button in the Communication section to

check communication between vehicle and DIAGNOSIS MODULE

③ Press button in the Software update section if you

want to perform software update on the DIAGNOSIS MODULE.

④ Module check result will be displayed in green if the module is

operating properly

6. Configuration

1 2

6. Configuration

2. The result of module diagnosis will be displayed in red color if it fails

① Press the button on the Bluetooth and

Communication section. Solution will be displayed on the Auto Link application.

② Follow the instruction and check the connection again by pressing

the button.

③ Press the button on the Software update section if

the problem still remains.

The Hyundai Auto Link Module is covered by your vehicle’s 5 year limited warranty in

accordance with the terms, and as published in, the owner’s manual for the vehicle.

Your vehicle’s limited warranty does not cover the Hyundai Auto Link application which

is provided to you on an “as-is” and “where-is” basis. In addition, Hyundai cannot

promise uninterrupted or problem-free service, and cannot promise that the data or

information provided to you will be complete, current or error-free. All data and

information is provided to you through the Hyundai Auto Link application on an “as-is”

basis. To the maximum extent permitted by law, Hyundai expressly disclaims any and

all warranties of any kind, express or implied, about the Hyundai Auto Link application

and any data and information and services provided through it, including, without

limitation, any warranties as to content, quality, accuracy, timeliness, completeness,

correctness, reliability, non-infringement, merchantability, or fitness for a particular

purpose, and all such warranties are expressly excluded. Where a warranty cannot be

excluded by law, if Hyundai breaches such a warranty in connection with the Hyundai

Auto Link application, Hyundai reserves the right (to the extent permitted by law) to

remedy the breach by providing the Hyundai Auto Link application again or paying for it

to be provided again.

7. Appendix

 Copyright

The copyright is held by Hyundai Motor Company. Copying, publishing, licensing

of texts, graphics or images of this guide without prior approval in writing are

strictly prohibited. When Auto Link user’s guide is copied, downloaded,

published, distributed, and used as a source without the prior approval of

Hyundai Motor Company, the party in question will be held legally liable.

7. Appendix

Item Specifications

Product

Scan Tool

Model

DPD

-101

CPU

ARM 32

-bit Cortex-M4 @ 168MHz

CPU Memory

2MB

Flash memory

8MB

Bluetooth protocol

Bluetooth

4.2 BR/EDR/BLE

Frequency range

2402 MHz ~ 2480 MHz

Output power

GFSK(6 dBm± 1dB), π/4-DQPSK, 8DPSK(5 dBm± 1dB), Bluetooth LE(6 dBm± 1dB)

Operating voltage

DC 9~30V

Sensor

-Axis Gyro, Accelerometer Sensor

Operating temperature

20℃ ~ 80℃

Storage temperature

40℃ ~ 85℃

Current consumption

12V

/ 150mA

CAN Interface

HIGH

-SPEED CAN1, CAN2, CAN3

LOW

-SPEED CAN

Dimension

50 x 25.5 x 83 mm

CASE

PC + ABS

Manufacturer

G.I.T CO.,LTD / Korea

Company

G.I.T CO.,LTD

Adress

05655, GIT Bldg., 87,

Macheon-ro, Songpa-gu, Seoul, Korea

KC Certification Mark

CE / WEEE Certification Mark

FC Certification Mark

 DIAGNOSIS MODULE specifications

7. Appendix

 Compliance Statement

The Device complies with part 15 of the FCC Rules, US. Operation is subject to

the following two conditions: (1) The Device may not cause harmful interference,

and (2) the Device must accept any interference received, including interference

that may cause undesired operation.

CAUTION : Any Changes or modifications not expressly approved by the

manufacturer could void the user's authority to operate the equipment. This

equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

A minimum separation distance of 20 ㎝ must be maintained between the

antenna and the person for this appliance to satisfy the RF exposure

requirements.

FCC Caution

Any changes or modifications to the equipment not expressly approved by the

party responsible for compliance could void user’s authority to operate the

equipment.

7. Appendix

 Industry Canada Statement

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may

cause undesired operation of the device.

This product is CE marked according to the provision of the RE Directive

(2014/53/EU). G.I.T., Co., Ltd., (as manufacturer of the Module) declares that

this product is in compliance with the essential requirements and other relevant

provisions of Directive 2014/53/EU

1. Check smartphone settings.

 Make sure Airplane Mode is turned OFF.  Make sure Bluetooth is turned ON.

2. Check connection between the DIAGNOSIS MODULE and the OBD port. Also, check if the ignition is on or the engine is running.

 Open the fuse box and check the LED status of the

DIAGNOSIS MODULE.

 Try reconnecting the DIAGNOSIS MODULE to the OBD port.

3. If the problem cannot be resolved by the above methods, please contact your dealer or the call center for more information.

 The DIAGNOSIS MODULE can not be detected

1. Restart your smartphone and try again.

2. Remove the Auto Link application from your smartphone and

reinstall it through the App Store or Google Play.

3. If the problem cannot be resolved by the above methods, please

contact your dealer or the call center for more information.

 Auto Link application is not running

The main cause of this problem is that either the DIAGNOSIS MODULE is

not connected to the OBD port or Bluetooth is turned OFF. Please check your module in accordance to the following instructions.

The problem may occur due to application crash or malfunction of the

smartphone’s operating system. Please check your application in

accordance to the following instructions.

 Driving Information is not updated

The problem may be caused by the Bluetooth connection and/or program version. Please check your application in accordance to the following instructions.

[NOTICE]

• For more information, please refer to the user’s guide on the Auto Link application on your smartphone.

8. FAQs

1. Check the Bluetooth connection between the DIAGNOSIS MODULE and the Auto Link application.

2. Make sure your Auto Link application is the latest update. You can

check the current version on program version of configuration.

G I T G1BDDMN030 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
