Gira surface-mounted
video home station 7
Operating
instructions
2
Table of conten t s
Table of contents
Product features ............................. 3
Device description .......................... 4
Device description – details ........................... 4
Operation ........................................ 5
Normal conversation mode ............ 6
Accepting door call ....................................... 7
Setting voice volume ..................................... 7
Saving image ................................................. 8
Enforcement function .................................... 9
Ending door call ............................................. 9
Resuming door call ...................................... 10
Switching ring tone melody off
and back on ................................................. 10
Switching functions ..................... 11
Opening door ............................................... 11
Switching lights (only with
switching actuator) ...................................... 11
Menu bar — quick access ............ 12
Expanding or collapsing menu bar .............. 12
Setting ring tone melody volume ................ 13
Opening image memory .............................. 13
Opening cameras ........................................ 14
Internal call .................................................. 15
Switching on and off autom. internal call ... 16
Switching on and off autom. door opener .. 16
Settings ......................................... 18
Input screen .................................. 20
Functions ...................................... 21
Managing cameras ...................................... 21
Setting image memory ................................ 23
Renaming door calls .................................... 25
Renaming internal calls ............................... 26
Renaming floor calls .................................... 27
Renaming switching actions ....................... 28
Managing favourites .................................... 29
12091190.fm Seite 2 Donnerstag, 14. März 2019 11:33 11
3
Product features
Device ........................................... 30
Activating 30s screen lock .......................... 30
Setting ring tone melodies and button tones 31
Setting device parameters ........................... 32
PIN protection .............................................. 34
Performing update ....................................... 35
Performing data backup .............................. 35
Information ................................... 36
System version ............................................ 36
EULA ............................................................ 36
Legal information ........................................ 36
Contact details ............................................. 36
microSD card ................................ 37
General notes .............................................. 37
Inserting a microSD card ............................. 39
Removing a microSD card ........................... 39
Care instructions .......................... 40
What to do if... ............................. 41
Product features
The surface-mounted video home station 7 from the
Gira door communication system is a fully preassembled unit with a 17.78 cm (7") colour TFT
display and convenient speakerphone function. It is
operated using the touch-screen and the five
capacitive operating buttons. Operation only
requires a light touching of the symbols. When a
button is pressed correctly, a deactivatable
confirmation tone sounds or the user can also select
tactile feedback (vibration) for this.
12091190.fm Seite 3 Donnerstag, 14. März 2019 11:33 11
4
Device description
Device description
1 Screen with touch function
2 Speaker opening
3 Operating buttons, capacitive
4 Microphone opening
5SD card slot
3
1
5
2
4
Device description – details
1 Menu bar, can be expanded or collapsed
2 Accept/end door call
3 Enable/disable ring tone
4 Switch on light
5 Open door
6
Switch screen on or off.
When navigating in the menu: Back to home screen.
7 Screen with touch function
collapse
change
Ringtone volume
access
Settings
GIRA
Door communication
Device
1
23456
7
access
Cameras
Functions
call up
Oce
12091190.fm Seite 4 Donnerstag, 14. März 2019 11:33 11
5
Operation
Operation
collapse
change
Ringtone volume
access
Settings
GIRA
Door communication
Device
access
Cameras
Functions
call up
Oce
Menu bar
Open and set ring tone volume (see also page 13).
Open settings and parametrise the home station
(see also page 18).
Switching the screen on or off.
In the case of navigation in the menu: Back to home
screen.
Controlling the door opener (see also page 11).
Direct switching of a switching actuator
(see also page 11).
Switching the ring tone off and back on
(see also page 10).
Accepting or ending call, or activate enforcement
function (see also page 7 and page 9).
12091190.fm Seite 5 Donnerstag, 14. März 2019 11:33 11
6
Normal conversation mode
Normal conversation mode
accept
Door call
open
Door
Door call Front door
When using an additional power supply
If there is an incoming call (audio, video, internal
call), flashes for 2 min and the home screen
opens automatically. " ...call accept" is displayed
in the menu bar and the type of the call is shown in
the status bar above the screen ("Door call" or
"Internal call").
If the call originates from a video door station, the
camera image is also visible. If there are several
cameras in the system, the name of the displaying
camera is shown (for renaming cameras see
page 21). In this document, the door call video is
described in the following.
For power supply via BUS.
The screen remains dark if an incoming internal call
is received.
Maximum conversation duration
The maximum call duration is 2 minutes. The call
is automatically terminated when 2 minutes
have elapsed.
12091190.fm Seite 6 Donnerstag, 14. März 2019 11:33 11
7
Normal conversation mode
accept
Door call
open
Door
Door call Front door
Accepting door call
Accept the call either via " Door call accept" in the
menu bar or directly via , and start the voice
communication.
Setting the speaker volume
Select "Settings access" and "Voice volume change"
in the menu bar during voice communication. The
voice volume can be changed in seven stages using
the slider. The volume is saved automatically.
12091190.fm Seite 7 Donnerstag, 14. März 2019 11:33 11
8
Normal conversation mode
collapse
capture
open
Door
Camera
Saving images
(Only possible if enabled by the installer)
Saving images manually
If a door call is accepted, images can be saved
manually during the call.
For this, press " Image capture" in the menu bar.
Please note the data privacy notice on page 23.
Saving images automatically
If the door call is not accepted within 2 mins, images
can be saved automatically (see also “Image memory
settings” on page 23).
A green flashing then indicates that new images
are available in the image memory.
12091190.fm Seite 8 Donnerstag, 14. März 2019 11:33 11
9
Normal conversation mode
collapse
Override function activated
end
Door conversation
open
Door
Enforcement function
Use the enforcement function as soon as the
background noise at the door station prevents the
person at the front door from hearing you.
1. Keep or pressed during the conversation.
The message "Override function activated"
appears above the camera image.
While the button is pressed, it is only possible to
speak from the surface-mounted video home
station 7 to the door station.
2. Let go of or again to end the enforcement
function.
Ending door call
is lit up during the voice communication.
The door call can be ended either via " Door
conversation end" in the menu bar, or by pressing
.
After ending the door call, goes out.
12091190.fm Seite 9 Donnerstag, 14. März 2019 11:33 11
10
Normal conversation mode
collapse
resume
Door conversation
open
Door
collapse
accept
Door call
open
Door
GIRA
Door communication
Resuming a door call
After ending the door call, the conversation can be
restarted within 4 s with " Door conversation
resume" in the menu bar or directly by pressing .
The camera switches on again as well.

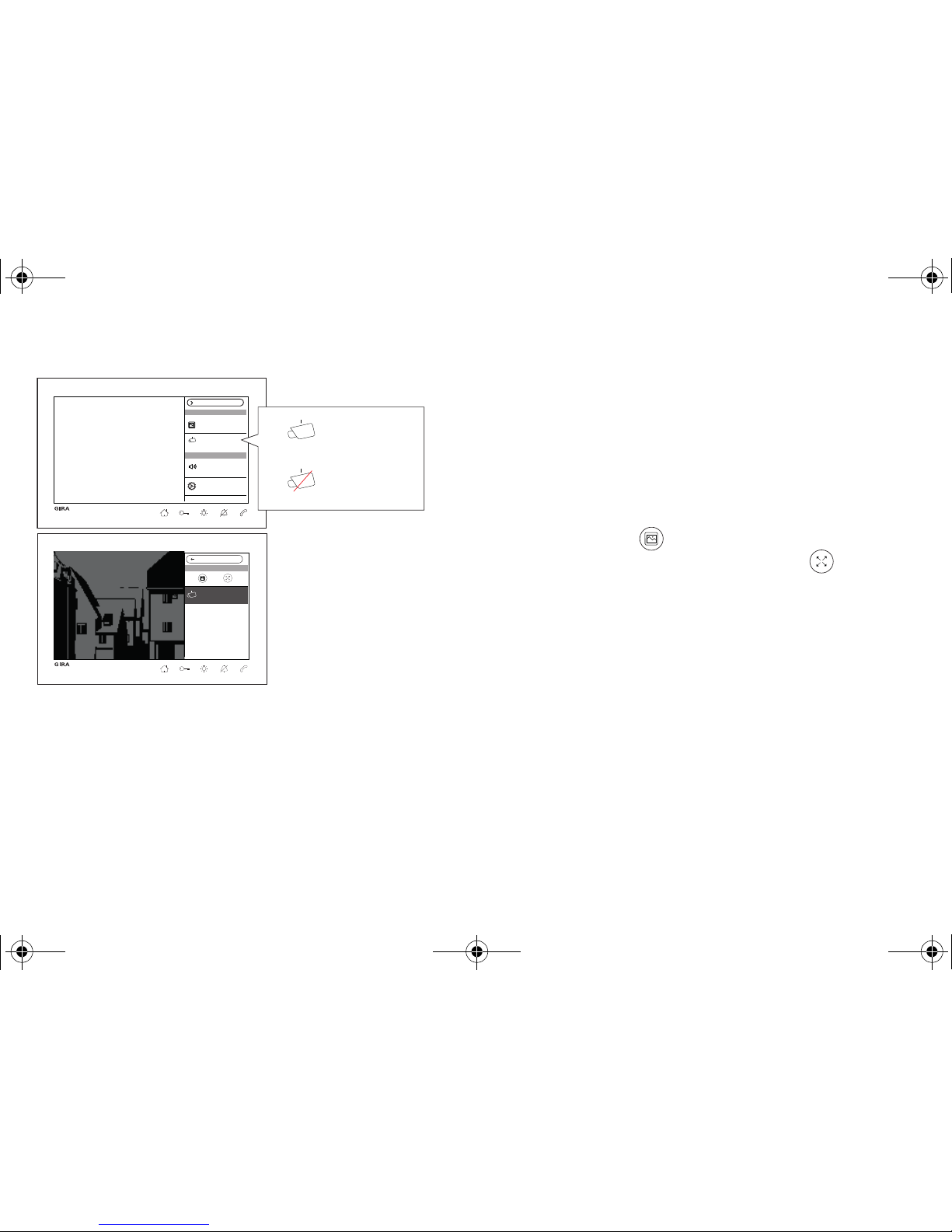

Switching ring tone off and back on
1. Press briefly.
lights up red continuously: The ring tone is
permanently switched off.
2. Press again briefly: The ring tone is switched
on again.
Switch the ring tone off only when needed
Switch off the ring tone only in exceptional cases.
Otherwise there is a risk of you not being able to
hear the ring tone, e.g. in emergencies.
12091190.fm Seite 10 Donnerstag, 14. März 2019 11:33 11
11
Switching functions
Switching functions
collapse
accept
Door call
open
Door
GIRA
Door communication
collapse
GIRA
Door communication
access
Image memory
call up
Oce
change
Ringtone volume
switch
Light
Funktionen
Gerät
Favoriten
Opening door
The door opener can be triggered in two different
ways:
•With " Door open" in the menu bar.
•By pressing .
In the case of several doors, the door opener for the
door station from which the door call originated is
activated within 2 min. 2 min after the call has been
received or 30 s after the door call ends, the system
switches back to the main door.
Switching light (only in conjunction with a switching actuator)
Switching actions can be triggered in two different
ways:
• With the light (e.g. outdoor or stairway
lighting) is switched on.
• As "Favourite" in the menu bar.
12091190.fm Seite 11 Donnerstag, 14. März 2019 11:33 11
12
Menu bar — quick access
Menu bar — quick access
GIRA
Door communication
1.
2.
collapse
change
Ringtone volume
access
Settings
GIRA
Door communication
Device

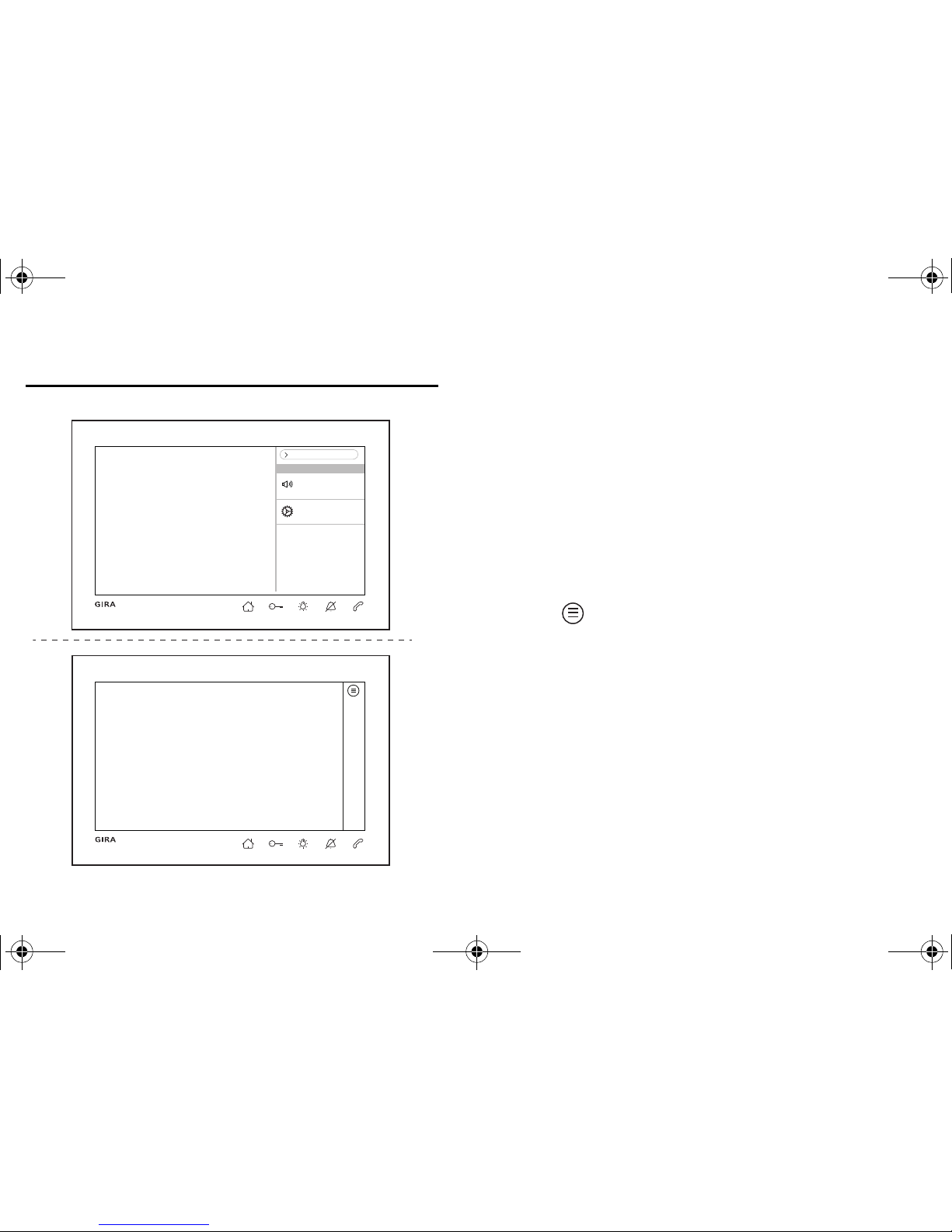

Expanding or collapsing the menu bar
The home station has a menu bar for quick access.
You can see the standard menu bar on the left
(Changing the ring tone volume and opening
settings).
The menu bar can be collapsed or expanded at any
time.
1. Press "Collapse" to collapse the menu bar.
2. Press to expand the menu bar again.
The selected setting is retained automatically. This
means that: The menu bar remains collapsed when it
is already collapsed and there is an incoming call.
The following settings can be made visible in the
menu bar depending on parameterisation:
Favourites, access image memory, call internal calls,
open cameras, switch on or off automatic internal
call acceptance, and switch on or off automatic door
opener.
12091190.fm Seite 12 Donnerstag, 14. März 2019 11:33 11
13

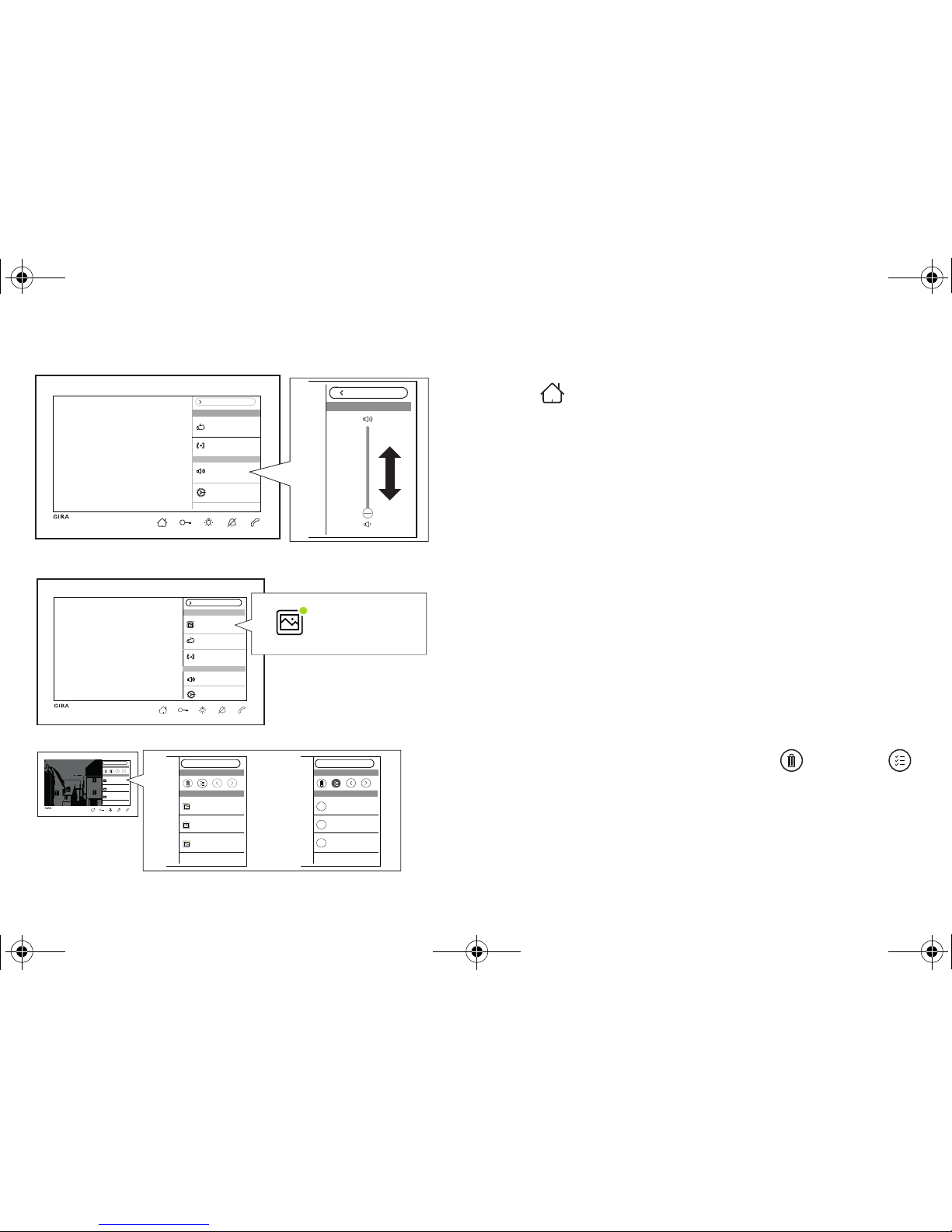

Menu bar — quick access
collapse
change
Ringtone volume
access
Settings
GIRA
Door communication
Device
access
Cameras
Functioins
call up
Oce
back
Ringtone volume
Bildspeicher (4)
Camera 1
09:57:31
Camera 1
09:42:04
Camera 1
09:41:55
Image memory(4)
01.10.2018
back
Bildspeicher (4)
Camera 1
09:57:31
Camera 1
09:42:04
Camera 1
09:41:55
Image memory(4)
01.10.2018
back
collapse
access
Image memory
GIRA
Door communication
Functions
1.
2. 3.
access
Image memory
Bildspeicher (4)
Camera 1
09:57:31
Camera 1
09:42:04
Camera 1
09:41:55
Image memory(4)
01.10.2018
back
change
Ringtone volume
access
Settings
Device
access
Cameras
call up
Oce
Changing the ring tone volume
Press and select "Ringtone volume change" in
the menu bar. The ring tone volume can be changed
in seven stages using the slider. The volume is saved
automatically. Switching off ring tone, see page 10.
Accessing image memory
(Only visible when enabled by the installer)
New images are indicated by a green point in the
image symbol.
1. Press "Image memory access" in the menu bar
to view the saved images. The last image that
was captured is shown first.
2. Select and view image.
3. Delete images individually with , or press
for multiple selection, and then delete.
12091190.fm Seite 13 Donnerstag, 14. März 2019 11:33 11
14
Menu bar — quick access
collapse
access
Image memory
GIRA
Door communication
Funktionen
change
Ringtone volume
access
Settings
Gerät
1.
Bildspeicher (4)
Cameras
back
access
Cameras
access
Cameras
2.
switch on
Camera 1
Camera 1
switch o
Opening cameras
(Only visible when enabled by the installer)
You can switch the listed camera(s) on and off
manually.
Switching the camera on
Images can only be saved manually when the camera
is switched on and the image memory is unlocked.
For this, press on in the top menu bar.
In order to display the full image, press . The menu
bar is then automatically collapsed.
The image can be moved using the arrow buttons.
12091190.fm Seite 14 Donnerstag, 14. März 2019 11:33 11
Loading...
