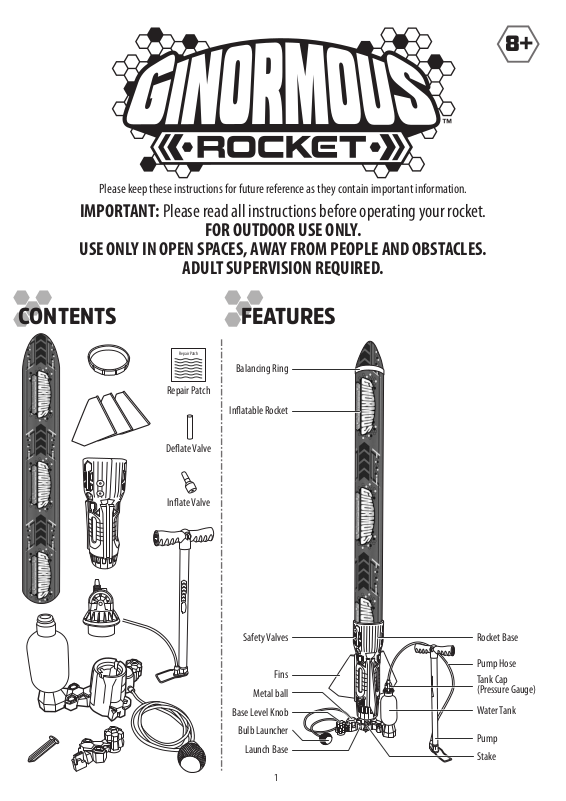

Ginormous Rocket User Manual

Please keep these instructions for future reference as they contain important information.

IMPORTANT: Please read all instructions before operating your rocket.

FOR OUTDOOR USE ONLY.

USE ONLY IN OPEN SPACES, AWAY FROM PEOPLE AND OBSTACLES.

ADULT SUPERVISION REQUIRED.

CONTENTS FEATURES

8+

Repair Patch

Repair Patch

Deflate Valve

Inflate Valve

Balancing Ring

Inflatable Rocket

Safety Valves

Fins

Metal ball

Base Level Knob

Bulb Launcher

Launch Base

1

Rocket Base

Pump Hose
Tank Cap

(Pressure Gauge)

Water Tank

Pump

Stake

Insert rocket until the
icons on the label and

the base are aligned.

a

b

SET UP TO PLAY

Place balancing ring

within this area.

OR

x3

Slide ALL THREE fins into the rocket base

1.

until they are tightly attached. If all fins
are not attached, the rocket will not fly
straight.

Safety
Valves

Insert the inflate valve into the rocket’s

2.

opening and inflate the rocket in one of
these ways:
a) Insert the pump hose into the inflate

valve and pump until the rocket is fully
inflated.

b) Blow into the inflate valve until the

rocket is fully inflated.
Remove the inflate valve from the rocket when it feels firm.
DO NOT over-pump as it may damage the rocket.

Click!

3.

Place the balancing ring over the tip of

the rocket in the area indicated on the
rocket. The balancing ring will allow the
rocket to gently float back to ground
during landing.

4.

7.

Insert the fully inflated rocket into the

rocket base until the on the label and
the edge of the rocket base are aligned as
shown. Do not line the side seams of the
rocket to the safety valves as this may
prevent the rocket from launching.

BOTTOM VIEW

Snap the leg into the launch base. You will

5.

hear a "click" when it is firmly installed.

LOCKED

Align the connectors on the bottom of the rocket base to the launch base, and snap it

into place. When correctly connected, a pin will pop up on the lock indicator.

Place the launch base on a level surface,

6.

in an open, grassy area. Slide the stake
through the opening to secure the base to
the ground. This is where you will launch
the rocket from. If launching from a hard,
level surface, the stake is not needed.

After attaching the rocket, turn the base

8.

level knob to level the base and rocket.
The rocket is level when the metal ball
rests at the center of the circle.
