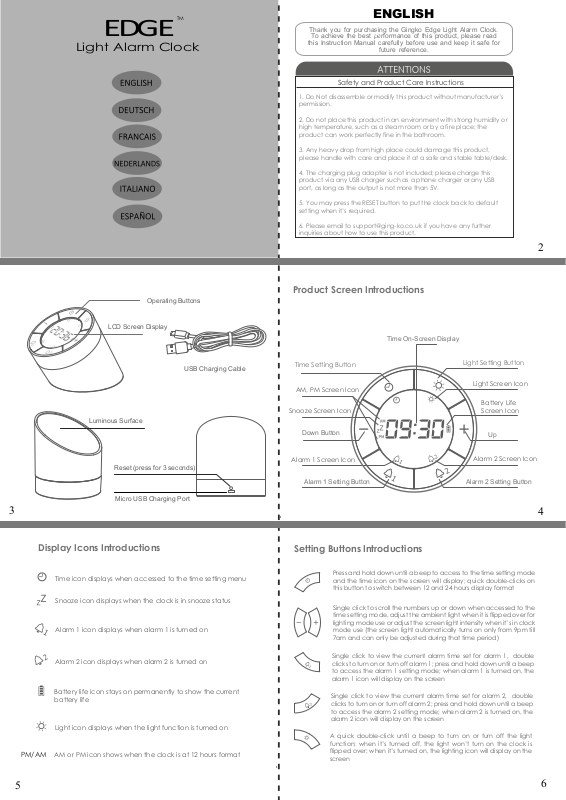

Gingko Electronics Edge User Manual
TM
ENGLISH
E
D
G
E
Light Alarm Clock
Operating Buttons
Thank you for purchasing the Gingko Edge Light Alarm Clock.
To achieve the best performance of this product, please read
this Instruction Manual carefully before use and keep it safe for
Safety and Product Care Instructions
1. Do Not disassemble or modify this product without manufacturer’s
permission.
2. Do not place this product in an environment with strong humidity or
high temperature, such as a steam room or by a fire place; the
product can work perfectly fine in the bathroom.
3. Any heavy drop from high place could damage this product,
please handle with care and place it at a safe and stable table/desk.
4. The charging plug adapter is not included; please charge this
product via any USB charger such as a phone charger or any USB
port, as long as the output is not more than 5V.
5. You may press the RESET button to put the clock back to default
setting when it’s required.
6. Please email to support@ging-ko.co.uk if you have any further
inquiries about how to use this product.
future reference.
Product Screen Introductions
2
LCD Screen Display
Time On-Screen Display
USB Charging Cable
Luminous Surface
Reset (press for 3 seconds)
Micro USB Charging Port
Time Setting Button
AM, PM Screen Icon
Snooze Screen Icon
Down Button
Alarm 1 Screen Icon
Alarm 1 Setting Button
3
Display Icons Introductions
Time icon displays when accessed to the time setting menu
Snooze icon displays when the clock is in snooze status
Alarm 1 icon displays when alarm 1 is turned on
Setting Buttons Introductions
Press and hold down until a beep to access to the time setting mode
and the time icon on the screen will display; quick double-clicks on
this button to switch between 12 and 24 hours display format
Single click to scroll the numbers up or down when accessed to the
time setting mode, adjust the ambient light when it is flipped over for
lighting mode use or adjust the screen light intensity when it’s in clock
mode use (the screen light automatically turns on only from 9pm till
7am and can only be adjusted during that time period)
Light Setting Button
Light Screen Icon
Battery Life
Screen Icon
Up
Alarm 2 Screen Icon
Alarm 2 Setting Button
4
PM/AM
5
Alarm 2 icon displays when alarm 2 is turned on
Battery life icon stays on permanently to show the current
battery life
Light icon displays when the light function is turned on
AM or PM icon shows when the clock is at 12 hours format
Single click to view the current alarm time set for alarm 1, double
clicks to turn on or turn off alarm 1; press and hold down until a beep
to access the alarm 1 setting mode; when alarm 1 is turned on, the
alarm 1 icon will display on the screen
Single click to view the current alarm time set for alarm 2, double
clicks to turn on or turn off alarm 2; press and hold down until a beep
to access the alarm 2 setting mode; when alarm 2 is turned on, the
alarm 2 icon will display on the screen
A quick double-click until a beep to turn on or turn off the light
function; when it’s turned off, the light won’t turn on the clock is
flipped over; when it’s turned on, the lighting icon will display on the
screen
6
Operating Instructions
A beep will be responded to any successful double-clicks or long&hold down pressing
1. Production Activation and Charging
2. Time Setting
3. Switch 12/24 Display
4. View current alarm time / turn on or off the current alarm
This is a power activation product and powered by a 1200mAh
integrated rechargeable battery. It can only be turned on when you
charge it first. Please fully charge it first before use by connecting the
supplied USB charging lead to any USB port such as a USB phone
Micro USB
charger or any computer/laptop USB port; When the battery life icon
Charging
is flashing on the screen, you may need to charge it as soon as
possible.
Press and hold down button until a beep to access to the time
setting mode and the Hour numbers will start flashing; Press buttons
+/- to adjust your prefer hour numbers then press button to
confirm; the minute numbers will start flashing and repeat the above
operation to set your preferred minute numbers. Press button to
confirm and exit the time setting.
Double clicks on the time button to switch the time
display between 12 or 24 hours format
5. Alarm Setting
Press and hold down the alarm 1 button to access the to alarm
1 setting then the alarm hour numbers will flash; press +/- to adjust
the preferred alarm hour and press alarm 1 button to confirm; then
the minute numbers will flash; press +/- to adjust the preferred alarm
minute and press the alarm 1 button to confirm and exit the
setting. (Repeat the same for alarm 2 setting)
6. Screen Light Setting
The screen light will automatically turn on between 9pm to 7am
You can adjust the brightness of the screen light by pressing +/buttons when the product is in clock mode use(when it’s not flipped
over for light mode use) The screen light can be completely turn off
by pressing and holding the - button; to turn it back on, press + button.
7. Ambient/Night Light Setting
Double-clicks on the light button to turn on/off the ambient/night
light function. When the product is flipped over for light mode use,
pressing and holding down the buttons +/- can adjust the brightness
of the light. (+ to increase the light intensity and - to decrease the
light intensity)
8. Ambient/Light Light Flip Function
The flip function to turn off or turn on the light only works when the light
function has been turned on. To turn it on, double clicks on the light
button and the light icon will display on the screen. To turn off the
light function, double clicks on the same button again.
Single click on the alarm 1 button to view the current alarm 1 time
set, double clicks to turn alarm 1 on/off; when turned on, the alarm 1
icon will display on the screen; when turned off, the icon will
Disappear (Repeat the same operation above for alarm 2)
The Edge Light Alarm Clock is a design patented product from
Gingko Electronics Ltd in the UK and ‘the Edge’ is a registered trade mark
El reloj despertador Edge Light es un producto patentado de diseño de
Gingko Electronics Ltd en el Reino Unido y 'the Edge' es una marca registrada
9. Snooze Feature Introduction
When the alarm goes off, simply shake it to snooze for 5 minutes or press any button or flip it
over to turn it off for the day. You can snooze it as many times as you wish during the beeps
but the beep only lasts for 3 minutes, then it will stop.
of Gingko Electronics Ltd
de Gingko Electronics Ltd
8
Gingko Electronics Ltd im Vereinigten Königreich und "The Edge" ist eine eingetragene Marke
Der Edge Light Wecker ist ein Design patentiertes Produkt von
von Gingko Electronics Ltd
The Edge Light Alarm Clock è un prodotto brevettato dal design
Gingko Electronics Ltd nel Regno Unito e 'the Edge' è un marchio registrato
De Edge Light Alarm Clock is een gepatenteerd designproduct van
Gingko Electronics Ltd in het VK en 'the Edge' is een geregistreerd handelsmerk
Le réveil Edge Light est un produit breveté de conception de
Gingko Electronics Ltd au Royaume-Uni et «The Edge» est une marque déposée
Unit C27 Holly Farm Business Park, Kenilworth,United Kingdom, CV8 1NP
di Gingko Electronics Ltd
van Gingko Electronics Ltd
de Gingko Electronics Ltd
Gingko Electronics Ltd
www.ging-ko.co.uk
info@ging-ko.co.uk
Printed in China
