3.Interf ace S pec iﬁcation

4.Connect with the Two-Wire Sensor

GIN GK O

GM4008

Ethernet Interface Eight-channel 0~24mA Acquisition Module

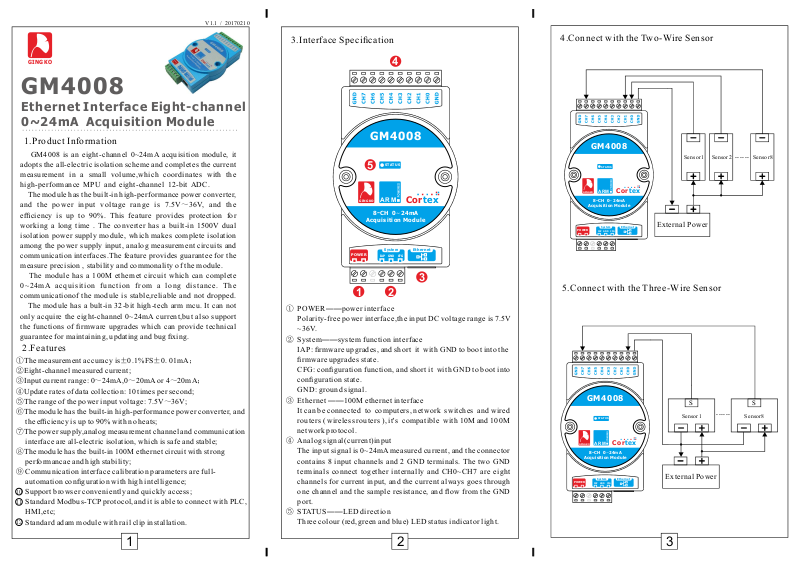

1.Product Information

GM4008 is an eigh t- chann el 0~24mA acquisition modu le, it adopts th e all-electri c isolation scheme and comp letes the current measureme nt in a small volum e, wh ic h coor dina tes with th e high-performance MPU and eight- ch annel 12-bit ADC. . The modu le has the bu ilt-in hi gh-performan ce power co nverter, an d t he po wer in put vo lt age ra ng e i s 7.5V 36V, and the eﬃc iency is up to 90%. Th is feature provides protection for wor king a long time . The con verter has a built- in 1500V dual isolation powe r suppl y module, which makes co mplete isolation amo ng the po wer sup ply i np ut, analo g measu rement circuits and communication i nterf ac es.The f ea ture provides guarantee for the mea sure precision , stability and co mmonali ty of the module. . The modu le has a 100 M ethern et circuit which can c omplete 0~ 24m A acqu isit i o n func t i o n fr o m a l o n g di s t a n ce. T h e communicationof the mo dule is stable,reli able and not dr opped. The modu le has a bu lt-in 32-bit high-tech ar m mcu. It can not onl y acquire the eight -channel 0~ 24mA current ,but also suppo rt the funct ions of ﬁrm ware upgra des which ca n provide tech nical gua rantee fo r maint aining, updating and bug ﬁx ing.

2.Fea tures

The measurement accuracy is 0.1%FS 0. 01mA

① ± ± ；

Eight-ch annel measured current;

②

Inp ut cu rrent ran ge: 0 24m A,0 20mA or 4 20mA

③ ～～～；

Upd ate rates of data collection: 10 ti mes per second;

④ ⑤ ～

The range of the power input volt age: 7.5V 36V;

⑥

The module has the built-in high-per formance power conv erter, and

the eﬃci ency is up to 90% with no heats;

The p owe r supply,an alog measurement channel and co mmuni catio n

⑦

int erface are all-electric is olati on, which is safe and stable;

The module has the built-in 100M ether net cir cuit with strong

⑧

performanca e and high stability;

⑨

Communication interface calibration parameters are full-

automation conﬁgura tion with high intelligence;

Support brows er con ve niently and quickly ac cess ;

Standard Modb us-T CP protocol,and it is able to connect with PLC, HMI ,etc;

Standard adam module wi th rai l cl ip ins tallation.

～

GM4008

STA TUS

AR M

GING KO

Acq uisi ti on M od ul e

POW ER

8 C H 0 24 mA

Sys tem

IAP CFGGND

Cortex

Eth erne t

1 2

①

POWER power interface—— Polarity-free power interface,the in put DC voltage range is 7.5V

~36V.

②

System system function interface

——

IAP: ﬁrmware upgrades, and sh ort it with GND to boo t in to t he ﬁrmware upgrades st at e.

CFG: conﬁguration function, and short it with GND to boot i nt o

conﬁgurat ion state.

GND: gr ound signal. Ethernet 100M et hern et interface——

③

It can be connect ed to comp ut ers, network switches and wi red routers ( wirel ess routers ), it' s compat ible with 10M and 10 0M network pro toco l.

④

Analog signal(current)input

The input s igna l is 0 ~24mA measured current, and the con nect or

contains 8 input channe ls and 2 GN D te rmin als. The two GND

terminals connect t ogether internally and CH0~CH7 are eight

channel s for current in put, an d the current always goes thro ugh

one c ha nn el and th e sa mple resistan ce, and ﬂow f ro m th e GND

port.

⑤

STATUS LED di rectio n——

Three colour (red,green and blue) LED status indicator light.

GM 400 8

Sen sor1 Sen sor2 Sen sor8

External Power

POWER

STAT US

AR MGINGKO

8 CH 0 24mA

Acq uisiti on Modu le

Syste m

IAP C FGGND

Cortex

Ether net

5.Connect with the Three-Wire Sensor

GM 400 8

8 CH 0 24mA

Acq uisiti on Modu le

POWER

AR MGINGKO

IAP C FGGND

STAT US

Syste m

Cort ex

Ether net

Sen sor1

External Power

.. ... .

Sen sor8

1 2 3

Page 2

6.Product Information and Defa ult Parameter

Property

Input range

ADC parameter 8 channel, 12 bits

Measurement accuracy ±0.1%FS±0.01mA

Resolution 0.01mA

Switching speed 10SPS

Supply voltage

Power consumption about 1.2W

Isolation method

Isolation voltage 1500VDC

Programmable interface 100M ethernet interface

Compatible speed 10/100M ethernet

Communication protocol Modbus- TCP

Operating temperature

Sample resistance 100 Ω

Dimensions 125mm x 70mm x 26mm

Weight Net:95g; with pagage:185g

Installation mode Standard DIN rail chip installation

Default parameters

7.Modbus-TCP Registers I ntrod uctio ns

This module contains 24 register s, an d every channe l h as 3

registers. They all map t o th e re gi ster s of M od bus prot oc ol . The

Performance indication

0～24mA

DC 7.5V～36V

power, interface and measurement

channel all isolation

-40℃～85

℃

IP address: 192.168.0.10

Submask: 255.255.255.0

Port number:502

Slave address:1

Address Name Type

40001 Channel 0 register A1 read only(R)

40003 Channel 0 register A2 read only(R)

40003 Channel 0 register B read only(R)

40004 Channel 1 register A1 read only(R)

40005 Channel 1register A2 read only(R)

40006 Channel 1 register B read only(R)

…… …… read only(R)

40024 Channel 7 register B read only(R)

In order to fa ci li ty the users, the mod ul e a da pt s two ways to

express the measured va lue,as shown below:

①

integer and dec imal isolate mode

The re gi st er with addre ss 400 01 is the i nteger part o f channel 0 mea sured value ; The regist er with address 40002 is the fractional pa rt of channel 0 measured value. You can ge t the measured value with the following equation:

measured value(mA) = va lu e[4000 1] + val ue [4 0002 ] /1 00

For example: if the value of 40 001 r eg is te r i s 5 an d the v al ue of 40002 register is 60.

mea sure d va lu e(mA ) = 5 + 60 /100 = 5.6 mA

②

100x magniﬁcation integer mode

The reg is te r with a ddre ss 400 03 is the ot he r re pres en t meth od of channel 0 me as ur ed val ue , which is mapped by 10 0- ti memagniﬁed analog signal and the stored values is signed integer. You can get the mea su red value wi th t he fol lowing equat ion:

mea su red va lu e( mA ) = va lu e[40 00 3] /10 0

Th e a bove formulas t ake examples of ch anne l 0,which is similar to other channe ls. I f y ou wa nt to ge t m ore introductions, please refer to the user manual of GM4008.

8. Paramet ers Conﬁguration And Fi rmw are Upgrades

The module has the built -in function of parameters conﬁg ura tion and ﬁrmware upg rades, short the conﬁguration pins wi th GND an d re-power t o boot into the parameters conﬁgur ation or ﬁrmware upgrades state. Parameter conﬁ guration or ﬁrmware upgrade is comple ted by the brow sers of computers, mobile phones, tablet computers and so on. .

Afte r ente ri ng the appro pr iate mode an d networking , ac ce ss t he

following addr ess to com plet e the operati on. Please refer to t he

user manual of GM 4008.

http://192 16 8 0 10

. . .

9. Network M odel

GM4 008

GM4 008 GM 400 8 GM4 008

.. . ...

cab le

swi tch/r outer

GM4 008 GM4 008 GM4 008

cab le

.. . ...

wir eless c ard

cab le

wir eless r outer

cab le

mob ile pho ne

tab let
