Page 1
Soap & Bottle Baskets
Cabinet Hardware
gingerco.com
Shower Curtain Rods
Tumbler Holders
Hotel Shelves
Bud Vases
460-N Greenway Industrial Drive
Fort Mill SC 29708
Mirrors
Lights
Toiletry Shelves
Grab Bars
Soap Dishes
Toilet Tissue Holders
Towel Rings
Towel Bars
Hooks
GINGER
:
fine accessories
also from
your purchase
with these
Complement
CHELSEA
SINGLE LIGHT
INSTRUCTIONS
INSTALLATION
for
ID1182/1 3-30-06
Page 2
INSTALLAT
ION
:
Chelsea
Single Light
1182/1

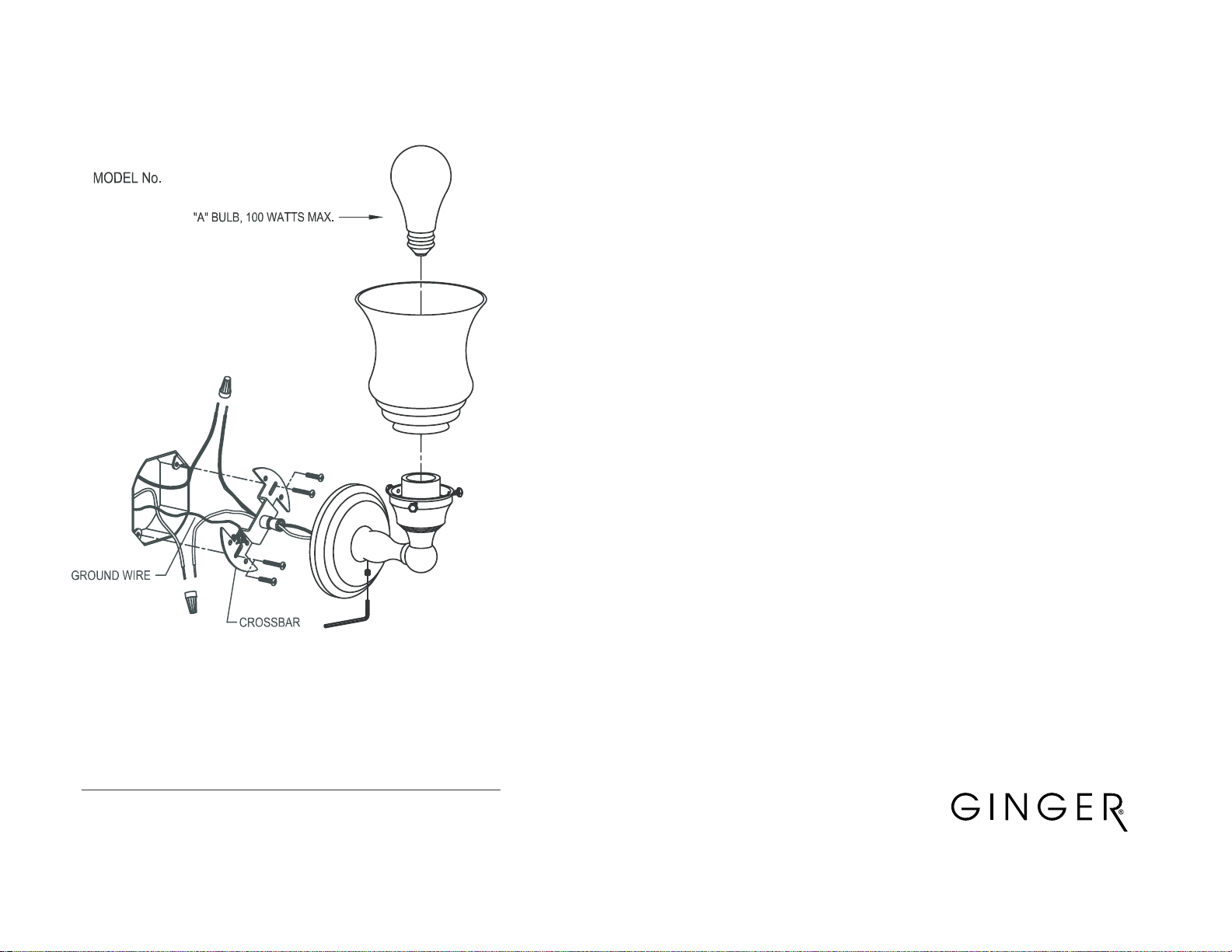

1.
Provide the required wiring to the wall-mounted electrical box. The
electrical box should be flush in the wall.
2.
Mount crossbar to the electrical box. The crossbar should be flat
against the wall with the spindle facing away from the wall.
3.
Connect house ground wire to the crossbar with attached
ground screw.
4.
Feed the light fixture wires through the center hole of the crossbar.
5.
Connect the white wire of the fixture to the house neutral wire
with a wire nut.
6.
Connect the Black wire of the fixture to the house hot wire
with a wire nut.
7.
Slide the fixture over the spindle of the crossbar until it is flush
against the wall. Secure the fixture by tightening the set screw with
the provided wrench. Make sure the wires are not pinched during
this process.
.
Installation Instructions:
These lights should be installed by a licensed electrical contractor.
POWER REQUIREMENTS
NOTE
:
This light may be inverted for down lighting if preferred.
SAFETY: TO PREVENT ELECTRICAL SHOCK, BE SURE THAT POWER IS OFF
BEFORE STARTING INSTALLATION.
:
100-120 Volts
8.
Position glass shade onto fixture and tighten thumb screws
(Be careful not to over-tighten).
9.
Install light bulbs.
