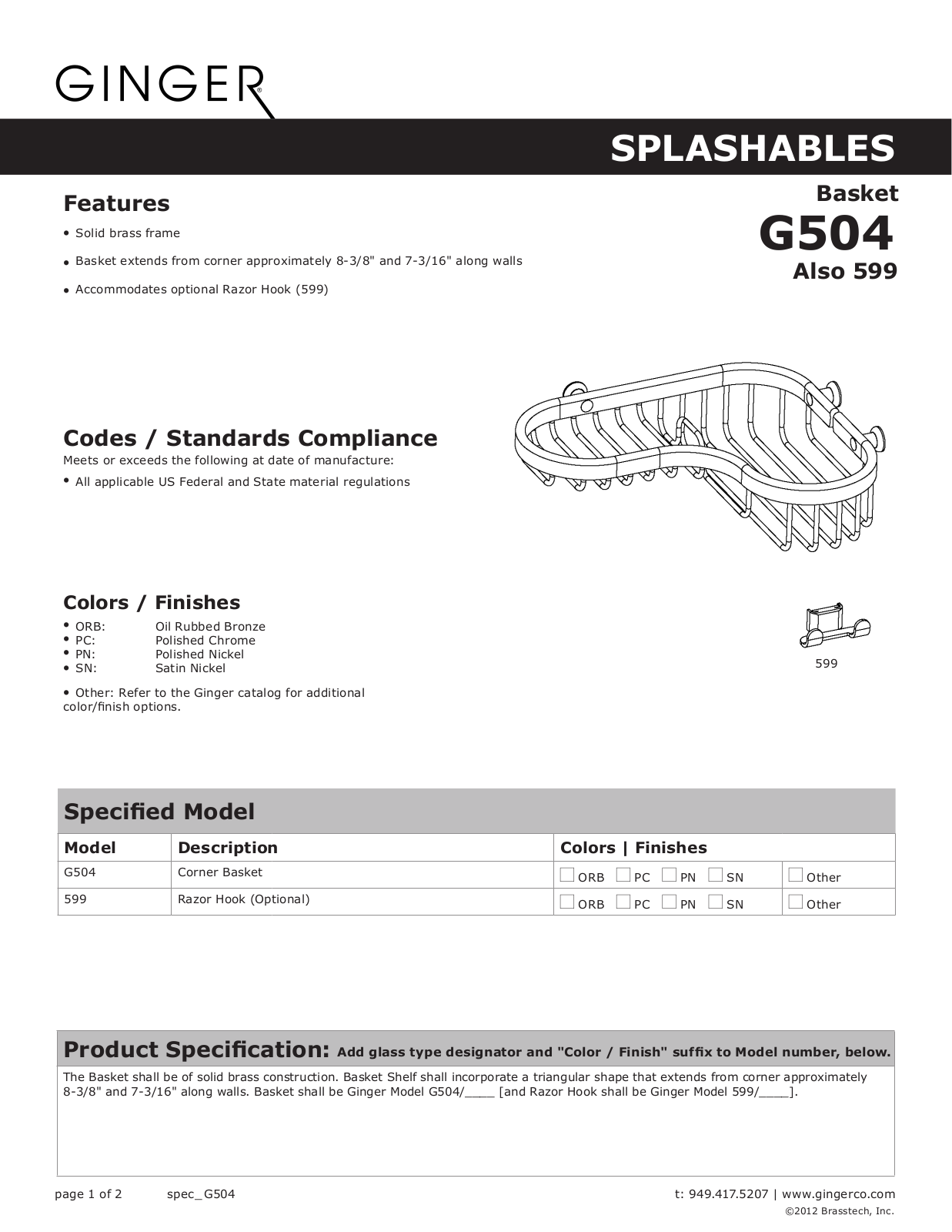

Page 1
SPLASHABLES
Features
Solid brass frame
Basket extends from corner approximately 8-3/8" and 7-3/16" along walls
Accommodates optional Razor Hook (599)
Codes / Standards Compliance
Meets or exceeds the following at date of manufacture:
All applicable US Federal and State material regulations
Colors / Finishes
ORB:
PC:
PN:
SN:
Other: Refer to the Ginger catalog for additional
color/nish options.
Oil Rubbed Bronze
Polished Chrome
Polished Nickel
Satin Nickel
Basket
G504
Also 599
599
Specied Model
Model Description Colors | Finishes
G504 Corner Basket
599 Razor Hook (Optional)
Product Specication:
The Basket shall be of solid brass construction. Basket Shelf shall incorporate a triangular shape that extends from corner approximately
8-3/8" and 7-3/16" along walls. Basket shall be Ginger Model G504/____ [and Razor Hook shall be Ginger Model 599/____].
page 1 of 2 spec _
G504
Add glass type designator and "Color / Finish" sufx to Model number, below.
ORB PC PN SN Other
ORB PC PN SN Other
t: 949.417.5207 | www.gingerco.com
©2012 Brasstech, Inc.
Page 2
G504

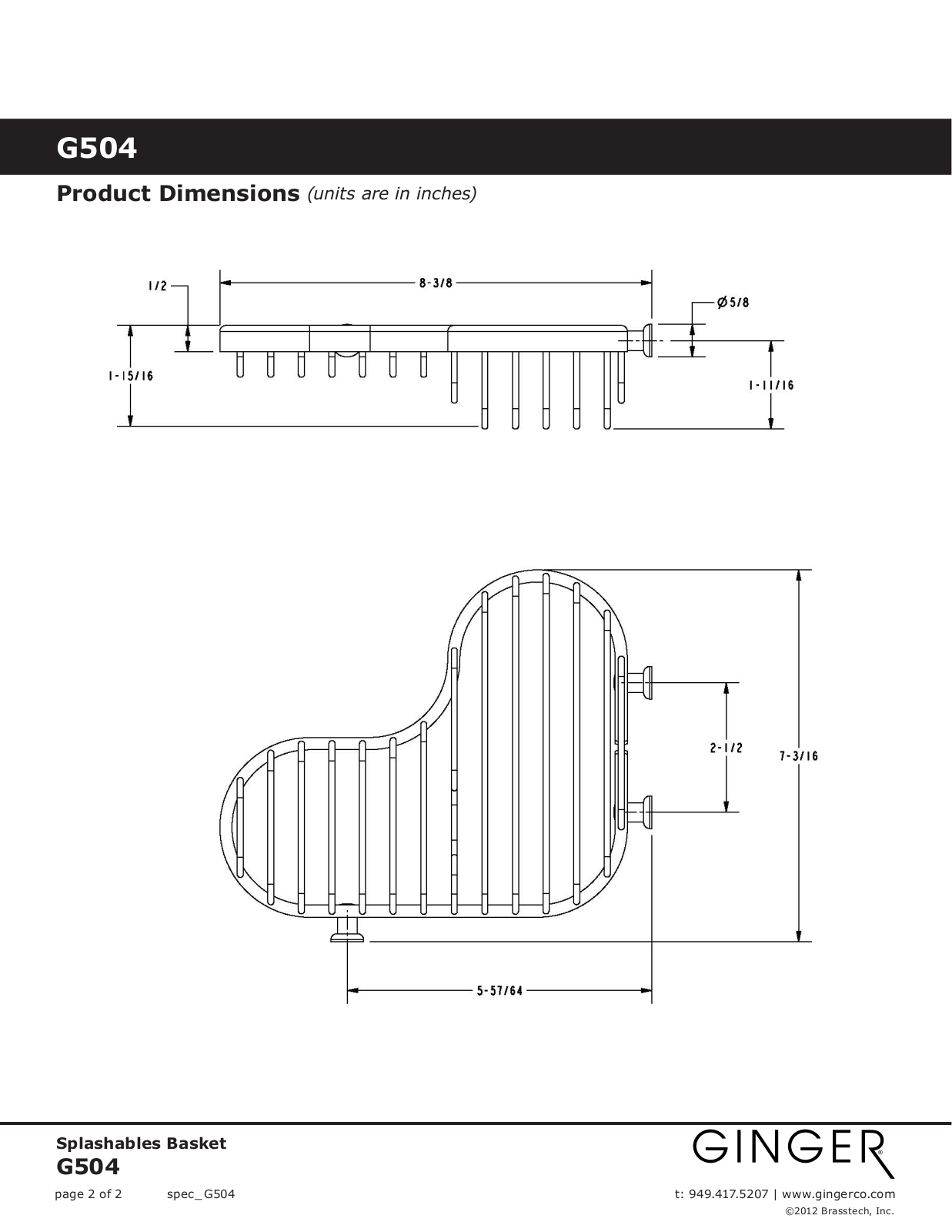

Product Dimensions
(units are in inches)
Splashables Basket
G504
page 2 of 2 spec _
G504
t: 949.417.5207 | www.gingerco.com
©2012 Brasstech, Inc.
