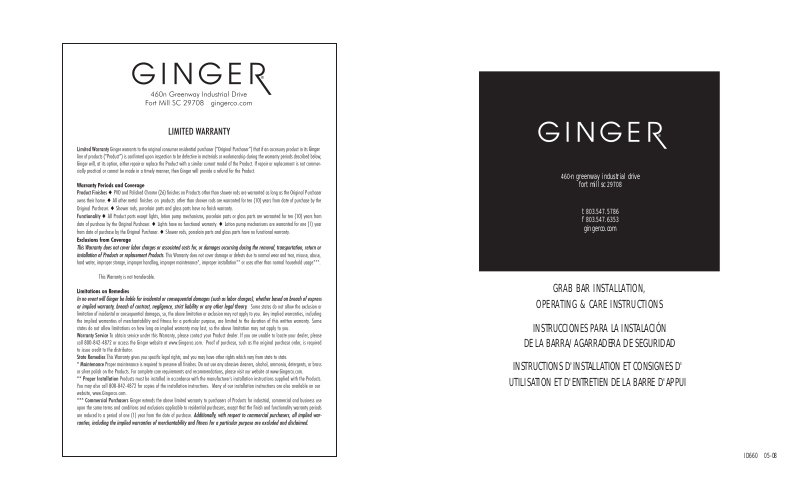

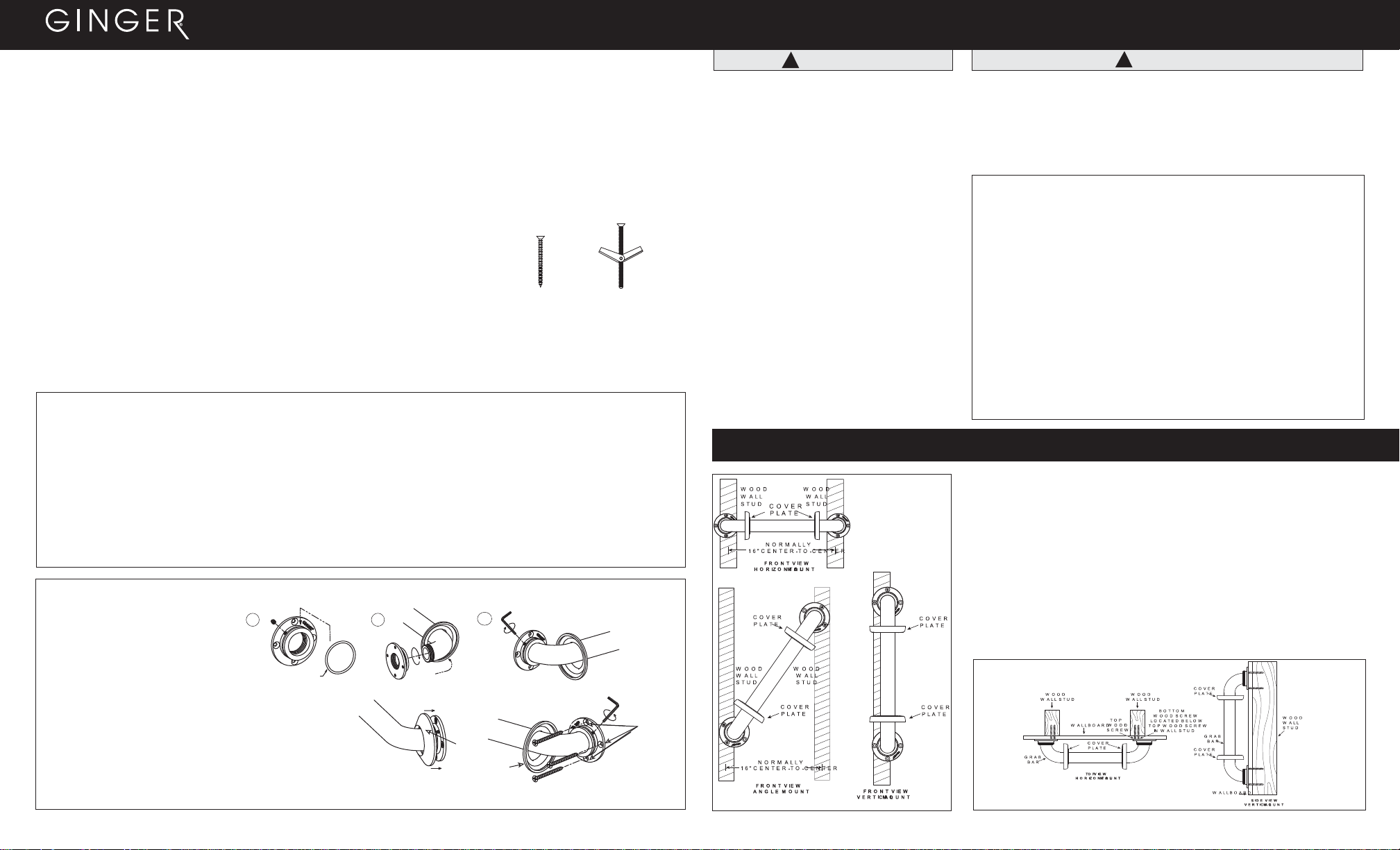

Ginger 4565, 4560 Installation Manual

460-n greenway industrial drive

fort mill sc 29708

t 803.547.5786
f 803.547.6353

gingerco.com

ID660 05-08

GRAB BAR INSTALLATION,

OPERATING & CARE INSTRUCTIONS

INSTRUCCIONES PARA LA INSTALACIÓN

DE LA BARRA/AGARRADERA DE SEGURIDAD

INSTRUCTIONS D'INSTALLATION ET CONSIGNES D'

UTILISATION ET D'ENTRETIEN DE LA BARRE D'APPUI

Requirements for correct installation of grab bars

SSAFETY WARNINGS:

DO NOT

install this equipment without first reading and under­standing this instruction sheet. If you are unable to understand these
Warnings and Instructions, contact a health care professional, deal­er or technical person for asstance before attempting to install this
equipment - otherwise, injury may occur.
After ANY adjustments, repair or service and BEFORE use, make
sure that all attaching hardware is tightened

sseeccuurreellyy

.
Grab Bars add security for bath and commode areas if attached as
instructed. Location, size and angle of BARS should be determined
by a qualified professional to provide optimum safety and function.
Use EXTREME caution on wet tub or floor surfaces.
Users with limited physical capablilities should be supervised or
assisted in bath and commode areas, even when using Grab Bars.
This Grab Bar can provide support and increase stability for an indi­vidual weighing up to

3300 pounds.

Grab Bars are NOT designed to support the total weight of an indi­vidual.

UUse the BAR for assistance ONLY

.

Be sure Grab Bars are correctly and securely installed.

NNEEVVEERR

use Grab Bars if any looseness is noted.

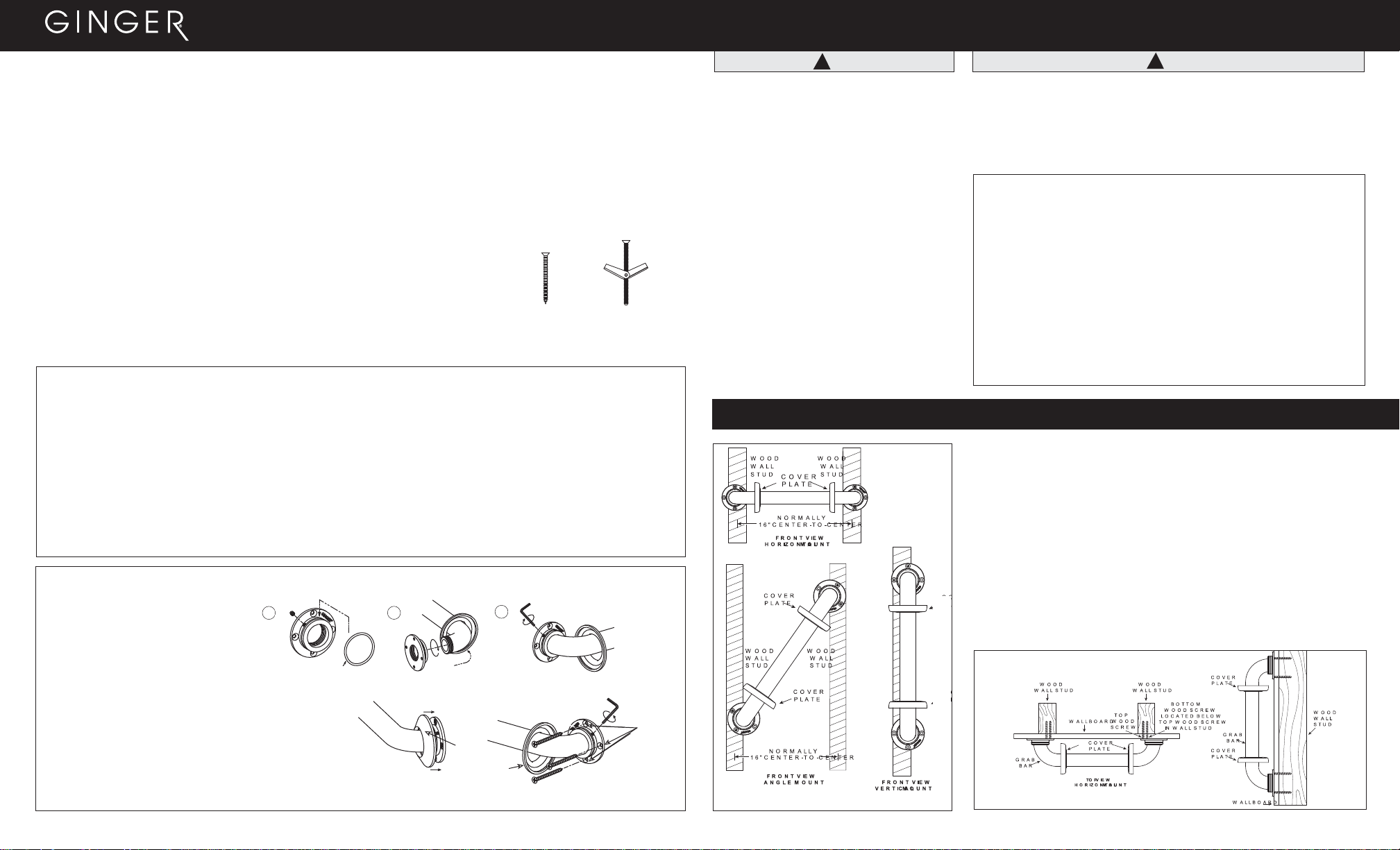

GRAB BAR INSTALLATION, OPERATING AND CARE INSTRUCTIONS

CONCEALED MOUNTING GRAB BAR

COVER

PLATE

MOUNTING

HOLES

O-RING

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

TO PROTECT THE FINISH OF THE GRAB
BAR DURING INSTALLATION, DO NOT
REMOVE THE PROTECTIVE PLASTIC
UNTIL INSTA LLATION IS COMPLETE.

TIP: WETTING THE O-RING
AIDS IN TRIM INSTALLATION.

COVER

PLATE

2

F

FIGURE 1

WOOD

SCREW(6)

TOGGLE

BOLT(6)

TTOOLS REQUIRED:

3/8-inch Power Drill
1/8-inch Drill Bit (to drill pilot hole for installation of WOOD
SCREW into wood wall stud)
1/4-inch Carbide Drill Bit (if drilling through ceramic tile when
installing into wood wall stud)
5/8-inch Drill Bit (if installing TOGGLE BOLTS)
5/8-inch Carbide Drill Bit (if drilling through tile and installing
TOGGLE BOLTS)
#2 Phillips Screwdriver
Safety Glasses
Stud Finder

PPAARRTT SS SS UUPPPPLLIIEEDD::

Six (6) No. 10 x 2 1/2 inch
WOOD SCREWS
Six (6) 1/4-20 x 3 inch
TOGGLE BOLTS (to be used if
only one end of Grab Bar can be installed in a wood wall stud)

IMPORTANT:

In some homes of modern construction, wall studs will be made of metal rather than wood.

The GRAB BAR should be mounted in one of the following combinations:

BOTH ends of GRAB BAR into WOOD wall studs - PREFERRED and MOSTSECURE method for mounting GRAB BAR (see pg. 2)
BOTH ends of GRAB BAR into METAL wall studs (see pg. 3)
ONE end of GRAB BAR into a WOOD wall stud, ONE end into WALLBOARD (see pg. 3-4)
ONE end of GRAB BAR into a METAL wall stud, ONE end into WALLBOARD (see pg. 4)
ONE end of GRAB BAR into a WOOD wall stud, ONE end into a METAL wall stud (see pg. 5)

Ginger Grab Bars have been tested to withstand and exceed loads mandated by the Americans with Disabilities Act and ASTM F466. However, it
is the responsibility of the architect, builder andinstaller to ensure that the mounting area is secure and that proper mounting hardware is used.

BEFORE INSTALLING GRAB BAR:

1. Remove the Grab Bar and parts from the
package.If concealed mounting Grab Bar is used, move
cover plates away from mounting holes (see Figure 1).

2. Determine where you want to install Grab Bar.

3. Place Grab Bar on wall at desired position (with at least one
end over a wall stud). If mounting horizontally or vertically,
check that the Grab Bar is level.

4. With a pencil, mark the hole positions on one end.

5. Repeat Step 4for the other end of the Grab Bar.

6. Place Grab Bar aside.

IF YOU HAVE A PREASSEMBLED GRAB BAR, OMIT THIS STEP.

A

B

C

GRAB BAR MAY NOT PROVIDE DESIGNED
AMOUNT OF SUPPORT UNLESS THESE INSTALLA­TION INSTRUCTIONS ARE STRICTLY FOLLOWED.

For proper installation, at least one end of Grab
Bar MUST be positioned over a wall stud. For solid
support, at least two (2) of the three (3) SCREWS
on the end of the Grab Bar that is positioned over
a stud MUST go through the wallboard or tile and
be tightly secured into the wall stud. Given stan­dard stud sizes, only two (2) of the three (3)
SCREWS may screw into the wall stud.

GGrab Bar may be installed vertically, horizontal-
ly or at an angle, so long as at least two (2) of
the three (3) mounting screws on at least one
end of the Grab Bar are secured into a wall
stud (see Figure 2).

Locate the wall studs behind
the wall before beginning installation (a stud
finder can be obtained from a hardware store).

NNOTE:

If you are unable to install BOTH ends of
the Grab Bar into studs, the end not installed into
a stud MUST be installed using the TOGGLE
BOLTS supplied.

DDO NOT USE WALL ANCHORS!

T

HHE FOLLOWING STEPS REQUIRE DRILLING INTO THE WALL.

When drilling into the wall, exercise care to avoid any electrical wiring or plumbing
that may be located behind the wall. Damaged electrical wiring can cause electrical
shock and/or fire. Since older homes do not always fall in line with current housing
codes and requirements, know where internal wall wiring is located so that no wires
will interfere with your installation.

PPROPER INSTALLATION IS EXTREMELY IMPORTANT. IF IN DOUBT, INSTAL-
LATION SHOULD BE DONE BY A QUALIFIED PROFESSIONAL.

TO INSTALL INTO WOOD WALL STUDS:

1. Put on safety glasses before starting.

2. Use the 3/8-inch power drill and 1/8-inch drill bit to drill all holes into the wall and wood wall studs at the
marked positions. Note:

If installing Grab Bar over ceramic tiles, the 1/4-inch carbide drill bit will be needed
for drilling through tile to prevent damage to tiles. Once a hole has been drilled through the tile, use the
1/8-inch drill bit to drill a pilot hole in the wood wall stud itself.

3. Place Grab Bar on wall, aligning mounting holes with the holes in the wall.

4. Insert the WOOD SCREWS into one end of the Grab Bar. Screw into wall and wall stud
(HAND TIGHTEN ONLY) (see Figure 3).

5. Repeat Step 4 for opposite end of the Grab Bar.

6. Securely tighten all mounting WOOD SCREWS with a screwdriver.

7. If concealed mounting Grab Bar is used, move cover plates over mounting holes and firmly press against the
wall (see Figure 1 on page 1).

FFIGURE 2

FIGURE 3

3

BOTH ends of Grab Bar into WOOD wall studs

USING GRAB BAR:

1. Read, understand and follow the information in the SAFETY WARNINGSsection of this instruction booklet.
GINGER shall have no liability for any damage or injury caused by improper installation or use of this Grab Bar.

2. Grasp the Grab Bar when exiting or entering the bathtub or when sitting down or rising from the commode.

3. Use EXTREME caution on wet tub or floor surfaces.

4. DO NOT put entire weight on Grab Bar. Grab Bar can support up to 300 pounds ONLY.

5. DONOT stand, sit or step on Grab Bar. DO NOT use Grab Bar as a step or platform to reach area above the tub.
Use the BARfor assistance ONLY.

CARE AND MAINTENANCE:

1. To clean, use warm water only with a soft cloth. NEVER use abrasive detergents.

2. Periodically inspect the Grab Bar for damage or looseness. DO NOT use if any damage or looseness exists.
Contact your authorized dealer for assistance.

3. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

!

WARNING

!

WARNING

TO INSTALL INTO METAL WALL STUDS: 1. Put on safety glasses before starting.

2. Use the 3/8-inch power drill and 5/8-inch drill bit to drill six (6) holes where marked. NOTE:

If installing Grab Bar
over ceramic tiles, the 5/8-inch carbide drill bit will be needed for drilling through tile, in order to prevent damage to
tiles. Once a hole has been drilled through the tile, use the 5/8-inch drill bit to drill through the backing support for
the tile.

3. Insert one (1) TOGGLE BOLTthrough any one of the mounting holes
on one end of the Grab Bar.Sta r t a spring nut on the end of the
TOGGLE BOLTas shown (see Figure 5), screwing it onto the
bolt about three turns. Repeat this step for two (2) TOGGLE BOLTS
on that same end of the Grab Bar.

4. Position the end of the Grab Bar with the TOGGLE BOLTSattached so that you can push the spring nuts and butt ends
of the TOGGLE BOLTSthrough the corresponding holes that have been drilled. The spring nuts

must be completely

through the holes in the wall (see Figure 6).

5. Repeat Steps 3 and 4 for the other end of the Grab Bar.

6. Pull the TOGGLE BOLTSon one end of the Grab Bar toward you and finger tighten the BOLTSto be sure that spring nuts
have opened fully against the back side of the wall and metal wall studs (see Figure 6).If the spring nuts have not opened
fully, loosen the bolts and repeat Step 6.

7. Repeat Step 6 for the other end of the Grab Bar.

8. Lightly tighten the TOGGLE BOLTS. Further tightening will be required in Step 10.

9. If Grab Bar is to be installed horizontally, make sure Grab Bar is level (you may need to jostle the TOGGLE BOLTS
on one end or the other to level the bar).

10. Securely tighten allTOGGLE BOLTSwith ascrewdriver.

11. If concealed mounting Grab Bar is used, move cover plates over mounting holes and firmly press against the wall
(see Figure 1 on page 1).

FFIGURE 5

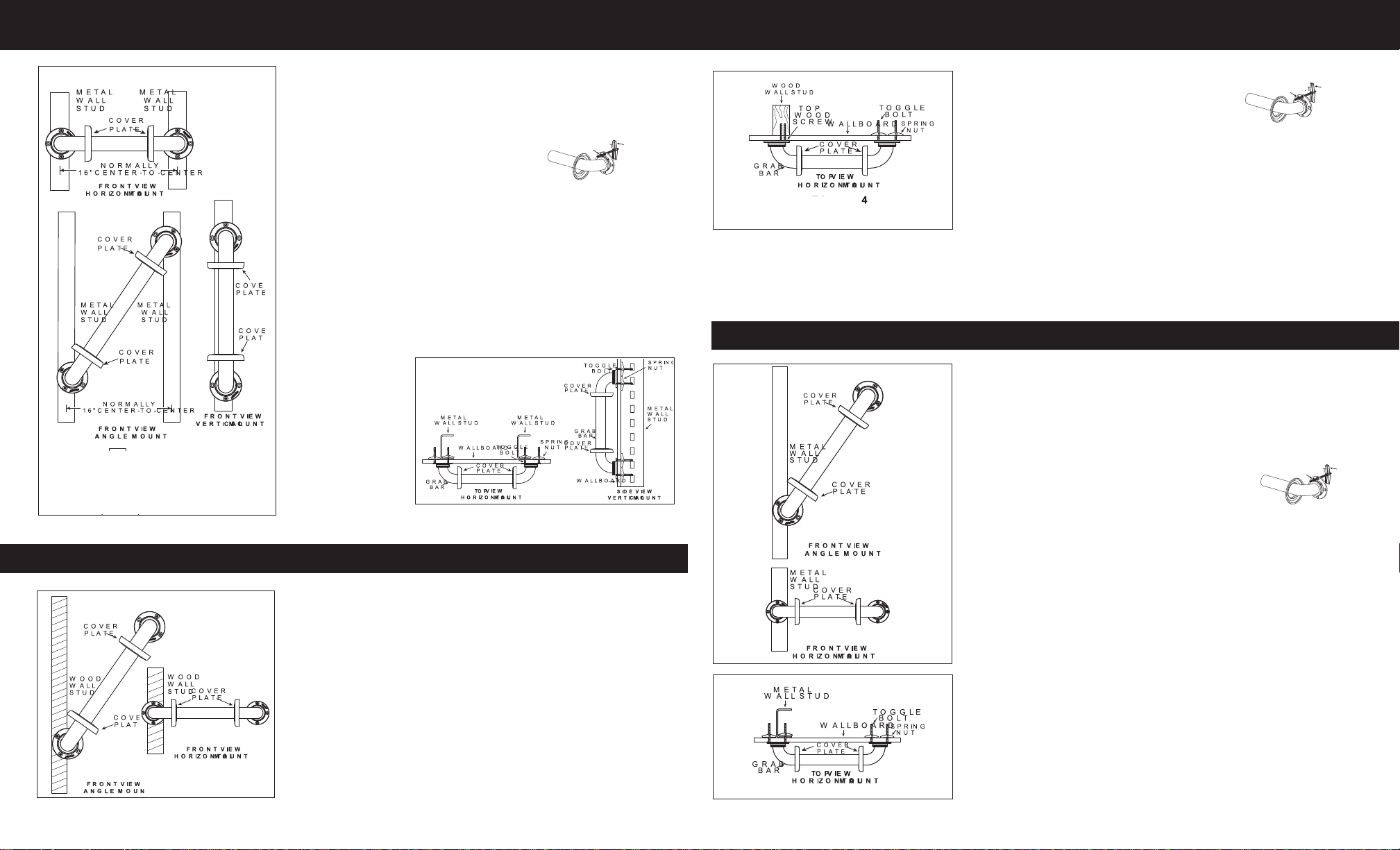

BOTH ends of Grab Bar into METAL wall studs

FIGURE 6

5

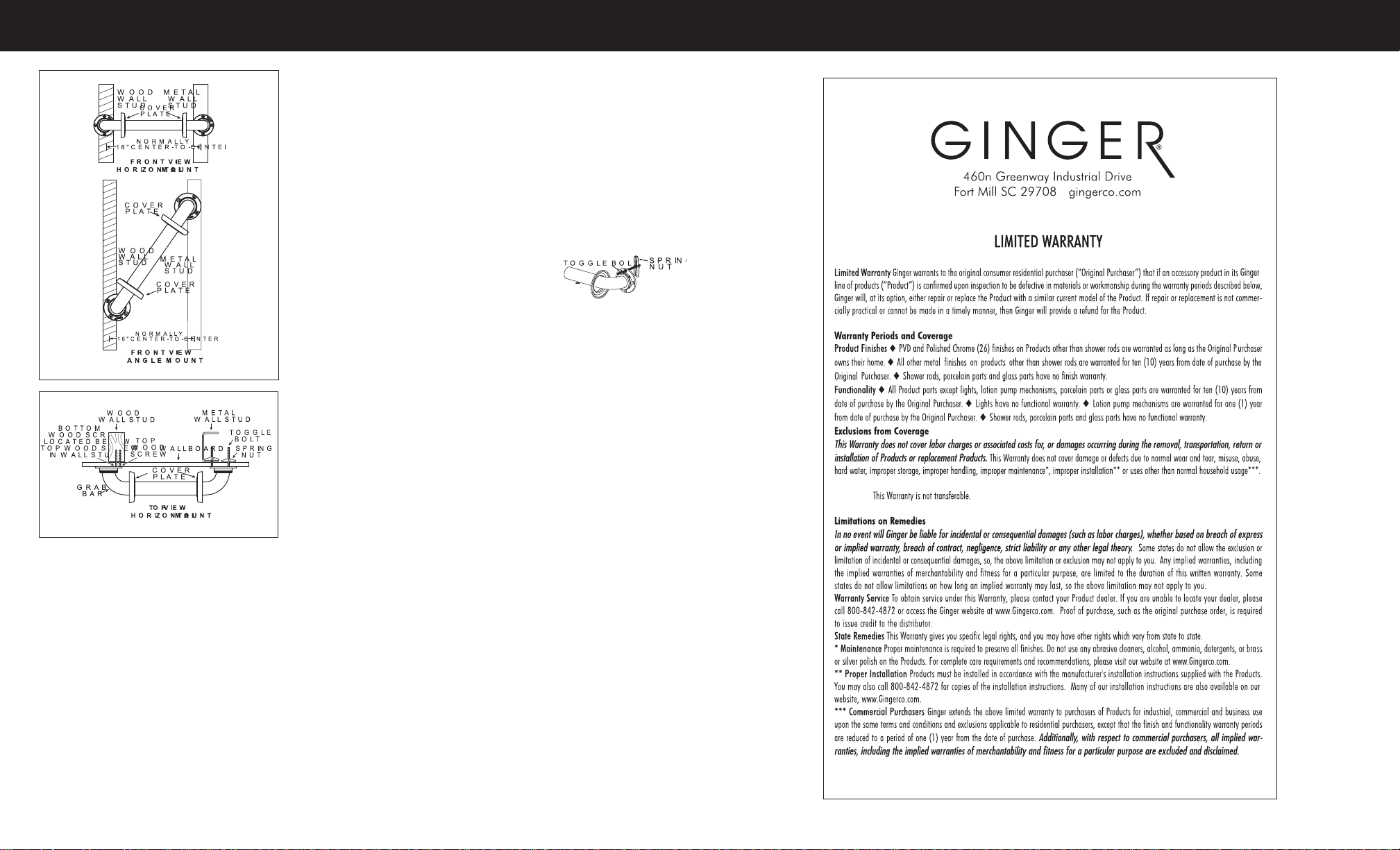

ONE end of Grab Bar into a WOOD wall stud, ONE end into WALLBOARD

FFIGURE 8

6. One the other end of the Grab Bar, insert one (1) of the three (3) TOGGLE BOLT S
supplied through any one of the mounting holes in the Grab Bar.
Start a spring nut on the end of the TOGGLE BOLTas shown
(see Figure 9), screwing it onto the bolt about three turns.
Repeat this step for the remaining two (2) TOGGLE BOLTS.

7. Position the end of the Grab Bar with the TOGGLE BOLTS attached so that you can push the spring nuts and butt ends
of the TOGGLE BOLTSthrough the holes that have been drilled. The spring nuts

must be completely

through the

holes in the wall (see Figure 8).

8. Pull the TOGGLE BOLTStoward you and finger tighten the bolts to be sure that spring nuts have opened fully against
the back side of the wall (see Figure 8). If the spring nuts have not opened fully, loosen the BOLTSand repeat Step 8.

9. Lightly tighten the TOGGLE BOLTS. Further tightening will be required in Step 12.

10. Repeat Step 5 for the remaining two (2) WOOD SCREWS going into the wood wall stud.

11. If Grab Bar is to be installed horizontally, make sure Grab Bar is level (you may need to jostle the TOGGLE BOLTside
to level the bar).

12. Securely tighten all mounting WOOD SCREWS and toggle bolts with a screwdriver.

13. If concealed mounting Grab Bar is used, move cover plates over mounting holes and firmly press against the wall
(see Figure 1 on page 1).

FFIGURE 9

FIGURE 4

ONE end of Grab Bar into a WOOD wall stud, ONE end into WALLBOARD

4

FIGURE 7

TO INSTALL INTO A WOOD WALL STUD AND WALLBOARD:

1. Put on safety glasses before starting.

2. First start on the end of Grab Bar that will be installed into a wood wall stud. Use the 3/8-inch power drill and 1/8­inch drill bit to drill all holes on the wood wall stud end into the wall and wood wall stud at the marked positions.
NOTE:

If installing Grab Bar over ceramic tiles, the 5/8-inch carbide drill bit will be needed for drilling through tile,
in order to prevent damage to tiles. Once a hole has been drilled through the tile, use the 1/8-inch drill bit to drill a
pilot hole into the wood wall stud itself.

3. On the end that will be mounted into wallboard, use the 3/8-inch power drill and 5/8-inch drill bit to drill three (3)
holes where marked. NOTE:

If installing Grab Bar over ceramic tiles, the 5/8-inch carbide drill bit will be needed for
drilling through tile, in order to prevent damage to tiles. Once a hole has been drilled through the tile, use the 5/8­inch drill bit to drill through the backing support for the tile.

4. Place Grab Bar on wall aligning mounting holes with the holes in the wall.

5. Insert one (1) WOOD SCREWinto the end of the Grab Bar that will be installed into the wood wall stud. Screw into
wall and wall stud (HAND TIGHTEN ONLY) (see Figure 8).

ONE end of Grab Bar into a METAL wall stud, ONE end into WALLBOARD

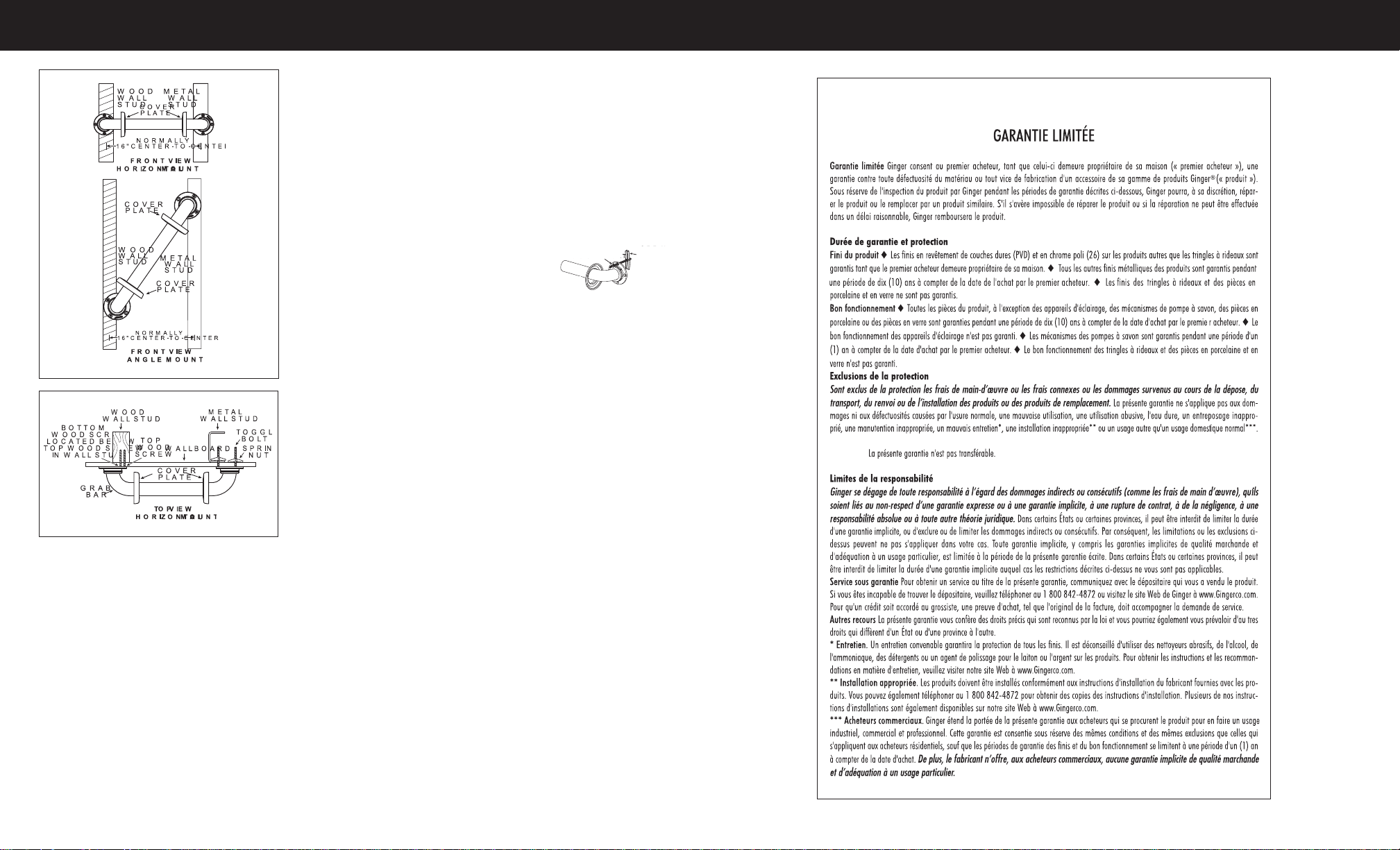

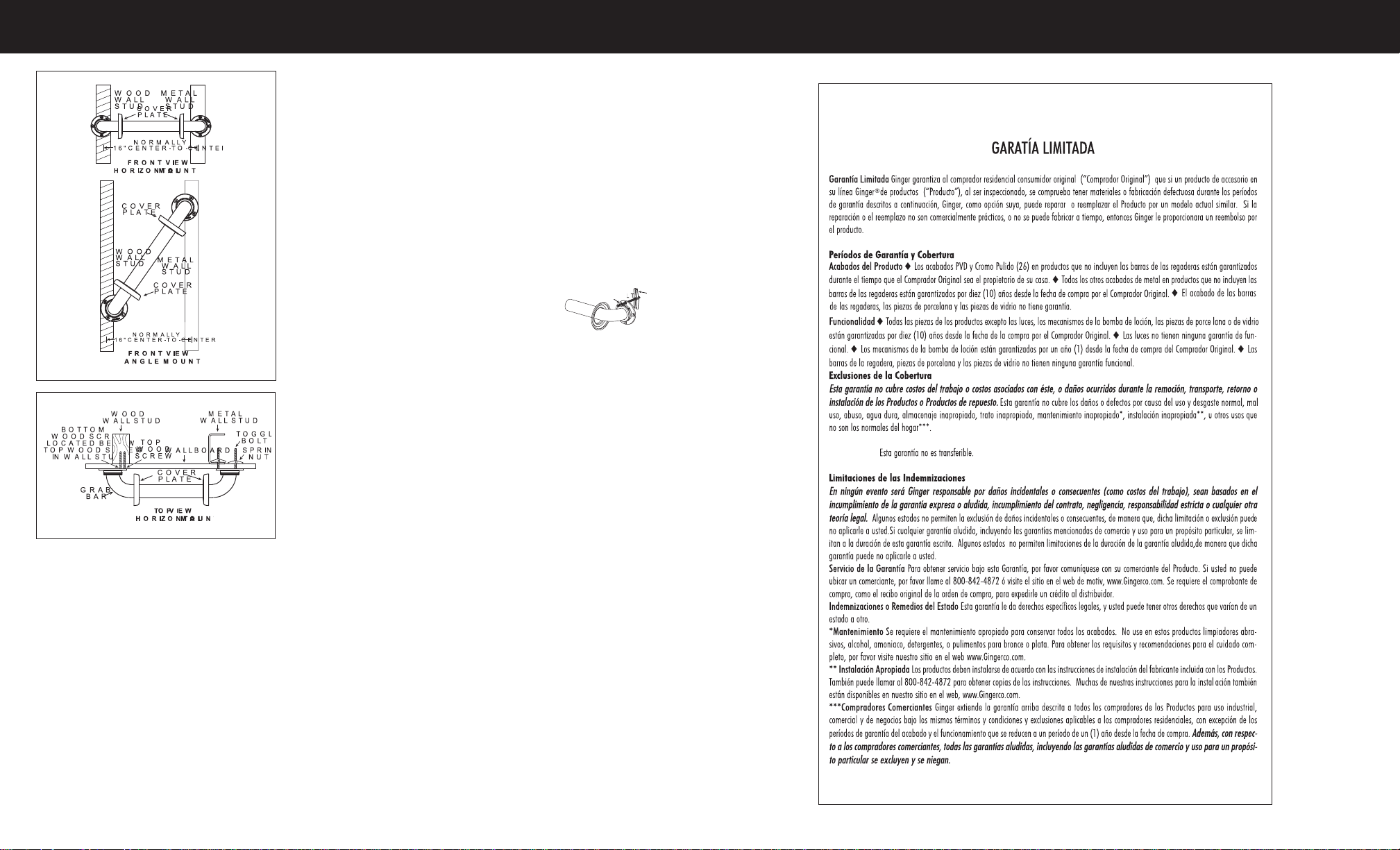

FFIGURE 10

FIGURE 11

TO INSTALL INTO META L WALL STUDS AND WALLBOARD:

1. Put on safety glasses before starting.

2. Use the 3/8-inch power drill and 5/8-inch drill bit to drill six (6) holes where marked. NOTE:

If installing Grab Bar over
ceramic tiles, the 5/8-inch carbide drill bit will be needed for drilling through tile, in order to prevent damage to tiles. Once a
hole has been drilled through the tile, use the 5/8-inch drill bit to drill through the backing support for the tile.

3. Insert one (1) TOGGLE BOLTthrough any one of the mounting holes on one end of the Grab Bar. Start a spring nut
on the end of theTOGGLE BOLTas shown (see Figure 12), screwing it onto the bolt about three turns. Repeat this step
for the remaining two (2) TOGGLE BOLTSon that same end of the Grab Bar.

4. Position the end of the Grab Bar with the TOGGLE BOLTS
attached so that you can push the spring nuts and butt ends
of the TOGGLE BOLTSthrough the corresponding holes that
have been drilled. The spring nuts

must be completely

through

the holes in the wall (see Figure 11).

5. Repeat Steps 3 and 4 for the other end of the Grab Bar.

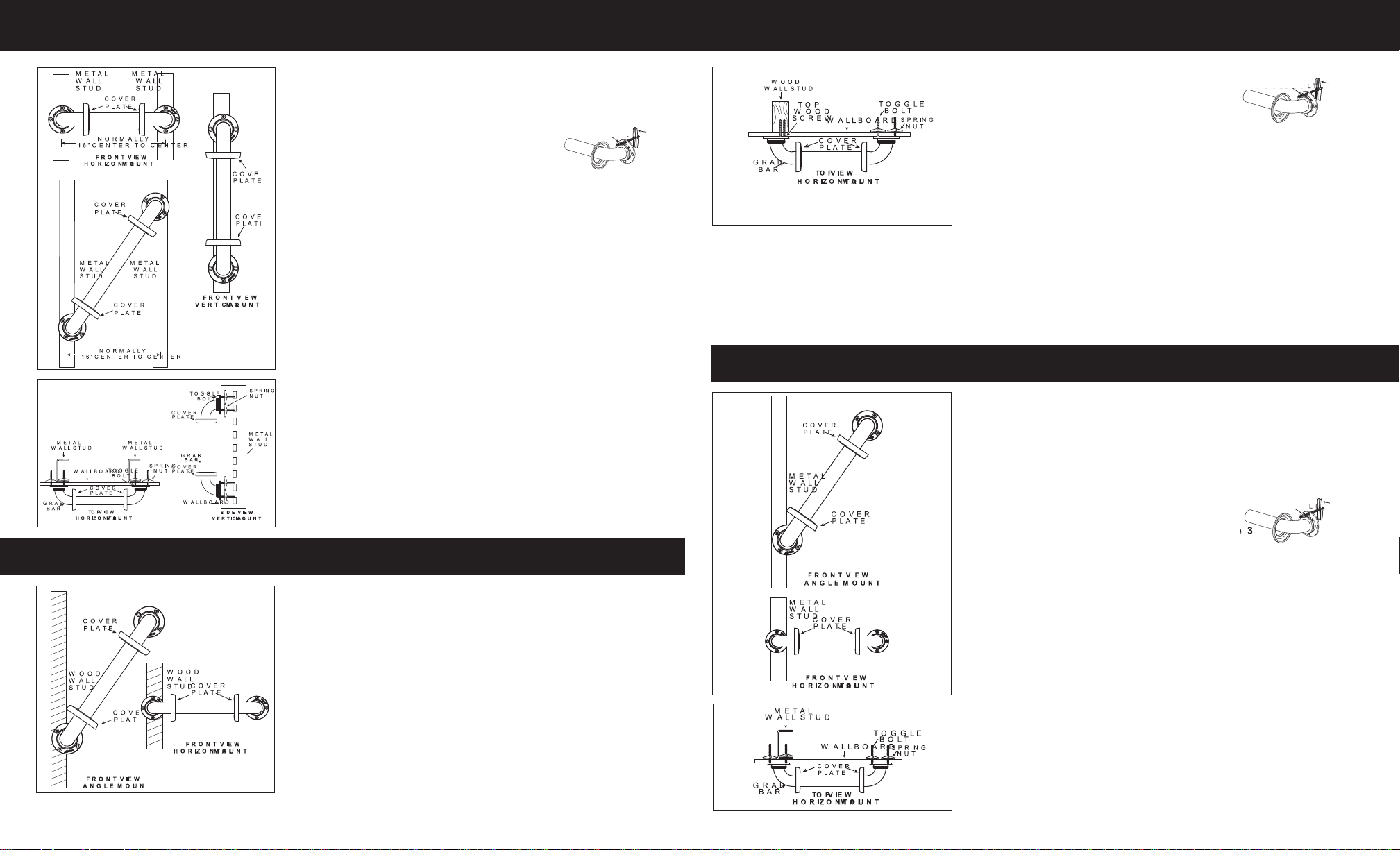

6. Pull the TOGGLE BOLTS on one end of the Grab Bar toward you and finger tighten the bolts to be sure that spring nuts
have opened fully against theback side of the wall and metal wall studs (see Figure 11). If the spring nuts have not
opened fully, loosen the bolts and repeat Step 6.

7. Repeat Step 6 for the other end of the Grab Bar.

8. Lightly tighten the TOGGLE BOLTS. Further tightening will be required in Step 10.

9. If Grab Bar is to be installed horizontally, make sure Grab Bar is level (you may need to jostle the TOGGLE BOLTS on
one end or the other to level the bar).

10. Securely tighten allTOGGLEBOLTSwith ascrewdriver.

11. If concealed mounting Grab Bar is used, move cover plates over mounting holes and firmly press against the wall
(see Figure 1 on page 1).

FFIGURE 12
