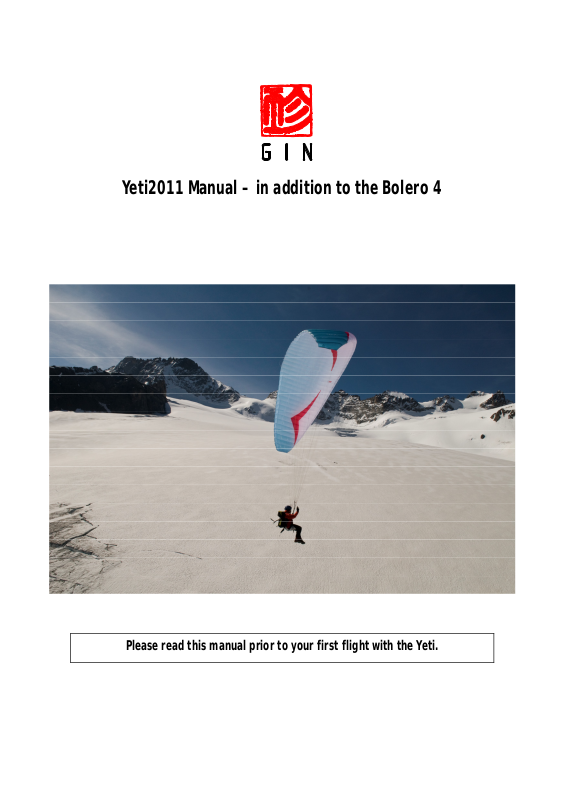

Yeti2011 Manual – in addition to the Bolero 4
Please read this manual prior to your first flight with the Yeti.
Yeti2011 manual in addition to the Bolero4 manual
Thank you for buying the Yeti and flying with Gin Gliders
We hope that you will enjoy climbing and flying with this lightweight equipment.
The Yeti is the light weight version of the Bolero4: it is our ultra-light mountain glider model.
This user information is provided in addition to the Bolero4 manual, which must also be read
carefully before flying the Yeti. The Yeti has very similar flying characteristics to the Bolero4.
Gin Gliders have achieved great savings in the weight of the Yeti in comparison with the Bolero4
.
Warning
This glider and its light bag (plus the light harness and the light rescue, delivered as an option)
is made from special materials in order to reduce the weight of the glider.
These special light materials (fabric, lines, risers, webbing etc) are more susceptible to ageing
than regular materials, even though their strength is more than sufficient. The Yeti has passed
the same 8G load test as all regular gliders.
For this reason, we ask that you:
- Have your Yeti fully inspected by an authorized GIN agent every 2 years or 100 hours
of flight, whichever is sooner.
- Do not practice aerobatics, towing, paramotoring, or extreme manoeuvres to lose
altitude, such as very deep spirals. For big ears, please practice them with caution.
Only use “altitude-losing manoeuvres” when absolutely necessary. They will cause
the material of your Yeti to age more rapidly.
- Take special care of this wing not only during its use, but also in its packing and
storage. Be careful during ground handling at the take-off site, do not pack it too
tightly when you are not climbing with it, and let it dry in the shad e after each flight
before final packing (the material of Yeti hates moisture and humidity). With
appropriate care, the Yeti will have a long lifetime.
To facilitate take off from steep slopes or snow, attachment points have been added to the top
surface to fix the glider to the ground. You can find these attachment points on the top surface
along the leading edge, 10mm webbing.
2
Technical Specifications
SIZE 19 22 24 26 28 30
AREA 19m² 22m² 24.2m² 25.8m² 28m² 30.28m²
FLAT
PROJEC
CHORD
TOTAL HEIGHT 5.8m 6.25m 6.60m 6.81m 7.1m 7.38m
CELL NUMBER 37 37 37 37 37 37
GLIDER WEIGHT 2.5kg 2.8kg 3.1kg 3.4kg 3.7kg 3.9kg
SPAN 9.6m 10.3m 10.89m 11.24m 11.71m 12.17m
A.R 4.9 4.9 4.9 4.9 4.9 4.9
AREA 17.21m² 19.82m² 22.14m² 23.59m² 25.6m² 27.68m²
SPAN 8.08m 8.67m 9.17m 9.46m 9.86m 10.25m
TED
A.R 3.8 3.8 3.8 3.8 3.8 3.8
ROOT 2.48m 2.66m 2.80m 2.89m 3.02m 3.14m
TIP 0.52m 0.56m 0.59m 0.61m 0.64m 0.66m
WEIGHT IN
FLIGHT
EN / LTF C B A A A A
50~90kg 50~90kg 55-75kg 70-90kg 80~105kg 95-120kg
3
DESCRIPTION
Model Yeti 2011
Top Skytex 32 / Skytex 27
Bottom Skytex 27
Fabric of Canopy
Suspension Line
Profile Skytex 32
Reinforcement Plastic batten 2.0mm
Bridle Nylon 10mm
Upper : LIROS DC60
Middle : LIROS PPSL120, DSL70/
Edelrid8000-120,080
Main : LIROS PPSL120,PPSL160,PPSL200/
Edelrid8000-120,160,200
Riser Cousin Kevlar 12mm
Maillons Stainless Steel 3.0mm
Thread HT Polyester Yarn 150D/3, 225D/3
4
