Gima MINOR 2 SPHYGMOMANOMETER, YTON ANEROID SPHYGMOMANOMETER User guide

PROFESSIONAL MEDICAL PRODUCTS

SFIGMOMANOMETRI
SPHYGMOMANOMETERS
TENSIOMETRES
BLUTDRUCKMESSGERÄTE
ESFIGMOMANOMETROS
ESFIGMOMANMETROS

ΣΦΥΓΜΟΜΑΝΟΜΕΤΡΑ

CM-1621 (32704)
CM-3003 (32713 - 32714)

Shanghai Caremate Medical Device Co., Ltd.
Building 4, No. 281 HongAn Road, Zhujing Town Jinshan,

201503 Shanghai, PEOPLE’S REPUBLIC OF CHINA

Made in China

Shanghai International Holding Corp. GmbH (Europe)
Eiffestrasse 80, 20537 Hamburg, Germany

Importato da / Imported by / Importé par / Importiert von
Importado por / Importado por / Εισαγωγή από / :

Gima S.p.A.

Via Marconi, 1 - 20060 Gessate (MI) Italy
[e-mail] - [e-mail]

www.gimaitaly.com

M32704-M-Rev.4-03.21



-10°C

60°C

0123

85%

0%

ENGLISH

FEATURES

We would like to thank you for having purchased a precision sphygmomanometer.
All sphygmomanometers are manufactured with high quality materials and, when maintained at perfect
operating efciency through regular calibration checks, ensure complete reliability and precision, even
after several years of use.
Our line of sphygmomanometers offers the same quality standards for both professional and home models.
The sphygmomanometer you have purchased complies with EEC directive 93/42/CEE.

PRESCRIPTIONS

It must be noted that self-measuring instruments are not a substitute for regular medical checkups,
and that only your doctor can accurately analyze these measurements.

SPHYGMOMANOMETER

Arterial pressure is highly inuenced by one’s nervous tension and physical fatigue. It is therefore
recommended that you perform the measurement under conditions of both physical and mental
relaxation (it is recommended to stay relaxed for at least 15 minutes before measurement), while in a
sitting or supine position straight not crossing legs and, where possible, always at the same time of day.
Patients should not have been exposed to temperature changes,nor should they have eaten or smoked
for at least 30 minutes prior to taking measurement.
Remember: do not move and do not talk while measuring your pressure and do not wear clothing
that covers your arm and could limit blood circulation.
Pressure varies during the day: it is lower in the morning and higher in the evening; it is also lower in the

summer and higher in the winter.

A recommendation is that 5 minutes should elapse before each measurement.
Do not allow a blood pressure cuff to remain on patient for more than 10 minutes when inated above 10
mmhg. This may cause patient distress,disturb blood circulation, and contribute to the injury of peripheral

nerve.

4

INSTALLATION

After opening the packages, rst of all it is necessary to check all pieces and parts composing the product.
Check that they are all present and in perfect conditions.
Apply the cuff to your bare left arm, 2-3 cm. above your elbow joint, and then prop up your forearm with
the palm up upwards, keeping it at heart level.
Close the cuff using the apposite strap. The cuff should be applied evenly and snugly, but not too tight.

If not specically indicated, all sphygmomanometers are equipped with cuffs for adults; upon
request, we can provide cuffs for the obese, for use on the thigh and for children, ranging from
premature babies up to 14-year-olds.

Position the earpiece of the stethoscope on the artery, under your cuff, after having detected the arterial
pulsation with the other hand to be sure the earpiece of the stethoscope is located directly over it arm.

FUNCTIONING

1) After applying the cuff, use the bulb to pump up to 30mmHg beyond the level of individual systolic
pressure: in other words, until the brachial artery is blocked (maximum level). It is essential that the
person being measured remains seated and calm, and that his/her forearm is resting at heart level,
with the inside part facing up.

2) To measure blood pressure, turn the release/deation screw on the bulb, unscrewing it slowly in a
counter-clockwise direction. The ideal deation speed is around 2-3 mmHg/sec.

3) Due to the gradual decompression, your blood starts to run through the brachial artery again, which in
turn causes an initial pulsation, that is clearly perceived by the phonendoscope: the pressure indicated
on the gauge needle at the exact moment this rst beat is recorded is referred to as the “systolic or

maximum pressure”.

Systole = maximum pressure level when the heart contracts and blood is pushed into the blood vessels.
As you proceed with decompression, the pulsations gradually decrease until they suddenly disappear or

5

become so low as to be imperceptible.
The pressure indicated by the gauge needle at the moment the pulsations disappear is referred to as
the “diastolic or minimum pressure”.
Diastole: minimum blood pressure level when the heart muscle is expanding and relling with blood.

4) Now completely open the release valve until air begins to come out of the cuff. Blood pressure
measurement is now completed. To remove, pull the loose end of the cuff with a smooth motion.

ENGLISH

SPECIFICATIONS

Pressure indication range: 0-300 mmHg
Measuring Range of Cuff: 0-300 mmHg

Accuracy: ≤ ± 3 mmHg or 2% whichever is greater

Minimum scale value: 2mmHg

Operating Environment: +10°C to +40°C,
15% - 85% relative humidity

Specications are subject to change without notice due to improvements in performance.

CLEANING, STORAGE AND MAINTENANCE

CLEANING

The Gauge, bulb and valve can be wiped with a slightly dampened cloth or alcohol pad. The Cuff can
be wiped with a slightly dampened cloth, or hand-washed with mild detergent and water solution (1:9
solution); in the second case, rinse and let air dry. Do not press or iron the cuff with a hot iron since to
the application of heat will melt the hook and loop and destroy their effectiveness

Please note:

- Do not allow liquids to enter inside the sphygmomanometer components.

- It is recommended a monthly cleaning but the following circumstances could request an increase of
the frequency:

- Before and after use of different patients;

- When the product is dirty

- High incidence of infectious diseases

- Contact with the skin when there is liquid, such as blood, medicine, sweat.

STORAGE AND MAINTENANCE

Always deate the cuff completely before storage; needle should indicate zero when cuff is fully untouched

- fold the cuff with the hook and loop closure inside to protect it from dust or lint

- store the product at temperatures between -10ºC and 60ºC and relative humidity not exceeding 85%

- do not carry out self-repair or transformation

- do not drop or pull excessively on the sphygmomanometer components.

GIMA WARRANTY TERMS

The Gima 12-month standard B2B warranty applies.

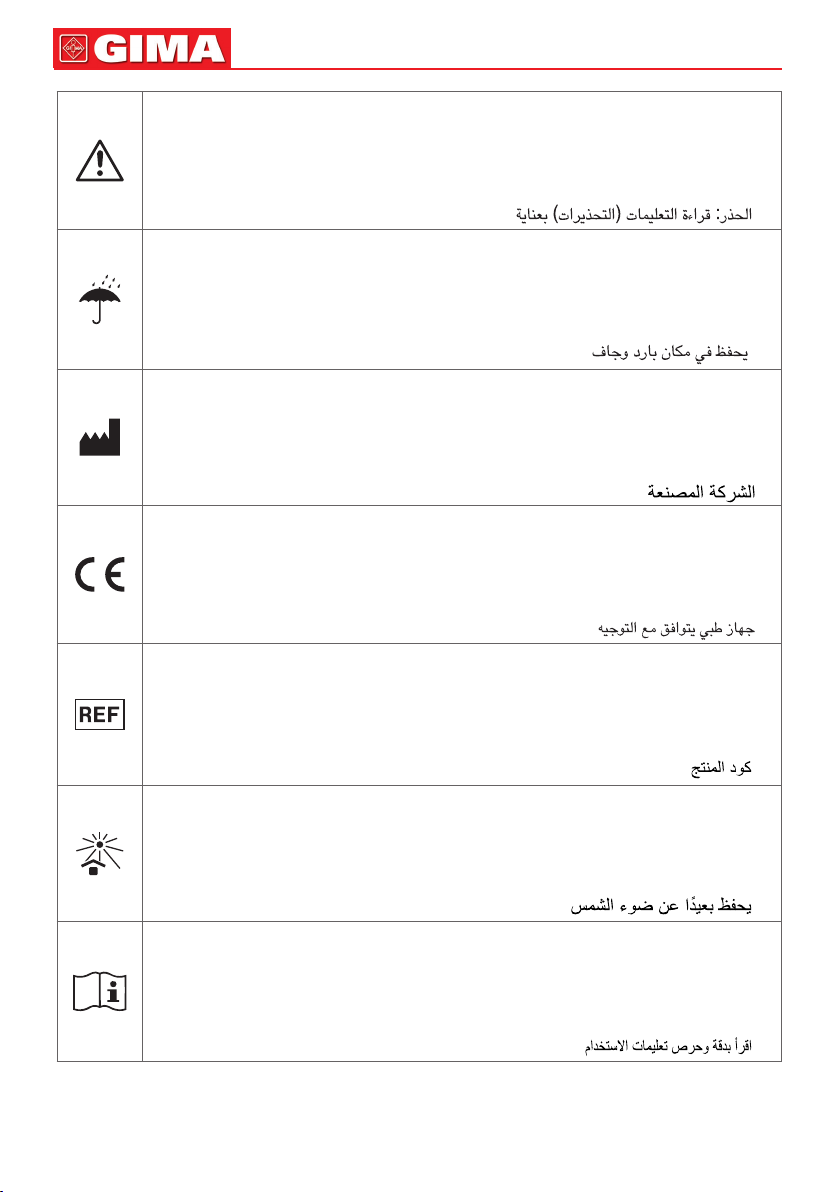

IT Attenzione: Leggere e seguire attentamente le istruzioni (avvertenze) per l’uso
GB Caution: read instructions (warnings) carefully

FR Attention: lisez attentivement les instructions (avertissements)
DE Achtung: Anweisungen (Warnungen) sorgfältig lesen
ES Precaución: lea las instrucciones (advertencias) cuidadosamente
PT Cuidado: leia as instruções (avisos) cuidadosamente
GR Προσοχή: διαβάστε προσεκτικά τις οδηγίες (ενστάσεις)

IT Conservare in luogo fresco ed asciutto

GB Keep in a cool, dry place

FR Á conserver dans un endroit frais et sec
DE An einem kühlen und trockenen Ort lagern
ES Conservar en un lugar fresco y seco
PT Armazenar em local fresco e seco
GR Διατηρείται σε δροσερό και στεγνό περιβάλλον

IT Fabbricante

GB Manufacturer

FR Fabricant
DE Hersteller
ES Fabricante
PT Fabricante
GR Παραγωγός

IT Dispositivo medico conforme alla Direttiva 93/42/CEE

GB Medical Device complies with Directive 93/42/EEC

FR Dispositif médical conforme à la directive 93/42 / CEE
DE Medizinprodukt gemäß Richtlinie 93/42/CEE
ES Dispositivo médico segun a la Directiva 93/42 / CEE
PT Dispositivo médico em conformidade com a Diretiva 93/42/CEE
GR Ιατρική συσκευή σύμφωνα με την οδηγία 93/42 / CEE

IT Codice prodotto

GB Product code

FR Code produit
DE Erzeugniscode
ES Código producto
PT Código produto
GR Κωδικός προϊόντος

IT Conservare al riparo dalla luce solare

GB Keep away from sunlight

FR Á conserver à l’abri de la lumière du soleil
DE Vor Sonneneinstrahlung geschützt lagern
ES Conservar al amparo de la luz solar
PT Guardar ao abrigo da luz solar
GR Κρατήστε το μακριά από ηλιακή ακτινοβολία

IT Leggere le istruzioni per l’uso

GB Consult instructions for use

FR Consulter les instructions d’utilisation
DE Gebrauchsanweisung beachten
ES Consultar las instrucciones de uso
PT Consulte as instruções de uso
GR Διαβάστε προσεχτικά τις οδηγίες χρήσης

93/42/CEE SA

SA

SA

SA

SA

SA

SA

18

19

IT Numero di lotto

GB Lot number

FR Numéro de lot
DE Chargennummer
ES Número de lote
PT Número de lote
GR Αριθμός παρτίδας

IT Rappresentante autorizzato nella Comunità europea

GB Authorized representative in the European community

FR Représentant autorisé dans la Communauté européenne
DE Autorisierter Vertreter in der EG
ES Representante autorizado en la Comunidad Europea
PT Representante autorizado na União Europeia
GR Εξουσιοδοτημένος αντιπρόσωπος στην Ευρωπαϊκή Ένωση

IT Limite di temperatura

GB Temperature limit

FR Limite de température
DE Temperaturgrenzwert
ES Límite de temperatura
PT Limite de temperatura
GR Όριο θερμοκρασίας

IT Limite di umidità

GB Humidity limit

FR Limite d’humidité
DE Feuchtigkeitsgrenzwert
ES Límite de humedad
PT Limite de humididade
GR Όριο υγρασίας

SA

SA

SA

SA
