ENGLISH
40
Foreword
Please read the User Manual carefully before using this product. The User Manual which describes the operating
procedures should be followed strictly. This manual detailed introduce the steps must be noted when using the product,
operation which may result in abnormal, the risk may cause personal injury and product damage and other contents, refer
to the chapters for details. Any anomalies or personal injury and device damage arising from use, maintain, store do not
follow requirements of the User Manual.
Note: Please read the User Manual carefully before using this product.
Described in this User Manual is in accordance with practical situation of the product. In case of modications and software
upgrades, the information contained in this document is subject to change without notice.
The warning items
Before using this product, you should consider the safety and efcacy of the following described:
• Described each measurement results combined with clinical symptoms by qualied doctors.
• The reliability and operation of using this product whether meets the operation of this manual relate to the maintenance
instructions.
• Do not perform maintenance and service while the device is in use.
Warning: Replace accessories which not provided by our company may lead to the occurrence of errors.
Replace adapters, cuffs or SpO2 probes at will may result in wrong measurement results. Without our company
or other approved maintenance organizations trained service personnel should not try to maintain the product.
41
ENGLISH
Contents
Chapter 1 Safety Precautions ..................................................................................................................................... 43
1.1 Operation for AC Adapter (Separate Sale) ............................................................................................. 45
1.2 Operation for Battery .............................................................................................................................. 45
Chapter 2 Main Unit ...................................................................................................................................................... 47

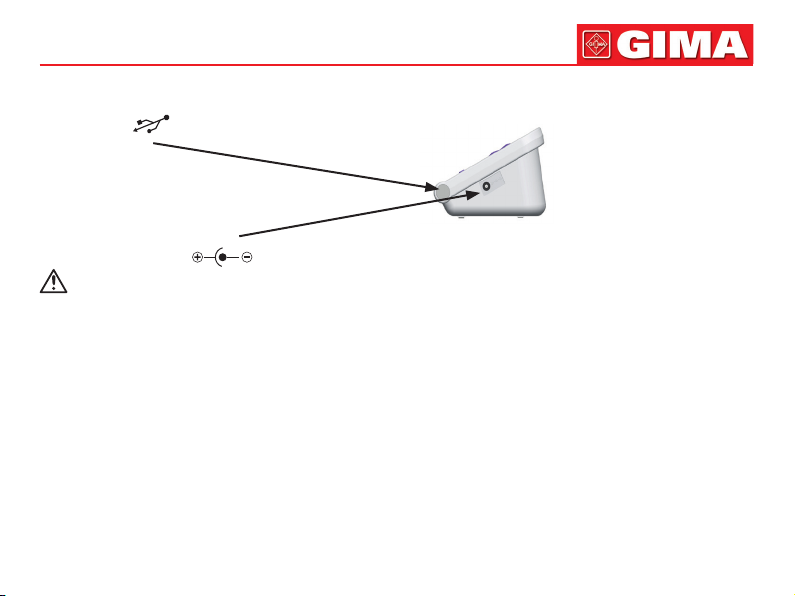

Chapter 3 External Interfaces ...................................................................................................................................... 50
Chapter 4 Battery/AC Adapter Installation ................................................................................................................. 52
4.1 Battery Installation .................................................................................................................................. 52

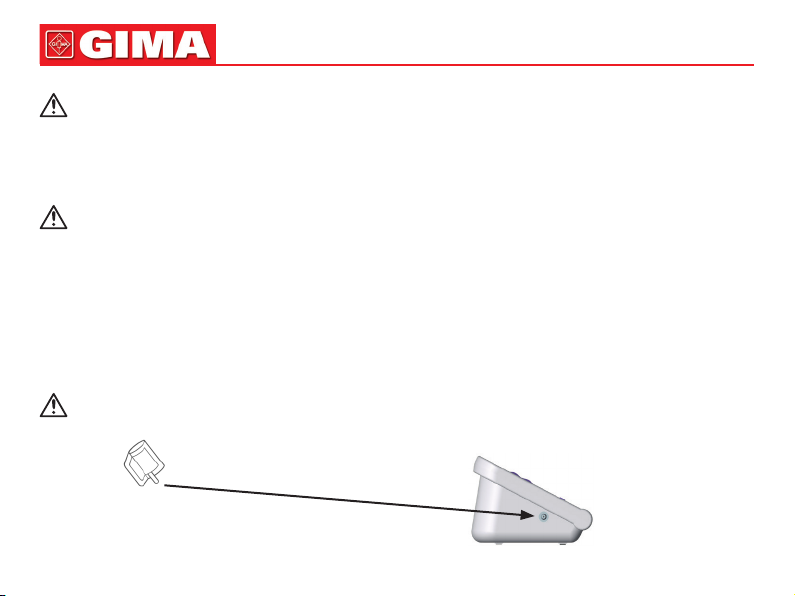

4.2 Usage of power adapter ......................................................................................................................... 53
Chapter 5 Button Functions ........................................................................................................................................ 53
Chapter 6 Setting the Date and Time .......................................................................................................................... 54
Chapter 7 About Unit.................................................................................................................................................... 55
Chapter 8 Over-limit Prompt Function ....................................................................................................................... 56
8.1 Physiological parameter over-limit prompt .............................................................................................. 56
8.2 Technical parameter over-limit prompt .................................................................................................... 57
Chapter 9 The Usage Method of Sphygmomanometer ............................................................................................. 57
9.1 Accurate Measurement Way ...................................................................................................................57
9.2 Applying the Cuff .....................................................................................................................................59
9.3 BP Measurement .................................................................................................................................... 60
Chapter 10 Memory Function ........................................................................................................................................62
10.1 Review Memory Values ........................................................................................................................62
10.2 Delete Memory Values .......................................................................................................................... 62
Chapter 11 SpO2 Measurement Function(Optional) ...................................................................................................63
Chapter 12 SpO2 Measurement Method .......................................................................................................................66
Chapter 13 Installation of the Software ........................................................................................................................67
13.1 Demand of Editor .................................................................................................................................. 67
13.2 Installation of Software ......................................................................................................................... 67
Chapter 14 Error Message .............................................................................................................................................68
Chapter 15 Troubleshooting .......................................................................................................................................... 69
ENGLISH

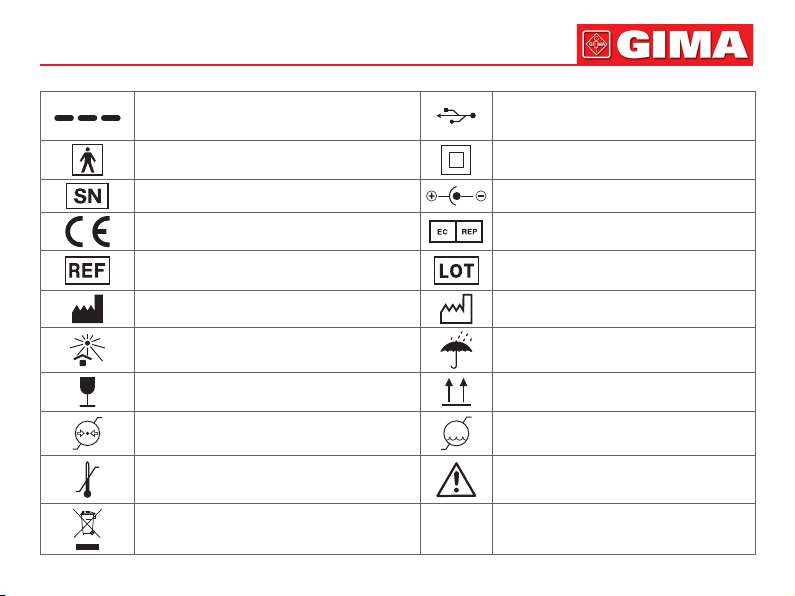

Chapter 16 Keys and Symbols ......................................................................................................................................70
Chapter 17 Maintenance, Cleaning and Keeping ........................................................................................................72
Chapter 18 NIBP Specication ...................................................................................................................................... 74
42
43
ENGLISH
Chapter 1
SAFETY PRECAUTIONS
• In order to use it correctly, please read the “Safety Precautions” carefully before using it.
• Operators do not need professional training, but should use this product after fully understanding the requirements in
this manual.
• To prevent users from suffering damage or loss due to improper use, please refer to “Safety Precautions” and use this
product properly.
Note
If not use correctly, it exists the possibility of damage for personnel and goods.
Good damage means the damage of house, property, domestic animal and pet.
Contraindication
No
Warning
Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician.
Please hand measurement results to the doctor who knows animal health and accept diagnosis.
Please do not use for any other purpose except BP measurement.
Otherwise it may cause accident or holdback

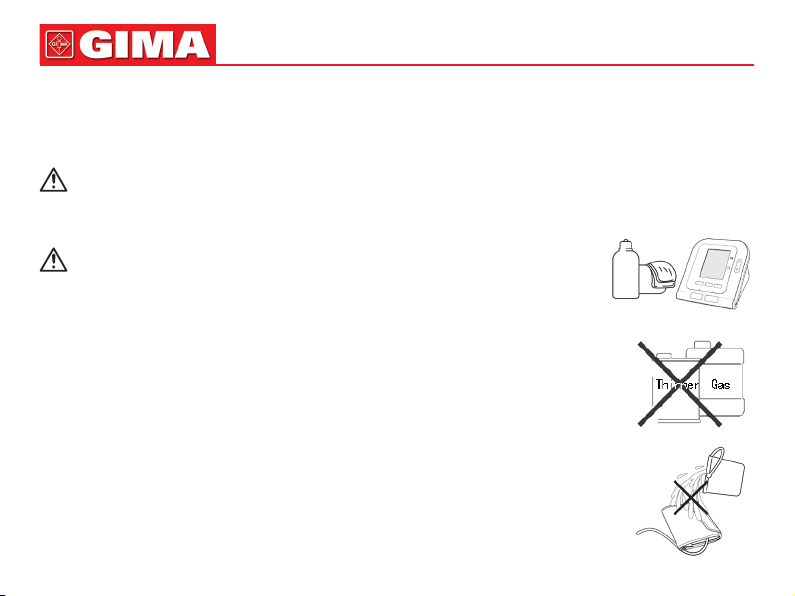

Please do not keep the cuff in the over-inated state for a long time.
Otherwise it may cause risk.
Do not use the device in the case of there are ammable anesthetic gasses mixing with the air or nitrous oxide.
Otherwise it may cause risk.
If liquid splashes on the device or accessories, especially when liquids may enter the pipe or device, stop using
and contact the service department.
Otherwise it may cause risk.
ENGLISH
44
Dispose of the packaging material, observing the applicable waste control regulations and keeping it out of children’s reach.
Otherwise it may cause harm to the environment or children.
Please use approved accessories for the device and check that the device and accessories are working properly
and safely before use.
Otherwise the measurement result may be inaccurate or an accident may occur.
When the device is accidentally damp, it should be placed in a dry and ventilated place for a period of time to
dissipate moisture.
Otherwise the device may be damaged due to moisture.
Do not store and transport the device outside the specied environment.
Otherwise it may cause measurement error.
It is recommended that you check if there is any damage on the device or the accessories regularly, if you nd any
damage, stop using it, and contact the biomedical engineer of the hospital or our Customer Service immediately.
Do not disassemble, repair and modify the device without permission.
Otherwise it cannot be accurately measured.
This device can not be used on mobile transport platforms.
Otherwise it may cause measurement error.
This device can not be used on a tilted tabletop.
Otherwise there is a risk of falling.
Dispose of packaging materials, waste batteries and end-of-life products in accordance with local laws and regulations. The end-of-life products and materials are properly disposed of by the user in accordance with the
authority’s decree.
Replace accessories which not provided by our company may lead to the occurrence of errors.
Without our company or other approved maintenance organizations trained service personnel should not try to
maintain the product.
This device can only be used for one test object at a time.
If the small parts on the device are inhaled or swallowed, please consult a doctor promptly.
The device and accessories are processed with allergenic materials. If you are allergic to it , stop using this product.
After pressing the power button, if the device has display fault such as white screen, blurred screen or no display
45
content, please contact our company.
The device shall comply with the standard IEC 80601-2-30:Particular requirements for basic safety and essential performance of automated non-invasive sphygmomanometers.
ENGLISH
1.1 Operation for AC Adapter (Separate Sale)
Note
The device can be powered by a power adapter that is a part of the medical electrical system.
Be sure to use the dedicated medical grade power adapter of this device.
Otherwise it may cause trouble
Dedicated power adapter must use AC 100 V~240 V
Otherwise it may cause re or electric shock.
When there is breakage of dedicated power adapter plug or wire, please do not use it.
Otherwise it may cause re or electric shock.
Please do not plug or unplug the adapter on the socket with wet hands.
Otherwise it may cause electric shock or injury.
1.2 Operation for Battery
Note
Please use 4 “AA” size manganese or alkaline batteries, do not use batteries of other types.
Otherwise it may cause re.
New and old batteries, different kinds batteries can not be put off.
Otherwise it may cause battery leakage, heat, rupture, and damage to Electronic Sphygmomanometer.
Please don’t put wrong the positive and negative of battery. When the batteries power exhausts, replace with four
new batteries at the same time.
Please take out the batteries when you do not use the device for a long time(3 months or more).
Otherwise it may cause battery leakage, heat, rupture, and damage to Electronic Sphygmomanometer.
ENGLISH
46
If electrolyte of the batteries immodestly get in your eyes, immediately rinse with plenty of clean water.
It will cause blindness or other hazards, should immediately go to the nearest hospital for treatment.
If electrolyte of the batteries immodestly glues on the skin or the clothes, immediately rinse with plenty of clean
water.
Otherwise it may hurt the skin.
Advice
Do not strike or drop the device;
Do not inate before the cuff wraps around the limbs;
Do not inect the cuff and the air tube forcibly.
Description of functions:
The Sphygmomanometer apply to measure the non-invasive blood pressure and SpO2 of animal, uses three-user mode,
each user can store 100 items records of measurement results at most. Each record includes detailed measuring time,
systolic pressure, diastolic pressure, average pressure, pulse rate and record number, etc. With 2.8 inch color LCD screen,
clear interface, the function of data review is complete. User can implement ON/OFF, manual measuring, system setup,
parameters change and other operations with seven buttons which are located on the front panel of the device.
With timing shutdown function, if there is no operation and SpO2 measurement, the device will automatically turn off after
2 minutes. With USB interface, Users can send measurement results to PC. Refer to the help or explication of the related
software for specic operation.
Purpose:
The device apply to measure the non-invasive blood pressure and SpO2 (optional) of animal. Record parameter value of
blood pressure to provide the reference for the health care professional.
Warning
You must not perform NIBP measurements on animals with sickle-cell disease or under any condition which the
skin is damaged or expected to be damaged.
For a thrombasthemia animal, it is important to determine whether measurement of the blood pressure shall be
47
ENGLISH
done automatically. The determination should be based on the clinical evaluation.
Ensure that the correct setting and blood pressure cuff are selected when performing measurements on animal. It
may be dangerous for the animal to use an over pressure level.
The device has normal useful life for ve years since the rst electried use. After its normal life, dispose the
device and its accessories according to applicable local regulations about environmental.
Chapter 2
MAIN UNIT
The production is in the package.
Open the package and conrm
whether the production is whole.
Adult cuff
Cuff plug
Cuff air plug jack
USER SWITCH button
Display
UP/DOWN button
MEMORY button
AC adapter jack
MENU button
USB plug jack
ON/OFF button
START/STOP button
Dry battery
ENGLISH
48

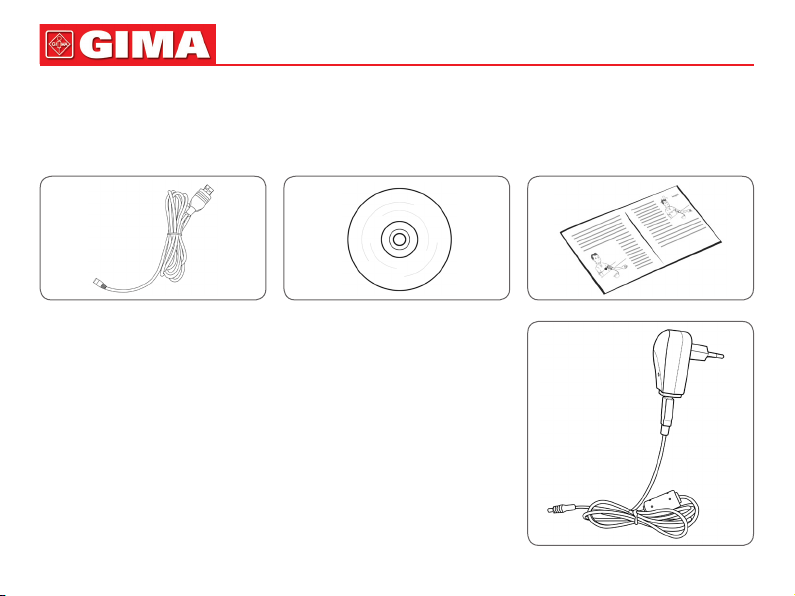

Accessories
The sphygmomanometer supports cuffs in a variety of sizes, please choose suited cuff according to the size of the animal.
USB Data Line Software CD User Manual
Optional Accessories
AC adapter
Input: voltage: AC 100 V~240 V
frequency: 50 Hz/60 HZ
Rated current: AC 150 mA
Output: DC 6.0 V±0.2 V 1.0 A
or DC5.0 V±0.2 V 1.0 A
SpO2 probe: Integrated SpO2 probe (Optional)
A. SpO2 measurement
Range:0%~100%
Error: 70~100%:±2%;Below 70%:unspecied
Resolution: 1%
49
ENGLISH
Note: because SpO2 probe measurements are statistically distributed, only
about two-thirds of SpO2 probe measurements can be expected to fall within
±Arms of the value measured by a CO-OXIMETER.
B. B. Pulse rate measurement
Range:30 bpm~250 bpm
Error: ±2 bpm or ±2% (select the larger)
Resolution: 1bpm
C. Optical sensor: red light(wavelength: 660 nm, output power less than 6.65
mW) infrared light(wavelength: 880 nm, output power less than 6.75 mW).
Optical sensors are light-emitting components that affect other medical
devices that use this wavelength range. This information may be useful to
clinicians who perform optical therapy.
D. Error in weak lling condition: SpO2 and pulse rate can be shown correctly
when pulse-lling ratio is 0.4%. SpO2 error is ±4%; when measuring range
is 30 bpm~100 bpm, pulse rate error is ±2 bpm; when measuring range is
100 bpm~250 bpm, pulse rate error is ±2%.
Note :
• The optional probe of the Sphygmomanometer is an integrated SpO2 probe, the measuring part is integrated with the
probe;
• The service life of the integrated SpO2 probe is three years.
Cuff:
There are several suitable cuffs(range of limb circumference,middle of upper limb)
the range of limb circumference is 6-11 cm
the range of limb circumference is 10-19 cm
the range of limb circumference is 18-26 cm
the range of limb circumference is 32-43 cm
ENGLISH
Note
• The cuff is a consumable. Calculate by measuring 6 times a day(3 times each morning and evening), the service life of
the cuff is about 1 year.(using our experimental conditions)
• In order to correctly measure blood pressure, please replace the cuff in time.
• If the cuff leaks, please contact our company to buy a new one. The cuff purchased separately does not include the
airway tube plug. When replacing, please do not throw the airway tube plug away, install it on the new cuff.
Note
When the product and accessories described in this manual are about to exceed the period of use, they must be disposed
according to relevant product handling specication. If you want to know more information, please contact our company or
representative organization.
*The device will automatically turn off after two minutes in which there is no operation to the device, even if you forget to
turn the power off.
50
Chapter 3
EXTERNAL INTERFACES
Note
When removing NIBP cuff, please take plug at the front of the windpipe to pull out.
• Cuff socket( is cuff identier)
Left side
51
ENGLISH
The right side of the device is USB socket and power adapter socket
• USB socket ( is USB identier)
Right side
• Power adapter socket ( is power socket identier)
Note
All analog and digital equipment connected to this device must be certied to IEC standards (such as IEC60950:
Information technology equipment-Safety and IEC60601-1: Medical electrical equipment-Safety), and all equipment should be connected to in accordance with the requirement of the valid version of the IEC60601-1-1 system
standard. The person connecting the additional equipment to the signal input and output port is responsible for
whether the system complies with the IEC60601-1 standard.
ENGLISH
52
Chapter 4
BATTERY/AC ADAPTER INSTALLATION
The product can use battery or AC adapter as power source.
1 2 3
4.1 Battery Installation
1. Demount the battery cover in the direction of the arrow.
2. Install “AA” batteries according to
3. Slide to close the battery cover.
Icon “ ”: the batteries power will exhaust. Replace with four new batteries (the same sort) at the same time. Test while
low power may cause data deviation and other problems.
Turn the unit off before replacing the batteries.
Note
When the battery reaches the end of its life, or if the battery is found to have odor, deformation, discoloration or
distortion, stop using the battery and dispose of the used battery in accordance with local regulations, otherwise
it will cause environmental pollution.
+ -
polarities.
53
ENGLISH
4.2 Usage of power adapter
1. Connect the sphygmomanometer and the power adapter. Insert the power adapter plug into the power adapter socket
on the right side of the device.
2. Please insert the power plug of the adapter into the AC 100 V~240 V socket.
Note
The device can be disconnected from the power supply network by unplugging the adapter plug.
When cut off the power supply, rst cut off the connection of power socket and the regulated power supply, then
cut off the connection of regulated power supply and the sphygmomanometer.
Please be sure to use dedicated medical grade power adapter.
Note
When regulated power supply and batteries are both used at the same time, the battery power will not be consumed.
Switch regulated power supply and battery as power supply when the device is off, otherwise, the device may
shutdown due to power failure.
The device can be used normally after it is turned on, without waiting for the device to be prepared.
Chapter 5
BUTTON FUNCTIONS
All the operations to the Electronic Sphygmomanometer are through the buttons. The names of the buttons are above
them. They are:
• [ON/OFF] ON/OFF button. Press this button to turn on/off the device.
• [START/STOP] Press it to inate the cuff and start a blood pressure measurement. During measuring, press it
to cancel the measurement and deate the cuff.
ENGLISH
54
• At all levels interface, the three buttons correspond respectively with the text prompts
• Up and down buttons, respectively carry on the functions of moving the cursor up and down, changing the param-
eters and switching the status..
below the LCD screen, pressing any button will carry on the corresponding function,
eg: [MENU] [ENTER] [LIST] [USER] etc.
Chapter 6
SETTING THE DATE AND TIME
It is necessary to set date and time after power on.
The Electronic Sphygmomanometer can automatically stores measurement results with date and time.
If batteries power exhausts or removed, the time to stop.
At the moment, please reset date and time.
The Electronic Sphygmomanometer stores measure results of three users automatically, and up to 100 items for every
user. If the date and time are set correctly, the date and time when measuring will be correct in the memory, otherwise it
may not be correct. The results can be uploaded to PC via USB and processed with the PC software.
1. There are two modes of time setting:
(1) When using the Sphygmomanometer for the rst time or after the Sphygmomanometer has been placed without pow-
er supply for a certain time(more than 3 minutes), after power on, there is a prompt of time error on the main interface,
set date and time with [UP], [DOWN] and [ENTER] button.
(2) Press [MENU] button on the main interface to enter system menu, then enter [SYSTEM TIME] item, the current time will
be displayed on the screen. Set date and time with [UP], [DOWN] and [ENTER]
2. After setting, select [CONFIRM] option and press [ENTER] button to conrm the setting value. If you do not want to
change the time, select [EXIT] option and press [ENTER] button to return to the previous menu.
button
.
55
Note
The range of year is from 2010 to 2099. When the year reaches 2099, pressing the [UP] button will return to 2010.
ENGLISH
Chapter 7
ABOUT UNIT
There are two units: “mmHg” and “kPa”.
The default is: “mmHg”.
Enter the [SYSTEM SETUP] submenu in [SYSTEM MENU], then select [UNIT] option to switch units between “mmHg”
and “kPa”.
ENGLISH
56
Chapter 8
OVER-LIMIT PROMPT FUNCTION
The Sphygmomanometer has two kinds of reminding methods: the technical parameter over-limit prompt and the physiological parameter over-limit prompt.
8.1 Physiological parameter over-limit prompt
The sphygmomanometer has the function of over-limit prompt, the user can press [MENU] button to enter system menu,
select [PROMPT SETUP] option to enter its interface, then set the limit value of blood pressure. When the BP measurement
result is higher than the high limit or lower than the low limit and the prompt is ON, the physiological prompt will occur; in
[PROMPT SETUP] interface, select [SpO2 PROMPT] option to enter its interface, when the SpO2 measurement result is
higher than the high limit or lower than the low limit and the prompt is ON, the physiological prompt will occur.
In the state of physiological prompt, press any button to cancel the prompt and it does not affect the next prompt; the
prompt can be closed permanently with prompt switch of the prompt setup menu until the prompt switch be opened again.
57
ENGLISH
8.2 Technical parameter over-limit prompt
When power is about to exhaust and prompt is ON, the prompt will occur. This prompt can not be canceled unless being
closed or the power replaced.
Chapter 9
THE USAGE METHOD OF SPHYGMOMANOMETER
9.1 Accurate Measurement Way
The limb chosen for taking the measurement should be placed at the same level as the animal’s heart. If this is not possible
you should apply the following corrections to the measured values: If the cuff is placed higher than the heart level, add 0.75
mmHg for each inch of difference. If it is placed lower than the heart level, deduct 0.75 mmHg for each inch of difference.
Advice
Try to measure your animal’s blood pressure at the same time each day with the same limbs and the same pose
for consistency.
Do not touch Electronic Sphygmomanometer, cuff and windpipe during measurement.
Measurements should be taken in a quiet place and the body relax.
Remain still 4~5 minutes before measurement.
Do not bark or move during the measurement,Relax the body, do not let the muscle activity.
Wait 4~5 minutes between measurements.
Do not use precision instruments near the Sphygmomanometer.
Please use the sphygmomanometer at an environment of suitable temperature and humidity(refer to Chapter 18, otherwise
it will cause measurement error.
Warning
When repeatedly measuring, the accurate blood pressure value may not be measured due to congestion in the limbs.
Please measure after the blood ow is smooth.
ENGLISH
58
Repeated measurement for a long period of time, limbs rubbing with the cuff may be accompanied by purpura, ischemia
and nerve damage. When measurement a animal, it is necessary to frequently check the color, warmth and sensitivity of
the distal of the limb. Once any abnormalities are observed, place the cuff in another position or stop the blood pressure
measurement immediately.
Do not twist or wrap the airway tube. It can cause constant pressure in the cuff which can block blood ow and cause
serious damage to the animal.
Do not use the cuff in the area where the treatment is being performed inside blood vessel or the arteriovenous connection.
This may cause temporary blockage of blood ow and cause injury to the patient.
Do not use the cuff on the side of the mastectomy.
When using the cuff to pressurize, some of the body’s functions may temporarily weaken. Use the measurement medical
electrical equipment at the appropriate limbs position.
The device need to be placed for 2 hours from the minimum storage temperature to being ready for its intended use.
The device need to be placed for 4 hours from the highest storage temperature to being ready for its intended use.
Note
The following conditions may also cause changes in the blood pressure measurement value.
When measuring, the patient is nervous, excited, emotional instability;
The room temperature rise or fall sharply, or the environment of measurement often changes;
Measuring in a moving vehicle;
The high and low location of cuff will cause changes in measurement results;
Continuous measurement for a long time.
59
ENGLISH

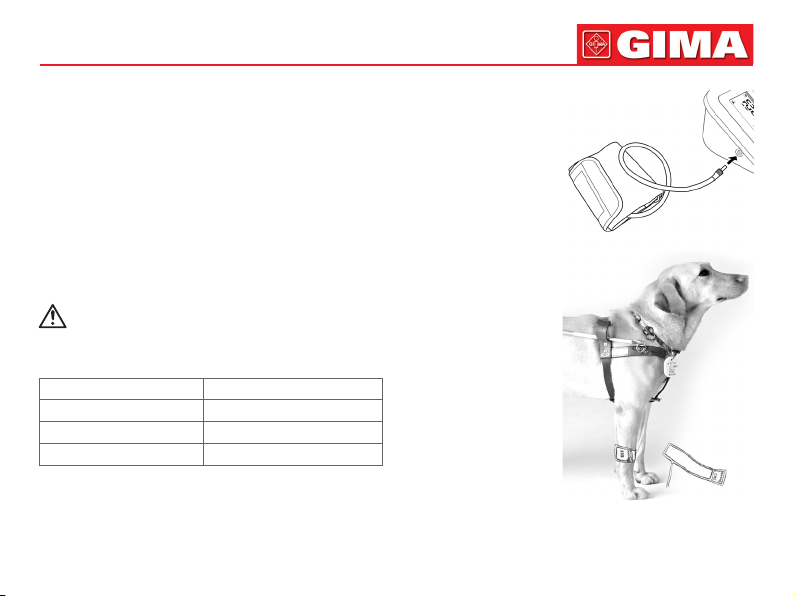

9.2 Applying the Cuff
The measurement can be carried out by applying the cuff on left or right forelimb.
Carry out the operation in a room with comfortable temperature.
Wear the cuff accurately following these steps:
1. Make sure the air plug is securely inserted in the main unit.
2. Apply the blood pressure cuff to the animal’s leg following the instructions below .
• Ensure that the cuff is completely deated.
• Apply the appropriate size cuff to the animal. Ensure that the cuff is not wrapped
too tightly around the limb. Excessive tightness may cause discoloration and
eventual ischemia of the extremities.
• Make sure that the cuff edge falls within the range of mark. If it does not, use a
larger or smaller cuff that ts better.
Note
Every CUFF TYPE corresponds to different cuff sizes, which are identied on
the cuff. As follows:
Cuff Type Limb perimeter
Small <13
Middle 8 ~ 26 cm
Large >25 cm
ENGLISH
60
9.3 BP Measurement
In order to measure accurately, pay attention to applying the cuff properly. Select a proper cuff according to different animals, then select proper cuff type(large, middle and small).
There are two ways to select the cuff mode, in the time interface, press CUFF button to switch cuff mode; or enter the
[SYSTEM SETUP] submenu in [SYSTEM MENU], and complete switching in [CUFF TYPE] item.
Note
When the animals is a newborn, please select the small cuff mode and select the appropriate size of the cuff to
measure, otherwise it may cause harm to the animals.
1. Press [START/STOP] button to start measurement.
During measurement, please keep correct pose and quiet state, do not move.
If you want to abort the measurement, Press [START/STOP]; button, the device will stop inating, and release the air
from the cuff.
2. Conrm the Measurement Value
61
ENGLISH
The measurement value can be stored automatically, using [memory function] (refer to Chapter11).
*Self-diagnosis and treatment using measured results may be dangerous. Follow the instructions of your physician.
Note
• Wait at least 4-5 minutes between measurements
When repeatedly measuring, the accurate blood pressure value may not be measured due to congestion in the limbs.
Please measure after the blood ow is smooth.
• When some factors affect the measurement results in measurement process, error messages will appear on the screen,
you can obviate the malfunction and restart a measurement.
• The minimum value of the patient’s physiological signal is the minimum limit that the device can measure. The device
may obtain inaccurate measurement results when it is operated below the minimum amplitude or minimum value of the
patient’s physiological signal.
• In the state of the physiological parameter over-limit prompt is not triggered, press any button to carry on the correspond-
ing button function; in audio prompt state, press any button (except [ON/OFF] button) to clear up the audio prompt.
• Take off the cuff, press [ON/OFF] button to turn the device off.
ENGLISH
62
Chapter 10
MEMORY FUNCTION
The sphygmomanometer is designed to store the blood pressure, pulse rate values and the date and time when measured,
which are up to 100 groups. If there have been stored 100 groups, the earliest results will be deleted when saving the 101
group of measurement results.
10.1 Review Memory Values
1. In the main interface (interface when starting-up), press [MEMORY] button to review the latest
measured values in big-font with the serial number from 1 to 100.
2. Press [UP] /[DOWN] button to circularly switch the former measurement values.
*The right gure shows that there is no measurement result can be displayed.
3. Press [LIST] button to display the data list interface.
4. Press [TREND] button to display trend interface.
End to display the measurement values:
Press [EXIT] button to return to the main interface or hold [ON/OFF] button to turn the device off.
10.2 Delete Memory Values
Users can delete all memory values of a user instead of separately delete one memory value.
1. Press [MENU] button to enter the system menu, select [DELETE DATA] option to enter its interface, select the user
whose data to be deleted, after conrming again, all measurement results of the selected user will be deleted.
2. Finish Operation
Select [CONFIRM] or [EXIT] to return to the previous menu, or hold [ON/OFF] button to turn the device off.
63
ENGLISH
Chapter 11
SpO2 MEASUREMENT FUNCTION(OPTIONAL)
Precautions during SpO2 Measurement:
Note
• Make sure the nail covers the light. The probe cable should be on the backside of the hand. Improper probe placement
or improper contact with the test site will inuence the measurement.
• SpO2 value always displays in the xed place.
• Data averaging and signal processing will delay the SpO2 displaying and data values transmitting. The update time of
measurement data is less than 30 seconds, when signal attenuation, weak perfusion or other interference appears, it will
result in time increasing of dynamic data averaging, which depends on the PR value.
• The PLETH waveforms are not normalized, which is used as the indicator for signal incompleteness. So the accuracy of
the measured values may decrease when the waveform does not tend to smooth and stable. When the waveform tends
to smooth and stable, the reading is optimal value, and the waveform at the moment is the most standard one..
• The temperature for the contact surface of the device with the body is less than 41℃, and this temperature value is
measured by a temperature measuring device.
• The device does not provide over-limit prompt function, so it is inapplicable for using in places where need such function.
• The SpO2 probe has been calibrated before leaving factory. It does not need to be calibrated during maintenance.
• SpO2 probe is calibrated to show functional oxygen saturation.
• The SpO2 probe and photoelectric receiving tube should be arranged in a way with the subject’s arteriole in a position
there between. Make sure the optical path is free from any optical obstacles like rubberized fabric, to avoid inaccurate
measurement.
• As the measure is taken on the basis of arteriole pulse, substantial pulsating blood ow of subject is required. For a
subject with weak pulse due to shock, low ambient/body temperature, major bleeding, or use of vascular contracting
drug, the SpO2 waveform (PLETH) will decrease. In this case, the measurement will be more sensitive to interference.
• The accuracy of the readings under weak perfusion has been veried using signals from the patient simulator. The SpO2
and pulse rate values vary within the measurement range due to various weak signal conditions and are compared to
the actual SpO2 and pulse rate values of the known input signals.
ENGLISH
64
• The claim for SpO2 accuracy should be supported by clinical research measurements covering the entire spectrum.
By articially inducing to different stable oxygen levels, make it in the range of 70% ~ 100% of SpO2. Use secondary
standard SpO2 measuring equipment for comparison to collect SpO2 values together with the tested product, compose
paired data groups for accuracy analysis.
• When using the device, please keep it away from the instruments that can generate strong electric or magnetic eld.
Use the device in an inappropriate environment may cause interference to the surrounding radio equipment or affect its
working.
• If necessary, please log on our company’s ofcial website to download the list of SpO2 probes and extension cords that
can be used in conjunction with this device.
Warning
• Check if the cable of SpO2 probe is in normal condition before measuring. After unplugging the SpO2 probe cable from
the socket, “SpO2%” and “bmp” on the screen will disappear.
• Do not use the SpO2 probe once the package or the probe is found damaged. Instead, you shall return it to the vendor.
• The supplied SpO2 probe is only suitable for use with this device. This device can only use the SpO2 probe described
in this manual. It is the responsibility of the operator to check the compatibility of the device and the SpO2 probe (and
extension cable) before use. Incompatible accessories may result in device performance decreasing or cause injury to
the patient.
• SpO2 probe is a medical product that can be used repeatedly.
• The measured value may be normal seemingly for the testee who has anemia or dysfunctional hemoglobin (such as car-
boxyhaemoglobin (COHb), methaemoglobin (MetHb) and sulfhaemoglobin (SuHb)), but the testee may appear hypoxia,
it is recommended to perform further assessment according the clinical situations and symptoms.
• Pulse oxygen has only reference signicance for anemia and toxic hypoxia, as some patients with severe anemia still
show better pulse oxygen measurements.
• Measurement accuracy can be affected by the interference of electrosurgical equipment.
• Do not install the SpO2 probe on an extremity with arterial catheter or receiving intravenous injection.
• Do not perform SpO2 measuring and NIBP measuring on same limb at one time, because obstruction of blood ow
during NIBP measuring may adversely affect the reading of SpO2 value.
• Excessive movement (active or passive) of the subject or severe activity can affect the measurement accuracy.
65
ENGLISH
• Excessive ambient light may affect the measuring results, such as surgical light (especially xenon light sources), bilirubin
lamp, uorescent lamp, infrared heater and direct sunlight, etc. In order to prevent interference from ambient light, make
sure to place the probe properly and cover the probe with opaque material.
• The measured value may be inaccurate during debrillation and in a short period after debrillation, as the SpO2 probe
not have debrillation-proof function.
• The person who is allergic to silicone, PVC, TPU, TPE or ABS can not use this device.
• For some special patients, it should be a more prudent inspecting in the measurement part. The probe can not be clipped
on the edema and tender tissue.
• Do not stare at the luminescent component directly when the device is turned on (infrared light is invisible), even if for
maintenance purpose, or it may have bad inuence to the eyes.
• Some models of functional tester or patient simulator can measure the accuracy of the device that reproduces the cali-
bration curve, but it can not be used to evaluate the accuracy of this device.
• Please refer to related medical literature for detailed clinical restrictions and contraindications,
• This device is not used for treatment purpose.
• Do not use the SpO2 probe during MRI and CT scanning, as the induced current may cause burns.
• When the device is ON, if power interrupt for more than 30s, the SpO2 probe needs no operation after the power is
restored, after the device is turned on, ensure that the SpO2 probe can be used normally.
• The probe can be used before/after sport, but not recommended to use during exercising.
ENGLISH
66
Chapter 12
SpO2 MEASUREMENT METHOD
(This chapter is only suitable for European Union market)

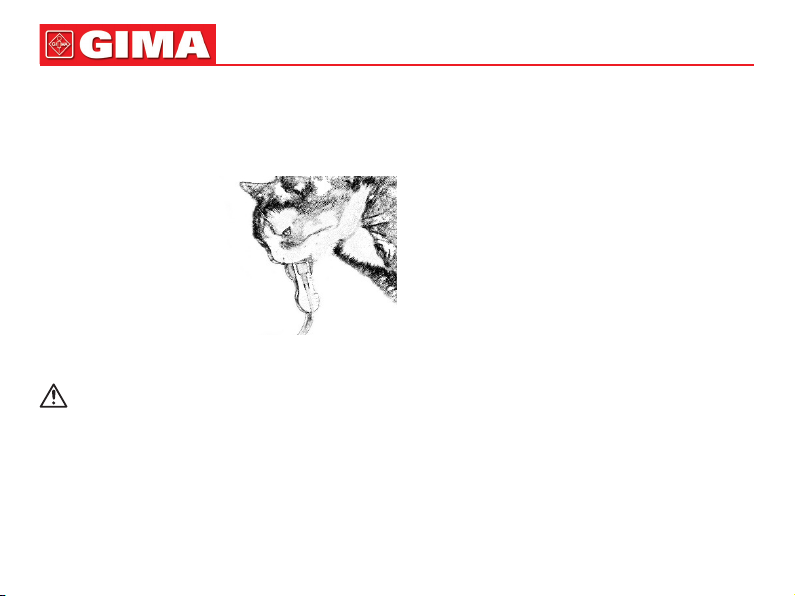

1) Put the animal tongue enough into the animal nip of probe as the following gure.
Place SpO2 probe
2) Plug the connector of the SpO2 probe cable into the USB socket in the lower right of the device. The main interface will
switch to SpO2 interface. This operation brings no affection to other functions.
Note
SpO2 display range: 0% ~ 100%, PR display range: 30 bpm (beats/min) ~ 250 bpm (beats/min)
If the SpO2 works abnormally, after connecting the SpO2 probe to the device, the device will not switch to the SpO2 interface or no data displayed under the SpO2 interface.
Measurement Limitation
During operation, the accuracy of SpO2 readings can be affected by:
• High-frequency electromagnetic interference such as interference from electrosurgical apparatus connected to the sys-
tem.
• Intravenous dyestuff.
67
• Excessive animal movement.
• External light.
• Improper SpO2 probe installation or incorrect contact position of the patient.
• Temperature of SpO2 probe(optimal temperature range: 28°C ~ 40°C).
• Place the SpO2 probe on an limb that has a blood pressure cuff, arterial catheter, or intravascular line.
• Concentrations of dysfunctional hemoglobin, such as carboxyhemoglobin(COHb) and methemoglobin(MetHb).
• SpO2 is too low, Bad circular perfusion of the part being measured.
• Intravascular staining agents (such as indocyanine green or methylene blue), skin pigmentation.
• It is required to use SpO2 probe which is provided by our company, contact with our sale department when necessary.
ENGLISH
Chapter 13
INSTALLATION OF THE SOFTWARE
13.1 Demand of Editor
Processor: Intel Celeron 2.5G or more
Operation System:Windows XP/Win7/Win8
EMS memory: 1GB and more
Hard Disk: 250G or more
Display: 17 inch or more
CD-ROM
USB: 2 or more
Resolution of printer: 600 DPI
13.2 Installation of Software
1. Place the CD-ROM in the CD-ROM compartment located on your computer.
2. If Auto Play for CDs is enabled, place CD in reader and follow instructions when they appear in the screen; otherwise
follow install instructions below:
ENGLISH
Open Windows Explorer.
Click on the root CD-ROM directory.
Double click le setup software.
Follow the instructions in the screen.
Refer to “Software Help”for details about the operation method of the PC software.
68
Chapter 14
ERROR MESSAGE
Error message will be displayed in the screen if there is something wrong when measuring. The causes and solutions are
shown as follows:
Error Message Causes Solutions
Self-test failure
System failure
Loose cuff Cuff is not connected correctly.
Air leakage Cuff plug fall off
Air pressure error Air pressure error
Weak signal
Overpressure Cuff is blocked or squeezed
Excessive movement
Over range
Saturated signal
Time out It takes too much time
Function abnormal
The pulse signal is too weak or the cuff
is loose.
The signal extent is too big owing to the
limbs or body moving or other reasons
when measuring
Please contact us
Correctly connect cuff (refer to Chapter 9)
Make sure the cuff plug is securely inserted
in the windpipe (refer to Chapter 9)
Refer to the troubleshooting
Correctly connect cuff (refer to Chapter 9)
Correctly connect cuff (refer to Chapter 9)
Keep limbs, body still, measure again
69
ENGLISH
Chapter 15
TROUBLESHOOTING
Abnormal Phenomenons Causes Solutions
BP measurement values too high
or too low
No pressure
Cuff deates in short time Loose cuff Correctly apply cuff
It can not carry on measurement when press the measurement button
Power off suddenly when inating
Hold the on/off button but can not
start the device
Cuff ination start before press the measurement button or never stop
inating when measuring
Cuff never deation
Cuff is not connected correctly Correctly connect cuff (refer to Chapter 9)
Move limbs when measuring Keep quiet and restart a measurement
Cuff leakage Buy a new cuff
The cuff windpipe is not correctly
connected with cuff
Cuff is not inated Stop using the device and contact us
No use for a long time, the power of
batteries can be exhausted owing to
the changed temperature
Power of batteries can be exhausted Replace all four batteries with new ones
The battery polarities is reversed
Correctly connect
Switch on the power once again and
restart a measurement
Replace all four batteries with new ones.
Check the battery installation for proper
placement of the battery polarities.
Pull out the cuff to deate. Stop using the
device and contact us
Pull out the cuff to deate. Stop using the
device and contact us
ENGLISH
70
No deation or deation error or
Air pressure error
No press value displayed or the value unchanged or change erratically
when cuff inated
Other phenomenon
ination without stop
Others Keep limbs, body still, measure again
Chapter 16

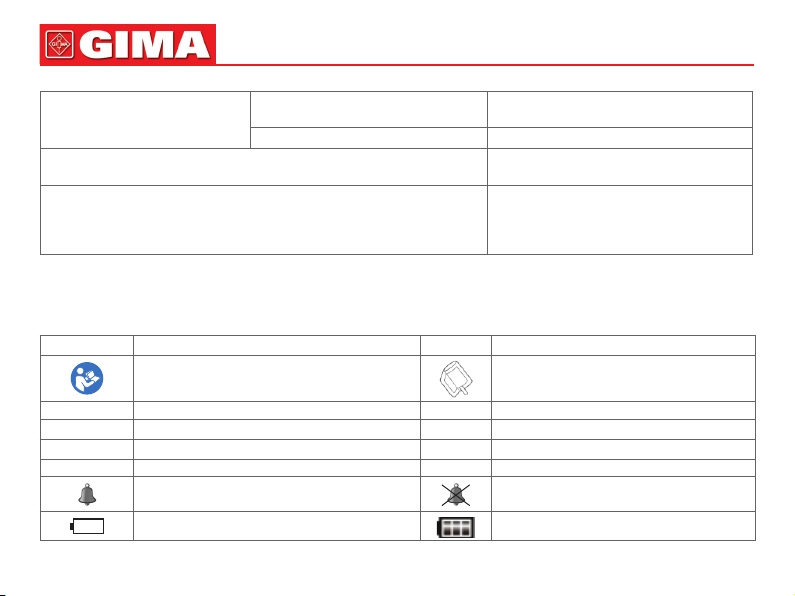

KEYS AND SYMBOLS
Symbol Description Symbol Description
Instruction manual/booklet Interface for connecting cuff
SYS Systolic pressure LARGE Large animal
MAP Mean pressure MIDDLE Middle animal
DIA Diastolic pressure SMALL Small animal
PR Pulse rate (bpm) INFO Information
Open the over-limit prompt sound indication
Low-power
Pull out the cuff to deate. Stop using the
device and contact us
Pull out the cuff to deate. Stop using the
device and contact us
Switch on the power once again and
restart an operation
Replace the batteries
If no, please contact us
Close the over-limit prompt sound
indication
Full-power
71
ENGLISH
1. No NIBP data to review
2. No nger inserted to SpO2 probe(Optional)
3. An indicator of signal inadequacy
USB socket connect SpO2 probe
(This item only suitable for European Union
market)
Type BF applied part Class II applied
Serial number Socket for power adapter
Product complies with European Directive
Authorized representative in the European
community
Product code Lot number
Manufacturer Date of manufacture
Keep away from sunlight Keep in a cool, dry place
Fragile, handle with care This side up
Atmospheric pressure limitation
Temperature limit
%
Moisture limitation
Caution: read instructions (warnings)
carefully
WEEE disposal
ENGLISH
Chapter 17
MAINTENANCE, CLEANING AND KEEPING
*Please do obey the precautions and correct operating methods in this user manual. Otherwise, we will not responsible for any fault.
Warning
Remove the batteries before cleaning. The accessories and main unit must be separated for cleaning.
Maintenance is not allowed during device using.
Do not squeeze the rubber tube on the cuff.
Warning
• High pressure disinfection to the device and accessories is not allowed.
• Do not let water or cleaning agent ow into the socket to avoid device damage.
• Do not soak the device and accessories in liquid.
• If any damage or deterioration of the device and accessories is found, please do not use it.
Maintenance:
• Clean the device and accessories regularly. It is recommended to clean them every one
month. When the device or accessory gets dirty, use a dry and soft cloth to wipe. If they are
very dirty, it is available to dip the soft cloth into water or mild detergent, and wring out, then
use the cloth for cleaning.
• The device should be inspected and calibrated periodically (or obey the requirements of the
hospital). It is available to inspect in the state specied inspection institution or by professional personal, or you can contact our company. Long press “USER” button in main interface for
5s to enter the calibration interface.
72
73
ENGLISH
Advice
• Do not use gasoline, volatile oil, diluent, etc. to wipe the device.
• Do not clean or wet the cuff.
Storage:
Advice
• Do not expose the device in direct sunlight for long time, otherwise the display screen may-
be damaged.
• The basic performance and safety of the device are not affected by the dust or cotton wool
in home environment, while the device shall not be placed where with high temperature,
humidity or dusty.
• Aged cuff may result in inaccurate measurement, please replace the cuff periodically ac-
cording to the user manual.
• To avoid device damage, keep the device out the reach of children and pets.
• Avoid the device close to extreme high temperature such as replace, otherwise the device
performance may be affected.
• Do not store the device with chemical medicine or corrosive gas.
• Do not place the device where there is water.
• Do not place the device where with slope, vibration or impact
• Take the batteries out if the device is not to be used for three months or longer.
ENGLISH
Chapter 18
NIBP SPECIFICATION
Name Electronic Sphygmomanometer
Display mode 2.8'' color LCD Display
The degree of protection against ingress of water IPX0
NIBP specication
Measurement method Oscillometric method
Working mode Automatic
Operation mode Continuous operation
Measurement Range Pressure:0~290 mmHg (0~38.6 kPa)
Pulse: 40~240/min
Resolution Pressure: 1mmHg(0.133 kPa)
Accuracy Static pressure: ±3 mmHg (±0.4 kPa)
Error The BP Value of the device is equivalence with the measurement
value of Stethoscopy. The error meets the requests in the ANSI/
AAMI SP-10:2002+A1:2003 +A2:2006
Operating temperature/ humidity +5 ºC~40 ºC 15%RH~85%RH (Non-condensing)
Transport Transport by general vehicle or according to the order contract,
avoid pounded, shake and splash by rain and snow in transportation.
Storage Temperature: -20 ºC~+55 ºC;
Relative humidity: ≤95%; No corrosive gas and drafty.
74
75
ENGLISH
Atmospheric pressure 700 hPa~1060 hPa
Power supply 4 "AA" alkaline batteries, AC Adapter (AC, 100 V-240 V, optional)
Rated current ≤ 600 mA
Battery life When the temperature is 23 ºC, limb circumference is 270 mm,
the measured blood pressure is normal, 4 "AA" alkaline batteries
cab be used about 300 times.
Dimensions 130(L)*110(W)*80(H) mm
Unit Weight 300 gram(without batteries)
Safety classication Class Ⅱ equipment (power supplied by power adapter)/Internally
powered equipment (power supplied by batteries)
Type BF applied part
Service life The service life of the device is ve years or 10000 times of BP
measurement.
Date of manufacturer See the label
Disposal: The product must not be disposed of along with other domestic waste. The users must dispose of this
equipment by bringing it to a specic recycling point for electric and electronic equipment.
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
Loading...
