ENGLISH
SCOLIOSIS is a deviation (morphological or functional)
of the spinal column to the side, to the left or to the right. Often, scoliosis is rst diagnosed by nding:
) irregular vertical alignment of spinal hypophises of
1
the vertebrae (misalignment);
2) asymmetry of shoulders and hips;
3) prominence of one shoulder blade;
4) a posterior rib hump in the chest wall.
The rst three checks above can be easily done by observing the patient from behind and in erect po­sition. It is more dicult to observe the entity of the posterior rib hump in the chest wall, which is formed as vertebrae rotate around the spinal column. In fact, scoliosis causes the patient to modify his posterior rib position, so that both sides are no longer on a horizon­tal plane. The concave side of the scoliosis (Fig. 1, left side for observer) is curved inwards, therefore the poste­rior ribs are lowered, while on the convex side (Fig. 1, right side for observer) it is more protruding. The hump form can be seen more clearly by examining the patient’s back view and having him bend his chest forward over his hips. The non-horizontal alignment is thus visible. On this subject, for an accurate overall evaluation, it is most important that the patient bends forward correctly, feet together, arms hanging beside his legs and in a relaxed position (Fig. 2).
Various studies have shown that about 5% of school-age children have sideways bends. So careful screening by the family doctor, from the age of 6 till puberty, should be one of the routine checkups carried out.
The Scoliometer, a useful instrument for doctors in their ever yday practice, diagnoses and measures rib hump. Based on the spirit-level principle, it has been adapted to allow measurement of the dierent heights of both par ts of the thorax, with respect to horizontal, of scoliosis suerers.
In order to quantify the amount of scoliosis, expressed in degrees, simply place the Scoliometer, without pressu­re, upon the patient’s back, with the concave part of the instrument on the spinal apo­physis. Then read on the sca­le the torso’s angle of rotation (the angle between horizontal and an axis touching the back of the torso on top of the rib hump). Fig. 3 shows how the upper torso is measured, with the patient bending over slightly.
Fig. 4 shows the correct position of the thoracic area

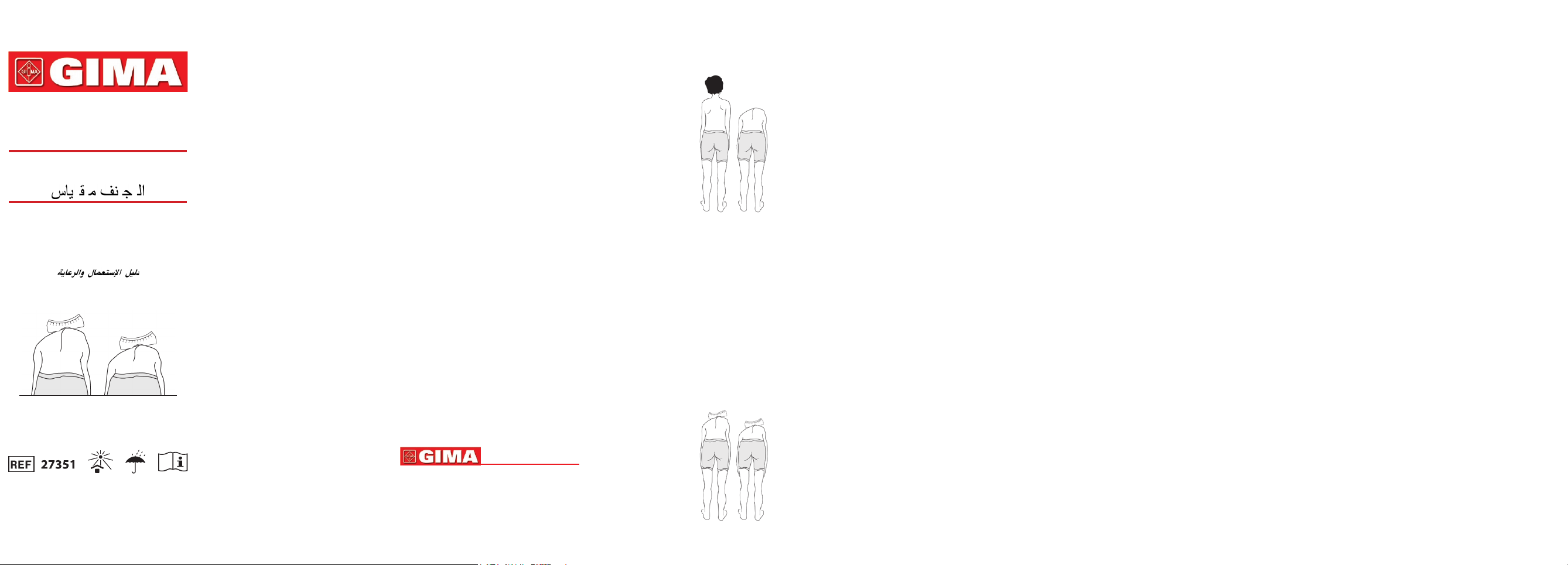

Fig 1 Fig 2
Fig 3 Fig 4
over the hips for measuring the lumbar part of the spi­nal column, which requires a full forward bend. The in­strument contains a small sphere that slides within a track, directly indicating on the scale divergence from horizontal in degrees. This screening makes it possible to identif y the defect and quantify it. Results greater than or equal to 5 degrees require attention. It is also possible to track results over time, thus obtaining a pre­cise idea of the advancement, if any, of the pathological process, while also reducing X-ray exposure. The measured values are approximate.
When cleaning the item, do not use aggressive cleaning agents or solvents or the like, but use a damp cloth with mild soap and water; it is allowed to use denatured al­cohol for disinfection.
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
