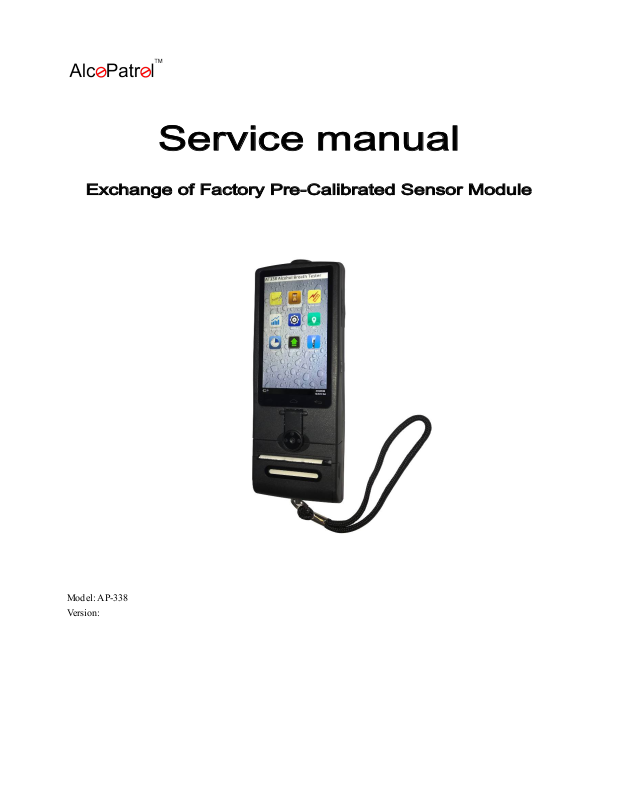

Service manual
Exchange of Factory Pre-Calibrated Sensor Module
Model: AP-338
Version:
Page 2
1
The tester can remain accurate for 1 year of use. The more frequent the use, the more the unit will need to be
calibrated. According to DIN31051, we recommend recalibration every 12 months (or earlier) basis to ensure
maximum accuracy. OR exchange the factory pre-calibrated sensor module every 12months (or earlier)
Following is the setp by step for exchange the Factory Pre-Calibrated Sensor
Module.
1. Turn Off the device, by press the power key for 3 seconds.
2. Remove 2pcs screw on sensor cover.
OLD
module
New
Pre-calibrate
Sensor module
Draft AP-338：338-18xxxxx 2018-09-06
Page 3
2
3. Take out old sensor module form the device.
4. Unplug the communication cable from old sensor module
Draft AP-338：338-18xxxxx 2018-09-06
Page 4
3
5. Plug the new Factory Pre-Calibrated Sensor Module to device
**Please make sure it is plugged well, and fixed.
Draft AP-338：338-18xxxxx 2018-09-06
Page 5
4
6. Install the sensor module to Main device housing.
7. Install 2 screws and finish the exchange
Draft AP-338：338-18xxxxx 2018-09-06
