Gima MICRO INFUSION PUMP User guide

IP-7700 / UME-04-REV.10

INFUSION PUMP OPERATING MANUAL

IP-7700 / UME-04-REV.10

INTRODUCTION / FEATURES

Thank you for purchasing our IP-7700 Infusion Pump. In order to use this pump correctly and safely, read this manual carefully before operating IP-7700 Infusion Pump. If you have any questions as you are reading through this manual, call the local authorized dealer in your country. Retain this manual together with the unit for future reference. This IP-7700 Infusion Pump is intended for the infusion of chemicals such as anti-cancer drugs, oxytocic, nutrition, and drug for chemotherapy medication. This device is designed for high flow-rate accuracy and ease of handle in the infusion of solutions with the equipped peristaltic finger system and the use of a drop senor control.

IFUs currently offered are only available in English, so if you require IFU in a country that uses a different language, IFU will be provided in that language.

Features

 Self testing – Every time the unit is turned on, self testing is proceeded.  K.V.O.(Keep Vein Open) – When the delivery volume has been reached, flow rate turns into K.V.O.

rate (adjustable from 1ml/h to 10ml/h) automatically.

 Keypad lock function – Keypad is locked with or without password depends on its using

condition.

 Infusion setup – Flow rate/ Delivery volume/ Infusion time  Retain memory – Last setting value is retained.  Infusion remaining time display  Alarm repeat function  Open system – Calibration up to 10 IV set brands in a single unit.  Buzzer level – 3steps  Occlusion level – 9steps (4.5~14.5psi)  Purge rate – Adjustable (1~1000ml/h)  Bolus rate – ON/OFF, Adjustable (1~1000ml/h, 1~9999ml)  History call back – Call back last 10 infusion data.  Dosage mode(Body weight mode) – Automatically calculate and set a proper flow rate when

dose rate, body weight, drug mass and solution volume are entered.

 Drop sensor – External (Optional item)  Nurse call – Each unit can be connected with nurse call system (DC 24V, 0.5A) (Option)  Profile function – Program infusion condition (flow rate, delivery volume, delivery time)

differently for every hour, up to 24hours. (Option)

 Central system – Connect with main PC for monitoring (Option)

IP-7700 / UME-04-REV.10

CONTENT

INTRODUCTION/FEATURES ···········································

1. DESCRIPTION OF PUMP ··········································

1-1. Front View ··················································································

1-2. Inside the door ············································································

1-3.Rear View ···················································································

1-4.Side View ····················································································

1-5.Components ················································································

2. PRIOR TO PUMP USE ···············································

2-1.Explanation of Symbols ··································································

2-2.Warnings ·····················································································

2-3.Precautions ··················································································

2-4.Cleaning & Sanitation ·····································································

2-5.Storage ························································································

2-6.Maintenance & Repair ·····································································

3. OPERATION ······························································

3-1.Initial setup ····················································································

3-2.Setup and priming IV set ··································································

3-3.Attaching a tube to the pump ·····························································

3-4.Closing the door ··············································································

3-5.Attaching a drop sensor ·····································································

3-6.Setup flow rate(ml/h) ·········································································

3-7.Setup delivery volume(ml) ··································································

3-8.Confirm total infused volume(∑ml) ·······················································

3-9. Setup delivery time(hour) ··································································

3-10.Opening the manual roller clamp on IV set ···········································

3-11.Put needle into the patient ································································

3-12.Start infusion ·················································································

3-13.Infusion completion ·········································································

3-14.Stop infusion ··················································································

3-15.[POWER]button ··············································································

3-16.Battery Remain ··············································································

3-17.Error Alarm ····················································································

IP-7700 / UME-04-REV.10

CONTENT

3-18.Battery Operation ·························································································

3-19.Nurse call function(Option) ············································································

3-20.Keypad Lock ································································································

4. SYSTEM SETUP ··································································

4-1.Buzz. Level Setup ··························································································

4-2.Occ. Level Setup ·························································································

4-3.IV set Selection ······························································································

4-4.Infusion Setup ·····························································································

4-5.Display ········································································································

4-6.Config. ·········································································································

5. SPECIAL FUNCTION ···························································

5-1.Dosage ········································································································

5-2.History ·········································································································

5-3.Profile(Option) ································································································

5-4.Pro. Mode ······································································································

6. TROUBLE SHOOTING ·······················································

7. INFORMATION ON EMC ·························································

SPECIFICATION·········································································

SYMBOL ··················································································

LABEL ·····················································································

WARRANTY CARD····································································

IP-7700 / UME-04-REV.10

CONTENT

1. DESCRIPTION OF PUMP

1-1.Front View 1-2.Inside of the door 1-3.Rear View 1-4.Side View

1-5.Components

IP-7700 / UME-04-REV.10

1. DESCRIPTION OF PUMP

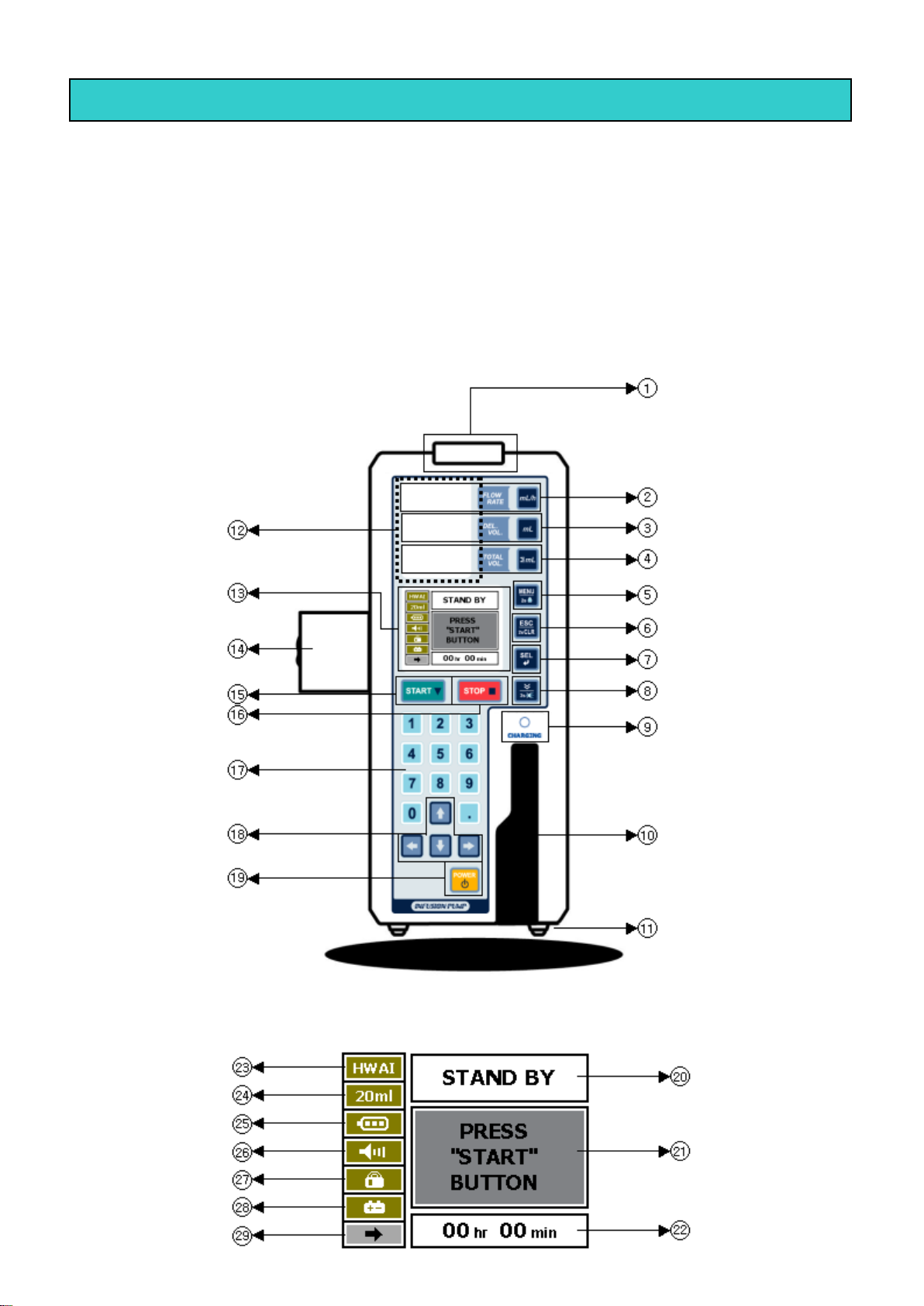

1-1. FRONT VIEW

IP-7700 / UME-04-REV.10

1. DESCRIPTION OF PUMP

① STATUS LED(Red, Green) : Indicates the operation status of the pump in each color

- Flashing in red : warning / -Flashing in green : operating

② FLOW RATE : Set up and adjust Flow rate(㎖/h) ③ DEL. VOL : Set up and adjust Delivery volume(㎖) ④ TOTAL VOL : Display total infuseion volume(㎖) ⑤ MENU/2s : Move to “MENU” mode/ Lock keypad by press the button for 2seconds. ⑥ ESC/2sCLR : Move to previous state/ Delete setup value by press the button for 2seconds. ⑦ SEL: Save setup value / Set up infusion time. ⑧ PURGE / 2s SILENCE :

- STANDBY mode : Remove air bubble in IV tube line.

- During infusion : BOLUS function, Bolus can be set in system menu mode.

- SILENCE button: Press the button for 2seconds to hold alarm sound for 2minutes when alarm goes off.

⑨ CHARGING : ( Fully charged : Green / Charging : Orange) ⑩ Door Lock Lever ⑪ RUBBER FOOT ⑫ FND : Display FLOW RATE , DEL.VOL , TOTAL VOL

⑬ LCD : Display operating state.

⑭ POLE CLAMP : Fix the unit on an IV pole stand. ⑮ START

16 STOP

17 NUMERICAL BUTTONS 18 DIRECTION BUTTONS 19 POWER : Press for 2seconds to turn on or off the unit.

20 Display infusing state 21 Display operating state 22 Display delivery time 23 Display IV set(Infusion tube set) brand

24 Display number of drops for IV set : 15D , 19D , 20D , 60D 25 Display state of battery 26 Display state of BUZZER level

27 Display state of lock : Lock / Unlock

28 Power supply : AC / BATTERY 29 BATTERY REMAIN : Display remaining battery operating time.

※ Battery remaining time can be very different depends on battery condition.

IP-7700 / UME-04-REV.10

1. DESCRIPTION OF PUMP

1-2. INSIDE THE DOOR

(DOOR OPEN)

①Tubing Guide : Fix an infusion tube.

②Air-in-line Detector : Detect air bubble in the infusion tube.

③Peristaltic Fingers : Press the infusion tube to drive down the solution.

② ③ ④

⑤

DOOR

①

⑥

HANDLE

RESET

SWITCH

IP-7700 / UME-04-REV.10

1. DESCRIPTION OF PUMP

④Tubing Guide : Fix the infusion tube.

⑤Occlusion Detector : Detect occlusion on the infusion tube.

⑥Tubing Clamp : Automatically block the infusion tube when door open

1-3. REAR VIEW

① Nurse Call Connector : Connect alarm terminal cord

installed in the ward. ②Drop Sensor Connector ③AC Power Supply Connector ④Adaptor Connector

1-4. SIDE VIEW

① Pole Clamp : Fix the unit on IV pole stand.

① ② ④

③

IP-7700 / UME-04-REV.10

1. DESCRIPTION OF PUMP

1-5. COMPONENTS

Drop sensor (Optional item) AC power cord

*Drop Sensor (Optional item)

① Drop sensor : Monitoring drops in IV set cahmber

② Dimension : 35 x 93 x 18 mm ③ Weight : 0.1kg

IP-7700 / UME-04-REV.10

2. PRIOR TO PUMP USE

2. PRIOR TO

PUMP USE

2-1.Explanation of Symbols 2-2.Warnings 2-3.Precautions 2-4.Cleaning & Sanitation 2-5.Storage 2-6.Maintenance & Repair

IP-7700 / UME-04-REV.10

2. PRIOR TO PUMP USE

2-1. EXPLANATION OF SYMBOLS

2-2. WARNINGS

• If this pump is used in the vicinity of the surgical operation equipment which generates a high frequency current such as mobile (cellular) phone, radio, or defibrillator, the pump may malfunction since electrical interference. Please carefully check for any sources of electrical interference in the vicinity before use.

• When using the pump concurrently with the electronic surgical unit, please note the following:

- Do not use the pump together with any electronic surgical unit that generates high frequency.

- Be sure that the pump is kept a sufficient distance from the electronic surgical unit.

- The pump and such device should not be connected to the same outlet.

- Check and confirm the normal operation of the pump regularly.

※ In case of malfunction, after turn on the Tubing Clamp, turn off the power immediately(switch off the

power button on the rear side of the pump), and remove IV set from the pump and from the patient’s

skin. After this action, please contact your local authorized dealer at once.

• Avoid using the pump in presence of flammable gases and flammable anesthetic mixture with air, oxygen or Nitrous-oxide.

• The use of any mobile (cellular) phone near the pump is not allowed since the high frequency noise during the telephone conversation could cause malfunction of the pump.

• The use of the pump in MRI rooms such as high-pressure rooms or places where high electromagnetic radiation is generated is not allowed.

• In case of the use of any other IV sets than recommended in this manual, consult your local authorized dealer for compatibility of IV sets with this pump before use it. If an IV set with no compatibility is used, the accuracy of flow rate and alarm functions cannot be guaranteed.

• Be sure that the tubing is properly fit in the tubing slots of Air-In-Line detector and occlusion detector. If not, those alarms will not function normally.

• Be sure that the tubing runs straight over the peristaltic finger section. If not, an accurate infusion rate can not be

guaranteed.

Warning is used to indicate the presence of a hazard which can cause seve

re personal injury, death or substantial property damage if the warning is i

NOTE

Caution is used to indicate the presence of a hazard which will cause mino

r personal injury or property damage if the warning is ignored.

Note is used to notify the user of installation, operation or maintenance information which is important but not hazard-related.

IP-7700 / UME-04-REV.10

2. PRIOR TO PUMP USE

• During infusion, regularly check the drip rate to make sure that the solution is being infused at the selected rate.

• Do not connect the IV set administered from an infusion pump to another infusion line administered only by the manual roller clamp because this may cause inaccuracy of infusion rate and alarm functions.

• When the same site of the tubing has been set at peristaltic finger section for a long time (over 12 hours),

use it after moving the tubing connected to this pump at a distance of more than 10 cm.

Deformation of tubing arising from long time (over 12 hours) use can affect the accuracy.

• The pump does not detect damage to the infusion line such as a leak in the line or a rupture in the filter due to pressure exertion. Therefore, regularly check for any damage to the infusion line during infusion.

• When the flow is obstructed due to kinking of the tubing or clogging of the needle or filter, it can cause the pressure in the infusion line to increase and cause the tubing to be inflated with the solution. Complete removal of the obstruction will allow the solution to be delivered to the patient. If the flow is obstructed, take appropriate actions after completely closing the manual roller clamp on IV set.

• The pump is connected to an AC power outlet to be operated. If there is no available AC power outlet, the pump

can be operated with only its internal battery. (Alternatively, the pump may be operated by DC power)

The internal battery can be fired by high temperature or shock, be careful of the temperature and the humidity

while using the pump.

• The spill of the solution on the AC power inlet may cause a short circuit.

• Check the pump and parts if it damaged. Please contact your local authorized dealer immediately when the

pump or parts get shocks even though it looks normal.

• In case of malfunction, do not try to take the unit apart or attempt to repair by yourself. Please contact your local authorized dealer immediately. If the user does not comply with these warnings, AMPall cannot be held liable and the warranty does not apply.

• The pump should be used by a trained professional.

2-3. PRECAUTIONS

• The pump does not detect if the solution is infused out of the blood vessel. Please check the puncture site and

monitor the patient’s condition carefully.

• Do not try to use the pump for other purposes such as blood transfusion.

• The pump does not infuse high viscosity solutions, do not use any other IV sets than recommended in this

manual.

• Opening the tubing clamp while the pump is connected with a patient makes Free Flow.

• Fix the pump securely to a pole stand and check its stability.

• The pump must be used in accordance with this instruction manual by trained medical personnel.

• Be sure to use components including power cord, provided or recommended in this manual.

• When alarm sounds, please take corrective actions. (refer to trouble shooting)

If the user does not comply with these warnings, the company is not respo

nsible for its result and the warranty is not applied.

IP-7700 / UME-04-REV.10

2. PRIOR TO PUMP USE

Outside casing

Slot

Stopper

Main body

2-4. CLEANING & SANITATION

• Before cleaning the pump, make sure to power off the pump and disconnect the AC power cord.

• Do not immerse the pump in water.

• Do not immerse the pump in any liquid nor allow any liquid to leak into the pump.

• Do not use alcohol, thinner, benzene, ammonia, acetone or any other organic solvents.

• Do not sterilize the pump.

< Casing >

• When the pump casing is stained, use a gauze cloth or similar, moistened with cold or tepid water and let it dry, especially the AC power inlet before use.

• Do not use drier to dry the unit.

< Air-In-Line detector / Occlusion detector >

• When the Air-In-Line detector or Occlusion detector is stained, use a swab moistened with warm water and let it dry before use.

• Do not use something rigid or sharp like tweezers to clean the detectors.

< Drop Sensor >

• Before cleaning the drop sensor, make sure to disconnect the drop sensor completely from the pump.

• When the drop sensor is stained, use a gauze cloth or similar, moistened with cold or tepid water and let it dry.

• Do not allow any solution to splash on the drip sensor connector. If it is wetted, dry it before use.

Cleaning procedures are as follows.

1. By using a small minus screwdriver, pull the casing up and remove the outside casing as shown in the below picture.

2. Wipe the main body of the drip sensor with a gauze cloth or similar, moistened with cold or tepid water.

3. Wash the casing and spring.

4. Dry them.

5. To assemble the sensor, place the spring on the right of main body of the sensor and then slide the

outside casing over the main body until the stopper on the main body gets in the slot on the outside casing.

IP-7700 / UME-04-REV.10

2. PRIOR TO PUMP USE

2-5. STROAGE

• Avoid the following environment for storage and transport for the IP-7700 Infusion Pump.

- Where the unit is exposed to dirt or heavy dust.

- Where the unit is exposed to salty atmosphere.

- Where the unit is exposed to severe vibration or corrosive GAS.

- Where the unit is exposed to rough handling.

- Where the unit is exposed to direct sunlight or UV light.

- Where the unit is exposed to water.

- Where the unit is exposed to extreme temperature and humidity.

• The optimum storage conditions for the IP-7700 Infusion Pump

- Temperature is between -10℃ ~ 45℃.

- Humidity is between 10% ~ 95%

2-6. MAINTENANCE & REPAIR

• If any irregularity and failure are detected, stop operation of the pump immediately and contact your local

authorized dealer to repair or replace by supplying the details of the situation. Never try to disassemble or repair by yourself because it could cause further serious failure.

• Make sure that there is not any damage with the pump and components. In case that the unit and components

were shocked, do not use them even if visible damages are not observed. Please contact your local authorized dealer.

• Contact your local authorized dealer for periodical inspection of the pump for safety and longer product life.

• Operate the pump with the internal battery once a month to check its performance because the internal battery

is subject to aging. If the operation time is getting short after it is normally recharged, contact your local authorized dealer to replace with a new battery. Please be sure that your local authorized dealer checks it annually.

• Please recharge the internal battery fully for more than 6 hours by connecting the pump to an AC power outlet before the pump is used for the first time or after a long interval.

• If the battery is low, the pump may stop running if there is no way to connect the pump to an AC power outlet.

the product and its electronic accessories (e.g. Power cord) should not be dispo sed of with other household waste at the end of their working life. To prevent p ossible harm to the environment or human health from uncontrolled waste dispo sal, please separate these items from other types of waste and recycle them re sponsibly to promote the sustainable reuse of material resources.

IP-7700 / UME-04-REV.10

3. OPERATION

3-1.Initial set up 3-2.Setup and priming IV set 3-3.Attaching a tube to the pump 3-4.Closing the door 3-5.Attaching a drop sensor 3-6.Setup flow rate(ml/h) 3-7.Setup delivery volume(ml) 3-8.Confirm total infused volume(∑ml) 3-9.Setup delivery time(hour) 3-10.Opening the manual roller clamp of

IV set

3-11.Put needle into the patient 3-12.Start infusion 3-13.Infusion completion 3-14.Stop infusion 3-15.[POWER] button 3-16.Battery remain 3-17.Error alarm

3-18.Battery operation 3-19.Nurse call function(Option) 3-20.Keypad lock

IP-7700 / UME-04-REV.10

3. OPERATION

3-1. INITIAL SETUP

3-1-1 ATTACHING THE PUMP TO THE IV POLE STAND

• Fix the pump securely on the pole stand, using the pole clamp on the left of the pump.

3-1-2 CONNECT AC POWER

• Insert AC power cord to the AC power inlet on the back side of the pump and connect the power cord to AC power outlet. Charging lamp will be on in red or green depends on its battery charging state. ( Fully charged : Green / Charging : Orange)

• After turn on the unit,

- LCD displays on the left side of LCD when it connected with AC power.

- LCD displays connected with adoptor, and connected with battery for power supply.

• When AC power is connected, the internal battery is automatically being recharged.

3-1-3 CONNECT DROP SENSOR (OPTIONAL ITEM)

• Connect the plug of the drop sensor into the drop sensor connector at the back of the pump.

• Do not connect the plug of the drop sensor when drop it is not used.

3-1-4 TURN ON THE UNIT

• Press [POWER] button for 2 seconds to turn on the unit.

- LCD, FND and LED state lamp turn on with confirming sound and SELF TESTING is proceeded for 3seconds.

- LCD divides left side and right side as below pircture. Left side displays setup conditions, and right side

displays operating state. * Power supply -

: AC power

: Adoptor : Battery

- IV set(infusion tube set) brand is displayed on the left side of LCD. Please confirm the brand of IV set, if it is

the one you are going to use with the unit.

• Alternatively, the pump may be operated by DC power.

NOTE

• Drop sensor with the same serial number as the pump should be used.

Otherwise, the function of the drop sensor could not be guaranteed.

NOTE

• Please check the flicker of the lamp on the drop sensor whenever the solution drops.

If there is no flicker, please contact your local authorized dealer.

IP-7700 / UME-04-REV.10

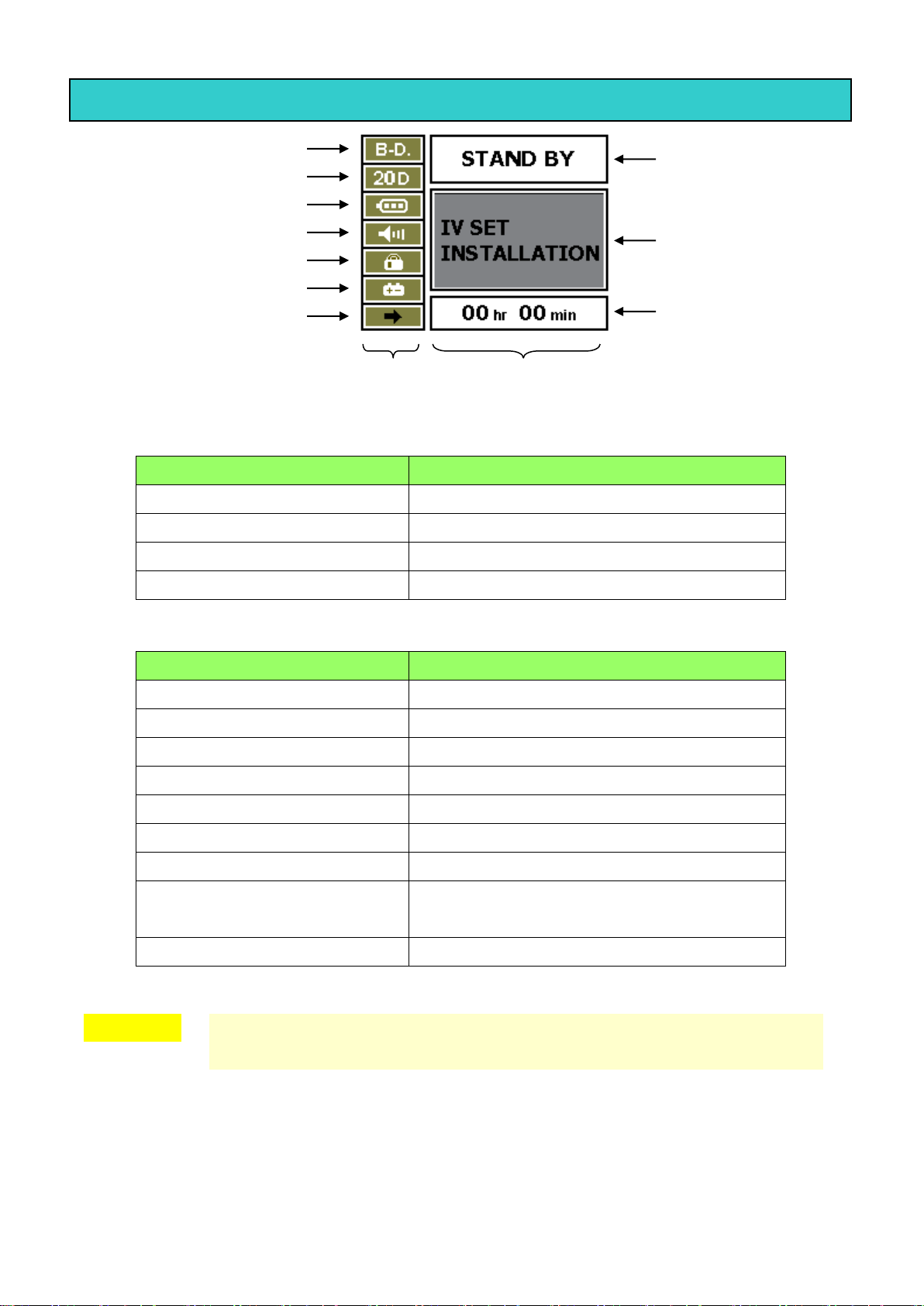

3. OPERATION

SETUP CONDITION OPERATING CONDITION

• ⓐ INFUSING STATE

• ⓑ OPERATING STATE / INFUSION INFORMATION / ERROR

3-1-5 TURN OFF THE UNIT

• Press [POWER] button for 2 seconds on “STAND BY” mode to turn off the unit.

- The unit is turned off after 2seconds with confirming sound and logo in LCD.

- The unit is not turned off in “MENU” mode.

Display

Description

STAND BY

Initial display

INFUSING

Infusing state

BOLUS

BOLUS state

PROFILE

PROFILE state

Display

Description

IV SET INSTALLATION

Before IV set installation

PRESS “ START” BUTTON

Complete IV set installation

WARNING AIR INLINE

Detecting air in line during infusion

WARNING OPEN DOOR

DOOR OPEN

WARNING OCCLUSION

OCCLUSION

WARNING BATTERY LOW

BATTERY LOW

WARNING FLOW ERROR

ERROR goes off during infusion

WARNING EMPTY ERROR

Detecting air in line during COMPLETE KEEP

OPEN

COMPLETE KEEP VEIN

Infusion completion

IV set brand

Remaining battery

operating time

Number of drop for IV set

Battery state

Buzzer level

Lock/ Unlock

Power supply

ⓐ Infusing state

ⓑ Operating state/ Infusing

information / Error

NOTE

• Please contact a local authorized dealer or agency when you have problem with the

unit.

IP-7700 / UME-04-REV.10

3. OPERATION

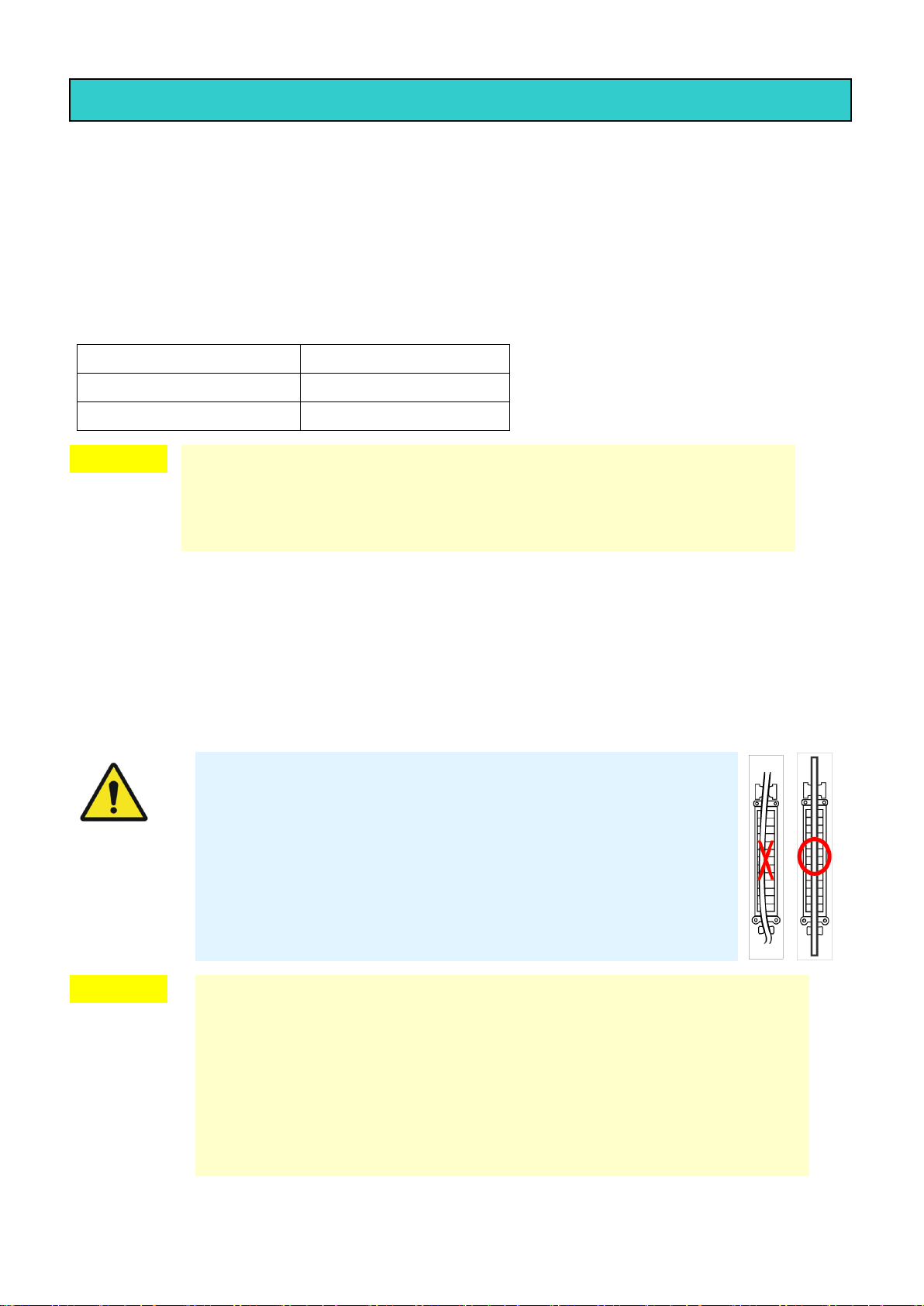

3-2. SETUP AND PREMING IV SET

1. Connect IV set to the solution container.

2. Fill the solution into the drop chamber up to one third.

3. By opening the manual roller clamp on IV set, make a drop of solution formed on the tip of needle.

Or keep pressing [PURGE] button to remove air in tube.

4. When priming is completed, close the manual roller clamp.

※ Compatible infusion set

Manufacturer

Model

BD(Becton Dickinson)

AN122, A120F

KV(Korea Vaccine)

S203, S203T

3-3. ATTACHING THE TUBE TO THE PUMP

1. Open the door and push the release lever to the right to release the tube clamp.

2. Place tube correctly, make sure that the tube places in the air bubble detector and lay down straightly on the peristaltic finger part and the occlusion detector. Make sure that the occlusion detector moves smoothly when it is pushed.

NOTE

• Infused volume by purge is included total infused volume.

• Purge function is only in “STAND BY” mode. During infusion, purge button

functions as Bolus button.

• Refer to page 28 for setup purge rate.

• If the tube does not keep straight over the Peristaltic finger section, the

desired infusion rate may not be achieved.

• When the same site of the tubing has been set at peristaltic finger section

for a long time (over 12 hours), use it after moving the tubing connected to this pump at a distance of more than 10 cm. Deformation of tubing arising from long time (over 12hours) use can affect the accuracy.

• The tube should be replaced with a new one every 24 hours.

NOTE

• Replace new IV set during the operation; ① Stop the operation.

② Close the manual roller clamp on IV set, then open the door and remove IV set. ③ Replace new IV set and remove air bubble on the IV set tube. ④ Place new IV set on the pump correctly. ⑤ Close the door and open the manual roller clamp ⑥ Restart infusion

IP-7700 / UME-04-REV.10

3. OPERATION

3-4. CLOSING THE DOOR

• Close the door and lock the door lock lever.

3-5. ATTACHING THE DROP SENSOR

• Attach the drop sensor vertically on the drop chamber on IV set, by squeezing the drop sensor with fingers.

• Do not attach the drop sensor when it is not used.

3-6. SETUP FLOW RATE (ml/h)

• Press FLOW RATE (ml/h) button, then setup desired value with numerial buttons.

• Delete previous digit in order with button, delete complete value by press [ESC/2s CLR] button for

2seconds.

• Save the setup value with SEL button. After save the value, FND turns to initial display automatically.

SETUP FLOW RATE

• Make sure the tube does not place between the pump and door.

• The drop sensor should be located between the drop nozzle of drop chamber and

the surface of the solution to avoid any incorrect detection.

• When the drop sensor is attached on the drop chamber, make sure that the drop

sensor should be positioned vertically. If the drop sensor is attached obliquely, the desired infusion rate may not be achieved.

NOTE

• If FLOW RATE is saved as 0 ml/h, alarm sound comes out and infusion is not started.

• FLOW RATE range : 1~1000ml/h (0.1 ml/h step, with 15drop IV set)

IP-7700 / UME-04-REV.10

3. OPERATION

3-7. SETUP DELIVERY VOLUME(ml)

• Initial value for delivery volume is “0000”.

• Delivery volume range is 1~9999ml.

• Press DELIVERY VOLUME (ml) button, then setup desired value with numerial buttons.

• Delete previous digit in order with button, delete complete value by press ESC/2s CLR button for

2seconds.

• Save the setup value with SEL button. After save the value, FND turns to initial display automatically.

SETUP DELIVERY VOLUME

3-8. CONFIRM TOTAL INFUSED VOLUME(∑ml)

• Total volume(Σ㎖/CLEAR) shows the delivered volume so far.

• Press TOTAL VOL button.

• Delete total infused volume by press [ESC / 2sCLR] button for 2seconds.

TOTAL INFUSED VOLUME

NOTE

• If delivery volume is setup at 0ml, the unit operates infinite infusion. (Infusion keeps

until solution container is empty.)

• DELIVERY VOLUME range: 1~9999ml(1ml step).

• Delivery volume should be setup less than amount of solution container. So when

delivery volume is reached, flow rate turns into K.V.O. rate.

- Initial K.V.O. reat : 3ml/h with 15,19,20 drop IV set 1ml/h with 60 drop IV set

• K.V.O. rate is adjustable in “SYSTEM SEUP” mode.

IP-7700 / UME-04-REV.10

3. OPERATION

3-9. SETUP DELIVERY TIME(hour)

• Press [SEL] button, DELIVERY TIME on the botton of LCD is blinked. Set up delivery time with numerical buttons and save it with [SEL] button.

3-10. OPENING THE MANUAL ROLLER CLAMP ON IV SET

• Open the manual roller clamp on IV set.

3-11. PUT NEEDLE INTO THE PATIENT

• Put needle into the patient.

3-12. START INFUSION

• Press [START] button to start infusion.

• STATUS LED is blinked in green, LCD shows as beow picture.

NOTE

• Third value is calculated and displayed automatically when two setup values are

entered among FLOW RATE, DELIVERY VOLUME, DELIVERY TIME.

• Please make sure about total infused volume when you setup infusion by time,

previous total infused volume is included if it is not deleted.

• DELIVERY TIME range : 1min~99hour 59min

• Check solution comes into the drp chamber and check if the solution comes out of the

needle. Solution must not come out of the needle.

• If ths solution comes out of the needle, check the list below.

- Check the IV set is a recommended type which has been calibrated.

- Check the tube if it places correctly.

- Check the IV set, if it is under good condition.

If the solution still comes out of the needle even it satisfies the above check list, please stop using the pump and contact local authorized dealer.

• The pump does not detect incorrect inserting of needle if the solution is infused out

of blood vessel. Please regularly check the puncture site and monitor the patient’s condition carefully.

• Before start infusion, make sure about flow rate, delivery volume, amount of solution

bag volume and brand of IV set.

NOTE

IP-7700 / UME-04-REV.10

3. OPERATION

Delivery time Infused percentage(%)

[INFUSING DISPLAY]

3-13. INFUSION COMPLETION

• When delivery volume is reached, LCD shows “COMPLETE” and “COMPLETE KEEP VEIN” by turns as below picture with alarm sound.

• The unit turns into K.V.O. rate automatically.

3-14. STOP INFUSION

• Press [STOP] button to stop infusion during the operation.

• Before restart infusion, FLOW RATE, DELIVERY VOLUME, the amount of solution volume should be confirmed.

After confirming the condition, press [START] button to start infusion.

Initial K.V.O. rate calibrated with 15,19,50 drop IV set

3ml/h

Initial K.V.O. rate calibrated with 60 drop IV set

1ml/h

• Make sure about flow rate during infusion if it is correct.

• If there is detected any incorrect flow rate or infused volume, stop the unit

immediately and contact local authorized agency.

NOTE

• K.V.O. reate is adjustable from 1ml/h to 10ml/h.

NOTE

• Alam goes off if do not restart in 2minutes after stop infusion temporally.

IP-7700 / UME-04-REV.10

3. OPERATION

3-15. [POWER] BUTTON

• Power is turned on and off by press [POWER] button.

• During infusion, [POWER] button does not function.

• Press [STOP] button first to stop infusion, then press [POWER] button to turn off the unit.

3-16. BATTERY REMAIN

• Press button in initial mode, display turns into number ③ picture and display the remaining battery

operating time.

① ② ③

3-17. ERROR ALARM

• When alarm goes off with error, press [SILENCE] button to hold alarm sound for 2seconds then settle the

problem. Otherwise, alarm sound goes off again.

3-18. BATTERY OPERATION

• This unit operatse with AC power supply and built in rechargeable battery. When AC power supply is

disconnected, the unit turns into battery operating mode automatically.

• Battery is charged when AC power supply is connected when ever it is on or off.

• Battery operating time is 4hours at 125ml/h.

• New rechargeable battery should be charged more than 6hours.

• Battery state displays on LCD as its remain state.

• With battery state, if there is no AC power supply connected, the unit will be off with alarm sound and

stop operation.

Remainning

battery

operating

time

• Remainning battery operating time is different as its infusion setup condition and battery condition.

• Check about battery condition and operating condition with you refer to “BATTERY REMAIN”.

• Charging LED on the front should be green when you refer to “BATTERY REMAIN”.

IP-7700 / UME-04-REV.10

3. OPERATION

3-19. NURSE CALL FUNCTION (OPTION)

• Connect nurse call connector on the back side of the unit and NURSE CALL SYSTEM builted in a hospital with nurse call cord.

3-20. KEYPAD LOCK

• Lock keypad by pressing MENU/2s button.

• Keypad lock can be done with password so user can control keypad lock.

• Under Keypad LOCK, all key do not function.

• Battery state should be checked every 6month to inspect battery life.

• Battery capacity may be different depends on its using condition such as fully

charing and fully discharge cycle. For safety of longer battery operating time, battery should be fully charged one a month.

• If the unit has been kept without using it for more than 1months, or it is first time to use the unit, try to charge the built in battery for more than 6hours.

NOTE

• Refer to page 32 for setup KEYPAD LOCK..

NOTE

• When alarm goes off, error message shows up in LCD, alarm signals are transferred

to NURSE CALL SYSTEM every 5 second.

• Nurse call code number: 06LA548﹡

IP-7700 / UME-04-REV.10

4. SYSTEM SETUP

4-1. Buzzer setup 4-2. Occlusion setup 4-3. IV set selection 4-4. Infusion setup 4-5. Display setup 4-6. Config.

IP-7700 / UME-04-REV.10

4. SYSTEM SETUP

• Press MENU button to getinto Menu mode and select “SYSTEM SETUP” with [SEL] button.

• SYSTEM SETUP MENU

1. BUZZER

2. OCCLUSION

3. BRAND SET

4. INFUSION

5. DISPLAY

6. CONFIG

• It you do not press any button for 10seconds, LCD turns back to previous display with alarm sound.

• Press [ESC / 2sCLR] button to go back previous display. And press [SEL] button to save.

4-1. BUZZ. LEVEL SETUP

• Get into “BUZZ. LEVEL” mode, select manu in order to MENUSYSTEM SETUPBUZZER.

•. Adjust buzzer level with UP , DOWN buttons. There are three levels, “HIGH” , “MIDDLE” and “LOW”.

Select and save with [SEL] button. After save buzzer level display turns into previous mode.

4-2. OCC. LEVEL SETUP

• Get into”OCC. LEVEL” mode, select manu in order to MENUSYSTEM SETUPOCCLUSION

• OCCLUSION is adjusted with UP , DOWN buttons, it is from LEVEL 1 to LEVEL 9. Press [SEL] button

to select and save. After select and save it, it turns into previous menu.

Initial BUZZ. LEVEL

HIGH

Menu move buttons

Total menu number

IP-7700 / UME-04-REV.10

4. SYSTEM SETUP

4-3. IV SET SELECTION

• Get into “IV SET SEL.” menu in order to MENUSYSTEM SETUPBRAND SET.

• IV set should be calibrated by supplier, select the IV SET brand you will use with UP , DOWN button.

Select and save the IV SET brand you will use with SEL button. After select and save it, it turns into previous menu.

• Here is the list of basic calibration IV SET brands.

IV SET BRAND

MANUFACTURER

AN122

B.D.

A120F

B.D

S203

KOREA VACCINE

S203T

KOREA VACCINE

NOTE

• “H”: 800±200mmHg (106.7±26.7 kPa) or 1.09±0.27 kgf /㎠

• “M”: 500±100mmHg (66.7±13.3 kPa) or 0.68±0.14 kgf /㎠

• “L”: 300±100mmHg (40.0±13.3 kPa) or 0.41±0.14 kgf /㎠

• Initial set is LEVEL 5

NOTE

• Preset is “B-D”.

• If you want to use other IV set brand beside the list, please contact our local

authorization dealer to get confirm about calibration.

• Un calibrated IV set may occur error or accuracy problem. Please make sure

the IV set you are using is calibrated and approved by local authorized dealer or

manufacturer.

• Manufacturer or local authorized dealer do not cover the result from using IV

set which is not calibrated or approved by manufacturer or local authorized

dealer.

IP-7700 / UME-04-REV.10

4. SYSTEM SETUP

4-4. INFUSION SET

There are “PURGE SETUP” , “BOLUS SETUP” , “KVO SETUP” in “INFUSION SET” menu.

4-4-1. PURGE SET UP

• PURGE is setup from 1~1000ml/h.

• If PURGE rate is not setup, beep sould will come out and infusion will not start.

4-4-2. BOLUS SET

There are “BOLUS FLOWRATE” , “BOLUS D.VOLUME” for “BOLUS SET” menu.

※ BOLUS: Infuse sure amount of solution or drug by sure infusion speed.

- BOLUS FLOWRATE SET : Setup flow rate of BOLUS with numerial buttons. Save desired value with [SEL] button. Press [ESC / 2sCLR] buttons for 2seconds to delete the total value and press to delete previous

digit in order. ※ Press [ESC / 2sCLR] button to move previous menu.

Previous setup

PURGE (㎖/h)

Range

NOTE

• Purge: To remove air in line(tube).

• Purge volume is included in total infused volume.

• Purge is working only STANDBY mode.

• When Purge rate is less then floow rate, Purge rate works as setup flow rate.

IP-7700 / UME-04-REV.10

4. SYSTEM SETUP

- BOLUS VOLUME : Setup total amount of BOLUS. Save desired value with [SEL] button. Press [ESC / 2sCLR] buttons for 2seconds to delete the total value and press to delete previous digit in order.

4-4-3. K.V.O. SETUP

Setup K.V.O. (Keep Vein Open) rate from 0.1~10㎖/h.

※ K.V.O. (Keep Vein Open): When the delivery volume has been reached, flow rate turns into K.V.O. rate

(adjustable from 1ml/h to 10ml/h) automatically to avoid clog by blood coagulation.

Previous setup

Range

BOLUS F/R (㎖/h)

BOLUS VOL(㎖)

NOTE

• BOLUS ON/OFF : Get into the menu in order to MENUSYSTEM SETUP6.CONFLGBOLUS ON/OFF. You can select BOLUS ON/OFF. ( Refer to page 29 for setup). ( Initial setup is BOLUS OFF mode.)

• BOLUS and PURGE button is same one. It functions differently as its mode as blow. ※ BOLUS function : Only during the infusion

• Please make about BOLUS ON/OFF. When you do not use BOLUS function,

please setup BOLUS OFF so it does not function. And make sure when you use

BOLUS function about tis setup condition(flow rate, delivery volume) before use

it.

• Make sure K.V.O rate setup before use it to avoid excess infusion during K.V.O. function.

• Manufacturer does not cover the result from K.V.O. setup failure by user. So please make sure about K.V.O. setup condition before start infusion.

IP-7700 / UME-04-REV.10

4. SYSTEM SETUP

4-5. DISPLAY

There are “TIME SETUP” , “B.LIGHT TIME” , “B.LIGHT BRIGHT” for “DISPLAY” menu.

4-5-1. TIME SETUP

• Get into “TIME SET” menu in order to MENUSYSTEM SETUPDISPLAYTIME SETUP.

• Move with , , , buttons and input with numerical buttons for time setup. Press [SEL] button to

select and save time set.

• There is no extra delet button because you can move with , , , buttons at any point.

4-5-2. LCD BACK LIGHT TIME

• Get into “B.LIGHT TIME” menu in order to MENUSYSTEM SETUPDISPLAYB.LIGHT TIME.

• There are 4modes for LCD black light mode.

-ON : Always LCD black light on.

-30SEC : Turns off after 30seconds.

- 60SEC : Turns off after 60seconds.

-90SEC : Turns off after 90seconds.

Move with , buttons and press [SEL] button to select and save the mode. After select and save it, it turns into previous menu.

NOTE

• Once time setup, the unit keeps time whenevery it turns on or off.

NOTE

Initial set is ON.

IP-7700 / UME-04-REV.10

4. SYSTEM SETUP

4-5-3. LCD BLACK LIGHT BRIGHT

• Get into “BLIGHT BRIGHT” menu in order to MENUSYSTEM SETUPDISPLAYB.LIGHT BRIGHT.

• There are brightness levels from LEVEL 1 to LEVEL 9. As level number is up, LCD goes brighter. Adjust it with

, buttons and press [SEL] button to select and save it.

4-5-4. SETUP STATUS LED

• Get into “STATUS LED” menu in order to MENUSYSTEM SETUPDISPLAYSTATUS LED

• Adjust “ON” or “OFF” with , buttons and save it with [SEL] button.

4-5-5. SETUP INFUSING LOGO

• Get into “INFUSION LOGO” menu in order to MENUSYSTEM SETUPDISPLAYINFUSING.

• Select Infusion Logo with , buttons and save it with [SEL] button.

NOTE

Initial set is LEVEL 9.

NOTE

Initial set is “ON”.

IP-7700 / UME-04-REV.10

4. SYSTEM SETUP

1. ARROW 2. HORSE

4-5-6. SETUP INITIAL LOGO

• Get into “INITIAL LOGO” menu in order to MENUSYSTEM SETUPDISPLAYINITIAL LOGO.

• This is Logo display for ON/OFF process.

• Select proper logo with , buttons and save it with [SEL] button.

4-6. CONFIG

There are KEY LOCK P/W , BOLUS ON/OFF for CONFIG menu.

Problems from incorrect setup by user, are charged on user. It does not cover

by manufacturer.

NOTE

Initial set is “HORSE”.

IP-7700 / UME-04-REV.10

4. SYSTEM SETUP

4-6-1. KEY LOCK P/W

• Get into KEYLOCK P/W menu in order to MENUSYSTEM SETUPCONFIGKEYLOCK P/W.

• Move with , buttons, select and save with [SEL] button.

4-6-2. BOLUS ON/OFF

• Get into BOLUS INFUSE menu in order to MENUSYSTEM SETUPCONFIGBOLUS ON/OFF.

• Move with , buttons, select and save with [SEL] button.

NOTE

Preset is OFF. (KEY LOCK P/W , BOLUS INFUSE )

IP-7700 / UME-04-REV.9-18C30

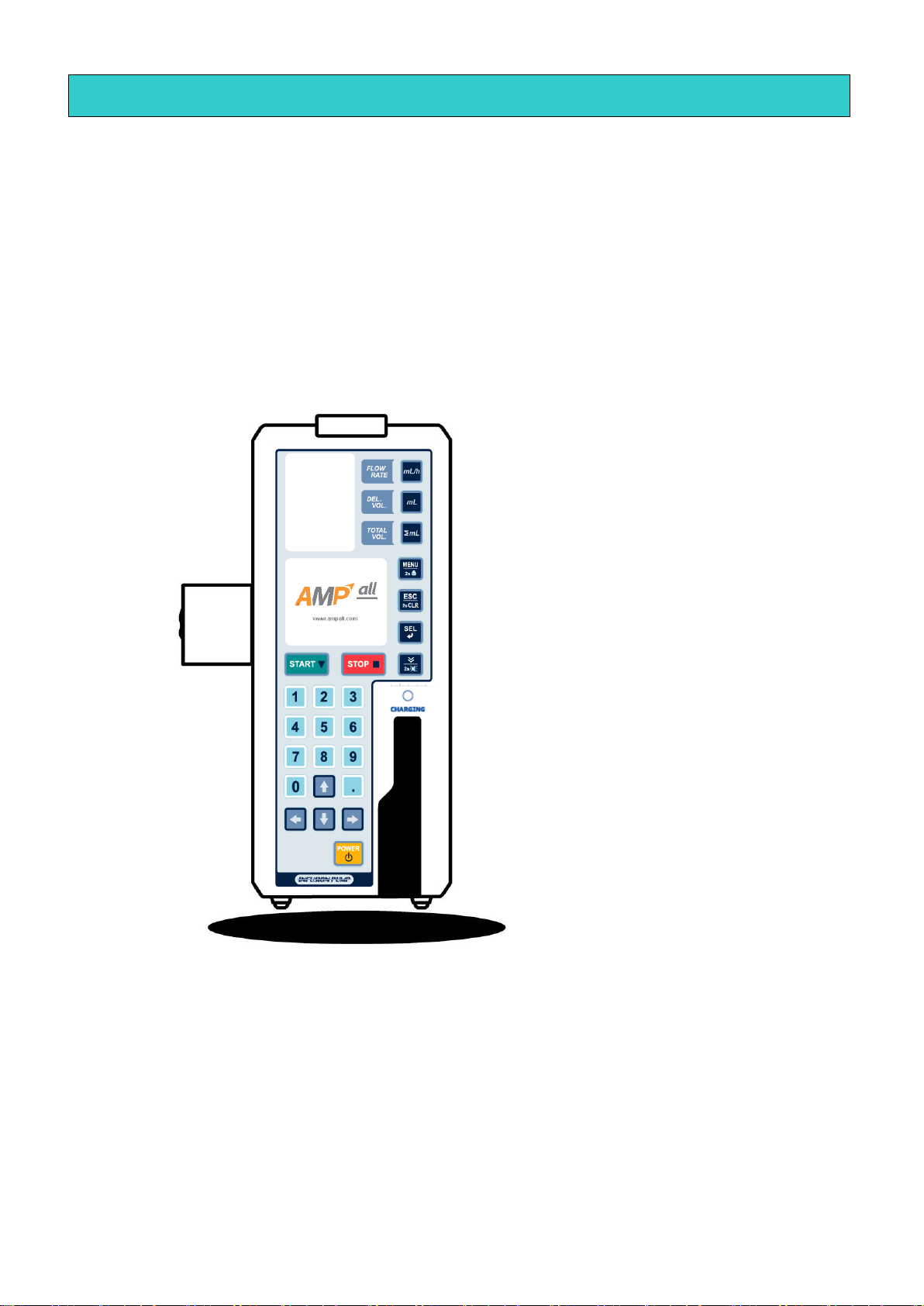

5. SPECIAL FUNCTION

5. SPECIAL FUNCTIONS

5-1. Dosage 5-2. History 5-3. Profile(Option) 5-4. Pro. Mode

IP-7700 / UME-04-REV.10

5. SPECIAL FUNCTION

5. SEPCIAL FUNCTION

• Press MENU button to getinto Menu mode and select SPEICAL FUNCTION with SEL button.

• SPEICAL FUNCTION MENU

1. DOSAGE (OPTION)

2. HISTORY

3. PROFILE (OPTION)

4. PRO.MODE

5-1.DOSAGE

• DOSAGE SETUP

• Press buttons in order to MENUSPECIAL FUNCTIONDOSAGE and there come up “DOSE RATE” on the

LCD.

• DOSEGE : Automatically calculate and set the proper flow rate when the dose rate, body weight, drug mass and solution volume are entered.

• After input each parameter, press [SEL] button. Each mode is comfirmed and turns into next parameter

automatically. Please refer to picture No. ① to ④.

• After setup complete parameter, it turns into picture No. ⑤ automatically and display complete information for

each parameter value.

• Each paramet, you can delet or change the value with [ESC / 2sCLR] or , , , buttons.

• Press [ESC / 2sCLR] button to back previous mode.

① ② ③ ④

NOTE

• Contact local authorized dealer for OPTION SEPC.

IP-7700 / UME-04-REV.10

5. SPECIAL FUNCTION

• As soon as finish input each parameter value, complete data is displayed as picture No. ⑤. Select YES to

confirm the data for DOSAGE mode, it turns into STANDBY mode with confirm sound. Flow rate and Delivery volume are displayed on FND automatically. Press START button to start. If you select NO on the picture No. ⑤, it goes back DOSE RATE mode automatically to setup each parameter again.

⑤

* Range for each parameter

5-2. HISTORY

5-2-1. Check HISTORY

• Get into HISTORY VIEW menu in order to MENUSPECIAL FUNCTIONHISTORY.

• HISTORY : Display last 10 infusion datas, infusion starting time, infusion completing time, FLOW RATE ,

INFUSED VOLUME.

Dose rate

0.01 ~ 99.99㎍/㎏/min. (0.01㎍/㎏/min. increment)

Body weight

0.1 ~ 300.0㎏ (0.1㎏ increment)

Solution volume

0.1 ~ 999.9㎖ (0.1㎖ increment)

Drug volume

0.1 ~ 999.9㎎ (0.1㎎ increment)

NOTE

• Each parameter value should be more than “0”.

• DOSAGE Mode

Flow rate (ml/h) = [{Dose rate(㎍/kg/min.) * Body weight(kg) * Solution volume(ml)}

/ {Drug volume(mg) * 1000}]* 60

IP-7700 / UME-04-REV.10

5. SPECIAL FUNCTION

• Move with , , , buttons and press SEL button to see detail information for each data.

• HISTORY DATA : Last 10 infusion datas only.

5-3.PROFILE (OPTION)

• Get into PROFILE SET menu in order to MENUSPECIAL FUNCTIONPROFILE.

5-3-1. PROFILE LOAD

• PROFILE LOAD : Call back the previous setup data. W hen you select this mode, there is YES or NO selection

mode to start same profile.

• Select “YES” to start same profile with previous setup. The unit turns into STANDBY mode. Press START button

to start PROFILE, the unit start PROFILE mode with displaying “PROFILE” on LCD.

• Select “NO” to setup new PROFILE.

5-3-2. PROFILE SETUP

• PROFILE : Program infusion condition(flow rate, delivery volume, delivery time) differently for every hour, up to 24hours. (Option).

• Select “PROFILE SET UP” and press SEL button to get into below picture mode. Press SEL button to setup time

for each profile, input each time with numerical buttons. Press SEL button to save each time and infusion setup(Flow rate, Delivery volume).

• Setup profile data up to 24hours in order to same process.

• Press START button to save.

NOTE

• Duringe PROFILE function, you can not setup Flow rate, Delivery volume. To stop PROFILE function, make sure PROFILE LOAD setup as “ NO”.

IP-7700 / UME-04-REV.10

5. SPECIAL FUNCTION

5-4.PRO.MODE

Contact local agency or local authorized dealer for this mode.

NOTE

• Time setup increment is hour only (not by minute).

• Maximum profile time is 24hour and 24 kinds of infusion setup available.

• Presetup is “OFF”.

• Problem occurred by user setup is charged on user. Manufactuer does not cover the

problem occurred by incorrect setup or use by user.

IP-7700 / UME-04-REV.10

6. TROUBLE SHOOTING

Take the following actions if any trouble occurs. When the troubles could not be solved with the following

IP-7700 / UME-04-REV.10

6. TROUBLE SHOOTING

actions, Please contact your local authorized dealer immediately.

Symptom

Cause

Action

Pump is not switched on.

• AC or DC power cord is not

connected properly

▶ Check the AC or DC power cord connection.

• Never connect both AC and DC power to the

pump at the same time

• Internal battery has deteriorated

▶ Stop the operation of the pump and replace with a new battery

through your local authorized dealer.

• The voltage of the internal battery is

low.

▶ Recharge the battery fully for more than 6 hours by connecting

the pump to an AC power outlet.

The [AIR] LED flashes and alarm sound goes

off with showing “AIR

IN LINE” on the LCD.

• Air bubble is in the tubing

• IV set is not properly placed

• Air-In-Line detector is stained

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. Close the manual roller clamp on IV set. ▶ 4. Open the door and push the release lever to the right to release

the tubing clamp.

▶ 5. Take the infusion line from the pump and tap the tube to make

the air bubble gather into the drip chamber.(In case that Air-InLine detector is stained, clean it with a gauze cloth or similar, moistened with cold or tepid water)

▶ 6. Set the infusion line back properly in place. ▶ 7. Close and lock the door securely. ▶ 8. Open the manual roller clamp on IV set. ▶ 9. Check the setting delivery rate, delivery limit and volume of

medicine bag.

▶ 10. Restart infusion by pressing [START] button.

• IV set is not compatible with this

pump.

▶ Check the compatibility of IV set with your local dealer.

The [OCC] LED flashes and alarm sound goes off with showing

“OCCLUSION” on the

LCD.

• The manual roller clamp is closed.

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. Open the manual roller clamp on IV set. ▶ 4. Check the setting delivery rate, delivery limit and volume of

medicine bag.

▶ 5. Restart infusion by pressing [START] button

NOTE

• Whenever alarm goes off, the pump stops infusion and [STATUS] LED on the top of the

pump is flashing in red. Alarm sound goes off only in error situation during infusion.

IP-7700 / UME-04-REV.10

6. TROUBLE SHOOTING

Symptom

Cause

Action

The [OCC] LED flashes and alarm sounds continuously showing

“OCCLUSION” on the

LCD.

• The manual roller clamp is closed.

▶ 6. Close and lock the door securely. ▶ 7. Open the manual roller clamp on IV set. ▶ 8. Check the setting delivery rate, delivery limit and volume of

medicine bag.

▶ 9. Restart infusion by pressing [START] button.

• IV set is not compatible.

▶ Check the compatibility of IV set with your local dealer.

• Tubing is kinked or twisted

• IV set is not properly placed

• Tubing is stretched or shrunk

the tubing clamp.

▶ 5. Take the infusion line from the pump, check the infusion line

and take a corrective action like untwisting or replacing with a new one to solve the problem of occlusion.

▶ 6. Set the infusion line back properly in place. ▶ 7. Check the setting delivery rate, delivery limit and volume of

medicine bag.

▶ 8. Restart infusion by pressing [START] button.

The [FLOW] LED flashes and alarm sounds continuously showing

“FLOW ERR” on the

LCD.

Also, [FLOW] LED flashes and alarm sounds continuously in case of Free Flow situation.

• The setting of drop volume is not

correct. (e.g. In case of the use of IV set with 60drops/ml, the drop volume is set at 15drops/ml, 19drops/ml or 20drops/ml.)

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. By pressing [INFUSION SET] button, select the correct drops. ▶ 4. Check the setting delivery rate, delivery limit and volume of

medicine bag.

▶ 5. Restart infusion by pressing [START] button.

• The same site of the tubing has

been set at peristaltic finger section for a long time(over 12 hours).

the tubing clamp.

▶ 5. Either move the tubing connected to this pump at a distance of

more than 10cm to reset or replace IV set with a new one.

medicine bag. ▶ 10. Restart infusion by pressing [START] button.

IP-7700 / UME-04-REV.10

6. TROUBLE SHOOTING

Symptom

Cause

Action

The [FLOW] LED flashes and alarm sounds continuously showing “FLOW ERR” on the LCD.

Also, [FLOW] LED flashes and alarm sounds continuously in case of Free Flow situation.

• IV set is not compatible with this

pump.

▶ Check the compatibility of IV set with your local dealer.

• Tubing is not properly placed

the tubing clamp.

▶ 5. Set the infusion line properly in place. ▶ 6. Close and lock the door securely. ▶ 7. Open the manual roller clamp on IV set. ▶ 8. Make sure to check that the delivery rate, delivery limit and

drop volume that were set.

▶ 9. Restart infusion by pressing [START] button.

• Drip sensor is not securely

attached on the drip chamber on IV set.

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. Attach the drip sensor securely on the drip chamber. Make sure

that the surface of drip chamber and drip sensor is dry.

▶ 4. Make sure to check that the delivery rate, delivery limit and

drop volume that were set

▶ 5. Restart infusion by pressing [START] button.

The [EMPTY] LED flashes, and alarm sounds continuously showing

“EMPTY” on the LCD.

• The solution container is empty

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. In case of completing the infusion, close the manual roller

clamp on IV set and remove the needle from the skin. (In case of continuing the infusion, close the manual roller clamp, remove the needle from the skin and exchange the solution container with a new one and restart infusion by following the operating procedure)

• Air or dew is in Drip chamber

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. Tap the drip chamber to remove air or dew ▶ 4. Make sure to check that the delivery rate, delivery limit and

drop volume that were set.

▶ 5. Restart infusion by pressing [START] button.

• Peristaltic fingers do not move

▶ Stop the operation of the pump and contact your local authorized

dealer.

IP-7700 / UME-04-REV.10

6. TROUBLE SHOOTING

Symptom

Cause

Action

The [EMPTY] LED flashes and alarm sounds continuously showing “EMPTY” on the LCD despite the remaining solution in the container.

• Tubing is kinked or twisted.

• Tubing is stretched or shrunk

the tubing clamp.

▶ 5. Take the infusion line from the pump, check the infusion line

and take a corrective action like untwisting or replacing with a new one to solve the problem of occlusion.

medicine bag.

▶ 10. Restart infusion by pressing [START] button.

• The wire in the cable of the

drop sensor is damaged.

▶ Stop the operation of the pump and contact your local authorized

dealer.

• The drop sensor is stained

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. Clean it with a gauze cloth or similar, moistened with cold or tepid

water.

▶ 4. Attach the drop sensor securely on the drop chamber. ▶ 5. Check the setting delivery rate, delivery limit and volume of

medicine bag. ▶ 6. Restart infusion by pressing [START] button.

• The manual roller clamp on IV

set is closed.

medicine bag. ▶ 5. Restart infusion by pressing [START] button.

IP-7700 / UME-04-REV.10

6. TROUBLE SHOOTING

Symptom

Cause

Action

• Drop sensor is not securely

attached on the drip chamber on IV set.

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. Attach the drop sensor securely on the drop chamber.

Make sure that the surface of drop chamber and drop sensor is

dry. ▶ 4. Check the setting delivery rate, delivery limit and volume of medicine bag. ▶ 5. Restart infusion by pressing [START] button.

The [DOOR] LED flashes and alarm sounds continuously showing

“DOOR OPEN” on the

LCD.

• Door is open.

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. Close and lock the door securely. ▶ 4. Check the setting delivery rate, delivery limit and volume of

medicine bat. ▶ 5. Restart infusion by pressing [START] button.

The [BATTERY] LED in Low level flashes and alarm sounds continuously showing

“BATT LOW” on the

LCD.

• The voltage of the internal battery

is low

▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make “STAND-BY” mode by pressing [STOP] button. ▶ 3. Recharge the battery fully for more than 6 hours by

connecting the pump to an AC power outlet.

• Internal battery has deteriorated

▶ Stop the operation of the pump and replace with a new battery

through your local authorized dealer.

• Before restarting infusion, make sure to check the delivery rate, delivery limit and drop

volume that were set.

• After restarting infusion, check the drip rate to confirm the delivery of the solution at the

selected rate.

• If any irregularity is observed, immediately stop the operation of the pump and contact

your local authorized dealer.

NOTE

• Repeat Alarm Function

: If no action is taken within 2 minutes after the alarm was switched off by press

[SILENCE] button, the repeat alarm will sound.

Because of an industrial waste, used Ni-MH battery must be returned to ampall or distributor.

IP-7700 / UME-04-REV.10

6. TROUBLE SHOOTING

In this pump, the delivery rate is not controlled by the drop sensor detecting the drop rate in the drop chamber. Therefore, to correct the fluctuations of volume of a drop caused by viscosity of solution, the delivery rate and limit should be compensated as follows.

< Example > When 50% Glucose solution is to be delivered at the delivery rate of 100 ml/h, the delivery rate and limit should be compensated by + 10%

Intended delivery rate : 100ml/h → Compensated value : 100ml/hⅹ1.10 = 110ml/h Intended delivery limit : 1,000ml → Compensated value : 1,000mlⅹ1.10 = 1,100ml

1. In case of using IV set of 15, 19 or 20drops/ml

Compensation Rate

Solution

2. Isotonic Sodium Chloride Solution

3. 10% Glucose

4. 20% Fat Emerson

10%

- 50% Glucose

20%

5. 70% Glucose

2. In case of using IV set of 60drops/ml

Compensation Rate

Solution

6. Isotonic Sodium Chloride Solution

7. 10% Glucose

8. 20% Fat Emerson

10%

- 50% Glucose

15%

9. 70% Glucose

• Without the above compensation, the actual delivery rate might be lower than intended

but the pump could not detect it.

IP-7700 / UME-04-REV.10

7. Information on EMC

7.1 Guidance and Manufacturer’s Declaration – Electromagnetic Emissions The EUT is intended for use in the electromagnetic environment specified below. The customer or the user of the EUT should assure that it is used in such an environment.

Emission test

Compliance

Electromagnetic environment - Guidance

RF Emissions CISPR 11

Group 1

The EUT uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment

RF Emissions CISPR 11

Class A

The EUT is suitable for use in ail establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes

Harmonic emissions IEC 61000-3-2

Class A

Voltage fluctuations / Flicker emissions IEC 61000-3-3

Complies

7.2 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The EUT is intended for use in the electromagnetic environment specified below. The customer or the user of the EUT should assure that it is used in such an environment.

Immunity test

IEC 60601 Test level

Compliance level

Electromagnetic environment -Guidance

Electrostatic discharge (ESD) IEC 61000-4-2

±(2,4,6)kV Contact ±(2,4,8)kV air

Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%.

Surge IEC 61000-4-5

AC Mains (Line to Line): ± (0.5, 1) kV (Line to Earth): ± (0.5, 1,2) kV

Mains power quality should be that of a typical commercial or hospital environment.

Power frequency magnetic field immunity IEC 61000-4-8

3 A/m

Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.

IP-7700 / UME-04-REV.10

7. Information on EMC

Voltage dips, short interruptions IEC 61000-4-11

<5% Uт (>95% dip in Uт)

for 0.5cycle

40% Uт (60% dip in Uт )

for 5 cycle

70% Uт (30% dip in Uт)

for 25 cycle

<5% Uт (<95% dip in Uт )

for 5 s

<5% Uт (>95% dip in Uт)

for 0.5cycle

40% Uт (60% dip in Uт)

for 5 cycle

70% Uт (30% dip in Uт)

for 25 cycle

<5% Uт (<95% dip in Uт)

for 5 s

Mains power quality should be that of a typical commercial or hospital environment. If the user of the EUT image intensifier requires continued operation during power mains interruptions, it is recommended that the EUT image intensifier be powered from an uninterruptible power supply or a battery.

NOTE Uт is the A.C. Mains voltage prior to application of the test level.

7.3 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The EUT is intended for use in the electromagnetic environment specified below. The customer or the user of the EUT should assure that it is used in such an environment.

Immunity test

IEC 60601 Test level

Compliance level

Electromagnetic environment - Guidance

Conducted RF IEC 61000-4-6

Radiated RF IEC 61000-4-3

3 Vrms 150 kHz to 80MHz

3 V/m 80 MHz to

2.5GHz

3 Vrms 150 kHz to 80MHz

3 V/m 80MHz to

2.5GHz

Portable and mobile RF communications equipment should be used no closer to any part of the EUT, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.

Recommended separation distance

where P is the maximum output power rating of the

IP-7700 / UME-04-REV.10

7. Information on EMC

transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in meters (m).

Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, a should be less than the compliance level in each frequency range. b Interference may occur in the vicinity of equipment marked with the following symbol :

NOTE 1) At 80MHz and 800MHz, the higher frequency range applies.

NOTE 2) These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the EUT is used exceeds the applicable RF compliance level above, the EUT should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the EUT. b Over the frequency range 150kHz to 80MHz, field strengths should be less than [V1] V/m.

7.4 Recommended separation distances between portable and mobile RF communications equipment and the EUT

There is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the EUT can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the EUT as recommended below, according to the maximum output power of the communications equipment.

IP-7700 / UME-04-REV.10

7. Information on EMC

Rated maximum output power of transmitter [W]

Separation distance according to frequency of transmitter [m]

150kHz to 80MHz

80MHz to 800MHz

800MHz to

2.5GHz

V1=3Vrms

E1=3V/m

0.01

0.116

0.1166

0.2333

0.1

0.368

0.3687

0.7378

1.166

1.1660

2.3333

3.687

3.6872

7.3785

100

11.660

11.6600

23.333

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.

NOTE 1) At 80MHz and 800MHz, the separation distance for the higher frequency range applies.

NOTE 2) These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

7.5 Immunity and Compliance Level

Immunity test

IEC 60601 Test Level

Actual Immunity Level

Compliance Level

Conducted RF IEC 61000-4-6

3Vrms 150kHz to 80MHz

3Vrms

Radiated RF IEC 61000-4-3

3Vrms 80MHz to 2.5GHz

3V/m

7.6 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The EUT is intended for use in the electromagnetic environment specified below. The customer or the user of the EUT should assure that it is used in such an environment.

IP-7700 / UME-04-REV.10

7. Information on EMC

Immunity test

IEC 60601 test level

Compliance level

Electromagnetic environment - Guidance

Conducted RF IEC 61000-4-6

Radiated RF IEC 61000-4-3

3 Vrms 150 kHz to 80MHz

3 V/m 80 MHz to

2.5GHz

3 Vrms 150 kHz to 80MHz

3 V/m 80MHz to

2.5GHz

The EUT must be used only in a shielded location with a minimum RF shielding effectiveness and, for each cable that enters the shielded location with a minimum RF shielding effectiveness and, for each cable that enters the shielded location

Field strengths outside the shielded location from fixed RF transmitters, as determined by an electromagnetic site survey, should be less than 3V/m.a

Interference may occur in the vicinity of equipment marked with the following symbol:

NOTE 1) These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

NOTE 2) It is essential that the actual shielding effectiveness and filter attenuation of the shielded location be verified to assure that they meet the minimum specification.

a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength outside the shielded location in which the EUT is used exceeds 3V/m, the EUT should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as relocating the EUT or using a shielded location with a higher RF shielding effectiveness and filter attenuation.

IP-7700 / UME-04-REV.10

8. SPECIFICATION

SPECIFICATION

INFUSION

FLOW RATE

1 ~ 1000ml/h (1ml steps) / 1.1 ~ 999.9ml/h (0.1ml steps)

ACCURACY WITH APPROVED I.V. SET

ml/h control mode: ±5%

DELIVERY VOLUME

0.1 ~ 9999ml

TOTAL INFUSED VOLUME

0.1 ~ 9999ml

K.V.O RATE

IV set: 15, 19, 20ml - 3ml/h / IV set: 60ml - 1ml/h

(Adjustable from 1~10ml/h)

MECHANICAL

PUMPING MECHANISM

Linear Peristaltic Finger

DROP SENSOR

External (Optional)

DIMENSIONS (W×D×H)

100×190×250 (mm)

WEIGHT

Approximately 3.5kg

ALARM

FEATURES

PURGE RATE

Adjustable from 1 to 1000ml/h

NURSE CALL

DC 24V, 0.5A

KEYPAD LOCK, RETAIN MEMORY, REMAINNING TIME, ALARM REPEAT, OPEN SYSTEM(Calibration is available for 10 brands of IV sets), K.V.O., PURGE, BOLUS, OCC LEVEL(9 steps : 4.5~14.5 psi), HISTORY CALLBACK, DOSAGE MODE, NURSE CALL(OPTION), PROFILE(OPTION), CENTRAL SYSTEM(OPTION)

OTHER PARAMETERS

POWER REQUIREMENTS

AC100 / 240V, 50 / 60Hz or DC24V 2A, 12V 4A / 45VA

POWER CONSUMPTION

40VA

CLASSIFICATIONS

Class IIb / Internal power supply / Type CF

BATTERY / OPERATION / CHARGING

Ni-MH9.6V, 2000mAh / 4 hours (at 125ml/h) / more than 6 hours

BATTERY LIFE

1.5~2 years

OPERATION CONDITIONS

10~40℃, 30~85% RH (no condensation)

STORAGE CONDITIONS

-10~45℃, 10~95% RH (no condensation)

ATMOSPHERIC CONDITIONS

800 ~ 1100 hPa

WARRANTY PERIOD

1 year

Expected service Life

5 years

AIR IN LINE, OCCLUSION, DOOR OPEN, EMPTY CONTAINER, K.V.O. RATE( INFUSION COMPLETION), LOW BATTERY, REPEAT ALARM, FLOW ERROR (I.V. SET FREE FLOW PROTECTION), DEIVCE MALFUNCTION

IP-7700 / UME-04-REV.10

SYMBOL

Meaning

Symbol

Please read this instructions for use:

Manufacturer

Manufacture Date

Instruction for User Manual

Lot number:

WEEE Mark

Device Serial Number

European certificated company which represents us

Waterproof level

Type CF Equipment (Protection against electrical shock)

Protection from heat and sunlight

Power on-off

IP-7700 / UME-04-REV.10

AMPall warrants that the product shall be free from defects in workmanship and materials for the warranty period. The warranty is void if failure of the product has resulted from accident, alteration, abuse or misapplication to include unauthorized opening of the product.

Under the warranty, AMPall shall repair or replace at its option and expense any products found defective by the customer during the warranty period and returned to an authorized AMPall representative. Return of the repaired or replaced product to the customer’s original location shall be at the expense of AMPall unless AMPall determines that the products are not defective within the terms of the warranty. In such case the customer shall pay AMPall all costs of handling, transportation and labor.

This warranty is in lieu of all other warranties whether expressed or implied.

• Manufactuer; AMPall Co.,Ltd. 3F, Annex Hankook Junja Hyeopdong B/D, 114, Gasan digital 2-ro, GeumChean-gu, Seoul, Korea. TEL: +82 - 2 - 858 - 2839~41 FAX: +82 - 2 - 858 - 2442 E-mail: ampall@ampall.com

• EC Representative : CE medical Amerlandseweg 7 3621 ZC Breukelen, The Netherlands TEL: +31 (0)85 007 3220 E-mail: info@ce-mark-medical.com

IP-7700 / UME-04-REV.10

Thank you for your purchasing for AMPall product. The warranty period

of IP-7700 is valid from the purchasing date. Please notice the purchasing

date on the warranty card and keep this Warranty Card with the device all the time to get full customer service.

Product Name

Infusion Pump

Model Name

□ IP-7700

Manufacturing Date

Warranty Period

1 years

Purchasing Date

/ / (year/ month/ date)

Customer Name: Tel.:

Add.:

Retailer Name: Tel.:

Add.:

Repairing Record

Date

Contents of Repair

Confirmation

☆ Please show this Warranty Card when you request repairing service.

3F. Annex Hankook Junja Hyeopdong B/D,

114, Gasan digital 2-ro, Geumcheon-gu, Seoul, Korea.

TEL : +82 - 2 - 858 - 2839~41 / FAX : +82 - 2 - 858 – 2442

E-mail : ampall@ampall.com / Website: www.ampall.com

Warranty Card

Gima MICRO INFUSION PUMP User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
