Gima D 351 User Manual

D 351

IMPULSE HEAT-SEALER

v.1.5

Impulse sealer GIMA D 351

WARNING

BEFORE USING THE MACHINE, READ CAREFULLY THIS MANUAL FOR A CORRECT USE IN ACCORDANCE WITH THE SAFE RULES.

CONTENTS

I SAFETY RULES page 1

II EXPECTED USE page 1

III CHARACTERISTICS page 2

IV MACHINE INSTALLATION page 2

V LIST OF THE EXTERNAL PARTS page 3

VI INSTRUCTIONS FOR USE page 4

VII MAINTENANCE page 7

VIII LIST OF THE INTERNAL PARTS page 12

IX ELECTRICAL DIAGRAMS 230 Vac page 13

X LIST OF THE SPARE PARTS FOR THE NORMAL MAINTENANCE page 14

XI LIST OF THE SPARE PARTS FOR THE EXTRAORDINARY MAINTENANCE page 14

XII PROBLEMS & SOLUTIONS page 16

XIII WARRANTY TERMS page 17

XIV SPARE PARTS ORDERING page 17

XV HOW TO DISCARD THE MACHINE page 17

CE DECLARATION OF CONFORMITY

SYMBOLS:

I

warning meaning danger

warning meaning particular suggestion

warning meaning suggested maintenance

Impulse sealer GIMA D 351

I. SAFETY RULES

In this manual we give you all the instructions for a correct use of the machine and for its maintenance.

• This is the reason why the operator must be properly trained and have full knowledge of the contents of this manual.

• If the operator can not read it, the responsible has to do the necessary, also the translation into the known language.

• The machine can be used only for the employ for which has been created.

• The machine has to be used by properly trained operators.

• The heat-sealer must be used only indoor and in a dampness free environment.

• Before opening the machine, unplug it from the main power supply.

• Never introduce in the sealing area anything except the bag to be sealed.

• Do not introduce in any opening of the heat-sealer machine metallic objects, to avoid electrical shocks.

• To guarantee a constant and regular functioning of the machine, it is important to keep clean the machine.

• Do not clean the heat-sealer with fluid or spray cleaners. Clean only by a slightly moist cloth.

• Use only original spare parts.

• It is advisable to have the heat-sealing machine checked by a qualified technician every year.

• In case of repair or checking, we can modify the machine to improve its functioning and development.

GIMA s.p.a. is not responsible for direct and indirect damages derived from an incorrect use of the heat-sealer.

II. EXPECTED USE

The GIMA D 351 is an electrical impulse sealing machine for closing sterilization bags as per DIN 58953 P. 7 rules.

IT HAS NOT TO BE USED FOR ANY DIFFERENT EMPLOY

1

Impulse sealer GIMA D 351

III. CHARACTERISTICS

• Sealable materials: paper/polypropilene/polyesther-tyvek/polyesther-polyethilene

• sealing rules DIN 58953 P. 7 rules

• Sealing length: mm. 350

• sealing width: mm. 8

• Electronic control of the sealing time from 0÷5 sec.

• Incorporated cutting device.

• Power supply: 230V - 50/60 Hz mono-phase

• Max. absorption 900 W only during the sealing.

• Dimensions:

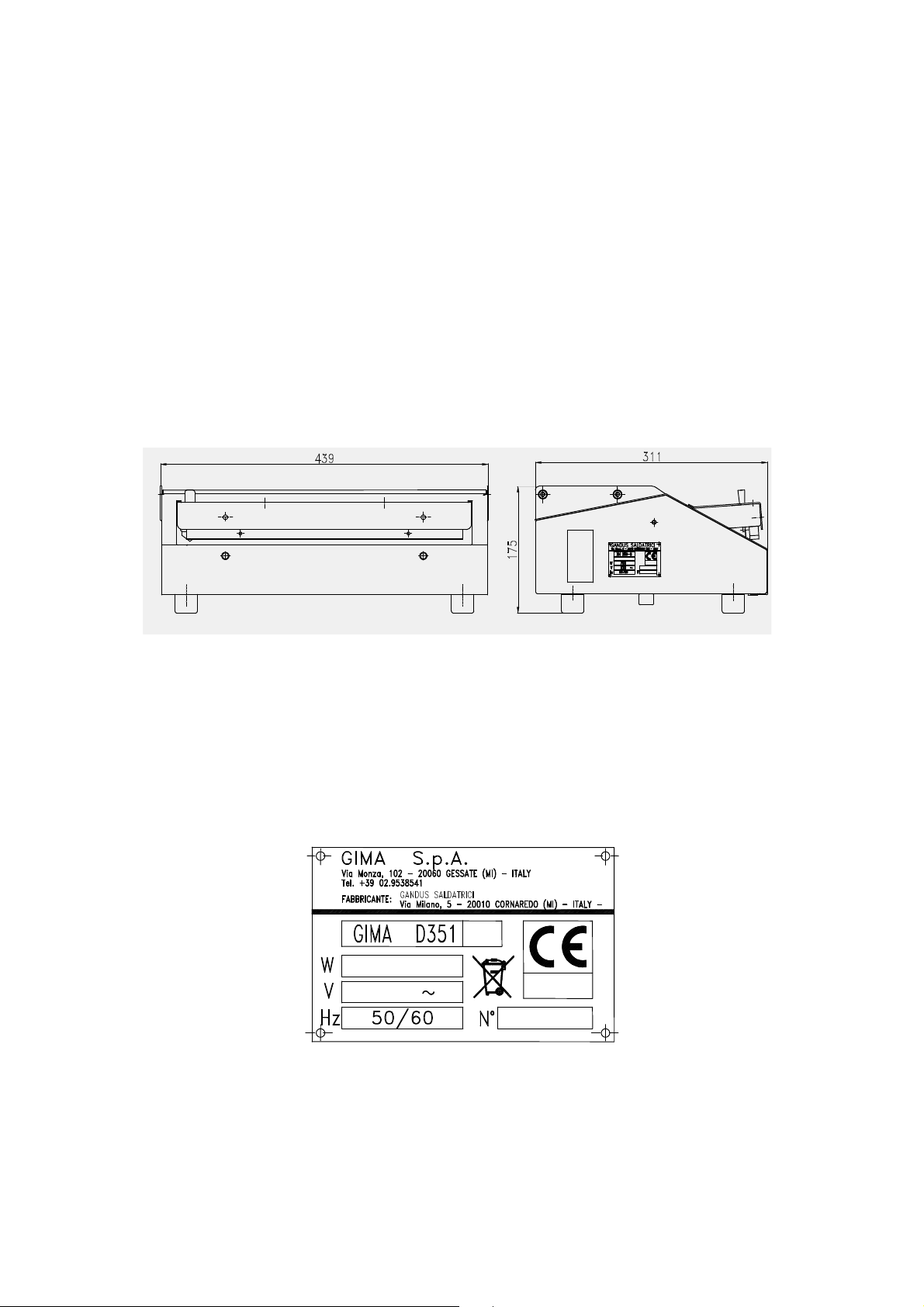

width mm. 439 height mm. 175 dept mm. 311

• Weight: Kg. 18

• CONSTRUCTION AS PER CEI EN 60204-1 RULES

IV. INSTALLATION

• Use the machine only indoor, in dampness and moistness free environment.

• Set it on an enough solid table

• Only after checking that the luminous switch (n. 2 pict 2) is in “O” position, link the machine, through the

cable (n° 1 pict. 1), into a earthed power source with the same voltage marked on the target as the one below.

2

Impulse sealer GIMA D 351

1

2

3

9

6

4

5

3

1

8

4

7

2

5

V. LIST OF THE EXTERNAL PARTS

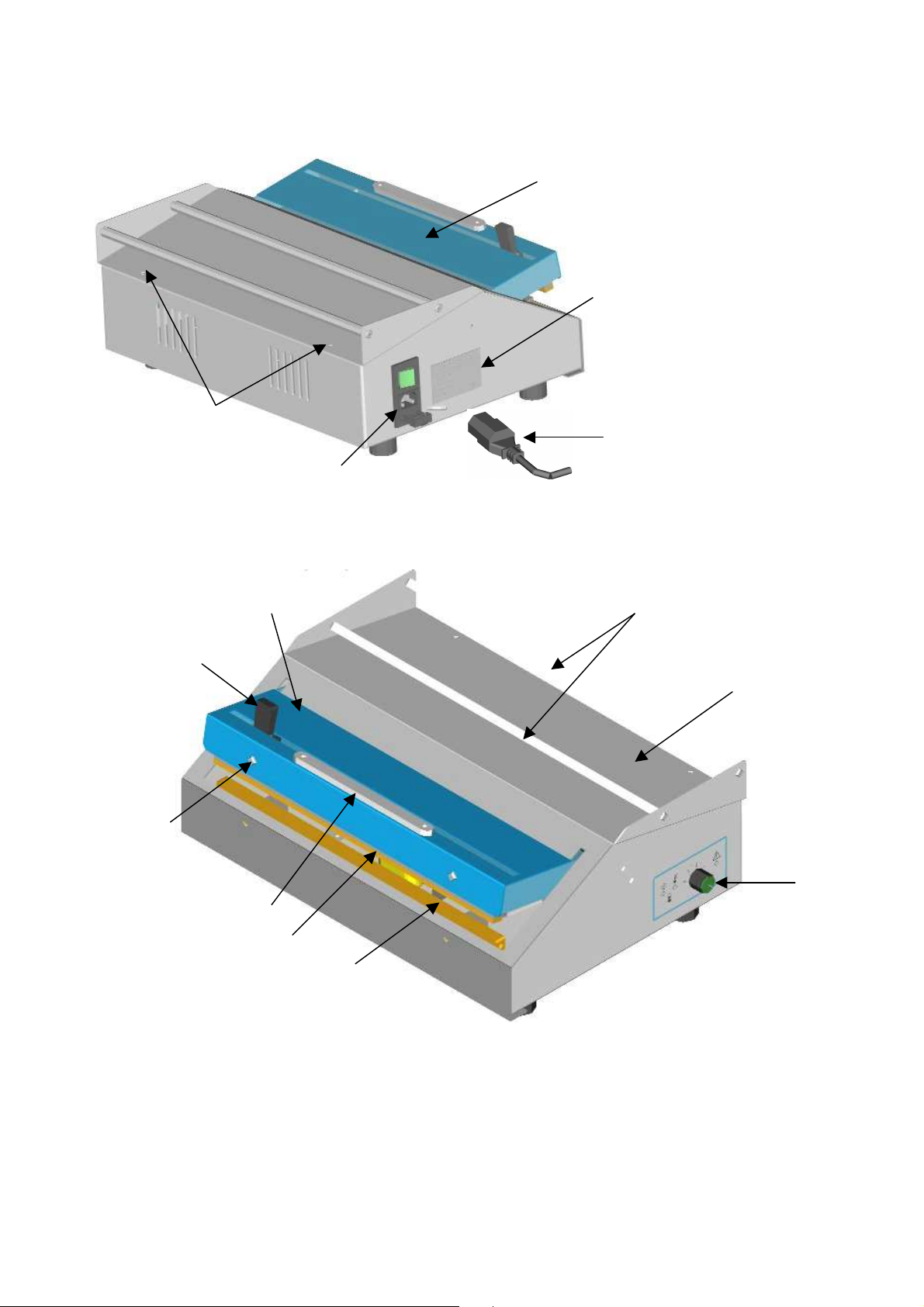

1 : power supply cable 3 : identification data plate 2 : main switch 4 : rear cover fixing screws 5 : pivoted plain

pict. 1

pict 2

1 cover 2 spool rolls 3 pivoted plain cover 4 cutter knob 5 pivoted plain cover fixing screws

6 pivoted plain knob 7 upper mobile bar 8 lower sealing bar 9 command panel knob

3

Impulse sealer GIMA D 351

2

3

2

1

4

pict. 3

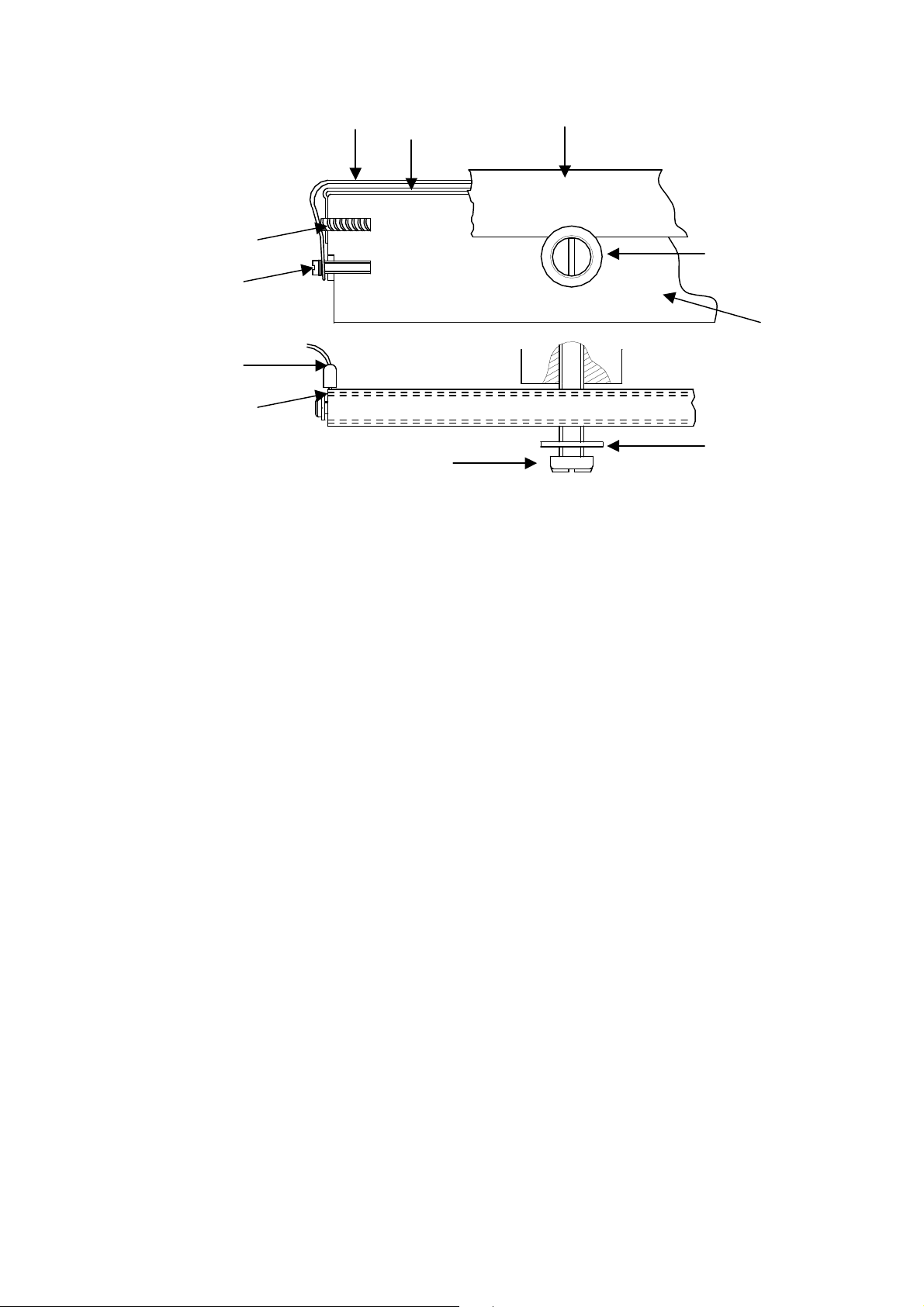

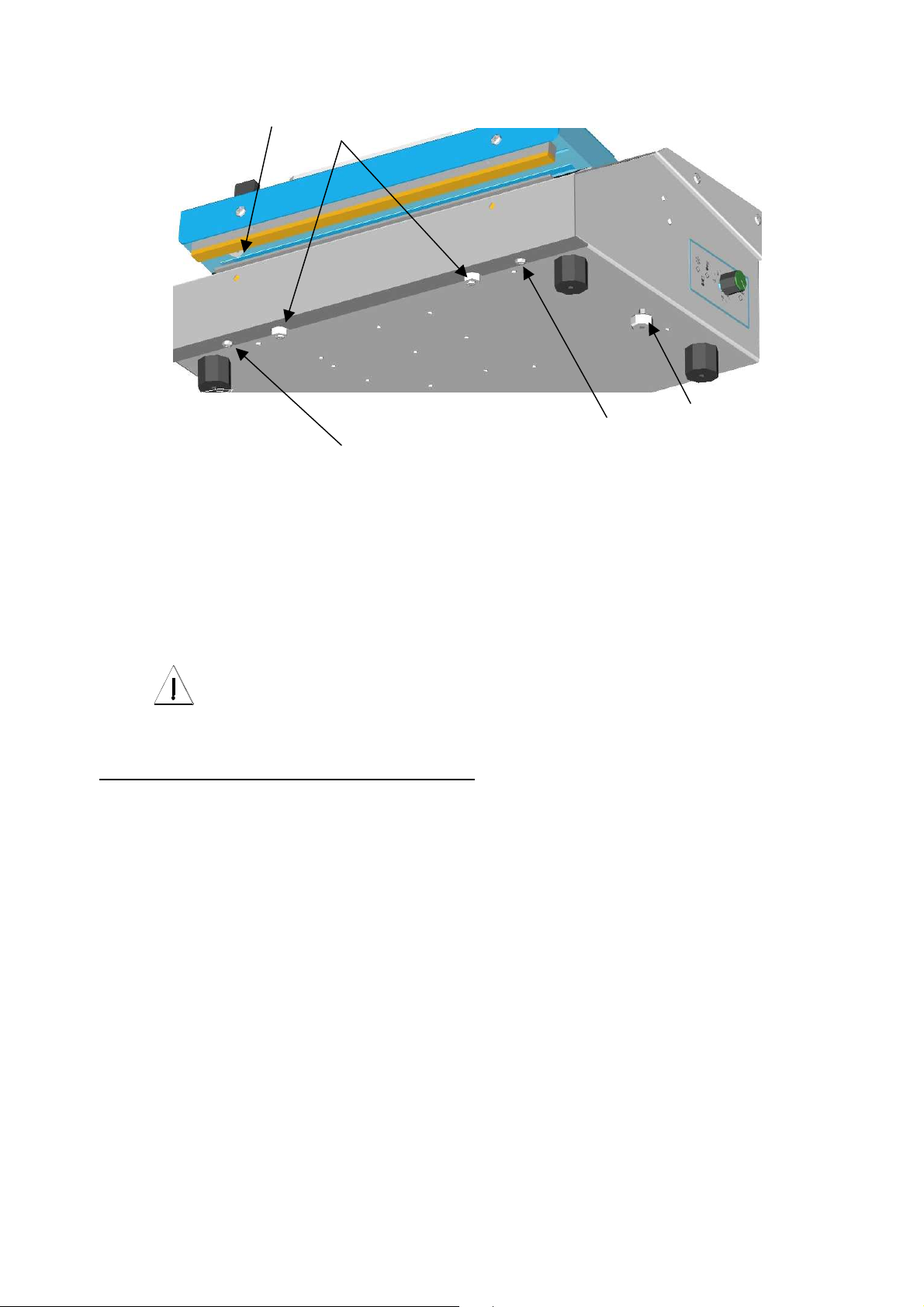

1 : adjustment opening bars ball grip 3 : lower bar adjustment screw locknuts 2 : lower fixing cover screws 4 : cutter blade

VI. INSTRUCTIONS FOR USE

THE OPERATOR HAS TO BE TRAINED AND KNOW THE CONTENTS OF THIS

CLOSING OF PREFORMED BAGS AFTER FILLING

• Put the luminuous switch (n. 2 pict. 1 ) in “I” position. This one will switch on and the heat sealer will be

ready for the use.

• Adjust the sealing time, through the potentiometer (n. 9 pict 2), setting the right value according to the bags to

seal (see SUGGESTED SEALING TIME).

• Introduce the mouth of the bag between the bars to let a free edge, quite mm. 20, over the seal.

• Through the pivoted plain knob (n° 6 pict. 2), exercise a little pressure on the moving bar (n° 7 pict. 2 ), the

bar will close for the set sealing time and the sealing led (n° 2 pict. 4 ) will switch on ,showing the sealing phase.

• As the sealing led (n ° 6 pict. 4) switch off, the cooling led (n°1 pict. 4) automatically will switch on and the

bars will kept in pressure the time necessary to obtain a perfect seal.

• As this cooling led switch off, the bars will automatically open to allow to the operator to take out the bag

sealed.

MANUAL

4

Impulse sealer GIMA D 351

4

3

2

1

THE SEALING TIME HAS TO BE SET ACCORDING TO THE SPECIFICATIONS OF THE

A comparative electronic control limits the heating of the resistance to avoid any overheating in case of fast sealing sequence.

BAG TO BE SEALED AND THE DESIRED OUTPUT.

WE SUGGEST YOU TO KEEP AN OUPUT OF 6/7 SEALS PER MINUTE.

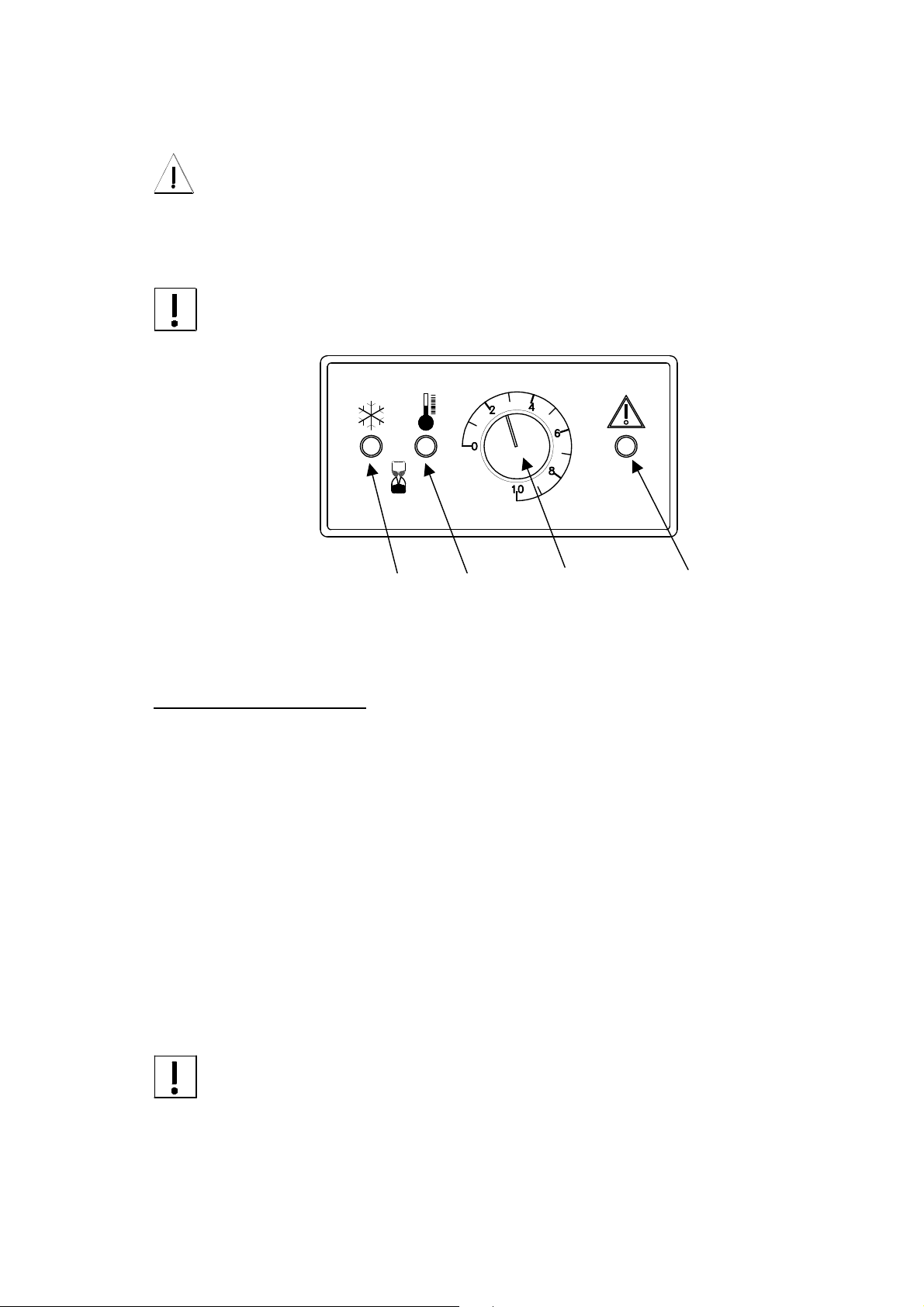

pict. 4

1 : led cooling phase 3 : sealing time adjustment knob 2 : led sealing phase 4 : sealing phase alarm led

SUGGESTED SEALING TIME

The DN 350 S is equipped through a electronic matching system that limits the sealing wire heating during its use to avoid high heating storing up in case of rapid sealings sequence. Than the set time about the a) case is suitable only for the first and/or second sealing.

a) first sealing or long sealing intervals

FLAT BAGS: potentiometer knob (n° 3 pict 4) in position 8/10 (*) BAGS WITH GUSSET: potentiometer knob (n° 3 pict 4) in position 8/10 (*)

b) sealing made in rapid sequence

FLAT BAGS: potentiometer knob (n° 3 pict 4) in position 8/10 (*) BAGS WITH GUSSET: potentiometer knob (n° 3 pict 4) in position 8/10 (*)

(*) depending by the real supply voltage line

after the automatic re-opening of the sealing jaw, at the end of the cycle , we suggest to wait

for 4 or 5 sec. before doing the next seal, in order to get a max max output of 6/7 per minute

5

Impulse sealer GIMA D 351

SAFETY ELECTRONIC CONTROL

In case of fault of the heating electronic control, the RED WARNING led (n° 4 pict. 4) will switch on and, in the same time, the power supply of the resistance will be interrupted .

In this case stop the production and get in touch with your Dealer Service Department.

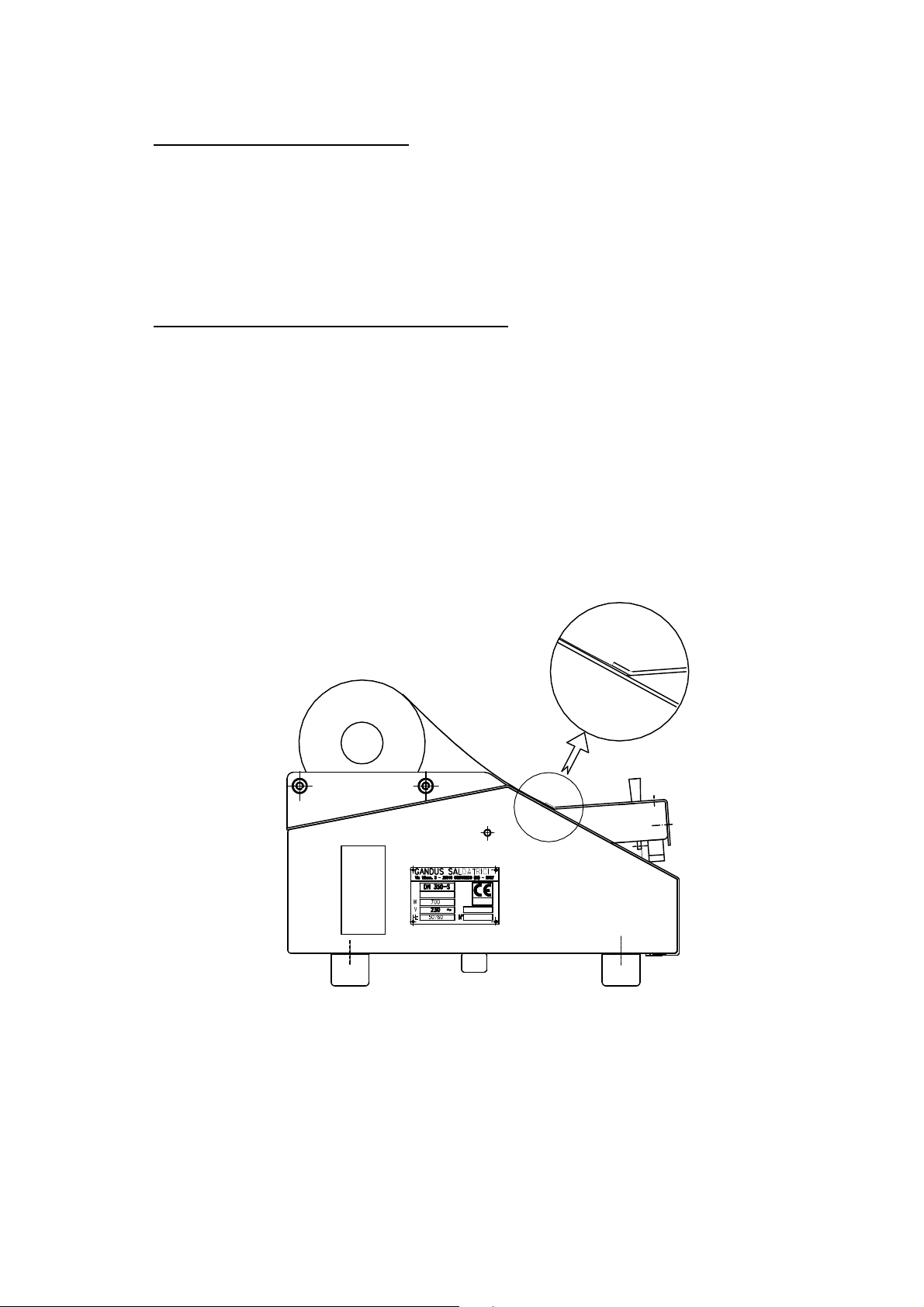

PRODUCTION OF POUCHES FROM THE SPOOL

• The spool can be cut both form right or left and viceversa.

Then take the cutter knob (n°4 pict 2) to one the two edges to allow the spool in-feed.

• Place the spool on the rolls (n° 2 pict. 2) and introduce the spool edge through the slit, as shown in the pict. 5. till it will exit between the sealing bars (n° 7 and 8 pict. 2), to get the desired pouch length you would produce.

• Through the pivoted plain knob (n° 6 pict. 2), start the sealing cycle

• While the bars are closed, during the sealing and the cooling phases, let flow on the side the cutter

knob (n° 4 pict. 2) to cut the spool.

• At the end of the cycle, the bars will open and the bag is ready to be filled.

• Repeat the in-feed operation, to prepare the next pouch

pict. 5

6

Impulse sealer GIMA D 351

VII. MAINTENANCE

IT CAN BE EFFECTUATED ONLY BY TRAINED TECHNICIANS

1) machine opening procedure :

To access top the inner components it is needed to remove the cover (n° pict. 2) of the machine.

Do as follows :

a) extract the cutter knob (n° 4 pict. 2) in vertical direction

ALWAYS UNPLUG THE POWER SUPPLY CABLE (n° 1 pict. 1)

b) unscrew the two rear screws (n° 4 pict. 1) and the two lower screws (n° 2 pict. 3) c) Remove the cover (n° 3 pict. 2) of the pivoted plain , after to have unscrewed its fixing screws (n° 5 pict. 2)

2) glass-PTFE protective cloth (n. 24 pict. 7)

The protective cloth could be damaged for normal use , for too long sealing time, or for the casual introduction of any tools between the bars.

For the replacement proceed as follows:

b) unscrew and remove the two screws (n° 1 pict. 6) c) extract the lower sealing bar (n° 8 pict. 2) from the machine

PAY ATTENTION TO THE CUTTER BLADE (n° 4 pict. 3)

d) unthread in front , the cover from the machine

a) set the pivoted plain (n°3 pict. 6) on the max opening using the adjustment opening bars ball

grip (n°1 pict. 3) located underneath the base of the machine, loosen its locknut.

To work more softly , unplug the two power supply cable (n° 30 pict. 7) from the tails of the bar. d) replace the old cloth with a new one. The original spare clothes have adhesive bands to facilitate the application

e) fit back the sealing bar proceeding on the contrary. f) before tighten the two screws (n. 1 pict. 6 ), be sure that the bar perfectly leans on its own

stands (n° 2 pict. 6)

It is very important that the bags do not make any crumples

7

Impulse sealer GIMA D 351

2

1

h

3

4

do not loosen the two adjustement stands (n° 2 pict. 6)

g) restore the opening of the pivoted plain to its work position : act through the ball grip (n°1 pict. 3) till

to get the “h” gap = 8 mm. as shown in the picture n° 6

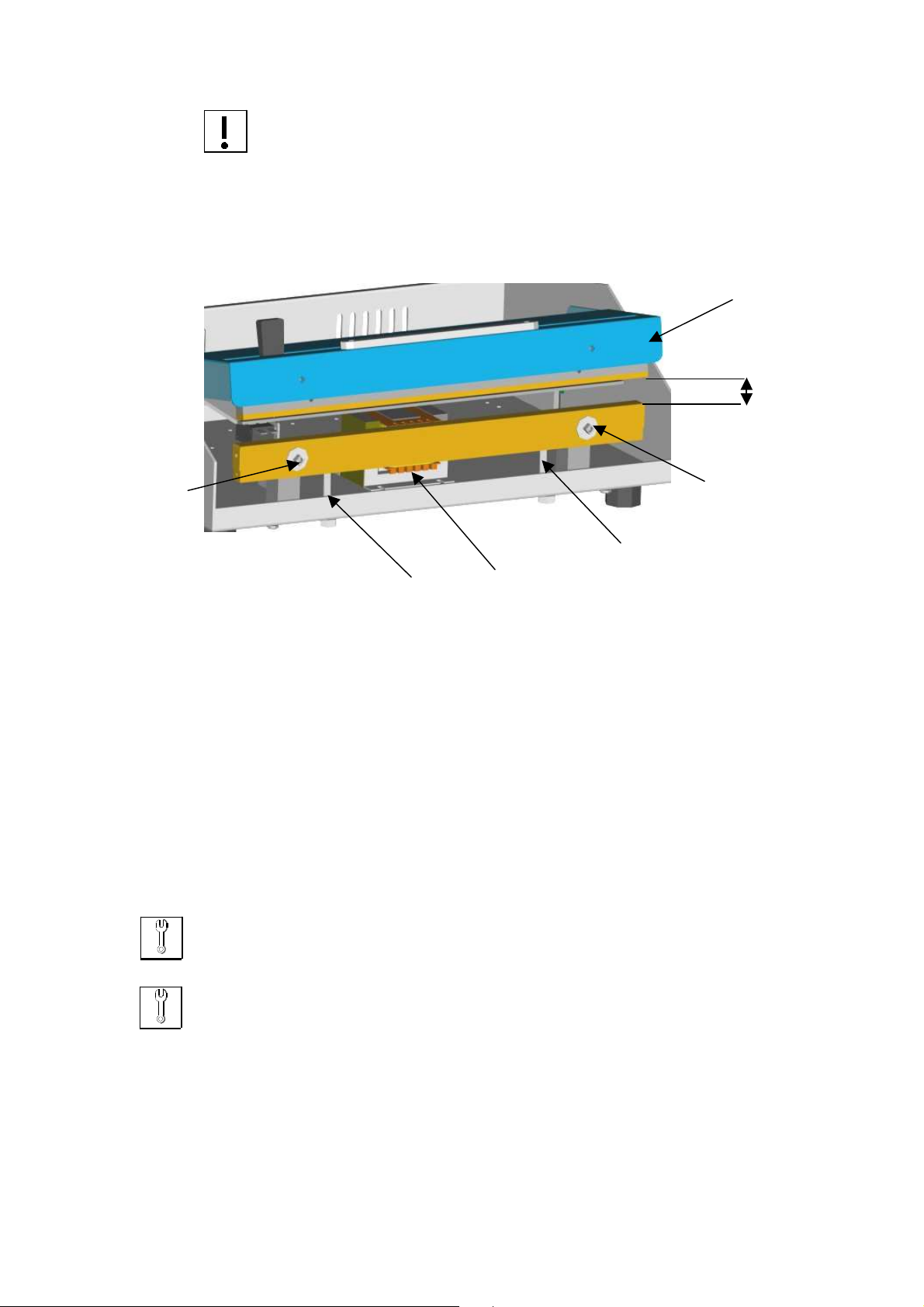

1 : lower sealing bar fixing screws 3 : pivoted plain 2 : lower sealing bar adjustment stand 4 : electromagnet

3) lower sealing bar resistance replacement

The resistance could be deformed or interrupted because of a casual introduction of chirurgical tools or any other solid objects between the bars.

For the replacement, follow the upper instructions till the point c) removing the protective cloth too. Then :

a) unscrew the two screws (n° 28 pict 7)

b) remove the damaged resistance keeping care that you do not loose the two sockets (n° 27 pict.7) and

the two compensation springs (n° 29 pict. 7)

c) check the sub-resistance band (n° 26 pict. 7) and , if damaged, replace it.

d) Fit back all proceeding on the contrary.

the resistance must be fit well stretched during its fitting through the screws (n° 28 pict 7).

pict. 6

do not act the machine without the sealing wire connect to the timer board, to avoid damage to the probe NTC located on the timer board

8

Impulse sealer GIMA D 351

25

14

24 26

13

12

29

27

28

30

pict. 7

12 sealing bar 13 sealing bar fixing screw 14 glass-PTFE fixing washer 24 glass-PTFE protective cloth 25 resistance

4) upper mobile bar protections replacement

The protective cloth (n° 31 fig. 8 ) and the pressure rubber (n° 32 fig. 8 ) of the upper mobile bar (n° 16 pict. 8 or n° 7 pict. 2) could consume or damage.

For the replacement proceed as follows:

a) extract the cutter knob (n° 4 pict. 2) in vertical direction b) remove the pivoted plain cover (n° 3 pict. 2) after unscrewing the two screws (n° 5 pict. 2) c) remove the upper mobile bar (n° 16 pict. 8) after unscrewing the two fixing screws (n° 20 pict. 10) Check the protective cloth and pressure rubber conditions and , if necessary, replace them d) during the fit back, check that the upper mobile bar will be aligned and parallel with the lower sealing bar , before to tighten its screws.(n° 20 pict. 10)

26 sub-resistance band 27 socket 28 resistance fixing screw 29 compensation spring 30 resistance supply cable

9

Impulse sealer GIMA D 351

pict. 8

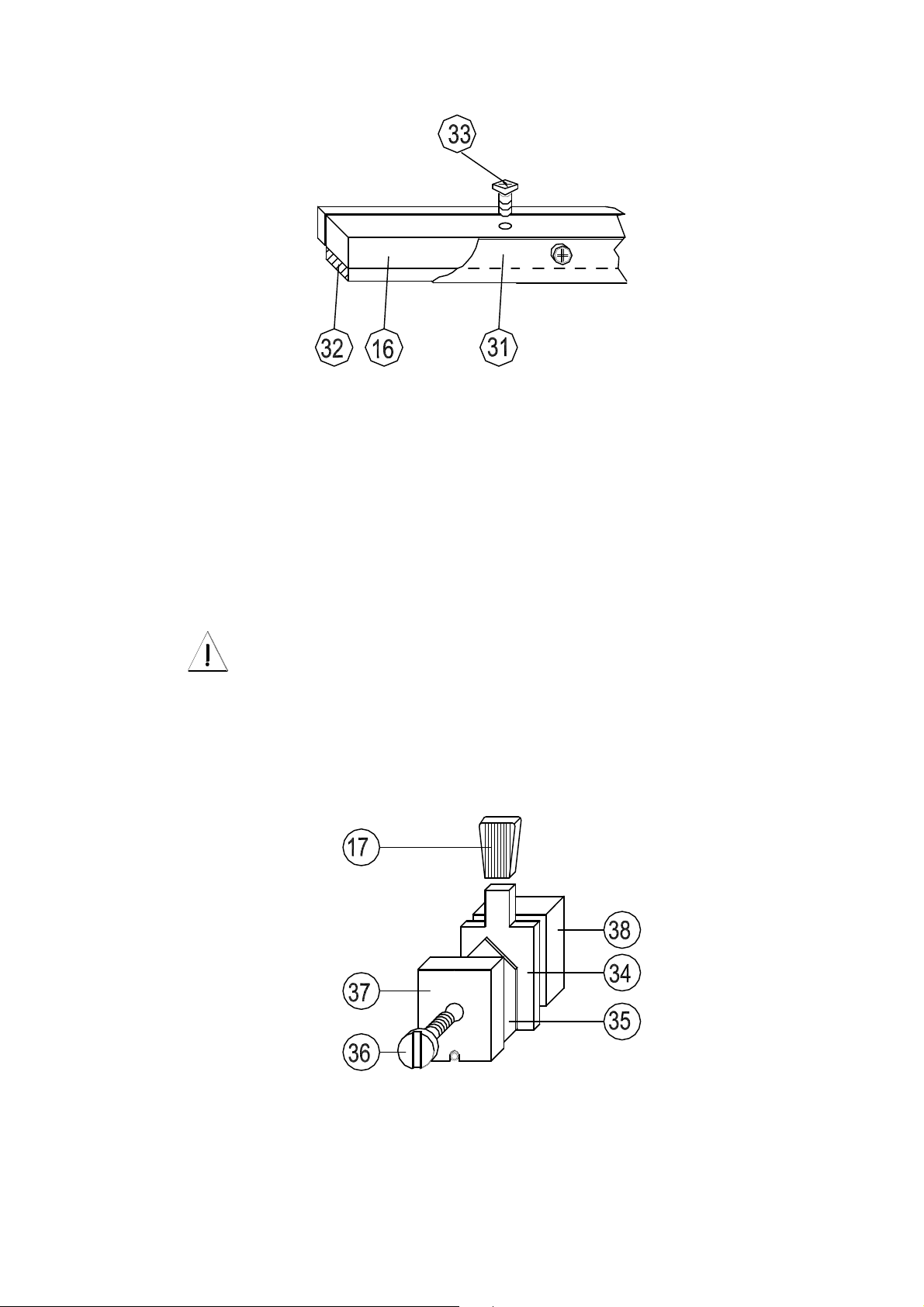

16 upper mobile bar 32 pression rubber 31 glass-PTFE protective cloth 33 bar fixing screw

5) cutter blade replacement :

The cutter group blade has a time-life . For the replacement proceed as follows :

TAKE MUCH CARE NOT TO HURT YOURSELVES WITH THE KNIFE

a) extract the cutter knob (n° 4 pict. 2) in vertical direction

b) remove the pivoted plain cover (n° 3 pict. 2) after unscrewing the two screws (n° 5 pict. 2)

c) Move the cursor (n. 34 pict 9) totally on the left and remove it from its place on the top (see pict. 10)

d) Remove the knife (n. 35 pict 9), loosing the fixing screws (n. 36 pict 9).

e) the blade has four sharps : check if one of them is working too. On the contrary replace the blade.

f) fit back on the contrary

17 knob 36 blade fixing screw

34 cursor 37 plate

35 blade 38 guide support

pict. 9

10

Impulse sealer GIMA D 351

6) line fuses replacement

The 4 A protection line fuses could be interrupted , if the green light of the main switch (n° 2 pict. 1) does not light

and the machine does not work.

b) extract the fuses from the fuse box ( see below) and replace them with other of the same kind and with the same value.

UNPLUG THE POWER SUPPLY CABLE (n°1 pict.1)

a) Set the main switch (n° 2 pict. 1) in position OFF (“0”).

pict. 10

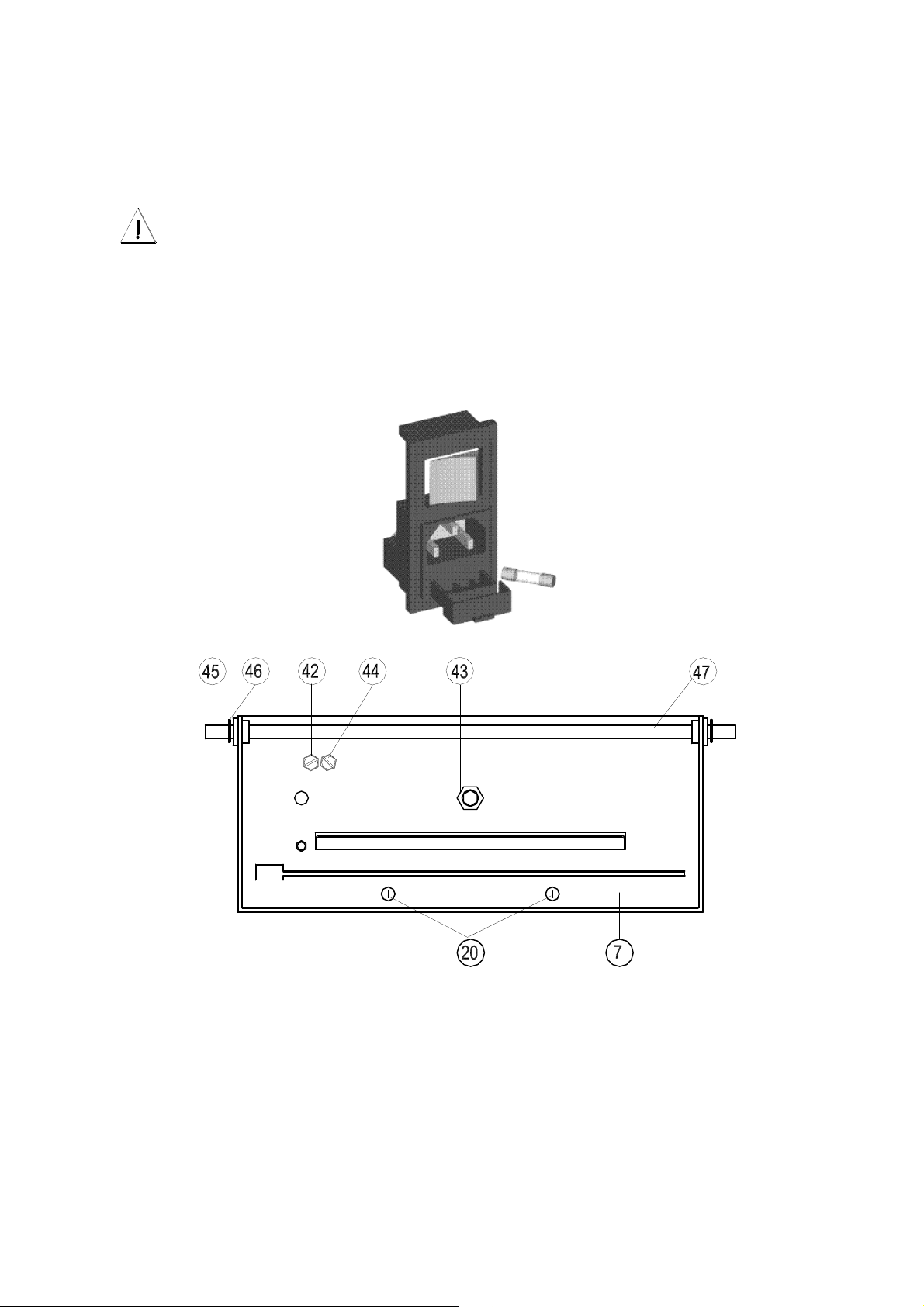

7 pivoted plain 44 resistance supply micro switch adjustment screw 20 upper mobile bar fixing screw 45 bushing 42 electromagnet starting micro switch adjustment screw 46 elastic ring 43 electromagnet pressure adjustment screw 47 pivot

11

Impulse sealer GIMA D 351

VIII. LIST OF THE INTERNAL PARTS

pict. 11

2 main switch 50 transformer 3 electric supply socket 51 electronic timer board 4 line fuses box 52 EMQ ant jamming filter 12 lower sealing bar 53 command panel board 48 opening pivoted plain spring 54 electromagnet & resistance start micro switch 49 electromagnet 55 electronic safety board 56 adjustment opening bars ball grip

12

Impulse sealer GIMA D 351

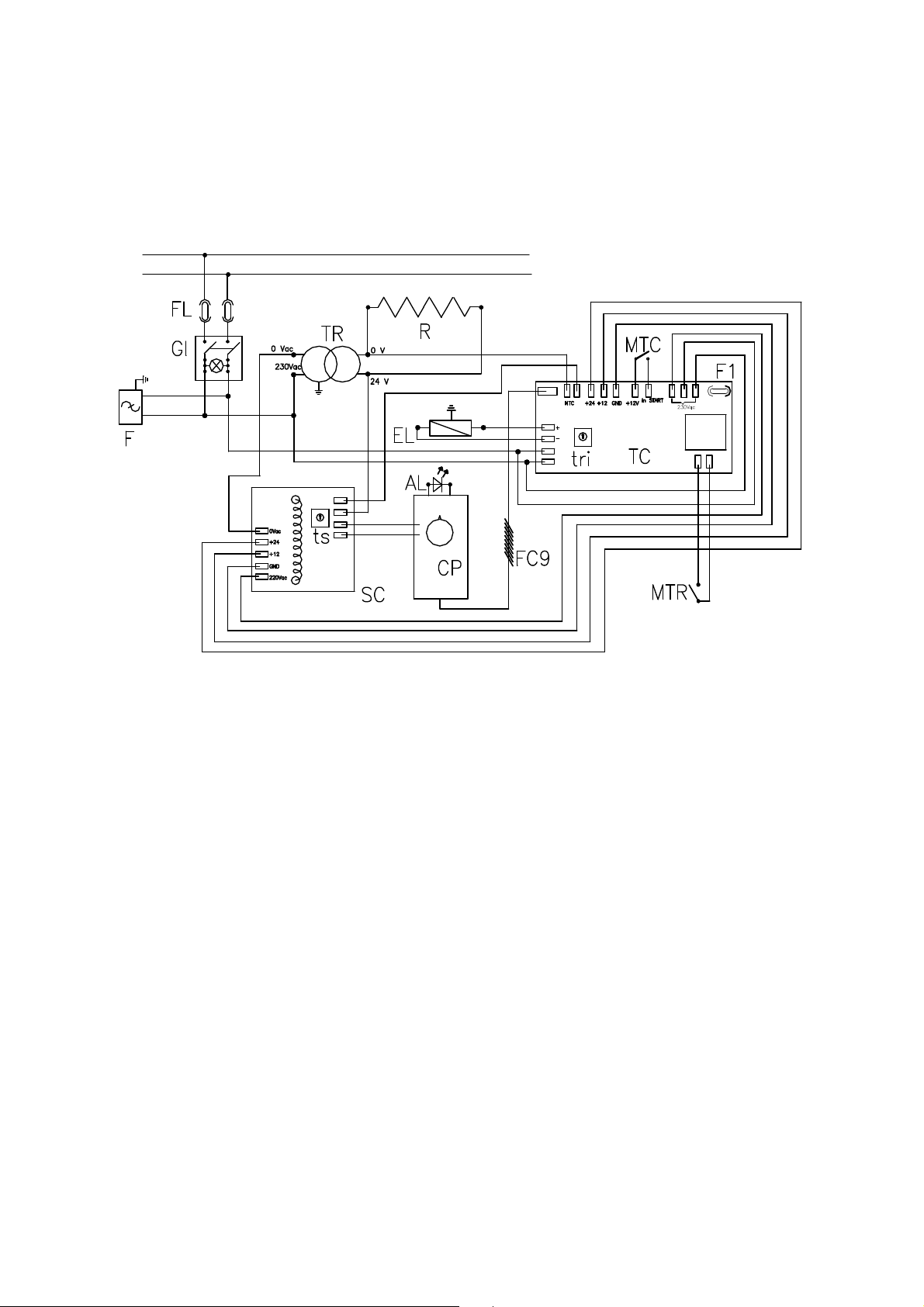

IX. ELECTRIC DIAGRAM

line 230 Vac 50/60 Hz

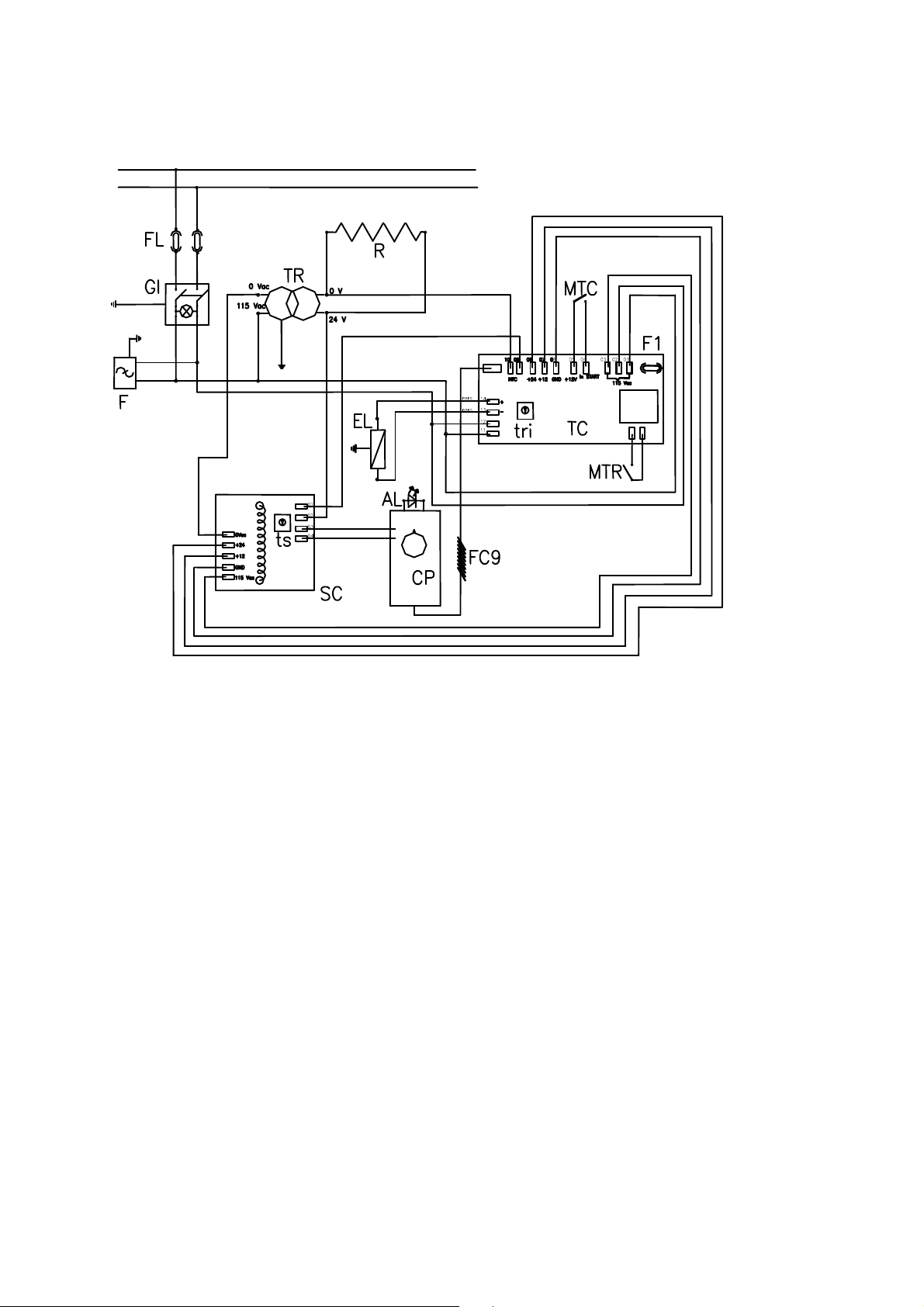

AL alarm led MTC cycle starting micro switch (elettromagnet) CP command panel MTR heating starting micro switch EL electromagnet R strap resistance F ant jamming filter SC electronic safety board FC9 flat cable 9 pins TC electronic timer board FL fuses 4 AF TR transformer 250VA , 230 / 24 Vac F1 fuse 100 mA tri cooling time adjustment trimmer GI main switch ts safety time trimmer

13

Impulse sealer GIMA D 351

line 115 Vac 50/60 Hz

AL alarm led MTC cycle starting micro switch (elettromagnet) CP command panel MTR heating starting micro switch EL electromagnet R strap resistance F ant jamming filter SC electronic safety board FC9 flat cable 9 pins TC electronic timer board FL fuses 6,3 AF TR transformer 250VA , 1150 / 24 Vac F1 fuse 100 mA tri cooling time adjustment trimmer GI main switch ts safety time trimmer

14

Impulse sealer GIMA D 351

X. LIST OF THE SPARE PARTS FOR THE NORMAL MAINTENANCE

CODE POSITION SET

n° pieces

20010 12 pict. 7 1 complete sealing bar 20001 24-30 pict. 7 10 protec. cloth for upper & lower bar 20002 25 pict. 7 5 strap resistance 20003 26 pict. 7 3 sub-resistance band 20012 27+28 pict. 7 1 socket+screw 06032 29 pict. 7 4 compensation spring 20011 16 pict. 8 1 complete upper mobile bar 20005 32 pict. 8 3 pressure rubber 48002 35 pict. 9 1 blade

XI. LIST OF THE SPARE PARTS FOR THE EXTRAORDINARY MAINTENANCE

CODE POSITION SET

n° pieces

DB 90061 2-3-4 pict. 11 1 main switch DB 20011 52 pict. 11 1 ant jamming filter

90029 54 pict. 11 2 starting micro switches 20015 49 pict. 11 1 Elettromagnet 20016 50 pict. 11 1 Transformer 20004 51 pict. 11 1 electronic timer board 20025 55 pict. 11 1 electronic safety board

DESCRIPTION

15

Impulse sealer GIMA D 351

The closing bar control micro switch

XII. PROBLEMS & SOLUTIONS

PROBLEM CAUSE SOLUTION The machine does not function and the

warning light of the main switch does

not flash

The fuses intervene every cycle The electronic circuit of the sealing

The machine functions in a discountinuous way The machine functions but, after a serie of rapid seals, does not more seal

Pressing the pivoted plain , the cycle starts but the machine does not seal

The machine does not correctly seal:

- the temperature is too low

- the temperature is too high

The cooling time is too short or too long The seal is not perfect - The protective clothes in glass/PTF

The sealing bar does not stay in pressing

alarm led is lighted on - The safe electronic circuit intervenes

-The power cable is not correctly insert into the wall socket or in the machine socket.

- The fuses are interrupted

- The internal electrical circuit of the machine is interrupted

wire is in short circuit The power cable is interrupted Replace the power cable

- The control electronic circuit of the sealing temperature stopped temporarily the machine

- The thermo protection of the transformer intervenes

- Sealing time on “0”

- Sealing electronic circuit interrupted

- Sealing wire interrupted

is interrupted

- The sealing time is set on a too low

value

- The sealing time is set on a too high value

- The cooling electronic circuit is not right set or faulty

are consumed

- The rubber of the upper mobile bar is damaged

- The sealing wire is damaged

- The electromagnet is interrupted or disconnected

- The micro switch cycle is interrupted

because of a lack in the electronic

sealing circuit working

- The 9 pins flat cable could be not correctly insert

- Insert correctly the plug into the socket

- Check and, if necessary, replace the fuses with others of the same kind

and the same value
