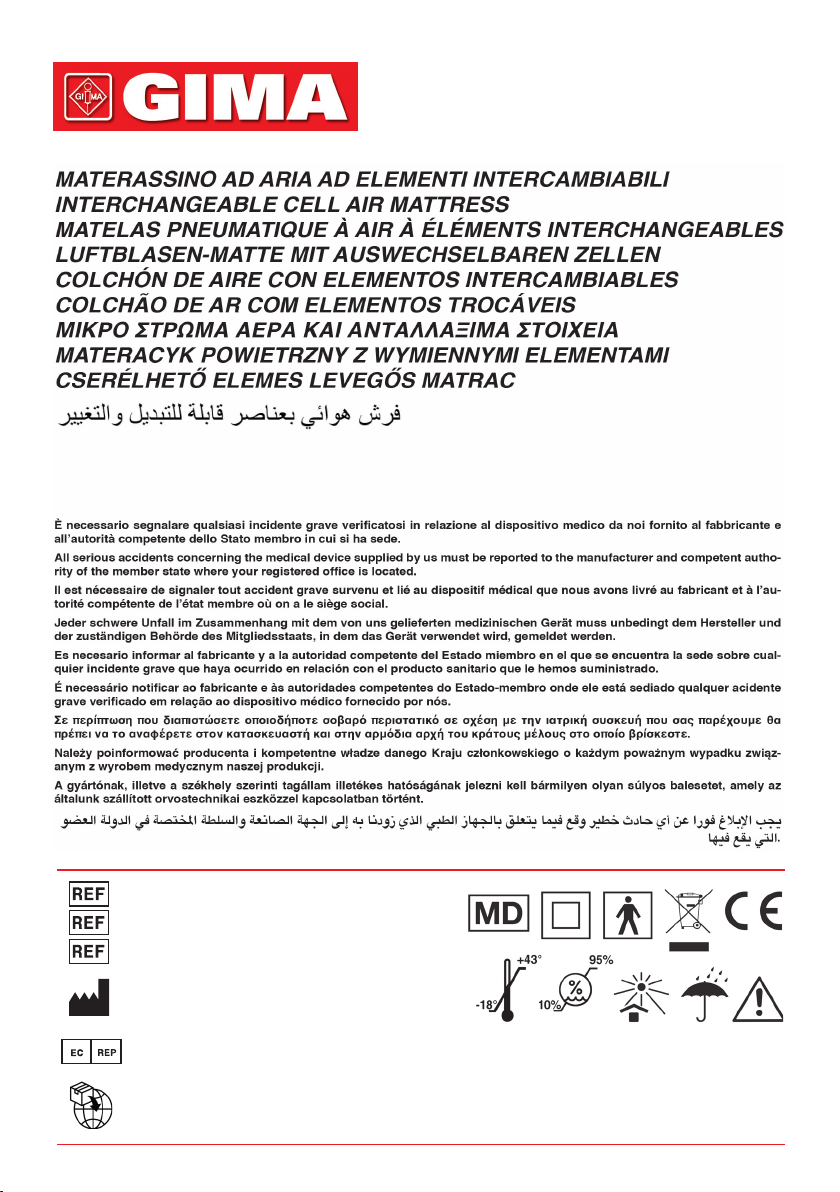

Gima COMPRESSOR for 28564, BUBBLE AIR MATTRESS User guide

PROFESSIONAL MEDICAL PRODUCTS

QDC-303 (GIMA 28564)

P4000IIE (B) (GIMA 28565)

QDC-303+P4000IIE (B) (GIMA 28566)

Guangdong Yuehua Medical Instrument Factory Co., Ltd.

Rongsheng Science and T
Daxue Road, Shantou, Guangdong, China
Made in China

SUNGO Europe B.V.
Fascinatio Boulevard 522, Unit 1.7, 2909VA Capelle aan den IJssel, The Netherlands

Gima S.p.A

Via Marconi, 1 - 20060 Gessate (MI) - Italy
[e-mail] - [e-mail]

M28564-M-Rev.6-02.23

www.gimaitaly.com

echnology Zone,

3

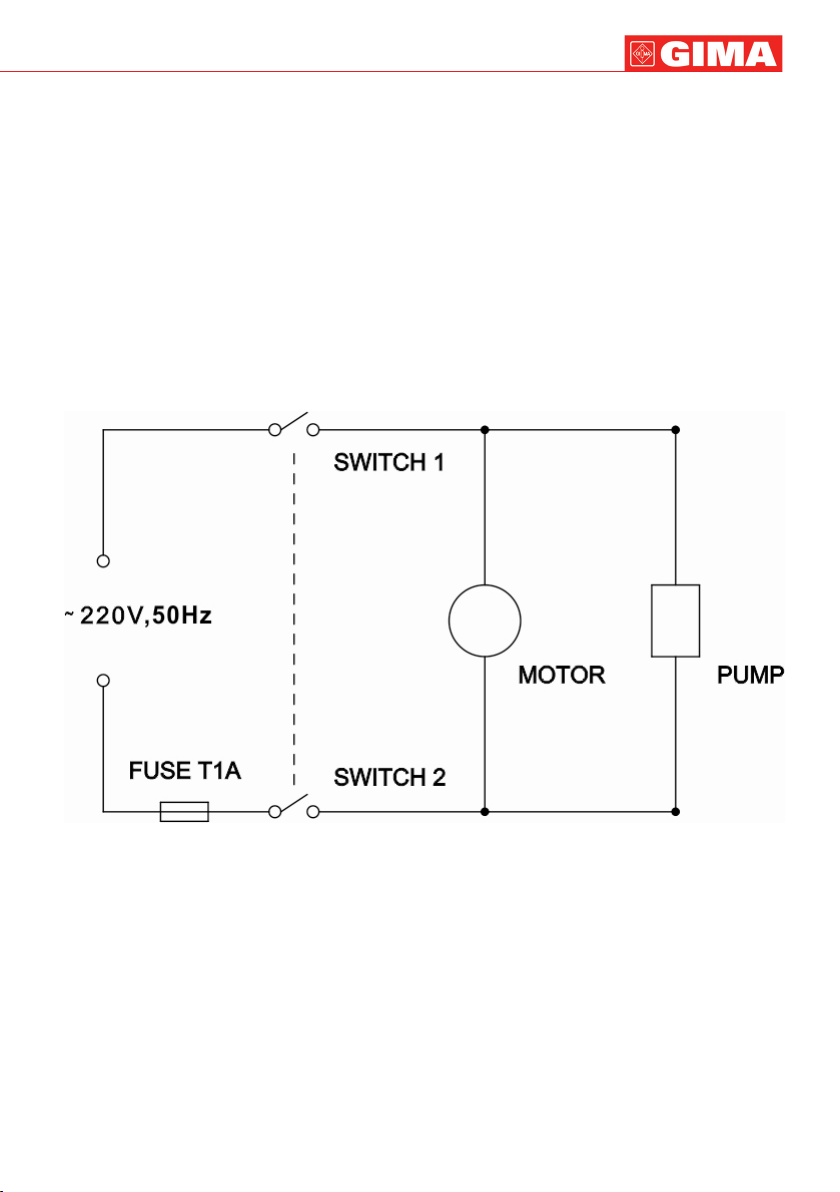

Schema elettrico
Circuit diagram
Schéma électrique
Stromlaufplan
Esquema eléctrico
Esquema elétrico

Ηλεκτρικό διάγραμμα

Schemat elektryczny
Elektromos kapcsolási rajz

ﻲﺋﺎﺑﺮﻬﻜﻟﺍ ﻂﻴﻄ

ﺨﺘﻟﺍ

ENGLISH

Brief

The BUBBLE MATTRESS consists of two parts: the mattress and the pump. The pump utilizes a small
compressor to remain quiet and energy efcient. The control panel is simple and very user friendly. The
mattress relieves pressure by sequentially deating and inating alternate air cells on approximately 6
minutes timed intervals. It is widely recognized that constant pressure to a bony prominence is the leading
cause of skin breakdown. The continuous movement supplied by the unit lessens the areas of constant
pressure and enhances circulation.

Operation

1. Place the mattress on the bed frame with the hose end at the foot section of the bed frame.

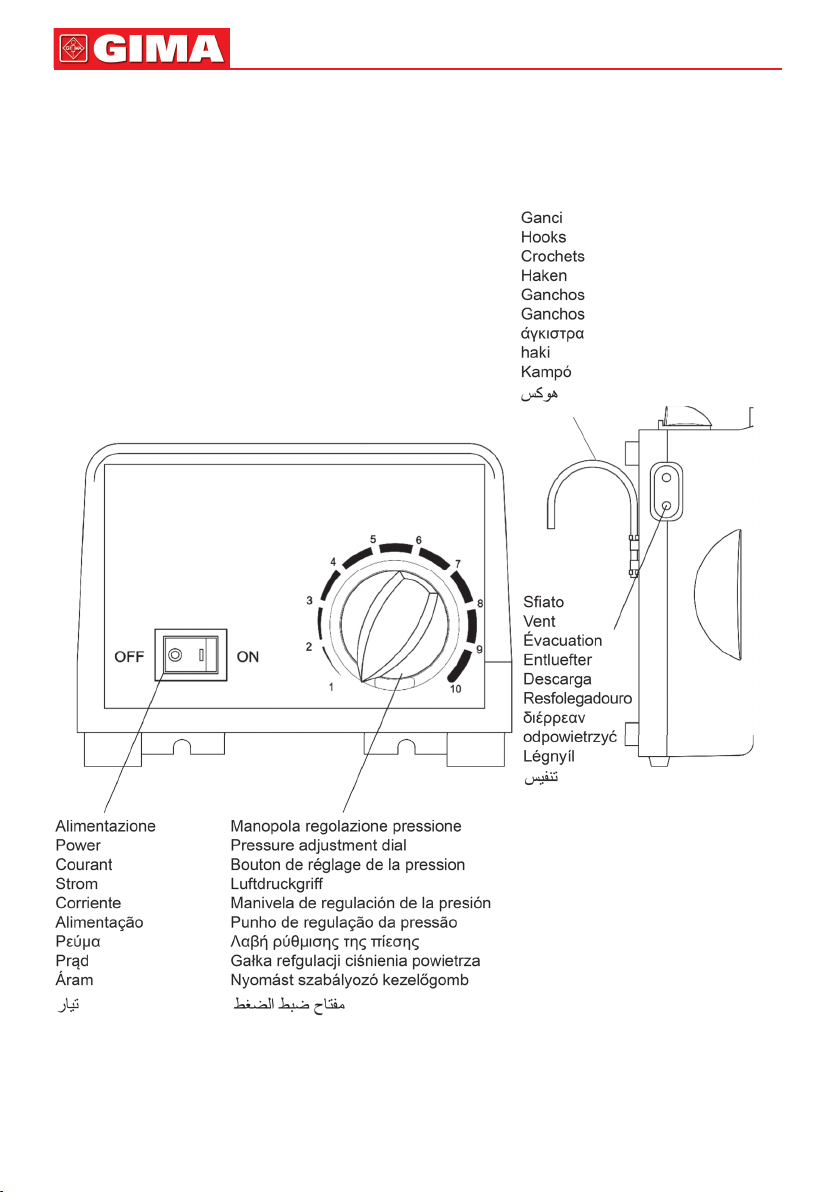

2. Using the integrated hooks, securely hang the pump on the bed end at the foot end or place on a
smooth at surface.

3. Connect the air hoses from the mattress to the pump.

4. Plug the pump into a wall outlet. Be sure the power cord is safely away from possible hazards.

5. Turn on the power switch on the control panel of the pump. The pump will begin to inate the attress.

6. After ination, adjust the mattress using the dial on the pump.

4

Caution

Product Specications

DIMENSIONS

MATTRESS (Length x Width x Height) 77”×35”×3” (200cm×90cm×7cm)
Extension Flaps 20”(50cm) For both sides
PUMP (Length x Width x Height) 10”×5”×4” (25cm×12cm×10cm)

WEIGHT OF PRODUCT

MATTRESS WEIGHT 5 lbs (2.3kg)
PUMP WEIGHT 3 lbs (1.4kg)

WEIGHT CAPACITY

MAXIMUM PATIENT WEIGHT 135kg

ELECTRICAL

OPERATING POWER
FUSES T1A 250V

ENVIRONMENTAL CONDITIONS

OPERATING CONDITIONS
Ambient Temperature 10°C to 40°C (50°F to 104°F)
Relative Humidity 10% to 75%
STORAGE AND SHIPPING CONDITIONS
Ambient Temperature -18°C to +43°C (0°F to 110°F)
Relative Humidity 10% to 95%

1. Do not smoke on or near the pump.

2. Keep the pump away from heated surfaces.

3. Explosion risk if used in the presence of ammable anesthetics.

4. Replace fuse as marked: T1A
250V. Power Input: ~ 220V 50Hz,

0.1A

~ 220V 50Hz, 0.1A MAX

5

ENGLISH

Cleaning instruction

Mattress

Clean the mattress regulary with neutral detergent or alcohol. Heating or steam sterilization is not
available.

Pump

Clean the pump regularly with neutral detergent or alcohol. Do not open the pump housing – risk of
electric shock. Do not get the pump wet or submerge it in any liquid.

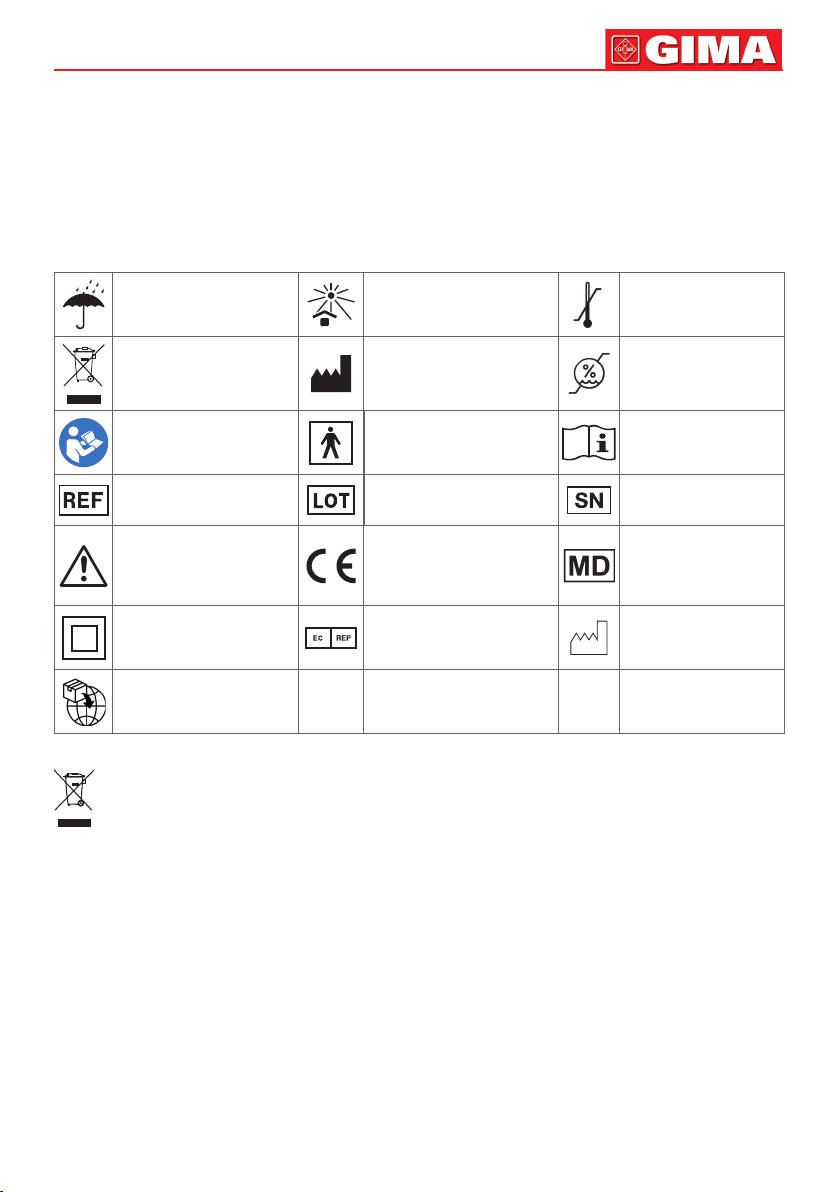

Keep in a cool,dry
place

Keep away from sunlight Temperature limit

WEEE disposal Manufacturer Humidity limit

Follow instructions for
use

Type BF applied part

Product code Lot number

Caution: read in­structions (warnings)
carefully

Medical Device
compliant with
Regulation (EU)
2017/745

Consult instructions
for use

Serial number

Medical Device

Authorized represen-

Class II applied

tative in the European

Date of manufacture

community

Importer

Disposal: The product must not be disposed of along with other domestic waste. The users must
dispose of this equipment by bringing it to a specic recycling point for electric and electronic
equipment.

GIMA WARRANTY TERMS

The Gima 12-month standard B2B warranty applies.
