SP-8800 / UME-03-REV.8
0
SYRINGE PUMP OPERATING MANUAL
SP-8800 / UME-03-REV.8
0
Features
Self testing – Every time the unit is turned on, self testing is proceeded. Automatic syringe detection – Detect syringe size automatically. (10, 20, 30, 50ml ) Shortcut key – Syringe brand set, Occlusion set, Buzzer level set K.V.O.(Keep Vein Open) – When the delivery volume has been reached, flow rate turns into K.V.O.
rate (adjustable from 0.1ml/h to 10ml/h) automatically.
Keypad lock function – Keypad is locked with or without password depends on its using
condition.
Infusion setup – Flow rate/ Delivery volume/ Infusion time Retain memory – Last setting value is retained. Infusion remaining time display Alarm repeat function Open system – Calibration up to 10 syringe brands in a single unit. Buzzer level – 3steps Occlusion level – 9steps (3.8psi~19.3psi) Purge rate – Adjustable (0.1~1200ml/h)Bolus rate – ON/OFF, Adjustable (0.1~1200ml/h, 0.1~1000ml) Anti bolus – Reduce significantly bolus after occlusion release. (ON/OFF)History call back – Call back last 10 infusion data. Dosage mode(Body weight mode) – Automatically calculate and set a proper flow rate when dose
rate, body weight, drug mass and solution volume are entered.
Unit setup for Dosage mode – ml/h, mg/kg/h, mg/kg/min, ㎍/ kg/h, ㎍/ kg/min Nurse call – Each unit can be connected with nurse call system (DC 24V, 0.5A) (Option) Profile function – Program infusion condition (flow rate, delivery volume, delivery time)
differently for every hour, up to 24hours. (Option)
Central system – Connect with main PC for monitoring (Option)
SP-8800 / UME-03-REV.8
1
INTRODUCTION / FEATURES ·············································
1
1. DESCRIPTION OF SYRINGE PUMP ································
4
1-1.Front View ··································································································
5~6
1-2.Rear View ··································································································
7
1-3.Side View ···································································································
7
1-4.Syringe View ······························································································
8
1-5.Components ······························································································
8
2. PRIOR TO PUMP USE ······················································
9
2-1.Explanation of Symbols ·············································································
10
2-2.Warnings ····································································································
10
2-3.Precautions ································································································
11
2-4.Cleaning & Sanitation ················································································
11
2-5.Storage ······································································································
12
2-6.Maintenance & Repair ···············································································
12~13
3. OPERATION ······································································
14
3-1.Initial setup ·································································································
15
3-2.Syringe installation ·····················································································
16
3-3.Setup flow rate (ml/h) ·················································································
17
3-4.Setup delivery volume (ml) ········································································
18
3-5.Confirm total infused volume (Σ㎖/CLEAR)···············································
18
3-6.Setup delivery time (hours) ········································································
19
3-7.Insert the needle into the patient ·······························································
19
3-8.Start infusion ······························································································
19
3-9.Infusion completion ····················································································
20
3-10.Stop infusion ····························································································
21
3-11.[POWER] button ······················································································
21
3-12.Battery remain ·························································································
21
3-13.Error alarm ·······························································································
22
3-14.Adoptor operation ····················································································
22
3-15.Battery operation ·····················································································
22
3-16.Nurse call function (Option) ····································································
22
3-17.Keypad lock ·····························································································
23
SP-8800 / UME-03-REV.8
2
CONTENT
4. SYSTEM SETUP ·······························································
24
4-1.Buzzer level setup (Short-cut key) ····························································
25
4-2.Occlusion level setup ················································································
26
4-3.Syringe selection ·······················································································
26
4-4.Infusion set ································································································
27
4-5.Display ·······································································································
30
4-6.Config ········································································································
31
5. SPECIAL FUNCTIONS ·····················································
33
5-1.Dosage ·····································································································
34
5-2.History ········································································································
35
5-3.Profile (Option spec) ··················································································
36
5-4.Drug label (Option spec) ············································································
37
5-5.Unit setup ···································································································
37
5-6.Pro. Mode ··································································································
37
6. TROUBLE SHOOTING – ALARM ····································
38~41
SPECIFICATIONS ·································································
42
SYMBOLS ·············································································
43
WARRANTY ··········································································
44~45
SP-8800 / UME-03-REV.8
3
1. DESCRIPTION OF PUMP
1-1.Front View 1-2.Rear View 1-3.Side View 1-4.Syringe View 1-5.Components
SP-8800 / UME-03-REV.8
4

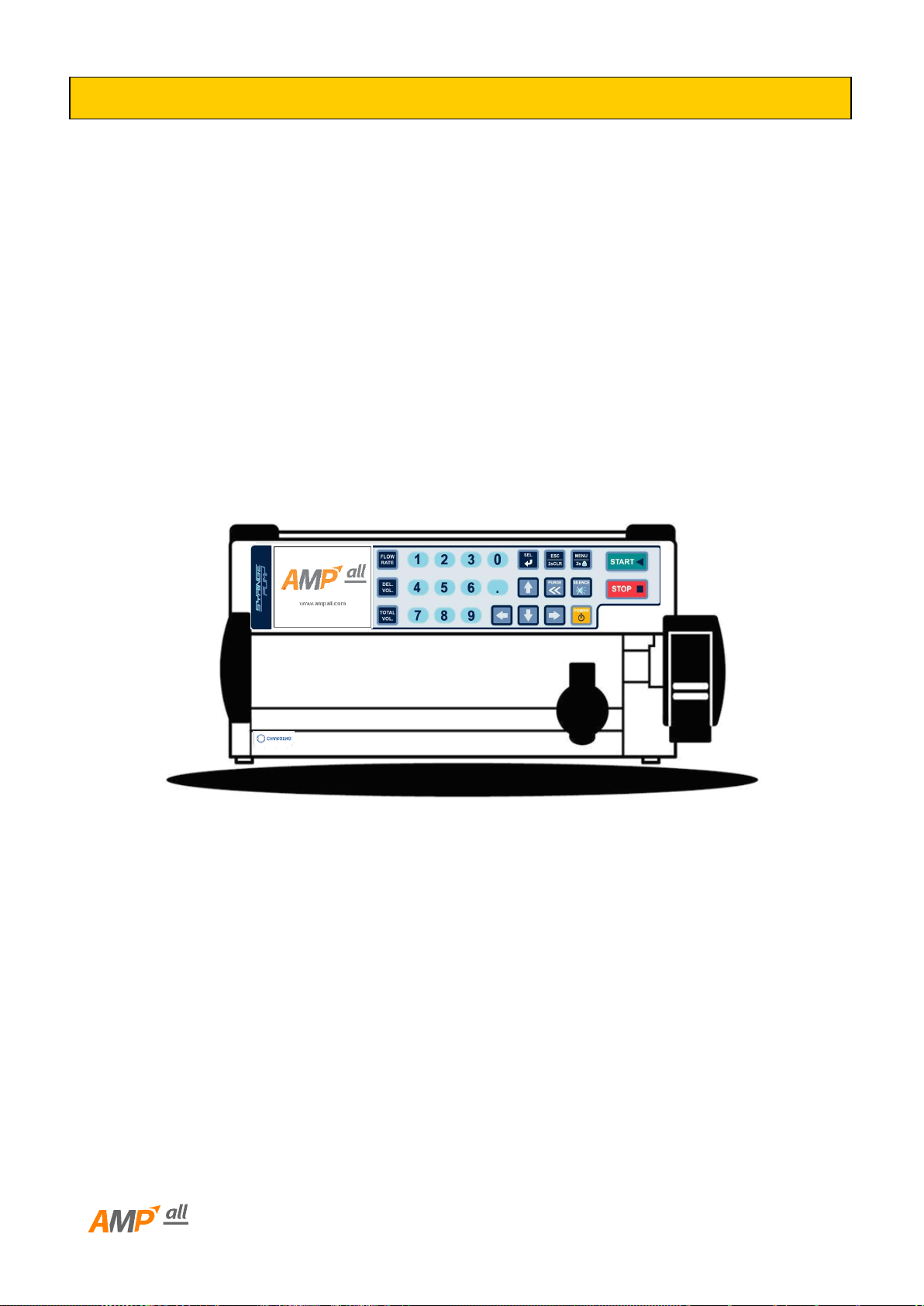

1-1. FRONT VIEW
SP-8800 / UME-03-REV.8
5
1. DESCRIPTION OF PUMP
① LCD : Display operating state. ② FLOW RATE : Set up and adjust Flow rate(㎖/h) ③ DEL. VOL : Set up and adjust Delivery volume(㎖)
④ TOTAL VOL : Display total infuseion volume(㎖) ⑤ NUMERICAL BUTTONS ⑥ SEL : Save setup value / Set up infusion time. ⑦ ESC/2sCLR : Move to previous state/ Delete setup value by press the button for 2seconds ⑧ MENU/2s : Move to “MENU” mode/ Lock keypad by press the button for 2seconds
⑨ SILENCE :Hold alarm sound for 2minutes when alarm goes off. After 2minutes, alarm foes off again. ⑩ START ⑪ STOP ⑫ POWER : Press for 2seconds to turn on or off the unit. ⑬ SLIDER : Push the plunger of the syringe to infuse.
⑭ HANDLE LEVER
⑮ SLIDER CLUTCH
16 SLIT
17 CLAMP
18 PURGE - STANDBY mode : Remove air bubble in IV tube line.
- During infusion : BOLUS function, Bolus can be set in system menu mode. 19 DIRECTION BUTTONS 20 Line Guide : Fix extension tube. 21 Clamp State
22 Slider Clutch State : When Slider Clutch does not fix the Push Button of syringe, blinked in red. 23 Handle Lever State : When Clutch is opened(Handle Lever is up), blinked in red.
24 Display FLOW RATE
25 Display DEL VOLUME 26 Display TOTAL VOLUME
27 Display INFUSION TIME 28 Display Syringe BRAND 29 Syringe Size : 10㎖ , 20㎖ , 30㎖ , 50㎖
30 Display state of battery 밧데리 상태 표시 31 Display state of BUZZER level
32 Display state of lock : Lock / Unlock
33 Power supply : AC / BATTERY
34 BATTERY REMAIN : Display remaining battery operating time.
SP-8800 / UME-03-REV.8
6
1. DESCRIPTION OF PUMP
※ Battery remaining time can be very different depends on battery condition.
35 CHARGING : ( Fully charged : Green / Charging : Orange)

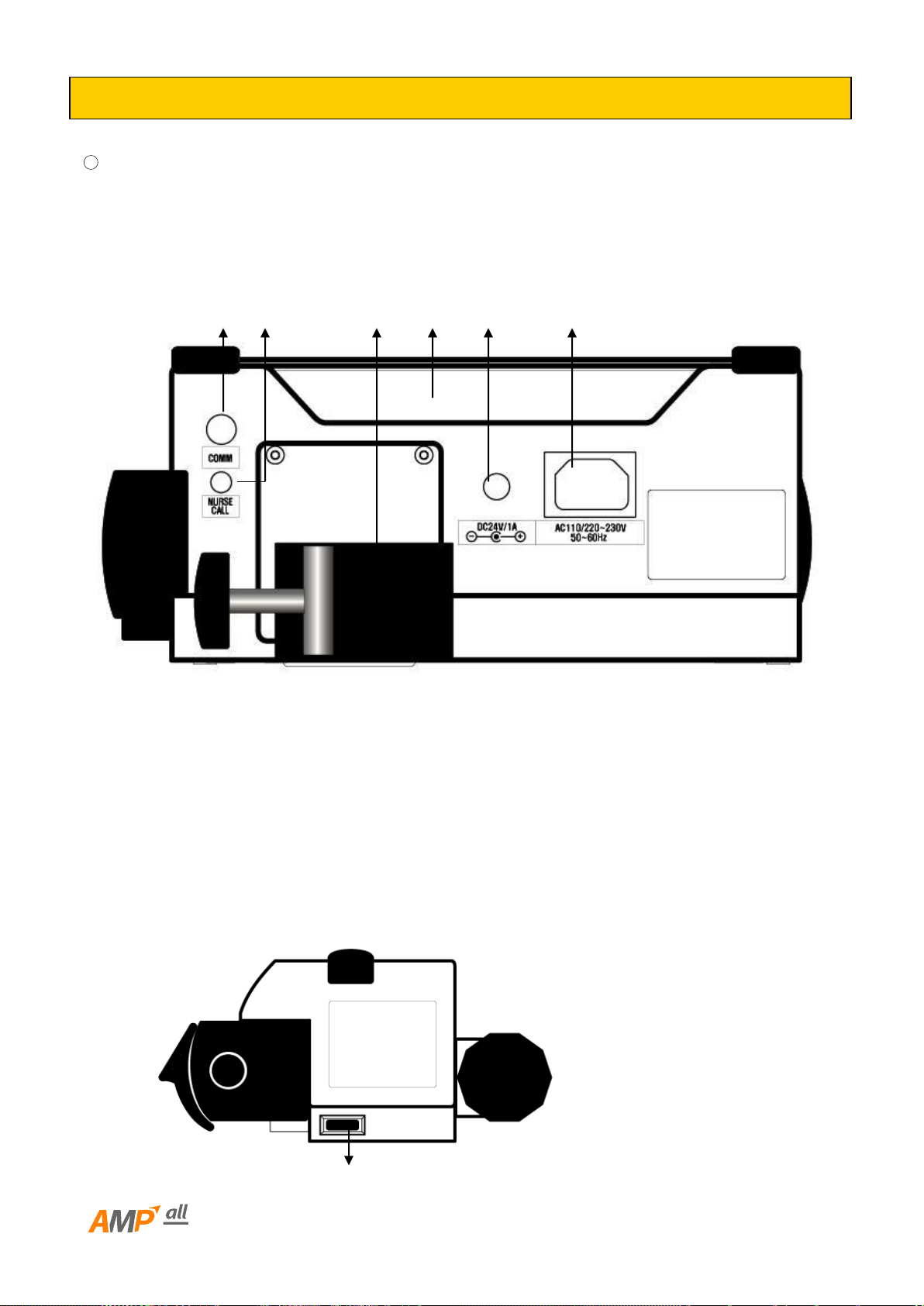

1-2. REAR VIEW
①Communication Connector (RS232 Connector) ②Nurse Call Connector (Nurse Call Connector): Connect alarm terminal cord installed in the ward. ③Pole Clamp ④Handle
⑤Adaptor Connector ⑥AC Power Supply Connector
1-3. SIDE VIEW
① ② ⑤ ⑥ ③ ④ ①
SP-8800 / UME-03-REV.8
7
1. DESCRIPTION OF PUMP
① Coupler : Joins two syringe pumps when one syringe pump is laid on another syringe pump
1-4. SYRINGE
1-5. COMPONENT
AC power cord
Plunger
Finger-grips
Barrel
SP-8800 / UME-03-REV.8
8
1. DESCRIPTION OF PUMP
2. PRIOR TO
PUMP USE
2-1.Explanation of Symbols 2-2.Warnings 2-3.Precautions 2-4.Cleaning & Sanitation 2-5.Storage 2-6.Maintenance & Repair
SP-8800 / UME-03-REV.8
9
2. PRIOR TO PUMP USE
2-1. EXPLANATION OF SYMBOLS
2-2. WARNINGS
• If used in the vicinity of the surgical operation equipment which generates a high frequency current such as
mobile (cellular) phone, radio, or defibrillator, the pump may malfunction since electrical interference. Please carefully check for any sources of electrical interference in the vicinity before use.
• Before using the pump, make sure that the manufacturer of the syringe to be used is the same as the one
specified for this pump. If it is not matched, the flow rate accuracy and alarm system cannot be guaranteed. In order to change the syringe manufacturer, please contact your local authorized dealer.
• When using the pump concurrently with the surgical operation equipment, please note the following:
- Do not use the pump together with any surgical operation equipment that generates high noise level.
- Be sure that the pump is kept a sufficient distance from the surgical operation equipment.
- The pump and such device should not be powered from the same outlet.
- Check and confirm the normal operation of the pump periodically.
※ In case of malfunction, immediately turn off the power and remove the infusion set from the patient’s
skin. After this action, please contact your local authorized dealer.
• Avoid using the pump in presence of flammable gases and flammable anaesthetic mixture with air, oxygen or
nitrousoxide.
• The use of any mobile (cellular) phone near the pump is not allowed since the high frequency noise during the
conversation could cause malfunction of the pump.
• The use of the pump in MRI rooms such as high-pressure rooms or places where high electromagnetic radiation
is generated is not allowed.
• In case of using new brand of syringe other than suggested by AMPall, new brand of syringe must be calibrated by AMPall or local authorization. If not, new syringe may cuase problem on infusion accuracy and alarm state.
※ Please contact your local authorized dealer if you wish to use syringe that are not supported.
• This pump does not detect ‘over-infusion’ or ‘under-infusion’. Please check infusion state with patient regularly.
• Make sure about correct syringe installation, drug may flow backward if syringe is installed incorrect way.
• Eliminating a needle from the patient to prevent a release-bolus is required when the tube line got an occulsion.
Warning is used to indicate the presence of a hazard which can cause severe personal injury, death or substantial property damage if the warning is ignored.
Caution is used to indicate the presence of a hazard which will cause minor personal injury or property damage if the warning is ignored.
NOTE
Note is used to notify the user of installation, operation or maintenance information which is important but not hazard-related.
SP-8800 / UME-03-REV.8
10
2. PRIOR TO PUMP USE
• The pump does not detect damage to the infusion tube such as a leak in the tube or a rupture in the filter due to pressure exertion. Therefore, regularly check for any damage to the infusion line during infusion.
• When the flow is obstructed due to kinking of the tube or clogging of the needle or filter, it can increase pressure in the infusion tube and cause the tube to be inflated with the solution. Complete removal of the obstruction will allow the solution to be delivered to the patient. If the flow is obstructed, take appropriate actions.
• The syringe is disposable. Therefore, the used syringe should not be reused.
• Never modify the pump by yourself.
• The pump is connected to the AC power outlet to be operated. If there is no available AC power outlet, pump
can be operated with only its internal battery. (Alternatively, the pump may be operated by DC power).
• The spill of the solution on the AC power inlet may cause a short circuit.
• Make sure that there is any damage with the pump and components. In case of the unit and components that
were shocked, do not use them even if visible damages are not observed. Please contact your local authorized dealer.
• In case of malfunction, do not try to take the unit apart or attempt to repair by yourself. Please contact your local authorized dealer immediately. If the user does not comply with these warnings, AMPall does not take liable and the warranty does not apply.
2-3. PRECAUTIONS
• The pump does not detect about correct infusion state with blood vessel on patient. Please check the puncture site and monitor the patient’s condition carefully.
• Fix the pump securely to a pole stand and check its stability. If the pump is dropped or given a hard shock, do
not use it. Please contact your local authorized dealer.
• The pump must be used in accordance with this instruction manual by trained medical personnel.
• When alarm sounds, please take corrective actions.
• Do not apply a strong force or damage to the clamp or slider.
2-4. CLEANING & SANITATION
• Before cleaning the pump, make sure to power off the pump and disconnect the AC power cord.
• Do not immerse the pump in water.
• Do not immerse the pump in any liquid nor allow any liquid to leak into the pump.
• Do not use alcohol, thinner, benzene, ammonia, acetone or any other organic solvents.
• Do not sterilize the pump.
If the user does not comply with these warnings, the company is not
responsible for its result and the warranty is not applied.
SP-8800 / UME-03-REV.8
11
2. PRIOR TO PUMP USE
< Casing >
• When the pump casing is stained, use a gauze cloth or similar, moistened with cold or tepid water and let it dry, especially the AC power inlet before use. Clean AC power inlet, Adoptor connectorm Slider Slider hook, Clamp, Slit and Clutch regularly.
• In case of disassemble Clutch or Clamp for cleaning, contact local authorization.
• Do not use a drier to dry casing parts.
2-5. STROAGE
• Avoid the following environment for storage and transport for SP-8800 Syringe Pump.
- Where the unit is exposed to dirt or heavy dust.
- Where the unit is exposed to salty atmosphere.
- Where the unit is exposed to severe vibration or corrosive GAS.
- Where the unit is exposed to rough handling.
- Where the unit is exposed to direct sunlight or UV light.
- Where the unit is exposed to water.
- Where the unit is exposed to extreme temperature and humidity.
• The optimum storage conditions for the unit
- Temperature is between -10℃ ~ 45℃.
- Humidity is between 10% ~ 95%
2-6. MAINTENANCE & REPAIR
• If any irregularity and failure are detected, stop operation of the pump immediately and contact your local
authorized dealer to repair or replace by supplying the details of the situation. Never try to disassemble or repair by yourself because it could cause further serious failure.
• Make sure that there is not any damage with the pump and components. In case that the unit and components
were shocked, do not use them even if visible damages are not observed. Please contact your local authorized dealer.
• Contact your local authorized dealer for periodical inspection of the pump for safety and longer product life.
• Operate the pump with the internal battery once a month to check its performance because the internal battery
is subject to aging. If the operation time is getting short after it is normally recharged, contact your local authorized dealer to replace with a new battery. Please be sure that your local authorized dealer checks it annually.
• Please recharge the internal battery fully for more than 6 hours by connecting the pump to an AC power outlet
before the pump is used for the first time or after a long interval.
• If the battery is low, the pump may stop running if there is no way to connect the pump to an AC power outlet.
SP-8800 / UME-03-REV.8
12
2. PRIOR TO PUMP USE
the product and its electronic accessories (e.g. Power cord) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.
SP-8800 / UME-03-REV.8
13
3. OPERATION
3-1.Initial setup 3-2.Syringe instollation 3-3.Setup flow rate (ml/h) 3-4.Setup delivery volume (ml) 3-5.Confirm total infused volume (Σ㎖/CLEAR) 3-6.Setup delivery time (hours) 3-7.Insert the needle into the patient 3-8.Start infusion 3-9.Infusion completion 3-10.Stop infusion 3-11.[POWER] button 3-12.Battery remain 3-13.Error alarm 3-14.Adoptor operation 3-15.Battery operation 3-16.Nurse call function (Option)
SP-8800 / UME-03-REV.8
14
3-17.Keypad lock
3-1. INITIAL SETUP
3-1-1 ATTACHING THE PUMP TO THE IV POLE STAND
• Fix the pump securely on a pole stand, using the pole clamp on the back of the pump.
3-1-2 CONNECT AC POWER
• Insert AC power cord to the AC power inlet on the back side of the pump and connect the power cord to AC power outlet. Charging lamp will be on in red or green depends on its battery charging state. ( Fully charged : Green / Charging : Orange)
• After turn on the unit,
- LCD displays on the left side of LCD when it connected with AC power.
- LCD displays connected with adoptor, and connected with battery for power supply.
• When AC power is connected, the internal battery is automatically being recharged.
3-1-3 TURN ON THE UNIT
• Press [POWER] button for 2 seconds to turn on the unit.
- LCD, FND and LED state lamp turn on with confirming sound and SELF TESTING is proceeded for 3seconds.
- LCD divides left side and right side as below pircture. Left side displays setup conditions, and right side
displays operating state. * Power supply - : AC power
: Adoptor : Battery
- Syringe brand is displayed on the left side of LCD. Please confirm syringe brand, if it is the one you are going
to use with the unit.
[SETUP CONDITION] [OPERATING CONDITION]
Syringe brand
Remaning battery operating time
Syringe size
Battery state
Buzer level
Lock / Unlock
Power supply
State of syringe instllation
FLOW RATE
DEL VOL
TOTAL VOL
Delivery time
• Alternatively, the pump may be operated by DC power.
NOTE
NOTE
• Please contact a local authorized dealer or agency when you have problem with the
unit.
SP-8800 / UME-03-REV.8
15
3. OPERATION
3-1-4 TURN OFF THE UNIT
• Press [POWER] button for 2 seconds on “STAND BY” mode to turn off the unit.
- The unit is turned off after 2seconds with confirming sound and logo in LCD.
- The unit is not turned off in “MENU” mode.
3-2. SYRINGE INSTALLATION
1. Push up the handle lever and pull at the slider to the right.
2. Pull at the clamp and turn it to the left.(Open the clamp.)
3. Install syringe filled with solution and connected with infusion tube. Fix infusion tube into the slit.
4. Pull at the clamp and turn up to close the clamp and check the syringe is fitted correctly.
5. After infusion tube is placed in Line Guide, push the slider slowly until it hits push-button of the syringe. When the slider hits the push-button, slider hook automatically gets down to fix the syringe. When the syringe is set in the pump, [SYRIGNE SIZE] LED lights on according to the size of syringe.
6. Press and hold [PURGE] button until a drop of solution at the end of the infusion set appears to remove air bubble in the infusion tube.
Syringe Size
Initial Purge Rate
10ml
300ml/h
20ml
400ml/h
30ml
500ml/h
50ml
1200ml/h
NOTE
• If the syringe is not properly placed in the slit, the flow rate accuracy and alarm
system are not guaranteed.
NOTE
• The priming volume is added to the volume delivered.
• Refer to page 25 to set up purge rate.
SP-8800 / UME-03-REV.8
16
3. OPERATION
3-3. SETUP FLOW RATE(ml/h)
1. Press [FLOW RATE] button to get into FLOW RATE setup mode as below picture.
[SETUP FLOW RATE]
2. Input desired value for FLOW RATE(ml/h) with numerical buttons and press [SEL] button to save it.
Display turns into previous display automatically.
3. Press [ESC/2s CLR] button for 2seconds to delete complete value, press button to delete previous
digit only.
4. When setup value exceeds the range, “RANGE OVER” will come up and maximum value is saved
automatically. Make sure setup value before start.
Syringe size
Flow Rate
10ml
0.1ml/h ~ 300ml/h (0.1ml/h increasement)
20ml
0.1ml/h ~ 400ml/h (0.1ml/h ncreasement)
30ml
0.1ml/h ~ 500ml/h (0.1ml/h ncreasement)
50ml
0.1ml/h ~ 1200ml/h
(0ml/h~999.9ml/h with 0.1ml/h creasement)
(1000ml/h~1200ml/h with 1ml/hncreasement)
State of menu
Previous setup value
Flow rate (ml/h)
Flow rate setup range
NOTE
• Please do not change the flow rate during the infusion.
To change the flow rate, the infusion should be stopped by pressing 'Stop' button first.
• Druing flow rate setup, if press [STOP] button for more than 2seconds, the value will be
reset as “0000”.
• The pump does not start when the flow rate is setup at 0 ml/h. The message “NO SET”
will come up on the LCD.
SP-8800 / UME-03-REV.8
17
3. OPERATION
3-4. SETUP DELIVERY VOLUME(ml)
1. Press [DEL.VOL] button to get into DELIVERY VOLUME setup mode as below picture.
[SETUP DELIVERY VOLUME]
2. Delivery volume range is from 0.1 to 1000.0ml with 0.1ml increasement.
3. Press [ESC/2s CLR] button for 2seconds to delete complete value, press button to delete previous
digit only.
3-5. CONFIRM TOTAL INFUSED VOLUME (Σ㎖/CLEAR)
• Total volume(Σ㎖/CLEAR) shows the delivered volume so far.
• Press TOTAL VOL button.
• Delete total infused volume by press [ESC / 2sCLR] button for 2seconds.
[TOTAL INFUSED VOLUME]
NOTE
• If delivery volume is set with 0ml, it is considered as maximum value, 1000ml and
operates delivery volume with 1000ml.
(When remaining time is exceeded 99hours, infusion remaining time is not
displayed.)
• During infusion state, delivery setup is not available. Setup is available only “STAND
BY” mode.
State of menu
Delivery volume(ml)
Delivery volume setup range
State of menu
Total infused volume(ml)
Previous setup value
Previous value
SP-8800 / UME-03-REV.8
18
3. OPERATION
3-6. SETUP DELIVERY TIME(hour)
• Press [SEL] button, DELIVERY TIME on the botton of LCD is blinked. Set up delivery time with numerical
buttons and save it with [SEL] button.
3-7. INSERT THE NEEDLE INTO THE PATIENT
• Insert the needle into the patient.
3-8. START INFUSION
1. Press [START] button to start infusion.
2. During infusion, is blinked in order. “INFUSING” and DELIVERY TIME blinked by turns on the bottom line.
[INFUSING DISPLAY]
NOTE
• Third value is calculated and displayed automatically when two setup values are entered among FLOW RATE, DELIVERY VOLUME, DELIVERY TIME.
• Please make sure about total infused volume when you setup infusion by time, previous total infused volume is included if it is not deleted.
• DELIVERY TIME range : 1min~99hour 59min
• Alarm does not go off when needle comes off the vein, resulting in an out-of-the-vein
infusion. Therefore, regularly check the puncture site and monitor the patient’s condition carefully.
NOTE
• Before operating the pump, make sure to check the flow rate, delivery volume and
the condition of infusion tube again.
SP-8800 / UME-03-REV.8
19
3. OPERATION
3-9. INFUSION COMPLETION
1. When delivery volume is reached, flow rate turns into K.V.O. rate to avoid occlusion of infusion by coagulation.
2. The unit turns into K.V.O. rate automatically, and LCD shows “CAUTION FINISH K.V.O” as below picture with alarm sound.
[K.V.O. RATE]
3. Press [STOP] button to stop K.V.O. rate. LCD display turns into initial display.
4. When drug in the syringe is left about 3~4cc, “NEAR EMPTY” alarm goes off with alarm sound
depends on setup flow rate. OCC alarm indicator is blinked in red.
[NEAR EMPTY]
5. When the syringe is empty, “ WARNING SYRINGE OCCLUSION” alarm goes off with alarm sound and
OCC alarm indicator is on red.
.
[SYRINGE OCCLUSION]
6. Press [STOP] button to stop. LCD display turns into initial display.
• K.O.V. rate is adjustable, please make sure K.V.O. rate before start infusion. Otherwise over infusion may be cuased.
• Over infusion may be cuased by user’s setup condition, manufacturer does not take any responsibility on the problem.
SP-8800 / UME-03-REV.8
20
3. OPERATION
3-10. STOP INFUSION
• Press [STOP] button to stop infusion during the operation.
• Before restart infusion, FLOW RATE, DELIVERY VOLUME and infusion tube should be confirmed. After
confirming the condition, press [START] button to start infusion.
3-11. [POWER] BUTTON
• Power is turned on and off by press [POWER] button.
• During infusion, [POWER] button does not function.
• Press [STOP] button first to stop infusion, then press [POWER] button to turn off the unit.
3-12. BATTERY REMAIN
• Press button in initial mode, display turns into number ③ picture and display the remaining battery operating time.
① ②
Remainning battery operating time
NOTE
• Alam goes off if do not restart in 2minutes after stop infusion temporally.
NOTE
• Reset Total volume as “0” when restart infusion with new infusion condition.
• Remainning battery operating time is different as its infusion setup condition and
battery condition.
• Check about battery condition and operating condition with you refer to “BATTERY REMAIN”.
• Charging LED on the front should be green when you refer to “BATTERY REMAIN”.
SP-8800 / UME-03-REV.8
21
3. OPERATION
3-13. ERROR ALARM
• When alarm goes off with error, press [SILENCE] button to hold alarm sound for 2seconds then settle the problem. Otherwise, alarm sound goes off again.
3-14. ADOPTOR OPERATION
• This unit can be operated with adoptor DC 24V 1A, DV 12V 1A.
• Connect adoptor code (Cod No.: 05LN51﹡) to inner adoptor connector and press [POWER] botton.
• “ “ comes up in right side of LCD.
3-15. BATTERY OPERATION
• This unit operatse with AC power supply and built in rechargeable battery. When AC power supply is disconnected, the unit turns into battery operating mode automatically.
• Battery is charged when AC power supply is connected when ever it is on or off.
• Battery operating time is about 2hours.
• New rechargeable battery should be charged more than 6hours.
• Battery state displays on LCD as its remain state.
• With battery state, if there is no AC power supply connected, the unit will be off with alarm sound and
stop operation.
3-16. NURSE CALL FUNCTION (OPTION)
• Connect nurse call connector on the back side of the unit and NURSE CALL SYSTEM builted in a hospital with nurse call cord.
• Battery state should be checked every 6month to inspect battery life.
• Battery capacity may be different depends on its using condition such as fully
charing and fully discharge cycle. For safety of longer battery operating time, battery should be fully charged one a month.
• If the unit has been kept without using it for more than 1months, or it is first time to use the unit, try to charge the built in battery for more than 6hours.
NOTE
• When alarm goes off, error message shows up in LCD, alarm signals are transferred
to NURSE CALL SYSTEM every 5 second.
• Nurse call code number: 06LA548﹡
SP-8800 / UME-03-REV.8
22
3. OPERATION
3-17. KEYPAD LOCK
• Lock keypad by pressing MENU/2s button.
• Keypad lock can be done with password so user can control keypad lock.
• Under Keypad LOCK, all key do not function.
NOTE
• Refer to page 28 for setup KEYPAD LOCK..
SP-8800 / UME-03-REV.8
23
4. SYSTEM SETUP
4-1. Buzzer level setup (Short-cut key)
4-2. Occlusion level setup (Short-cut key) 4-3. Syringe selection 4-4. Infusion setup 4-5. Display 4-6. Config.
SP-8800 / UME-03-REV.8
24
4. SYSTEM SETUP
4. SYSTEM SETUP
• Press MENU button to get into Menu mode and select “SYSTEM SETUP” with [SEL] button.
• SYSTEM SETUP MENU
1. BUZZER
2. OCCLUSION
3. BRAND SET
4. INFUSION tks
5. DISPLAY
6. CONFIG
• It you do not press any button for 10seconds, LCD turns back to previous display with alarm sound.
• Press [ESC / 2sCLR] button to go back previous display. And press [SEL] button to save.
4-1. BUZZ. LEVEL SETUP(SHORT-CUT KEY)
• Get into “BUZZ. LEVEL” mode, select manu in order to MENUSYSTEM SETUPBUZZER.
•. Adjust buzzer level with UP , DOWN buttons. There are three levels, “HIGH” , “MIDDLE” and “LOW”.
Select and save with [SEL] button. After save buzzer level display turns into previous mode.
※ Short-cut key for buzzer level : Press + [1] button in initial display.
Initial BUZZ. LEVEL
HIGH
Menu move buttons
Total menu number
SP-8800 / UME-03-REV.8
25
4. SYSTEM SETUP

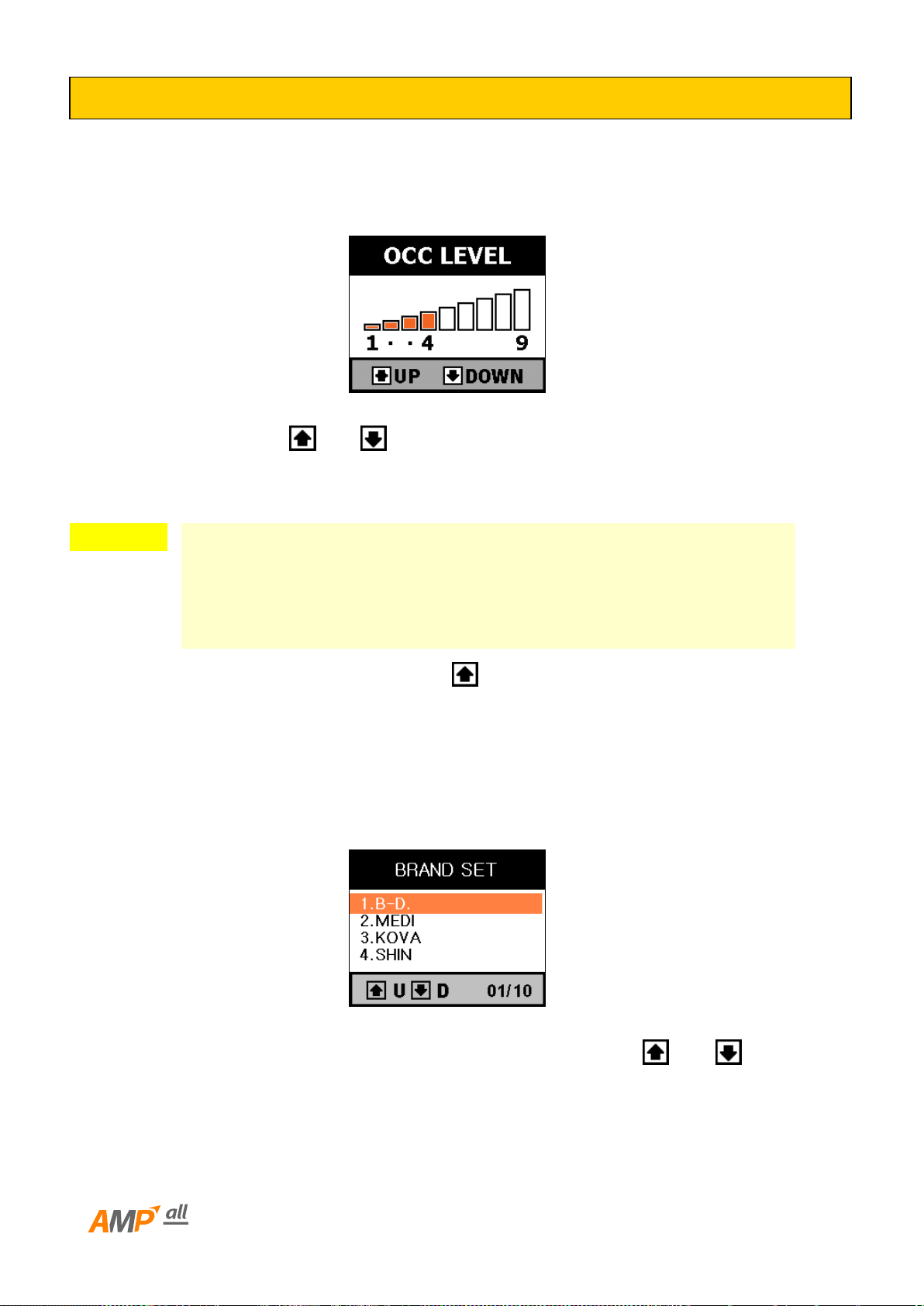

4-2. OCC. LEVEL SETUP (SHORT-CUT KEY)
• Get into”OCC. LEVEL” mode, select manu in order to MENUSYSTEM SETUPOCCLUSION
• OCCLUSION is adjusted with UP , DOWN buttons, it is from LEVEL 1 to LEVEL 9. Press [SEL] button
to select and save. After select and save it, it turns into previous menu.
※ Short-cut key for occlusion level : Press + [2] button in initial display.
4-3. SYRINGE SELECTION
• Get into “BRAND SET” menu in order to MENUSYSTEM SETUPBRAND SET.
• Syringe should be calibrated by supplier, select the syringe brand will use with UP , DOWN button.
Select and save the syringe brand with [SEL] button. After select and save it, it turns into previous menu.
NOTE
• “H”: 800±200mmHg (106.7±26.7 kPa) or 1.09±0.27 kgf /㎠
• “M”: 500±100mmHg (66.7±13.3 kPa) or 0.68±0.14 kgf /㎠
• “L”: 300±100mmHg (40.0±13.3 kPa) or 0.41±0.14 kgf /㎠
• Initial set is LEVEL 5
SP-8800 / UME-03-REV.8
26
4. SYSTEM SETUP

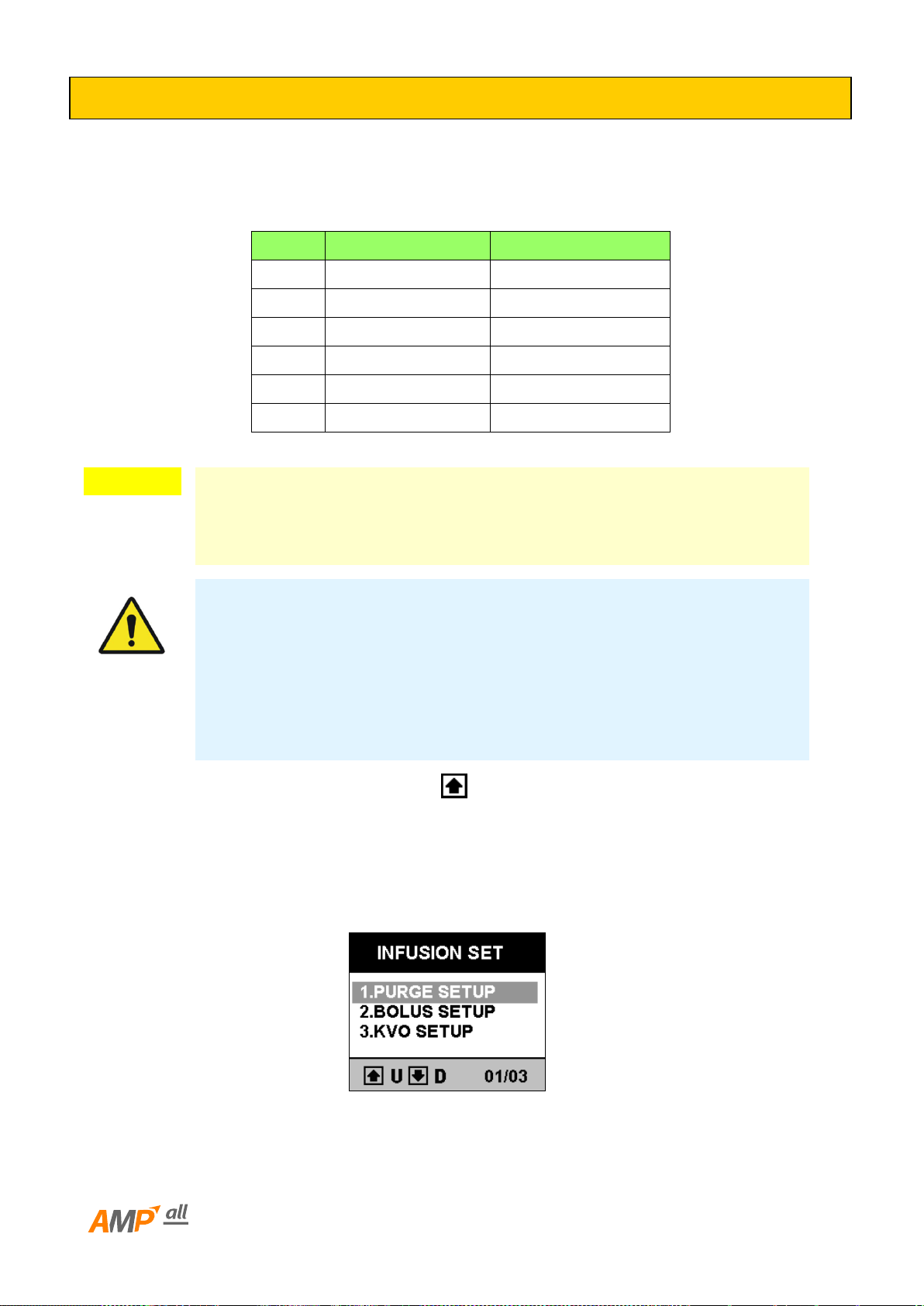

• Here is the list of basic calibration syringe brands.
(Calibrated syringe brand may be different depends on local authorizaed dealer.)
※ Short-cut key for syringe brand : Press + [3] button in initial display.
4-4. INFUSION SET
There are “PURGE SETUP” , “BOLUS SETUP” , “KVO SETUP” in “INFUSION SET” menu.
NO
Brand
Manufacturer
1
B - D
Backton
2
MEDI
Medihut
3
KOVA
Korean Vaccine
4
SHIN
Shinchang
5
HWAJ
Hwajin
6
SUNG
Sungshin
NOTE
• Initial setup is “B-D”.
• If you want to use other syringe brand beside the list, please contact our local
authorization dealer to get confirm about calibration.
• Un calibrated syringe may occur error or accuracy problem. Please make sure
the syringe brand you are using is calibrated and approved by local authorized
dealer or manufacturer.
• Manufacturer or local authorized dealer do not cover the result from using
syringe brand which is not calibrated or approved by manufacturer or local
authorized dealer.
SP-8800 / UME-03-REV.8
27
4. SYSTEM SETUP

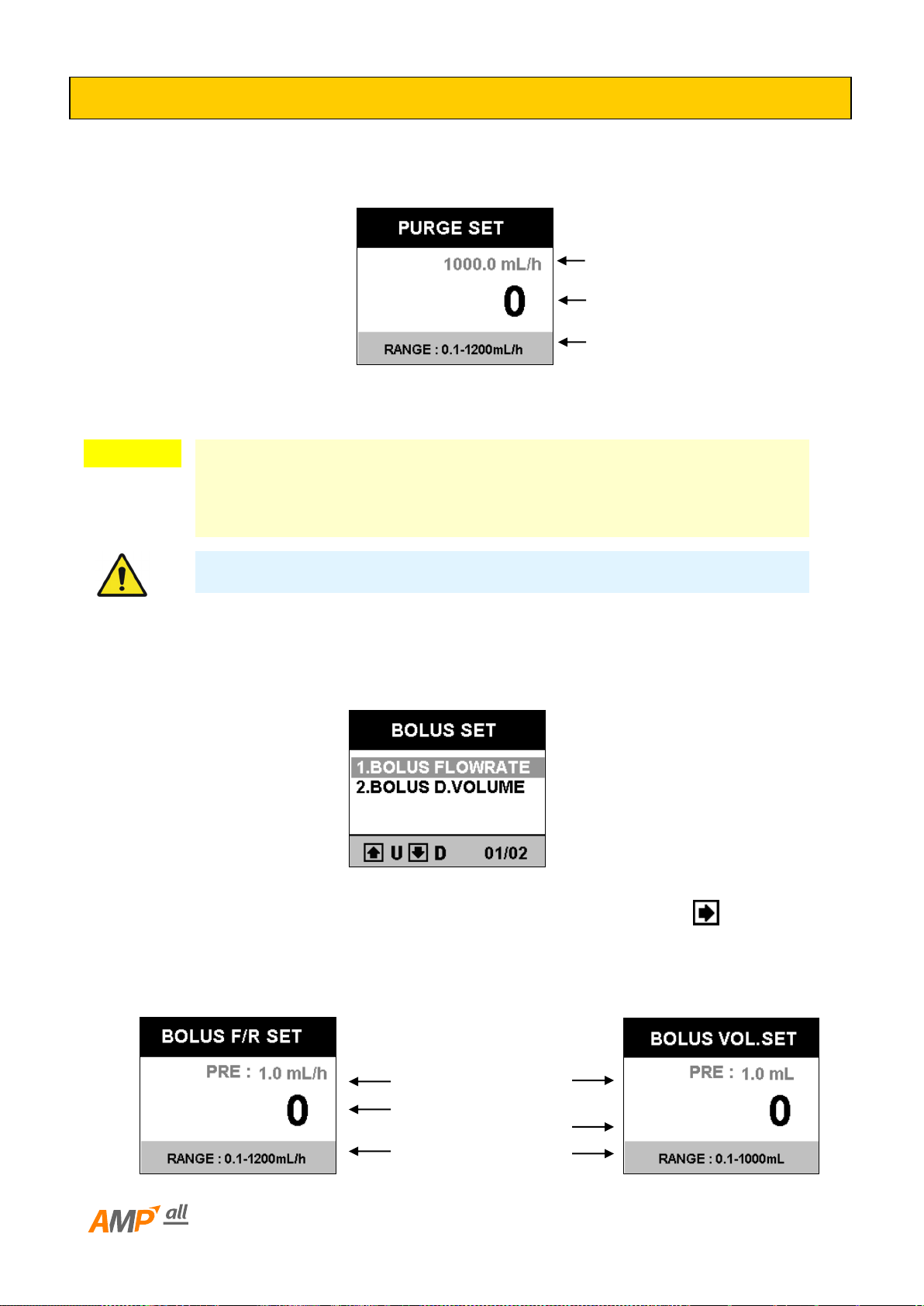

4-4-1. PURGE SET UP
• PURGE is setup from 0.1~1200ml/h.
• If PURGE rate is not setup, beep sould will come out and infusion will not start.
4-4-2. BOLUS SET
There are “BOLUS FLOWRATE” , “BOLUS D.VOLUME” for “BOLUS SET” menu.
※ BOLUS: Infuse sure amount of solution or drug by sure infusion speed.
- BOLUS FLOWRATE SET : Setup flow rate of BOLUS with numerial buttons. Save desired value with [SEL] button. Press [ESC / 2sCLR] buttons for 2seconds to delete the total value and press to delete previous
digit in order. ※ Press [ESC / 2sCLR] button to move previous menu.
Previous setup
PURGE (㎖/h)
Range
NOTE
• Purge: To remove air in tube(line).
• Purge volume is included in total infused volume.
• Purge is working only “STAND BY” mode.
• When Purge rate is less then floow rate, Purge rate works as setup flow rate.
Previous setup
Range
BOLUS F/R (㎖/h)
BOLUS VOL(㎖)
SP-8800 / UME-03-REV.8
28
4. SYSTEM SETUP
- BOLUS VOLUME : Setup total amount of BOLUS. Save desired value with [SEL] button. Press [ESC / 2sCLR] buttons for 2seconds to delete the total value and press to delete previous digit in order.

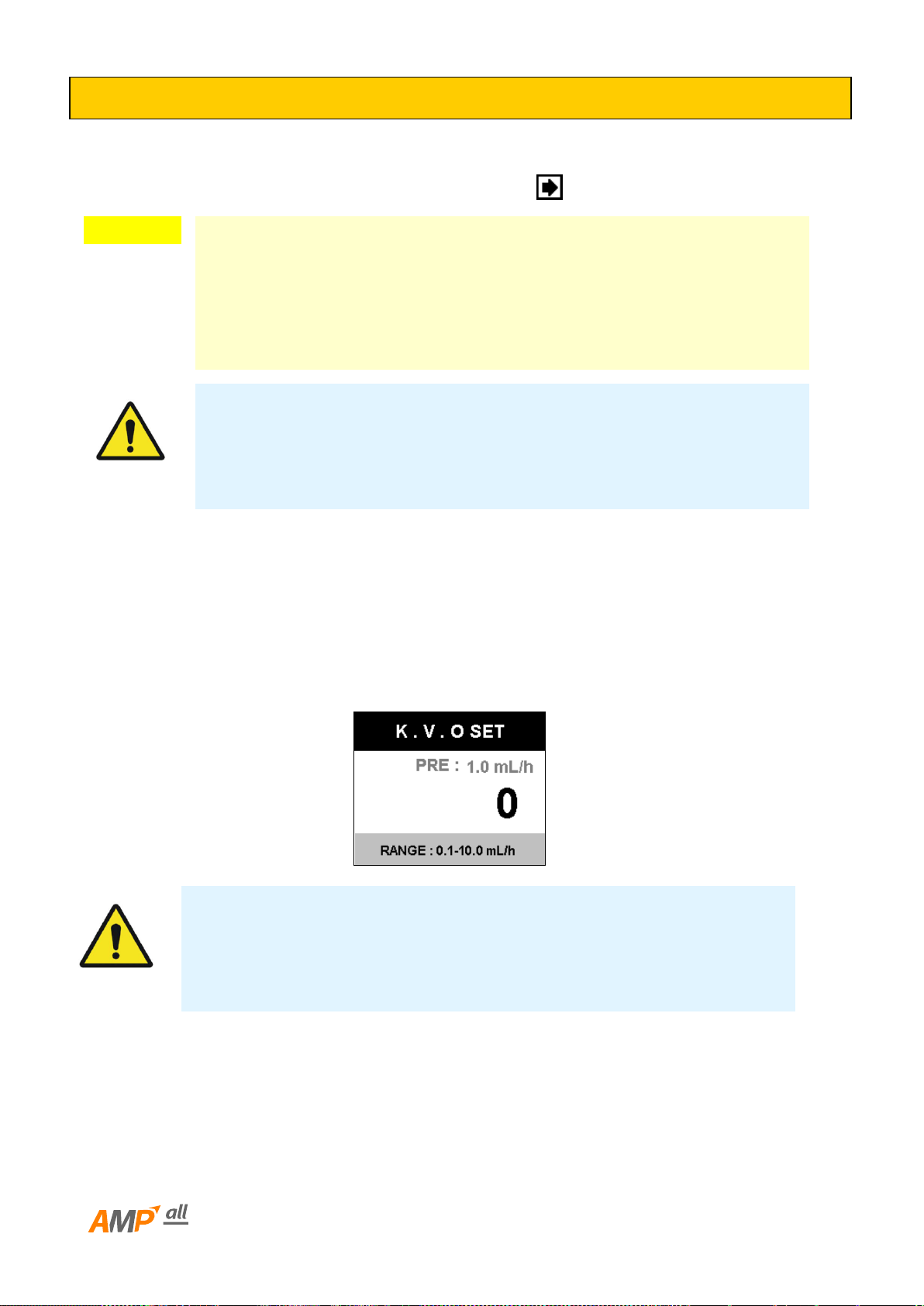

4-4-3. K.V.O. SETUP
Setup K.V.O. (Keep Vein Open) rate from 0.1~10.0㎖/h.
※ K.V.O. (Keep Vein Open): When the delivery volume has been reached, flow rate turns into K.V.O. rate
(adjustable from 0.1ml/h to 10.0ml/h) automatically to avoid clog by blood coagulation.
.
NOTE
• BOLUS ON/OFF : Get into the menu in order to MENUSYSTEM SETUP6.CONFLGBOLUS ON/OFF. You can select BOLUS ON/OFF. ( Refer to page 29 for setup). ( Initial setup is BOLUS OFF mode.)
• BOLUS and PURGE button is same one. It functions differently as its mode as blow. ※ BOLUS function : Only during the infusion
• Please make about BOLUS ON/OFF. When you do not use BOLUS function,
please setup BOLUS OFF so it does not function. And make sure when you use
BOLUS function about tis setup condition(flow rate, delivery volume) before use
it.
• Make sure K.V.O rate setup before use it to avoid excess infusion during K.V.O. function.
• Manufacturer does not cover the result from K.V.O. setup failure by user. So please make sure about K.V.O. setup condition before start infusion.
SP-8800 / UME-03-REV.8
29
4. SYSTEM SETUP
4-5. DISPLAY
There are “TIME SETUP” , “B.LIGHT TIME” , “B.LIGHT BRIGHT” for “DISPLAY” menu.

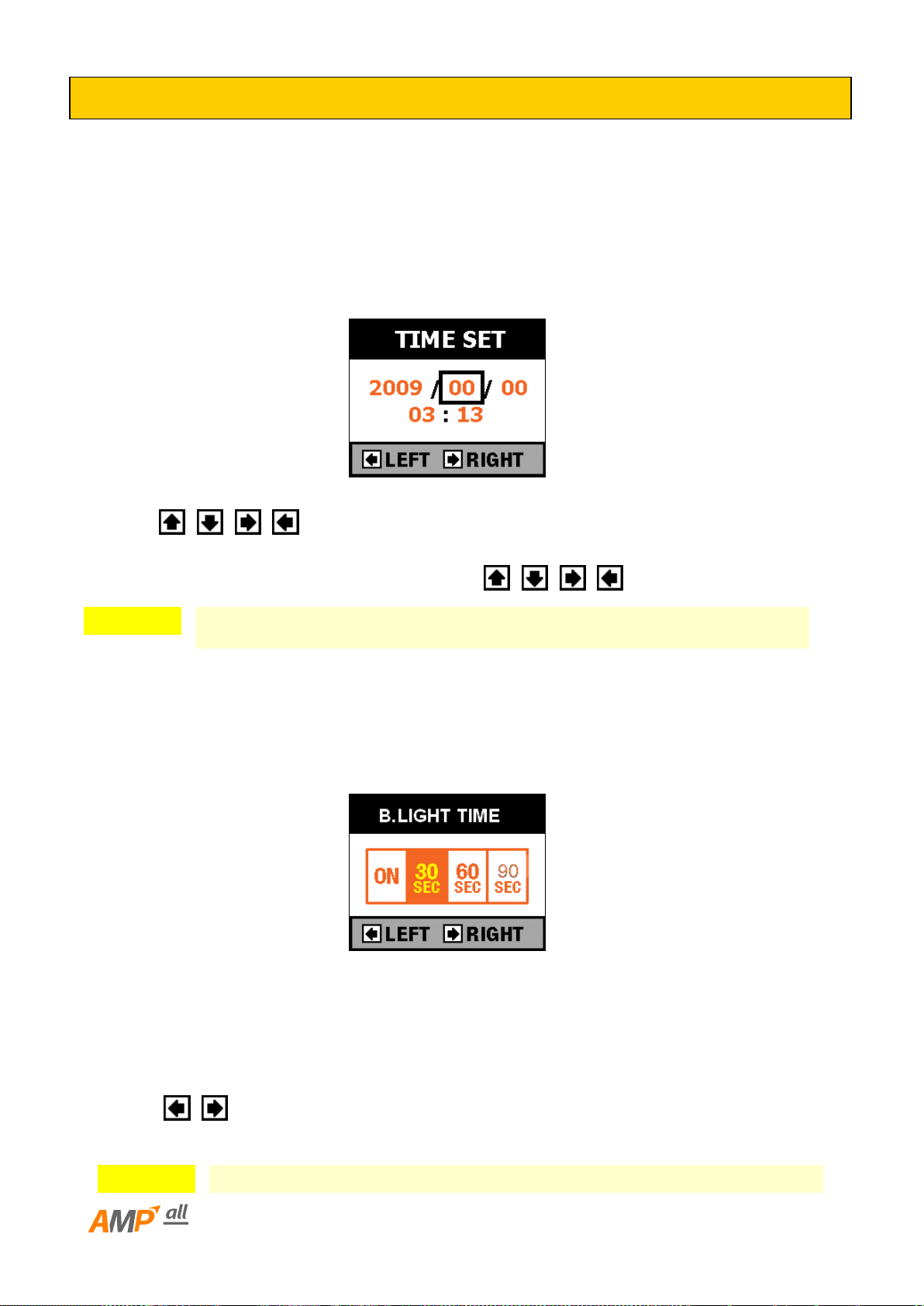

4-5-1. TIME SETUP
• Get into “TIME SET” menu in order to MENUSYSTEM SETUPDISPLAYTIME SETUP.
• Move with , , , buttons and input with numerical buttons for time setup. Press [SEL] button to
select and save time set.
• There is no extra delet button because you can move with , , , buttons at any point.
4-5-2. LCD BACK LIGHT TIME
• Get into “B.LIGHT TIME” menu in order to MENUSYSTEM SETUPDISPLAYB.LIGHT TIME.
• There are 4modes for LCD black light mode.
-ON : Always LCD black light on.
-30SEC : Turns off after 30seconds.
- 60SEC : Turns off after 60seconds.
-90SEC : Turns off after 90seconds.
Move with , buttons and press [SEL] button to select and save the mode. After select and save it, it turns into previous menu.
NOTE
• Once time setup, the unit keeps time whenevery it turns on or off.
NOTE
Initial set is ON.
SP-8800 / UME-03-REV.8
30
4. SYSTEM SETUP
4-5-3. LCD BLACK LIGHT BRIGHT
• Get into “BLIGHT BRIGHT” menu in order to MENUSYSTEM SETUPDISPLAYB.LIGHT BRIGHT.
• There are brightness levels from LEVEL 1 to LEVEL 9. As level number is up, LCD goes brighter. Adjust it with
, buttons and press [SEL] button to select and save it.
4-6. CONFIG
There are “KEY LOCK P/W” , “BOLUS ON/OFF” and “ANTI-BOLUS” for CONFIG menu.
4-6-1. KEY LOCK P/W
• Get into KEYLOCK P/W menu in order to MENUSYSTEM SETUPCONFIGKEYLOCK P/W.
• Move with , buttons, select and save with [SEL] button.
NOTE
Initial set is LEVEL 9.
Problems from incorrect setup by user, are charged on user. It does not cover
by manufacturer.
SP-8800 / UME-03-REV.8
31
4. SYSTEM SETUP

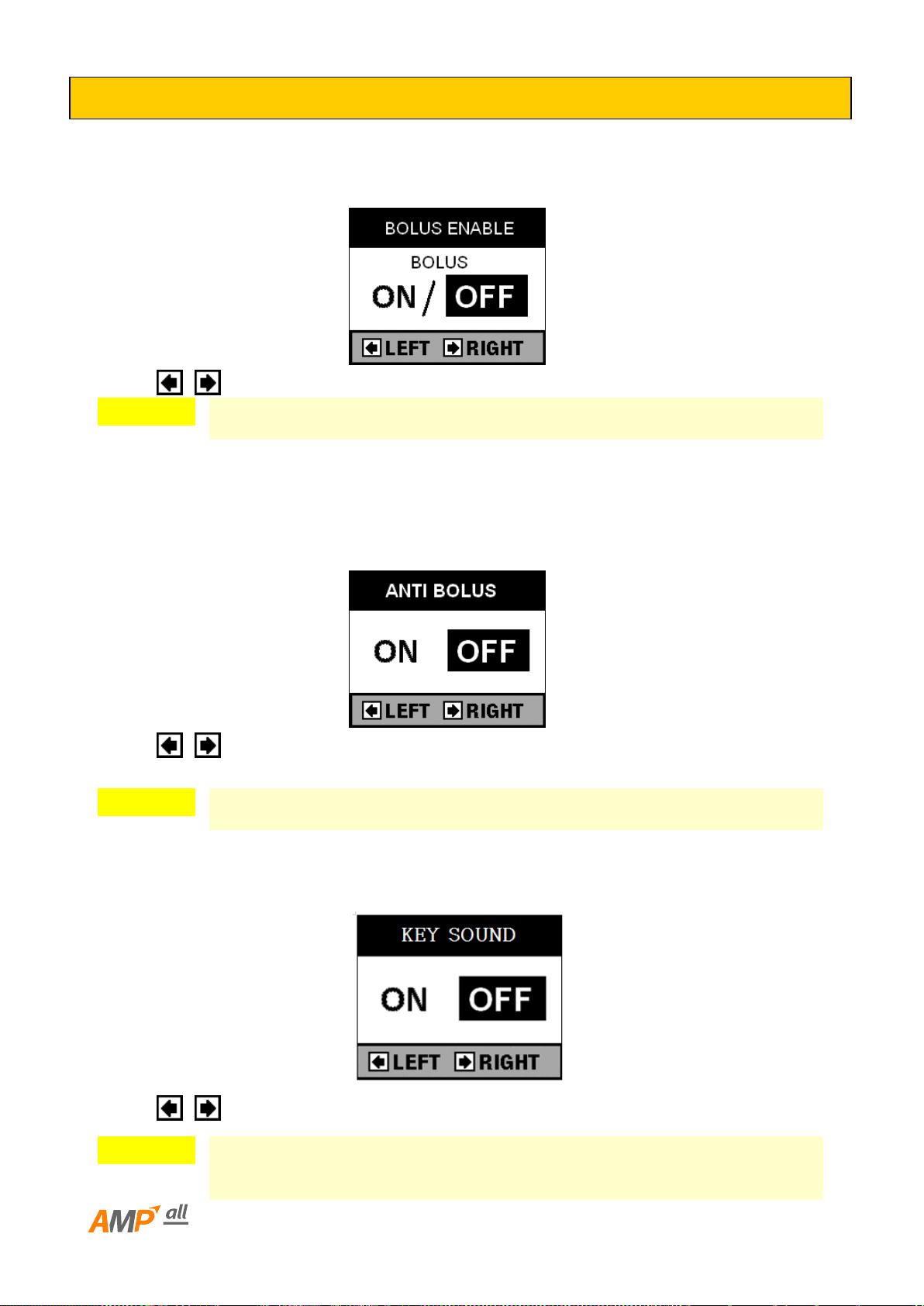

4-6-2. BOLUS ON/OFF
• Get into BOLUS INFUSE menu in order to MENUSYSTEM SETUPCONFIGBOLUS ON/OFF.
• Move with , buttons, select and save with [SEL] button.
4-6-3. ANTI BOLUS ON/OFF
• Get into ANTI BOLUS INFUSE menu in order to MENUSYSTEM SETUPCONFIGANTI – BOLUS. ※ ANTI BOLUS : Reduce significantly bolus after occlusion release. O
• Move with , buttons, select and save with [SEL] button.
4-6-4. KEY SOUND
Get into “KEY SOUND” menu in order to MENUSYSTEM SETUPCONFIGKEY SOUND.
• Move with , buttons, select and save with [SEL] button.
NOTE
Initial setup is OFF. (KEY LOCK P/W , BOLUS INFUSE )
NOTE
Initial setup is OFF. [KEY LOCK P/W] , [BOLUS INFUSE] , [ANTI BOLUS]
NOTE
• if “KEY SOUND” is OFF, there is no sound when the buttons are pressed
• Preset is ON for KEY SOUND
SP-8800 / UME-03-REV.8
32
5. SPECIAL FUNCTIONS
5-1.Dosage 5-2.History 5-3.Profile (Option spec) 5-4.Drug label
5-5.Unit setup
5-6.Pro. mode
SP-8800 / UME-03-REV.8
33
5. SPECIAL FUNCTION
5. SEPCIAL FUNCTION
• Press MENU button to getinto Menu mode and select SPEICAL FUNCTION with [SEL] button.
• SPEICAL FUNCTION MENU
1. DOSAGE
2. HISTORY
3. PROFILE (OPTION SPEC)
4. DRUG.LABEL (OPTION SPEC)
5. UNIT SETUP
6. PRO.MODE
5-1.DOSAGE
• DOSAGE SETUP
• Press buttons in order to MENUSPECIAL FUNCTIONDOSAGE and there come up “DOSE RATE” on the
LCD.
• DOSEGE : Automatically calculate and set the proper flow rate when the dose rate, body weight, drug mass and solution volume are entered.
• After input each parameter, press [SEL] button. Each mode is comfirmed and turns into next parameter
automatically. Please refer to picture No. ① to ④.
• After setup complete parameter, it turns into picture No. ⑤ automatically and display complete information for
each parameter value.
• Each paramet, you can delet or change the value with [ESC / 2sCLR] or , , , buttons.
• Press [ESC / 2sCLR] button to back previous mode.
① ② ③ ④
• As soon as finish input each parameter value, complete data is displayed as picture No. ⑤. Select YES to
confirm the data for DOSAGE mode, it turns into STANDBY mode with confirm sound. Flow rate and Delivery volume are displayed on FND automatically. Press [START] button to start. If you select NO on the picture No. ⑤, it goes back DOSE RATE mode automatically to setup each parameter again.
NOTE
• Contact local authorized dealer for OPTION SEPC.
SP-8800 / UME-03-REV.8
34
5. SPECIAL FUNCTION
⑤
* Range for each parameter
* Change unit for DOSE RATE : Unit can be changed page 36 “UNIT SET”
5-2. HISTORY
5-2-1. Check HISTORY
• Get into HISTORY VIEW menu in order to MENUSPECIAL FUNCTIONHISTORY.
• HISTORY : Display last 10 infusion datas, infusion starting time, infusion completing time, FLOW RATE ,
INFUSED VOLUME.
Dose rate
0.01 ~ 99.99㎍/㎏/min. (0.01㎍/㎏/min. increment)
Body weight
0.1 ~ 300.0㎏ (0.1㎏ increment)
Solution volume
0.1 ~ 999.9㎖ (0.1㎖ increment)
Drug volume
0.1 ~ 999.9㎎ (0.1㎎ increment)
DOSE RATE
1. ㎍ / ㎏ / min
2. ㎍ / ㎏ / hour
3. ㎎ / ㎏ / hour
4. ㎎ / ㎏ / min
NOTE
• Each parameter value should be more than “0”.
• DOSAGE Mode
Flow rate (ml/h) = [{Dose rate(㎍/kg/min.) * Body weight(kg) * Solution volume(ml)}
/ {Drug volume(mg) * 1000}]* 60
SP-8800 / UME-03-REV.8
35
5. SPECIAL FUNCTION
• Move with , , , buttons and press [SEL] button to see detail information for each data.
• HISTORY DATA : Last 10 infusion datas only.
5-3.PROFILE (OPTION SPEC)
• Get into PROFILE SET menu in order to MENUSPECIAL FUNCTIONPROFILE.
5-3-1. PROFILE LOAD
• PROFILE LOAD : Call back the previous setup data. When you select this mode, there is YES or NO selection mode to start same profile.
• Select “YES” to start same profile with previous setup. The unit turns into STAND BY mode. Press [START] button to start PROFILE, the unit start PROFILE mode with displaying “PROFILE” on LCD.
• Select “NO” to setup new PROFILE.
5-3-2. PROFILE SETUP
• PROFILE : Program infusion condition(flow rate, delivery volume, delivery time) differently for every hour, up to 24hours. (Option).
• Select “PROFILE SET UP” and press [SEL] button to get into below picture mode. Press [SEL] button to setup
time for each profile, input each time with numerical buttons. Press [SEL] button to save each time and infusion setup(Flow rate, Delivery volume).
• Setup profile data up to 24hours in order to same process.
• Press [START] button to save.
NOTE
• Duringe PROFILE function, you can not setup Flow rate, Delivery volume. To stop PROFILE function, make sure PROFILE LOAD setup as “ NO”.
SP-8800 / UME-03-REV.8
36
5. SPECIAL FUNCTION

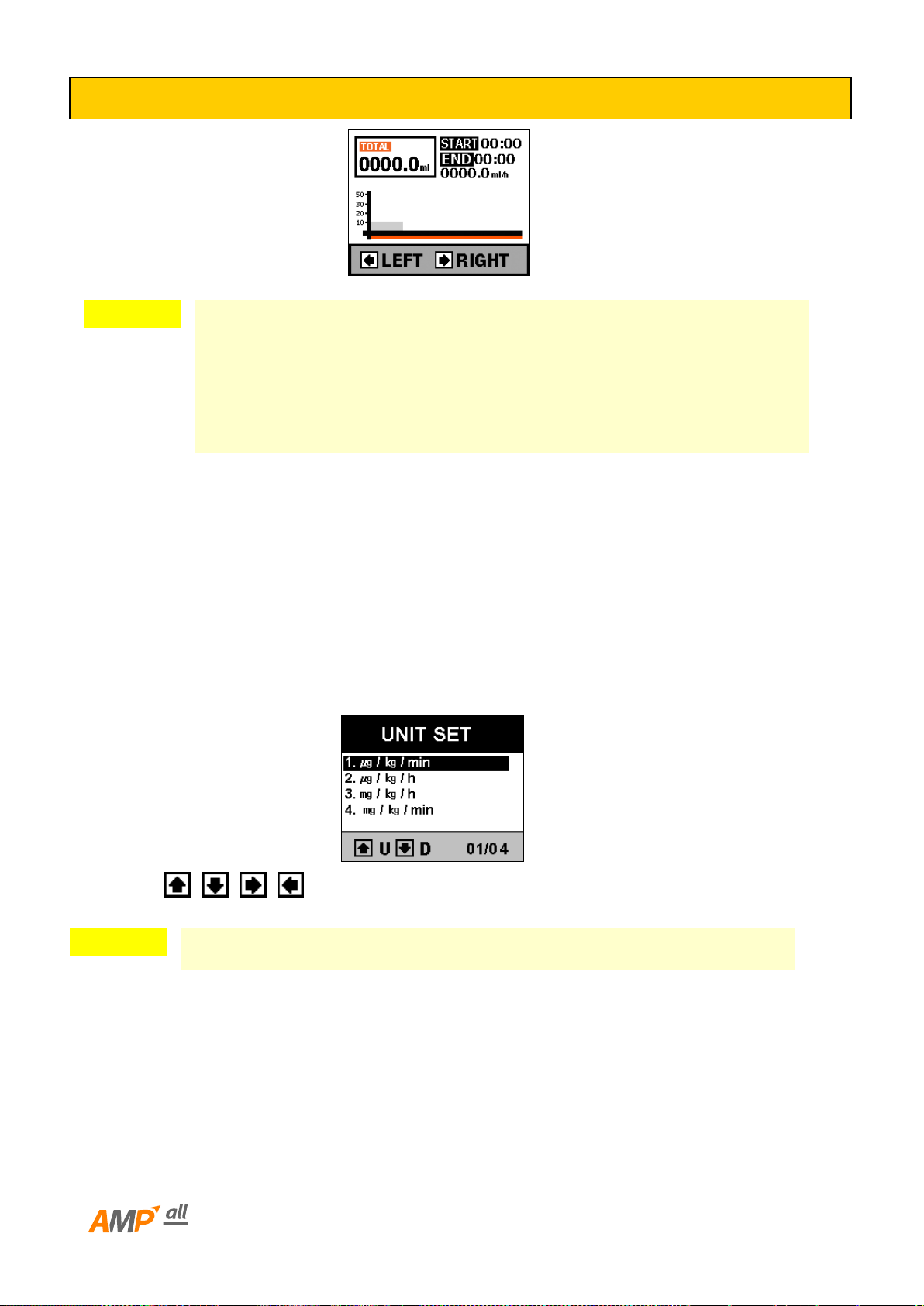

5-4. DRUG LABEL (OPTION SPEC)
This unit does not include “DRUG LABEL” function.
5-5. UNIT SETUP
• Get into UNIT SET menu in order to MENUSPECIAL FUNCTIONUNIT SETUP.
• This is change the unit on DOSAGE RATE mode.
• Move with , , , buttons to select the unit and press [SEL] button to save it.
5-6.PRO.MODE
Contact local agency or local authorized dealer for this mode.
NOTE
• Time setup increment is hour only (not by minute).
• Maximum profile time is 24hour and 24 kinds of infusion setup available.
• Presetup is “OFF”.
• Problem occurred by user setup is charged on user. Manufactuer does not cover the
problem occurred by incorrect setup or use by user.
NOTE
• Initial setup is “㎍ / ㎏ / min”.
SP-8800 / UME-03-REV.8
37
6. TROUBLE SHOOTING
SP-8800 / UME-03-REV.8
38
6.TROUBLE SHOOTING - ALARM
Take the following actions if any trouble occurs. When the troubles could not be solved with the following actions, Please contact your local authorized dealer immediately.
Symptom
Cause
Action
Pump cannot be switched on.
• AC or DC power cord is not
inserted properly
▶Check the AC or DC power cord connection.
• Never connect both AC and DC power to the pump
at the same time
• Internal battery has deteriorated
▶Stop the operation of the pump and replace with a new battery through
your local authorized dealer.
• The voltage of the internal battery
is low
▶Recharge the battery fully for more than 24 hours by connecting the
pump to an AC power outlet.
• Because of an industrial waste, used
Ni-MH battery must be returned to
AMPall or distributor.
[OCCLUSION] LED flashes and alarm sounds.
• The infusion line is kinked or twisted
▶1. Turn the alarm off by pressing [SILENCE] button. ▶2. Check the infusion line and take a corrective action like untwisting or
replacing with a new one to solve the problem of occlusion
▶3. Press [STOP] button to show “STAND-BY” on the LCD. ▶4. Restart infusion by pressing [START] button.
• When infusion is restarted, the
alarm sounds again, and the pump stops
▶The system is in trouble. ▶Turn the alarm off by pressing [SILENCE] button. ▶Please contact your local authorized dealer.
[FINISH] LCD display and alarm sounds
• The syringe is completely empty
▶1. Turn the alarm off by pressing [SILENCE] button. ▶2. To continue the infusion, replace the syringe with a new one. ▶3. Press [STOP] button to show “STAND-BY” on the LCD. ▶4. Restart infusion by pressing [START] button.
[NEAR EMPTY] LED flashes and alarm sounds.
• The syringe is nearly empty
(Finishing injection in 5 minutes
before, the flash light and warning sound occurring)
▶1. Press [STOP] button to stop infusion. ▶2. To continue the infusion, replace with the new syringe filled with
solution.
▶3. Restart infusion by pressing [START] button.
NOTE
• Whenever alarm sounds, the pump stops infusion. That is, alarm sounds only in error
situation during infusion.
SP-8800 / UME-03-REV.8
39
6.TROUBLE SHOOTING - ALARM
Symptom
Cause
Action
[SLIDER HOOK] LED flashes and alarm sounds
• Slider Hook does not fix Push-
Button of syringe
▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make Slider Hook fix Push-Button of syringe. ▶ 3. Press [STOP] button to show “STAND-BY” on the LCD. ▶ 4. If re-infusion is needed, restart infusion by pressing [START]
button.
[CLAMP] LED flashes and alarm sounds
• Clamp does not fix Barrel of syringe
▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Pull the clamp, turn it to the left up to 90° and put the finger
grips of syringe into the slit.
▶ 3. Press [STOP] button to show “STAND-BY” on the LCD. ▶ 4. If re-infusion is needed, restart infusion by pressing [START]
button.
[CLUTCH] LED flashes and alarm sounds
• Clutch is not properly engaged
▶ 1. Turn the alarm off by pressing [SILENCE] button. ▶ 2. Make the clutch engaged properly. ▶ 3. Press [STOP] button to show “STAND-BY” on the LCD. ▶ 4. If re-infusion is needed, restart infusion by pressing [START]
button.
“BATT-LOW” on the LCD and alarm sounds
• The voltage of internal battery is low
▶ 1. Press [STOP] button to stop infusion. ▶ 2. Recharge the battery fully for 24 hours by connecting the pump
to an AC power outlet.
▶ 3. Restart infusion by pressing [START] button.
“KEEP-VEIN” on the LCD and alarm sounds
• In the operation, the total volume
delivered reaches the delivery limit
▶ Stop K.V.O. rate by pressing [STOP] button
• The total volume delivered exceeds
the delivery limit
▶ Stop K.V.O. rate by pressing [STOP] button ▶ When infusion is newly needed, set the delivery volume again or
clear the total volume delivered.
When [PURGE] button is pressed, the alarm sounds.
• The syringe is not set properly
• Even when the syringe is set again,
purging does not occur
▶ Set the syringe correctly. ▶ The system is in trouble.
Please contact your local authorized dealer
“ERROR” is on the LCD
• The system is in trouble
▶ Please contact your local authorized dealer
SP-8800 / UME-03-REV.8
40
6.TROUBLE SHOOTING - ALARM
Symptom
Cause
Action
Even when [START] button is pressed, the alarm sounds, and the pump does not start.
• The value of “flow rate, delivery
limit, dose rate, body weight, drug
volume, or solution volume” is not
set correctly
• Clutch is not properly engaged
• The syringe is not set properly
• The low voltage of the internal
battery
▶ Confirm the values that were set.
▶ Engage the clutch correctly. ▶ Set the syringe correctly. ▶ Recharge the battery fully for more than 24 hours by connecting
the pump to an AC power outlet.
[SYRINGE SIZE] LED and [CLAMP] LED flash
• The syringe, which is used, may be
different from the one specified in the pump in terms of manufacturer
• When infusion is restarted, the
alarm sounds again, and the pump stops
▶ Make sure that the syringe, which is used, is the same as the
one specified in the pump in terms of manufacturer.
To use the syringe of different manufacturer, please contact your
local authorized dealer.
▶ The system is in trouble. ▶1. Turn the alarm off by pressing [SIL ENCE] button. ▶2. Turn off the power. ▶3. Please contact your local authorized dealer for repair
The accuracy of flow rate is questionable.
• The syringe, which is used, may be
different from the one specified in the pump in terms of manufacturer
• Otherwise, the system is suspected
to be in trouble
▶ Make sure that the syringe, which is used, is the same as the
one specified in the pump in terms of manufacturer. To use the syringe of different manufacturer, please contact your local authorized dealer.
▶ Please contact your local authorized dealer for repair.
The operation hour by battery is too short after recharging the battery
• Internal battery has deteriorated
• Otherwise, the system is suspected
to be in trouble
▶ Stop the operation of the pump and replace with a new battery
through your local authorized dealer.
▶ Please contact your local authorized dealer for repair.
Battery is not recharged even when it is connected to AC power outlet.
• AC power cord is not inserted
properly
• AC power cord has deteriorated
• Otherwise, the system is suspected
to be in trouble
▶ Check the AC power cord connection.
▶ Replace with a new AC power cord. ▶ Please contact your local authorized dealer for repair.
Battery is not recharged even when it is connected to DC power outlet.
• DC power cord is not inserted
properly
• DC power cord has deteriorated
• Otherwise, the system is suspected
to be in trouble
▶ Check the DC power cord connection.
▶ Replace with a new DC power cord. ▶ Please contact your local authorized dealer for repair.
SP-8800 / UME-03-REV.8
41
SPECIFICATION
DELIVERY PERFORMANCE
ALARM
OCCLUSION, NEAR EMPTY, LOW BATTERY, K.V.O. RATE, CLUTCH OPEN, SLIDER HOOK OPEN, CLAMP OPEN, REPEAT ALARM, STAND BY
FEATURES
CLASSIFICATIONS
ClassⅠ, CF, IPX3
OCCLUSION DETECTION PRESSURE
1.3kgf /㎠
NURSE CALL
DC12V, 1A
KEYPAD LOCK, SHORT-CUT KEY, HISTORY CALL-BACK, RETAIN MEMORY, REMAINNING TIME, OPEN SYSTEM, PURGE, BOLUS, K.V.O., BUZZER VOLUME / OCCLUSION PRESSURE CONTROL, DOSAGE MODE, NURSE CALL(OPTION), DRUG LABEL(OPTION), PROFILE(OPRION), CENTRALL SYSTEM(OPTION)
OTHER PARAMETERS
POWER REQUIREMENTS / CONSUMPTION
AC110 / 230V, 50 / 60Hz or DC9.6V, DC24V 1A / 40VA
DIMENSIONS (W × D × H)
220×130×108 (mm)
WEIGHT
Approximately 2kg
BATTERY / OPERATION / CHARGING
Ni-MH9.6V / 4 hours / 6 hours
BATTERY LIFE
1.5~2 years
OPERATION CONDITIONS
5~40℃, 30~90% RH (no condensation)
STORAGE CONDITIONS
-20~45℃, 10~95% RH (no condensation)
WARRANTY PERIOD
1 year
Expected Service Life
5 years
※Specifications and design are subject to change for improvement without prior notice
FLOW RATE RANGE
Syringe 10ml: 0~300ml/h Syringe 20ml: 0~400ml/h Syringe 30ml: 0~500ml/h
Syringe 50ml: 0~1200ml/h
VOLUME LIMIT
0.1~1000ml ( 0.1ml steps)
PURGE RATE
0.1~1200ml/h (Adjustable)
K.V.O. RATE
0.1~10ml/h ( Adjustable)
ACCURACY WITH APPROVED SYRINGES
Mechanical accuracy: ±2%
Accuracy including syringe: ±2%
SP-8800 / UME-03-REV.8
42
SYMBOL
Meaning
Symbol
Please read this instructions for use:
Manufacture Date
Instruction for User Manual
Lot number:
WEEE Mark
Device Serial Number
Waterproof level
IPX 2
DC
Type CF Equipment (Protection against electrical shock)
Protection from heat and sunlight
AC
SP-8800 / UME-03-REV.8
43
AMPall warrants that the product shall be free from defects in workmanship and materials for the warranty period. The warranty is void if failure of the product has resulted from accident, alteration, abuse or misapplication to include unauthorized opening of the product.
Under the warranty, AMPall shall repair or replace at its option and expense any products found defective by the customer during the warranty period and returned to an authorized AMPall representative. Return of the repaired or replaced product to the customer’s original location shall be at the expense of AMPall unless AMPall determines that the products are not defective within the terms of the warranty. In such case the customer shall pay AMPall all costs of handling, transportation and labor.
This warranty is in lieu of all other warranties whether expressed or implied.
• Manufactuer : AMPall Co.,Ltd. 3F, Annex Hankook Junja Hyeopdong B/D (Gasan-Dong) 114 Gasan digital 2-ro, Geumcheon-gu, Seoul, 08506, Korea TEL: 82-2-858-2839~41 FAX: 82-2-858-2442 E-mail: ampall@ampall.com
• EC Representative : CE medical Amerlandseweg 7 3621 ZC Breukelen, The Netherlands TEL: +31 (0)85 007 3220 E-mail: info@ce-mark-medical.com
SP-8800 / UME-03-REV.8
44
Thank you for your purchasing for AMPall product. The warranty period
Of SP-8800 is valid from the purchasing date. Please notice the purchasing
date on the warranty card and keep this Warranty Card with the device all the time to get full customer service.
Product Name
Infusion Pump
Model Name
□ SP-8800
Manufacturing Date
Warranty Period
1 years
Purchasing Date
/ / (year/ month/ date)
Customer Name: Tel.:
Add.:
Retailer Name: Tel.:
Add.:
Repairing Record
Date
Contents of Repair
Confirmation
☆ Please show this Warranty Card when you request repairing service.
3F. Annex Hankook Junja Hyeopdong B/D,
114, Gasan digital 2-ro, Geumcheon-gu, Seoul, Korea.
TEL : +82 - 2 - 858 - 2839~41 / FAX : +82 - 2 - 858 – 2442
E-mail : ampall@ampall.com / Website: www.ampall.com
Warranty Card
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
