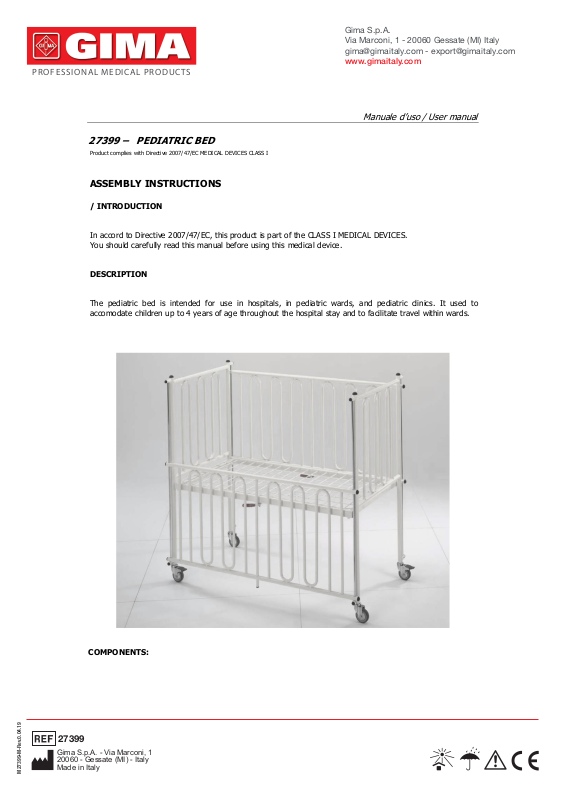

Gima 27399 User Manual

PROFESSIONAL MEDICAL PRODUCTS

27399 – PEDIATRIC BED

Product complies with Directive 2007/47/EC MEDICAL DEVICES CLASS I

ASSEMBLY INSTRUCTIONS

/ INTRODUCTION

In accord to Directive 2007/47/EC, this product is part of the CLASS I MEDICAL DEVICES.
You should carefully read this manual before using this medical device.

DESCRIPTION

The pediatric bed is intended for use in hospitals, in pediatric wards, and pediatric clinics. It used to
accomodate children up to 4 years of age throughout the hospital stay and to facilitate travel within wards.

Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
[e-mail] - [e-mail]

www.gimaitaly.com

Manuale d’uso / User manual

M27399-M-Rev.0.04.19

COMPONENTS:

27399

Gima S.p.A. - Via Marconi, 1
20060 - Gessate (MI) - Italy
Made in Italy

Manuale d’uso / User manual

The bed consists of a fixed perimeter frame with a mesh top welded to it; the supporting shoulders are

n.4 6X50 TTQ SCREWS

designed for attachment to the bed base using special removable bolts to prevent deformation of the
structure; the side rails slide on steel guides and they are equipped with a safety device.
The bed is equipped with 4 swivel wheels, 2 of which are equipped with independent brakes.

Assembly material:

n.4 washers
n.4 bolts

M6/M10 Key

ASSEMBLY INSTRUCTIONS: Assembly components

I Begin the assembly phase by setting up a horizontal work plan.

Manuale d’uso / User manual

ASSEMBLY OF HEAD/FEET BOARD

Take the net and place it on a
work plan and insert the two
headbord into the inserts.

Insert the supplied screws, put
washers, nut and tighten.

M SIDE RAIL MOUNTING

Unscrew the butterfly screws

(fig.1 e 2)

Extract the round dawn chromed
steel parts from the seat of the
shoulders (fig.3)
Insert the side rails blocking the
drawn parts with the butterfly
screws.

For the second side, lean on the
one just fitted and proceed in the
same way.

1

2

3

Manuale d’uso / User manual

VERTICAL MOVEMENT SIDE WALLS

movement must be carried out through the

To operate the brake, press the pedal installed

Misure / measurement

Cm 136x75x131h
Scatola/Box cm 137x80x18,5

Peso / weight

Portata massima/ max capacity

50 kg

The
central lever placed under the net frame:

- Raise the side panel and lock with a black
handle under the bed plate when the side is
lifted all.

- Unlock the side with the same black handle
and lower it.

raised lift with locked handle

BRAKES

ECHNICAL DATA

WARNINGS!

Side lowered with handle unlocked

above the wheels with your foot.
Raise the brake to return to the free position.

35 kg (With box 37,3 kg)

Manuale d’uso / User manual

- People not familiar with the instructions for use must not use the bed.

- The operator is responsible to third parties for using the cot/crib in the work area.

- The handling of the side rails is allowed only for the patient’s needs.

- Use for the other purpose is not permitted.

- Check the locking nuts are tightened.

- Replace worn or damaged parts promptly for safety reasons.

- Pay attention when moving the patient inside the ward.

- Before moving the bed, unlock the wheels.

- After moving the bed, remember to lock the wheels.

- Move the bed without lifting it from the floor.

- Not use rigid mattresses (we recommend the use of special mattresses for cots).

- Not for use in open environments.

- Observe the maximum flow rates indicated in the data sheets.

- Make sure that no one inserts hands, legs or anything into the side movement area:

CRUSHING RISK!

MAINTENANCE AND CLEANING

− Perform maintenance every 4 months about.

− Wheels with brake: according to the wear of the tire, check the brake block plate and, if necessary,

adjust the adjustment screw.
Check the tightness of the screws and nuts, especially those of the wheels.

− Cleaning: use normal water-soluble bactericidal products disinfecting neutral ph surfaces.

WARRANTY

- The bed comes with a one-year warranty for material and manufacturing defects, but does not
include consumables.

- Tampering or damage caused by incorrect use of the bed will invalidate the warranty immediately.

- This medical device has been created exclusively for the above-mentioned uses. Any other use is

deemed improper.

- The manufacturer declines all liability for injury to persons and property due to improper use of the
device.

. GB - Keep in a cool, dry place. GB - Product complies with European

I GB - Read instructions carefully

GB -

Keep away from sunlight -

Directive

GB - Manufacturer

B - Please read instructions carefully

GB - Product code GB - Lot number (see box / package)
