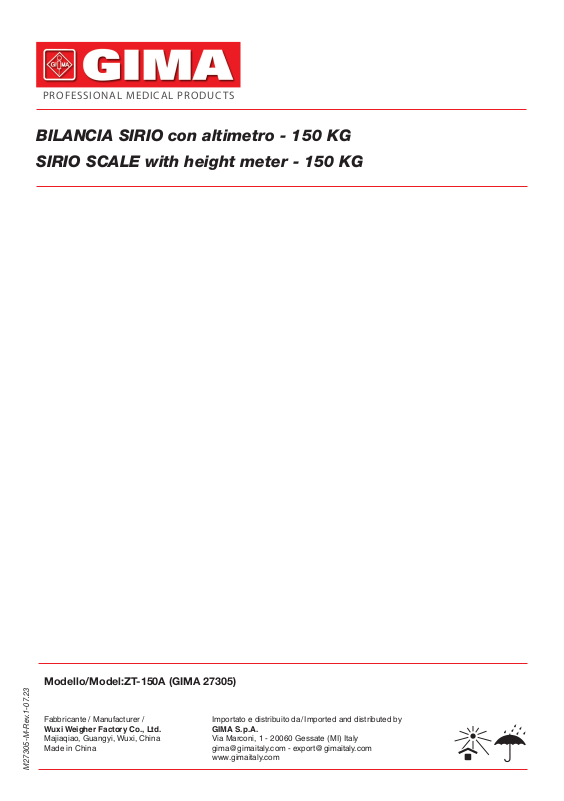

BILANCIA SIRIO con altimetro - 150 KG
SIRIO SCALE with height meter - 150 KG
Modello/Model:ZT-150A (GIMA 27305)
Fabbricante / Manufacturer /
Wuxi Weigher Factory Co., Ltd.
Majiaqiao, Guangyi, Wuxi, China
Made in China
M27305-M-Rev.1-07.23
Importato e distribuito da/ Imported and distributed by
GIMA S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
[email protected] - [email protected]
www.gimaitaly.com
Page 2
4
SPECIFICATIONS
Type 27305
Max. 150 kg
Division 0.5 kg
Height Measuring Division 85-210 cm
Height Measuring Division 0.1 cm
Plate Dimensions 370 x 270 mm (LXW)
Overall Dimensions 680 x 275 x 1080 mm (LXW XH)
Net Weight 13 kg
INSTALLATION
UNPACKING: Always remember that packing elements (paper, cellophane, stitches, adhesive tape, etc.) can cut and/or hurt if they are not carefully handled. They shall be removed
with adequate means and shall not be left at the mercy of irresponsible persons; the same
is valid for tools used to remove packages (scissors, knives, etc.)

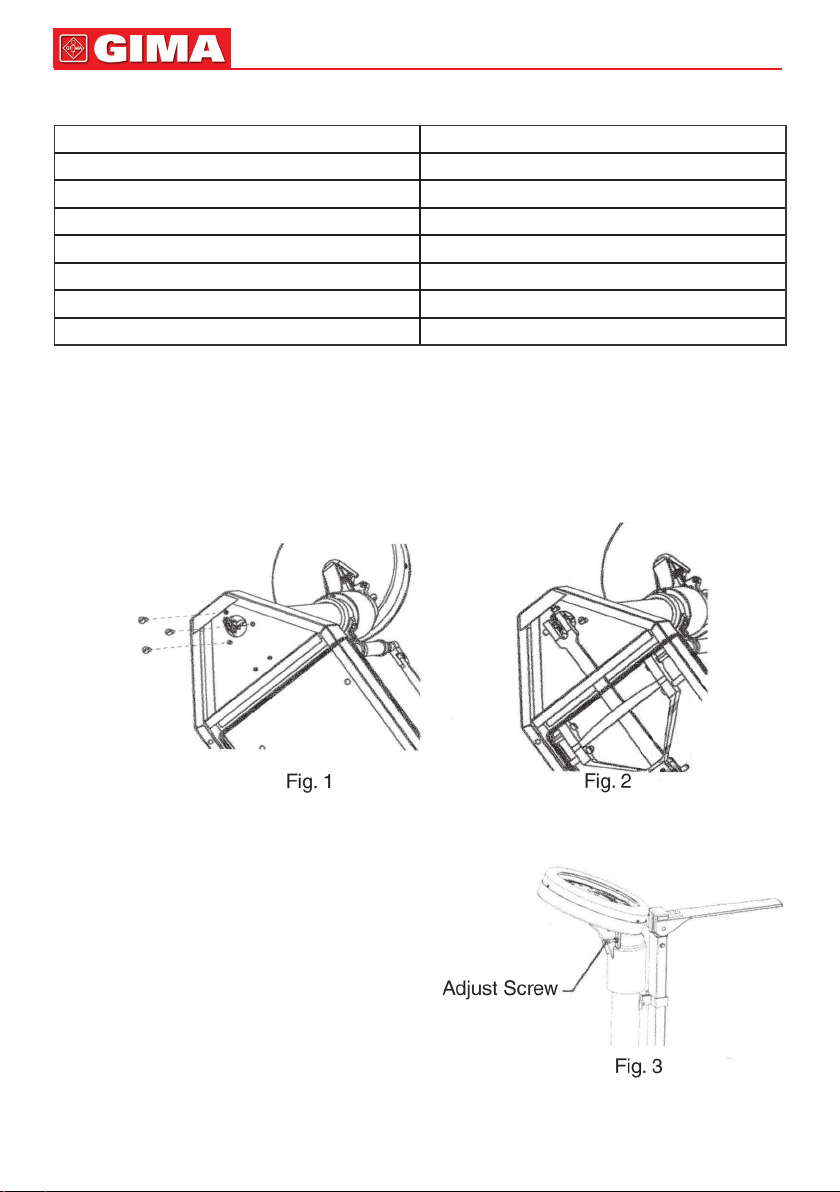

• To link the weighing head with the three M6 nuts and 06 washers. (Fig.1)
• To clasp the knife of the lever head with the load-carrying hood. (Fig.2)
OPERATION
The scale should be checked periodically,
particularly when moved, by following the
instructions below:
• Make certain scale is on a hard, level sur-
face. Step on and off scale a few times in
order to align all internal parts.
• Zero Adjustment
The indicator should point at the “0”
position. If te is any deviation, adjust the
indicator by turning the screw under the
dial (Fig.3)
Page 3
5
WEIGHING OPERATION
This weighing machine is well constructed with great precision and hign sensitivy. It’s loadcarrying installation consists of lever mechanism, knife edges and bearings, and platform,
ving stability, accuracy and durability. This platform is covered with plastic sheet to prevent
slipping and to offer shockproof to the internal mechanism. A self indicating dial is equipped
for easy reading, showing accurate weight both in Metric and in British systems by an indicator which is connected with the lever mechanism by means for gears and coiled spring.

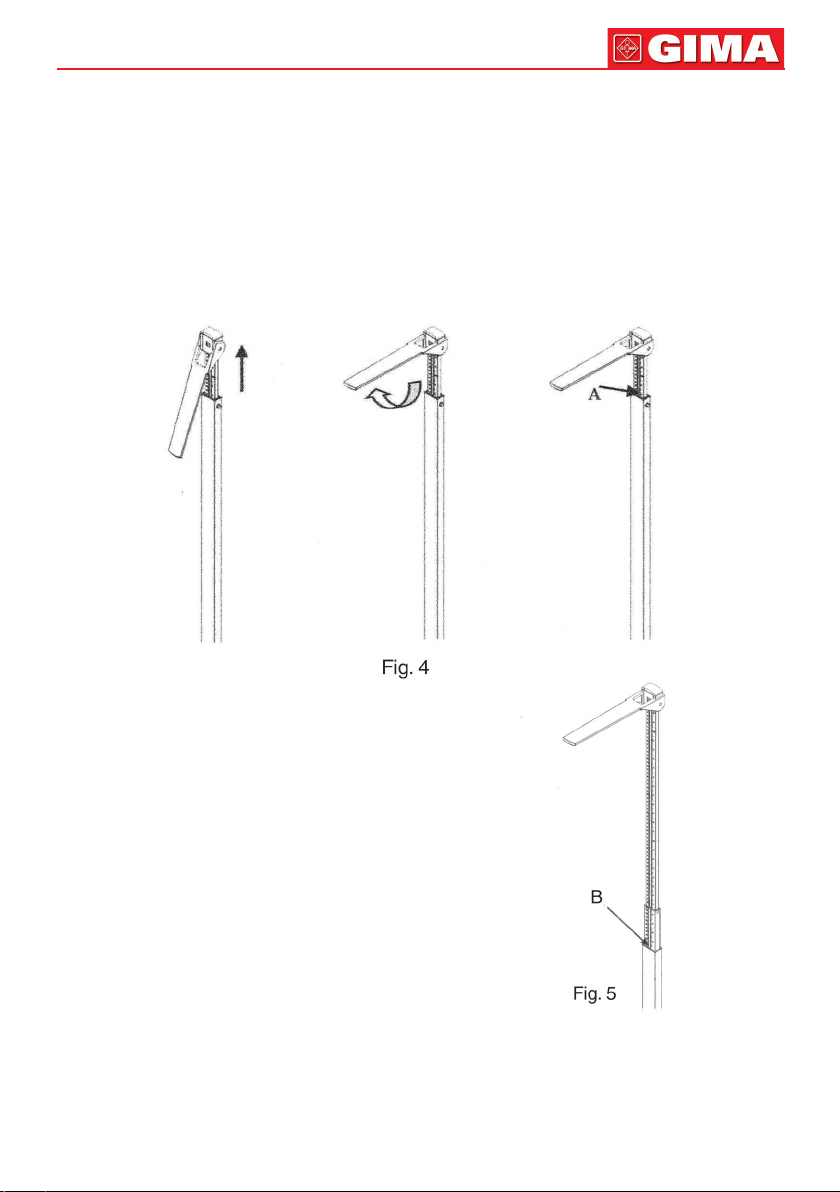

MEASURING HEIGHT OPERATION
Measuring over 850 mm (2’ 9 ½” ) and under 1408mm (4’77/16).
1. Pull out inner rod
2. Position the plate to a horizontal
position.
3. Measured result can be read at (A)
Measuring over 1408mm (4’77/16”):
4. Pull out inner rod and middle rod,
Measured result can be read at (B).
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
