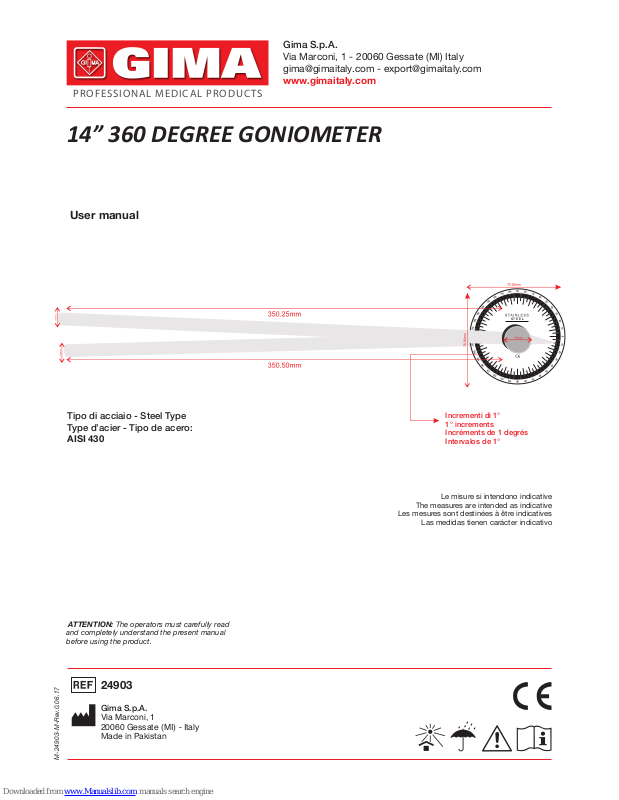

Page 1
PROFESSIONAL MEDICAL PRODUCTS
14” 360 DEGREE GONIOMETER
User manual
M-24903-M-Rev.0.06.17
24903
Incrementi di 1°
1° increments
Incréments de 1 degrés
Intervalos de 1°
STEEL
ATTENTION:
The operators must carefully read
and completely understand the present manual
before using the product.
Tipo di acciaio - Steel Type
Type d’acier - Tipo de acero:
AISI 430
Le misure si intendono indicative
The measures are intended as indicative
Les mesures sont destinées à être indicatives
Las medidas tienen carácter indicativo
Gima S.p.A.
Via Marconi, 1
20060 Gessate (MI) - Italy
Made in Pakistan
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
Page 2
INSTRUCTIONS OF USE
A goniometer measures range-of-motion (ROM) of various joints. The 360° head is marked in 1°
increments. Tension between the arms is controlled by the thumb knob Goniometer has two
opposing 180° scales and one 360° scale, all marked in 1° increments.
Sturdy adjustment knob, controlling tension of arms.
INDICATION OF USE & PRECAUTIONS
Those devices are designed for professional use by qualified operators with necessary skills.
The use of the product involves direct contact with patient’s skin; always wear protective gloves, do not
use on dull skin, handle carefully to avoid accidental abrasion. Clean and sterilize before each use; use
neutral non-aggressive disinfectant solution (PH7), do not use solutions containing chloride ions or high
alcohol content.
This product is intended to provide easy-to-read indicative measurements. Class I Medical Device.
ENGLISH
