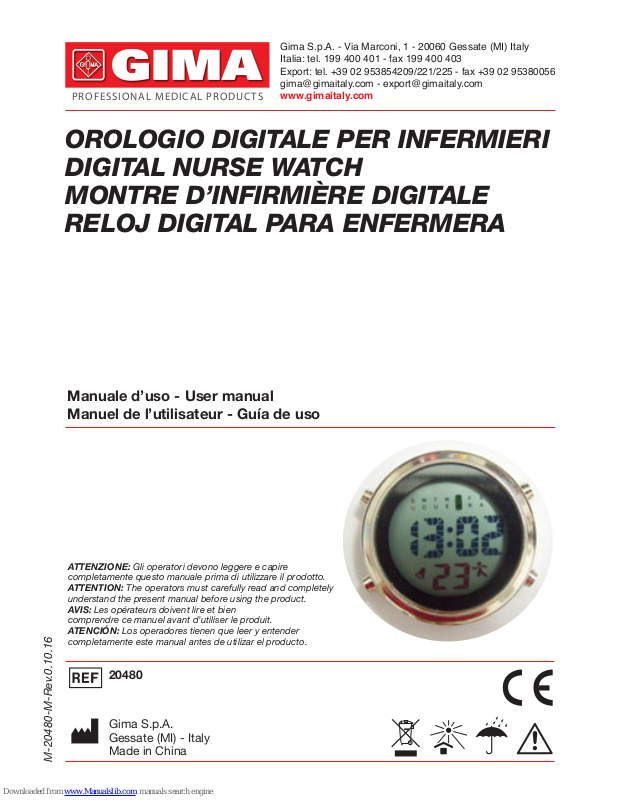

Gima 20480 User Manual

OROLOGIO DIGITALE PER INFERMIERI
DIGITAL NURSE WATCH
MONTRE D’INFIRMIÈRE DIGITALE
RELOJ DIGITAL PARA ENFERMERA

M-20480-M-Rev.0.10.16

PROFESSIONAL MEDICAL PRODUCTS

Gima S.p.A. - Via Marconi, 1 - 20060 Gessate (MI) Italy
Italia: tel. [phone] - fax [phone]
Export: tel. [phone]/221/225 - fax [phone]
[e-mail] - [e-mail]

www.gimaitaly.com

Gima S.p.A.
Gessate (MI) - Italy
Made in China

ATTENZIONE: Gli operatori devono leggere e capire
completamente questo manuale prima di utilizzare il prodotto.
ATTENTION: The operators must carefully read and completely
understand the present manual before using the product.
AVIS: Les opérateurs doivent lire et bien
comprendre ce manuel avant d’utiliser le produit.
ATENCIÓN: Los operadores tienen que leer y entender
completamente este manual antes de utilizar el producto.

Manuale d’uso - User manual
Manuel de l’utilisateur - Guía de uso

20480

Functions

6 digits display: Month, Date, Week day, Hour,
Minute, Second
Stop watch
12/24 hours
Alarm
EL background light

Instructions

Set Time & Date, week day

3 x Press B, second ashes, set time
by pressing D,C, by pressing C to conrm & return normal display.
Please set time by following steps.
3xPress B (Example: 13:02:23)
Second (23) ashes, press D to increase the seconds, press C back to 00,
press C to conrm.
Minute (02) ashes, press D to increase the numbers , press C to conrm.
Hour (13) ashes, press D to increase the numbers, press C to conrm.

Date ashes, press D to increase the numbers,
press C to conrm
Month ashes, press D to increase
the numbers, press C to conrm
Week ashes, press D move the ash
to the correct week day,
then press B to conrm all setups,
and back to normal display.

(C) START

(D) RESET

LIGHT (A)

MODE (B)

5

ENGLISH

Stop watch

Under normal display, 1 x press B
enter stopwatch mode,
1 x press D Start/stop to counting time
1 x press C clear data.
1 x press B, back to normal display.

12/24 Hours

Under normal display , 3 x press B,
enter time setup mode,
2 x press C enter 12/24 switch mode,
press D until 12/24 displays.
1 x press B back to normal display.

EL background light

1 x press A, EL light on 3 seconds.

Set Alarm

Under normal display.
2 x press B, enter alarm mode, hour ashes, press D to adjust the hour, then
press C, minute ashes, press D to adjust minute, press B back to normal
display.

Alarm On/Off

Press C(don’t remove), press D at the same time to set ON/OFF of alarm.
Alarm keeps on 1 minute.

Hourly bell

Press C(don’t remove),press B to set hourly bell on/off. When hourly bell is
on, all week day display in on.
Otherwise means hourly bell is off.

Battery replacement

On the back of the watch, there is a notch to open the housing and get to
the battery. Lift the rear with a sharp and thin instrument. Remove the metal
cover and the battery by sliding it on the side.
Insert the new battery complying with the correct polarity with the “+” facing
up. Replace the metal cover and close the case.

Weight: 45g
Battery: 3V Lithium Battery CR2025

6

ENGLISH

Disposal: The product must not be disposed of along with other domestic
waste. The users must dispose of this equipment by bringing it to a specific
recycling point for electric and electronic equipment. For further information
on recycling points contact the local authorities, the local recycling center
or the shop where the product was purchased. If the equipment is not
disposed of correctly, fines or penalties may be applied in accordance
with the national legislation and regulations.

GIMA WARRANTY CONDITIONS

Congratulations for purchasing a GIMA product. This product meets high qualitative
standards both as regards the material and the production. The warranty is valid
for 12 months from the date of supply of GIMA. During the period of validity of the
warranty, GIMA will repair and/or replace free of charge all the defected parts due
to production reasons. Labor costs and personnel traveling expenses and packaging
not included. All components subject to wear are not included in the warranty.
The repair or replacement performed during the warranty period shall not extend
the warranty. The warranty is void in the following cases: repairs performed
by unauthorized personnel or with non-original spare parts, defects caused
by negligence or incorrect use. GIMA cannot be held responsible for malfunctioning
on electronic devices or software due to outside agents such as: voltage changes,
electro-magnetic elds, radio interferences, etc. The warranty is void if the above
regulations are not observed and if the serial code (if available) has been removed,
cancelled or changed.
The defected products must be returned only to the dealer the product was

purchased from. Products sent to GIMA will be rejected.
