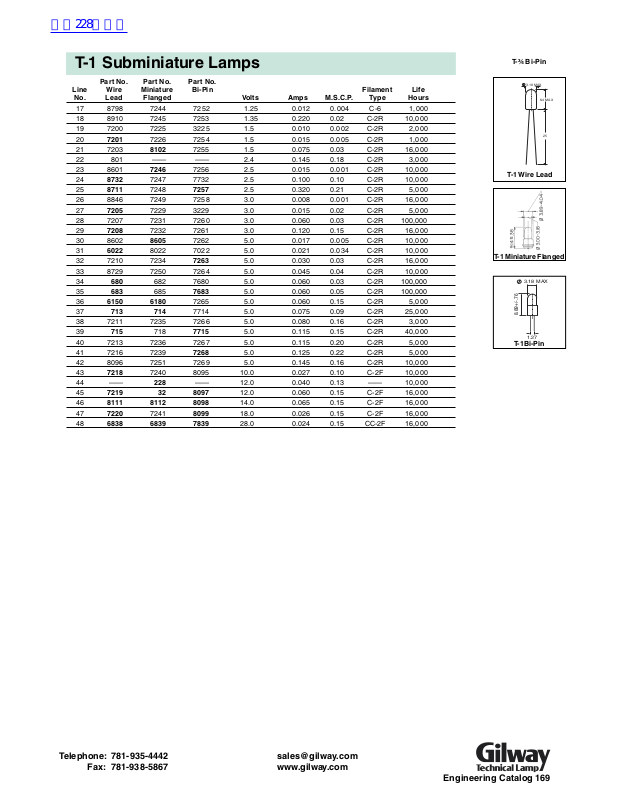

T-1 Subminiature Lamps
Part No. Part No. Part No.
Line Wire Miniature Bi-Pin Filament Life
No. Lead Flanged Volts Amps M.S.C.P. Type Hours
17 8798 7244 7252 1.25 0.012 0.004 C-6 1,000
18 8910 7245 7253 1.35 0.220 0.02 C-2R 10,000
19 7200 7225 3225 1.5 0.010 0.002 C-2R 2,000
20 7201 7226 7254 1.5 0.015 0.005 C-2R 1,000
21 7203 8102 7255 1.5 0.075 0.03 C-2R 16,000
22 801 —— —— 2.4 0.145 0.18 C-2R 3,000
23 8601 7246 7256 2.5 0.015 0.001 C-2R 10,000
24 8732 7247 7732 2.5 0.100 0.10 C-2R 10,000
25 8711 7248 7257 2.5 0.320 0.21 C-2R 5,000
26 8846 7249 7258 3.0 0.008 0.001 C-2R 16,000
27 7205 7229 3229 3.0 0.015 0.02 C-2R 5,000
28 7207 7231 7260 3.0 0.060 0.03 C-2R 100,000
29 7208 7232 7261 3.0 0.120 0.15 C-2R 16,000
30 8602 8605 7262 5.0 0.017 0.005 C-2R 10,000
31 6022 8022 7022 5.0 0.021 0.034 C-2R 10,000
32 7210 7234 7263 5.0 0.030 0.03 C-2R 16,000
33 8729 7250 7264 5.0 0.045 0.04 C-2R 10,000
34 680 682 7680 5.0 0.060 0.03 C-2R 100,000
35 683 685 7683 5.0 0.060 0.05 C-2R 100,000
36 6150 6180 7265 5.0 0.060 0.15 C-2R 5,000
37 713 714 7714 5.0 0.075 0.09 C-2R 25,000
38 7211 7235 7266 5.0 0.080 0.16 C-2R 3,000
39 715 718 7715 5.0 0.115 0.15 C-2R 40,000
40 7213 7236 7267 5.0 0.115 0.20 C-2R 5,000
41 7216 7239 7268 5.0 0.125 0.22 C-2R 5,000
42 8096 7251 7269 5.0 0.145 0.16 C-2R 10,000
43 7218 7240 8095 10.0 0.027 0.10 C-2F 10,000
44 —— 228 —— 12.0 0.040 0.13 —— 10,000
45 7219 32 8097 12.0 0.060 0.15 C-2F 16,000
46 8111 8112 8098 14.0 0.065 0.15 C-2F 16,000
47 7220 7241 8099 18.0 0.026 0.15 C-2F 16,000
48 6838 6839 7839 28.0 0.024 0.15 CC-2F 16,000
T-¾ Bi-Pin
3.18 MAX
6.4 MAX
25
T-1 Wire Lead
T-1 Miniature Flanged
3.18 MAX
8.89+/-.76
1.27
T-1Bi-Pin
Telephone: 781-935-4442 sales@gilway.com
Fax: 781-938-5867 www.gilway.com
Engineering Catalog 169
T-1 Subminiature Short Type Lamps
Line Part Filament Life
No. No. Volts Amps M.S.C.P. Type Hours Drawing
1 6802 5.0 0.060 0.03 C-2R 200,000 A
2 6802AS15 5.0 0.060 0.03 C-2R 200,000 A
3 6832 5.0 0.060 0.05 C-2R 100,000 A
4 6832AS15 5.0 0.060 0.05 C-2R 100,000 A
5 7132 5.0 0.075 0.09 C-2R 40,000 A
6 7132AS15 5.0 0.075 0.09 C-2R 40,000 A
7 7152 5.0 0.115 0.15 C-2R 40,000 A
8 7152AS15 5.0 0.115 0.15 C-2R 40,000 A
9 7009 28.0 0.020 0.15 CC-2F 16,000 A
A
3.18 MAX
3.68 MAX
31.75
+/-6.25
B
1.27
8.89+/-.76
T-1 Mini-Max Flashlight Lamps
Line Part Life Filament Base
No. No. Volts Amps M.S.C.P. Hours Type Type Drawing
10 L135 1.35 0.315 0.16 4 C-6 Bi-Pin B
11 L250 2.5 0.300 0.6 4 C-6 Bi-Pin B
12 L400 4.0 0. 300 1.2 4 C-2R Bi-Pin B
3.18 MAX
