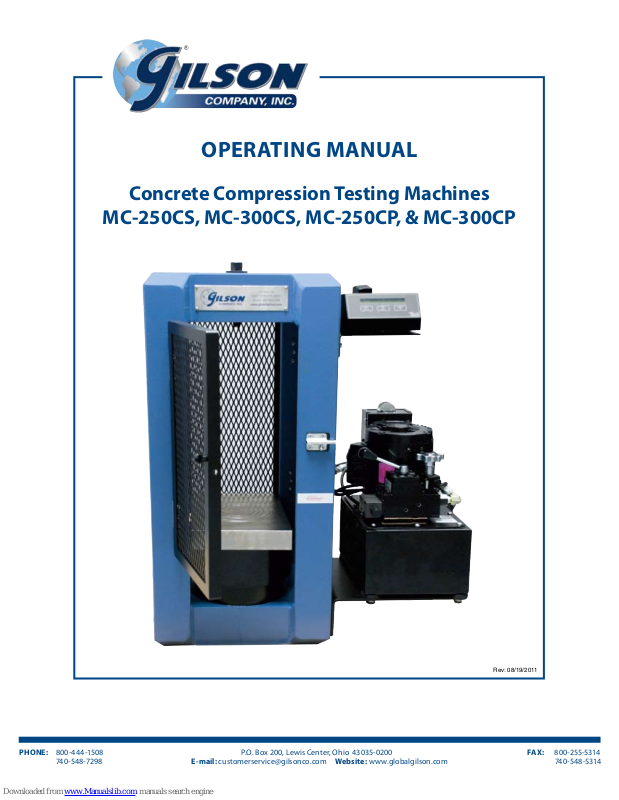

Gilson MC-250CS, MC-300CS, MC-300CP, MC-250CP Operating Manual

OPERATING MANUAL

Concrete Compression Testing Machines

MC-250CS, MC-300CS, MC-250CP, & MC-300CP

Rev: 08/19/2011

PHONE: [phone] P.O. Box 200, Lewis Center, Ohio 43035-0200 FAX : [phone]
740-548-7298 E-mail: [e-mail] Website: www.globalgilson.com 740-548-5314

IMPORTANT – PLEASE READ BEFORE MOVING THIS MACHINE

WARNING!: This machine is extremely heavy and may be unstable until

properly installed. Attempting to move or reposition it without using proper
equipment and procedures may result in severe injury or death. Properly
rigged lifting equipment of sufficient capacity must be used, the load must
be secured, and lifting equipment operators must be qualified and knowl­edgeable in the use of the equipment.

IMPORTANT – PLEASE READ BEFORE OPERATING TESTING MACHINE

1. Inspect to see that no visual damage has occurred during shipping. If you see
any damage, contact Gilson Company, Inc. right away.

2. Check the equipment you received with your packing list.

3. It is recommended that the machine be located in an area where the atmosphere
is free from acidic or contaminating fumes, which could possibly accelerate corro­sion to machine surfaces or electrical contacts.

4. Position the machine leaving sufficient space at the rear and sides for calibration
or service work.

5. The machine should be leveled.

6. Clean off machined surfaces that have been coated with rust preventative using
any suitable non-corroding safety solvent. Wipe machined surfaces with a clean,
oil soaked rag to minimize rusting.

7. When adding or changing oil, use only Dextron II or Dextron III automatic trans­mission fluid.

NOTE: This machine has been operationally tested and calibrated at the factory. In
order to fully comply with the requirements stated in ASTM C 39, the compression
machine should be calibrated again “On original installation or immediately after
relocation.” Gilson does not provide calibration services directly, but can provide a
list of calibrators in your area. Contact our Technical Department at 800.444.1508
or [e-mail].

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

Table of Contents

Page

FOREWORD ......................................................................................................................... 2

1.0 INTRODUCTION .................................................................................................................. 2

1.1 Peak Load Indicator Accessories ............................................................... 2

2.0 THE KEYS & SCREEN DISPLAY ........................................................................................ 2

2.1 The <SET ENTER> Key ............................................................................. 2

2.2 The <MENU/UP ARROW> Key .................................................................. 2

2.3 The <ZERO/DOWN ARROW> Key ............................................................ 2

2.4 Peak Load Indicator & Screen Display ....................................................... 3

3.0 SETTING LOAD RESOLUTION, FULL SCALE LOAD & CALIBRATION ......................... 3

4.0 OPERATION ......................................................................................................................... 3

4.1 Setting the Engineering Units ..................................................................... 4

4.2 Running a Test ............................................................................................ 4

5.0 ELECTRICAL/MECHANICAL DATA ................................................................................... 4

5.1 User Connections ...................................................................................... 4

5.2 Power (DC) Input ........................................................................................ 5

5.3 Controller/Display Housing Dimensions ...................................................... 5

HYDRAULIC CONTROL VALVE & HYDRAULIC PUMP SECTION ............................................. 6

6.0 HYDRAULIC CONTROL VALVE ........................................................................................ 7

6.1 Metered Advance Position .......................................................................... 7

6.2 Full/Advance Position ................................................................................. 7

6.3 Hold Position ............................................................................................... 7

6.4 Retract Position ........................................................................................... 7

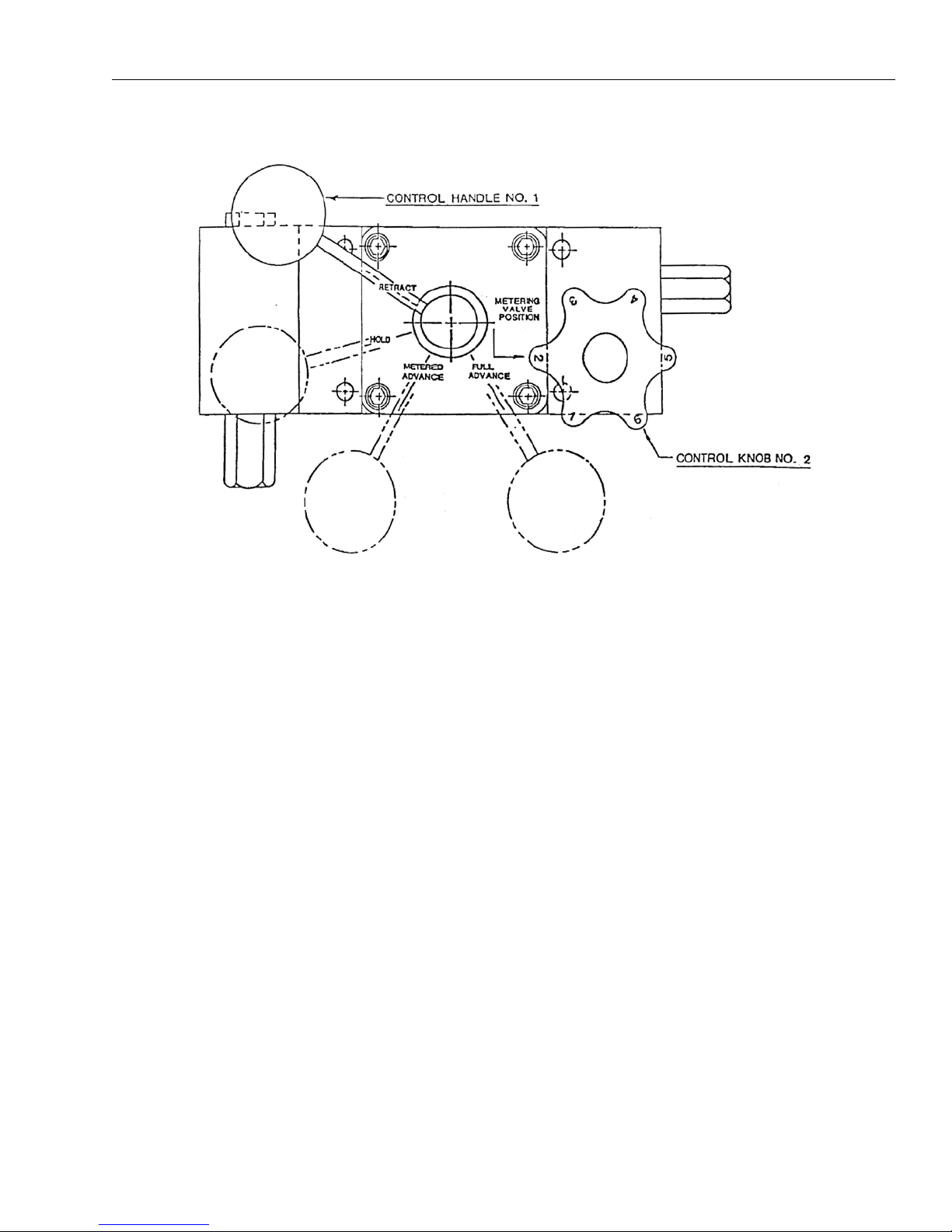

6.5 FIGURE 1: Control Valve ............................................................................ 8

6.6 Sequence of Operation ............................................................................... 8

6.7 Maintenance & Safety Precautions ............................................................. 8

6.7.1 Hydraulic Pump & Flow Control Valve ........................................................ 8

6.7.2 Safety Precautions ...................................................................................... 9

6.7.3 Hydraulic Fluid Level ................................................................................... 9

6.7.4 How to Operate the Pump .......................................................................... 9

6.7.5 Troubleshooting ........................................................................................ 10

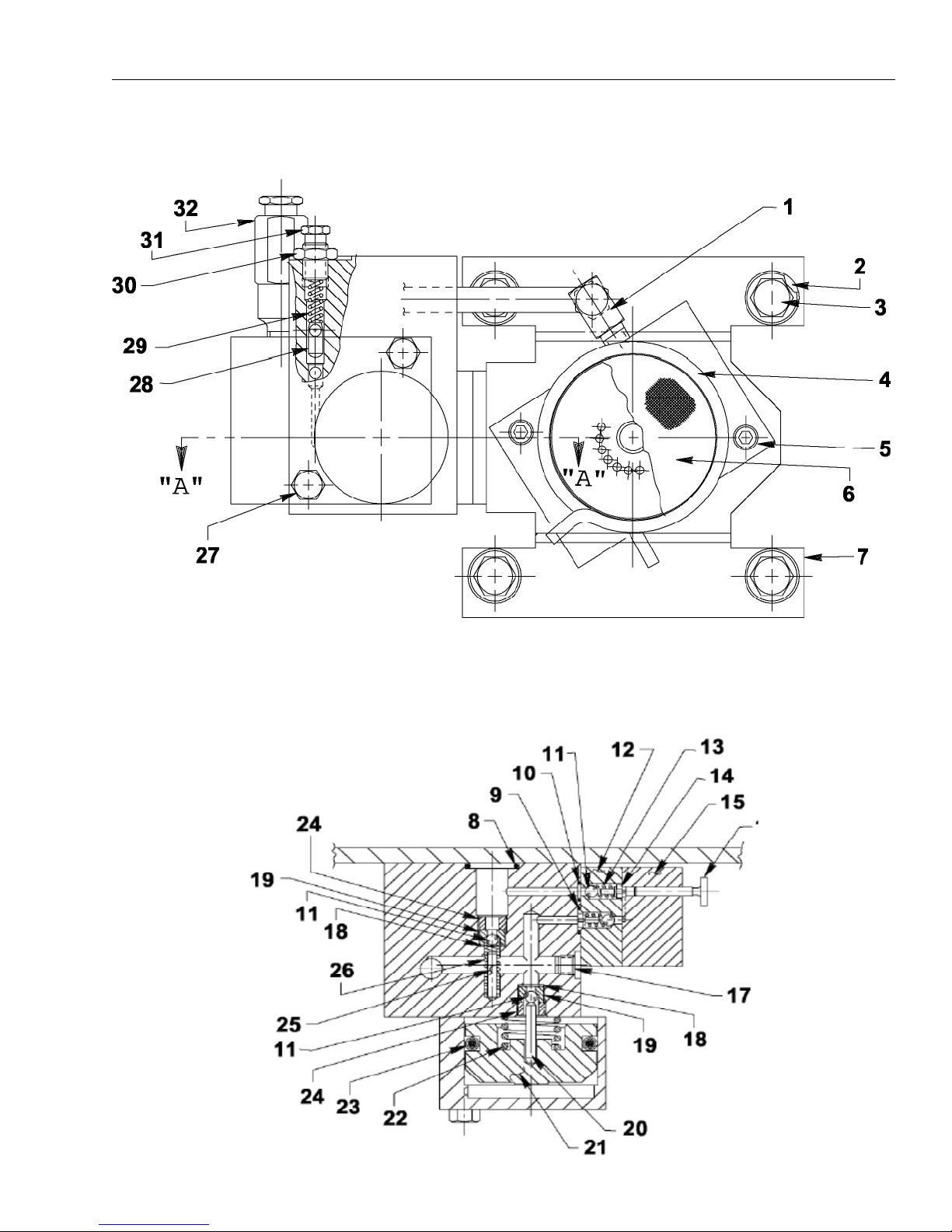

7.0 VALVE ASSEMBLY .............................................................................................................11

7.1 Valve Diagram .......................................................................................... 11

7.2 Valve Parts List ......................................................................................... 12

8.0 ELECTRICAL HYDRAULIC PUMP .................................................................................... 13

8.1 Pump Diagram .......................................................................................... 13

8.2 Pump Parts List ......................................................................................... 14

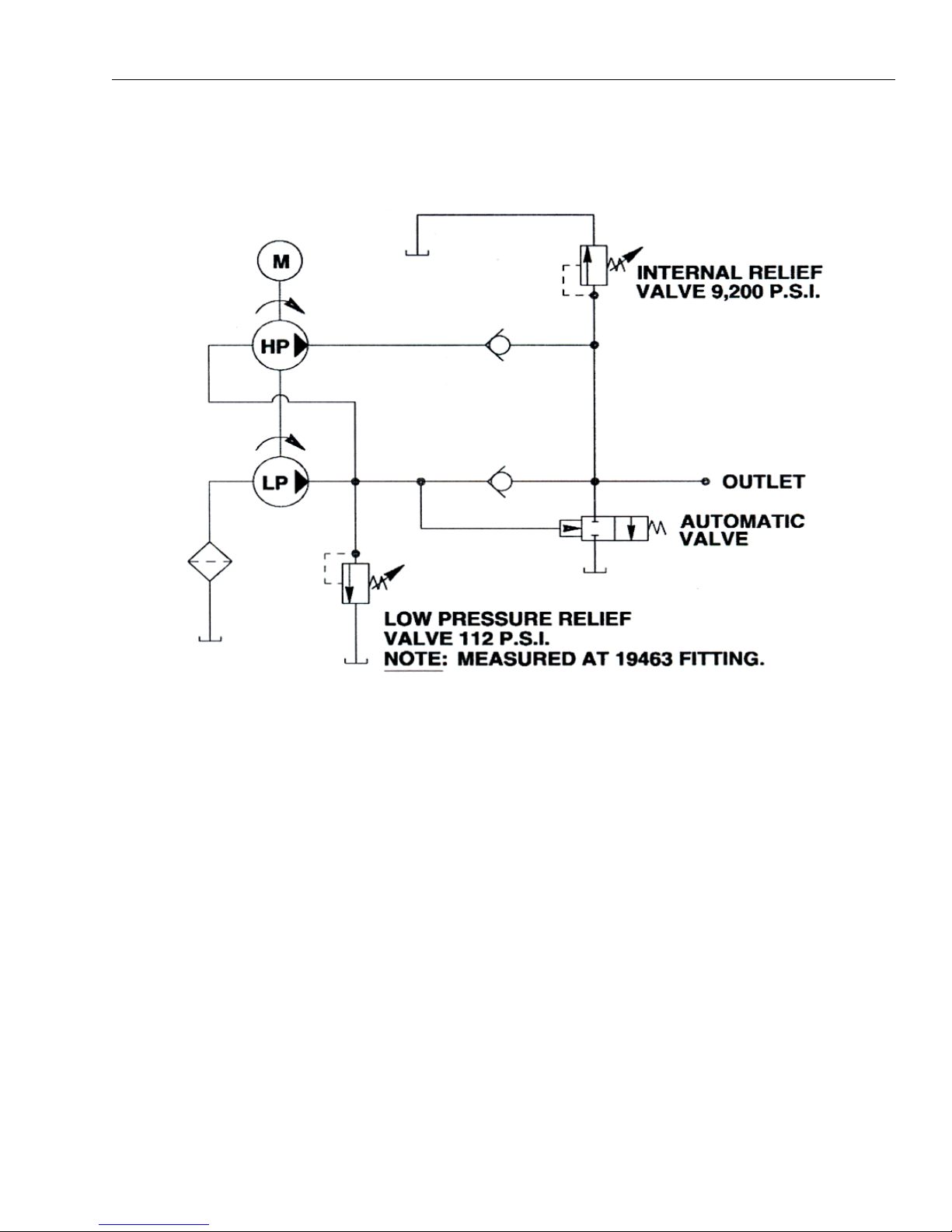

8.3 Hydraulic Schematic Diagram ................................................................... 15

8.4 Top View & Parts List ................................................................................ 16

8.4.1 Bottom View & Section A-A ...................................................................... 17

8.4.2 Bottom View Parts List .............................................................................. 18

8.4.3 Motor Control Assembly & Parts List ........................................................ 19

9.0 POWER TEAM SERVICE CENTERS ............................................................................... 20

10.0 STATEMENT OF WARRANTY ........................................................................................... 20

Page 1

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

FOREWORD

Classic and Classic Plus Peak Load Indicators are
designed and constructed with great care in every phase
of assembly. To ensure reliability, both the mechanical
and electrical components have been built with the best
available materials. This section of the manual provides
description and instruction on the operation and mainte­nance of the mechanical, electrical and software com­ponents.

HOW TO USE THIS MANUAL

This manual is intended to outline the capabilities, oper­ation and maintenance of the Classic and Classic Plus
Peak Load Indicators, as well as the hydraulic sys­tem and load frame. Maintenance procedures specified
herein should be followed. Please read and understand
this manual and become familiar with the operation of
your test machine prior to operating.

TECHNICAL SUPPORT

If a problem should occur with your testing machine:

1) Check that all external inputs are properly connected.

2) Call Gilson Company, Inc. Technical Support line at

800.444.1508 (8AM - 5PM EST) Monday - Friday.

•Threesoftwareprogrammablecalibrationpoints

with password protection (No need to turn a poten­tiometer to adjust calibration.). Accuracy exceeds
ASTM E4.

•Auto-Test-Resetautomatically “readies”the indica­tor for the start of the next test without requiring
operator interaction.

•ClassicPlusmodelhasloadrateindicationinforce

units per second.

•1x16LCDwith0.38inhighcharacters.

•Three-keytactilekeypad.

1.1 Peak Load Indicator Accessories

•1,000 2,500 5,000 10,000psipressuretransducers

with cables pre-wired for the Indicator.

• Loadcellsofvariouscapacities.

2.0 THE KEYS & SCREEN DISPLAY

2.1 The <SET ENTER> Key

•Changesengineeringunits(KN,KG,LB,N)

• Accepts/assignsthevalueinadataentryfieldtothat

field.

1.0 INTRODUCTION

The Classic and Classic Plus Peak Load Indicators
are designed for materials testing machines. Features
include an Auto-Test-Reset mode for hands free opera­tion, automatic sample break detection and three points
of calibration for maximum accuracy, which exceeds
ASTM E 4. Load rate indication is also offered on the
Classic Plus model.

Classic and Classic Plus Peak Load Indicators are
ideal for:

• FlexuralBeamTesting

• ConcreteCylinderTesting

•CementCubeTesting

•RemoteOn-SiteTesting

•QualityControl

Features:

•DisplayLiveLoadandPeakLoadnumerically.

•SelectengineeringunitsofLb,N,KN,andKg.

2.2 The <MENU/UP ARROW> Key

•Selectsthecalibrationmenuforsettingloadresolu­tion (RES), full scale (FS) load and calibration.

•Increasesthevalueofanumericdigit.

2.3 The <ZERO/DOWN ARROW> Key

NOTE: Record the previous test result prior to

pressing ZERO, or it will be lost.

•Definesanewzeroload.

•PlacestheIndicatorTestStatusinReadyMode.

•Clearsouttheprevioustestresultsfromthetestbuf-

fer and initializes the indicator for the next test.

•Decreasesthevalueofanumericdigit.

Page 2

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

2.4 Peak Load Indicator & Screen Display

Classic model displays live load while specimen is un-

der test and peak load when sample break is detected.

3.0 SETTING LOAD RESOLUTION,
FULL SCALE LOAD & CALIBRATION

A LOAD CELL IS REQUIRED FOR CALIBRATION

CALIBRATION MUST BE PERFORMED

BY A CERTIFIED CALIBRATION TECHNICIAN

1) Press the <MENU> key from the Live Screen. The
screen display changes to: RES:

2) Use the UP and DOWN ARROW keys to change the
first place in the resolution.

3) Press <ENTER> once to set the place.

4) Repeat steps 2-3 until all places in the number are
defined. Then press <ENTER> to set the resolution.

“FS” should now appear on the screen. NOTE: Full
Scale load is used only to define start test threshold,
which is set to 0.5% of full scale.

5) Use the UP and DOWN ARROW keys to change the
first place in full scale.

6) Press <ENTER> once to set the place.

7) Repeat steps 5-6 until all places in the full scale number
are defined. Then press <ENTER> to set full scale.

Classic Plus model displays live load plus load rate
while specimen is under test and peak load when sam­ple break is detected.

8) After entering the password successfully the screen
will read “ENT) Set PT1”. Unload the machine and
press <ENTER> to set the zero load calibration
point.

9) The screen will now read “ENT) Set PT2”. Load
the machine to the second calibration point then
press <ENTER>. Note the load value for the sec­ond calibration point.

10) The screen will now read “ENT) Set PT3”. Con­tinue loading the machine to the third calibration
point then press <ENTER>. Note the load value for
the last calibration point.

11) The screen will now read “PT1:”. Enter a value of
zero for the first calibration point.

12) The screen will now read “PT2:”. Enter the load
value for the second calibration point. Remember
that the UP/DOWN ARROW keys change place
values just like for full scale load.

13) The screen will now read “PT3:”. Enter the load
value for the last calibration point. Remember that
the UP/DOWN ARROW keys change place values
just like for full scale load.

The screen will now read “MENU)CAL ENT)ESC”.
Press <ENTER> to exit to the Live Screen or <MENU>
to proceed to calibration.

NOTE: The Peak Load Indicator requires three cal­ibration points. All three-calibration points MUST
be used. The first calibration point should be set at
zero load, the second calibration point at low load
(5% of full scale load) and the third calibration point
at or near full scale load.

Calibration is password protected. At this point you will
need to enter the password.

Calibration is complete. You are now ready to verify the
load readings.

4.0 OPERATION

NOTE: To fully comply with ASTM requirements,

the unit must be calibrated by a qualified calibration
service prior to running any tests. See Section 3.0
for the calibration procedure.

Page 3

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

4.1 Setting the Engineering Units

Press the <ENTER> key from the Live Screen. The four
possible values for engineering units are KN, KG, LB,
and N.

4.2 Running a Test

There are two modes, manual and hands free, available
for running a test. Under manual mode, the operator
presses <ZERO> prior to each test to remove any tare
weight. With hands free mode, the operator zeros the
load once prior to running a batch of samples. Then three
seconds after the completion of the previous test, the In-

5.0 ELECTRICAL/MECHANICAL DATA

5.1 User Connections

dicator begins waiting for the load to exceed the thresh­old (0.5% of Full Scale), which signals the beginning of
the next test. During a test, the Indicator will continue
monitoring for peak load until the live load falls below
50% of peak load. Once the live load drops below 50%
of peak, the test ends and the peak load will be displayed
on the screen. The peak will remain on the screen until
a) <ZERO> is pressed or b) a new test is started.

NOTE: Before <ZERO>ing the load make sure that
the piston is floated and the loading platen is close
to the specimen.

DB15 Female

Figure 5.1.2

Figure 5.1.1

DI Peak Load Indicator Rear Connection Panel

Load Channel Connections

Analog-Load Input
pins 9 & 10 (+Exc & AGND)
10 Vdc (5Vdc optional)
Analog Inputs:
pins 1 & 2 (+/- IN)
Input Range: 4.2 mv/v Standard
Contact factory for other input range options.

Connect all shields to chassis. Cable end requires a DB15 male.

Page 4

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

5.2 Power (DC) Input

The Peak Load Indicator requires 12-15Vdc unregulated
input voltage. A voltage adapter is supplied with the ma­chine.

5.3 Controller/Display Housing Dimensions

REAR
VIEW

2.35

3.18

150°

Page 5

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

HYDRAULIC CONTROL VALVE

&

HYDRAULIC PUMP SECTION

Page 6

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

6.0 HYDRAULIC CONTROL VALVE

6.1 Metered Advance Position

Placing Control Handle No.1 (see Figure 1) into the me­tered advance position allows the operator to adjust the
rate of loading through the use of Control Knob No. 2.
The adjustment for increasing the rate of loading is to
turn Knob No. 2 counter-clockwise. To decrease the rate
of loading, turn the Knob No. 2 clockwise. CAUTION:

Do not over-tighten Control Knob No. 2.

When testing concrete cylinders, the rate of loading
must conform to ASTM C 39 specifications. For a hy­draulically operated testing machine, the load must be
applied at a constant rate within the range of 20 to 50
psi/sec. Knob No. 2 controls the rate of loading. For 6in
(150mm) diameter concrete cylinders, the loading rate
should be 565—1,413 lbs/sec., or 34,000—84,000 lbs/
min. For 4in (100mm) dia. cylinders, the rate would be
251—629 lbs/sec. or 15,060—37,710 lbs/min.

For Load Indicators with no rate of load display, a read­ing of 10,000 lbs. on 10 seconds is a good average and
is easily set through the use of Control Knob No. 2 and
a watch with a second hand.

6.4 Retract position

Placing Control Handle No. 1 into the retract position re­leases all pressure in the hydraulic cylinder allowing the
piston to retract to it’s start position. It is not necessary to
retract the piston fully between tests. A daylight opening
that will allow the specimen to be inserted and removed
is all that is required.

NOTE: During continuous operation of the machine,
the Flow Control Valve will go through a significant
temperature rise. This is not a cause for alarm, as
the temperature rise will not affect the operation of
the testing machine.

6.2 Full/Advance Position

Placing Control Handle No. 1 into the rapid advance
position causes the piston to advance rapidly at an un­controlled rate. This is normally used for pre-loading a
specimen or rapidly advancing the piston to reduce the
daylight opening between the specimen and the platen.

CAUTION: When pre-loading a specimen, watch the
machine’s load indicator to prevent overloading, or
premature failure of the specimen may occur.

WARNING!: DO NOT ALLOW THE MACHINE TO

TRAVEL BEYOND THE MAXIMUM PISTON STROKE
TAG LOCATED ON THE FRONT OF THE LOAD
FRAME. OVEREXTENDING THE HYDRAULIC RAM
MAY RESULT IN DAMAGE TO THE SEALS AND
WILL CAUSE THE UNCONTROLLED RELEASE OF
HYDRAULIC FLUID UNDER PRESSURE.

6.3 Hold Position

Placing Control Handle No. 1 into the hold position (see
Figure 1) stops the loading of the specimen and holds
the pressure on the specimen at that point.

Page 7

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

6.5 Figure 1: Control Valve

CONTROL VALVE

Figure 1

6.6 Sequence of Operation

1. With Pump Motor switched off, carefully center
specimen in testing machine.

2. Turn Control Knob No. 2 clockwise to a snug posi­tion. Never over tighten. (If Knob No. 2 has already
been adjusted as in section 6.1, this step may be
skipped until a specimen of different size is tested.

3. Position Valve Control Handle No. 1 to a “metered
advance” position.

4. Switch on pump motor.

5. If a preload of the specimen is desired, position
Valve Control Handle No. 1 to “full advance”. Cau-

tion is required to avoid overload or failure of
the specimen.

6. Watch the display closely. When the desired pre­load has been attained, move the Valve Control
Handle No. 1 to the “metered position”.

9. To release pressure so that the platen will return af­ter a test has been completed, position Valve Con­trol Handle No. 1 to the “retract” position.

10. For repetitive testing of identical specimens, Control
Knob No. 2 can be preset with a stopwatch, then
locked in position by tightening the thumbscrew lo­cated beneath the knob.

6.7 Maintenance & Safety Precautions

6.7.1 Hydraulic Pump & Flow Control Valve

This two-stage hydraulic pump incorporates precision
design and engineering features. Peak efficiency for ei­ther continuous or intermittent operation is assured at
the full range of pressures up to 10,000 psi. You will
have uninterrupted, trouble-free service if you keep it
clean and free of dust.

7. To increase the rate of loading, turn Control Knob
No. 2 counter-clockwise. To decrease the rate of
loading, turn Control Knob No. 2 clockwise.

8. To hold pressure at any desired point, position Valve
Control Handle No. 1 to the “hold” position.

Page 8

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

6.7.2 Safety Precautions

WARNING!: To avoid possible injury:

• Disconnect the pump fromits electrical supply be­fore performing maintenance or repair procedures.

• Repairsandmaintenanceshouldbeperformedina

dust-free area by a qualified technician.

• Shouldahydraulichoseeverrupture,burstorneed

to be disconnected, immediately shut off the pump
and shift the control valve to the retract position to
release all pressure and allow the machine piston to
return to the at-rest position. Cycle the control valve
twice to its retract position to make sure all pressure
is released. Never attempt to grasp a leaking

hose under pressure with your hands. The force
of escaping fluid could cause serious injury.

• Donotsubjectthemachineshydraulichosestopo­tential hazard such as fire, extreme heat or cold,
sharp surfaces or heavy impact. Do not allow the
hose to kink, twist, curl or bend so tightly that oil flow
within the hose is blocked or reduced.

• Periodicallyinspectthehosesforwearbecauseany

of these conditions can damage the hose and pos­sibly result in personal injury. Should a hose need
replaced, contact Gilson Company, Inc. with your
machine model number and capacity for replace­ment parts.

6.7.3 Hydraulic Fluid Level

• The frequency ofoilchangeswilldependupon the

general working conditions, severity of use and over­all cleanliness and care given to the testing machine
and the hydraulic pump. An air hose should never
be used to clean the machine or pump as it will blow
dust into the hydraulic system and cause damage
to the hydraulic pump and load control valve. The
oil should be changed at least every three hundred
(300) hours of use under severe working conditions,
where dust contamination of the oil is quite likely to
happen. When changing the oil drain, flush and refill
the reservoir with Dextron III Automatic Transmis­sion Fluid.

6.7.4 How to Operate the Pump

1. Make sure all valve and hose fittings are tight. Plug
in electric motor.

2. Set valve in the retract position, set switch on run,
and let pump idle for a few minutes.

3. Place a concrete test cylinder in the machine and
run piston out to its full travel several times to elimi­nate air from the system. The pump is now ready to
be put into regular operation.

• When checking the oil level, fully retract the ma­chines hydraulic cylinder to the at-rest position and
disconnect the power supply. Clean the area around
the filler plug and remove the plug.

• Formachinessuppliedwith3/4hppump, maximum

capacity is when the oil is 1-1/2in (38mm) below the
cover plate with the cylinder retracted.

• Formachinessuppliedwith1/2hppump, maximum

capacity is when the oil is 2in (50mm) below the cov­er plate with the cylinder retracted.

• When adding oil, use only Dextron III Automatic
Transmission Fluid. To fill, insert a clean funnel

with filter, add oil slowly being careful not to overfill
the pump. Check oil level when finished and remove
any oil if pump is overfilled. Check to see that the
breather-hole in the filler cap is open to prevent the
build up of excessive air pressure in the reservoir,
and to assure that the cylinder retracts smoothly,
then replace filler cap.

Page 9

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

6.7.5 Troubleshooting

Correcting Minor Hydraulic Problems

The hydraulic unit should be observed constantly for out of the ordinary performance and unusual noises. If any of
these are present, shut off pump and take corrective steps immediately to avoid possible expensive repairs later on.
Some of the most common minor problems and their remedies are listed:

PROBLEM CAUSE REMEDY

Improper advance or return. Air in circuit, oil supply low. Add oil.

Improper advance or return. Dirt in system causing valves to lock open.

If trouble is not cleared up by above remedies,

Improper advance or return.

trouble may be due to dirty or plugged up
strainer screen.

Flush out entire oil system and fill
with new oil.

Drain oil. Next remove pump
base cover and clean or replace
screen.

CAUTION: Do not operate pump without screen, as particles of dirt will be sucked into pump and
valve mechanisms, seriously damaging valve seats.

PROBLEM CAUSE REMEDY

Unable to reach pressure. Same as above. Same as above.

Necessary to add oil often. Oil leaks.

Check for broken lines, loose fittings
or connections.

Noise in hydraulic system. Air in system. Low on Oil. Add oil. Run pump to work out air.

If the above corrective measures fail to make the pump function properly, it is recommended that you notify Gilson
Company, Inc. or a qualified service representative. Under no conditions allow unqualified personnel to attempt
to repair the pump, particularly the pump block unit or control valve unit, as serious and irreparable damage may
result.

Page 10

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

7.0 VALVE ASSEMBLY

SPX Corporation Tech. Services: [phone]

7.1 Valve Diagram

5885 11th Street Fax: [phone]
Rockford, IL 61109-3699 USA

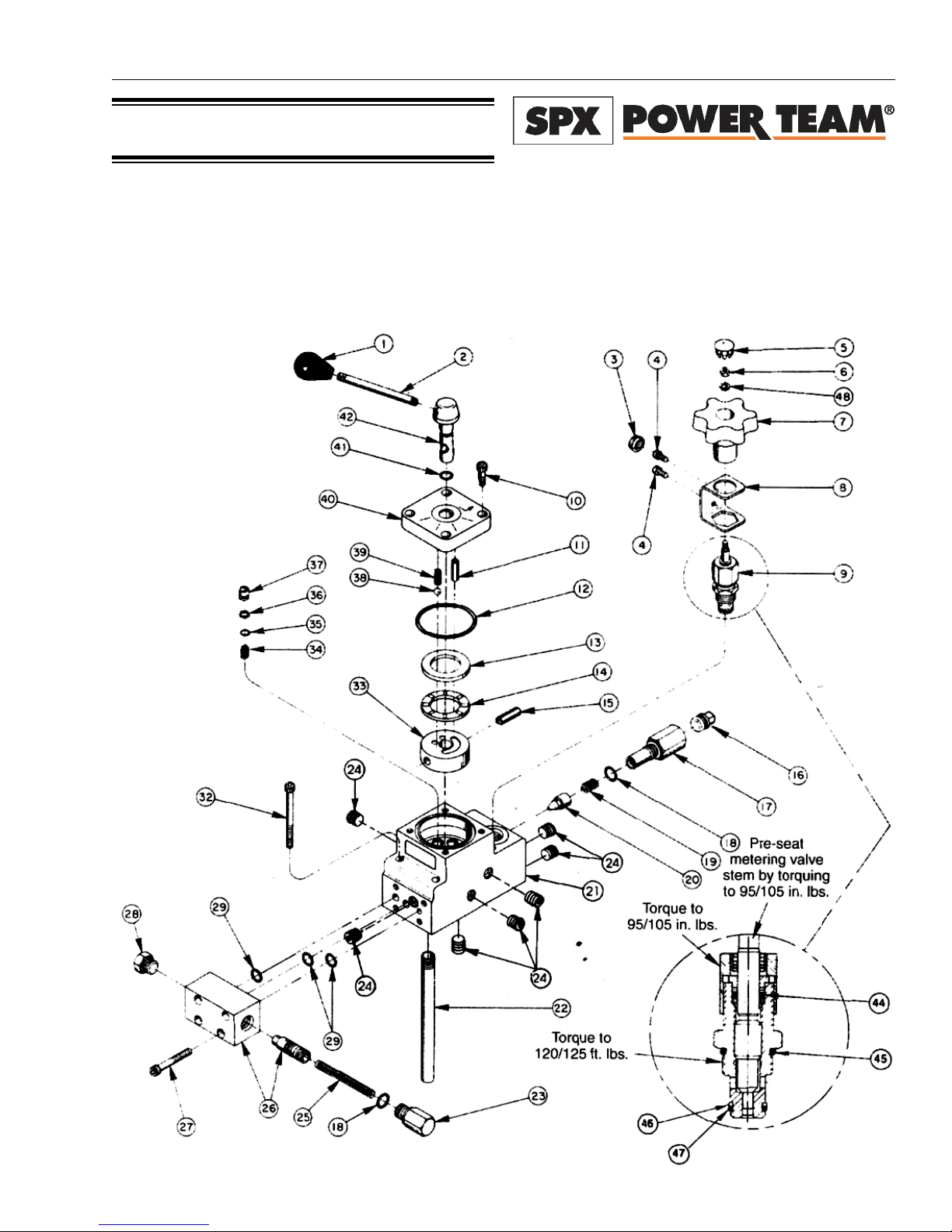

MANUAL VALVE ASSEMBLY

MODEL B, 4-POSITION, 3-WAY

VOLUME/FLOW CONTROL --- PRESSURE COMPENSATED

Max. Capacity: 10,000 PSI

Page 11

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

7.2 Valve Parts List

Item
No.

Part No.

No.

Req’d

Description

1 250885 1 Knob
2 21639 1 Stud
3 207382 1 Plastic Knob (on 3482-0008, 9609, & 60916, 420247-SATEC & 64529-HOGEN)
4 11434 2 Soc. Hd. Cap Screw (#10-24 x 1/2 Lg.; on 3482-0008, 9609 & 60916, 420247-SATEC)
5 11455 1 Snap Plug
6 11010 1 Machine Nut (#10-32 UNF; See note below)
7 44708 1 Valve Knob
8 302956 1 Locking Bracket (on 3482-0008, 9609 & 60916, 420247-SATEC)
9 302938 1 Flow Control Valve
10 10008 4 Soc. Hd. Cap Screw (1/4-20 x 3/4 Lg.; Torque to 100/120 in. lbs.)
11 11916 1 Roll Pin (1/4 dia. x 7/8 Lg.)
12 11229 1 O-ring (2-3/8in x 2-3/16in x 3/32)
13 11227-1 1 Bearing Race
14 11228 1 Thrust Bearing
15 10496 1 Roll Pin (5/16 dia. x 1in Lg.)
16 11127 1 Plug (3/8 NPTF)
17 302939 1 Adapter (Torque to 30/40 ft. lbs.)

18 10300 2 O-ring (.468 I.D. x .078 cs)
19 10425 1 Compression Spring (3/8 O.D. x 3/4 Lg.)
20 20771 1 Poppet
21 64528 1 Valve Body
22 212998 1 Drain Line (NOTE: Used only when pump-mounted)
23 204748 1 Spring Retainer Fitting (Torque to 30/40 ft. lbs.)
24 15130 7 Pipe Plug (1/16 NPTF)
25 207404 1 Compression Spring (5/16 O.D. x 2-7/16in Lg.)
26 302953 1 Spool & Body Assembly (Consists of 44704 & 44705 which must be ordered as a set)
27 10022 4 Soc. Hd. Cap Screw (Torque to 100/120 in. lbs.)
28 11953 1 Plug (O-ring included; Torque to 30/40 ft. lbs.)
29 10269 3 O-ring (3/8 x 9/16 x 3/32)
32 10855 4 Soc. Hd. Cap Screw (1/4-20 x 2-3/4in Lg.)
33 44686 1 Rotor
34 10446 4 Compression Spring (19/64 O.D. x 7/16 Lg.)
35 10266 4 O-ring (1/4 x 3/8 x 1/16)
36 12184 4 Backup Washer (Teflon)
37 207381 4 Shear Seal
38 10375 1 Steel Ball (1/4 dia.)
39 16320 1 Compression Spring (1/4 O.D. x 3/4 Lg.)
40 201814 1 Valve Body Cap
41 10268 1 O-ring (3/8 x 1/2 x 1/16)
42 207380 1 Valve Stem
44 10267 1 O-ring (7/16 x 5/16 x 1/16)
45 10527 1 O-ring (13/16 x 0.644 x 0.087)
46 15500 1 Backup Washer (9/16 x 7/16 x 0.048)
47 12098 1 O-ring (9/16 x 7/16 x 1/16)
48 10241 1 Lockwasher

NOTE: Tighten nut with valve in open position. Line up No. 1 on knob with arrow on decal when valve is closed (CW Rotate).
NOTE: Due to the complexity of this valve and the testing of it, a repair kit is not available. Any service repair must be done by Power Team

Service Repair Department.

NOTE: Removed Porting Decal (Item #43) last revision(s) made to this form.

Page 12

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

8.0 ELECTRICAL HYDRAULIC PUMP

SPX Corporation Tech. Services: [phone]

8.1 Pump Diagram

5885 11th Street Fax: [phone]
Rockford, IL 61109-3699 USA

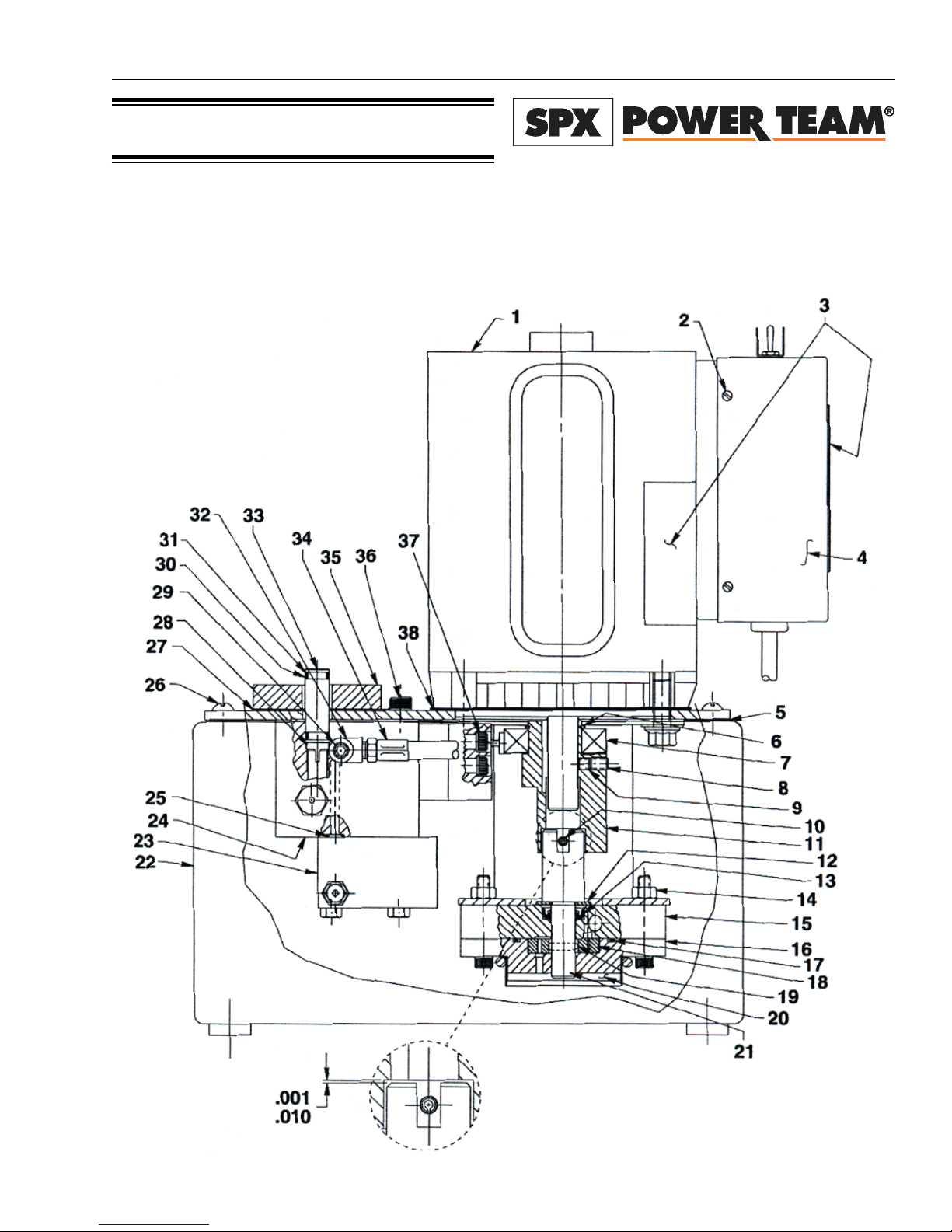

ELECTRICAL HYDRAULIC PUMP

Page 13

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

8.2 Pump Parts List

Item
No.

Part No.

1 58196WH2 1 Electric Motor (For PE17-FORN & PE17-TEST)
1 303912 1 Electric Motor (For PE17N-TEST)
2 11141 4 Machine Screw (#6-20 x 3/8 Lg.)
3 *200188 1
4 42576WH2 1 Control Box Cover (For PE17-FORN & PE17-TEST)
4 42576BK2 1 Control Box Cover (For PE17N-TEST)
5 *40164 1 Gasket
6 209798 1 Retaining Ring
7 209805 1 Ball Bearing
8 10519 1 Set Screw (1/4-20 UNC x 3/8 Lg.); (Torque to 60/80 in. lbs.)
9 10136 1 Set Screw (1/4-20 UNC x 1/4 Lg.); (Torque to 60/80 in. lbs.)
10 10973 1 Slotted Spring Pin (NOTE: Locate slot as shown)
11 45596 1 Eccentric
12 12595 1 Washer (1-1/8 x 1/2 x 0.077 Th.)
13 *304830 1 Oil Seal
14 10199 2 Hex Nut (1/4-20 UNC)
15 61170 1 Housing
16 61169 1 Gerotor Housing
17 *10922 1 O-ring (2-1/8 x 1-15/16 x 3/32)
18 304826 1 Gerotor
19 209794 1 Gerotor Drive Pin
20 21846 1 Filter Support
21 304835 1 Drive Shaft
22 40063GY15 1 Reservoir (2 gal.; For PE17-FORN)
22 40063BK2 1 Reservoir (2 gal.; For PE17-TEST & PE17N-TEST)
23 52167 1 Block
24 61167 1 Body
25 *10266 1 O-ring (3/8 x 1/4 x 1/16)
26 10177 10 Mach. Screw (1/4-20 UNC x 3/4 Lg.)
27 *200395 1 Gasket
28 209795 1 Outlet Ball Stop
29 10427 1 Pressure Plug (1/8 NPTF)
30 *10268 2 O-ring (1/2 x 3/8 x 1/16)
31 *11863 2 Backup Washer (1/2 x 3/8 x 1/16)
32 19463 1 Tee
33 209809 1 Coupling
34 304819 1 Hose Assembly
35 52165 1 Manifold
36 10030 1 Cap Screw (5/16-18 UNC x 3/4 Lg.); (Torque to 220/240 in. lbs.)
37 10022 4 Screw (1/4-20 UNC x 1-1/2 Lg.); (Torque to 180/200 in. lbs.)
38 351060 1 Gasket

No.

Req’d

Description

Decal (IMPORTANT portion is on electric motor; WARNING portion is on control box cover)

Part numbers marked with an asterisk (*) are contained in Repair Kit No. 300430.

Page 14

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

8.3 Hydraulic Schematic Diagram

HYDRAULIC SCHEMATIC

Page 15

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

8.4 Top View & Parts List

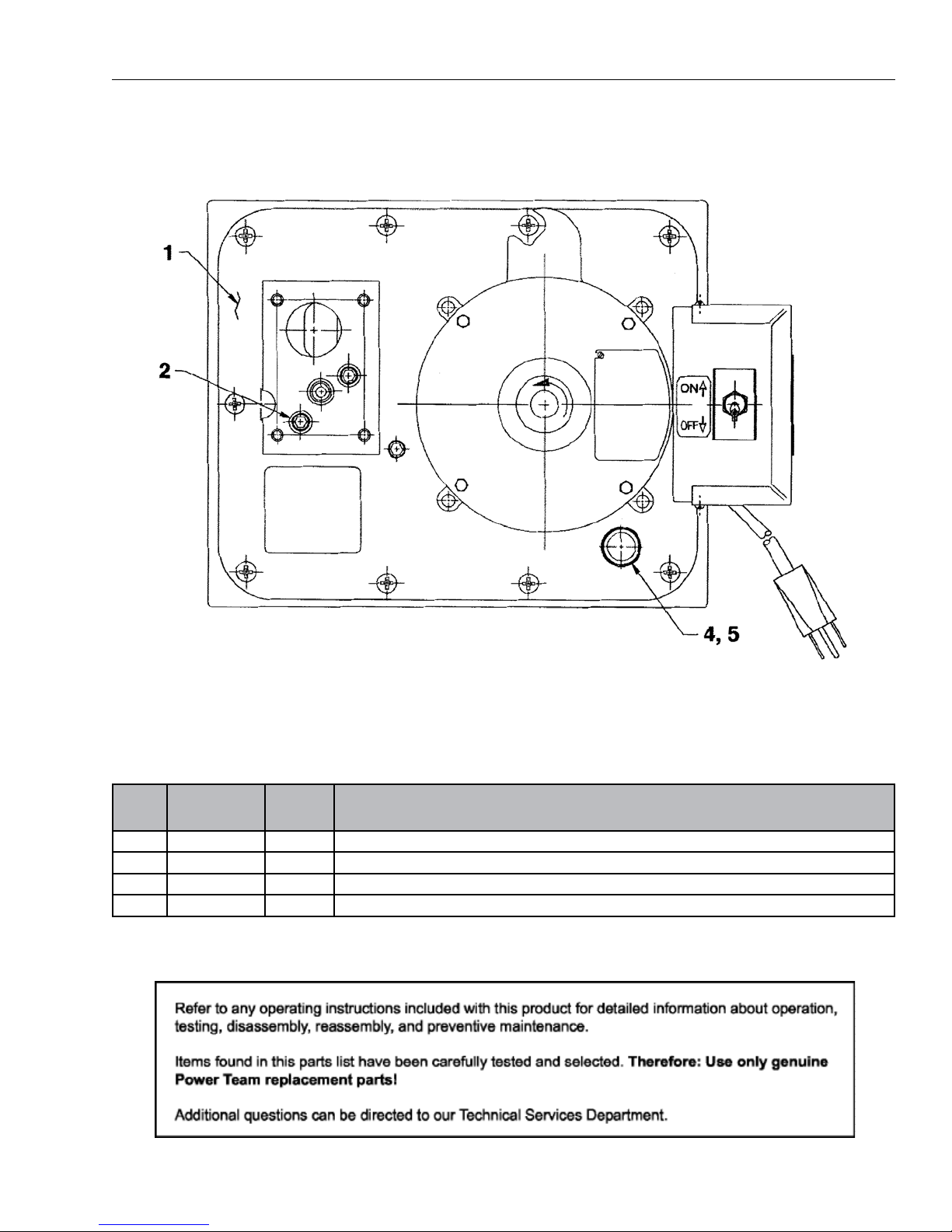

TOP VIEW

PARTS LIST

Item
No.

Part No.

1 66218BK 1 Cover Plate
2 10030 2 Cap Screw (5/16-18 UNC x 3/4 Lg.)
4 20937 1 Vent Cap
5 200415 1 Rubber Gasket

No.

Req’d

Description

Page 16

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

8.4.1 Bottom View & Section A-A

BOTTOM VIEW & SECTION A-A

SECTION A-A

Page 17

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

8.4.2 Bottom View Parts List

Item
No.

Part No.

1 14440 1 90° Elbow Fitting
2 10258 4 Washer (For 3/8 bolt)
3 213663 4 Cap Screw (3/8-16 UNC x 1in Lg.); (Torque to 230/250 in. lbs.)
4 11461 1 Hose Clamp
5 10854 2 Cap Screw (1/4-20UNC x 1-3/4Lg.); (Torque to 60/80 in. lbs.)
6 21608 1 Filter
7 52174 1 Pump Mounting Bracket
8 *10273 1 O-ring (13/16 x 5/8 x 3/32)
9 *14763 1 O-ring (7/16 x 5/16 x 1/16)
10 *10265 1 O-ring (5/16 x 3/16 x 1/16)
11 *12223 4 Ball (3/16 Diameter)
12 45559 1 Block
13 *10445 2 Compression Spring (5/32 O.D. x 3/4 Lg.)
14 24549 2 Ball Guide
15 45560 1 Block
16 304820 1 Piston
17 15130 1 Plug (1/16 NPTF)
18 *10442 2 Washer (3/8 x 1/4 x 1/32)
19 *209787 2 Replaceable Seat
20 211843 1 Dowel Pin (NOTE: Install with radius end out.)
21 46063 1 Piston
22 *16346 1 Compression Spring (1in O.D. x 7/8 Lg.)
23 *10283 1 O-ring (2in x 1-5/8 x 3/16)
24 209797 2 Hollow Lock Screw (7/16-20 UNF-3A; Torque to 180/200 in. lbs.)
25 12149 1 Pin
26 *16057 1 Compression Spring (3/16 O.D. x 1in Lg.)
27 13037 2 Cap Screw (1/4-20 UNC x 2in Lg.); (Torque to 40/50 in. lbs.)
28 15156 1 Pin
29 *11221 1 Compression Spring (1/4 O.D. x 1in Lg.)
30 10386 1 Nut (3/8-24 UNF)
31 *29786 1 Valve Adjusting Screw
32 21278-88 1 Relief Valve Assembly (Set at 8,900/9,500 PSI)

No.

Req’d

Description

Part numbers marked with an asterisk (*) are contained in Repair Kit No. 300430.

Page 18

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

8.4.3 Motor Control Assembly & Parts List

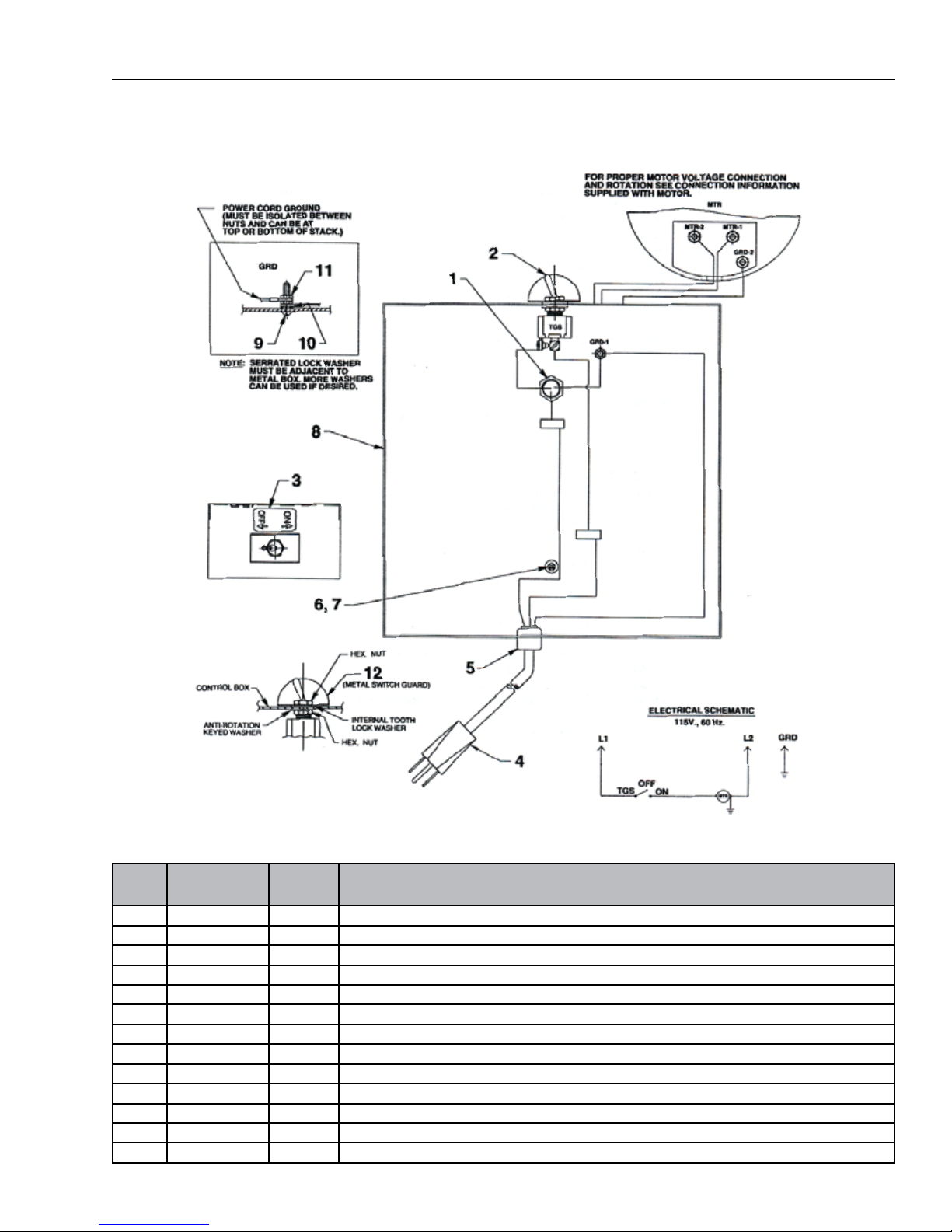

MOTOR CONTROL ASSEMBLY

Item
No.

Part No.

1 11202 1 Nipple
2 12301 1 Toggle Switch
3 205409 1 On/Off Label Decal
4 24733 1 Cord Set
5 15993 1 Strain Relief Bushing
6 252253 1 Screw (#8-32 x 1/2 Lg.)
7 12355 1 Washer (For #8 bolt)
8 42575WH2 1 Electrical Control Box (For PE17-FORN & PE17-TEST)
8 42575BK2 1 Electrical Control Box (For PE17N-TEST)
9 10167 1 Screw (#10-24 UNC x 3/4 Lg.)
10 11108 1 Lock washer (#10 External Tooth)
11 10197 2 Nut (#10-24 UNC)
12 35206 1 Metal Switch Guard

No.

Req’d

PARTS LIST

Description

Page 19

Gilson Company, Inc. Concrete Compression Testing Machines: MC-250CS, MC-300CS, MC-250CP & MC-300CP

9.0 POWER TEAM SERVICE CENTERS

SPX Corporation Tech. Services: [phone]
5885 11th Street Fax: [phone]
Rockford, IL 61109-3699 USA

To Find a Factory-Authorized Hydraulic

Service Center Near You,

Call 800-477-8326 or go to http://www.powerteam.com

10.0 STATEMENT OF WARRANTY

STATEMENT OF WARRANTY

Gilson Company, Inc. warrants new compression testing machines manufactured by Gilson
Company, Inc. against defects in workmanship and materials for a period of 12 months from the
original date of shipment, provided the equipment has been properly installed, maintained and
operated in accordance with installation and operating instructions. This limited and exclusive
remedy does not cover normal wear and tear. The Gilson Company, Inc. product must be free
from accident, damage by fire, water or act of God to be eligible for warranty.

Gilson Company, Inc. will repair, replace or credit, at our option, defective product or component
parts. When repair can be accomplished by exchange of a component part, the customer may
be required to remove the part or modular component and install the exchanged part.

Warranty does not cover expenses, either direct or indirect, that may arise from the use or the
inability to use Gilson Company, Inc. products, or the secondary owner in the event of resale.

Products not manufactured by Gilson Company, Inc. will carry the warranty of the original manu­facturer. Under no circumstances shall Gilson Company, Inc. be liable for any injury, loss, or
damages, whether direct or indirect, incidental or consequential, arising out of the use of, or in­ability to use the products described herein.

This exclusion of liability for loss or damages, whether direct or indirect, incidental or conse­quential, shall apply to all claims whether sounding in contract, warranty, tort including both
negligence and strict liability, or any other basis of liability.

Page 20
