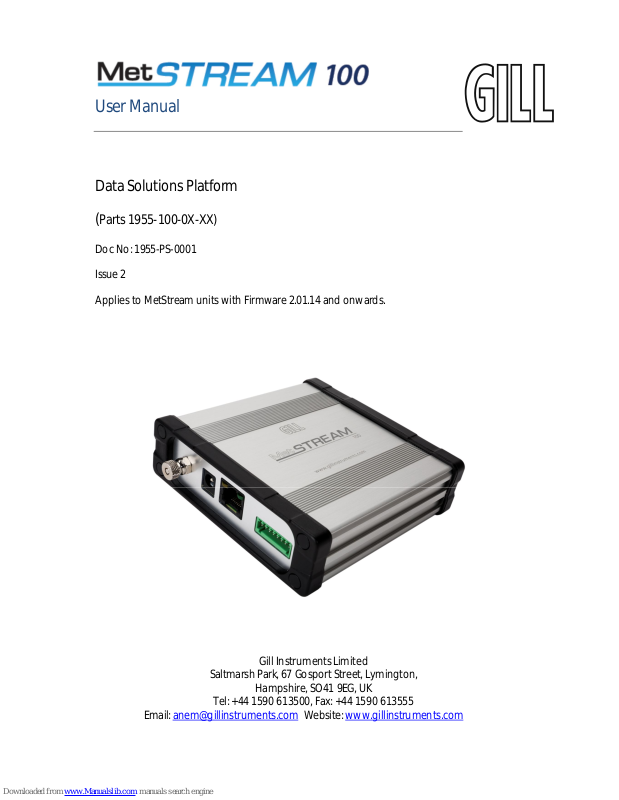

Gill Instruments Metstream 100 User Manual

User Manual

Data Solutions Platform
(Parts 1955-100-0X-XX)

Doc No: 1955-PS-0001
Issue 2
Applies to MetStream units with Firmware 2.01.14 and onwards.

Gill Instruments Limited

Saltmarsh Park, 67 Gosport Street, Lymington,

Hampshire, SO41 9EG, UK

Tel: [phone], Fax: [phone]

Email: [e-mail] Website: www.gillinstruments.com

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 1 Issue 2

Doc. No. 1955-PS-001 March 2016

Contents

1. FOREWORD ............................................................................................ 3

2. INTRODUCTION...................................................................................... 3

3. SPECIFICATION ..................................................................................... 4

4. PRE-INSTALLATION .............................................................................. 6

Equipment supplied .......................................................................................... 6

4.1

MetStream 100 Part Numbers. ......................................................................... 6

4.2

Packaging ......................................................................................................... 7

4.3

Installation requirements ................................................................................... 7

4.4

4.4.1 Host system............................................................................................. 7

4.4.2 Software .................................................................................................. 7

4.4.3 Cables ..................................................................................................... 7

4.4.4 Mounting ................................................................................................. 8

MetStream Connections. .................................................................................. 8

4.5

4.5.1 MetStream Front Panel Connectors ......................................................... 8

4.5.2 Front Panel Status LED’s ......................................................................... 8

4.5.3 Front Panel USB 2.0 Port ........................................................................ 8

4.5.4 MetStream Rear Panel Connectors .......................................................... 9

4.5.5 Rear Panel Power Socket ........................................................................ 9

4.5.6 Rear Panel Ethernet Socket ..................................................................... 9

4.5.7 RS232/422/485 Connector..................................................................... 10

4.5.8 Power Enable Function .......................................................................... 10

5. INSTALLATION ..................................................................................... 11

Installation Guidelines ..................................................................................... 11

5.1

5.1.1 MetPak to MetStream Data Input Connection......................................... 11

5.1.2 Ethernet to Ethernet Connection ............................................................ 12

5.1.3 Cable length .......................................................................................... 13

5.1.4 Ethernet Socket Cable Wiring ................................................................ 13

5.1.5 Power supplies ...................................................................................... 14

5.1.6 Power over Ethernet Connection. .......................................................... 14

Connections .................................................................................................... 14

5.2

5.2.1 MetStream RS232 Digital Input Connections.......................................... 15

5.2.2 MetStream RS422 Digital Input Connections.......................................... 15

5.2.3 Mechanical installation ........................................................................... 16

MetStream External Protection Box - Part 1955-PK-052 ................................. 17

5.3

6. METSTREAM GRAPHICAL USER INTERFACE .................................. 19

View MetStream GUI with a PC and Ethernet Crossover Cable. ..................... 19

6.1

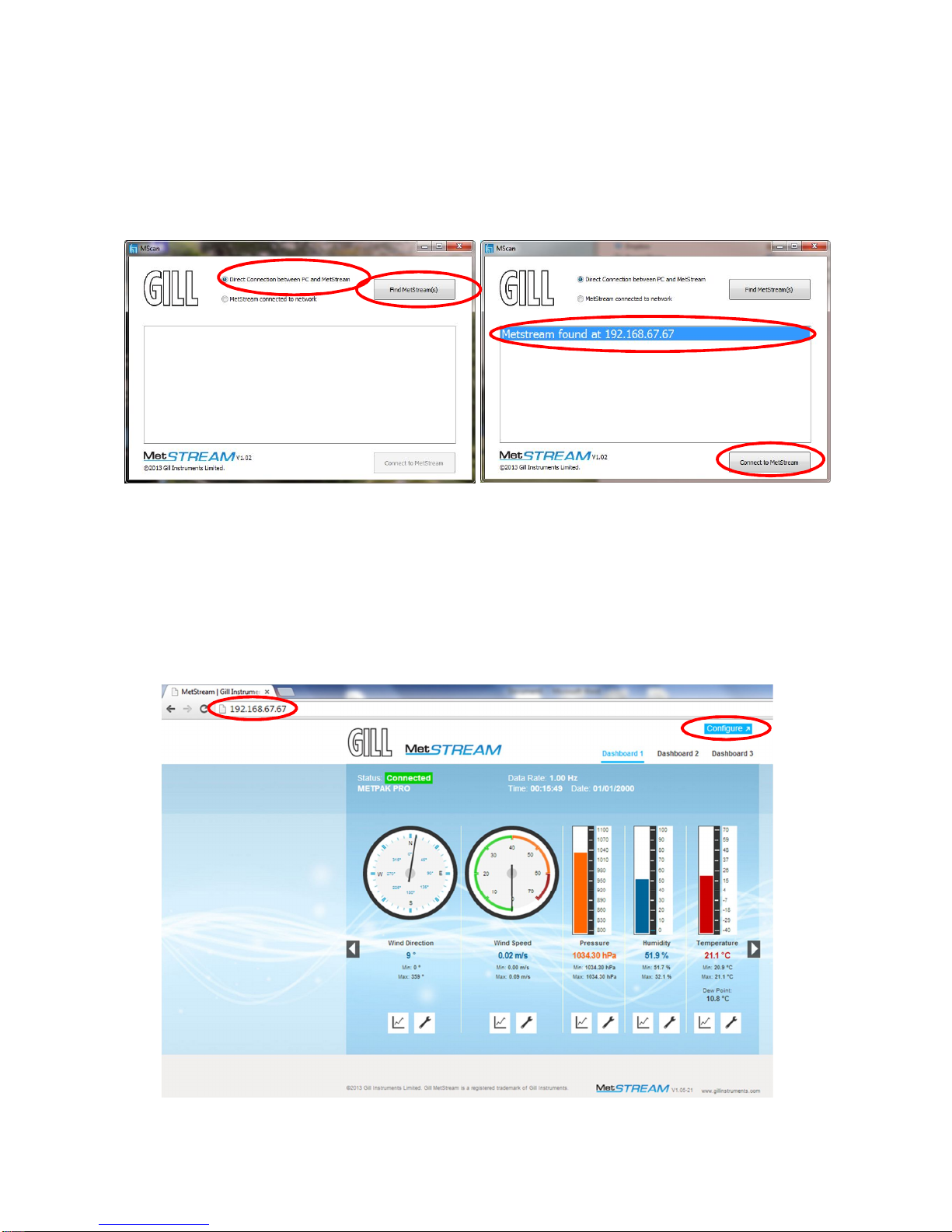

6.1.1 PC/Laptop Set Up using Gill MScan Software. ....................................... 19

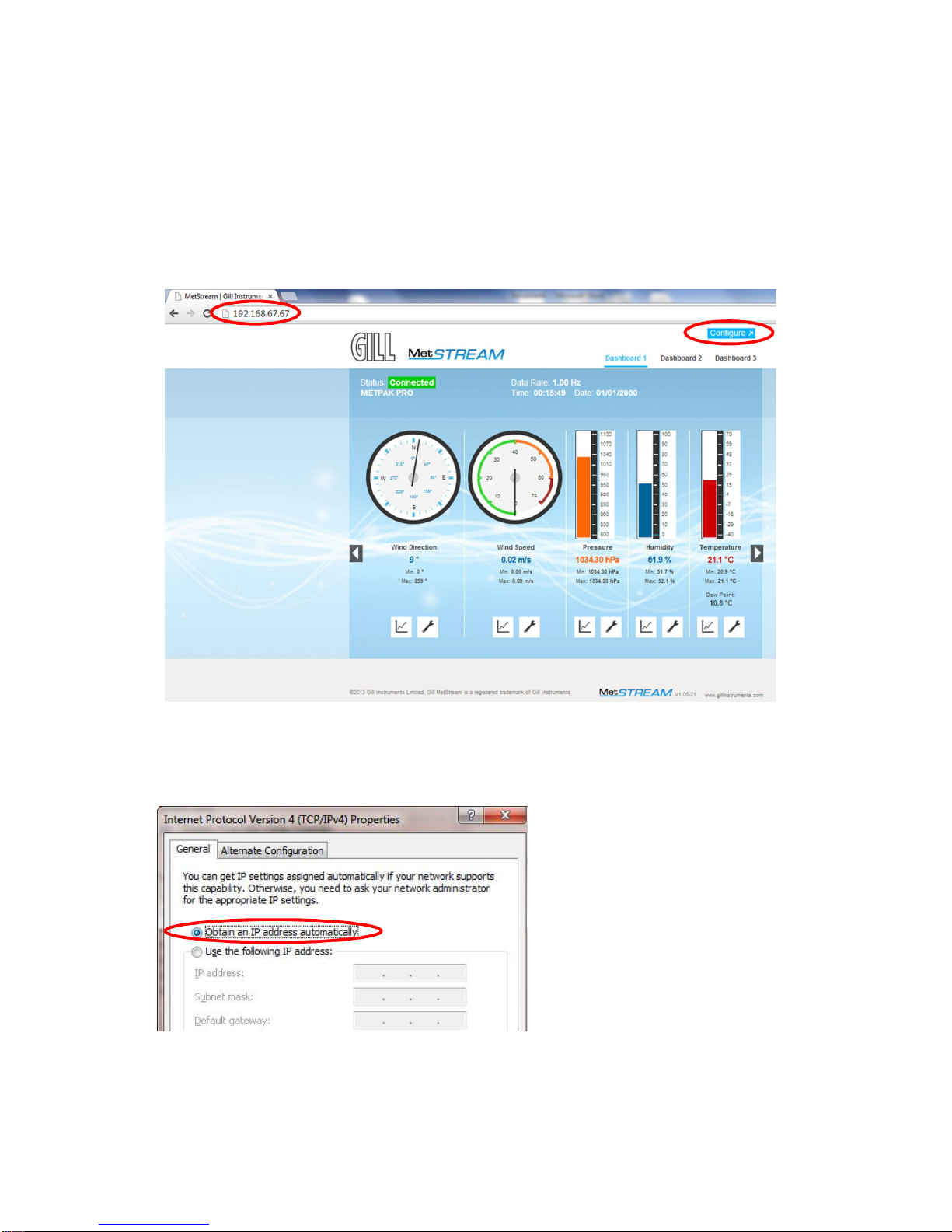

6.1.2 PC/Laptop Set Up if Gill MScan Software is not available. ...................... 21

Accessing the MetStream GUI using a PC and a Wi-Fi Router ....................... 23

6.2

Accessing the MetStream GUI using a PC and a LAN Port............................. 26

6.3

MetStream Front Page GUI Features. ............................................................ 28

6.4

6.4.1 Open Browser Window .......................................................................... 28

6.4.2 Dashboards ........................................................................................... 28

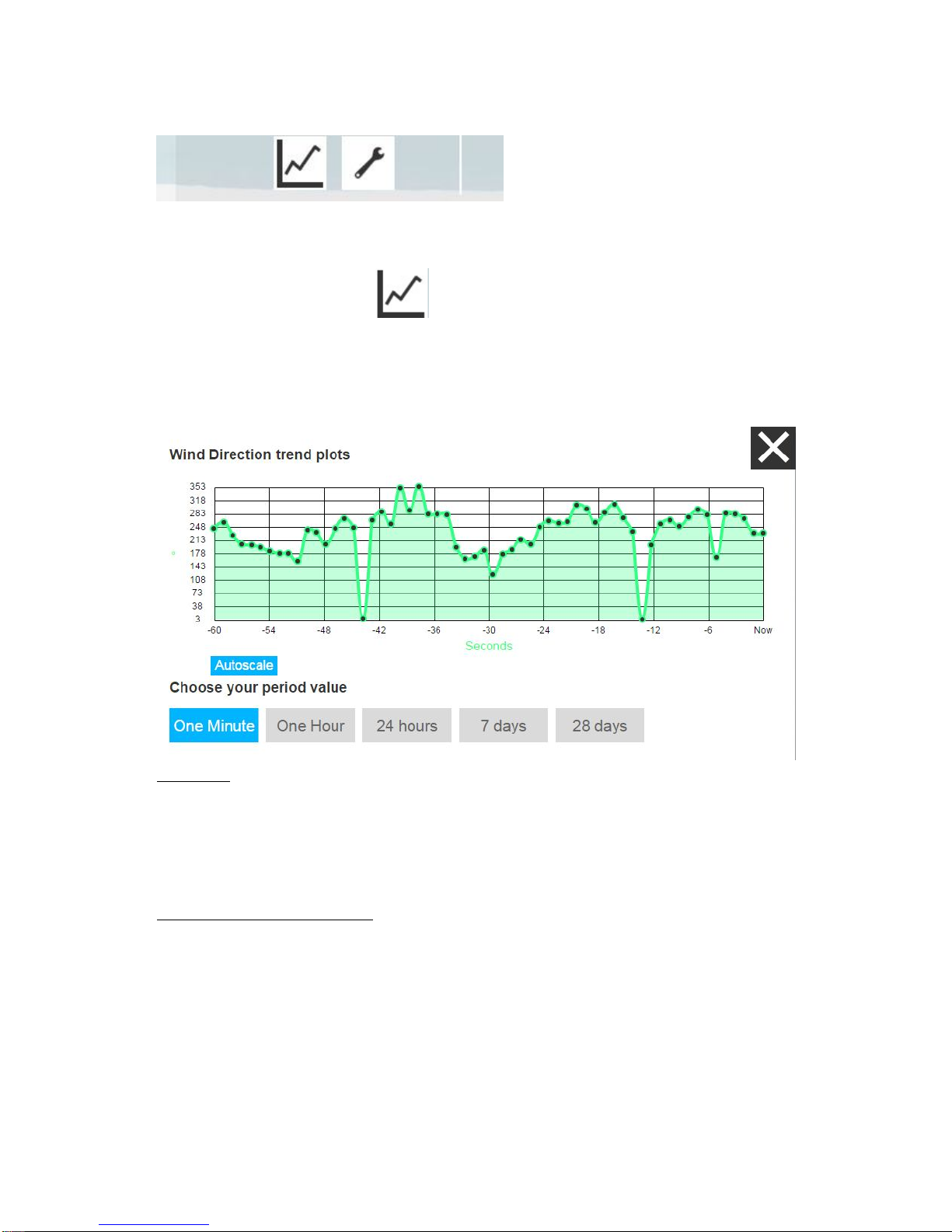

6.4.3 Trend Graphs ........................................................................................ 30

6.4.4 Change Reading Measurement Type, Gauge Range and Reset Max/Min.31

MetStream Configuration (Administrator Use) ................................................. 32

6.5

6.5.1 Login ..................................................................................................... 32

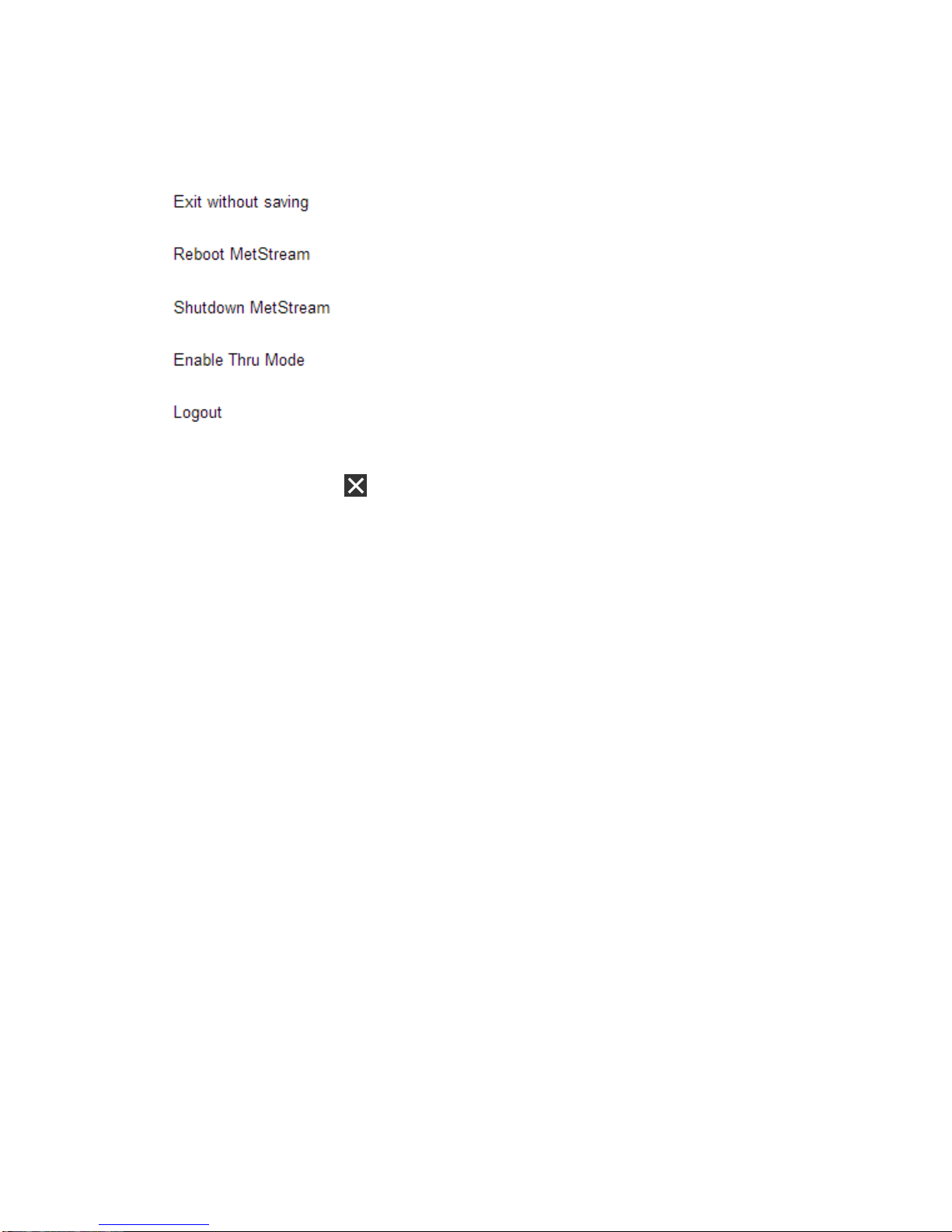

6.5.2 Exit/Reboot/Shutdown/Thru Mode/Logout .............................................. 33

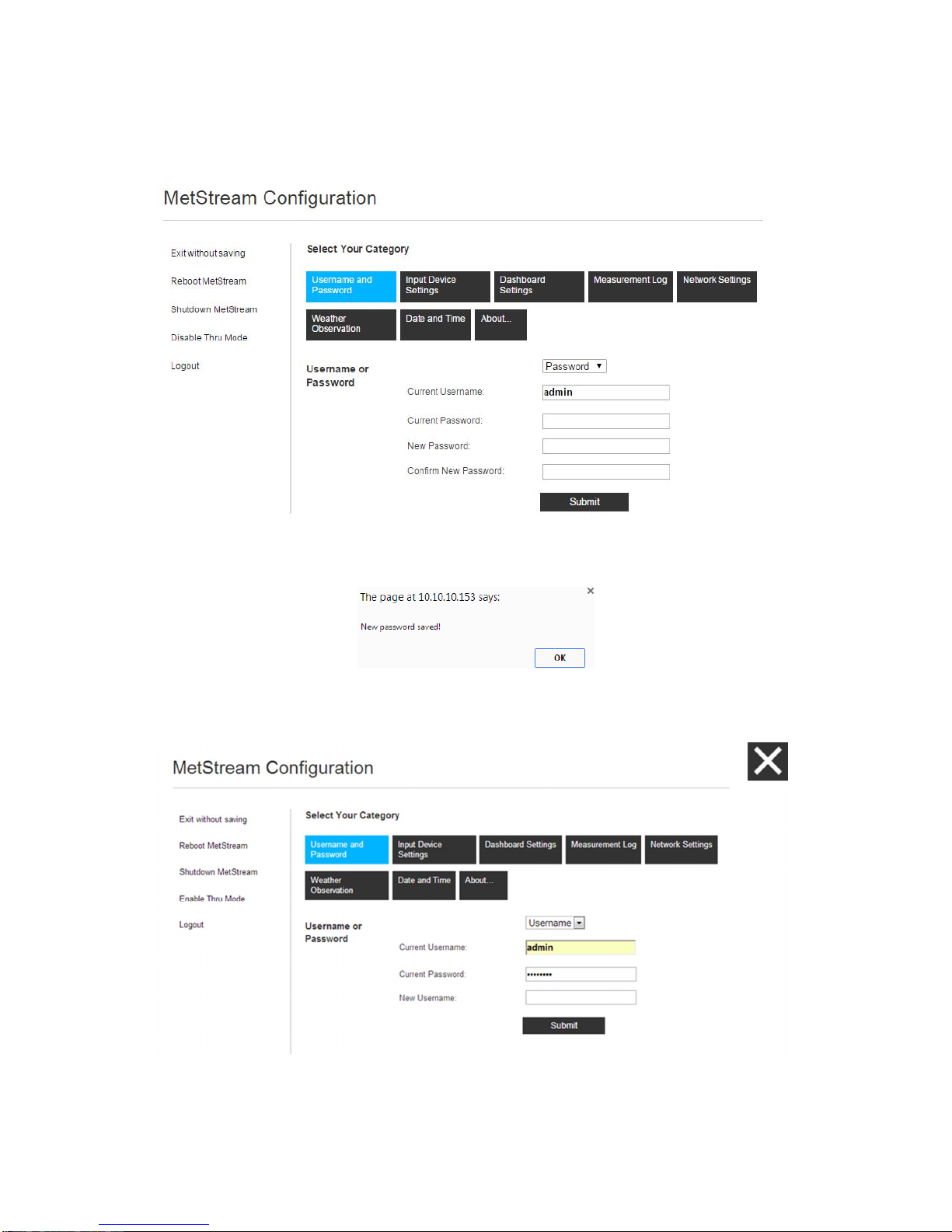

6.5.3 Username and Password ....................................................................... 34

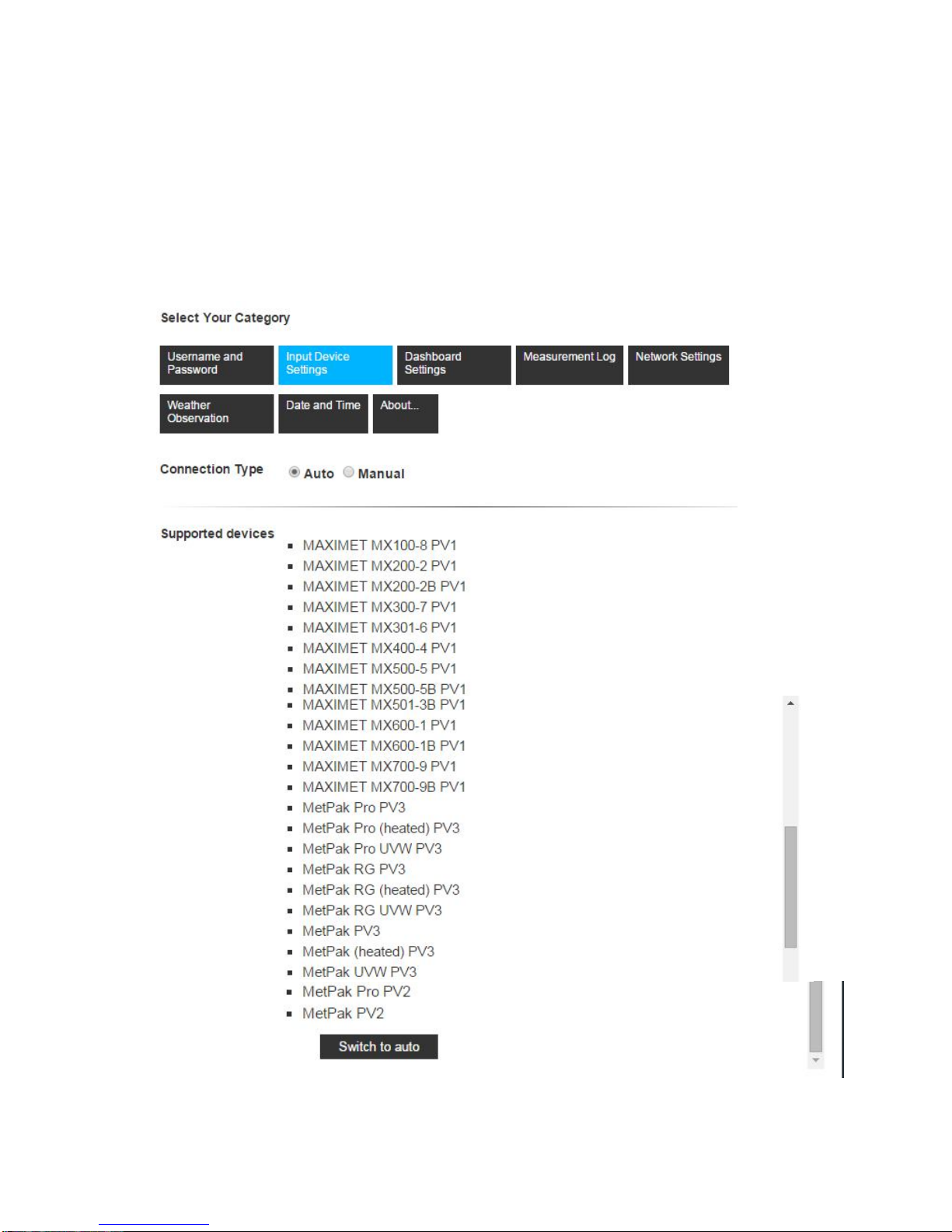

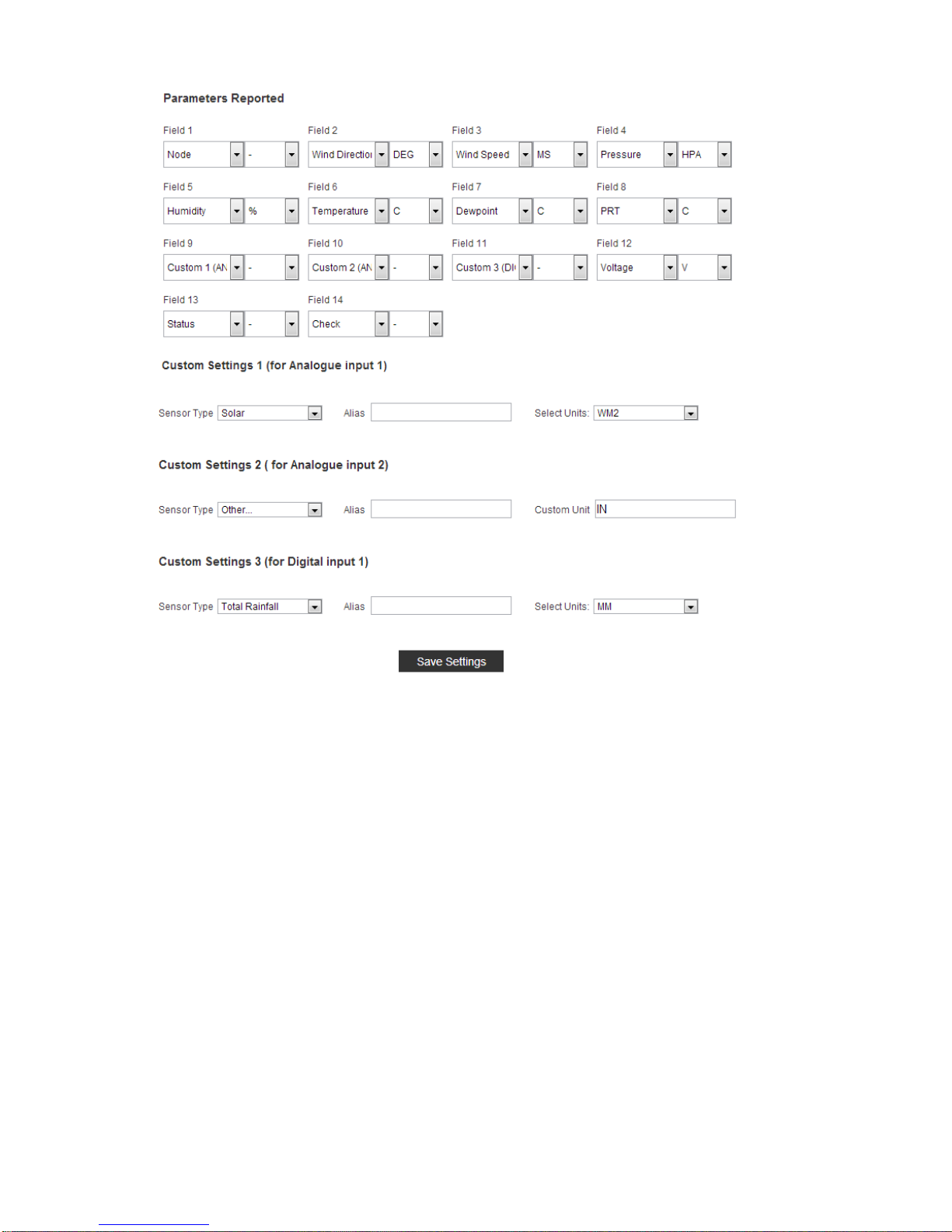

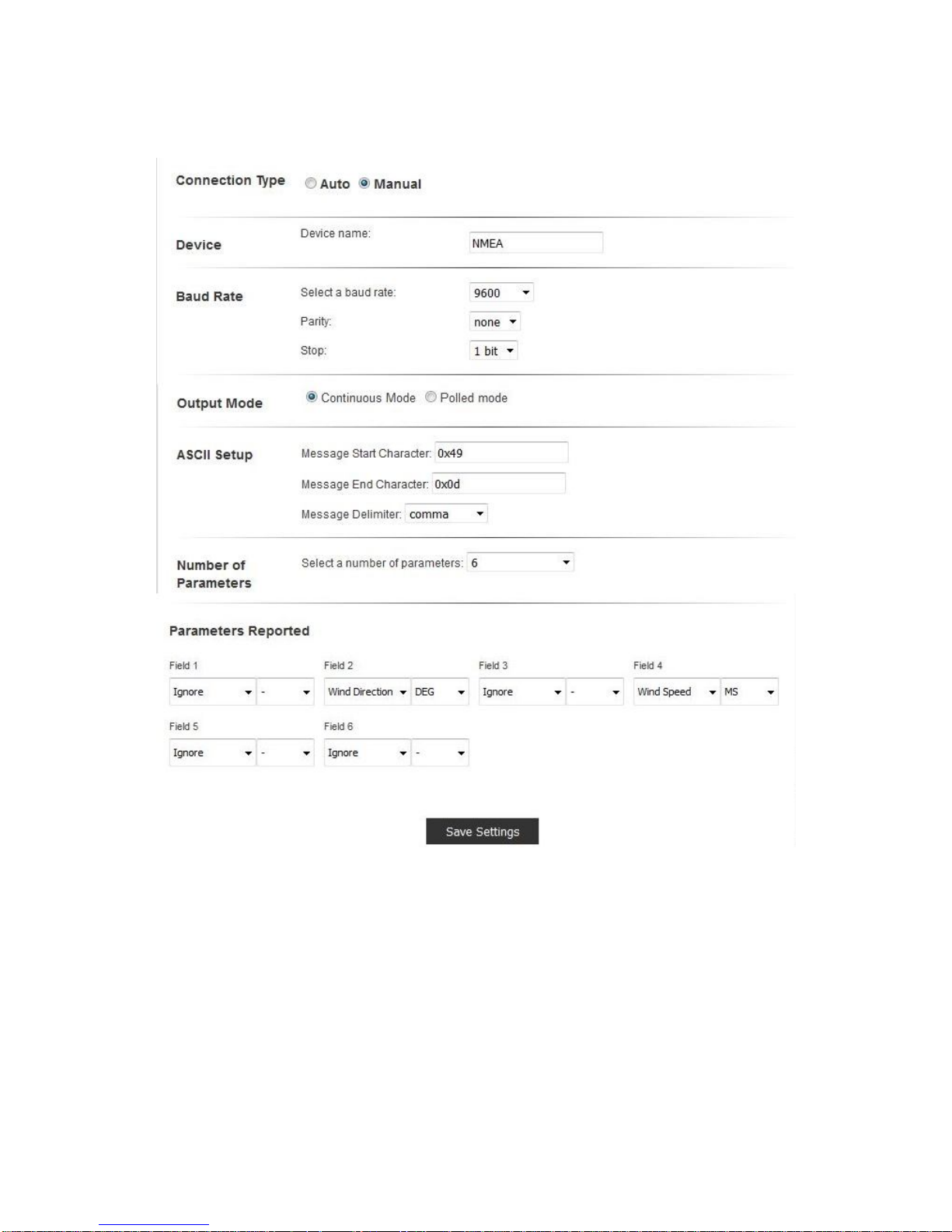

6.5.4 Input Device Settings ............................................................................. 35

6.5.5 Dashboard Settings (Administrator Use) ................................................ 41

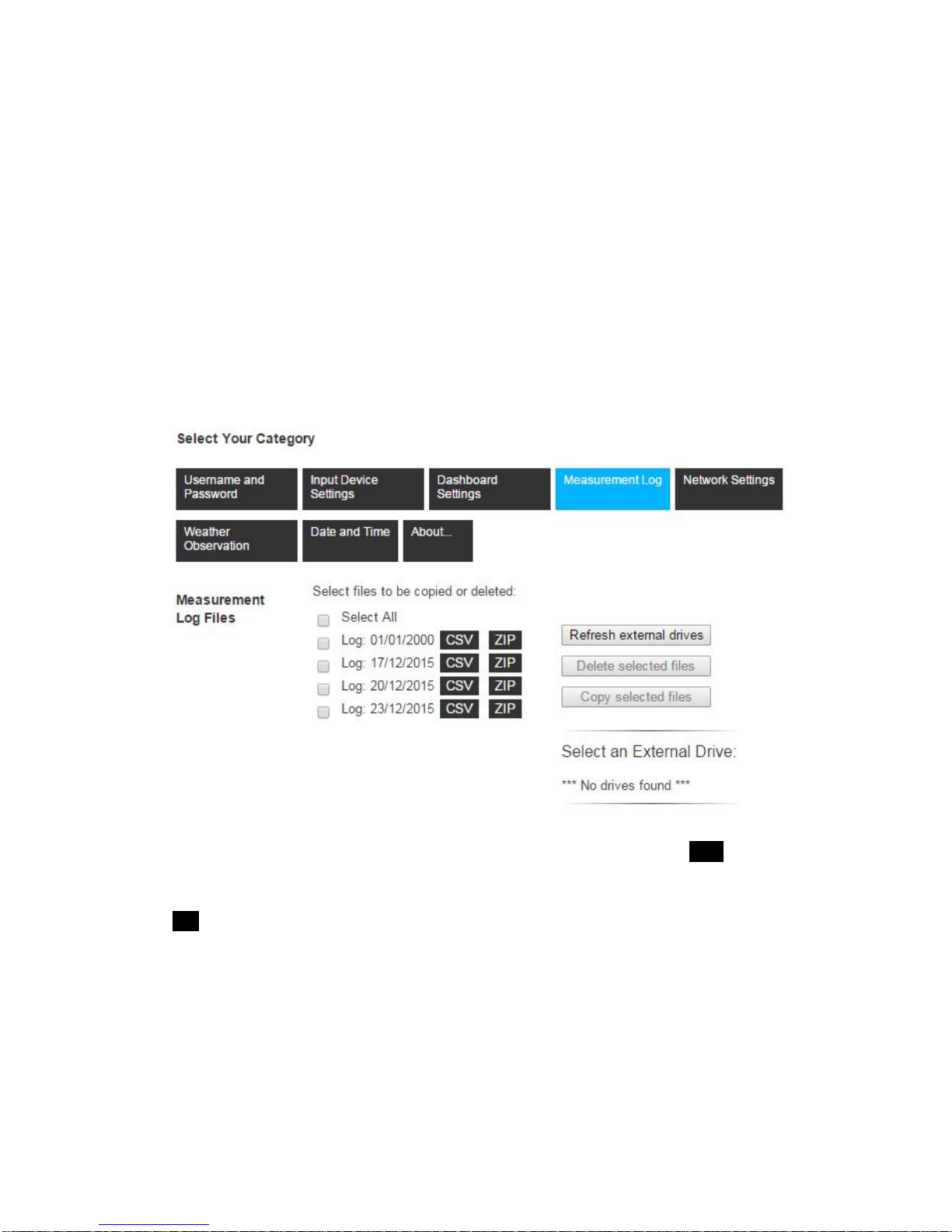

6.5.6 Measurement Log .................................................................................. 42

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 2 Issue 2

Doc. No. 1955-PS-001 March 2016

6.5.7 Network Settings ................................................................................... 45

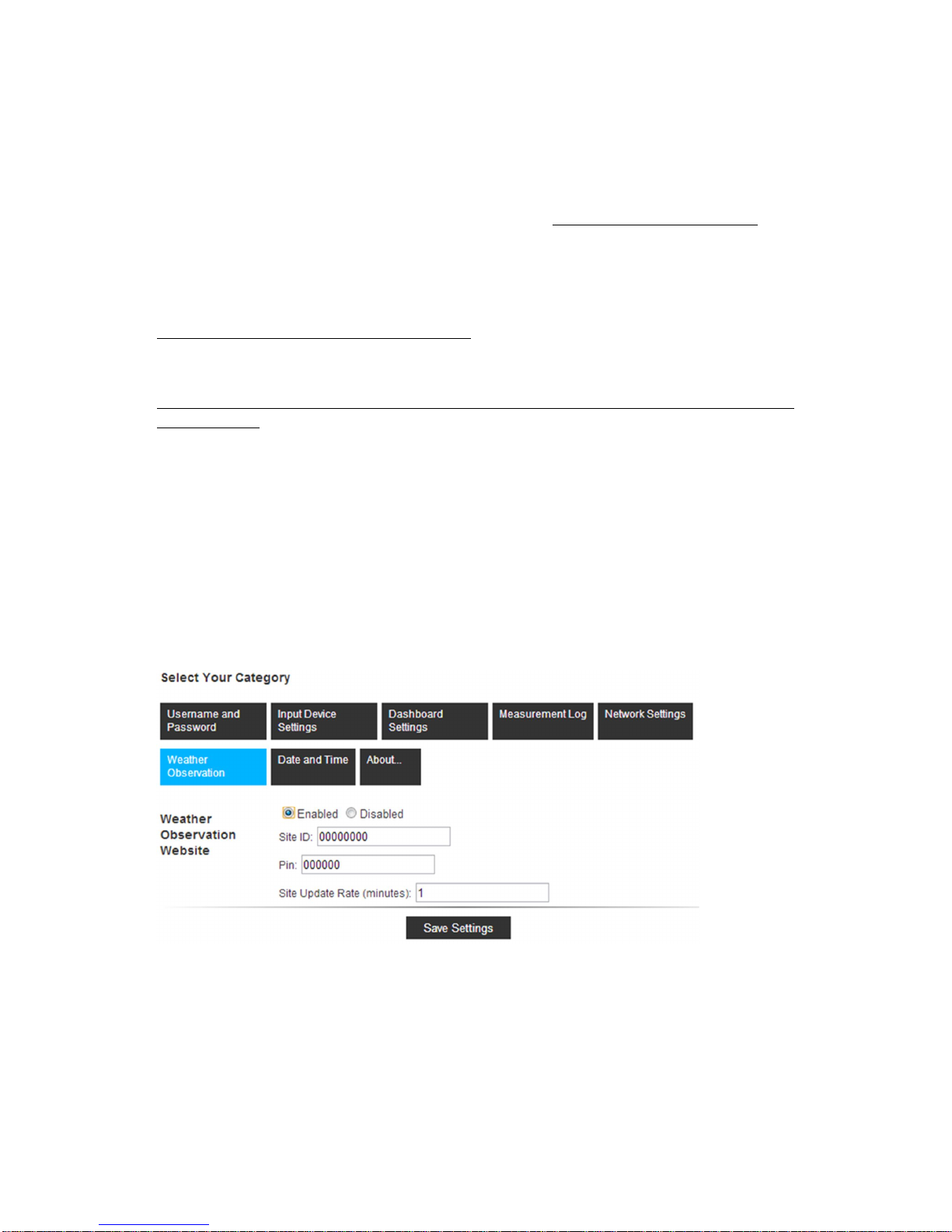

6.5.8 Weather Observation Website (WOW) ................................................... 47

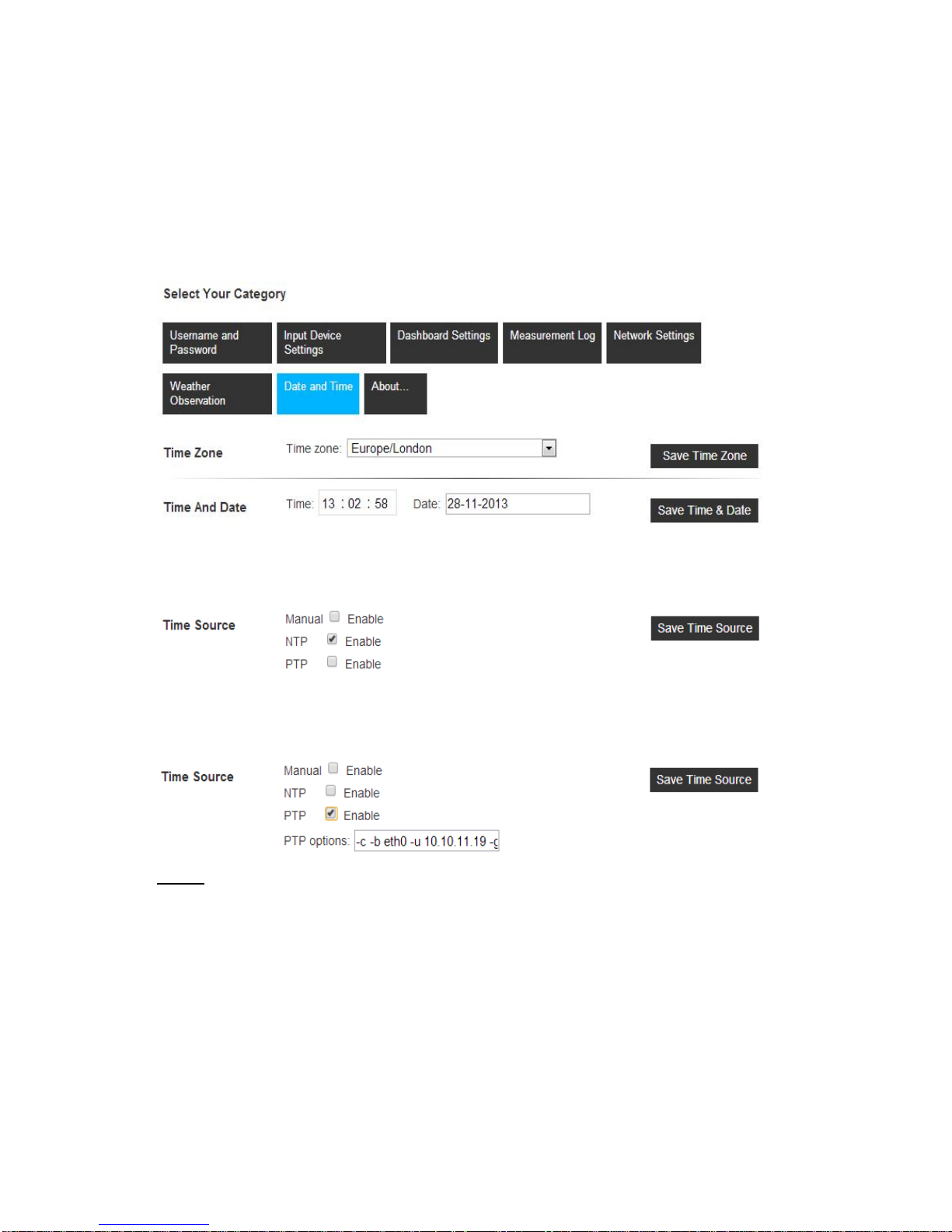

6.5.9 Date and Time ....................................................................................... 48

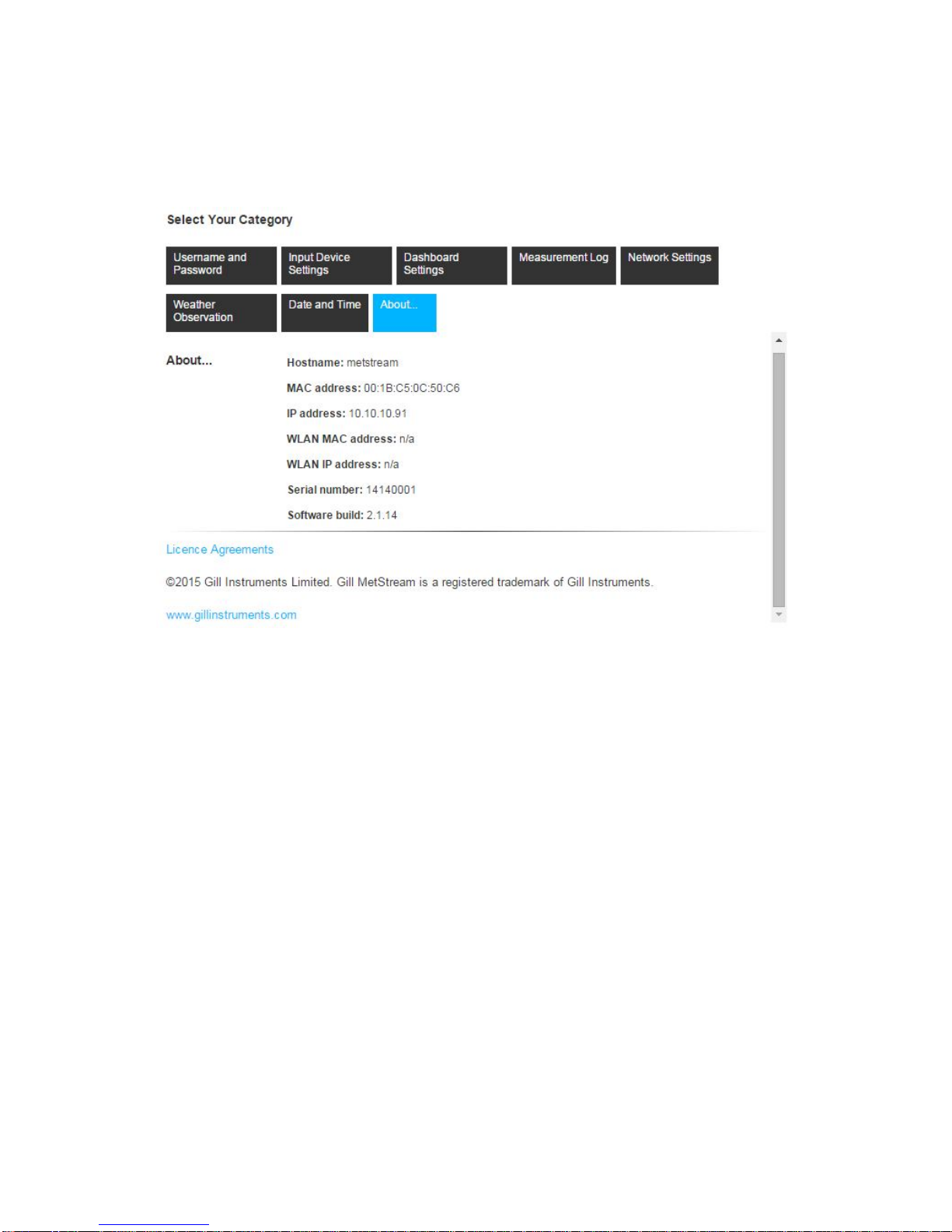

6.5.10 About..................................................................................................... 49

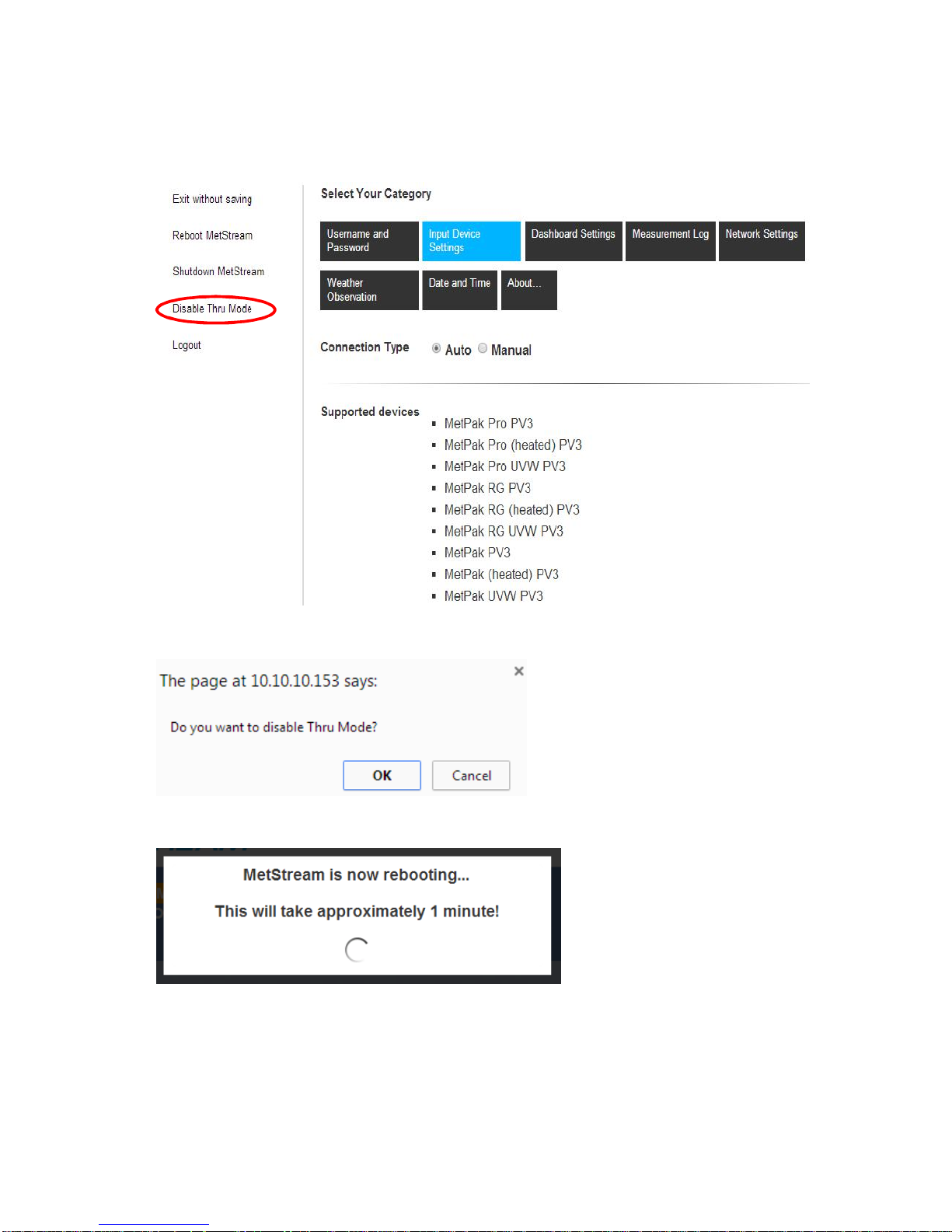

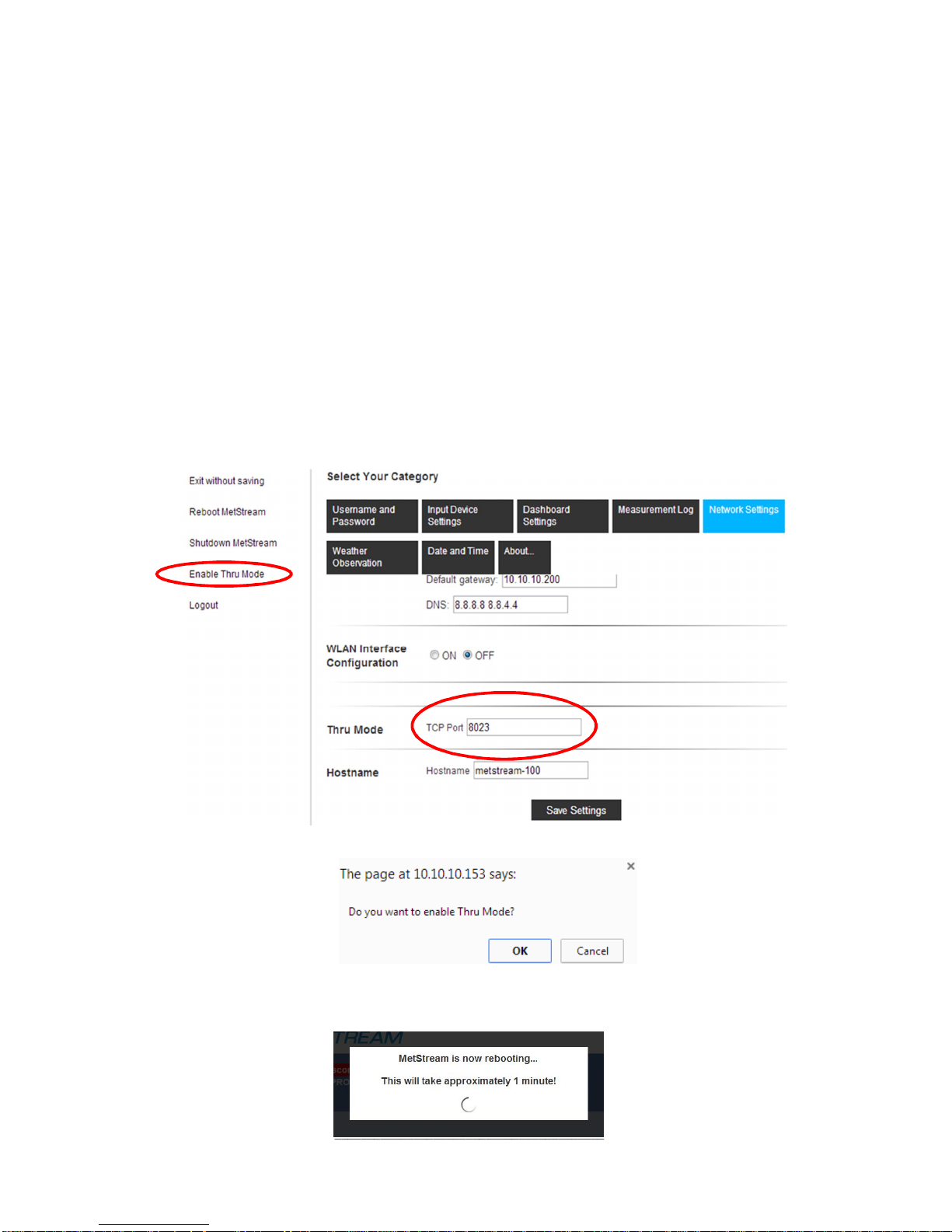

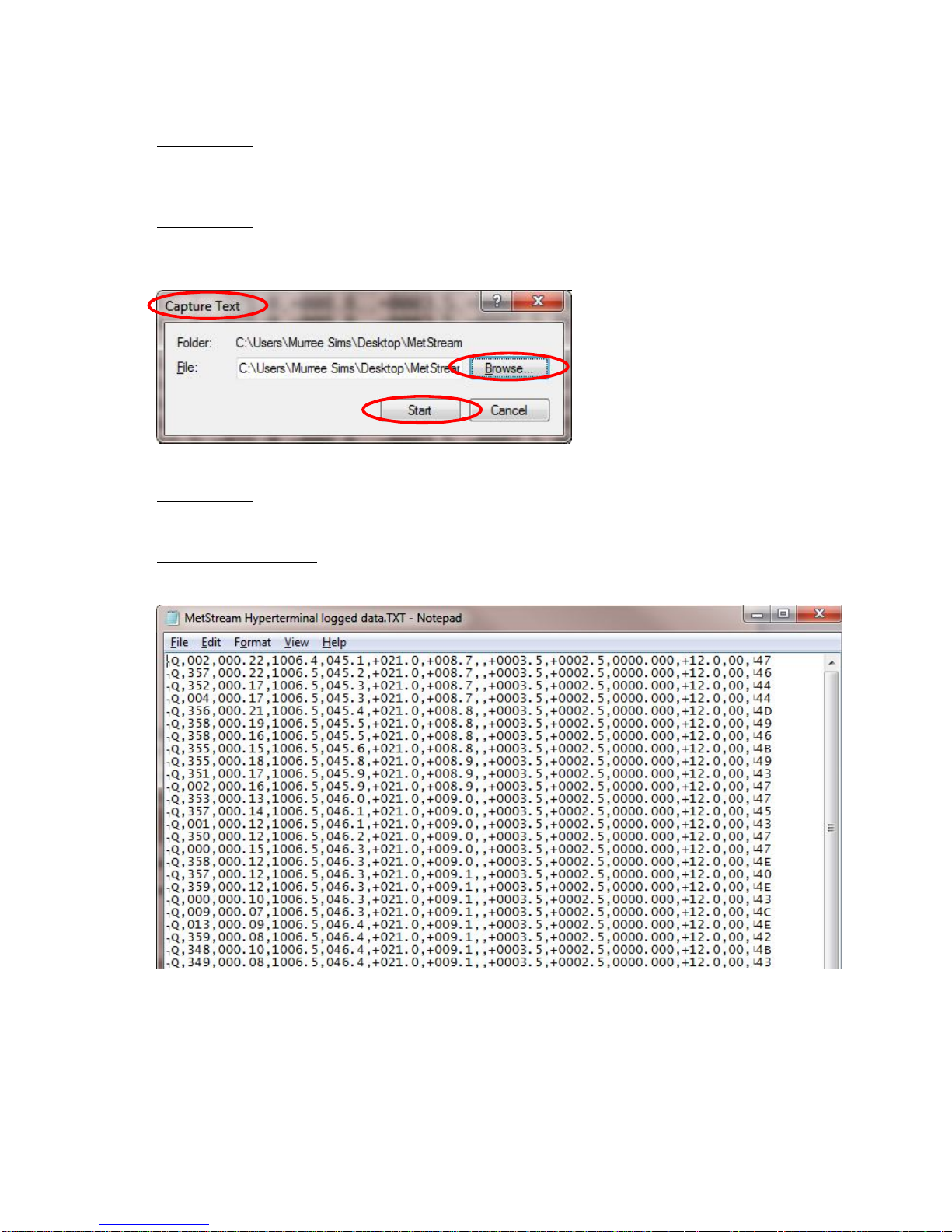

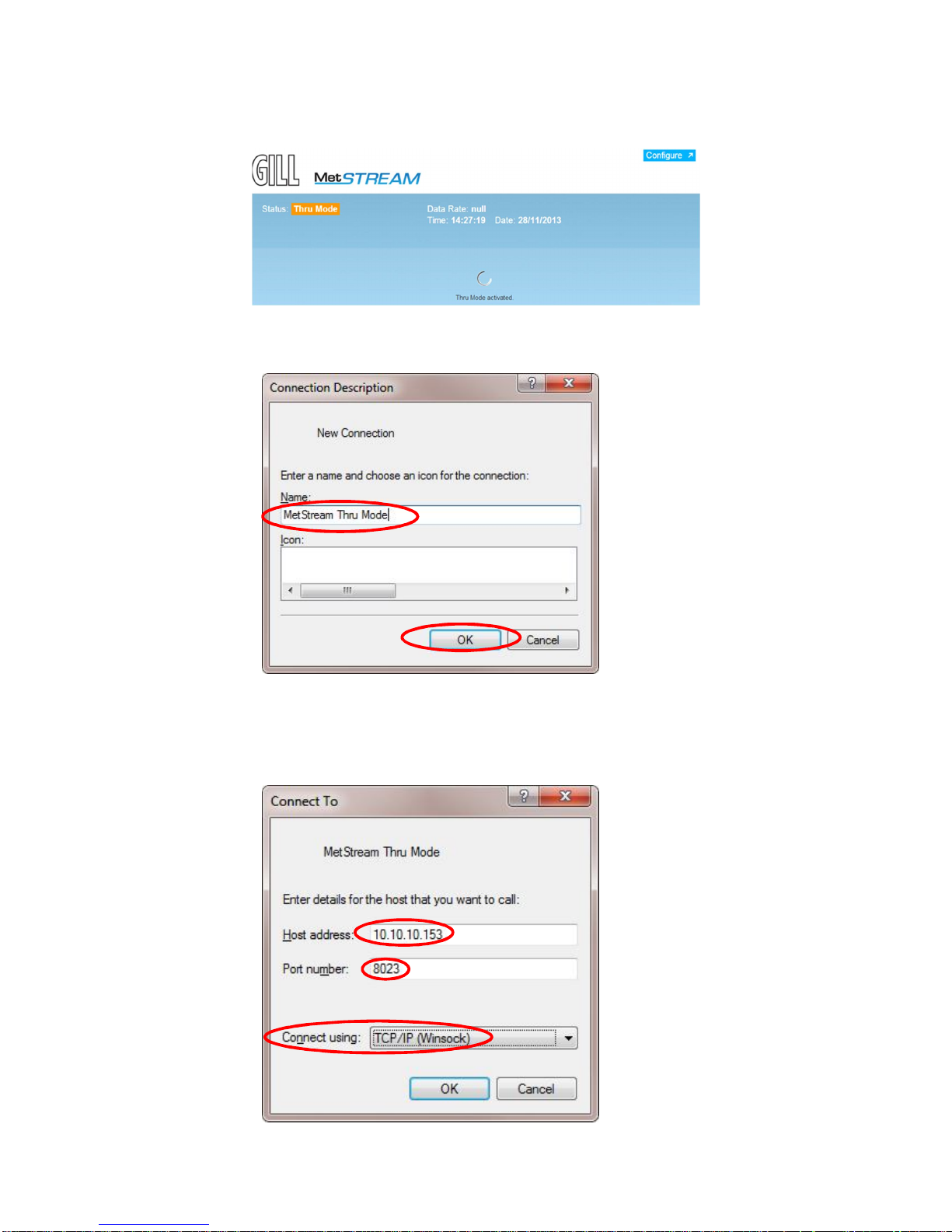

6.5.11 Thru Mode (Diagnostic Connection) ....................................................... 50

6.5.12 Port Forwarding ..................................................................................... 55

7. MAINTENANCE & FAULT-FINDING .................................................... 56

Maintenance ................................................................................................... 56

7.1

Fault-finding .................................................................................................... 57

7.2

Returning Units ............................................................................................... 58

7.3

8. APPENDICES ........................................................................................ 58

Glossary & Abbreviations ................................................................................ 58

8.1

Guarantee....................................................................................................... 59

8.2

Electrical Conformity ....................................................................................... 60

8.3

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 3 Issue 2

Doc. No. 1955-PS-001 March 2016

1. FOREWORD

Thank you for purchasing the MetStream 100 manufactured by Gill Instruments Limited.
To achieve optimum performance we recommend that you read the whole of this manual
before proceeding with use.

Gill products are in continuous development and therefore specifications may be subject to
change and design improvements without prior notice.

The information contained in this manual remains the property of Gill Instruments and
should not be copied or reproduced for commercial gain.

2. INTRODUCTION

The Gill MetStream 100 is a robust unit which allows automatic detection of a connected
Gill Instruments MetPak or MaxiMet Range Weather Station to its Digital input and with
the use of its Ethernet Output allow Weather Data to be viewed and logged over a PC
network.

Comma Separated serial data RS232/422 Wind Sensors and Instruments can be set up to
work manually with MetStream in order to view and log their data.

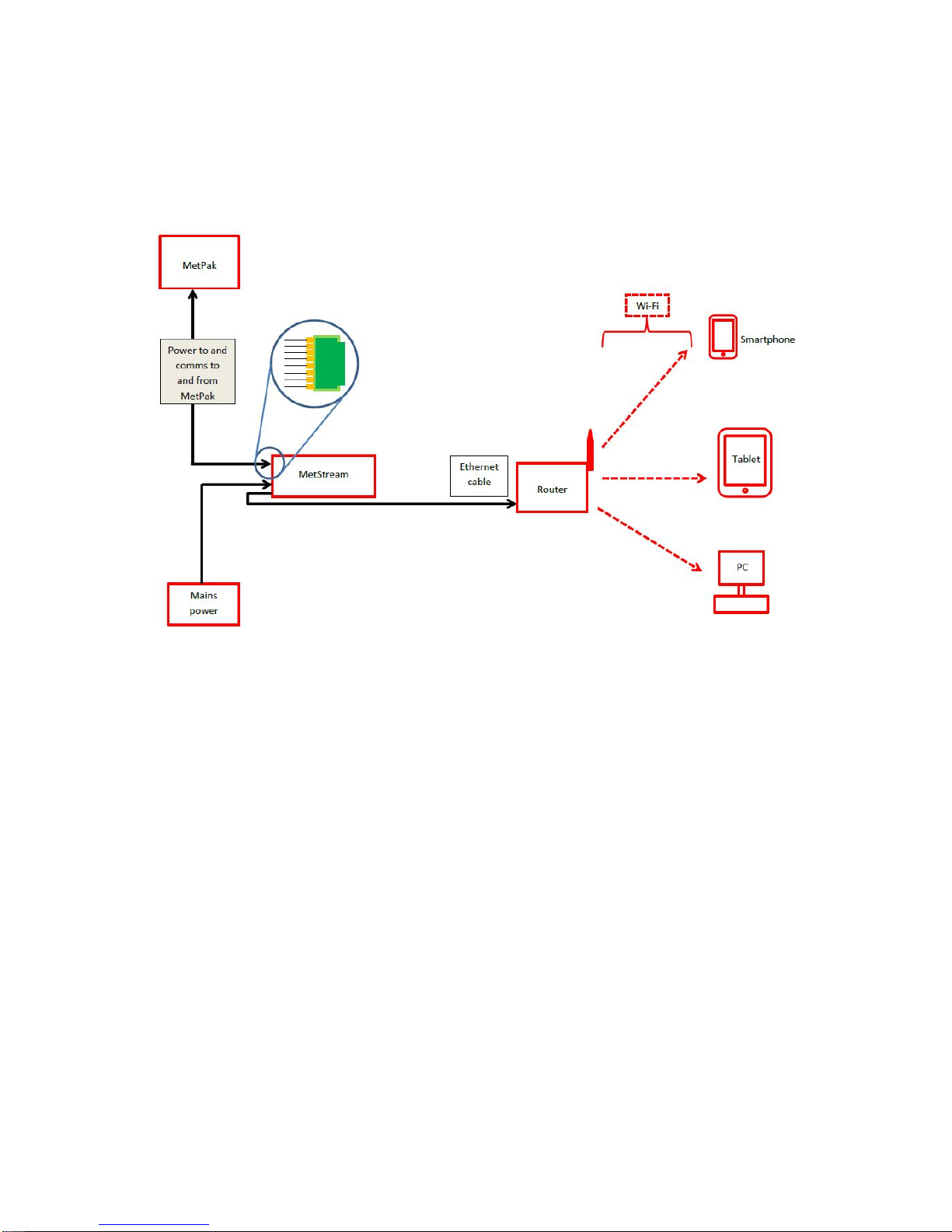

The MetStream 100 can be used in conjunction with a Wireless Router, LAN or PC.

After you have successfully set up the MetStream 100, we strongly advise that you then
go back and read the rest of the manual to ensure that you get the best results from the
MetStream 100.

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 4 Issue 2

Doc. No. 1955-PS-001 March 2016

3. SPECIFICATION

MetStream 100 - Parts 1955-100-0X-XX

Input Power Requirement (MetStream only)

Voltage 9-30V DC
Current 145mA max@12V DC (2W) MetStream only
500mA max @ 12V DC, (6W max) including external sensor

Power over Ethernet Built-in receiver (IEEE 802.3af-2003)

Output Power

Voltage Regulated 12V DC ± 10%

Current Up to 300mA @ 12V DC

Digital Input

Communication ASCII, RS232,RS422/485 4 wire, full duplex
Baud rates 1200, 2400, 4800, 9600, 19200, 38400, 57600
Formats 8 data, odd, even or no parity

Data Input Rate Up to 32Hz

Digital Output

Format 8P8C
Communication Ethernet 10/100 BASE-T speeds/format

Internal Storage

Micro SD Card 8GB card for logged data.

External Data Storage
USB 2.0 Port Expansion port supplied for external USB Data Storage, max of

32GB supported.

Start Up Time

Data Ready Less than 90 seconds (MetStream box) from power up.

Dimensions

Size 112mm long, 111mm wide, 34mm deep.
Weight 0.27kg.

Materials

External Construction Aluminium and Plastic

Environmental

Moisture protection IP40
IP65 with optional Gill outdoor enclosure
Operating temperature -20°C to +70°C
Storage temperature -40°C to +80°C

Humidity <5% to 95% RH
EMC BS EN 55024:2010
BS EN 55022:2010
FCC CFR47 Part 15B

Standards Traceable to UK national standards

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 5 Issue 2

Doc. No. 1955-PS-001 March 2016

MetStream Power Supply Unit - Part 026-04969

(Supplied with all MetStream Parts 1955-100-0X-XX)

Input Voltage Range 100v to 240V AC @ 300mA max (50/60Hz)
Mains Adaptors UK, Euro, US and AUS types supplied.

Output Power

Voltage Regulated 12V DC ± 2%

Current Up to 1 Amp (over current and short circuit current protected).
DC Cord 1.5 metres long with right angled 2.1 C +ve plug.

Dimensions

Size 79mm long x 55.4mm wide x 37mm deep.
Weight 150 grams.

Materials

External Construction Plastic, PB free ROHS compliant.

Environmental

Operating temperature 0°C to +40°C
Storage temperature -20°C to +60°C
Humidity 5% to 95% RH
EMC BS EN 55024:2010
BS EN 55022:2010
FCC CFR47 Part 15B

EMI BS EN55022
FCC (Part 15 Class B)
SAFETY UL60950-1

MetStream External Protection Box - Part 1955-PK-052

(Supplied with MetStream Part 1955-100-02-XX)

Dimensions

Size 335mm long x 220mm wide x 107mm deep.
Weight 1.5kg
Maximum Cable size 5 x 2.5 mm sq.

Materials

External Construction Thermoplastic.

Environmental

Moisture protection IP65
Install Temperature 0°C to +40°C

Operating temperature -20°C to +70°C

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 6 Issue 2

Doc. No. 1955-PS-001 March 2016

4. PRE-INSTALLATION

Equipment supplied

4.1

MetStream 100.
Universal Ac supply input, 12v dc 1A output supply.
2 Metre one to one Ethernet lead.
1 Metre crossover Ethernet lead.
MetStream IP address MScan Software, on the CD.
MetStream 100 User Manual on the CD (this manual).
MetPak terminal block 8-way connector.
DC Input Power Plug 2.1mm.

MetStream 100 Part Numbers.

4.2

Available spare parts and optional extras are as detailed below:-

Item

Part Number

MetStream 100

(S

upplied unit)

. 1955

-

100-0X-XX Mains powered 12v dc Power Supply

(Supplied with MetStream).

026-04969

Ethernet Cable

(one to one)

2 Metre

s long

(Supplied with MetStream).

026-04970

Ethernet Crossover cable

1 Metre long

(Supplied with MetStream).

026-05073

8 way Spring terminal block

(Supplied with MetStream).

020-04277

External Protection Box

(Supplied with part 1955-100-02-XX).

1955-PK-052

DC Input Power Plug (2.1mm)

(Supplied with MetStream)

020-05134

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 7 Issue 2

Doc. No. 1955-PS-001 March 2016

Packaging

4.3

Whilst the MetStream 100 is being moved to its installation site, the unit should be kept in
its packaging. Retain the packaging for use if the unit has to be moved or returned to Gill
Instruments.

Installation requirements

4.4

4.4.1 Host system

Select from the following:

 Router with Ethernet input. Or
 Wi Fi Modem with Ethernet input. Or.
 LAN Ethernet input.
 Plus:-
 PC with Wi Fi or Ethernet input to view MetStream Data.
 Internet Browser (we recommend Firefox, Chrome or IE9.0 or later)
 Optional USB 2.0/3.0 data stick to export store logged data.
 Gill Instruments MetPak or MaxiMet Range Unit set for ASCII, RS232, and

RS422 output (see http://www.gillinstruments.com/products/anemometer/weather-

station-range.htm for the range of MetPak units or
http://gillinstruments.com/products/anemometer/maximet-compact-weather­stations.html for MaxiMet units).

4.4.2 Software

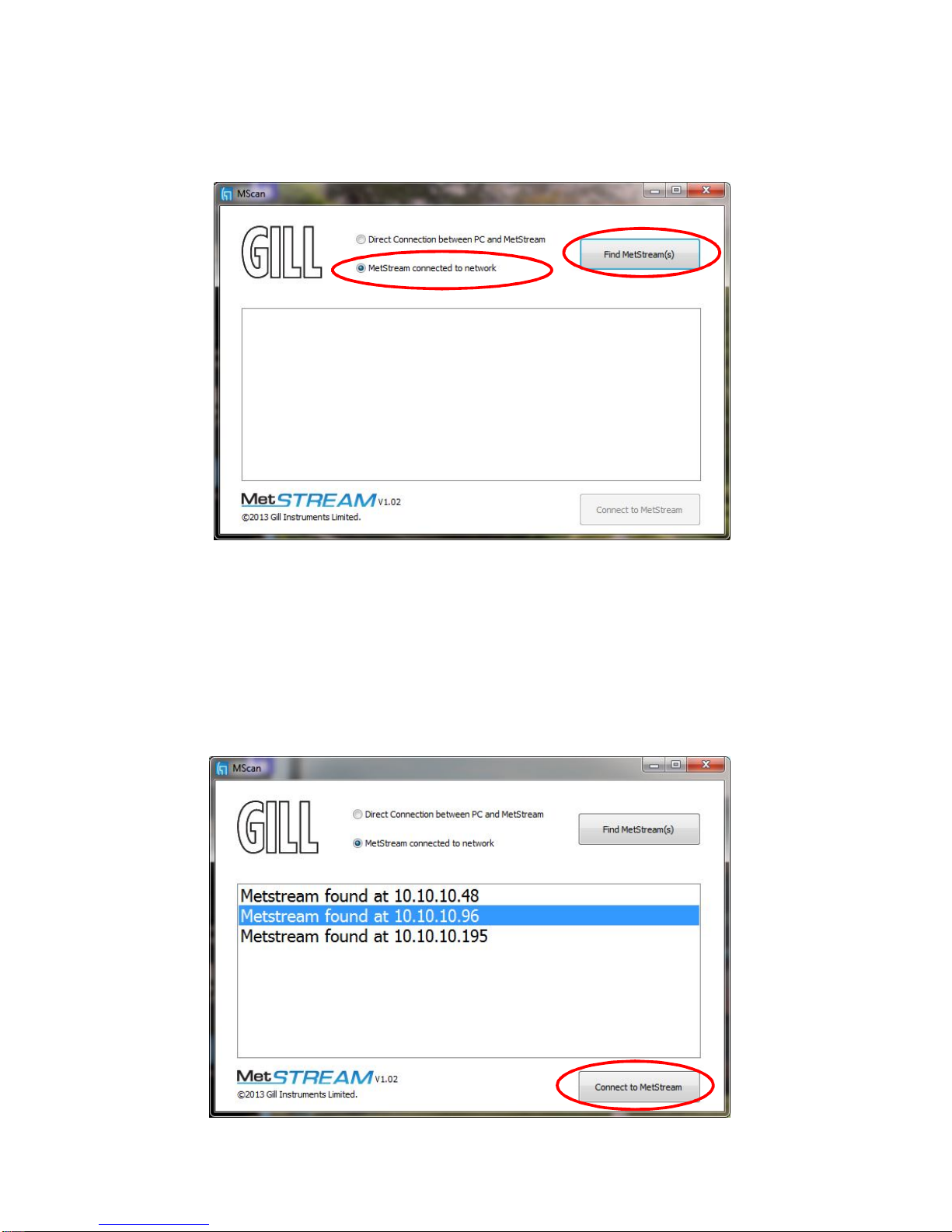

 Gill MScan Software to detect the MetStream IP address.

o Note MScan app works on Windows devices.

4.4.3 Cables

 To connect MetStream to the host unit (e.g. MetStream 100 to a MetPak

unit).

Use a suitable RS232 or RS422/485 cable, there are restrictions on cable type and
length for suitable operation, refer to the connecting equipment Manual.

 To connect the MetStream 100 to an Ethernet port.

Use a CAT 5, CAT5e or CAT 6 cable to connect between the MetStream 100 and
the user interface equipment.

Ethernet cables of up to 100 metres can be supported.
A 2 Metre Ethernet test cable is supplied (non-crossover type).

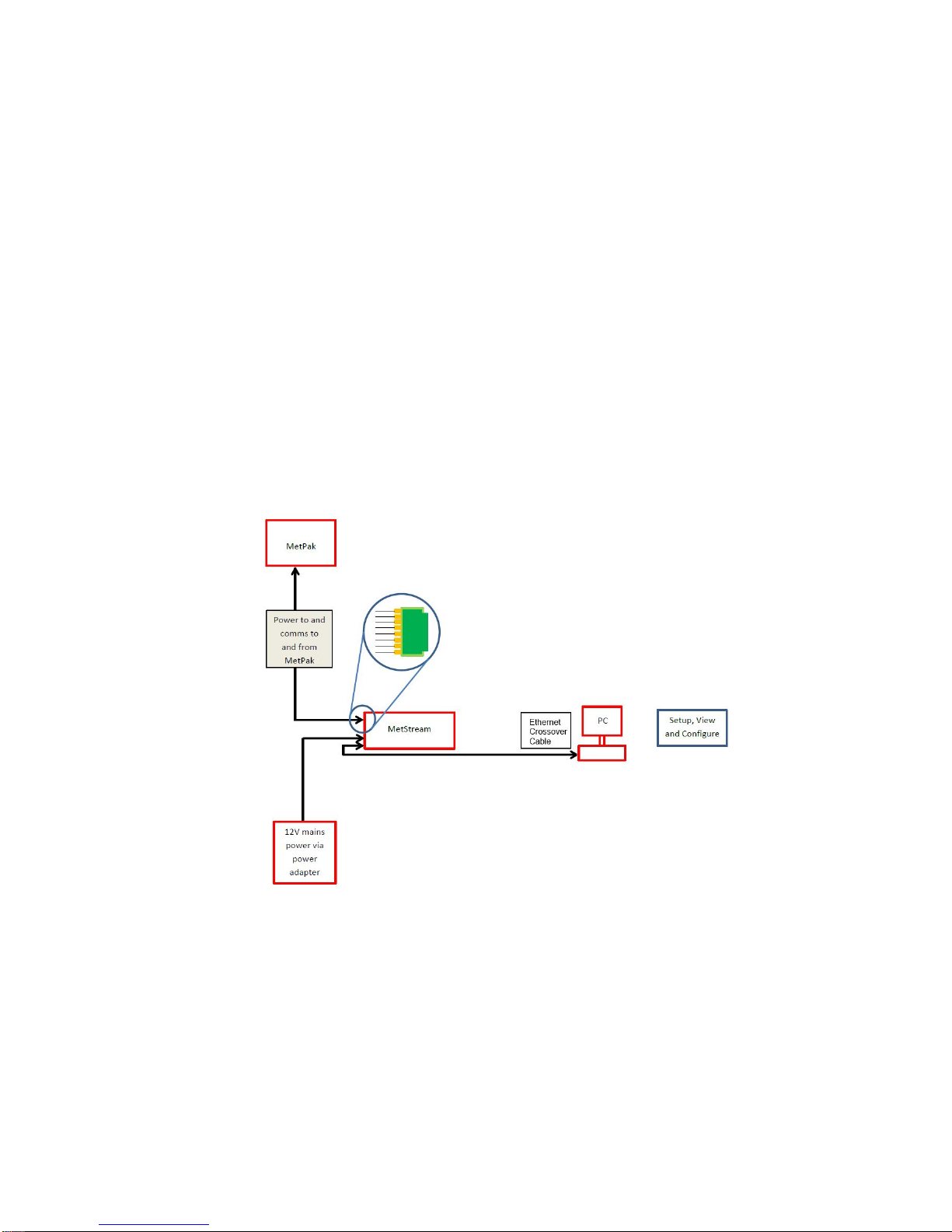

 To connect the MetStream 100 directly to a PC.

Use a CAT 5, CAT5e or CAT 6 crossover cable to connect between the MetStream
100 and the PC Ethernet port.

Ethernet cables of up to 100 metres can be supported.
A 1 Metre Ethernet crossover test cable is supplied.

 To connect DC power to the MetStream unit

A 12v dc power supply and lead with wired connector are supplied otherwise use a
cable suitable for connecting a dc supply of nominally 12v dc (1 amp
recommended). If requiring full current then take into account volt drops if a long
cable run is needed.

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 8 Issue 2

Doc. No. 1955-PS-001 March 2016

4.4.4 Mounting

 The MetStream 100 is designed for indoor use.
 The MetStream 100 can be positioned laid flat down or on its side.
 For outdoor use the unit should be enclosed in a box that provides the necessary

sealing that will meet the outdoor climatic conditions. Gill instruments can provide
an outdoor box if required part number 1955-PK-052.

MetStream Connections.

4.5

4.5.1 MetStream Front Panel Connectors

4.5.2 Front Panel Status LED’s

The Yellow LED illuminated indicates DC Power is applied to the MetStream Box.
The Green LED illuminated indicates unit connecting/connected to a user unit.
A flashing Green LED means that MetStream is communicating with the connected

instrument.
When power is applied to the MetStream with valid equipment wired to the

RS232/422/485 connector the Green LED will be:-

 Off initially for approximately 10 seconds.
 On for approximately 20 seconds.
 Flash whilst correct communication (Comms Mode and Baud Rate) with

the connected device is being established.

 On continuously when the connected instrument is recognised and data is

ready to be read.

However allow up to 90 seconds for a valid connection to be established depending on
equipment connected.

4.5.3 Front Panel USB 2.0 Port

Suitable for a USB data stick to copy files from MetStream.
Maximum 32GB device supported.
Hot Pluggable.

Connection
Status LED

USB Port to
copy data

DC Power LED

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 9 Issue 2

Doc. No. 1955-PS-001 March 2016

4.5.4 MetStream Rear Panel Connectors

4.5.5 Rear Panel Power Socket

Two contact power socket Use with 2.1mm x 5.5mm plug (supplied, see below).
Voltage Range 9v to 30v dc.
Input Current Up to 145mA @12V from MetStream.

Up to 0.5A @12V, MetStream and external device.

4.5.6 Rear Panel Ethernet Socket

A standard Ethernet socket is provided for connecting:­The supplied 2 metre Ethernet cable for a Local Area Network (LAN) connection
Or
The 1 Metre Ethernet crossover cable for direct connection to a PC.
Other length Ethernet cables can be used:­If there is a successful connection between the MetStream Ethernet socket and LAN then

the Yellow Ethernet Socket LED’s will be illuminated and the Green LED will indicate
Data traffic activity.

Power
Supply

Ethernet

Data Comms and
Power Out

Ethernet Link LED Ethernet Link Activity LED

Ethernet Link Connection LED

Ethernet Link Activity LED

Pin 8

Pin 1

Earthing Stud

Supply +ve

Supply -ve

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 10 Issue 2

Doc. No. 1955-PS-001 March 2016

4.5.7 RS232/422/485 Connector

A removable 8 way plug is supplied for the RS232/422/485 data input connections.
The part number for the plug is Phoenix Contact 8 way spring terminal Part 1881383

(supplied with MetStream).

Connections to the RS232/422/485 connector are

CONTACT/

COMMS MODE

1 2 3 4 5 6 7 8 RS232

Rx+- - - Tx-

+12v dc

Output

Power

Enable

0v 0v RS422/485

Rx+ Tx+ Rx- Tx-

+12V dc

Output

Power

Enable

0v 0v

Recommended range of wire gauges that can be used with the connector is 20 AWG to
28 AWG.

Wires connected to this plug should be stripped back 8 mm for insertion into the push/lock
connector.

4.5.8 Power Enable Function

The +12v dc output is only enabled on Terminal 5 when the Power Enable connection on
Terminal 6 is connected to Terminal 7 (0v) or Terminal 8 (0v).

If Terminal 6 Power Enable is left open circuit then the 12V supply output from Terminal
5, and any connected instrument using this supply, will be disabled.

In this case, the external instrument should be powered separately from the MetStream by
a customer-provided supply.

Contact 1

Contact 8

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 11 Issue 2

Doc. No. 1955-PS-001 March 2016

5. INSTALLATION

NOTE: Warranty is void if the MetStream case is opened.

Installation Guidelines

5.1

 The MetStream 100 is designed for indoor use.
 For outdoor use a suitable sealed enclosure that meets the required environmental

conditions can be used.

o Gill instruments can supply an outdoor IP65 enclosure; refer to the

technical specification in the front of this manual to ensure it meets the
required conditions of use.

 Ensure the product is correctly earthed in accordance with this manual.
 Use cables recommended by Gill, keeping the length below the maximum allowed.

Where the cables are cut and re-connected (junction boxes, plugs and sockets) the
cable screen integrity where applicable must be maintained, to prevent the EMC
performance being compromised.

 Earth loops should not be created – earth the system in accordance with the

installation guidelines.

 Ensure the power supply operates to the MetStream 100 specification at all times.

Bench system test

Note: Prior to physically mounting the MetStream 100 in its final location, we strongly
recommend that a bench system test be carried out to confirm the system is configured
correctly, is fully functional and electrically compatible with the selected host system and
cabling (preferably utilising the final cable length). The required data format, units and
other options should also all be configured at this stage.

Ensure that any unit connected to the MetStream data input has been configured first for
the required Communication protocol and baud rate.

5.1.1 MetPak to MetStream Data Input Connection

The following table shows an example manufacturers’ reference; other manufacturers’
equivalents can be used.

Recommended Belden cable types

Application

No. of Pairs

Belden Ref.

Digital RS232

3

9503

Digital RS422

4

9504

For RS422 operation the cable should contain twisted pairs screened to match the
application.

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 12 Issue 2

Doc. No. 1955-PS-001 March 2016

Cable length

The maximum cable length is dependent on the chosen communication method.
The following table shows the maximum cable lengths for the supported communication

protocols at the given baud rates, using the recommended cable. If any problems of data
corruption etc. are experienced, then a slower baud rate should be used. Alternatively, a
higher specification cable can be tried.

Maximum cable lengths for supported communication networks

Cabling (unused wires)

Any unused wires in the connecting cables should be connected to ground preferably at
the user equipment end.

Cabling protection

Cables should be secured:-

With cable clamps or equivalent at regular intervals such that the hub box cable
gland does not support the cable weight.

Away from any mounting bolts to prevent chaffing of the cable.

NOTE: Install appropriate strain relief support to the cable if required.

Earthing

To ensure correct operation and for maximum protection from lightning, a separate
lightning rod system is recommended to protect the system.

You can also earth the MetStream through its mountings or by connecting a grounding
cable to the MetStream Earth Terminal Post. Clean off any paint etc. that might prevent a
good connection to the Earth structure.

When you connect the screened communications cable ensure that the screen has a
connection to the MetStream Case.

5.1.2 Ethernet to Ethernet Connection

An Ethernet compatible cable should be used.

Generic description:–

2 Twisted pairs for Data only application.
4 twisted pairs for Data and Power over Ethernet (POE) applications.
CAT5 or higher RJ45.
8 pin 8 contact type (8P8C).
Max Cable Length 100 metres (Cat 5, Cat 5e, Cat 6).
Types - straight or crossover depending on system connection.
Shielded Twisted Pair (STP) recommended or Unshielded Twisted Pair (UTP).

Communication
format

Baud rate Max. cable length

RS232

19200

6.5M

RS422

19200

1000M

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 13 Issue 2

Doc. No. 1955-PS-001 March 2016

The table below shows some set up cable options.

Cable type required for setup

5.1.3 Cable length

The typical maximum length at Ethernet 10Mbps data rate is 100 Metres, using the
recommended cable.

If any problems of data corruption are experienced (due to, for example, a high local
electrical ‘noise’ level), then check that a shielded Ethernet twisted pair cable is being
used. Alternatively, a thicker or higher specification cable can be tried.

5.1.4 Ethernet Socket Cable Wiring

The rear Ethernet RJ45 socket on the MetStream unit has the following connections:-

10Base T Port Pin outs.

IEEE 802.3af connections using spare pairs for POE.

8 Pin 8 Description

TIA/EIA

568A

TIA/EIA

568B

1

T

ransmit

+ White/Green

White/Orange

2

Transmit

- Green

Orange

3

R

eceive

+ White/Orange

White/Green

4

DC+

Blue

Blue

5

DC+

White/Blue

White/Blue

6

Receive

- Orange

Green

7

DC-

White/Brown

White/Brown

8

DC-

Brown

Brown

Pins 4, 5, 7 and 8 are not used unless a Power over Ethernet connection is used.
Ensure that a fully 8 wire populated cable is used for POE applications.

PC

Wi Fi Router

LAN

MetStream to:

-

Crossover

Straight

Straight

Pin 8 Pin 1

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 14 Issue 2

Doc. No. 1955-PS-001 March 2016

5.1.5 Power supplies

MetStream 100 units

Input Supply: -

Voltage 9v to 30v DC.
Current 145mA max@12v DC (excludes external USB flash drive

and externally connected sensor.

Current 500mA max@12v DC including external Sensor.

5.1.6 Power over Ethernet Connection.

It is possible to Supply Power to a MetStream 100 and connected MetPak unit for instance
through the use of a Single Port MidSpan PoE Injector.

Typically the Power over Ethernet device will inject 48v dc on the Ethernet cable to
connect to the MetStream 100 unit.

Typical 48v current capacity should be 350mA.
Maximum cable length between The POE injector and MetStream should be 100 Metres
Connect MetStream Ethernet lead to the Power and Data connection socket.

Typical MetStream System Connection using Power over Ethernet.

Connections

5.2

Important:- Any cable wires not used should be isolated and grounded at the
terminating equipment/user end.

Digital OV should be used in conjunction with RS422 TX RX lines in order to improve
noise immunity.

Earthing or grounding

It is recommended that MetStream metal case is grounded via its Knurled Screw Earth
Terminal.

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 15 Issue 2

Doc. No. 1955-PS-001 March 2016

5.2.1 MetStream RS232 Digital Input Connections

The following example shows a MetPak with its COMMS set for RS232 connected to MetStream.

This is the MetPak default communication configuration setting.
NOTE: The 8 way connectors fitted to MetStream and MetPak are identical, take care when

connecting the lead to the equipments to ensure that cable wiring matches that required of the
connecting equipment.

MetPak

J5 Hub Box

8 way Connector

MetStream

8 Way Connector

Signal

Names

Terminal

Nos.

Terminal

Nos.

Signal

Names

RS232 Tx

3 1 Rx+ RS232 Rx

4 4 Tx-

Signal

Ground

2 8 0v

Chassis

Ground

Terminal

Post

Screen Wires

Terminal

Post

Chassis

6

Power

Enable

Supply

–ve 7 7 0v Supply +ve

8 5 +12v dc

5.2.2 MetStream RS422 Digital Input Connections

The following example shows a MetPak with its COMMS set for RS422 connected to MetStream.
This is not the default MetPak communications setting; ensure the MetPak has been configured for
this output requirement before wiring to MetStream.

MetPak

J5 Hub Box

8 way Connector

MetStream

8 Way Connector

Signal

Names

Terminal

Nos.

Terminal

Nos.

Signal

Names

RS

422 Tx+ 6 1 Rx+

RS422 Tx

-

3 3 Rx- RS422 Rx+

5 2

Tx+ RS422

Rx- 4 4 Tx-

Signal

Ground

2 8 0v

Chassis

Ground

Terminal

Post

Screen Wires

Terminal

Post

Chassis

6

Power

Enable

Supply

–ve 7 7 0v Supply +ve

8 5 +12v dc

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 16 Issue 2

Doc. No. 1955-PS-001 March 2016

5.2.3 Mechanical installation

Before installing, a bench system test is recommended.
All the time the MetStream 100 is not in its final location, it should be

protected from damage by keeping it in the original packaging as long as
possible.

Location

It is advised to not site the MetStream 100 in close proximity of electrical noise, Radar or
RF transmitters. A site survey may be required if there is any doubt about the strength of
external electrical noise.

Orientation

The unit may be mounted in any orientation.

Dimensions are in mm

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 17 Issue 2

Doc. No. 1955-PS-001 March 2016

MetStream External Protection Box - Part 1955-PK-052

5.3

(Supplied with MetStream Part 1955-100-02-XX).

Note the environmental temperature conditions etc. under which the Protection Box and
MetStream will be used to ensure there is no conflict (see manual Specification pages 4
and 5).

Outer Case Dimensions (with cover in place) 335mm long x 220mm wide x 107mm deep.

Case Preparation and Mounting

The case should be mounted on a vertical surface with cable entries at the bottom.
The case should be mounted onto a flat surface to prevent twisting that could affect
sealing.
Do not drill any holes in the enclosure apart for those for waterproof glands as this could
impair on the IP65 weather proof rating.
A template (not to scale) is shown to aid mounting hole positioning (units in mm).

Gill Instruments Limited
_____________________________________________________________________________________________________________

________________________________________________________________________________________________
MetStream 100 Page 18 Issue 2

Doc. No. 1955-PS-001 March 2016

To install the MetStream unit loosen the 2 Philips screws identified below, slide the clamp
plate to the right.

Slide in the MetStream unit as shown and clamp in MetStream and tighten the 2 screws.
Connect the supplied pre-wired Earth Tag, Power and 8 Way MetStream plugs to

MetStream.
Installed cable connections are as follows:-

Connect external Power and Communications to the MetStream via the sealing strip or
gland entry points and terminate in the 12 way screw fitting connector block.

Loosen these 2 screws
to slide the clamp plate
to the right

Gland entry for cables
8mm to 13mm in
diameter.

Rubber Sealing Strip entry points for clamping and sealing
cables up to 2.5 sq. mm.

Protection Box
