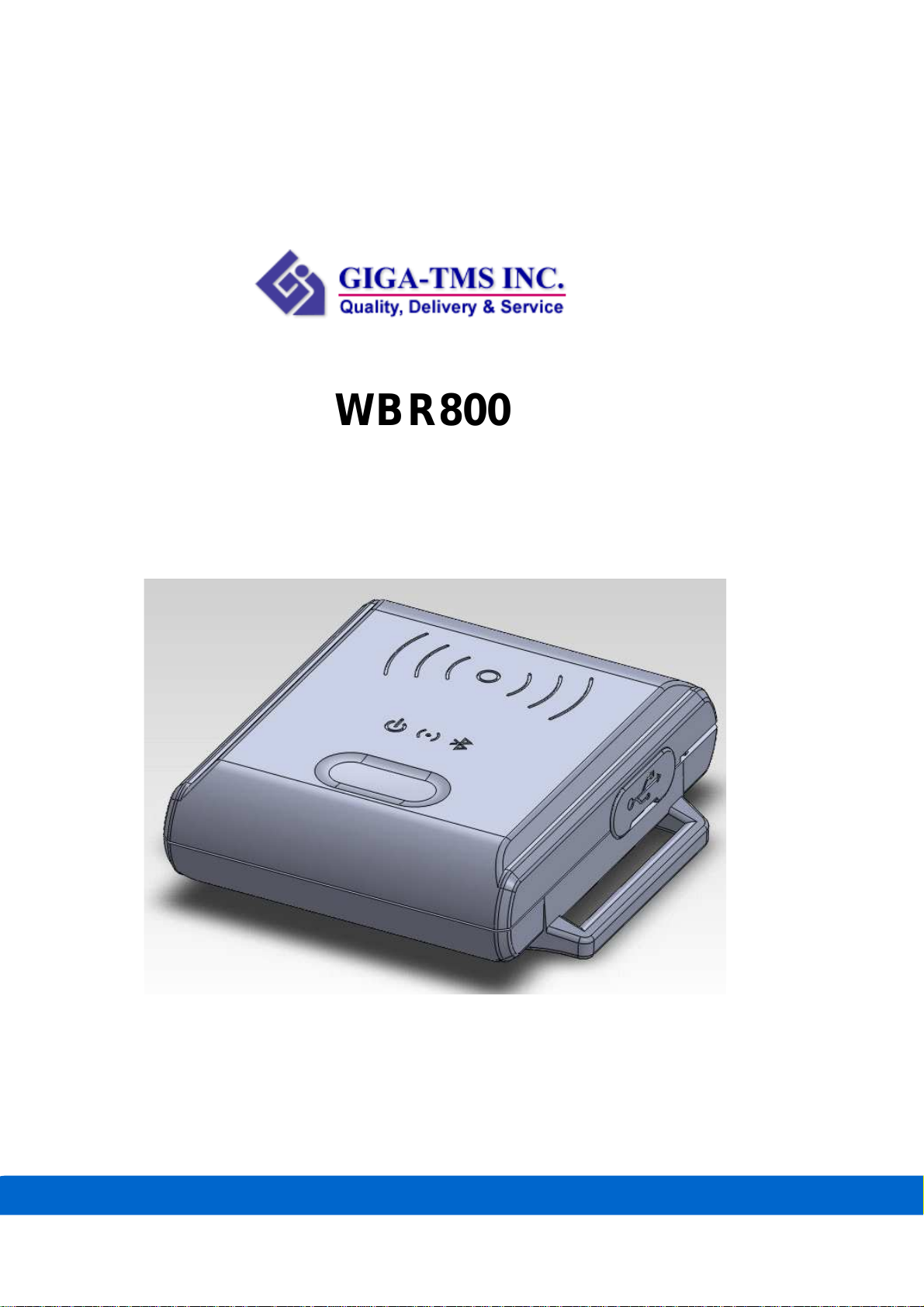

WRISTBAND RFID READER
USER GUIDE
WBR800
TM970186
September 05, 2013
Copyright© 2013
GIGA-TMS INC.
Printed in Taiwan
Copy right○R2013: without a written approval from GIGA-TMS INC, this document is not allowed to be
duplicated for the public usage. The content is subjected to change without notice
Revision history
Version Date of issue Description
01 September 05, 2013 Default
Warning notice
The Federal Communication Commission Statement
This equipment has been tested and found to comply with the limits for a Class B Digital Device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference in a residential. This equipment generates, uses and can radiate radio
frequency energy and , if not installed and used in accordance with the instruction, may cause harmful
interference to radio communication. However, there is no guarantee that interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of more of the following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
* Consult the dealer or an experienced Radio/TV technician for help.
Use only shielded cables to connect I/O devices to this equipment. You are cautioned that change or
modifications not expressly approved by the party responsible for compliance could void your
authority to operate the equipment.
THIS DEVICE COMPLIES WITH PART 15 OF FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
1. This device may not cause harmful interference and
2. This device must accept any interference received, including interference that may cause
undesired operation.
The antenna used for this transmitter must not be collocated or operation in conjunction with any other
antenna or transmitter.
Notice : The changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to
the antenna or the device is permitted. Any change to the antenna or the device could result in the
device exceeding the RF exposure requirements and void user’s authority to operate the device.
Table of contents
Introduction………..….……………………………………………………………………..1
What’s in the box ....................................................................................................... 1
Optional accessories................................................................................................. 2
Specification............................................................................................................... 3
Reader status ............................................................................................................. 4
Connecttions for setting............................................................................................ 6
Operational Description ............................................................................................ 7
Contact us…………………………………………………………………………………….8
WBR800
Introduction
WBR800 is a slightly designed high frequency RFID reader with ISO15693. It has widely
varied applications such as Asset Control, Transportation Management, Logistic of Items
Management…etc.
We strongly suggest you to read this manual in details before you start the setup.
What’s in the box?
WBR800 set is delivered with the basic package covering: One WBR800 Reader, one CD
and one accessory package as below illustration.
Please check the package first to make sure you have received the device and the
components before you start to configure or install the WBR800 reader.
WBR800 Reader
Wristband
WAS-XXXX REV.X
CABLE P/N :
B
WAS-T0675-R Cable
© 2013 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
1
WBR800
Optional accessories
Following parts are available to purchase from GIGA-TMS to work with WBR800
Reader. Go to promag@gigatms.com.tw for sales inquiry of these items.
EFA800 Finger Antenna
© 2013 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
2
Specification
Model no. WBR800
Operation
RFID ISO 15693
Frequency 13.56MHZ
Output power Maximum 5dBm
Interfaces Micro USB : USB HID Keyboard interface
Bluetooth : Standard SPP ,
Compatible with Bluetooth specification version 3.0+ EDR
Power supply
for charge
Battery
Reading range 0~ 40 mm (depending on card)
Dimension Length: 45mm / Width: 38mm /High: 21mm (terminal included)
Physical characteristic
Weight 20 grams (terminal included)
Environment
Temperature Operating temp: -0°C ~ 50°C
5VDC from PC USB
Rechargeable Lithium-ion Polymer Battery
Nominal Capacity: 250 mAH ( Typical )
Nominal Voltage: 3.7 V
Cycle Life: 300 cycles ( at least )
Low Battery Detect and Built-in Quick Charge Circuit
Storage temp: -10°C ~ 60°C
WBR800
Charging temp : -0°C ~ 45°C
Discharge temp : -0°C ~ 60°C
Humidity Operating: 10% ~ 90% non-condensing
Storage: up to 90% non-condensing
Safety approval
Approval CE R&TTE
EN 300 330
EN 301 489-1/-3
EN 60950-1
© 2013 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
FCC ID
PART 15B/C
3
Reader status
RFID
Scan Area
WBR800
Charge
LED
Power / Scan
LED
Touch Key
Area
Bluetooth
LED
Micro USB
Connector
© 2013 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
4
WBR800

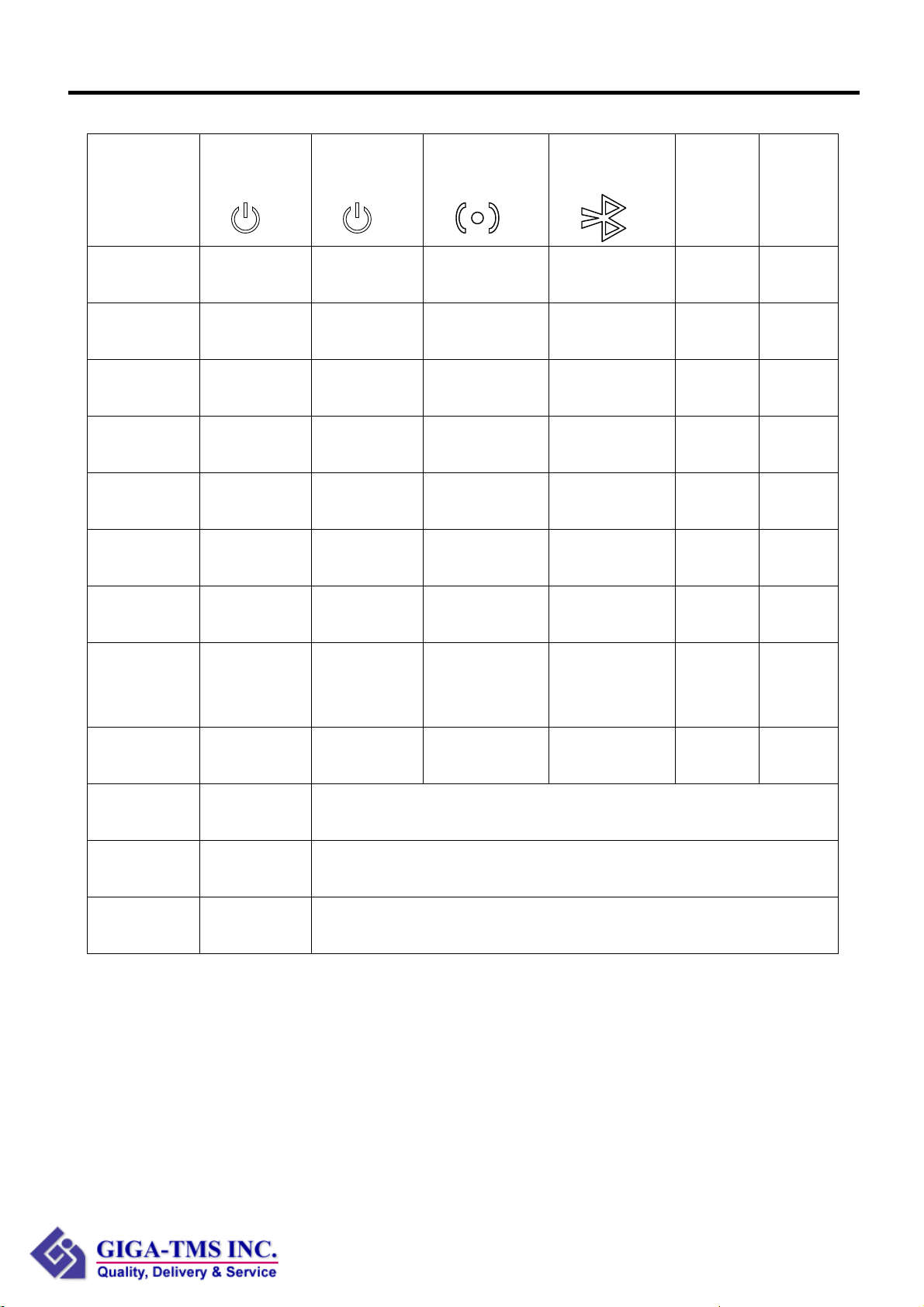

STATUS
Power ON Blink Twice Blink Twice OFF OFF
Ready ON OFF OFF
Low Battery
Battery
Charge
Bluetooth
link
Scanning ON
GREEN
Continuous
Blink
ON OFF ON
ON OFF OFF
RED
OFF OFF
Blink 10
Seconds
YELLOW
For Charge
OFF
BLUE
for BTM Link
Continuous
Blink**
Continuous
Blink**
Continuous
Blink**
Continuous
Blink***
Continuous
Blink***
Buzzer
Beep
Twice
OFF
OFF
OFF
OFF
OFF
Touch
Key
Touch 3
Seconds
Touch
Once
Scan OK ON
Firmware
Manager
Mode
Power OFF Blink Twice Blink Twice OFF OFF
*
**
***
ON ON OFF OFF OFF
Scanning
times
Bluetooth
Ready
Bluetooth
Link OK
Blink 10
OFF
Seconds*
A new calculation of 10 seconds scanning time after any
successful reading within 10 seconds.
Blue LED Continuous Blink Once
Blue LED Continuous Blink Twice
Continuous
Blink***
Beep
Once
Beep
Twice
Touch 3
Seconds
© 2013 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
5
Connections for setting
USB
PORT
Personal Computer
WBR800
CABLE P/N :
WAS-XXXX REV.X
B
Note:
1. When WBR800 is connected/disconnected to USB port, it would be turned On/Off
automatically.
2. Normally the charging time is about 1.5 ~ 2.5 hours (Default setting is low battery
charge mode, it is detected when the battery is low, and will be charged until full
automatically. The working hours would be more than 48 hours (Stand alone and
Always On). When WBR800 is connected with USB cable, it will use power from PC
instead.
3. The battery life is more than 300 times. If user uses improperly the charge mode, it
may affect the battery life.
© 2013 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
6
Operational Description
WBR800
1. Powered by Battery
For normal use, the unit is powered by battery. Push the Power Switch Button for
about 3 seconds to turn on the unit. Also push the Power Switch Button for about 3 seconds
to turn off the unit. After the unit is turned on, the power would be turned off automatically if
there is no scanning a card within 10 seconds. This means the unit would be turned off if no
scanning a card again within every 10 seconds after every card scanning. It would have
Low Battery Detect/Warning indication when the unit is powered by battery.
2. Powered by Cable
When the unit is connected with the PC through the communication Cable
(WAS-T0675-R) and the PC is running WBR800 software and open the USB for the unit,
then the unit will be turned on in about 0.5 second by the PC through the USB PORT. Then
you can do the unit Setting and Configuration. When the software closes the USB PORT or
exits, the power is turned off from the PC immediately. When powered by cable from PC,
the Power Switch would have no function and the unit would have no Low Battery
Detect/Warning function.
3. Low Battery Detecting
When powered by battery, it would have Low Battery Detecting function. When the
battery goes low, the Power LED would flash green once every 1 second and you must
charge battery immediately, otherwise, the unit would shut down any time without
pre-warning.
4. Charge Mode
Low battery charge mode is when the WBR800 is connected to USB or Power adapter,
the battery hits low voltage and it starts to be charged automatically.
5. Charge Status Indication
When WBR800 in the charge, Battery Status Indicating light turns to yellow, it means
the battery is in charge status. When Battery Status Indicating light turns to off, it means the
charge is finished.
6. Firmware Management mode (FMM)
FMM allows you to quickly upgrade your WBR800's internal firmware via USB port and
also to check validity of currently loaded firmware. Contact your dealer for most recent
firmware upgrade files.
© 2013 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
7
Company address:
8F, No. 31, Lane 169
Hsi-Chih Dist, New Taipei City
Taiwan
Telephone:
(02) 26954214
Fax:
(02) 26954213
Contact us
WBR800
Official web-site:
www.gigatms.com.tw
emails:
Product information: - promag@gigatms.com.tw
Technical support: - support@gigatms.com.tw
© 2013 GIGA-TMS Corporation. All rights reserved
http://www.gigatms.com.tw
8
