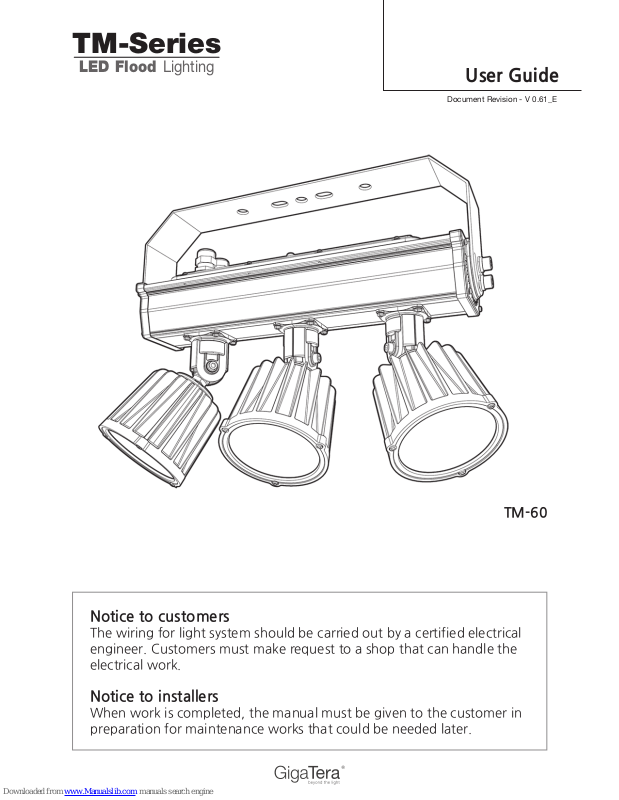

Page 1
User Guide
Document Revision - V 0.61_E
TM-60
Notice to customers
The wiring for light system should be carried out by a certified electrical
engineer. Customers must make request to a shop that can handle the
electrical work.
Notice to installers
When work is completed, the manual must be given to the customer in
preparation for maintenance works that could be needed later.
TM-Series
LED Flood Lighting
Page 2
2
Product Installation Guide
Fix the bracket of the TM product firmly to the
installation location.
▶ Bracket fixing hole (Refer to Page 11)
Fixing hole : Ø13
M8 Hexagon bolt
Set the TM product at the desired angle,
Fix the device and bracket.
Step.1 Fix the bracket.
Step.2 Fix the device.
Page 3
3
M6 Hexagon bolt
AC CableAC Cable
Dimming
Cable
Set the module of the TM product at the desired angle,
Fix it firmly.
General type : Only the power cable of the light system is provided.
Dimming type : The power and control cables of the light system are
provided.
Step.3 Fix the module.
Step.4 General type / Dimming type
General type Dimming type
Page 4
4

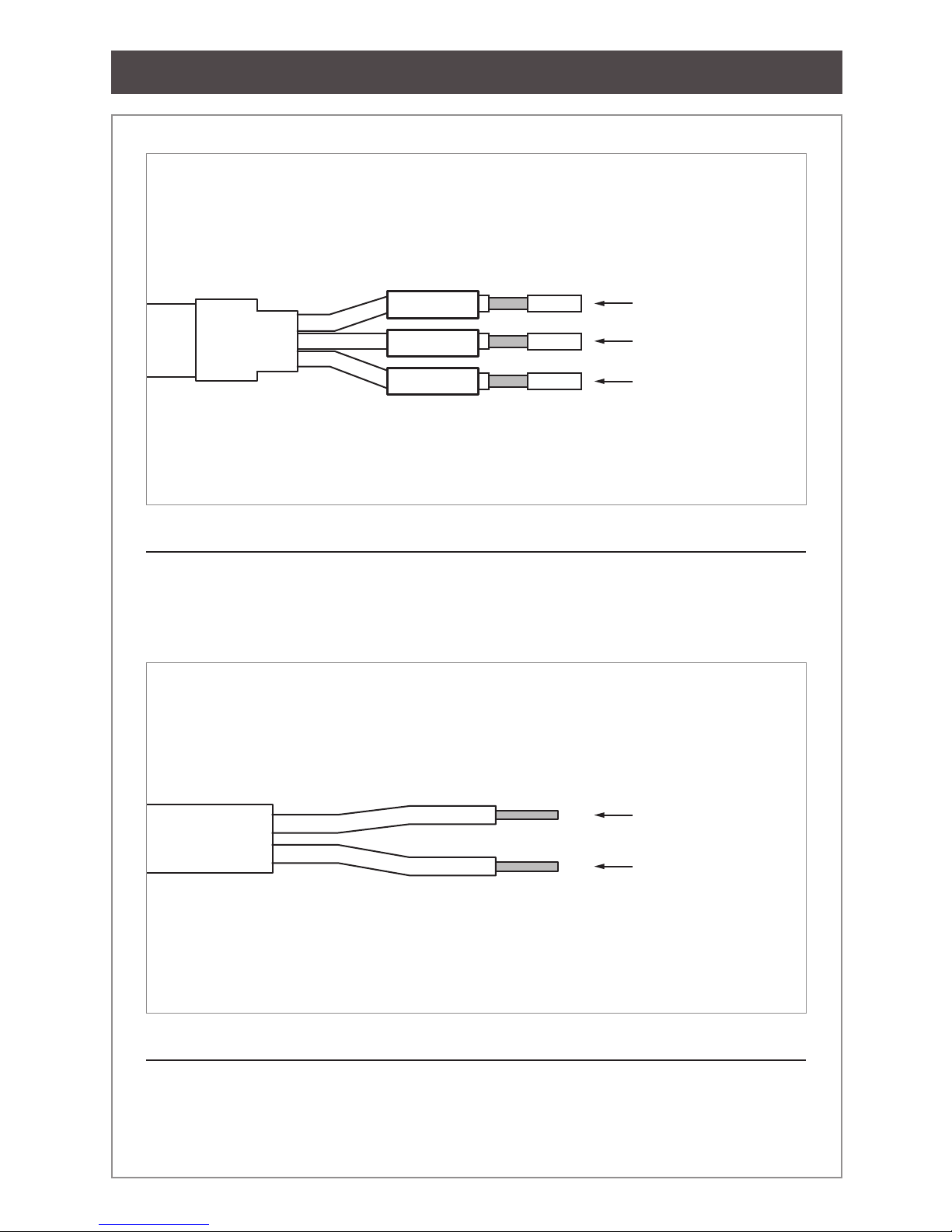

Wiring diagram
AC-N
AC-L
AC-F.G
White
Black
Green / Yellow
( DC + ) Blue
( DC - ) Brown
Adjust the wire length,
Then connect the TM product and the power line (AC).
Adjust the wire length,
Then connect the TM product and the power line (DC).
▶ For the dimming type, there is a signal line additionally connected.
AC wire connection
Dimming line connection
Page 5
5
64.0
322.0
20.020.0
64.0
64.0
64.0
503.0
51.0
29.0
20.020.0
80.080.0
80.0
80.0
29.0
29.0 29.0
80.0
80.0
101.0 101.0
80.0
682.0
80.0 80.0
29.0 29.0 51.0
51.051.0
80.0
64.0
TM-40
20.020.0
29.0 29.051.0 51.056.5 56.5
Ø13.0
32.032.0
Ø13.0
Ø13.0
80.0
273.0
81.0 81.0
Ø13.0
Ø13.0
Ø13.0
171.5
51.0 171.5
80.0
Ø13.0
Ø13.0
Ø13.0
Ø13.0
Ø13.0
Ø13.0
Ø13.0
Ø13.0
Ø13.0
51.0 29.0 51.029.051.0
160.0
29.041.0141.029.029.0147.5
70.0170.0
833.0
29.0 41.0 141.0 29.0 29.0 147.5
70.0 170.0
Ø13.0
Ø13.0
Ø13.0
Ø13.0
Ø13.0
TM-60
TM-80
TM-100
TM-120

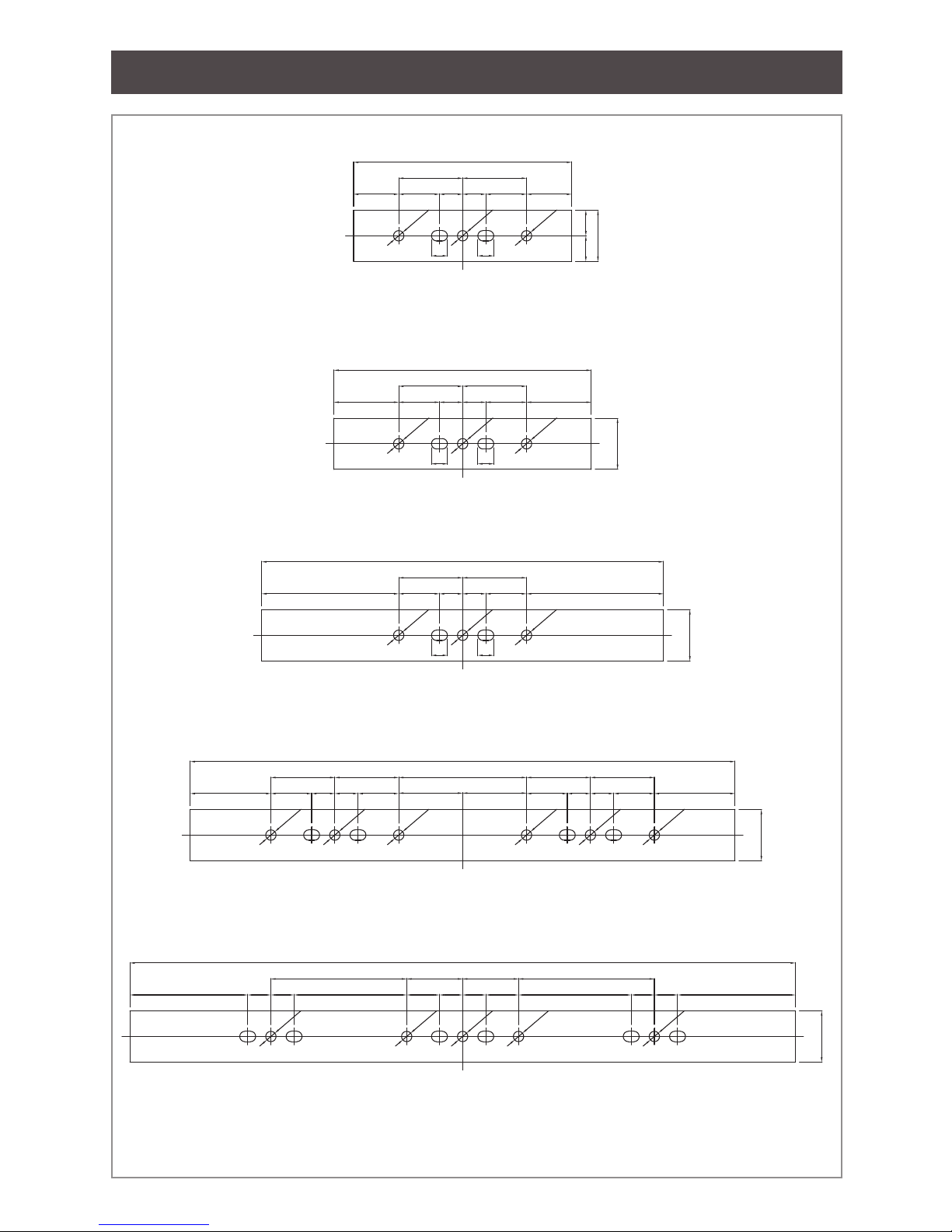

TM Bracket fixing hole
Page 6
6
Memo
Page 7
7
Page 8
Address :
Tel :
Fax :
E-mail :
homepage :
183-19, Yeongcheon-ro, Dongtan-myeon, Hwaseong-si,
Gyeonggi-do, Korea 445-813
+82-31-370-8720
+82-31-370-0443
[email protected]
www.kmw.co.kr
www.gigateraled.com
KMW Head Office
TM-Series
