Gigalink GL-VP-620X User Manual

User Manual

GL-VP-620X

Analog IP Gateway

4 or 8 FXS Ports

http://www.giga-link.ru

GL-VP-620x User Manual

Table of Content

1 WELCOME ................................................................................................................... 4

1.1 Gateway GL-VP-620x Overview .................................................................... 4

1.2 Safety Compliances ....................................................................................... 4

1.3 Warranty ......................................................................................................... 5

2 CONFIGURE YOUR GL-VP-620X ............................................................................... 5

2.1 Equipment Packaging .................................................................................... 5

2.2 Connect The GL-VP-620x .............................................................................. 5

2.3 Figure 1: Diagram of GL-VP-620x Back Panel ........................................... 6

2.4 Figure 2: Diagram Of GL-VP-620x Display Panel ...................................... 6

3 APPLICATION DESCRIPTION .................................................................................... 7

3.1 Examples Of GL-VP-620x Configurations ..................................................... 8

3.1.1 Application One: GL-VP-620x FXS Gateway Configuration / PBX

Scenario, VoIP ....................................................................................................... 8

3.1.2 Application Two: GL-VP-620x Scenario / Toll- Free Calling Between

Locations ............................................................................................................... 9

4 GL-VP-620X FEATURES ............................................................................................. 9

4.1 Software Features Overview ....................................................................... 10

4.2 Hardware specification ................................................................................. 11

5 BASIC OPERATIONS ................................................................................................ 12

5.1 Understanding GL-VP-620x Voice Prompts ................................................ 12

5.2 Placing A Phone Call .................................................................................... 14

5.2.1 Phone or Extension Numbers............................................................... 14

5.2.2 Direct IP Calls ....................................................................................... 14

5.3 Call Hold ....................................................................................................... 15

5.4 Call Waiting .................................................................................................. 15

5.5 Call Transfer ................................................................................................. 15

5.6 3-Way Conferencing .................................................................................... 16

5.7 Hunting Group .............................................................................................. 16

5.8 Iter-port Calling............................................................................................. 18

5.9 PSTN Pass Through/Life Line ..................................................................... 18

5.10 Sending And Receiving Fax ......................................................................... 18

6 CALL FEATURES ...................................................................................................... 19

7 CONFIGURATION GUIDE ......................................................................................... 20

7.1 Configuring GL-VP-620x Via Voice Prompt ................................................. 20

7.2 Configuring GL-VP-620x With Web Browser ............................................... 21

7.2.1 Access The Web Configuration Menu .................................................. 21

7.3 Important Settings ........................................................................................ 22

7.3.1 NAT Settings ......................................................................................... 23

7.3.2 DTMF Methods ..................................................................................... 23

7.3.3 Preferred VOCODER (Codec).............................................................. 23

GL-VP-620x User Manual

7.4 End User Configuration................................................................................ 23

7.5 Super User Configuration ............................................................................ 29

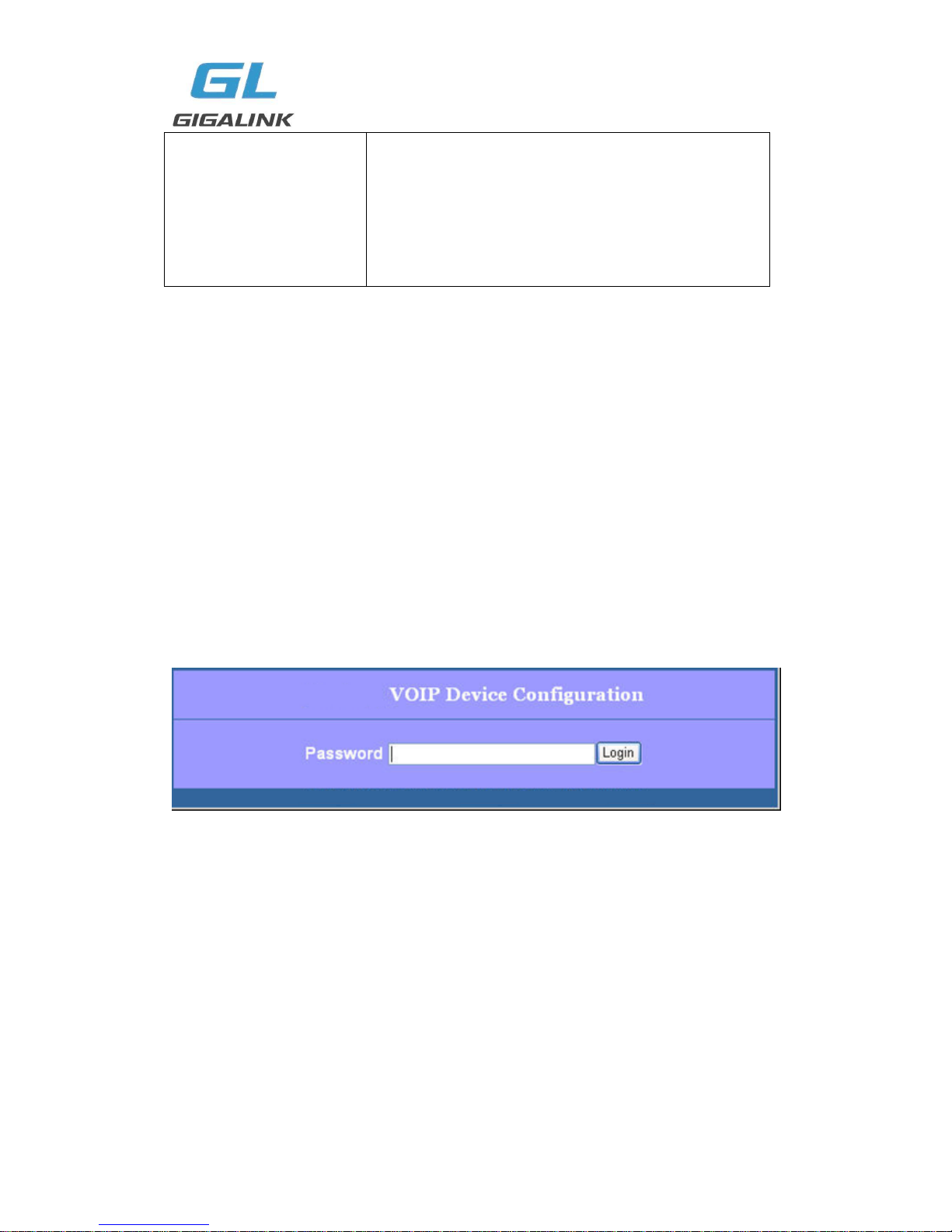

7.6 Figure 3: Screenshot Of Super User Configuration Login Screen ........... 29

7.7 Saving The Configuration Changes ............................................................. 42

7.8 Figure 4: Screen-Shot Of Save Configuration Page ................................. 43

7.9 Rebooting From Remote.............................................................................. 43

7.10 Figure 5: Screen-Shot Of Rebooting Page ............................................... 43

8 SOFTWARE UPGRADE ............................................................................................ 43

9 RESTORE FACTORY DEFAULT SETTINGS............................................................ 44

10 TECHNICAL SUPPORT CONTACT .......................................................................... 45

GL-VP-620x User Manual

1 WELCOME

Thank you for purchasing the Gigalink GL-VP-620x Analog FXS IP Gateway. The GL-VP-620x offers an easy to manage, easy to configure IP communications solution for any business with virtual and/or branch locations. The GL-VP-620x supports popular voice codecs and is designed for full SIP compatibility and interoperability with 3rd party SIP providers, thus enabling you to fully leverage the benefits of VoIP technology, integrate a traditional phone system into a VoIP network, and efficiently manage communication costs.

This manual will help you learn how to operate and manage your GL-VP-620x FXS Analog IP Gateway and make the best use of its many upgraded features including simple and quick installation, multi-party conferencing, This IP Analog Gateway is very easy to manage and scalable, specifically designed to be an easy to use and affordable VoIP solution for the small – medium business or enterprise.

1.1 Gateway GL-VP-620x Overview

The new GL-VP-620x series has a compact and quiet design (no fans) and offers superb audio quality, rich feature functionality, strong security protection, and good manageability. It is auto-configurable, remotely manageable and scalable.

The GL-VP-620x features 4 or 8-port FXS interface for analog telephones, dual 10M/100Mbps network ports with integrated router, PSTN life line in case of power failure,. In addition, it supports the option of 2 SIP Server profiles, caller ID for various countries/regions, T.38 fax, flexible dialing plans, security protection (SIPS/TLS), comprehensive voice codecs including G.711 (a/u-law), G.723.1, G.726(16/24/32/48 bit rates), G.729A/B/E.

Caution: Changes or modifications to this product not expressly approved by Gigalink, or

operation of this product in any way other than as detailed by this User Manual, could void your manufacturer warranty.

Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose without the express written permission of Gigalink Co LTD.

1.2 Safety Compliances

The GL-VP-620x is compliant with various safety standards including FCC/CE. Its power adaptor is compliant with UL standard. Warning: use only the power adapter included in the GL-VP-620x package. Using an alternative power adapter may permanently damage the unit.

GL-VP-620x User Manual

1.3 Warranty

Gigalink has a reseller agreement with our reseller customer. End users should contact the company from whom you purchased the product for replacement, repair or refund.

If you purchased the product directly from Gigalink, contact your Gigalink Sales and Service Representative for a RMA (Return Materials Authorization) number. Gigalink reserves the right to remedy warranty policy without prior notification.

2 CONFIGURE YOUR GL-VP-620X

Connecting your GL-VP-620x is easy. Before you begin, please verify the contents of the GL-VP-620x package.

2.1 Equipment Packaging

Unpack and check all accessories. The GL-VP-620x package contains:

 One GL-VP-620x VoIP adapter  One universal power supply  One Ethernet cable

2.2 Connect The GL-VP-620x

Managing the GL-VP-620x gateway and connecting the unit to the VoIP network is very simple. Follow these four (4) steps to connect your GL-VP-620x gateway to the Internet and access the unit‟s configuration pages.

1. Connect standard touch-tone analog phones to the FXS1-FXS8 ports.

2. Insert the Ethernet cable into the WAN port of GL-VP-620x and connect the other end of the Ethernet cable to an uplink port (a router or a modem, etc.)

3. Connect a PC to the LAN port of GL-VP-620x for initial configuration or if it is being used as a router.

4. Plug the power adapter into the GL-VP-620x and into a power outlet.

GL-VP-620x User Manual

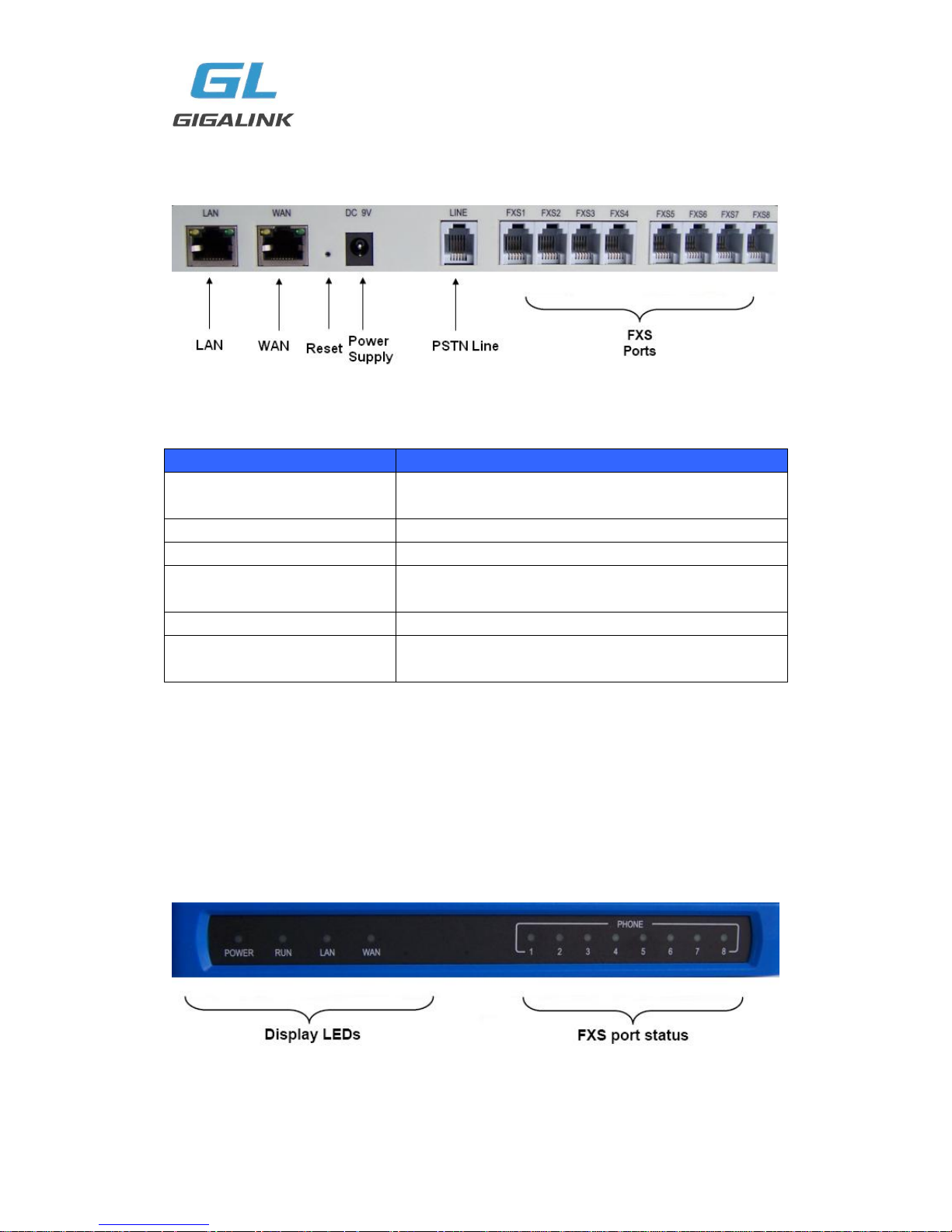

2.3 Figure 1: Diagram of GL-VP-620x Back Panel

TABLE 1: Definitions Of The GL-VP-620x Connectors

LAN

Connect the LAN port with an Ethernet cable to your PC.

WAN

Connect to the internal LAN network or router.

PSTN Line

1 port

RESET

Factory Reset button. Press for 8 seconds to reset factory default settings.

DC 9V 2A

Power adapter connection

FXS1 - FXS8

FXS port to be connected to analog phones / fax machines

Once the GL-VP-620x is turned on and configured, the front display panel indicates the status of the unit.

2.4 Figure 2: Diagram Of GL-VP-620x Display Panel

TABLE 2: Definitions Of The GL-VP-620x Display Panel

GL-VP-620x User Manual

Power LED

Indicates Power. Remains ON when Power is connected and turned ON.

RUN LED

blinking after boot-up.

LAN LED

Indicates LAN port activity

WAN LED

Indicates WAN port activity

LEDs 1 - 8

Indicate status of the respective FXS Ports on the back panel

Busy - ON (Solid Green) Available - OFF

Slow blinking FXS LEDs indicates Voice Mail for that port.

NOTE:

 Flast blinking of RUN, WAN LED together indicates a firmware upgrade or

provisioning state.

 LEDs POWER, and WAN are ON and READY blinking when device is up and running

and successfully registered to the SIP Server.

3 APPLICATION DESCRIPTION

There are two scenarios where the GL-VP-620x series can be effectively used to enable any business to leverage the benefits of VoIP and the Internet.

GL-VP-620x User Manual

3.1 Examples Of GL-VP-620x Configurations

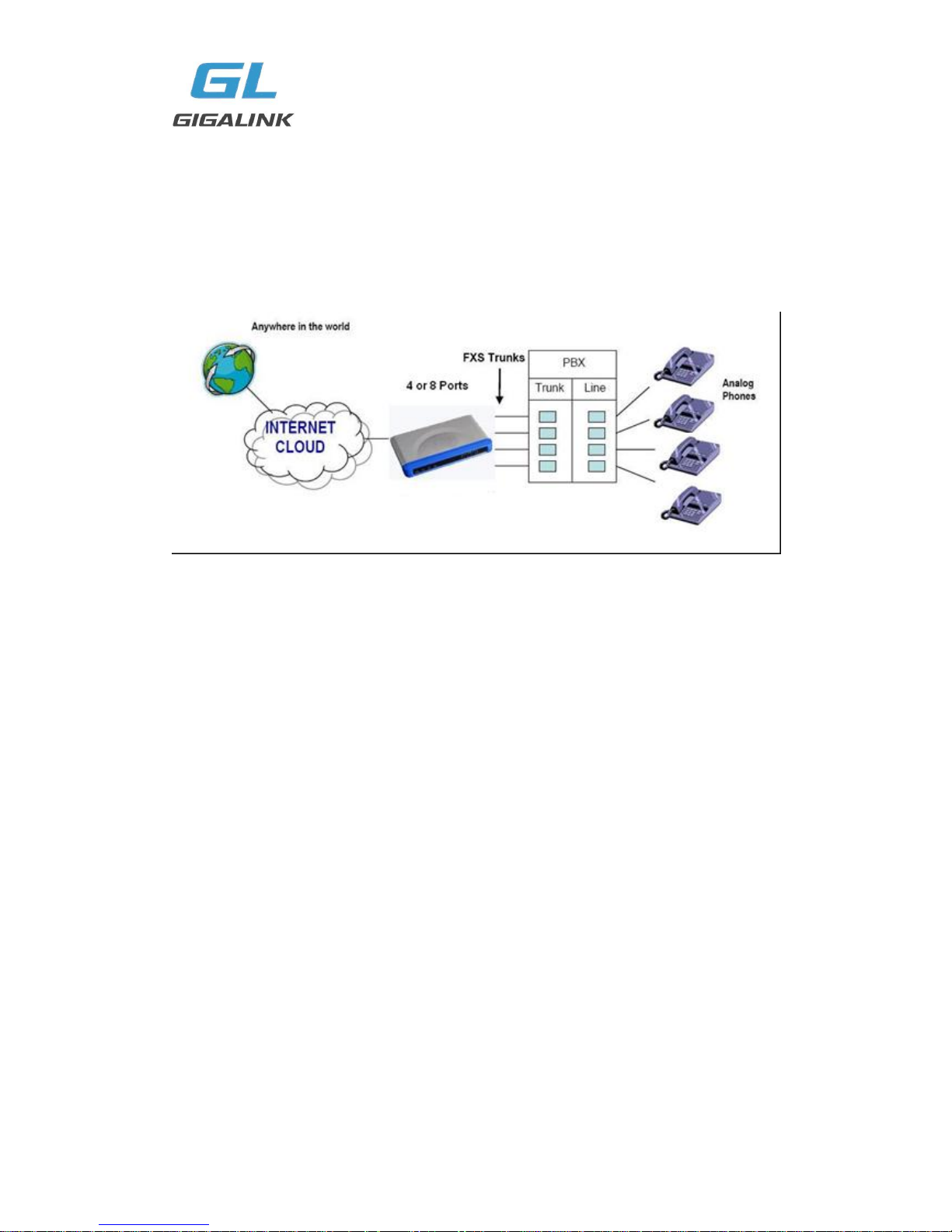

3.1.1 Application One: GL-VP-620x FXS Gateway

Configuration / PBX Scenario, VoIP

GL-VP-620x User Manual

3.1.2 Application Two: GL-VP-620x Scenario / Toll- Free

Calling Between Locations

4 GL-VP-620X FEATURES

The GL-VP-620x is a next generation IP voice gateway that is interoperable and compatible with leading IP-PBXs, SoftSwitches and SIP platforms. The GL-VP-620x FXS series is auto-configurable, remotely manageable and scalable. There are two FXS models, the GL-VP-620x 6004 and GL-VP-620x 6008, each offering superb voice quality, traditional telephony functionality, easy deployment, and 4 or 8 FXS ports respectively. Each model features flexible dialing plans, PSTN failover, integrated call routing to support a pure IP network call and an external power supply.

GL-VP-620x User Manual

4.1 Software Features Overview

 4 or 8 FXS ports

 Two RJ-45 ports (switched or routed)  Multiple SIP accounts & profiles (4 or 8 accounts / choice of 2 profiles per account)  Supports Voice Codecs: G711(a/μ, Annex I & II), G723.1A, G726 (ADPCM with

16/24/32/40 bit rates), G729 A/B/E.

 fax pass through and T.38 Fax  Comprehensive Dial Plan support for Outgoing calls.  G.168 Echo Cancellation  Voice Activation Detection (VAD), Comfort Noise Generation (CNG), and Packet

Loss Concealment (PLC)

 Supports PSTN/PBX analog telephone sets or analog trunks

TABLE 3: GL-VP-620x SOFTWARE FEATURES

GL-VP-620x FXS Analog Gateway Series

Telephone Interfaces

GL-VP-620x 6004: 4 ports, 4 SIP accounts & choice of 2 profiles GL-VP-620x 6008: 8 ports, 8 SIP accounts & choice of 2 profiles FXS, RJ-11

Network Interface

Two (2) 10M/100 Mbps, RJ-45

LED Indicators

Power and Line LEDs

Voice over Packet Capabilities

Voice Activity Detection (VAD) with CNG (comfort noise generation) and PLC (packet loss concealment), AEC with NLP, Packetized Voice Protocol Unit (supports RTP/RTCP and AAL2 protocol), G.168 compliant Echo Cancellation, Dynamic Jitter Buffer, Modem detection & auto-switch to G.711

PSTN Fail-over

PSTN failover port on power failure

Voice Compression

G.711 + Annex I (PLC), Annex II (VAD/CNG format) encoder and decoder, G.723.1A, G.726(ADPCM with 16/24/32/40 bit rates), G.729A/B/E, iLBC G.726 provides proprietary VAD, CNG, and signal power estimation Voice Play Out unit (reordering, fixed and adaptive jitter buffer, clock synchronization), AGC (automatic gain control), Status output, Decoder controlling via voice packet header

DHCP Server/Client

Yes, NAT Router or Switched Mode

Fax over IP

T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through, Fax

GL-VP-620x User Manual

Datapump V.17, V.19, V.27ter, V.29 for T.38 fax relay

QoS

Diffserve, TOS, 802.1 P/Q VLAN tagging

IP Transport

RTP/RTCP

DTMF Method

flexible DTMF transmission method, User interface of In-audio, RFC2833, and/or SIP Info

IP Signaling

SIP (RFC 3261)

Provisioning

TFTP, HTTP, HTTPS (pending)

Control

TLS/SIPS

Management

Syslog support, HTTPS (pending), Telnet, remote management using Web browser

Dial Plan

Yes

UPnP Support

Yes

Power

Output: 9VDC / Input: 100–240 VAC/50-60 Hz

Mounting

Rack mount, Wall mount, Desktop

Short and long haul

REN3: Up to150 ft on 24 AWG line

Caller ID

Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID

Polarity Reversal / Wink

Yes

EMC

EN55022/EN55024 and FCC part15 Class B

Safety

UL

4.2 Hardware specification

The hardware specifications of the GL-VP-620x FXS series are detailed in Table 4.

TABLE 4: Hardware Specification Of GL-VP-620x

Ports

4 or 8 FXS Ports

LAN interface

2 x RJ45 10/100Mbps (switched or routed)

PSTN Port

PSTN fail-over port

LED

4 or 8 LEDs (GREEN)

Universal Switching Power Adaptor

Input: 100-240V AC, 50/60Hz, 0.5A Max Output: 9V DC, 2A UL certified

Dimension

225mm (L) x 135mm (W) x 35mm (H)

Weight

0.29 lbs (3.5 oz)

Temperature

32~104°F / 0~40°C

Humidity

GL-VP-620x User Manual

10% - 90% (non-condensing)

Compliance

FCC, CE

5 BASIC OPERATIONS

5.1 Understanding GL-VP-620x Voice Prompts

GL-VP-620x has a stored voice prompt menu for quick browsing and simple configuration. To enter the voice prompt menu, press *** on the standard analog phone connected to any FXS port.

TABLE 5: Definitions Of The GL-VP-620x Voice Prompts

Menu

Voice Will Say the Following:

Main Menu

“Enter a Menu Option”

Enter “*” for the next menu option Enter “#” to return to the main menu

Enter 01 – 05, 07,10 - 17, 47, 86 or 99 Menu option

01

“DHCP Mode”, “PPPoE Mode” or “Static IP Mode”

Enter „9‟ to toggle the selection

If user selects “Static IP Mode”, user

need configure all the IP address information through menu 02 to 05. If user selects “Dynamic IP Mode”, the device will retrieve all IP address information from DHCP server automatically when user reboots the device.

02

“IP Address “ + IP address

The current WAN IP address is announced Enter 12-digit new IP address if in Static IP Mode.

03

“Subnet “ + IP address

Same as Menu option 02

04

“Gateway “ + IP address

Same as Menu option 02

05

“DNS Server “ + IP address

Same as Menu option 02

07

Preferred Vocoder

Enter “9” to go to the next selection in

the list:

 PCM U  PCM A  iLBC  G-726

GL-VP-620x User Manual

 G-723  G-729

10

“MAC Address”

Announces the Mac address of the unit.

12

WAN Port Web Access

Enter “9” to toggle between enable and

disable

13

Firmware Server IP Address

Announces current Firmware Server IP address. Enter 12 digit new IP address.

14

Configuration Server IP Address

Announces current Config Server Path IP address. Enter 12 digit new IP address.

15

Upgrade Protocol

Upgrade protocol for firmware and configuration update.

Enter “9” to toggle between TFTP and

HTTP

16

Firmware Version

Firmware version information.

17

Firmware Upgrade

Firmware upgrade mode. Enter “9” to

rotate among the following three options:

1. always check

2. check when pre/suffix changes

3. never upgrade

47

“Direct IP Calling”

Enter the target IP address to make a direct IP call, after dial tone. (See

“Make a Direct IP Call”.)

“Invalid Entry”

Automatically returns to Main Menu

Five Success Tips when using the Voice Prompt

1. “*” shifts down to the next menu option

2. “#” returns to the main menu

3. “9” functions as the ENTER key in many cases to confirm an option

4. All entered digit sequences have known lengths - 2 digits for menu option and 12 digits

for IP address. For IP address, add 0 before the digits if the digits are less than 3 (i.e. -

192.168.0.26 should be key in like 192168000026. No decimal is needed).

5. Key entry cannot be deleted but the phone may prompt error once it is detected

GL-VP-620x User Manual

5.2 Placing A Phone Call

5.2.1 Phone or Extension Numbers

1. Dial the number directly and wait for 4 seconds (Default “No Key Entry Timeout”); or

2. Dial the number directly and press # (Use # as dial key” must be configured in web

configuration).

Examples:

1. Dial an extension directly on the same proxy, and then press the # or wait for 4 seconds.

2. Dial an outside number, first enter the prefix number (usually 1+ or international code)

followed by the phone number. Press # or wait for 4 seconds. Check with your VoIP service provider for further details on prefix numbers.

5.2.2 Direct IP Calls

Direct IP calling allows two parties, that is, a FXS Port with an analog phone and another VoIP Device, to talk to each other in an ad hoc fashion without a SIP proxy.

Elements necessary to completing a Direct IP Call:

1. Both GL-VP-620x and other VoIP Device, have public IP addresses, or

2. Both GL-VP-620x and other VoIP Device are on the same LAN using private IP

addresses, or

3. Both GL-VP-620x and other VoIP Device can be connected through a router using

public or private IP addresses (with necessary port forwarding or DMZ). GL-VP-620x supports two ways to make Direct IP Calling:

Using IVR

1. Pick up the analog phone then access the voice menu prompt by dial “***”

2. Dial “47” to access the direct IP call menu

3. Enter the IP address using format ex. 192*168*0*160 after the dial tone.

Using Star Code

1. Pick up the analog phone then dial “*47”

2. Enter the target IP address using same format as above.

Note: NO dial tone will be played between step 1 and 2.

Destination ports can be specified by using “*” (encoding for “:”) followed by the port

number.

Examples:

a) If the target IP address is 192.168.0.160, the dialing convention is

*47 or Voice Prompt with option 47, then 192*168*0*160.

followed by pressing the “#” key if it is configured as a send key or wait 4 seconds. In this

GL-VP-620x User Manual

case, the default destination port 5060 is used if no port is specified. b) If the target IP address/port is 192.168.1.20:5062, then the dialing convention would be: *47 or Voice Prompt with option 47, then 192*168*0*160*5062 followed by pressing the “#” key, if it is configured as a send key or wait for 4 seconds.

NOTE: When completing direct IP call, the “Use Random Port” should set to “NO”. You

cannot make direct IP calls between FXS1 to FXS2 since they are using same IP.

5.3 Call Hold

Place a call on hold by pressing the “flash” button on the analog phone (if the phone has

that button).Press the “flash” button again to release the previously held Caller and

resume conversation. If no “flash” button is available, use “hook flash” (toggle on-off hook

quickly). You may drop a call using hook flash.

5.4 Call Waiting

Call waiting tone (3 short beeps) indicates an incoming call, if the call waiting feature is enabled. Toggle between incoming call and current call by pressing the “flash” button. First call is placed on hold. Press the “flash” button to toggle between two active calls.

5.5 Call Transfer

Blind Transfer

Assume that call Caller A and B are in conversation. A wants to Blind Transfer B to C:

3. Caller A presses FLASH on the analog phone to hear the dial tone.

4. Caller A dials *87 then dials caller C‟s number, and then # (or wait for 4 seconds)

5. Caller A will hear the confirm tone. Then, A can hang up.

NOTE: “Enable Call Feature” must be set to “Yes” in web configuration page. Caller A can place a call on hold and wait for one of three situations:

1. A quick confirmation tone (similar to call waiting tone) followed by a dial tone. This

indicates the transfer is successful (transferee has received a 200 OK from transfer target). At this point, Caller A can either hang up or make another call.

2. A quick busy tone followed by a restored call (on supported platforms only). This means

the transferee has received a 4xx response for the INVITE and we will try to recover the call. The busy tone is just to indicate to the transferor that the transfer has failed.

3. Continuous busy tone. The phone has timed out. Note: continuous busy tone does not

GL-VP-620x User Manual

indicate the transfer has been successful, nor does it indicate the transfer has failed. It often means there was a failure to receive second NOTIFY – check firmware for most recent release.

Attended Transfer

Assume that Caller A and B are in conversation. Caller A wants to Attend Transfer B to C:

1. Caller A presses FLASH on the analog phone for dial tone.

2. Caller A then dials Caller C‟s number followed by # (or wait for 4 seconds).

3. If Caller C answers the call, Caller A and Caller C are in conversation. Then A can hang

up to complete transfer.

4. If Caller C does not answer the call, Caller A can press “flash” to resume call with Caller

B. NOTE: When Attended Transfer fails and A hangs up, the GL-VP-620x will ring back user

A to remind A that B is still on the call. A can pick up the phone to resume conversation with B.

5.6 3-Way Conferencing

The GL-VP-620x supports Bellcore style 3-way Conference.

Instructions for 3-way conference:

Assuming that call party A and B are in conversation. A (GL-VP-620x) wants to bring C in a conference:

1. A presses FLASH (on the analog phone, or Hook Flash for old model phones) to get a

dial tone.

2. A dials *23+C‟s number then # (or wait for 4 seconds).

3. If C answers the call, then A presses FLASH to bring B, C in the conference.

4. If C does not answer the call, A can press FLASH back to talk to B.

5. Conference end after A hangs up.

5.7 Hunting Group

This feature allows user to setup a single SIP account on the gateway and have the ability

GL-VP-620x User Manual

to use all FXS ports to make/receive calls. Using this feature, all ports active in same hunt group will have the same phone number and incoming calls will be distributed in a round robin manner among the ports active in that hunt group. The number of hunting groups is limited by the number of ports each GL-VP-620x gateway model has -i.e. each port can be its own hunt group. The most practical and efficient way to use hunt groups is to assign 2 or 3 ports to separate hunt groups.

One additional and popular way to use the Hunting Group feature is called “multiplexed analog lines”. In this configuration, a legacy PBX system with 8 FXO trunks can be

connected to 8 GL-VP-620x ports configured as a hunt group. The GL-VP-620x can be registered to a SIP server provider using only one phone number. If the SIP service provider allows multiple calls to the same number, the GL-VP-620x will allow 8 concurrent calls to the same SIP number. All office members can be reached remotely using the same phone number in round robin fashion.

Example Configuration of a typical Hunting Group:

1. Configure the SIP account from your VoIP Service Provider on FXS port 1 under FXS

Ports webpage.

2. Select Active under the Hunting Group drop box for FXS port 1.

3. For the remaining ports (say 2, 3 and 4) select 1 for Hunting Group. Ports 2, 3 and 4

are now active members of the hunting group associated with port 1. This configuration will route all calls directed to FXS port 1 to ports 2, 3 and/or 4 in round robin fashion respectively if port 1 is busy. You can configure the ring timeout on the Profile page. Example configuration of a multiple hunt group: FXS Port #1: SIP UserID and Authenticate ID entered, Hunting group set to "Active" FXS Port #2: SIP UserID and Authenticate ID left blank, Hunting Group set to "1" FXS Port #3: SIP UserID and Authenticate ID left blank, Hunting Group set to "1" FXS Port #4: SIP UserID and Authenticate ID entered, Hunting group set to "Active" FXS Port #5: SIP UserID and Authenticate ID left blank, Hunting Group set to "4" FXS Port #6: SIP UserID and Authenticate ID left blank, Hunting Group set to "4" FXS Port #7: SIP UserID and Authenticate ID entered, Hunting group set to "Active" FXS Port #8: SIP UserID and Authenticate ID left blank, Hunting Group set to "7" Hunt Group 1 contains ports 1, 2, 3. Hunt Group 4 contains ports 4, 5, 6. Hunt Group 7 contains ports 7, 8.

Please be aware, the choice of 1 for ports 2 and 3, the choice of 4 for ports 5 and 6, the choice 7 for port 8 is required to indicate that the SIP account tied to port market as “Active” will be used for all members of the same Hunting group. Needless to say, those members of the same Hunting group may not be sequential ports. In following example ports 3, 5 and 7 tied to SIP Account configured in Port #1 marked as “Active”, and ports 4,6,8 tied to SIP Account configured in Port #2 marked as “Active” as well.

Example of not sequential configuration of a multiple hunt group:

GL-VP-620x User Manual

FXS Port #1: SIP UserID and Authenticate ID entered, Hunting group set to "Active" FXS Port #2: SIP UserID and Authenticate ID entered, Hunting Group set to "Active" FXS Port #3: SIP UserID and Authenticate ID left blank, Hunting Group set to "1" FXS Port #4: SIP UserID and Authenticate ID left blank, Hunting group set to "2" FXS Port #5: SIP UserID and Authenticate ID left blank, Hunting Group set to "1" FXS Port #6: SIP UserID and Authenticate ID left blank, Hunting Group set to "2" FXS Port #7: SIP UserID and Authenticate ID left blank, Hunting group set to "1" FXS Port #8: SIP UserID and Authenticate ID left blank, Hunting Group set to "2" Note: A single call directed to the SIP account will NOT result in all ports ringing at the same time. They will ring in the hunting group only. This feature is applicable to incoming calls only.

5.8 Iter-port Calling

In some cases a user may want to make phone calls between GL-VP-620x gateway ports when the gateway will be used as standalone unit, without any SIP server. This feature will also be applicable when the gateway is used in mode Hunting Groups and will be registered to SIP server only with one master number. In such cases users still will be able to make inter-port calls by using the IVR feature. For example the user connected to port 1 can reach the user connected to port 3 by dialing *** and 73. Digit 7 indicated using inter-port calling feature, digit 3 indicates port number which should be reached. At the same manner the user connected to port 4 can reach the user connected to port 8 by dialing *** and 78.

5.9 PSTN Pass Through/Life Line

The RJ-11 line jack on the GL-VP-620x side functions as a pass through jack when the GL-VP-620x is out of power. The pass through/life line enables the user to use the analog phone for PSTN calls directly without using an access code.

5.10 Sending And Receiving Fax

GL-VP-620x supports fax in two modes:

1) Fax Pass through. If the service provider does not support T.38, pass-through mode

may be used. If you have problems with sending or receiving Fax, toggle the Fax Tone Detection Mode setting.

2) T.38 (Fax over IP)

GL-VP-620x User Manual

6 CALL FEATURES

The GL-VP-620x supports the traditional telephony features available in a PBX as well as additional advanced telephony features.

TABLE 6: Call Features Table (Star Code)

Key

Call Features

*30

Block CallerID (for all-config change)

*31

Send CallerID (for all-config change)

*67

Block CallerID (per call)

*82

Send CallerID (per call)

*47

Direct IP Calling. Dial “*47” + “IP address”. No dial tone will be

played in the middle. Detail see Direct IP Calling section on page 12.

*50

Disable Call Waiting (for all-config change)

*51

Enable Call Waiting (for all-config change)

*69

Call Return Service: Dial *69 and the phone will dial the last

incoming phone number received.

*70

Disable Call Waiting (Per Call)

*71

Enable Call Waiting (Per Call)

*72

Unconditional Call Forward: Dial “*72” and then the forwarding

number followed by “#”. Wait for dial tone and hang up. (dial tone indicates successful forward)

*73

Cancel Unconditional Call Forward: Dial “*73” and wait for dial

tone, then hang up.

*74

Enable Paging Call: Dial “*74” and then the destination phone number you want to activate in Paging mode.

*78

Enable Do Not Disturb (DND): When enabled all incoming calls will

be rejected.

*79

Disable Do Not Disturb (DND): When disabled, incoming calls will

be accepted.

*87

Blind Transfer

*90

Busy Call Forward: Dial “*90” and then the forwarding number

followed by “#”. Wait for dial tone then hang up.

*91

Cancel Busy Call Forward:

dial “*91”. Wait for dial tone. Hang up.

*92

Delayed Call Forward: Dial “*92” and then the forwarding number

GL-VP-620x User Manual

followed by “#”. Wait for dial tone then hang up.

*93

Cancel Delayed Call Forward:

Dial “*93” for a dial tone, then hang up.

Flash/Hook

If user hears call waiting beep, flash/hook will switch to the new incoming call. Also used to switch to a new channel for a new call.

#

Pressing pound sign will serve as Re-Dial key.

7 CONFIGURATION GUIDE

7.1 Configuring GL-VP-620x Via Voice Prompt

DHCP MODE

Select voice menu option 01 to enable GL-VP-620x to use DHCP.

STATIC IP MODE

Select voice menu option 01 to enable GL-VP-620x to use STATIC IP mode, then use option 02, 03, 04, 05 to set up IP address, Subnet Mask, Gateway and DNS server respectively.

FIRMWARE SERVER IP ADDRESS

Select voice menu option 13 to configure the IP address of the firmware server.

CONFIGURATION SERVER IP ADDRESS

Select voice menu option 14 to configure the IP address of the configuration server.

UPGRADE PROTOCOL

Select voice menu option 15 to choose firmware and configuration upgrade protocol. User can choose between TFTP and HTTP.

FIRMWARE UPGRADE MODE

Select voice menu option 17 to choose firmware upgrade mode among the following three options:

1) always check,

GL-VP-620x User Manual

2) check when pre/suffix changes, and

3) never upgrade

WAN PORT WEB ACCESS

Select voice menu option 12 to enable WAN Port Wed Access of the device configuration pages.

7.2 Configuring GL-VP-620x With Web Browser

GL-VP-620x has an embedded Web server that will respond to HTTP GET/POST requests. It also has embedded HTML pages that allow users to configure the GL-VP-620x through a Web browser such as Microsoft‟s IE and AOL‟s Netscape.

7.2.1 Access The Web Configuration Menu

The GL-VP-620x HTML configuration menu can be accessed via LAN or WAN port:

From the LAN port:

1. Directly connect a computer to the LAN port.

2. Open a command window on the computer

3. Type in “ipconfig /release”, the IP address etc. becomes 0.

4. Type in “ipconfig /renew”, the computer gets an IP address in 192.168.22.x segment by

default

5. Open a web browser, type in the default gateway IP address. http://192.168.22.1.

You will see the login page of the device.

From the WAN port:

The WAN port HTML configuration option is disabled by default from factory. To access the HTML configuration menu from the WAN port:

1. Enable the “WAN Port Web Access” option via IVR option 12.

2. Find the WAN IP address of the GL-VP-620x using voice prompt menu option 02.

3. Access the GL-VP-620x Web Configuration page by the following URI via WAN port:

http:// GL-VP-620x -IP-Address (the GL-VP-620x IP-Address is the WAN IP address for the GL-VP-620x).

GL-VP-620x User Manual

NOTE: If using a web browser to enter the configuration page, strip the leading “0”s because the browser will parse in octet. (i.e. if the IP address is: 192.168.001.014, please type in: 192.168.1.14).

Once the HTTP request is entered and sent from a Web browser, the user will see a log in screen. There are two default passwords for the login page:

User

Password:

Web pages allowed:

End User Level

1234

Only Status and Basic Settings

Administrator Level

admin

Browse all pages

Only an administrator can access the “SUPER SETTINGS” configuration page.

1. There are six different tabs (STATUS, Basic Settings, SUPER Settings, Profile 1,

Profile 2 and FXS Ports) on the top of the screen (after login). To open each page, click on the tab.

2. Click on Profile 1 to enter your SIP Server/ SIP Proxy/Registrar information. Enter the

IP Address (or FQDN) of the Server under: SIP Server and/or Outbound Proxy.

3. Click on FXS ports to enter the extensions or account information. You will need to fill

in the following information for each extension. Once the extensions are configured, you are finished.

4. Click Saveset after changing any setting and then Re-boot to confirm changes.

5. After reboot, check the Status Page to confirm the extensions are successfully

registered. You can now use your standard phones connected to ports FXS1 to FXS8 to make calls.

7.3 Important Settings

The end-user must configure the following settings according to the local environment. NOTE: Most settings on the web configuration pages are set to the default values.

GL-VP-620x User Manual

7.3.1 NAT Settings

If you plan to keep the gateway within a private network behind a firewall, we recommend using STUN Server. The following three (3) settings are useful in the STUN Server scenario:

1. STUN Server (under Super Settings webpage)

Enter a STUN Server IP (or FQDN) that you may have, or look up a free public STUN Server on the internet and enter it on this field. If using Public IP, keep this field blank.

2. Use Random Ports (under Super Settings webpage)

It really depends on your network settings, so set this parameter to Yes or No, whichever works. Generally if you have multiple IP devices under the same network, it should be set to Yes. If using a Public IP address, set this parameter to No.

3. NAT Traversal (under the Profile web pages)

Set this to Yes when gateway is behind firewall on a private network.

7.3.2 DTMF Methods

DTMF Settings are in Profile pages.

 DTMF in-audio  DTMF via RTP (RFC2833)  DTMF via SIP INFO

Enable one or more DTMF methods based on your PBX system.

7.3.3 Preferred VOCODER (Codec)

The GL-VP-620x supports a broad range of voice codecs. Under Profile web pages, choose your preferred order of different codecs:

 PCMU/A (or G711μ/a)  G729 A/B/E  G723  G726 (16/24/32/40)

7.4 End User Configuration

This section will describe the options in the Web configuration user interface. As

GL-VP-620x User Manual

mentioned, a user can log in as an administrator or end-user.

Functions available for the end-user are:

 STATUS: Displays the network status, account status, software version and

MAC-address of the phone

 BASIC OPTIONS: Basic preferences such as date and time settings, multi-purpose

keys and LCD settings can be set here.

Additional functions available to administrators are:

 Super OPTIONS: To set advanced network settings, codec settings and XML configuration settings.

 PROFILE X: To configure each of the SIP accounts.  FXS PORTS: To configure each of the FXS ports and Hunting Groups etc.

TABLE 7: Basic Settings Page Definitions

BASIC OPTIONS SETTING

Setting Options

Meaning

Web Port

This is the device‟s internal HTTP server port. Default is

80.

IP Address

There are two modes to operate the GL-VP-620x : DHCP mode: all the field values for the Static IP mode

GL-VP-620x User Manual

are not used (even though they are still saved in the Flash memory.) The GL-VP-620x acquires its IP address from the first DHCP server it discovers from the LAN it is connected. Using the PPPoE feature: set the PPPoE account settings. The GL-VP-620x will establish a PPPoE session if any of the PPPoE fields is set.

Static IP mode: configure the IP address, Subnet Mask, Default Router IP address, DNS Server 1 (primary), DNS Server 2 (secondary) fields. These fields

are set to zero by default.

Cloned WAN MAC Addr

Allow the user to set a specific MAC address. Set in Hex format

BASIC OPTIONS SETTING

Setting Options

Meaning

Time Zone

Controls how the date/time is displayed according to the specified time zone.

Daylight Savings Time

This parameter controls whether the displayed time will be daylight savings time or not. If set to Yes, then the displayed time will be 1 hour ahead of normal time.

Date Display Format

Allow user to choose among the following three formats: Year-Month-Day Month-Day-Year Day-Month-Year

GL-VP-620x User Manual

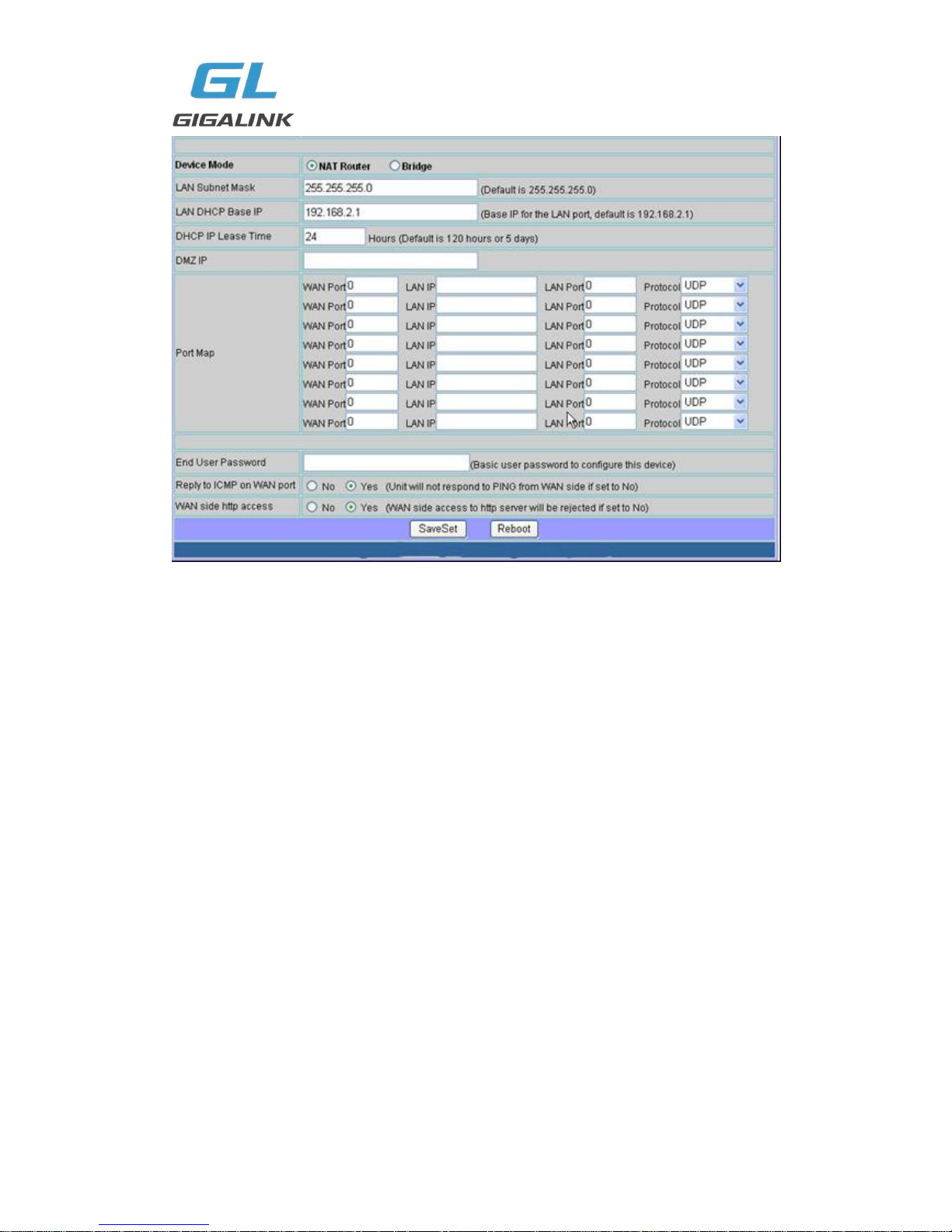

TABLE 8: Status Page Definitions

BASIC OPTIONS SETTING

Setting Options

Meaning

Device Mode

This parameter controls whether the device is working in NAT router mode or Bridge mode. Save the setting and reboot prior to configuring the GL-VP-620x.

LAN Subnet Mask

Sets the LAN subnet mask. Default value is 255.255.255.0

LAN DHCP Base IP

Base IP for the LAN port which functions as a Gateway for the subnet. Default value is 192.168.22.1.

DHCP IP Lease Time

Value is set in units of hours. Default value is 120 hrs (5 Days.) The time IP address is assigned to the LAN clients.

DMZ IP

Forward all WAN IP traffic to a specific IP address if no matching port is used by GL-VP-620x or defined in port forwarding.

Port Map

Forwards a matching (TCP/UDP) port to a specific LAN IP address with a specific (TCP/UDP) port

End User Password

This contains the password to access the Web Configuration Menu. This field is case sensitive.

Reply to ICMP on WAN port

If set to “Yes”, the GL-VP-620x will respond to the PING command from other computers, but it also is vulnerable to the DOS attack. Default is No.

WAN side http access

If this parameter is set to “No”, the HTML configuration

update via WAN port is disabled.

GL-VP-620x User Manual

STATUS PAGE DEFINITIONS

Setting Options

Meaning

MAC Address

The device ID in HEX format. This is needed for ISP troubleshooting. Note there are separate MAC addresses for the WAN side and the LAN side.

WAN IP Address

Shows WAN IP address of GL-VP-620x

Product Model

Contains the product model info.

Software Version

Program: This is the main software release. Boot and Loader are not changed often.

System Up Time

Shows system up time since the last reboot.

PPPoE Link Up

Shows whether the PPPoE connection is running if connected to DSL modem.

NAT

Shows type of NAT the GL-VP-620x is connected to via its WAN port. It is based on STUN protocol.

Port Status

Shows several information regarding the individual FXS ports.

Ex.

GL-VP-620x User Manual

** FXS port 4 user has set Do Not Disturb. FXS port 1 user has set his calls to be forwarded unconditionally to ext 613 FXS port 2 user has set his calls to be forwarded to 614 when his phone is busy. FXS port 3 user is not registered with his SIP Server.

Super User configuration includes not only the end user configuration, but also super configurations such as: SIP configuration, Codec selection, NAT Traversal Setting and other miscellaneous configuration.

7.5 Super User Configuration

Log-in to the Super User Configuration Page the same way as for the basic configuration page. Log-in using either of the following passwords: “admin” or “123”.

7.6 Figure 3: Screenshot Of Super User Configuration Login Screen

Super User configuration includes the end user configuration and Super configurations including: SIP configuration, Codec selection, NAT Traversal Setting and other miscellaneous configuration.

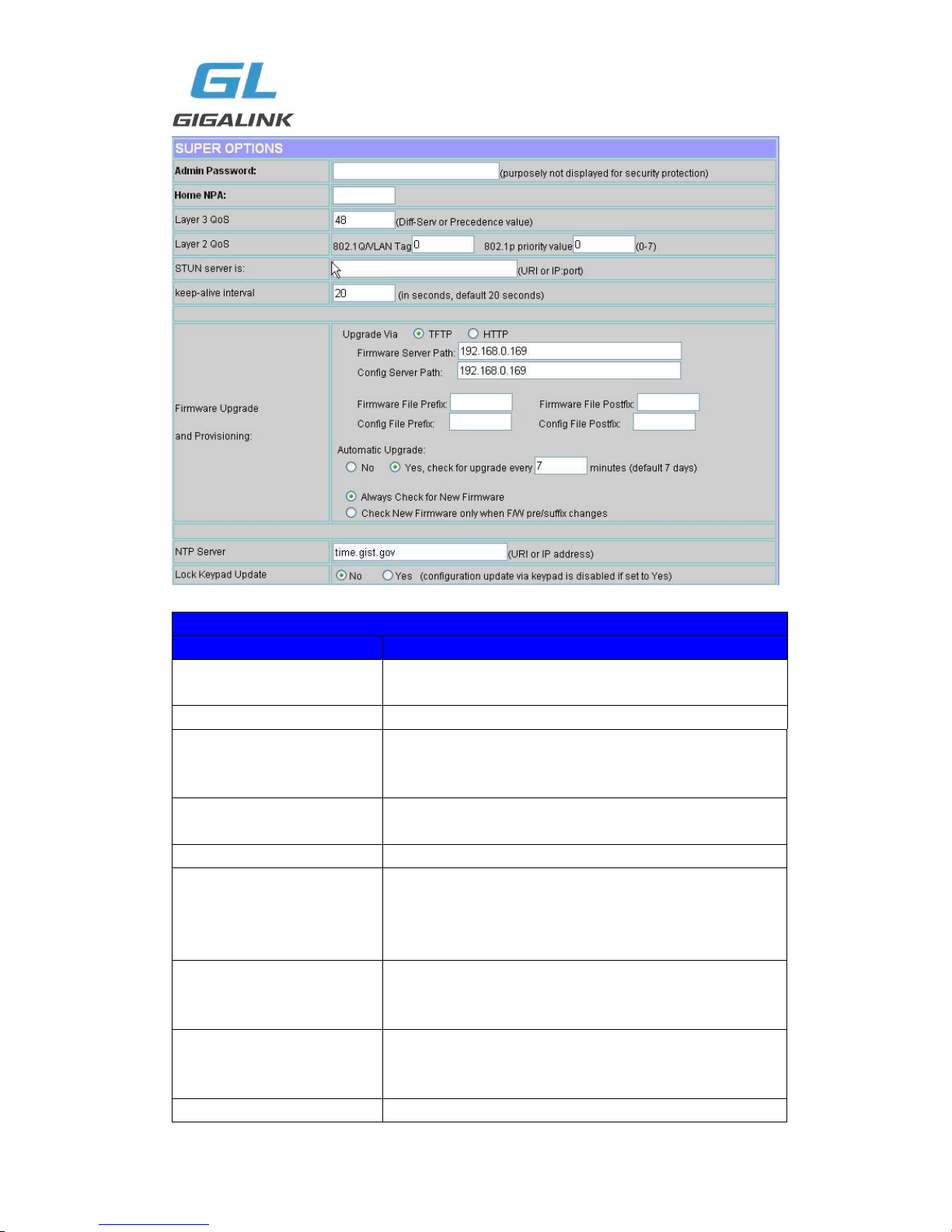

TABLE 9: Super Configuration Page Definitions

GL-VP-620x User Manual

SUPER OPTIONS SETTING

Setting Options

Meaning

Admin Password:

This contains the password to access the Super Web Configuration page.This field is case sensitive.

Home NPA:

Local area code for North American Dial Plan.

Layer 3 QoS

This field defines the layer 3 QoS parameter which can be the value used for IP Precedence or Diff-Serv or MPLS. Default value is 48.

Layer 2 QoS

This contains the value used for layer 2 VLAN tag. Default setting is blank.

STUN server is:

IP address or domain name of stun server

keep-alive interval

This parameter specifies how often the GL-VP-620x sends a blank UDP packet to the SIP server to keep the “hole” on the NAT open. Default is 20 seconds.

Firmware Upgrade and Provisioning:

Default method is HTTP. Firmware upgrade may take up to 10 minutes depending on network environment. Do not interrupt the firmware upgrading process.

NTP Server

This parameter defines the URI or IP address of the NTP server which is used by the GL-VP-620x to display the current date/time.

Lock Keypad Update

If this parameter is set to “Yes”, the configuration update

GL-VP-620x User Manual

via keypad is disabled.

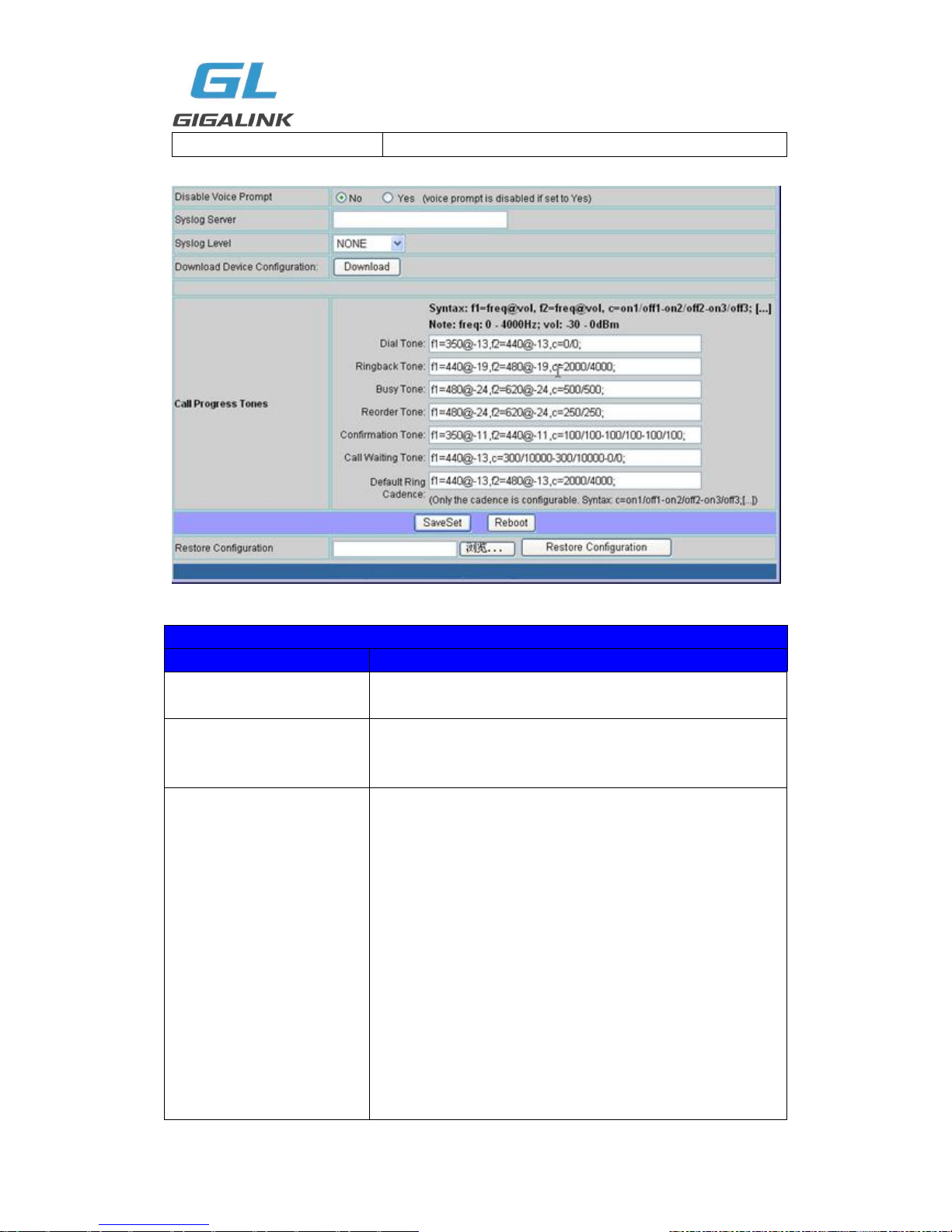

SUPER CONFIGURATION PAGE DEFINITIONS

Setting Options

Meaning

Disable Voice Prompt

Default is No

Syslog Server

The IP address or URL of System log server. This feature is especially useful for the ITSP (Internet Telephone Service Provider)

Syslog Level

Select the GL-VP-620x to report the log level. Default is NONE. The level is one of DEBUG, INFO, WARNING or ERROR. Syslog messages are sent based on the following events:

1. product model/version on boot up (INFO level)

2. NAT related info (INFO level)

3. sent or received SIP message (DEBUG level)

4. SIP message summary (INFO level)

5. inbound and outbound calls (INFO level)

6. registration status change (INFO level)

7. negotiated codec (INFO level)

8. Ethernet link up (INFO level)

9. SLIC chip exception (WARNING and ERROR levels)

10. memory exception (ERROR level)

GL-VP-620x User Manual

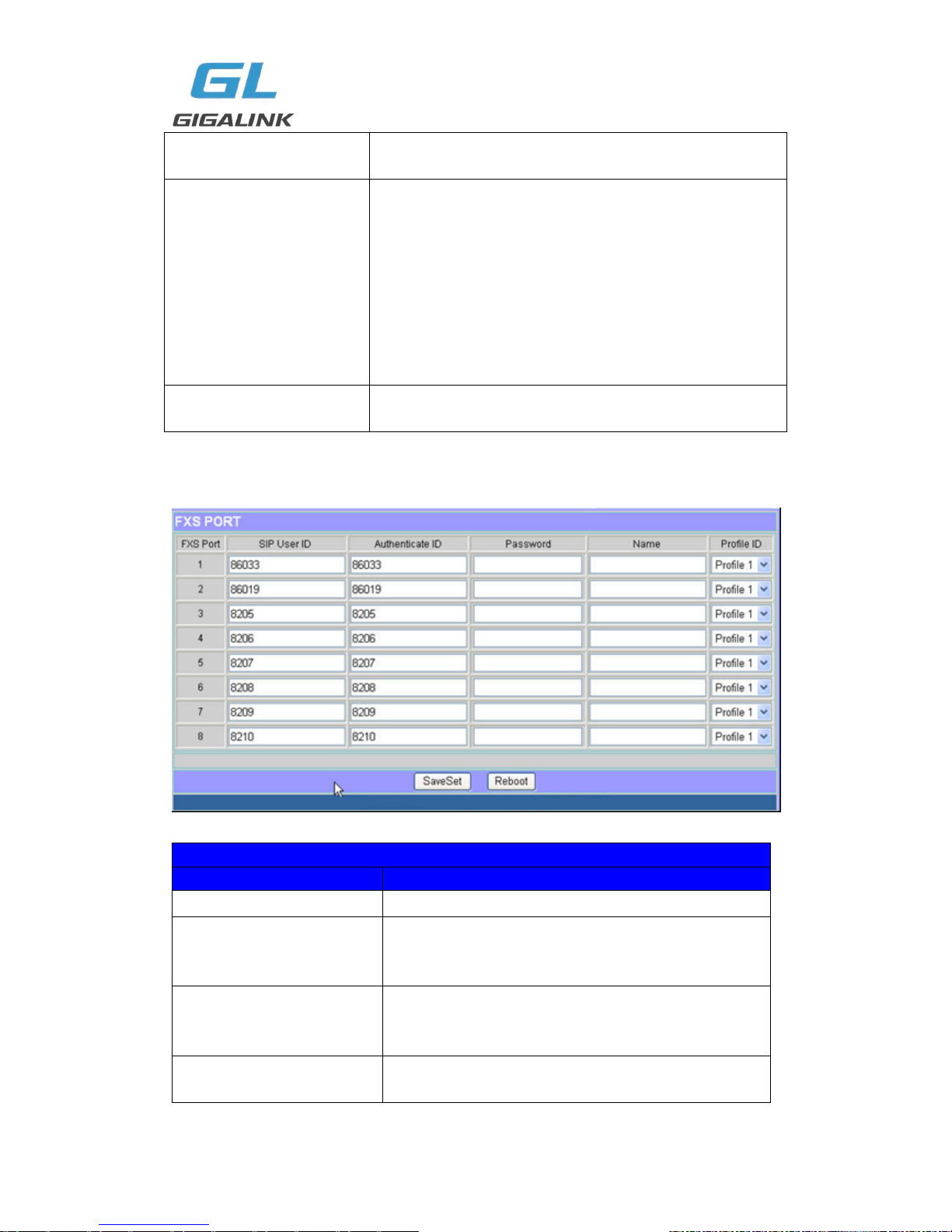

TABLE 10: FXS Ports Configuration Definitions

FXS PORT SETTING

Setting Options

Meaning

FXS Port

FXS Port Number

SIP User ID

User account information, provided by VoIP service provider (ITSP). Usually in the form of digit similar to phone number or actually a phone number.

Authenticate ID

SIP service subscriber‟s Authenticate ID used for authentication. Can be identical to or different from SIP User ID.

Password

SIP service subscriber‟s account password for GL-VP-620x to register to (SIP) servers of ITSP.

Download Device Configuration

User can download configuration from the web page and save to configuration file.

Call Progress Tones

Using these settings, user can configure tone frequencies according to their preference. By default they are set to North American frequencies .Frequencies should be configured with known values to avoid uncomfortable high pitch sounds.

ON is the period of ringing (“On time” in „ms‟) while OFF is

the period of silence. In order to set a continuous tone, OFF should be zero. Otherwise it will ring ON ms and a pause of OFF ms and then repeat the pattern.

Restore Configuration

User can restore the before configuration from the configuration file saved at local pc

GL-VP-620x User Manual

Name

Profile ID

Select the corresponding Profile ID (1/2)

TABLE 11: Profile Page Definitions

PROFILE PAGE DEFINITIONS

Setting Options

Meaning

Account Active

When set to Yes the SIP Profile is activated.

SIP Server

SIP Server‟s IP address or Domain name provided by VoIP service provider.

Outbound Proxy

IP address or Domain name of Outbound Proxy, or Media Gateway, or Session Border Controller. Used by GL-VP-620x for fire wall or NAT penetration in different network environments. If symmetric NAT is detected, STUN will not work and ONLY outbound proxy can correct the problem.

NAT Traversal

This parameter defines whether the GL-VP-620x NAT traversal mechanism is activated or not. If activated (by choosing “Yes”) and a STUN server is also specified, then the GL-VP-620x performs according to the STUN client specification. Under this mode, the embedded STUN client will detect if and what type of firewall/NAT is being used. If the detected NAT is a Full Cone, Restricted Cone, or a Port-Restricted Cone, the GL-VP-620x will use its mapped public IP address and port in all of its SIP and SDP

GL-VP-620x User Manual

messages.

If the NAT Traversal field is set to “Yes” with no specified STUN server, the GL-VP-620x will periodically (every 20 seconds or so) send a blank UDP packet (with no payload data) to the SIP server to keep the “hole” on the NAT open. If your home or office router can act as a UPNP server, you can select “UPNP” option for NAT traversal.

Use DNS SRV:

Default is No. If set to “Yes” the client will use DNS SRV to look up

server.

User ID is Phone Number

If the GL-VP -620x has an assigned PSTN telephone number, this field should be set to “Yes”. Otherwise, set it to “No”. If “Yes” is set, a “user=phone” parameter will be attached to the “From” header in SIP request.

SIP Registration

This parameter controls wheth er the GL-VP-620x needs to send REGISTER messages to the proxy server. The default setting is “Yes”.

Unregister on Reboot

Default is No. If set to “Yes”, the SIP user‟s registration information is cleared on reboot.

Register Expiration

Allows the user to specify the time frequency (in minutes) for the GL-VP-620x to refresh its registration with the specified registrar. The default interval is 60 minutes (or 1 hour). The maximum interval is 65535 minutes (about 45 days).

Outgoing Call without Registration

Default is No. If set to “Yes,” user can place outgoing calls even when not registered (if allowed by ITSP) but is unable to receive incoming calls.

Local SIP port

Defines the local SIP port the GL-VP-620x will listen and transmit. The default value for Profile 1 is 5060 and 6060 for Profile

2.

Local RTP Port

Defines the local RTP-RTCP port pair the PROFILE will listen and transmit. It is the base RTP port for channel 0. When config ured, channel 0 will use this port _value for RTP and the port_value+1 for its RTCP; channel 1 will use port_value+2 for RTP, port_value+3 for its RTCP and so on. The default value for Profile 1 is 5004 and 6004 for Profile

2.

Use random port

This parameter, when set to “YES”, will force random

GL-VP-620x User Manual

generation of both the local SIP and RTP ports. This is usually necessary when multiple GL-VP-620x are behind the same NAT.

Refer to Use Target Contact

Default is No. If set to Yes, then for Attended Transfer, the “Refer-To” header uses the transferred target‟s Contact header information.

PROFILE PAGE DEFINITIONS

Setting Options

Meaning

DTMF Pa yload Type

Sets the payload type for DTMF using RFC2833.

DTMF in-audio

Send DTMF as inband (in-audio).

DTMF via RFC2833

Default “YES”.

DTMF via SIP INFO

Send DTMF via SIP INFO message.

Send Flash Event

Default is No. If set to yes, flash will be sent as DTMF event.

Enable Call Features

Default is Yes. (If Yes, call features using star codes will be supported locally)

Off-Hook Auto Dial

Allows the user to configure a User ID or extension number to be automatically dialed upon off-hook.

Only the user part of a SIP address needs to be entered here. The phone will automatically append the “@” and the host portion of the corresponding SIP address.

Proxy Require

SIP Extension to notify SIP server that the unit is behind

GL-VP-620x User Manual

the NAT/Firewall.

Use NAT IP

NAT IP address used in SIP/SDP message. Default is blank.

Disable Call Waiting

Default is No.

No Key Entry Timeout

Default is 4 seconds.

Preferred Vocoder

The GL-VP-620x supports up to 5 different Vocoder types including G.711 A-/U-law, G.726 (Supports bit rates 16, 24, 32 and 40), G.723.1, G.729A/B/E and iLBC.

The user can configure Vocoders in a preference list that will be included with the same preference order in SDP message. The first Vocoder is entered by choosing the appropriate option in “Choice 1”. The last Vocoder is entered by choosing the appropriate option in “Choice 8”.

PROFILE PAGE DEFINITIONS

GL-VP-620x User Manual

Setting Options

Meaning

Voice Frames per TX

This field contains the number of voice frames to be transmitted in a single packet. When setting this value, the user should be aware of the requested packet time (used in SDP message) as a result of configuring this parameter. This parameter is associated with the first vocoder in the above vocoder Preference List or the actual used payload type negotiated between the 2 conversation parties at run time. e.g., if the first vocoder is configured as G723 and the

“Voice Frames per TX” is set to be 2, then the “ptime” value

in the SDP message of an INVITE request will be 60ms because each G723 voice frame contains 30ms of audio. Similarly, if this field is set to be 2 and if the first vocoder chosen is G729 or G711 or G726, then the “ptime” value in the SDP message of an INVITE request will be 20ms. If the configured voice frames per TX exceeds the maximum allowed value, the GL-VP-620x will use and save the maximum allowed value for the corresponding first vocoder choice. The maximum value for PCM is 10(x10ms) frames; for G726, it is 20 (x10ms) frames; for G723, it is 32 (x30ms) frames; for G729/G728, 64 (x10ms) and 64 (x2.5ms) frames respectively.

G723 Rate

Defines the encoding rate for G.723 vocoder. By default, 6.3kbps rate is chosen.

iLBC Frame Size

Sets the iLBC frame size in 20ms or 30ms

iLBC Payload type

Defines payload type for iLBC. Default value is 97. The valid range is between 96 and 127.

G726-16 Payload type

Default value is 98. Range is from 96 to 127.

G726 – 24 Payload type

Default value is 99. Range is from 96 to 127.

G726 – 40 Payload type

Default value is 103. Range is from 96 to 127.

G729E payload type

Default value is 102. Range is from 96 to 127.

VAD

Default is No. VAD allows detecting the absence of audio and conserve bandwidth by preventing the transmission of "silent packets" over the network.

Symmetric RTP

Default is No. When set to Yes the device will change the destination to send RTP packets to the source IP address and port of the inbound RTP packet last received by the device.

Fax Mode

T.38 (Auto Detect) FoIP by default, or Pass-Through (must use codec PCMU/PCMA)

GL-VP-620x User Manual

Fax Tone Detection Mode

Default is Callee. This decides whether Caller or Callee sends out the re-INVITE for T.38 or Fax Pass Through.

Jitter Buffer Type

Select either Fixed or Adaptive based on network conditions.

Jitter Buffer Length

Select Low, Medium or High based on network conditions.

Distinctive Ring tone

Custom Ring Tone 1 to 3 with associate Caller ID: when selected, if Caller ID is configured, then the device will ONLY uses this ring tone when the incoming call is from the Caller ID. System Ring Tone is used for all other calls. When selected but no Caller ID is configured, the selected ring tone will be used for all incoming calls.

Disable Call Waiting

Default is No.

PROFILE PAGE DEFINITIONS

Setting Options

Meaning

Disable Call Waiting Tone

Default is No. This is to disable the stutter Call Waiting Tone when a Call Waiting call arrives. The CWCID will still be displayed.

Ring Timeout

Incoming call will stop ringing when not picked up given a specific period of time.

No Key Entry Timeout

Default is 4 seconds.

GL-VP-620x User Manual

Early Dial

Default is No. Use only if proxy supports 484 response. This parameter controls whether the phone will send an early INVITE each time a key is pressed when a user dials a number.

If set to “Yes”, an INVITE is sent using the dial-number collected thus far; Otherwise, no INVITE is sent until the “(Re-)Dial” button is pressed or after about 5 seconds have elapsed if the user forgets to press the “Re-Dial” button. The “Yes” option should be used ONLY if there is a SIP proxy configured and the proxy server supports 484 Incomplete Address response. Otherwise, the call will likely be rejected by the proxy (with a 404 Not Found error).

This feature is NOT designed to work with and should NOT be enabled for direct IP-to-IP calling.

Dial Plan Prefix

Sets the prefix added to each dialed number.

Use # as Dial Key

Allows users to configure the “#” key as the “Send” (or “Dial”) key. If set to “Yes”, “#” will send the number. In this case, this key is essentially equivalent to the “Dial” key. If set to “No”, this “#” key can be included as part of number.

Dial Plan

Dial Plan Rules:

1. Accept Digits: 1,2,3,4,5,6,7,8,9,0 , *, #, A,a,B,b,C,c,D,d

2. Grammar: x - any digit from 0-9; a. xx+ - at least 2 digits number; b. xx. ?at least 2 digits number; c. ^ - exclude; d. [3-5] - any digit of 3, 4, or 5; e. [147] - any digit 1, 4, or 7; f. <2=011> - replace digit 2 with 011 when dialing Example 1: {[369]11 | 1617xxxxxxx} Allow 311, 611, 911, and any 10 digit numbers of leading digits 1617 Example 2: {^1900x+ | <=1617>xxxxxxx} Block any number of leading digits 1900 and add prefix 1617 for any dialed 7 digit numbers Example 3: {1xxx[2-9]xxxxxx | <2=011>x+} Allow any length of number with leading digit 2 and 10 digit-numbers of leading digit 1 and leading exchange number between 2 and 9; if leading digit is 2, replace leading digit 2 with 011 before dialing.

3. Default: Outgoing - {x+} Example of a simple dial plan used in a Home/Office in the

GL-VP-620x User Manual

US: { ^1900x. | <=1617>[2-9]xxxxxx | 1[2-9]xx[2-9]xxxxxx | 011[2-9]x. | [3469]11 } Explanation of example rule (reading from left to right): ^1900x. - prevents dialing any number started with 1900 <=1617>[2-9]xxxxxx - allows dialing to local area code (617) numbers by dialing 7 numbers and 1617 area code will be added automatically 1[2-9]xx[2-9]xxxxxx |- allows dialing to any US/Canada Number with 11 digits length 011[2-9]x. - allows international calls starting with 011 [3469]11 - allow dialing special and emergency numbers 311, 411, 611 and 911 Note: In some cases user wishes to dial strings such as *123 to activate voice mail or other application provided by service provider. In this case * should be predefined

inside dial plan feature and the Dial Plan should be: { [x*]+ }.

Subscribe for MWI

Default is No. When set to “Yes” a SUBSCRIBE for Message Waiting Indication will be sent periodically.

Send Anonymous

If this parameter is set to “Yes”, the “From” header along with Privacy and P_Asserted_Identity headers in outgoing INVITE message will be set to anonymous, blocking Caller ID.

Anonymous Call Rejection

Default is No. If set to Yes, incoming calls with anonymous Caller ID will be rejected with 600X Busy message.

Session Expiration

Default is 180 seconds.

Min-SE

Default is 90 seconds

Caller Request Timer

Default is NO

Callee Request Timer

Default is NO

Force Timer

Default is NO

UAC Specify Refresher

Default is Omit

UAS Specify Refresher

Default is UAC

GL-VP-620x User Manual

7.7 Saving The Configuration Changes

Once a change is made, press the “Update” button in the Configuration Menu. The following screen will confirm that the changes have been saved. To activate changes, reboot or power cycle the GL-VP-620x after changes are made.

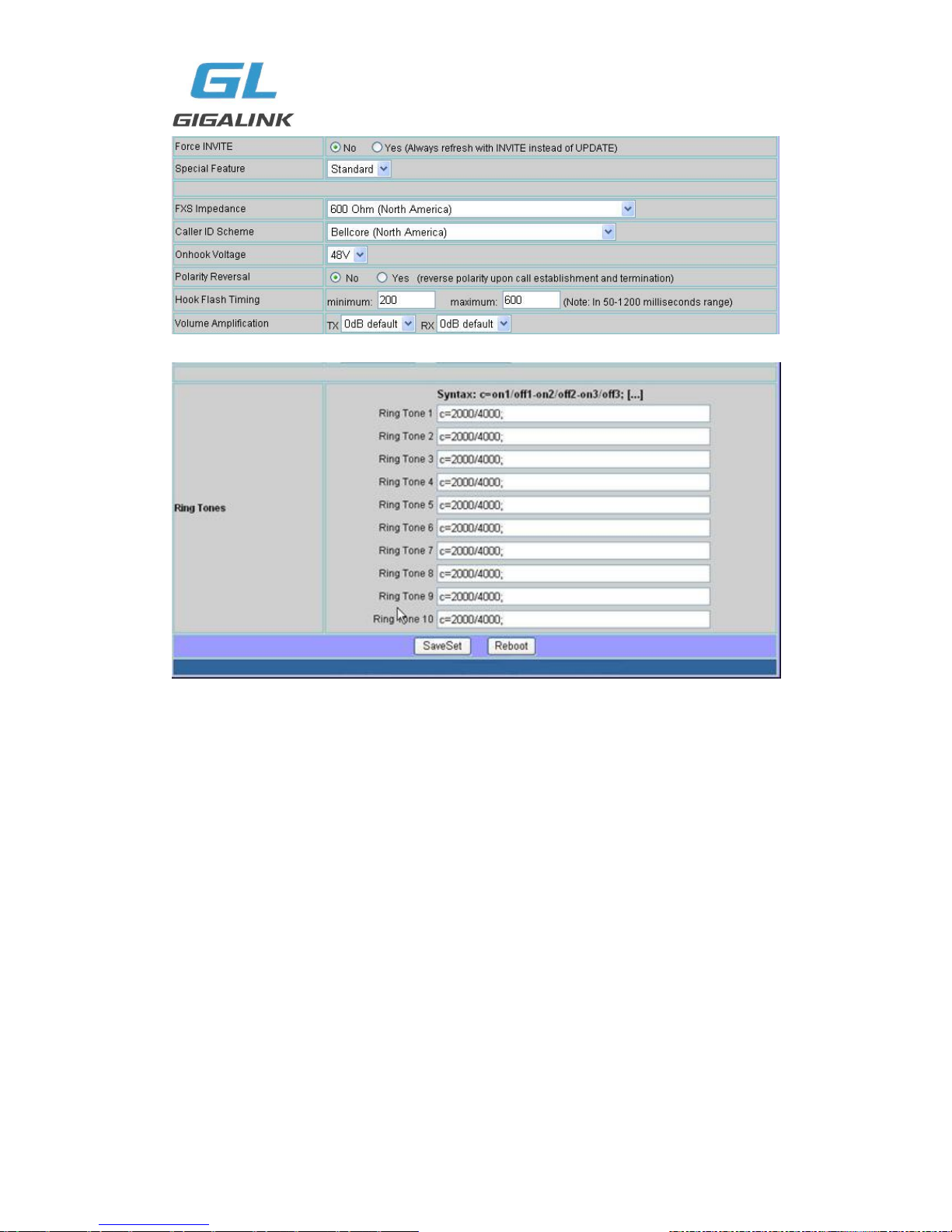

PROFILE PAGE DEFINITIONS

Setting Options

Meaning

Force INVITE

Default is NO

Special Feature

Default is Standard. Choose the selection to meet some special requirements from Soft Switch vendors like Nortel, Broadsoft, etc.

FXS Impedance

Selects the impedance of the analog telephone connected to the Phone port.

Caller ID Scheme

Select the Caller ID Scheme to suit the standard of different area.

• Bellcore (North America)

• ETSI-FSK (France, Germany, Norway, Taiwan, UK-CCA)

• ETSI-DTMF (Finland, Sweden)

• DTMF (Denmark)

Onhook Voltage

Select the onhook voltage to suit different area or PBX

Polarity Reversal

Select Polarity Reversal to adapt some call charge/billing system. Default is No.

Hook Flash Timing

Time period when the cradle is pressed (Hook Flash) to simulate FLASH. To prevent unwanted activation of the Flash/Hold and automatic phone ring-back, adjust this time value.

Volume Amplification

Handset volume adjustment. RX is for receiving volume, TX is for transmission volume. Default values are 0dB for both parameters. +6dB generates the highest volume and -6dB generates the lowest volume.

Ring Tones

This function lets you configure ring tone cadence preferences. User has 10 choices.

The configuration, completed in Distinctive Ring Tones block in the same page, applies to ring tones cadences configured here.

GL-VP-620x User Manual

7.8 Figure 4: Screen-Shot Of Save Configuration Page

7.9 Rebooting From Remote

The administrator can remotely reboot the unit by pressing the “Reboot” button at the bottom of the configuration menu. The user can re-login to the unit after waiting for about 30 seconds.

7.10 Figure 5: Screen-Shot Of Rebooting Page

8 SOFTWARE UPGRADE

To upgrade software, GL-VP-620x can be configured with a TFTP server where the new code image is located. The TFTP upgrade can work in either static IP or DHCP mode using private or public IP address. It is recommended to set the TFTP server address in either a public IP address or on the same LAN with the GL-VP-620x.

GL-VP-620x User Manual

There are two ways to set up the TFTP server to upgrade the firmware, namely through voice menu prompt or via the GL-VP-620x‟s Web configuration interface. To configure the TFTP server via voice prompt, follow section 5.1 with option 06, once set up the TFTP IP address, power cycle the ATA, the firmware will be fetched once the ATA boots up.

To configure the TFTP server via the Web configuration interface, open up your browser to point at the IP address of the GL-VP-620x. Input the admin password to enter the configuration screen. From there, enter the TFTP server address in the designated field towards the bottom of the configuration screen.

Once the TFTP server is configured, please power cycle the GL-VP-620x. TFTP process may take as long as 1 to 2 minutes over the Internet, or just 30+ seconds if

it is performed on a LAN. Users are recommended to conduct TFTP upgrade in a controlled LAN environment if possible. For those who do not have a local TFTP server, Gigalink Co LTD provides a NAT-friendly TFTP server on the public Internet for firmware upgrade. Please check the Service section of Gigalink‟s Web site to obtain this TFTP server‟s IP address.

NOTES:

When Gigalink GL-VP-620x boot up, it will send TFTP or HTTP request to download configuration files, there are two configuration files, one is “cfg.bin” and the other is “cfg001fc1xxxxxx”, where “001fc1xxxxxx” is the MAC address of the GL-VP-620x. These two files are for initial automatically provisioning purpose only, for normal TFTP or HTTP firmware upgrade, the following error messages in a TFTP or HTTP server log can be ignored.

9 RESTORE FACTORY DEFAULT SETTINGS

WARNING! Restoring the Factory Default Setting will DELETE all configuration

information of the phone. Please BACKUP or PRINT out all the settings before you approach to following steps.

Gigalink will not take any responsibility if you lose all the parameters of setting and cannot connect to your VoIP service provider.

FACTORY RESET

There are two (2) methods for resetting your unit:

Reset Button

Reset default factory settings following these four (4) steps:

GL-VP-620x User Manual

1. Unplug the Ethernet cable.

2. Locate a needle-sized hole on the back panel of the gateway unit next to the power

connection.

3. Insert a pin in this hole, and press for about 8 seconds.

4. Take out the pin. All unit settings are restored to factory settings.

IVR Command

Reset default factory settings using the IVR Prompt (Table 5):

1. Dial “***” for voice prompt.

2. Enter “99” and wait for “reset” voice prompt.

3. Enter 862584658050

NOTE:

1. Factory Reset will be disabled if the “Lock keypad update” is set to “Yes”.

2. Please be aware by default the GL-VP-620x WAN side HTTP access is disabled. After

a factory reset, the device‟s web configuration page can be accessed only from its LAN port.

10 TECHNICAL SUPPORT CONTACT

Email: info@giga-link.ru

Gigalink GL-VP-620X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
