Step 9: The Windows file explorer opens. Double-click on the file “AegisI2.exe”.
Step 10: When the AEGIS Protocol Installation window appears click the Install button to
begin installing program files.
Step 11: When the message AEGIS Protocol Installed Successfully appears in the
dialog box, click the Cancel button. Windows
®
98 may or may not automatically
reboot your PC.
7
2-3. Driver & Utility Installation - Windows® ME
Step 1: When the Add New Hardware Wizard screen appears, click Cancel to exit.
Step 2: Insert the GN-WIKG Installation CD into the CD-ROM drive. The GIGABTYE
GN-WIKG Wireless Mini-PCI Adapter setup screen appears.
Step 3: Drag your mouse over Install Wireless LAN Utility and click on it to start the
utility installation program.
8
Step 4: When the Welcome screen appears, click Next.
Step 5: The Check Setup Information screen displays the Operating System of your
computer. If it is correct, click Next to continue.
9
Step 6: An information box screen appears. Click OK to go to the next screen.
Step 7: After the software utility installation is complete, click Finish. You are now
ready to install 802.1x authentication software.
Step 8: Drag your mouse over Browse the CD and click on it.
10
Step 9: The Windows file explorer opens. Double-click on the file “Aegisl2.exe”
Step 10: When the AEGIS Protocol Installation window appears click the Install button to
begin installing program files.
Step 11: When the message AEGIS Protocol Installed Successfully appears in the
dialog box, click the Cancel button. Windows® ME may or may not
automatically reboot your PC.
11
2-4. Driver & Utility Installation - Windows
®
2000

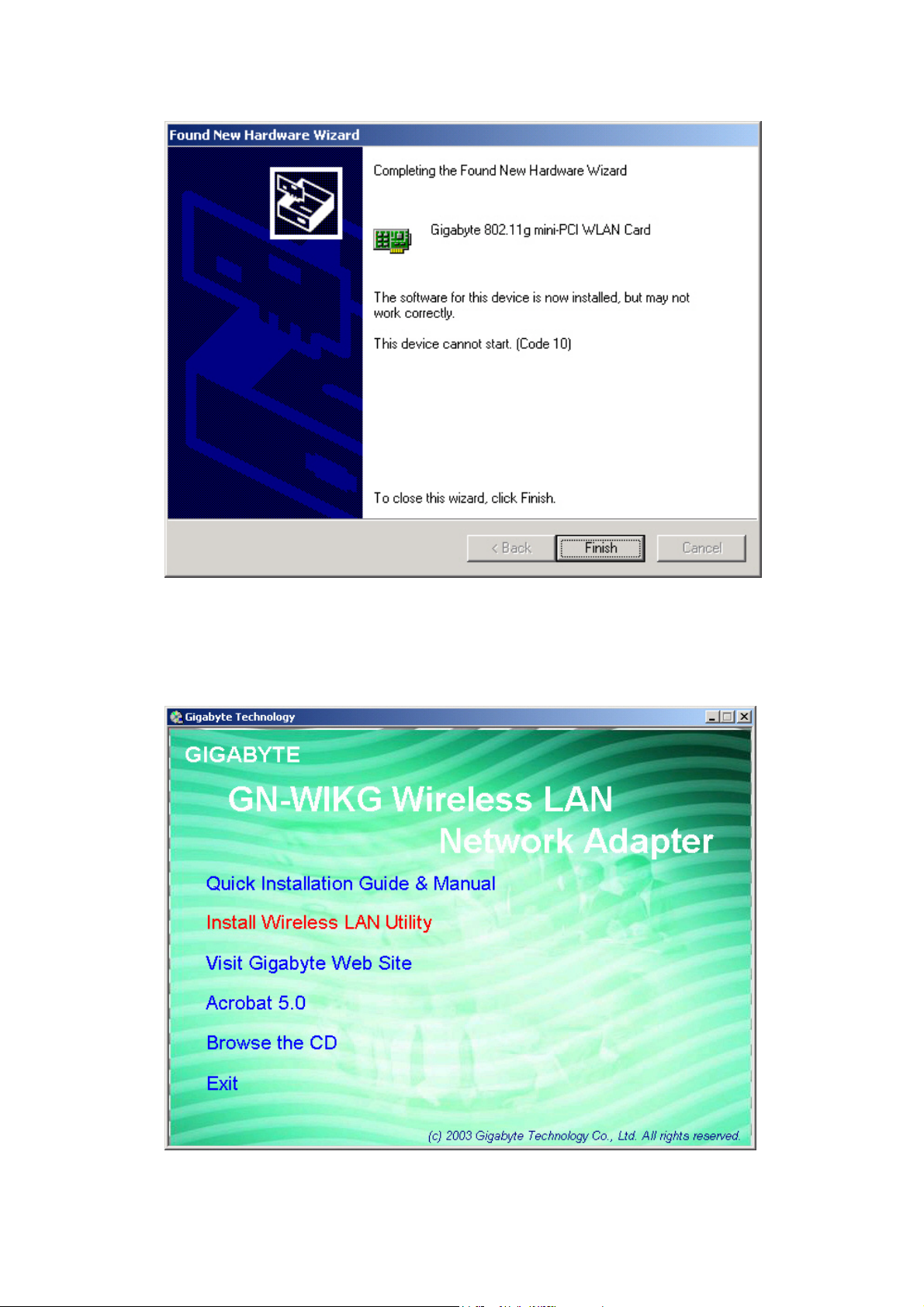

Step 1: When the Found New Hardware Wizard screen appears, click Cancel to exit.
Step 2: Insert the GN-WIKG Installation CD into the CD-ROM drive. The GIGABTYE
GN-WIKG Wireless Mini-PCI Adapter setup screen appears.
Step 3: Drag your mouse over Install Wireless LAN Utility and click on it to start the
utility installation program.
12

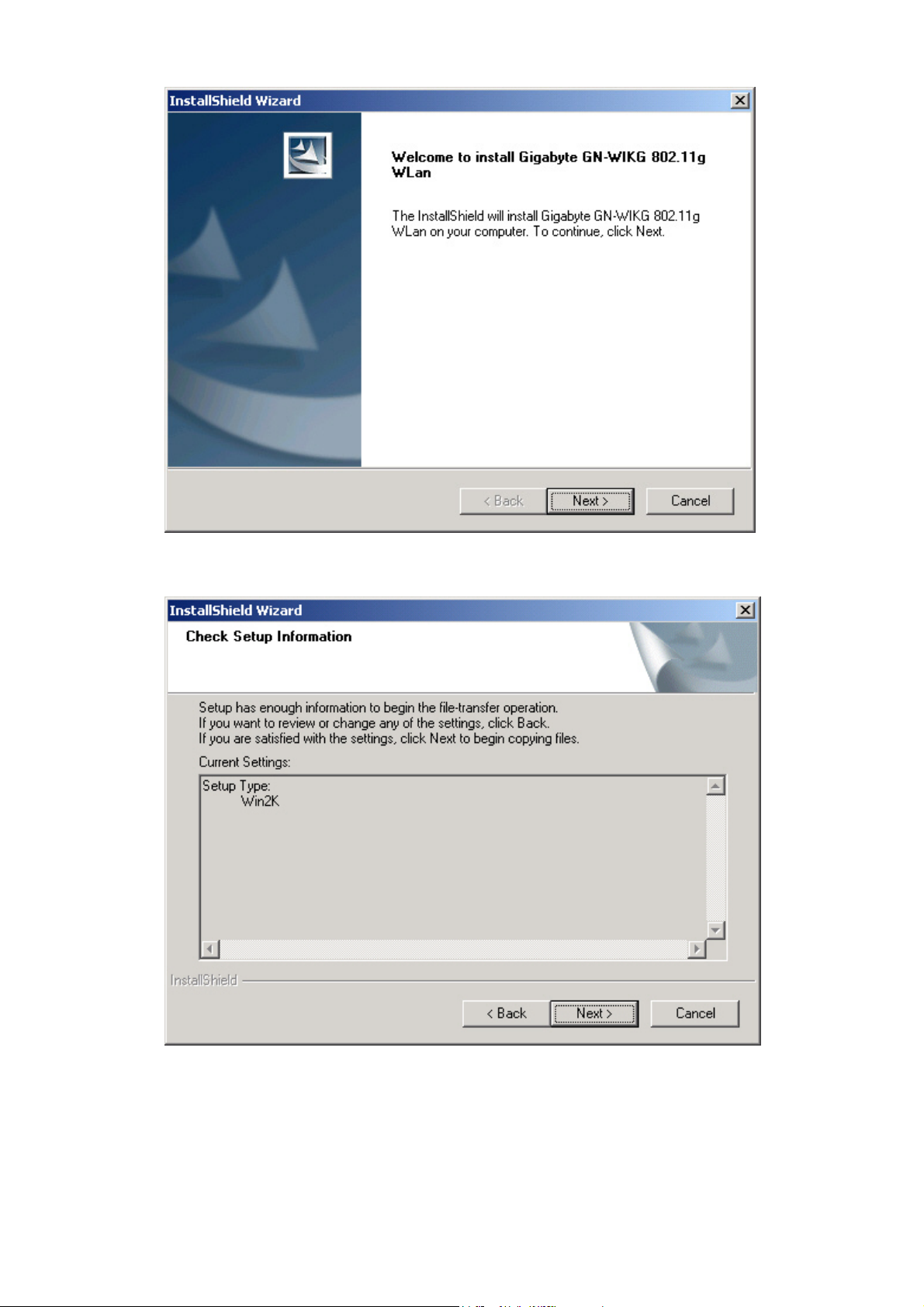

Step 4: When the Welcome screen appears, click Next.
Step 5: The Check Setup Information screen displays the Operating System of your
computer. If it is correct, click Next to continue.
13

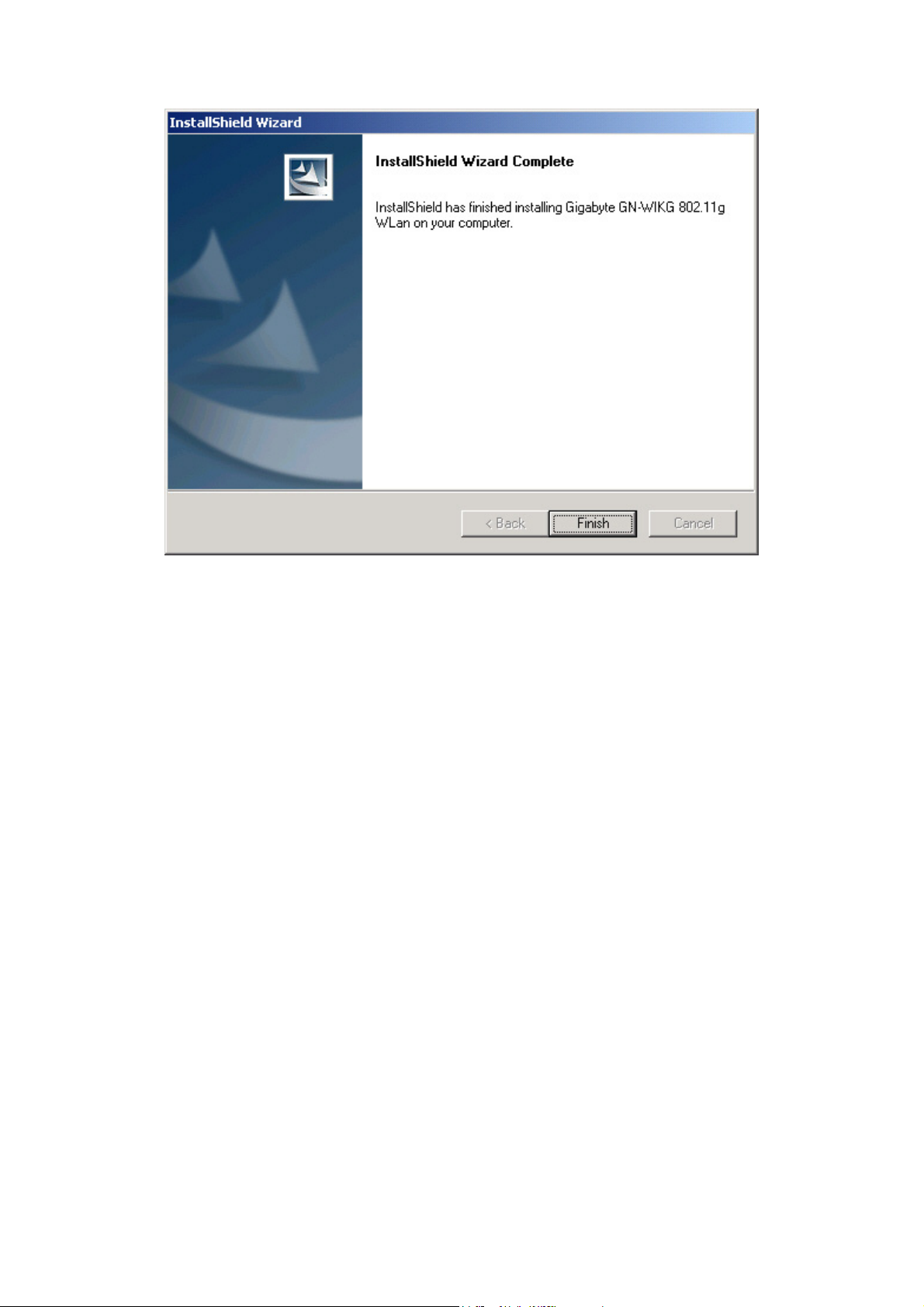

Step 6: After the software utility installation is complete, click Finish. You are now
ready to install 802.1x authentication software.
14
Step 7: If the screen below appears, this does not mean there is a problem. Click Yes to
continue.
Step 8: Drag your mouse over Browse the CD and click on it.
15

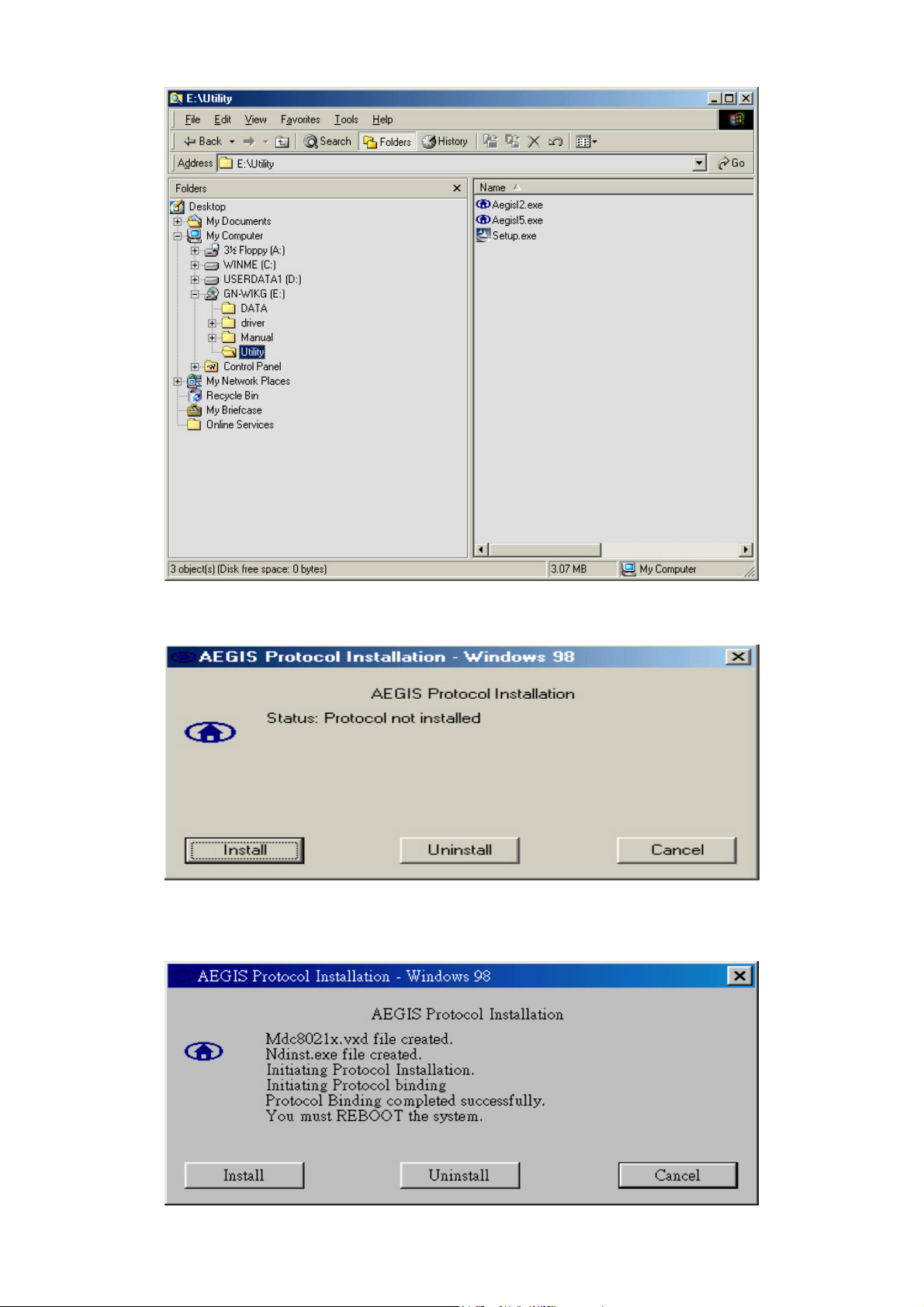

Step 9: The Windows file explorer opens. Double-click on the file “AegisI2.exe”.
Step 10: When the AEGIS Protocol Installation window appears click the Install button to
begin installing program files.
Step 11: When the message Installed Successfully appears in the dialog box, click the
Close button. Windows® 2000 may or may not automatically reboot your PC.
16
