X570 AORUS ULTRA

User's Manual

Rev. 1002

12ME-X57AUTR-1002R

For more product details, please visit GIGABYTE's website.

To reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.

Gigabyte X570 Aorus Ultra User Manual

Motherboard

X570 AORUS ULTRA

Motherboard

X570 AORUS ULTRA

Jun. 3, 2019

Jun. 3, 2019

Wireless Module Country Approvals:

Copyright

© 2019 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

ChangestothespecificationsandfeaturesinthismanualmaybemadebyGIGABYTEwithoutpriornotice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.

For quick set-up of the product, read the Quick Installation Guide included with the product.In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard BIOS, drivers, or when looking for technical information.

Example:

Table of Contents

X570 AORUS ULTRA Motherboard Layout......................................................................

5

Chapter 1 Hardware Installation......................................................................................

6

1-1

Installation Precautions.....................................................................................

6

1-2

Product Specifications......................................................................................

7

1-3

Installing the CPU...........................................................................................

11

1-4

Installing the Memory......................................................................................

11

1-5 Installing an Expansion Card..........................................................................

12

1-6 Setting up AMD CrossFire/NVIDIA® SLIConfiguration...............................

12

1-7

Back Panel Connectors..................................................................................

13

1-8

Internal Connectors........................................................................................

15

Chapter 2 BIOS Setup...................................................................................................

26

2-1

Startup Screen................................................................................................

26

2-2

The Main Menu...............................................................................................

27

2-3

Favorites (F11)................................................................................................

28

2-4

Tweaker..........................................................................................................

29

2-5

Settings...........................................................................................................

31

2-6

System Info.....................................................................................................

36

2-7

Boot................................................................................................................

37

2-8

Save & Exit.....................................................................................................

40

Chapter 3 Appendix.......................................................................................................

41

3-1 Configuring a RAID Set..................................................................................

41

3-2

Drivers Installation..........................................................................................

43

Regulatory Statements..............................................................................................

44

Contact Us.................................................................................................................

48

- 4 -

X570 AORUS ULTRA Motherboard Layout









ATX_12V



R_USB1



ATX_12V1















M2_WIFI SYS_FAN1







HDMI

USB 2.0 Hub (Note)







R_USB30_1









Socket AM4

R_USB30_2











TYPEC











USB31_LAN















LED_CPU





AUDIO

Intel® GbE









M_BIOS







LAN

B_BIOS



















110

80

60

42





PCIEX16







CPU_OPT

D_LED2 LED_C2

CPU_FAN

QFLED

PLUS



QFLASH_

ATX

SOCKETM2A

A1DDR4 A2DDR4 B1DDR4 B2DDR4

TEMP1

SYS FAN5 PUMP

FAN2

USB31CF

SYSFAN4

SYS





EC_





PCIEX1_1

CPU DRAM

VGA BOOT



BAT





X570 AORUS ULTRA

SOCKETM2B

AMD X570



110

80

60

42











PCIEX8











CODEC









SOCKETM2C

iTE®



PCIEX1_2

80

60

42





Super I/O















PCIEX4



USB 2.0 Hub







F_AUDIO

LED_C1







CLR_CMOS













D_



LED1





F_



USB2



EC_TEMP2



























F_USB30_2



F_PANEL

Box Contents

TPM





F_

USB1 SYS_FAN6_PUMP

F_USB30_1



























55

X570 AORUS ULTRA motherboard



55

Four SATA cables

55

Motherboard driver disc











55

One antenna

55

User's Manual















55

M.2 screw(s)/M.2 standoff(s)

55

Quick Installation Guide











55

One G Connector

55

One RGB LED strip extension cable

55

Two thermistor cables

55

Two Velcro Cable Ties























SATA3 4 2 0 5 3 1

*The box contents above are for reference only and the actual items shall depend on the product package you obtain. The box contents are subject to change without notice.

(Note)

The chip is on the back of the motherboard.

- 5 -

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures:

• Prior to installation, make sure the chassis is suitable for the motherboard.

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard, make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep your hands dry and first touch a metal object to eliminate static electricity.

• Prior to installing the motherboard, please have it on top of an antistatic pad or within an electrostatic shielding container.

• Before connecting or unplugging the power supply cable from the motherboard, make sure the power supply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hardware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

• Do not place the computer system on an uneven surface.

• Do not place the computer system in a high-temperature or wet environment.

• Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

• If you use an adapter, extension power cable, or power strip, ensure to consult with its installation and/or grounding instructions.

- 6 -

1-2 Product Specifications

CPU

AMD Socket AM4, support for:



3rd Generation AMD Ryzenprocessors/



2nd Generation AMD Ryzenprocessors/



2nd Generation AMD Ryzenwith RadeonVega Graphics processors/



AMD Ryzenwith RadeonVega Graphics processors



(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

AMD X570





Memory

3rd Generation AMD Ryzenprocessors:



- Support for DDR4 3200/2933/2667/2400/2133 MHz memory modules

2nd Generation AMD Ryzenprocessors/2nd Generation AMD Ryzenwith RadeonVega Graphics processors/AMD Ryzenwith RadeonVega Graphics processors:

-Support for DDR4 2933/2667/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

Onboard



Integrated Graphics Processor:

Graphics (Note 1)



- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz





* Support for HDMI 2.0 version, HDCP 2.2, and HDR.



Maximum shared memory of 16 GB

Audio



Realtek® ALC1220-VB codec





* The back panel line out jack supports DSD audio.



High Definition Audio





2/4/5.1/7.1-channel



Support for S/PDIF Out

LAN



Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless



Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

Communication



BLUETOOTH 5.0

Module



Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate





* Actual data rate may vary depending on environment and equipment.

(Note 1) For 2nd Generation AMD Ryzenwith RadeonVega Graphics processors/AMD Ryzenwith RadeonVega Graphics processors only.

- 7 -

Expansion Slots Integrated in the CPU (PCIEX16/PCIEX8):

3rd Generation AMD Ryzenprocessors:

-1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)

-1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8)2nd Generation AMD Ryzenprocessors:

-1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)

-1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8)

*For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

*The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzenprocessors/2nd Generation AMD Ryzenprocessors, the PCIEX16 slot operates at up to x8 mode.

2nd Generation AMD Ryzenwith RadeonVega Graphics processors/AMD Ryzenwith RadeonVega Graphics processors:

-1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1):

-1 x PCI Express x16 slot, supporting PCIe 4.0 (Note 2)/3.0 and running at x4 (PCIEX4)

-2 x PCI Express x1 slots, supporting PCIe 4.0 (Note 2)/3.0

Multi-Graphics



Support for NVIDIA® Quad-GPU SLIand 2-Way NVIDIA® SLItechnologies

Technology (Note 3)



Support for AMD Quad-GPU CrossFireand 2-Way AMD CrossFiretechnologies

Storage Interface Integrated in the CPU (M2A_SOCKET):

3rd Generation AMD Ryzenprocessors:

-1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)

2nd Generation AMD Ryzenprocessors/2nd Generation AMD Ryzenwith RadeonVega Graphics processors/AMD Ryzenwith RadeonVega Graphics processors:

-1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)

Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):

-1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 (Note 2)/3.0 x4/x2 SSD support) (M2B_SOCKET)

-1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0 (Note 2)/3.0 x2 SSD support) (M2C_SOCKET)

-6 x SATA 6Gb/s connectors

-Support for RAID 0, RAID 1, and RAID 10

* Refer to "1-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

(Note 2) For 3rd Generation AMD Ryzenprocessors only.

(Note 3) For 3rd Generation AMD Ryzenprocessors/2nd Generation AMD Ryzenprocessors only. - 8 -

USB

Integrated in the CPU:



-

3 x USB 3.2

Gen 1 ports on the back panel



-

1 x USB 3.2

Gen 2 (Note 2)/Gen 1 Type-A port (red) on the back panel

Chipset:

-1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

-1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

-1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

-4 x USB 3.2 Gen 1 ports available through the internal USB headersChipset+USB 2.0 Hubs:

-8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Internal

1 x 24-pin ATX main power connector

Connectors

1 x 8-pin ATX 12V power connector



1 x 4-pin ATX 12V power connector



1 x CPU fan header



1 x water cooling CPU fan header



3 x system fan headers



2 x system fan/water cooling pump headers



2 x addressable LED strip headers



2 x RGB LED strip headers



1 x CPU cooler LED strip/RGB LED strip header



3 x M.2 Socket 3 connectors



6 x SATA 6Gb/s connectors



1 x front panel header



1 x front panel audio header



1 x USB Type-C header, with USB 3.2 Gen 2 support



2 x USB 3.2 Gen 1 headers



2 x USB 2.0/1.1 headers



1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S



module only)



1 x Clear CMOS jumper



2 x temperature sensor headers



1 x Q-Flash Plus button

Back Panel

2 x SMA antenna connectors (2T2R)

Connectors

1 x HDMI port



1 x USB Type-C port, with USB 3.2 Gen 2 support



1 x USB 3.2 Gen 2 (Note 2)/Gen 1 Type-A port (red)



1 x USB 3.2 Gen 2 Type-A port (red)



3 x USB 3.2 Gen 1 ports



4 x USB 2.0/1.1 ports



1 x RJ-45 port



1 x optical S/PDIF Out connector



5 x audio jacks

(Note 2) For 3rd Generation AMD Ryzenprocessors only.

- 9 -

I/O Controller



iTE® I/O Controller Chip

Hardware



Voltage detection

Monitor



Temperature detection



Fan speed detection



Water cooling flow rate detection





Overheating warning



Fan fail warning



Fan speed control







* Whether the fan (pump) speed control function is supported will depend on the fan







(pump) you install.

BIOS



2 x 128 Mbit flash



Use of licensed AMI UEFI BIOS



Support for DualBIOS



PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features



Support for APP Center







* Available applications in APP Center may vary by motherboard model. Supported







functionsofeachapplicationmayalsovarydependingonmotherboardspecifications.





-

@BIOS





-

AutoGreen





-

Cloud Station





-

EasyTune





-

Fast Boot





-

Game Boost





-

ON/OFF Charge





-

RGB Fusion





-

Smart Backup





-

Smart Keyboard





-

Smart Survey





-

System Information Viewer





-

USB Blocker



Support for Q-Flash Plus





Support for Q-Flash



Support for Xpress Install

Bundled



Norton® Internet Security (OEM version)

Software



cFosSpeed



XSplit Gamecaster + Broadcaster (12 months license)

Operating

Support for Windows 10 64-bit

System







Form Factor



ATX Form Factor; 30.5cm x 24.4cm

*GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice.

Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

Please visit the Support\Utility List page on GIGABYTE's website to download the latest version of apps.

- 10 -

1-3

Installing the CPU



Read the following guidelines before you begin to install the CPU:



••

Make sure that the motherboard supports the CPU.





(Go to GIGABYTE's website for the latest CPU support list.)



••

Always turn off the computer and unplug the power cord from the power outlet before installing the





CPU to prevent hardware damage.



••

Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.



••

Apply an even and thin layer of thermal grease on the surface of the CPU.



••

Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage





of the CPU may occur.



••

Set the CPU host frequency in accordance with the CPU specifications. It is not recommended





that the system bus frequency be set beyond hardware specifications since it does not meet the





standard requirements for the peripherals. If you wish to set the frequency beyond the standard





specifications, please do so according to your hardware specifications including the CPU, graphics





card, memory, hard drive, etc.

Installing the CPU

Locate the pin one (denoted by a small triangle) of the CPU socket and the CPU.

A Small Triangle



A Small Triangle



Marking Denotes Pin

AM4 Socket

AM4 CPU

Marking Denotes CPU

One of the Socket







Pin One









1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•• Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

•• Memory modules have a foolproof design. A memory module can be installed in only one direction. If you are unable to insert the memory, switch the direction.

Dual Channel Memory Configuration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory is installed, the BIOS will automatically detect the specifications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

Channel A: DDR4_A1, DDR4_A2Channel B: DDR4_B1, DDR4_B2

Please visit GIGABYTE's website for details on hardware installation.

- 11 -

(Note 2)/SLI bridge connectors in the CrossFire/SLI gold edge connectors on top of the cards.

Dual Channel Memory Configurations Table



DDR4_A1

DDR4_A2

DDR4_B1

DDR4_B2

2 Modules

- -

DS/SS

- -

DS/SS



DS/SS

- -

DS/SS

- -

4 Modules

DS/SS

DS/SS

DS/SS

DS/SS

(SS=Single-Sided, DS=Double-Sided, "- -"=No Memory)

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1.Dual Channel mode cannot be enabled if only one memory module is installed.

2.When enabling Dual Channel mode with two or four memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used. For optimum performance, when enabling Dual Channel mode with two memory modules, we recommend that you install them in the DDR4_A2 and DDR4_B2 sockets.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•• Make sure the motherboard supports the expansion card. Carefully read the manual that came with your expansion card.

•• Always turn off the computer and unplug the power cord from the power outlet before installing an expansion card to prevent hardware damage.

1-6 Setting up AMD CrossFire/NVIDIA® SLIConfiguration(Note 1)

A.System Requirements

-- Windows 10 64-bit operating system

-- A CrossFire/SLI-supported motherboard with two or more PCI Express x16 slots and correct driver -- CrossFire/SLI-ready graphics cards of identical brand and chip and correct driver

-- CrossFire (Note 2)/SLI bridge connectors

-- A power supply with sufficient power is recommended (Refer to the manual of your graphics cards for the power requirement)

B.Connecting the Graphics Cards

Step 1:

Observe the steps in "1-5 Installing an Expansion Card" and install the graphics cards on the PCIEX16 and PCIEX8 slots.

Step 2:

Insert the CrossFire Step 3:

Plug the display cable into the graphics card on the PCIEX16 slot.

C. Configuring the Graphics Card Driver

C-1. To Enable CrossFire Function

After installing the graphics card driver in the operating system, go to the AMD RADEON SETTINGS screen. Browse to Gaming\Global Settings and ensure AMD CrossFire is set to On.

C-2. To Enable SLI Function

After installing the graphics card driver in the operating system, go to the NVIDIA Control Panel. Browse to the

Configure SLI, Surround, Physx screen and ensure Maximize 3D performance is enabled.

(Note 1) For 3rd Generation AMD Ryzenprocessors/2nd Generation AMD Ryzenprocessors only. (Note 2) The bridge connector(s) may be needed or not depending on your graphics cards.

Procedure and driver screen for enabling CrossFire/SLI technology may differ by graphics cards and driver version. Refer to the manual that came with your graphics cards for more information about enabling CrossFire/SLI technology.

- 12 -

1-7 Back Panel Connectors

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specification. Use this port for USB devices.

SMA Antenna Connectors (2T2R)

Use this connector to connect an antenna.

Tighten the antenna cables to the antenna connectors and then move the antenna to a place where the signal is good.

HDMI Port (Note 1)

The HDMI port is HDCP 2.2 compliant and supports Dolby TrueHD and DTS HD

Master Audio formats. It also supports up to 192KHz/24bit 8-channel LPCM audio output. You can use this port to connect your HDMI-supported monitor. The maximum supported resolution is 4096x2160@60 Hz, but the actual resolutions supported are dependent on the monitor being used.

After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The item name may differ depending on your operating system.)

USB 3.2 Gen 1 Port

The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specification and is compatible to the USB 2.0 specification. Use this port for USB devices.

USB 3.2 Gen 1 Port (White)

The USB 3.2 Gen 1 port supports the USB 3.2 Gen 1 specification and is compatible to the USB 2.0 specification. Use this port for USB devices. Before using Q-Flash Plus(Note 2), make sure to insert the USB flash drive into this port first.

USB 3.2 Gen 2 (Note 3)/Gen 1 Type-A Port (Red)

The USB 3.2 Gen 2 Type-A port supports the USB 3.2 Gen 2 (Note 3)/Gen 1 specification and is compatible to the USB 3.2 Gen 1 and USB 2.0 specification. Use this port for USB devices.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following describes the states of the LAN port LEDs.

Connection/

















Connection/Speed LED:



Activity LED:



Speed LED







Activity LED

















































State

Description



State

Description































Orange

1 Gbps data rate



Blinking

Data transmission or receiving is occurring































Green

100 Mbps data rate



On

No data transmission or receiving is occurring































Off

10 Mbps data rate















































LAN Port

























•• When removing the cable connected to a back panel connector, first remove the cable from your device and then remove it from the motherboard.

•• When removing the cable, pull it straight out from the connector. Do not rock it side to side to prevent an electrical short inside the cable connector.

- 13 -

USB 3.2 Gen 2 Type-A Port (Red)

The USB 3.2 Gen 2 Type-A port supports the USB 3.2 Gen 2 specification and is compatible to the USB 3.2 Gen 1 and USB 2.0 specification. Use this port for USB devices.

USB Type-C Port

The reversible USB port supports the USB 3.2 Gen 2 specification and is compatible to the USB 3.2 Gen 1 and USB 2.0 specification. Use this port for USB devices.

Center/Subwoofer Speaker Out

Use this audio jack to connect center/subwoofer speakers.

Rear Speaker Out

Use this audio jack to connect rear speakers.

Optical S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital optical audio. Before using this feature, ensure that your audio system provides an optical digital audio in connector.

Line In/Side Speaker Out

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out/Front Speaker Out

The line out jack. This jack supports audio amplifying function. For better sound quality, it is recommended that you connect your headphone/speaker to this jack (actual effects may vary by the device being used).

Mic In/Side Speaker Out

The Mic in jack.

Audio Jack Configurations:

Jack

Headphone/

4-channel

5.1-channel

7.1-channel

2-channel









Center/Subwoofer Speaker





a

a

Out













Rear Speaker Out



a

a

a

Line In/Side Speaker Out







a

Line Out/Front Speaker Out

a

a

a

a

Mic In/Side Speaker Out







a

•• If you want to install a Side Speaker, you need to retask either the Line in or Mic in jack to be Side Speaker out through the audio driver.

•• To enable or configure the audio amplifying function for the Line out jack, please access the

HD Audio Manager application.

Please visit GIGABYTE's website for details on configuring the audio software.

(Note 1) For 2nd Generation AMD Ryzenwith RadeonVega Graphics processors/AMD Ryzenwith RadeonVega Graphics processors only.

(Note 2) To enable the Q-Flash Plus function please visit the "Unique Features" webpage of GIGABYTE's website.

(Note 3) For 3rd Generation AMD Ryzenprocessors only. - 14 -

1-8

Internal Connectors



















4

1

1







6

3

8

10





















21





















2



9

















5





















4



12

















7



















22



20

















15























12

















11























12





















14

















19























8

10

18

17

7

5



16



13

1)

ATX_12V1/ATX_12V









12)

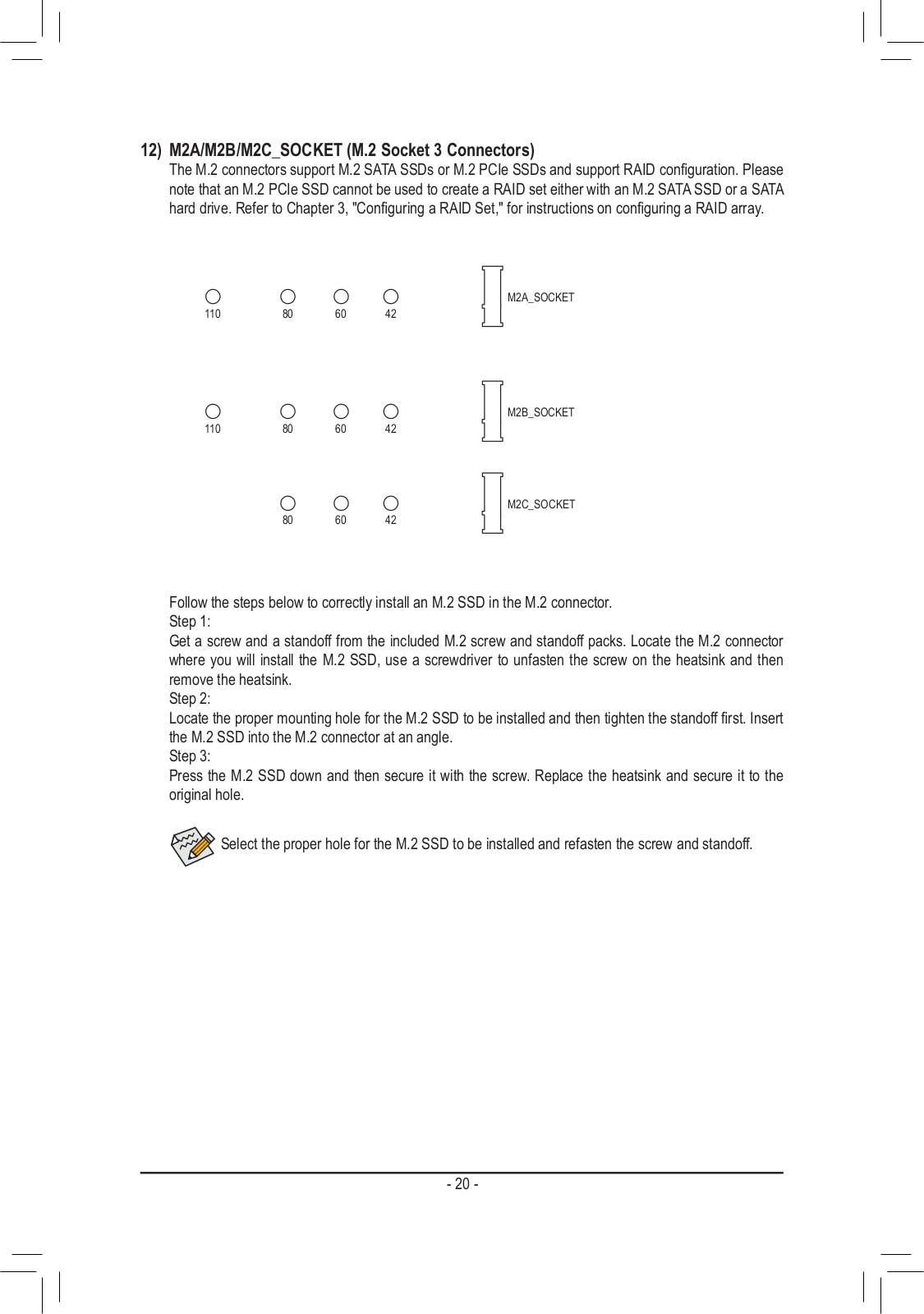

M2A/M2B/M2C_SOCKET

2)

ATX









13)

F_PANEL

3)

CPU_FAN









14)

F_AUDIO



4)

SYS_FAN1/2/4









15)

F_USB31C

5)

SYS_FAN5_PUMP/SYS_FAN6_PUMP





16)

F_USB30_1/F_USB30_2

6)

CPU_OPT









17)

F_USB1/F_USB2

7)

EC_TEMP1/EC_TEMP2









18)

TPM





8)

D_LED1/D_LED2









19)

CLR_CMOS

9)

LED_CPU









20)

BAT





10)

LED_C1/LED_C2









21)

QFLASH_PLUS

11)

SATA3 0/1/2/3/4/5









22)

CPU/DRAM/VGA/BOOT

Read the following guidelines before connecting external devices:

•• First make sure your devices are compliant with the connectors you wish to connect.

•• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.

•• After installing the device and before turning on the computer, make sure the device cable has been securely attached to the connector on the motherboard.

- 15 -

Loading...
+ 33 hidden pages
