Page 1
When you installing AGP card, please make sure the following
notice is fully understood and practiced. If your AGP card has
"AGP 4X/8X (1.5V) notch"(show below), please make sure your
AGP card is AGP 4X/8X (1.5V).
Caution: AGP 2X card is not supported by Intel® 845(GE/PE) / 845(E/
G) / 850(E) / E7205 / 865(G/PE/P) / 875P. You might experience system
unable to boot up normally. Please insert an AGP 4X/8X card.
Example 1: Diamond Vipper V770 golden finger is compatible with 2X/4X
mode AGP slot. It can be switched between AGP 2X(3.3V) or 4X(1.5V)
mode by adjusting the jumper. The factory default for this card is
2X(3.3V). The GA-8IPE1000 Series (or any AGP 4X/8X only)
motherboards might not function properly, if you install this card without
switching the jumper to 4X(1.5V) mode in it.
Example 2: Some ATi Rage 128 Pro graphics cards made by "Power Color",
the graphics card manufacturer & some SiS 305 cards, their golden finger
is compatible with 2X(3.3V)/4X(1.5V) mode AGP slot, but they support 2X
(3.3V) only. The GA-8IPE1000 Series (or any AGP 4X/8X only)
motherboards might not function properly, If you install this card in it.
Note : Although Gigabyte's AG32S(G) graphics card is based on ATi Rage
128 Pro chip, the design of AG32S(G) is compliance with AGP 4X(1.5V)
specification. Therefore, AG32S(G) will work fine with Intel® 845(GE/PE) /
845(E/G) / 850(E) / E7205 / 865(G/PE/P) / 875P based motherboards.
Before you install PCI cards, please remove the Dual BIOS label from
PCI slots if there is one.
AGP 4X/8X notch
Page 2
M The author assumes no responsibility for any errors
or omissions that may appear in this document nor
does the author make a commitment to update the
information contained herein.
M Third-party brands and names are the property of
their respective owners.
M Please do not remove any labels on motherboard, this
may void the warranty of this motherboard.
M Due to rapid change in technology, some of the
specifications might be out of date before publication
of this booklet.
Page 3
Declaration of Conformity
We, Manufacturer/Importer
(full address)
G.B.T. Te chnology Träding GMbH
Ausschla ger Weg 41, 1F, 20537 Hamburg, Germany
declare that the product
( description of the apparatus, system, installation to which it refers)
Mother Board
GA-8IPE1000 Pro-G/GA-8IPE1000-G/GA-8IPE1000
is in conformity with
(reference to the specification under which con formity is declared)
in accordance with 89/336 EEC-EMC Directive
o EN 55011 Limits and methods of measurement
of radio disturbance characteristics of
industrial,scientific and medical (ISM
high frequency equipment
o EN 61000-3-2*
T EN 60555-2
Disturbances in supply systems cause
by household appliances and similar
electrical equipment “Harmonics”
o EN 55013
Limits and methods of measurement
of radio disturbance characteristics of
broadcast receivers and associated
equipment
o EN 61000-3-3* Disturbances in supply systems cause
by household appliances and similar
electrical equipment “Voltage fluctuations”
o EN 55014 Limits and methods of measurement
of radio disturbance characteristics of
household electrical appliances,
portable tools and similar electrical
apparatus
T EN 50081-1
Generic emission standard Part 1:
Residual commercial and light industry
T EN 50082-1
Generic immunity standard Part 1:
Residual commercial and light industry
o EN 55015 Limits and methods of measurement
of radio disturbance characteristics of
fluorescent lamps and luminaries
Generic emission standard Part 2:
Industrial environment
o EN 55081-2
Immunity from radio interference of
broadcast receivers and associated
equipment
Generic emission standard Part 2:
Industrial environment
o EN 55082-2
T EN 55022 Limits and methods of measurement
of radio disturbance characteristics of
information technology equipment
lmmunity requirements for household
appliances tools and similar apparatus
o ENV 55104
Cabled distribution systems; Equipment
for receiving and/or distribution from
sound and television signals
EMC requirements for uninterruptible
power systems (UPS)
o EN50091-2
o EN 55020
o DIN VDE 0855
o part 10
o part 12
(EC conformity marking)
T CE marking
The manufacturer also declares the conformity of above mentioned product
with the actual required safety standards in accordance with LVD 73/23 EEC
Safety requirements for mains operated
electronic and related apparatus for
household and similar general use
o EN 60950
o EN 60065
Safety of household and similar
electrical appliances
o EN 60335
Manufacturer/Importer
Signature:
Name:
(Stamp)
Date : Jan. 15, 2004
T EN 60555-3
Timmy Huang
Timmy Huang
o EN 50091-1
Safety for information technology equipment
including electrical bussiness equipment
General and Safety requirements for
uninterruptible power systems (UPS)
Page 4
FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109
(a),Class B Digital Device
DECLARATION OF CONFORMITY
Per FCC Part 2 Section 2.1077(a)
Responsible Party Name:
Address:
Phone/Fax No:
hereby declares that the product
Product Name:
Conforms to the following specifications:
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful and (2) this device must accept any inference received,
including that may cause undesired operation.
Representative Person’s Name:
Signature:
Eric Lu
Supplementary Information:
Model Number:
17358 Railroad Street
City of Industry, CA 91748
G.B.T. INC. (U.S.A.)
(818) 854-9338/ (818) 854-9339
Motherboard
GA-8IPE1000 Pro-G/GA-8IPE1000-G/
GA-8IPE1000
Date:
ERIC LU
Jan. 15, 2004
Page 5
USER'S MANUAL
GA-8IPE1000 Series
P4 Titan Series Motherboard
Pentium®4 Processor Motherboard
Rev. 3001
12ME-8IPE1KG-3001
Page 6
- 2 -GA-8IPE1000 Series Motherboard
English
Table of Content
Warning ..............................................................................................4
Chapter 1 Introduction .........................................................................5
Features Summary .......................................................................................... 5
GA-8IPE1000 Series Motherboard Layout ..................................................... 8
Block Diagram .................................................................................................. 9
Chapter 2 Hardware Installation Process ............................................ 11
Step 1: Install the Central Processing Unit (CPU) ....................................... 12
Step 1-1: CPU Installation ........................................................................................... 12
Step 1-2 : CPU Cooling Fan Installation ...................................................................... 13
Step 2: Install memory modules ................................................................... 14
Step 3: Install expansion cards ..................................................................... 17
Step 4: Connect ribbon cables, cabinet wires, and power supply .............. 18
Step 4-1: I/O Back Panel Introduction ..........................................................................18
Step 4-2: Connectors & Jumper Setting Introduction .................................................... 20
Chapter 3 BIOS Setup ....................................................................... 35
The Main Menu (For example: BIOS Ver.: 8IPE1000 Pro-G.E1) ................ 36
Standard CMOS Features ............................................................................. 38
Advanced BIOS Features .............................................................................. 41
Integrated Peripherals .................................................................................. 43
Power Management Setup ............................................................................ 48
Page 7
Table of Content
English
- 3 -
(*) For GA-8IPE1000 Pro-G only.
PnP/PCI Configurations................................................................................. 50
PC Health Status ........................................................................................... 51
Frequency/Voltage Control ............................................................................ 53
Select Language (*) ....................................................................................... 56
Load Fail-Safe Defaults ................................................................................. 57
Load Optimized Defaults ............................................................................... 58
Set Supervisor/User Password ..................................................................... 59
Save & Exit Setup .......................................................................................... 60
Exit Without Saving ...................................................................................... 61
Chapter 4 Technical Reference .......................................................... 63
@ BIOSTM Introduction .................................................................................. 63
Easy TuneTM 4 Introduction ........................................................................... 64
Face-WizardTM Utilities Installation (*) .......................................................... 65
Flash BIOS Method Introduction ................................................................... 66
2-/4-/6-/8-Channel Audio Function Introduction ........................................... 87
Jack-Sensing(UAJ) Introduction ................................................................... 93
Xpress Recovery Introduction ....................................................................... 95
Chapter 5 Appendix ........................................................................... 99
Page 8
- 4 -GA-8IPE1000 Series Motherboard
English
Warning
Computer motherboards and expansion cards contain very delicate Integrated Circuit (IC) chips. To
protect them against damage from static electricity, you should follow some precautions whenever you
work on your computer.
1. Unplug your computer when working on the inside.
2. Use a grounded wrist strap before handling computer components. If you do not have
one, touch both of your hands to a safely grounded object or to a metal object, such as
the power supply case.
3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
other components.
4. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.
5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX
power connector on the motherboard.
If the motherboard has mounting holes, but they don't line up with the holes on the base and there
are no slots to attach the spacers, do not become alarmed you can still attach the spacers to the
mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard to cut off, so
be careful of your hands). In this way you can still attach the motherboard to the base without worrying
about short circuits. Sometimes you may need to use the plastic springs to isolate the screw from the
motherboard PCB surface, because the circuit wire may be near by the hole. Be careful, don't let the
screw contact any printed circuit write or parts on the PCB that are near the fixing hole, otherwise it may
damage the board or cause board malfunctioning.
Installing the motherboard to the chassis…
Page 9
Introduction- 5 -
English
Form Factor — 30.5cm x 23.0cm ATX size form factor, 4 layers PCB.
Motherboard — GA-8IPE1000 Series Motherboard:
GA-8IPE1000 Pro-G/GA-8IPE1000-G/GA-8IPE1000
CPU — Socket 478 for Intel® Micro FC-PGA2 Pentium® 4 processor
— Support Intel® Pentium® 4 (Northwood, Prescott) processor
— Support Intel® Pentium® 4 Processor with HT Technology
— Intel Pentium®4 400/533/800MHz FSB
— 2nd cache depends on CPU
Chipset — Chipset Intel 865PE HOST/AGP/Controller
— ICH5 I/O Controller Hub
Memory — 4 184-pin DDR DIMM sockets
— Supports Dual channel DDR400/DDR333/DDR266 DIMM
— Supports 128MB/256MB/512MB/1GB unbuffered DRAM
— Supports up to 4GB DRAM (Max)
I/O Control — ITE8712
Slots — 1 AGP slot supports 8X/4X mode
— 5 PCI slot supports 33MHz & PCI 2.3 compliant
On-Board IDE — 2 IDE bus master (UDMA33/ATA66/ATA100) IDE ports
for up to 4 ATAPI devices
— Supports PIO mode3,4 (UDMA 33/ATA66/ATA100) IDE
& ATAPI CD-ROM
Serial ATA — 2 Serial ATA connectors (SATA0/SATA1) in 150 MB/s operation
mode
— Controlled by ICH5
Chapter 1 Introduction
Features Summary
to be continued......
Due to c hipset (Intel 875P/865G/865PE/848P) architecture lim itation, a FSB 800 Pentium 4
processor will support DDR400/DDR333/DDR266 memory module. A FSB 533 Pentium 4
processor will support DDR333 and DDR266 mem ory module. A FSB 400 Pentium 4 processor
will only support DDR 266 m emory module.
Page 10
- 6 -GA-8IPE1000 Series Motherboard
English
On-Board Peripherals — 1 Floppy port supports 2 FDD with 360K, 720K,1.2M, 1.44M
and 2.88M bytes.
— 1 Parallel port supports Normal/EPP/ECP mode
— 2 Serial ports (COMA&COMB)
— 8 USB 2.0/1.1 ports (4 x Rear, 4 xFront by cable)
— 1 Front Audio Connector
— 3 IEEE1394 (by cable) (*
)
— 1 IrDA connector for IR/CIR
Hardware Monitor — CPU/Power (*)/System Fan Revolution detect
— CPU/Power (*)/System Fan Fail Warning
— CPU Overheat Warning
— System Voltage Detect
On-Board Sound — Realtek ALC850 UAJ CODEC
— Support Jack-Sensing
— Line Out / 2 front speaker
— Line In / 2 rear speaker(by s/w switch)
— Mic In / center& subwoofer(by s/w switch)
— SPDIF Out /SPDIF In
— CD_In / Game Connector
— Surround Back speaker (by optional Surround-Kit)
O n -B o a r d L A N
(*u)
— Build in Marvell 8001 Chipset (10/100/1000 Mbit)(*
u)
— 1 RJ45 port
O n -B o a r d IE E E 1 3 9 4
(*)
— Ti TSB43AB23
PS/2 Connector — PS/2 Keyboard interface and PS/2 Mouse interface
BIOS — Licensed AWARD BIOS
— Supports Dual BIOS (*)/Q-Flash
— Supports Multi Language (*
)
— Supports Face Wizard (*
)
to be continued......
(*) For GA-8IPE1000 Pro-G only.
(u) For GA-8IPE1000-G only.
Page 11
Introduction- 7 -
English
Additional Features — PS/2 Keyboard power on by password
— PS/2 Mouse power on
— STR(Suspend-To-RAM)
— AC Recovery
— USB KB/Mouse wake up from S3
— Supports EasyTune 4
— Supports @BIOS
— Supports CPU Smart Fan Control function (*
)
Overclocking — Over Voltage (DDR/AGP/CPU) by BIOS
— Over Clock (DDR/AGP/CPU/PCI) by BIOS
Please set the CPU host frequency in accordance with your processor's specifications.
We don't recommend you to set the system bus frequency over the CPU's specification
because these specific bus frequencies are not the standard specifications for CPU,
chipset and most of the peripherals. Whether your system can run under these specific
bus frequencies properly will depend on your hardware configurations, including CPU,
Chipsets, Memory, Cards… .etc.
HT functionality requirement content :
Enabling the functionality of Hyper-Threading Technology for your computer system requires
all of the following platform components:
- CPU: An Intel® Pentium 4 Processor with HT Technology
- Chipset: An Intel® Chipset that supports HT Technology
- BIOS: A BIOS that supports HT Technology and has it enabled
- OS: An operation system that has optimizations for HT Technology
(*) For GA-8IPE1000 Pro-G only.
Page 12
- 8 -GA-8IPE1000 Series Motherboard
English
Note: If the NorthBridge on the motherboard has a fan sink, then the motherboard contains a
NB_FAN connector.
(*) For GA-8IPE1000 Pro-G only.
(u) For GA-8IPE1000-G only.
GA-8IPE1000 Series Motherboard Layout
GA-8IPE1000 (Pro)(-G)
KB_MS
COMACOMB
ATX_12V
SOC KET478
CPU_FAN
ATX
FDD
LPT
R_USB
Hyper Threading
SPDIF_IO
BACKUP
B I O S
(*)
IR_C IR
PCI5
F_U SB1
F_U SB2
F2_1394 (*
)
F1_1394 (*
)
GAME
IDE1
IDE2
MIC_IN
USB
LAN
(
*
u)
PWR_L ED
CODEC
ITE8712
F_PANEL
BAT
PCI3
PCI4
MAIN
BIOS
CI
P4 Titan
SYS_FAN
INFO_LIN K
TSB43AB23 (*
)
PWR_FAN (*
)
CLR_C MOS
F_AUDIO
ICH5
PCI2
SUR_CEN
PCI1
DDR3
DDR1
DDR2
NB_FAN (*
)
CD_IN
Intel® 8 65PE
AGP
Marv ell
8 0 0 1
(*u)
LINE_IN
LINE_OUT
DDR4
SATA 1
SATA 0
Page 13
- 9 - Hardware Installation Process
English
Block Diagram
(*) For GA-8IPE1000 Pro-G only.
(u) For GA-8IPE1000-G only.
Serial ATA
Channels
Pentium 4
Socket 478
CPU
Intel 865PE
AC97
CODEC
ICH5
CPUCLK+/- (100/133/200MHz)
System Bus
400/533/800MHz
266/333/400MHz
ZCLK (66MHz)
HCLK+/- (100/133MHz)
66MHz
33 MHz
14.318 MHz
48 MHz
24 MHz
33 MHz
LPC BUS
AGP 8X/4X
AGPCLK
(66M Hz)
5 PCI
PCICLK
(33M Hz)
AC97 Link
MIC
LINE-IN
LINE-OUT
8 USB
(2.0/1.1)
Ports
ATA33/66/100
IDE Channels
Floppy
LPT Port
PS/2
KB/Mouse
COM
Ports
CLK GEN
ZCLK (66MHz)
CPUCLK+/- (100/133/200MHz)
AGPCLK (66MHz)
HCLK+/- (100/133MHz)
PCICLK (33MHz)
USBCLK (48MHz)
14.318 MHz
33 MHz
ITE8712
Game Port
BIOS
Marvell 8001 (*
u)
RJ45 (*
u)
24 MHz
ICH3V66 (66M Hz)
DDR
TSB43AB23 (*
)
IEEE 1394 (*
)
Page 14
- 10 -GA-8IPE1000 Series Motherboard
English
Page 15
- 11 - Hardware Installation Process
English
To set up your computer, you must complete the following steps:
Step 1- Install the Central Processing Unit (CPU)
Step 2- Install memory modules
Step 3- Install expansion cards
Step 4- Connect ribbon cables, cabinet wires, and power supply
Chapter 2 Hardware Installation Process
Congratulations you have accomplished the hardware installation!
Turn on the power supply or connect the power cable to the power outlet. Continue with
the BIOS/software installation.
Step 2
Step 4
Step 1
Step 4
Step 4
Step 3
Note: If the NorthBridge on the motherboard has a fan sink, then the motherboard contains a
NB_FAN connector.
Page 16
- 12 -GA-8IPE1000 Series Motherboard
English
Step 1: Install the Central Processing Unit (CPU)
Step 1-1: CPU Installation
Pin1 indicator
3. CPU Top View
2. Pull the rod to the 90-degree directly.
4. Locate Pin 1 in the socket and look
for a (golden) cut edge on the CPU
upper corner. Then insert the CPU
into the socket.
Angling the
r o d t o 6 5
0
Socket
Actuation
Lever
Pin1 indicator
1. Angling the rod to 65-degree maybe feel a
kind of tight, and then continue pull the rod
to 90-degree when a noise "cough" made.
Before installing the processor, adhere to the following warning:
If you do not match the CPU socket Pin 1 and CPU cut edge well, it will
cause improper installation. Please change the insert orientation.
Please make sure the CPU type is supported by the motherboard.
Page 17
- 13 - Hardware Installation Process
English
Step 1-2 : CPU Cooling Fan Installation
1. Please use Intel approved cooling fan.
2. We recommend you to apply the thermal tape to provide better heat conduction
between your CPU and cooling fan.
(The CPU cooling fan might stick to the CPU due to the hardening of the thermal
paste. During this condition if you try to remove the cooling fan, you might pull the
processor out of the CPU socket alone with the cooling fan, and might damage the
processor. To avoid this from happening, we suggest you to either use thermal
tape instead of thermal paste, or remove the cooling fan with extreme caution.)
3. Make sure the CPU fan power cable is plugged in to the CPU fan connector, this
completes the installation.
Please refer to CPU cooling fan user's manual for more detail installation procedure.
2. Make sure the CPU fan is plugged to
the CPU fan connector, than install
complete.
1. Fasten the cooling fan supporting-base
onto the CPU socket on the
mainboard.

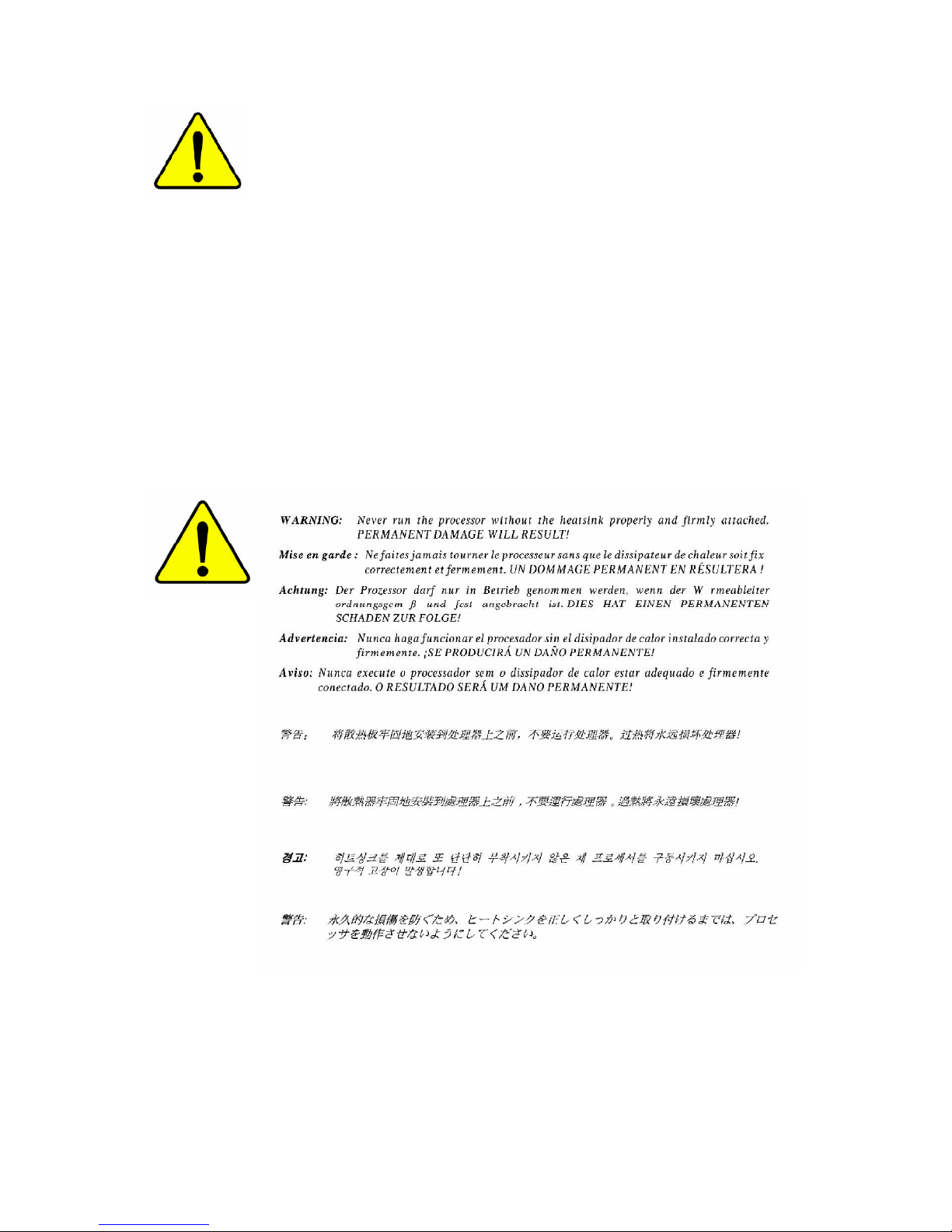

Before installing the CPU Cooling Fan , adhere to the following warning:
Page 18
- 14 -GA-8IPE1000 Series Motherboard
English
The motherboard has 4 dual inline memory module (DIMM) sockets. The BIOS will automatically
detects memory type and size. To install the memory module, just push it vertically into the DIMM
socket. The DIMM module can only fit in one direction due to the notch. Memory size can vary
between sockets.
Step 2: Install memory modules
DDR
Notch
Before installing the processor and heatsink, adhere to the following warning:
Please note that the DIMM module can only fit in one direction due to the one notches.
Wrong orientation will cause improper installation. Please change the insert orientation.
GA-8IPE1000 Series supports the Dual Channel Technology. After operating the Dual Channel Technology,
the bandwidth of Memor y Bus will add double up to 6.4GB/s.
GA-8IPE1000 Series includes 4 DIM M sockets, and each Channel has two DIM M sockets as following:
Channel A : DIM M 1, DIM M 2
Channel B : DIMM 3, DIMM 4
If yo u want to operate the Dual Channel Technology, please note the following explanations due
to the l imitation of Intel® chipset specifications.
1. Only one DDR m emory module is installed: The Dual Channel Technology can't operate
when only one DDR memory module is installed.
Page 19
- 15 - Hardware Installation Process
English
2 me mory mo dules
4 me mory mo dules
DIMM 1 DIMM 2 DIMM 3 DIMM 4
DS/SS X DS/SS X
X DS/SS X DS/SS
DS/SS DS/SS DS/SS DS/SS
l Figure 1: D ual Channel Technology (DS: Double Side, SS: Single Side)
2. Two DDR mem ory modules are installed (the same memory size and type): The Dual
Channel Technology will operate when two me mory modules are inserted in dividually into
Channel A and B. If you install two mem ory modules in the same channel, the Dual Channel
Techn ology will not operate.
3. Three DDR memory modules are installed: Please note that The Dual Channel
Technology will not operate when three DDR mem ory modules are installed; part of
them will not be detected.
4. Four DDR memory modules are installed: If you install four mem ory modules at the sam e
time, the D ual Channel Technology will operate only when those modules have the same
mem ory size and type.
We'll strongly recommend our user to slot two DDR memory modules into the DIMMs with the
same color in order for Dual Channel Technology to work.
The following tables include all memory-installed combination types:
(Please note that those types not in the tables will not boot up.)
1 me mory mo dule
2 me mory mo dules
3 me mory mo dules
DIMM 1 DIMM 2 DIMM 3 DIMM 4
DS/SS X X X
X DS/SS X X
X X DS/SS X
X X X DS/SS
DS/SS DS/SS X X
X X DS/SS DS/SS
DS/SS DS/SS DS/SS X
DS/SS DS/SS X DS/SS
DS/SS X DS/SS DS/SS
X DS/SS DS/SS DS/SS
l Figure 2: Don't operate Dual Channel Technology (DS: Double Side, SS : Single Side)
Page 20
- 16 -GA-8IPE1000 Series Motherboard
English
1. The DIM M slot has a notch, so the DIMM
mem ory module can only fit in one direction.
2. Insert the DIMM memory module vertically into
the DIMM slot. Then push it down.
3. Close the plastic clip at both edges of the DIMM
slots to lock the DIMM module.
Reverse the installation steps when you wish
to remove the DIM M module.
DDR Introduction
Established on the existing SDRAM infrastructure, DDR (Double Data Rate) memory is a high
performance and cost-effective solution that allows easy adoption for memory vendors, OEMs,
and system integrators.
DDR memory is a great evolutionary solution for the PC industry that builds on the existing
SDRAM architecture, yet make the awesome advances in solving the system performance
bottleneck by doubling the memory bandwidth. Nowadays, with the highest bandwidth of 3.2GB/
s of DDR400 memory and complete line of DDR400/333/266/200 memory solutions, DDR memory
is the best choice for building high performance and low latency DRAM subsystem that are
suitable for servers, workstations, and full range of desktop PCs.
Page 21
- 17 - Hardware Installation Process
English
Step 3: Install expansion cards
1. Read the related expansion card's instruction document before install the expansion card into
the computer.
2. Remove your computer’s chassis cover, necessary screws and slot bracket from the computer.
3. Press the expansion card firmly into expansion slot in motherboard.
4. Be sure the metal contacts on the card are indeed seated in the slot.
5. Replace the screw to secure the slot bracket of the expansion card.
6. Replace your computer's chassis cover.
7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.
8. Install related driver from the operating system.
AGP Card
Please carefully pull out the sm all white- drawable bar
at the end o f the AGP slot when you try to instal l/
Uninstall the AGP card. Please align the AGP card to
the onboard AGP slot and press firmly down on the slot
.Make sure your AGP card is locked by the small whitedrawable bar.
Page 22
- 18 -GA-8IPE1000 Series Motherboard
English
Step 4: Connect ribbon cables, cabinet wires, and power
supply
Step 4-1: I/O Back Panel Introduction
u PS/2 Keyboard and PS/2 Mouse Connector
This connector supports standard PS/2
keyboard and PS/2 mouse.
PS/2 Mouse Connector
(6 pin Female)
PS/2 Keyboard Connector
(6 pin Female)
u
v
w x
y
v/x USB / LAN Connector
Before you connect your device(s) into USB
connector(s), please make sure your
device(s) such as USB keyboard,mouse,
scanner, zip, speaker..etc. Have a standard
USB interface. Also make sure your OS
supports USB controller.
If your OS does not support USB controller,
please contact OS vendor for possible patch
or driver upgrade. For more information
please contact your OS or device(s) vendors.
LAN connector is fast Ethernet with 10/100/
1000 Mbps speed.
LAN (*
u)
USB 3
USB 2
USB 4
USB 5
(*) For GA-8IPE1000 Pro-G only.
(u) For GA-8IPE1000-G only.
Page 23
- 19 - Hardware Installation Process
English
After install onboard audio driver, you may
connect speaker to Line Out jack,
microphone to MIC In jack. Devices like
CD-ROM, walkman etc. can be connected
to Line-In jack.
Please note:
You are able to use 2-/4-/6-/8-channel audio
feature by S/W selection.
If you want to enable 8-channel function you
can refer to page 27, and contact your
nearest dealer for optional SUR_CEN cable.
wParallel Port and Serial Ports (COMA/COMB)
This connector supports 2 standard COM
ports and 1 Parallel port. Device like printer
can be connected to Parallel port; mouse
and modem etc can be connected to Serial
ports.
Parallel Port
(25 pin Female)
COMA
COMB
Serial Port (9 pin Male)
y Audio Connectors
Line In(Rear Speaker)
MIC In(Center and Subwoofer)
Line Out(Front Speaker)
If you want the detail information for 2-/ 4-/ 6-/ 8-channel audio setup
installation, please refer to page 87.
Page 24
- 20 -GA-8IPE1000 Series Motherboard
English
Step 4-2: Connectors & Jumper Setting Introduction
1) ATX_12V 13) SUR_CEN
2) ATX 14) CD_IN
3) CPU_FAN 15) SPDIF_IO
4) SYS_FAN 16) IR_CIR
5) P W R _ F A N (*
)
17) F_USB1/F_USB2
6) N B _ F A N (*
)
18) GAME
7) IDE1/IDE2 19) INFO_LINK
8) FDD 20) F 2 _ 1 3 9 4 (*
)
9) PWR_LED 21) F 1 _ 1 3 9 4 (*
)
10) BAT 22) SATA0/SATA1
11) F_PANEL 23) CI
12) F_AUDIO 24) CLR_CMOS
1 3
2
8
7
6(*
)
21 (*
)
9
19
16
20 (*
)
17
23
13
4
18
22
10
11
15
5 (*
)
14
12
24
Note: If the NorthBridge on the motherboard has a fan sink, then the motherboard contains a
NB_FAN connector.
(*) For GA-8IPE1000 Pro-G only.
Page 25
- 21 - Hardware Installation Process
English
1) ATX_12V (+12V Power Connector)
This connector (ATX _12V) suppliesthe CPU operation voltage (Vcore). If this " ATX_ 12V connector" is
not connected, system cannot boot.
Pin No. Definition
1 GND
2 GND
3 +12V
4 +12V
2) ATX (ATX Power)
AC power cord should only be connected to your power supply unit after ATX power cable and other
related devices are firmly connected to the mainboard.
Pin No. Definition
1 3.3V
2 3.3V
3 GND
4 VCC
5 GND
6 VCC
7 GND
8 Power Good
9 5V SB(stand by +5 V)
10 +12V
11 3.3V
12 -12V
13 GND
14 PS_ON(softOn/Off)
15 GND
16 GND
17 GND
18 -5V
19 VCC
20 VCC
3
1
4
2
1
10
20
11
Page 26
- 22 -GA-8IPE1000 Series Motherboard
English
3) CPU_FAN (CPU FAN Connector)
Please note, a proper installation of the CPU cooler is essential to prevent the CPU from running
under abnormal condition or dam aged by overheating.The CPU fan connector supports Max.
current up to 600 mA.
4) SYS_FAN (System FAN Connector)
This connector allows you to link with the cooling fan on the system case to lower the system
temperature.
Pin No. Definition
1 GND
2 +12V
3 Sense
Pin No. Definition
1 GND
2 +12V
3 Sense
1
1
Page 27
- 23 - Hardware Installation Process
English
5) P W R _ F A N ( P o w e r F a n C o n n e c t o r ) (*
)
This connector allows you to link with the cooling fan on the system case to lower the system
temperature.
6) N B _ F A N (*
)
If you installed wrong direction, the Chip Fan will not work. Sometimes will damage the Chip Fan.
(Usually black cable is GND)
Note: If the NorthBridg e on the motherboard has a fan sink, then the motherboard contains a
NB_FAN connector.
Pin No. Definition
1 GND
2 +12V
3 Sense
Pin No. Definition
1 VCC
2 GND
1
1
(*) For GA-8IPE1000 Pro-G only.
Page 28
- 24 -GA-8IPE1000 Series Motherboard
English
7) IDE1/ IDE2(IDE1/IDE2 Connector)
Please connect first harddisk to IDE1 and connect CDROM to IDE2. The red stripe of the ribbon cable
must be the same side with the Pin1.
IDE1
IDE2
1
39
2
40
8) FDD (Floppy Connector)
Please connect the floppy drive ribbon cables to FDD. It supports 360K,720K,1.2M,1.44M and
2.88Mbytes floppy disk types. The red stripe of the ribbon cable m ust be the same side with the Pin1.
1
34
2
33
Page 29
- 25 - Hardware Installation Process
English

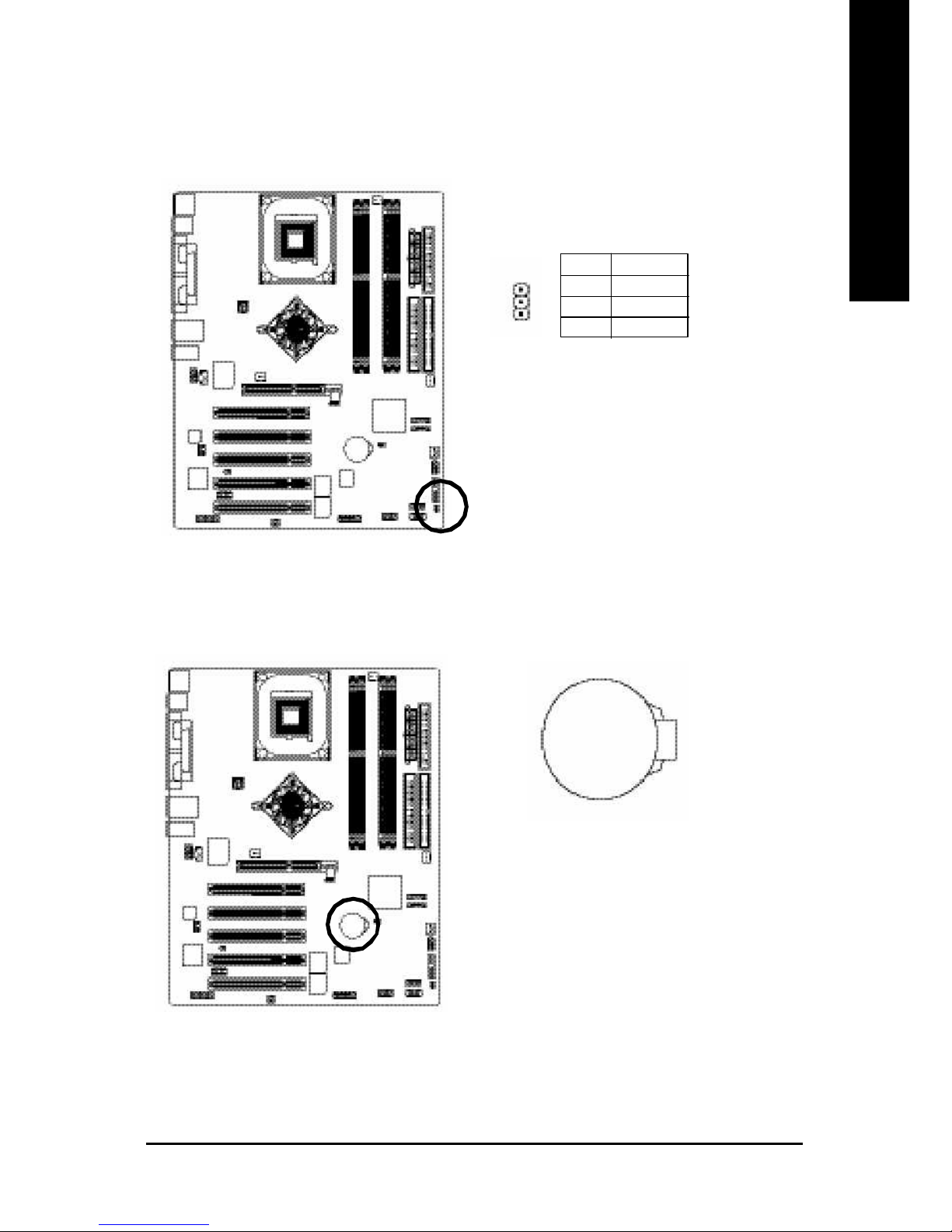

9) PWR_LED
PWR_LED is connect with the system power indicator to indicate whether the system is on/off. It will blink
when the system enters suspend mode. If you use dual color LED, power LED will turn to another color.
Pin No. Definition
1 M PD+
2 M PD3 M PD-
1
10) BAT (Battery)
CAUTION
v Danger of explosi on if batte ry is incorrectly
replaced.
v Replace only with th e same or equivalent
type recom mended by the m anufacturer.
v Dispose of used batteries according to the
manufacturer's instructions.
If yo u want to erase CMOS...
1.Turn OFF the computer a nd unplug the power cord.
2.Remov e the battery, wait for 30 second.
3.Re-install the battery.
4.Plug the power cord and turn ON the com puter.
+
Page 30
- 26 -GA-8IPE1000 Series Motherboard
English
11) F_PANEL (2x10 pins connector)
Please connect the power LED, PC peaker, reset switch and power switch etc of your chassis front panel
to the F_PANEL connector according to the pin assignm ent below.
HD (IDE Hard Disk Ac tive LED) Pin 1: LED anode(+)
(Blue) Pin 2: LED cathode(-)
SPEAK (Speaker Connector) Pin 1: VCC(+)
(Amber) Pin 2- Pin 3: NC
Pin 4: Data(-)
RES (Reset Switch) Open: Normal Operation
(Green) Close: Reset Hardware System
PW (Soft Power Connector) Open: Normal Operation
(Red) Close: Power On/Off
MSG (M essage LED/Power/ Pin 1: LED anode(+)
Sleep LED)(Yellow) Pin 2: LED cathode(-)
NC (Purple) NC
SPE AK -
SP EA K+
20
Speaker
Connector
1
19
IDE H ard Disk
Activ e LED
Reset Swi tch
2
1
Soft Po wer
Connector
1MSG +
MSG-
Mes sa ge LE D/ Po wer/
Sleep LED
PW-
PW+
1
HD+
HD-
1
RES +
RES-
NC
1
Page 31
- 27 - Hardware Installation Process
English
12) F_AUDIO (F_AUDIO Connector)
If you want to use Front Audio connector, you must remove 5-6, 9-10 Jum per. In order to utilize the
front audio header, your chassis must have front audio connector. Also please make sure the pin
assigment on the cable is the sam e as the pin assigment on the MB header. To find out if the chassis
you are buying support front audio connector, please contact your dealer.Please note, you can have the
alternati ve of using front audio connector or of using rear aud io connector to pl ay sound.
Pin No. Definition
1 MIC
2 GND
3 REF
4 POWER
5 FrontAudio(R)
6 RearAudio(R)
7 Reserved
8 No Pin
9 FrontAudio (L)
10 RearAudio(L)
109
1 2
13) SUR_CEN
Please contact your nearest dealer for optional SUR_CEN cable.
Pin No. Definition
1 SUR OUTL
2 SUR OUTR
3 GND
4 No Pin
5 CENTER_OUT
6 BASS_OUT
7 AUX_L
8 AUX_R
7 8
1
2
Page 32
- 28 -GA-8IPE1000 Series Motherboard
English
14) CD_IN (CD IN, Black)
Connect CD-ROM or DVD-ROM audio out to the connector.
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD_R
1
15) SPDIF_IO (SPDIF In/Out)
The SPDIF output is capable of providing digital audio to external speakers or com pressed AC3 data to
an external Dolby Digital Decoder. Use this featu re only when your stereo system has digita l input
function. Use SPDIF IN featu re only when your device has digital output function.
Be careful with the polarity of the SPDIF_IO connector. Check the pin assignment carefully while you
connect the SPDIF cable, incorrect connection between the cable and connector will m ake the
device unable to work or even damage it. For optional SPDIF cable, please contact your local
dealer.
Pin No. Definition
1 VCC
2 No Pin
3 SPDIF
4 SPDIFI
5 GND
6 GND
1
62
5
Page 33
- 29 - Hardware Installation Process
English
16) IR_CIR
Make sure the pin 1 on the IR device is aling with pin one the connector. To enable the IR/CIR function
on the board, you are required to pur chase an option IR/CIR m odule. For detail information please
contact your autherized Giga-By te distributor. To use IR function only, please c onnect IR module to
Pin1 to Pin5.
Be careful with the polarity of the IR/CIR c onnector. Check the pin assignment carefully while you
connect the IR/CIR cable, incorrect connection between the cab le and connector will m ake the device
unable to work or even damag e it. For optional IR/CIR cable, please contact your local dealer.
Pin No. Definition
1 VCC
2 NC
3 IRRX
4 GND
5 IRTX
6 NC
7 CIRRX
8 VCC
9 CIRTX
10 NC
5
10
1
6
17) F_ USB1 / F_USB2(Front USB Connector, Yellow )
Be careful with the polarity of the front USB connector. Check the pin assignment carefully while
you connect the front USB cable, i ncorrect connection between the cable and connector wi ll make
the device unable to work or even damage it. For option al front USB ca ble, please contact your
local d ealer.
Pin No. Definition
1 Power
2 Power
3 USB0 DX-/USB6 DX4 USB1 Dy-/USB7 Dy5 USB0 DX+/USB6 DX+
6 USB1 Dy+/USB7 Dy+
7 GND
8 GND
9 No Pin
10 NC
2
10
1 9
Page 34
- 30 -GA-8IPE1000 Series Motherboard
English
18) GAME (GAME Connector)
This connector supports joystick, MIDI keyboard and other relate audio devices.
19) INFO_LINK
This connector allows you to connect som e external devices to provide you extra function.
16
2
1 15
Pin No. Definition
1 VCC
2 GRX1_R
3 GND
4 GPSA2
5 VCC
6 GPX2_R
7 GPY2_R
8 MSI_R
9 GPSA1
10 GND
11 GPY1_R
12 VCC
13 GPSB1
14 MSO_R
15 GPSB2
16 No Pin
Pin No. Definition
1 SMBCLK
2 VCC
3 SM BDATA
4 GPIO
5 GND
6 GND
7 No Pin
8 NC
9 +12V
10 +12V
10
2
1
9
Page 35
- 31 - Hardware Installation Process
English
20) F 2 _ 1 3 9 4 ( I E E E 1 3 9 4 C o n n e c t o r) (*
)
Please Note: Serial interface standard set by Institute of Electrical and Electronics Engineers, which
has features like high speed, high bandwidth and h ot plug.
Be careful with the polarity of the IEEE1394 connector. Check the pin assignment carefully whil e you
connect the IEEE1394 cable, incorrect connection between the cable and connector will m ake the
device unable to work or even damage it. For optional IEEE1394 cable, please contact your local
dealer.
Pin No. Definition
1 Power
2 Power
3 TPA0+
4 TPA05 GND
6 GND
7 TPB0+
8 TPB09 Power
10 Power
11 TPA1+
12 T PA113 GND
14 No Pin
15 TPB1+
16 TPB1-
21) F 1 _ 1 3 9 4 ( I E E E 1 3 9 4 C o n n e c t o r) (*
)
Please Note: Serial interface standard set by Institute of Electrical and Electronics Engineers, which
has features like high speed, high bandwidth and h ot plug.
Be careful with the polarity of the IEEE1394 connector. Check the pin assignment carefully whil e you
connect the IEEE1394 cable, incorrect connection between the cable and connector will m ake the
device unable to work or even damage it. For optional IEEE1394 cable, please contact your local
dealer.
Pin No. Definition
1 T PA2+
2 T PA23 GND
4 GND
5 TPB2+
6 TPB27 Power
8 Power
9 No Pin
10 GND
1
2
16
15
1
2
9
10
(*) For GA-8IPE1000 Pro-G only.
Page 36
- 32 -GA-8IPE1000 Series Motherboard
English
22) SATA0/SATA1 (Serial ATA Connector)
You can connect the Serial ATA device to this connector, it provides you high speed transfe r rates
(150MB/sec).
7
1
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
23) CI (CASE OPEN)
This 2 pin connector all ows your system to enable or disable the "case o pen" item in BIOS if the
system case begin rem ove.
Pin No. Definition
1 Signal
2 GND
1
Page 37
- 33 - Hardware Installation Process
English
24) CLR_CMOS (Clear CMOS)
You m ay clear the CM OS data to its default values by this jumper. To clear C MOS, temporarily
shor 1-2 pin. De fault doesn't include the "Shunter" to prevent from improper use this jum per.
1
1 Open: Normal
Short: Cl ear CMOS
Page 38
- 34 -GA-8IPE1000 Series Motherboard
English
Page 39
- 35 - BIOS Setup
English
<á> Move to previous item
<â> Move to next item
<ß> Move to the item in the left hand
<à> Move to the item in the right hand
Enter Select item
<Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu and
Option Page Setup Menu - Exit current page and return to Main Menu
<+/PgUp> Increase the numeric v alue or make changes
<-/PgDn> Decrease the numeric value or make changes
<F1> General help, only for Status Page Setup Menu and Option Page Setup Menu
<F2> Item Help
<F3> Reserved
<F4> Reserved
<F5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu
<F6> Load the file-safe default CMOS value from BIOS default table
<F7> Load the Optimized Defaults
<F8> Dual BIOS (*)/Q-Flash function
<F9> System Information
<F10> Save all the CMOS changes, only for Main Menu
BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the
basic system configuration. This type of information is stored in battery -backed CMOS RAM so that it
retains the Setup information when the power is turned off.
Chapter 3 BIOS Setup
ENTERING
Powering ON the computer and pressing <Del> immediately will allow you to enter Setup. If y ou require
more advanced BIOS settings, please go to "Advanced BIOS" setting menu.To enter Adv anced BIOS
setting menu, press "Ctrl+F1" key on the BIOS screen.
CONTROL
SETUP
KEYS
(*) For GA-8IPE1000 Pro-G only.
Page 40
- 36 -GA-8IPE1000 Series Motherboard
English
l Standard CMOS Features
This setup page includes all the items in standard compatible BIOS.
l Advanced BIOS Features
This setup page includes all the items of Award special enhanced features.
Main Menu
The on-line description of the highlighted setup function is display ed at the bottom of the screen.
Status Page Setup Menu / Option Page Setup Menu
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible
selections for the highlighted item. To exit the H elp Window press <Esc>.
The Main Menu (For example: BIOS Ver.: 8IPE1000 Pro-G.E1)
Once you enter Award BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear on the screen.
The Main Menu allows you to select from eight setup functions and tw o ex it choices. U se arrow key s to
select among the items and press <Enter> to accept or enter the sub-menu.
Figure 1: Main Menu
GETTING HELP
If you can't find the setting you want, please press "Ctrl+F1" to
search the advanced option widden.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
}Standard CMOS Features S e l e c t L a n g u a g e (*
)
}Advanced BIOS Features Load Fail-Safe Defaults
}Integrated Peripherals Load Optimized Defaults
}Power Management Setup Set Supervisor Password
}PnP/PCI Configurations Set User Password
}PC Health Status Sav e & Exit Setup
}Frequency/Voltage Control Exit Without Saving
ESC:Quit F 3 : C h a n g e L a n g u a g e (*
)
F8: Dual BIOS (*)/Q-Flash F10:Save & Exit Setup
Time, Date, Hard Disk Type...
(*) For GA-8IPE1000 Pro-G only.
Page 41
- 37 - BIOS Setup
English
l Integrated Peripherals
This setup page includes all onboard peripherals.
l Pow er Management Setup
This setup page includes all the items of Green function features.
l PnP/PCI Configurations
This setup page includes all the configurations of PCI & PnP ISA resources.
l PC Health Status
This setup page is the System auto detect Temperature, v oltage, fan, speed.
l Frequency/Voltage Control
This setup page is control CPU's clock and frequency ratio.
l Select Language (*
)
This setup page is select multi language.
l Load Fail-Safe Defaults
Fail-Safe Defaults indicates the value of the system parameters which the system would
be in safe configuration.
l Load Optimiz ed Defaults
Optimized Defaults indicates the value of the system parameters which the system would
be in best performance configuration.
l Set Supervisor p assword
Change, set, or disable password. It allows you to limit access to the system and Setup,
or just to Setup.
l Set U ser password
Change, set, or disable password. It allows you to limit access to the system.
l Save & Exit Setup
Save CMOS value settings to CMOS and exit setup.
l Exit Without Saving
Abandon all CMOS value changes and exit setup.
(*) For GA-8IPE1000 Pro-G only.
Page 42
- 38 -GA-8IPE1000 Series Motherboard
English
Standard CMOS Features
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
Standard CMOS Features
Date (mm:dd:yy) Tue, Aug 13 2002 Item Help
Time (hh:mm:ss) 22:31:24 Menu Level u
Change the day, month,
}IDE Channel 0 Master None year
}IDE Channel 0 Slave None
}IDE Channel 1 Master None <Week>
}IDE Channel 1 Slave None Sun. to Sat.
Drive A [1.44M, 3.5 in.] <Month>
Drive B [None] Jan. to Dec.
Floppy 3 Mode Support [Disabled]
<Day>
Halt On [All, But Keyboard] 1 to 31 (or maximum
allowed in the month)
Base Memory 640K
Extended Memory 130048K <Year>
Total Memory 131072K 1999 to 2098
higf: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F 3 : L a n g u a g e
(*)
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Figure 2: Standard CMOS Features
Date
The date format is <week>, <month>, <day>, <year>.
Week The week, from Sun to Sat, determined by the BIOS and is display only
Month The month, Jan. Through Dec.
Day The day, from 1 to 31 (or the maximum allowed in the month)
Year The year, from 1999 through 2098
(*) For GA-8IPE1000 Pro-G only.
Page 43
- 39 - BIOS Setup
English
Time
The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military-
time clock. For example, 1 p.m. is 13:00:00.
IDE Channel 0 Master, Slave / IDE Channel 1 Master, Slave
The category identifies the types of hard disk from drive C to F that has been installed in the computer.
There are two types: auto type, and manual type. Manual type is user-definable; Auto type which will
automatically detect HDD type.
Note that the specifications of your drive must match with the drive table. The hard disk will not work
properly if you enter improper information for this category.
If y ou select User Type, related information will b e aske d to en ter to the fo llow ing items. Enter the
information directly from the keyboard and press <Enter>. Such information should be provided in the
documentation form your hard disk vendor or the system manufacturer.
CYLS. Number of cy linders
HEADS Number of heads
PRECOMP Write precomp
LANDZONE Landing zone
SECTORS Number of sectors
If a hard disk has not been installed select NONE and press <Enter>.
Drive A / Drive B
The category identifies the types of floppy disk driv e A or driv e B that has been ins talled in the
computer.
None No floppy drive installed
360K, 5.25 in. 5.25 inch PC-type standard drive; 360K byte capacity.
1.2M, 5.25 in. 5.25 inch AT-type high-density drive; 1.2M byte capacity
(3.5 inch when 3 Mode is Enabled).
720K, 3.5 in. 3.5 inch double-sided drive; 720K by te capacity
1.44M, 3.5 in. 3.5 inch double-sided drive; 1.44M byte capacity.
2.88M, 3.5 in. 3.5 inch double-sided drive; 2.88M byte capacity.
Page 44
- 40 -GA-8IPE1000 Series Motherboard
English
Floppy 3 Mode Support (for Japan Area)
Disabled Normal Floppy Driv e. (Default value)
Drive A Drive A is 3 mode Floppy Drive.
Drive B Drive B is 3 mode Floppy Drive.
Both Driv e A & B are 3 mode Floppy Drives.
Halt on
The category determines whether the computer will stop if an error is detected during power up.
NO Errors The system boot will not stop for any error that may be detected
and you will be prompted.
All Errors Whenever the BIOS detects a non-fatal error the system will be stopped.
All, But Keyboard The sy stem boot w ill not stop for a keyboard error; it will stop for
all other errors. (Default value)
All, But Diskette The system boot will not stop for a disk error; it will stop for all
other errors.
All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will
stop for all other errors.
Memory
The category is display-only which is determined by POST (Power On Self Test) of the BIOS.
Base Memory
The POST of the BIOS will determine the amount of base (or conv entional) memory
installed in the system.
The value of the base memory is typically 512 K for systems with 512 K memory
installed on the motherboard, or 640 K for systems with 640 K or more memory
installed on the motherboard.
Extended Memory
The BIOS determines how much extended memory is present during the POST.
This is the amount of memory located above 1 MB in the CPU's memory
address map.
Page 45
- 41 - BIOS Setup
English
Advanced BIOS Features
Hard Disk Boot Priority
Press Enter Select Hard Disk Boot Device priority.
First / Second / Third Boot Device
M This feature allows you to select the boot device priority.
Floppy Select your boot device priority by Floppy.
LS120 Select your boot device priority by LS120.
Hard Disk Select your boot device priority by Hard Disk.
CDROM Select y our boot device priority by CDROM.
ZIP Select your boot device priority by ZIP.
USB-FDD Select your boot device priority by USB-FDD.
USB-ZIP Select your boot device priority by USB-ZIP.
Figure 3: Advanced BIOS Features
" # " System will detect automatically and show up when you install the Intel
®
Pentium
®
4 processor
with HT Te chnology.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
Advanced BIOS Features
u Hard Disk Boot Priority [Press Enter] Item Help
First Boot Device [Floppy] Menu Level u
Second Boot Device [Hard Disk]
Third Boot Device [CDROM]
Password Check [Setup]
# CPU Hyper-Threading [Enabled]
higf: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F 3 : L a n g u a g e
(*)
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
(*) For GA-8IPE1000 Pro-G only.
Page 46
- 42 -GA-8IPE1000 Series Motherboard
English
USB-CDROM Select your boot device priority by USB-CDROM.
USB-HDD Select your boot device priority by USB-HDD.
LAN Select y our boot device priority by LAN.
Disabled Select y our boot device priority by Disabled.
Passw ord Check
System The system will not boot and will not access to Setup page if the correct
password is not entered at the prompt.
Setup The system will boot but w ill not access to Setup page if the correct passw ord
is not entered at the prompt. (Default v alue)
CPU Hyp er-Threading
Enabled Enables CPU Hyper Threading Feature. Please note that this feature is only
working for operating system with multi processors mode supported.
(Default value)
Disabled Disables CPU Hyper Threading.
Page 47
- 43 - BIOS Setup
English
Integrated Peripherals
Figure 4: Integrated Peripherals
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
Integrated Peripherals
On-Chip Primary PCI IDE [Enabled] Item Help
On-Chip Secondary PCI IDE [Enabled] Menu Level u
On-Chip SATA [Auto] If a hard disk
x SATA Port0 Configure as SATA Port0 controller card is
SATA Port1 Configure as SATA Port1 used, set at Disabled
USB Controller [Enabled]
USB 2.0 Controller [Enabled] [Enabled]
USB Keyboard Support [Disabled] Enable on-chip IDE
USB Mouse Support [Disabled] PORT
AC97 Audio [Auto]
O n b o a r d H / W 1 3 9 4
(*)
[Enabled] [Disabled]
O n b o a r d H / W L A N
(*u)
[Enabled] Disable on-chip IDE
Onboard Serial Port 1 [3F8/IRQ4] PORT
Onboard Serial Port 2 [2F8/IRQ3]
UART Mode Select [Normal]
x UR2 Duplex Mode Half
Onboard Parallel Port [378/IRQ7]
Parallel Port Mode [SPP]
x ECP Mode Use DMA 3
Game Port Address [201]
Midi Port Address [330]
Midi Port IRQ [10]
CIR Port Address [Disabled]
x CIR Port IRQ 11
higf: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F 3 : L a n g u a g e
(*)
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
(*) For GA-8IPE1000 Pro-G only.
(u) For GA-8IPE1000-G only.
Page 48
- 44 -GA-8IPE1000 Series Motherboard
English
On-Chip Primary PCI IDE
Enabled Enable onboard 1st channel IDE port. (Default value)
Disabled Disable onboard 1st channel IDE port.
On-Chip Secondary PCI IDE
Enabled Enable onboard 2nd channel IDE port. (Default value)
Disabled Disable onboard 2nd channel IDE port.
On-chip SA TA
Disabled Disable SATA controller.
Auto When no device is plugged in IDE1 or IDE2, SATA controller will remap to IDE
controller. (Default Value)
Manual Set SATA Mode manually.
SA TA Port0 Configure as
IDE Pri. Master Remap SATA Port 0 to IDE Pri. Master.
IDE Pri. Slave Remap SATA Port 0 to IDE Pri. Slave.
IDE Sec. Master Remap SATA Port 0 to IDE Sec. Master.
IDE Sec. Slave Remap SATA Port 0 to IDE Sec. Slave.
SATA Port0 SATA controller set to SATA port0. As this mode, it support by WinXP or
later OS only. (Default value)
SATA Port1 SATA controller set to SATA port1. As this mode, it support by WinXP or
later OS only.
SA TA Port1 Configure as
The values depend on SATA Port0.
U SB Controller
Enabled Enable USB Controller. (Default value)
Disabled Disable USB Controller.
Page 49
- 45 - BIOS Setup
English
U SB 2.0 Controller
Disable this function if you are not using onboard USB 2.0 feature.
Enabled Enabl e USB 2. 0 Controller. (Default v alue)
Disabled Disable USB 2.0 Controller.
U SB Keyb oard Support
Enabled Enable USB Keyboard Support.
Disabled Disable USB Keyboard Support. (Default value)
U SB Mouse Support
Enabled Enable USB Mouse Support.
Disabled Disable USB Mouse Support. (Default value)
AC97 Audio
Auto Enable onboard AC'97 audio function. (Default Value)
Disabled Disable this function.
Onboard H/W 1394 (*
)
Enabled Enable onboard IEEE 1394 function.(Default value)
Disabled Disable this function.
Onboard H/W LAN (*
u )
Enabled Enable Onboard H/W LAN function. (Default value)
Disabled Disable this function.
Onboard Ser ial Port 1
Auto BIOS will automatically setup the port 1 address.
3F8/IRQ4 Enable onboard Serial port 1 and address is 3F8. (Default value)
2F8/IRQ3 Enable onboard Serial port 1 and address is 2F8.
3E8/IRQ4 Enable onboard Serial port 1 and address is 3E8.
(*) For GA-8IPE1000 Pro-G only.
(u) For GA-8IPE1000-G only.
Page 50
- 46 -GA-8IPE1000 Series Motherboard
English
2E8/IRQ3 Enable onboard Serial port 1 and address is 2E8.
Disabled Disable onboard Serial port 1.
Onboard Ser ial Port 2
Auto BIOS will automatically setup the port 2 address.
3F8/IRQ4 Enable onboard Serial port 2 and address is 3F8.
2F8/IRQ3 Enable onboard Serial port 2 and address is 2F8. (Default value)
3E8/IRQ4 Enable onboard Serial port 2 and address is 3E8.
2E8/IRQ3 Enable onboard Serial port 2 and address is 2E8.
Disabled Disable onboard Serial port 2.
U ART M ode Select
(This item allows you to determine which Infra Red(IR) function of Onboard I/O chip)
ASKIR Set onboard I/O chip UART to ASKIR Mode.
IrDA Set onboard I/O chip UART to IrDA Mode.
Normal Set onboard I/O chip UART to Normal Mode. (Default Value)
U R2 Dup lex Mode
Half IR Function Duplex Half. (Default Value)
Full IR Function Duplex Full.
Onboard Par allel port
378/IRQ7 Enable onboard LPT port and address is 378/IRQ7. (Default Value)
278/IRQ5 Enable onboard LPT port and address is 278/IRQ5.
Disabled Disable onboard LPT port.
3BC/IRQ7 Enable onboard LPT port and address is 3BC/IRQ7.
Parallel Port Mode
SPP Using Parallel port as Standard Parallel Port. (Default Value)
EPP Using Parallel port as Enhanced Parallel Port.
ECP Using Parallel port as Extended Capabilities Port.
ECP+EPP Using Parallel port as ECP & EPP mode.
Page 51
- 47 - BIOS Setup
English
ECP Mode Use DMA
3 Set ECP Mode Use DMA to 3. (Default Value)
1 Set ECP Mode Use DMA to 1.
Game Port Address
201 Set Game Port Address to 201. (Default Value)
209 Set Game Port Address to 209.
Disabled Disable this function.
Midi Port Address
300 Set Midi Port Address to 300.
330 Set Midi Port Address to 330.(Default Value)
Disabled Disable this function.
Midi Port IRQ
5 Set Midi Port IRQ to 5.
10 Set Midi Port IRQ to 10. (Default Value)
CIR Port Address
310 Set CIR Port Address to 310.
320 Set CIR Port Address to 320.
Disabled Disable this function. (Default Value)
CIR Port IRQ
5 Set CIR Port IRQ to 5.
111 Set CIR Port IRQ to 11. (Default Value)
Page 52
- 48 -GA-8IPE1000 Series Motherboard
English
Power Management Setup
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
Power Management Setup
ACPI Suspend Type [S1(POS)] Item Help
Power LED in S1 State [Blinking] Menu Level u
Off by Power button [Instant-Off] [S1]
PME Event Wake Up [Enabled] Set suspend type to
ModemRingOn/WakeOnLan [Enabled] Power On Suspend under
Resume by Alarm [Disabled] ACPI OS
x Date (of Month) Alarm Everyday
x Time (hh:mm:ss) 0 0 0 [S3]
Power On By Mouse [Disabled] Set suspend type to
Power On By Keyboard [Disabled] Suspend to RAM under
x KB Power ON Password Enter ACPI OS
AC BACK Function [Soft-Off]
higf: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F 3 : L a n g u a g e
(*)
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Figure 5: Power Management Setup
ACPI Suspend Type
S1(POS) Set ACPI suspend type to S1. (Default Value)
S3(STR) Set ACPI suspend type to S3.
Pow er LED in S1 state
Blinking In standby mode(S1), power LED will blink. (Default Value)
Dual/OFF In standby mode(S1):
a. If use single color LED, power LED will turn off.
b. If use dual color LED, power LED will turn to another color.
Off by Power button
Instant-off Press power button then Power off instantly. (Default value)
Delay 4 Sec. Press power button 4 sec to Power off. Enter suspend if button is pressed less
than 4 sec.
(*) For GA-8IPE1000 Pro-G only.
Page 53
- 49 - BIOS Setup
English
PME Event Wake Up
Disabled Disable this function.
Enabled Enable PME Event Wake up. (Default Value)
ModemRingOn/WakeOnLAN
Disabled Disable Modem Ring on/w ake on Lan function.
Enabled Enable Modem Ring on/w ake on Lan. (Default Value)
Resume by Alarm
You can set "Resume by Alarm" item to enabled and key in Data/time to power on system.
Disabled Disable this function. (Default Value)
Enabled Enable alarm function to POWER ON system.
If RTC Alarm Lead To Power On is Enabled.
Date ( of Month) Alarm : Everyday, 1~31
Time ( hh: mm: ss) Alarm : (0~23) : (0~59) : (0~59)
Pow er On By Mouse
Disabled Disable this function. (Default v alue)
Double Click Double click on PS/2 mouse left button to power on system.
Pow er On By K eyb oard
Password Enter from 1 to 5 characters to set the Key board Pow er On Passw ord.
Disabled Disable this function. (Default v alue)
Keyboard 98 If your keyboard hav e "POWER Key" button, you can press the key to
power on your system.
KB Power ON Passw ord
Enter Input password (from 1 to 5 characters) and press Enter to set the Key-
board Power On Password.
AC BACK Function
Memory System power on depends on the status before AC lost.
Soft-Off Always in Off state when AC back. (Default value)
Full-On Always power on the system when AC back.
Page 54
- 50 -GA-8IPE1000 Series Motherboard
English
PnP/PCI Configurations
Figure 6: PnP/PCI Configurations
PCI 1/PCI 5 IRQ Assignment
Auto Auto assign IRQ to PCI 1/PCI 5. (Default value)
3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 1/PCI 5.
PCI 2 IRQ Assignment
Auto Auto assign IRQ to PCI 2. (Default v alue)
3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 2.
PCI 3 IRQ Assignment
Auto Auto assign IRQ to PCI 3. (Default v alue)
3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 3.
PCI 4 IRQ Assignment
Auto Auto assign IRQ to PCI 4. (Default v alue)
3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 4.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
PnP/PCI Configurations
PCI 1/PCI 5 IRQ Assignment [Auto] Item Help
PCI 2 IRQ Assignment [Auto] Menu Level u
PCI 3 IRQ Assignment [Auto]
PCI 4 IRQ Assignment [Auto]
higf: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F 3 : L a n g u a g e
(*)
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
(*) For GA-8IPE1000 Pro-G only.
Page 55
- 51 - BIOS Setup
English
PC Health Status
Figure 7: PC Health Status
Reset Case Open Status
Case Opened
If the case is closed, "Case Opened" will show "No".
If the case hav e been opened, "Case Opened" w ill show " Yes".
If you want to reset "Case Opened" value, set "Reset Case Open Status" to
"Enabled" and save CMOS, your computer will restart.
Current V oltage (V) Vcore / DD R25V / +3.3V / +5V / +12V
Detect system's voltage status automatically.
Current CPU Temp eraturee
Detect CPU Temp. automatically..
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
PC Health Status
Reset Case Open Status [Disabled] Item Help
Case Opened No Menu Level u
Vcore OK [Disabled]
DDR25V OK Don't reset case
+3.3V OK open status
+5V OK
+12V OK [Enabled]
Current CPU Temperature 40°C Clear case open
Current CPU FAN Speed 6490 RPM status at next boot
C u r r e n t P O W E R F A N S p e e d
(*)
0 RPM
Current SYSTEM FAN Speed 0 RPM
CPU Warning Temperature [Disabled]
CPU FAN Fail Warning [Disabled]
P O W E R F A N F a i l W a r in g
(*)
[Disabled]
SYSTEM FAN Fail Warning [Disabled]
C P U S m a r t F A N C o n t r o l
(*)
[Enabled]
higf: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F 3 : L a n g u a g e
(*)
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
(*) For GA-8IPE1000 Pro-G only.
Page 56
- 52 -GA-8IPE1000 Series Motherboard
English
Current CPU /POWER (*)/SY STEM FAN Speed (RPM)
Detect CPU/POWER (*)/SYSTEM Fan speed status automatically.
CPU Warning Temp erature
60°C / 140°F Monitor CPU Temp. at 60°C / 140°F.
70°C / 158°F Monitor CPU Temp. at 70°C / 158°F.
80°C / 176°F Monitor CPU Temp. at 80°C / 176°F.
90°C / 194°F Monitor CPU Temp. at 90°C / 194°F.
8Disabled Disable this function.(Default v alue)
CPU FAN Fail Warning
Disabled Fan Warning Function Disable. (Default value)
Enabled Fan Warning Function Enable.
POWER FAN Fail Warning (*
)
Disabled Fan Warning Function Disable. (Default value)
Enabled Fan Warning Function Enable.
SY STEM FAN Fail Warning
Disabled Fan Warning Function Disable. (Default value)
Enabled Fan Warning Function Enable.
CPU Smart FAN Control (*
)
Disabled Disable this function.
Enabled Enable CPU Smart Fan control function.(Default value)
a. When the CPU temperature is higher than 60 degrees Celsius, CPU fan
will run at full speed.
b. When the CPU temperature is between 50 and 60 degrees Celsius,
CPU fan will run at high speed.
c. When the CPU temperature is between 40 and 50 degrees Celsius,
CPU fan will run at medium speed.
d. When the CPU temperature is lower than 40 degrees Celsius, CPU fan
will run at low speed.
(*) For GA-8IPE1000 Pro-G only.
Page 57
- 53 - BIOS Setup
English
Frequency/Voltage Control
Figure 8: Frequency/Voltage Control
CPU Clock Ratio
This option will not be shown or not be available if you are using a CPU with the locked ratio.
15X~21X It depends on CPU Clock Ratio.
This setup option will automatically assign by CPU detection.
For C-Stepping P4: 8X,10X~24X default: 15X
For Northwood CPU: 12X~24X default: 16X
The option will display "Locked" and read only if the CPU ratio is not changeable.
øThose items will be available when "CPU Host Clock Control" is set to Enabled.
(*) For GA-8IPE1000 Pro-G only.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
Frequency/Voltage Control
CPU Clock Ratio [15X] Item Help
CPU Host Clock Control [Disabled] Menu Level u
øCPU Host Frequency (Mhz) 100
øAGP/PCI/SRC Fixed 66/33/100
Memory Frequency For [Auto]
Memory Frequency (Mhz) 266
AGP/PCI/SRC Frequency (Mhz) 66/33/100
AGP OverVoltage Control [Normal]
DIMM OverVoltage Control [Normal]
CPU Voltage Control [Normal]
Normal CPU Vcore 1.4750V
higf: Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F 3 : L a n g u a g e
(*)
F5:Previous Values F6:Fail-Safe Defaults F7:Optimized Defaults
Page 58
- 54 -GA-8IPE1000 Series Motherboard
English
CPU Host Clock Control
Note: If system hangs up before enter CMOS setup utility, wait for 20 sec for times out reboot. When
time out occur, system will reset and run at CPU default Host clock at nex t boot.
Disabled Disable CPU Host Clock Control.(Default value)
Enabled Enable CPU Host Clock Control.
CPU Host Frequency
100MHz ~ 355MHz Set CPU Host Clock from 100MHz to 355MHz.
If you use FSB400 Pentium 4 processor, please set "CPU Clock" to 100MHz.If you use FSB533
Pentium 4 processor, please set "CPU Clock" to 133MHz. If you use FSB800 Pentium 4
processor, please set "CPU Clock" to 200MHz.
Incorrect using it may cause your system broken. For power End-User use only!
AGP/PCI/SRC Fixed
Serial ATA device is very sensitive to SRC clock. SRC over clock may make Serial ATA device
function can't work properly.
Adjust AGP/PCI/SRC clock asychrohous with CPU.
Memory Fre quency For
for FSB(Front Side Bus) frequency=400MHz,
2.66 Memory Frequency = Host clock X 2.66.
Auto Set Memory frequency by DRAM SPD data. (Default value)
for FSB(Front Side Bus) frequency=533MHz,
2.0 Memory Frequency = Host clock X 2.0.
2.5 Memory Frequency = Host clock X 2.5.
Auto Set Memory frequency by DRAM SPD data. (Default value)
for FSB(Front Side Bus) frequency=800MHz,
2.0 Memory Frequency = Host clock X 2.0.
1.6 Memory Frequency = Host clock X 1.5.
1.33 Memory Frequency = Host clock X 1.33.
Auto Set Memory frequency by DRAM SPD data. (Default value)
Page 59
- 55 - BIOS Setup
English
Memory Frequency(Mhz)
The values depend on CPU Host Frequency(Mhz).
AGP/PCI/SRC Frequency(Mhz)
The values depend on Fixed AGP/PCI/SRC Frequency.
AGP OverVoltage Control
Normal Set AGP OverVoltage Control to Normal. (Default value)
+0.1V Set AGP OverVoltage Control to +0.1V.
+0.2V Set AGP OverVoltage Control to +0.2V.
+0.3V Set AGP OverVoltage Control to +0.3V.
DIMM OverVoltage Control
Normal Set DIMM OverVoltage Control to Normal. (Default value)
+0.1V Set DIMM OverVoltage Control to +0.1V.
+0.2V Set DIMM OverVoltage Control to +0.2V.
+0.3V Set DIMM OverVoltage Control to +0.3V.
CPU Voltage Control
Supports adjustable CPU Vcore from 0.8375V to 1.7600V.
(Default value: Normal)
Normal CPU Vcore
Display your CPU Vcore Voltage.
Page 60
- 56 -GA-8IPE1000 Series Motherboard
English
(*) For GA-8IPE1000 Pro-G only.
Select Language
(*)
Select Language
Multi Language supports 7 languages. There are English, Japanese, French, Spanish,
German, Simplified Chinese, Traditional Chinese.
Figure 9: Select Language
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
}Standard CMOS Features S e l e c t L a n g u a g e (*
)
}Advanced BIOS Features Load Fail-Safe Defaults
}Integrated Peripherals Load Optimized Defaults
}Power Management Setup Set Supervisor Passw ord
}PnP/PCI Configurations Set User Password
}PC Health Status Save & Exit Setup
}Frequency/Voltage Control Exit Without Saving
ESC:Quit F 3 : C h a n g e L a n g u a g e (*
)
F8: Dual BIOS (*)/Q-Flash F10:Save & Exit Setup
Page 61
- 57 - BIOS Setup
English
(*) For GA-8IPE1000 Pro-G only.
Load Fail-Safe Defaults
Load Fail-Safe Defaults
Fail-Safe defaults contain the most appropriate values of the sy stem parameters that allow
minimum system performance.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
}Standard CMOS Features S e l e c t L a n g u a g e (*
)
}Advanced BIOS Features Load Fail-Safe Defaults
}Integrated Peripherals Load Optimized Defaults
}Power Management Setup Set Supervisor Password
}PnP/PCI Configurations Set User Password
}PC Health Status Sav e & Exit Setup
}Frequency/Voltage Control Exit Without Saving
ESC:Quit F 3 : C h a n g e L a n g u a g e (*
)
F8: Dual BIOS (*)/Q-Flash F10:Save & Exit Setup
Load Fail-Safe Defaults
Figure 10: Load Fail-Safe Defaults
Load Fail-Safe Defaults? (Y/N)?Y
Page 62
- 58 -GA-8IPE1000 Series Motherboard
English
(*) For GA-8IPE1000 Pro-G only.
Load Optimized Defaults
Load Optimiz ed Defaults
Selecting this field loads the factory defaults for BIOS and C hipset Features which the
system automatically detects.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
}Standard CMOS Features S e l e c t L a n g u a g e (*
)
}Advanced BIOS Features Load Fail-Safe Defaults
}Integrated Peripherals Load Optimized Defaults
}Power Management Setup Set Supervisor Password
}PnP/PCI Configurations Set User Password
}PC Health Status Sav e & Exit Setup
}Frequency/Voltage Control Exit Without Saving
ESC:Quit F 3 : C h a n g e L a n g u a g e (*
)
F8: Dual BIOS (*)/Q-Flash F10:Save & Exit Setup
Load Optimized Defaults
Figure 11: Load Optimized Defaults
Load Optimized Defaults? (Y/N)?Y
Page 63
- 59 - BIOS Setup
English
(*) For GA-8IPE1000 Pro-G only.
Set Supervisor/User Password
When you select this function, the follow ing message will appear at the center of the screen to assist
you in creating a password.
Ty pe the passw ord, up to eight characters, and press <Enter>. You will be asked to confirm the
password. Type the password again and press <Enter>. You may also pres s <Esc > to abort the
selection and not enter a password.
To disabl e passw ord, just press <Enter> when you are prompted to enter password. A message
"PASSWORD DISABLED" will appear to confirm the password being disabled. Once the password is
disabled, the system will boot and you can enter Setup freely.
The BIOS Setup program allows you to specify two separate passwords:
SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access
all BIOS Setup program function. When enabled, the Supervisor password is required for entering the
BIOS Setup program and having full configuration fields, the User passw ord is required to access only
basic items.
If y ou select "System" at "Passw ord C heck" in Advance BIOS Features Menu, you w ill be
prompted for the password every time the system is rebooted or any time you try to enter Setup M enu.
If you select "Setup" at " Password C heck" in Adv ance BIOS Features Menu, you will be prompted
only when you try to enter Setup.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
}Standard CMOS Features S e l e c t L a n g u a g e (*
)
}Advanced BIOS Features Load Fail-Safe Defaults
}Integrated Peripherals Load Optimized Defaults
}Power Management Setup Set Supervisor Password
}PnP/PCI Configurations Set User Password
}PC Health Status Sav e & Exit Setup
}Frequency/Voltage Control Exit Without Saving
ESC:Quit F 3 : C h a n g e L a n g u a g e (*
)
F8: Dual BIOS (*)/Q-Flash F10:Save & Exit Setup
Change/Set/Disable Password
Figure 12: Password Setting
Enter Password:
Page 64
- 60 -GA-8IPE1000 Series Motherboard
English
(*) For GA-8IPE1000 Pro-G only.
Save & Exit Setup
Ty pe " Y" will quit the Setup Utility and save the user setup value to RTC CMOS.
Ty pe " N" w ill return to Setup Utility.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
}Standard CMOS Features S e l e c t L a n g u a g e (*
)
}Advanced BIOS Features Load Fail-Safe Defaults
}Integrated Peripherals Load Optimized Defaults
}Power Management Setup Set Supervisor Password
}PnP/PCI Configurations Set User Password
}PC Health Status Sav e & Exit Setup
}Frequency/Voltage Control Exit Without Saving
ESC:Quit F 3 : C h a n g e L a n g u a g e (*
)
F8: Dual BIOS (*)/Q-Flash F10:Save & Exit Setup
Save Data to CMOS
Figure 13: Save & Exit Setup
Save to CMOS and EXIT (Y/N)? Y
Page 65
- 61 - BIOS Setup
English
(*) For GA-8IPE1000 Pro-G only.
Exit Without Saving
Ty pe " Y" will quit the Setup Utility without saving to RTC CMOS.
Ty pe " N" w ill return to Setup Utility.
CMOS Setup Utility-Copyright (C) 1984-2003 Award Software
}Standard CMOS Features S e l e c t L a n g u a g e (*
)
}Advanced BIOS Features Load Fail-Safe Defaults
}Integrated Peripherals Load Optimized Defaults
}Power Management Setup Set Supervisor Password
}PnP/PCI Configurations Set User Password
}PC Health Status Sav e & Exit Setup
}Frequency/Voltage Control Exit Without Saving
ESC:Quit F 3 : C h a n g e L a n g u a g e (*
)
F8: Dual BIOS (*)/Q-Flash F10:Save & Exit Setup
Abandon all Data
Figure 14: Exit Without Saving
Quit Without Saving (Y/N)? N
Page 66
- 62 -GA-8IPE1000 Series Motherboard
English
Page 67
Tech nical Reference
- 63 -
English
@ BIOSTM Introduction
Gigabyte announces @ BIOS
Windows BIOS live update utility
Have you ever updated BIOS by yourself? Or like
many other people, you just know what BIOS is,
but always hesitate to update it? Because you think
updating newest BIOS is unnecessary and actually
you don't know how to update it.
Maybe not like others, you are very experienced in BIOS updating and spend quite a lot of time
to do it. But of course you don’t like to do it too much. First, download different BIOS from website and
then switch the operating system to DOS mode. Secondly, use different flash utility to update BIOS.
The above process is not a interesting job. Besides, always be carefully to store the BIOS source
code correctly in your disks as if you update the wrong BIOS, it will be a nightmare.
Certainly, you wonder why motherboard vendors could not just do something right to save your
time and effort and save you from the lousy BIOS updating work? Here it comes! Now Gigabyte
announces @BIOS— the first Windows BIOS live update utility. This is a smart BIOS update
software. It could help you to download the BIOS from internetand update it. Not like the other BIOS
update software, it's a Windows utility. With the help of "@BIOS", BIOS updating is no more than a
click.
Besides, no matter which mainboard you are using, if it's a Gigabyte's product*, @BIOS help
you to maintain the BIOS. This utility could detect your correct mainboard model and help you to
choose the BIOS accordingly. It then downloads the BIOS from the nearest Gigabyte ftp site
automatically. There are several different choices; you could use "Internet Update" to download and
update your BIOS directly. Or you may want to keep a backup for your current BIOS, just choose
"Save Current BIOS" to save it first. You make a wise choice to use Gigabyte, and @BIOS update
your BIOS smartly. You are now worry free from updating wrong BIOS, and capable to maintain and
manage your BIOS easily. Again, Gigabyte's innovative product erects a milestone in mainboard
industries.
For such a wonderful software, how much it costs? Impossible! It's free! Now, if you buy a
Gigabyte's motherboard, you could find this amazing software in the attached driver CD. But please
remember, connected to internet at first, then you could have a internet BIOS update from your
Gigabyte @BIOS.
Revision History
Chapter 4 Technical Reference
Page 68
- 64 -GA-8IPE1000 Series Motherboard
English
Easy TuneTM 4 Introduction
Gigabyte announces EasyTune
TM
4
Windows based Overclocking utility
EasyTune 4 carries on the heritage so as to pave the way for future generations.
Overclock" might be one of the most common issues
in computer field. But have many users ever tried it?
The answer is probably "no". Because "Overclock"
is thought to be very difficult and includes a lot of
technical know-how, sometimes "Overclock" is even
considered as special skills found only in some
enthusiasts. But as to the experts in "Overclock",
what's the truth? They may spend quite a lot of time
and money to study, try and use many different hardware or BIOS tools to do "Overclock". And even with these technologies, they still learn that it's quite a
risk because the safety and stability of an "Overclock" system is unknown. Now everything is different
because of a Windows based overclocking utility "EasyTune 4" --announced by Gigabyte. This windows based utility has totally changed the gaming rule of "Overclock". This is the first windows based
overclocking utility is suitable for both normal and power users. Users can choose either "Easy Mode"
or "Advanced Mode" for overclocking at their convenience. For users who choose "Easy Mode", they
just need to click "Auto Optimize" to have autoed and immediate CPU overclocking. This software will
then overdrive CPU speed automatically with the result being shown in the control panel. If users prefer
"Overclock" by them, there is also another choice. Click "Advanced Mode" to enjoy "sport drive" class
Overclocking user interface. "Advanced Mode", allows users to change the system bus / AGP /
Memory working frequency in small increments to get ultimate system performance. It operates in
coordination with Gigabyte motherboards. Besides, it is different from other traditional over-clocking
methods, EasyTune 4 doesn't require users to change neither BIOS nor hardware switch/ jumper setting;
on the other hand, they can do "Overclock" at easy step . Therefore, this is a safer way for "Overclock"
as nothing is changed on software or hardware. If user runs EasyTune 4 over system's limitation, the
biggest lost is only to restart the computer again and the side effect is then well controlled. Moreover, if one
well-performed system speed has been tested in EasyTune 4, user can "Save" this setting and "Load"
it in next time. Obviously, Gigabyte EasyTune 4 has already turned the "Overclock" technology toward
to a newer generation. This wonderful software is now free bundled in Gigabyte motherboard attached in
driver CD. Users may make a test drive of "EasyTune 4" to find out more amazing features by
themselves.
*Some Gigabyte products are not fully supported by EasyTune 4. Please find the products supported list
in the web site.
*Any "Overclocking action" is at user's risk, Gigabyte Technology will not be responsible for any
damage or instability to your processor, motherboard, or any other components.
Page 69
Tech nical Reference
- 65 -
English
(*) For GA-8IPE1000 Pro-G only.
Face-WizardTM Utilities Installation (*
)
What is Face-WizardTM?
Face-WizardTM is a windows based utility with user-friendly interface that allows users to change the
boot-up logo with picture from Gigabyte Logo Gallery on web site or other compatible picture you have.
How does it work?
Face-WizardTM allows user to select BIOS on board or file in hard drive, floppy disk , zip, MO or other
storage devices and combine the compatible picture you prefer into BIOS. And not only this, Face-
WizardTM also helps user to update BIOS in windows mode.
What’s benefit for using Face-WizardTM?
It can personalize boot-up logo to show your unique style from others, and never again looking at the
black and white boot up screen.
(1)
(2)
(4)
2.Click "Next".
(3)
3.Click "Next".
(5)
4.Click "Start"-"Programs"-"GIGABYTE
UTILITY"-"Face-Wizard".
5.Click "Help".
1.Click "Face-Wizard" item.
Page 70
- 66 -GA-8IPE1000 Series Motherboard
English
Flash BIOS Method Introduction
Method 1: Dual BIOS (*) /Q-Flash
A. What is Dual BIOS Technology?
Dual BIOS means that there are two system BIOS (ROM) on the motherboard, one is the Main
BIOS and the other is Backup BIOS. Under the normal circumstances, the system works on the
Main BIOS. If the Main BIOS is corrupted or damaged, the Backup BIOS can take over while the
system is powered on. This means that your PC will still be able to run stably as if nothing has
happened in your BIOS.
B. How to use Dual BIOS and Q-Flash Utility?
a. After power on the computer, pressing <Del> immediately during POST (Power On Self Test) it will
allow you to enter Award BIOS CMOS SETUP, then press <F8> to enter Flash utility.
(*) For GA-8IPE1000 Pro-G only.
CMO S Setup Utility-Copyr ight (C) 1984 -2003 Award S oftware
}Standard CMOS Fe atures S e l e c t L a n g u a g e (*
)
}Advanced BIOS Features Load Fail-Safe Defaults
}Integrated Peripherals Load Optimized Defaults
}Power Manag ement Setup Set Supervisor Password
}PnP/PCI Configurations Se t User Password
}PC Health Status Save & Exit Setup
}Frequency/ Voltage Control Exit Without Saving
ESC:Qu it F 3 : C h a n g e L a n g u a g e (*
)
F8: Dual BIOS (*)/Q-Fla sh F10:Save & Exit Setup
Tim e, Date, Hard Disk Type...
Enter Dual BIOS (*)/Q-Flash Utility (Y/N)? Y
Page 71
Tech nical Reference
- 67 -
English
b. Award Dual BIOS Flash ROM Programming Utility
c. Dual BIOS Item explanation:
Wide Range Protection: Disable(Default), Enable
Status 1:
If any failure (ex. Update ESCD failure, checksum error or reset… ) occurs in the Main BIOS, just
before the Operating System is loaded and after the power is on, and that the Wide Range Protection
is set to "Enable", the PC will boot from Backup BIOS automatically.
Status 2:
If the ROM BIOS on peripherals cards(ex. SCSI Cards, LAN Cards,..) emits signals torequest
restart of the system after the user make any alteration on it, the boot up BIOS will not be changed to
the Backup BIOS.
Boot From : Main BIOS(Default), Backup BIOS
Status 1:
The user can set to boot from main BIOS or Backup BIOS.
Status 2:
If one of the main BIOS or the Backup BIOS fails, this item "Boot From : Main BIOS(Default)"
will become gray and will not be changed by user.
Dual BIOS Utility V1.30
Boot From....................................................... Main Bios
Main ROM Type/Size...................................... SST 49LF003A 512K
Backup ROM Type/Size.................................. SST 49LF003A 512K
Wide Range Protection Disable
Boot From Main Bios
Auto Recovery Enable
Halt On Error Disable
Keep DMI Data Enable
Copy Main ROM Data to Backup
Load Default Settings
Save Settings to CMOS
Q-Flash Utility
Update Main BIOS from Floppy
Update Backup BIOS from Floppy
Save Main BIOS to Floppy
Save Backup BIOS to Floppy
PgDn/PgUp: Modify hi: Move ESC: Res et F1 0: Power O ff
Page 72
- 68 -GA-8IPE1000 Series Motherboard
English
Auto Recovery : Enable(Default), Disable
When one of the Main BIOS or Backup BIOS occurs checksum failure, the working BIOS will
automatically recover the BIOS of checksum failure.
(In the Power Management Setup of the BIOS Setting, if ACPI Suspend Type is set to Suspend to
RAM, the Auto Recovery will be set to Enable automatically.)
(If you want to enter the BIOS setting, please press "Del" key when the boot screen appears.)
Halt On Error : Disable(Default), Enable
If the BIOS occurs a checksum error or the Main BIOS occurs a WIDE RANGE PROTECTION
error and Halt On Error set to Enable, the PC will show messages on the boot screen, and the
system will pause and wait for the user's instruction.
If Auto Recovery :Disable, it will show <or the other key to continue.>
If Auto Recovery :Enable, it will show <or the other key to Auto Recover.>
Keep DMI Data : Enable(Default), Disable
Enable: The DMI data won't be replaced by flashing new BIOS.(recommend)
Disable: The DMI data will be replaced by flashing new BIOS.
Copy Main ROM Data to Backup
(If you boot from Backup ROM, this item will change to Copy Backup ROM Data to Main)
Auto recovery message:
BIOS Recovery: Main to Backup
The means that the Main BIOS works normally and could automatically recover the Backup BIOS.
BIOS Recovery: Backup to Main
The means that the Backup BIOS works normally and could automatically recover the Main BIOS.
(This auto recovery utility is set by system automatically and can’t be changed by user.)
Load Default Settings
Load dual BIOS default value.
Save Settings to CMOS
Save revised setting.
Page 73
Tech nical Reference
- 69 -
English
I. Q: What is DualBIOSTM technology?
Answer:
DualBIOS technology is a patented technology from Giga-Byte Technology. The concept of this
technology is based on the redundancy and fault tolerance theory. DualBIOSTM technology simply
means there are two system BIOSes (ROM) integrated onto the motherboard. One is a main BIOS,
and the other is a backup BIOS. The mainboard will operate normally with the main BIOS, however,
if the main BIOS is corrupt or damaged for various reasons, the backup BIOS will be automatically
used when the system powered-On. Your PC will operate as before the main BIOS was damaged,
and is completely transparent to the user.
DualBIOSTM Tec hnology FAQ
GIGABYTE Technology is pleased to introduce DualBIOS technology, a hot spare for your
system BIOS. This newest "Value-added" feature, in a long series of innovations from GIGABYTE,
is available on this motherboard. Future GIGABYTE motherboards will also incorporate this
innovation.
What’s DualBIOSTM?
On GIGABYTE motherboards with DualBIOS there are physically two BIOS chips. For
simplicity we’ll call one your "Main BIOS" and the other we'll call your "Backup" BIOS (your "hot
spare"). If your Main BIOS fails, the Backup BIOS almost automatically takes over on your next
system boot. Almost automatically and with virtually zero down time! Whether the problem is a
failure in flashing your BIOS or a virus or a catastrophic failure of the Main BIOS chip, the result is
the same - the Backup BIOS backs you up, almost automatically.
Page 74
- 70 -GA-8IPE1000 Series Motherboard
English
III. Q: How does DualBIOSTM technology work?
Answer:
1. DualBIOSTM technology provides a wide range of protection during the boot up procedure. It
protects your BIOS during system POST, ESCD update, and even all the way to PNP
detection/assignment.
2. DualBIOSTM provides automatic recovery for the BIOS. When the first BIOS used during
boot up does not complete or if a BIOS checksum error occurs, boot-up is still possible. In
the DualBIOSTM utility, the "Auto Recovery" option will guarantee that if either the main
BIOS or backup BIOS is corrupted, the DualBIOSTM technology will use the good BIOS
and correct the wrong BIOS automatically.
3. DualBIOSTM provides manual recovery for the BIOS. DualBIOSTM technology contains a
built-in flash utility, which can flash your system BIOS from backup to main and/or visa
versa. There is no need for an OS-dependent flash utility program.
4. DualBIOSTM contains a one-way flash utility. The built-in one-way flash utility will ensure that
the corrupt BIOS is not mistaken as the good BIOS during recovery and that the correct
BIOS (main vs. backup) will be flashed. This will prevent the good BIOS from being
flashed.
II. Q: Why does anyone need a motherboard with DualBIOSTM technology?
Answer:
In today's systems there are more and more BIOS failures. The most common reasons are virus
attacks, BIOS upgrade failures, and/or deterioration of the BIOS (ROM) chip itself.
1. New computer viruses are being found that attack and destroy the system BIOS. They may
corrupt your BIOS code, causing your PC to be unstable or even not boot normally.
2. BIOS data will be corrupted if a power loss/surge occurs, or if a user resets the system, or if
the power button is pressed during the process of performing a system BIOS upgrade.
3. If a user mistakenly updates their mainboard with the incorrect BIOS file, then the system
may not be able to boot correctly. This may cause the PC system hang in operation or
during boot.
4. A flash ROM's life cycle is limited according to electronic characteristics. The modern PC
utilizes the Plug and Play BIOS, and is updated regularly. If a user changes peripherals
often, there is a slight chance of damage to the flash ROM.
With Giga-Byte Technology’s patented DualBIOSTM technology you can reduce the
possibility of hangs during system boot up, and/or loss BIOS data due to above reasons.
This new technology will eliminate valuable system down time and costly repair bills cause
by BIOS failures.
Page 75
Tech nical Reference
- 71 -
English
2. During or after a BIOS upgrade, if DualBIOSTM detects that the main BIOS is corrupt, the
backup BIOS will take over the boot-up process automatically. Moreover, it will verify the
main and backup BIOS checksums when booting-up. DualBIOSTM technology examines
the checksum of the main and backup BIOS while the system is powered on to guarantee
your BIOS operates properly.
3. Power Users will have the advantage of having two BIOS versions on their mainboard. The
benefit is being able to select either version BIOS to suit the performance system needs.
4. Flexibility for high-end desktop PCs and workstation/servers. In the DualBIOSTM utility,
the option can be set, "Halt On When BIOS Defects," to be enabled to halt your system with
awarning message that the main BIOS has been corrupted. Most workstation/servers
require constant operation to guarantee services have not been interrupted. In this situation,
the "Halt On When BIOS Defects" message may be disabled to avoid system pauses
d u rin g n o r m a l b o o tin g . A n o th e r a d v a n ta g e yo u g a i n fro m G ig a - B y te 's D u a l B IO S
TM
technology is the ability to upgrade from dual 2 Mbit BIOS to dual 4
Mbit BIOS in the future if extra BIOS storage is need.
IV. Q: Who Needs DualBIOSTM technology?
Answer:
1. Every user should have DualBIOSTM technology due to the advancement of computer
viruses.
Everyday, there are new BIOS-type viruses discovered that will destroy your system
BIOS. Most commercial products on the market do not have solutions to guard against this
type of virus intrusion. The DualBIOSTM technology will provide a state-of-the-art solution to
protect your PC:
Case I.) Vicious computer viruses may wipe out your entire system BIOS. With a
conventional single system BIOS PC, the PC will not be functional until it is sent for repairs.
Case II.) If the "Auto Recovery" option is enabled in the DualBIOSTM utility, and if a virus
corrupts your system BIOS, the backup BIOS will automatically reboot the system and
correct the main BIOS.
Case III.) A user may override booting from the main system BIOS. The DualBIOSTM utility
may be entered to manually change the boot sequence to boot from the backup BIOS.
Page 76
- 72 -GA-8IPE1000 Series Motherboard
English
Flash BIOS Method Introduction
Q-Flash™ is a BIOS flash utility embedded in Flash ROM. With this utility, users only have to stay in
the BIOS menu when they want to update BIOS. Q-Flash™ allows users to flash BIOS without any
utility in DOS or Windows. Using Q-Flash™ indicating no more fooling around with any complicated
instructions and operating system since it is in the BIOS menu.
Please note that because updating BIOS has potential risk, please do it with caution!! We
are sorry that Gigabyte Technology Co., Ltd is not responsible for damages of system
because of incorrect manipulation of updating BIOS to avoid any claims from end-users.
Before You Begin:
Before you start updating BIOS with the Q-Flash
™
utility, please follow the steps below first.
1. Download the latest BIOS for your motherboard from Gigabyte's website.
2. Extract the BIOS file downloaded and save the BIOS file (the one with model name.Fxx. For
example, 7VRXP.F12) to a floppy disk.
3. Reboot your PC and press Del to enter BIOS menu.
The BIOS upgrading guides below are separated into two parts.
If your motherboard has dual BIOS, please refer to Part One.
If your motherboard has single BIOS, please refer to Part Two.
Page 77
Tech nical Reference
- 73 -
English
The BIOS file is F10
before updating
Entering the Q-Flash™ utility:
Step1: To use Q-Flash™ utility, you must press Del in the boot screen to enter BIOS menu.
AMIBIOS SIM PLE SETUP U TILITY - VERSION 2.00
(C ) 2 001 America n M egatrend s, Inc . All Rights Reserv ed
STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MON ITOR & MISC SETUP
CH IPSET FEATURES SETUP SU PERVISOR PASSWORD
POWER MAN AGEMEN T SETUP USER PASSWORD
PNP / PCI C ONFIGURATION IDE HDD AUTO DETEC TION
LOAD FAIL-SAFE DE FAU LTS SAVE & EXIT SETUP
LOAD OPTIMIZED DEFA U LTS EXIT WITH OUT SAVING
ESC: Quit hifg: Selec t Item F5 : Old Valu es F6 : Fail-Safe Values
F7: O ptimize d Values F8: Dual BIOS/Q-Flash F10:Sav e & Exit
Loa d Fail- Safe Defau lts
Part One:
Updating BIOS with Q-Flash™ Utility on Dual BIOS Motherboards.
Some of Gigabyte motherboards are equipped with dual BIOS. In the BIOS menu of the
motherboards supporting Q-Flash
™
and Dual BIOS, the Q-Flash™ utility and Dual BIOS utility are
combined in the same screen. This section only deals with how to use Q-Flash
™
utility.
In the following sections, we take GA-7VRXP as the example to guide you how to flash BIOS from
an older version to the latest version. For example, from F10 to F12.
7VRX P F1 0
AMD-Ath lon(t m)Pro cessor-133 3MHz
Chec k Syste m He alth !
Chec king NVRA M...U pdat e OK
262144KB
DEL: Steup/ Dual BI OS/Q-F lash F8:Bo ot Menu F1 2:Netw ork b oot TAB: Logo
Auto -Detec ting Pri Master ..IDE Ha rd Disk
Auto- Detect ing Pri S lave. ..Not Det ected
Aut o-De tect ing S ec Maste r.. ATAP I CDRO M
Auto- Detect ing Sec S lave. . N ot Detect ed
( C ) America n Megatr ends Inc .,
62-2003-001199-00101111-040201-KT333-GA7VRXP1-
Amer ican R ele ase:0 8/23/ 200 2
Mega tre nd s A MIB IOS (C) 19 99 A meri ca n Mega trend
Page 78
- 74 -GA-8IPE1000 Series Motherboard
English
Step 2: Press F8 button on your keyboard and then Y button to enter the Q-Flash™ utility.
Exploring the Q-Flash™/Dual BIOS utility screen
The Q-Flash™/Dual BIOS utility screen consists of the following key components.
AMIBIOS SIM PLE SETUP U TILITY - VERSION 2.00
(C ) 2 001 America n M egatrend s, Inc . All Rights Reserv ed
STANDARD CMOS SETUP IN TEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CH IPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MAN AGEMEN T SETUP U SER PASSWORD
PNP / PCI C ONFIGURATION IDE HDD AU TO DETEC TION
LOAD FAIL-SAFE DE FAU LTS SAVE & EXIT SETU P
LOAD OPTIMIZED DEFA U LTS EXIT WITHO U T SAVING
ESC: Quit hifg : Selec t Item F5 : Old Valu es F6: F ail-Safe Valu es
F7: O ptimize d Values F8: Dual BIOS/Q-Flash F10:Sav e & Exit
Loa d Fail- Safe Defau lts
ENTE R DUAL BIOS/Q-FLA SH UTILITY (Y/N) ? Y
Dual BIOS U tility
Boot From.... .............. ............... ........ Main Bios
Main ROM Type /Size........... ............. S ST 49L F003 A 256K
Backup ROM Type/Size... ................. SST 49LF0 03A 2 56 K
Wid e Range Prote ction Di sable
Boot From Main Bios
Auto Recove ry E n able
Hal t On Err or Di sabl e
Co py M ain RO M Da ta to Back up
Loa d Defau lt Setti ngs
Sav e Settings to CMOS
Q-Flash U tility
Load M ain BIOS from Floppy
Load Backup BIOS from Floppy
Sav e Main BIOS to Floppy
Sav e Backup BIOS to Flo ppy
Enter : Run hi:M ov e ESC:Rese t F10 :Power Off
Dual BIOS utility bar
Q-FlashTM utility title
bar
Action bar
Task men u for
Q-FlashTM utility
Task men u for
Dual BIOS utility
Page 79
Tech nical Reference
- 75 -
English
Task menu for Dual BIOS utility:
Con tains th e n am e s of eight ta sks and two item sh owing inform ation about the BIOS ROM type.
Bloc king a task and pressing Enter key on your keyb oard to en able execution of the task.
Task menu for Q-Flash™ utility:
Contains the nam es of four tasks. Blocking a task and pressing Enter key on your keyboard to enable
exec ution of the task.
Action bar:
Contai ns the name s of four actions needed to ope rate the Q-Flas h™/Dua l BIOS utility. Pressi ng the
buttons m entioned on your key boards to per form these actions.
Using the Q-Flash™ utility:
This section tells you how to update BIOS using the Q-Flash™ utility. As described in the "Before you
begin" section above, you must prepare a floppy disk having the BIOS file for your motherboard and
insert it to your computer. If you have already put the floppy disk into your system and have entered
the Q-Flash™ utility, please follow the steps below to flash BIOS.
Steps:
1. Press arrow buttons on your keyboard to move the light bar to "Load Main BIOS from Floppy"
item in the Q-Flash™ menu and press Enter button.
If you want to save the current BIOS for backup purpose, you can begin Step 1 with
"Save Main BIOS to Floppy" item.
Dual BIOS U tility
Boot From.... .............. ............... ........ Main Bios
Main ROM Type /Size........... ............. S ST 49L F003 A 25 6K
Backup ROM Type/Size... ................. SST 49LF0 03A 25 6K
Wid e Range Prote ction Di sable
Boot From Main Bios
Auto Recove ry E n able
Hal t On Err or Disabl e
Co py M ain RO M Da ta to Back up
Loa d Defau lt Setti ngs
Sav e Settings to CMOS
Q-Flash U tility
Load M ain BIOS from Floppy
Load Backup BIOS from Floppy
Sav e Main BIOS to Floppy
Sav e Backup BIOS to Flo ppy
Enter : Run hi:M ov e ESC:Rese t F10 :Power Off
Page 80
- 76 -GA-8IPE1000 Series Motherboard
English
Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy
disk.
2.Move to the BIOS file you want to flash and press Enter.
In this example, we only download one BIOS file to the floppy disk so only one BIOS file,
7VRXP.F12, is listed.
Please confirm again you have the correct BIOS file for your motherboard.
BIOS file in the floppy disk.
After pressing Enter, you'll then see the progress of reading the BIOS file from the floppy disk.
Please d o not take out the floppy disk when it begins flashing BIOS.
Dual BIOS U tility
Boot From.... .............. ............... ........ Main Bios
Main ROM Type /Size........... ............. S ST 49L F003 A 25 6K
Backup ROM Type/Size... ................. SST 49LF0 03A 25 6K
Wid e Range Prote ction Di sable
Boot From Main Bios
Auto Recove ry E n able
Hal t On Err or Disabl e
Co py M ain RO M Da ta to Back up
Loa d Defau lt Setti ngs
Sav e Settings to CMOS
Q-Flash U tility
Load M ain BIOS from Floppy
Load Backup BIOS from Floppy
Sav e Main BIOS to Floppy
Sav e Backup BIOS to Flo ppy
Enter : Run hi:M ov e ESC:Rese t F10 :Power Off
Dual BIOS U tility
Boot From.... .............. ............... ........ Main Bios
Main ROM Type /Size........... ............. S ST 49L F003 A 25 6K
Backup ROM Type/Size... ................. SST 49LF0 03A 25 6K
Wid e Range Prote ction Di sable
Boot From Main Bios
Auto Recove ry E n able
Hal t On Err or Disabl e
Co py M ain RO M Da ta to Back up
Loa d Defau lt Setti ngs
Sav e Settings to CMOS
Q-Flash U tility
Load M ain BIOS from Floppy
Load Backup BIOS from Floppy
Sav e Main BIOS to Floppy
Sav e Backup BIOS to Flo ppy
Enter : Run hi:M ov e ESC:Rese t F10 :Power Off
Do not truning off power or reset
your system at this stage!!
Readi ng BI OS file from flop py. ..
>>>>>>>>> >>>............. .........
Don’t Turn Off Powe r O r Reset S ystem
7VRXP. F12 2 56 K
To tal size : 1 .39M Free size: 1.14M
F5 : R efresh DE L : Dele te
1 file(s) fou nd
Page 81
Tech nical Reference
- 77 -
English
After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update
BIOS?"
Please d o not take out the floppy disk when it begins flashing BIOS.
3. Press Y button on your keyboard after you are sure to update BIOS.
Then it will begin to update BIOS. The progress of updating BIOS will be displayed.
Dual BIOS U tility
Boot From.... .............. ............... ........ Main Bios
Main ROM Type /Size........... ............. S ST 49L F003 A 25 6K
Backup ROM Type/Size... ................. SST 49LF0 03A 25 6K
Wid e Range Prote ction Di sable
Boot From M ain Bios
Auto Recove ry E n able
Hal t On Err or Disabl e
Co py M ain RO M Da ta to Back up
Loa d Defau lt Setti ngs
Sav e Settings to CMOS
Q-Flash U tility
Load M ain BIOS from Floppy
Load Backup BIOS from Floppy
Sav e Main BIOS to Floppy
Sav e Backup BIOS to Flo ppy
Enter : Run hi:M ov e ESC:Rese t F10 :Power Off
You can press "Enter" to co ntinue
updating BIOS or "ESC" to abort.
CH ECKSUM = 96D2
Are y ou sure to update BIOS?
[Enter] to con tinue o r [Es c] to abo rt... ..
Dual BIOS U tility
Boot From.... .............. ............... ........ Main Bios
Main ROM Type /Size........... ............. S ST 49L F003 A 25 6K
Backup ROM Type/Size... ................. SST 49LF0 03A 25 6K
Wid e Range Prote ction Di sable
Boot From Main Bios
Auto Recove ry E n able
Hal t On Err or Disabl e
Co py M ain RO M Da ta to Back up
Loa d Defau lt Setti ngs
Sav e Settings to CMOS
Q-Flash U tility
Load M ain BIOS from Floppy
Load Backup BIOS from Floppy
Sav e Main BIOS to Floppy
Sav e Backup BIOS to Flo ppy
Enter : Run hi:M ov e ESC:Rese t F10 :Power Off
The progress of updating BIOS.
Do not turning off power or res et
your system at this stage to avoid
damagi ng your BIOS rom!!
Progra mming N ow. ......
>>>>>>>>> >>>............. .........
Don't Tu rn Off Po we r Or Rese t S y stem
Page 82
- 78 -GA-8IPE1000 Series Motherboard
English
4. Press any keys to return to the Q-Flash™ menu when the BIOS updating procedure is completed.
You can repeat Step 1 to 4 to flash the backup BIOS, too.
5. Press Esc and then Y button to exit the Q-Flash™ utility. The computer will restart automatically
after you exit Q-Flash™.
Dual BIOS U tility
Boot From.... .............. ............... ........ Main Bios
Main ROM Type /Size........... ............. S ST 49L F003 A 2 56 K
Backup ROM Type/Size... ................. SST 49LF0 03A 2 56 K
Wid e Range Prote ction Di sable
Boot From Main Bios
Auto Recove ry E n able
Hal t On Err or Di sabl e
Co py M ain RO M Da ta to Back up
Loa d Defau lt Setti ngs
Sav e Settings to CMOS
Q-Flash U tility
Load M ain BIOS from Floppy
Load Backup BIOS from Floppy
Sav e Main BIOS to Floppy
Sav e Backup BIOS to Flo ppy
Enter : Run hi:M ov e ESC:Rese t F10 :Power Off
Are y ou sure to RESET ?
[Enter ] to continu e or [E sc] to ab ort...
Dual BIOS U tility
Boot From.... .............. ............... ........ Main Bios
Main ROM Type /Size........... ............. S ST 49L F003 A 25 6K
Backup ROM Type/Size... ................. SST 49LF0 03A 25 6K
Wid e Range Prote ction Disa ble
Boot From M ain Bios
Auto Recove ry E n able
Hal t On Err or Disabl e
Co py M ain RO M Da ta to Back up
Loa d Defau lt Setti ngs
Sav e Settings to CMOS
Q-Flash U tility
Load M ain BIOS from Floppy
Load Backup BIOS from Floppy
Sav e Main BIOS to Floppy
Sav e Backup BIOS to Flo ppy
Enter : Run hi:M ov e ESC:Rese t F10 :Power Off
!! C opy BIOS com pleted - Pass !!
Please press a ny key to continue
Page 83
Tech nical Reference
- 79 -
English
The BIOS file becomes
F12 after updating
6. Press Del to enter BIOS menu after system reboots. When you are in BIOS menu, move to Load
Fail-Safe Defaults item and press Enter to load BIOS Fail-Safe Defaults. Normally the system
redetects all devices after BIOS has been upgraded. Therefore, we highly recommend reloading
the BIOS defaults after BIOS has been upgraded.
The following is an AMI BIOS menu screen. However, you can also find similar option in
AWARD BIOS menu.
AMIBIOS SIM PLE SETUP U TILITY - VERSION 2.00
(C ) 2 001 America n M egatrend s, Inc . All Rights Reserv ed
STANDARD CMOS SETUP IN TEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CH IPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MAN AGEMEN T SETUP U SER PASSWORD
PNP / PCI C ONFIGURATION IDE HDD AU TO DETEC TION
LOAD FAIL-SAFE DE FAU LTS SAVE & EXIT SETU P
LOAD OPTIMIZED DEFA U LTS EXIT WITHO U T SAVING
ESC: Quit hifg : Selec t Item F5 : Old Valu es F6 : Fail-Safe Values
F7: O ptimize d Values F8: Dual BIOS/Q-Flash F10:Sav e & Exit
Loa d Fail- Safe Defau lts
Press Enter on
your keyboard
After system reboots, you may find the BIOS version on your boot screen becomes the one you
flashed.
7VRX P F1 2
AMD-Ath lon(t m)Pro cessor-133 3MHz
Chec k Syste m He alth !
Chec king NVRA M...U pdat e OK
262144KB
DEL: Steup/ Dual BI OS/Q-F lash F8:Bo ot Menu F1 2:Netw ork b oot TAB: Logo
Auto -Detec ting Pri Master ..IDE Ha rd Disk
Auto- Detect ing Pri S lave. ..Not Det ected
Aut o-De tect ing S ec Maste r.. ATAP I CDRO M
Auto- Detect ing Sec S lave. . N ot Detect ed
( C ) America n Megatr ends Inc .,
62-2003-001199-00101111-040201-KT333-GA7VRXP1-
Amer ican R ele ase:0 8/23/ 200 2
Mega tre nd s A MIB IOS (C) 19 99 A meri ca n Mega trend
Page 84
- 80 -GA-8IPE1000 Series Motherboard
English
AMIBIOS SIM PLE SETUP U TILITY - VERSION 2.00
(C ) 2 001 America n M egatrend s, Inc . All Rights Reserv ed
STANDARD CMOS SETUP IN TEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CH IPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MAN AGEMEN T SETUP U SER PASSWORD
PNP / PCI C ONFIGURATION IDE HDD AU TO DETEC TION
LOAD FAIL-SAFE DE FAU LTS SAVE & EXIT SETU P
LOAD OPTIMIZED DEFA U LTS EXIT WITHO U T SAVING
ESC: Quit hifg : Selec t Item F5 : Old Valu es F6: F ail-Safe Valu es
F7: O ptimize d Values F8: Dual BIOS/Q-Flash F10:Sav e & Exit
Loa d Fail- Safe Defau lts
Press Y on your
keyboard to load
defaults.
Load F ail-Safe Defaults (Y /N)? Y
7. Select Save & Exit Setup item to save the settings to CMOS and exit the BIOS menu. System
will reboot after you exit the BIOS menu. The procedure is completed.
AMIBIOS SIM PLE SETUP U TILITY - VERSION 2.00
(C ) 2 001 America n M egatrend s, Inc . All Rights Reserv ed
STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MON ITOR & MISC SETUP
CH IPSET FEATURES SETUP SU PERVISOR PASSWORD
POWER MAN AGEMEN T SETUP USER PASSWORD
PNP / PCI C ONFIGURATION IDE HDD AUTO DETEC TION
LOAD FAIL-SAFE DE FAU LTS SAVE & EXIT SETUP
LOAD OPTIMIZED DEFA U LTS EXIT WITH OUT SAVING
ESC: Quit hifg: Selec t Item F5 : Old Valu es F6 : Fail-Safe Values
F7: O ptimize d Values F8: Dual BIOS/Q-Flash F10:Sav e & Exit
Loa d Fail- Safe Defau lts
Press Y on your
keyboard to
save and exit.
SAVE to CM OS and EXIT (Y /N) ? Y
Page 85
Tech nical Reference
- 81 -
English
Part Two:
Updating BIOS with Q-Flash™ Utility on Single-BIOS Motherboards.
This part guides users of single-BIOS motherboards how to update BIOS using the Q-Flash™ utility.
Entering the Q-Flash™ utility:
Step1: To use the Q-Flash™utility, you must press Del in the boot screen to enter BIOS menu.
CM OS Setup U tility- Cop yright ( C) 1984-2002 A ward Software
}Stan dard CM OS Featur es Top Perfo rmanc e
}Ad van ced BI OS Features Loa d Fai l-Sa fe Defau lts
} I ntegra ted Peri pherals Loa d Optimiz e d De faults
} P ow er M anag ement Setup Set Superv isor Pa ssword
}Pn P/PC I Con figura tions Set Use r Pa sswo rd
}PC H ealth Status Save & Exit Setup
} Fr equenc y/Voltag e Co ntrol Ex it Without Sav ing
ESC:Quit higf:S elec t Item
F8: Q-Flash F10:Sav e & Exit Setup
Tim e, Date, H ard Disk Type. ..
2. Press F8 on your keyboard and then Y button to enter the Q-Flash™ utility.
CM OS Setup U tility- Cop yright ( C) 1984-2002 A ward Software
}Stan dard CM OS Featur es Top Perfo rmanc e
}Ad van ced BI OS Features Loa d Fai l-Sa fe Defau lts
} I ntegra ted Peri pherals Loa d Optimiz e d De faults
} P ow er M anag ement Setup Set Superv isor Pa ssword
}Pn P/PC I Con figura tions Set Use r Pa sswo rd
}PC H ealth Status Save & Exit Setup
} Fr equenc y/Voltag e Co ntrol Ex it Without Sav ing
ESC:Quit higf:S elec t Item
F8: Q-Flash F10:Sav e & Exit Setup
Tim e, Date, H ard Disk Type. ..
Enter Q -Flash Uti lity (Y/N) ? Y
Page 86
- 82 -GA-8IPE1000 Series Motherboard
English
Exploring the Q-Flash™ utility screen
The Q-Flash™ BIOS utility screen consists of the following key components.
Th e Qflas h utili ty
title bar
Q-Flash Utility V1 .30
Flash Ty pe/Size...... .......... SST 49LF00 2A 256 K
Enter: Run h/i : M ove E SC : Reset F10:Power Off
Keep D MI D ataEnabl e
Up date B IOS fro m Flop py
Save BIOS to Floppy
Action bar
Task menu for the
Q-flash u tility
Task menu for the Q-Flash™ utility: Contains the names of three tasks. Blocking a task and
pressing Enter key on your keyboard to enable execution of the task.
Action bar: Contains the names of four actions needed to operate the Q-Flash™ utility. Pressing the
buttons mentioned on your keyboard to perform these actions.
Using the Q-Flash™ utility:
This section tells you how to update BIOS using the Q-Flash™ utility. As described in the "Before you
begin" section above, you must prepare a floppy disk having the BIOS file for your motherboard and
insert it to your computer. If you have already put the floppy disk into your system and have enter the
Q-Flash™ utility, please follow the steps below to flash BIOS.
Steps:
1. Press arrow buttons on your keyboard to move the light bar to "Load Main BIOS from Floppy"
item in the Q-Flash™ menu and press Enter button.
If you want to save the current BIOS for backup purpose, you can begin Step 1 with Save
Main BIOS to Floppy item.
Q-Flash Utility V1 .30
Flash Ty pe/Size...... .......... SST 49LF00 2A 256 K
Enter: Run h/i : M ove E SC : Reset F10:Power Off
Keep D MI D ataEnabl e
Up date B IOS fro m Flop py
Save BIOS to Floppy
Page 87
Tech nical Reference
- 83 -
English
Later, you will see a box showing the BIOS files you downloaded to the floppy disk.
In this example, we only download one BIOS for this board, 8GE800.F4 so only one BIOS file is listed.
2.Highlight the BIOS file you want to flash and press Enter button on your keyboard to enable reading
from the BIOS file from the floppy.
Please confirm again you have the correct BIOS file for your motherboard.
Q-Flash Utility V1 .30
Flash Ty pe/Size...... .......... SST 49LF00 2A 256 K
Enter: Run h/i : M ove E SC : Reset F10:Power Off
Keep D MI D ataEnabl e
Up date B IOS fro m Flop py
Save BIOS to Floppy
8GE 8 00.F4 256K
Total Size : 1 .39M Free Size: 1.14M
F5: Re fresh D EL: Delete
1 File(s) fou nd
BIOS file in the
floppy .
Q-Flash Utility V1 .30
Flash Ty pe/Size...... .......... SST 49LF00 2A 256 K
Enter: Run h/i : M ove E SC : Reset F10:Power Off
Keep D MI D ataEnabl e
Up date B IOS fro m Flop py
Save BIOS to Floppy
Do not turning
power or reset your
system at this
stage!
Readin g BIOS file from floppy .........
>>>>>>>>... .................... ....
Don't turn off P ow er Or RESET System
After BIOS file is read, you’ll see a confirmation dialog box asking you
"Are you sure to update BIOS?"
Page 88
- 84 -GA-8IPE1000 Series Motherboard
English
Q-Flash Utility V1 .30
Flash Ty pe/Size...... .......... SST 49LF00 2A 256 K
Enter: Run h/i : M ove E SC : Reset F10:Power Off
Keep D MI D ataEnabl e
Up date B IOS fro m Flop py
Save BIOS to Floppy
You can press "Enter" to
continue updating BIOS
or "ESC" to abort.
CH ECKSUM = AC 03
Are y ou sure to update BI OS?
[Enter] to contin ue up dating BIO S or "ES C " to ab ort.
3. Press Y button if you make sure to update BIOS.
Then it will begin to update BIOS. The progress of updating will be shown at the same time.
Do not turning off power
or reset your system at
this stage!!
The porces s of
updating BIOS
Q-Flash Utility V1 .30
Flash Ty pe/Size...... .......... SST 49LF00 2A 256 K
Enter: Run h/i : M ove E SC : Reset F10:Power Off
Keep D MI D ataEnabl e
Up date B IOS fro m Flop py
Save BIOS to Floppy
Upd ating BIOS No w...
>>>>>>>>>>>>>............ .....
Do not Turn Off Pow er On RESET Sy stem
4. Press any keys to return to the Q-Flash™ menu when the BIOS updating procedure is completed.
5. Press Esc and then Enter to exit the Q-Flash™ utility. System will restart.
Q-Flash Utility V1 .30
Flash Ty pe/Size...... .......... SST 49LF00 2A 2 56K
Enter: Run h/i : M ove E SC : Reset F10:Power Off
Keep D MI D ataEnabl e
Up date B IOS fro m Flop py
Save BIOS to Floppy
Are y ou sure to RES ET?
[Enter] to co ntinue or [Es c] to abort....
6. Press Del to enter BIOS menu after system reboots and load BIOS Fail-Safe Defaults. See how
to load BIOS Fail-Safe Defaults, please kindly refer to Step 6 to 7 in Part One.
Congratulation!! You have updated BIOS successfully!!
Q-Flash Utility V1 .30
Flash Ty pe/Size...... .......... SST 49LF00 2A 2 56K
Enter: Run h/i : M ove E SC : Reset F10:Power Off
Keep D MI D ataEnabl e
Up date B IOS fro m Flop py
Save BIOS to Floppy
!! C opy BIOS compl eted - pass !!
Please pre ss any ke y to continue. ...
Page 89
Tech nical Reference
- 85 -
English
Method 2: @ BIOS Utility
If you don't have DOS boot disk, we recommend that you used Gigabyte @BIOS
TM
program to
flash BIOS.
Methods and steps:
I. Update BIOS through Internet
a. Click "Internet Update" icon
b. Click "Update New BIOS" icon
c. Select @BIOSTM sever
d. Select the exact model name on your motherboard
e. System will automatically download and update the BIOS.
(3)
(1)
(4)
(2)
1.Click "@BIOS"
Press here.
2.Click"Start"-"Programs"-
"GIGABYTE"-"@BIOS"
3.Click "P".
5. Please select @BIOS sever site,
then Click "OK".
4.Click here.
Page 90
- 86 -GA-8IPE1000 Series Motherboard
English
II. Update BIOS NOT through Internet:
a. Do not click "Internet Update" icon
b. Click "Update New BIOS"
c. Please select "All Files" in dialog box while opening the old file.
d. Please search for BIOS unzip file, downloading from internet or any other methods (such as:
8IPE1000 Pro-G.F1).
e. Complete update process following the instruction.
III. Save BIOS
In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It means to save the
current BIOS version.
IV. Check out supported motherboard and Flash ROM:
In the very beginning, there is "About this program" icon shown in dialog box. It can help you check
out which kind of motherboard and which brand of Flash ROM are supported.
Note:
a. In method I, if it shows two or more motherboard's model names to be selected, please make
sure your motherboard's model name again. Selecting wrong model name will cause the
system unbooted.
b. In method II, be sure that motherboard's model name in BIOS unzip file are the same as your
motherboard's. Otherwise, your system won't boot.
c. In method I, if the BIOS file you need cannot be found in @BIOSTM server, please go onto
Gigabyte's web site for downloading and updating it according to method II.
d. Please note that any interruption during updating will cause system unbooted
Page 91
Tech nical Reference
- 87 -
English
Stereo Speakers Connection and Settings:
We recomm end that you use the speaker with amplifier to acqiire the best sound effect if the stereo output
is appli ed.
STEP 1:
Connect the stereo speakers or earphone to "Line
Out".
STE P 2 :
Following ins tallation of the audio driver, yo u find a
icon a Sound Effect icon on the lower right hand
taskbar . Cli ck the icon to sele ct the function.
The installation of windows 98SE/2K/ME/XP is very simple. Please follow next step to install the
function!
Line O ut
STEP 3:
Click "Speaker Co nfiguration" then click on the le ft
sele ction bar an d se lect "2C H Sp eaker" to co m-
plete 2 cha nnel audio con figuration.
2- / 4- / 6- / 8- Channel Audio
Function Introduction
Page 92
- 88 -GA-8IPE1000 Series Motherboard
English
4 Channel Analog Audio Output Mode
STEP 1 :
Connect the fron t channels to "Line Out",
the rear channels to "Line In".
STE P 2 :
Following ins tallation of the audio driver, yo u find a
icon a Sound Effect icon on the lower right hand
taskbar . Cli ck the icon to sele ct the function.
Line O ut Line In
STE P 3 :
Click "Speaker C onfiguration" and select the "U AJ
Function". Then click on the left selection b ar and
select "4CH Spe aker" to complete 4 chan nel audio
configuration.
Page 93
Tech nical Reference
- 89 -
English
Use the back au dio panel to connect the audio out-
put witho ut any additional m odule.
STEP 1 :
Conne ct the front channels to " Line Out",the rear
chan nels to "Li ne In", and the C enter/Sub woofer
channels to "M IC In".
6 Channel Analog Audio Output Mode
STE P 2 :
Following ins tallation of the audio driver, yo u find a
icon a Sound Effect icon on the lower right hand
taskbar . Cli ck the icon to sele ct the function.
Line O ut
Line In
M IC In
STE P 3 :
Click "Speaker C onfiguration" and select the "U AJ
Function". Then click on the left selection b ar and
select "6CH Spe aker" to complete 6 chan nel audio
configuration.
Page 94
- 90 -GA-8IPE1000 Series Motherboard
English
STE P 1 :
Secu re the Audio Com bo Kit at the panel on the
back of the c ase.
8 Channel Audio Setup (using Audio Combo Kit, Optional Device):
(Aud io Com bo K it offers SP DIF output, a n optical
and co axial cable and a Surround-Ki t. The
Surround-Ki t offers R/L surround, center/subwoofer
output and rear surrou nd)
STE P 2 :
Connec t the Su rround-Kit to the SUR_CEN conn ector located o n the motherboar d.
ST EP 3 :
Th ere are two m e thod s of 8 c han nel a ud io
con figuration :
M ethod 1 :
Co nnec t th e fro nt cha nnel s to the "L INE OUT "
port located o n the audio panel and the re ar chan-
nel s to the Surr ound- Kit "RE AR R/L" port. Con-
nec t the center /sub woofer chan nels to the S ur-
rou nd-Ki t "SUB CENT ER" a nd the R/L cha nnels
to the Sur roun d-Kit "SUR BACK " po rt.
Page 95
Tech nical Reference
- 91 -
English
STE P 4 :
Following ins tallation of the audio driver, yo u find a
icon a Sound Effect icon on the lower right hand
taskbar . Cli ck the icon to sele ct the function.
STE P 5 :
Click "Speake r Configu ration" and select both the
"UA J F unction " a nd "O nly Surr ound- Kit". The n
cl ick on the left sel ectio n bar and sele ct "8CH
Speaker" to com plete 8 channel audio configuration.
So und E ffect Con figu ration:
At the s oun d e ffec t m enu , use rs can a dju st
so und op tio n s ettin gs as des ire d.
M ethod 2 :
Co nnec t th e fro nt cha nnel s to the "L INE OUT "
port located o n the audio panel and the re ar chan-
ne ls to the "L INE IN" p ort. Con nect the cen ter/
sub woofer ch annel s to the "M IC IN" port lo cated
on the au dio panel and the R /L chann els to the
Su rrou nd-K it " SUR BACK " p ort. (Th is meth od
req uire s UAJ functi on)
Page 96
- 92 -GA-8IPE1000 Series Motherboard
English
SPDIF Output Device (Optional Device)
3. Connect S PDIF to the SP DIF decoder.
1. Conne ct the S PDIF output device to the rear
brac ket of PC, and fix it with sc rew.
2. Connect SPDIF device to the motherboard.
A "SPDIF output" device is available on the
motherboard. Cable with rear bracket is provided
and could link to the "SPDIF output" connector (As
picture.) For the further linkage to decoder, rear
bracket provides coaxial cable and Fiber
connecting port.
Page 97
Tech nical Reference
- 93 -
English
Jack-Sensing(UAJ) Introduction
Install M icrosoft DirectX8.1 or later version before to enable Jack-Sensing support for Windows
98/98SE/2000 /ME.
Introduction of audio connectors
You may co nnect CDROM , Walkman or others
audio input devices to Lin e In jack, speakers, ea r-
phon e or others o utput de vices to Line Out j ack,
and m icrophon e to MIC In jac k.
Jack-Sensin g includes 2 parts: AUTO and M ANUAL. Following is an example for 2 channels (Win dows
XP):
Auto-detecting:
Jack-Sensing provides audio connectors error-detection function.
Plea se conne ct the de vices to the ri ght jacks
as above. A win dow will appear as right
picture if you setup the device s pr operly.
Ple ase note that 3D au dio functio n will only
appear when 3D a udio inputs.
Page 98
- 94 -GA-8IPE1000 Series Motherboard
English
Manual setting:
If the device picture shows d ifferent from what you
set, plea se pre ss "Man ual Selection " to set.
If you se t wrong with the co nnectors, the warning
mes sage will com e out as right picture.
UAJ Introduction
UAJ (Un iversa l Audi o J ack) h as a ver y sm art fea ture: It wil l s witch sign al a utoma tically when u ser
plugs his audio device to the wrong jack (Line-in/ Line-o ut). That means users do not need to worry the
aud io d evice shoul d be plu g in Line-i n or Line -out j ack, the de vice will wor k pe rfectly after UAJ is
activ ated.
You can click "U AJ Autom atic" button to enable
UAJ fun ction.
Enable UAJ function:
Page 99
Tech nical Reference
- 95 -
English
Xpress Recovery Introduction
What is Xpress Recovery?
Xpress Recovery utility is an utility for backing up and restoring O.S. partition . If the hard drive
can not work properly, you can restore it to the original state.
1. It supports FAT16, FAT32, NTFS format .
2. It must be connected to IDE1 Master .
3. It's only allows you to install one O.S .
4. It must be used with IDE hard disk supporting HPA .
5. The first partition must be set as the boot partition. When the boot partition is backed up,
please do not change the its size.
6. It is not recommend to use Xpress Recovery if you had ever used Ghost to return boot
managemer to NTFS format.
1. System data and hard disk's reading/writing speed will affect backing up speed.
2. We recommend that you install Xpress Recovery immediately after installing O.S ,
drivers and applications.
How to use the Xpress Recovery
There are two ways to enter the Xpress Recovery utility. (see the below)
1. Text Mode: press F9 during powering on the computer.
2. BMP Mode: boot from CD-ROM
Boot from CD:
.
.
Verifying DMI Pool Data
Boot from CD:
Please go to "Advanced BIOS" setting menu and set boot from CD-ROM , then save and exit the
BIOS menu . Later,please insert MB driver CD into your drive when "Boot from CD:" appears at the
bottom of the screen , press any key to enter Xpress Recovery.
Press F9 during powering on the computer .
Award Modular BIOS v6.00 PG, An Energy Star A l ly
Copyright (C) 1984-2002, Award Software, Inc.
Intel 865PE AGPSet BIOS for 8IPE1000MT F1
Check System Health OK
.
.
.
Press DEL to enter SETUP / Q-Flash, F9 For Xpress Recovery
08/16/2002-I845GE-6A69YG01C-00
F9 For Xpress Recovery
Page 100
- 96 -GA-8IPE1000 Series Motherboard
English
You can highlight the item by using the arrows keys on your keyboard and
enter key to enter the menu.
If you ever entered Xpress Recovery by booting from CD-ROM, you'll still be
directed to BMP mode by pressing F9 in the bootup screen.
Xpress Recovery V1.0 (C) Copy Right 2003. GIGABYTE Technilogy CO. , Ltd.
1. Execute Ba ckup Utility
2. Execute Re store Utili ty
3. Rem ove Back up Image
4. Exi t and Restart
Text Mode:
BMP Mode:
Xpress Recovery V1.0 (C) Copy Right 2003. GIGABYTE Technilogy CO. , Ltd.
1. Execute Ba ckup Utility
2. Execute Re store Utili ty
3. Rem ove Back up Image
4. Exi t and Restart
Loading...
