GA-8VM800M

Intel® Pentium® 4 Processor Motherboard

User's Manual

Rev. 1002

12ME-8VM800M-1002R

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

* The WEEE marking on the product indicates this product must not be disposed of with user's other household waste

and must be handed over to a designated collection point for the recycling of waste electrical and electronic equipment!!

* The WEEE marking applies only in European Union's member states.

Motherboard

GA-8VM800M

Nov. 28, 2005

Motherboard

GA-8VM800M

The trademarks mentioned in the manual are legally registered to their respective companies.

Notice

The written content provided with this product is the property of Gigabyte.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without Gigabyte's prior written permission. Specifications and features are subject to

change without prior notice.

Product Manual Classification

In order to assist in the use of this product, Gigabyte has categorized the user manual in the

following:

 For detailed product information and specifications, please carefully read the

"Product User Manual".

 For detailed information related to Gigabyte's unique features, please go to "Technology

Guide" section on Gigabyte's website to read or download the information you need.

For more product details, please click onto Gigabyte's website at www.gigabyte.com.tw

- 4 -

Table of Contents

GA-8VM800M Motherboard Layout .............................................................................. 6

Block Diagram ................................................................................................................ 7

Chapter 1 Hardware Installation ..................................................................................... 9

1-1 Considerations Prior to Installation .................................................................... 9

1-2 Feature Summary .......................................................................................... 10

1-3 Installation of the CPU and Heatsink .............................................................. 12

1-3-1 Installation of the CPU ......................................................................................... 12

1-3-2 Installation of the Heatsink .................................................................................. 13

1-4 Installation of Memory .................................................................................... 14

1-5 Installation of Expansion Cards ...................................................................... 15

1-6 I/O Back Panel Introduction ........................................................................... 16

1-7 Connectors Introduction .................................................................................. 17

Chapter 2 BIOS Setup ................................................................................................ 27

The Main Menu (For example: BIOS Ver. : F1a) ...................................................... 28

2-1 Standard CMOS Features ............................................................................. 29

2-2 Advanced BIOS Features.............................................................................. 32

2-3 Integrated Peripherals ..................................................................................... 33

2-4 Power Management Setup ............................................................................. 35

2-5 PnP/PCI Configurations................................................................................. 37

2-6 PC Health Status ........................................................................................... 38

2-7 Frequency / Voltage Control ........................................................................... 39

2-8 Load Fail-Safe Defaults ................................................................................... 41

2-9 Load Optimized Defaults ................................................................................. 41

2-10 Set Supervisor/User Password ..................................................................... 42

2-11 Save & Exit Setup......................................................................................... 43

2-12 Exit Without Saving ....................................................................................... 43

- 5 -

Chapter 3 Drivers Installation ...................................................................................... 45

3-1 Install Chipset Drivers .................................................................................... 45

3-2 Software Application ....................................................................................... 46

3-3 Software Information ....................................................................................... 46

3-4 Hardware Information ..................................................................................... 47

3-5 Contact Us..................................................................................................... 47

Chapter 4 Appendix ................................................................................................... 49

4-1 Unique Software Utilities ................................................................................ 49

4-1-1 EasyTune 5 Introduction ..................................................................................... 50

4-1-2 Xpress Recovery2 Introduction ......................................................................... 51

4-1-3 Flash BIOS Method Introduction ........................................................................ 53

4-1-4 Serial ATA BIOS Setting Utility Introduction ...................................................... 62

4-1-5 2 / 4 / 6 Channel Audio Function Introduction ................................................. 69

4-2 Troubleshooting ............................................................................................... 74

- 6 -

GA-8VM800M Motherboard Layout

KB_MS

COMA

LPT

Socket 478

CPU_FAN

ATX

FDD

VGA

COMB

ATX_12V

PWR_LED

PCI3

F_USB1

BIOS

F_PANEL

VT8237R Plus

F_USB2

BAT

PCI2

CODEC

SUR_CEN

CLR_CMOS

CD_IN

SATA1

SATA0

PCI1

IT8705

GA-8VM800M

F_AUDIO

USB

IDE2

IDE1

AGP

DDR1

VIA P4M800

LAN

AUDIO

USB

DDR2

RTL8201

- 7 -

Block Diagram

VIA

P4M800

VIA

VT8237R Plus

CPUCLK+/- (100/133/200MHz)

System Bus

400/533/800MHz

GCLKNB 66MHz

33MHz

14.318MHz

48MHz

LPC BUS

AGP 4X/8X

3 PCI

PCICLK

(33MHz)

AC97 Link

8 USB

Ports

ATA33/66/

100/133

IDE Channels

RTL8201

48 MHz

33 MHz

Floppy

LPT Port

PS/2 KB/Mouse

COMA/COMB

MIC

LINE-IN

Pentium 4

Socket 478

CPU

6 Channel

CODEC

266/333/400MHz

DDRAGPCLK

(66MHz)

HCLK (200/133/100MHz)

66MHz V_Link

VGA Port

BIOS

LINE-OUT

2 Serial ATA

RJ45

IT8705

- 8 -

Hardware Installation- 9 -

English

1-1 Considerations Prior to Installation

Preparing Your Computer

The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Thus, prior to installation, please follow the instructions below:

1. Please turn off the computer and unplug its power cord.

2. When handling the motherboard, avoid touching any metal leads or connectors.

3. It is best to wear an electrostatic discharge (ESD) cuff when handling electronic components (CPU, RAM).

4. Prior to installing the electronic components, please have these items on top of an antistatic pad or within a electrostatic shielding container.

5. Please verify that the power supply is switched off before unplugging the power supply connector from the motherboard.

Installation Notices

1. Prior to installation, please do not remove the stickers on the motherboard. These stickers are required for warranty validation.

2. Prior to the installation of the motherboard or any hardware, please first carefully read the information in the provided manual.

3. Before using the product, please verify that all cables and power connectors are connected.

4. To prevent damage to the motherboard, please do not allow screws to come in contact with the motherboard circuit or its components.

5. Please make sure there are no leftover screws or metal components placed on the motherboard or within the computer casing.

6. Please do not place the computer system on an uneven surface.

7. Turning on the computer power during the installation process can lead to damage to system components as well as physical harm to the user.

8. If you are uncertain about any installation steps or have a problem related to the use of the product, please consult a certified computer technician.

Instances of Non-Warranty

1. Damage due to natural disaster, accident or human cause.

2. Damage as a result of violating the conditions recommended in the user manual.

3. Damage due to improper installation.

4. Damage due to use of uncertified components.

5. Damage due to use exceeding the permitted parameters.

6. Product determined to be an unofficial Gigabyte product.

Chapter 1 Hardware Installation

GA-8VM800M Motherboard - 10 -

English

CPU  Socket 478 for Intel® Pentium® 4 (Northwood, Prescott) with HT Technology

 Supports 400/533/800MHz FSB  L2 cache varies with processors

Chipset  Northbridge:VIA P4M800

 Southbridge: VIA 8237R Plus

Memory  2 184-pin DDR DIMM slots

 Supports DDR400/333/266 DIMM  Supports up to 2GB (Max.)

Slots  1 AGP slot 4X/8X (1.5V) device support

 3 PCI slots

IDE Connections  2 IDE connection (UDMA 33/ATA 66/ATA 100/ATA133), allows connection of

4 IDE devices Onboard SATA  2 Serial ATA ports FDD Connections  1 FDD connection, allows connection of 2 FDD devices Peripherals  1 parallel port supporting Normal/EPP/ECP mode

 1 VGA port, 1 COMA port, onboard COMB connection  8 USB 2.0/1.1 ports (rear x 4, front x 4 via cable)  1 front audio connector  1 PS/2 keyboard port  1 PS/2 mouse port

Onboard VGA  Built-in VIA P4M800 Chipset Onboard LAN  Onboard RTL8201 chip (10/100 Mbit)

 1 RJ45 port

Onboard Audio  Realtek ALC653 CODEC

 Supports Line In ; Line Out ; MIC In  Supports 2 / 4 / 6 channel audio  CD In connection

I/O Control  IT8705 Hardware Monitor  CPU fan speed detection

 System voltage detection  CPU temperature detection

1-2 Feature Summary

Hardware Installation- 11 -

English

Onboard SATA RAID  Built in VT8237R Plus

 Supports Disk striping (RAID0) or DISK Mirroring (RAID1)  Supports UDMA up to 150 MB/sec  Up to 2 SATA Devices

BIOS  Use of licensed AWARD BIOS

 Supports Q-Flash

Additional Features  Supports @BIOS

 Supports EasyTune

(Note)

Overclocking  Over Clock via BIOS (CPU/DIMM)

 Over Voltage via BIOS (DIMM)

Form Factor  Micro-ATX form factor; 24.4cm x 21cm

(Note) EasyTune functions may vary depending on different motherboards.

GA-8VM800M Motherboard - 12 -

English

1-3 Installation of the CPU and Heatsink

Before installing the CPU, please comply with the following conditions:

1. Please make sure that the motherboard supports the CPU.

2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong direction, the CPU will not insert properly. If this occurs, please change the insert direction of the CPU.

3. Please add an even layer of heat sink paste between the CPU and heatsink.

4. Please make sure the heatsink is installed on the CPU prior to system use, otherwise overheating and permanent damage of the CPU may occur.

5. Please set the CPU host frequency in accordance with the processor specifications. It is not recommended that the system bus frequency be set beyond hardware specifications since it does not meet the required standards for the peripherals. If you wish to set the frequency beyond the proper specifications, please do so according to your hardware specifications including the CPU, graphics card, memory, hard drive, etc.

HT functionality requirement content :

Enabling the functionality of Hyper-Threading Technology for your computer system requires all of the following platform components:

- CPU: An Intel® Pentium 4 Processor with HT Technology

- Chipset: An VIA Chipset that supports HT Technology

- BIOS: A BIOS that supports HT Technology and has it enabled

- OS: An operation system that has optimizations for HT Technology

1-3-1 Installation of the CPU

Fig. 1 Position lever at a 90 degree angle.

Fig. 2 A gold-colored triangle is marked one edge of the CPU. Please align this edge with the socket edge closest to the CPU lever. Gently place the CPU into position making sure that the CPU pins fit perfectly into their holes. Once the CPU is positioned into it socket, place one finger down on the middle of the CPU and gently press the metal lever back into its original position.

Socket lever

Please use extra care when installing the CPU. The CPU will not fit if positioned incorrectly. Rather than applying force, please change the positioning of the CPU.

Hardware Installation- 13 -

English

1-3-2 Installation of the Heatsink

The heat sink may adhere to the CPU as a result of hardening of the heat sink paste. To prevent such an occurrence, it is suggested that either thermal tape rather than heat sink paste be used for heat dissipation or using extreme care when removing the heat sink.

Fig.1 Before installing the heat sink, please first add an even layer of heat sink paste on the surface of the CPU. Install all the heat sink components (Please refer to the heat sink manual for detailed installation instructions).

Fig.2 Please connect the heat sink power connector to the CPU_FAN connector located on the motherboard so that the heat sink can properly function to prevent CPU overheating.

GA-8VM800M Motherboard - 14 -

English

Before installing the memory modules, please comply with the following conditions:

1. Please make sure that the memory used is supported by the motherboard. It is recommended that memory of similar capacity, specifications and brand be used.

2. Before installing or removing memory modules, please make sure that the computer power is switched off to prevent hardware damage.

3. Memory modules have a foolproof insertion design. A memory module can be installed in only one direction. If you are unable to insert the module, please switch the direction.

1-4 Installation of Memory

The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM socket. The DIMM module can only fit in one direction due to the notch. Memory size can vary between sockets.

DDR memory module

notch

Fig.1 The DIMM socket has a notch, so the DIMM memory module can only fit in one direction. Insert the DIMM memory module vertically into the DIMM socket. Then push it down.

Fig.2 Close the plastic clip at both edges of the DIMM sockets to lock the DIMM module. Reverse the installation steps when you wish to remove the DIMM module.

Fig. 1

Fig. 2

Hardware Installation- 15 -

English

1-5 Installation of Expansion Cards

You can install your expansion card by following the steps outlined below:

1. Read the related expansion card's instruction document before installing the expansion card into the computer.

2. Remove your computer's chassis cover, screws and slot bracket from the computer.

3. Press the expansion card firmly into expansion slot in motherboard.

4. Be sure the metal contacts on the card are indeed seated in the slot.

5. Replace the screw to secure the slot bracket of the expansion card.

6. Replace your computer's chassis cover.

7. Power on the computer, if necessary, setup BIOS utility of expansion card from BIOS.

8. Install related driver from the operating system.

Installing a AGP expansion card:

Please carefully pull out the small whitedrawable bar at the end of the AGP slot when you try to install/uninstall the VGA card. Please align the VGA card to the onboard AGP slot and press firmly down on the slot. Make sure your VGA card is locked by the small white-drawable bar.

GA-8VM800M Motherboard - 16 -

English

1-6 I/O Back Panel Introduction

PS/2 Keyboard and PS/2 Mouse Connector

To install a PS/2 port keyboard and mouse, plug the mouse to the upper port (green) and the keyboard to the lower port (purple).

Parallel Port

The parallel port allows connection of a printer, scanner and other peripheral devices.

Serial Port (COMA)

Devices like mouses, modems, and etc. can be connected to Serial port.

VGA Port

Monitor can be connected to VGA port.

USB port

Before you connect your device(s) into USB connector(s), please make sure your device(s) such as USB keyboard, mouse, scanner, zip, speaker...etc. have a standard USB interface. Also make sure your OS supports USB controller. If your OS does not supportUSB controller, please contact OS vendor for possible patch or driver upgrade. For more information please contact your OS or device(s) vendors.

LAN Port

The provided Internet connection is fast Ethernet, providing data transfer speeds of 10/100Mbps.

Line In

Devices like CD-ROM, walkman etc. can be connected to Line In jack.

Line Out (Front Speaker Out)

Connect the stereo speakers, earphone or front surround channels to this connector.

MIC In

Microphone can be connected to MIC In jack.

Hardware Installation- 17 -

English

1-7 Connectors Introduction

1) ATX_12V

2) ATX (Power Connector)

3) CPU_FAN

4) FDD

5) IDE1/IDE2

6) SATA0 / SATA1

7) F_PANEL

8) PWR_LED

9) F_AUDIO

10) CD_IN

11) SUR_CEN

12) F_USB1 / F_USB2

13) COMB

14) CLR_CMOS

15) BAT

31 2

GA-8VM800M Motherboard - 18 -

English

1/2) ATX_12V/ATX (Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, please make sure that all components and devices are properly installed. Align the power connector with its proper location on the motherboard and connect tightly. The ATX_12V power connector mainly supplies power to the CPU. If the ATX_12V power connector is not connected, the system will not start. Caution! Please use a power supply that is able to handle the system voltage requirements. It is recommended that a power supply that can withstand high power consumption be used (300W or greater). If a power supply is used that does not provide the required power, the result can lead to an unstable system or a system that is unable to start.

Pin No. Definition

1 GND

2 GND

3 +12V

4 +12V

Pin No. Definition

1 3.3V

2 3.3V

3 GND

4 +5V

5 GND

6 +5V

7 GND

8 Power Good

9 5V SB (stand by +5V)

10 +12V

11 3.3V

12 -12V

13 GND

14 PS_ON(soft on/off)

15 GND

16 GND

17 GND

18 -5V

19 +5V

20 +5V

Hardware Installation- 19 -

English

3) CPU_FAN (Cooler Fan Power Connector)

The cooler fan power connector supplies a +12V power voltage via a 3-pin power connector and possesses a fool-proof connection design. Most coolers are designed with color-coded power connector wires. A red power connector wire indicates a positive connection and requires a +12V power voltage. The black connector wire is the ground wire (GND). Please remember to connect the power to the cooler to prevent system overheating and failure. Caution! Please remember to connect the power to the CPU fan to prevent CPU overheating and failure.

4) FDD (FDD Connector)

The FDD connector is used to connect the FDD cable while the other end of the cable connects to the FDD drive. The types of FDD drives supported are: 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB. Please connect the red power connector wire to the pin1 position.

Pin No. Definition

1 GND

2 +12V

3 Sense

GA-8VM800M Motherboard - 20 -

English

5) IDE1/IDE2 (IDE Connector)

An IDE device connects to the computer via an IDE connector. One IDE connector can connect to one IDE cable, and the single IDE cable can then connect to two IDE devices (hard drive or optical drive). If you wish to connect two IDE devices, please set the jumper on one IDE device as Master and the other as Slave (for information on settings, please refer to the instructions located on the IDE device).

40 39

IDE2

IDE1

6) SATA0/SATA1 (Serial ATA Connector)

Serial ATA can provide up to 150MB/s transfer rate. Please refer to the BIOS setting for the Serial ATA and install the proper driver in order to work properly.

Pin No. Definition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

Hardware Installation- 21 -

English

7) F_PANEL (Front Panel Connector)

Please connect the power LED, PC speaker, reset switch and power switch etc. of your chassis front panel to the F_PANEL connector according to the pin assignments below.

HD-

HD+

RES+

RES-

IDE Hard Disk Active LED

Reset Switch

SPEAK-

MSG-

MSG+

PW-

PW+

Message LED/

Power/

Sleep LED

Speaker Connector

SPEAK+

Power Switch

HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)

Pin 2: LED cathode(-)

SPEAK (Speaker Connector) Pin 1: Power

Pin 2- Pin 3: NC

Pin 4: Data(-)

RES (Reset Switch) Open: Normal

Close: Reset Hardware System

PW (Power Switch) Open: Normal

Close: Power On/Off

MSG(Message LED/Power/Sleep LED) Pin 1: LED anode(+)

Pin 2: LED cathode(-)

NC NC

GA-8VM800M Motherboard - 22 -

English

9) F_AUDIO (Front Audio Panel Connector)

Please make sure the pin assigment on the cable is the same as the pin assigment on the MB header. To find out if the chassis you are buying support front audio panel connector, please contact your dealer. If you want to use "Front Audio" connector, you must remove the jumpers from pins 5-6, 9-10.

8) PWR_LED

PWR_LED is connected with the system power indicator to indicate whether the system is on/off. It will blink when the system enters suspend mode.

Pin No. Definition

1 MIC

2 GND

3 MIC_BIAS

4 POWER

5 FrontAudio(R)

6 Rear Audio (R)/ Return R

7NC

8 No Pin

9 FrontAudio (L)

10 Rear Audio (L)/ Return L

Pin No. Definition

1 MPD+

2 MPD-

3 MPD-

Hardware Installation- 23 -

English

10) CD_IN (CD IN Connector)

Connect CD-ROM or DVD-ROM audio out to the connector.

Pin No. Definition

1 CD-L

2 GND

3 GND

4 CD-R

11) SUR_CEN

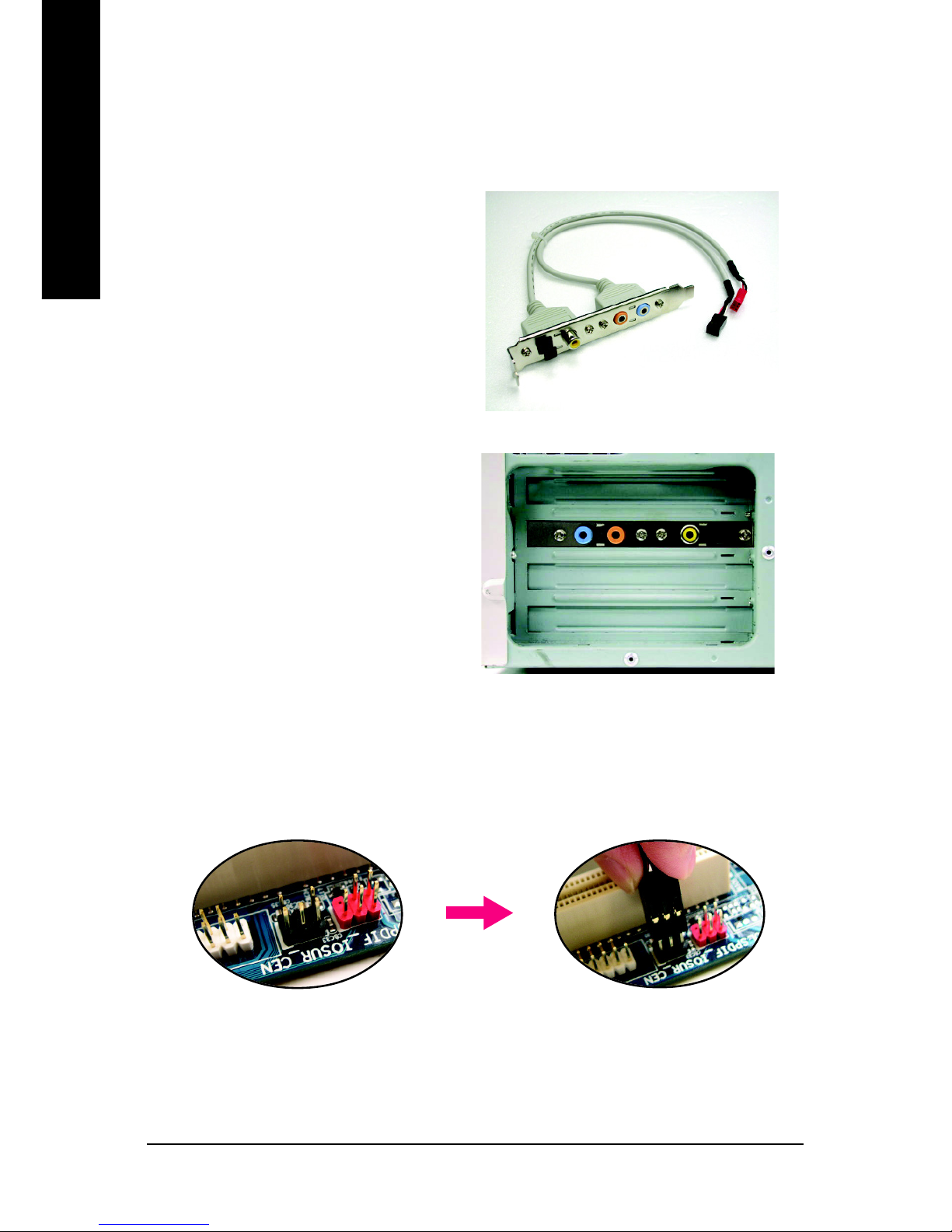

Please contact your nearest dealer for optional SUR_CEN cable.

Pin No. Definition

1 SUR OUTL

2 SUR OUTR

3 GND

4 No Pin

5 CENTER_OUT

6 BASS_OUT

GA-8VM800M Motherboard - 24 -

English

12) F_USB1 / F_USB2 (Front USB Connectors)

Be careful with the polarity of the front USB connector. Check the pin assignment carefully while you connect the front USB cable, incorrect connection between the cable and connector will make the device unable to work or even damage it. For optional front USB cable, please contact your local dealer.

Pin No. Definition

1 Power (5V)

2 Power (5V)

3 USB0 DX-

4 USB1 Dy-

5 USB0 DX+

6 USB1 Dy+

7 GND

8 GND

9 No Pin

10 NC

13) COMB (COMB Connector)

Be careful with the polarity of the COMB connector. Check the pin assignments while you connect the COMB cable. Please contact your nearest dealer for optional COMB cable.

Pin No. Definition

1 NDCDB-

2 NSINB

3 NSOUTB

4 NDTRB-

5 GND

6 NDSRB-

7 NRTSB-

8 NCTSB-

9 NRIB-

10 No Pin

Hardware Installation- 25 -

English

14) CLR_CMOS (Clear CMOS)

You may clear the CMOS data to its default values by this jumper. To clear CMOS, temporarily

short pins 1-2. To prevent improper use of this header, we do not include a jumper on it.

Open: Normal

Short: Clear CMOS

15) BAT (Battery)

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type

recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's

instructions.

If you want to erase CMOS...

1. Turn OFF the computer and unplug the power cord.

2. Take out the battery gently and put it aside for about 10

minutes (Or you can use a metal object to connect the

positive and negative pins in the battery holder to make them

short for one minute).

3. Re-install the battery.

4. Plug the power cord and turn ON the computer.

GA-8VM800M Motherboard - 26 -

English

BIOS Setup- 27 -

English

BIOS (Basic Input and Output System) includes a CMOS SETUP utility which allows user to configure required settings or to activate certain system features. The CMOS SETUP saves the configuration in the CMOS SRAM of the motherboard. When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS SRAM. When the power is turned on, pushing the <Del> button during the BIOS POST (Power-On Self Test) will take you to the CMOS SETUP screen. You can enter the BIOS setup screen by pressing "Ctrl + F1". When setting up BIOS for the first time, it is recommended that you save the current BIOS to a disk in the event that BIOS needs to be reset to its original settings. If you wish to upgrade to a new BIOS, either Gigabyte's Q-Flash or @BIOS utility can be used. Q-Flash allows the user to quickly and easily update or backup BIOS without entering the operating system. @BIOS is a Windows-based utility that does not require users to boot to DOS before upgrading BIOS but directly download and update BIOS from the Internet.

CONTROL KEYS

< >< >< >< > Move to select item <Enter> Select Item <Esc> Main Menu - Quit and not save changes into CMOS Status Page Setup Menu

and Option Page Setup Menu - Exit current page and return to Main Menu <Page Up> Increase the numeric value or make changes <Page Down> Decrease the numeric value or make changes <F1> General help, only for Status Page Setup Menu and Option Page Setup Menu <F2> Item Help <F5> Restore the previous CMOS value from CMOS, only for Option Page Setup Menu <F6> Load the fail-safe default CMOS value from BIOS default table <F7> Load the Optimized Defaults <F8> Q-Flash utility <F9> System Information <F10> Save all the CMOS changes, only for Main Menu

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc>.

Chapter 2 BIOS Setup

GA-8VM800M Motherboard - 28 -

English

The Main Menu (For example: BIOS Ver. : F1a)

Once you enter Award BIOS CMOS Setup Utility, the Main Menu (as figure below) will appear on the screen. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

If you can't find the setting you want, please press "Ctrl+F1" to search the advanced option hidden. Please Load Optimized Defaults in the BIOS when somehow the system works not stable as usual. This action makes the system reset to the default for stability.



 Standard CMOS Features

This setup page includes all the items in standard compatible BIOS.



 Advanced BIOS Features

This setup page includes all the items of Award special enhanced features.



 Integrated Peripherals

This setup page includes all onboard peripherals.



 Power Management Setup

This setup page includes all the items of Green function features.



 PnP/PCI Configurations

This setup page includes all the configurations of PCI & PnP ISA resources.



 PC Health Status

This setup page is the System auto detect Temperature, voltage, fan, speed.



 Frequency/Voltage Control

This setup page is control CPU clock and frequency ratio.



 Load Fail-Safe Defaults

Fail-Safe Defaults indicates the value of the system parameters which the system would be in safe configuration.



 Load Optimized Defaults

Optimized Defaults indicates the value of the system parameters which the system would be in best performance configuration.

` Standard CMOS Features ` Advanced BIOS Features ` Integrated Peripherals ` Power Management Setup ` PnP/PCI Configurations ` PC Health Status ` Frequency/Voltage Control

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

The BIOS Setup menus described in this chapter are for reference only and may differ from the exact settings for your motherboard.

BIOS Setup- 29 -

English



 Set Supervisor Password

Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.



 Set User Password

Change, set, or disable password. It allows you to limit access to the system.



 Save & Exit Setup

Save CMOS value settings to CMOS and exit setup.



 Exit Without Saving

Abandon all CMOS value changes and exit setup.

2-1 Standard CMOS Features

Date

The date format is <week>, <month>, <day>, <year>.

Week The week, from Sun to Sat, determined by the BIOS and is display only Month The month, Jan. Through Dec. Day The day, from 1 to 31 (or the maximum allowed in the month) Year The year, from 1999 through 2098

Time

The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.

IDE Channel 0/1 Master, Slave

IDE HDD Auto-Detection Press "Enter" to select this option for automatic device detection. IDE Device Setup. You can use one of three methods:

Auto Allows BIOS to automatically detect IDE devices during POST(default) None Select this if no IDE devices are used and the system will skip the automatic

detection step and allow for faster system start up.

Manual User can manually input the correct settings

Access Mode Use this to set the access mode for the hard drive. The four options are:

CHS/LBA/Large/Auto(default:Auto)

Standard CMOS Features

Date (mm:dd:yy) Mon, Feb 14 2005 Time (hh:mm:ss) 15:31:24

` IDE Channel 0 Master [None] ` IDE Channel 0 Slave [None] ` IDE Channel 1 Master [None] ` IDE Channel 1 Slave [None] ` IDE Channel 2 Master [None] ` IDE Channel 3 Master [None]

Drive A [1.44M, 3.5"] Drive B [None] Floppy 3 Mode Support [Disabled]

Halt On [All, But Keyboard]

Base Memory 640K Extended Memory 511M Total Memory 512M

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Item Help Menu Level`

Change the day, month, year

<Week> Sun. to Sat.

<Month> Jan. to Dec.

<Day> 1 to 31 (or maximum allowed in the month)

<Year> 1999 to 2098

GA-8VM800M Motherboard - 30 -

English

IDE Channel 2/3 Master

IDE HDD Auto-Detection Press "Enter" to select this option for automatic device detection. Extended IDE Drive SATA devices setup. You can use one of two methods:

Auto Allows BIOS to automatically detect SATA IDE devices during POST. (Default

value)

None Select this if no SATA IDE devices are used and the system will skip the

automatic detection step and allow for faster system start up.

Access Mode Use this to set the access mode for the hard drive. The two options are:

Large/Auto(default:Auto)

Capacity Capacity of currently installed hard disk. Hard drive information should be labeled on the outside drive casing. Enter the appropriate option based on this information.

Cylinder Number of cylinders

Head Number of heads

Precomp Write precomp

Landing Zone Landing zone

Sector Number of sectors

Drive A / Drive B

The category identifies the types of floppy disk drive A or drive B that has been installed in the computer.

None No floppy drive installed

360K, 5.25" 5.25 inch PC-type standard drive; 360K byte capacity.

1.2M, 5.25" 5.25 inch AT-type high-density drive; 1.2M byte capacity (3.5 inch when 3 Mode is Enabled).

720K, 3.5" 3.5 inch double-sided drive; 720K byte capacity

1.44M, 3.5" 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5" 3.5 inch double-sided drive; 2.88M byte capacity.

Floppy 3 Mode Support (for Japan Area)

Disabled Normal Floppy Drive. (Default value) Drive A Drive A is 3 mode Floppy Drive. Drive B Drive B is 3 mode Floppy Drive. Both Drive A & B are 3 mode Floppy Drives.

BIOS Setup- 31 -

English

Halt on

The category determines whether the computer will stop if an error is detected during power up.

No Errors The system boot will not stop for any error that may be detected and you

will be prompted. All Errors Whenever the BIOS detects a non-fatal error the system will be stopped. All, But Keyboard The system boot will not stop for a keyboard error; it will stop for all other

errors. (Default value) All, But Diskette The system boot will not stop for a disk error; it will stop for all other errors. All, But Disk/Key The system boot will not stop for a keyboard or disk error; it will stop for all

other errors.

Memory

The category is display-only which is determined by POST (Power On Self Test) of the BIOS.

Base Memory

The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system. The value of the base memory is typically 512K for systems with 512K memory installed on the motherboard, or 640K for systems with 640K or more memory installed on the motherboard.

Extended Memory

The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1 MB in the CPU's memory address map.

Total Memory

This item displays the memory size that used.

GA-8VM800M Motherboard - 32 -

English

2-2 Advanced BIOS Features

Hard Disk Boot Priority

Select boot sequence for onboard(or add-on cards) SCSI, RAID, etc.

Use < > or < > to select a device, then press<+> to move it up, or <-> to move it down the list. Press <ESC> to exit this menu.

First / Second / Third Boot Device

Floppy Select your boot device priority by Floppy. LS120 Select your boot device priority by LS120. Hard Disk Select your boot device priority by Hard Disk. CDROM Select your boot device priority by CDROM. ZIP Select your boot device priority by ZIP. USB-FDD Select your boot device priority by USB-FDD. USB-ZIP Select your boot device priority by USB-ZIP. USB-CDROM Select your boot device priority by USB-CDROM. USB-HDD Select your boot device priority by USB-HDD. Legacy LAN Select your boot device priority by Legacy LAN. Disabled Disable this function.

Password Check

Setup The system will boot but will not access to Setup page if the correct

password is not entered at the prompt. (Default value) System The system will not boot and will not access to Setup page if the correct

password is not entered at the prompt.

If you want to cancel the setting of password, please just press ENTER to make [SETUP] empty.

Advanced BIOS Features

X Hard Disk Boot Priority [Press Enter]

First Boot Device [Floppy] Second Boot Device [Hard Disk] Third Boot Device [CDROM] Password Check [Setup]

# CPU Hyper-Threading [Enabled]

Limit CPUID Max. to 3 [Disabled]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Item Help

Menu Level`

Select Hard Disk Boot Device Priority

" # " System will detect automatically and show up when you install the Intel® Pentium® 4 processor with HT Technology.

BIOS Setup- 33 -

English

CPU Hyper-Threading

Enabled Enables CPU Hyper Threading Feature. Please note that this feature is only working

for operating system with multi processors mode supported. (Default value)

Disabled Disables CPU Hyper Threading.

Limit CPUID Max. to 3

Enabled Limit CPUID Maximum value to 3 when use older OS like NT4. Disabled Disables CPUID Limit for windows XP.(Default value)

2-3 Integrated Peripherals

OnChip IDE Channel0

Enabled Enable onboard 1st channel IDE port.(Default value) Disabled Disable onboard 1st channel IDE port.

OnChip IDE Channel1

Enabled Enable onboard 2nd channel IDE port.(Default value) Disabled Disable onboard 2nd channel IDE port.

OnChip Serial ATA

Enabled Enable VT8237R Plus Serial ATA support. (Default value) Disabled Disable this function.

SATA Mode

RAID Set onboard SATA mode to RAID.

IDE Set onboard SATA mode to IDE. (Default value)

AC97 Audio

Auto Autodetect onboard AC'97 audio function. (Default value) Disabled Disable this function.

Integrated Peripherals

OnChip IDE Channel 0 [Enabled] OnChip IDE Channel 1 [Enabled] OnChip Serial ATA [Enabled] SATA Mode [IDE] AC97 Audio [Auto] VIA Onboard LAN [Enabled] USB 1.1 Controller [Enabled] USB 2.0 Controller [Enabled] USB Keyboard Support [Disabled] USB Mouse Support [Disabled] On-Chip LAN Boot ROM [Disabled] Onboard Serial Port 1 [3F8/IRQ4] Onboard Serial Port 2 [2F8/IRQ3] Onboard Parallel Port [378/IRQ7] Parallel Port Mode [SPP] Legacy USB storage detect [Enabled]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Item Help

Menu Level`

GA-8VM800M Motherboard - 34 -

English

VIA Onboard LAN

Enabled Enable VIA onboard LAN function. (Default value) Disabled Disable this function.

USB 1.1 Controller

Disabled Disable USB 1.1 controller. Enabled Enable USB 1.1 controller. (Default value)

USB 2.0 Controller

Disabled Disable USB 2.0 controller. Enabled Enable USB 2.0 controller. (Default value)

USB Keyboard Support

Enabled Enable USB keyboard support. Disabled Disable USB keyboard support. (Default value)

USB Mouse Support

Enabled Enable USB mouse support. Disabled Disable USB mouse support. (Default value)

On-Chip LAN Boot ROM

This function decide whether to invoke the boot ROM of the onboard LAN chip.

PXE Set On-Chip LAN Boot ROM to PXE. RPL Set On-Chip LAN Boot ROM to RPL. Disabled Disable this function. (Default value)

Onboard Serial Port 1

Auto BIOS will automatically setup the port 1 address. 3F8/IRQ4 Enable onboard Serial port 1 and address is 3F8/IRQ4. (Default value) 2F8/IRQ3 Enable onboard Serial port 1 and address is 2F8/IRQ3. 3E8/IRQ4 Enable onboard Serial port 1 and address is 3E8/IRQ4. 2E8/IRQ3 Enable onboard Serial port 1 and address is 2E8/IRQ3. Disabled Disable onboard Serial port 1.

Onboard Serial Port 2

Auto BIOS will automatically setup the port 2 address. 3F8/IRQ4 Enable onboard Serial port 2 and address is 3F8/IRQ4. 2F8/IRQ3 Enable onboard Serial port 2 and address is 2F8/IRQ3. (Default value) 3E8/IRQ4 Enable onboard Serial port 2 and address is 3E8/IRQ4. 2E8/IRQ3 Enable onboard Serial port 2 and address is 2E8/IRQ3. Disabled Disable onboard Serial port 2.

Onboard Parallel Port

Disabled Disable onboard LPT port. 378/IRQ7 Enable onboard LPT port and address is 378/IRQ7. (Default value) 278/IRQ5 Enable onboard LPT port and address is 278/IRQ5. 3BC/IRQ7 Enable onboard LPT port and address is 3BC/IRQ7.

Parallel Port Mode

SPP Using Parallel port as Standard Parallel Port. (Default value) EPP Using Parallel port as Enhanced Parallel Port. ECP Using Parallel port as Extended Capabilities Port. ECP+EPP Using Parallel port as ECP and EPP mode.

BIOS Setup- 35 -

English

2-4 Power Management Setup

ACPI Suspend Type

S1(POS) Set ACPI suspend type to S1/POS(Power On Suspend). (Default value) S3(STR) Set ACPI suspend type to S3/STR(Suspend To RAM).

USB Device Wake-Up From S3

Disabled Disable USB Device Wake-Up from S3. (Default value) Enabled Enable USB Device Wake-Up from S3.

Soft-Off by PWRBTN

Instant-Off Press power button then Power off instantly. (Default value) Delay 4 Sec. Press power button 4 sec. to Power off. Enter suspend if button is pressed

less than 4 sec.

AC BACK Function

Memory When AC-power back to the system, the system will be back to the last state

before AC-power is lost.

Soft-Off When AC-power back to the system, the system will be in "Off" state.

(Default value)

Full-On When AC-power back to the system, the system always in "On" state.

Power Management Setup

ACPI Suspend Type [S1(POS)]

x USB Device Wake-Up From S3 Disabled

Soft-Off by PWRBTN [Instant-Off] AC BACK Function [Soft-Off] Keyboard Power On [Disabled] Mouse Power On [Disabled] PME Event Wake Up [Enabled] Modem Ring Resume [Enabled]

Resume by Alarm [Disabled]

x Date (of Month) Alarm Everday x Time (hh:mm:ss) Alarm 0 : 0 : 0

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Item Help

Menu Level`

[S1] Set suspend type to Power On Suspend under ACPI OS

[S3] Set suspend type to Suspend to RAM under ACPI OS

Legacy USB storage detect

Enabled Enable USB storage detection in the MS-DOS environment. Disabled Disable this function. (Default value)

GA-8VM800M Motherboard - 36 -

English

Keyboard Power On

Password Enter from 1 to 8 characters to set the Keyboard Power On Password. Disabled Disable this function. (Default value) Keyboard 98 If your keyboard have "POWER Key" button, you can press the key to power

on the system.

Mouse Power On

Disabled Disable this function. (Default value) Enabled Double click on PS/2 mouse left button to power on the system.

PME Event Wake Up

This feature requires an ATX power supply that provides at least 1A on the 5VSB lead.

Disabled Disable this function. Enabled Enable PME as wake up event. (Default value)

Modem Ring Resume

An incoming call via modem can awake the system from any suspend state.

Disabled Disable Modem Ring Resume function. Enabled Enable Modem Ring Resume function. (Default value)

Resume by Alarm

You can set "Resume by Alarm" item to enabled and key in Date/Time to power on system.

Disabled Disable this function. (Default value) Enabled Enable alarm function to POWER ON system.

If Resume by Alarm is Enabled.

Date (of Month) Alarm : Everyday, 1~31 Time (hh: mm: ss) Alarm: (0~23) : (0~59) : (0~59)

BIOS Setup- 37 -

English

2-5 PnP/PCI Configurations

PCI 1 IRQ Assignment

Auto Auto assign IRQ to PCI 1. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 1.

PCI 2 IRQ Assignment

Auto Auto assign IRQ to PCI 2. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 2.

PCI 3 IRQ Assignment

Auto Auto assign IRQ to PCI 3. (Default value) 3,4,5,7,9,10,11,12,14,15 Set IRQ 3,4,5,7,9,10,11,12,14,15 to PCI 3.

PnP/PCI Configurations

PCI 1 IRQ Assignment [Auto]

PCI 2 IRQ Assignment [Auto]

PCI 3 IRQ Assignment [Auto]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Item Help

Menu Level`

GA-8VM800M Motherboard - 38 -

English

2-6 PC Health Status

Current Voltage(V) Vcore / DDR25V / +3.3V / +12V

Detect system's voltage status automatically.

Current CPU Temperature

Detect CPU temperature automatically.

Current CPU FAN Speed (RPM)

Detect CPU Fan speed status automatically.

PC Health Status

Vcore 1.438V

DDR25V 2.544V

+3.3V 3.344V

+12V 11.985V

Current CPU Temperature 44oC

Current CPU FAN Speed 4687 RPM

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Item Help

Menu Level`

BIOS Setup- 39 -

English

2-7 Frequency / Voltage Control

Incorrect using these features may cause your system broken. For power end-user use only.

CPU Clock Ratio

(Note)

This setup option will automatically assign by CPU detection. The option will display "Locked" and read only if the CPU ratio is not changeable.

Auto Detect PCI/DIMM Clk

Enabled Detect the PCI/DIMM clock automatically. (Default value) Disabled Disable this function.

Spread Spectrum

Enabled Enable clock spread spectrum. (Default value) Disabled Disable this function.

CPU Host Clock Control

Note: Please note that if your system is overclocked and cannot restart, please wait 20secs. for automatic system restart or clear the CMOS setup data and perform a safe restart.

Disabled Disable CPU Host Clock Control. (Default value) Enabled Enable CPU Host Clock Control.

CPU Clock

This option is available only when CPU Host Clock Control is enabled. The adjustable range is dependent on the CPU you install. If you use a Pentium 4 processor with 533MHz FSB, please set "CPU Clock" to 133MHz. If you use a Pentium 4 processor with 800MHz FSB, please set "CPU Clock" to 200MHz. Incorrect using it may cause your system corrupted. For power users only!

Frequency/Voltage Control

CPU Clock Ratio

(Note)

[21X] Auto Detect PCI/DIMM Clk [Enabled] Spread Spectrum [Enabled] CPU Host Clock Control [Disabled]

x CPU Clock 100MHz

DRAM Clock [By SPD] DIMM OverVoltage Control [Auto]

KLJI: Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help

F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults

Item Help

Menu Level`

(Note) This item will show up when you install a processor which supports this function.

GA-8VM800M Motherboard - 40 -

English

DRAM Clock

Please set DRAM Clock according to your requirement. (Default value: By SPD) If you use DDR266 DRAM module, please set "DRAM Clock" to "133". If you use DDR333 DRAM module, please set "DRAM Clock" to "166". If you use DDR400 DRAM module, please set "DRAM Clock" to "200". Incorrect using it may cause your system broken. For power End-User use only!

DIMM OverVoltage Control

Please note that by overclocking your system through the increase of the DDR voltage, damage to the memory may occur.

Auto BIOS will automatically detect DIMM voltage. (Default value)

+0.1V Set DIMM OverVoltage Control to +0.1V.

+0.2V Set DIMM OverVoltage Control to +0.2V. Incorrect using it may cause your system broken. For power End-User use only!

BIOS Setup- 41 -

English

2-8 Load Fail-Safe Defaults

Fail-Safe defaults contain the most appropriate values of the system parameters that allow minimum system performance.

` Standard CMOS Features ` Advanced BIOS Features ` Integrated Peripherals ` Power Management Setup ` PnP/PCI Configurations ` PC Health Status ` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Load Fail-Safe Defaults (Y/N)? N

2-9 Load Optimized Defaults

Selecting this field loads the factory defaults for BIOS and Chipset Features which the system automatically detects.

` Standard CMOS Features ` Advanced BIOS Features ` Integrated Peripherals ` Power Management Setup ` PnP/PCI Configurations ` PC Health Status ` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Load Optimized Defaults

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Load Optimized Defaults (Y/N)? N

GA-8VM800M Motherboard - 42 -

English

2-10 Set Supervisor/User Password

When you select this function, the following message will appear at the center of the screen to assist you in creating a password. Type the password, up to eight characters, and press <Enter>. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable password, just press <Enter> when you are prompted to enter password. A message "PASSWORD DISABLED" will appear to confirm the password being disabled. Once the password is disabled, the system will boot and you can enter Setup freely. The BIOS Setup program allows you to specify two separate passwords: SUPERVISOR PASSWORD and a USER PASSWORD. When disabled, anyone may access all BIOS Setup program function. When enabled, the Supervisor password is required for entering the BIOS Setup program and having full configuration fields, the User password is required to access only basic items. If you select "System" at "Password Check" in Advance BIOS Features Menu, you will be prompted for the password every time the system is rebooted or any time you try to enter Setup Menu. If you select "Setup" at "Password Check" in Advance BIOS Features Menu, you will be prompted only when you try to enter Setup.

` Standard CMOS Features ` Advanced BIOS Features ` Integrated Peripherals ` Power Management Setup ` PnP/PCI Configurations ` PC Health Status ` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Change/Set/Disable Password

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Enter Password:

BIOS Setup- 43 -

English

2-11 Save & Exit Setup

Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS. Type "N" will return to Setup Utility.

2-12 Exit Without Saving

Type "Y" will quit the Setup Utility without saving to RTC CMOS. Type "N" will return to Setup Utility.

` Standard CMOS Features ` Advanced BIOS Features ` Integrated Peripherals ` Power Management Setup ` PnP/PCI Configurations ` PC Health Status ` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Save Data to CMOS

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Save to CMOS and EXIT (Y/N)? Y

` Standard CMOS Features ` Advanced BIOS Features ` Integrated Peripherals ` Power Management Setup ` PnP/PCI Configurations ` PC Health Status ` Frequency/Voltage Control

ESC: Quit KLJI: Select Item

F8: Q-Flash F10: Save & Exit Setup

Abandon all Data

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Quit Without Saving (Y/N)? N

GA-8VM800M Motherboard - 44 -

English

Drivers Installation- 45 -

English

Pictures below are shown in Windows XP. Insert the driver CD-title that came with your motherboard into your CD-ROM drive, the driver CD-title will auto start and show the installation guide. If not, please double click the CD-ROM device icon in "My computer", and execute the Setup.exe.

Chapter 3Drivers Installation

3-1 Install Chipset Drivers

After insert the driver CD, "Xpress Install" will scan automatically the system and then list all the drivers that recommended to install. The "Xpress Install" uses the"Click and Go" technology to install the drivers automatically. Just select the drivers you want then click the "GO" button. The "Xpress Install" will execute the installation for you automatically.

Some device drivers will restart your system automatically. After restarting your system the "Xpress Install" will continue to install other drivers. System will reboot automatically after install the drivers, afterward you can install others application.

1. For USB2.0 driver support under Windows XP operating system, please use Windows Service Pack. After install Windows Service Pack, it will show a question mark "?" in "Universal Serial Bus controller" under "Device Manager". Please remove the question mark and restart the system (System will auto-detect the right USB2.0 driver).

2. Some Nvidia graphics cards might have display problems under Windows 2000/XP. Please install the driver from the following location: D:\Chipset\nVidia\WinXP_2K\Setup.exe (we assume your CD-ROM drive is D:).

GA-8VM800M Motherboard - 46 -

English

3-2 Software Application

This page displays all the tools that Gigabyte developed and some free software. You can click an item to install it.

3-3 Software Information

This page lists the contents of software and drivers in this CD-title.

Drivers Installation- 47 -

English

3-4 Hardware Information

This page lists all device you have for this motherboard.

3-5 Contact Us

Please see the last page for details.

GA-8VM800M Motherboard - 48 -

English

Appendix- 49 -

English

Chapter 4 Appendix

4-1 Unique Software Utilities

M.I.T. (Motherboard Intelligent Tweaker)

Motherboard Intelligent Tweaker (M.I.T.) allows user to access and change BIOS feature settings with relative speed and ease. Through GIGABYTE M.I.T. feature the user is no longer required to switch into different modes within BIOS setup in order to change system settings such as the CPU system bus, memory timings or to enabled Gigabyte's unique C.I.A. 2 and M.I.B. 2 features. M.I.T.'s integration of all platform performance settings into a single mode now gives any user the ability to control and enhance their computer system to the desired level.

C.I.A.2 (CPU Intelligent Accelerator 2)

GIGABYTE CPU Intelligent Accelerator 2(C.I.A. 2) is designed to automatically adjust CPU computing power to maximize system performance. When enabled, the program detects the current CPU loading and automatically accelerates the CPU computing performance to allow for a faster and smoother execution of programs. When the function is disabled, the CPU is returned to its initial status.

M.I.B.2 (Memory Intelligent Booster 2)

Built on the original M.I.B., the new Memory Intelligent Booster 2 (M.I.B. 2) is designed especially to maximize memory performance and boost memory bandwidth up to 10%. With added branded memory module information, users are able to optimize memory performance by selecting from a recommended memory module list.

S.O.S. (System Overclock Saver)

System Overclock Saver (S.O.S.) is a unique feature that eliminates system boot-up errors resulting from system over-enhancement by the user. With GIGABYTE's proprietary S.O.S. feature, users no longer need to open up the PC chassis and short-circuit the "Clear CMOS" pins or the battery on the motherboard to reset the system back to factory default settings. Instead, S.O.S. automatically resets the overclocked system settings back to their factory defaults to provide a more user-friendly and reliable platform for users.

Download Center

Download Center allows users to quickly download and update their BIOS as well as the latest drivers for their system. Download Center automatically runs a system check of the user PC and provides the user with the current system information as well as displaying a detailed list of all new drivers with the option for download.

C.O.M. (Corporate Online Management)

A web-based system management tool that allows system hardware information such as CPU, memory, graphics card, etc. to be monitored and controlled via the Internet, C.O.M. allows corporate MIS engineers to easily maintain corporate computers such as providing the most up-to-date drivers and BIOS. (Do not use C.O.M. and @BIOS at the same time.)

U-PLUS D.P.S. (Universal Plus Dual Power System)

The U-Plus Dual Power System (U-Plus DPS) is a revolutionary eight-phase power circuit built for ultimate system protection. Designed to withstand varying current levels and changes, the U-Plus D.P.S. provides an immensely durable and stable power circuit to the CPU for solid system stability. These characteristics make it the ideal companion with the latest LGA775 Intel

Pentium® 4 Processor as well as future Intel® processors. As well, 4

blue LED's are mounted on the U-Plus D.P.S. for intelligent indication of system loading.

(Not all model support these Unique Software Utilities, please check your MB features.)

GA-8VM800M Motherboard - 50 -

English

4-1-1 EasyTune 5 Introduction

EasyTune 5 presents the most convenient Windows based system performance enhancement and manageability utility. Featuring several powerful yet easy to use tools such as 1) Overclocking for enhancing system performance, 2) C.I.A. and M.I.B. for special enhancement for CPU and Memory, 3) Smart-Fan control for managing fan speed control of both CPU cooling fan and North-Bridge Chipset cooling fan, 4) PC health for monitoring system status.

(Note)

User Interface Overview

(Note) EasyTune 5 functions may vary depending on different motherboards.

Button / Display Description

1. Overclocking Enters the Overclocking setting page

2. C.I.A./C.I.A.2 and M.I.B./M.I.B.2 Enters the C.I.A./2 and M.I.B./2 setting page

3. Smart-Fan Enters the Smart-Fan setting page

4. PC Health Enters the PC Health setting page

5. GO Confirmation and Execution button

6. "Easy Mode" & "Advance Mode" Toggles between Easy and Advance Mode

7. Display screen Display panel of CPU frequency

8. Function display LEDs Shows the current functions status

9. GIGABYTE Logo Log on to GIGABYTE website

10. Help button Display EasyTuneTM 5 Help file

11. Exit or Minimize button Quit or Minimize EasyTuneTM 5 software

Appendix- 51 -

English

4-1-2 Xpress Recovery2 Introduction

Xpress Recovery2 is designed to provide quick backup and restoration of hard disk data. Supporting Microsoft operating systems including Windows XP/2000/NT/98/Me and DOS, and file systems including FAT16, FAT32, and NTFS, Xpress Recovery2 is able to back up data

How to use the Xpress Recovery2

Initial access by booting from CD-ROM and subsequent access by pressing the F9 key: Steps: After entering BIOS Setup, go to Advanced BIOS Feature and set to boot from CD-ROM. Save

the settings and exit the BIOS Setup. Insert the provided driver CD into your CD-ROM drive. Upon system restart, the message which says "Boot from CD/DVD:" will appear in the bottom left corner of the screen. Press any key to enter Xpress Recovery2. After the steps above are completed, subsequent access to Xpress Recovery2 can be made by simply pressing the <F9> key during system power-on.

Boot from CD/DVD:

. . Boot from CD/DVD:

Press any key to startup XpressRecovery2.....

1. If you have already entered Xpress Recovery2 by booting from the CD-ROM, you can enter Xpress Recovery2 by pressing the <F9> key in the future.

2. System storage capacity and the reading/writing speed of the hard disk will affect the data backup speed.

3. It is recommended that Xpress Recovery2 be immediately installed once you complete installations of OS and all required drivers as well as software.

on hard disks on PATA and SATA IDE controllers. After Xpress Recovery2 is executed from CD-ROM for the first time, it will stay permanent in your hard disk. If you wish to run Xpress Recovery2 later, you can simply press F9 during system bootup to enter Xpress Recovery2 without the CD-ROM.

System requirements:

1. Intel x86 platforms

2. At least 64M bytes of system memory

3. VESA-supported VGA cards

<F9> Xpress Recovery2

Intel 945 BIOS for 8I945GME E7 . . . .

<DEL>:BIOS Setup/Q-Flash, <F9>: Xpress Recovery2 11/07/2005-I945-6A79HG0GC-00

GA-8VM800M Motherboard - 52 -

English

1. RESTORE:

Restore the backed-up data to your hard disk. (This button will not appear if there is no backup file.)

2. BACKUP:

Back up data from hard disk.

3. REMOVE:

Remove previously-created backup files to release disk space. (This button will not appear if there is no backup file.)

4. REBOOT:

Exit the main screen and restart the system.

The Main Screen of Xpress Recovery2

Limitations:

1. Not compatible to Xpress Recovery.

2. For the use of Xpress Recovery2, a primary partition must be reserved.

3. Xpress Recovery2 will store the backup file at the end of the hard disk, so free space available on the hard disk for the backup file must be allocated in advance. (A minimum 4GB is recommended but the actual space is dependent on the size of the data to be backed up)

4. Capable of backing up hard disks installed with Windows operating systems including DOS and Windows XP/2000/NT/9x/Me.

5. USB hard disks are currently not supported.

6. Does not support RAID/AHCI (class code 0104/0106) hard disks.

7. Capable of backing up and restoring only the first physical hard disk.

Hard disks detection sequence is as follows:

a. PATA IDE primary channel b. PATA IDE secondary channel c. SATA IDE channel 1 d. SATA IDE channel 2 e. SATA IDE channel 3 f. SATA IDE channel 4

Precautions:

1. When using hard disks with more than 128G under Windows 2000, be sure to execute the EnableBigLba.exe program from the driver CD before data backup.

2. It is normal that data backup takes longer time than data restoration.

3. Xpress Recovery2 is compliant with the GPL regulations.

4. On a few motherboards based on Nvidia chipsets, BIOS update is required for Xpress Recovery2 to correctly identify RAID and SATA IDE mode. Please contact your motherboard manufacturer.

5. Xpress Recovery2 supports only PATA hard disks and not SATA hard disks on the following motherboards (As this is a BIOS-related issue, it can be solved by BIOS update)

GA-K8U GA-K8U-9 GA-K8NXP-SLI GA-K8N Ultra-SLI GA-K8N Pro-SLI

GA-K8NXP-9 GA-K8N Ultra-9 GA-K8NF-9 (PCB Ver. 1.0) GA-K8NE (PCB Ver. 1.0) GA-K8NMF-9

GA-8N-SLI Royal GA-8N-SLI Pro GA-8N-SLI

Appendix- 53 -

English

4-1-3 Flash BIOS Method Introduction

Method 1 : Q-FlashTM Utility

Q-FlashTM is a BIOS flash utility embedded in Flash ROM. With this utility, users only have to stay in the BIOS menu when they want to update BIOS. Q-Flash

allows users to flash BIOS without any utility in DOS or Windows. Using Q-FlashTM indicating no more fooling around with any complicated instructions and operating system since it is in the BIOS menu.

Please note that because updating BIOS has potential risk, please do it with caution!! We are sorry that Gigabyte Technology Co., Ltd is not responsible for damages of system because of incorrect manipulation of updating BIOS to avoid any claims from end-users.

Before You Begin:

Before you start updating BIOS with the Q-FlashTM utility, please follow the steps below first.

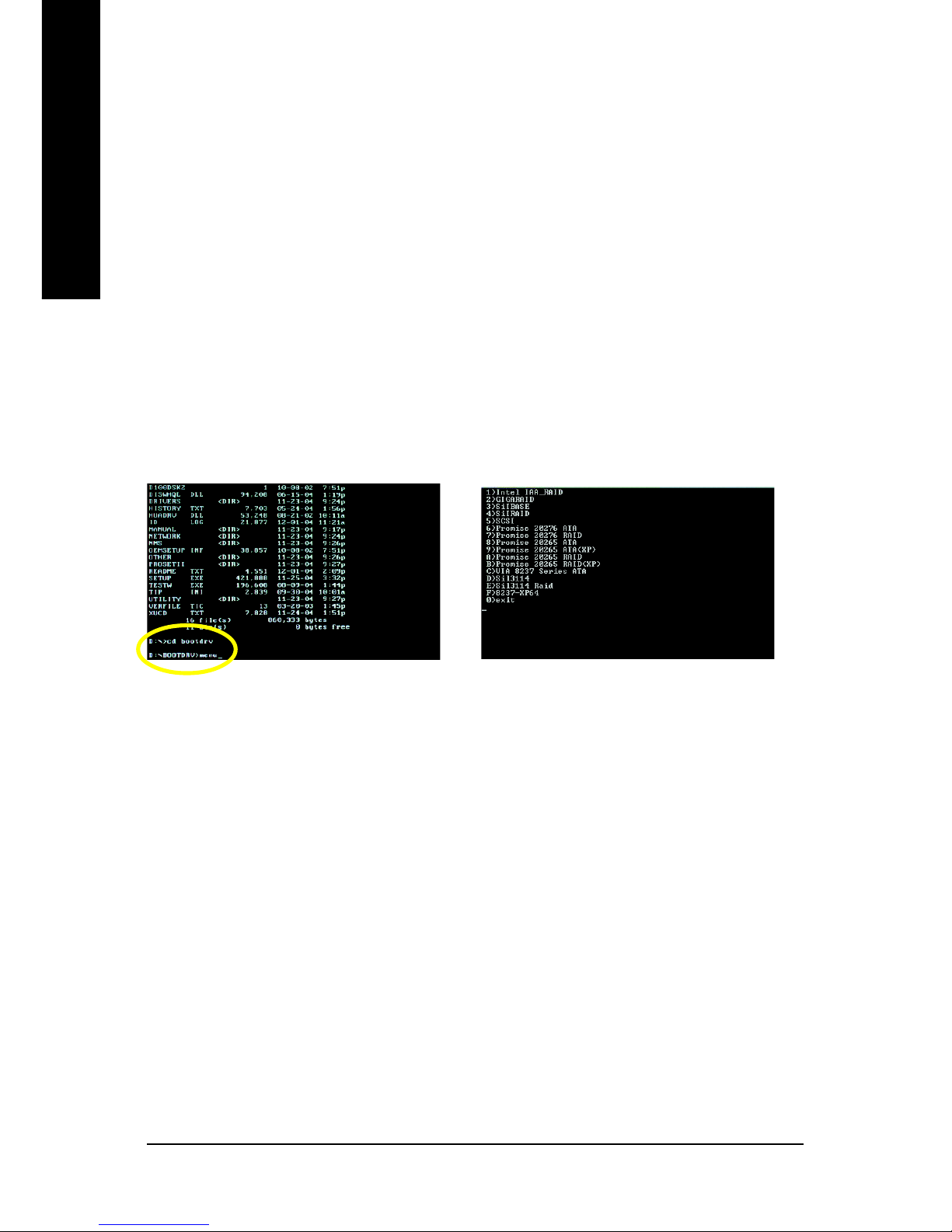

1. Download the latest BIOS for your motherboard from Gigabyte's website.

2. Extract the BIOS file downloaded and save the BIOS file (the one with model name.Fxx. For

example, 8KNXPU.Fba) to a floppy disk.

3. Reboot your PC and press Del to enter BIOS menu.

The BIOS upgrading guides below are separated into two parts. If your motherboard has dual-BIOS, please refer to Part One. If your motherboard has single-BIOS, please refer to Part Two.

Part One:

Updating BIOS with Q-Flash

Utility on Dual BIOS Motherboards.

Some of Gigabyte motherboards are equipped with dual BIOS. In the BIOS menu of the motherboards supporting Q-Flash and Dual BIOS, the Q-Flash utility and Dual BIOS utility are combined in the same screen. This section only deals with how to use Q-Flash utility.

In the following sections, we take GA-8KNXP Ultra as the example to guide you how to flash BIOS from an older version to the latest version. For example, from Fa3 to Fba.

Intel i875P AGPset BIOS for 8KNXP Ultra Fa3 Check System Health OK , VCore = 1.5250 Main Processor : Intel Pentium(R) 4 1.6GHz (133x12) <CPUID : 0F27 Patch ID : 0027> Memory Testing : 131072K OK

Memory Frequency 266 MHz in Single Channel Primary Master : FUJITSU MPE3170AT ED-03-08 Primary Slave : None Secondary Master : CREATIVEDVD-RM DVD1242E BC101 Secondary Slave : None

Press DEL to enter SETUP / Dual BIOS / Q-Flash / F9 For Xpress Recovery 08/07/2003-i875P-6A79BG03C-00

Award Modular BIOS v6.00PG, An Energy Star Ally

The BIOS file is Fa3

before updating

GA-8VM800M Motherboard - 54 -

English

Entering the Q-FlashTM utility:

 Standard CMOS Features  Advanced BIOS Features  Integrated Peripherals  Power Management Setup  PnP/PCI Configurations  PC Health Status  MB Intelligent Tweaker(M.I.T.)

Select Language

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

ESC: Quit F3: Change Language

F8: Dual BIOS/Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

Step 2: Press F8 button on your keyboard and then Y button to enter the Dual BIOS/Q-Flash utility.

Step1: To use Q-Flash utility, you must press Del in the boot screen to enter BIOS menu.

Exploring the Q-FlashTM / Dual BIOS utility screen

The Q-Flash / Dual BIOS utility screen consists of the following key components.

Task menu for Dual BIOS utility:

Contains the names of eight tasks and two item showing information about the BIOS ROM type. Blocking a task and pressing Enter key on your keyboard to enable execution of the task.

Task menu for Q-Flash utility:

Contains the names of four tasks. Blocking a task and pressing Enter key on your keyboard to enable execution of the task.

Action bar:

Contains the names of four actions needed to operate the Q-Flash/Dual BIOS utility. Pressing the buttons mentioned on your keyboards to perform these actions.

Dual BIOS Utility

Boot From......................................... Main Bios

Main ROM Type/Size.............................SST 49LF003A 512K

Backup ROM Type/Size.........................SST 49LF003A 512K

Wide Range Protection Disable

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Copy Main ROM Data to Backup

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

Task menu for

Dual BIOS

utility

Task menu for

Q-Flash

utility

Dual BIOS utility bar

Q-FlashTM utility title

bar

Action bar

Appendix- 55 -

English

Dual BIOS Utility

Boot From......................................... Main Bios

Main ROM Type/Size.............................SST 49LF003A 512K

Backup ROM Type/Size.........................SST 49LF003A 512K

Wide Range Protection Disable

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Copy Main ROM Data to Backup

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

Using the Q-FlashTM utility:

This section tells you how to update BIOS using the Q-Flash utility. As described in the "Before you begin" section above, you must prepare a floppy disk having the BIOS file for your motherboard and insert it to your computer. If you have already put the floppy disk into your system and have entered the Q-Flash utility, please follow the steps below to flash BIOS.

Steps:

1. Press arrow buttons on your keyboard to move the light bar to "Load Main BIOS from Floppy" item in the Q-Flash menu and press Enter button. Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy disk.

If you want to save the current BIOS for backup purpose, you can begin Step 1 with "Save Main BIOS to Floppy" item.

2. Move to the BIOS file you want to flash and press Enter.

In this example, we only download one BIOS file to the floppy disk so only one BIOS file,

8KNXPU.Fba, is listed.

Please confirm again you have the correct BIOS file for your motherboard.

1 file(s) found

8KNXPU.Fba 512K

Total size : 1.39M Free size : 911.50K F5 : Refresh DEL : Delete

BIOS file in the floppy

disk.

Dual BIOS Utility

Boot From......................................... Main Bios

Main ROM Type/Size.............................SST 49LF003A 512K

Backup ROM Type/Size.........................SST 49LF003A 512K

Wide Range Protection Disable

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Copy Main ROM Data to Backup

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

Reading BIOS file from floppy ...

>>>>>>>>>>>>>>.....................

Don't Turn Off Power or Reset System

Do not turn off power or

reset your system at this

stage!!

After pressing Enter, you'll then see the progress of reading the BIOS file from the floppy disk.

After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update BIOS?"

GA-8VM800M Motherboard - 56 -

English

3. Press Y button on your keyboard after you are sure to update BIOS. Then it will begin to update BIOS. The progress of updating BIOS will be displayed.

Dual BIOS Utility

Boot From......................................... Main Bios

Main ROM Type/Size.............................SST 49LF003A 512K

Backup ROM Type/Size.........................SST 49LF003A 512K

Wide Range Protection Disable

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Copy Main ROM Data to Backup

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

!! Copy BIOS completed - Pass !!

Please press any key to continue

Please do not take out the floppy disk when it begins flashing BIOS.

4. Press any keys to return to the Q-Flash menu when the BIOS updating procedure is completed.

You can repeat Step 1 to

4 to flash the backup

BIOS, too.

Dual BIOS Utility

Boot From......................................... Main Bios

Main ROM Type/Size.............................SST 49LF003A 512K

Backup ROM Type/Size.........................SST 49LF003A 512K

Wide Range Protection Disable

Boot From Main Bios

Auto Recovery Enable

Halt On Error Disable

Copy Main ROM Data to Backup

Load Default Settings

Save Settings to CMOS

Q-Flash Utility

Load Main BIOS from Floppy

Load Backup BIOS from Floppy

Save Main BIOS to Floppy

Save Backup BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

Are you sure to RESET ?

[Enter] to continure or [Esc] to abort...

5. Press Esc and then Y button to exit the Q-Flash utility. The computer will restart automatically after you exit Q-Flash.

After system reboots, you may find the BIOS version on your boot screen becomes the one you flashed.

Intel i875P AGPset BIOS for 8KNXP Ultra Fba Check System Health OK , VCore = 1.5250 Main Processor : Intel Pentium(R) 4 1.6GHz (133x12) <CPUID : 0F27 Patch ID : 0027> Memory Testing : 131072K OK

Memory Frequency 266 MHz in Single Channel Primary Master : FUJITSU MPE3170AT ED-03-08 Primary Slave : None Secondary Master : CREATIVEDVD-RM DVD1242E BC101 Secondary Slave : None

Press DEL to enter SETUP / Dual BIOS / Q-Flash / F9 For Xpress Recovery 09/23/2003-i875P-6A79BG03C-00

Award Modular BIOS v6.00PG, An Energy Star Ally

The BIOS file

becomes Fab after

updating.

Appendix- 57 -

English

 Standard CMOS Features  Advanced BIOS Features  Integrated Peripherals  Power Management Setup  PnP/PCI Configurations  PC Health Status  MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Dual BIOS/Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

6. Press Del to enter BIOS menu after system reboots. When you are in BIOS menu, move to Load Fail-Safe Defaults item and press Enter to load BIOS Fail-Safe Defaults. Normally the system

redetects all devices after BIOS has been upgraded. Therefore, we highly recommend reloading the BIOS defaults after BIOS has been upgraded.

Select Language

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Load Fail-Safe Defaults (Y/N)? Y

Press Y on your keyboard to load defaults.

 Standard CMOS Features  Advanced BIOS Features  Integrated Peripherals  Power Management Setup  PnP/PCI Configurations  PC Health Status  MB Intelligent Tweaker(M.I.T.)

ESC: Quit F3: Change Language

F8: Dual BIOS/Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

7. Select Save & Exit Setup item to save the settings to CMOS and exit the BIOS menu. System will reboot after you exit the BIOS menu. The procedure is completed.

Select Language

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

Save to CMOS and EXIT (Y/N)? Y

Press Y on your keyboard to save and exit.

Part Two:

Updating BIOS with Q-Flash

Utility on Single-BIOS Motherboards.

This part guides users of single-BIOS motherboards how to update BIOS using the Q-Flash

utility.

 Standard CMOS Features  Advanced BIOS Features  Integrated Peripherals  Power Management Setup  PnP/PCI Configurations  PC Health Status  MB Intelligent Tweaker(M.I.T.)

Top Performance

Load Fail-Safe Defaults

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

ESC: Quit F3: Change Language

F8: Q-Flash F10: Save & Exit Setup

Time, Date, Hard Disk Type...

GA-8VM800M Motherboard - 58 -

English

Exploring the Q-FlashTM utility screen

The Q-FlashBIOS utility screen consists of the following key components.

Task menu for Q-Flash utility:

Contains the names of three tasks. Blocking a task and pressing Enter key on your keyboard to enable execution of the task.

Action bar:

Contains the names of four actions needed to operate the Q-Flash utility. Pressing the buttons mentioned on your keyboards to perform these actions.

Using the Q-FlashTM utility:

Steps:

1. Press arrow buttons on your keyboard to move the light bar to "Update BIOS from Floppy" item in the Q-Flash menu and press Enter button. Later, you will see a box pop up showing the BIOS files you previously downloaded to the floppy disk.

If you want to save the current BIOS for backup purpose, you can begin Step 1 with "Save BIOS to Floppy" item.

2. Move to the BIOS file you want to flash and press Enter.

In this example, we only download one BIOS file to the floppy disk so only one BIOS file, 8GE800.F4, is listed.

Please confirm again you have the correct BIOS file for your motherboard.

Q-Flash Utility V1.30

Flash Type/Size.................................SST 49LF003A 256K

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

1 file(s) found

8GE800.F4 256K

Total size : 1.39M Free size : 1.14M F5 : Refresh DEL : Delete

BIOS file in the floppy

disk.

Q-Flash Utility V1.30

Flash Type/Size.................................SST 49LF003A 256K

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

Reading BIOS file from floppy ...

>>>>>>>>>>>>>>.....................

Don't Turn Off Power or Reset System

Do not turn off power or

reset your system at

this stage!!

After BIOS file is read, you'll see a confirmation dialog box asking you "Are you sure to update BIOS?"

Please do not take out the floppy disk when it begins flashing BIOS.

Q-Flash Utility V1.30

Flash Type/Size.................................SST 49LF003A 256K

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

Task menu for

Q-Flash

utility

Q-FlashTM utility bar

Action bar

Appendix- 59 -

English

3. Press Y button on your keyboard after you are sure to update BIOS. Then it will begin to update BIOS. The progress of updating BIOS will be shown at the same time.

Q-Flash Utility V1.30

Flash Type/Size.................................SST 49LF003A 256K

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

Updating BIOS Now

>>>>>>>>>>>>>>>>>>>.........................

Don't Turn Off Power or Reset System

Do not turn off power or

reset your system

at this stage!!

4. Press any keys to return to the Q-Flash menu when the BIOS updating procedure is completed.

Q-Flash Utility V1.30

Flash Type/Size.................................SST 49LF003A 256K

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

!! Copy BIOS completed - Pass !!

Please press any key to continue

5. Press Esc and then Y button to exit the Q-Flash utility. The computer will restart automatically after you exit Q-Flash.

Q-Flash Utility V1.30

Flash Type/Size.................................SST 49LF003A 256K

Keep DMI Data Enable

Update BIOS from Floppy

Save BIOS to Floppy

Enter : Run :Move ESC:Reset F10:Power Off

Are you sure to RESET ?

[Enter] to continure or [Esc] to abort...

After system reboots, you may find the BIOS version on your boot screen becomes the one you flashed.

Intel 845GE AGPSet BIOS for 8GE800 F4 Check System Health OK Main Processor : Intel Pentium(R) 4 1.7GHz (100x17.0) <CPUID : 0F0A Patch ID : 0009> Memory Testing : 122880K OK + 8192K Shared Memory

Primary Master : FUJITSU MPE3170AT ED-03-08 Primary Slave : None Secondary Master : CREATIVEDVD-RM DVD1242E BC101 Secondary Slave : None

Press DEL to enter SETUP / Q-Flash 03/18/2003-I845GE-6A69YG01C-00

Award Modular BIOS v6.00PG, An Energy Star Ally

The BIOS file becomes F4 after updating

6. Press Del to enter BIOS menu after system reboots and "Load BIOS Fail-Safe Defaults". See how to Load BIOS Fail-Safe Defaults, please kindly refer to Step 6 to 7 in Part One.

Congratulation!! You have updated BIOS successfully!!

GA-8VM800M Motherboard - 60 -

English

Method 2 : @BIOSTM Utility

If you do not have a DOS startup disk, we recommend that you use the new @BIOS utility. @BIOS allows users to update their BIOS under Windows. Just select the desired @BIOS server to download the latest version of BIOS.

1. Methods and steps:

I. Update BIOS through Internet

a. Click "Internet Update" icon b. Click "Update New BIOS" icon c. Select @BIOSTM sever d. Select the exact model name on your motherboard e. System will automatically download and update the BIOS.

II. Update BIOS NOT through Internet:

a. Do not click "Internet Update" icon b. Click "Update New BIOS" c. Please select "All Files" in dialog box while opening the old file. d. Please search for BIOS unzip file, downloading from internet or any other methods (such as:

8VM800M.E5).

e. Complete update process following the instruction.

Fig 1. Installing the @BIOS utility Fig 2. Installation Complete and Run @BIOS

Fig 3. The @BIOS Utility Fig 4. Select the desired @BIOS server

Click Sart/ Programs/ GIGABYTE/@BIOS

Click "" Click "Update New BIOS"

Select @BIOS item

Appendix- 61 -

English

III. Save BIOS In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It means to save the current BIOS version.

IV. Check out supported motherboard and Flash ROM: In the very beginning, there is "About this program" icon shown in dialog box. It can help you check out which kind of motherboard and which brand of Flash ROM are supported.

2. Note:

I. In method I, if it shows two or more motherboard's model names to be selected, please make

sure your motherboard's model name again. Selecting wrong model name will cause the system unbooted.

II. In method II, be sure that motherboard's model name in BIOS unzip file are the same as your

motherboard's. Otherwise, your system won't boot.

III. In method I, if the BIOS file you need cannot be found in @BIOSTM server, please go onto

Gigabyte's web site for downloading and updating it according to method II. IV. Please note that any interruption during updating will cause system unbooted. V. Do not use @BIOS and C.O.M. (Corporate Online Management) at the same time.

GA-8VM800M Motherboard - 62 -

English

4-1-4 Serial ATA BIOS Setting Utility Introduction

RAID Levels

RAID (Redundant Array of Independent Disks) is a method of combining two hard disk drives into one logical unit. The advantage of an Array is to provide better performance or data fault tolerance. Fault tolerance is achieved through data redundant operation, where if one drives fails, a mirrored copy of the data can be found on another drive. This can prevent data loss if the operating system fails or hangs. The individual disk drives in an array are called members. The configuration information of each member is recorded in the reserved sector that identifies the drive as a member. All disk members in a formed disk array are recognized as a single physical drive to the operating system. Hard disk drives can be combined together through a few different methods. The different methods are referred to as different RAID levels. Different RAID levels represent different performance levels, security levels and implementation costs. The RAID levels which the VIA VT8237R Plus chipset supports are RAID 0, RAID 1,and JBOD.

RAID 0 (Striping) RAID 0 reads and writes sectors of data interleaved between multiple drives. If any disk member fails, it affects the entire array. The disk array data capacity is equal to the number of drive members times the capacity of the smallest member. The striping block size can be set from 4KB to 64KB. RAID 0 does not support fault tolerance.

RAID 1 (Mirroring) RAID 1 writes duplicate data onto a pair of drives and reads both sets of data in parallel. If one of the mirrored drives suffers a mechanical failure or does not respond, the remaining drive will continue to function. Due to redundancy, the drive capacity of the array is the capacity of the smallest drive. Under a RAID 1 setup, an extra drive called the spare drive can be attached. Such a drive will be activated to replace a failed drive that is part of a mirrored array. Due to the fault tolerance, if any RAID 1 drive fails, data access will not be affected as long as there are other working drives in the array.

JBOD (Spanning) A spanning disk array is equal to the sum of the all drives when the drives used are having different capacities. Spanning stores data onto a drive until it is full, then proceeds to store files onto the next drive in the array. When any disk member fails, the failure affects the entire array. JBOD is not really a RAID and does not support fault tolerance.

Appendix- 63 -

English

Please follow the steps below to construct a complete RAID array:

1) Have ready your hard drives for RAID construction. Note: To achieve best performance, it is recommended that the hard drives used are of similar make and storage capacity.

2) Please attach the hard drive connectors to their appropriate location on the motherboard ie. IDE, SCSI, or SATA.

3) Enter the motherboard BIOS and locate RAID setup (Please refer to the section on Integrated Peripherals).

4) Enter RAID setup in the BIOS and select the RAID type (For instance, enter Tab to select VT8237R Plus RAID; Ctrl + S to select Silicon Image).

5) Complete driver installation.

6) Complete RAID utility installation.

More information on steps 4 and 5 is provided. (For more detailed setup information, please visit our website at http:\\www.gigabyte.com.tw to read or download the information you need.)

Configuring the VT8237(VT8237R/VT8237R Plus) SATA RAID BIOS

The RAID BIOS setup utility lets you choose the RAID array type and which hard drives you want to make part of the array.

Entering the VT8237(VT8237R/VT8237R Plus) SATA RAID BIOS Setup Utility

1. After rebooting your computer, wait until you see the RAID software prompting you to press Tab. The

RAID prompt appears as part of the system POST and boot process prior to loading the OS. You have a few seconds to press Tab before the window disappears.

Press Ta b to enter RAID setup utility, the VT8237 SATA RAID BIOS utility screen will appear. You can press up arrow key<> or down arrow key<> to move the selection bar and select the item that you want to execute.

Scan Devices, Please wait... Press <Tab> key into User Window! Serial_Ch0 Master : ST3120026AS Serial_Ch1 Master : ST3120026AS



 Create Array 



 Delete Array



 Create/Delete Spare



 Select Boot Array 



 Serial Number View

VIA Tech. VT8237 SATA RAID BIOS Ver 2.31

Channel Drive Name Array Name Mode Size(GB) Status

Serial_Ch0 Master ST3120026AS SATA 111.79 Hdd

Serial_Ch1 Master ST3120026AS SATA 111.79 Hdd

Create a RAID array with the hard disks attached to VIA RAID controller

F1 : View Array/disk Status



,



 : Move to next item

Enter : Confirm the selection ESC : Exit

GA-8VM800M Motherboard - 64 -

English

A. Create Array: Press Enter on Create Array item, you will see the screen as shown below.

VIA Tech. VT8237 SATA RAID BIOS Ver 2.31

Channel Drive Name Array Name Mode Size(GB) Status

Serial_Ch0 Master ST3120026AS SATA 111.79 Hdd

Serial_Ch1 Master ST3120026AS SATA 111.79 Hdd

Create a RAID array with the hard disks attached to VIA RAID controller

F1 : View Array/disk Status



,



 : Move to next item

Enter : Confirm the selection ESC : Exit



 Auto Setup For Performance



 Array Mode RAID 0 (Striping) 



 Select Disk Drives 



 Block Size 64K 



 Start Create Process

Before create an Array, you have to set the array mode first. Select Array Mode and press Enter, use the arrow key to select the array mode. The options are: RAID 0 for performance, RAID 1 for data protection, and RAID SPAN for capacity.

VIA Tech. VT8237 SATA RAID BIOS Ver 2.31

Channel Drive Name Array Name Mode Size(GB) Status

Serial_Ch0 Master ST3120026AS SATA 111.79 Hdd

Serial_Ch1 Master ST3120026AS SATA 111.79 Hdd

Create a RAID array with the hard disks attached to VIA RAID controller

F1 : View Array/disk Status



,



 : Move to next item

Enter : Confirm the selection ESC : Exit



 Auto Setup For Data Security



 Array Mode RAID 0 (Striping)



 Select Disk Drives 



 Block Size 64K 



 Start Create Process

RAID 0 for performance

RAID 1 for data protection RAID SPAN for capacity

Appendix- 65 -

English

After array mode is selected, there are two methods to create a disk array. One method is Auto Setup and the other one is Select Disk Drives. Auto Setup allows BIOS to select the disk drives and create arrays automatically, but it does not duplicate the mirroring drives even if the user selected Create and duplicate for RAID 1. It is recommended all disk drives are new ones when wanting to create an array. Select Disk Drives lets the user select the array drives by their requirements. Select the Select Disk Drives item and press Enter, use the arrow key to select the hard disk. The selected hard disk will be marked a star(*) signal.

Use the arrow key to select Start Create Process and press Enter. A warning message will appear [The data on the selected disks will be destroied. Continue? (Y/N)], press Y to finish the creation, or press N to cancel the creation. Important note: All existing contents in the hard drive will be destroyed after array creation.

VIA Tech. VT8237 SATA RAID BIOS Ver 2.31

Channel Drive Name Array Name Mode Size(GB) Status

[*]Serial_Ch0 Master ST3120026AS SATA 111.79 Stripe0

[*]Serial_Ch1 Master ST3120026AS SATA 111.79 Stripe1

Create a RAID array with the hard disks attached to VIA RAID controller

F1 : View Array/disk Status



,



 : Move to next item

Enter : Confirm the selection ESC : Exit



 Auto Setup For Performance



 Array Mode RAID 0 (Striping) 



 Select Disk Drives 



 Block Size 64K 



 Start Create Process

If you select a RAID 0 array, the block size of the array can also be selected. Use the arrow key to select Block Size and press Enter, then select a block size from the popup menu. The block size can be 4KB to 64KB.

VIA Tech. VT8237 SATA RAID BIOS Ver 2.31

Channel Drive Name Array Name Mode Size(GB) Status

[*]Serial_Ch0 Master ST3120026AS SATA 111.79 Stripe0

[*]Serial_Ch1 Master ST3120026AS SATA 111.79 Stripe1

Create a RAID array with the hard disks attached to VIA RAID controller

F1 : View Array/disk Status



,



 : Move to next item

Enter : Confirm the selection ESC : Exit



 Auto Setup For Performance 



 Array Mode RAID 0 (Striping) 



 Select Disk Drives



 Block Size 64K



 Start Create Process

8K 16K 32K 64K

GA-8VM800M Motherboard - 66 -

English

B. Delete Array:

If you want to delete the Array, select Delete Array in the main menu and press Enter. The channel column will be activated. Select the member of an array that is to be deleted and press Enter. A warning message will show up, press Y to delete or press N to cancel.

Deleting a disk array will destroy all the data on the disk array except RAID 1 arrays. When a RAID is deleted, the data on these two hard disk drives will be reserved and become two normal disk drives.

VIA Tech. VT8237 SATA RAID BIOS Ver 2.31

Delete a RAID array contain the hard disks attached to VIA RAID controller

F1 : View Array/disk Status



,



 : Move to next item

Enter : Confirm the selection ESC : Exit



 Create Array 



 Delete Array



 Create/Delete Spare



 Select Boot Array 



 Serial Number View

Channel Drive Name Array Name Mode Size(GB) Status

[*]Serial_Ch0 Master ST3120026AS ARRAY 0 SATA 111.79 Stripe0

[*]Serial_Ch1 Master ST3120026AS ARRAY 0 SATA 111.79 Stripe1

The selected array will be destoried. Are you sure? Continue? Press Y/N

C. Select Boot Array:

You can select a disk array as boot device if you want to boot operating system from an array. Boot disk array cannot be selected if the operating system does not boot from the disk array. Highlight the Select Boot Array item; press Enter and the channel column will be activated. Then highlight the target disk array and press Enter. Press Esc to go back to main menu. If you want to cancel the boot array, select the disk array that has a star(*) mark and press Enter, its boot setting will be canceled.

VIA Tech. VT8237 SATA RAID BIOS Ver 2.31

Set/Clear bootable array

F1 : View Array/disk Status



,



 : Move to next item

Enter : Confirm the selection ESC : Exit



 Create Array 



 Delete Array



 Create/Delete Spare



 Select Boot Array 



 Serial Number View

Channel Drive Name Array Name Mode Size(GB) Status

[*]Serial_Ch0 Master ST3120026AS ARRAY 0 SATA 111.79 Boot

[*]Serial_Ch1 Master ST3120026AS ARRAY 0 SATA 111.79 Boot

Appendix- 67 -

English

D. Serial Number View:

Highlight Serial Number View and press Enter. Use arrow key to select a drive, the selected drive's serial number can be viewed in the last column. The serial number is assigned by the disk drive manufacturer.

VIA Tech. VT8237 SATA RAID BIOS Ver 2.31

View the serial number of hard disk, it is useful for identify same model disks

F1 : View Array/disk Status



,



 : Move to next item

Enter : Confirm the selection ESC : Exit



 Create Array 



 Delete Array



 Create/Delete Spare



 Select Boot Array 



 Serial Number View

Channel Drive Name Array Name Mode Size(GB) Status

Serial_Ch0 Master ST3120026AS ARRAY 0 SATA 111.79 Stripe0

Serial_Ch1 Master ST3120026AS ARRAY 0 SATA 111.79 Stripe1

Serial Number: 3JT354CP

E. View Array Status:

Press the F1 key to show the array status on the lower screen. If there are no disk arrays then nothing will be displayed on the screen.

VIA Tech. VT8237 SATA RAID BIOS Ver 2.31

Create a RAID array with the hard disks attached to VIA RAID controller

F1 : View Array/disk Status



,



 : Move to next item

Enter : Confirm the selection ESC : Exit

Array Name Array Mode Block Size(GB) Size(GB)

ARRAY 0 Stripe 64K 223.58



 Create Array



 Delete Array



 Create/Delete Spare



 Select Boot Array 



 Serial Number View

GA-8VM800M Motherboard - 68 -

English

Installing the RAID drivers

To install operating system onto a serial ATA hard disk successfully, you need to install the SATA controller driver during OS installation. Without the driver, the hard disk may not be recognized during the Windows setup process. First of all, copy the driver for the SATA controller from the motherboard driver CD-ROM to a floppy disk. See the instructions below about how to copy the driver in MS-DOS mode

(Note1)

. Prepare a startup

disk that has CD-ROM support and a blank formatted floppy disk.

Step 1: Insert the prepared startup disk and motherboard driver CD-ROM in your system. Boot from the startup disk. Once at the A:\> prompt, change to the CD-ROM drive (example: D:\>). At the D:\> prompt, type the following two commands. Press ENTER after each command (Fig.1):

cd bootdrv

Step 2: When the controller menu (Fig.2) appears, remove the startup disk and insert the blank formatted disk. Select the controller driver by pressing the corresponding letter from the menu. Your system will then automatically zip and transfer this driver file to the floppy disk. Press 0 to exit when finished.

Fig.1

Fig. 2

Step 3: After completing the steps, boot from the Windows installation disk to install the RAID drivers. Press F6 as soon as you see the "Press F6 if you need to install a third party SCSI or RAID driver" message, then supply serial ATA controller driver by this floppy disk. Follow the on-screen instructions to complete the installation.

(Each time you add a new hard drive to a RAID array, the RAID driver will have to be installed under Windows once for that hard drive. After that, the driver will not have to be installed.)

(Note 1) For users without a startup disk. Use an alternative system and insert the GIGABYTE motherboard drive CD-ROM. From the CD-ROM drive (example: D:\) double click the MENU.exe file in the BootDrv folder. A command prompt window will open similar to that in Fig. 2. (Note 2) If you wish to install 64-bit Windows Operating System, select F) 8237-XP64.

(Note 2)

Appendix- 69 -

English

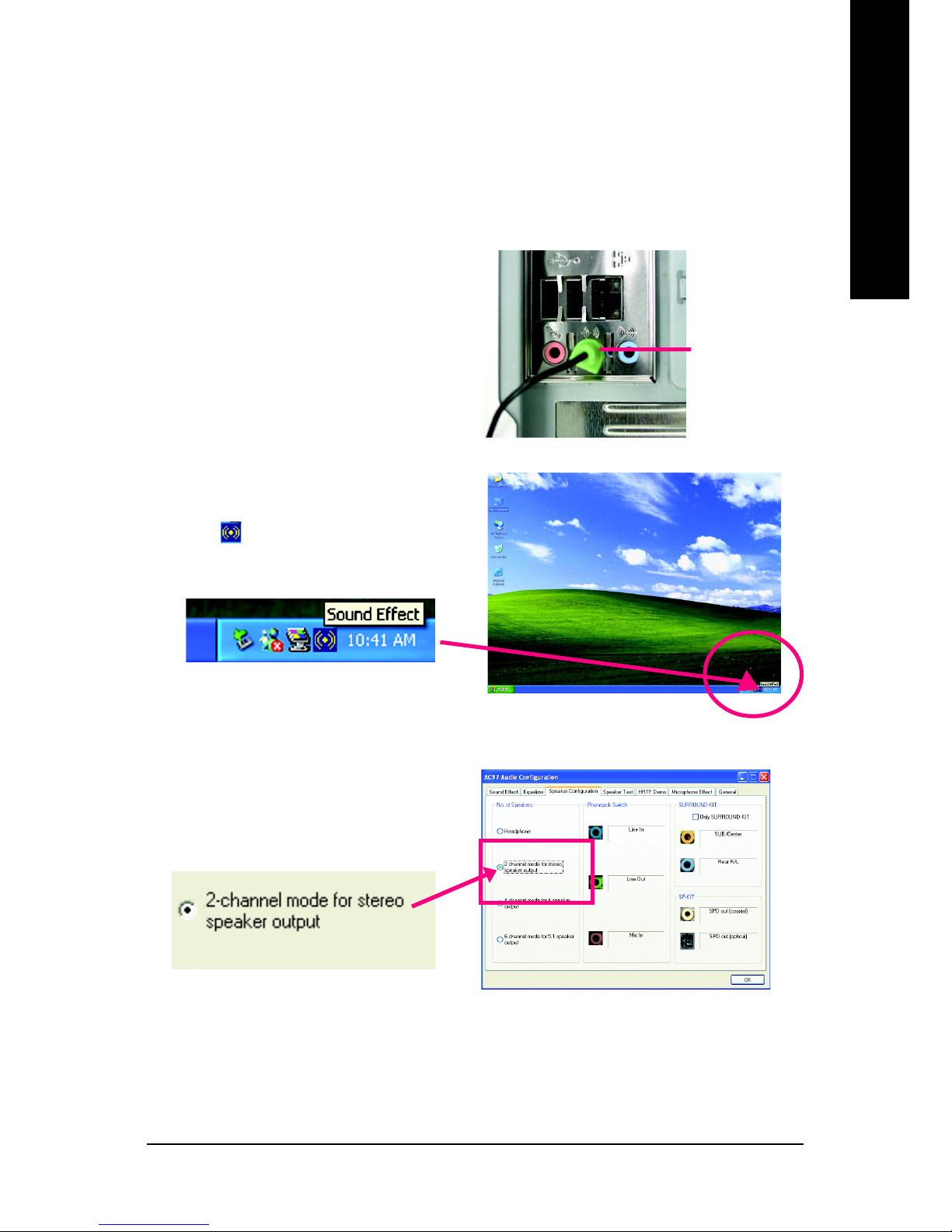

4-1-5 2 / 4 / 6 Channel Audio Function Introduction

STEP 1: Connect the stereo speakers or earphone to "Line Out."

STEP 3: On the AC97 Audio Configuration menu, click the

Speaker Configuration tab and select the 2-channel mode for stereo speaker output check

box.

2 Channel Audio Setup

We recommend that you use speakers with amplifier to get the best sound effect if the stereo output is applied.

Line Out

STEP 2: After installing the audio driver, you'll find a Sound

Effect icon on the lower right hand taskbar. Click

the icon to select the function.

GA-8VM800M Motherboard - 70 -

English

4 Channel Analog Audio Output Mode

STEP 1: Connect the front channels to "Line Out," the rear channels to "Line In."

STEP 3: On the AC97 Audio Configuration menu, click the

Speaker Configuration tab and select the 4-channel mode for 4 speaker output check box. Clear the Only SURROUND-KIT check box and press OK.

When the Environment setting is None, the sound would be performed as stereo mode (2-channel output). Please select other settings (ex: Living Room) for 4-channel output.

Line In

Line Out

STEP 2: After installing the audio driver, you'll find a Sound

Effect icon on the lower right hand taskbar. Click

the icon to select the function.

Appendix- 71 -

English

Use the back audio panel to connect the audio output without any additional module. STEP 1: Connect the front channels to "Line Out",the rear channels to "Line In", and the Center/Subwoofer channels to "MIC In".

Basic 6 Channel Analog Audio Output Mode

STEP 3: On the AC97 Audio Configuration menu, click the

Speaker Configuration tab and select the 6-channel mode for 5.1 speaker output check box. Clear the Only SURROUND-KIT check box and press OK.

Line Out

Line In

MIC In

STEP 2: After installing the audio driver, you'll find a Sound

Effect icon on the lower right hand taskbar. Click

the icon to select the function.

GA-8VM800M Motherboard - 72 -

English

STEP 1: Secure the metal bracket of the"Surround Kit" to the chassis back panel with a screw.

Advanced 6 Channel Analog Audio Output Mode (using Audio Combo Kit,Optional Device):

(Audio Combo Kit provides SPDIF output port : optical & coaxis and SURROUND-KIT : Rear R/L & CEN / Subwoofer)

SURROUND-KIT access analog output to rear channels and Center/Subwoofer channels. It is the best solution if you need 6 channel output, Line In and MIC at the same time. "SURROUND-KIT" is included in the GIGABYTE unique "Audio Combo Kit" as picture.

STEP 2: Connect the "SURROUND-KIT" cable to the SUR_CEN connector on the M/B.

Appendix- 73 -

English

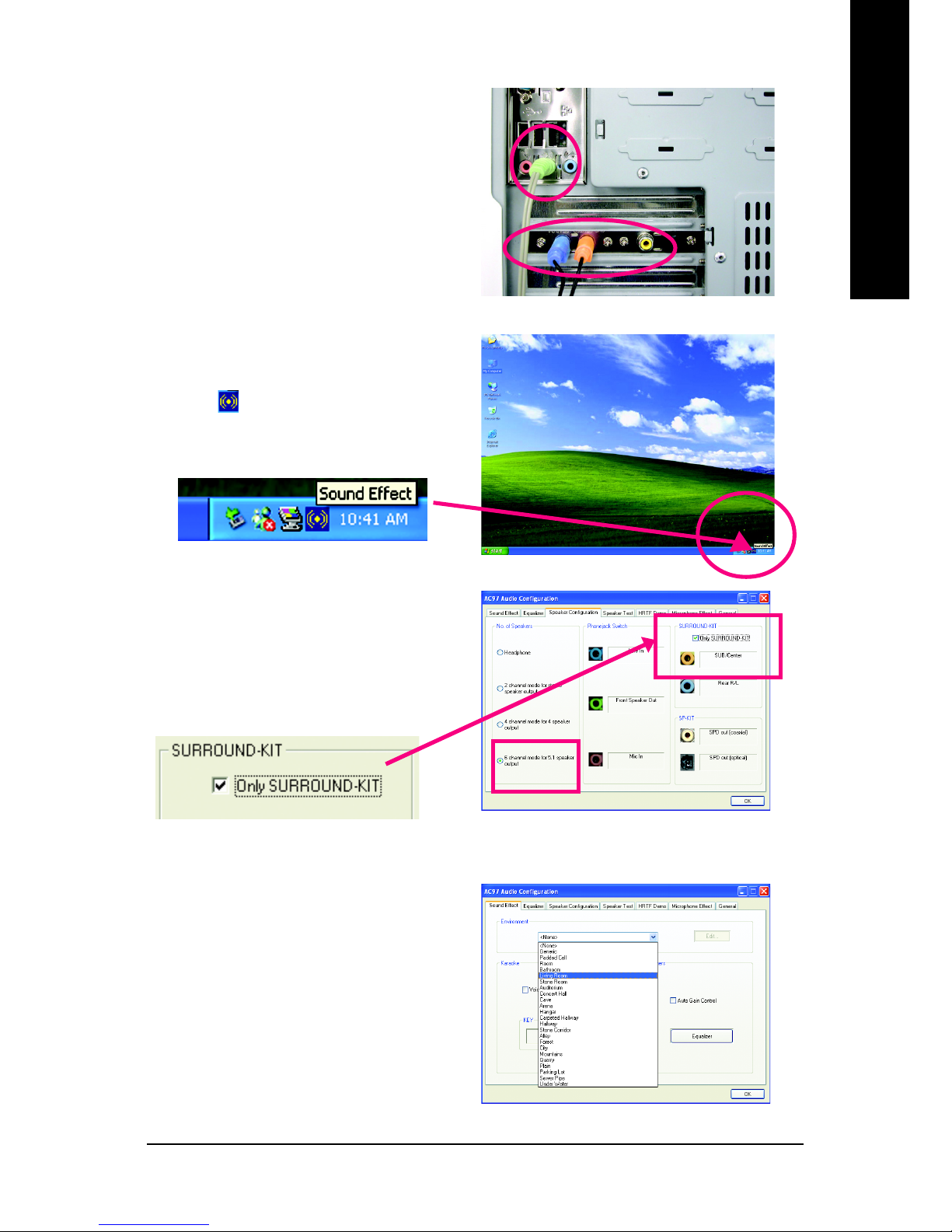

STEP 3: Connect the front channels to back audio panel's "Line Out", the rear channels to SURROUND-KIT's REAR R/L, and the Center/Subwoofer channels to SURROUND-KIT's SUB CENTER.

STEP 5: On the AC97 Audio Configuration menu, click the

Speaker Configuration tab and select the 6-channel mode for 5.1 speaker output check box.

Select the Only SURROUND-KIT check box and press OK.

When the Environment setting is None, the sound would be performed as stereo mode (2-channel output). Please select the other settings for 6 channels output.

Basic & Advanced 6 Channel Analog Audio Output Mode Notes:

STEP 4: After installing the audio driver, you'll find a Sound

Effect icon on the lower right hand taskbar. Click

the icon to select the function.

GA-8VM800M Motherboard - 74 -

English

4-2 Troubleshooting

Below is a collection of general asked questions. To check general asked questions based on a specific motherboard model, please log on to http://www.gigabyte.com.tw

Question 1: I cannot see some options that were included in previous BIOS after updating BIOS. Why? Answer: Some advanced options are hidden in new BIOS version. Please press Ctrl and F1 keys after entering BIOS menu and you will be able to see these options.

Questions 2: Why is the light of my keyboard/optical mouse still on after computer shuts down? Answer: In some boards, a small amount of electricity is kept on standby after computer shuts down and that's why the light is still on.

Question 3: How do I clear CMOS? Answer: If your board has a Clear CMOS jumper, please refer to the Clear CMOS steps in the manual. If your board doesn't have such jumper, you can take off the on-board battery to leak voltage to clear CMOS. Please refer to the steps below:

Steps:

1. Turn off power.

2. Disconnect the power cord from MB.

3. Take out the battery gently and put it aside for about 10 minutes (Or you can use a metal object to

connect the positive and negative pins in the battery holder to makethem short for one minute).

4. Re-insert the battery to the battery holder.

5. Connect power cord to MB again and turn on power.

6. Press Del to enter BIOS and load Fail-Safe Defaults(or load Optimized Defaults).

7. Save changes and reboot the system.

Question 4: Why do I still get a weak sound after turning up the speaker to the maximum volume? Answer: Please make sure the speaker you are using is equipped with an internal amplifier. If not, please change another speaker with power/amplifier and try again later.

Question 5: Sometimes I hear different continuous beeps from computer after system boots up. What do these beeps usually stand for? Answer: The beep codes below may help you identify the possible computer problems. However, they are only for reference purposes. The situations might differ from case to case.

AMI BIOS Beep Codes *

Computer gives 1 short beep when system boots successfully.

*Except for beep code 8, these codes are always fatal.

1 beep Refresh failure 2 beeps Parity error 3 beeps Base 64K memory failure 4 beeps Timer not operational 5 beeps Processor error 6 beeps 8042 - gate A20 failure 7 beeps Processor exception interrupt error 8 beeps Display memory read/write failure 9 beeps ROM checksum error 10 beeps CMOS shutdown register read/write error 11 beeps Cache memory bad

 AWARD BIOS Beep Codes

1 short: System boots successfully 2 short: CMOS setting error 1 long 1 short: DRAM or M/B error 1 long 2 short: Monitor or display card error 1 long 3 short: Keyboard error 1 long 9 short: BIOS ROM error Continuous long beeps: DRAM error Continuous short beeps: Power error

Appendix- 75 -

English

GA-8VM800M Motherboard - 76 -

English

Appendix- 77 -

English

GA-8VM800M Motherboard - 78 -

English

Appendix- 79 -

English

 

 Taiwan (Headquarters)

GIGA-BYTE TECHNOLOGY CO., LTD.

Address: No.6, Bau Chiang Road, Hsin-Tien, Taipei 231,

Taiwan

TEL: +886-2-8912-4888

FAX: +886-2-8912-4003

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address (English): http://www.gigabyte.com.tw

WEB address (Chinese): http://chinese.giga-byte.com

 

 U.S.A.

G.B.T. INC.

TEL: +1-626-854-9338

FAX: +1-626-854-9339

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.giga-byte.com

 

 Germany

G.B.T. TECHNOLOGY TRADING GMBH

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.de

 

 Japan

NIPPON GIGA-BYTE CORPORATION

WEB address : http://www.gigabyte.co.jp

 

 Singapore

GIGA-BYTE SINGAPORE PTE. LTD.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address: http://www.gigabyte.com.sg

 

 U.K.

G.B.T. TECH. CO., LTD.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://uk.giga-byte.com

 

 The Netherlands

GIGA-BYTE TECHNOLOGY B.V.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.giga-byte.nl

GA-8VM800M Motherboard - 80 -

English

 

 China

NINGBO G.B.T. TECH. TRADING CO., LTD.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.com.cn

Shanghai

TEL: +86-021-63410999

FAX: +86-021-63410100

Beijing

TEL: +86-10-62102838

FAX: +86-10-62102848

Wuhan

TEL: +86-27-87851061

FAX: +86-27-87851330

GuangZhou

TEL: +86-20-87586074

FAX: +86-20-85517843

Chengdu

TEL: +86-28-85236930

FAX: +86-28-85256822

Xian

TEL: +86-29-85531943

FAX: +86-29-85539821

Shenyang

TEL: +86-24-23960918

FAX: +86-24-23960918-809

 

 Australia

GIGABYTE TECHNOLOGY PTY. LTD.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.giga-byte.com.au

 

 France

GIGABYTE TECHNOLOGY FRANCE S.A.R.L.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.fr

 

 Russia

Moscow Representative Office Of GIGA-BYTE Technology Co.,

Ltd.

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.ru

 

 Poland

Office of GIGA-BYTE TECHNOLOGY Co., Ltd. in POLAND

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address : http://www.gigabyte.pl

 

 Serbia & Montenegro

Representative Office Of GIGA-BYTE Technology Co., Ltd. in

SERBIA & MONTENEGRO

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address: http://www.gigabyte.co.yu

 

 Czech Republic

Representative Office Of GIGA-BYTE Technology Co., Ltd. in

CZECH REPUBLIC

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address: http://www.gigabyte.cz

 

 Romania

Representative Office Of GIGA-BYTE Technology Co., Ltd. in

Romania

Tech. Support :

http://tw.giga-byte.com/TechSupport/ServiceCenter.htm

Non-Tech. Support(Sales/Marketing) :

http://ggts.gigabyte.com.tw/nontech.asp

WEB address: http://www.gigabyte.com.ro

Gigabyte Intel Pentium 4 Processor Motherboard GA-8VM800M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
