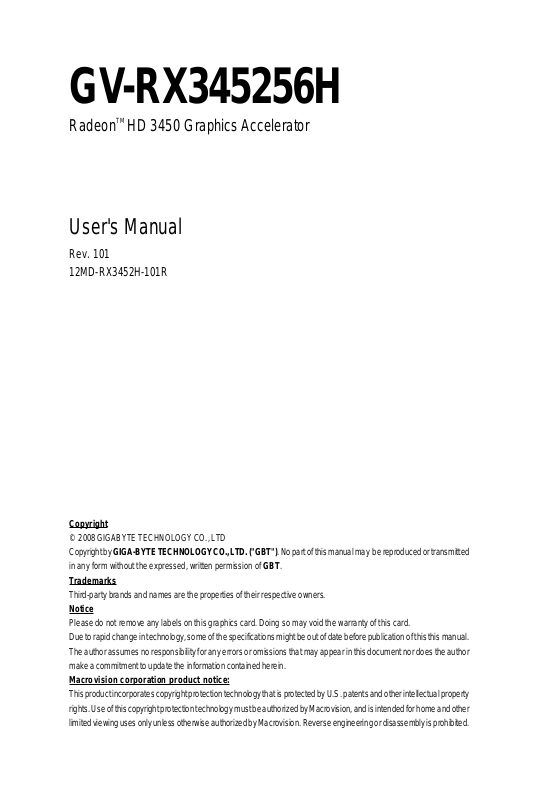

Gigabyte GV-RX345256H User Manual

GV -RX345256H
TM
Radeon
User's Manual
Rev. 101 12MD-RX3452H-101R
HD 3450 Graphics Accelerator
© 2008 GIGABYTE TEC HNOLOG Y CO., LTD Copyright by GIGA-BYTE TECHNOLOGY CO., LTD. ("GBT") . No part of this manual may be reproduced or transmitted in any form without the express ed, writt en permissio n of GBT.
Trademarks
Third-party br ands a nd names are t he proper ties of th eir res pecti ve own ers.
Notice
Please do not remove any label s on t his g raphics c ar d. Doin g so may v oid t he wa rranty of this c ard . Due to rapid change in techn olog y, some of the spe cific ation s might be out of da te be fore publ icat ion of t his thi s manual . The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to upd ate th e info rmatio n co ntained herei n.
Macrovision corporation product notice:
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
Jan. 31, 2008
GV-RX345256H
VGA Card
Jan. 31, 2008
VGA Card
GV-RX345256H
Table of Contents
1. Introduction ................................................................................................................ 4
1.1. Features .........................................................................................................................4
1.2. Minimum System Requirements ....................................................................................4
2. Hardware Installation.................................................................................................. 5
2.1. Board Layout ................................................................................................................. 5
2.2. Hardware Installation......................................................................................................7
3. Software Installation.................................................................................................. 10
3.1. Windows® XP Driver and Utilities Installation ............................................................... 1 0
3.1.1. Operating System Requirements .............................................................................. 10
3.1.2. DirectX Installation.........................................................................................................11
3.1.3. Driver Installation .........................................................................................................12
3.1.4. Utilities Installation........................................................................................................ 14
3.1.5. Taskbar Icons ............................................................................................................... 15
3.1.6. Display Properties Pages ........................................................................................... 20
4. Troubleshooting Tips................................................................................................ 37
5. Appendix ................................................................................................................. 38
Resolutions and Color Depth T ables (In Windows XP)........................................................ 38
Regulatory Statements ................................................................................................. 39
- 3 -
1. Introduction
1.1. Features
Powered by ATI RadeonTM HD 3450 Graphics Processing Unit (GPU)
Supports PCI Express 2.0
Integrated with 256 MB GDDR2 memory
Supports DirectX 10.1
Supports CrossFire
Supports AV output
Supports 1 Dual-Link DVI-I connectors
Supports 1 D-Sub connector
Supports HDMI connector (by adapter, optional)
1.2. Minimum System Requirements
Hardware
®
- Intel
Pentium® 4 or AMD Athlon
- 512 MB of system memory; 1 GB or more for best performance
- Optical drive for software installation (CD-ROM or DVD-ROM drive)
TM
TM
Operating System
- Windows
- Windows
- Windows
®
Vista
®
XP with Service Pack 2 (SP2)
®
XP Professional x64 Edition
- 4 -GV-RX345256H Graphics Accelerator
2.1. Board Layout
D-Sub monitor Connector (15-pin)
2. Hardware Installation
RCA
DVI-I Connector
or
Analog LCD Monitor Analog CRT Monitor
or
NTSC / PAL TV Projector
Digital LCD Monitor
or
Analog LCD Monitor Analog CRT Monitor
HDMI TV
D-Sub Output
DVI Output
AV Output
D-Sub Output
D-Sub monitor Connector (15-pin)
RCA
DVI-I Connector
DVI-I to D-Sub Adapter
DVI-I to HDMI Adapter
- 5 - Hardware Installation
The entire Radeon HD 3450 series support HDMI output which can handle both audio and video signals. However, audio output from the onboard audio controller or the external sound card will be disabled when HDMI output is activated. If no need for HDMI output function, set the onboard audio controller or the external sound card to be the default Sound Playback device to obtain audio output from your system. For more details, refer to page 19.
Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer.
1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the components whenever the components are separated from the system.
The card contains sensitive electric components, which can be easily damaged by static electricity, so the card should be left in its original packing until it is installed. Unpacking and installation should be done on a grounded anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same point as the anti-static mat. Inspect the card carton for obvious damage. Shipping and handling may cause damage to your card. Be sure there are no shipping and handling damages on the card before proceeding.
DO NOT APPLY POWER TO YOUR SYSTEM IF THE GRAPHICS CARD IS DAMAGED.
In order to ensure that your graphics card can work correctly, please use official GIGABYTE BIOS only. Using non-official GIGABYTE BIOS might
cause problem(s) on the graphics card.
- 6 -GV-RX345256H Graphics Accelerator
2.2. Hardware Installation
Now that you have prepared your computer, you are ready to install your graphics card.
To remove the existing graphics card:
Step 1. Power off the computer and monitor, then disconnect the display cable from the back of your computer.
Step 2. Remove the computer cover. If necessary, consult your computer's manual for help in removing the cover.
Step 3. Remove any existing graphics card from your computer.
To install your new graphics card:
Step 1. Locate the PCI Express x16 slot. If necessary, re­move the metal cover from this slot; then align your graphics card with the PCI Express x16 slot, and press it in firmly until the card is fully seated.
* Please make sure that the gold edge connector of the graphics card is securely inserted.
- 7 - Hardware Installation
Step 2. Replace the screw to fasten the card in place, and replace the computer cover.
Step 3. Plug the display cable into your card; then turn on the computer and monitor. If your graphics card came with a DVI-I connector, you can connect a flat panel display to the appropriate connector, as shown below. Or use the DVI-I-to-HDMI adapter to connect an HDMI monitor.
T o Flat Panel Display To D-Sub MonitorTo TV/VCR
Connect a HDMI monitor via DVI-I to HDMI adapter
You are now ready to proceed with the installation of the graphics card driver. Please refer to next chapter for detailed instructions.
- 8 -GV-RX345256H Graphics Accelerator
How to enable the ATI CrossFireTM technology:
After installing two CrossFire graphics cards of the same chipset (Figure 1) on a CrossFire-supported motherboard, users can enable the CrossFire technology simply through the graphics card driver .
Two CrossFire graphics cards of the same type. (Example: GV-RX16P128P-RH)
Figure 1
Step 1: After installing graphics card driver in operating system, access the Catalyst Control Center (please refer to Page 18). From the Catalyst Control Center, enter the CrossFire menu and assure to select the Enable CrossFire checkbox (Figure 2).
Step 2: When the next confirmation dialog box appears (Figure 3), click Yes to complete the CrossFire configurations.
Figure 3
Figure 2
(Note): Only Windows® XP operating system supports CrossFire mode. Please do not enable CrossFire
in Windows® 2000.
- 9 - Hardware Installation
3. Software Installation
In this manual, we assume that your CD-ROM drive letter to be Drive D: The installation of Windows Vista/XP drivers is very simple. When you insert the driver CD into your CD-ROM drive, you can see the autorun window (if it does not show up, run "D:\setup.exe"). Then you can follow the instructions to setup your graphics card driver. (Please follow the subsection "3.1.3 Driver Installation" to install the driver for your graphics card.)
3.1. Windows® XP Driver and Utilities Installation
3.1.1. Operating System Requirements
Notice the following guidelines before installing the drivers:
1. First make sure your system has installed DirectX 9 or later version.
2. Make sure your system has installed the appropriate motherboard drivers (for the motherboard drivers, please contact the motherboard manufacturer.)
- 10 -GV-RX345256H Graphics Accelerator
3.1.2. DirectX Installation
Install Microsoft DirectX to enable 3D hardware acceleration support for Windows Vista/XP to achieve better 3D performance.
For software MPEG support in Windows Vista/XP, you must install DirectX first. Users who run Windows XP with Service Pack 2 or above do not need to install DirectX separately.
Step 1. When the autorun window shows up, click the Install DirectX 9 item.
Step 2. Choose I accept the agreement and click the Next button.
The system is installing the components. Step 4. Click Finish to restart computer.
Step 3. Click the Next button.
Then the DirectX 9 installation is completed.
- 11 - Software Installation
3.1.3. Driver Installation
A. New Hardware Found
When the graphics card is inserted into your computer for the first time, the operating system will detect the graphics card automatically and display a New Hardware Found message. The following are step­by-step installation instructions.
Step 1: Found New Hardware Wizard: Video Controller (VGA Compatible)
Click the Next button to install the driver. (Insert the driver CD-ROM that came with your graphics card.)
Or click the Cancel button to install the driver from the autorun window.
Step 2: Found New Hardware Wizard: Searching and Installing
The wizard will search for the driver and install it automatically.
Step 3: Found New Hardware Wizard: Finish
Click the Finish button to finish the installation.
- 12 -GV-RX345256H Graphics Accelerator
B. Driver Installation (Autorun Window)
Insert the driver CD-ROM into your CD-ROM drive. The autorun window will appear. If it does not show up, please run "D:\setup.exe".
Step 1. When the autorun window shows up, click the Install Display Driver item.
Step 2. Click the Next button. Step 3. Click the Yes button.
Setp 4. Click the Express or Custom icon. The system is installing the components.
Step 5. Click the Finish button to restart the computer. Then the driver installation is completed.
- 13 - Software Installation
3.1.4. Utilities Installation
Insert the driver CD disk into your CD-ROM, and then you can see the AUTORUN window. If it does not show up, please run "D:\setup.exe".
Step 1. When the autorun window shows up, click the GIGABYTE Utility item.
Step 2. Click the Next button.
The system is installing the components.
Step 3. Click the Install button.
Step 4. Click the Finish button to complete the installation.
- 14 -GV-RX345256H Graphics Accelerator
3.1.5. Taskbar Icons
GIGABYTE Control Panel
After installation of the display drivers, you will find a GIGABYTE icon on the taskbar's status area. Right-clicking this icon opens the GIGABYTE control panel, showing a menu composed of shortcut of the graphics card's enhanced and other functions. You may click the Display Properties item, and then click Settings. Click Advanced after clicking Settings. Click the appropriate tab to change your display settings.
Right-click the GIGABYTE icon.
Select the items in the menu to enter the relative settings. Select About GIGABYTE to link to the GIGABYTE website for updated information about the graphics accelerator, latest drivers, and other information.
- 15 - Software Installation
V-Tuner 3
V-Tuner 3 lets you adjust the working frequency of the graphic engine and video memory (Core Clock and Memory Clock).
Displays 2D/3D core clock status
Adjust 2D core clock
Auto-Optimized core / memory clock
Adjust 3D core clock
Fixed Clock Adjust memory clock Hardware Monitor
Displays memory clock status
Button Function DEFAU LT You may click this button to restore to the default setting. SAVE You may click this button to save the frequency you wanted. LOAD After saving the specific value, you may click this button to load the
frequency you saved last time.
Auto-Optimized The V-Tuner3 clock configuration utility will determine the recommended
GPU and memory clock setting your system. If the utility should hang, restart your system and then enter "Auto-Optimized" mode.
Fixed Clock The V-Tuner3 clock configuration utility will lock the GPU and memory
clock you choose, whether you restart your system or not. To rechange clock, uncheck the "Fixed Clock" mode and then adjust.
Hardware Monitor If your card have Hardware Monitor function, you will see the extend
window. The window will display the GPU temperature and show the thermal curve. Besides, you can move the slider to adjust the frequency-time temperature of GPU, and you will see the change of thermal curve from now on.
HELP Opens Help page.
- 16 -GV-RX345256H Graphics Accelerator
Color Adjust
Color Adjust allows you to make color adjustments, such as brightness, contrast and gamma values for each or all of RGB colors.
VGA Info
VGA Info lists the relevant information about your card.
- 17 - Software Installation
ATI Control Panel
After installation of the display driver, you will find an ATI icon in your system tray. Right-click the icon to enter the Catalyst® Control Center. The Catalyst® Control Center is used to configure all your graphics card settings.
Right-click the ATI icon to enter the Catalyst® Control Center.
Or you can right-click on the desktop and select ATI CATALYST(R) Control Center.
- 18 -GV-RX345256H Graphics Accelerator
Configuring Audio Output
Configure the default audio output device based upon your needs.
Step 1: Go to Start > Control Panel > Sounds and Audio Devices.
Step 2: In the Sounds and Audio Devices Properties dialog box, click the Audio tab.
Using the picture to the left as the example, to set HDMI audio to be the default Sound Playback device, in the Default device box, select ATI HD Audio rear output. Otherwise, select Realtek HD Audio output, which is the onboard audio controller.
- 19 - Software Installation
3.1.6. Display Properties Pages
To access Display Properties pages, right-click on desktop and then select Properties. The Display Properties dialog box shows the information of display adapter, color, the range of display area, and
the refresh rate.
Settings (Resolutions and Color Quality for Windows)
You may adjust the screen resolution and color quality settings in this dialog box.
You can move the slider to change the resolution.
You can click the item to change the color quality.
Click the Advanced button for advanced settings.
Display Matrix
(Note) The CRT+TV configuration requires that you connect your CRT display to the DVI-I connector
Model GV-RX345256H
(Note)
CRT+TV CRT+DVI Yes DVI+TV Yes DVI+TV+CRT No HDMI+TV Yes HDMI+CRT Yes
on the card using the DVI-I to D-Sub adapter to ensure normal operation. This configuration is not supported if the CRT monitor is directly attached to the D-Sub port on the card.
Yes
- 20 -GV-RX345256H Graphics Accelerator
ATI Catalyst® Control Center Basic View :
The Basic View is the default view when ATI Catalyst Control Center is launched for the first time. This interface provides access to the basic settings and advanced features of your ATI graphics products. You can switch between Basic View and Advanced View at any time.
To access more settings in Basic View, click Basic, and then click Next.
Easy Setup Wizards:
Choose a wizard from the central list and click Go for step-by-step assistance.

Avivo Video Converter

This wizard assists you to convert videos from one file format to another.
Step 1: Select Avivo Video Converter, then click Go.
Step 3: In the Output Folder area, select the destination folder where the new file will be located. Click Next.
Step 2: Select the video file to be converted.
- 21 - Software Installation
Step 4: In the Output Video Format list, select a file format for the new file. If you wish to change the name of the new file, enter the new name in the Output File area. Finally, click Next to start file conversion.
The video file has been successfully converted.

Setup my display configuration

This wizard allows you to configure display setting for desktop viewing.
- 22 -GV-RX345256H Graphics Accelerator
Quick Settings:
The Quick Settings page provides access to three main settings.

3D Quality

3D Performance and Quality Settings allows your 3D games and applications to get faster perfor­mance and better quality with a more balanced setting.

Video Playback

Use this option to optimize video playback in different room environment or to select how video playback appears on the second display.

Display Setup

This option allows you to configure your desktop, including changing desktop resolution and desk­top mode, setting up extended desktop (requires more than one display), and rotating desktop image to match new display orientation.
Information Center:
The Information Center page in Basic and Advanced View provides hardware and software information about the installed graphics card.

Graphics Software

Provides software information including driver version, CATALYST version, Direct 3D version and so on.

Graphics Hardware

Provides hardware information including graph­ics chipset, BIOS version, memory size, core clock and so on.
- 23 - Software Installation
ATI Catalyst Control Center Advanced View
The Advanced page allows you to configure all of the many available settings of your ATI graphics card.
View Properties:
The CATALYST Control Center dashboard supports three types of views: Basic View/ Advanced View/ Custom View.

Basic View

The Basic view is the default view when CATA­LYST Control Center is launched for the first time. Refer to the previous pages for details.

Advanced View

The Advanced view provides access to the advanced features on each page. The left navi­gation pane displays a tree view that lists all the advanced features. The Advanced view is rec­ommended for experienced users.

Custom View

The Custom view allows you to display only the features you choose in the left navigation pane. The Custom view is recommended for experienced users who want to expose only the features they adjust most often or that their 3D application supports.
Hotkeys Properties:
The Hotkeys Manager allows you to create shortcut key combinations to quickly perform tasks such as changing a graphics setting or opening an application. A Hotkey is a combination of a modifier key or keys, such as Ctrl, Alt, or Shift, and any letter from the alphabet.
- 24 -GV-RX345256H Graphics Accelerator
Profiles Properties:
You can use profiles to create customized environments for your desktop, video, and 3D applications. Define and save your own personal video settings that can be quickly activated manually, through a Hotkey, or by file association.
Note: A profile applies to a specific graphics card. If there is more than one graphics card installed in your computer, you need to select the appropriate card before creating, loading, or activating a Profile.
Preferences Properties:
The Preferences page helps to restore defaults, change skins, and update the Catalyst Control Center. The Catalyst Control Center Preferences page contains the following options:
Always on TopHide TooltipsHide Toolbar TextHide Splash ScreenEnable System Tray MenuSelect a Language ...Select a Skin ...Restore Factory Defaults ...
- 25 - Software Installation
Help Properties:
The Catalyst Control Center Help feature allows you to access the comprehensive online help, register your product, or generate a problem report should you require technical support.
The Catalyst Control Center Help feature offers the following options:
Help for this PageHelp Contents ...Search Help ...Go to ATI.comAbout Catalyst Control Center ...
- 26 -GV-RX345256H Graphics Accelerator
Displays Manager:
Displays Manager is the central location for configuring your display devices and arranging your desktop. Use Displays Manager to quickly change your display setup, arrange your desktop in a multi­monitor environment, and enable TV Out.
Note: The stretch vertically and horizontally options are not supported on systems running Windows Vista.
Displays Options:
The Display Options aspect gives you additional control to optimize performance of OpenGL® and Direct 3D® applications. Use 3D Refresh Rate Override to set a refresh rate of your choice when a full­screen application or game has a default refresh rate that is lower than optimal. Choose one of the Display Detection Options to prevent screen flicker when detecting a display. If you are using an older TV or one that has non-standard inputs that may not be automatically detected, use Force TV Detection.
Note: On systems running Windows Vista the 3D Refresh Rate Override and the Display Detection Option to configure panning on displays with limited resolution capabilities are not supported since refresh rate is better controlled by Windows Vista and Windows Vista does not support panning.
- 27 - Software Installation
Monitor Properties 0:
Attributes
Monitor Attributes provides information about the attached monitor. You can also enable Extended Display Identification Data. Extended Display Identification Data (EDID) uses the information provided by the attached monitor to determine the limits for the resolution and refresh rate.
Adjustments
Use Monitor Adjustments to resize and reposi­tion the computer desktop on your monitor's display screen. You can also adjust the horizon­tal and vertical sync or enable composite sync.
AvivoTM Color
Use AvivoTM Color for ATI graphics cards that support per-display color settings. Independently set the hue, saturation, and temperature for each attached and enabled display.
- 28 -GV-RX345256H Graphics Accelerator
3D:
Standard Settings
The Standard Settings page provides access to a universal slider control where you can simul­taneously adjust all of the standard 3D settings for any type of 3D application. The slider en­ables you to adjust for overall system performance, overall 3D image quality, or a balance between the two. This page is useful when you are not aware of which type of 3D settings your application uses, or when you want to use an overall adjustment control that rapidly configures your application.
Anti-Aliasing
Anti-Aliasing (AA) is a rendering technique de­signed to remove jagged edges, shimmering, and pixelation problems that are common in rendered 3D images. Rather than determining the color to display for each pixel by sampling a single location at the pixel's center, anti-aliasing samples multiple locations within each pixel and blends the results together to produce the final color. Anti-Aliasing can be set to favor either system processing performance or image quality, or the application can decide: Setting for performance is best used when the 3D image is animated and smooth motion is the most important consideration. Setting for quality is best used when highly de­tailed and realistic 3D objects is the most impor­tant consideration. If you are unsure of how to configure anti-aliasing, use the Use application settings option. Your display will automatically adjust to the application's requirements.
- 29 - Software Installation
Adaptive Anti-Aliasing
Adaptive anti-aliasing is a technique that applies a combination of multi-sampling (MSAA) and super-sampling (SSAA) on 3D objects to improve edge smoothness and fine detail. This feature renders 3D objects containing trans­parencies more realistic, providing exceptional levels of image quality while maintaining performance.
Anisotropic Filtering
Anisotropic Filtering is a technique that preserves detail on surfaces that have three-dimensional perspective and fade away into the background. It works best when used in conjunction with Mipmapping. Anisotropic Filtering can be set to favor either an increase in system processing performance or improved image quality: Setting for performance is best used with appli­cations that display objects with smooth, simple surfaces, like those seen in CAD applications. Setting for quality is best used with applications that display highly detailed scenes, backgrounds, and textured objects, like those seen in 3D games. If you are unsure how to configure anisotropic filtering, use the Use application settings option. Your display will automatically adjust to the application's requirements.
- 30 -GV-RX345256H Graphics Accelerator
CATALYST® A.I.
Catalyst® A.I. makes use of ATI's new texture analyzer technology to optimize performance in 3D applications while maintaining or even im­proving image quality. It analyzes individual textures as they are loaded to determine the best and fastest way to display them.
Mipmap Detail Level
Mipmapping is a texturing technique that pre­serves the detail on a 3D object's surface as it moves into the background. A series of low­and high-resolution texture maps are stored in memory and selectively used to create the object's surface, depending on what level of detail is needed. Mipmap detail level can be set to favor either an increase in system processing performance or improved image quality: Setting for performance is best used when the 3D image is animated and smoothness of mo­tion is the most important consideration. Setting for quality is best used when high sur­face detail is required, especially if the animated object rotates or moves into the background.
- 31 - Software Installation
All Settings
The All Settings page combines all of the princi­pal 3D features onto a single page, without any preview window, allowing for quick access and adjustment. This page is useful when it is not necessary to preview the adjusted settings be­cause the effect is already known or understood.
More Settings
Use the More Settings dialog to select settings for the Direct 3D® and OpenGL® Application Pro­grammable Interfaces (API). These settings are provided for resolving certain incompatibilities within 3D applications that use one of these APIs. Use this dialog when you know which type of API (Direct 3D® or OpenGL® your 3D application uses, and you want to select a particular API­specific feature. If you are not sure which API your 3D application uses, consult the documen­tation of your 3D application. Note: The Alternate Pixel center Direct 3D® setting is not supported on systems running Windows Vista. This setting corrected a corruption prob­lem that occurred with some older games that should not occur with modern games.
- 32 -GV-RX345256H Graphics Accelerator
Color:
Adjust the overall richness of color by using the Gamma control. To adjust the overall brightness use the Brightness control, and the overall contrast use the Contrast control.
AvivoTM Video:
Presets
To quickly adjust your video settings choose one of the video presets. Note: These settings will only affect applications with video overlay support.
- 33 - Software Installation
Basic Color
Use the Avivo Color: Basic option to manually set Gamma, Brightness, Contrast, Saturation, and Tint for video playback. Note: Certain video formats do not support these adjustments. These settings will only affect ap­plications with video overlay support.
Basic Quality
You can control the deinterlacing settings by checking the Use automatic deinterlacing item. The bar determines how the two inter­laced video fields are converted into a non­interlaced form. Note: These settings will only affect applications with video overlay support.
Theater Mode*
Use Theater Mode to change the way you view streaming video. Note: These settings will only affect applications with video overlay support. Extended Desktop Mode is not supported on systems running Windows
Vista. * This item will be available when you connect two monitors.
- 34 -GV-RX345256H Graphics Accelerator
All Settings
The All Settings page combines all of the princi-
pal Video features onto a single page, without
any preview window, allowing quick access
and adjustment. This page is useful when it is
not necessary to preview the adjusted settings
because the effect is already known or
understood.
Note:
These settings will only affect applications with
video overlay support.
VPU Recover:
VPU Recover is a tool capable of detecting the rare situation when the graphics processor is no longer able to respond to display driver commands. When this occurs, VPU Recover attempts to reset the graphics processor so that you are able to continue using your computer without interruption or loss of data. In most cases, VPU Recover will be able to reset the graphics processor without requiring a system restart. If the computer cannot recover from a crash, VPU Recover will switch the computer to software rendering mode, allowing you to save any work in progress before restarting the computer.
Enable VPU RecoverPrepare an error report if VPU Recover is
activated, for submission to ATI Technologies.
Allows the VPU Recover, once it is activated,
to generate an error report that you can send to
ATI via e-mail.
Note:
Because Windows Vista provides the same func-
tionality as this option, VPU Recover is not avail-
able on systems running Windows Vista.
- 35 - Software Installation
ATI Overdrive:
Use Overdrive to maximize your viewing experience by dynamically and safely overclocking the graphics processor and memory. Use the Automated clock configuration utility to obtain the ATI recommended speeds for the graphics processor clock and video memory clock. Alternatively, manually set these speeds to meet your specific requirements. Finally, Overdrive can be configured to run when the computer is booted or only when running 3D applications.
Note:
If your computer cannot restart after setting a
higher clock speed, press and hold the <Shift>
key during system start-up until you hear three
beeps. Once your computer has full booted,
disable Preserve ATI Overdrive settings at logon.
CrossFireTM:
CrossFire delivers exceptional performance on a single display by combining the processing power of two or more Graphics Processing Units (GPUs).
- 36 -GV-RX345256H Graphics Accelerator
4. T roubleshooting Tips
The following troubleshooting tips may help if you experience problems. Contact your dealer or GIGABYTE for more advanced troubleshooting information.
Check that the card is seated properly in the PCI Express x16 slot.Ensure that the display cable is securely fastened to the card's display connector.Make sure that the monitor and computer are plugged in and receiving power.If necessary, disable any built-in graphics capabilities on your motherboard. For more
information, consult your computer's manual or manufacturer. (NOTE: Some manufacturers do not allow the built-in graphics to be disabled or to become the secondary display.)
Make sure you selected the appropriate display device and graphics card when you install
the graphics driver.
Restart your computer.
Press <F8> on your keyboard after system starts up. When the Windows Advanced Options Menu appears, select Safe Mode and press <Enter>. After getting into Safe Mode, in Device Manager check whether the driver for the graphics card is correct.
For more assistance, use the Troubleshooting Guide located in the Windows Help or contact
your computer manufacturer.
If necessary, adjust your monitor's setting using monitor's adjust panel to make the screen look focused, crisp, and sharp. (Please refer to the monitor's manual.)
- 37 - Troubleshooting Tips
5. Appendix
Resolutions and Color Depth T ables (In Windows XP)
RadeonTM HD 3450 Series 2D Single Display Modes
Display Refresh Color Depth (bpp) Screen Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M) Resolution (Hz) Standard mode High mode True mode
640 x 480 200 333 800 x 600 200 333 1024 x 768 200 333 1152 x 864 100 333 1280 x 768 85 333 1280 x 960 160 333 1280 x 1024 120 333 1440 x 900 60 333 1600 x 1200 100 333 1680 x 1050 100 333 1792 x 1344 85 333 1800 x 1440 70 333 1856 x 1392 75 333 1920 x 1080 75 333 1920 x 1200 85 333 1920 x 1440 75 333 2048 x 1536 66 333
RadeonTM HD 3450 Series HDTV Display Modes
Display Maximum Screen Refresh Rate Resolution (Hz)
480i 640 x 480 30
704 x 480 30 720 x 480 30
480p 640 x 480 60
704 x 480 60 720 x 480 60 856 x 480 60
720p 960 x 720 60
1280 x 720 60
1080i 1920 x 1080 30
* The tables are for reference only. The actual resolutions supported depend on the monitor you use.
- 38 -GV-RX345256H Graphics Accelerator
Regulatory Statements
Regulatory Notices
This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthorized purpose. Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.
Our Commitment to Preserving the Environment
In addition to high-efficiency performance, all GIGABYTE motherboards fulfill European Union regula­tions for RoHS (Restriction of Certain Hazardous Substances in Electrical and Electronic Equipment) and WEEE (Waste Electrical and Electronic Equipment) environmental directives, as well as most major worldwide safety requirements. To prevent releases of harmful substances into the environment and to maximize the use of our natural resources, GIGABYTE provides the following information on how you can responsibly recycle or reuse most of the materials in your "end of life" product.
Restriction of Hazardous Substances (RoHS) Directive Statement
GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE and PBB). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.
Waste Electrical & Electronic Equipment (WEEE) Directive Statement
GIGABYTE will fulfill the national laws as interpreted from the 2002/96/EC WEEE (Waste Electrical and Electronic Equipment) directive. The WEEE Directive specifies the treatment, collection, recycling and disposal of electric and electronic devices and their components. Under the Directive, used equipment must be marked, collected separately, and disposed of properly.
WEEE Symbol Statement
The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure. The separate collection and recycling of your waste equipment at the
time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local government office, your household waste disposal service or where you purchased the product for details of environmentally safe recycling. When your electrical or electronic equipment is no longer useful to you, "take it back" to your local
or regional waste collection administration for recycling.
If you need further assistance in recycling, reusing in your "end of life" product, you may contact us
at the Customer Care number listed in your product's user's manual and we will be glad to help you with your effort.
- 39 - Appendix
Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly. With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the use of landfills for the disposal of "end of life" products, and generally improve our quality of life by ensuring that potentially hazardous substances are not released into the environment and are disposed of properly.
China Restriction of Hazardous Substances Table
The following table is supplied in compliance with China's Restriction of Hazardous Substances (China RoHS) requirements:
- 40 -GV-RX345256H Graphics Accelerator
Loading...
