Page 1
1
GR-ES604
Server / Storage Server
Quick Installation Guide
Ver: 1.0
Page 2
2
Table of Contents
SAFETY, CARE AND REGULATORY INFORMATION ............................................... 3
CHAPTER 1 PACKING LIST............................................................................................. 7
CHAPTER 2 SYSTEM OVERVIEW..................................................................................8
CHAPTER 3 SYSTEM SPECIFICATION......................................................................... 9
H
ARDWARE SPECIFICATION.....................................................................................................9
CHAPTER 4 HARDWARE INSTALLATION................................................................ 10
4.1. REMOVE & INSTALL CHASSIS COVER.........................................................................10
4.2. INSTALL MEMORY DIMM MODULE ........................................................................... 11
4.3. INSTALL HDD AND CONNECT CABLE........................................................................... 12
4.4. INSTALL CPU AND HEAT SINK ..................................................................................... 13
4.5. INSTALL DVD AND CONNECT CABLE........................................................................... 15
CHAPTER 5.......................................................................................................................... 16
POWER ON PREPARING.................................................................................................. 17

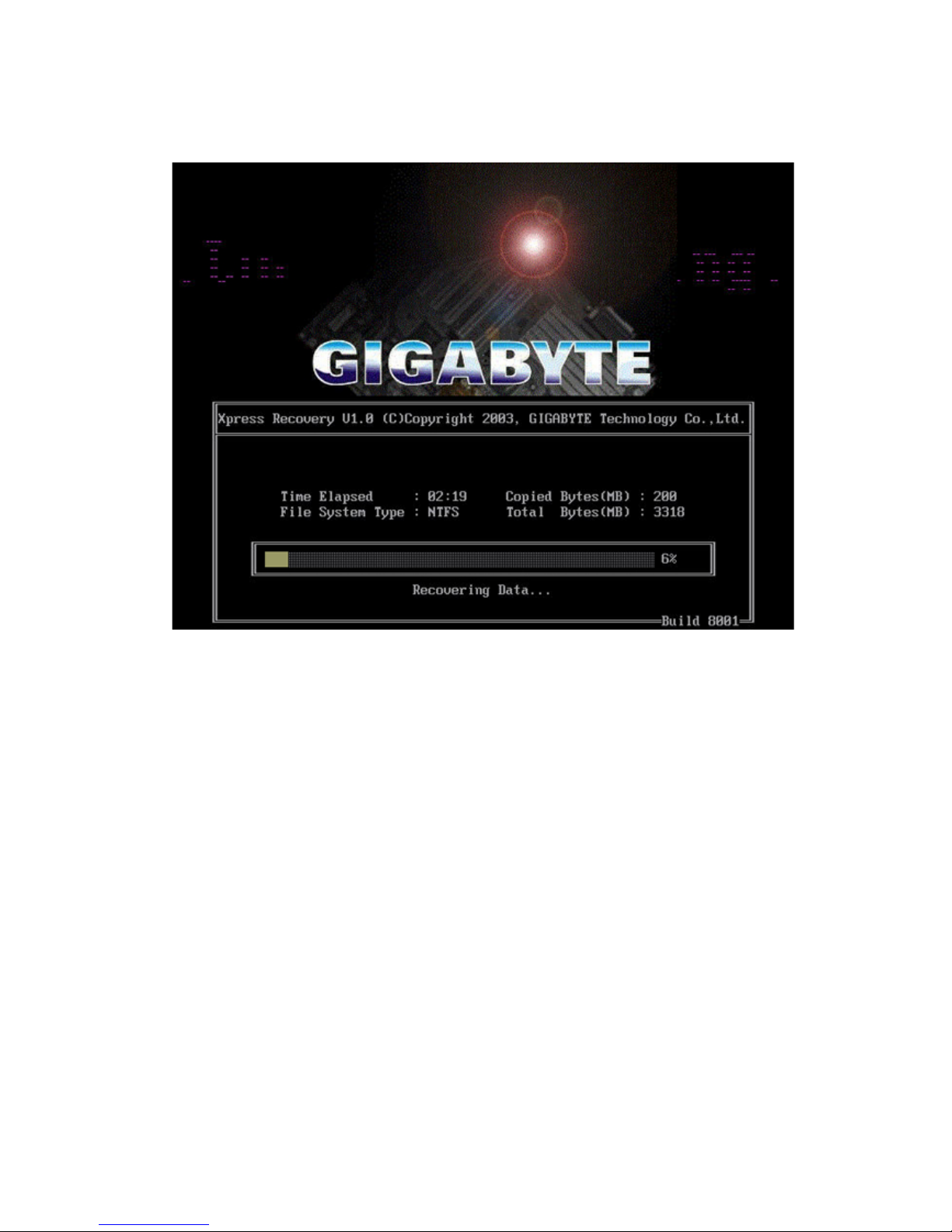

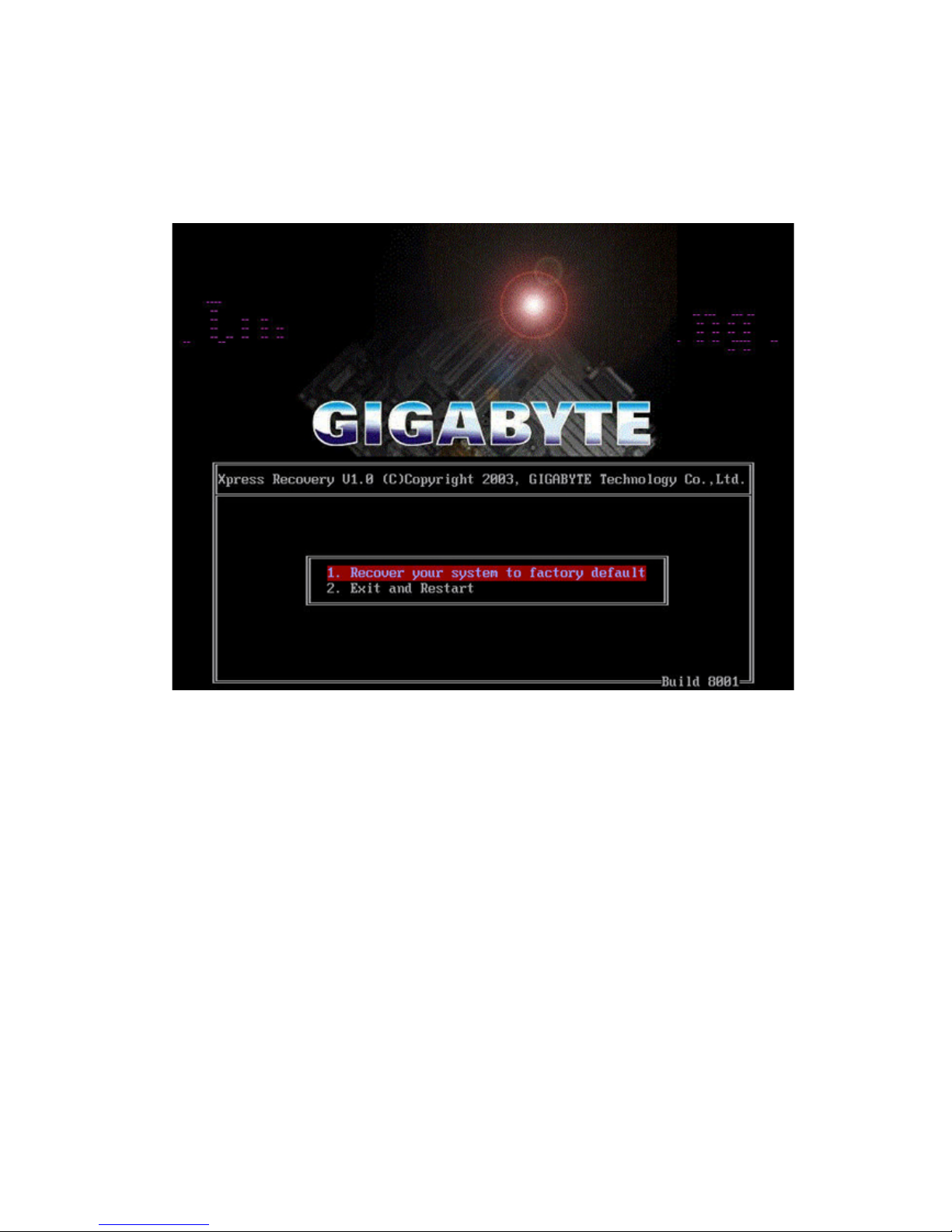

CHAPTER 6 RECOVER SYSTEM (STORAGE SERVER ONLY).............................. 18
CHAPTER 7 SYSTEM DEFAULT SETTING (STORAGE SERVER ONLY)............ 20
CHAPTER 8 ENTER WEB UI (STORAGE SERVER ONLY) ..................................... 20
APPENDIX I MORE INFORMATION (STORAGE SERVER ONLY)....................... 22
APPENDIX II INSTALL 4-HDD CAGE (OPTION)....................................................... 23
Page 3
3
Safety, Care and Regulatory Information
Important safety information
Read and follow all instructions marked on the product and in the documentation before
you operate your system. Retain all safety and operating instructions for future use.
The product should be operated only from the type of power source indicated on
the rating label.
If your computer has a voltage selector switch, make sure that the switch is in the
proper position for your area. The voltage selector switch is set at the factory to the
correct voltage.
The plug-socket combination must be accessible at all times because it serves as
the main disconnecting device.
All product shipped with a three-wire electrical grounding-type plug only fits into a
grounding-type power outlet. This is a safety feature. The equipment grounding
should be in accordance with local and national electrical codes. The equipment
operates safely when it is used in accordance with its marked electrical ratings and
product usage instructions
Do not use this product near water or a heat source.
Set up the product on a stable work surface or so as to ensure stability of the
system.
Openings in the case are provided for ventilation. Do not block or cover these
openings. Make sure you provide adequate space around the system for ventilation
when you set up your work area. Never insert objects of any kind into the
ventilation openings.
To avoid electrical shock, always unplug all power cables and modem cables from
the wall outlets before removing covers.
Allow the product to cool before removing covers or touching internal components.
Precautions for Products With Laser Devices
Observe the following precautions for laser devices:
Do not open the CD-ROM drive, make adjustments, or perform procedures on a
laser device other than those specified in the product’s documentation.
Only authorized service technicians should repair laser devices.
Precautions for Products With Modems, Telecommunications, or Local
Area Network Options
Observe the following guidelines when working with options:
Do not connect or use a modem or telephone during a lightning storm. There may
be a risk of electrical shock from lightning.
To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line
cord.
Do not plug a modem or telephone cable into the network interface controller (NIC)
receptacle.
Disconnect the modem cable before opening a product enclosure, touching or
installing internal components, or touching an uninsulated modem cable or jack.
Do not use a telephone line to report a gas leak while you are in the vicinity of the
leak.
Page 4
4
Federal
Communications
Commission (FCC) Statement
Note: This equipment has been tested and found to comply with the limit s for a Class B digit al
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when th e equipment is operat ed in a com mercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructi on manual, may cau se harmful interfe rence to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
Properly shielded and grounded cables and connectors must be used in order to meet FCC
emission limits. Neither the provider nor the manufacturer are responsible for any radio or television
interference caused by using other than recommended cables and connectors or by unauthorized
changes or modifications to this equipment. Unauthorized changes or modifications could void the
user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference recei ved, includi ng i nt erfe rence that m ay caus e unde si red ope ration.
FCC part 68 (applicable to products fitted with USA modems)
The modem complies with Part 68 of the FCC Rules. On this equipment is a label that contains,
among other information, the FCC registration num ber and Ringer Eq uivalence Nu mber (REN) for
this equipment. You must, upon request, provide this information to your telephone company.
If your telephone equipment causes harm to the telephone network, the Telephone Company
may discontinue your service temporarily. If possible, they will notify in advance. But, if advance
notice is not practical, you will be notified as soon as possible. You will be informed of your right
to file a complaint with the FCC.
Your telephone company may make changes in its facilities, equipment, operations, or procedures
that could affect proper operation of your equipment. If they do, you will be notified in adv ance to give
you an opportunity to maintain uninterrupted telephone service.
The FCC prohibits this equipment to be connected to party lines or coin -telephon e service.
The FCC also requires the transmitter of a FAX transmission be properly identified (per FCC Rules
Part 68, Sec. 68.381 (c) (3)).
/ for Canadian users only /
Canadian Department of Communicat ions C ompli ance Statem ent
This digital apparatus does not exceed the Class B limits for radio noise emissions from digital
apparatus as set out in the radio interference regulations of Industry Canada.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage
radioélectrique édicté par Industrie Canada.
DOC notice (for products fitted with an Industry Canada-compliant modem)
The Canadian Department of Communications label iden tifies certified eq uipment. This ce rtification
means that the equipment meets certain telecommunications network protective, operational and
safety requirements. The Department does not guarantee the equipment will operate to the user
satisfaction.
Before installing this equipment, users ensure that it is permissible to be connected to the facilities of
the local Telecommunications Company. The equipment must also be installed using an acceptable
method of connection. The customer should be aware that compliance with the above conditions
might not prevent degradation of service in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance facility
designated by the supplier. Any rep airs or alt erations m ade by the u ser to this equipment, or
equipment malfunctions, may give the telecommunications company cause to request the user to
disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power
utility, telephone lines and internal metallic water pi pe system, if resent are connect ed together. T his
precaution may be particularly important in rural areas.
Caution: Users should not attempt to make such connections themselves, but should contact the
appropriate electric inspection authority, or electrician, as appropriate.
Page 5
5
NOTICE: The Load Number (LN) assigned to each te rminal devi ce denotes the p ercentage of the
total load to be connected to a tele phone lo op which i s used by th e device, to prevent ov erloadi ng.
The termination on a loop may consist of any combination of devices subje ct only to the requireme nt
that the sum of the Load Numbers of all the devices does not exceed 100.
/ for European users only /
Page 6
6
European Community Directive Conformance Statement
This product is in conformity with the protection requirements of EC Council Low Voltage
Directive (Safety) 73/23/EEC, EMC Directive 89/336/EEC on the approximation of the laws of
the Member States relating to electro-magnetic compatibility.
R&TTE Directive (applicable to products fitted with European modems)
This modem does not require any physical and/or software additional switch settings from the
User and is suitable for use only on telephone lines provided with Multi-Frequency Dialing
facilities.
The equipment has been approved in accordance with Council Decision 99/5/EC on radio
equipment and terminal telecommunication equipment and the mutual recognition of their
conformity.
Page 7
7
Chapter 1 Packing List
Packing content list
1. GR-ES604 system * 1
2. Quick installation guide * 1
3. Mother board manual * 1
4. Mother board driver CD * 1
5. SATA cable * 2
6. SATA power Y-cable * 1
7. ATA cable * 1
8. Power cable * 1
9. Screw set * 1
10. WSS license label * 1 (Storage Server Only)
11. WSS recovery DVD * 1 (Storage Server Only)
Page 8
8

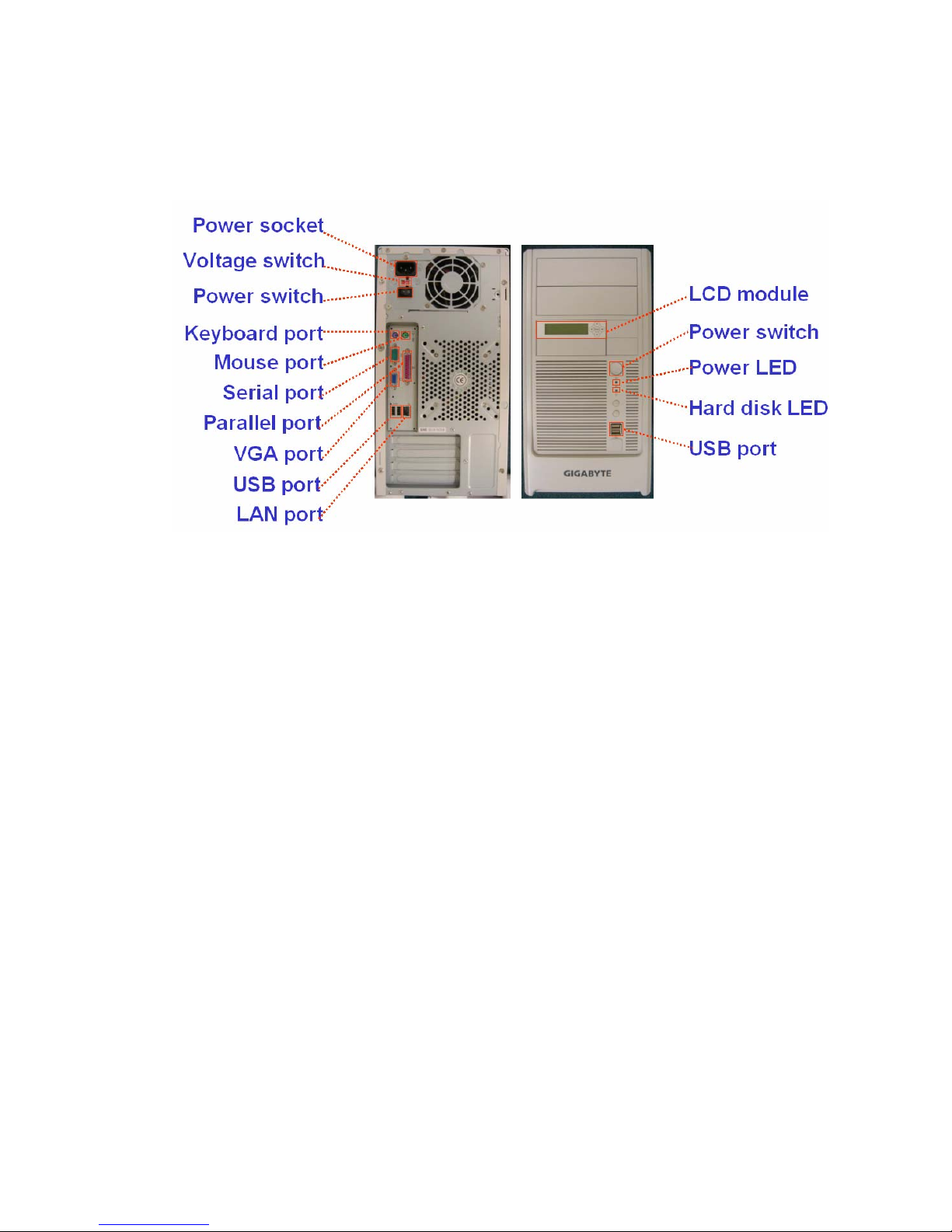

Chapter 2 System Overview
Front view and rear view
Page 9
9
Chapter 3 System Specification
Hardware specification
CPU Support Intel P4 3.8GHz
FSB 800MHz
Memory Type Un-Buffer DDR2 - 400 / 533
Memory ECC Support Yes
Memory Slot DIMM * 4
Memory Size Support 4GB
RAID Type Firmware
RAID 0, 1
Disk Type SATA
Disk Number 2 / 4 (option)
DVD-ROM 1 (Server Only)
FDD 1 (Server Only)
VGA MCH internal Graphic
Ethernet Port Gigabit * 1
LCD module
YES, Configuration and Monitor
(Storage Server Only)
Available Slot
(LP: Low Profile)
X8 PCI-E * 1
X1 PCI-E * 1
PCI 32bit/33MHz * 2
Dimension(W*H*D) 195*350*370 mm
Form Factor Tower
Power Supply 300W
Software specification (Storage Server Only)
Build-in Operating System Microsoft Windows Storage Server 2003
Network Protocol Support TCP/IP, AppleTalk, IPX
File Sharing Protocol Support CIFS, NFS, NCP, AFP, HTTP
Note: When system enable Firmware RAID function, only two hard disks can be reached.
Storage Server does not support firmware RAID function.
The specification is subject to change without notice.
Page 10
10
Chapter 4 Hardware Installation
4.1. Remove & Install Chassis Cover

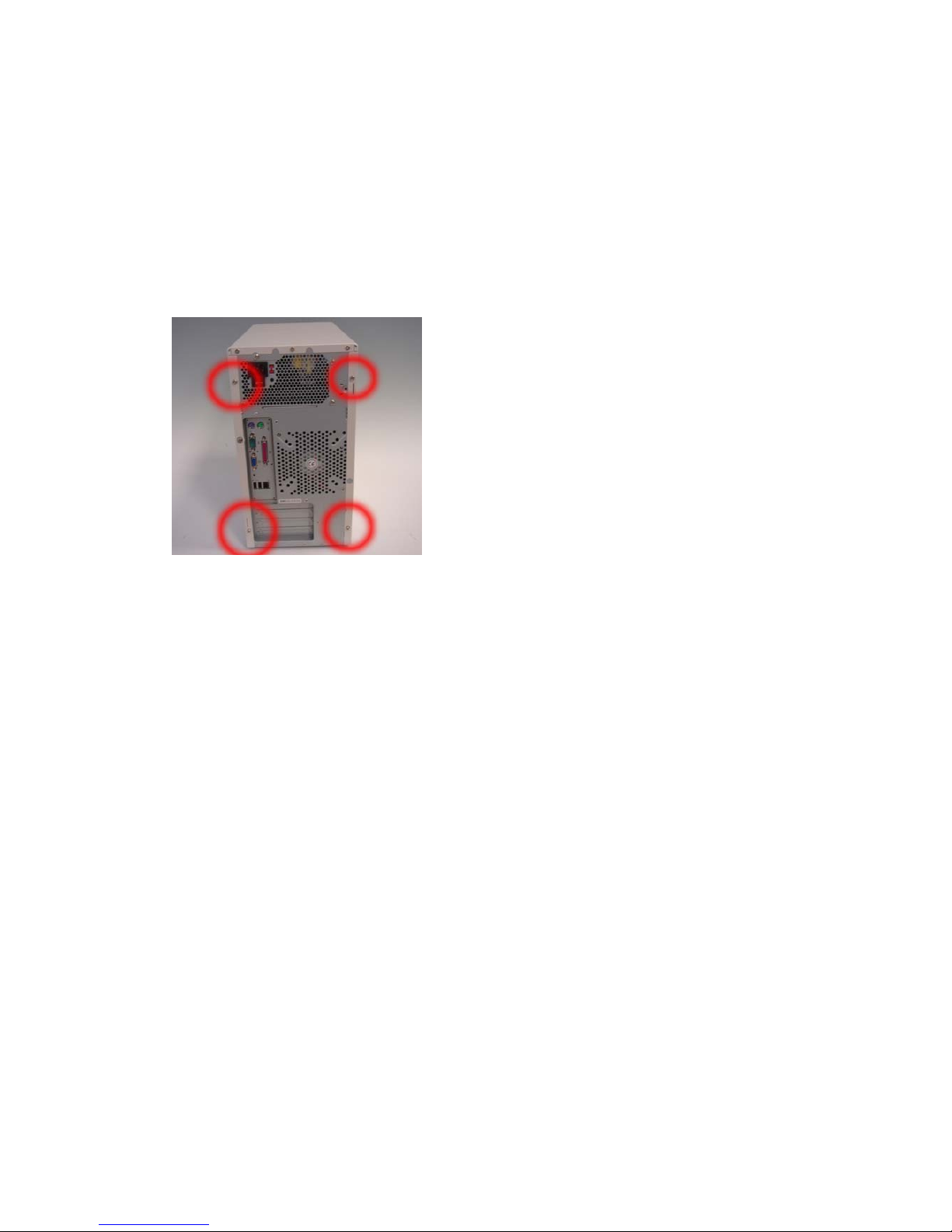

Step 1. Unlock the 3 screws from the back of the server.
Step 3. Slide toward to remove the side cover.
Step 3. Reverse Step 1, and 2 to replace the chassis cover.
Page 11
11

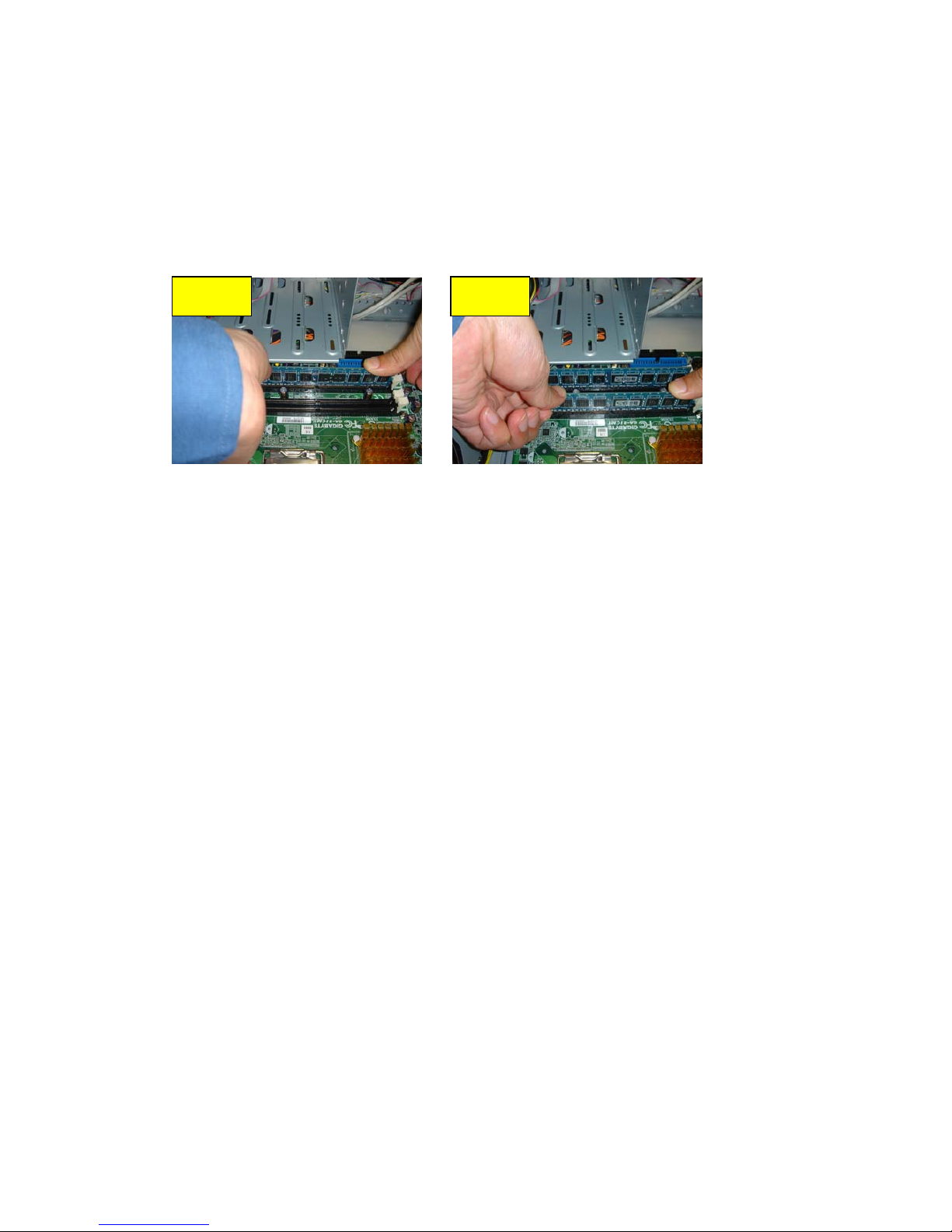

4.2. Install Memory DIMM Module
Step 1. Insert the DIMM memory module vertically into the DIMM slot. Then
push it down.
Step 2. Close the plastic clip at both edges of theDIMM slots to lock the
DIMM module.
Step 1 Step 2
Page 12
12

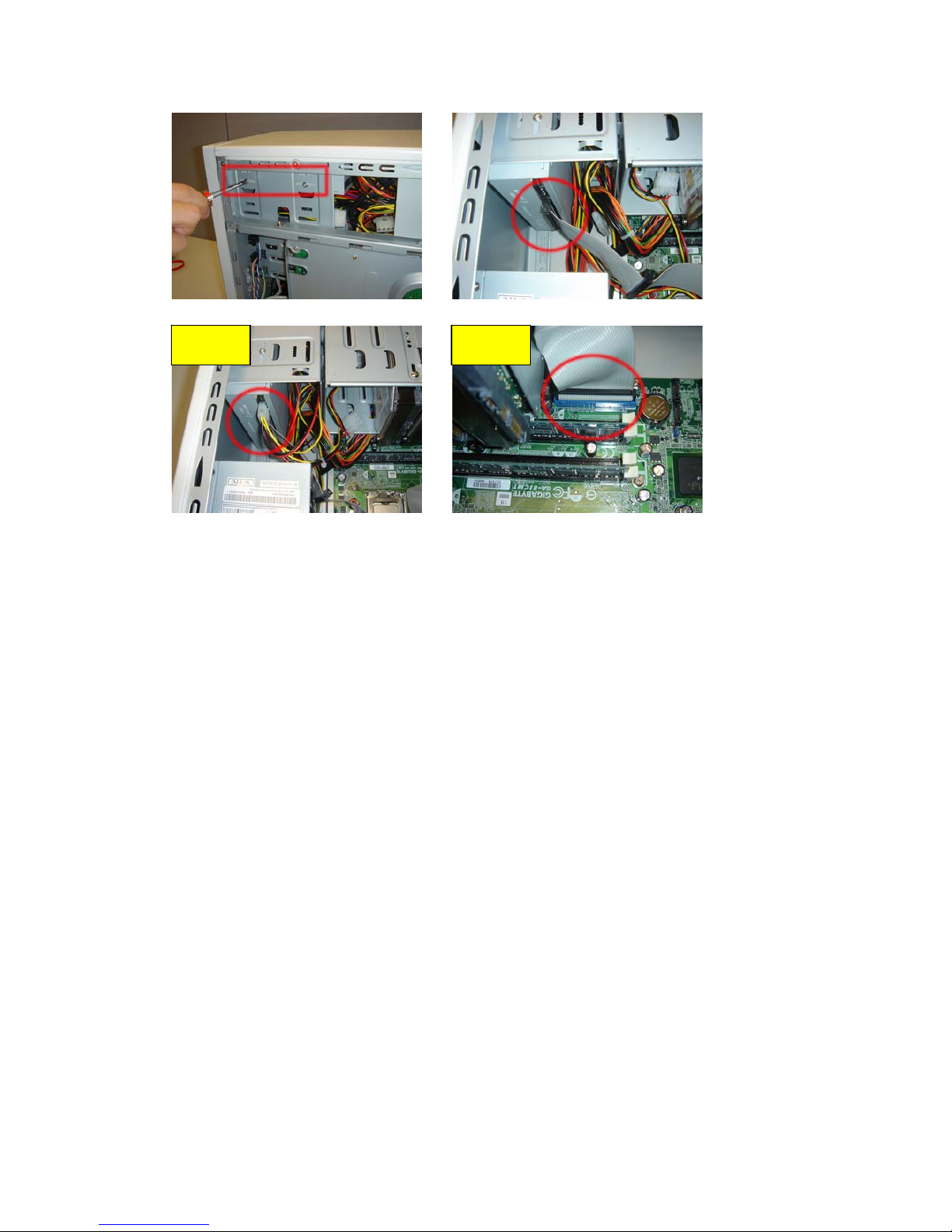

4.3. Install HDD and connect cable
Step 1. Inset a hard disk into hard disk blank.
Step 2. Secure the hard disk wit h two screws.
Step 3. Reverse the server system, lock another screw.
Step 4. Connect the power cable to the hard disk. (See the arrow illustrated
below)
Step 5. Connect the power cable to the motherboard connector. Installation
completed.
Step 1
Step 2
Step 2
Step 3
Step 4 Step 5
Page 13
13

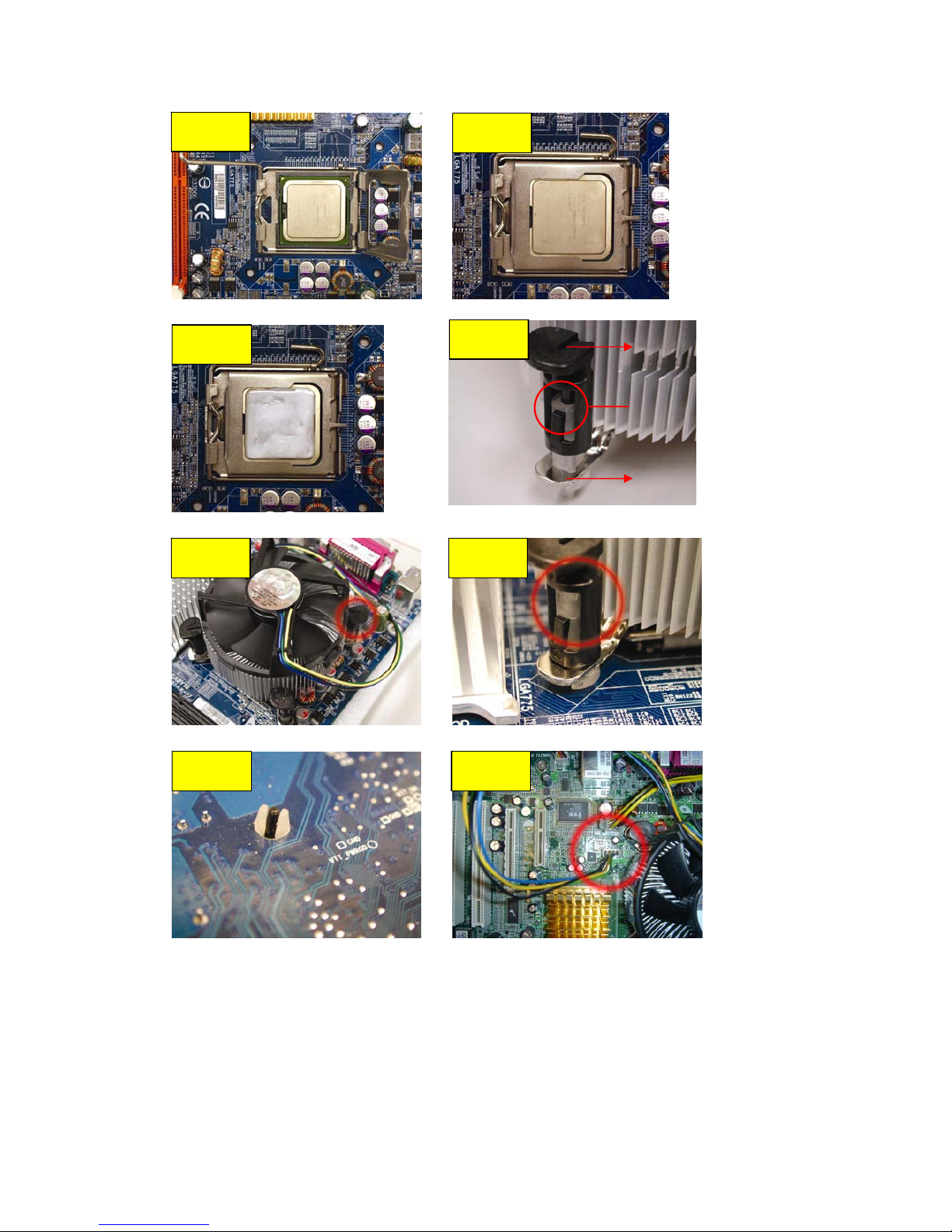

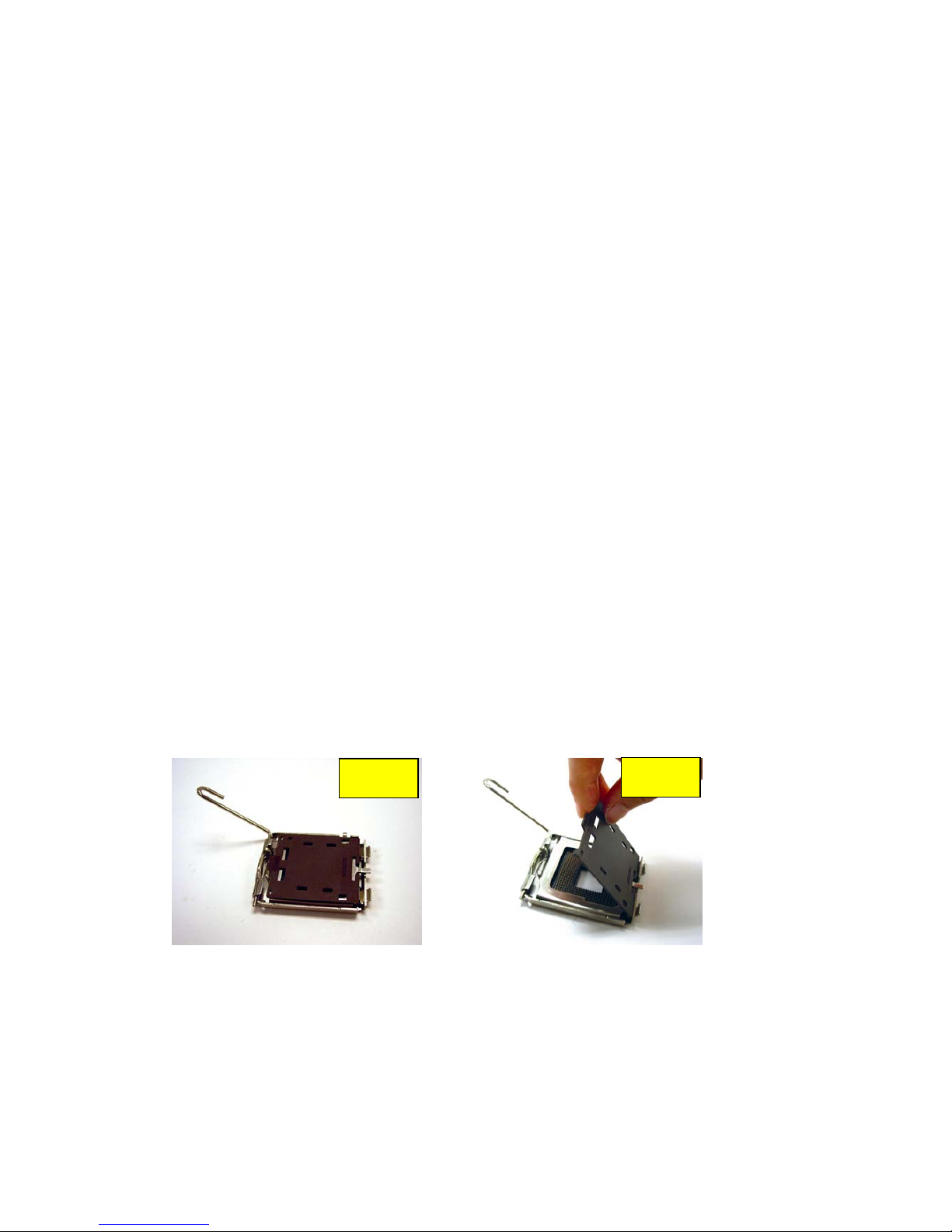

4.4. Install CPU and heat sink
Step 1. Gently lift the metal lever located on the CPU socket to the upper-right
position.
Step 2. Remove the plastic covering on the CPU socket.
Step 3 . Align the indented corner of the CPU with the triangle and
gently
insert the CPU into position. (Grasping the CPU firmly between your
thumb and forefinger, carefully place it into the socket in a straight and
downwards motion. Avoid twisting or bending motions that might
cause damage to the CPU during installation.)
Step 4. Once the CPU is properly inserted, please replace the plastic covering
and push the metal lever back into its original position.
Step 5. Apply heatsink paste on the surface of the installed CPU.
Step 6. Remove the heatsink, turning the push pin along the direction of arrow;
and reverse the previous step to install the heat sink.
Please note the direction of arrow sign on the male push pin doesn't
face inwards before installation. (This instruction is only for Intel
boxed fan)
Step 7. Place the heatsink on top the CPU and make sure the push pins align to
the pin hole on the motherboard. Push down the push pins diagonally.
Step 8. Make sure the Male and Female push pin are brought together.
Step 9. Check the back side of teh motherboard. Make sure the push pin is
seated firmly as the picture shown. Installation completed.
Step 10. Attach the power connector of the heatsink to the CPU fan header
located on the motherboard.
Step 1
Step 2
Page 14
14
Female Push pin
The top of Female Push Pin
Step 3
Step 4
Step 5
Step 6
Step 7
Step 8
Step 9 Step 10
Page 15
15

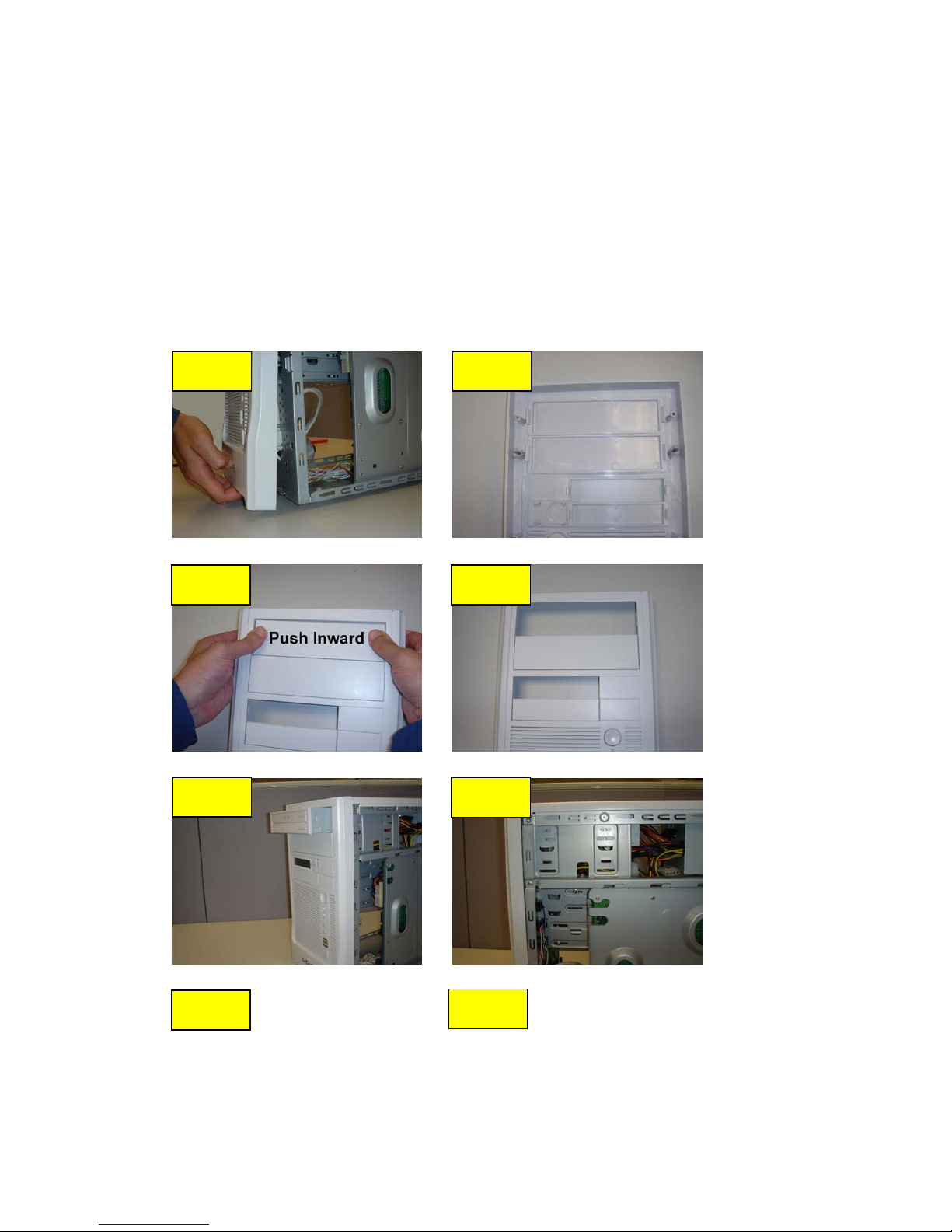

4.5. Install DVD and connect cable
Step 1. Remove the front bezel.
Step 2. Push inward to remove the dummy cover.
Step 3. Slide the DVD-ROM drive into the bay until it locks into place.
Step 4. Secure the DVD-ROM drive with screws to the chassis.
Step 5. Connect the cable to the DVD-ROM drive.
Step 6. Connect the power to the DVD-ROM drive.
Step 7. Connect the cable to the motherboard connector.
Step 1 Step 2
Step 2 Step 2
Step 3
Step 4
Step 4
Step 5
Page 16
16
Chapter 5
Step 6 Step 7
Page 17
17
Power On Preparing
Step 1 Switch the power supply input voltage to local voltage
Step 2 Connect all cables.
Page 18
18
Chapter 6
Recover System (Storage Server Only)
Step 1. Boot from DVD
Page 19
19
Step 2. Press Enter to start recovery.
Step 3. Recovery completed!! Press any key to continue. Reboot your system.
Page 20
20
Chapter 7
System Default Setting (Storage Server Only)
Hostname : STORAGESERVER
Management account : administrator
Management account password : password
IP address : Get from DHCP
LCD module password : 9999
Chapter 8
Enter Web UI (Storage Server Only)
Step 1 Open IE

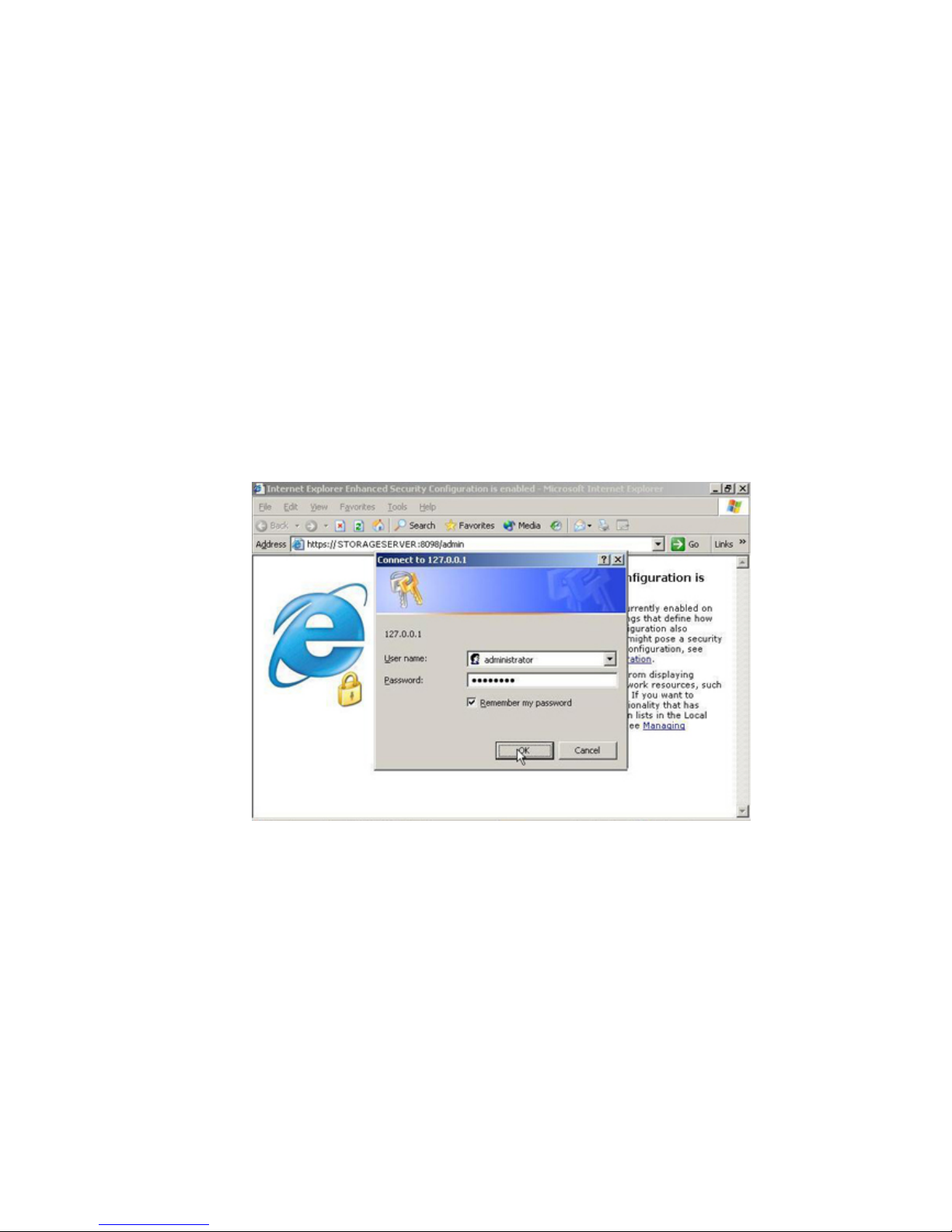

Step 2 Input “User name” and “ Password”.
Page 21
21

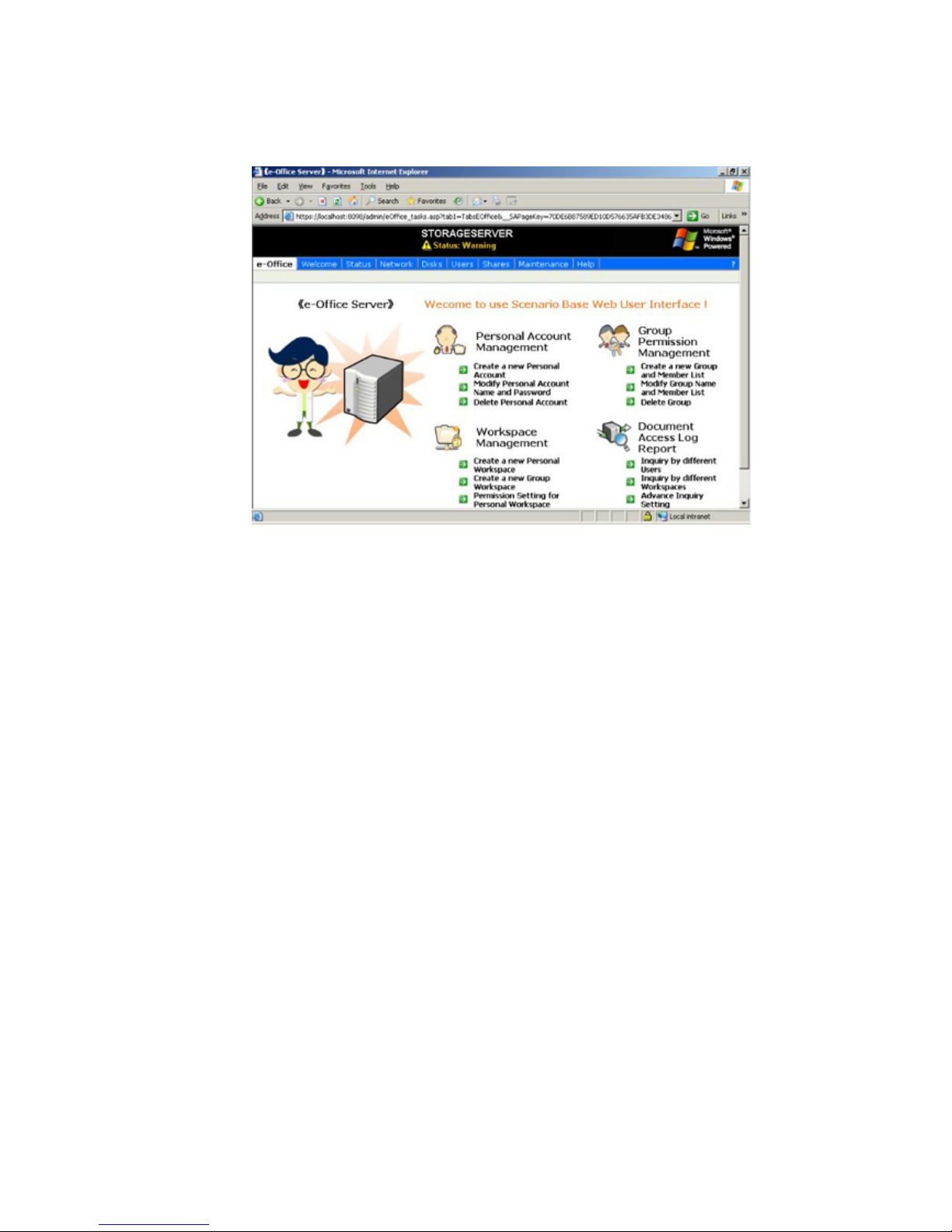

Step 3. Reach the Web UI.
Page 22
22
Appendix I
More Information (Storage Server Only)
Recovery DVD also contains
1. WSS 2003 Manual
2. E-office UI Manual
3. LCD module Manual
4. WSS End User License Agreement
5. i386 directory of Windows Server 2003
note: please check the DVD for the exact content
Page 23
23
Appendix II

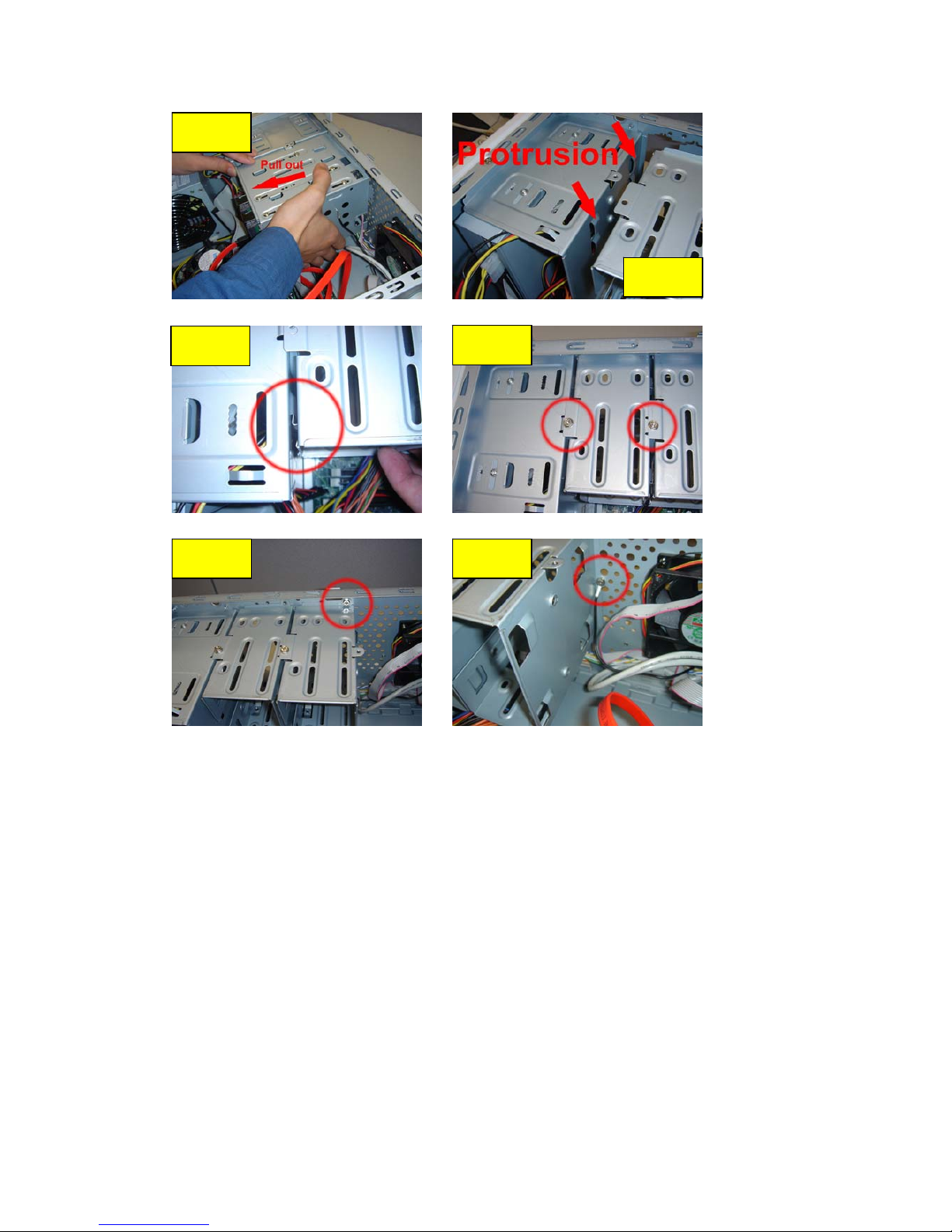

Install 4-HDD Cage (Option)
Step 1. Lock the protrusion to connect the two HDD cages together. (See the
arrow illustrated below)
Step 2. Secure the HDD cages with screw.
Step 3. Remove the front bezel and remove the screw next to the LCD panel.
Step 4. Remove the rest fixed screws. (See the red circle illustrated below)
Step 5. Pull out to remove the HDD blank.
Step 6. Align the protrusion on the DVD-ROM blank, lock the HDD cage into
the protrusion. (See the red circle illustrated below)
Step 7. Secure the HDD cages with screws.
Step 8. Reverse step 3 to replace fixed screws to locked position.
Step 9. Connect the cable to the motherboard connector.
Step 1 Step 2
Step 3
Step 4
Step 4
Step 4
Page 24
24
Step 5
Step 6
Step 6
Step 7
Step 8 Step 8
Loading...
