Gigabyte GN-BTD01 User Manual
GN-BTD01 Bluetooth User’s Guide
GN-BTD01
Bluetooth Neighborhood User Interface
User’s Guide
http://www.gigabyte.com.tw
Rev. 1.0 First Edition
GN-BTD01 Bluetooth User’s Guide
Contents
1 SAFETY, CARE AND REGULATORY INFORMATION ............................1
2 INTRODUCTION TO GN-BTD01 ....................................................................4
2.1 Package Contents 4
2.2 LED Status 4
2.3 GN-BTD01 User Interface Components 4
2.4 Bluetooth Neighborhood User Interface 5
2.5 Operating System Environment 5
3 GETTING STARTED..........................................................................................6
3.1 Installing the software 6
3.2 Installing the Hardware 7
4 BLUETOOTH TRAY APPLICATION..............................................................8
5 MY BLUETOOTH PLACES............................................................................10
5.1 Device Discovery 11
5.2 Service Discovery 12
5.3 Bluetooth Services (Profiles) 13
5.3.1 Bluetooth Serial Port Service.......................................................13
5.3.2 Dial-up Networking (DUN) Service.............................................14
5.3.3 Network Access Service .............................................................15
5.3.4 FTP Folder...................................................................................17
5.3.5 Information Exchange (INBOX) Service .....................................17
5.3.6 Information Synchronization Service...........................................19
5.3.7 Fax Service .................................................................................20
6 PAIRED DEVICES............................................................................................21
7 TROUBLESHOOTING ....................................................................................22
8 APPENDIX: GLOSSARY.................................................................................24
9 LIMITED WARRANTY ...................................................................................25
GN-BTD01 Bluetooth User’s Guide
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Any changes or modifications not expressly approved by the grantee of this
device could void the user's authority to operate the equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated
with a minimum distance of 20cm between the radiator and your body.
GN-BTD01 Bluetooth User’s Guide
1 Safety, Care and Regulatory Information
Important safety information
Read and follow all instructions marked on the product and in the documentation before you
operate your system. Retain all safety and operating instructions for future use.
Switch off the radio components (BLUETOOTH or wireless LAN) when you are in a hospital,
an operating room or near a medical electronics system. The transmitted radio waves can
impair the operation of the medical devices.
Keep the radio components (BLUETOOTH or wireless LAN) at least 20 cm from a
pacemaker, as otherwise the proper operation of the pacemaker may be impaired by radio
waves.
The transmitted radio waves can cause an unpleasant humming in hearing aids.
Do not let the radio components (BLUETOOTH or wireless LAN) work near flammable gases
or into hazardous environments (e.g. paintshops), as the transmitted radio waves can cause
an explosion or a fire.
Aircraft
To prevent interference with communication systems, do not use this product on the ground
without the permission from the crew.
1
GN-BTD01 Bluetooth User’s Guide
/ for United States of America users only /
Federal Communications Commission (FCC) Statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Properly shielded and grounded cables and connectors must be used in order to meet FCC
emission limits. Neither the provider nor the manufacturer are responsible for any radio or
television interference caused by using other than recommended cables and connectors or by
unauthorized changes or modifications to this equipment. Unauthorized changes or
modifications could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
/ for European users only /
R&TTE Directive
The equipment has been approved in accordance with Council Decision 99/5/EC on radio
equipment and terminal telecommunication equipment and the mutual recognition of their
conformity.
This device complies with the requirements of the R&TTE Directive 1999/5/EC with the
* EN 60950 Safety of Information Technology equipment
* EN 300 328 Technical requirements for radio equipment
* EN 301 489 EMC requirements for radio equipment
This notebook is approved for use in Belgium, Denmark, Germany, Finland, Greece, Great
Britain, Ireland, Italy, Luxembourg, the Netherlands, Austria, Portugal, Sweden, Switzerland,
Spain, Iceland, Liechtenstein and Norway. Contact the corresponding government office of the
respective country for current information on possible operating restrictions. If your country is
not included in the list, then please contact the corresponding supervisory authority as to
whether the use of this product is permitted in your country.
2
GN-BTD01 Bluetooth User’s Guide
Restrictions
France
. Limited frequency range: only the channels 10 to 13 (2457 MHz, 2462 MHz, 2467 MHz or
2472 MHz) may be used in France. It is prohibited to use the device outdoors.
Radio frequencies and security standards
The following information represents the status of June 2002. Current information is available
from the corresponding government office of your country.
Wireless network cards and adapters are intended for operation in the ISM (Industrial,
Scientific, Medical) frequency range between 2.4 and 2.4835 GHz in accordance with the IEEE
standard 802.11b. As each of the 14 usable radio channels requires a bandwidth of 22 MHz
due to the DSSS (Direct Sequence Spread Spectrum) process, a maximum of three mutually
independent channels (e.g. 3, 8 and 13) are available. In the following tables you will find the
channels permitted in your country:
3
2 Introduction to GN-BTD01
The BluetoothTM wireless technology standard has been adopted the world
over by countless companies. The BluetoothTM wireless technology makes it
possible to transmit signals over short distances between telephones,
computers and other devices. The technology will replace many of the
proprietary cables we use in the home and office to connect devices together:
Telephones, printers, PDA's, desktop and laptop computers, fax machines,
keyboards, joysticks.
Gigabyte proudly introduces our Bluetooth series product-- GN-BTD01, that
provides the solution for seamless integration of Bluetooth wireless
technology to the user’s desktop or laptop computer. It will enable wireless
connections to the Internet and between Bluetooth-enabled devices (e.g.,
handheld computers, cellular phones, and personal computers)
GN-BTD01 Bluetooth User’s Guide
2.1 Package Contents
The Gigabyte GN-BTD01 Bluetooth USB Dongle package contains the
following.
- Gigabyte GN-BTD01 Bluetooth USB Dongle x 1
- User’s Guide x 1
- Extention USB cable x 1
- CD (including User’s Guide and Driver) x 1
2.2 LED Status
Description Status
Power on Right LED blinking every two second
Data Linking Right LED & Left LED flash irregularly
2.3 GN-BTD01 User Interface Components
The GN-BTD01 user interface consists of three major components:
The BTTray Security Manager --- controls and manages Bluetooth
security.
The Bluetooth Configuration Panel --- configures the GN-BTD01
software through the familiar Windows control panel interface.
4
GN-BTD01 Bluetooth User’s Guide
Bluetooth Neighborhood --- uses Windows shell extensions
capabilities to integrate GN-BTD01 with Windows Explorer and
provide a graphical user interface (“user interface”) that enables the
user to :
Search for Bluetooth-enabled devices (“device inquiry”).
Discover and manage (start / stop) Bluetooth wireless connections
(available services include Dial-up Networking, Bluetooth Serial
Port, Network Access, FTP, Inbox, Fax, and Information
Synchronization.).
Configure properties of local services and client applications.

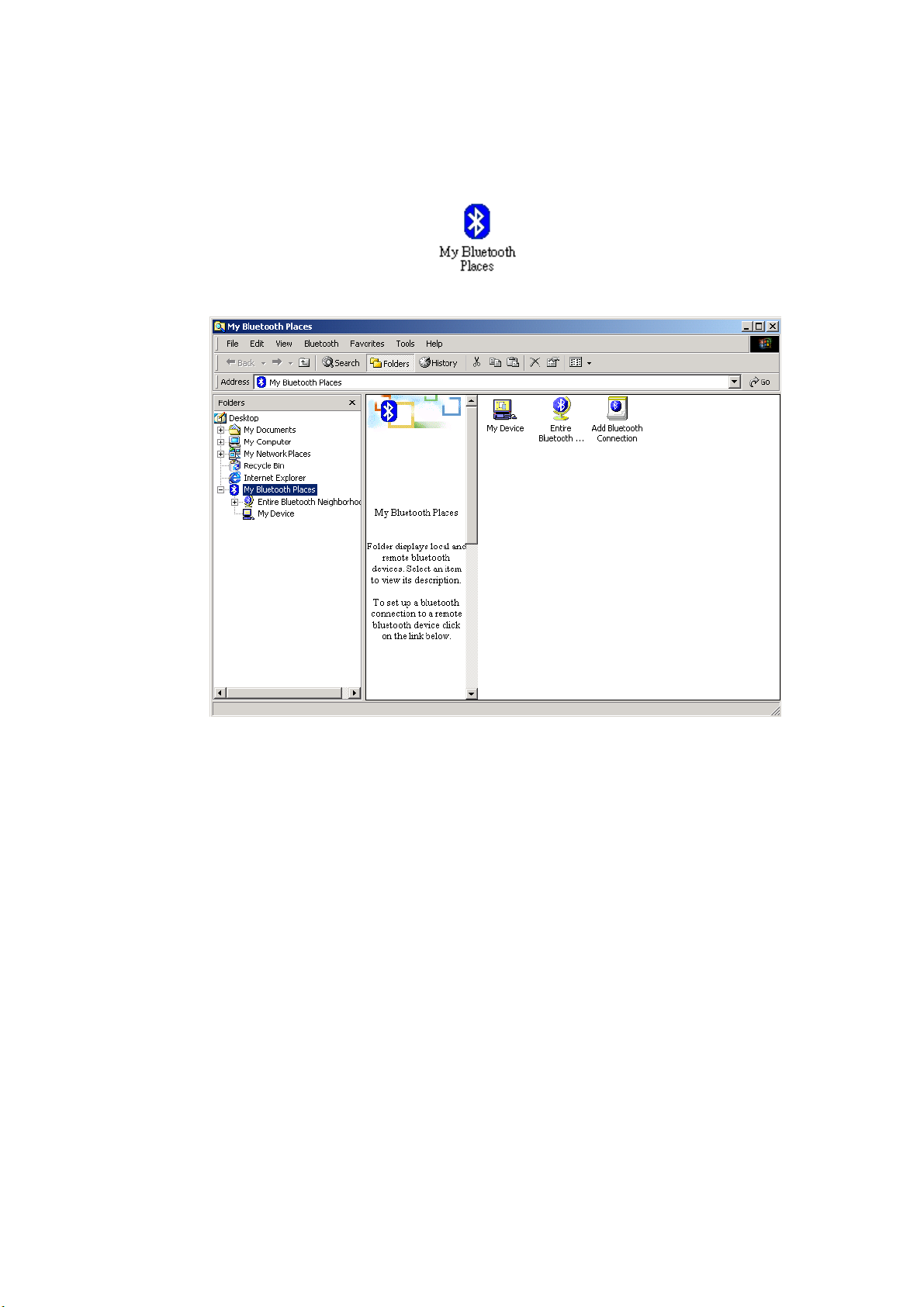

2.4 Bluetooth Neighborhood User Interface
The GN-BTD01 Bluetooth Neighborhood user interface provides several
ways to execute commands and perform tasks:
Icons may be double-clicked to perform a default action. For
example, double-click the Generic Serial service and a connection
starts; double-click Generic Serial service a second time and the
connection stops.
Icons may be right-clicked to display a context menu. An option is
chosen to perform the desired action.
Links (Visible only in the web page view) can be chosen to execute
a command.
Menus can be displayed and options chosen to perform the desired
task.
2.5 Operating System Environment
The GN-BTD01 may be installed under several different Windows operating
systems. These include:
• Windows 2000
• Windows XP
• Windows 98SE (Second Edition)
• Windows Me (Millennium Edition)
The functionality of GN-BTD01 is the same regardless of the Windows
version. In some instances, alerts and connection configurations are handled
differently in Windows 2000 as compared to other versions of Windows (e.g.,
Windows 98SE). These are noted in this User’s Guide.
5
3 Getting Started
3.1 Installing the software
1) Insert the CD into the CD/DVD drive on your PC. The CD should start
automatically and present you with an installation menu. If the CD fails
to start automatically, click on the Start button, select ”Run” and type
D:\Setup.exe (assuming your CD/DVD drive is D) then press Enter or
click OK.
2) Choose “Install Bluetooth Software” to start the Install Wizard.
3) Click Next.
4) Select “I accept the terms in the license agreement” and click Next.
5) Ensure the device name and type are set correctly then click Next (The
device name should be unique).
GN-BTD01 Bluetooth User’s Guide
6) Choose to accept the default folder by clicking Next, or change the
location by using the Change option.
7) Click Install.
8) Click Finish.
9) Restart Windows.
6
