5
4
Model Name: GA-TG965MP-RH-GW
SHEET TITLE
Revision 2.1
3
SHEET TITLE
2
1
01
D D
02
03
04
05
06
07
08
09
C C
10
11
12
13
14
15
16
COVER SHEET
BOM & PCB MODIFY HISTORY
BLOCK DIAGRAM
TABLE LIST
LGA775_A
LGA775_B/D
LGA775_C
LGA775_E/F/G/H
GMCH-BROADWATER_HOST
GMCH-BROADWATER_DDRII
GMCH-BROADWATER_PCI E / DMI
GMCH-BROADWATER_VGA
GMCH-BROADWATER_GND
GMCH-BROADWATER_PWR
DDRII-CHANNEL A 1,2
DDRII-CHANNEL B 1,2
28
29
30
31
32
33
34
35
36
CODEC ALC888
AUDIO JACK
PWM FAN5032MPX
DISCRETE POWER
ATX POWER CONNECTOR
JMICRON JMB368
VT6308P 1394
RTL8101E_8111B ,REAR USB2
FP / F_USB / USB PWR / FDD / BZ
B B
18
19
20
21
22
23
24
17
A A
25
26
27
DDRII-TERMINATION
PCI EXPRESS*16 SLOT
ICH8-PCI / DMI / LAN / USB
ICH8-GPIO / CTRL
ICH8-SATA / FAN PWM
ICH8-PWR / GND
CLOCK GEN
PCI EXPRESS*1 / PCI SLOT 1,2
ITE8718F
COM / LPT / SYS_FAN / CPU_FAN
BIOS / CI / HW MONITOR / KB / MS
5
4
Broadwater chipset impedance:50Ω+/-15%
with 4mils trace width
signal layer
prepreg(1080)
PWR layer
core-50 mils
GND layer
prepreg(1080)
signal layer
Title
Size Document Number Rev
Custom
3
2
Date: Sheet
Gigabyte Technology
Cover Sheet
GA-TG965MP-RH-GW
1
136Monday, May 14, 2007
62.0 mils
of
2.1
5
4
3
2
1
Model Name: TG965MP-RH-GW
Circuit or PCB layout change
for next version
Version: 2.1
DATE Change Item Reason
D D
Component value change history
2006/03/14
Data Change Item Reason
20060503
0.1 BOM
20060522
0.2 BOM
20060808
10A BOM
11A BOM
11B BOM
20070212 Add GTLREF PATCH schematic for D0 CPU
21A BOM
C C
20070404
21B BOM
20070515 GB1 BOM 轉GW BOM(add 包材) PM request
21B BOM
EVT BOM
DVT BOM
DVT BOM FOR new ver chipset (965G C2)
PCB UPDATE
FINE TUNE VRHOT
add CBC32 CBC33 CBC36 CBC37 CBC40
CBC41 for EMI
PWM SOLUTION Fine Tune
change 62/6 to 62/4
change GTLREF
Remove TPM and EX BIOS and FM function
Adjust VCORE CAP.location
12BC2-295648-00R 12AIO-000042-11R
12BA5-003240-00R 12LC1-CROHS1-00R
12LC1-CROHS2-01R 12LB6-CROHS-00R
分壓電阻
to 0402 SIZE
R0.1 EVT
R0.2 DVT support AFSC
20060728 PCB footprint new GBT rule
R1.0
20060929
R1.1
20061207
R2.0
20070212
R2.1
External BIOS
change F_Panel
change LAN S.B JM368 U89
change 5VDUAL & 3VDUAL
ADD GTLREF PATCH SC
ADD china ROHS logo
文字面
B B
A A
Title
Size Document Number Rev
Custom
5
4
3
2
Date: Sheet
Gigabyte Technology
BOM & PCB MODIFY HISTORY
GA-TG965MP-RH-GW
1
236Monday, May 14, 2007
2.1
of
5
4
3
2
1
BLOCK DIAGRAM
INTEL Pentium4
LGA775 VRM11
2005A
D D
CLOCK GENERATOR
PCI EXPRESS X16
C C
PCI EXPRESS X1
USB PORTS 0~9
PCIE-16
PCI-E X1
USB 2.0
PCI-E X1
AZALIA BUS
GMCH BROADWATER
965G
ICH8 DH
DDRII BUS
SPI BUS
SATAII
CHANNEL A
DDRII DIMM X 2
CHANNEL B
DDRII DIMM X 2
SPI BIOS
SERIAL ATA II X6
B B
A A
INTEL 82566DC GB PHY
5
PCI
PCI SLOT 1,2
AZALIA ALC888
AUDIO PORTS :
LINE_IN
FRONT AUDIO
MICLIN_ OUT CD_IN
LPC BUS
LPC I/O ITE8718 EX
SURR SURR BACK CEN/LFE
I/O PORTS :
COMBCOMA
LPT
FRONT PANEL /CPU FAN
4
3
KB/PS2
2
FDD
Title
Size Document Number Rev
Custom
Date: Sheet
Gigabyte Technology
BLOCK DIAGRAM
GA-TG965MP-RH-GW
1
336Monday, May 14, 2007
of
2.1
JM20330 1S1P
5
4
3
2
1
ICH8 GPIO LIST TABLE
PIN NAME PWR WELL
GP0
GP1/TACH1
GP2/PIRQE#
D D
GP3/PIRQF#
GP4/PIRQG#
GP5/PIRQH#
GP6/TACH2
GP7/TACH3
GP8
GP9
GP10
GP11/SMBALERT#
GP12
GP13
GP14
C C
GP15
GP16
GP17/TACH0
GP18
GP19
GP20
GP21
GP22
GP23
GP24
GP25
GP26/S4_STATE#
B B
GP27
GP28
GP29/OC5#
GP30/OC6#
GP31/OC7#
GP32
GP33
GP34
GP35
GP36
GP37
GP38
A A
GP39
GP48
GP49
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
STBY
STBY
STBY
STBY
STBY
STBY
STBY
STBY
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
STBY
STBY
STBY
STBY
STBY
STBY
STBY
STBY
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
MAIN
5
AFTER/
PLTRST
IN
IN
IN
IN
IN
IN
IN
IN
IN
OUT
OUT
OUT
IN
IN
IN
OUT
IN
IN
IN
IN
OUT
IN
IN
OUT
OUT
IN
OUT
LOW
LOW
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
USAGE NOTE
-ACZ_DET P/U 8.2K VCC3
N/A P/U 8.2K VCC3
-PIRQE
-PIRQF
-PIRQG
-PIRQH
N/A
N/A
P/U 8.2K VCC3
P/U 8.2K VCC3
P/U 8.2K VCC3
P/U 8.2K VCC3
P/U 8.2K VCC3
P/U 8.2K VCC3
GPIO8 P/U 8.2K 3VDUAL
WOL_ONLY P/D 100K GND
P/U 8.2K 3VDUALGPIO10
-SMBALRT P/U 8.2K 3VDUAL
MB_ID3 P/U 8.2K 3VDUAL
-LPCPME P/U 8.2K 3VDUAL
GPIO14 P/U 8.2K 3VDUAL
GPIO15(TP) N/A
MB_ID1 P/U 8.2K VCC3
P/U 8.2K VCC3N/A(OPT-ITE)
MB_ID2 P/U 8.2K VCC3
GPIO19 P/U 8.2K VCC3
N/AGPIO20
GPIO21 P/U 8.2K VCC3
GPIO22 P/U 8.2K VCC3
-LDRQ1 P/U 8.2K VCC3
GPIO24(TP) N/A
MB_ID4 P/U 8.2K 3VDUAL
GPIO26 P/U 8.2K 3VDUAL
GPIO27
GPIO28
-USBOC_F
-USBOC_F
-USBOC_F
ENERGY-LAKE LED:GREEN
ENERGY-LAKE LED:YEL
P/U FUSEVCC1
P/U FUSEVCC1
P/U FUSEVCC1
MB_ID0 P/U 8.2K VCC3
GPIO33
GPIO34
P/U 8.2K VCC3
P/U 8.2K VCC3
N/AN/A(TP)
GPIO36
GPIO37
P/U 8.2K VCC3
P/U 8.2K VCC3
GPIO38 P/U 8.2K VCC3
GPIO39 P/D 8.2K GND
P/U 8.2K VCC3GPIO48
CPUPWROK P/U 100 VTT_OL
4
VCORE:3 PHASE PWM--ISL6312
ISL6312
PWMx4
V12
PH1
PH2
PH3
VCORE
VTT_OR
VTT_GMCH
CPU
VTT_OL
3
ISL6537ACR
5VDUAL
S/W
L(I)
VCC3
S/W
6601
DDR18V
L
DDR18V
L
DDR18V
DDRVTT
VCC1_25
VTT_GMCH
VCC1_05
2
VCC
VCC3_DAC
L
DDR18V
VCC1_5
TSM104
L
DDR18V
VGMCH_ME
L
5VSB
5VDUAL
3VDUAL
LDO1084
VCC
Gigabyte Technology
Title
Size Document Number Rev
B
Date: Sheet
TABLE LIST
GA-TG965MP-RH-GW
1
of
436Monday, May 14, 2007
2.1
5
4
3
2
1
VCORE
BC1
22u/12/X5R/6.3V/M
D D
VCORE
BC7
22u/12/X5R/6.3V/M/X
VCORE
BC13
22u/12/X5R/6.3V/M
C C
HA[3..16][9]
B B
HA[17..35][9]
A A
BC2
22u/12/X5R/6.3V/M/X
BC8
22u/12/X5R/6.3V/M/X
BC14
22u/12/X5R/6.3V/M/X
HA[3..16]
HA[17..35]
5
BC3
22u/12/X5R/6.3V/M/X
BC9
22u/12/X5R/6.3V/M
BC15
22u/12/X5R/6.3V/M/X
-HREQ0[9]
-HREQ1[9]
-HREQ2[9]
-HREQ3[9]
-HREQ4[9]
-HADSTB0[9]
-HADSTB1[9]
BC4
22u/12/X5R/6.3V/M/X
BC10
22u/12/X5R/6.3V/M/X
BC825
22u/12/X5R/6.3V/M/X
HA3
HA4
HA5
HA6
HA7
HA8
HA9
HA10
HA11
HA12
HA13
HA14
HA15
HA16
-HREQ0
-HREQ1
-HREQ2
-HREQ3
-HREQ4
-HADSTB0
HA17
HA18
HA19
HA20
HA21
HA22
HA23
HA24
HA25
HA26
HA27
HA28
HA29
HA30
HA31
HA32
HA33
HA34
HA35
-HADSTB1
BC5
22u/12/X5R/6.3V/M/X
BC11
22u/12/X5R/6.3V/M
BC826
22u/12/X5R/6.3V/M/X
LGA775-D:FOOTPRINT
LGA775A
L5
P6
M5
L4
M4
R4
T5
U6
T4
U5
U4
V5
V4
W5
N4
P5
K4
J5
M6
K6
J6
R6
AB6
W6
Y6
Y4
AA4
AD6
AA5
AB5
AC5
AB4
AF5
AF4
AG6
AG4
AG5
AH4
AH5
AJ5
AJ6
AC4
AE4
AD5
4
BC6
22u/12/X5R/6.3V/M
BC12
22u/12/X5R/6.3V/M/X
BC827
22u/12/X5R/6.3V/M
A<3>*
LGA775
A<4>*
A<5>*
(1/8)
A<6>*
A<7>*
A<8>*
A<9>*
A<10>*
A<11>*
A<12>*
A<13>*
A<14>*
A<15>*
A<16>*
RSVD_3
RSVD_4
REQ<0>*
REQ<1>*
REQ<2>*
REQ<3>*
REQ<4>*
ADSTB<0>*
A<17>*
A<18>*
A<19>*
A<20>*
A<21>*
A<22>*
A<23>*
A<24>*
A<25>*
A<26>*
A<27>*
A<28>*
A<29>*
A<30>*
A<31>*
A<32>*
A<33>*
A<34>*
A<35>*
RSVD_1
RSVD_2
ADSTB<1>*
CPU-SK/775/S/15
ADS*
BNR*
HIT*
RSP*
BPRI*
DBSY*
DRDY*
HITM*
IERR*
INIT*
LOCK*
TRDY*
BINIT*
DEFER*
MCERR*
AP<0>*
AP<1>*
BR<0>*
TESTHI_8
TESTHI_9
TESTHI_10
DP<0>*
DP<1>*
DP<2>*
DP<3>*
GTLREF0
GTLREF1
GTLREF2
GTLREF_SEL
RESET*
RS<0>*
RS<1>*
RS<2>*
預留
(GTLREF
D2
C2
D4
H4
G8
B2
C1
E4
AB2
P3
C3
E3
AD3
G7
AB3
U2
U3
F3
G3
G4
H5
J16
H15
H16
J17
H1
H2
E24
H29
G23
B3
F5
A3
IOGP10[25]
Intel CPU new SPEC
可能往下調整
-HADS
-BNR
-HIT
-BPRI
-DBSY
-DRDY
-HITM
-IERR
-HINIT
-HLOCK
-HTRDY
-DEFER
-BR0
TESTHI8
TESTHI9
TESTHI10
GTLREF0
GTLREF1
GTLREF_MCH
-CPURST
-RS0
-RS1
-RS2
-HADS [9]
-BNR [9]
-HIT [9]
-BPRI [9]
-DBSY [9]
-DRDY [9]
-HITM [9]
-HINIT [21]
-HLOCK [9]
-HTRDY [9]
-DEFER [9]
-BR0 [9]
C4 220p/4/NPO/50V/J
C5 220p/4/NPO/50V/J
GTLREF_MCH [9]
-CPURST [9]
-RS0 [9]
-RS1 [9]
-RS2 [9]
3
R2428
8.2K/4/X
)
W/S=4/12
W/S=4/12
VCC
C1894
220p/4/NPO/50V/J/X
C1895
220p/4/NPO/50V/J/X
R2427 1.1K/6/1/X
3
Q342
D
GS
2
1
R2429 1.1K/6/1/X
3
Q343
D
GS
2
1
2N7002/SOT23/25pF/5/X
SOT23
2N7002/SOT23/25pF/5/X
SOT23
GTLREF0
GTLREF1
VTT_OR
VTT_OR
R1 124/4/1
R5 124/4/1
VTT_OR
VTT_OL
VTT_OR
VTT_OL
C1
R3
1u/6/Y5V/10V/Z
210/4/1
R7
210/4/1C21u/6/Y5V/10V/Z
R8 62/4
R10 62/4
R12 62/4
RN1
7 8
5 6
3 4
1 2
62/8P4R/6
CR
CPU RETAINTION/X
-IERR
-BR0
-CPURST
TESTHI10
TESTHI8
TESTHI9
GTLREF1
GTLREF0
HOST 4X SIGNAL:W/S=4/14 to Dx#,DBIx#;W/S=4/25 to Strobe
HOST 2X SIGNAL:W/S=4/14 to HAx#,REQx#;W/S=4/17 to Strobe
HOST 1X SIGNAL:W/S=4/14
Title
Size Document Number Rev
B
2
Date: Sheet
Gigabyte Technology

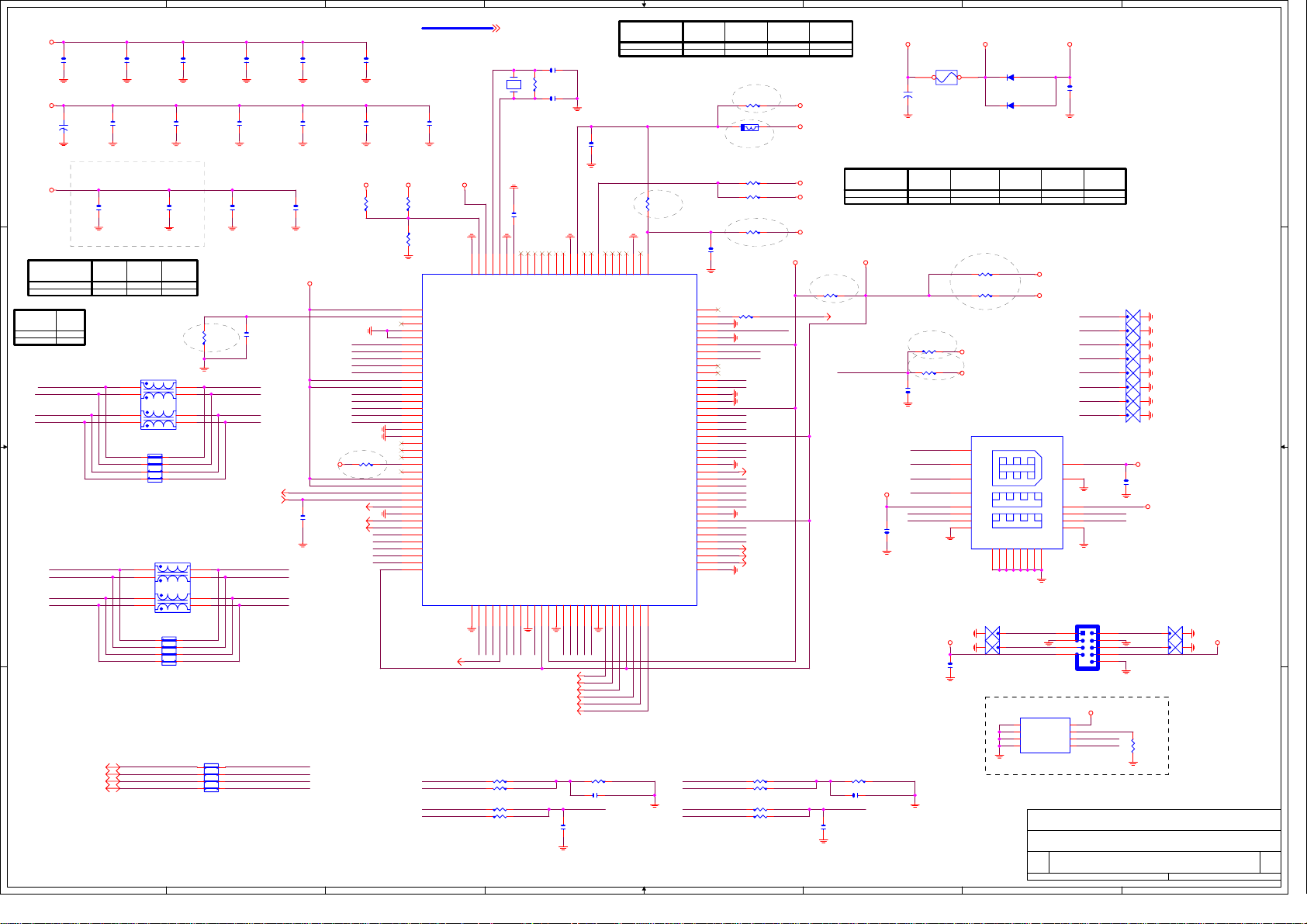

LGA775-A
GA-TG965MP-RH-GW
1
of
536Monday, May 14, 2007
2.1
5
4
3
2
1
HD[0..15][9]
D D
C C
B B
A A
HD[0..15]
HD[16..31]
TCK
TDI
TDO
TMS
-TRST
-BPM0
-BPM1
-BPM2
-BPM3
-BPM4
-BPM5
-SYS_RST[20,23,36]
-SYS_RST
FSBSEL0
FSBSEL1
FSBSEL2
R13
1K/4/X
5
HD0
HD1
HD2
HD3
HD4
HD5
HD6
HD7
HD8
HD9
HD10
HD11
HD12
HD13
HD14
HD15
-DBI0
-DBI0[9] -DBI2 [9]
STBN0
STBN0[9]
STBP0
STBP0[9]HD[16..31][9]
HD16
HD17
HD18
HD19
HD20
HD21
HD22
HD23
HD24
HD25
HD26
HD27
HD28
HD29
HD30
HD31
-DBI1[9]
STBN1[9]
STBP1[9]
AE1
AD1
AF1
AC1
AG1
AD2
AG2
AF2
AG3
AC2
AK3
G29
H30
G30
AE6
D16
A20
E23
AJ2
AJ1
AJ3
N5
C9
E7
TCK
TDI
TDO
TMS
TRST*
BPM<0>*
BPM<1>*
BPM<2>*
BPM<3>*
BPM<4>*
BPM<5>*
DBR*
ITPCLK<0>
ITPCLK<1>
BSEL<0>
BSEL<1>
BSEL<2>
SPARE0
SPARE1
SPARE2
SPARE4
NC_DSS2
NC_DSS3
NC
LGA775
A10
A11
B10
C11
B12
C12
D11
G9
E10
D10
F11
F12
D13
E13
G13
F14
G14
F15
G15
-DBI1
G11
STBN1
G12
STBP1
E12
LGA775D
(4/8)
VTT_PWRGD
VTT_OUT_1
VTT_OUT_2
VTT_SEL
EXTBGREF
SFRANAD
SFRANAC
DCLKPH
ACLKPH
CPU-SK/775/S/15
B4
C5
A4
C6
A5
B6
B7
A7
D8
A8
C8
B9
F8
F9
E9
D7
VTT_1
VTT_2
VTT_3
VTT_4
VTT_5
VTT_6
VTT_7
VTT_8
VTT_9
VTT_10
VTT_11
VTT_12
VTT_13
VTT_14
VTT_15
VTT_16
VTT_17
VTT_18
VTT_19
VTT_20
VTT_21
VTT_22
VTT_23
VTT_24
HFPLL
D<0>*
D<1>*
D<2>*
D<3>*
D<4>*
D<5>*
D<6>*
D<7>*
D<8>*
D<9>*
D<10>*
D<11>*
D<12>*
D<13>*
D<14>*
D<15>*
DB1<0>*
DSTBN<0>*
DSTBP<0>
D<16>*
D<17>*
D<18>*
D<19>*
D<20>*
D<21>*
D<22>*
D<23>*
D<24>*
D<25>*
D<26>*
D<27>*
D<28>*
D<29>*
D<30>*
D<31>*
DB1<1>*
DSTBN<1>*
DSTBP<1>
A29
B25
B29
B30
C29
A26
B27
C28
A25
A28
A27
C30
A30
C25
C26
C27
B26
D27
D28
D25
D26
B28
D29
D30
AM6
AA1
J1
F27
F23
D14
E6
E5
J3
D1
LGA775
(2/8)
VR_RDY
4
LGA775B
D<32>*
D<33>*
D<34>*
D<35>*
D<36>*
D<37>*
D<38>*
D<39>*
D<40>*
D<41>*
D<42>*
D<43>*
D<44>*
D<45>*
D<46>*
D<47>*
DBI<2>*
DSTBN<2>*
DSTBP<2>
D<48>*
D<49>*
D<50>*
D<51>*
D<52>*
D<53>*
D<54>*
D<55>*
D<56>*
D<57>*
D<58>*
D<59>*
D<60>*
D<61>*
D<62>*
D<63>*
DBI<3>*
DSTBN<3>*
DSTBP<3>
CPU-SK/775/S/15
VCC1_25
VR_RDY [30]
VTT_OR
VTT_OL
G16
E15
E16
G18
G17
F17
F18
E18
E19
F20
E21
F21
G21
E22
D22
G22
D19
G20
G19
D20
D17
A14
C15
C14
B15
C18
B16
A17
B18
C21
B21
B19
A19
A22
B22
C20
A16
C17
HD32
HD33
HD34
HD35
HD36
HD37
HD38
HD39
HD40
HD41
HD42
HD43
HD44
HD45
HD46
HD47
-DBI2
STBN2
STBP2
HD48
HD49
HD50
HD51
HD52
HD53
HD54
HD55
HD56
HD57
HD58
HD59
HD60
HD61
HD62
HD63
-DBI3
STBN3
STBP3
STBN2 [9]
STBP2 [9]
-DBI3 [9]
STBN3 [9]
STBP3 [9]
2N7002/SOT23/25pF/5/X
HD[32..47]
HD[48..63]
HD[32..47] [9]
HD[48..63] [9]
VCC1_25
VTT_OR
0.1u/6/Y5V/25V/Z
FSBSEL1[23]
FSBSEL2[23]
C7
FOR ALL DDR CLK RATIO
VCC1_25
R2370
470/4/X
Q326
D
GS
BSEL166_1[25] BSEL166_2[25]
2
CHECK BSEL0/1 ITE8712 POWER ON
CPU
FSA
FSBSEL0
3
VCC1_25
R2371
470/4/X
3
SOT23
1
R2376 0/4/X
Q328
MMBT2222A/SOT23/600mA/40/X
SOT23
132
R2374
8.2K/4/X
時電壓是否會高於
FSB
FSBSEL1
01
1
10
0
0
1
1
0
NA
FSBSEL2
1
0
0
0
Clock
100MHz
133MHz
166MHz
200MHz
266MHz0
2
RN2 470/8P4R/6
7 8
5 6
3 4
1 2
RN3 62/8P4R/6
7 8
5 6
3 4
1 2
7 8
5 6
3 4
1 2
RN4 62/8P4R/6
R20 62/4
R593 680/4
R22 62/4
R23 62/4
R14 8.2K/4
FSBSEL0 BSEL0
FSBSEL1
R15 8.2K/4
FSBSEL2
R16 8.2K/4
R2372
470/4/X
2N7002/SOT23/25pF/5/X
FSBSEL0
FSBSEL2
FSBSEL1
-BPM1
-BPM0
-BPM5
-BPM4
-BPM3
TDI
-BPM2
TMS
TDO
VR_RDY
-TRST
TCK
VCC1_25
3
Q327
D
GS
2
1
R2377 0/4/X
SOT23
BSEL1
BSEL2
VCC1_25
R2373
470/4/X
1.2V
3/4
# POWER ON
2/2.66/3.33/4
2/2.5/3
Title
Size Document Number Rev
Custom
Date: Sheet
400/533
400/533/667/800
533/667/800
Gigabyte Technology
GA-TG965MP-RH-GW
BSEL0 [12]FSBSEL0[23]
BSEL1 [12]
BSEL2 [12]
R2375
8.2K/4/X
Q329
MMBT2222A/SOT23/600mA/40/X
SOT23
132
LGA775-B/D
1
BSEL1BSEL0
2.1
636Monday, May 14, 2007
of
5
4
3
2
1
Place outside of CPU socket
VTT_OL
Note:
VCCA & VCOREPLL
VCC1_25
D D
L1
10uH/8/155mA/0.5/S
L2
10uH/8/155mA/0.5/S
1
+
EC42
1000u/D/6.3V/8C/36m
C C
W/S=10/10
B B
C10
1u/6/Y5V/10V/Z
C11
1u/6/Y5V/10V/Z
CPU_TEMP[25,27]
THERMDC[25]
define doesn't same as
old P4 design kit
As close as possible to
CPU socket
C15
1n/4/X7R/50V/K/X
VCCA
R35
0/6/SHT/X
VSSA
VCOREPLL
W/S=4/6
VCC_SENSE[30]
VSS_SENSE[30]
W/S=4/10
Trace width doesn' t
less than 12 Mil
-SMI
-SMI[21]
NMI[21]
R2353 0/4/X
R2354 0/4/X
R2355 0/4
R2356 0/4
-A20M
-FERR
INTR
NMI
-IGNNE
-STPCLK
VCCA
VSSA
VCOREPLL
VID0
VID1
VID2
VID3
VID4
VID5
VID6
VID7
VRD_SEL
CPUCLK
-CPUCLK
-SKTOCC
VCORE
R56 62/4/X
PECI
-A20M[21]
-FERR[21]
INTR[21]
-IGNNE[21]
-STPCLK[21]
VID[0..7][25,30]
VID[0..7] VCC_PLL
VRD_SEL[30]
CPUCLK[23]
-CPUCLK[23]
-SKTOCC[20]
PECI[21,25]
LGA775C
P2
SMI*
K3
A20M*
R3
FERR*/PBE*
K1
LINT0
L1
LINT1
N2
IGNNE*
M3
STPCLK*
A23
VCCA
B23
VSSA
C23
VCCIOPLL
D23
VCC_PLL
AM2
VID<0>
AL5
VID<1>
AM3
VID<2>
AL6
VID<3>
AK4
VID<4>
AL4
VID<5>
AM5
VID<6>
AM7
VID<7>
AN7
VID_SELECT
F28
BCLK<0>
G28
BCLK<1>
AE8
SKTOCC*
AL1
THERMDA
AK1
THERMDC
AJ7
THERMDA_2
AH7
THERMDC_2
AN3
VCC_SENSE
AN4
VSS_SENSE
AN5
VCC_MB_REGULATION
AN6
VSS_MB_REGULATION
AL8
VCC_D_SENSE
AL7
VSS_D_SENSE
F29
VTT_PKGSENSE
F6
Z60_50*
G6
SLEW_CTRL*
G5
SST_LV*
AL3
MPG_NOBOOT*
CPU-SK/775/S/15
LGA775
(3/8)
TESTHI_0
TESTHI_1
TESTHI_2
TESTHI_3
TESTHI_4
TESTHI_5
TESTHI_6
TESTHI_7
TESTHI_11
TESTHI_12
TESTHI_13
FORCEPH
PWRGOOD
PROCHOT*
THERMTRIP*
COMP<0>
COMP<1>
COMP<2>
COMP<3>
COMP<4>
COMP<5>
COMP<6>
COMP<7>
COMP<8>
RC1
RC2
RC4
RC5
RSVD_1
RSVD_2
PSMI*
MSID<1>
MSID<0>
CPU_BOOT
LL_ID<0>
LL_ID<1>
F26
W3
F25
G25
G27
G26
G24
F24
P1
W2
L2
AK6
N1
AL2
M2
A13
T1
G2
R1
J2
T2
Y3
AE3
B13
G1
U1
A24
E29
F2
G10
AH2
V1
W1
Y1
V2
AA2
TESTHI0
TESTHI1
TESTHI2_7
TESTHI11
TESTHI12
TESTHI13
-FORCEPR
CPUPWROK
-PROCHOT
-THRMTRIP
COMP0
COMP1
COMP2
COMP3
COMP4
COMP5
COMP6
COMP7
COMP8
CPU_G1
TESTHI_M VID4
R666 1K/4/X
GTLREF2
GTLREF3
MSID1
R53 62/4
MSID0
R55 62/4
W/S=4/6
TESTHI13 [21]
-FORCEPR [30]
CPUPWROK [21]
-PROCHOT [20,30]
-THRMTRIP [20]
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
W/S=4/6
0.1u/6/Y5V/25V/Z
C9
VTT_OR
C12
VCC1_25
C8
VTT_OL
VTT_OR
C16
VTT_OR
VTT_OR
COMP[8]:W/S=15/7-->LS;W/S=15/14-->HS
COMP[7..0]:W/S=10/7-->LS;W/S=10/14-->HS
CPUPWROK
A A
C13 1n/4/X7R/50V/K/X
靠近
chipset
VCC1_5
C1893
1u/6/Y5V/10V/Z
PWM VENDER 建議 12/04
R28 60.4/6/1
R30 60.4/6/1
R31 60.4/6/1
R32 60.4/6/1
R33 60.4/6/1
R34 60.4/6/1
R36 60.4/6/1
R37 60.4/6/1
R38 30/6/1
for C 60ohm +-15% COMP 30/6/1
R39 130/6
R40 62/4
R41 62/4
R42 62/4
R29 62/4
RN5 62/8P4R/6
7 8
5 6
3 4
1 2
R1775 62/4
R1776 62/4
RN6 680/8P4R/6
7 8
5 6
3 4
1 2
RN7 680/8P4R/6
7 8
5 6
3 4
1 2
R58 1K/4
R60 130/6
R667 124/4/1
R669
210/4/1
R671 124/4/1
R674
210/4/1
FB33
0/8/SHT/X
C17
1u/6/Y5V/10V/Z
-PROCHOT
TESTHI2_7
-THRMTRIP
-FERR
TESTHI0
TESTHI1
TESTHI11
TESTHI13
TESTHI12
CPU_G1
TESTHI_M
VID3
VID2
VID1
VID0
VID7
VID6
VID5
VRD_SEL
-FORCEPR
GTLREF2
C349
1u/6/Y5V/10V/Z
GTLREF3
C351
1u/6/Y5V/10V/Z
VCC_PLL
C350
0.1u/6/Y5V/25V/Z
COMP5
COMP4
COMP2
COMP3
COMP0
COMP1
COMP6
COMP7
COMP8
VCC_PLL [14]
PECI:Platform Environment Control Interface
Title
Size Document Number Rev
B
5
4
3
2
Date: Sheet
Gigabyte Technology
LGA775-C
GA-TG965MP-RH-GW
1
of
736Monday, May 14, 2007
2.1
5
4
3
2
1
VCORE VCORE VCORE VCORE
D D
C C
B B
A A
AA8
AB8
AC23
AC24
AC25
AC26
AC27
AC28
AC29
AC30
AC8
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD8
AE11
AE12
AE14
AE15
AE18
AE19
AE21
AE22
AE23
AE9
AF11
AF12
AF14
AF15
AF18
AF19
AF21
AF22
AF8
AF9
AG11
AG12
AG14
AG15
AG18
AG19
AG21
AG22
AG25
AG26
AG27
AG28
AG29
AG30
AG8
AG9
LGA775E
LGA775
VCC
VCC
(5/8)
VCC
VCC
PWR 1/2
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
CPU-SK/775/S/15
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
AH11
AH12
AH14
AH15
AH18
AH19
AH21
AH22
AH25
AH26
AH27
AH28
AH29
AH30
AH8
AH9
AJ11
AJ12
AJ14
AJ15
AJ18
AJ19
AJ21
AJ22
AJ25
AJ26
AJ8
AJ9
AK11
AK12
AK14
AK15
AK18
AK19
AK21
AK22
AK25
AK26
AK8
AK9
AL11
AL12
AL14
AL15
AL18
AL19
AL21
AL22
AL25
AL26
AL29
AL30
AL9
AM11
AM12
AM14
AM15
AM18
AM19
AM21
AM22
AM25
AM26
AM29
AM30
AM8
AM9
AN11
AN12
AN14
AN15
AN18
AN19
AN21
AN22
AN25
AN26
AN29
AN30
AN8
AN9
J10
J11
J12
J13
J14
J15
J18
J19
J20
J21
J22
J23
J24
J25
J26
J27
J28
J29
J30
K23
K24
K25
K26
K27
K28
K29
K30
M23
M24
M25
M26
M27
M28
M29
M30
J8
J9
K8
L8
M8
LGA775F
LGA775
VCC
VCC
(6/8)
VCC
VCC
PWR 2/2
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
CPU-SK/775/S/15
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
VCC
N23
N24
N25
N26
N27
N28
N29
N30
N8
P8
R8
T23
T24
T25
T26
T27
T28
T29
T30
T8
U23
U24
U25
U26
U27
U28
U29
U30
U8
V8
W23
W24
W25
W26
W27
W28
W29
W30
W8
Y23
Y24
Y25
Y26
Y27
Y28
Y29
Y30
Y8
A12
A15
A18
A21
AA23
AA24
AA25
AA26
AA27
AA28
AA29
AA3
AA30
AA6
AA7
AB1
AB23
AB24
AB25
AB26
AB27
AB28
AB29
AB30
AB7
AC3
AC6
AC7
AD4
AD7
AE10
AE13
AE16
AE17
AE2
AE20
AE24
AE25
AE26
AE27
AE28
AE29
AE30
AE5
AE7
AF10
AF13
AF16
AF17
AF20
AF23
AF24
AF25
AF26
AF27
AF28
AF29
AF3
AF30
AF6
AF7
A2
A6
A9
LGA775G
LGA775
VSS
VSS
(7/8)
VSS
VSS
GND 1/2
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
CPU-SK/775/S/15
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
AG10
AG13
AG16
AG17
AG20
AG23
AG24
AG7
AH1
AH10
AH13
AH16
AH17
AH20
AH23
AH24
AH3
AH6
AJ10
AJ13
AJ16
AJ17
AJ20
AJ23
AJ24
AJ27
AJ28
AJ29
AJ30
AJ4
AK10
AK13
AK16
AK17
AK2
AK20
AK23
AK24
AK27
AK28
AK29
AK30
AK5
AK7
AL10
AL13
AL16
AL17
AL20
AL23
AL24
AL27
AL28
AM1
AM10
AM13
AM16
AM17
AM20
AM23
AM24
AM27
AM28
AM4
AN1
AN10
AN13
AN16
AN17
AN2
AN20
AN23
AN24
AN27
AN28
C10
C13
C16
C19
C22
C24
D12
D15
D18
D21
D24
H10
H11
H12
H13
H14
H17
H18
H19
H20
H21
H22
H23
H24
B11
B14
B17
B20
B24
E11
E14
E17
E20
E25
E26
E27
E28
F10
F13
F16
F19
F22
B1
B5
B8
C4
C7
D3
D5
D6
D9
E2
E8
F4
F7
LGA775H
LGA775
VSS
VSS
(8/8)
VSS
VSS
GND 2/2
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
CPU-SK/775/S/15
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
H25
H26
H27
H28
H3
H6
H7
H8
H9
J4
J7
K2
K5
K7
L23
L24
L25
L26
L27
L28
L29
L3
L30
L6
L7
M1
M7
N3
N6
N7
P23
P24
P25
P26
P27
P28
P29
P30
P4
P7
R2
R23
R24
R25
R26
R27
R28
R29
R30
R5
R7
T3
T6
T7
U7
V23
V24
V25
V26
V27
V28
V29
V3
V30
V6
V7
W4
W7
Y2
Y5
Y7
Title
Size Document Number Rev
B
5
4
3
2
Date: Sheet
Gigabyte Technology
LGA775_E/F/G/H
GA-TG965MP-RH-GW
1
of
836Monday, May 14, 2007
2.1
5
4
3
2
1
HA[3..35][5]
D D
C C
B B
A A
5
HA[3..35]
-HREQ0[5]
-HREQ1[5]
-HREQ2[5]
-HREQ3[5]
-HREQ4[5]
-HADSTB0[5]
-HADSTB1[5]
-HTRDY[5]
-DEFER[5]
-HLOCK[5]
-DBSY[5]
-CPURST[5]
HA3
HA4
HA5
HA6
HA7
HA8
HA9
HA10
HA11
HA12
HA13
HA14
HA15
HA16
HA17
HA18
HA19
HA20
HA21
HA22
HA23
HA24
HA25
HA26
HA27
HA28
HA29
HA30
HA31
HA32
HA33
HA34
HA35
-HREQ0
-HREQ1
-HREQ2
-HREQ3
-HREQ4
-HADSTB0
-HADSTB1
STBP0[6]
STBN0[6]
-DBI0[6]
STBP1[6]
STBN1[6]
-DBI1[6]
STBP2[6]
STBN2[6]
-DBI2[6]
STBP3[6]
STBN3[6]
-DBI3[6]
-HADS[5]
-DRDY[5]
-HITM[5]
-BNR[5]
-BPRI[5]
STBP0
STBN0
-DBI0
STBP1
STBN1
-DBI1
STBP2
STBN2
-DBI2
STBP3
STBN3
-DBI3
-HADS
-HTRDY
-DRDY
-DEFER
-HITM
-HIT
-HIT[5]
-HLOCK
-BR0
-BR0[5]
-BNR
-BPRI
-DBSY
-RS0
-RS0[5]
-RS1
-RS1[5]
-RS2
-RS2[5]
-CPURST
U2B
J42
HA3#
K42
N32
N34
M38
N37
M36
R34
N35
N38
U37
N39
R37
P42
R39
V36
R38
U36
U33
R35
V33
V35
Y34
V42
V38
Y36
Y38
Y39
AA37
F40
L35
L38
G43
M34
U34
L40
M43
M40
G35
H33
G27
H27
G29
B38
D38
E33
W40
Y40
W41
T43
Y43
U42
V41
AA42
W42
G39
U40
U41
AA41
U39
C31
L39
J40
L37
L36
J37
J33
HA4#
HA5#
HA6#
HA7#
HA8#
HA9#
HA10#
HA11#
HA12#
HA13#
HA14#
HA15#
HA16#
HA17#
HA18#
HA19#
HA20#
HA21#
HA22#
HA23#
HA24#
HA25#
HA26#
HA27#
HA28#
HA29#
HA30#
HA31#
HA32#
HA33#
HA34#
HA35#
HREQ0#
HREQ1#
HREQ2#
HREQ3#
HREQ4#
HADSTB0#
HADSTB1#
HDSTBP0#
HDSTBN0#
HDINV0#
HDSTBP1#
HDSTBN1#
HDINV1#
HDSTBP2#
HDSTBN2#
HDINV2#
HDSTBP3#
HDSTBN3#
HDINV3#
HADS#
HTRDY#
HDRDY#
HDEFER#
HHITM#
HHIT#
HLOCK#
HBREQ0#
HBNR#
HBPRI#
HDBSY#
HRS0#
HRS1#
HRS2#
HCPURST#
BW
(1/9)
FSB
HSWING
HRCOMP
HSCOMP
HSCOMP#
HDVREF
HACCVREF
LE82G965-C2/BGA1226/[10HB1-030082-40R]
CPU INTERFACE
4
HD0#
HD1#
HD2#
HD3#
HD4#
HD5#
HD6#
HD7#
HD8#
HD9#
HD10#
HD11#
HD12#
HD13#
HD14#
HD15#
HD16#
HD17#
HD18#
HD19#
HD20#
HD21#
HD22#
HD23#
HD24#
HD25#
HD26#
HD27#
HD28#
HD29#
HD30#
HD31#
HD32#
HD33#
HD34#
HD35#
HD36#
HD37#
HD38#
HD39#
HD40#
HD41#
HD42#
HD43#
HD44#
HD45#
HD46#
HD47#
HD48#
HD49#
HD50#
HD51#
HD52#
HD53#
HD54#
HD55#
HD56#
HD57#
HD58#
HD59#
HD60#
HD61#
HD62#
HD63#
HCLKP
HCLKN
R40
P41
R41
N40
R42
M39
N41
N42
L41
J39
L42
J41
K41
G40
F41
F42
C42
D41
F38
G37
E42
E39
E37
C39
B39
G33
A37
F33
E35
K32
H32
B34
J31
F32
M31
E31
K31
G31
K29
F31
J29
F29
L27
K27
H26
L26
J26
M26
C33
C35
E41
B41
D42
C40
D35
B40
C38
D37
B33
D33
C34
B35
A32
D32
B25
D23
C25
D25
D24
B24
R32
U32
HD0
HD1
HD2
HD3
HD4
HD5
HD6
HD7
HD8
HD9
HD10
HD11
HD12
HD13
HD14
HD15
HD16
HD17
HD18
HD19
HD20
HD21
HD22
HD23
HD24
HD25
HD26
HD27
HD28
HD29
HD30
HD31
HD32
HD33
HD34
HD35
HD36
HD37
HD38
HD39
HD40
HD41
HD42
HD43
HD44
HD45
HD46
HD47
HD48
HD49
HD50
HD51
HD52
HD53
HD54
HD55
HD56
HD57
HD58
HD59
HD60
HD61
HD62
HD63
HXSWING
HXRCOMP
HXSCOMP
HXSCOMPB
MCH_GTLREF0
MCHCLK
-MCHCLK
HD[0..63]
預留
可能往下調整
也可能需要往下調整
MCHCLK [23]
-MCHCLK [23]
HD[0..63] [6]
Intel CPU new SPEC (GTLREF
3
SIS671FX
)
COUPON1
COUPON2
COUPON3 COUPON
COUPON4 COUPON
R61
VCC1_25
R62
NB_GTLREF
124/4/1
BC21
0.01u/4/X7R/16V/K
VCC1_25
R69
301/6/1
R70
100/6/1
VCC1_25 VCC1_25
R71
60.4/6/1
HXSCOMPB
C21
2.7P/4/NPO/50V/C/X
VCC
R2431
IOGP37[25]
21
21
2
0/4/X
220p/4/NPO/50V/J/X
VCORE
W/S=10/10
60.4/6/1
HXSWING
R584
C20
0.01u/4/X7R/16V/K
W/S=4/14 W/S=4/14
C1896
Title
Size Document Number Rev
B
Date: Sheet
0/6/SHT/X
GTLREF_MCH
60.4/6/1
MCH_GTLREF0
R63
R64
210/4/1
BC22
0.1u/6/Y5V/25V/Z
W/S=10/7
HXRCOMP
R73
16.5/6/1
R72
60.4/6/1
HXSCOMP
C22
2.7P/4/NPO/50V/C/X
3
Q344
D
GS
2
1
R2430 750/6/1/X
2N7002/SOT23/25pF/5/X
SOT23
NB_GTLREF
Gigabyte Technology
GMCH-BROADWATER_HOST
GA-TG965MP-RH-GW
1
GTLREF_MCH [5]
C18
220p/4/NPO/50V/J/X
of
936Monday, May 14, 2007
2.1
5
4
3
2
1
U2C
MAAA0
BA31
MAAA1
BB25
MAAA2
BA26
MAAA3
BA25
MAAA4
AY25
MAAA5
BA23
MAAA6
AY24
MAAA7
AY23
MAAA8
BB23
D D
-SWEA[15,17]
-SCASA[15,17]
-SRASA[15,17]
SBAA0[15,17]
SBAA1[15,17]
SBAA2[15,17]
-CSA0[15,17]
-CSA1[15,17]
-CSA2[15,17]
-CSA3[15,17]
CKEA0[15,17]
CKEA1[15,17]
CKEA2[15,17]
CKEA3[15,17]
DCLKA0[15]
-DCLKA0[15]
DCLKA1[15]
-DCLKA1[15]
DCLKA2[15]
-DCLKA2[15]
C C
B B
DCLKA3[15]
-DCLKA3[15]
DCLKA4[15]
-DCLKA4[15]
DCLKA5[15]
-DCLKA5[15]
BA22
MAAA10
AY33
MAAA11
BB22
MAAA12
AW21
MAAA13
AY38
MAAA14 MAAB14
BA21
-SWEA
BB34
-SCASA
AY35
-SRASA
BB33
SBAA0
BA33
SBAA1
AW32
SBAA2
BB21
-CSA0
AW35
-CSA1
BA35
-CSA2
BA34
-CSA3
BB38
CKEA0
BC20
CKEA1
AY20
CKEA2
AY21
CKEA3
BA19
MODT_A0
AY37
MODT_A1
BA38
MODT_A2
BB35
MODT_A3
BA39
DCLKA0
AU31
-DCLKA0
AR31
DCLKA1
AP27
-DCLKA1
AN27
DCLKA2
AV33
-DCLKA2
AW33
DCLKA3
AP29
-DCLKA3
AP31
DCLKA4
AM26
-DCLKA4
AM27
DCLKA5
AT33
-DCLKA5
AU33
TP1
AN21
CHANNEL A
MCH
A A
CHANNEL B
BW
SMA_A0
SMA_A1
SMA_A2
SMA_A3
SMA_A4
SMA_A5
SMA_A6
SMA_A7
SMA_A8
SMA_A9
SMA_A10
SMA_A11
SMA_A12
SMA_A13
SMA_A14
SWE_A#
SCAS_A#
SRAS_A#
SBS_A0
SBS_A1
SBS_A2
SCS_A0#
SCS_A1#
SCS_A2#
SCS_A3#
SCKE_A0
SCKE_A1
SCKE_A2
SCKE_A3
SODT_A0
SODT_A1
SODT_A2
SODT_A3
SCLK_A0
SCLK_A0#
SCLK_A1
SCLK_A1#
SCLK_A2
SCLK_A2#
SCLK_A3
SCLK_A3#
SCLK_A4
SCLK_A4#
SCLK_A5
SCLK_A5#
DDR_0
RESERVED
LE82G965-C2/BGA1226/[10HB1-030082-40R]
W/S=4/6
W/S=4/6 W/S=6.5/18.5W/S=4/9
SDQS_A0
SDQS_A0#
(3/9)
SDM_A0
SDQ_A0
SDQ_A1
SDQ_A2
SDQ_A3
SDQ_A4
SDQ_A5
SDQ_A6
SDQ_A7
SDQS_A1
SDQS_A1#
SDM_A1
SDQ_A8
SDQ_A9
SDQ_A10
SDQ_A11
SDQ_A12
SDQ_A13
SDQ_A14
SDQ_A15
SDQS_A2
SDQS_A2#
SDM_A2
SDQ_A16
SDQ_A17
SDQ_A18
SDQ_A19
SDQ_A20
SDQ_A21
SDQ_A22
SDQ_A23
SDQS_A3
SDQS_A3#
SDM_A3
SDQ_A24
SDQ_A25
SDQ_A26
SDQ_A27
SDQ_A28
SDQ_A29
SDQ_A30
SDQ_A31
SDQS_A4
SDQS_A4#
SDM_A4
SDQ_A32
SDQ_A33
SDQ_A34
SDQ_A35
SDQ_A36
SDQ_A37
SDQ_A38
SDQ_A39
SDQS_A5
SDQS_A5#
SDM_A5
SDQ_A40
SDQ_A41
SDQ_A42
SDQ_A43
SDQ_A44
SDQ_A45
SDQ_A46
SDQ_A47
SDQS_A6
SDQS_A6#
SDM_A6
SDQ_A48
SDQ_A49
SDQ_A50
SDQ_A51
SDQ_A52
SDQ_A53
SDQ_A54
SDQ_A55
SDQS_A7
SDQS_A7#
SDM_A7
SDQ_A56
SDQ_A57
SDQ_A58
SDQ_A59
SDQ_A60
SDQ_A61
SDQ_A62
SDQ_A63
W/S=6.5/18.5
W/S=4/9 W/S=6.5/12
B
W/S=5/5 W/S=7.5/9.5
B1
A1 D1C1
W/S=5/5 W/S=9.5/5.5 W/S=5.5/5 W/S=5/5
W/S=6.5/18.5
B
W/S=5/5 W/S=7.5/9.5 W/S=5.5/5 W/S=7.5/9.5 W/S=5/5 W/S=5/5
W/S=5/5 W/S=5.5/5W/S=9.5/5.5 W/S=9.5/5.5 W/S=5.5/5 W/S=5.5/5
B1A1 D1C1 E1 F1
DQSA0
AU4
-DQSA0
AR3
DMA0
AR2
MDA0
AR5
MDA1
AR4
MDA2
AV3
MDA3
AV2
MDA4
AP3
MDA5MAAA9
AP2
MDA6
AU1
MDA7
AV4
DQSA1
BB3
-DQSA1
BA4
DMA1
BA2
MDA8
AY2
MDA9
AY3
MDA10
BB5
MDA11
AY6
MDA12
AW2
MDA13
AW3
MDA14
BA5
MDA15
BB4
DQSA2
BB9
-DQSA2
BA9
DMA2
AY9
MDA16
AY7
MDA17
BC7
MDA18
AW11
MDA19
AY11
MDA20
BB6
MDA21
BA6
MDA22
BA10
MDA23
BB10
DQSA3
AT20
-DQSA3
AU18
DMA3
AN18
MDA24
AT18
MDA25
AR18
MDA26
AU21
MDA27
AT21
MDA28
AP17
MDA29
AN17
MDA30
AP20
MDA31
AV20
DQSA4
AR41
-DQSA4
AR40
DMA4
AU43
MDA32
AV42
MDA33
AU40
MDA34
AP42
MDA35
AN39
MDA36
AV40
MDA37
AV41
MDA38
AR42
MDA39
AP41
DQSA5
AL41
-DQSA5
AL40
DMA5
AM43
MDA40
AN41
MDA41
AM39
MDA42
AK42
MDA43
AK41
MDA44
AN40
MDA45
AN42
MDA46
AL42
MDA47
AL39
DQSA6
AG42
-DQSA6
AG41
DMA6
AG40
MDA48
AJ40
MDA49
AH43
MDA50
AF39
MDA51
AE40
MDA52
AJ42
MDA53
AJ41
MDA54
AF41
MDA55
AF42
DQSA7
AC42
-DQSA7
AC41
DMA7
AC40
MDA56
AD40
MDA57
AD43
MDA58
AB41
MDA59
AA40
MDA60
AE42
MDA61
AE41
MDA62
AC39
MDA63
AB42
CHANNEL A CHANNEL B
CA
D
W/S=5.5/5
W/S=5/5
D2C2A2 B2
DA
W/S=6.5/18.5
E
W/S=6.5/12
C
MAAB0
MAAB1
MAAB2
MAAB3
MAAB4
MAAB5
MAAB6
MAAB7
MAAB8
MAAB9
MAAB10
MAAB11
MAAB12
MAAB13
-SWEB
-SWEB[16,17]
-SCASB
-SCASB[16,17]
-SRASB
-SRASB[16,17]
SBAB0
SBAB0[16,17]
SBAB1
SBAB1[16,17]
SBAB2
SBAB2[16,17]
-CSB0
-CSB0[16,17]
-CSB1
-CSB1[16,17]
-CSB2
-CSB2[16,17]
-CSB3
-CSB3[16,17]
CKEB0
CKEB0[16,17]
CKEB1
CKEB1[16,17]
CKEB2
CKEB2[16,17]
CKEB3
CKEB3[16,17]
MODT_B0
MODT_B1
MODT_B2
MODT_B3
DCLKB0
DCLKB0[16]
-DCLKB0
-DCLKB0[16]
DCLKB1
DCLKB1[16]
-DCLKB1
-DCLKB1[16]
DCLKB2
DCLKB2[16]
-DCLKB2
-DCLKB2[16]
DCLKB3
DCLKB3[16]
-DCLKB3
-DCLKB3[16]
DCLKB4
DCLKB4[16]
-DCLKB4
-DCLKB4[16]
DCLKB5
DCLKB5[16]
-DCLKB5
-DCLKB5[16]
TP16
TP17
TP2
MCH_VREF
SMRCOMP0
SMRCOMP1
SMRCOMP2
SMRCOMP3
SMRCOMPVOL
SMRCOMPVOH
F
B2A2 D2 F2C2 E2
5
4
U2D
BB17
AY17
BA17
BC16
AW15
BA15
BB15
BA14
AY15
BB14
AW18
BB13
BA13
AY29
AY13
BA27
AW29
AW26
AY19
BA18
BC12
BB27
BB30
AY27
AY31
AY12
AW12
BB11
BA11
BA29
BA30
BB29
BB31
AV31
AW31
AU27
AT27
AV32
AT32
AU29
AR29
AV29
AW27
AN33
AP32
AW42
AN32
AM31
AG32
AF32
AP21
AA39
BB2
SMA_B0
SMA_B1
SMA_B2
SMA_B3
SMA_B4
SMA_B5
SMA_B6
SMA_B7
SMA_B8
SMA_B9
SMA_B10
SMA_B11
SMA_B12
SMA_B13
SMA_B14
SWE_B#
SCAS_B#
SRAS_B#
SBS_B0
SBS_B1
SBS_B2
SCS_B0#
SCS_B1#
SCS_B2#
SCS_B3#
SCKE_B0
SCKE_B1
SCKE_B2
SCKE_B3
SODT_B0
SODT_B1
SODT_B2
SODT_B3
SCLK_B0
SCLK_B0#
SCLK_B1
SCLK_B1#
SCLK_B2
SCLK_B2#
SCLK_B3
SCLK_B3#
SCLK_B4
SCLK_B4#
SCLK_B5
SCLK_B5#
RESERVED_1
RESERVED_2
RESERVED_3
RESERVED_4
RESERVED_5
RESERVED_6
RESERVED_9
RESERVED_8
BW
(4/9)
DDR_1
AM21
RESERVED_7
AM6
SVREF
AN2
SRCOMP0
AN3
SRCOMP1
BB40
SRCOMP2
BA40
SRCOMP3
AM8
SMRCOMPVOL
AM10
SMRCOMPVOH
BB19
RESERVED
LE82G965-C2/BGA1226/[10HB1-030082-40R]
SDQS_B0
SDQS_B0#
SDM_B0
SDQ_B0
SDQ_B1
SDQ_B2
SDQ_B3
SDQ_B4
SDQ_B5
SDQ_B6
SDQ_B7
SDQS_B1
SDQS_B1#
SDM_B1
SDQ_B8
SDQ_B9
SDQ_B10
SDQ_B11
SDQ_B12
SDQ_B13
SDQ_B14
SDQ_B15
SDQS_B2
SDQS_B2#
SDM_B2
SDQ_B16
SDQ_B17
SDQ_B18
SDQ_B19
SDQ_B20
SDQ_B21
SDQ_B22
SDQ_B23
SDQS_B3
SDQS_B3#
SDM_B3
SDQ_B24
SDQ_B25
SDQ_B26
SDQ_B27
SDQ_B28
SDQ_B29
SDQ_B30
SDQ_B31
SDQS_B4
SDQS_B4#
SDM_B4
SDQ_B32
SDQ_B33
SDQ_B34
SDQ_B35
SDQ_B36
SDQ_B37
SDQ_B38
SDQ_B39
SDQS_B5
SDQS_B5#
SDM_B5
SDQ_B40
SDQ_B41
SDQ_B42
SDQ_B43
SDQ_B44
SDQ_B45
SDQ_B46
SDQ_B47
SDQS_B6
SDQS_B6#
SDM_B6
SDQ_B48
SDQ_B49
SDQ_B50
SDQ_B51
SDQ_B52
SDQ_B53
SDQ_B54
SDQ_B55
SDQS_B7
SDQS_B7#
SDM_B7
SDQ_B56
SDQ_B57
SDQ_B58
SDQ_B59
SDQ_B60
SDQ_B61
SDQ_B62
SDQ_B63
AV6
AU5
AR7
AN7
AN8
AW5
AW7
AN5
AN6
AN9
AU7
AR12
AP12
AW9
AT11
AU11
AP13
AR13
AR11
AU9
AV12
AU12
AP15
AR15
AW13
AU15
AV13
AU17
AT17
AU13
AM13
AV15
AW17
AT24
AU26
AP23
AV24
AT23
AT26
AP26
AU23
AW23
AR24
AN26
AW39
AU39
AU37
AW37
AV38
AN36
AN37
AU35
AR35
AN35
AR37
AL35
AL34
AM37
AM35
AM38
AJ34
AL38
AR39
AM34
AL37
AL32
AG35
AG36
AG39
AG38
AJ38
AF35
AF33
AJ37
AJ35
AG33
AF34
AC36
AC37
AD38
AD36
AC33
AA34
AA36
AD34
AF38
AC34
AA33
SDQS+/-[7..0],SDQ[63..0],SDM[7..0]
SCS#[3..0],SCKE[3..0],SODT[3..0]
SMA[14..0],SBS[2..0],SRAS#,SCAS#,SWE#
3
DQSB0
-DQSB0
DMB0
MDB0
MDB1
MDB2
MDB3
MDB4
MDB5
MDB6
MDB7
DQSB1
-DQSB1
DMB1
MDB8
MDB9
MDB10
MDB11
MDB12
MDB13
MDB14
MDB15
DQSB2
-DQSB2
DMB2
MDB16
MDB17
MDB18
MDB19
MDB20
MDB21
MDB22
MDB23
DQSB3
-DQSB3
DMB3
MDB24
MDB25
MDB26
MDB27
MDB28
MDB29
MDB30
MDB31
DQSB4
-DQSB4
DMB4
MDB32
MDB33
MDB34
MDB35
MDB36
MDB37
MDB38
MDB39
DQSB5
-DQSB5
DMB5
MDB40
MDB41
MDB42
MDB43
MDB44
MDB45
MDB46
MDB47
DQSB6
-DQSB6
DMB6
MDB48
MDB49
MDB50
MDB51
MDB52
MDB53
MDB54
MDB55
DQSB7
-DQSB7
DMB7
MDB56
MDB57
MDB58
MDB59
MDB60
MDB61
MDB62
MDB63
R74
1K/4/1
R75
1K/4/1
R1593
1K/4/1
SMRCOMPVOH
R77
3K/4/1
SMRCOMPVOL
R1594
1K/4/1
R79 20/6/1
BC27
0.1u/6/Y5V/25V/Z
R80 20/6/1
R81 20/6/1
BC28
0.1u/6/Y5V/25V/Z
R82 20/6/1
2
MODT_A[0..3]
MODT_B[0..3]
-DQSB[0..7]
MAAB[0..14]
DMB[0..7]
MDB[0..63]
DQSB[0..7]
MAAA[0..14]
DMA[0..7]
MDA[0..63]
DQSA[0..7]
-DQSA[0..7]
MCH_VREF
BC26
0.1u/6/Y5V/25V/Z
C321
0.01u/4/X7R/16V/K
C322
0.01u/4/X7R/16V/K
W/S=10/10
SMRCOMP3
SMRCOMP2
SMRCOMP1
SMRCOMP0
1
Gigabyte Technology
GMCH-BROADWATER_DDRII
GA-TG965MP-RH-GW
1
10 36Monday, May 14, 2007
2.1
of
MODT_A[0..3][15,17]
MODT_B[0..3][16,17]
-DQSB[0..7][16]
MAAB[0..14][16,17]
DMB[0..7][16]
MDB[0..63][16]
DQSB[0..7][16]
MAAA[0..14][15,17]
DMA[0..7][15]
MDA[0..63][15]
DQSA[0..7][15]
-DQSA[0..7][15]
DDR18V
DDR18V
DDR18V
DDR18V
NB_HEATSIN
NB_HS
NB_HEATSINK/[12SP2-04F004-C1R_12SP2-04F004-C2R_12SP2-04F004-C3R]
Title
Size Document Number Rev
Custom
2
Date: Sheet
5
4
3
2
1
D D
C C
DMI_0RXP[19]
DMI_0RXN[19]
DMI_1RXP[19]
DMI_1RXN[19]
B B
DMI_2RXP[19]
DMI_2RXN[19]
DMI_3RXP[19]
DMI_3RXN[19]
SRCCLK_MCH[23]
-SRCCLK_MCH[23]
SDVO_CLDATA[18]
SDVO_CLCLK[18]
EXP_A_RXP0
EXP_A_RXN0
EXP_A_RXP1
EXP_A_RXN1
EXP_A_RXP2
EXP_A_RXN2
EXP_A_RXP3
EXP_A_RXN3
EXP_A_RXP4
EXP_A_RXN4
EXP_A_RXP5
EXP_A_RXN5
EXP_A_RXP6
EXP_A_RXN6
EXP_A_RXP7
EXP_A_RXN7
EXP_A_RXP8
EXP_A_RXN8
EXP_A_RXP9
EXP_A_RXN9
EXP_A_RXP10
EXP_A_RXN10
EXP_A_RXP11
EXP_A_RXN11
EXP_A_RXP12
EXP_A_RXN12
EXP_A_RXP13
EXP_A_RXN13
EXP_A_RXP14
EXP_A_RXN14
EXP_A_RXP15
EXP_A_RXN15
DMI_0RXP
DMI_0RXN
DMI_1RXP
DMI_1RXN
DMI_2RXP
DMI_2RXN
DMI_3RXP
DMI_3RXN
SRCCLK_MCH
-SRCCLK_MCH
SDVO_CLDATA
SDVO_CLCLK
U2A
F15
EXP_RXP0
G15
EXP_RXN0*
K15
EXP_RXP1
J15
EXP_RXN1*
F12
EXP_RXP2
E12
EXP_RXN2*
J12
EXP_RXP3
H12
EXP_RXN3*
J11
EXP_RXP4
H11
EXP_RXN4*
F7
EXP_RXP5
E7
EXP_RXN5*
E5
EXP_RXP6
F6
EXP_RXN6*
C2
EXP_RXP7
D2
EXP_RXN7*
G6
EXP_RXP8
G5
EXP_RXN8*
L9
EXP_RXP9
L8
EXP_RXN9*
M8
EXP_RXP10
M9
EXP_RXN10*
M4
EXP_RXP11
L4
EXP_RXN11*
M5
EXP_RXP12
M6
EXP_RXN12*
R9
EXP_RXP13
R10
EXP_RXN13*
T4
EXP_RXP14
R4
EXP_RXN14*
R6
EXP_RXP15
R7
EXP_RXN15*
W2
DMI_RXP0
V1
DMI_RXN0*
Y8
DMI_RXP1
Y9
DMI_RXN1*
AA7
DMI_RXP2
AA6
DMI_RXN2*
AB3
DMI_RXP3
AA4
DMI_RXN3*
B12
GCLKP
B13
GCLKN*
G17
SDVO_CTRLDATA
E17
SDVO_CTRLCLK
BW
(2/9)
DMI
EXP_TXP0
EXP_TXN0*
EXP_TXP1
EXP_TXN1*
EXP_TXP2
EXP_TXN2*
EXP_TXP3
EXP_TXN3*
EXP_TXP4
EXP_TXN4*
EXP_TXP5
EXP_TXN5*
EXP_TXP6
EXP_TXN6*
EXP_TXP7
EXP_TXN7*
EXP_TXP8
EXP_TXN8*
EXP_TXP9
PCIE
EXP_TXN9*
EXP_TXP10
EXP_TXN10*
EXP_TXP11
EXP_TXN11*
EXP_TXP12
EXP_TXN12*
EXP_TXP13
EXP_TXN13*
EXP_TXP14
EXP_TXN14*
EXP_TXP15
EXP_TXN15*
DMI_TXN0*
DMI_TXN1*
DMI_TXN2*
DMI_TXN3*
EXP_COMPO
EXP_COMPI
DMI_TXP0
DMI_TXP1
DMI_TXP2
DMI_TXP3
D11
D12
B11
A10
C10
D9
B9
B7
D7
D6
B5
B6
B3
B4
F2
E2
F4
G4
J4
K3
L2
K1
N2
M2
P3
N4
R2
P1
U2
T2
V3
U4
V7
V6
W4
Y4
AC8
AC9
Y2
AA2
AC11
AC12
EXP_A_TXP0
EXP_A_TXN0
EXP_A_TXP1
EXP_A_TXN1
EXP_A_TXP2
EXP_A_TXN2
EXP_A_TXP3
EXP_A_TXN3
EXP_A_TXP4
EXP_A_TXN4
EXP_A_TXP5
EXP_A_TXN5
EXP_A_TXP6
EXP_A_TXN6
EXP_A_TXP7
EXP_A_TXN7
EXP_A_TXP8
EXP_A_TXN8
EXP_A_TXP9
EXP_A_TXN9
EXP_A_TXP10
EXP_A_TXN10
EXP_A_TXP11
EXP_A_TXN11
EXP_A_TXP12
EXP_A_TXN12
EXP_A_TXP13
EXP_A_TXN13
EXP_A_TXP14
EXP_A_TXN14
EXP_A_TXP15
EXP_A_TXN15
DMI_0TXP
DMI_0TXN
DMI_1TXP
DMI_1TXN
DMI_2TXP
DMI_2TXN
DMI_3TXP
DMI_3TXN
GRCOMP
DMI_0TXP [19]
DMI_0TXN [19]
DMI_1TXP [19]
DMI_1TXN [19]
DMI_2TXP [19]
DMI_2TXN [19]
DMI_3TXP [19]
DMI_3TXN [19]
EXP_A_TXP[0..15]
EXP_A_TXN[0..15]
EXP_A_RXP[0..15]
EXP_A_RXN[0..15]
R87
0/1210/SHT/X
BC254
4.7u/8/Y5V/10V/Z
VCC1_25PCIEX
R88
24.9/6/1
EXP_A_TXP[0..15] [18]
EXP_A_TXN[0..15] [18]
EXP_A_RXP[0..15] [18]
EXP_A_RXN[0..15] [18]
VCC1_25PCIEX
GRCOMP
VCC1_25PCIEX [14]VCC1_25
LE82G965-C2/BGA1226/[10HB1-030082-40R]
A A
Title
Gigabyte Technology
GMCH-BROADWATER_PCI E / DMI
Size Document Number Rev
Custom
5
4
3
Date: Sheet
2
GA-TG965MP-RH-GW
11 36Monday, May 14, 2007
of
1
2.1
5
U2E
D D
0:BTX
1:ATX
VCC1_25
R102
1K/4/1
C C
R1601
392/6/1
BROADWATER AMT & ASF Design guide 9.4.1.4(P177)
3/27
B B
VCC1_25
EXP_EN_HDR[18]
C1869
10p/4/NPO/50V/J/X
BSEL0
BSEL0[6]
BSEL1
BSEL1[6]
BSEL2
BSEL2[6]
R1835 1K/4
R98 1K/4/X
R95
0/6/SHT/X
CL_DATA[21]
CL_CLK[21]
-CL_RST[21]
10p/4/NPO/50V/J/X
R2360
0/4
EXP_SLR
EXP_EN
CL_PWROK
C1870
CL_PWROK
PWROK1
G20
K20
F20
G18
E18
K17
H18
N17
N18
N15
M20
M18
AD12
AD13
AM5
AA12
AM15
AA10
AA9
AA11
Y12
U30
U31
R29
R30
U12
U11
R12
R13
J20
J18
J17
L17
L15
L18
BSEL0
BSEL1
BSEL2
ALLZTEST
XORTEST
RESERVED_24
EXP_SLR
RESERVED_25
EXP_EN
RESERVED
RESERVED_1
RESERVED_2
RESERVED_3
RESERVED_4
RESERVED_5
RESERVED_6
RESERVED_7
RESERVED_8
CL_DATA
CL_CLK
CL_VREF
CL_RST#
CL_PWROK
RESERVED_9
RESERVED_10
RESERVED_11
RESERVED_12
RESERVED_13
RESERVED_14
RESERVED_15
RESERVED_16
RESERVED_17
RESERVED_18
RESERVED_19
RESERVED_20
(5/9)
LE82G965-C2/BGA1226/[10HB1-030082-40R]
BW
4
VGA
RESERVED_001
RESERVED_23
RESERVED_26
MISC
HSYNC
VSYNC
RED
GREEN
BLUE
RED#
GREEN#
BLUE#
DDC_DATA
DDC_CLK
REFSET
DREFCLKP
DREFCLKN
VCC
VSS
RSTIN#
PWROK
ICH_SYNC#
TEST0
TEST1
TEST2
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
3
R1595 33/4
C15
R1596 33/4
D15
B18
C19
B20
C18
D19
D20
L13
M13
REFSET
A20
C14
D13
L12
VCC1_25
M11
F13
TP3
F17
TP4
A14
TP5
AM18
AM17
J13
A42
NC
BC43
BC1
A43
N20
BC42
BC2
BB43
BB1
B43
B42
B2
TP18
TP19
TP20
TP21
R
G
B
DDCDATA
DDCCLK
R1600 1.3K/4/1
DOTCLK
-DOTCLK
-PFMRST
PWROK1
GHSYNC
GVSYNC
DOTCLK [23]
-DOTCLK [23]
-PFMRST [20,25]
PWROK1 [20,25,36]
-PFMRST
C23
22p/4/NPO/50V/J
PWROK1
C24
10p/4/NPO/50V/J/X
R1597
75/6
R1598
75/6
FUSEVCC
R1599
75/6
-ICHSYNC_NB
C1842
10p/4/NPO/50V/J/X
BAV99/SOT23/300mA/X
C1843
10p/4/NPO/50V/J/X
Q71
132
BAV99/SOT23/300mA/X
Q72
132
VCC3
R1883
1K/4/X
2
BAV99/SOT23/300mA/X
Q73
132
R1793
0/4
修正自動亂開機
BAV99/SOT23/300mA/X
132
VCC3
VCC3
Q298
R1792
1K/4/X
C326
C325
3.3p/4/NPO/50V/C
3.3p/4/NPO/50V/C
C35
0.1u/6/Y5V/25V/Z/X
-ICHSYNC [20]
BAV99/SOT23/300mA/X
132
C324
3.3p/4/NPO/50V/C
Q299
VCC
C34
0.1u/6/Y5V/25V/Z/X
FB1 60/6/3A/S
FB2 60/6/3A/S
FB3 60/6/3A/S
GHSYNC
GVSYNC
C31
1
VGA_R
VGA_G
VGA_B
C33
C32
3.3p/4/NPO/50V/C
3.3p/4/NPO/50V/C
3.3p/4/NPO/50V/C
VCC3 VCC
R91
2.2K/4
DDCDATA
A A
DDCCLK
5
R92
2.2K/4
Q3
2N7002/SOT23/25pF/5
GS
2
VCC3
1
SOT23
VCC3
D
R89
2.2K/4
3
Q4
2N7002/SOT23/25pF/5
GS
2
D
1
3
SOT23
R90
2.2K/4
VGADDCDATA
VGADDCCLK
4
ESD_PAD1
TP/X
ESD_PAD2
TP/X
ESD_PAD4
TP/X
BC255
0.1u/6/Y5V/25V/Z
VGA_R
VGA_G
VGA_B
VGA_COMA
VG1VG2
V6
V1
V7
V2
V8
V3
V9
V4
V10
V5
3
V11
1
VGA/BU/SC-11/RA/D/L
V12
V13
V14
V15
VGADDCDATA
GHSYNC
GVSYNC
VGADDCCLK
ESD_PAD3
TP/X
ESD_PAD5
TP/X
ESD_PAD6
TP/X
ESD_PAD7
TP/X
2
Gigabyte Technology
Title
Size Document Number Rev
B
Date: Sheet
GMCH-BROADWATER_VGA
GA-TG965MP-RH-GW
1
of
12 36Monday, May 14, 2007
2.1
5
U2G
BC37
BC32
BC28
BC24
BC10
BC5
BB7
AY41
AY4
D D
C C
B B
A A
AW43
AW41
AW1
AV37
AV35
AV27
AV23
AV21
AV17
AV11
AV9
AV7
AU42
AU38
AU32
AU24
AU20
AU6
AU2
AT31
AT29
AT15
AT13
AT12
AR38
AR33
AR32
AR27
AR26
AR23
AR21
AR20
AR17
AR9
AR6
AP43
AP24
AP18
AP1
AN38
AN31
AN29
AN24
AN23
AN20
AN15
AN13
AN12
AN11
AN4
AM42
AM40
AM36
AM33
AM29
AM24
AM23
AM20
AM11
AM9
AM7
AM4
AM2
AM1
AL36
AL33
AK43
AJ39
AJ36
AJ33
AH42
AG37
AG34
AF43
AF37
AF36
AF10
AF9
AF8
AF7
AF6
LE82G965-C2/BGA1226/[10HB1-030082-40R]
VSS_1
VSS_2
VSS_3
VSS_4
VSS_5
VSS_6
VSS_7
VSS_8
VSS_9
VSS_10
VSS_11
VSS_12
VSS_13
VSS_14
VSS_15
VSS_16
VSS_17
VSS_18
VSS_19
VSS_20
VSS_21
VSS_22
VSS_23
VSS_24
VSS_25
VSS_26
VSS_27
VSS_28
VSS_29
VSS_30
VSS_31
VSS_32
VSS_33
VSS_34
VSS_35
VSS_36
VSS_37
VSS_38
VSS_39
VSS_40
VSS_41
VSS_42
VSS_43
VSS_44
VSS_45
VSS_46
VSS_47
VSS_48
VSS_49
VSS_50
VSS_51
VSS_52
VSS_53
VSS_54
VSS_55
VSS_56
VSS_57
VSS_58
VSS_59
VSS_60
VSS_61
VSS_62
VSS_63
VSS_64
VSS_65
VSS_66
VSS_67
VSS_68
VSS_69
VSS_70
VSS_71
VSS_72
VSS_73
VSS_74
VSS_75
VSS_76
VSS_77
VSS_78
VSS_79
VSS_80
VSS_81
VSS_82
VSS_83
VSS_84
VSS_85
VSS_86
VSS_87
VSS_88
VSS_89
VSS_90
BW
(7/9)
GND 1/2
VSS_181
VSS_182
VSS_183
VSS_184
VSS_185
VSS_186
VSS_187
VSS_188
VSS_189
VSS_190
VSS_191
VSS_192
VSS_193
VSS_194
VSS_195
VSS_196
VSS_197
VSS_198
VSS_199
VSS_200
VSS_201
VSS_202
VSS_203
VSS_204
VSS_205
VSS_206
VSS_207
VSS_208
VSS_209
VSS_210
VSS_211
VSS_212
VSS_213
VSS_214
VSS_215
VSS_216
VSS_217
VSS_218
VSS_219
VSS_220
VSS_221
VSS_222
VSS_223
VSS_224
VSS_225
VSS_226
VSS_227
VSS_228
VSS_229
VSS_230
VSS_231
VSS_232
VSS_233
VSS_234
VSS_235
VSS_236
VSS_237
VSS_238
VSS_239
VSS_240
VSS_241
VSS_242
VSS_243
VSS_244
VSS_245
VSS_246
VSS_247
VSS_248
VSS_249
VSS_250
VSS_251
VSS_252
VSS_253
VSS_254
VSS_255
VSS_256
VSS_257
VSS_258
VSS_259
VSS_260
VSS_261
VSS_262
VSS_263
VSS_264
VSS_265
VSS_266
VSS_267
VSS_268
VSS_269
VSS_270
4
AF5
AF3
AF2
AF1
AD42
AD39
AD37
AD35
AD33
AD25
AD23
AD21
AD19
AC38
AC35
AC24
AC22
AC20
AC10
AC7
AC5
AB43
AB25
AB23
AB21
AB19
AB2
AB1
AA38
AA35
AA24
AA22
AA20
AA8
AA5
Y42
Y37
Y35
Y33
Y25
Y23
Y21
Y19
Y10
Y7
Y5
Y1
W3
V43
V39
V37
V34
V32
V11
V8
V5
V2
U38
U35
U8
U7
U5
T42
T1
R36
R33
R31
R11
R8
R5
R3
P43
P30
P21
P18
P17
P2
N36
N33
N31
N27
N21
N13
N10
N7
N5
M42
M37
M35
M33
3
U2I
M27
VSS_91
M21
VSS_92
M17
VSS_93
M15
VSS_94
M10
VSS_95
M7
VSS_96
M1
VSS_97
L33
VSS_98
L32
VSS_99
L31
VSS_100
L29
VSS_101
L21
VSS_102
L20
VSS_103
L11
VSS_104
L7
VSS_105
L5
VSS_106
L3
VSS_107
K43
VSS_108
K26
VSS_109
K21
VSS_110
K18
VSS_111
K13
VSS_112
K12
VSS_113
K2
VSS_114
J38
VSS_115
J35
VSS_116
J32
VSS_117
J27
VSS_118
J21
VSS_119
J9
VSS_120
J7
VSS_121
J5
VSS_122
H31
VSS_123
H29
VSS_124
H21
VSS_125
H20
VSS_126
H17
VSS_127
H15
VSS_128
H13
VSS_129
G42
VSS_130
G38
VSS_131
G32
VSS_132
G21
VSS_133
G13
VSS_134
G12
VSS_135
G11
VSS_136
G9
VSS_137
G7
VSS_138
G1
VSS_139
F37
VSS_140
F35
VSS_141
F27
VSS_142
F21
VSS_143
F18
VSS_144
F3
VSS_145
E43
VSS_146
E32
VSS_147
E24
VSS_148
E21
VSS_149
E20
VSS_150
E15
VSS_151
E13
VSS_152
E11
VSS_153
E9
VSS_154
E3
VSS_155
D40
VSS_156
D31
VSS_157
D21
VSS_158
D17
VSS_159
D3
VSS_160
C26
VSS_161
C11
VSS_162
C6
VSS_163
C5
VSS_164
C4
VSS_165
B37
VSS_166
B32
VSS_167
B31
VSS_168
B26
VSS_169
B23
VSS_170
B22
VSS_171
B19
VSS_172
B14
VSS_173
B10
VSS_174
A39
VSS_175
A34
VSS_176
A26
VSS_177
A18
VSS_178
A12
VSS_179
A7
VSS_180
LE82G965-C2/BGA1226/[10HB1-030082-40R]
BW
(9/9)
GND 2/2
VSS_271
VSS_272
VSS_273
VSS_274
VSS_275
VSS_276
VSS_277
VSS_278
VSS_279
VSS_280
VSS_281
VSS_282
VSS_283
VSS_284
VSS_285
VSS_286
VSS_287
VSS_288
VSS_289
VSS_290
VSS_291
VSS_292
VSS_293
BC41
BC3
BA1
AY40
AF23
AF21
AF19
AE24
AE22
AE20
AE18
AC18
AA18
W24
W22
W20
R21
E1
C43
C1
A41
A5
A3
2
1
Title
Size Document Number Rev
Custom
5
4
3
Date: Sheet
2
Gigabyte Technology
GMCH-BROADWATER_GND
GA-TG965MP-RH-GW
13 36Monday, May 14, 2007
of
1
2.1
5
4
3
2
1
U2F
VCC1_25
AJ12
VCC_1
AJ11
VCC_2
AJ10
VCC_3
AJ9
VCC_4
AJ8
VCC_5
AJ7
AG13
AG12
AG11
AG10
AF13
AF12
AF11
AD24
AD22
AD20
AC25
AC23
AC21
AC19
AC13
AB24
AB22
AB20
AA25
AA23
AA21
AA19
AA13
AH4
AH2
AH1
AG9
AG8
AG7
AG6
AG5
AG4
AG3
AG2
AC6
AA3
U13
U10
N12
N11
C13
C23
C22
AJ6
AJ5
AJ4
AJ3
AJ2
Y24
Y22
Y20
Y13
Y6
V13
V12
V10
V9
U9
U6
U3
N9
N8
N6
N3
L6
J6
J3
J2
G2
F11
F9
D4
C9
P20
Y11
Y32
B15
V31
A24
A22
B17
VCC_6
VCC_7
VCC_8
VCC_9
VCC_10
VCC_11
VCC_12
VCC_13
VCC_14
VCC_15
VCC_16
VCC_17
VCC_18
VCC_19
VCC_20
VCC_21
VCC_22
VCC_23
VCC_24
VCC_25
VCC_26
VCC_27
VCC_28
VCC_29
VCC_30
VCC_31
VCC_32
VCC_80
VCC_34
VCC_35
VCC_36
VCC_37
VCC_38
VCC_39
VCC_40
VCC_41
VCC_42
VCC_43
VCC_44
VCC_45
VCC_46
VCC_47
VCC_48
VCC_49
VCC_50
VCC_51
VCC_52
VCC_53
VCC_54
VCC_55
VCC_56
VCC_57
VCC_58
VCC_59
VCC_60
VCC_61
VCC_62
VCC_63
VCC_64
VCC_65
VCC_66
VCC_67
VCC_68
VCC_69
VCC_70
VCC_71
VCC_72
VCC_73
VCC_74
VCC_75
VCC_76
VCC_77
VCC_78
VCC_79
VCC_CL_PLL
VCCA_EXPPLL
VCCA_HPLL
RESERVED_002
VCCA_MPLL
VCCA_DPLLA
VCCA_DPLLB
VCC3_3
D D
C C
B B
R595
VCC1_25
0.1u/6/Y5V/25V/Z
0/6/SHT/X
VCCA_GPLL
VCCA_HPLL
VCCA_MPLL
VCCA_DPLLA
VCCA_DPLLB
VCC3_DAC
BC714
(3.3V/15.8mA)
BW
(6/9)
PWR 1/2
LE82G965-C2/BGA1226/[10HB1-030082-40R]
VCC_81
VCC_172
VCC_173
VCC_174
VCC_82
VCC_83
VCC_84
VCC_85
VCC_86
VCC_87
VCC_88
VCC_89
VCC_90
VCC_91
VCC_93
VCC_94
VCC_95
VCC_96
VCC_97
VCC_98
VCC_99
VCC_100
VCC_101
VCC_102
VCC_103
VCC_104
VCC_105
VCC_106
VCC_107
VCC_108
VCC_109
VCC_110
VCC_111
VCC_112
VCC_113
VCC_114
VCC_115
VCC_116
VCC_117
VCC_118
VCC_119
VCC_120
VCC_121
VCC_122
VCC_123
VCC_124
VCC_125
VCC_126
VCC_127
VCC_128
VCC_129
VCC_130
VCC_131
VCC_132
VCC_133
VCC_134
VCC_135
VCC_136
VCC_137
VCC_138
VCC_139
VCC_140
VCC_141
VCC_142
VCC_143
VCC_144
VCC_145
VCC_146
VCC_147
VCC_148
VCC_149
VCC_150
VCC_151
VCC_152
VCC_153
VCC_154
VCC_155
VCC_156
VCC_157
VCC_158
VCC_159
VCC_160
VCC_161
VCC_162
VCC_163
VCC_164
VCC_165
VCC_166
VCC_167
VCC_168
VCC_169
VCC_170
VCC_171
AG25
AG24
AG23
AG22
AG21
AG20
AG19
AG18
AG17
AG15
AG14
AF26
AF25
AF24
AF22
AF20
AF18
AF17
AF15
AF14
AE27
AE26
AE25
AE23
AE21
AE19
AE17
AD27
AD26
AD18
AD17
AD15
AD14
AC27
AC26
AC17
AC15
AC14
AB27
AB26
AB18
AB17
AA27
AA26
AA17
AA15
AA14
Y27
Y26
Y18
Y17
Y15
Y14
W27
W26
W25
W23
W21
W19
W18
W17
V27
V26
V25
V24
V23
V22
V21
V20
V19
V18
V17
V15
V14
U26
U25
U24
U23
U22
U21
U20
U19
U18
U17
U15
U14
R20
R18
R17
R15
R14
P15
P14
VCC1_25
1.25V=18.8A
1.2V=1.3A 1.25V=3.8A
1.8V=3.73A
VCC1_25PCIEX[11]
1.25V=2.5A
VCC3_DAC
BC712
1u/6/Y5V/10V/Z
BC713
0.1u/6/Y5V/25V/Z
(3.3V/70mA+360uA)
DDR18V
VCC1_25
VCCD_CRT
VCCDQ_CRT
P29
VTT_1
P27
VTT_2
P26
VTT_3
P24
VTT_4
P23
VTT_5
N29
VTT_6
N26
VTT_7
N24
VTT_8
N23
VTT_9
M29
VTT_10
M24
VTT_11
M23
VTT_12
L24
VTT_13
L23
VTT_14
K24
VTT_15
K23
VTT_16
J24
VTT_17
J23
VTT_18
H24
VTT_19
H23
VTT_20
G26
VTT_21
G24
VTT_22
G23
VTT_23
F26
VTT_24
F24
VTT_25
F23
VTT_26
E29
VTT_27
E27
VTT_28
E26
VTT_29
E23
VTT_30
D29
VTT_31
D28
VTT_32
D27
VTT_33
C30
VTT_34
C29
VTT_35
C27
VTT_36
B30
VTT_37
B29
VTT_38
B28
VTT_39
B27
VTT_40
A30
VTT_41
A28
VTT_42
R27
VTT_43
R26
VTT_44
R24
VTT_45
R23
VTT_46
BC39
VCCSM_1
BC34
VCCSM_2
BC30
VCCSM_3
BC26
VCCSM_4
BC22
VCCSM_5
BC18
VCCSM_6
BC14
VCCSM_7
BB39
VCCSM_8
BB37
VCCSM_9
BB32
VCCSM_10
BB28
VCCSM_11
BB26
VCCSM_12
BB24
VCCSM_13
BB20
VCCSM_14
BB18
VCCSM_15
BB16
VCCSM_16
BB12
VCCSM_17
AY32
VCCSM_18
AW24
VCCSM_19
AW20
VCCSM_20
AV26
VCCSM_21
AV18
VCCSM_22
AD11
VCC_EXP_1
AD10
VCC_EXP_2
AD9
VCC_EXP_3
AD8
VCC_EXP_4
AD7
VCC_EXP_5
AD6
VCC_EXP_6
AD5
VCC_EXP_7
AD4
VCC_EXP_8
AD2
VCC_EXP_9
AD1
VCC_EXP_10
AC4
VCC_EXP_11
AC3
VCC_EXP_12
AC2
VCC_EXP_13
AE4
VCC_EXP_14
AE3
VCC_EXP_15
AE2
VCC_EXP_16
C17
VCCA_DAC_1
B16
VCCA_DAC_2
A16
VCCA_EXP
C21
VCCD_CRT
B21
VCCDQ_CRT
D16
VSS
LE82G965-C2/BGA1226/[10HB1-030082-40R]
U2H
BW
(8/9)
PWR 2/2
VCC_CL_1
VCC_CL_2
VCC_CL_3
VCC_CL_4
VCC_CL_5
VCC_CL_6
VCC_CL_7
VCC_CL_8
VCC_CL_9
VCC_CL_10
VCC_CL_11
VCC_CL_12
VCC_CL_13
VCC_CL_14
VCC_CL_15
VCC_CL_16
VCC_CL_17
VCC_CL_18
VCC_CL_19
VCC_CL_20
VCC_CL_21
VCC_CL_22
VCC_CL_23
VCC_CL_24
VCC_CL_25
VCC_CL_26
VCC_CL_27
VCC_CL_28
VCC_CL_29
VCC_CL_30
VCC_CL_31
VCC_CL_32
VCC_CL_33
VCC_CL_34
VCC_CL_35
VCC_CL_36
VCC_CL_37
VCC_CL_38
VCC_CL_39
VCC_CL_40
VCC_CL_41
VCC_CL_42
VCC_CL_43
VCC_CL_44
VCC_CL_45
VCC_CL_46
VCC_CL_47
VCC_CL_48
VCC_CL_49
VCC_CL_50
VCC_CL_51
VCC_CL_52
VCC_CL_53
VCC_CL_54
VCC_CL_55
VCC_CL_56
VCC_CL_57
VCC_CL_58
VCC_CL_59
VCC_CL_60
VCC_CL_61
VCC_CL_62
VCC_CL_63
VCC_CL_64
VCC_CL_65
VCC_CL_66
VCC_CL_67
VCC_CL_68
VCC_CL_69
VCC_CL_70
VCC_CL_71
VCC_CL_72
VCC_CL_73
VCC_CL_74
VCC_CL_75
VCC_CL_76
VCC_CL_77
VCC_CL_78
VCC_CL_79
VCC_SMCLK_1
VCC_SMCLK_2
VCC_SMCLK_3
VCC_SMCLK_4
VCC_SMCLK_5
RESERVED_1
RESERVED_2
AL26
AL24
AL23
AL21
AL20
AL18
AL17
AL15
AK30
AK29
AK27
AJ31
AG31
AF31
AD32
AC32
AA32
AJ30
AJ29
AJ27
AG30
AG29
AG27
AG26
AF30
AF29
AF27
AD30
AD29
AC30
AC29
AL12
AL11
AL10
AL9
AL8
AL7
AL6
AL5
AL4
AL3
AL2
AK26
AK24
AK23
AK21
AK20
AK18
AK17
AK15
AK3
AK2
AK1
AJ13
AD31
AC31
AA31
Y31
AJ26
AJ24
AJ23
AJ21
AJ20
AJ18
AJ17
AJ15
AJ14
AA30
AA29
Y30
Y29
V30
V29
U29
U27
AL13
AK14
AL29
AL27
BB41
BA42
AY42
BB42
BA43
AL31
AJ32
VCC1_25
C327
0.1u/6/Y5V/25V/Z
V_CKDDR
VCC1_25
BC215
0.1u/6/Y5V/25V/Z
DDR18V
BC225
1u/6/Y5V/10V/Z
VCC1_25
1
+
EC10
1000u/D/6.3V/8C/36m
VCC_PLL[7]
VGA
水波紋
BC216
0.1u/6/Y5V/25V/Z
BC226
1u/6/Y5V/10V/Z
BC821
10u/8/Y5V/10V/Z
DDR18V
VCC1_25
VCC1_25
VCC1_25
VCC1_25
VCC1_25
BC217
0.1u/6/Y5V/25V/Z
BC35
1u/6/Y5V/10V/Z
DDR18V
BC234
0.1u/6/Y5V/25V/Z
FB18 0/6/SHT/X
FB20 0/6/SHT/X
FB22 0/8/SHT/X
FB24 0/8/SHT/X
FB28 0/8/SHT/X
FB30 0/8/SHT/X
FB34 0/8/SHT/X
FB32 0/8/SHT/X
BC218
0.1u/6/Y5V/25V/Z
BC227
1u/6/Y5V/10V/Z
BC235
0.1u/6/Y5V/25V/Z
BC221
0.1u/6/Y5V/25V/Z
BC224
0.1u/6/Y5V/25V/Z
BC231
1u/6/Y5V/10V/Z
BC238
1u/6/Y5V/10V/Z
BC240
1u/6/Y5V/10V/Z
BC244
1u/6/Y5V/10V/Z
BC246
1u/6/Y5V/10V/Z
BC248
1u/6/Y5V/10V/Z
VCC1_25
BC219
0.1u/6/Y5V/25V/Z
BC228
1u/6/Y5V/10V/Z
BC236
0.1u/6/Y5V/25V/Z
VCCD_CRT
VCCDQ_CRT
V_CKDDR
BC232
0.1u/6/Y5V/25V/Z
VCCA_HPLL
BC239
0.1u/6/Y5V/25V/Z
VCCA_MPLL
BC241
0.1u/6/Y5V/25V/Z
VCCA_GPLL
BC245
0.1u/6/Y5V/25V/Z
VCCA_DPLLA
BC247
0.1u/6/Y5V/25V/Z
VCCA_DPLLB
BC249
0.1u/6/Y5V/25V/Z
BC220
0.1u/6/Y5V/25V/Z
BC229
1u/6/Y5V/10V/Z
BC237
0.1u/6/Y5V/25V/Z
1.5V=20mA
1.5V=0.5mA
1.8V=250mA
1.25V>50mA
1.25V>130mA
1.25V=50mA
1.25V>80mA
1.25V>80mA
3VDUAL
A A
+12V
R2345
8.2K/4
5
3
D
GS
2
1
R1892
2.2/8/X
Q321
2N7002/SOT23/25pF/5
VCC3_DAC
CLOSE
北橋
注意震盪水波紋
+
EC171
100u/D/10V/57
Title
Size Document Number Rev
Custom
4
3
2
Date: Sheet
Gigabyte Technology
GMCH-BROADWATER_PWR
GA-TG965MP-RH-GW
1
of
14 36Monday, May 14, 2007
2.1
8
7
6
5
4
3
2
1
2
5
8
11
14
17
20
23
26
29
32
35
38
41
44
47
50
65
66
79
82
85
88
91
94
97
100
103
106
109
112
115
118
121
124
127
130
133
136
139
142
145
148
151
154
157
160
163
166
169
198
201
204
207
210
213
216
219
222
225
228
231
234
237
51
56
62
72
75
78
191
194
181
175
170
53
59
64
197
69
172
187
184
178
189
67
18
55
238
1
120
119
101
240
239
190
71
171
52
76
193
221
220
138
137
186
185
188
183
63
182
61
60
180
58
179
177
70
57
176
196
174
173
54
74
192
73
DDRII2
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
RC1
RC0
VDDSPD
VREF
SCL
SDA
SA2
SA1
SA0
BA1
BA0
CKE1
CKE0
S1*
S0*
CK2*/RFU
CK2/RFU
CK1*/RFU
CK1/RFU
CK0*
CK0
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12
A13
A14
A15
A16/BA2
CAS*
RSA*
WE*
DDR2/240/RE/VA/D
68
NC
102
NC/TEST
19
NC
MODT_A3
77
ODT1
MODT_A2
195
ODT0
42
CB(0)
43
CB(1)
48
CB(2)
49
CB(3)
161
CB(4)
162
CB(5)
167
CB(6)
168
CB(7)
DQSA0
7
DQS(0)
DQS*(0)
DQS(1)
DQS*(1)
DQS(2)
DQS*(27)
DQS(3)
DQS*(3)
DQS(4)
DQS*(4)
DQS(5)
DQS*(5)
DQS(6)
DQS*(6)
DQS(7)
DQS*(7)
DM0/DQS9
NC/DQS9*
DM1/DQS10
NC/DQS10*
DM2/DQS11
NC/DQS11*
DM3/DQS12
NC/DQS12*
DM4/DQS13
NC/DQS13*
DM5/DQS14
NC/DQS14*
DM6/DQS15
NC/DQS15*
DM7/DQS16
NC/DQS16*
DM8/DQS17
NC/DQS17*
DQ(10)
DQ(11)
DQ(12)
DQ(13)
DQ(14)
DQ(15)
DQ(16)
DQ(17)
DQ(18)
DQ(19)
DQ(20)
DQ(21)
DQ(22)
DQ(23)
DQ(24)
DQ(25)
DQ(26)
DQ(27)
DQ(28)
DQ(29)
DQ(30)
DQ(31)
DQ(32)
DQ(33)
DQ(34)
DQ(35)
DQ(36)
DQ(37)
DQ(38)
DQ(39)
DQ(40)
DQ(41)
DQ(42)
DQ(43)
DQ(44)
DQ(45)
DQ(46)
DQ(47)
DQ(48)
DQ(49)
DQ(50)
DQ(51)
DQ(52)
DQ(53)
DQ(54)
DQ(55)
DQ(56)
DQ(57)
DQ(58)
DQ(59)
DQ(60)
DQ(61)
DQ(62)
DQ(63)
DQS8
DQS8*
DQ(0)
DQ(1)
DQ(2)
DQ(3)
DQ(4)
DQ(5)
DQ(6)
DQ(7)
DQ(8)
DQ(9)
-DQSA0
6
DQSA1
16
-DQSA1
15
DQSA2
28
-DQSA2
27
DQSA3
37
-DQSA3
36
DQSA4
84
-DQSA4
83
DQSA5
93
-DQSA5
92
DQSA6
105
-DQSA6
104
DQSA7
114
-DQSA7
113
46
45
DMA0
125
126
DMA1
134
135
DMA2
146
147
DMA3
155
156
DMA4
202
203
DMA5
211
212
DMA6
223
224
DMA7
232
233
164
165
MDA0
3
MDA1
4
MDA2
9
MDA3
10
MDA4
122
MDA5
123
MDA6
128
MDA7
129
MDA8
12
MDA9
13
MDA10
21
MDA11
22
MDA12
131
MDA13
132
MDA14
140
MDA15
141
MDA16
24
MDA17
25
MDA18
30
MDA19
31
MDA20
143
MDA21
144
MDA22
149
MDA23
150
MDA24
33
MDA25
34
MDA26
39
MDA27
40
MDA28
152
MDA29
153
MDA30
158
MDA31
159
MDA32
80
MDA33
81
MDA34
86
MDA35
87
MDA36
199
MDA37
200
MDA38
205
MDA39
206
MDA40
89
MDA41
90
MDA42
95
MDA43
96
MDA44
208
MDA45
209
MDA46
214
MDA47
215
MDA48
98
MDA49
99
MDA50
107
MDA51
108
MDA52
217
MDA53
218
MDA54
226
MDA55
227
MDA56
110
MDA57
111
MDA58
116
MDA59
117
MDA60
229
MDA61
230
MDA62
235
MDA63
236
MDA[0..63] [10]
SMBDATA
SMBCLK
C57
100p/4/NPO/50V/J/X
C58
100p/4/NPO/50V/J/X
Gigabyte Technology
Title
Size Document Number Rev
Custom
3
Date: Sheet
2
DDRII-CHANNEL A 1,2
GA-TG965MP-RH-GW 2.1
15 36
of
1
DDRII1
2
VSS
5
VSS
8
VSS
11
VSS
14
VSS
17
VSS
20
VSS
23
VSS
26
VSS
29
VSS
D D
MODT_A[0..3]
-DQSA[0..7]
DQSA[0:7]
DMA[0:7]
C C
MODT_A[0..3] [10,17]
-DQSA[0..7] [10]
DQSA[0..7] [10]
DMA[0..7] [10]
DDR18V
BC718
B B
C55
0.1u/6/Y5V/25V/Z
MAAA[0..14][10,17]
A A
0.1u/6/Y5V/25V/Z
VCC3
SMBCLK[16,18,20,23,24]
SMBDATA[16,18,20,23,24]
SBAA1[10,17]
SBAA0[10,17]
CKEA1[10,17]
CKEA0[10,17]
-CSA1[10,17]
-CSA0[10,17]
-DCLKA2[10]
DCLKA2[10]
-DCLKA1[10]
DCLKA1[10]
-DCLKA0[10]
DCLKA0[10]
SBAA2[10,17] SBAA2[10,17]
-SCASA[10,17]
-SRASA[10,17]
-SWEA[10,17]
DDR18V
R1611
1K/4/1
VREF_DDRA
R104
1K/4/1
8
32
VSS
35
VSS
38
VSS
41
VSS
44
VSS
47
VSS
50
VSS
65
VSS
66
VSS
79
VSS
82
VSS
85
VSS
88
VSS
91
VSS
94
VSS
97
VSS
100
VSS
103
VSS
106
VSS
109
VSS
112
VSS
115
VSS
118
VSS
121
VSS
124
VSS
127
VSS
130
VSS
133
VSS
136
VSS
139
VSS
142
VSS
145
VSS
148
VSS
151
VSS
154
VSS
157
VSS
160
VSS
163
VSS
166
VSS
169
VSS
198
VSS
201
VSS
204
VSS
207
VSS
210
VSS
213
VSS
216
VSS
219
VSS
222
VSS
225
VSS
228
VSS
231
VSS
234
VSS
237
VSS
51
VDDQ
56
VDDQ
62
VDDQ
72
VDDQ
75
VDDQ
78
VDDQ
191
VDDQ
194
VDDQ
181
VDDQ
175
VDDQ
170
VDDQ
53
VDD
59
VDD
64
VDD
197
VDD
69
VDD
172
VDD
187
VDD
184
VDD
178
VDD
189
VDD
67
VDD
18
RC1
55
RC0
238
VREF_DDRA VREF_DDRA
SMBCLK
SMBDATA
SBAA1
SBAA0
CKEA1
CKEA0
-CSA1
-CSA0
-DCLKA2
DCLKA2
-DCLKA1
DCLKA1
-DCLKA0
DCLKA0
MAAA0
MAAA1
MAAA2
MAAA3
MAAA4
MAAA5
MAAA6
MAAA7
MAAA8 MAAA8
MAAA9
MAAA10 MAAA10
MAAA11
MAAA12
MAAA13
SBAA2 SBAA2
-SCASA
-SRASA
-SWEA
VDDSPD
1
VREF
120
SCL
119
SDA
101
SA2
240
SA1
239
SA0
190
BA1
71
BA0
171
CKE1
52
CKE0
76
S1*
193
S0*
221
CK2*/RFU
220
CK2/RFU
138
CK1*/RFU
137
CK1/RFU
186
CK0*
185
CK0
188
A0
183
A1
63
A2
182
A3
61
A4
60
A5
180
A6
58
A7
179
A8
177
A9
70
A10/AP
57
A11
176
A12
196
A13
174
A14
173
A15
54
A16/BA2
74
CAS*
192
RSA*
73
WE*
DDR2/240/YL/VA/D
7
6
NC/TEST
ODT1
ODT0
CB(0)
CB(1)
CB(2)
CB(3)
CB(4)
CB(5)
CB(6)
CB(7)
DQS(0)
DQS*(0)
DQS(1)
DQS*(1)
DQS(2)
DQS*(27)
DQS(3)
DQS*(3)
DQS(4)
DQS*(4)
DQS(5)
DQS*(5)
DQS(6)
DQS*(6)
DQS(7)
DQS*(7)
DQS8
DQS8*
DM0/DQS9
NC/DQS9*
DM1/DQS10
NC/DQS10*
DM2/DQS11
NC/DQS11*
DM3/DQS12
NC/DQS12*
DM4/DQS13
NC/DQS13*
DM5/DQS14
NC/DQS14*
DM6/DQS15
NC/DQS15*
DM7/DQS16
NC/DQS16*
DM8/DQS17
NC/DQS17*
DQ(0)
DQ(1)
DQ(2)
DQ(3)
DQ(4)
DQ(5)
DQ(6)
DQ(7)
DQ(8)
DQ(9)
DQ(10)
DQ(11)
DQ(12)
DQ(13)
DQ(14)
DQ(15)
DQ(16)
DQ(17)
DQ(18)
DQ(19)
DQ(20)
DQ(21)
DQ(22)
DQ(23)
DQ(24)
DQ(25)
DQ(26)
DQ(27)
DQ(28)
DQ(29)
DQ(30)
DQ(31)
DQ(32)
DQ(33)
DQ(34)
DQ(35)
DQ(36)
DQ(37)
DQ(38)
DQ(39)
DQ(40)
DQ(41)
DQ(42)
DQ(43)
DQ(44)
DQ(45)
DQ(46)
DQ(47)
DQ(48)
DQ(49)
DQ(50)
DQ(51)
DQ(52)
DQ(53)
DQ(54)
DQ(55)
DQ(56)
DQ(57)
DQ(58)
DQ(59)
DQ(60)
DQ(61)
DQ(62)
DQ(63)
68
NC
102
19
NC
MODT_A1
77
MODT_A0
195
42
43
48
49
161
162
167
168
DQSA0
7
-DQSA0
6
DQSA1
16
-DQSA1
15
DQSA2
28
-DQSA2
27
DQSA3
37
-DQSA3
36
DQSA4
84
-DQSA4
83
DQSA5
93
-DQSA5
92
DQSA6
105
-DQSA6
104
DQSA7
114
-DQSA7
113
46
45
DMA0
125
126
DMA1
134
135
DMA2
146
147
DMA3
155
156
DMA4
202
203
DMA5
211
212
DMA6
223
224
DMA7
232
233
164
165
MDA0
3
MDA1
4
MDA2
9
MDA3
10
MDA4
122
MDA5
123
MDA6
128
MDA7
129
MDA8
12
MDA9
13
MDA10
21
MDA11
22
MDA12
131
MDA13
132
MDA14
140
MDA15
141
MDA16
24
MDA17
25
MDA18
30
MDA19
31
MDA20
143
MDA21
144
MDA22
149
MDA23
150
MDA24
33
MDA25
34
MDA26
39
MDA27
40
MDA28
152
MDA29
153
MDA30
158
MDA31
159
MDA32
80
MDA33
81
MDA34
86
MDA35
87
MDA36
199
MDA37
200
MDA38
205
MDA39
206
MDA40
89
MDA41
90
MDA42
95
MDA43
96
MDA44
208
MDA45
209
MDA46
214
MDA47
215
MDA48
98
MDA49
99
MDA50
107
MDA51
108
MDA52
217
MDA53
218
MDA54
226
MDA55
227
MDA56
110
MDA57
111
MDA58
116
MDA59
117
MDA60
229
MDA61
230
MDA62
235
MDA63
236
MDA[0..63] [10]
C56
0.1u/6/Y5V/25V/Z
MAAA[0..14][10,17]
SMBDATA
SMBCLK
100p/4/NPO/50V/J/X
5
C1874
VCC3
SMBCLK[16,18,20,23,24]
SMBDATA[16,18,20,23,24]
VCC3
SBAA1[10,17]
SBAA0[10,17]
CKEA3[10,17]
CKEA2[10,17]
-CSA3[10,17]
-CSA2[10,17]
-DCLKA5[10]
DCLKA5[10]
-DCLKA4[10]
DCLKA4[10]
-DCLKA3[10]
DCLKA3[10]
-SCASA[10,17]
-SRASA[10,17]
-SWEA[10,17]
DDR18V
SMBCLK
SMBDATA
SBAA1
SBAA0
CKEA3
CKEA2
-CSA3
-CSA2
-DCLKA5
DCLKA5
-DCLKA4
DCLKA4
-DCLKA3
DCLKA3
MAAA0
MAAA1
MAAA2
MAAA3
MAAA4
MAAA5
MAAA6
MAAA7
MAAA9
MAAA11
MAAA12
MAAA13
MAAA14MAAA14
-SCASA
-SRASA
-SWEA
C1875
100p/4/NPO/50V/J/X
4
8
7
6
5
4
3
2
1
DDRII3
2
VSS
5
VSS
8
VSS
11
VSS
14
VSS
17
VSS
20
VSS
23
VSS
26
VSS
29
VSS
D D
-DQSB[0..7]
-DQSB[0..7] [10]
DQSB[0..7]
DQSB[0..7] [10]
DMB[0..7]
MODT_B[0..3]
C C
DMB[0..7] [10]
MODT_B[0..3] [10,17]
DDR18V
BC719
B B
C59
0.1u/6/Y5V/25V/Z
MAAB[0..14][10,17]
A A
DDR18V
R105
1K/4/1
1 2
VREF_DDRB
R106
1K/4/1
1 2
8
0.1u/6/Y5V/25V/Z
VCC3
VREF_DDRB VREF_DDRB
SMBCLK[15,18,20,23,24]
SMBDATA[15,18,20,23,24]
VCC3
SBAB1[10,17]
SBAB0[10,17]
CKEB1[10,17]
CKEB0[10,17]
-CSB1[10,17]
-CSB0[10,17]
-DCLKB2[10]
DCLKB2[10]
-DCLKB1[10]
DCLKB1[10]
-DCLKB0[10]
DCLKB0[10]
SBAB2[10,17] SBAB2[10,17]
-SCASB[10,17]
-SRASB[10,17]
-SWEB[10,17]
32
VSS
35
VSS
38
VSS
41
VSS
44
VSS
47
VSS
50
VSS
65
VSS
66
VSS
79
VSS
82
VSS
85
VSS
88
VSS
91
VSS
94
VSS
97
VSS
100
VSS
103
VSS
106
VSS
109
VSS
112
VSS
115
VSS
118
VSS
121
VSS
124
VSS
127
VSS
130
VSS
133
VSS
136
VSS
139
VSS
142
VSS
145
VSS
148
VSS
151
VSS
154
VSS
157
VSS
160
VSS
163
VSS
166
VSS
169
VSS
198
VSS
201
VSS
204
VSS
207
VSS
210
VSS
213
VSS
216
VSS
219
VSS
222
VSS
225
VSS
228
VSS
231
VSS
234
VSS
237
VSS
51
VDDQ
56
VDDQ
62
VDDQ
72
VDDQ
75
VDDQ
78
VDDQ
191
VDDQ
194
VDDQ
181
VDDQ
175
VDDQ
170
VDDQ
53
VDD
59
VDD
64
VDD
197
VDD
69
VDD
172
VDD
187
VDD
184
VDD
178
VDD
189
VDD
67
VDD
18
RC1
55
RC0
238
VDDSPD
1
SMBCLK
SMBDATA
SBAB1
SBAB0
CKEB1
CKEB0
-CSB1
-CSB0
-DCLKB2
DCLKB2
-DCLKB1
DCLKB1
-DCLKB0
DCLKB0
MAAB0
MAAB1
MAAB2
MAAB3
MAAB4
MAAB5
MAAB6
MAAB7
MAAB8
MAAB9
MAAB10
MAAB11
MAAB12
MAAB13 MAAB13
SBAB2 SBAB2
-SCASB
-SRASB
-SWEB
VREF
120
SCL
119
SDA
101
SA2
240
SA1
239
SA0
190
BA1
71
BA0
171
CKE1
52
CKE0
76
S1*
193
S0*
221
CK2*/RFU
220
CK2/RFU
138
CK1*/RFU
137
CK1/RFU
186
CK0*
185
CK0
188
A0
183
A1
63
A2
182
A3
61
A4
60
A5
180
A6
58
A7
179
A8
177
A9
70
A10/AP
57
A11
176
A12
196
A13
174
A14
173
A15
54
A16/BA2
74
CAS*
192
RSA*
73
WE*
DDR2/240/YL/VA/D
7
6
NC/TEST
ODT1
ODT0
CB(0)
CB(1)
CB(2)
CB(3)
CB(4)
CB(5)
CB(6)
CB(7)
DQS(0)
DQS*(0)
DQS(1)
DQS*(1)
DQS(2)
DQS*(27)
DQS(3)
DQS*(3)
DQS(4)
DQS*(4)
DQS(5)
DQS*(5)
DQS(6)
DQS*(6)
DQS(7)
DQS*(7)
DQS8
DQS8*
DM0/DQS9
NC/DQS9*
DM1/DQS10
NC/DQS10*
DM2/DQS11
NC/DQS11*
DM3/DQS12
NC/DQS12*
DM4/DQS13
NC/DQS13*
DM5/DQS14
NC/DQS14*
DM6/DQS15
NC/DQS15*
DM7/DQS16
NC/DQS16*
DM8/DQS17
NC/DQS17*
DQ(0)
DQ(1)
DQ(2)
DQ(3)
DQ(4)
DQ(5)
DQ(6)
DQ(7)
DQ(8)
DQ(9)
DQ(10)
DQ(11)
DQ(12)
DQ(13)
DQ(14)
DQ(15)
DQ(16)
DQ(17)
DQ(18)
DQ(19)
DQ(20)
DQ(21)
DQ(22)
DQ(23)
DQ(24)
DQ(25)
DQ(26)
DQ(27)
DQ(28)
DQ(29)
DQ(30)
DQ(31)
DQ(32)
DQ(33)
DQ(34)
DQ(35)
DQ(36)
DQ(37)
DQ(38)
DQ(39)
DQ(40)
DQ(41)
DQ(42)
DQ(43)
DQ(44)
DQ(45)
DQ(46)
DQ(47)
DQ(48)
DQ(49)
DQ(50)
DQ(51)
DQ(52)
DQ(53)
DQ(54)
DQ(55)
DQ(56)
DQ(57)
DQ(58)
DQ(59)
DQ(60)
DQ(61)
DQ(62)
DQ(63)
68
NC
102
19
NC
MODT_B1 MODT_B3
77
MODT_B0
195
42
43
48
49
161
162
167
168
DQSB0
7
-DQSB0
6
DQSB1
16
-DQSB1
15
DQSB2
28
-DQSB2
27
DQSB3
37
-DQSB3
36
DQSB4
84
-DQSB4
83
DQSB5
93
-DQSB5
92
DQSB6
105
-DQSB6
104
DQSB7
114
-DQSB7
113
46
45
DMB0
125
126
DMB1
134
135
DMB2
146
147
DMB3
155
156
DMB4
202
203
DMB5
211
212
DMB6
223
224
DMB7
232
233
164
165
MDB0
3
MDB1
4
MDB2
9
MDB3
10
MDB4
122
MDB5
123
MDB6
128
MDB7
129
MDB8
12
MDB9
13
MDB10
21
MDB11
22
MDB12
131
MDB13
132
MDB14
140
MDB15
141
MDB16
24
MDB17
25
MDB18
30
MDB19
31
MDB20
143
MDB21
144
MDB22
149
MDB23
150
MDB24
33
MDB25
34
MDB26
39
MDB27
40
MDB28
152
MDB29
153
MDB30
158
MDB31
159
MDB32
80
MDB33
81
MDB34
86
MDB35
87
MDB36
199
MDB37
200
MDB38
205
MDB39
206
MDB40
89
MDB41
90
MDB42
95
MDB43
96
MDB44
208
MDB45
209
MDB46
214
MDB47
215
MDB48
98
MDB49
99
MDB50
107
MDB51
108
MDB52
217
MDB53
218
MDB54
226
MDB55
227
MDB56
110
MDB57
111
MDB58
116
MDB59
117
MDB60
229
MDB61
230
MDB62
235
MDB63
236
100p/4/NPO/50V/J/X
5
MDB[0..63] [10]
C60 0.1u/6/Y5V/25V/Z
SMBDATA
SMBCLK
C1876
MAAB[0..14][10,17]
C1877
100p/4/NPO/50V/J/X
DDR18V
VCC3
SMBCLK
SMBCLK[15,18,20,23,24]
SMBDATA
SMBDATA[15,18,20,23,24]
VCC3
SBAB1
SBAB1[10,17]
SBAB0
SBAB0[10,17]
CKEB3
CKEB3[10,17]
CKEB2
CKEB2[10,17]
-CSB3
-CSB3[10,17]
-CSB2
-CSB2[10,17]
-DCLKB5
-DCLKB5[10]
DCLKB5
DCLKB5[10]
-DCLKB4
-DCLKB4[10]
DCLKB4
DCLKB4[10]
-DCLKB3
-DCLKB3[10]
DCLKB3
DCLKB3[10]
MAAB0
MAAB1
MAAB2
MAAB3
MAAB4
MAAB5
MAAB6
MAAB7
MAAB8
MAAB9
MAAB10
MAAB11
MAAB12
MAAB14MAAB14
-SCASB
-SCASB[10,17]
-SRASB
-SRASB[10,17]
-SWEB
-SWEB[10,17]
4
2
5
8
11
14
17
20
23
26
29
32
35
38
41
44
47
50
65
66
79
82
85
88
91
94
97
100
103
106
109
112
115
118
121
124
127
130
133
136
139
142
145
148
151
154
157
160
163
166
169
198
201
204
207
210
213
216
219
222
225
228
231
234
237
51
56
62
72
75
78
191
194
181
175
170
53
59
64
197
69
172
187
184
178
189
67
18
55
238
1
120
119
101
240
239
190
71
171
52
76
193
221
220
138
137
186
185
188
183
63
182
61
60
180
58
179
177
70
57
176
196
174
173
54
74
192
73
DDRII4
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
VDD
RC1
RC0
VDDSPD
VREF
SCL
SDA
SA2
SA1
SA0
BA1
BA0
CKE1
CKE0
S1*
S0*
CK2*/RFU
CK2/RFU
CK1*/RFU
CK1/RFU
CK0*
CK0
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10/AP
A11
A12
A13
A14
A15
A16/BA2
CAS*
RSA*
WE*
DDR2/240/RE/VA/D
68
NC
102
NC/TEST
19
NC
77
ODT1
MODT_B2
195
ODT0
42
CB(0)
43
CB(1)
48
CB(2)
49
CB(3)
161
CB(4)
162
CB(5)
167
CB(6)
168
CB(7)
DQSB0
7
DQS(0)
DQS*(0)
DQS(1)
DQS*(1)
DQS(2)
DQS*(27)
DQS(3)
DQS*(3)
DQS(4)
DQS*(4)
DQS(5)
DQS*(5)
DQS(6)
DQS*(6)
DQS(7)
DQS*(7)
DM0/DQS9
NC/DQS9*
DM1/DQS10
NC/DQS10*
DM2/DQS11
NC/DQS11*
DM3/DQS12
NC/DQS12*
DM4/DQS13
NC/DQS13*
DM5/DQS14
NC/DQS14*
DM6/DQS15
NC/DQS15*
DM7/DQS16
NC/DQS16*
DM8/DQS17
NC/DQS17*
DQ(10)
DQ(11)
DQ(12)
DQ(13)
DQ(14)
DQ(15)
DQ(16)
DQ(17)
DQ(18)
DQ(19)
DQ(20)
DQ(21)
DQ(22)
DQ(23)
DQ(24)
DQ(25)
DQ(26)
DQ(27)
DQ(28)
DQ(29)
DQ(30)
DQ(31)
DQ(32)
DQ(33)
DQ(34)
DQ(35)
DQ(36)
DQ(37)
DQ(38)
DQ(39)
DQ(40)
DQ(41)
DQ(42)
DQ(43)
DQ(44)
DQ(45)
DQ(46)
DQ(47)
DQ(48)
DQ(49)
DQ(50)
DQ(51)
DQ(52)
DQ(53)
DQ(54)
DQ(55)
DQ(56)
DQ(57)
DQ(58)
DQ(59)
DQ(60)
DQ(61)
DQ(62)
DQ(63)
DQS8
DQS8*
DQ(0)
DQ(1)
DQ(2)
DQ(3)
DQ(4)
DQ(5)
DQ(6)
DQ(7)
DQ(8)
DQ(9)
-DQSB0
6
DQSB1
16
-DQSB1
15
DQSB2
28
-DQSB2
27
DQSB3
37
-DQSB3
36
DQSB4
84
-DQSB4
83
DQSB5
93
-DQSB5
92
DQSB6
105
-DQSB6
104
DQSB7
114
-DQSB7
113
46
45
DMB0
125
126
DMB1
134
135
DMB2
146
147
DMB3
155
156
DMB4
202
203
DMB5
211
212
DMB6
223
224
DMB7
232
233
164
165
MDB0
3
MDB1
4
MDB2
9
MDB3
10
MDB4
122
MDB5
123
MDB6
128
MDB7
129
MDB8
12
MDB9
13
MDB10
21
MDB11
22
MDB12
131
MDB13
132
MDB14
140
MDB15
141
MDB16
24
MDB17
25
MDB18
30
MDB19
31
MDB20
143
MDB21
144
MDB22
149
MDB23
150
MDB24
33
MDB25
34
MDB26
39
MDB27
40
MDB28
152
MDB29
153
MDB30
158
MDB31
159
MDB32
80
MDB33
81
MDB34
86
MDB35
87
MDB36
199
MDB37
200
MDB38
205
MDB39
206
MDB40
89
MDB41
90
MDB42
95
MDB43
96
MDB44
208
MDB45
209
MDB46
214
MDB47
215
MDB48
98
MDB49
99
MDB50
107
MDB51
108
MDB52
217
MDB53
218
MDB54
226
MDB55
227
MDB56
110
MDB57
111
MDB58
116
MDB59
117
MDB60
229
MDB61
230
MDB62
235
MDB63
236
MDB[0..63] [10]
Gigabyte Technology
Title
Size Document Number Rev
Custom
3
Date: Sheet
2
DDRII-CHANNEL B 1,2
GA-TG965MP-RH-GW 2.1
16 36
of
1
8
7
6
5
4
3
2
1
DDR TERMINATION
CHANNEL A
D D
DDR18V Decouple DDRVTT Decouple
DDR18V DDR18V
BC52
0.1u/6/Y5V/25V/Z
BC54
0.1u/6/Y5V/25V/Z
BC56
0.1u/6/Y5V/25V/Z
C C
SBAA[0..2]
-CSA[0..3]
CKEA[0..3]
MAAA[0..14]
MODT_A[0..3]
B B
DDRVTT DDRVTT
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
SBAA[0..2] [10,15]
-CSA[0..3] [10,15]
CKEA[0..3] [10,15]
MAAA[0..14] [10,15]
BC58
BC60
BC62
MODT_A0
MODT_A1
MODT_A2
MODT_A3
-SCASA[10,15]MODT_A[0..3] [10,15]
-SWEA[10,15]
-SRASA[10,15]
MAAA8
MAAA7
MAAA4
MAAA1
MAAA13
MAAA2
MAAA3
SBAA2
SBAA1
MAAA10
MAAA0
CKEA0
CKEA3
CKEA2
CKEA1
-CSA3
-CSA1
-CSA2
-CSA0
MAAA5
MAAA6
MAAA9
MAAA11
MAAA12
SBAA0
MAAA14
R1612 33/4
R1613 33/4
R1614 33/4
R1615 33/4
R1618 33/4
R1619 33/4
R117 33/4
R119 33/4
R1620 33/4
R125 33/4
R1621 33/4
R129 33/4
R131 33/4
R133 33/4
R135 33/4
R137 33/4
R139 33/4
R141 33/4
R143 33/4
R145 33/4
R147 33/4
R149 33/4
R152 33/4
R154 33/4
R156 33/4
R158 33/4
R160 33/4
R162 33/4
R1678 33/4
R165 33/4
R167 33/4
R169 33/4
DDRVTT
DDR TERMINATION
CHANNEL B
DDRVTT DecoupleDDR18V Decouple
BC51
0.1u/6/Y5V/25V/Z
BC53
0.1u/6/Y5V/25V/Z
BC55
0.1u/6/Y5V/25V/Z
MODT_B[0..3]
SBAB[0..2]
-CSB[0..3]
CKEB[0..3]
MAAB[0..14]
MODT_B[0..3] [10,16]
SBAB[0..2] [10,16]
-CSB[0..3] [10,16]
CKEB[0..3] [10,16]
MAAB[0..14] [10,16]
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
BC57
BC59
BC61
DDRVTT
MAAB14
R1677 33/4
MAAB1
R1616 33/4
MAAB2
R1617 33/4
MAAB4
R114 33/4
MAAB3
R116 33/4
MAAB5
R118 33/4
MAAB6
R120 33/4R121 33/4
MAAB13
R122 33/4
MAAB8
R124 33/4
MAAB7
R126 33/4
MAAB9
R128 33/4
MAAB11
R130 33/4
MAAB12
R1622 33/4
MODT_B0
R134 33/4
MODT_B1
R136 33/4
MODT_B2
R138 33/4
MODT_B3
R140 33/4
SBAB1
R142 33/4
SBAB0
R144 33/4
MAAB10
R146 33/4
MAAB0
R148 33/4
CKEB0
R150 33/4
CKEB1
R151 33/4
CKEB3
R153 33/4
CKEB2
R155 33/4
-CSB3
R157 33/4
-CSB2
R159 33/4
-CSB1
R161 33/4
-CSB0
R163 33/4
SBAB2
R164 33/4
-SWEB[10,16]
-SCASB[10,16]
-SRASB[10,16]
R166 33/4
R168 33/4
R170 33/4
DDRVTT Decouple
DDRVTT
+
EC15 1000u/D/6.3V/8C/36m
DDRVTT
BC46
4.7u/8/Y5V/10V/Z
A A
DDR18V
EC16 1000u/D/6.3V/8C/36m
EC17 1000u/D/6.3V/8C/36m
8
BC47
4.7u/8/Y5V/10V/Z
+
+
7
BC48
4.7u/8/Y5V/10V/Z
BC49
4.7u/8/Y5V/10V/Z
6
Title
Gigabyte Technology
DDRII-TERMINATION
Size Document Number Rev
Custom
5
4
3
Date: Sheet
GA-TG965MP-RH-GW
2
17 36Monday, May 14, 2007
of
1
2.1
+12V
1
+
EC68
470U/D/16V/8C/36m
8
+12V
BC65
0.1u/6/Y5V/25V/Z
VCC3
+
EC63
1000u/D/6.3V/8C/36m
7
6
5
4
3
2
1
PCIESLOT-164DN-2
+12V
VCC3
D D
3VDUAL
SMBCLK
SMBDATA
VCC3
EXP_A_TXP0C
EXP_A_TXN0C
EXP_A_TXP1C
EXP_A_TXN1C
EXP_A_TXP2C
EXP_A_TXN2C
EXP_A_TXP3C
EXP_A_TXN3C
SVDO_CLDATA
EXP_A_TXP4C
EXP_A_TXN4C
EXP_A_TXP5C
EXP_A_TXN5C
EXP_A_TXP6C
EXP_A_TXN6C
EXP_A_TXP7C
EXP_A_TXN7C
EXP_EN_HDR
EXP_A_TXP8C
EXP_A_TXN8C
EXP_A_TXP9C
EXP_A_TXN9C
EXP_A_TXP10C
EXP_A_TXN10C
EXP_A_TXP11C
EXP_A_TXN11C
EXP_A_TXP12C
EXP_A_TXN12C
EXP_A_TXP13C
EXP_A_TXN13C
EXP_A_TXP14C
EXP_A_TXN14C
EXP_A_TXP15C
EXP_A_TXN15C
SMBCLK[15,16,20,23,24]
BC67
0.1u/6/Y5V/25V/Z
C C
B B
A A
BC68
0.1u/6/Y5V/25V/Z/X
EXP_A_TXP[0..15]
EXP_A_TXN[0..15]
EXP_A_TXP0
EXP_A_TXN0
EXP_A_TXP1
EXP_A_TXN1
EXP_A_TXP2
EXP_A_TXN2
EXP_A_TXP3
EXP_A_TXN3
EXP_A_TXP4
EXP_A_TXN4
EXP_A_TXP5
EXP_A_TXN5
EXP_A_TXP6
EXP_A_TXN6
EXP_A_TXP7
EXP_A_TXN7
EXP_A_TXP8
EXP_A_TXN8
EXP_A_TXP9
EXP_A_TXN9
EXP_A_TXP10
EXP_A_TXN10
EXP_A_TXP11
EXP_A_TXN11
EXP_A_TXP12
EXP_A_TXN12
EXP_A_TXP13
EXP_A_TXN13
EXP_A_TXP14
EXP_A_TXN14
EXP_A_TXP15
EXP_A_TXN15
BC69
0.1u/6/Y5V/25V/Z
EXP_A_TXP[0..15] [11]
EXP_A_TXN[0..15] [11]
C92 0.1u/4/Y5V/16V/Z
C93 0.1u/4/Y5V/16V/Z
C94 0.1u/4/Y5V/16V/Z
C95 0.1u/4/Y5V/16V/Z
C96 0.1u/4/Y5V/16V/Z
C97 0.1u/4/Y5V/16V/Z
C98 0.1u/4/Y5V/16V/Z
C99 0.1u/4/Y5V/16V/Z
C100 0.1u/4/Y5V/16V/Z
C101 0.1u/4/Y5V/16V/Z
C102 0.1u/4/Y5V/16V/Z
C103 0.1u/4/Y5V/16V/Z
C104 0.1u/4/Y5V/16V/Z
C105 0.1u/4/Y5V/16V/Z
C106 0.1u/4/Y5V/16V/Z
C107 0.1u/4/Y5V/16V/Z
C108 0.1u/4/Y5V/16V/Z
C109 0.1u/4/Y5V/16V/Z
C110 0.1u/4/Y5V/16V/Z
C111 0.1u/4/Y5V/16V/Z
C112 0.1u/4/Y5V/16V/Z
C113 0.1u/4/Y5V/16V/Z
C114 0.1u/4/Y5V/16V/Z
C115 0.1u/4/Y5V/16V/Z
C116 0.1u/4/Y5V/16V/Z
C117 0.1u/4/Y5V/16V/Z
C118 0.1u/4/Y5V/16V/Z
C119 0.1u/4/Y5V/16V/Z
C120 0.1u/4/Y5V/16V/Z
C121 0.1u/4/Y5V/16V/Z
C122 0.1u/4/Y5V/16V/Z
C123 0.1u/4/Y5V/16V/Z
EXP_A_TXP0C
EXP_A_TXN0C
EXP_A_TXP1C
EXP_A_TXN1C
EXP_A_TXP2C
EXP_A_TXN2C
EXP_A_TXP3C
EXP_A_TXN3C
EXP_A_TXP4C
EXP_A_TXN4C
EXP_A_TXP5C
EXP_A_TXN5C
EXP_A_TXP6C
EXP_A_TXN6C
EXP_A_TXP7C
EXP_A_TXN7C
EXP_A_TXP8C
EXP_A_TXN8C
EXP_A_TXP9C
EXP_A_TXN9C
EXP_A_TXP10C
EXP_A_TXN10C
EXP_A_TXP11C
EXP_A_TXN11C
EXP_A_TXP12C
EXP_A_TXN12C
EXP_A_TXP13C
EXP_A_TXN13C
EXP_A_TXP14C
EXP_A_TXN14C
EXP_A_TXP15C
EXP_A_TXN15C
SMBDATA[15,16,20,23,24]
-PCIE_WAKE[20,24,35]
SDVO_CLCLK[11]
SDVO_CLDATA[11]
EXP_EN_HDR[12]
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
B1
B2
B3
B4
B5
B6
B7
B8
B9
PCIE_16
12V
12V
RSVD
GND
SMCLK
SMDAT
GND
3.3V
JTAG1
3.3VAUX
WAKE*
RSVD
GND
HSOP0
HSON0
GND
PRSNT2*
GND
HSOP1
HSON1
GND
GND
HSOP2
HSON2
GND
GND
HSOP3
HSON3
GND
RSVD
PRSNT2*
GND
HSOP4
HSON4
GND
GND
HSOP5
HSON5
GND
GND
HSOP6
HSON6
GND
GND
HSOP7
HSON7
GND
PRSNT2*
GND
HSOP8
HSON8
GND
GND
HSOP9
HSON9
GND
GND
HSOP10
HSON10
GND
GND
HSOP11
HSON11
GND
GND
HSOP12
HSON12
GND
GND
HSOP13
HSON13
GND
GND
HSOP14
HSON14
GND
GND
HSOP15
HSON15
GND
PRSNT2*
RSVD
3GIO_*16
KEY
PRSNT1*
12V
12V
GND
JTAG2
JTAG3
JTAG4
JTAG5
3.3V
3.3V
PWRGD
GND
REFCLK+
REFCLK-
GND
HSIP0
HSIN0
GND
RSVD
GND
HSIP1
HSIN1
GND
GND
HSIP2
HSIN2
GND
GND
HSIP3
HSIN3
GND
RSVD
RSVD
GND
HSIP4
HSIN4
GND
GND
HSIP5
HSIN5
GND
GND
HSIP6
HSIN6
GND
GND
HSIP7
HSIN7
GND
RSVD
GND
HSIP8
HSIN8
GND
GND
HSIP9
HSIN9
GND
GND
HSIP10
HSIN10
GND
GND
HSIP11
HSIN11
GND
GND
HSIP12
HSIN12
GND
GND
HSIP13
HSIN13
GND
GND
HSIP14
HSIN14
GND
GND
HSIP15
HSIN15
GND
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
+12V
VCC3
-PCIE_RST
EXP_A_RXP0
EXP_A_RXN0SVDO_CLCLK
EXP_A_RXP1
EXP_A_RXN1
EXP_A_RXP2
EXP_A_RXN2
EXP_A_RXP3
EXP_A_RXN3
EXP_A_RXP4
EXP_A_RXN4
EXP_A_RXP5
EXP_A_RXN5
EXP_A_RXP6
EXP_A_RXN6
EXP_A_RXP7
EXP_A_RXN7
EXP_A_RXP8
EXP_A_RXN8
EXP_A_RXP9
EXP_A_RXN9
EXP_A_RXP10
EXP_A_RXN10
EXP_A_RXP11
EXP_A_RXN11
EXP_A_RXP12
EXP_A_RXN12
EXP_A_RXP13
EXP_A_RXN13
EXP_A_RXP14
EXP_A_RXN14
EXP_A_RXP15
EXP_A_RXN15
-PCIE_RST [24,25,33,35]
SRCCLK_3GIO [23]
-SRCCLK_3GIO [23]
-PCIE_RST
C91
33p/4/NPO/50V/J/X
EXP_A_RXP[0..15]
EXP_A_RXN[0..15]
EXP_A_RXP[0..15] [11]
EXP_A_RXN[0..15] [11]
PCI-E/16X-164P/BK/AUTO-LOCK
8
7
6
5
4
3
Title
Size Document Number Rev
Custom
Date: Sheet
2
Gigabyte Technology
PCI EXPRESS*16 SLOT
GA-TG965MP-RH-GW
18 36Monday, May 14, 2007
of
1
2.1
8
7
6
5
4
3
2
1
D D
10p/4/NPO/50V/J/X
-PCIRST[24]
100p/4/NPO/50V/J/X
C C
B B
C124
C1878
R204 22/4
-GNT2
ICH33
-DEVSEL[24,34]
-PCIPME[24,34]
U10B
DMI_0TXN[11]
ICH8
U10A
A_D0
PAR
PAR[24,34]
-DEVSEL
ICH33
ICH33[23]
-PCIRST_F
-IRDY[24,34]
-SERR[24]
-STOP[24,34]
-PLOCK[24]
-TRDY[24,34]
-PERR[24,34]
-FRAME[24,34]
-GNT0[24,27]
-GNT1[24]
-GNT3[34]
-REQ0[24]
-REQ1[24]
-REQ2[24]
-REQ3[24,34]
-PIRQA[24]
-PIRQB[24]
-PIRQC[24]
-PIRQD[24]
-PIRQE[24]
-PIRQF[24]
-PIRQG[24]
-PIRQH[24,34]
SERIRQ[21,25,27]
-IRDY
-PCIPME
-SERR
-STOP
-PLOCK
-TRDY
-PERR
-FRAME
-GNT0
-GNT1
-GNT2
-GNT3
-REQ0
-REQ1
-REQ2
-REQ3
-PIRQA
-PIRQB
-PIRQC
-PIRQD
-PIRQE
-PIRQF
-PIRQG
-PIRQH
SERIRQ
NH82801HR/S/[10HB1-032801-Y1R]
B12
B10
D15
D11
E16
C15
D17
C16
B16
F10
G11
AG9
D9
E3
B6
D3
E6
A7
C9
A4
B9
E8
A9
C4
C5
A3
A8
D5
F9
PAR
DEVSEL#
PCICLK
PCIRST#
IRDY#
PME#
SERR#
STOP#
PLOCK#
TRDY#
PERR#
FRAME#
GNT0#
GNT1#/GPIO51
GNT2#/GPIO53
GNT3#/GPIO55
REQ0#
REQ1#/GPIO50
REQ2#/GPIO52
REQ3#/GPIO54
PIRQA#
PIRQB#
PIRQC#
PIRQD#
PIRQE#/GPIO2
PIRQF#/GPIO3
PIRQG#/GPIO4
PIRQH#/GPIO5
SERIRQ
1 OF 6
PCI
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
C/BE0#
C/BE1#
C/BE2#
C/BE3#
E18
A16
A14
A17
B13
F18
E17
C17
A13
C14
E14
C13
E15
F16
A11
D10
C11
E13
E12
D13
F14
E11
D8
D7
C7
F13
B7
C6
B5
F12
F8
E7
G16
A10
C12
A12
A_D1
A_D2
A_D3
A_D4
A_D5
A_D6
A_D7
A_D8
A_D9
A_D10
A_D11
A_D12
A_D13
A_D14
A_D15
A_D16
A_D17
A_D18
A_D19
A_D20
A_D21
A_D22
A_D23
A_D24
A_D25
A_D26
A_D27
A_D28
A_D29
A_D30
A_D31
-C_BE0
-C_BE1
-C_BE2
-C_BE3
A_D[0..31]
-C_BE0 [24,34]
-C_BE1 [24,34]
-C_BE2 [24,34]
-C_BE3 [24,34]
A_D[0..31] [24,34]
DMI_0TXP[11]
DMI_0RXN[11]
DMI_0RXP[11]
DMI_1TXN[11]
DMI_1TXP[11]
DMI_1RXN[11]
DMI_1RXP[11]
DMI_2TXN[11]
DMI_2TXP[11]
DMI_2RXN[11]
DMI_2RXP[11]
DMI_3TXN[11]
DMI_3TXP[11]
DMI_3RXN[11]
DMI_3RXP[11]
-SRCCLK_ICH[23]
SRCCLK_ICH[23]
PCIE_IN0[24]
PCIE_IP0[24]
PCIE_ON0[24]
PCIE_OP0[24]
PCIE_IN1[33]
PCIE_IP1[33]
PCIE_ON1[33]
PCIE_OP1[33]
LAN_IN[35]
LAN_IP[35]
LAN_ON[35]
LAN_OP[35]
DMI_0TXN
DMI_0TXP
DMI_0RXN
DMI_0RXP
DMI_1TXN
DMI_1TXP
DMI_1RXN
DMI_2TXN
DMI_2RXN
DMI_2RXP
DMI_3TXP
DMI_3RXN
DMI_3RXP
VCC1_5
-SRCCLK_ICH
SRCCLK_ICH
C125 0.1u/4/Y5V/16V/Z
C126 0.1u/4/Y5V/16V/Z
C1885 0.1u/4/Y5V/16V/Z
C1886 0.1u/4/Y5V/16V/Z
R206 24.9/6/1
C82 0.1u/4/Y5V/16V/Z
C83 0.1u/4/Y5V/16V/Z
Interrupt Interface
R2421
0/4/X
SB_HEATSIN
1
U26
U25
T28
T27
W26
W25
V28
V27
AA25
AA24
Y28
Y27
AC26
AC25
AB28
AB27
AD28
AD27
R25
R24
N25
N26
M28
M27
L25
L26
K28
K27
H28
H27
G26
G25
F28
F27
E26
E25
D28
D27
C26
C25
B28
B27
E22
E20
E19
C19
D20
C20
C18
D18
J26
J25
DMI0RXN
DMI0RXP
DMI0TXN
DMI0TXP
DMI1RXN
DMI1RXP
DMI1TXN
DMI1TXP
DMI2RXN
DMI2RXP
DMI2TXN
DMI2TXP
DMI3RXN
DMI3RXP
DMI3TXN
DMI3TXP
DMI_IRCOMP
DMICOMPI
DMI_CLKN
DMI_CLKP
PERn1
PERp1
PETn1
PETp1
PERn2
PERp2
PETn2
PETp2
PERn3
PERp3
PETn3
PETp3
PERn4
PERp4
PETn4
PETp4
PERn5
PERp5
PETn5
PETp5
PERn6/GLAN_RXN
PERp6/GLAN_RXP
PETn6/GLAN_TXN
PETp6/GLAN_TXP
GLAN_CLK
LAN_RSTSYNC
LAN_RXD0
LAN_RXD1
LAN_RXD2
LAN_TXD0
LAN_TXD1
LAN_TXD2
ICH8
USBP0N
USBP0P
USBP1N
USBP1P
USBP2N
USBP2P
USBP3N
USBP3P
USBP4N
USBP4P
USBP5N
DMIPCI Express
USBP5P
USBP6N
USBP6P
USBP7N
USBP7P
USBP8N
USBP8P
USBP9N
USBP9P
USB
OC0#
OC1#/GPIO40
OC2#/GPIO41
OC3#/GPIO42
OC4#/GPIO43
OC5#/GPIO29
OC6#/GPIO30
OC7#/GPIO31
OC8#
OC9#
USBRBIAS#
USBRBIAS
CLK48
LAN
G2
G3
H5
H4
H1
H2
J3
J2
K5
K4
K1
K2
L3
L2
M5
M4
M2
M1
N2
N3
AF15
AH14
AG14
AG15
AH15
AE15
AG13
AF14
AD14
AG16
E1
E2
B1
-USBP0
+USBP0
-USBP1
+USBP1
-USBP2
+USBP2DMI_1RXP
-USBP3
+USBP3DMI_2TXP
-USBP4
+USBP4
-USBP5DMI_3TXN
+USBP5
-USBP6
+USBP6
-USBP7
+USBP7
-USBP8
+USBP8
-USBP9
+USBP9
-USBOC_F
-USBOC_R
R205
22.6/6/1
USBCLK48
C1879
10p/4/NPO/50V/J/X
-USBP0 [36]
+USBP0 [36]
-USBP1 [36]
+USBP1 [36]
-USBP2 [36]
+USBP2 [36]
-USBP3 [36]
+USBP3 [36]
-USBP4 [35]
+USBP4 [35]
-USBP5 [35]
+USBP5 [35]
-USBP6 [34]
+USBP6 [34]
-USBP7 [34]
+USBP7 [34]
-USBP8 [36]
+USBP8 [36]
-USBP9 [36]
+USBP9 [36]
-USBOC_F [36]
-USBOC_R [35]
USBCLK48 [23]
2 OF 6
NH82801HR/S/[10HB1-032801-Y1R]
A A
2
8
7
SB_HEATSIN/[12SP2-030010-21R_12SP2-030010-22R]
6
Title
Size Document Number Rev
B
5
4
3
Date: Sheet
Gigabyte Technology
ICH8-PCI / DMI / LAN / USB
GA-TG965MP-RH-GW
2
of
2.1
19 36Monday, May 14, 2007
1

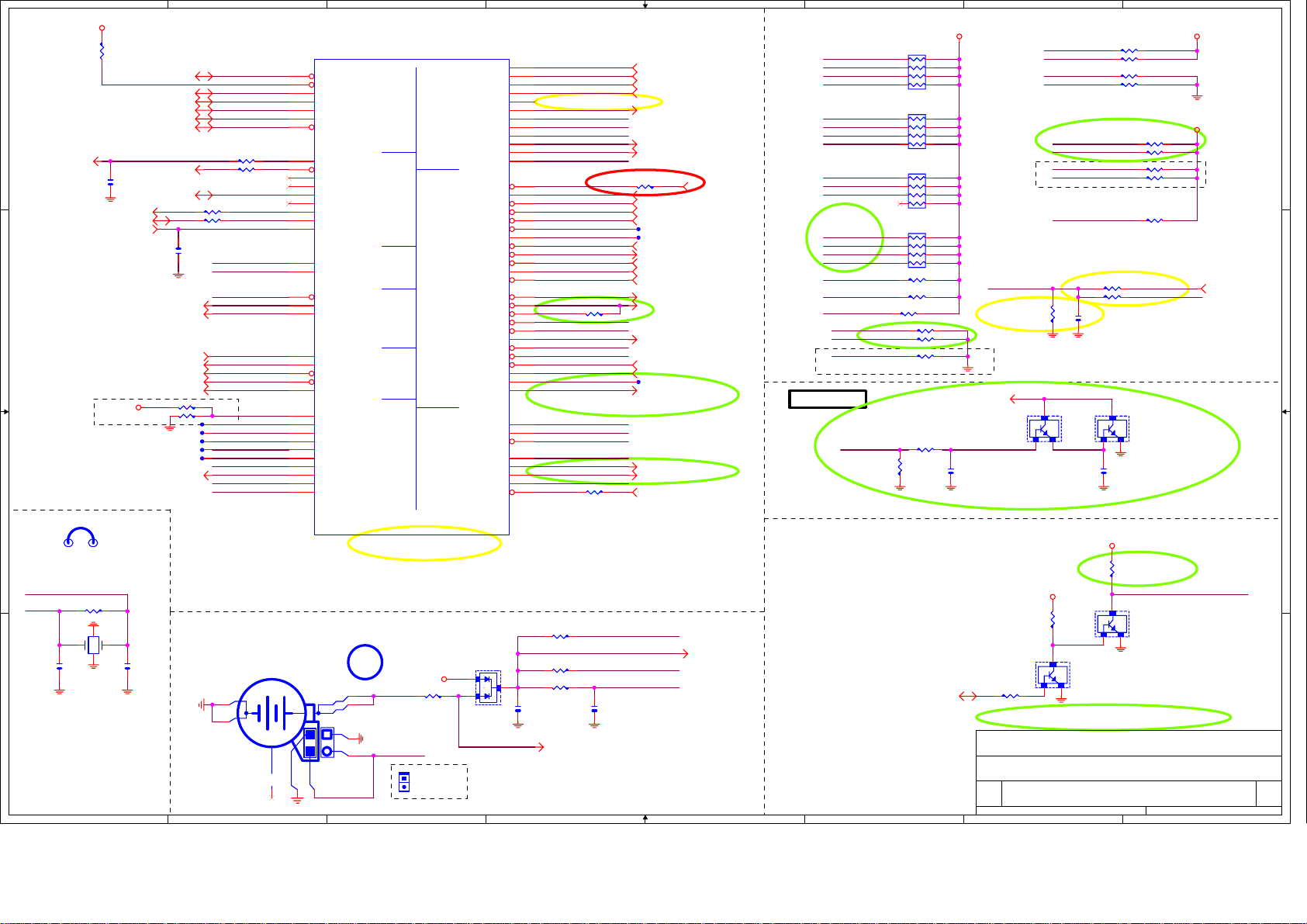

8
VCC3
R631
8.2K/4
-LDRQ0[25]
LAD0[25,27]
LAD1[25,27]
D D
ACZ_BITCLK[28]
10p/4/NPO/50V/J/X
C C
B B
Y2
Y1
C143
18P/4/NPO/50V/J
A A
C137
ACZ_SDOUT[28]
ACZ_SYNC[28]
10p/4/NPO/50V/J/X
3VDUAL
REV 0.2 DESIGN
NOTE改成TEST PIN
X1-SHT
SHW/D0.64*5.08*6.74
R238 10M/4
X1
32.768K/12.5p/20ppm/TF38/35K/D
3 4
8
ICHCLK14[23]
LAD2[25,27]
LAD3[25,27]
-LFRAME[25,27]
ACZ_BITCLK
-ACZ_RST[28]
ACZ_SDIN2[28]
R220 33/4
R221 33/4
C1880
SMBCLK[15,16,18,23,24]
SMBDATA[15,16,18,23,24]
ICH_SPI_MOSI[27]
ICH_SPI_MISO[27]
-SPI_CS0[27]
-SPI_CS1[27]
ICH_SPI_CLK[27]
R1779 1K/4/X
R630 1K/4/X
TP40
TP41
TP24
TP25
TP26
SPKR[36]
C144
18P/4/NPO/50V/J
ICHCLK14
BATTERY-DUAL-4
7
-LDRQ0
-LDRQ1
LAD0
LAD1
LAD2
LAD3
-LFRAME
R214 33/4
R216 33/4
ACZ_SDIN2
A_SO
A_SYC
Y2
Y1
-SMBALRT
SMBCLK
SMBDATA
ICH_SPI_MOSI
ICH_SPI_MISO
-SPI_CS0
-SPI_CS1
ICH_SPI_CLK
ICH_TP0
SPKR
INTVRMEN
ICH_LAN100SLP
BAT
BAT-SK/BK/P/S/D/SN
5
2
NC
3
7
U10D
G8
LDRQ0#
C3
LDRQ1#/GPIO23
F6
FWH0/LAD0
F5
FWH1/LAD1
G9
FWH2/LAD2
E5
FWH3/LAD3
B3
FWH4/LFRAME#
AF12
HDA_BIT_CLK
AF13
HDA_RST#
AE13
HDA_SDIN0
AC14
HDA_SDIN1
AH12
HDA_SDIN2
AD13
HDA_SDI3
AH11
HDA_SDOUT
AH10
HDA_SYNC
AG6
CLK14
AH26
RTCX1
AH27
RTCX2
AF21
SMBALERT#/GPIO11
AD19
SMBCLK
AB18
SMBDATA
D21
SPI_MOSI
B19
SPI_MISO
C21
SPI_CS0#
A18
SPI_CS1#
A19
SPI_CLK
AG20
TP6
AH20
TP5
AE18
TP4
AD16
TP3
AD24
TP2
AE25
TP1
AE22
TP0
AF6
SPKR
AA22
INTVRMEN
AG24
LAN100_SLP
7
6
6
ICH8
RTC
QRT_STATE0/GPIO27
QRT_STATE1/GPIO28
SPI SMB AUDIO LPC
MISC
NH82801HR/S/[10HB1-032801-Y1R]
BATTERY
CR2032
4
1
RB
9
8
CR2032
+
VBATT
必須放在
3VDUAL
RB 1K/4
-RTCRST
6
BAT54C/SOT23/200mA
BAT
CLR_CMOS
PH/1*2/BK/2.54/VA/D
GPIO0
GPIO8
GPIO12
GPIO13
GPIO15
GPIO16
GPIO18
GPIO20
GPIO25
GPIO32
GPIO33
GPIO34
THRM#
VRMPWRGD
MCH_SYNC#
PWRBTN#
SUS_STAT#/LPCPD
SUSCLK
SYS_RESET#
PLTRST#
WAKE#
PWROK
RSMRST#
SLP_S3#
SLP_S4#
SLP_S5#
SLP_M#
Power Mgnt.System Mgnt. General Purpose I/O
S4_STATE#/GPIO26
CK_PWRGD
LAN_RST#
RTCRST#
THRMTRIP#
CLPWROK
SMLINK1
SMLINK0
LINKALERT#
CLGPIO3/GPIO9
CLGPIO1/GPIO10
CLGPIO2/GPIO14
CLGPIO0/GPIO24
INTRUDER#
4 of 6
D1
2
1
外
AF9
AE16
AC19
AF18
AE21
AE11
AC11
AG8
AH17
AH7
AG7
AG12
AH9
AC16
AE10
A1
AG17
RI#
G7
E4
AF16
AF23
AH18
AE24
AD22
AF22
AH23
AC17
AG22
AH25
F1
AF17
AD21
AG28
C2
AD20
AD15
AG21
AE19
AH21
AG18
AF20
AH24
AG23
AF24
3
VBAT
5
-ACZ_DET
GPI8
-SKTOCC
-LPCPME
-SPI_WP
MB_ID1
GPIO20
MB_ID0
GPO32
GPO33
GPIO34
ICH_THEM
ICH_VRMPWRGD
-ICHSYNC
PWRBTSW
-RI
-SUSTAT
SUSCLK
-SYS_RST
-PFMRST
-PCIE_WAKE
PWROK1
-RSMRST
-SLP_S3
-S4_S5
R235 0/4/X
ICH_SLP_MGPO26
CK_PWRGD
-LAN_RST
-RTCRST
-THRMTRIP
PWROK1
GPIO27
GPIO28
ICH8DH GPIO27/28
SMLINK1
SMLINK0
-LINKALERT
WOL_ONLY
GPIO10
GPIO14
GPIO24
R230 1M/4
R231 390K/4
R232 390K/4
R236 20K/4
C140
1u/6/Y5V/10V/Z
VBAT [25]
CLEAN CMOS :
PIN9,10
5
-ACZ_DET [28,29]
GPI8 [27]
-SKTOCC [7]
-LPCPME [25]
-SPI_WP [27]
GPO32 [27]
GPO33 [27]
R1675 0/4/X
ICH_VRMPWRGD [30]
-ICHSYNC [12]
PWRBTSW [25]
-RI [26]
TP35
TP36
-SYS_RST [6,23,36]
-PFMRST [12,25]
-PCIE_WAKE [18,24,35]
PWROK1 [12,25,36]
-RSMRST [25,31]
-SLP_S3 [25,31]
-S4_S5 [31]
CK_PWRGD [23]
-THRMTRIP [7]
PWROK1 [12,25,36]
TP46
GPIO28 [36]
GPIO10 [27]
GPIO14 [27]
RTCVDD [22]
ICH_LAN100SLP
RTCVDD
INTVRMEN
-RTCRST
C141
1u/6/Y5V/10V/Z
-THERM [25]
不要用。
RTCVDD [22]
4
-LINKALERT
-SMBALRT
SMLINK1
SMLINK0
-SUSTAT
SMBCLK
-PCIE_WAKE
SMBDATA
-LPCPME
-RI
-SYS_RST
GPIO10
GPIO14
ICH_TP0
GPO26
ICH_SLP_M-
GPI8
-SKTOCC
H/W RESET
FOR ICH7R POWER ON
3
R1747 8.2K/4
R213 8.2K/4
R2359 8.2K/4
GPIO16
R226 100K/4
R1774 8.2K/4/X
R291 8.2K/4
WOL_ONLY
PWROK1
GPIO24
intel note
3VDUAL
RN9
8.2K/8P4R/6
1 2
3 4
5 6
7 8
RN10
8.2K/8P4R/6
1 2
3 4
5 6
7 8
RN11
8.2K/8P4R/6
1 2
3 4
5 6
7 8
RN12
8.2K/8P4R/6
1 2
3 4
5 6
7 8
-LAN_RST
-RST_BTN[25,27,36]
MMBT2222A/SOT23/600mA/40/X
R2378 100K/4/X
R2379
1K/4/X
-PROCHOT[7,30]
BC823
1u/6/Y5V/10V/Z/X
瞬間會
HIGH 到1.8V 之後0V,必須PULL DOWN 1K/6
2
R207 8.2K/4
MB_ID0
R209 8.2K/4
MB_ID1
R212 8.2K/4/X
MB_ID0
R215 8.2K/4/X
MB_ID1
-SPI_WP
GPIO34
A_SO
A_SYC
REV 0.2 FOR PCIEX4
R1588
8.2K/4
VCC3
GPIO20
132
SOT23
R2347
8.2K/4
132
REV 0.2 DESIGN NOTE 1.1 GPIO20
Q330
R2348
8.2K/4
R208 8.2K/4
R242 8.2K/4/X
R243 8.2K/4/X
R244 8.2K/4/X
才需
PULL-UP
R257 8.2K/4/X
R2364 1K/4/X
R2365 0/6/X
C1873
1u/6/Y5V/10V/Z/X
Q323
MMBT2222A/SOT23/600mA/40
SOT23
-RSMRST
intel lan: R2365 C1873 mount
no intel lan: LAN_RST need P.H
Q331
MMBT2222A/SOT23/600mA/40/X
SOT23
132
BC824
1u/6/Y5V/10V/Z/X
VCC3
R2346
1K/4
Q322
MMBT2222A/SOT23/600mA/40
SOT23
132
1
VCC3
VCC3
不行
PULL-UP
3VCL_R [22]
ICH_THEM
Gigabyte Technology
Title
Size Document Number Rev
B
4
3
Date: Sheet
ICH8-GPIO / CTRL
GA-TG965MP-RH-GW
2
of
2.1
20 36Monday, May 14, 2007
1
5
REV 0.2
否則造成不開機
,-PCIRST/-PFMRST
R2357
D D
0/6/X
R247
3.24K/4/1
R248
453/6/1
C C
B B
A A
VCC3
修改成
VCC3,
不會打
3VDUAL
R2358
0/6
C317
0.1u/6/Y5V/25V/Z
ICH_FAN_PWM0[26]
ICH_FAN_PWM1[26]
ICH_FAN_PWM2[26]
ICH_FAN_TACH0[26]
ICH_FAN_TACH1[26]
SATA0TXP
SATA0TXN
SATA0RXN
SATA2TXP
SATA2TXN
SATA2RXN
SATA2RXP
SATA4TXP
SATA4TXN SATA5RXN
SATA4RXN SATA4RXNC
SATA4RXP
CL_DATA[12]
-CL_RST[12]
CPUPWROK[7]
-IGNNE[7]
TESTHI13[7]
CL_CLK[12]
SSTCTL[25]
-STPCLK[7]
-KBRST[25]
-FERR[7]
-HINIT[5]
TP42
-A20M[7]
A20GATE[25]
5
0.1u/6/Y5V/25V/Z
PECI[7,25]
-SMI[7]
NMI[7]
INTR[7]
VCC1_5
R246
24.9/6/1
C1881
CL_CLK
CL_DATA
-CL_RST
ICH_FAN_PWM0
ICH_FAN_PWM1
ICH_FAN_PWM2
ICH_FAN_TACH0
ICH_FAN_TACH1
ICH_FAN_TACH2
ICH_FAN_TACH3
SSTCTL
PECI
CPUPWROK
-STPCLK
-SMI
-KBRST
NMI
-FERR
INTR
-HINIT
-FWHINIT
-IGNNE
TESTHI13
-A20M
A20GATE
C1450.01u/4/X7R/16V/K
C1470.01u/4/X7R/16V/K
C1490.01u/4/X7R/16V/K
C1510.01u/4/X7R/16V/K
C1530.01u/4/X7R/16V/K
C1550.01u/4/X7R/16V/K
C1570.01u/4/X7R/16V/K
C1590.01u/4/X7R/16V/K
C1710.01u/4/X7R/16V/K
C1700.01u/4/X7R/16V/K
C1640.01u/4/X7R/16V/K
C1650.01u/4/X7R/16V/K
U10C
C24
GLAN_COMPO
D24
GLAN_COMPI
F21
CL_CLK
G21
CL_DATA
B21
CL_VREF
AG19
CL_RST#
AB6
PWM0
AD6
PWM1
AB8
PWM2
AC7
TACH0/GPIO17
AF5
TACH1/GPIO1
AE6
TACH2/GPIO6
AC8
TACH3/GPIO7
AD17
SST
AF26
PECI
AF25
CPUPWRGD/GPIO49
AB23
STPCLK#
AB20
SMI#
AF10
RCIN#
AC23
NMI
AB22
FERR#
AH28
INTR
AB19
INIT#
AC12
INIT3_3V#
AC22
IGNNE#
AC24
CPUSLP#
AD23
A20M#
AG10
A20GATE
NH82801HR/S/[10HB1-032801-Y1R]
SATA0TXPC
SATA0TXNC
SATA2TXPC
SATA2TXNC
SATA2RXNC
SATA2RXPC
SATA4TXPC
SATA4TXNC
SATA4RXPC
4
ICH8
GbE Controller
Controller Link
Fan Speed Control
SATACLKREQ#/GPIO35
SDATAOUT1/GPIO48
HOST
SDATAOUT0/GPIO39
SATAII01_SB
GND
1
TX0+
2
TX0-
3
GND
4
RX0-
5
RX0+
6
GND
7
SATA2/7/YL/H/P/VA/D/2/B/GBT
SATAII23_SB
GND
1
TX0+
2
TX0-
3
GND
4
RX0-
5
RX0+
6
GND
7
SATA2/7/YL/H/P/VA/D/2/B/GBT
SATAII45_SB
GND
1
TX0+
2
TX0-
3
GND
4
RX0-
5
RX0+
6
GND
7
SATA2/7/YL/H/P/VA/D/2/B/GBT
4
SATA0RXN
SATA0RXP
SATA0TXN
SATA0TXP
SATA1RXN
SATA1RXP
SATA1TXN
SATA1TXP
SATA2RXN
SATA2RXP
SATA2TXN
SATA2TXP
SATA3RXN
SATA3RXP
SATA3TXN
SATA3TXP
SATA4RXN
SATA
SATA4RXP
SATA4TXN
SATA4TXP
SATA5RXN
SATA5RXP
SATA5TXN
SATA5TXP
SATA_CLKN
SATA_CLKP
SATALED#
SATARBIAS#
SATARBIAS
SATA0GP/GPIO21
SATA1GP/GPIO19
SATA2GP/GPIO36
SATA3GP/GPIO37
SATA4GP
SATA5GP
SLOAD/GPIO38
SCLOCK/GPIO22
3 OF 6
GND
8
RX1+
SATA1RXPC
9
RX1-
SATA1RXNC
10
GND
11
TX1-
SATA1TXNC
12
TX1+
SATA1TXPCSATA0RXPC
13
GND
14
GND
8
RX1+
SATA3RXPC
9
RX1-
SATA3RXNC
10
GND
11
TX1-
SATA3TXNC
12
TX1+
SATA3TXPC
13
GND
14
GND
8
RX1+
SATA5RXPC
9
RX1-
SATA5RXNC
10
GND
11
TX1-
SATA5TXNC
12
TX1+
SATA5TXPC
13
GND
14
SATA0RXN
AC5
SATA0RXP
AC4
SATA0TXN
AE4
SATA0TXP
AE3
SATA1RXN
AF1
SATA1RXP
AF2
SATA1TXN
AH2
SATA1TXP
AH1
SATA2RXN
W5
SATA2RXP
W4
SATA2TXN
AA3
SATA2TXP
AA4
SATA3RXN
AB1
SATA3RXP
AB2
SATA3TXN
AD2
SATA3TXP
AD1
SATA4RXN
Y1
SATA4RXP
Y2
SATA4TXN
U3
SATA4TXP
U4
SATA5RXN
T1
SATA5RXP
T2
SATA5TXN
V2
SATA5TXP
V1
-SRCCLK_SATA
AG3
SRCCLK_SATA
AG4
-SATALED
AB10
R2
R1
AB11
AD8
AF8
AD9
AD10
AE9
AD12
AF7
AC10
AH6
AE7
R249 24.9/6/1
GPIO21
GPIO19
GPIO36
GPIO37
SATA4GP
SATA5GP
TP39
GPIO48
GPIO39
GPIO38
GPIO22
C146 0.01u/4/X7R/16V/K
C148 0.01u/4/X7R/16V/K
C150 0.01u/4/X7R/16V/K
C152 0.01u/4/X7R/16V/K
C154 0.01u/4/X7R/16V/K
C156 0.01u/4/X7R/16V/K
C158 0.01u/4/X7R/16V/K
C160 0.01u/4/X7R/16V/K
C173 0.01u/4/X7R/16V/K
C186 0.01u/4/X7R/16V/K
C185 0.01u/4/X7R/16V/K
C172 0.01u/4/X7R/16V/K
3
-SRCCLK_SATA [23]
SRCCLK_SATA [23]
-SATALED [36]
R602 8.2K/4
R251 8.2K/4
R252 8.2K/4
R253 8.2K/4
SATA1RXP
SATA1RXN
SATA1TXNSATA0RXNC
SATA1TXPSATA0RXP
SATA5RXP
SATA5TXN
SATA5TXP
3
VCC3
SATA3RXP
SATA3RXN
SATA3TXN
SATA3TXP
2
ICH8 FAN CTRL
The ICH8 integrated GbE LAN test
mode is activated any time the
ICH8 GPIO39 signal is not at a
low logic level.
Workaround
Under investigation. Possible
workaround is to use a weak
pulldown resistor on GPIO39 to
ensure signal is always low
Title
Size Document Number Rev
Custom
Date: Sheet
2
1
ICH_FAN_TACH0
沒用到的要
ICH_FAN_TACH1
ICH_FAN_TACH2
ICH_FAN_TACH3
SERIRQ[19,25,27]
SATA4GP
SATA5GP
P.H
R2388 8.2K/4/X
R2389 8.2K/4/X
R2390 8.2K/4
R250 8.2K/4
RN14
8.2K/8P4R/6
1 2
-KBRST
3 4
A20GATE
5 6
SERIRQ
7 8
RN13 8.2K/8P4R/6
GPIO21
1 2
GPIO37
3 4
GPIO19
5 6
GPIO36
7 8
R685 8.2K/4
R686 8.2K/4
Gigabyte Technology
ICH8-SATA / FAN PWM
GA-TG965MP-RH-GW
1
21 36Monday, May 14, 2007
VCC3
2.1
of
8
ICH8
U10F
R11
D D
C C
B B
A A
VSS_099
R12
VSS_100
R13
VSS_101
R14
VSS_102
R15
VSS_103
R16
VSS_104
R17
VSS_105
R18
VSS_106
T3
VSS_107
T4
VSS_108
T5
VSS_109
T6
VSS_110
T12
VSS_111
T13
VSS_112
T14
VSS_113
T15
VSS_114
T16
VSS_115
T17
VSS_116
T22
VSS_117
T25
VSS_118
T26
VSS_119
U1
VSS_120
U2
VSS_121
U12
VSS_122
U13
VSS_123
U14
VSS_124
U15
VSS_125
U16
VSS_126
U17
VSS_127
U27
VSS_128
U28
VSS_129
V7
VSS_130
V13
VSS_131
V15
VSS_132
V22
VSS_133
V25
VSS_134
V26
VSS_135
W27
VSS_136
W28
VSS_137
Y3
VSS_138
Y4
VSS_139
Y5
VSS_140
AA1
VSS_141
AA2
VSS_142
AA23
VSS_143
AB12
VSS_144
AB24
VSS_145
AB25
VSS_146
AB26
VSS_147
AC6
VSS_148
AC9
VSS_149
AC15
VSS_150
AC18
VSS_151
AC21
VSS_152
AC27
VSS_153
AC28
VSS_154
AD3
VSS_155
AD4
VSS_156
AD5
VSS_157
AD11
VSS_158
AD26
VSS_159
AE1
VSS_160
AE2
VSS_161
AE5
VSS_162
AE8
VSS_163
AE14
VSS_164
AE17
VSS_165
AE20
VSS_166
AE23
VSS_167
AF3
VSS_168
AF4
VSS_169
AG1
VSS_170
AG2
VSS_171
AG5
VSS_172
AG11
VSS_173
AG25
VSS_174
AG27
VSS_175
AH3
VSS_176
AH4
VSS_177
AH13
VSS_178
AH16
VSS_179
AH19
VSS_180
AH22
VSS_181
AH8
VSS_182
AF27
VSS_183
P4
VSS_184
F4
VSS_185
B22
VSS_186
6 OF 6
NH82801HR/S/[10HB1-032801-Y1R]
8
VSS_098
VSS_097
VSS_096
VSS_095
VSS_094
VSS_093
VSS_092
VSS_091
VSS_090
VSS_089
VSS_088
VSS_087
VSS_086
VSS_085
VSS_084
VSS_083
VSS_082
VSS_081
VSS_080
VSS_079
VSS_078
VSS_077
VSS_076
VSS_075
VSS_074
VSS_073
VSS_072
VSS_071
VSS_070
VSS_069
VSS_068
VSS_067
VSS_066
VSS_065
VSS_064
VSS_063
VSS_062
VSS_061
VSS_060
VSS_059
VSS_058
VSS_057
VSS_056
VSS_055
VSS_054
VSS_053
VSS_052
VSS_051
VSS_050
VSS_049
VSS_048
VSS_047
VSS_046
VSS_045
VSS_044
VSS_043
VSS_042
VSS_041
VSS_040
VSS_039
VSS_038
VSS_037
VSS_187
VSS_036
VSS_035
VSS_034
VSS_033
VSS_032
VSS_031
VSS_030
VSS_029
VSS_028
VSS_027
VSS_026
VSS_025
VSS_024
VSS_023
VSS_022
VSS_021
VSS_020
VSS_019
VSS_018
VSS_017
VSS_016
VSS_015
VSS_014
VSS_013
VSS_012
VSS_011
VSS_010
VSS_009
VSS_008
VSS_007
VSS_006
VSS_005
VSS_004
VSS_003
VSS_002
VSS_001
7
3VDUAL
P27
P22
P17
P16
P15
P14
P13
P12
N28
N27
N18
N17
N16
N15
N14
N13
N12
N11
N5
N4
N1
M26
M25
M22
M17
M16
M15
M14
M13
M12
M3
L28
L27
L15
L13
L5
L4
L1
K26
K25
K7
K6
K3
J28
J27
J5
J4
J1
H26
H25
H24
H23
H7
H6
H3
G28
G27
G24
G18
G13
G10
G6
G5
G4
G1
F26
F25
F24
F22
F15
F7
F2
E28
E27
E24
E21
E9
D26
D25
D22
D19
D16
D12
D6
D4
D2
C28
C27
C22
B24
B20
B17
B14
B11
B8
B2
A28
A24
A5
4.7u/8/Y5V/10V/Z
3VDUAL
0.1u/6/Y5V/25V/Z
VCC1_5
1u/6/Y5V/10V/Z
VCC1_5
10u/8/Y5V/10V/Z/X
VCC1_5
C166
C1846
0.1u/6/Y5V/25V/Z/X
6
Q301
SOT23
132
MMBT2222A/SOT23/600mA/40
C1849
0.01u/4/X7R/16V/K
L7 0/8/SHT/X
C168
L6 0/8/SHT/X
C161
VCC1_25
VCC3
132
C1844
1u/6/Y5V/10V/Z
C1286
1u/6/Y5V/10V/Z
VCC3
C1847
0.1u/6/Y5V/25V/Z
C1850
C169
0.1u/6/Y5V/25V/Z
C162
0.1u/6/Y5V/25V/Z
R633 0/8/SHT/X
R1624
Q300
SOT23
MMBT2222A/SOT23/600mA/40
10/6
C1872
1u/6/Y5V/10V/Z
C1845
0.01u/4/X7R/16V/K
VCC1_5
C1848
4.7u/8/Y5V/10V/Z
VCC1_5
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
C1852
0.1u/4/Y5V/16V/Z
VCC1_5
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
0.1u/6/Y5V/25V/Z
5
C189
C191
C195
C196
C203
C206
C1288
C167
VCC5VSB
R603
10/6
C1871
1u/6/Y5V/10V/Z
VCCDMIPLL
AB14
AC13
C176
0.1u/6/Y5V/25V/Z
W22
W23
W24
AA26
AA27
AA28
AE27
AE28
AB13
ICH8
U10E
A15
V5REF
A2
V5REF_Sus
A21
VccCL1_5
A20
VccCL1_05
VccSusHDA
VccHDA
C1
VccUSBPLL
AH5
VccSATAPLL
P28
VccDMIPLL
A25
VccGLANPLL
J22
Vcc1_5_B_0
J23
Vcc1_5_B_1
J24
Vcc1_5_B_2
K22
Vcc1_5_B_3
K23
Vcc1_5_B_4
K24
Vcc1_5_B_5
L22
Vcc1_5_B_6
L23
Vcc1_5_B_7
L24
Vcc1_5_B_8
M23
Vcc1_5_B_9
M24
Vcc1_5_B_10
N22
Vcc1_5_B_11
N23
Vcc1_5_B_12
N24
Vcc1_5_B_13
P23
Vcc1_5_B_14
P24
Vcc1_5_B_15
P25
Vcc1_5_B_16
P26
Vcc1_5_B_17
R22
Vcc1_5_B_18
R23
Vcc1_5_B_19
R26
Vcc1_5_B_20
R27
Vcc1_5_B_21
R28
Vcc1_5_B_22
T23
Vcc1_5_B_23
T24
Vcc1_5_B_24
U22
Vcc1_5_B_25
U23
Vcc1_5_B_26
U24
Vcc1_5_B_27
V23
Vcc1_5_B_28
V24
Vcc1_5_B_29
Vcc1_5_B_30
Vcc1_5_B_31
Vcc1_5_B_32
Y23
Vcc1_5_B_33
Y24
Vcc1_5_B_34
Y25
Vcc1_5_B_35
Y26
Vcc1_5_B_36
Vcc1_5_B_37
Vcc1_5_B_38
Vcc1_5_B_39
VccDMI_0
VccDMI_1
M7
Vcc1_5_A_4
M6
Vcc1_5_A_3
L7
Vcc1_5_A_2
L6
Vcc1_5_A_1
D1
Vcc1_5_A_0
T7
Vcc1_5_A_31
U5
Vcc1_5_A_32
U6
Vcc1_5_A_33
V3
Vcc1_5_A_8
V4
Vcc1_5_A_9
V5
Vcc1_5_A_10
W1
Vcc1_5_A_11
W2
Vcc1_5_A_12
W3
Vcc1_5_A_13
U7
Vcc1_5_A_14
V6
Vcc1_5_A_15
W6
Vcc1_5_A_16
Y6
Vcc1_5_A_17
AA5
Vcc1_5_A_18
AA6
Vcc1_5_A_19
AB3
Vcc1_5_A_20
AB4
Vcc1_5_A_21
AB5
Vcc1_5_A_22
AC1
Vcc1_5_A_23
AC2
Vcc1_5_A_24
AC3
Vcc1_5_A_25
G12
Vcc1_5_A_26
G15
Vcc1_5_A_27
Y22
Vcc1_5_A_28
AB9
Vcc1_5_A_29
Vcc1_5_A_30
NH82801HR/S/[10HB1-032801-Y1R]
4
U3901
5 OF 6
VccCL3_3_1
VccCL3_3_0
VccGLAN1_5_3
VccGLAN1_5_2
VccGLAN1_5_1
VccGLAN1_5_0
VccGLAN3_3
VccLAN1_05_0
VccLAN1_05_1
VccLAN3_3_0
VccLAN3_3_1
Vcc1_5_A_5
Vcc1_5_A_6
Vcc1_5_A_7
Vcc1_05_0
Vcc1_05_1
Vcc1_05_2
Vcc1_05_3
Vcc1_05_4
Vcc1_05_5
Vcc1_05_6
Vcc1_05_7
Vcc1_05_8
Vcc1_05_9
Vcc1_05_10
Vcc1_05_11
Vcc1_05_12
Vcc1_05_13
Vcc1_05_14
Vcc1_05_15
Vcc1_05_16
Vcc1_05_17
Vcc1_05_18
Vcc1_05_19
Vcc1_05_20
Vcc1_05_21
Vcc1_05_22
Vcc1_05_23
Vcc1_05_24
Vcc1_05_25
Vcc1_05_26
Vcc1_05_27
Vcc1_05_28
V_CPU_IO_0
V_CPU_IO_1
Vcc3_3_0
Vcc3_3_1
Vcc3_3_2
Vcc3_3_3
Vcc3_3_4
Vcc3_3_5
Vcc3_3_6
Vcc3_3_7
Vcc3_3_8
Vcc3_3_9
Vcc3_3_10
Vcc3_3_11
Vcc3_3_12
Vcc3_3_13
Vcc3_3_14
Vcc3_3_15
VccSus3_3_0
VccSus3_3_1
VccSus3_3_2
VccSus3_3_3
VccSus3_3_4
VccSus3_3_5
VccSus3_3_6
VccSus3_3_7
VccSus3_3_8
VccSus3_3_9
VccSus3_3_10
VccSus3_3_11
VccSus3_3_12
VccSus3_3_13
VccSus3_3_14
VccSus3_3_15
VccSus3_3_16
VccSus3_3_17
VccRTC
VccSus1_05_0
VccSus1_05_1
VccSus1_5_0
VccSus1_5_1
F20
G20
A26
A27
B25
B26
A22
F17
G17
F19
G19
W7
Y7
AA7
A23
B23
C23
D23
E23
F23
G22
G23
H22
L11
L12
L14
L16
L17
L18
M11
M18
P11
P18
T11
T18
U11
U18
V11
V12
V14
V16
V17
V18
AD25
AE26
AF28
P5
A6
B4
B15
B18
C8
C10
D14
E10
F11
G14
AB7
AD7
AE12
AF11
N6
N7
P1
P2
P3
P6
P7
R3
R4
R5
R6
R7
AB16
AB21
AC20
AD18
AF19
F3
AG26
J6
AB17
AB15
J7
3
C181
1u/6/Y5V/10V/Z
C163
0.1u/6/Y5V/25V/Z
C178
0.1u/6/Y5V/25V/Z
C182
0.1u/6/Y5V/25V/Z
C183
0.1u/6/Y5V/25V/Z
C188
0.1u/6/Y5V/25V/Z
VCC3
C194
0.1u/6/Y5V/25V/Z
C193
0.1u/6/Y5V/25V/Z
3VDUAL
C199
0.1u/6/Y5V/25V/Z
C200
0.1u/6/Y5V/25V/Z
C202
0.1u/6/Y5V/25V/Z
BC76
TP28
0.1u/4/Y5V/16V/Z
TP29
C1289
0.1u/6/Y5V/25V/Z
3VCL_R [20]
VCC1_5
VCC1_25
C192
0.1u/4/Y5V/16V/Z
BC75
0.1u/6/Y5V/25V/Z
2
VCCLAN3_3
VCC1_5
C1856
0.01u/4/X7R/16V/K
C1855
0.01u/4/X7R/16V/K
R260 0/6
VCC3
VCCLAN3_3
REV 0.2 DESIGN NOTE 1.1
SIGNAL NAME
VccCL_1_05
VccCL3_3
VccCL1_5 de-CAP
VccGLAN1_5 Vcc1_5
VccGLAN3_3
VccGLANPLL
VccLAN1_05
VccLAN3_3
VCC1_25
RTCVDD [20]
BC177
0.047u/4/Y5V/16V/Z
BC178
0.047u/4/Y5V/16V/Z
C1853
1u/6/Y5V/10V/Z
NO LAN
de-CAP
Vcc3_3
Vcc3_3
Vcc1_5
N/A
Vcc3_3
1
VCC3 3VDUAL
R2366
0/6
C1854
0.01u/4/X7R/16V/K
R2367
0/6/X
Gigabyte Technology
Title
Size Document Number Rev
Custom
7
6
5
4
3
Date: Sheet
ICH8-PWR / GND
GA-TG965MP-RH-GW
2
2.1
of
22 36Monday, May 14, 2007
1
5
4
3
2
1
CLK GEN CK505
D D
SRCCLK_SATA[21]
-SRCCLK_SATA[21]
SRCCLK_LAN[35]
-SRCCLK_LAN[35]
SRCCLK_ICH[19]
-SRCCLK_ICH[19]
SRCCLK_MCH[11]
C C
B B
-SRCCLK_MCH[11]
PCIE_CLK0[24]
-PCIE_CLK0[24]
SRCCLK_3GIO[18]
-SRCCLK_3GIO[18]
PCIE_CLK1[33]
-PCIE_CLK1[33]
TPMCLK33[27]
USBCLK48[19]
Host CLK:(+/-):18-4-10-4-18
33MHZ:10-4-10
CPUCLK[7]
-CPUCLK[7]
MCHCLK[9]
-MCHCLK[9]
DOTCLK[12]
-DOTCLK[12]
1394CLK[34]
LPCCLK48[25]
ICHCLK14[20]
CPUCLK
-CPUCLK
MCHCLK
-MCHCLK
DOTCLK
-DOTCLK
SRCCLK_SATA
-SRCCLK_SATA
SRCCLK_LAN
-SRCCLK_LAN
SRCCLK_ICH
-SRCCLK_ICH
SRCCLK_MCH
-SRCCLK_MCH
PCIE_CLK0
-PCIE_CLK0
SRCCLK_3GIO
-SRCCLK_3GIO
PCIE_CLK1
-PCIE_CLK1
PCLK0
PCLK0[24]
LPC33
LPC33[25]
TPMCLK33
PCLK1 FSB
PCLK1[24]
1394CLK
ICH33
ICH33[19]
LPCCLK48
USBCLK48
SEL0
R287 8.2K/4
RN135
7 8
5 6
3 4
1 2
33/8P4R/6
R1626 33/4
R1627 33/4
R1630 33/4
R1631 33/4
R2423 33/4
R2424 33/4
R282 33/4
R284 33/4
R285 33/4
R286 33/4
R1628 33/4
R1629 33/4
R1632 33/4
R1633 33/4
R2405 33/4
R2406 33/4
R292 33/4
R293 33/4
R295 33/4/X BC715
R1679 33/4
R1676 33/4
R294 33/4
R298 33/4
R299 33/4
R283 33/4
CKVDD
14.318MHZ:10-4-10
USB CLK:10-4-10
44
43
41
40
14
15
18
19
21
22
24
25
27
28
30
29
33
32
36
35
-CLKREQ_B
-CLKREQ_A
FSA
SEL0
SYNC
-SEL48
SEL1
FSD
FSC
-PCIE_MODE
56
1
3
4
6
7
8
10
11
54
53
52
U49
CPUT0+
CPUC0CPUT1+
CPUC1-
DOT96T/SATAT+
DOT96C/SATAC-
SATAT/PCIET0+
SATAC/PCIEC0-
PCIET1+
PCIEC1-
PCIET2+
PCIEC2-
PCIET3+
PCIEC3-
PCIET6+
PCIEC6-
PCIET7+
PCIEC7-
CPU_STP#/PCIET8+
PCI_STP#/PCIEC8-
CLKREQ#B/PCICLK0
CLKREQ#A/PCICLK1
FS_A/PCICLK2
FS_B/PCICLK3
SEL_P4_K8#/PCICLK4
SEL0/PCICLK5
SYNC/PCI6F
SEL24_48#/24_48M
SEL1/12_48M
FS_D/REF0
FS_C/REF1
MODE/REF2
RTM8760-660-LF/SSOP56
FSBSEL0[6]
FSBSEL1[6]
FSBSEL2[6]
96MHZ(+/-):18-4-10-4-18
SRC(+/-):18-4-10-4-18
5
VDD33
9
VDD33
13
VDD33
17
VDD33
26
VDD33
34
VDD33
VDD33
VDD33
XOUT
SDATA
FSA
FSB
FSC
SCLK
GND
GND
GND
GND
GND
GND
GND
GND
XIN
37
42
48
50
49
47
46
10p/4/NPO/50V/J/X
55
45
2
12
16
20
23
31
38
39
51
RESET_IN#/RESET#
Vtt_PwrGd#/PD
R263 1K/4
R264 1K/4
R1635 1K/4
VDD33_CORE
GND_CORE
BC79
0.1u/6/Y5V/25V/Z
C221 22p/4/NPO/50V/J
X2
14.318M/16p/20ppm/49US/40/D
C224 22p/4/NPO/50V/J
C1335
R1765 0/6/SHT/X
0.1u/6/Y5V/25V/Z/X
BC80
0.1u/6/Y5V/25V/Z
R2351 0/4/SHT/X
R2352 0/4/SHT/X
C223
10p/4/NPO/50V/J/X
CKVDD
R354
1K/4
132
R351 1K/4
CKVDD
BC81
0.1u/6/Y5V/25V/Z
-SYS_RST [6,20,36]
Q19
MMBT2222A/SOT23/600mA/40
SOT23
CK_PWRGD [20]
BC78
0.1u/6/Y5V/25V/Z
SMBCLK [15,16,18,20,24]
SMBDATA [15,16,18,20,24]
BC83
0.1u/6/Y5V/25V/Z
-CLKREQ_B-VTT_PG
-CLKREQ_A
FSD
SYNC
-SEL48
-PCIE_MODE
SEL1ICHCLK14
ICHCLK14
PCLK0
PCLK1
TPMCLK33
ICH33
LPC33
USBCLK48
LPCCLK48
1394CLK
BC84
0.1u/6/Y5V/25V/Z
R289 8.2K/4
R296 8.2K/4
R297 8.2K/4
R301 8.2K/4
R304 8.2K/4
R305 8.2K/4
R288 8.2K/4
C1291 10p/4/NPO/50V/J/X
C214 10p/4/NPO/50V/J/X
C215 10p/4/NPO/50V/J/X
C217 10p/4/NPO/50V/J/X
C216 10p/4/NPO/50V/J/X
C218 10p/4/NPO/50V/J/X
C219 10p/4/NPO/50V/J/X
C220 10p/4/NPO/50V/J/X
C1298 10p/4/NPO/50V/J/X
0.1u/6/Y5V/25V/Z
BC85
CKVDD
BC66
0.1u/6/Y5V/25V/Z/X
BC214
0.1u/6/Y5V/25V/Z
BC822
10u/8/Y5V/10V/Z
VCC3
FB15
2.2/8
BC250
0.1u/6/Y5V/25V/Z
A A
Gigabyte Technology
Title
Size Document Number Rev
Custom
5
4
3
2
Date: Sheet
CLK GEN
GA-TG965MP-RH-GW
1
of
23 36Monday, May 14, 2007
2.1
8
7
6
5
4
PCI1,2 SLOT PCIE*1
-12V +12VVCC3
VCC
-12V +12VVCC3
VCC
3
2
1
PCI1
B1
D D
-PIRQA[19]
C C
-DEVSEL[19,34]
-PLOCK[19]
B B
PTCK
-PIRQD[19]
-PIRQD
-PIRQA
PCLK0
PCLK0[23]
-REQ0
-REQ0[19]
A_D31
A_D29
A_D27 A_D26
A_D25
-C_BE3 A_D16
-C_BE3[19,34]
A_D23
A_D21 A_D20
A_D19
A_D17 A_D16
-C_BE2
-C_BE2[19,34]
-IRDY
-IRDY[19,34]
-DEVSEL
-PLOCK
-PERR -PERR
-PERR[19,34]
-SERR
-SERR[19]
-C_BE1 A_D15
-C_BE1[19,34]
A_D14
A_D12 A_D11
A_D10
A_D8 -C_BE0
A_D7
A_D5 A_D4
A_D3
A_D1 A_D0
ACK64 ACK64
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
PCI/120/P/IV/VA
-12V
TCK
GND
TDO
+5V
+5V
INTB
INTD
PRSNT1
RESERVED
PRSNT2
GND
GND
RESERVED
GND
CLK
GND
REQ
+5V
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE2
GND
IRDY
+3.3V
DEVSEL
GND
LOCK
PERR
+3.3V
SERR
+3.3V
C/BE1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V
ACK64
+5V
+5V
RESERVED
RESERVED
TRST
+12V
TMS
INTA
INTC
GND
GND
3.3V_AUX
GNT
GND
PME
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3V
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME
GND
TRDY
GND
STOP
+3.3V
SDONE
SBO
GND
AD15
+3.3V
AD13
AD11
GND
C/BE0
+3.3V
GND
REQ64
RST
PAR
AD9
AD6
AD4
AD2
AD0
A1
A2
A3
A4
TDI
A5
+5V
A6
A7
A8
+5V
A9
A10
+5V
A11
A12
A13
A14
A15
A16
+5V
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
+5V
A60
A61
+5V
A62
+5V
-PTRST -PTRST
PTMS
-PIRQE
-PIRQC
-PCIRST
-GNT0
A_D30
A_D28
A_D24
A_D22
A_D18
-FRAME
-TRDY
-STOP
PCI_A40
PCI_A41
PAR
A_D13
A_D9
A_D6
A_D2
-PCI1_REQ64
-PIRQE [19]
-PIRQC [19]
3VDUAL
-PCIPME [19,34]
-FRAME [19,34]
-TRDY [19,34]
-STOP [19,34]
PAR [19,34]
-C_BE0 [19,34]
PTCK
-PIRQC
-PIRQE
PCLK1[23]
-REQ1[19]
A_D31
A_D29
A_D27 A_D26
A_D25
-C_BE3 A_D17
A_D23
A_D21 A_D20
A_D19
A_D17 A_D16
-C_BE2
-IRDY
-DEVSEL
-PLOCK
-SERR
-C_BE1 A_D15
A_D14
A_D12 A_D11
A_D10
A_D8 -C_BE0
A_D7
A_D5 A_D4
A_D3
A_D1 A_D0
PCI2
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
PCI/120/P/IV/VA
-12V
TCK
GND
TDO
+5V
+5V
INTB
INTD
PRSNT1
RESERVED
PRSNT2
GND
GND
RESERVED
GND
CLK
GND
REQ
+5V
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE2
GND
IRDY
+3.3V
DEVSEL
GND
LOCK
PERR
+3.3V
SERR
+3.3V
C/BE1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V
ACK64
+5V
+5V
TRST
+12V
TMS
INTA
INTC
RESERVED
RESERVED
GND
GND
3.3V_AUX
GNT
GND
PME
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3V
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME
GND
TRDY
GND
STOP
+3.3V
SDONE
SBO
GND
PAR
AD15
+3.3V
AD13
AD11
GND
C/BE0
+3.3V
GND
REQ64
RST
AD9
AD6
AD4
AD2
AD0
A1
A2
A3
A4
TDI
A5
+5V
A6
A7
A8
+5V
A9
A10
+5V
A11
A12
A13
A14
A15
A16
+5V
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
+5V
A60
A61
+5V
A62
+5V
PTMS
-PIRQD
-PIRQA
-PCIRST
-PCIPME
A_D30
A_D28
A_D24
A_D22
A_D18
-FRAME
-TRDY
-STOP
PCI_A40
PCI_A41
PAR
A_D13
A_D9
A_D6
A_D2
-PCI2_REQ64
3VDUAL
-GNT1 [19]-GNT0 [19,27]
3GIO_X1
PCIE_1
+12V
SMBCLK
SMBCLK[15,16,18,20,23]
SMBDATA[15,16,18,20,23]
-PCIE_WAKE[18,20,35]
PCIE_OP0[19]
PCIE_ON0[19]
SMBDATA
VCC3
3VDUAL
B1
12V
B2 A2
12V 12V
B4
GND
B5
SMCLK
B6
SMDAT
B7
GND
B8
3.3V
B9
JTAG1
B10
3.3VAUX
B11
WAKE*
B12
RVSD
B13
GND
B14
HSOP0
B15
HSON0
B16
GND
B17
PRSNT2*
B18
GND
PCI-E/1X-36P/BK/OL
KEY
PRSNT1*
GND
JTAG2
JTAG3
JTAG4
JYAG5
3.3V
3.3V
PWRGD
GND
REFCLK+
REFCLK-
GND
HSIP0
HSIN0
GND
A1
+12V
A3B3
12VRSVD
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
VCC3
-PCIE_RST [18,25,33,35]
PCIE_CLK0 [23]
-PCIE_CLK0 [23]
PCIE_IP0 [19]
PCIE_IN0 [19]
-REQ0/-GNT0/AD16 -REQ1/-GNT1/AD17
A_D[0..31][19,34]
A A
Place close to PCI1
SMBCLK[15,16,18,20,23]
SMBDATA[15,16,18,20,23]
8
A_D[0..31]
-PCIRST
-PCIRST [19]
C1292
33p/4/NPO/50V/J
R1639 0/6/SHT/X
R267 0/6/SHT/X
PCI_A40
PCI_A41
-REQ0[19]
-REQ3[19,34]
-REQ1[19]
-REQ2[19]
7
PTMS
PTCK
-PTRST
-REQ0
-REQ3
-REQ1
-REQ2
PAR
PAR[19,34]
VCC3
RN134
1 2
3 4
5 6
7 8
8.2K/8P4R/6
RN19
2.2K/8P4R/6
1 2
3 4
5 6
7 8
R1673 2.2K/4
RN136
1 2
3 4
5 6
7 8
2.2K/8P4R/6
6
-PCI1_REQ64
ACK64
-PCI2_REQ64
VCC3
VCC3
-PIRQC[19]
-PIRQA[19]
-PIRQD[19]
-PIRQB[19]
-PIRQE[19]
-PIRQH[19,34]
-PIRQG[19]
-PIRQF[19]
5
-FRAME
-IRDY
-TRDY
-DEVSEL
-STOP
-PLOCK
-PERR
-SERR
-PIRQC
-PIRQA
-PIRQD
-PIRQB
-PIRQE
-PIRQH
-PIRQG
-PIRQF
2.2K/8P4R/6
1 2
3 4
5 6
7 8
RN22
2.2K/8P4R/6
1 2
3 4
5 6
7 8
RN23
8.2K/8P4R/6
1 2
3 4
5 6
7 8
RN24
8.2K/8P4R/6
1 2
3 4
5 6
7 8
VCC3
4
VCC3
RN20
+12V
BC91
0.1u/6/Y5V/25V/Z
VCC3
BC95
0.1u/6/Y5V/25V/Z
3
VCC
BC93
0.1u/6/Y5V/25V/Z
BC96
0.1u/6/Y5V/25V/Z
1
+
EC28
1000u/D/6.3V/8C/36m
BC97
0.1u/6/Y5V/25V/Z
+
EC29
1000u/D/6.3V/8C/36m/X
Gigabyte Technology
Title
Size Document Number Rev
Custom
Date: Sheet
2
PCI EXPRESS*1/PCI SLOT 1,2
GA-TG965MP-RH-GW
24 36Monday, May 14, 2007
of
1
2.1
8
7
6
5
4
3
2
1
IT8718F LPC I/O
DCD1-[26]
RI1-[26]
CTS1-[26]
DTR1-[26]
RTS1-[26]
DSR1-[26]
TXD1[26]
RXD1[26]
D D
DTR2-
DTR2-[26]
RTS2-
RTS2-[26]
DSR2-
DSR2-[26]
TXD2[26]
RXD2[26]
FANIO1[26]
FANPWM1[26]
FANIO2[26]
FANPWM2[26]
IOGP37[9]
FANPWM3[26]
1_5V_OV1[31]
VCC
G_USB[31]
DDR18V_OV1[31]
DDR18V_OV2[31]
DDR18V_OV3[31]
1_25V_OV1[31]
1_25V_OV2[31]
-RST_BTN[20,27,36]
-PCIE_RST[18,24,33,35]
不
PULL-UP,
R2362 8.2K/4
PWLED[36]
R1896 22/4
VCC
-PFMRST[12,20]
-LDRQ0[20]
VCC3
R1565 8.2K/4
會一直
RESET
-RST_BTN
22/8P4R/6
RN145
PWROK1[12,20,36]
-1394RST[34]
-TPMRST[27]
-DBRST[27]
78
56
34
12
C C
B B
VCC VCC
TXD2
RXD2
VID5[7,30]
VID4[7,30]
VID3[7,30]
VID2[7,30]
VID1[7,30]
VID0[7,30]
-FS_FAN[30]
IO_VIDO6[30]
-RST_BTN
-PCIE_RST_F
ITE_PWROK
-PFMRST1_F
-PFMRST2_F
-LPCPD
-PFMRST
-LDRQ0
ITE_PWROK
-PFMRST1_F
-PFMRST2_F
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
BC121
100p/4/NPO/50V/J/X
SERIRQ[19,21,27]
-LFRAME[20,27]
LAD[0..3][20,27]
-KBRST[21]
A20GATE[21]
LPC33[23]
LPCCLK48[23]
DCD2-[26]
RI2-[26]
CTS2-[26]
121
122
123
124
125
126
127
128
DTR2#/JP4
RTS2#/JP5
DSR2#/[GP64]
VCC
SOUT2/JP6
SIN2/[GP63]
FAN_TAC1
FAN_CTL1
FAN_TAC2/GP52
FAN_CTL2/GP51
FAN_TAC3/GP37
FAN_CTL3/GP36
VID5/GP35
VID4/GP34
GNDD
VID3/GP33
VID2/GP32
VID1/GP31
VID0/GP30
FAN_CTL4/JSBB2/GP27
FAN_CTL5/JSBB1/GP26
FAN_TAC4/JSBCY/GP25
FAN_TAC5/JSBCX/GP24
JSAB2/GP23/[SI]
JSAB1/GP22/[SCK]
JSACY/GP21
JSACX/GP20
MIDI_OUT/GP17/[CSB:dual bios]
MIDI_IN/GP16/[SO2]
RESETCON#/CIRTX/GP15/[CE_N]/[CSA:dual bios]
PCIRST1#/SCRRST/GP14
PWROK1/SCRFET#/GP13
PCIRST2#/SCRIO/GP12
PCIRST3#/SCRCLK/GP11
VCC
LPCPD#/VIDVCC
LRESET#
LDRQ#
LAD[0..3]
SIN1
DSR1#
RTS1#/JP2
SOUT1/JP3
RI2#/[GP66]
CTS2#/[GP65]
DCD2#/[GP67]
IT8712F/[IT8718F]
LAD2
LAD1
LAD0
LAD3
SERIRQ
LFRAME#
KRST#/[GP62]
434241
44
39
40
45464748495152535455565758596061626364
LAD2
LAD0
LAD1
LAD3
C230
10p/4/NPO/50V/J/X
120
DTR1#/JP1
GA20
118
119
RI1#
CTS1#
PCICLK
PCIRST5#/CLKRUN#/GP50
DCD1#
CLKIN
117
GNDD
GNDD
50
PD6
PD7
115
116
PD7
DENSEL#
PD6
MTRA#
114
PD5
PD5
MTRB#/THRMO#/[SST/AMDSI_D]
PD4
112
113
PD4
DRVA#
PD3
PD2
111
PD2
PD3
DRVB#/[PECI/AMDSI_C]
WDATA#
110
PD1
PD1
DIR#
PD0
108
109
PD0
STEP#
106
107
STB#
AFD#
HDSEL#
WGATE#
104
105
INIT#
ERR#
RDATA#
TRK0#
103
ACK#
SLIN#
RSMRST#/CIRRX/GP55
PCIRST4#/SCRPRES#/GP10
RING#/GP53/SUSC#
INDEX#
WPT#
IT8718F-S/E/QFP128/[10HP2-118718-80R]
PD[0..7]
STBAFDERRINITSLINACK-
BUSY
SLCT
VCC/[AVCC]
VIN0
VIN1
VIN2
VIN3/ATXPG
VIN4
VIN5/[VID7]
VIN6/[VID6]
VIN7/PCIRSTIN#
VREF
TMPIN1
TMPIN2
TMPIN3/[SO1]
GNDA
MCLK/[GP56]
MDAT/[GP57]
KCLK/[GP60]
KDAT/[GP61]
3VSBSW#/GP40
PWROK2/GP41
PSON#/GP42
PANSWH#/GP43
GNDD
PME#/GP54
PWRON#GP44
PSIN/GP45/SUSB#
IRRX/GP46
VBAT
COPEN#
VCCH
IRTX/GP47
DSKCHG#
WPT- [36]
INDEX- [36]
TK00- [36]
RDATA- [36]
WGATE- [36]
SIDE1- [36]
STEP- [36]
DIR- [36]
WDATA- [36]
PECI [7,21]
DRVA- [36]
SSTCTL [21]
MOTEA- [36]
DENSEL- [36]
IO_VIDO7 [30]
U15
PD[0..7] [26]
STB- [26]
AFD- [26]
ERR- [26]
INIT- [26]
SLIN- [26]
ACK- [26]
102
101
PE
100
99
98
97
96
95
94
93
92
R1563 8.2K/4
91
90
89
88
87
86
R1643 0/4
85
84
83
82
81
80
79
-THERM
78
77
76
75
74
73
72
71
70
69
68
67
R2396 10/6
66
65
10u/8/Y5V/10V/Z
BC118
PWOK
5VSB
BUSY [26]
PE [26]
SLCT [26]
VIN0 [27]
VIN1 [27]
VIN2 [27]
PWOK [32]
VIN4 [27]
IO_VID7 [30]
IO_VID6 [30]
VCC
VREF [27]
SYS_TEMP [27]
PWM_TEMP [27]
-RSMRST [20,31]
IOGP10 [5]
MCLK [27]
MDAT [27]
KCLK [27]
KDAT [27]
BSEL166_1 [6]
BSEL166_2 [6]
-PWRBTSW [36]
-LPCPME [20]
-SLP_S3 [20,31]
BEEP- [36]
VBAT [20]
-CASEOPEN [27]
DSKCHG- [36]
BC119
1u/6/Y5V/10V/Z
BC257
10u/8/Y5V/10V/Z
CLOSE PIN2
C229
1u/6/Y5V/10V/Z
R1642 0/4/SHT/X
0.01u/4/X7R/16V/K/X
BC117
CPU Thermal
5VSB
R1644
8.2K/4
PWRBTSW [20]
R359
8.2K/4
3VDUAL
BC256
0.01u/4/X7R/16V/K
CPU_TEMP [7,27]
THERMDC [7]
不可接第三組
-PSON [27,31,32]
BC252
1u/6/Y5V/10V/Z/X
VBAT
R279
1M/4
-CASEOPEN
05/13 update
Close to pin
VCC3
R1897 8.2K/4
R1898 8.2K/4
R1647 8.2K/4/X
VCC
R1650 8.2K/4/X
-PCIE_RST_F
ITE_PWROK
-THERM
PWOK
-THERM [20]
1.2V or 3.3V tolerance select.
1.2V OUTPUT
3.3V OUTPUT
LPCPD#=VIDVCC
A A
接
VTT_GMCH
接
3.3V
VCC
DTR2 P.D RST internal P.H
COM port buffer default P.H
8
R1561 8.2K/4/X
R1649 680/6
DTR2-
7
-LPCPD
R1646 0/4/X
R358 0/4
6
VCC3
VCC1_25
SOUT2
RTS2- ==LOW CPU FAN 50%
==HIGH 100%
5
VID pins threshold voltage select: Vih / Vil : 2.0 / 0.8V1
0
VID pins threshold voltage select: Vih / Vil : 0.8 / 0.4V
R1648 680/6
TXD2
(DEFAULT 50%)
R1587 680/6
4
RTS2-
Gigabyte Technology
Title
Size Document Number Rev
Custom
3
Date: Sheet
ITE8718F
GA-TG965MP-RH-GW 2.1
2
25 36Monday, May 14, 2007
of
1
8
COMA
D D
C C
RI1-[25]
CTS1-[25]
DSR1-[25]
RTS1-[25]
DTR1-[25]
RXD1[25]
TXD1[25]
DCD1-[25]
-12V
ABC1
0.1u/6/Y5V/25V/Z/X
RI2-[25]
CTS2-[25]
DSR2-[25]
RTS2-[25]
DTR2-[25]
RXD2[25]
TXD2[25]
DCD2-[25]
-12V
BBC1
0.1u/6/Y5V/25V/Z/X
STB-[25]
AFD-[25]
INIT-[25]
AFDPD0 LPT2
INIT- LPT16
LPT PORT
LL4148/SOD80C/300mA
PBC1
0.1u/6/Y5V/25V/Z/X
PRN3
2.2K/8P4R/6
PRN4
2.2K/8P4R/6
B B
PRN6
2.2K/8P4R/6
PRN7
2.2K/8P4R/6
PR1
2.2K/4
19
18
17
16
15
14
13
12
11
10
GD75232/TSSOP20
19
18
17
16
15
14
13
12
11
10
GD75232/TSSOP20
PRN1
1 2
3 4
5 6
7 8
33/8P4R/6
ERR-[25]
ACK-[25]
BUSY[25]
PE[25]
SLCT[25]
PD[0..7][25]
VCC
PD1
PC1
1u/6/Y5V/10V/Z
LPT3
78
LPT4
56
34
LPT17
12
LPT6
78
LPT8
56
LPT9
34
ACK-
12
LPT1
78
LPT2
56
LPT16
34
ERR-
12
LPT7
78
BUSY
56
PE
34
SLCT
12
LPT14
7
AU1
RA1
RY1
RA2
RY2
RA3
RY3
DY1
DA1
DY2
DA2
RA4
RY4
DY3
DA3
RA5
RY5
GND
5V
12V
-12V
BU
RA1
RY1
RA2
RY2
RA3
RY3
DY1
DA1
DY2
DA2
RA4
RY4
DY3
DA3
RA5
RY5
GND
5V
12V
-12V
LPT1STB- LPT5
LPT14
ERRACKBUSY
PE
SLCT
PD[0..7]
LPT17
LPT5
LPT4
LPT3LPT5
LPT6
LPT8
LPT9
LPT1
LPT2
LPT16
ERR-
PC2 180p/4/NPO/50V/J/X
NRIA-
2
NCTSA-
3
NDSRA- NDCDA-
4
5
NDTRA-
6
NSINA
7
NSOUTA
8
NDCDA-
9
20
1
2
3
4
5
6
7
8
9
20
1
VCC
ABC2
0.1u/6/Y5V/25V/Z/X
NRIBNCTSBNDSRBNRTSBNDTRBNSINB
NSOUTB
NDCDB-
VCC
BBC2
0.1u/6/Y5V/25V/Z/X
SLIN-[25]
87
65
43
21
21
43
65
87
21
43
65
87
21
43
65
87
+12V
ABC3
0.1u/6/Y5V/25V/Z/X
+12V
BBC3
0.1u/6/Y5V/25V/Z/X
PD3
PD2 LPT4
PD1
SLIN-
PD6
PD7
PD4
PD5
PCN1
180P/8P4C/6/NPO/50V/K/X
PCN2
180P/8P4C/6/NPO/50V/K/X
PCN3
180P/8P4C/6/NPO/50V/K/X
PCN4
180P/8P4C/6/NPO/50V/K/X
6
PRN2
1 2
3 4
5 6
7 8
33/8P4R/6
PRN5
1 2
3 4
5 6
7 8
33/8P4R/6
LPT1
LPT14
LPT2
ERRLPT3
LPT16
LPT4
LPT17
LPT5
LPT6
LPT7
LPT8
LPT9
ACKBUSY
PE
SLCT
5
COM RI
NRIA-
2
NRIB-
1
D7 BAV70/SOT23/300mA
R323
3
75K/4
INTERNAL COMB EXTERNAL COMBCOMB
NSOUTB
NRTSB-
NRIB-
BCN3
NRTSBNDSRBNCTSBNRIB- NDTRB-
180P/8P4C/6/NPO/50V/K/X
LPT3
LPT17
LPT8
LPT9
LPT6
LPT7
LPT
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
25
13
LPT/PK/SC-6mm/RA/D
CPU SMART FAN
ICH_FAN_PWM2[21]
1
+
R324
8.2K/4
PIN2X5-CUT10-COM
COMB
12
34
56
78
910
PH/2*5K10/WH/2.54/VA/D
FANPWM1[25]
NDCDBNSOUTB
NSINB
180P/8P4C/6/NPO/50V/K/X
R2382 0/4
R2384 0/4
21
43
65
87
Q31
MMBT2222A/SOT23/600mA/40
-RI
-RI [20]
SOT23
132
CE4
22U/D/25V/57
for 製具issue
NSINBNDCDBNDTRBNDSRBNCTSB-
BCN4
21
43
65
87
CPUFAN_VCC
VCC
VCC3
1K/4
R1744
1K/4/X
2.2u/8/Y5V/16V/Z
R2381
4
EXTERNAL COMA
3
ACN1
NDCDANDSRANSINA
NRTSA-NRTSA-
180P/8P4C/6/NPO/50V/K/X
ACN2
NSOUTA
NCTSANDTRANRIA-
180P/8P4C/6/NPO/50V/K/X
2
87
65
43
21
87
65
43
21
NDSRANSINA
NRTSANSOUTA
NCTSANDTRANRIA-
COMA
1
6
2
10
7
3
8
4
11
9
5
COM/GE/SC-6mm/RA/1/D
1
PLACE NEAR COM CONNECTOR
BCN1
NRIBNCTSBNRTSBNDSRB-
180P/8P4C/6/NPO/50V/K/X
BCN2
NDTRBNSOUTB
NSINB
NDCDB-
180P/8P4C/6/NPO/50V/K/X
21
43
65
87
21
43
65
87
NDCDBNDSRBNSINB
NRTSBNSOUTB
NCTSBNDTRBNRIB-
VGA/BU/SC-11/RA/D/L
C1
C6
C2
C7
C3
C8
C4
C9
C5
VGA_COMB
CG2 CG1
PLACE NEAR VGA_COM CONNECTOR
VCC3
R1743
8.2K/4
R615
8.2K/4
R588
1K/4
R617
8.2K/4
+12V
100u/D/16V/5B
VCC3
Q612N7002/SOT23/25pF/5
SOT23
132
R382 0/4/X
FANPWM3[25]
1
3
Q21
2
CPUFAN_VCC
1
+
CE2
BC116
0.1u/6/Y5V/25V/Z/X
Q60
2N7002/SOT23/25pF/5
SOT23
132
R381 100/6
+12V
R1592
0/6/X
213
GVS
VCC
R2380 8.2K/4
R378
3.3K/4
R1940 15K/4
R1745
4
6.2K/4
C
CPU_FAN
FAN/1*4/WH/M2/2.54/VA/D/SN
ICH8 FAN CTRL
R2383 0/4
C1331
3.3n/4/X7R/50V/K
R390 0/4
ICH_FAN_TACH0 [21]
FANIO1 [25]
R1746
22K/4
BC115
ICH8 FAN CTRL
ICH_FAN_PWM0[21]
+12V
12
13
411
+
-
U87D
LM324M/SO14
0.1u/6/Y5V/25V/Z
R385
22K/4
R391
8.2K/4
BC114
14
AP3310H/TO252/300pF/150m
SYS FAN
R2385
1K/4
R2386 0/4
A A
FANPWM2[25]
ICH_FAN_PWM1[21]
8
R2387 0/4
SYSFAN_VCC
VCCVCC3
R394
1K/4/X
2.2u/8/Y5V/16V/Z
7
BC120
R395
22K/4
R393
22K/4
R392
8.2K/4
+12V
411
5
+
7
6
-
U87B
LM324M/SO14
+12V
R396
8.2K/4
AP3310H/TO252/300pF/150m
100u/D/16V/5B
6
Q22
CE3
1
3
2
SYSFAN_VCC
1
+
C1337
0.1u/4/Y5V/16V/Z/X
+12V
R1900
R1923
0/6/X
3.3K/4
R1941 15K/4
R1929
6.2K/4
213
CVS
SYS_FAN
FAN/1*3/WH/M2/2.54/VA/D/SN
5
ICH8 FAN CTRL
R1926 0/4
C1392
0.047u/4/Y5V/16V/Z
R1930 0/4
4
ICH_FAN_TACH1 [21]
FANIO2 [25]
Gigabyte Technology
Title
Size Document Number Rev
Custom
3
Date: Sheet
2
COM / LPT / SYS_FAN / CPU_FAN
GA-TG965MP-RH-GW 2.1
26 36Monday, May 14, 2007
of
1
8
TEMP H/W MONITOR VOLTAGE-- H/W MONITOR
VREF[25]
SYS_TEMP[25]
D D
PWM_TEMP[25]
CPU_TEMP[7,25]
C1294
1u/6/Y5V/10V/Z
C1295
1u/6/Y5V/10V/Z
CASE OPEN
C C
C1297
0.01u/4/X7R/16V/K
Case Open Circuits
KB/MS
78
56
34
12
KB_MS
MCLK
MDAT
KCLK
KDAT
MS
KB
KDAT
KCLK
MDAT
MCLK
10
9
4
3
82/8P4R/6
FUSEVCC
KDAT[25]
KCLK[25]
MDAT[25]
MCLK[25]
B B
FUSEVCC
MSDATA
MSCLK
KBDATA
KBCLK
A A
RN29
8.2K/8P4R/6
7
8
11
12
1
2
5
6
KB/MS/6P/PC99/S/RA/D/2
8
7
R1651
10K/4/1
RS1
10K/1/6/S
RN138
12
34
56
78
FUSEVCC
BC108
0.1u/6/Y5V/25V/Z
BC258
0.1u/6/Y5V/25V/Z/X
7
R269
10K/4
R1652
30K/4/1/X
CI
1
2
PH/1*2/BK/2.54/VA/D
KBDATA
KBCLK
MSDATA
MSCLK
-CASEOPEN [25]
2 1
4 3
6 5
MSDATA
MSCLK
KBDATA
KBCLK
6
R270
30K/4/1/X
C1296
2.2n/4/X7R/50V/K
CN1
180P/8P4C/6/NPO/50V/K/X
8 7
6
ESD_PAD8
TP/X
ESD_PAD9
TP/X
ESD_PAD10
TP/X
ESD_PAD11
TP/X
5
SPI BIOS
-SPI_WP[20]
3VDUAL
5
4
only use 8K
BIOS
-SPI_CS_A
SPI_MISO_A
-RST_BTN[20,25,36]
BC813
0.1u/6/Y5V/25V/Z
-C_LFRAME -LFRAME
C_LAD2
C_LAD3
C_LAD1
C_LAD0
MX25L8005M2C-15G/S
1
CS#
2
SO
3
WP#
4
VSS
ICH_SPI_MISO[20]
ICH_SPI_CLK[20]
ICH_SPI_MOSI[20]
VCC3
3VDUAL
EXT_GND
GPO32
GPO32[20]
GPO33
GPO33[20]
GPI8
GPI8[20]
-PSON
-PSON[25,31,32]
-RESET
-RESET[36]
-RST_BTN
-DBRST
-DBRST[25]
-SPI_WP
TPMCLK33[23]
-TPMRST[25]
VCC3
R1910 33/4
RN256 33/8P4R/6
R1907 33/4
R1908 22/4
TPMCLK33
-C_LFRAME
-TPMRST
C_LAD3
C_LAD0
BC812
0.1u/6/Y5V/25V/Z
R1909
VCC3
LAD2
78
LAD3
56
LAD1
34
LAD0
12
HOLD#
8.2K/4
4
****
R271
8.2K/4
VIN0[25]
VIN1[25]
VIN2[25]
VIN4[25]
R2368
0/6/X
8
VDD
-SPI_HOLD
7
SPI_CLK-SPI_WP
6
SCK
SPI_MOSI_A
5
SI
MAIN BIOS
R1785 22/4
R2400 22/4
R2401 22/4
R2402 22/4
R2403 22/4
R2404 22/4
SPI_MISO_A
SPI_MISO_B
EXT_SPI_CLK
SPI_CLK
SPI_MOSI_B
SPI_MOSI_A
EXT_BIOS
1
VCC3
3
NC
5
3VDUAL
7
EXT-GND
9
GPIO1
11
GPIO2
13
GPIO3
15
GPIO4
17
RESET
19
PWROK_SB
21
-LPCRST
23
BIOS_WP
JW/2*12/WH/2.0/VA/D/X
TPM
LCLK GND
1 2
LFRAME#
3 4
LRESET#
5 6
LAD3
7 8
VCC3
9 10
LAD0
11 12
RSV0
13
SB3V
15
GND
17
LPCPD#
19
PH/2*10K4/BUL/2.54/VA/D/X
-LFRAME [20,25]
LAD2 [20,25]
LAD3 [20,25]
LAD1 [20,25]
LAD0 [20,25]
VCC3 3VDUAL
R2369
0/6
BC259
1u/6/Y5V/10V/Z
-FWHINIT
TBL
-MHINIT
-SPI_MOSI
GND
-LFRAME
LAD0
LAD1
LAD2
LAD3
GND
CLOCK
NC
VCC5
LAD2
LAD1
GND
RSV1
SERIRQ
CLKRUN#
RSV2
R272
8.2K/4
3
3VDUAL
2
4
6
8
10
12
14
16
18
20
22
24
14
16
18
20
3
VCC3 +12VVCORE DDR18V
R273
8.2K/4
R1786
22/4
EXT_SPI_CLK
VCC
C_LAD2
C_LAD1
SERIRQ
BC814
0.1u/6/Y5V/25V/Z
2
R274
24K/4
R278
8.2K/4
3VDUAL
RN146
12
34
56
78
8.2K/8P4R/6
R1784 8.2K/4
R1905
100K/4
-SPI_CS_A
限用
MOTOROLA
SOT23
132
-SPI_CS0EXT_GND
PCI_BT1
PH/1*2/BK/2.54/VA/D/X
R1654 8.2K/4
PCI_BT2
PH/1*2/BK/2.54/VA/D/X
R489 1K/4/X
GNT0
0
10
BC260
0.1u/6/Y5V/25V/Z
-SPI_CS0
SPI_MISO_B
-SPI_CS_A
SPI_MOSI_B
GPIO10
GPIO14
SERIRQ [19,21,25]
ICH_SPI_MISO
-SPI_HOLD
ICH_SPI_MOSI
-SPI_WP
3VDUAL
-SPI_CS1[20]
R1906
1K/4
-GNT0[19,24]
-SPI_CS0
3VDUAL
Q18
-SPI_CS1
BOOT
DEVICE
-SPI_CS0[20]
MMBT2222A/SOT23/600mA/40/[10IT1-002222-01R]
GPIO10 [20]
GPIO14 [20]
SPI
PCI
FWH
Gigabyte Technology
Title
Size Document Number Rev
B
Date: Sheet
BIOS / CI / HW MONITOR / KB / MS
GA-TG965MP-RH-GW
2
1
3VDUAL
R488 1K/4/X
CS1
27 36Monday, May 14, 2007
of
1
3VDUAL
X
11
2.1
AZALIA CODEC
5
4
3
2
1
D D
C C
-ACZ_DET[20,29]
ACZ_SDOUT[20]
ACZ_BITCLK[20]
ACZ_SDIN2[20]
ACZ_SYNC[20]
-ACZ_RST[20]
靠近
B B
VCC3
22p/4/NPO/50V/J/X
CBC4
chipset
CR7 2.2/8
CR15 22/4
FRONT_JD[29]
LINE1_JD[29]
MIC1_JD[29]
SURR_JD[29]
LINE2_L[29]
LINE2_R[29]
MIC2_L[29]
MIC2_R[29]
CBC5
1u/6/Y5V/10V/Z
DVDD
CBC6
0.01u/4/X7R/16V/K
CR19 5.1K/4/1
CR20 10K/4/1
CR21 20K/4/1
CR22 39.2K/4/1
CEN[29]
LFE[29]
S_SURR_L[29]
S_SURR_R[29]
SPDIFI[29]
SPDIF[29]
1
DVDD1
2
GPIO0/XTALI
3
GPIO1/XTALO
4
DVS1
5
SDATA_OUT
6
BIT_CLK
7
DVSS2
8
SDATA-IN
9
DVDD2
10
SYNC
11
RESET#
12
PC_BEEP
CBC9
4.7u/8/Y5V/10V/Z/X
4847464544434241403938
SPDIFO
SPDIF/EAPD
SURBACK-R/XTALSEL
SURBACK-L/JD0 GPIO0
SENSE A(JD1)/PHONE JD5
LINE2-L/AUX-L
LINE2-R/AUX-R
MIC2-L/JD2
1314151617181920212223
Can Support Amp Out
LFE
CEN
MIC2-R/JD1 GPIO1
CD_L
CR2 20K/4/1
37
AVSS2
AVDD2
SURR-L
SURR-R
JDREF (NC)/JD3
LINE1-VREFOR/VREFO3
LINE1-VREFO-L/AFILT1
MIC1-VREFO-L/VREFOUT
CD_GND
CD_R
MIC1-L/MIC1
MIC1-R/MIC2
LINE1-L
LINE1-R
24
AVDD
0.1u/6/Y5V/25V/Z
CBC2
CU1
ALC880/CMI9880
FRONT-R
SENSE B (JD2)/FMIC1
DCVOL/VREFVOUT2
MIC1-VREFO-R/FMIC2
MIC2-VREFO/AFILT2
CBC12 4.7u/8/Y5V/10V/Z
CBC13 4.7u/8/Y5V/10V/Z
CBC14 1u/6/Y5V/10V/Z
CBC15 1u/6/Y5V/10V/Z
CBC16 1u/6/Y5V/10V/Z
FRONT-L
LINE2-VREFO/JD4
ALC888-GR/S/[10HP5-368880-20R]
36
35
34
33
32
31
30
29
28
27
VREF
26
AVSS1
25
AVDD1
0.1u/6/Y5V/25V/Z
VODR
VOCR
VOBR
AVDD
CBC7
MIC2 [29]
MIC1 [29]
CD_R [29]
CDGND [29]
CD_L [29]
CR5 5.1K/4/1
CR6 10K/4/1
CBC3
4.7u/8/Y5V/10V/Z/X
CR97 8.2K/4
CR13 8.2K/4
CR17 8.2K/4
CBC8
10u/8/Y5V/10V/Z
SURR_R [29]
SURR_L [29]
S_SURR_JD [29]
CEN_JD [29]
FAUDIO_JD [29]
Can Support Amp Out
LINE_O_R [29]
LINE_O_L [29]
MIC2 [29]
LINE2_VREFO [29]
MIC2_VREFO [29]
MIC1 [29]
CO-Lay
1
+
CEC14 100u/D/10V/57
CBC10 4.7u/8/Y5V/10V/Z/X
CBC11 4.7u/8/Y5V/10V/Z/X
1
+
CEC15 100u/D/10V/57
CO-Lay
AVDD
For power on-off POP noise
LINE_IN_R [29]
LINE_IN_L [29]
A A
VOBR VOCR
5
CQ11
SOT23
BAT54A/SOT23/200mA/X
CR85 8.2K/4/X
CR81 8.2K/4/X
MIC1 [29]
MIC2 [29]
CQ12
SOT23
BAT54A/SOT23/200mA
CR94 8.2K/4
CR93 8.2K/4
LINE_IN_L [29]
LINE_IN_R [29]
NOTE:@ ALC885 NOTE:@ LINE IN SUPPORT MIC FUNCTION
4
3
Gigabyte Technology
Title
Size Document Number Rev
Custom
Date: Sheet
2
CODEC ALC888
GA-TG965MP-RH-GW
28 36Monday, May 14, 2007
of
1
2.1
5

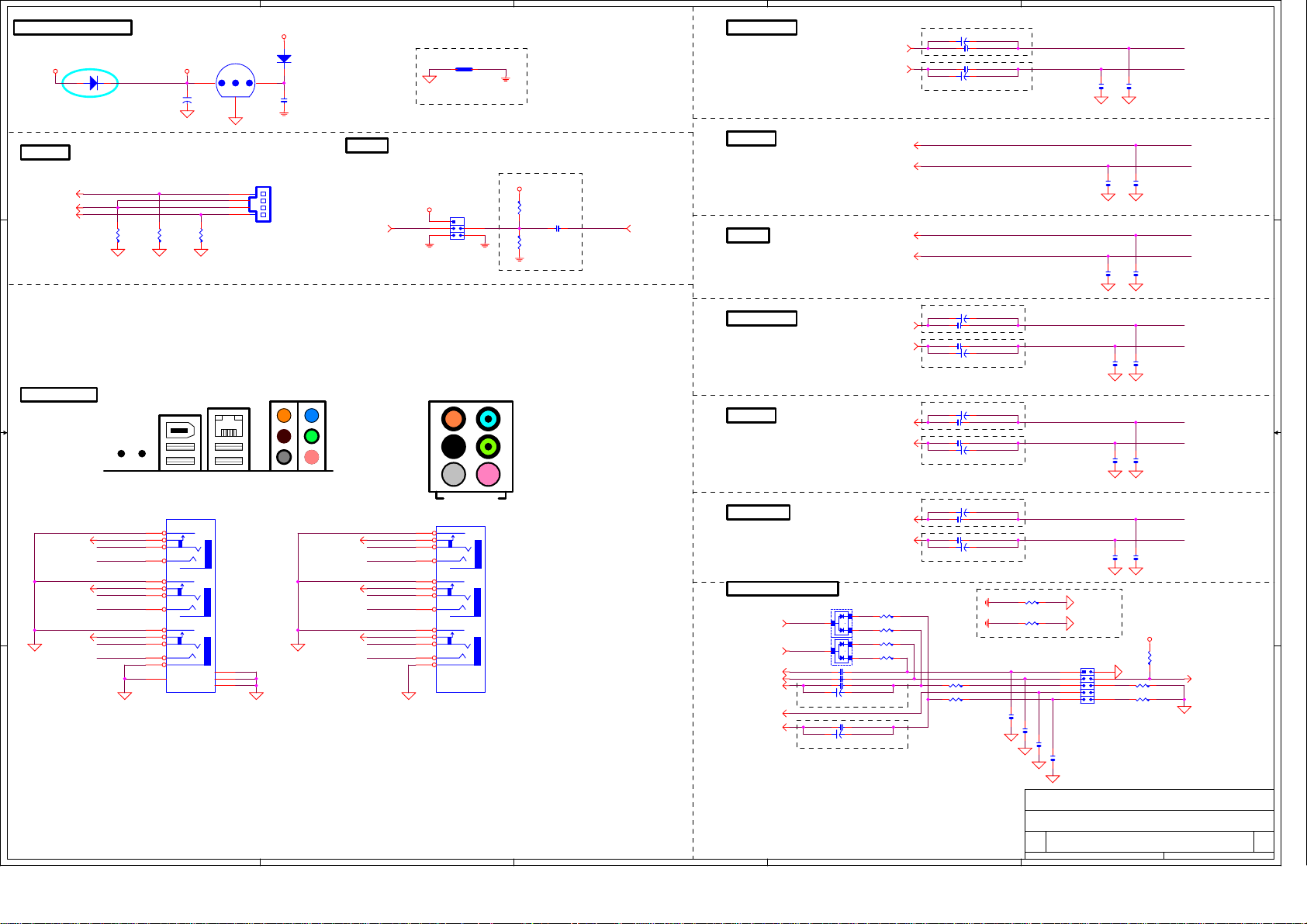

CODEC POWER/EMI PAD
CQ4
5VSB
CD2
LL4148/SOD80C/300mA
D D
CEC4
100u/D/10V/57
AVDD
+
78L05/TO92/100mA
TOP
1
OUT GND IN
+12V
CD1
LL4148/SOD80C/300mA
3
2
CBC25
0.1u/6/Y5V/25V/Z/X
CD IN
CD_IN
CR53
8.2K/4
1
2
3
4
SHR/1*4/BK/P/2.54/VA/D
CD_L[28]
CDGND[28]
CD_R[28]
CR52
CR51
8.2K/4
8.2K/4
C C
4
CR26
0/6/SHT/X
3
SPDIF
realtek: for 192K S/PDIF IN compatible
VCC3
VCC
SPDIF_IO
1
SPDIF[28] SPDIFI [28]
354
6
PH/2*3K2/RE/2.54/VA/D
CR84
8.2K/4/X
CBC50 470p/6/X7R/50V/K
CR86
374K/4/1/X
LINE-OUT
LINE-IN
MIC-IN
SURROUND
2
CO-Lay
CEC16 100u/D/10V/57
1
LINE_O_R[28]
LINE_O_L[28]
LINE_IN_R[28]
LINE_IN_L[28]
MIC2[28]
MIC1[28]
SURR_R[28]
SURR_L[28]
+
CBC17 4.7u/8/Y5V/10V/Z/X
CBC19 4.7u/8/Y5V/10V/Z/X
1
+
CEC17 100u/D/10V/57
CO-Lay
CO-Lay
CEC8 100u/D/10V/57/X
1
+
CBC30 4.7u/8/Y5V/10V/Z
CBC31 4.7u/8/Y5V/10V/Z
1
+
CEC9 100u/D/10V/57/X
CO-Lay
180p/4/NPO/50V/J
180p/4/NPO/50V/J
180p/4/NPO/50V/J
180p/4/NPO/50V/J
CBC21
CBC26
CBC28
CBC32
1
AJ_B5
AJ_B2
CBC22
180p/4/NPO/50V/J
LINE_IN_R
LINE_IN_L
CBC27
180p/4/NPO/50V/J
MIC2
MIC1
CBC29
180p/4/NPO/50V/J
BJ_C5
BJ_C2
CBC33
180p/4/NPO/50V/J
AZALIA JACK
USB_1394
USB_LAN
BTX AZALIA CONNECTOR
CEN/LFE
CO-Lay
CEC10 100u/D/10V/57/X
LFE[28]
CBC34 4.7u/8/Y5V/10V/Z
CBC35 4.7u/8/Y5V/10V/Z
CEN[28]
CEC11 100u/D/10V/57/X
CO-Lay
1
+
1
+
180p/4/NPO/50V/J
CBC36
BJ_B5
BJ_B2
CBC37
180p/4/NPO/50V/J
3RP/26P/OR,BK,GY,BU,GE,PK/RA/D/1/B
規範
AUDIOA
VISTA
D3
B B
A A
CEN_JD[28]
SURR_JD[28]
S_SURR_JD[28]
CEN_JD
BJ_B5
BJ_B2
SURR_JD
BJ_C5
BJ_C2
S_SURR_JD
BJ_A5
BJ_A2
D3
D2
D2
D4
D4
D1
D1
GND
CEN/SUB(ORG)
E3
E3
E2
E2
E4
E4
E1
E1
GND
REAR(BLK)
F3
F3
F2
F2
F4
F4
F1
F1
GND
F0
F0
SIDE(GRY)
G4
G4
2X3RP/26P/OR,BK,GY,BU,GE,PK/RA
VISTA
G1
G1
G2
G2
G3
G3
:REAR-->BLK,CEN/SUB-->ORG
LINE1_JD[28]
FRONT_JD[28]
MIC1_JD[28]
LINE1_JD
LINE_IN_R
LINE_IN_L
FRONT_JD
AJ_B5
AJ_B2
MIC1_JD
MIC2
MIC1
AUDIOB
VISTA
A3
A3
A2
A2
A4
A4
A1
A1
GND
LINE-IN(BLU)
B3
B3
B2
B2
B4
B4
B1
B1
GND
LINE-OUT(GRN)
C3
C3
C2
C2
C4
C4
C1
C1
GND
C0
C0
MIC-IN(PNK)
2X3RP/26P/OR,BK,GY,BU,GE,PK/RA
SURR BACK
S_SURR_R[28]
S_SURR_L[28]
AZALIA FRONT PANEL
CQ8
BAT54A/SOT23/200mA
LINE2_VREFO[28]
BAT54A/SOT23/200mA
MIC2_VREFO[28]
MIC2_L[28]
MIC2_R[28]
LINE2_R[28]
FAUDIO_JD[28]
LINE2_L[28]
CQ9
CBC45 4.7u/8/Y5V/10V/Z
CBC44 4.7u/8/Y5V/10V/Z
CBC43 4.7u/8/Y5V/10V/Z/X
CEC6 100u/D/10V/57
CO-Lay
CBC42 4.7u/8/Y5V/10V/Z/X
CO-Lay
1
+
+1CEC7 100u/D/10V/57
CR74 8.2K/4
CR75 8.2K/4
CR76 8.2K/4
CR77 8.2K/4
for meet vista frequency response request
CO-Lay
CEC12 100u/D/10V/57/X
1
+
CBC38 4.7u/8/Y5V/10V/Z
CBC39 4.7u/8/Y5V/10V/Z
1
+
CEC13 100u/D/10V/57/X
CO-Lay
CR82 0/6/X
CR83 0/6/X
CR95 75/4
CR96 75/4
CBC46
180p/4/NPO/50V/X
CBC47
180p/4/NPO/50V/X
180p/4/NPO/50V/X
180p/4/NPO/50V/X
CBC48
CBC49
180p/4/NPO/50V/J
FOR EMI
F_AUDIO
1
3
5
7
9
PH/2*5K8/GED/2.54/VA/D
CBC40
2
4
6
10
BJ_A5
BJ_A2
CBC41
180p/4/NPO/50V/J
VCC3
CR78
8.2K/4
CR79 20K/4/1
CR80 39.2K/4/1
-ACZ_DET [20,28]
Gigabyte Technology
Title
Size Document Number Rev
Custom
5
4
3
2
Date: Sheet
AUDIO JACK
GA-TG965MP-RH-GW
of
1
29 36Monday, May 14, 2007
2.1
5
4
3
2
1
VCC33VDUAL
R2409
8.2K/4
MMBT2222A/SOT23/600mA/40
D D
VCC1_25
C C
IO_VIDO6[25]
IO_VIDO7[25]
VR_HOT
VID6[7]
VID7[7]
B B
A A
Q334
R2411 8.2K/4 DC4
Place
close to
inductor
VCC_SENSE[7]
VSS_SENSE[7]
VCC3
R2413
8.2K/4
VID3[7,25]
VID2[7,25]
VID1[7,25]
VID0[7,25]
VID4[7,25]
VID5[7,25]
DR42
1K/4
132
C1887
1u/6/Y5V/10V/Z
VR_RDY[6]
VRD_SEL[7]
DR14
49.9/4/1
VCORE
3
Q336
D
2N7002/SOT23/25pF/5/X
GS
SOT23
2
1
3
Q338
D
2N7002/SOT23/25pF/5/X
GS
SOT23
2
1
DRN1
1K/8P4R/6
7 8
5 6
3 4
1 2
DR36 1K/4
DR37 1K/4
DR38 0/4
DR39 0/4
DR40 0/4/X
DR41 0/4/X
VCC3VCC3
For ITE 8718 C&D
DR43
1K/4
IO_VIDO6
DR44 0/4
IO_VIDO7
DR45 0/4
R2410
1K/4
Q335
MMBT2222A/SOT23/600mA/40
132
PWM_VID0
PWM_VID1
PWM_VID2
PWM_VID3
PWM_VID4
PWM_VID5
PWM_VID6
PWM_VID7
1n/4/X7R/50V/K
DR9
12/6
DR12 1K/4/1
t
1 2
DRT1
10K/1/6/S
DR22
100/6/1
0.1u/4/Y5V/16V/Z/X
DR25
100/6/1
-PROCHOT [7,20]
-FORCEPR [7]
PWM_VID3
PWM_VID2
PWM_VID1
PWM_VID0
PWM_VID4
PWM_VID5
IO_VID6
IO_VID7
PWM_VID6
PWM_VID7
PWM_VID6
PWM_VID7
DC11
DR15
49.9/4/1
DC24
IO_VID6 [25]VID6[7]
IO_VID7 [25]VID7[7]
VTT_PWRGD
R2422
0/4/X
VRM_EN
DC5
0.1u/4/Y5V/16V/Z/X
VRM_EN
DR10 3.3K/6
DC13 10p/4/NPO/50V/J
DR13 3.01K/6/1
DR20
36K/6/1
DC21
0.01u/4/X7R/16V/K/X
DC25
0.1u/4/Y5V/16V/Z/X
0.01u/4/X7R/16V/K
VTT_PWRGD [31]
0.01u/4/X7R/50V/K
DC12
DC27
VCORE
+
37
VR_RDY
1
EN
2
VID0
3
VID1
4
VID2
5
VID3
6
VID4
7
VID5
8
VID6
9
VID7
10
VR10/11
7X7 QFN
18
COMP
20
VDRP
19
VFB
17
DIFFOUT
35
DGND
15
VS+
16
VS-
11
SS
13
ILIM
ROSC
12
DR27
10K/4/1
DR29
20K/4/1
R2414
8.2K/4
VR_RDY
R2416
8.2K/4
1
560u/FP/D/2.5V/88/8m/X
DEC4
VTTGMCH
VCORE_EN
V12
DR3
2.2/6
DC6
4.7u/8/Y5V/16V/Z
NCP5388MNR2G/[10TA1-605388-01R]
36
U92
29
DRVON
VCC
30
G1
21
CS1N
22
CS1
31
G2
23
CS2N
24
CS2
32
G3
25
CS3N
26
CS3
33
G4
27
CS4N
28
CS4
39
VR_FAN
40
VR_HOT
34
VREF
38
NTC
AGND
PAD_GND
14
41
0.1u/4/Y5V/16V/Z/X
BOTTOM PAD
CONNECT TO
GND Through
4 VIAs
3VDUAL
3VDUAL
GS
Q339
MMBT2222A/SOT23/600mA/40
SOT23
132
DR34 0/4/X
1
+
560u/FP/D/2.5V/88/8m/X
DEC5
2
D
3
>1mS
PWCS1
PWCS2
PWCS3
R2412
1K/4
1
G1
DR7
3.92K/4/1
0.22u/4/X5R/10V/K
G2
DR11
3.92K/4/1
0.22u/4/X5R/10V/K
G3
DR18
3.92K/4/1
0.22u/4/X5R/10V/K
VCORE
DR35 0/4/X
VR_HOT
DR24
15K/6/X
DC26
12
Q337
SOT23
2N7002/SOT23/25pF/5
1
+
560u/FP/D/2.5V/88/8m
DEC6
2.2u/8/Y5V/16V/Z/X
PWCS1N
DR6
100K/4/X
DC9
PWCS2N
DR8
100K/4/X
DC14
PWCS3N
DR16
100K/4/X
DC18
vendoe up 2007/01/20
-FS_FAN [25]
DR26
0/4/X
DR28
10K/1/6/S/X
t
Place
close to
hottest
MOSFET
ICH_VRMPWRGD [20]
C1888
0.1u/4/Y5V/16V/Z
DC3
DC10
0.1u/4/Y5V/16V/Z/X
DC15
0.1u/4/Y5V/16V/Z/X
DC19
0.1u/4/Y5V/16V/Z/X
1
+
560u/FP/D/2.5V/88/8m
DEC7
DEC1
1500u/D/16V/AK/13m
DEC2
1500u/D/16V/AK/13m
DEC3
1500u/D/16V/AK/13m
1
+
560u/FP/D/2.5V/88/8m/X
DEC8
V12
LL4148/SOD80C/300mA
DD1
1
+
DR2
2.2/6
G1
DC7
1u/8/Y5V/25V/Z
V12
LL4148/SOD80C/300mA
DD2
1
+
DR19
2.2/6
G2
DC22
1u/8/Y5V/25V/Z
V12
LL4148/SOD80C/300mA
DD3
1
DR31
+
2.2/6
G3
DC31
1u/8/Y5V/25V/Z
1
4 8
VCC DRVH
BST
2
IN
PGND
NCP3488DR2G/[10TA1-603488-01R]
6
1
4 8
VCC DRVH
BST
2
IN
PGND
NCP3488DR2G/[10TA1-603488-01R]
6
1
4 8
VCC DRVH
BST
2
IN
PGND
NCP3488DR2G/[10TA1-603488-01R]
6
DR1 2.2/6
U91
7
SWN
53
DRVLOD
DR17 2.2/6
U93
7
SWN
53
DRVLOD
DR30 2.2/6
U94
7
SWN
53
DRVLOD
10u/12/X5R/16V/K/X
DC1
0.22u/6/X7R/16V/K
DR4 2.2/6
2SK3918/TO252/1300pF/7.5m
10u/12/X5R/16V/K/X
DC16
DC20
0.22u/6/X7R/16V/K
DR21 2.2/6
2SK3918/TO252/1300pF/7.5m
10u/12/X5R/16V/K/X
DC28
DC30
0.22u/6/X7R/16V/K
DR32 2.2/6
2SK3918/TO252/1300pF/7.5m
V12
2SK3918/TO252/1300pF/7.5m
DQ1
2
1
3
2
DQ3
1
3
V12
2SK3918/TO252/1300pF/7.5m
DQ5
2
1
3
2
DQ7
1
3
V12
2SK3918/TO252/1300pF/7.5m
DQ9
2
1
3
2
DQ11
1
3
2SK3918/TO252/1300pF/7.5m
2
DQ2
1
3
0.3uH/D/covered/[11LC5-40300C-E1R_11LC5-40300C-E2R]
DR5
2
2.2/6
DQ4
DC8
1
2SK3918/TO252/1300pF/7.5m
1
2SK3918/TO252/1300pF/7.5m
1
2SK3918/TO252/1300pF/7.5m
1n/4/X7R/50V/K
3
2SK3918/TO252/1300pF/7.5m
2
DQ6
1
3
0.3uH/D/covered/[11LC5-40300C-E1R_11LC5-40300C-E2R]
DR23
2
2.2/6
DQ8
DC23
1n/4/X7R/50V/K
3
2SK3918/TO252/1300pF/7.5m
2
DQ10
1
3
0.3uH/D/covered/[11LC5-40300C-E1R_11LC5-40300C-E2R]
DR33
2
2.2/6
DQ12
DC32
1n/4/X7R/50V/K
3
SR1
0/6/SHT/X
SR3
0/6/SHT/X
SR5
0/6/SHT/X
DC2
1u/8/X7R/16V/K
DL1
SR2
0/6/SHT/X
PWCS1
Close to choke
DC17
1u/8/X7R/16V/K
DL2
SR4
0/6/SHT/X
PWCS2
Close to choke
DC29
1u/8/X7R/16V/K
DL3
SR6
0/6/SHT/X
PWCS3
Close to choke
VCORE
PWCS1N
VCORE
PWCS2N
VCORE
PWCS3N
CHECK uF Value
1
+
560u/FP/D/2.5V/88/8m
DEC9
1
+
560u/FP/D/2.5V/88/8m
DEC10
1
+
560u/FP/D/2.5V/88/8m
DEC11
1
+
560u/FP/D/2.5V/88/8m/X
DEC12
Title
Size Document Number Rev
Custom
5
4
3
2
Date: Sheet
Gigabyte Technology
PWM FAN5032MPX
GA-TG965MP-RH-GW
1
30 36Monday, May 14, 2007
of
2.1
5
5VDUAL
+12V
AP40T03H/TO252/655pF/25m
R2417
UPI7501/[10TA1-317501-10R]
U17
VCC
1u/6/Y5V/10V/Z
D D
C1889
5VSB
R2418 10/4
C1892
0.1u/6/Y5V/25V/Z
R2419
8.2K/4
R2420
8.2K/4/X
DDR18V
C C
4.7u/8/Y5V/10V/Z
R1705
30K/4/1
R1709
20K/4/1
B B
EN
C1322
10p/4/NPO/50V/J
C1323
0.047u/4/Y5V/16V/Z
1
2
4
5VSB
HI= S4/S5 5VDUAL FORM 5VSB
LOW = S4/S5 SHUNTDOWN
C1317
7
LOOK 0.8V
VCC
5VCC_DRV
5VSB
5VSB_DRV
S5#GND
MODE
S3#
R2426 1K/4
G_USB H: not support Green USB PWR
G_USB L: support Green USB PWR
5
COMP
BOOT
UGATE
VCC
PHASE
LGATEFB
GND
3
U86
ISL6520ACBZ/SO8
8
1u/6/Y5V/10V/Z/X
7
63
5
1
2
8
46
C405
0.1u/6/Y5V/25V/Z
R1881 4.7/6
DDR18V_FB
1K/4
C1890
VCC
for mode 1
1
234
5VDUAL
5VSB
Q341
AP9435K/SOT223/507pF/50m
-S4_S5 [20]
-SLP_S3 [20,25]
G_USB [25]
5VDUAL 5VSB
L17
1uH/V/10A/1P/T3726/D
2SK3918/TO252/1300pF/7.5m
2
Q286
R1707
4.7/6
GDS
1
3
GDS
1
PHASE1_8V
2
3
R1866 2.2/6
4
5VDUAL
Q340
1
2
3
C18910.015u/4/X7R/16V/K/X
5VDUAL
1
+
1000u/D/6.3V/8C/36m
R1700
1/6
D23
SS12/SMA/1A
C1321
1u/6/Y5V/10V/Z
2.8uH/V/20A/3P/T5052/D
L18
R1710
2.2/6
Q288
2SK3918/TO252/1300pF/7.5m
C1324
1n/4/X7R/50V/K
EC178
DDR18V_FB
C1320
1u/6/Y5V/10V/Z
1
+
EC168
1000u/D/6.3V/8C/36m
5VDUAL
D65
3VDUAL
1V
DDR18V_OV1 LOW=1.8+0.1V
DDR18V_OV2 LOW=1.8+0.2V
DDR18V_OV3 LOW=1.8+0.3V
1
+
5VSB
SS12/SMA/1A
3
2
1
Q36
KD1084ADT/TO252/5A
R1699
2.4K/4/X
Z221
0.01u/4/X7R/16V/K/X
R1711
2K/4/1
R1867
1.54K/4/1
C1319
R1703
1K/4/1/X
R2391 5.36K/6/1
R2342 8.06K/6/1
R2343 16K/6/1
EC166
1000u/D/6.3V/8C/36m
DDR18V
+
DDR18V
3
3VDUAL
C234
0.1u/6/Y5V/25V/Z
R1735
100/6/1
0.1u/6/Y5V/25V/Z
R1737
169/6/1
C1316
0.01u/4/X7R/16V/K/X
+12V
411
3
+
1
2
-
U87A
LM324M/SO14
DDR18V_OV3 [25]
DDR18V_OV2 [25]
DDR18V_OV1 [25]
1
EC167
1000u/D/6.3V/8C/36m
R2344
BC820
100/6/1/X
0.1u/6/Y5V/25V/Z/X
RAM_LED
LED/Y/S/X
DDR RAM LED
R373
1K/4
+
C236
EC32
1000u/D/6.3V/8C/36m
VCC1_25
R1702
8.2K/4/X
R1704
2.4K/4/X
MEMORY VOLTAGE
1.8V
1.9V X
2.0V
2.1V
2.2V
2.3V
3VDUAL
C1329
0.1u/6/Y5V/25V/Z
C1318
0.1u/6/Y5V/25V/Z/X
OV1
X
L
X
X
L
X
L2.4V L
-RSMRST [20,25]
VTT_PWRGD [30]
OV2
X
L
XL
X
L
L
2
PWR SEQ
POWER ISSUEVTT_PWRGD
2N7002/SOT23/25pF/5
MMBT2222A/SOT23/600mA/40
OV3
3VDUAL
X
X
X
L
L
S3 TURN OFF 1_5LEVEL,避免DDR18V DROP
(因PSU +12V
導致
ON,
GS
Q283
R1698
22K/4
R1790
8.2K/4
EN
3
D
2
1
132
-PSON[25,27,32]
-SLP_S3[20,25]
-SLP_S3[20,25]
Q282
C1315
1u/6/Y5V/10V/Z
VCC1_5 2.2A
For ICH8 power sequence
10
C1882
9
R2392 11.5K/6/1/X
+12V
+
-
R1718
1.2K/4/1
1_5LEVEL
1n/4/X7R/50V/K/X
R1723
1K/4/1
1_5V_OV1 LOW=1.5+0.1V
太晚關,造成
DDR18V LOADING WORSE)
5VSB
R1789
1K/4
Q306
SOT23
132
MMBT2222A/SOT23/600mA/40
MMBT2222A/SOT23/600mA/40
-S4_S5[20]
AP40T03H/TO252/655pF/25m
411
AP40T03H/TO252/655pF/25m
R1722 100/6
8
U87C
LM324M/SO14
0.01u/4/X7R/16V/K/X
R1724 1K/4
1.5V X
1.6V L
1
OP TURN
1_5LEVEL
3
D
GS
SOT23
2
1
2N7002/SOT23/25pF/5
C1336
1n/4/X7R/50V/K/X
MMBT2222A/SOT23/600mA/40
5VSB
Q285
R1706
8.2K/4
VCC3
Q289
1
C1326
1_5V_OV1 [25]
1_5V_OV1
Q305
Q284
R1701
1K/4
SOT23
132
Q333
2
1
3
1000u/D/6.3V/8C/36m
EN
SOT23
132
2
3
VCC1_5
+
EC170
R1882
4.7/6
VCC VCC
2
GDS
1
3
PHASE1_25V
2
GDS
1
3
R1515
1/6
D63
SS12/SMA/1A
C919
1u/6/Y5V/10V/Z
L24
2.8uH/V/20A/3P/T5052/D
R1518
2.2/6
C921
1n/4/X7R/50V/K
4
C918
1u/6/Y5V/10V/Z
+
EC80
1000u/D/6.3V/8C/36m
1
+
EC150
1000u/D/6.3V/8C/36m
VCC1_25
R1520
1.2K/4/1
R1521
2K/4/1
1_25V_OV1L1_25V_OV2
1.25V
1.35V
1.45V
1.55V
1
+
1000u/D/6.3V/8C/36m
R2394
8.06K/6/1
EC173
R2395
3.9K/6/1
3
X
L
X
L
D64
BAT54A/SOT23/200mA
SOT23
1_25V_OV2 [25]
1_25V_OV1 [25]
X
X
L
VCC1_25
0.8=1.55*(1/1+X),X=600
C917
4.7u/8/Y5V/10V/Z
R1516
30K/4/1
R1519
C920
20K/4/1
10p/4/NPO/50V/J
A A
C922
0.047u/4/Y5V/16V/Z
LOOK 0.8V
5
7
COMP
BOOT
UGATE
VCC
PHASE
LGATEFB
GND
3
U59
ISL6520ACBZ/SO8
5
BC724
0.1u/6/Y5V/25V/Z
L25
1uH/V/10A/1P/T3726/D
Q248
2SK3918/TO252/1300pF/7.5m
1
R1517 4.7/6
2
8
R1668 2.2/6
46
Q249
2SK3918/TO252/1300pF/7.5m
DDRVTT
DDR18V
R1911
1K/4/1
R1912
1K/4/1
DDRVTT
2
BC816
0.1u/6/Y5V/25V/Z
BC819
0.1u/6/Y5V/25V/Z
1000u/D/6.3V/8C/36m
DDR18V
8
7
6
5
VCC
BC818
0.1u/6/Y5V/25V/Z
BC817
4.7U/8/Y5V/10V/Z
1
1
+
+
EC174
EC175
100u/D/10V/57/X
RT9199PSP/SO8/1.8A
U89
1
VIN
VCNTL4
2
GND
VCNTL3
3
REFEN
VCNTL2
4
VOUT
VCNTL1
GND_PAD
9
4 VIA to GND
Co-Lay
Gigabyte Technology
Title
Size Document Number Rev
Custom
Date: Sheet
DISCRETE POWER
GA-TG965MP-RH-GW
of
31 36Monday, May 14, 2007
1
2.1
8
7
6
5
4
3
2
1
ATX POWER CONNECTOR
MH5
MH1
VCC3
1
2
3
4
5
6
7
8
9
10
11
12
BC135
0.1u/6/Y5V/25V/Z
BC136
0.1u/6/Y5V/25V/Z/X
BC138
0.1u/6/Y5V/25V/Z
C259
0.1u/6/Y5V/25V/Z
BC253
0.1u/6/Y5V/25V/Z
VCC
VCC
PWOK [25]
5VSB
+12V
BC139
0.1u/6/Y5V/25V/Z/X
THRO-HO/1*4/WH/2.54/VA/D/SN/X
V12
APW/2*2/IV/OC/P/4.2/VA/SN/OH
ATX_12V
4
+12V
BC130
0.1u/6/Y5V/25V/Z
FM_PWR
+12V
1
2
3
4
+5V
GND
GND+12V
+12V
1
23
5VDUAL
EMI
VCC3
C1857 1n/4/X7R/50V/K/X
C1858 1n/4/X7R/50V/K/X
C1859 1n/4/X7R/50V/K/X
2
3
8
4
7
1
HOLE_3/X
6
5
2
3
8
4
7
1
HOLE_3/X
6
5
K1
K1_ICT/X
1
K4
K1_ICT/X
1
1
1
K2
K1_ICT/X
K5
K1_ICT/X
K3
K1_ICT/X
1
K6
K1_ICT/X
1
I1
4MMH/X
I3
4MMH/X
I5
4MMH/X
I2
4MMH/X
I4
4MMH/X
VCC
C1860 1n/4/X7R/50V/K/X
C1861 1n/4/X7R/50V/K/X
VCC VCC3
C1862 1n/4/X7R/50V/K/X
C1863 1n/4/X7R/50V/K/X
VCC3 DDR18V
C1865 1n/4/X7R/50V/K/X
VCC 5VDUAL
C1866 1n/4/X7R/50V/K/X
VCC3
-12V
D D
-PSON[25,27,31]
BC129
0.1u/6/Y5V/25V/Z
-5V
VCC
VCC
BC131
0.1u/6/Y5V/25V/Z
C C
MH2
2
8
7
MH6
6
2
8
7
6
B B
3
5
3
5
4
1
HOLE_3/X
4
1
HOLE_3/X
0.1u/6/Y5V/25V/Z/X
MH3
8
7
MH7
8
7
BC133
2
6
2
6
BC134
0.1u/6/Y5V/25V/Z/X
3
4
1
HOLE_3/X
5
3
4
1
HOLE_3/X
5
MH4
MH8
ATX
13
3.3V
3.3V
14
-12V
3.3V
15
GND
GND
16
PSON
5V
17
GND
GND
18
GND
5V
19
GND
GND
20
-5V
POK
21
5V
5VSB
22
5V
12V
23
5V
12V
24
GND
3.3V
APW/2*12/IV/OC/OP/4.2/VA/GF/LK/2H
2
3
8
4
7
1
HOLE_3/X
6
5
2
3
8
4
7
1
HOLE_3/X
6
5
5VDUAL
C1868 1n/4/X7R/50V/K/X
A A
Gigabyte Technology
Title
Size Document Number Rev
B
8
7
6
5
4
3
Date: Sheet
ATX POWER CONNECTOR
GA-TG965MP-RH-GW
2
32 36Monday, May 14, 2007
1
2.1
of
8
D D
DMARQA
DD15A
DVDD_3V
-PCIE_RST[18,24,25,35]
100P/4/NPO/50V/J/X
C C
DVDD2_0V
B B
A A
JC22
APL1117/SOT223/0.8A
JU1
4
VCC3 DVDD_3V
R2407 0/6/SHT/X
JC19
0.1u/4/Y5V/16V/Z
8
PCI_RESETn
DD0A
DD14A
DD1A
DD13A
DD2A
DD12A
3
2
1
JR13
100/6/1
close to IC
JR11
165/6/1
JEC1
100U/D/10V/57
JC20
0.1u/4/Y5V/16V/Z
1
+
7
DVDD2_0V
CO-LAY
JC18
10u/8/Y5V/10V/Z/X
JC21
10u/8/Y5V/10V/Z
7
PCIE_CLK1[23]
U90
37
XIDMRAQA
38
ZIDD15A
39
DV33
40
XSMBCLK
41
XSMBDAT
42
XRSTn
43
ZIDD0A
44
ZIDD14A
45
ZIDD1A
46
ZIDD13A
47
ZIDD2A
48
ZIDD12A
JMB368
JC14
10u/8/Y5V/10V/Z
6
DVDD2_0V
DMACKnA
IORDYA
363534
YIDMACKnA
DA1A
DIORnA
PDIAGnA
INTRQA
DA0A
DIOWnA
32
33
31
DV18
YIDA1A
XINTRQA
XICBLIDA
YIDIORnA
XIIORDYA
YIDIOWnA
JMB368
DG33
ACPLKN
ACPLKP
APV18
APG18
APREXT
APRXP
APRXN
23456789101112 25
1
PCIE_ON1
PCIE_CLK1
-PCIE_CLK1
GND
DVDD2_0V
6
PCIE_REXT1
GND
DVDD2_0V
PCIE_OP1
JR20
12K/4/1
JC15
10u/8/Y5V/10V/Z
DA2A
CS0nA
YIDA2A
YIDA0A
APV18
APG18
GND
VCC
CS1nA
2627282930
YICS0nA
24
ZIDD3A
23
ZIDD11A
22
DV33
21
ZIDD4A
20
ZIDD10A
19
ZIDD5A
18
ZIDD9A
17
ZIDD6A
16
ZIDD8A
15
ZIDD7A
YROMCSn
14
13
XTEST
APTXN
APTXP YICS1nA
C1883 0.1u/4/Y5V/16V/Z
C1884 0.1u/4/Y5V/16V/Z
DD3A
DD11A
DVDD_3V
DD4A
DD10A
DD5A
DD9A
DD6A
DD8A
DD7A
5
PCIE_IP1 [19]
PCIE_IN1 [19]
PCIE_ON1 [19]-PCIE_CLK1[23]
PCIE_OP1 [19]
-PCIE_RST[18,24,25,35]
-HDLED[36]
5
JD1
LL4148/SOD80C/300mA
4
JIDE
RESETn
DD7 DD8
DD6
DD5
DD4
DD3
DD2
DD1
DD0
DMARQ
DIOWn
DIORn
IORDY
DMACKn
INTRQ
DA1
DA0
CS0n
-IDEACTP
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
BH/2*20K20/BU/SHN/2.54/VA/D/GF
DD9
DD10
DD11
DD12
DD13
DD14
DD15
(#20 key-pin)
(#28 CSEL)
IDEPU0
(#32 IOCS16)
DA2
CS1n
改防斷裂料號
4
3
RN257 33/8P4R/6
DD9
7 8
DD6
5 6
DD8
3 4
DD7
1 2
RN258 33/8P4R/6
DD11
7 8
DD4
5 6
DD10
3 4
DD5
1 2
RN259 33/8P4R/6
DD3
7 8
DD12
5 6
DD2
3 4
DD13 DD13A
1 2
RN260 33/8P4R/6
DD1
7 8
DD14
5 6
DD0
3 4
DD15
1 2
RN261 33/8P4R/6
DA1
7 8
DA0
5 6
DA2
3 4
CS1n
1 2
JR21
CS0n CS0nA
33/4
PDIAGnA
DD9A
DD6A
DD8A
DD7A
DD11A
DD4A
DD10A
DD5A
DD3A
DD12A
DD2A
DD1A
DD14A
DD0A
DD15A
DA1A
DA0A
DA2A
CS1nA
3
2
JR14
DMARQ
IORDY
INTRQ
DIOWn
DIORn
DMACKn
IORDYA
DMARQA
INTRQA
DD7A
IDEPU0
82/4
JR15
82/4
JR16
82/4
JR17
22/4
JR18
22/4
JR19
22/4
JR6
4.7K/4
JR7
5.6K/4
JR8
10K/4/1
JR9
10K/4/1
JR10
0/4
1
DMARQA
IORDYA
INTRQA
DIOWnA
DIORnA
DMACKnA
VCC3
close to IDE Connector
close to power pins
Bypass CAP, close to power pins
DVDD_3V
JC8
0.1u/4/Y5V/16V/Z
DVDD_3V
JC11
0.1u/4/Y5V/16V/Z
Gigabyte Technology
Title
Size Document Number Rev
Date: Sheet
JMICRON JMB368
Monday, May 14, 2007
2
JC9
0.1u/4/Y5V/16V/Z
GA-TG965MP-RH-GW
DVDD2_0V
JC12
0.1u/4/Y5V/16V/Z
DVDD2_0VDVDD2_0V
JC10
0.1u/4/Y5V/16V/Z
33 36
of
1
2.1
8
VCC3_1394
IBC11
0.1u/4/Y5V/16V/Z
IBC28
0.1u/4/Y5V/16V/Z
ON
REMOVEON
L26
6
7
8
RN248
4
0/8P4R/SHT/X
L27
4 5
3
2
1
RN249
1 2
3
4
5 6
7 8
0/8P4R/SHT/X
IBC3
0.1u/4/Y5V/16V/Z
6
7
8
7 8
5 6
3
1 2
0/8P4R/SHT/X
IBC1
0.1u/4/Y5V/16V/Z
3VDUAL
D D
VDD25
100U/D/10V/57
IEC1
1
+
1394 CHIP IBC27 IBC28
VT6307 REMOVE
VT6308P
Bandgap
IR9
Resistor
6.34K
VT6307
C C
VT6308P
6.2K
TPA0+
TPA0-
TPB0+
TPB0-
B B
A A
TPA1+
TPA1- FTPA1-
TPB1+
TPB1-
-USBP7[19]
+USBP7[19]
-USBP6[19]
+USBP6[19]
IBC2
1U/6/Y5V/10V/Z
IBC10
1U/6/Y5V/10V/Z
靠近
33 pin
IBC27
10u/8/Y5V/10V/Z
IR12
REMOVE
ON
4 5
3
2
1
OD6560T/S/[10LI5-016560-C0]/X
1 2
3
5 6
7 8
OD6560T/S/[10LI5-016560-C0]/X
-USBP7
-USBP6
8
RN131
IR9
6.2K/4/1
7
IBC12
0.1u/4/Y5V/16V/Z
IBC29
0.1u/4/Y5V/16V/Z
RTPA0+
RTPA0-
RTPB0+
RTPB0-
-1394RST[25]
10P/4/NPO/50V/J/X
4
7
IBC4
1U/6/Y5V/10V/Z
IC11
47P/4/NPO/50V/J
-PIRQH[19,24]
FTPA1+
FTPB1+
FTPB1-
P7P7++USBP7
P6P6++USBP6
IBC5
0.1u/4/Y5V/16V/Z
IBC13
0.1u/4/Y5V/16V/Z
IBC30
0.1u/4/Y5V/16V/Z
3VDUAL
IC7
IBC6
0.1u/4/Y5V/16V/Z
IBC14
0.1u/4/Y5V/16V/Z
+12V_BUS 3VDUAL
3VDUAL
IR31
11K/4
TPB0TPB0+
TPA0TPA0+
TPBIAS0
TPB1TPB1+
TPA1TPA1+
TPBIAS1
IR12 0/6
VDD25
-PIRQH
-1394RST
1394CLK[23]
-GNT3[19]
-REQ3[19,24]
A_D31
A_D30
A_D29
A_D28
A_D27
6
A_D[0..31]
24.576M/20p/30ppm/49US/40/D
IBC15
0.1u/4/Y5V/16V/Z
IR8
1K/4/X
IR7
1K/4
IU1
65
VCCARX0
66
XRES
67
NC
68
GNDARX1
69
GNDATX1
70
XTPB0M
71
XTPB0P
72
XTPA0M
73
XTPA0P
74
XTPBIAS0
75
VCCARX1
76
VCCATX1
77
XTPB1M
78
XTPB1P
79
XTPA1M
80
XTPA1P
81
XTPBIAS1
82
GNDARX2
83
GNDATX2
84
XTPB2M
85
XTPB2P
86
XTPA2M
87
XTPA2P
88
XTPBIAS2
89
VCCARX2
90
VCCATX2
91
INTA#
92
PCIRST#
93
PCICLK
94
GND
95
PGNT#
96
PREQ#
97
AD31
98
AD30
99
AD29
100
AD28
101
AD27
102
VCC
-C_BE3[19,24]
TPB1TPB1+
TPA1+
6
A_D[0..31] [19,24]
IX1
IBC9
1U/6/Y5V/10V/Z
64
XI
NC
XO
XCPS
PHYRST#
VCCATX0
GNDATX0
GNDARX0
VT6308P/S
GND
AD26
AD25
AD24
CBE3#
IDSEL
AD23
AD22
103
104
105
106
107
108
109
110
A_D25
A_D24
A_D22
A_D23
A_D26
A_D30
IR23 54.9/4/1
IR26 54.9/4/1
IR28 54.9/4/1
IR30 54.9/4/1
IC1
22p/4/NPO/50V/J
IR10
1M/4/X
IC2
22p/4/NPO/50V/J
IBC7
0.1u/4/Y5V/16V/Z
NC
NC/PHYPC2
NC/PHYPC0
NC/PHYPC1
GND
AD21
VCC
VCC
111
112
113
114
115
A_D21
-C_BE2[19,24]
-FRAME[19,24]
-IRDY[19,24]
-TRDY[19,24]
-DEVSEL[19,24]
-STOP[19,24]
5
1394 CHIP IR14 IR16
VT6307
VT6308P
IR14
0/6/X
39404142434445464748495051525354555657585960616263
NC
NC
NC
NC
VCCSUS
GNDSUS
NC/PHYCMC
GND
AD20
AD19
AD18
116
117
118
119
A_D20
A_D19
A_D17
A_D18
IR24 4.99K/4/1
IC10 270P/4/X7R/50V/K
TPBIAS1TPA1- TPA0-
IBC22
0.33U/6/Y5V/16V/Z
5
MODE0
NC/I2CFAST
NC/I2CEEENA
NC/CARDBUSENA
AD17
AD16
GND
CBE2#
FRAME#
IRDY#
120
121
122
123
124
A_D16
MODE1
VCC
125
GNDSUS
TRDY#
DEVSEL#
126
127
VCCSUS
STOP#
128
SCL/EECK
SDA/EEDI
GNDRAM
VCCRAM
PME#
GND
VCC
GND
VCC
EEDO
EECS
GND
VCC
GND
CBE0#
AD10
AD11
AD12
GND
VCC
AD13
AD14
AD15
CBE1#
PAR
PERR#
GND
NC
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
AD9
IR13
REMOVE
ON
4
ON
REMOVE
IFB2 0/6/X
IR5 4.7K/4
IR6 0/4/X
IR16 0/6
IBC8
0.1u/4/Y5V/16V/Z
38
IR15 0/4/X
37
36
35
34
33
1394EECK
32
1394EEDI
31
30
29
A_D0
28
A_D1
27
26
25
24
A_D2
23
A_D3
22
A_D4
21
20
A_D5
19
A_D6
18
A_D7
17
16
15
A_D8
14
A_D9
13
A_D10
12
A_D11
11
A_D12
10
9
8
A_D13
7
A_D14
6
A_D15
5
4
3
2
1
IR21 54.9/4/1
TPB0-
IR25 54.9/4/1
TPB0+
IR27 54.9/4/1
IR29 54.9/4/1
TPA0+
4
REMOVE
ON
IR13
0/6
PWRDET_VCC
-C_BE0 [19,24]
-C_BE1 [19,24]
PAR [19,24]
-PERR [19,24]
VDD25
3VDUAL
3VDUAL
VCC3_1394
VCC3_1394
VDD25
IFB2
ON
REMOVE
1394 CHIP
VT6307
VT6308P
VCC3_1394
IR11
0/6/X
-PCIPME [19,24]
PWRDET_VCC
IR22 4.99K/4/1
IC9 270P/4/X7R/50V/K
TPBIAS0
IBC21
0.33U/6/Y5V/16V/Z
3
BUSVCC0 +12V_BUS +12V
RGEF500K/D
IF2
1 2
+
IEC2
470U/D/16V/8C/36m
IR11
ON
REMOVE
IR32 4.7K/4
IR33 4.7K/4/X
IBC26
0.1u/4/Y5V/16V/Z
RTPA0RTPA0+
RTPB0-
FUSEVCC
RTPB0+
P6-
P6+ P7+
UBC4
1N/4/X7R/50V/K/X
USB+1394 CONNECTOR
BUSVCC0 BUSVCC0
IBC24
0.1u/4/Y5V/16V/Z
3
SSM5817/SMA/1A
B320B/SMB/3A
IR1 IR2
ON
REMOVE
IR1 0/8/X
IR2 0/12
VCC3
VCC3_1394
USB_1394
FOXCONN-USBX2+1394
13
TPA-
14
TPA+
910111213
11
TPB-
12
TPB+
5678
1
VCC
2
D0-
1234
3
D0+
4
GND
GND
15161718192021
TP/X
ESD_PAD20
ESD_PAD22
TP/X
ID1
ID2
REMOVE
ON ON
GND
GND
GND
GND
FTPA1+ FTPA1-
IU2
1
A0
2
A1
3
A2
4 5
GND SDA
2
IBC19
0.1u/4/Y5V/16V/Z
1
IR32 IR33
ONREMOVE
REMOVE
VCC3
3VDUAL
RTPA0-
RTPA0+
RTPB0-
RTPB0+
P6+
P6-
P7+
P7-
14
9
V12
10
GND
5
VCC
P7-
6
D1-
7
D1+
8
GND
GND
GND
GND
22
USB+1394/8P+6P/BK/OS/RA/D/30/1
F1_1394
1
2
3
4
5
6
7
8
10
PH/2*5K9/GY/2.54/VA/D
VCC3_1394
8
VCC
7
WC#
1394EECK
6
SCL
AT24C02BN-10SU-1.8/S
Gigabyte Technology
Title
Size Document Number Rev
Custom
Date: Sheet
2
1394EEDI
ESD_PAD12
TP/X
ESD_PAD13
TP/X
ESD_PAD14
TP/X
ESD_PAD15
TP/X
ESD_PAD16
TP/X
ESD_PAD17
TP/X
ESD_PAD18
TP/X
ESD_PAD19
TP/X
BUSVCC0
IBC23
0.1u/4/Y5V/16V/Z
FUSEVCC
USB CONNECTOR:
USB/S/BLACK
11NR6-302004-22
USB :
TP/X
ESD_PAD21
FTPB1-FTPB1+
ESD_PAD23
TP/X
IR34
510/4
VT6308P 1394
GA-TG965MP-RH-GW 2.1
of
34 36Monday, May 14, 2007
1
5
4
3
2
1
LBC61u/6/Y5V/10V/Z
PCIE-LAN
D D
25M/20p/30ppm/49US/20/D
LC3
27p/4/NPO/50V/J
C C
XTALI_P
LX
XTALO_P
LC4
27p/4/NPO/50V/J
RTL8111B-GR/QFP128
-PCIE_WAKE[18,20,24]
-PCIE_RST[18,24,25,33]
SRCCLK_LAN[23]
-SRCCLK_LAN[23]
-PCIE_WAKE
-PCIE_RST
LAN_OP[19]
LAN_ON[19]
LAN_IP[19]
LAN_IN[19]
LAN_OP
LAN_ON
SRCCLK_LAN
-SRCCLK_LAN
LAN_IP
LAN_IN
LBC70.01u/4/X7R/16V/K
8101E:2K/6/1
8111B:2.49K/6/1
LR3 2.49K/6/1
LU2
CTRL18
1
AVDD33
P_MDI0+
P_MDI0AVDD18
P_MDI1+
P_MDI1AVDD18
P_MDI2+
P_MDI2AVDD18
P_MDI3+
P_MDI3AVDD18
VDD15
3VDUAL
LBC11 10p/4/NPO/50V/J/X
VCTRL18
2
AVDD33
3
MDIP0
4
MDIN0
5
AVDD18
6
MDIP1
7
MDIN1
8
AVDD18
9
MDIP2
10
MDIN2
11
AVDD18
12
MDIP3
13
MDIN3
14
AVDD18
15
VDD15
16
VDD33
LC5 0.1u/4/Y5V/16V/Z
LC6 0.1u/4/Y5V/16V/Z
XTALO_P
AVDD33
CTRL15
VDD15
RSET
XTALI_P
646362616059585756555453525150
65
RSET
GVDD
EGND
CKTAL2
VCTRL15
NC
NC
LANWAKEB
PERSTB
181920212223242526272829303132
17
3VDUAL
LED0
LED1
LED2
LED3
VDD15
VDD33
CKTAL1
AVDD33
VDD15
EVDD18
HSIP
HSIN
EGND
REFCLK_P
REFCLK_N
EVDD18
VDD18
VDD18
VDD15
VDD15
NC
VDD15
HSOP
HSON
VDD15
49
NC
VDD15
EESK
EEDI
VDD33
EEDO
EECS
VDD15
VDD1
VDD15
VDD33
ISOLATEB
VDD15
EGND
VDD15
VDD15
NC
NC
NC
NC
NC
LED_ACT_TXRX
LED_LINK100
LED_LINK10
LED_LINK1000
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
EESK
EEDI_AUX
3VDUAL
EEDO
EECS
VDD15
VDD15
VDD15
3VDUAL
ISOLATEB
VDD15
USB_LAN CONNECTOR
B B
P_MDI0+
P_MDI0P_MDI1+
P_MDI1P_MDI2+
P_MDI2P_MDI3+
P_MDI3-
SLR13
SLR12
49.9/4/1/X
49.9/4/1/X
SLBC36
A A
0.01u/4/X7R/16V/K/X
Close to connector
8101E mount
8111B unmount
AVDD18
SLR15
SLR14
49.9/4/1/X
49.9/4/1/X
SLBC37
0.01u/4/X7R/16V/K/X
LR12 0/6/X
LR12
8101E mount
8111B unmount
LR13
8101E unmount
8111B mount
AVDD18
LR8
8101E mount
0/6/X
8111B unmount
0.1u/4/Y5V/16V/Z/X
LBC33
USB_LAN
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
LR13
0/6
UP
DOWN
USB+LAN/1G/GO,Y/OS/RA/D/1/[11NR6-702009-81R]
GBT 1G
防雷擊版
CHECK
料號？
D1
D2
D3
D4
U1
U2
U3
U4
U5
U6
U7
U8
REALTEK
RTL8101E_8111B CO-LAY
EECS
EESK
EEDI_AUX
EEDO
LR1 3.6K/4
VCC3
LR5
1K/4
LR6
15K/4
ESD_PAD26
TP/X
ESD_PAD29
TP/X
ESD_PAD32
TP/X
ESD_PAD35
TP/X
LR10
8101E unmount
8111B mount
LED_ACT_TXRX
LED_GREEN
LED_LINK1000
P4P4+
P5P5+
LR9 150/6
LR10 150/6
LR11 150/6
1
CS
2
SK
3
DI
4 5
DO GND
AT93C46-10SU-2.7/S
3VDUAL
LED_LINK100
8101E unmount
8111B mount
LED_LINK100
LED_LINK10
8101E mount
8111B unmount
P4P4+
P5P5+
C318
0.1u/4/Y5V/16V/Z
LU1
VCC
DC
ORG
LR4 0/4
2
1
D5
SOT23
BAW56/SOT23/300mA/X
3VDUAL
LFB4
0/6/SHT/X
8
7
6
3
3VDUAL
LBC5
0.1u/4/Y5V/16V/Z
LED_GREEN
LED_GREEN
LBC34
0.1u/4/Y5V/16V/Z/X
FUSEVCC
1
+
EC13
1000u/D/6.3V/8C/30m
3VDUAL
3VDUAL
LBC8
0.1u/4/Y5V/16V/Z/X
LBC12
0.1u/4/Y5V/16V/Z
0.1u/4/Y5V/16V/Z/X
For 8111B For 8101E
每個
chipset PWR pin
0.1u/4/Y5V/16V/Z
LBC26
P35-152-19W9
U8 U5D2U7
L1
L3
L4 L6L2
D1
1
+
LEC1
100U/D/10V/57
LFB1 0/6/SHT/X
LBC13
LBC14
0.1u/4/Y5V/16V/Z
0.1u/4/Y5V/16V/Z/X
放一個
LBC27
0.1u/4/Y5V/16V/Z
U2
U1
U3D2U4
U6
L9
L7
L5
L10
L8
D3
每個
chipset PWR pin
0.1u/4/Y5V/16V/Z
LBC1
For 8111B
4.7U/8/Y5V/10V/Z
LBC9
每個
chipset PWR pin
LBC15
0.1u/4/Y5V/16V/Z
0.1u/4/Y5V/16V/Z/X
3VDUAL
LFB2 0/6/SHT/X
LBC23
4.7U/8/Y5V/10V/Z
AVDD18
0.1u/4/Y5V/16V/Z
LBC28
LBC29
0.1u/4/Y5V/16V/Z
D4
放一個
LBC2
0.1u/4/Y5V/16V/Z
0.1u/4/Y5V/16V/Z
LBC10
BCP69/SOT223/-1A/60
CTRL15
放一個
LBC16
LBC17
0.1u/4/Y5V/16V/Z
0.1u/4/Y5V/16V/Z/X
AVDD33
LBC24
每個
LFB3 0/6/SHT/X
P5P5+
P4P4+
Dual Color LED
D3
D4
Green
D4
D3
Orange
Single Color LED
D1
Yellow
0.1u/4/Y5V/16V/Z
LBC3
VDD15
LQ1
123
LBC18
LBC19
0.1u/4/Y5V/16V/Z
0.1u/4/Y5V/16V/Z/X
LBC25
0.1u/4/Y5V/16V/Z
2SB1132/SOT89/-1A/82
chipset PWR pin
LBC30
0.1u/4/Y5V/16V/Z
RN262
0/8P4R/6
1 2
3 4
5 6
7 8
LBC4
0.1u/4/Y5V/16V/Z
4
LBC20
0.1u/4/Y5V/16V/Z/X
LQ2
CTRL18
放一個
LBC31
0.1u/4/Y5V/16V/Z
FUSEVCC
1
+
LBC21
VDD18
4
123
-USBP5
+USBP5
-USBP4
+USBP4
UR1 150K/4
UEC1
1000u/D/6.3V/8C/36m
For 8101E
CTRL15
close chipset
VDD15
LBC22
4.7U/8/Y5V/10V/Z/X
VDD18
LBC32
4.7U/8/Y5V/10V/Z/X
VDD15
LR2
0/8/X
VDD15
1
+
LEC2
100U/D/10V/57
LR7
0/8/X
CTRL18
close chipset
VDD18
TP_LAN_VDD18
1
+
LEC3
100U/D/10V/57
-USBP5 [19]
+USBP5 [19]
-USBP4 [19]
+USBP4 [19]
-USBOC_R
UR2
270K/4
VDD18
-USBOC_R [19]
Gigabyte Technology
ORANGE
(+,-)
GREEN
(-,+)
2
YELLOW
5
4
3
Title
Size Document Number Rev
Custom
Date: Sheet
RTL8101E_8111B ,REAR USB2
GA-TG965MP-RH-GW
1
35 36Monday, May 14, 2007
of
2.1
8
FRONT USB1
-USBP0[19]
+USBP0[19]
-USBP1[19]
D D
+USBP1[19]
P0P0+
P1P1+
FRONT USB2
+USBP2[19]
-USBP2[19]
-USBP3[19]
+USBP3[19]
P2+
P3-
P3+
P2-
FRONT USB3
7
ESD_PAD36
TP/X
ESD_PAD37
TP/X
ESD_PAD38
TP/X
ESD_PAD39
TP/X
ESD_PAD40
TP/X
ESD_PAD41
TP/X
ESD_PAD42
TP/X
ESD_PAD43
TP/X
P0+
P0P1+
P1-
P2+
P2P3+
P3-
6
FUSEVCC1
P0P0+
PH/2*5K9/YL/2.54/VA/D
FUSEVCC1
P2P2+
PH/2*5K9/YL/2.54/VA/D
FUSEVCC1
F_USB1
132
5 6
F_USB2
132
5 6
5
FLOPPY
1
+
BC110
0.1u/6/Y5V/25V/Z
P1-
4
P1+
87
10
P3-
4
P3+
87
10
EC26
1500u/D/6.3V/8K/16m
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34
4
VCC
RN25
470/8P4R/6
1 2
3 4
5 6
FDD
1 2
3
7 8
9 10
BH/2*17K5/BK/SHN/2.54/VA/D/GF
7 8
4
6
20
改防斷裂料號
R339
470/6
DENSEL-
INDEXMOTEA-
DRVADIR-
STEPWDATAWGATETK00WPTRDATASIDE1-
DSKCHG-
3
DENSEL- [25]
INDEX- [25]
MOTEA- [25]
DRVA- [25]
DIR- [25]
STEP- [25]
WDATA- [25]
WGATE- [25]
TK00- [25]
WPT- [25]
RDATA- [25]
SIDE1- [25]
DSKCHG- [25]
SATA LED
-SATALED[21]
2
VCC3
R341
1K/4
-SATALED
MMBT2222A/SOT23/600mA/40
R342
8.2K/4
VCC3
Q11
R340
1K/4
132
-HDLED
SOT23
Q12
MMBT2222A/SOT23/600mA/40
C231
180p/4/NPO/50V/J/X
SOT23
132
1
-HDLED [33]
ESD_PAD44
TP/X
+USBP9[19]
C C
-USBP9[19]
-USBP8[19]
+USBP8[19]
P9+
P9P8P8+
ESD_PAD45
TP/X
ESD_PAD46
TP/X
ESD_PAD47
TP/X
P9+
P9P8+
P8-
USB DROP
UU1
1
VOUT
VOUT
2
GND
VCC
B B
3 4
VIN CE
9701/SOT23-5/[10TA1-089701-11]/X
BC184
0.1u/6/Y5V/25V/Z/X
FRONT USB OC1
FUSEVCC1
R362 150K/4
A A
-USBOC_F
R363
270K/4
8
FUSEVCC1 FUSEVCC
5
PWROK1 [12,20,25] PWROK1 [12,20,25]
VCC
USB POWER
320MILS 160MILS
5VDUAL
-USBOC_F [19]
7
F1
1 2
PSR24251/D
F2
1 2
RGEF500K/D
F_USB3
132
4
5 6
87
PH/2*5K9/YL/2.54/VA/D
10
PLACE NEAR F1 PIN 1PLACE NEAR F2 PIN 1
UU2
1
VOUT
VOUT
2
GND
3 4
VIN CE
9701/SOT23-5/[10TA1-089701-11]/X
BC185
0.1u/6/Y5V/25V/Z/X
FUSEVCC
240MILS
6
FUSEVCC1
P9-P8-
P9+P8+
5
BC105
0.1u/6/Y5V/25V/Z
BC175
0.1u/6/Y5V/25V/Z
BUZZER
R345
75/6
VCC
R346
Q15
1K/4
MMBT2222A/SOT23/600mA/40
R348
8.2K/4
BEEP-[25]
INTEL FRONT PANEL
-HDLED[33]
5VSB
-RESET[27]
-SYS_RST[6,20,23]
-RST_BTN[20,25,27]
VCC3
PWLED[25]
5
R2398
8.2K/4/X
4
MPD+
R1880 0/4/X
R2397 1K/4/X
R2399 1K/4/X
BEEP-
VCC
R352
330/6
HD+
-HDLED
R1878 8.2K/4
-RESET
R1879 0/4/X
Q311
BAT54C/SOT23/200mA
VCC
R349 1K/4
132
SOT23
132
BC109
0.01u/4/X7R/16V/K/X
R344
330/6
Q14
MMBT2222A/SOT23/600mA/40
SOT23
132
Q332
MMBT2222A/SOT23/600mA/40/X
SOT23
F_PANEL
1
HD+
3
HD-
5
GND
7
RESET
9
RSV
PH/2*5K10/BK/2.54/VA/D
3
SPK-
Q16
MMBT2222A/SOT23/600mA/40
SOT23
132
MSG/PD+
MSG/PD-
PW+
PW-
GPIO28 [20]
R347
75/6
MPD+
2
4
6
8
0.01u/4/X7R/16V/K
Title
Size Document Number Rev
Custom
Date: Sheet
VCC
1
BZ
2
3
BZ
AC-1205G/5V/12
-PWRBTSW [25]
-PWRBTSW
C232
D3
LL4148/SOD80C/300mA
Q17
MMBT2222A/SOT23/600mA/40
R350
132
1K/4
PH/1*3/BK/2.54/VA/D
5VSB
R353
8.2K/4
5VSB
ESD_PAD48
TP/X
VCC
SPK-
SPKR
SPKR [20]
PWR_LED
MPD+
1
2
3
3 PIN POWER LED
LAYOUT PLACE CLOSE
TO F_PANEL
-PWRBTSW-PWRBTSW
Q20
BAV99/SOT23/300mA/X
132
Gigabyte Technology
FP / F_USB / USB PWR / FDD / BZ
GA-TG965MP-RH-GW
36 36Monday, May 14, 2007
2
of
1
2.1
Loading...
