Gigabyte GA-B75-DS3V User Manual

GA-B75-DS3V

User's Manual

Rev. 1001

12ME-B75DS3V-1001R

Motherboard

GA-B75-DS3V

Motherboard

GA-B75-DS3V

Jul. 5, 2013

Jul. 5, 2013

Copyright

© 2013 GIGA-BYTE TECHNOLOGY CO., LTD. All rights reserved.
The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior

notice.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or
by any means without GIGABYTE's prior written permission.

For quick set-up of the product, read the Quick Installation Guide included with the product.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means
the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard
BIOS, drivers, or when looking for technical information.
Example:

Table of Contents

GA-B75-DS3V Motherboard Layout ...............................................................................4

GA-B75-DS3V Motherboard Block Diagram...................................................................5

Chapter 1 Hardware Installation ..................................................................................... 6

1-1 Installation Precautions ................................................................................... 6

1-2 Product Specications ..................................................................................... 7

1-3 Installing the CPU ............................................................................................ 9

1-4 Installing the Memory .................................................................................... 10

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors ................................................................................. 10

1-7 Internal Connectors ....................................................................................... 12

Chapter 2 BIOS Setup ..................................................................................................18

2-1 Startup Screen ............................................................................................... 18

2-2 M . I.T. .............................................................................................................. 19

2-3 System ........................................................................................................... 23

2-4 BIOS Features ............................................................................................... 24

2-5 Peripherals ..................................................................................................... 27

2-6 Power Management ....................................................................................... 30

2-7 Save & Exit .................................................................................................... 32

Chapter 3 Appendix ....................................................................................................... 33

Drivers Installation .................................................................................................... 33

Regulatory Statements ............................................................................................. 34

Contact Us ................................................................................................................ 36

- 3 -

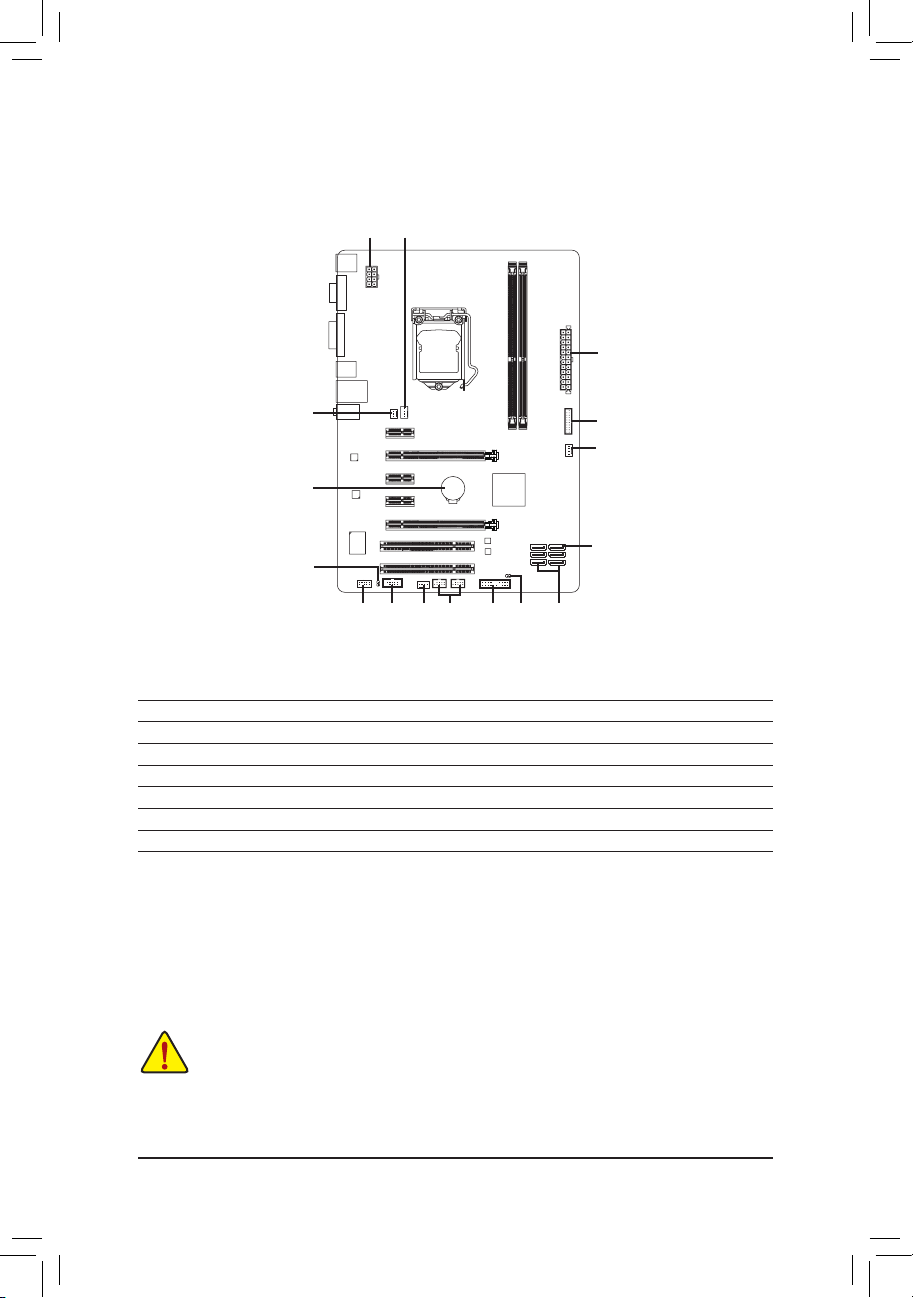

GA-B75-DS3V Motherboard Layout

KB_MS_USB

ATX_12V_2X4

VGA

DVI

R_USB30

USB_LAN

AUDIO

Realtek®
GbE LAN

SYS_FAN3

PCIEX1_1

PCIEX16

LGA1155

CPU_FAN

GA-B75-DS3V

DDR3_1

ATX

F_USB30

DDR3_2

CODEC

®

iTE

F_AUDIO

Super I/O

SPDIF_O

PCIEX1_2

PCIEX1_3

PCIEX4

PCI1

PCI2

COMA

SYS_FAN1

F_USB2

BAT

F_USB1

B_BIOS

M_BIOS

CLR_CMOS

Intel® B75

F_PANEL

SATA 2

1
3 2
5 4

SYS_FAN2

SATA 3

0

Box Contents

5GA-B75-DS3V motherboard
5Motherboard driver disk 5Two SATA cables
5User's Manual 5I/O Shield
5Quick Installation Guide

The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.

- 4 -

GA-B75-DS3V Motherboard Block Diagram

1 PCI Express x16

CPU CLK+/- (100 MHz)

PCIe CLK

(100 MHz)

PCI Express Bus

1 PCI Express x4

PCIe CLK

(100 MHz)

PCI CLK

(33 MHz)

x16

D-Sub

DVI-D

x4

PCI Express Bus

x1 x1 x1 x1

Realtek®

GbE LAN

3 PCI Express x1

PCI Bus

RJ45

LAN

DMI 2.0

LGA1155

CPU

Intel® B75

CODEC

FDI

Dual BIOS

LPC Bus

DDR3 1600/1333/1066 MHz

Dual Channel Memory

1 SATA 6Gb/s

5 SATA 3Gb/s

4 USB 3.0/2.0

8 USB 2.0/1.1

iTE

®

Super I/O

COM

PS/2 KB/Mouse

2 PCI

For detailed product information/limitation(s), refer to "1-2 Product Specications."

Speaker Out)

MIC (Center/Subwoofer

- 5 -

S/PDIF Out

Line In (Rear Speaker Out)

Line Out (Front Speaker Out)

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

• Prior to installation, make sure the chassis is suitable for the motherboard.

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

• Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power sup-

ply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hard-

ware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface.

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to sys-

tem components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

- 6 -

1-2 ProductSpecications

CPU  Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/

Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors
in the LGA1155 package
(Go to GIGABYTE's website for the latest CPU support list.)

 L3 cache varies with CPU

Chipset  Intel® B75 Express Chipset

Memory  2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory

Onboard
Graphics

Audio  Realtek® ALC887 codec

LAN  Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots  1 x PCI Express x16 slot, running at x16 (PCIEX16)

Multi-Graphics
Technology
Storage Interface  Chipset:

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of
the physical memory installed.

 Dual channel memory architecture
 Support for DDR3 1600/1333/1066 MHz memory modules

* To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU.

 Support for non-ECC memory modules
 Support for Extreme Memory Prole (XMP) memory modules

* To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU.

(Go to GIGABYTE's website for the latest supported memory speeds and memory
modules.)

 Integrated Graphics Processor:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

- Maximum shared memory of 1 GB

 High Denition Audio
 2/4/5.1/7.1-channel

* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

 Support for S/PDIF Out

(The PCI Express x16 slot conforms to PCI Express 3.0 standard.)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

* Whether PCI Express 3.0 is supported depends on CPU and graphics card compat-

ibility.

 1 x PCI Express x16 slot, running at x4 (PCIEX4)
 3 x PCI Express x1 slots

(PCIEX4 and all PCI Express x1 slots conform to PCI Express 2.0 standard.)

 2 x PCI slots

 Support for AMD CrossFire™ technology

- 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device

-

5 x SATA 3Gb/s connectors (SATA2 1~SATA2 5) supporting up to 5 SATA 3Gb/s
devices

- 7 -

USB  Chipset:

- Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through
the internal USB header)

- Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
the internal USB headers)

Internal
Connectors

 1 x 24-pin ATX main power connector
 1 x 8-pin ATX 12V power connector
 1 x SATA 6Gb/s connector
 5 x SATA 3Gb/s connectors
 1 x CPU fan header
 3 x system fan headers
 1 x front panel header
 1 x front panel audio header
 1 x S/PDIF Out header
 1 x USB 3.0/2.0 header
 2 x USB 2.0/1.1 headers
 1 x serial port header

 1 x Clear CMOS jumper
Back Panel
Connectors

 1 x PS/2 keyboard/mouse port

 1 x D-Sub port

 1 x DVI-D port

 2 x USB 3.0/2.0 ports

 4 x USB 2.0/1.1 ports

 1 x RJ-45 port

 3 x audio jacks (Line In, Line Out, Mic In)

I/O Controller  iTE® I/O Controller Chip

Hardware
Monitor

 System voltage detection

 CPU/System temperature detection

 CPU/System fan speed detection

 CPU/System overheating warning

 CPU/System fan fail warning

 CPU/System fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS  2 x 32 Mbit ash

 Use of licensed AMI EFI BIOS

 Support for DualBIOS

 PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features

 Support for @BIOS

 Support for Q-Flash

 Support for Xpress Install

 Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

 Support for ON/OFF Charge

 Support for EZ Setup

™

- 8 -

Bundled
Software

 Norton® Internet Security (OEM version)

 Intel® Rapid Start Technology

 Intel® Smart Connect Technology
Operating

System

 Support for Windows 8/7

Form Factor  ATX Form Factor; 30.5cm x 20.0cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

* Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s)

for the software listed in the "Unique Features" and "Bundled Software" columns.

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU.
(Go to GIGABYTE's website for the latest CPU support list.)

• Always turn off the computer and unplug the power cord from the power outlet before installing
the CPU to prevent hardware damage.

• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may
locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

• Apply an even and thin layer of thermal grease on the surface of the CPU.

• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and dam-
age of the CPU may occur.

• Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard
specications, please do so according to your hardware specications including the CPU, graph­ics card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

LGA1155 CPULGA1155 CPU Socket

ment Key

Alignment KeyAlign-

Pin One Corner of the CPU Socket

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load plate
automatically during the process of re-engaging the lever after you insert the CPU.

- 9 -

Notch

Triangle Pin One Marking on the CPU

Notch

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

• Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

• Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.

• Memory modules have a foolproof design. A memory module can be installed in only one direc-
tion. If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. After the
memory is installed, the BIOS will automatically detect the specications and capacity of the memory. En­abling Dual Channel memory mode will double the original memory bandwidth.
The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as
following:

Channel A: DDR3_1
Channel B: DDR3_2

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of
the same capacity, brand, speed, and chips be used for optimum performance.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

• Make sure the motherboard supports the expansion card. Carefully read the manual that came
with your expansion card.

• Always turn off the computer and unplug the power cord from the power outlet before installing
an expansion card to prevent hardware damage.

1-6 Back Panel Connectors

USB 2.0/1.1 Port

The USB port supports the USB 2.0/1.1 specication. Use this port for USB devices such as a USB key­board/mouse, USB printer, USB ash drive and etc.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

- 10 -

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of 1920x1200
(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports
D-Sub connection to this port.

DVI-D Port

(Note)

The DVI-D port conforms to the DVI-D specication and supports a maximum resolution of 1920x1200 (the

actual resolutions supported depend on the monitor being used). Connect a monitor that supports DVI­D connection to this port.

USB 3.0/2.0 Port

The USB 3.0 port supports the USB 3.0 specication and is compatible to the USB 2.0/1.1 specication.
Use this port for USB devices such as a USB keyboard/mouse, USB printer, USB ash drive and etc.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.

Connection/

Speed LED

LAN Port

Activity LED

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

Activity LED:Connection/Speed LED:

State Description

Blinking Data transmission or receiving is occurring

Off No data transmission or receiving is occurring

Line In Jack (Blue)

The default line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out Jack (Green)

The default line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be

used to connect front speakers in a 4/5.1/7.1-channel audio conguration.

Mic In Jack (Pink)

The default Mic in jack. Microphones must be connected to this jack.

To congure 7.1-channel audio, you have to use an HD front panel audio module and enable the

multi-channel audio feature through the audio driver.

• When removing the cable connected to a back panel connector, rst remove the cable from your
device and then remove it from the motherboard.

• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.

(Note) The DVI-D port does not support D-Sub connection by adapter.

- 11 -

1-7 Internal Connectors

1

3

2

1) ATX_12V_2X4

2) ATX

3) CPU_FAN

4) SYS_FAN1/2/3

5) SATA3 0

6) SATA2 1/2/3/4/5

7) BAT

4

7

10

12

9

13 14

4

8

11

4

5

6

8) F_PANEL

9) F_AUDIO

10) SPDIF_O

11) F_USB30

12) F_USB1/F_USB2

13) COMA

14) CLR_CMOS

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.

- 12 -

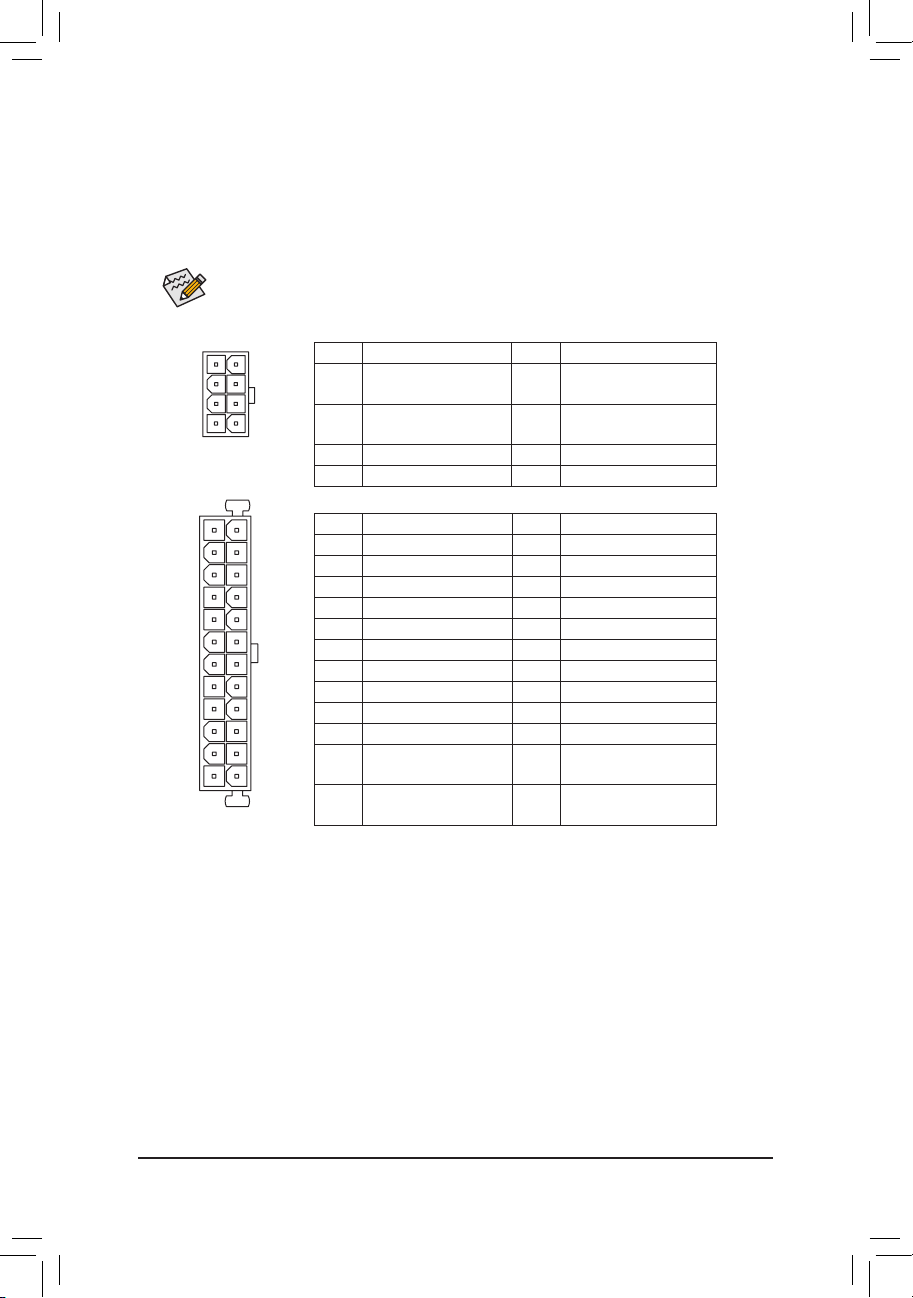

1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector)

With the use of the power connector, the power supply can supply enough stable power to all the com-

ponents on the motherboard. Before connecting the power connector, rst make sure the power supply

is turned off and all devices are properly installed. The power connector possesses a foolproof design.
Connect the power supply cable to the power connector in the correct orientation.

The 12V power connector mainly supplies power to the CPU. If the 12V power connector is not con-

nected, the computer will not start.

To meet expansion requirements, it is recommended that a power supply that can withstand high power con­sumption be used (500W or greater). If a power supply is used that does not provide the required power, the
result can lead to an unstable or unbootable system.

581

4

ATX_12V_2X4

ATX

ATX_12V_2X4:

Pin No. Denition Pin No. Denition

1 GND (Only for 2x4-pin

12V)

2 GND (Only for 2x4-pin

12V)
3 GND 7 +12V

4 GND 8 +12V

ATX:

2412

131

Pin No. Denition Pin No. Denition

1 3.3V 13 3.3V

2 3.3V 14 -12V

3 GND 15 GND

4 +5V 16 PS_ON (soft On/Off)

5 GND 17 GND

6 +5V 18 GND

7 GND 19 GND

8 Power Good 20 -5V

9 5VSB (stand by +5V) 21 +5V

10 +12V 22 +5V

11 +12V (Only for 2x12-pin

ATX)

12 3.3V (Only for 2x12-pin

ATX)

5 +12V (Only for 2x4-pin 12V)

6 +12V (Only for 2x4-pin 12V)

23 +5V (Only for 2x12-pin ATX)

24 GND (Only for 2x12-pin

ATX)

- 13 -

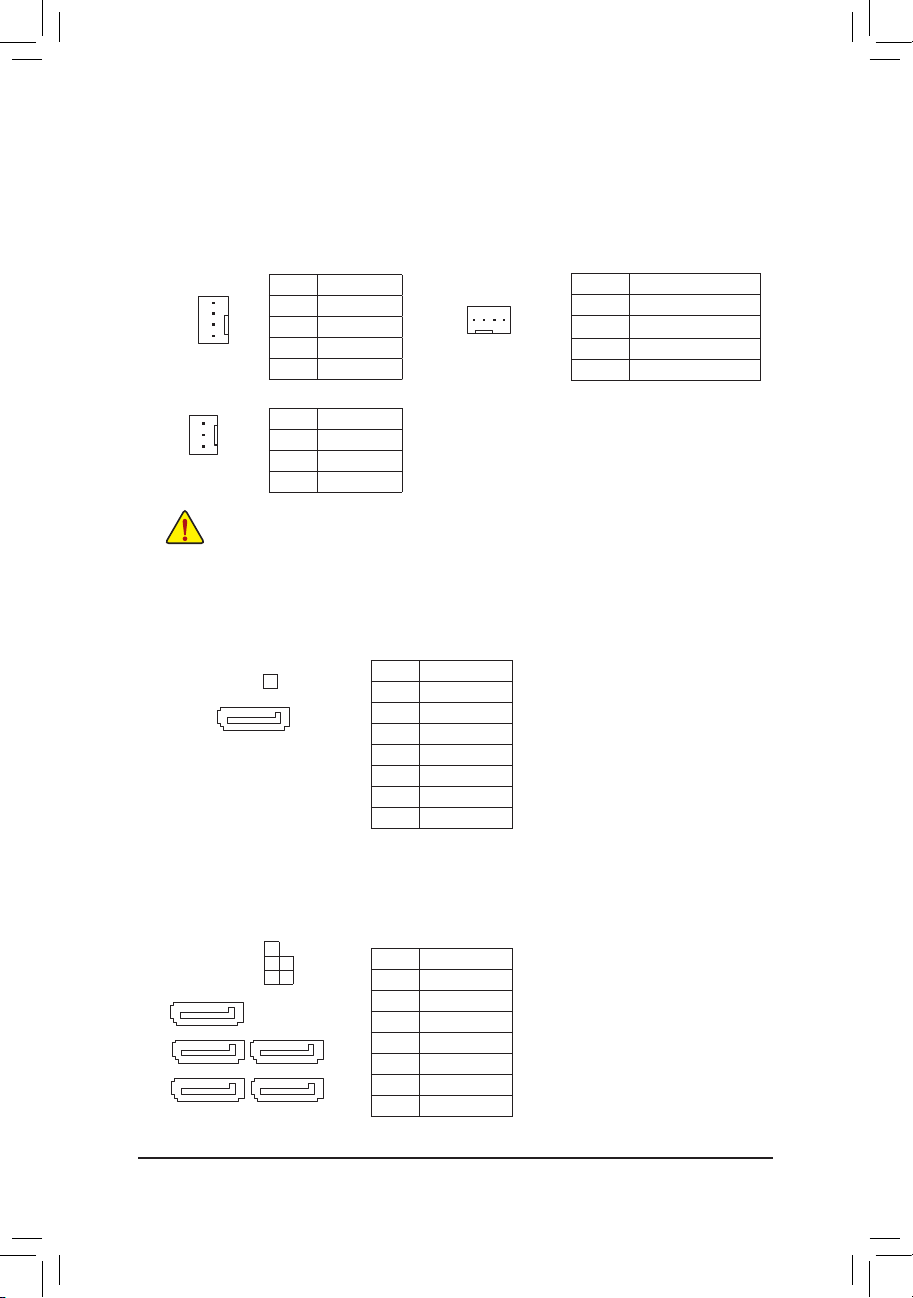

3/4) CPU_FAN/SYS_FAN1/2/3 (Fan Headers)

DEBUG
PORT

G.QBOFM

DEBUG
PORT

G.QBOFM

DEBUG
PORT

G.QBOFM

DEBUG
PORT

G.QBOFM

DEBUG
PORT

G.QBOFM

DEBUG
PORT

G.QBOFM

The motherboard has a 4-pin CPU fan header (CPU_FAN), two 4-pin (SYS_FAN1, 2) and one 3-pin (SYS_

FAN3) system fan headers.. Most fan headers possess a foolproof insertion design. When connecting
a fan cable, be sure to connect it in the correct orientation (the black connector wire is the ground wire).

The speed control function requires the use of a fan with fan speed control design. For optimum heat
dissipation, it is recommended that a system fan be installed inside the chassis.

CPU_FAN/SYS_FAN2

1

1

SYS_FAN3

• Be sure to connect fan cables to the fan headers to prevent your CPU and system from overheating. Over-
heating may result in damage to the CPU or the system may hang.

• These fan headers are not conguration jumper blocks. Do not place a jumper cap on the headers.

CPU_FAN/SYS_FAN2:

Pin No. Denition

1 GND

2 +12V

3 Sense

4 Speed Control

SYS_FAN3:

Pin No. Denition

1 GND

2 +12V

3 NC

1

SYS_FAN1

SYS_FAN1:

Pin No. Denition

1 GND

2 +12V / Speed Control

3 Sense

4 VCC

5) SATA3 0 (SATA 6Gb/s Connector)

The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA

1.5Gb/s standard. Each SATA connector supports a single SATA device.

0

SATA 3

1

7

Pin No. Denition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

6) SATA2 1/2/3/4/5 (SATA 3Gb/s Connectors)

The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.

Each SATA connector supports a single SATA device.

1

1

1

SATA 2

1
3 2
5 4

7

7

7

Pin No. Denition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

- 14 -

7) BAT (Battery)

The battery provides power to keep the values (such as BIOS congurations, date, and time information)

in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a
low level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1. Turn off your computer and unplug the power cord.

2. Gently remove the battery from the battery holder and wait for one minute. (Or use a metal
object like a screwdriver to touch the positive and negative terminals of the battery holder,
making them short for 5 seconds.)

3. Replace the battery.

• Always turn off your computer and unplug the power cord before replacing the battery.

• Replace the battery with an equivalent one. Danger of explosion if the battery is replaced with an incorrect
model.

• Contact the place of purchase or local dealer if you are not able to replace the battery by yourself or uncer-
tain about the battery model.

• When installing the battery, note the orientation of the positive side (+) and the negative side (-) of the bat-
tery (the positive side should face up).

• Used batteries must be handled in accordance with local environmental regulations.

4. Plug in the power cord and restart your computer.

8) F_PANEL (Front Panel Header)

Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this

header according to the pin assignments below. Note the positive and negative pins before connecting
the cables.

Power Switch

Power LED

PLED+

PLED-

2
1

HD-

HD+

Hard Drive

Reset

Activity LED

Switch

• HD (Hard Drive Activity LED, Blue):

Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is

reading or writing data.

• RES (Reset Switch, Green):

Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer if

the computer freezes and fails to perform a normal restart.

• CI (Chassis Intrusion Header, Gray):

Connects to the chassis intrusion switch/sensor on the chassis that can detect if the chassis cover has

been removed. This function requires a chassis with a chassis intrusion switch/sensor.

The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset
switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module
to this header, make sure the wire assignments and the pin assignments are matched correctly.

PW+

PW-

RES+

RES-

Speaker

SPEAK+

CI+

CI-

PWR_LED+

Power LED

Chassis Intrusion
Header

• PLED/PWR LED (Power LED, Yellow/Purple):

System Status LED

S0 On

S3/S4/S5 Off

SPEAK-

20
19

• PW (Power Switch, Red):

Connects to the power status indicator
on the chassis front panel. The LED is on
when the system is operating. The LED is
off when the system is in S3/S4 sleep state
or powered off (S5).

Connects to the power switch on the chassis front panel. You may

congure the way to turn off your system using the power switch

PWR_LED-

information).

(refer to Chapter 2, "BIOS Setup," "Power Management," for more

PWR_LED-

• Speaker (Speaker, Orange):

Connects to the speaker on the chassis front panel. The system re-

ports system startup status by issuing a beep code. One single short
beep will be heard if no problem is detected at system startup.

- 15 -

9) F_AUDIO (Front Panel Audio Header)

F_PANEL(NH) F_PANEL

(H61M-D2)

PWM Switch (SW1)(X79-UD7)

DIP

1 2 3 4 5

F_USB30

The front panel audio header supports Intel High Denition audio (HD) and AC'97 audio. You may con-

nect your chassis front panel audio module to this header. Make sure the wire assignments of the mod­ule connector match the pin assignments of the motherboard header. Incorrect connection between the
module connector and the motherboard header will make the device unable to work or even damage it.

1

9

10 2

• The front panel audio header supports HD audio by default.

• Audio signals will be present on both of the front and back panel audio connections simultaneously.

• Some chassis provide a front panel audio module that has separated connectors on each wire instead of a
single plug. For information about connecting the front panel audio module that has different wire assign­ments, please contact the chassis manufacturer.

For HD Front Panel Audio: For AC'97 Front Panel Audio:

Pin No. Denition

1 MIC2_L

2 GND

3 MIC2_R

4 -ACZ_DET

5 LINE2_R

6 GND

7 FAUDIO_JD

8 No Pin

9 LINE2_L

10 GND

Pin No. Denition

1 MIC

2 GND

3 MIC Power

4 NC

5 Line Out (R)

6 NC

7 NC

8 No Pin

9 Line Out (L)

10 NC

10) SPDIF_O (S/PDIF Out Header)

This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expan-

sion cards) for digital audio output from your motherboard to certain expansion cards like graphics cards
and sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable
for digital audio output from your motherboard to your graphics card if you wish to connect an HDMI dis­play to the graphics card and have digital audio output from the HDMI display at the same time.

For information about connecting the S/PDIF digital audio cable, carefully read the manual for your ex-

pansion card.

Pin No. Denition

1

1 SPDIFO

2 GND

11) F_USB30 (USB 3.0/2.0 Header)

The header conforms to USB 3.0/2.0 specication and can provide two USB ports. For purchasing the

optional 3.5" front panel that provides two USB 3.0/2.0 ports, please contact the local dealer.

20

11

Pin No. Denition Pin No. Denition

1

10

1 VBUS 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 GND

4 GND 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 GND

7 GND 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS

10 NC 20 No Pin

- 16 -

12) F_USB1/F_USB2 (USB 2.0/1.1 Headers)

G.QBOFM

The headers conform to USB 2.0/1.1 specication. Each USB header can provide two USB ports via an

optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

Pin No. Denition Pin No. Denition

1 Power (5V) 6 USB DY+

9

10

• Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB header.

• Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord from the
power outlet to prevent damage to the USB bracket.

2 Power (5V) 7 GND

1
2

3 USB DX- 8 GND

4 USB DY- 9 No Pin

5 USB DX+ 10 NC

13) COMA (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the op-

tional COM port cable, please contact the local dealer.

Pin No. Denition Pin No. Denition

9

10

1
2

1 NDCD- 6 NDSR-

2 NSIN 7 NRTS-

3 NSOUT 8 NCTS-

4 NDTR- 9 NRI-

5 GND 10 No Pin

14) CLR_CMOS (Clear CMOS Jumper)

Use this jumper to clear the BIOS conguration and reset the CMOS values to factory defaults. To clear

the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

Open: Normal

Short: Clear CMOS Values

• Always turn off your computer and unplug the power cord from the power outlet before clearing the CMOS
values.

• After system restart, go to BIOS Setup to load factory defaults (select Load Optimized Defaults) or manually

congure the BIOS settings (refer to Chapter 2, "BIOS Setup," for BIOS congurations).

- 17 -

Chapter 2 BIOS Setup

BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the
motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup,
saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that al-

lows the user to modify basic system conguration settings or to activate certain system features.

When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to

keep the conguration values in the CMOS.

To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on.
To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility.

• Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating
system.

• @BIOS is a Windows-based utility that searches and downloads the latest version of BIOS from the
Internet and updates the BIOS.

• Because BIOS ashing is potentially risky, if you do not encounter problems using the current version of BIOS,

it is recommended that you not ash the BIOS. To ash the BIOS, do it with caution. Inadequate BIOS ashing

may result in system malfunction.

• It is recommended that you not alter the default settings (unless you need to) to prevent system instability
or other unexpected results. Inadequately altering the settings may result in system's failure to boot. If this
occurs, try to clear the CMOS values and reset the board to default values. (Refer to the "Load Optimized De­faults" section in this chapter or introductions of the battery/clear CMOS jumper in Chapter 1 for how to clear
the CMOS values.)

2-1 Startup Screen

The following startup Logo screen will appear when the computer boots.
(Sample BIOS Version: E11c)

Function Keys

On the main menu of the BIOS Setup program, press arrow keys to move among the items and press <En­ter> to accept or enter a sub-menu. Or you can use your mouse to select the item you want.

• When the system is not stable as usual, select the Load Optimized Defaults item to set your system to its
defaults.

• The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version.

- 18 -

2-2 M.I.T.

This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency,
total memory size, CPU temperature, Vcore, and memory voltage.

Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your

overall system congurations. Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or

memory and reduce the useful life of these components. This page is for advanced users only and we recom­mend you not to alter the default settings to prevent system instability or other unexpected results. (Inadequately
altering the settings may result in system's failure to boot. If this occurs, clear the CMOS values and reset the
board to default values.)

`M.I.T. Current Status

This screen provides information on CPU/memory frequencies/parameters.

`Advanced Frequency Settings

&Processor Graphics Clock

Allows you to set the onboard graphics clock. The adjustable range is from 400 MHz to 4000 MHz. (Default:

Auto)

&CPU Clock Ratio

Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU

being installed.

&CPU Frequency

Displays the current operating CPU frequency.

`Advanced CPU Core Features

&CPU Clock Ratio, CPU Frequency

The settings above are synchronous to those under the same items on the Advanced Frequency Set-

tings menu.

&Intel(R) Turbo Boost Technology

Allows you to determine whether to enable the Intel CPU Turbo Boost technology. Auto lets the BIOS

automatically congure this setting. (Default: Auto)

(Note)

(Note) This item is present only when you install a CPU that supports this feature. For more information

about Intel® CPUs' unique features, please visit Intel's website.

- 19 -

&Turbo Ratio (1-Core Active~4-Core Active)

(Note1)

Allows you to set the CPU Turbo ratios for different number of active cores. Auto sets the CPU Turbo

ratios according to the CPU specications. (Default: Auto)

&Turbo Power Limit (Watts)

Allows you to set a power limit for CPU Turbo mode. When the CPU power consumption exceeds the

specied power limit, the CPU will automatically reduce the core frequency in order to reduce the power.
Auto sets the power limit according to the CPU specications. (Default: Auto)

&Core Current Limit (Amps)

Allows you to set a current limit for CPU Turbo mode. When the CPU current exceeds the specied cur-

rent limit, the CPU will automatically reduce the core frequency in order to reduce the current. Auto sets

the power limit according to the CPU specications. (Default: Auto)

&CPU Core Enabled

(Note 1)

Allows you to determine whether to enable all CPU cores. Auto lets the BIOS automatically congure this

setting. (Default: Auto)

&Hyper-Threading Technology

(Note 1)

Allows you to determine whether to enable multi-threading technology when using an Intel® CPU that

supports this function. This feature only works for operating systems that support multi-processor mode.

Auto lets the BIOS automatically congure this setting. (Default: Auto)

&CPU Enhanced Halt (C1E)

(Note 1)

Enables or disables Intel® CPU Enhanced Halt (C1E) function, a CPU power-saving function in system

halt state. When enabled, the CPU core frequency and voltage will be reduced during system halt state

to decrease power consumption. Auto lets the BIOS automatically congure this setting. (Default: Auto)

&C3/C6 State Support

(Note 1)

Allows you to determine whether to let the CPU enter C3/C6 mode in system halt state. When enabled,

the CPU core frequency and voltage will be reduced during system halt state to decrease power con­sumption. The C3 state is a more enhanced power-saving state than C1. Auto lets the BIOS automati-

cally congure this setting. (Default: Auto)

&CPU Thermal Monitor

(Note 1)

Enables or disables Intel® Thermal Monitor function, a CPU overheating protection function. When en-

abled, the CPU core frequency and voltage will be reduced when the CPU is overheated. Auto lets the

BIOS automatically congure this setting. (Default: Auto)

&CPU EIST Function

(Note 1)

Enables or disables Enhanced Intel® Speed Step Technology (EIST). Depending on CPU loading, Intel

EIST technology can dynamically and effectively lower the CPU voltage and core frequency to decrease

average power consumption and heat production. Auto lets the BIOS automatically congure this setting.

(Default: Auto)

&ExtremeMemoryProle(X.M.P.)

(Note 2)

Allows the BIOS to read the SPD data on XMP memory module(s) to enhance memory performance

when enabled.

Disabled Disables this function. (Default)
Prole1 Uses Prole 1 settings.

(Note 2)

Prole2

Uses Prole 2 settings.

&System Memory Multiplier

Allows you to set the system memory multiplier. Auto sets memory multiplier according to memory SPD

data. (Default: Auto)

&Memory Frequency (MHz)

The rst memory frequency value is the normal operating frequency of the memory being used; the sec-

ond is the memory frequency that is automatically adjusted according to the System Memory Multiplier
settings.

(Note 1) This item is present only when you install a CPU that supports this feature. For more information

about Intel® CPUs' unique features, please visit Intel's website.

(Note 2) This item is present only when you install a CPU and a memory module that support this feature.

- 20 -

`Advanced Memory Settings

&ExtremeMemoryProle(X.M.P.)

(Note)

, System Memory Multiplier, Memory

Frequency(MHz)

The settings above are synchronous to those under the same items on the Advanced Frequency Set-

tings menu.

&Performance Enhance

Allows the system to operate at three different performance levels.

Normal Lets the system operate at its basic performance level.
Turbo Lets the system operate at its good performance level. (Default)
Extreme Lets the system operate at its best performance level.

&DRAM Timing Selectable

Quick and Expert allows the Channel Interleaving, Rank Interleaving, and memory timing settings

below to be congurable. Options are: Auto (default), Quick, Expert.

&ProleDDRVoltage

When using a non-XMP memory module or ExtremeMemoryProle (X.M.P.) is set to Disabled, this

item will display as 1.50V. When ExtremeMemory Prole(X.M.P.) is set to Prole1 or Prole2, this
item will display the value based on the SPD data on the XMP memory.

&ProleVTTVoltage

The value displayed here is dependent on the CPU being used.

&Channel Interleaving

Enables or disables memory channel interleaving. Enabled allows the system to simultaneously access

different channels of the memory to increase memory performance and stability. Auto lets the BIOS au-

tomatically congure this setting. (Default: Auto)

&Rank Interleaving

Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access dif-

ferent ranks of the memory to increase memory performance and stability. Auto lets the BIOS automati-

cally congure this setting. (Default: Auto)

`Channel A/B Timing Settings

This sub-menu provides memory timing settings for each channel of memory. The respective timing setting
screens are congurable only when DRAM Timing Selectable is set to Quick or Expert. Note: Your system
may become unstable or fail to boot after you make changes on the memory timings. If this occurs, please
reset the board to default values by loading optimized defaults or clearing the CMOS values.

`Advanced Voltage Settings

&DRAM Voltage

Allows you to set the memory voltage. (Default: Auto)

`PC Health Status

&Reset Case Open Status

Disabled Keeps or clears the record of previous chassis intrusion status. (Default)
Enabled Clears the record of previous chassis intrusion status and the Case Open eld will

show "No" at next boot.

(Note) This item is present only when you install a CPU and a memory module that support this feature.

- 21 -

&Case Open

Displays the detection status of the chassis intrusion detection device attached to the motherboard CI

header. If the system chassis cover is removed, this eld will show "Yes", otherwise it will show "No". To

clear the chassis intrusion status record, set Reset Case Open Status to Enabled, save the settings to
the CMOS, and then restart your system.

&CPU Vcore/Dram Voltage/+3.3V/+12V

Displays the current system voltages.

&CPU/System Temperature

Displays current CPU/system temperature.

&CPU/System Fan Speed

Displays current CPU/system fan speeds.

&CPU Warning Temperature

Sets the warning threshold for CPU temperature. When CPU temperature exceeds the threshold,

BIOS will emit warning sound. Options are: Disabled (default), 60oC/140oF, 7 0oC/158oF, 8 0oC/176oF,
90oC/194oF.

&CPU/System Fan Fail Warning

Allows the system to emit warning sound if the fan is not connected or fails. Check the fan condition or

fan connection when this occurs. (Default: Disabled)

&CPU Fan Speed Control (CPU_FAN Connector)

Allows you to determine whether to enable the fan speed control function and adjust the fan speed.

Normal Allows the fan to run at different speeds according to the CPU temperature. You can ad-

just the fan speed with EasyTune based on your system requirements. (Default)
Silent Allows the fan to run at slow speeds.
Manual Allows you to control the fan speed under the Slope PWM item.
Disabled Allows the fan to run at full speeds.

&Slope PWM

Allows you to control the fan speed. This item is congurable only when CPU Fan Speed Control is set

to Manual. Options are: 0.75 PWM value /oC ~ 2.50 PWM value /oC.

&1st System Fan Speed Control (SYS_FAN1 Connector)

Allows you to determine whether to enable the fan speed control function and adjust the fan speed.

Normal Allows the fan to run at different speeds according to the system temperature. You can

adjust the fan speed with EasyTune based on your system requirements. (Default)
Silent Allows the fan to run at slow speeds.
Manual Allows you to control the fan speed under the Slope PWM item.
Disabled Allows the fan to run at full speeds.

&Slope PWM

Allows you to control the fan speed. This item is congurable only when 1st System Fan Speed Control

is set to Manual. Options are: 0.75 PWM value /oC ~ 2.50 PWM value /oC.

&2nd System Fan Speed Control (SYS_FAN2 Connector)

Allows you to determine whether to enable the fan speed control function and adjust the fan speed.

Normal Allows the fan to run at different speeds according to the system temperature. You can

adjust the fan speed with EasyTune based on your system requirements. (Default)
Silent Allows the fan to run at slow speeds.
Manual Allows you to control the fan speed under the Slope PWM item.
Disabled Allows the fan to run at full speeds.

&Slope PWM

Allows you to control the fan speed. This item is congurable only when 2nd System Fan Speed Con-

trol is set to Manual. Options are: 0.75 PWM value /oC ~ 2.50 PWM value /oC.

- 22 -

`Miscellaneous Settings

&PEG - Gen X

Allows you to set the operation mode of the PCI Express slots to Gen 1, Gen 2, or Gen 3. Actual opera-

tion mode is subject to the hardware specication of each slot. For example, the PCI Express x1 slots

can support up to Gen 2 mode only. Auto lets the BIOS automatically congure this setting. (Default:
Auto)

&3DMark01 Boost

Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled)

2-3 System

This section provides information on your motherboard model and BIOS version. You can also select the de­fault language used by the BIOS and manually set the system time.

&System Language

Selects the default language used by the BIOS.

&System Date

Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch

between the Month, Date, and Year elds and use the <Page Up> or <Page Down> key to set the de­sired value.

&System Time

Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:0:0.

Use <Enter> to switch between the Hour, Minute, and Second elds and use the <Page Up> or <Page

Down> key to set the desired value.

&Access Level

Displays the current access level depending on the type of password protection used. (If no password is

set, the default will display as Administrator.) The Administrator level allows you to make changes to all
BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all.

`ATA Port Information

This section provides information on the device connected to each SATA port controlled by Chipset.

- 23 -

2-4 BIOS Features

&Boot Option Priorities

Species the overall boot order from the available devices. For example, you can set hard drive as the

rst priority (Boot Option #1) and DVD ROM drive as the second priority (Boot Option #2). The list only
displays the device with the highest priority for a specic type. For example, only hard drive dened as
the rst priority on the Hard Drive BBS Priorities submenu will be presented here.

Removable storage devices that support GPT format will be prexed with "UEFI:" string on the boot de-

vice list. To boot from an operating system that supports GPT partitioning, select the device prexed with

"UEFI:" string.

Or if you want to install an operating system that supports GPT partitioning such as Windows 7 64-bit,

select the optical drive that contains the Windows 7 64-bit installation disk and is prexed with "UEFI:"

string.

& Hard Drive/CD/DVD ROM Drive/Floppy Drive/Network Device BBS Priorities

Species the boot order for a specic device type, such as hard drives, optical drives, oppy disk drives,

and devices that support Boot from LAN function, etc. Press <Enter> on this item to enter the submenu
that presents the devices of the same type that are connected. This item is present only if at least one
device for this type is installed.

&Bootup NumLock State

Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default:

Enabled)

&Security Option

Species whether a password is required every time the system boots, or only when you enter BIOS

Setup. After conguring this item, set the password(s) under the Administrator Password/User Pass-

word item.

Setup A password is only required for entering the BIOS Setup program.
System A password is required for booting the system and for entering the BIOS Setup pro-

gram. (Default)

&Full Screen LOGO Show

Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the

GIGABYTE Logo when the system starts up. (Default: Enabled)

- 24 -

&Fast Boot

Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup

speed. (Default: Disabled)

&VGA Support

Allows you to select which type of operating system to boot.

Auto Enables legacy option ROM only.
EFI Driver Enables EFI option ROM. (Default)

This item is congurable only when Fast Boot is set to Enabled or Ultra Fast.

&USB Support

Disabled All USB devices are disabled before the OS boot process completes.
Full Initial All USB devices are functional in the operating system and during the POST.
Partial Initial Part of the USB devices are disabled before the OS boot process completes. (Default)

This item is congurable only when Fast Boot is set to Enabled. This item is disabled when Fast Boot

is set to Ultra Fast.

&PS2 Devices Support

Disabled All PS/2 devices are disabled before the OS boot process completes.
Enabled All PS/2 devices are functional in the operating system and during the POST. (Default)

This item is congurable only when Fast Boot is set to Enabled. This item is disabled when Fast Boot

is set to Ultra Fast.

&NetWork Stack Driver Support

Disabled Disables booting from the network. (Default)
Enabled Enables booting from the network.

This item is congurable only when Fast Boot is set to Enabled or Ultra Fast.

&Next Boot After AC Power Loss

Normal Boot Enables normal bootup upon the return of the AC power. (Default)
Fast Boot Keeps the Fast Boot settings upon the return of the AC power.

This item is congurable only when Fast Boot is set to Enabled or Ultra Fast.

&Limit CPUID Maximum

(Note)

Allows you to determine whether to limit CPUID maximum value. Set this item to Disabled for Windows

XP operating system; set this item to Enabled for legacy operating system such as Windows NT4.0.
(Default: Disabled)

&Execute Disable Bit

(Note)

Enables or disables Intel® Execute Disable Bit function. This function may enhance protection for the

computer, reducing exposure to viruses and malicious buffer overow attacks when working with its sup­porting software and system. (Default: Enabled)

&Intel Virtualization Technology

(Note)

Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel® Virtualization Tech-

nology will allow a platform to run multiple operating systems and applications in independent partitions.
With virtualization, one computer system can function as multiple virtual systems. (Default: Enabled)

&Intel TXT(LT) Support

(Note)

Enables or disables Intel® Trusted Execution Technology (Intel® TXT). Intel® Trusted Execution Technol-

ogy provides a hardware-based security foundation. (Default: Disabled)

(Note)

&VT-d

Enables or disables Intel® Virtualization Technology for Directed I/O. (Default: Enabled)

&OS Type

Allows you to select the operating system to be installed. (Default: Other OS)

(Note) This item is present only when you install a CPU that supports this feature. For more information

about Intel® CPUs' unique features, please visit Intel's website.

- 25 -

&CSM Support

Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process.

Always Enables UEFI CSM. (Default)
Never Disables UEFI CSM and supports UEFI BIOS boot process only.

This item is congurable only when OS Type is set to Windows 8 or Windows 8 WHQL.

&Boot Mode Selection

Allows you to select which type of operating system to boot.

UEFI and Legacy Allows booting from operating systems that support legacy option ROM or UEFI

option ROM. (Default)
Legacy Only Allows booting from operating systems that only support legacy Option ROM.
UEFI Only Allows booting from operating systems that only support UEFI Option ROM.

This item is congurable only when CSM Support is set to Always.

&LAN PXE Boot Option ROM

Allows you to select whether to enable the legacy option ROM for the LAN controller. (Default: Disabled)

This item is congurable only when CSM Support is set to Always.

&Storage Boot Option Control

Allows you to select whether to enable the UEFI or legacy option ROM for the storage device controller.

Disabled Disables option ROM.
Legacy Only Enables legacy option ROM only. (Default)
UEFI Only Enables UEFI option ROM only.
Legacy First Enables legacy option ROM rst.
UEFI First Enables UEFI option ROM rst.

This item is congurable only when CSM Support is set to Always.

&Other PCI Device ROM Priority

Allows you to select whether to enable the UEFI or Legacy option ROM for the PCI device controller

other than the LAN, storage device, and graphics controllers.

Legacy OpROM Enables legacy option ROM only.
UEFI OpROM Enables UEFI option ROM only. (Default)

&Network stack

Disables or enables booting from the network to install a GPT format OS, such as installing the OS from

the Windows Deployment Services server. (Default: Disabled)

&Ipv4 PXE Support

Enables or disables IPv4 PXE Support. This item is congurable only when Network stack is enabled.

&Ipv6 PXE Support

Enables or disables IPv6 PXE Support. This item is congurable only when Network stack is enabled.

&Administrator Password

Allows you to congure an administrator password. Press <Enter> on this item, type the password, and

then press <Enter>. You will be requested to conrm the password. Type the password again and press

<Enter>. You must enter the administrator password (or user password) at system startup and when
entering BIOS Setup. Differing from the user password, the administrator password allows you to make
changes to all BIOS settings.

(Note) This item is present only when you install a CPU that supports this feature. For more information

about Intel® CPUs' unique features, please visit Intel's website.

- 26 -

&User Password

Allows you to congure a user password. Press <Enter> on this item, type the password, and then press

<Enter>. You will be requested to conrm the password. Type the password again and press <Enter>.

You must enter the administrator password (or user password) at system startup and when entering
BIOS Setup. However, the user password only allows you to make changes to certain BIOS settings but
not all.

To cancel the password, press <Enter> on the password item and when requested for the password, enter

the correct one rst. When prompted for a new password, press <Enter> without entering any password.
Press <Enter> again when prompted to conrm.

2-5 Peripherals

&SATA Controller(s)

Enables or disables the integrated SATA controllers. (Default: Enabled)

&SATA Mode Selection

Allows you to decide whether to congure the SATA controller integrated in the Chipset to AHCI mode.

IDE Congures the SATA controller to IDE mode. (Default)
AHCI Congures the SATA controllers to AHCI mode. Advanced Host Controller Interface

(AHCI) is an interface specication that allows the storage driver to enable advanced

Serial ATA features such as Native Command Queuing and hot plug.

&xHCI Pre-Boot Driver

Enabled The USB 3.0 ports are routed to the xHCI controller before booting to OS. (Default)
Disabled The USB 3.0 ports are routed to the EHCI controller before booting to OS.

If you want to set xHCI Mode below to Smart Auto, set this item to Enabled; when this item is set to

Disabled, xHCI Mode will be automatically set to Auto.

- 27 -

&XHCI Mode

Allows you to determine the operating mode for the xHCI controller in OS.

Smart Auto This mode is available only when the BIOS supports the xHCI controller in the pre-

boot environment. This mode is similar to Auto, but it adds the capability to route the
ports to xHCI or EHCI according to setting used in previous boots (for non-G3 boot)
in the pre-boot environment. This allows the use of USB 3.0 devices prior to OS boot.
xHCI controller enabling and rerouting should follow the steps in Auto, when previ­ous boot routs ports to EHCI. Note: This is the recommended mode when BIOS has
xHCI pre-boot support. (Default)

Auto BIOS routes the sharable ports to EHCI controller. Then it uses ACPI protocols to

provide an option to enable the xHCI controller and reroute the sharable ports. Note:
This is the recommended mode when BIOS does NOT have xHCI pre-boot support.

Enabled All shared ports are eventually routed to the xHCI controller during the BIOS boot

process. If BIOS does not have pre-boot support for the xHCI controller, it should
initially route the sharable ports to the EHCI controller and then prior to OS boot it
should route the ports to xHCI controller. Note: OS has to provide support for the
xHCI controller in this mode. If the OS does not provide support, all sharable ports
won't work.

Disabled The USB 3.0 ports are routed to the EHCI controller and the xHCI controller is turned

off. All USB 3.0 devices function as High Speed devices regardless of xHCI software
support/availability.

Manual Allows you to determine whether to rout the USB 3.0 ports to the xHCI or EHCI

controller before booting to OS, and also provides you with options to manually rout
each USB 3.0/2.0 port to xHCI or EHCI.

&HS Port #1 Switchable~HS Port #4 Switchable

Enabled Corresponding USB 3.0 port is routed to xHCI. The USB 3.0 device attached on this

port with Super-Speed capability is visible to xHCI controller. (Default)

Disabled Corresponding USB 3.0 port is routed to EHCI. The USB 3.0 device attached on this

port with Super-Speed capability will function as High-Speed.

&xHCI Streams

Enables or disables multi-stream data transfer. Note: For Windows 7 USB 3.0 Streams support, devices

may require UASP class driver updates from UASP driver vendors to be fully compatible with Intel USB 3.0
Streams Support. (Default: Enabled)

&USB2.0 Controller

Enables or disables the integrated USB 2.0/1.1 controller. (Default: Enabled)

&Audio Controller

Enables or disables the onboard audio function. (Default: Enabled)
If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to

Disabled.

&Init Display First

Species the rst initiation of the monitor display from the installed PCI graphics card, PCI Express

graphics card or the onboard graphics.

Auto Lets BIOS automatically congure this setting. (Default)
IGFX Sets the onboard graphics as the rst display.
PEG Sets the PCI Express graphics card on the PCIEX slot as the rst display.
PCI Sets the graphics card on the PCI slot as the rst display.

&Internal Graphics

Enables or disables the onboard graphics function. (Default: Auto)

&Internal Graphics Memory Size

Allows you to set the onboard graphics memory size. Options are: 32M~1024M. (Default: 64M)

- 28 -

&DVMT Total Memory Size

Allows you to allocate the DVMT memory size of the onboard graphics. Options are: 128M, 256M, MAX.

(Default: MAX)

&Intel(R) Rapid Start Technology

Enables or disables Intel® Rapid Start Technology. This item is congurable only when an SSD is in-

stalled. (Default: Disabled)

&Legacy USB Support

Allows USB keyboard/mouse to be used in MS-DOS. (Default: Enabled)

&XHCI Hand-off

Determines whether to enable XHCI Hand-off feature for an operating system without XHCI Hand-off

support. (Default: Enabled)

&EHCI Hand-off

Determines whether to enable EHCI Hand-off feature for an operating system without EHCI Hand-off

support. (Default: Disabled)

&USB Storage Devices

Displays a list of connected USB mass storage devices. This item appears only when a USB storage

device is installed.

&Port 60/64 Emulation

Enables or disables emulation of I/O ports 64h and 60h. This should be enabled for full legacy support

for USB keyboards/mice in MS-DOS or in operating system that does not natively support USB devices.
(Default: Disabled)

&OnBoard LAN Controller#1

Enables or disables the onboard LAN function. (Default: Enabled)
If you wish to install a 3rd party add-in network card instead of using the onboard LAN, set this item to

Disabled.

`SuperIOConguration

This section provides information on the super I/O chip and allows you to congure the serial port.

&Serial Port A

Enables or disables the onboard serial port. (Default: Enabled)

`Intel(R) Smart Connect Technology

&ISCTConguration

Enables or disables Intel® Smart Connect Technology. (Default: Disabled)

- 29 -

2-6 Power Management

&Power Loading

Enables or disables dummy load. When the power supply is at low load, a self-protection will activate

causing it to shutdown or fail. If this occurs, please set to Enabled. Auto lets the BIOS automatically

congure this setting. (Default: Auto)

&Resume by Alarm

Determines whether to power on the system at a desired time. (Default: Disabled)
If enabled, set the date and time as following:

Wake up day: Turn on the system at a specic time on each day or on a specic day in a month.
Wake up hour/minute/second: Set the time at which the system will be powered on automatically.

Note: When using this function, avoid inadequate shutdown from the operating system or removal of the

AC power, or the settings may not be effective.

&High Precision Event Timer

Enables or disables High Precision Event Timer (HPET) for Windows 8/7 operating system. (Default:

Enabled)

&Soft-Off by PWR-BTTN

Congures the way to turn off the computer in MS-DOS mode using the power button.

Instant-Off Press the power button and then the system will be turned off instantly. (Default)
Delay 4 Sec Press and hold the power button for 4 seconds to turn off the system. If the power

button is pressed for less than 4 seconds, the system will enter suspend mode.

&Internal Graphics Standby Mode

Allows you to determine whether to let the onboard graphics enter standby mode to decrease power

consumption. (Default: Enabled)

&Internal Graphics Deep Standby Mode

Allows you to determine whether to let the onboard graphics enter deeper standby mode. (Default: En-

abled)

(Note)

(Note) Supported on Windows 8/7 operating system only.

- 30 -

&AC BACK

Determines the state of the system after the return of power from an AC power loss.

Always Off The system stays off upon the return of the AC power. (Default)
Always On The system is turned on upon the return of the AC power.
Memory The system returns to its last known awake state upon the return of the AC power.

&Power On By Keyboard

Allows the system to be turned on by a PS/2 keyboard wake-up event.
Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.

Disabled Disables this function. (Default)
Any Key Press any key to turn on the system.
Keyboard 98 Press POWER button on the Windows 98 keyboard to turn on the system.
Password Set a password with 1~5 characters to turn on the system.

&Power On Password

當Set the password when Power On By Keyboard is set to Password.
Press <Enter> on this item and set a password with up to 5 characters and then press <Enter> to ac-

cept. To turn on the system, enter the password and press <Enter>.

Note: To cancel the password, press <Enter> on this item. When prompted for the password, press <En-

ter> again without entering the password to clear the password settings.

&Power On By Mouse

Allows the system to be turned on by a PS/2 mouse wake-up event.
Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.

Disabled Disables this function. (Default)
Move Move the mouse to turn on the system.
Double Click Double click on left button on the mouse to turn on the system.

&ErP

Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled)
Note: When this item is set to Enabled, the following functions will become unavailable: PME event

wake up, power on by mouse, power on by keyboard, and wake on LAN.

- 31 -

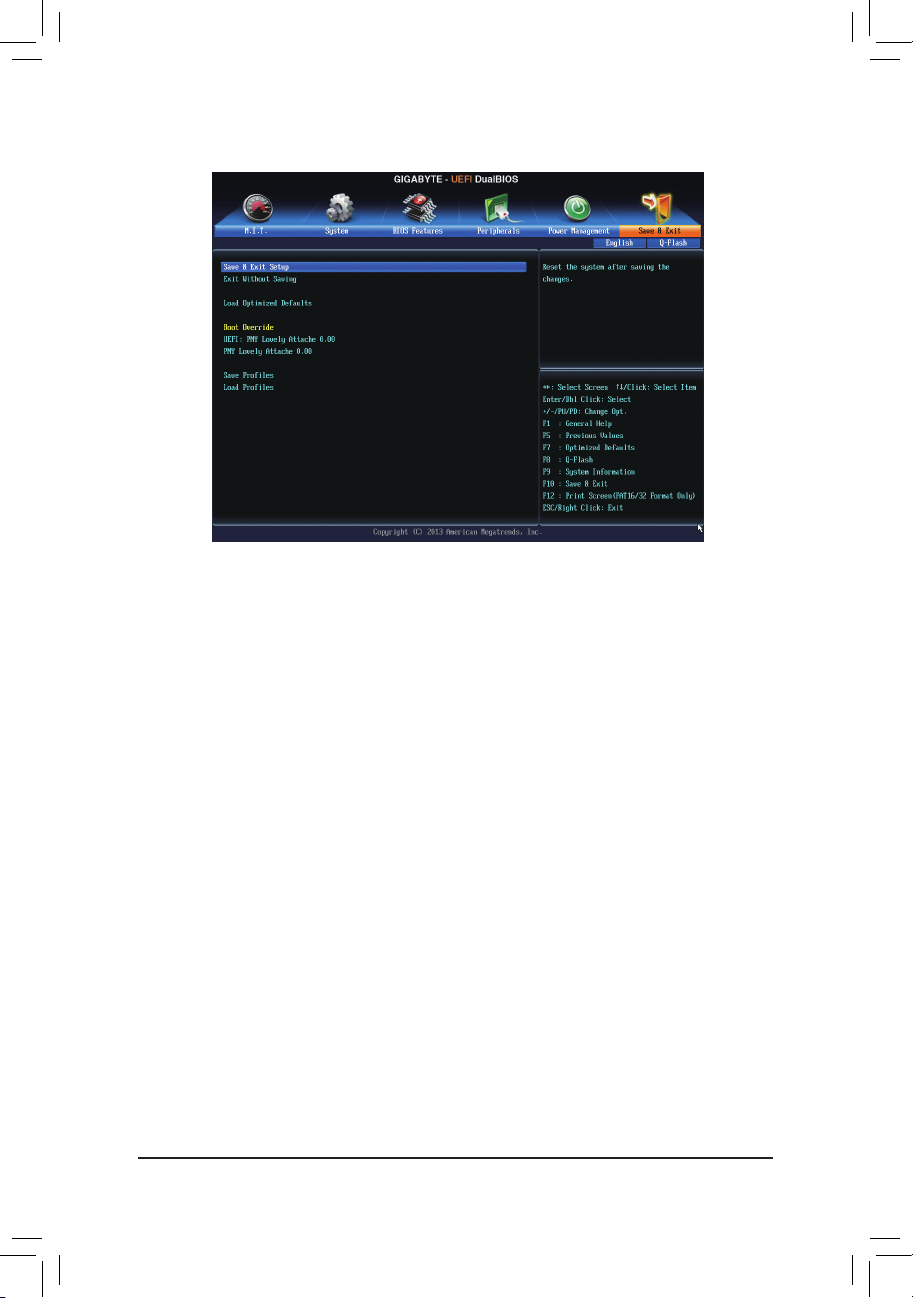

2-7 Save & Exit

&Save & Exit Setup

Press <Enter> on this item and select Yes . This saves the changes to the CMOS and exits the BIOS

Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu.

&Exit Without Saving

Press <Enter> on this item and select Yes. This exits the BIOS Setup without saving the changes made

in BIOS Setup to the CMOS. Select No or press <Esc> to return to the BIOS Setup Main Menu.

&Load Optimized Defaults

Press <Enter> on this item and select Yes to load the optimal BIOS default settings. The BIOS defaults

settings help the system to operate in optimum state. Always load the Optimized defaults after updating
the BIOS or after clearing the CMOS values.

&Boot Override

Allows you to select a device to boot immediately. Press <Enter> on the device you select and select

Yes to conrm. Your system will restart automatically and boot from that device.

&SaveProles

This function allows you to save the current BIOS settings to a prole. You can create up to 8 proles

and save as Setup Prole 1~ Setup Prole 8. Press <Enter> to complete. Or you can select Select File

in HDD/USB/FDD to save the prole to your storage device.

&LoadProles

If your system becomes unstable and you have loaded the BIOS default settings, you can use this func-

tion to load the BIOS settings from a prole created before, without the hassles of reconguring the BIOS
settings. First select the prole you wish to load and then press <Enter> to complete. You can select
Select File in HDD/USB/FDD to input the prole previously created from your storage device or load the
prole automatically created by the BIOS, such as reverting the BIOS settings to the last settings that

worked properly (last known good record).

- 32 -

Chapter 3 Appendix

Drivers Installation

• Before installing the drivers, rst install the operating system. (The following instructions use
Windows 8 as the example operating system.)

• After installing the operating system, insert the motherboard driver disk into your optical drive.
Click on the message "Tap to choose what happens with this disc" on the top-right corner of the
screen and select "Run Run.exe." (Or go to My Computer, double-click the optical drive and
execute the Run.exe program.)

After inserting the driver disk, "Xpress Install" will automatically scan your system and then list all the drivers
that are recommended to install. You can click the Install All button and "Xpress Install" will install all the rec­ommended drivers. Or click Install Single Items to manually select the drivers you wish to install.

- 33 -

Regulatory Statements

Regulatory Notices

This document must not be copied without our written permission, and the contents there of must not be im­parted to a third party nor be used for any unauthorized purpose.
Contravention will be prosecuted. We believe that the information contained herein was accurate in all re­spects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions
in this text. Also note that the information in this document is subject to change without notice and should not
be construed as a commitment by GIGABYTE.

Our Commitment to Preserving the Environment

In addition to high-efciency performance, all GIGABYTE motherboards fulll European Union regulations

for RoHS (Restriction of Certain Hazardous Substances in Electrical and Electronic Equipment) and WEEE
(Waste Electrical and Electronic Equipment) environmental directives, as well as most major worldwide safety
requirements. To prevent releases of harmful substances into the environment and to maximize the use of
our natural resources, GIGABYTE provides the following information on how you can responsibly recycle or
reuse most of the materials in your "end of life" product.

Restriction of Hazardous Substances (RoHS) Directive Statement

GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6,
PBDE and PBB). The parts and components have been carefully selected to meet RoHS requirement. More­over, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned
toxic chemicals.

Waste Electrical & Electronic Equipment (WEEE) Directive Statement

GIGABYTE will fulll the national laws as interpreted from the 2002/96/EC WEEE (Waste Electrical and Elec­tronic Equipment) directive. The WEEE Directive species the treatment, collection, recycling and disposal of

electric and electronic devices and their components. Under the Directive, used equipment must be marked,
collected separately, and disposed of properly.

WEEE Symbol Statement

The symbol shown below is on the product or on its packaging, which indicates that this product
must not be disposed of with other waste. Instead, the device should be taken to the waste col­lection centers for activation of the treatment, collection, recycling and disposal procedure. The
separate collection and recycling of your waste equipment at the time of disposal will help to

and the environment. For more information about where you can drop off your waste equipment for recycling,

please contact your local government ofce, your household waste disposal service or where you purchased

the product for details of environmentally safe recycling.

Finally, we suggest that you practice other environmentally friendly actions by understanding and using the
energy-saving features of this product (where applicable), recycling the inner and outer packaging (including
shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly.
With your help, we can reduce the amount of natural resources needed to produce electrical and electronic

equipment, minimize the use of landlls for the disposal of "end of life" products, and generally improve our

quality of life by ensuring that potentially hazardous substances are not released into the environment and
are disposed of properly.

conserve natural resources and ensure that it is recycled in a manner that protects human health

When your electrical or electronic equipment is no longer useful to you, "take it back" to your local or re-

gional waste collection administration for recycling.

If you need further assistance in recycling, reusing in your "end of life" product, you may contact us at the

Customer Care number listed in your product's user's manual and we will be glad to help you with your ef­fort.

- 34 -

- 35 -

Contact Us

GIGA-BYTE TECHNOLOGY CO., LTD.

Address: No.6, Bao Chiang Road, Hsin-Tien Dist., New Taipei City 231,Taiwan

TEL: [phone], FAX: [phone]

Tech. and Non-Tech. Support (Sales/Marketing) : http://ggts.gigabyte.com.t w

WEB address (English): http://ww w.gigabyte.com

WEB address (Chinese): http://ww w.gigabyte.t w

You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website.

• GIGABYTE Global Service System

To submit a technical or non-technical (Sales/
Marketing) question, please link to:
http://ggts.gigabyte.com.tw
Then select your language to enter the system.

- 36 -
