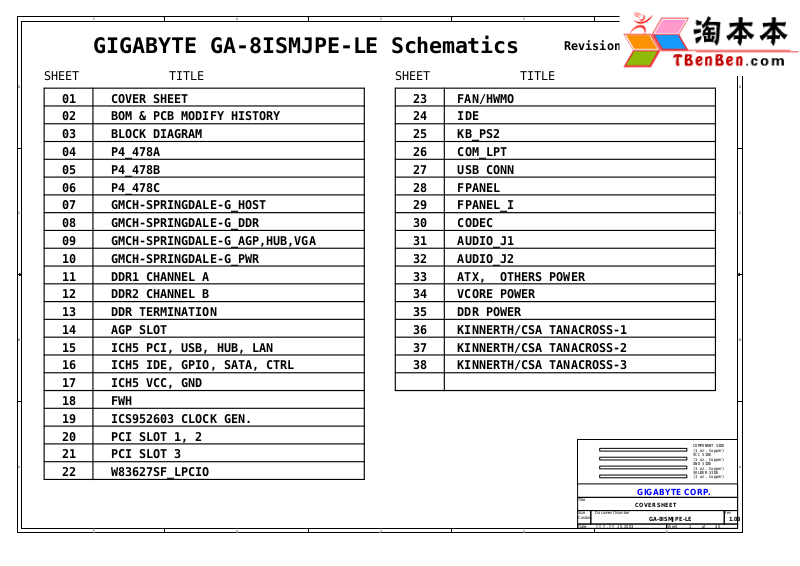

GIGABYTE GA-8ISMJPE-LE Schematics
SHEET TITLE
D D
01
02
03
04
05
06
C C
07
08
09
10
11
12
13
COVER SHEET
BOM & PCB MODIFY HISTORY
BLOCK DIAGRAM
P4_478A
P4_478B
P4_478C
GMCH-SPRINGDALE-G_HOST
GMCH-SPRINGDALE-G_DDR
GMCH-SPRINGDALE-G_AGP,HUB,VGA
GMCH-SPRINGDALE-G_PWR
DDR1 CHANNEL A
DDR2 CHANNEL B
DDR TERMINATION
SHEET TITLE
23
24
25
26
27
28
29
30
31
32
33
34
35
FAN/HWMO
IDE
KB_PS2
COM_LPT
USB CONN
FPANEL
FPANEL_I
CODEC
AUDIO_J1
AUDIO_J2
ATX, OTHERS POWER
VCORE POWER
DDR POWER
Revision 1.03
B B
14
15
16
17
18
19
20
21
A A
22
AGP SLOT
ICH5 PCI, USB, HUB, LAN
ICH5 IDE, GPIO, SATA, CTRL
ICH5 VCC, GND
FWH
ICS952603 CLOCK GEN.
PCI SLOT 1, 2
PCI SLOT 3
W83627SF_LPCIO
5
4
36
37
KINNERTH/CSA TANACROSS-1
KINNERTH/CSA TANACROSS-2
KINNERTH/CSA TANACROSS-338
COMPONENT SIDE
(1 oz. Copper)
VCC SIDE
(1 oz. Copper)
GND SIDE
(1 oz. Copper)
SOLDER SIDE
(1 oz. Copper)
Title
Size Document Number Rev
Custom
星期五, 八月
3
2
Date: Sheet of
GIGABYTE CORP.
COVER SHEET
15, 2003
GA-8ISMJPE-LE 1.03
1
1 40
Page 2
5
4
3
2
1
Model Name: GA-8ISMJPE-LE
Circuit or PCB layout change
for next version
Version: 1.0
D D
244mm X 224mm 60+-15% C Type
PAGE Change Item Reason
Component value change
history
Data Change Item Reason
BOM 0.1
02/01/03 FIRST RELEASE
02/21/03
1.VGA_COMB change from VGA connector to COM connector(11NR6-111009-31).
2.CN41,CN42 add 180pF/8P4C.
3.CN34,CN35,COM2 unmount.
4.C51 change from 0.1uF/6/Y/25V to 0/6.
5.C58 change from 0.22uF/6/Y/25V to 0/6.
6.R48~R50 change from 75/6/1 to 0/6.
7.R62 change from 137/6/1 to 0/6.
C C
8.C16~C18,C28~C30,C33,C34,C52,EC2,FB1~FB3,L3,L4,Q1,Q2,R150,R51~R56,R60,R64,R72,R74,U3,U4,U7~U11 unmount.
REV:10B Remove on board VGA function
B B
A A
Title
Size Document Number Rev
Custom
星期五, 八月
5
4
3
2
Date: Sheet of
GIGABYTE CORP.
BOM & PCB MODIFY HISTORY
15, 2003
GA-8ISMJPE-LE 1.03
1
2 40
Page 3
5
BLOCK DIAGRAM
4
3
2
1
INTEL Pentium4 (478)
D D
CLOCK GENERATOR
CKVDD = 3.3V
PAGE 19
VCORE = 1.75V / SLEEP : 1.3V
VCC3
PAGE 4, 5, 6
VID0~4
PWM/OTHER POWER
VCORE = 1.75V (650-1100MHZ) / SLEEP : 1.3V
5VSB,-12V,+12V,VCC,VCC3,3VDUAL
VTT_DDR,2_5VSTR
PAGE 33,34,35
CHANNEL A
GAD0~31
ADSTB0,ADSTB0ADSTB1,ADSTB1-
AGP SLOT 8X
VDDQ = 1.5V (AGP POWER 4X)
VCC3 = 3.3V
+12V = 12V
3VDUAL = 3.3V
VCC = 5V
C C
AGPUSB+ / -
PAGE 14
SBA0~7
SBSTB,SBSTB-
GCBE0~3ST0~2
AGP BUS
GMCH
SPRINGDALE
VCORE = 1.75V / SLEEP : 1.3V
2_5VSTR = 2.5V(MEMORY)
VDDQ = 1.5V (AGP POWER 4X, HUBLINK)
HL0~10
CONTROL BUS
HUB LINK
PAGE 7 ,8 ,9,10
MAA0~14
MAA_CPC1~5
MAB_CPC1~5
MDD0~63
-DQSD0~7
DM0~7
ICH5
USB PORTS 0~7
VCC = 5V
5VSB = 5V
AMRUSB+ / -
B B
5VUSB = 5V
PAGE 27
VCC25 = 2.5V(I/O,MEMORY/I,VLINK/I)
3VDUAL = 3.3V(SUSPEND POWER)
VCC3 = 3.3V
RTCVDD = 3.3V
PCI BUS
PAGE 15,16,17
DDR SDRAM DIMM X 1
2_5VSTR = 2.5V(MEMORY,SUSPEND POWER)
VTT_DDR = 1.25V
PAGE 11
CHANNEL B
DDR SDRAM DIMM X 1
2_5VSTR = 2.5V(MEMORY,SUSPEND POWER)
VTT_DDR = 1.25V
IDE Primary and
Secondary
VCC = 5V
PAGE 12,13
PAGE 24
SERIAL ATA
VCC = 5V
PAGE 16
FWH/HWMO
PCI SLOT 1,2,3
+12 = 12V
-12 = -12V
VCC = 5V
VCC3 = 3V
3VDUAL = 3V
PAGE 20, 21
VCC = 5V
VCC3 = 3V
PAGE 18, 23
AC97 CODEC ALC202A
+12V = 12V
VCC = 5V 5VSB = 5V
AVDD = 5V
A A
AUDIO PORTS :
LIN_ OUT
TELE
CD_IN
LINE_IN
AUX_IN
5
FRONT AUDIO
PAGE 30
MIC
PAGE 31, 32
AC97 LINK
4
REALTEK 8100BL
FRONT PANEL /FANS
VCC = 5V
5VSB = 5V
+12 = 12V
PVCC = 5V
PAGE 36
PAGE 28, 29
3
LPC BUS
LPC I/O W83627SF
VCC = 5VVCC3 = 3.3V
VBAT = 3V
I/O PORTS :
COMB
COMA IR
LPT
2
PS2
FDD
PAGE 22
PAGE 25, 26
Title
Size Document Number Rev
Custom
Date: Sheet of
GIGABYTE CORP.
BOM & PCB MODIFY HISTORY
星期五, 八月
15, 2003
1
GA-8ISMJPE-LE 1.03
3 40
Page 4
5
D D
4
3
2
1
VCORE
AD11
AD9
AD7
AD19
AE18
AE16
AE14
AE12
AE10
AE8
AE6
AE20
AB15
AB13
AB11
AB9
AB7
AB19
AC18
AC16
AC14
AC12
AC10
AC8
AD17
AD15
AD13
E14
E12
VCORE23
VCORE24
VCORE25
GND36
GND37
GND38
AB18
AB16
VCORE26
VCORE27
GND39
GND40
AB14
AB12
VCORE28
VCORE29
GND41
GND42
AB10
AB8
E10E8E20
VCORE30
VCORE31
GND43
GND44
AB6
AB3
VCORE32
GND45
GND46
AB24
AB21V4V1
GND47
GND48
GND49
V23W6W3
GND50
GND51
GND52
W24
GND53
W21Y5Y2
BOOTSEL
OPTIM/COMPAT
TESTHI8
TESTHI9
TESTHI10
DEFER
MCERR
RESET#
GND54
GND55
GND56
GND57
GND58
Y25
Y22
AA17
BINIT
BPRI
DBSY
DRDY
HITM
IERR
LOCK
TRDY
GND59
AA15
ADS
BNR
DP3
DP2
DP1
DP0
RSP
AP0
AP1
BR0
RS2
RS1
RS0
AA13
HIT
INIT
GND60
AD1
AE26
G1
AC1
V5
AA3
G2
L25
K26
K25
J26
U6
W4
Y3
H6
D2
H5
E2
H2
F3
E3
AC3
W5
G4
V6
AB25
F4
G5
F1
AB2
J6
-HADS
-BNR
TESTHI8
TESTHI9
TESTHI10
-BR0
-BPRI
-DBSY
-DEFER
-DRDY
-HIT
-HITM
IERR
-HINITHA28
-HLOCK
-CPURST
-RS2
-RS1
-RS0
-HTRDY
BOOTSEL (33)
-HADS (7)
-BNR (7)
-BR0 (7)
-BPRI (7)
-DBSY (7)
-DEFER (7)
-DRDY (7)
-HIT (7)
-HITM (7)
TP1
-HLOCK (7)
-RS2 (7)
-RS1 (7)
-RS0 (7)
-HTRDY (7)
C1
33P/4/N/50V
C2
33P/4/N/50V
-HINIT (16,18)
-CPURST (7)
HA[3..16](7)
C C
HA[17..31](7)
VCORE
SP-CAP X 4PCS
B B
BC11
220U/2V/SP-CAP
BC12
220U/2V/SP-CAP
BC13
220U/2V/SP-CAP
BC14
220U/2V/SP-CAP
HA[3..16]
-HADSTB0(7)
-HREQ4(7)
-HREQ3(7)
-HREQ2(7)
-HREQ1(7)
-HREQ0(7)
HA[17..31]
-HADSTB1(7)
HA16
HA15
HA14
HA13
HA12
HA11
HA10
HA9
HA8
HA7
HA6
HA5
HA4
HA3
-HADSTB0
-HREQ4
-HREQ3
-HREQ2
-HREQ1
-HREQ0
HA31
HA30
HA29
HA27
HA26
HA25
HA24
HA23
HA22
HA21
HA20
HA19
HA18
HA17
-HADSTB1
N5
A16
N4
A15
N2
A14
M1
A13
N1
A12
M4
A11
M3
A10
L2
A9
M6
A8
L3
A7
K1
A6
L6
A5
K4
A4
K2
A3
L5
ADSTB0
H3
REQ4
J3
REQ3
J4
REQ2
K5
REQ1
J1
REQ0
AB1
A35
Y1
A34
W2
A33
V3
A32
U4
A31
T5
A30
W1
A29
R6
A28
V2
A27
T4
A26
U3
A25
P6
A24
U1
A23
T2
A22
R3
A21
P4
A20
P3
A19
R2
A18
T1
A17
R5
ADSTB1
SK478/GD/W
AE7
GND1
AE24
GND2
AE22
GND3
AE19
GND4
AD14
GND5
AD12
GND6
AD10
GND7
AD8
GND8
AD4
GND9
GND11
AD23
GND12
AD21
GND13
AE17
VCORE1
GND14
AE15
AE13
VCORE2
VCORE3
GND15
GND16
AE11
AE9
VCORE4
VCORE5
GND17
AB20
VCORE6
VCORE7
GND19
GND20
AC17
AC15
VCORE8
VCORE9
GND21
GND22
AC13
AC11
VCORE10
VCORE11
VCORE12
GND23
GND24
GND25
AC9
AC7
VCORE13
VCORE14
GND26
GND27
AC5
AC2
VCORE15
VCORE16
GND28
GND29
AC25
AC22
VCORE17
VCORE18
GND30
GND31
AC19
AD18
VCORE19
VCORE20
GND32
GND33
AD16
AA4
VCORE21
VCORE22
GND34
GND35
AA1
AA23
AA19
SOCKET_478A
VCORE
VCORE
BC18
10U/12/X/6.3V
VCORE
BC8
10U/12/X/6.3V/X
A A
VCORE
BC33
10U/12/X/6.3V
BC34
10U/12/X/6.3V
BC19
10U/12/X/6.3V/X
BC35
10U/12/X/6.3V
5
BC20
10U/12/X/6.3V
VCORE
10U/12/X/6.3V
BC36
BC512
220U/2V/SP-CAP
BC37
10U/12/X/6.3V
4
BC513
220U/2V/SP-CAP
BC38
10U/12/X/6.3V
BC514
220U/2V/SP-CAP CR
BC39
10U/12/X/6.3V
BC40
10U/12/X/6.3V
BC515
10U/12/X/6.3V/X
BC516
10U/12/X/6.3V/X
3
CPU RETAINTION/X
2
VCORE
RN1
12
TESTHI10
34
TESTHI9
56
TESTHI8
78
62/8P4R
星期五, 八月
-BR0
-CPURST
15, 2003
P4 478A
GA-8ISMJPE-LE 1.03
1
4 40
R1 200/6
R2 62/6
Title
Size Document Number Rev
Custom
Date: Sheet of
Page 5
5
4
3
2
1
VCORE
D D
CPUCLK(19)
-CPUCLK(19)
C C
VID[0..5](22,23,33)
VCCVID
C3
1U/6/Y/10V
CPU_TEMP
CPU_TEMP(23)
THERMDC(23)
B B
R12 0/S6/X
R13 0/S6/X
0.01U/4/X/16V/X
C6
1N/4/X/50V/X
C5
CPU_TEMP
Note:
VCCA & VCOREPLL
VCORE
L1
10UH/8/120mA/S
L2
10UH/8/120mA/S
A A
C8
1U/6/Y/10V
C10
1U/6/Y/10V
define doesn't same as
old P4 design kit
C9
4.7U/8/Y/10V
C284
4.7U/8/Y/10V
As close as possible to
CPU socket
R17
0/S6/X
VCOREPLL
VCCA
VSSA
Closed to
Pin-AA21
R3
200/6/1
BC41
0.01U/4/X/16V
FSB800 ISSURE
GTLREF=0.9->1.00V
-A20M(16)
-FERR(16)
-IGNNE(16)
INTR(16)
NMI(16)
-SMI(16)
-STPCLK(16)
VID[0..5]
VCC_SENSE(33)
VSS_SENSE(33)
-THERM(16)
R805 2.2K/6
VCCVID
123
H1X3/X
VCCA
VSSA
VCOREPLL
GTLREF
R5
BC42
169/6/1
0.1U/6/Y/25V
SOCKET_478B
CPUCLK
AF22
-CPUCLK
AF23
AC26
AD26
-A20M
-FERR -BPM5
-IGNNE
INTR
NMI
-SMI
-STPCLK
VID5
VID4
VID3
VID2
VID1
VID0
VCOREPLL
VCC_SENSE
VCCA
VSSA
VSS_SENSE
1U/6/Y/10V
C7
C6
B6
B2
D1
E5
B5
Y4
AD3
AE1
AE2
AE3
AE4
AE5
AF4
AF3
AD20
A5
AE23
AD22
A4
AE21
A22
A7
B3
C4
A2
AD2
AF25
AF24
SK478/GD/W
Trace width doesn't
less than 12 Mil
BC43
220P/4/N/50V
BCLK0
BCLK1
ITP_CLK0
ITP_CLK1
A20M
FERR
IGNNE
LINT0
LINT1
SMI
STPCLK
VID5
VID4
VID3
VID2
VID1
VID0
VCCVID
VCCVIDPRG
VCCA
VCC_SENSE
VCCIOPLL
VSSA
VSS_SENSE
RSVD1
RSVD2
RSVD3
THERMDA
THERMDC
THERMTRIP
VIDPWRGD
RSVD5
RSVD7
GND61
AA11
AA9
GTLREF (7)
GND62
GND63
GND64
AA26
AA7N6N3
GND65
GND66
GND67
N24
GND68
N21P5P2
GND69
GND70
GND71
P25
GND72
P22
F17
F15
VCORE33
VCORE34
GND73
GND74
R26R4R1
F13
F11F9F19
VCORE35
VCORE36
GND75
GND76
R23T6T3
AA18
VCORE37
VCORE38
VCORE39
GND77
GND78
GND79
T24
AA16
AA14
VCORE40
VCORE41
GND80
GND81
T21U5U2
AA12
AA10
VCORE42
VCORE43
GND82
GND83
U25
AA8
AB17
VCORE44
VCORE45
GND84
GND85
U22
V26
VCORE
B13
B11B9B7
VCORE46
VCORE47
GND86
GND87
G21
H26H4H1
B19
VCORE48
VCORE49
VCORE50
GND88
GND89
GND90
H23J5J2
C18
C16
VCORE51
VCORE52
GND91
GND92
C14
C12
VCORE53
VCORE54
GND93
GND94
J25
J22K6K3
C10C8C20
VCORE55
VCORE56
GND95
GND96
D17
VCORE57
VCORE58
GND97
GND98
K24
K21
D15
D13
VCORE59
VCORE60
GND99
GND100
L26L4L1
D11D9D7
VCORE61
VCORE62
GND101
GND102
L23M5M2
D19
VCORE63
VCORE64
GND103
GND104
GND105
M25
GND106
GND107
GND108
GND109
GND110
M22
E11E9E26E7E4E1E23
GND111
GND112
GND113
GND114
E19
F18
PWRGOOD
GND115
GND116
F16
F14
BSEL0
BSEL1
TESTHI11
COMP0
COMP1
BPM5
BPM4
BPM3
BPM2
BPM1
BPM0
TESTHI0
DBR#
TESTHI12
GTLREF3
GTLREF2
GTLREF1
GTLREF0
TESTHI5
TESTHI4
TESTHI3
TESTHI2
TESTHI7
TESTHI6
TESTHI1
PROCHOT
TCK
TDO
TMS
TRST
GND117
GND118
GND119
F12
F10
SLP
TDI
GND120
F8
AD6
AD5
A6
L24
P1
AB4
AA5
Y6
AC4
AB5
AC6
AD24
AE25
AD25
AA6
F6
AA21
F20
AC23
AC24
AC20
AC21
AB22
AA20
AA2
AB23
C3
AB26
D4
C1
D5
F7
E6
FS_A
FS_B
TESTHI11
COMP0
COMP1
-BPM4
-BPM3
-BPM2
-BPM1
-BPM0
TESTHI0_1
TESTHI12
TP_AA6
TP_F6
TP_AA21
GTLREF
TESTHI2_7
TESTHI0_1
CPUPWROK
-PROCHOT
-CPUSLP
TCK
TDI
TDO
TMS
-TRST
FS_A (7,19)
FS_B (7,19)
TP2
TP3
TP4
-PROCHOT (7,32)
-CPUSLP (16)
C275
33P/4/N/50V
Place outside of CPU socket
COMP0
R6 61.9/6/1
COMP1
R7 61.9/6/1
VCORE
R11
330/6
CPUPWROK (16)
C4
1N/4/X/50V
VCORE
R14 130/6
R15 62/6
R16 62/6
RN2
62/8P4R
RN3
62/8P4R
R994 62/6
RN100
62/8P4R
R855 62/6
-PROCHOT
-BPM5
-BPM4
TESTHI0_1
12
TESTHI11
34
TESTHI12
56
TESTHI2_7
78
-BPM0
12
-BPM1
34
-BPM2
56
-BPM3
78
TMS
TDI
12
34
TDO
56
TCK
78
-TRST
Title
Size Document Number Rev
Custom
星期五, 八月
5
4
3
2
Date: Sheet of
15, 2003
P4 478B
GA-8ISMJPE-LE 1.03
1
5 40
Page 6
5
D D
4
3
2
1
VCORE
E18
E16
AF17
AF15
AF13
AF11
AF9
AF7
AF5
AF21
AF19
A18
A16
A14
A12
A10A8A20
B17
B15
VCORE78
VCORE79
VCORE80
GND154
GND155
GND156
B10
B26B8B4
VCORE81
VCORE82
VCORE83
GND157
GND158
GND159
B23
AF2
VCORE84
VCORE85
GND160
GND161
B20
C17
GND162
C15
C13
GND163
GND164
C11C9C7
GND165
GND166
AF18
GND167
GND168
AF16
AF14
GND169
GND170
AF12
AF10
GND171
GND173
AF8
AF6
GND174
GND175
AF1
AF20
GND176
GND177
A17
GND178
A15
A13
SKTOCC#
DBI#2
STBN2
STBP2
DBI#3
STBN3
STBP3
GND179
GND180
GND181
A11A9A26
D47
D46
D45
D44
D43
D42
D41
D40
D39
D38
D37
D36
D35
D34
D33
D32
D63
D62
D61
D60
D59
D58
D57
D56
D55
D54
D53
D52
D51
D50
D49
D48
GND182
AF26
T23
T22
T25
T26
R24
R25
P24
R21
N25
N26
M26
N23
M24
P21
N22
M23
P26
R22
P23
AA24
AA22
AA25
Y21
Y24
Y23
W25
Y26
W26
V24
V22
U21
V25
U23
U24
U26
V21
W22
W23
HD47
HD46
HD45
HD44
HD43
HD42
HD41
HD40
HD39
HD38
HD37
HD36
HD35
HD34
HD33
HD32
-DBI2
STBN2
STBP2
HD63
HD62
HD61
HD60
HD59
HD58
HD57
HD56
HD55
HD54
HD53
HD52
HD51
HD50
HD49
HD48
-DBI3
STBN3
STBP3
-DBI2 (7)
STBN2 (7)
STBP2 (7)
STBN3 (7)
STBP3 (7)
HD[32..47] (7)
HD[48..63] (7)
SOCKET_478C
HD[0..15]
HD[0..15](7)
C C
STBN0(7)
STBP0(7)
HD[16..31]
HD[16..31](7)
STBN1(7) -DBI3 (7)
STBP1(7)
B B
HD15
D25
J21
D23
C26
H21
G22
B25
C24
C23
B24
D22
C21
A25
A23
B22
B21
E21
E22
F21
H25
K23
J24
L22
M21
H24
G26
L21
D26
F26
E25
F24
F23
G23
E24
H22
G25
K22
J23
SK478/GD/W
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
DBI#0
STBN0
STBP0
D31
D30
D29
D28
D27
D26
D25
D24
D23
D22
D21
D20
D19
D18
D17
D16
DBI#1
STBN1
STBP1
GND121
GND122
F5F2F25
GND123
GND124
F22G6G3
GND125
GND126
G24C5C2
GND127
GND128
GND129
GND130
C25
C22
GND131
GND132
C19
D18
GND133
GND134
D16
HD14
HD13
HD12
HD11
HD10
HD9
HD8
HD7
HD6
HD5
HD4
HD3
HD2
HD1
HD0
-DBI0
-DBI0(7)
STBN0
STBP0
HD31
HD30
HD29
HD28
HD27
HD26
HD25
HD24
HD23
HD22
HD21
HD20
HD19
HD18
HD17
HD16
-DBI1
-DBI1(7)
STBN1
STBP1
GND135
D14
D12
GND136
GND137
GND138
GND139
GND140
D10D8D6D3D24
VCORE65
VCORE66
VCORE67
GND141
GND142
GND143
D21
D20
VCORE68
VCORE69
GND144
GND145
E17
E15
VCORE70
VCORE71
GND146
GND147
E13A3A24
VCORE72
VCORE73
VCORE74
GND148
GND149
GND150
A21
A19
VCORE75
VCORE76
GND151
GND152
B18
B16
VCORE77
GND153
B14
B12
A A
Title
Size Document Number Rev
Custom
星期五, 八月
5
4
3
2
Date: Sheet of
15, 2003
P4 478C
GA-8ISMJPE-LE 1.03
1
6 40
Page 7
5
4
3
2
1
HD[0..63]HA[3..31]
-PROCHOT (5,32)
HD[0..63] (6)
FS_A
R25
1K/6
R27
8.2K/6
R28
1K/6
R29
8.2K/6
FS_A (5,19)
FS_B
FS_B (5,19)
C12
1U/6/Y/10V
AE14
D26
D30
L23
E29
B32
K23
C30
C31
J25
B31
E30
B33
J24
F25
D34
C32
F28
C34
J27
G27
F29
E28
H27
K24
E32
F31
G30
J26
G26
B29
J23
L22
C29
J21
B30
D28
B7
C7
B19
C19
C17
L19
K19
L17
G9
F9
L14
D12
E12
C15
F27
D24
G24
L21
E23
K21
E25
B24
B28
B26
E27
G22
C27
B27
E8
E24
C25
F23
U2A
HA3#
HA4#
HA5#
HA6#
HA7#
HA8#
HA9#
HA10#
HA11#
HA12#
HA13#
HA14#
HA15#
HA16#
HA17#
HA18#
HA19#
HA20#
HA21#
HA22#
HA23#
HA24#
HA25#
HA26#
HA27#
HA28#
HA29#
HA30#
HA31#
HREQ0#
HREQ1#
HREQ2#
HREQ3#
HREQ4#
HADSTB0#
HADSTB1#
HCLKP
HCLKN
HDSTBP0#
HDSTBN0#
DINV0#
HDSTBP1#
HDSTBN1#
DINV1#
HDSTBP2#
HDSTBN2#
DINV2#
HDSTBP3#
HDSTBN3#
DINV3#
ADS#
HTRDY#
DRDY#
DEFER#
HITM#
HIT#
HLOCK#
BREQ0#
BNR#
BPRI#
DBSY#
RS0#
RS1#
RS2#
CPURST#
PWROK#
HDRCOMP
HDSWING
HDVREF
SPD-PE/A2
CPU INTERFACE
HD10#
HD11#
HD12#
HD13#
HD14#
HD15#
HD16#
HD17#
HD18#
HD19#
HD20#
HD21#
HD22#
HD23#
HD24#
HD25#
HD26#
HD27#
HD28#
HD29#
HD30#
HD31#
HD32#
HD33#
HD34#
HD35#
HD36#
HD37#
HD38#
FSB
HD39#
HD40#
HD41#
HD42#
HD43#
HD44#
HD45#
HD46#
HD47#
HD48#
HD49#
HD50#
HD51#
HD52#
HD53#
HD54#
HD55#
HD56#
HD57#
HD58#
HD59#
HD60#
HD61#
HD62#
HD63#
PROCHOT#
BSEL0
BSEL1
HD0#
HD1#
HD2#
HD3#
HD4#
HD5#
HD6#
HD7#
HD8#
HD9#
HD0
B23
HD1
E22
HD2
B21
HD3
D20
HD4
B22
HD5
D22
HD6
B20
HD7
C21
HD8
E18
HD9
E20
HD10
B16
HD11
D16
HD12
B18
HD13
B17
HD14
E16
HD15
D18
HD16
G20
HD17
F17
HD18
E19
HD19
F19
HD20
J17
HD21
L18
HD22
G16
HD23
G18
HD24
F21
HD25
F15
HD26
E15
HD27
E21
HD28
J19
HD29
G14
HD30
E17
HD31
K17
HD32
J15
HD33
L16
HD34
J13
HD35
F13
HD36
F11
HD37
E13
HD38
K15
HD39
G12
HD40
G10
HD41
L15
HD42
E11
HD43
K13
HD44
J11
HD45
H10
HD46
G8
HD47
E9
HD48
B13
HD49
E14
HD50
B14
HD51
B12
HD52
B15
HD53
D14
HD54
C13
HD55
B11
HD56
D10
HD57
C11
HD58
E10
HD59
B10
HD60
C9
HD61
B9
HD62
D8
HD63
B8
-PROCHOT
L20
L13
L12
HA[3..31](4)
D D
-HREQ0(4)
C C
HRCOMP
R23
20/6/1
-HREQ1(4)
-HREQ2(4)
-HREQ3(4)
-HREQ4(4)
-HADSTB0(4)
-HADSTB1(4)
MCHCLK(19)
-MCHCLK(19)
STBP0(6)
STBN0(6)
STBP1(6)
STBN1(6)
STBP2(6)
STBN2(6)
STBP3(6)
STBN3(6)
-HADS(4)
-HTRDY(4)
-DRDY(4)
-DEFER(4)
-HITM(4)
-HLOCK(4)
B B
VTT_GMCH
R4
GTLREF
GTLREF(5)
200/6/1
C11
0.1U/6/Y/25V
BC44
1U/6/Y/10V
-BPRI(4)
-DBSY(4)
-CPURST(4)
PWROK(16,21,22,28,33)
HA3
HA4
HA5
HA6
HA7
HA8
HA9
HA10
HA11
HA12
HA13
HA14
HA15
HA16
HA17
HA18
HA19
HA20
HA21
HA22
HA23
HA24
HA25
HA26
HA27
HA28
HA29
HA30
HA31
-HREQ0
-HREQ1
-HREQ2
-HREQ3
-HREQ4
-HADSTB0
-HADSTB1
MCHCLK
-MCHCLK
STBP0
STBN0
-DBI0
-DBI0(6)
STBP1
STBN1
-DBI1
-DBI1(6)
STBP2
STBN2
-DBI2
-DBI2(6)
STBP3
STBN3
-DBI3
-DBI3(6)
-HADS
-HTRDY
-DRDY
-DEFER
-HITM
-HIT
-HIT(4)
-HLOCK
-BR0
-BR0(4)
-BNR
-BNR(4)
-BPRI
-DBSY
-RS0
-RS0(4)
-RS1
-RS1(4)
-RS2
-RS2(4)
-CPURST
PWROK
HRCOMP
HSWNG
GTLREF
COUPON2
COUPON1
COUPON1 COUPON/X
COUPON2 COUPON/X
21
21
VCC
VTT_GMCH
R30
C13
301/6/1
R31
102/6/1
0.01U/4/X/16V
C14
0.01U/4/X/16V
5
HSWNG
C15
1U/6/Y/10V
NEAR MCH
HSWNG
Title
Size Document Number Rev
Custom
星期五, 八月
4
3
2
Date: Sheet of
SPRINGDALE HOST
15, 2003
GA-8ISMJPE-LE 1.03
1
7 40
A A

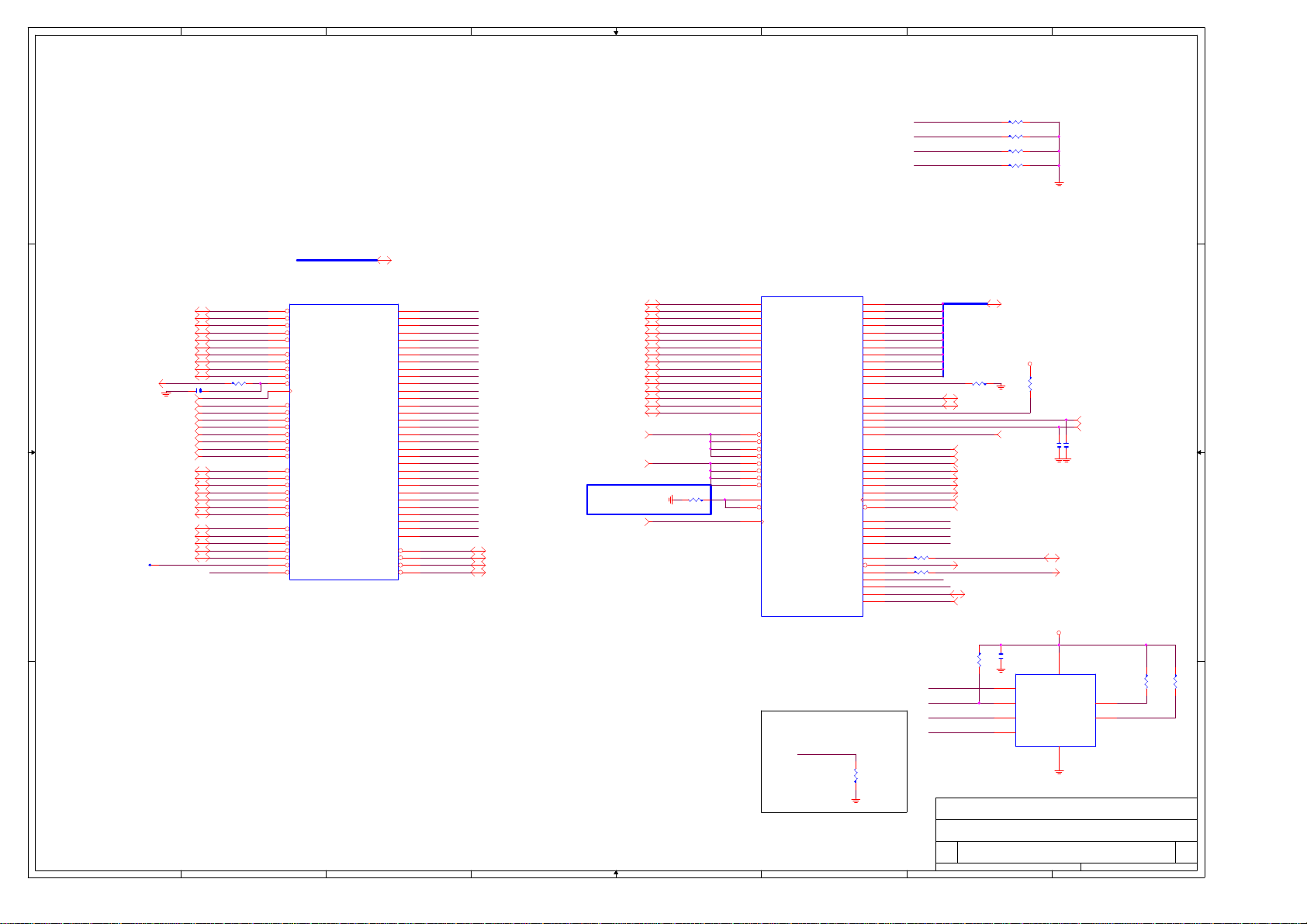

Page 8
5
4
3
2
1
AJ34
AL33
AK29
AN31
AL30
AL26
AL28
AN25
AP26
AP24
AJ33
AN23
AN21
AL34
AM34
AP32
AP31
AM26
AB34
AC33
AE33
AH34
AA34
W34
AL20
AN19
AM20
AP20
AK32
AK31
AP17
AN17
AK33
AK34
AM16
AL16
AK9
AN9
Y34
Y31
Y32
N33
N34
P31
P32
E34
AL9
U2B
SMAA_A0
SMAA_A1
SMAA_A2
SMAA_A3
SMAA_A4
SMAA_A5
SMAA_A6
SMAA_A7
SMAA_A8
SMAA_A9
SMAA_A10
SMAA_A11
SMAA_A12
SMAB_A1
SMAB_A2
SMAB_A3
SMAB_A4
SMAB_A5
SWE_A#
SCAS_A#
SRAS_A#
SBA_A0
SBA_A1
SCS_A0#
SCS_A1#
SCS_A2#
SCS_A3#
SCKE_A0
SCKE_A1
SCKE_A2
SCKE_A3
SCMDCLK_A0
SCMDCLK_A0#
SCMDCLK_A1
SCMDCLK_A1#
SCMDCLK_A2
SCMDCLK_A2#
SCMDCLK_A3
SCMDCLK_A3#
SCMDCLK_A4
SCMDCLK_A4#
SCMDCLK_A5
SCMDCLK_A5#
SMVREF_A
SMXRCOMP
SMXRCOMPVOH
SMXRCOMPVOL
SPD-PE/A2
DDR INTERFACE
DQSA0
AN11
SDQS_A0
SDM_A0
SDQ_A0
SDQ_A1
SDQ_A2
SDQ_A3
SDQ_A4
SDQ_A5
SDQ_A6
SDQ_A7
SDQS_A1
SDM_A1
SDQ_A8
SDQ_A9
SDQ_A10
SDQ_A11
SDQ_A12
SDQ_A13
SDQ_A14
SDQ_A15
SDQS_A2
SDM_A2
SDQ_A16
SDQ_A17
SDQ_A18
SDQ_A19
SDQ_A20
DDR Channel A
SDQ_A21
SDQ_A22
SDQ_A23
SDQS_A3
SDM_A3
SDQ_A24
SDQ_A25
SDQ_A26
SDQ_A27
SDQ_A28
SDQ_A29
SDQ_A30
SDQ_A31
SDQS_A4
SDM_A4
SDQ_A32
SDQ_A33
SDQ_A34
SDQ_A35
SDQ_A36
SDQ_A37
SDQ_A38
SDQ_A39
SDQS_A5
SDM_A5
SDQ_A40
SDQ_A41
SDQ_A42
SDQ_A43
SDQ_A44
SDQ_A45
SDQ_A46
SDQ_A47
SDQS_A6
SDM_A6
SDQ_A48
SDQ_A49
SDQ_A50
SDQ_A51
SDQ_A52
SDQ_A53
SDQ_A54
SDQ_A55
SDQS_A7
SDM_A7
SDQ_A56
SDQ_A57
SDQ_A58
SDQ_A59
SDQ_A60
SDQ_A61
SDQ_A62
SDQ_A63
4
AP12
AP10
AP11
AM12
AN13
AM10
AL10
AL12
AP13
AP15
AP16
AP14
AM14
AL18
AP19
AL14
AN15
AP18
AM18
AP23
AM24
AP22
AM22
AL24
AN27
AP21
AL22
AP25
AP27
AM30
AP30
AP28
AP29
AP33
AM33
AM28
AN29
AM31
AN34
AF34
AF31
AH32
AG34
AF32
AD32
AH31
AG33
AE34
AD34
V34
W33
AC34
AB31
V32
V31
AD31
AB32
U34
U33
M32
M34
T34
T32
K34
K32
T31
P34
L34
L33
H31
H32
J33
H34
E33
F33
K31
J34
G34
F34
DMA0
MDA0
MDA1
MDA2
MDA3
MDA4
MDA5
MDA6
MDA7
DQSA1
DMA1
MDA8
MDA9
MDA10
MDA11
MDA12
MDA13
MDA14
MDA15
DQSA2
DMA2
MDA16
MDA17
MDA18
MDA19
MDA20
MDA21
MDA22
MDA23
DQSA3
DMA3
MDA24
MDA25
MDA26
MDA27
MDA28
MDA29
MDA30
MDA31
DQSA4
DMA4
MDA32
MDA33
MDA34
MDA35
MDA36
MDA37
MDA38
MDA39
DQSA5
DMA5
MDA40
MDA41
MDA42
MDA43
MDA44
MDA45
MDA46
MDA47
DQSA6
DMA6
MDA48
MDA49
MDA50
MDA51
MDA52
MDA53
MDA54
MDA55
DQSA7
DMA7
MDA56
MDA57
MDA58
MDA59
MDA60
MDA61
MDA62
MDA63
DDR25V
BC506
1U/6/Y/10V
BC507
0.1U/4/Y/25V
DDR25V
DDR25V
MAAB[0..12](12,13)
DMB[0..7](12,13)
MDB[0..63](12,13)
DQSB[0..7](12,13)
R39
150/6/1
DDRVREFB
R42
150/6/1
V_SMYRCOMP
R45
42.2/6/1
SMYRCOMP
R47
42.2/6/1
TP23
TP25
TP27
TP29
TP31
-SWEA(11,13)
-SCASA(11,13)
-SRASA(11,13)
SBAA0(11,13)
SBAA1(11,13)
-CSA0(11,13)
-CSA1(11,13)
TP33
TP34
CKEA0(11,13)
CKEA1(11,13)
TP37
TP38
DDRVREFA
SMXRCOMP
SMXRCOMPVOH
SMXRCOMPVOL
MAAA0
MAAA1
MAAA2
MAAA3
MAAA4
MAAA5
MAAA6
MAAA7
MAAA8
MAAA9
MAAA10
MAAA11
MAAA12
MABA1
MABA2
MABA3
MABA4
MABA5
-SWEA
-SCASA
-SRASA
SBAA0
SBAA1
-CSA0
-CSA1
-CSA2
-CSA3
CKEA0
CKEA1
CKEA2
CKEA3
DCLKA0
-DCLKA0
DCLKA1
-DCLKA1
DCLKA2
-DCLKA2
MAAA[0..12](11,13)
D D
DMA[0..7](11,13)
MDA[0..63](11,13)
DQSA[0..7](11,13)
C C
MAAA[0..12]
DMA[0..7]
MDA[0..63]
DQSA[0..7]
BC49
0.1U/6/Y/25V
DCLKA0(11)
-DCLKA0(11)
DCLKA1(11)
-DCLKA1(11)
DCLKA2(11)
-DCLKA2(11)
Closed to MCH
B B
DDR25V
DDR25V
BC57
1U/6/Y/10V
8
7
A A
6
R44
42.2/6/1
SMXRCOMP
R46
42.2/6/1
HS
SPRINGDALE-HEAT SINK
5
BC58
33P/4/N/50V
SMXRCOMP
1
2
3
45
MAAB[0..12]
DMB[0..7]
MDB[0..63]
DQSB[0..7]
BC50
0.1U/6/Y/25V
Closed to MCH
BC476
BC55
1U/6/Y/10V
1U/6/Y/10V
BC59
33P/4/N/50V
3
-DCLKB0(12)
-DCLKB1(12)
-DCLKB2(12)
TP24
TP26
TP28
TP30
TP32
-SWEB(12,13)
-SCASB(12,13)
-SRASB(12,13)
SBAB0(12,13)
SBAB1(12,13)
-CSB0(12,13)
-CSB1(12,13)
CKEB0(12,13)
CKEB1(12,13)
DCLKB0(12)
DCLKB1(12)
DCLKB2(12)
MAAB0
MAAB1
MAAB2
MAAB3
MAAB4
MAAB5
MAAB6
MAAB7
MAAB8
MAAB9
MAAB10
MAAB11
MAAB12
MABB1
MABB2
MABB3
MABB4
MABB5
-SWEB
-SCASB
-SRASB
SBAB0
SBAB1
-CSB0
-CSB1
-CSB2
TP35
-CSB3
TP36
CKEB0
CKEB1
CKEB2
TP39
CKEB3
TP40
DCLKB0
-DCLKB0
DCLKB1
-DCLKB1
DCLKB2
-DCLKB2
DDRVREFB
SMYRCOMP
SMYRCOMPVOH
SMYRCOMPVOL
AG31
AJ31
AD27
AE24
AK27
AG25
AL25
AF21
AL23
AJ22
AF29
AL21
AJ20
AE27
AD26
AL29
AL27
AE23
AA25
AK19
AF19
AG19
AE18
AG29
AG30
AF17
AG17
AJ30
AH29
AK15
AL15
AA33
W27
W31
W26
Y25
U26
T29
V25
W25
N27
N26
N31
N30
AP9
R34
R33
U2C
SMAA_B0
SMAA_B1
SMAA_B2
SMAA_B3
SMAA_B4
SMAA_B5
SMAA_B6
SMAA_B7
SMAA_B8
SMAA_B9
SMAA_B10
SMAA_B11
SMAA_B12
SMAB_B1
SMAB_B2
SMAB_B3
SMAB_B4
SMAB_B5
SWE_B#
SCAS_B#
SRAS_B#
SBA_B0
SBA_B1
SCS_B0#
SCS_B1#
SCS_B2#
SCS_B3#
SCKE_B0
SCKE_B1
SCKE_B2
SCKE_B3
SCMDCLK_B0
SCMDCLK_B0#
SCMDCLK_B1
SCMDCLK_B1#
SCMDCLK_B2
SCMDCLK_B2#
SCMDCLK_B3
SCMDCLK_B3#
SCMDCLK_B4
SCMDCLK_B4#
SCMDCLK_B5
SCMDCLK_B5#
SMVREF_B
SMYRCOMP
SMYRCOMPVOH
SMYRCOMPVOL
SPD-PE/A2
SDQS_B0
SDM_B0
SDQ_B0
SDQ_B1
SDQ_B2
SDQ_B3
SDQ_B4
SDQ_B5
SDQ_B6
SDQ_B7
SDQS_B1
SDM_B1
SDQ_B8
SDQ_B9
SDQ_B10
SDQ_B11
SDQ_B12
SDQ_B13
SDQ_B14
SDQ_B15
SDQS_B2
SDM_B2
SDQ_B16
SDQ_B17
SDQ_B18
SDQ_B19
DDR Channel B
SDQ_B20
SDQ_B21
SDQ_B22
SDQ_B23
SDQS_B3
SDM_B3
SDQ_B24
SDQ_B25
SDQ_B26
SDQ_B27
SDQ_B28
SDQ_B29
SDQ_B30
SDQ_B31
SDQS_B4
SDM_B4
SDQ_B32
SDQ_B33
SDQ_B34
SDQ_B35
SDQ_B36
SDQ_B37
SDQ_B38
SDQ_B39
SDQS_B5
SDM_B5
SDQ_B40
SDQ_B41
SDQ_B42
SDQ_B43
SDQ_B44
SDQ_B45
SDQ_B46
SDQ_B47
SDQS_B6
SDM_B6
SDQ_B48
SDQ_B49
SDQ_B50
SDQ_B51
SDQ_B52
SDQ_B53
SDQ_B54
SDQ_B55
SDQS_B7
SDM_B7
SDQ_B56
SDQ_B57
SDQ_B58
SDQ_B59
SDQ_B60
SDQ_B61
SDQ_B62
SDQ_B63
AG11
AJ10
AE15
AL11
AE16
AL8
AF12
AK11
AG12
AG13
AG15
AE17
AL13
AK17
AL17
AK13
AJ14
AJ16
AJ18
AG21
AE21
AE19
AE20
AG23
AK23
AL19
AK21
AJ24
AE22
AH27
AJ28
AK25
AH26
AG27
AF27
AJ26
AJ27
AD25
AF28
AD29
AC31
AE30
AC27
AC30
Y29
AE31
AB29
AA26
AA27
U30
U31
AA30
W30
U27
T25
AA31
V29
U25
R27
L27
M29
P29
R30
K28
L30
R31
R26
P25
L32
J30
J31
K30
H29
F32
G33
N25
M25
J29
G32
2
DMB0
MDB0
MDB1
MDB2
MDB3
MDB4
MDB5
MDB6
MDB7
DQSB1
DMB1
MDB8
MDB9
MDB10
MDB11
MDB12
MDB13
MDB14
MDB15
DQSB2
DMB2
MDB16
MDB17
MDB18
MDB19
MDB20
MDB21
MDB22
MDB23
DQSB3
DMB3
MDB24
MDB25
MDB26
MDB27
MDB28
MDB29
MDB30
MDB31
DQSB4
DMB4
MDB32
MDB33
MDB34
MDB35
MDB36
MDB37
MDB38
MDB39
DQSB5
DMB5
MDB40
MDB41
MDB42
MDB43
MDB44
MDB45
MDB46
MDB47
DQSB6
DMB6
MDB48
MDB49
MDB50
MDB51
MDB52
MDB53
MDB54
MDB55
DQSB7
DMB7
MDB56
MDB57
MDB58
MDB59
MDB60
MDB61
MDB62
MDB63
DDR25V
DDR25V
BC45
1U/6/Y/10V
DDR25V
BC47
1U/6/Y/10V
DDR25V
DDR25V
R32
10K/6/1
SMXRCOMPVOH
R33
30.9K/6/1
R34
30.9K/6/1
SMXRCOMPVOL
R35
10K/6/1
BC508
0.01U/4/X/16V
BC46
0.01U/4/X/16V
SMXRCOMPVOL
BC48
0.01U/4/X/16V
V_SMYRCOMPVO
BC51
1U/6/Y/10V
DDR25V
R36
10K/6/1
SMYRCOMPVOH
R37
30.9K/6/1
BC509
0.01U/4/X/16V
BC52
0.01U/4/X/16V
V_SMYRCOMPVO
星期五, 八月
R40
30.9K/6/1
SMYRCOMPVOL
R43
10K/6/1
SPRINGDALE DDR
15, 2003
BC56
0.01/4/X/16V
GA-8ISMJPE-LE 1.03
1
8 40
BC54
1U/6/Y/10V
Title
Size Document Number Rev
Custom
Date: Sheet of
DQSB0
AF15
Page 9
5
GAD[0..31](14)
SBA[0..7](14)
HL[0..10](15)
D D
C C
Close to MCH
B B
VDDQ
R898
52.3/6/1
CLRCOMP
VDDQ
R68
52.3/6/1
HLRCOMP_MCH
VDDQ
A A
R69
43.2/6/1
GRCOMP
HL_SWING_MCH
C36
0.01U/4/X/16V
GAD[0..31]
SBA[0..7]
HL[0..10]
-GCBE0(14)
-GCBE1(14)
-GCBE2(14)
-GCBE3(14)
-GFRAME(14)
GMCH3V66(19)
-GDEVSEL(14)
-GIRDY(14)
-GTRDY(14)
-GSTOP(14)
GSWING(14)
MCH_AGPREF(14)
GDBI_LO(14)
HLSTBF(15)
HLSTBS(15)
C26 0.01U/4/X/16V
C27 0.01U/4/X/16V
CI[0..10](35)
CISTBF(35)
CISTBS(35)
TP5
-ICHSYNC(16)
VDDQ
R427
147/6/1
R428
113/6/1
GSWING
MCH_AGPREF
5
GPAR(14)
-GREQ(14)
-GGNT(14)
-RBF(14)
-WBF(14)
-PIPE(14)
ST0(14)
ST1(14)
ST2(14)
DOTCLK(19)
-PCIRST(15,18,21)
TP41
TP42
TP43
TP44
TP45
R426
226/6/1
CLSWING_SPG
C210
1U/6/Y/10V
CLVREF_SPG
C211
1U/6/Y/10V
-GCBE0
-GCBE1
-GCBE2
-GCBE3
-GFRAME
GMCH3V66
-GDEVSEL
-GIRDY
-GTRDY
-GSTOP
GPAR
-GREQ
-GGNT
GRCOMP
GSWING
MCH_AGPREF
-RBF
-WBF
-PIPE
GDBI_LO
ST0
ST1
ST2
HL0
HL1
HL2
HL3
HL4
HL5
HL6
HL7
HL8
HL9
HL10
HLSTBF
HLSTBS
HLRCOMP_MCH
HL_SWING_MCH
HL_VREF_MCH
CI0
CI1
CI2
CI3
CI4
CI5
CI6
CI7
CI8
CI9
CI10
CLRCOMP
CLSWING_SPG
CLVREF_SPG
DOTCLK
TP_GMCH_AP8
-ICHSYNC
-PCIRST
TP_GMCH_AG10
TP_GMCH_AG9
TP_GMCH_AN35
TP_GMCH_AP34
TP_GMCH_AR1
10 mil trace with
10 mil space
C31 0.1U/6/Y/25V
C32 1U/4/Y/6.3V
U2D
Y7
GCBE0
W5
GCBE1
AA3
GCBE2
U2
GCBE3
U6
GFRAME
H4
GCLKIN
AB4
GDEVSEL
V11
GIRDY
AB5
GTRDY
W11
GSTOP
AB2
GPAR/ADD_DETECT
N6
GREQ
M7
GGNT
AC2
GRCOMP
AC3
GVSWING
AD2
GVREF
R10
GRBF
R9
GWBF
M4
DBI_HI
M5
DBI_LO
N3
GST0
N5
GST1
N2
GST2
AF5
HI0
AG3
HI1
AK2
HI2
AG5
HI3
AK5
HI4
AL3
HI5
AL2
HI6
AL4
HI7
AJ2
HI8
AH2
HI9
AJ3
HI10
AH5
HISTRF
AH4
HISTRS
AD4
HI_RCOMP
AE3
HI_SWING
AE2
HI_VREF
AK7
CI0
AH7
CI1
AD11
CI2
AF7
CI3
AD7
CI4
AC10
CI5
AF8
CI6
AG7
CI7
AE9
CI8
AH9
CI9
AG6
CI10
AJ6
CISTRF
AJ5
CISTRS
AG2
CI_RCOMP
AF2
CI_SWING
AF4
CI_VREF
G4
DREFCLK
AP8
EXTTS#
AJ8
ICH_SYNC#
AK4
RSTIN#
AG10
RESERVED_1
AG9
RESERVED_2
AN35
RESERVED_3
AP34
RESERVED_4
AR1
RESERVED_5
SPD-PE/A2
AGP
HUB
CSA
DOTCLK
GADSTBF0
GADSTBS0
GAD0
GAD1
GAD2
GAD3
GAD4
GAD5
GAD6
GAD7
GAD8
GAD9
GAD10
GAD11
GAD12
GAD13
GAD14
GAD15
GADSTBF1
GADSTBS1
GAD16
GAD17
GAD18
GAD19
GAD20
GAD21
GAD22
GAD23
GAD24
GAD25
GAD26
GAD27
GAD28
GAD29
GAD30
GAD31
GSBSTBF
GSBSTBS
GSBA0#
GSBA1#
GSBA2#
GSBA3#
GSBA4#
GSBA5#
GSBA6#
GSBA7#
DDCA_DATA
DDCA_CLK
RED#
GREEN
GREEN#
VGA
BLUE
BLUE#
HSYNC
VSYNC
REFSET
NC_1
NC_2
NC_3
NC_4
NC_5
NC_6
NC_7
NC_8
NC_9
NC_10
NC_11
NC_12
NC_13
NC_14
NC_15
NC_16
NC_17
NC_18
NC_19
NC_20
RED
4
ADSTB0
AC6
AC5
AE6
AC11
AD5
AE5
AA10
AC9
AB11
AB7
AA9
AA6
AA5
W10
AA11
W6
W9
V7
V4
V5
AA2
Y4
Y2
W2
Y5
V2
W3
U3
T2
T4
T5
R2
P2
P5
P4
M2
U11
T11
R6
P7
R3
R5
U9
U10
U5
T7
H3
F2
F4
E4
H6
G5
H7
G6
G3
E2
D2
A3
A33
A35
AF13
AF23
AJ12
AN1
AP2
AR3
AR33
AR35
B2
B25
B34
C1
C23
C35
E26
M31
R25
-VGA_R
-VGA_G
-VGA_B
REFSET
-ADSTB0
GAD0
GAD1
GAD2
GAD3
GAD4
GAD5
GAD6
GAD7
GAD8
GAD9
GAD10
GAD11
GAD12
GAD13
GAD14
GAD15
ADSTB1
-ADSTB1
GAD16
GAD17
GAD18
GAD19
GAD20
GAD21
GAD22
GAD23
GAD24
GAD25
GAD26
GAD27
GAD28
GAD29
GAD30
GAD31
SBSTB
-SBSTB
SBA0
SBA1
SBA2
SBA3
SBA4
SBA5
SBA6
SBA7
R62
0/6
HL_SWING_ICH(15)
ADSTB0 (14)
-ADSTB0 (14)
ADSTB1 (14)
-ADSTB1 (14)
SBSTB (14)
-SBSTB (14)
HL_SWING_MCH
231
VCC3 VCC
R53
R54
8.2K/6/X
8.2K/6/X
HL_SWING_MCH
HL_SWING_ICH
R66 0/6S/X
VDDQ*0.8
10 mil trace with 7 mil
space
HL_VREF_ICH(15)
R1024
0/6
4
HL_VREF_ICH
VDDQ*0.233
HL_VREF_MCH
R70 0/6S/X
U3
BAV99/S/X
0/6
0.1U/6/Y/25V
C37
1U/6/Y/10V
3
231
R1022
0/6
C35
3
R1023
U4
BAV99/S/X
VGA_R
VGA_G
VGA_B
R48
0/6
VCC
VCC3
C28
22P/4/N/50V/X
R60 47/6/X
R64 47/6/X
VDDQ
R65
226/6/1
R67
147/6/1
R71
113/6/1
R49
0/6
2
1
0/6
Q1
2N7002/SOT23/X
G S
SOT23
C29
22P/4/N/50V/X
R50
C17
22P/4/N/50V/X
C16
3
2
1
VCC3
C18
22P/4/N/50V/X
R51
8.2K/6/X
Q2
2N7002/SOT23/X
G S
D
SOT23
R57 0/6S/X
R58 0/6S/X
R59 0/6S/X
C30
22P/4/N/50V/X
231
22P/4/N/50V/X
D
VCC3
Place mid of bus trace
2
FB1 100/8/S/MAG/X
FB2 100/8/S/MAG/X
FB3 100/8/S/MAG/X
FOR EMI
C19
3.3P/4/N/50V/X
R52
8.2K/6/X
R55 0/6S/X
R56 0/6S/X
3
VGA_R
VGA_G
VGA_B
U7
BAV99/S/X
231
U8
BAV99/S/X
NB_FAN
H1X2/NB_FAN/X
2
C20
3.3P/4/N/50V/X
U9
BAV99/S/X
231
C21
C22
3.3P/4/N/50V/X
470P/4/X/50V/X
VGADDCDATA
VGADDCCLK
231
+12V
1
GVCC
BC60
0.1U/6/Y/25V/X
VGA
1
R
2
G
3
B
11
VGADDCDATA
VGADDCCLK
HSYNC
VSYNC
C24
C25
C23
470P/4/X/50V/X
470P/4/X/50V/X
470P/4/X/50V/X
HSYNC
VSYNC
U10
BAV99/S/X
U11
BAV99/S/X
231
1U/6/Y/10V/X
Title
Size Document Number Rev
Custom
Date: Sheet of
VDDQ
C34
C33
0.1U/6/Y/25V/X
SPRINGDALE AGP,HUB,CSA,VGA
星期五, 八月
15, 2003
MS0
12
MS1
4
MS2
15
MS3
9
NC
13
HS
14
VS
5
VSS
GND
6
VSS
GND
7
VSS
8
VSS
10
VSS
VGA/P/X
R1032
0/6/X
NB_HEATSINK
2
GA-8ISMJPE-LE 1.03
1
16
17
NB_HEATSINK/X
9 40
1
Page 10
5
4
3
2
1
C38 0.47U/6/Y/16V
C39 0.47U/6/Y/16V
D D
VTT_GMCH
V_SMYRCOMP
DDR25V
DDR25V
C C
DDR25V
V_SMYRCOMPVO
B B
VDDQ
VDD_1_7V
VDDQ
VDDQ
A A
VDDQ
5
C40 0.1U/6/Y/25V
C41 0.1U/6/Y/25V
C42 0.47U/6/Y/16V
C214
0.22U/6/Y/25V
C43 0.1U/6/Y/25V
C44 0.1U/6/Y/25V
C45 0.1U/6/Y/25V
R72 1/6/X
FOR OPTION
R73 0/6/X
R74 0/6S/X
1UH/1210/S/MURUTA
DDR25V
VCC3
VDDQ
VCCA_FSB
VCCA_DPLL
VCCA_DAC
VCCA_SM
0.1UH/8/S/X
0.82UH/8/S
MURUTA
U2E
A15
VTT
A21
VTT
A4
VTT
A5
VTT
A6
VTT
B5
VTT
B6
VTT
C5
VTT
C6
VTT
D5
VTT
D6
VTT
D7
VTT
E6
VTT
E7
VTT
F7
VTT
AA35
VCC_DDR
AL6
VCC_DDR
AL7
VCC_DDR
AM1
VCC_DDR
AM2
VCC_DDR
AM3
VCC_DDR
AM5
VCC_DDR
AM6
VCC_DDR
AM7
VCC_DDR
AM8
VCC_DDR
AN2
VCC_DDR
AN4
VCC_DDR
AN5
VCC_DDR
AN6
VCC_DDR
AN7
VCC_DDR
AN8
VCC_DDR
AP3
VCC_DDR
AP4
VCC_DDR
AP5
VCC_DDR
AP6
VCC_DDR
AP7
VCC_DDR
AR15
VCC_DDR
AR21
VCC_DDR
AR31
VCC_DDR
AR4
VCC_DDR
AR5
VCC_DDR
AR7
VCC_DDR
E35
VCC_DDR
R35
VCC_DDR
G1
VCC_DAC
G2
VCC_DAC
AG1
VCCA_AGP
Y11
VCCA_AGP
A31
VCCA_FSB
B4
VCCA_FSB
B3
VCCA_DPLL
C2
VCCA_DAC
AL35
VCCA_DDR
AB25
VCCA_DDR
AC25
VCCA_DDR
AC26
VCCA_DDR
SPD-PE/A2
L3
1
EC2
+
100U/D/10V/57/X
L4
0.1UH/8/S/X
L5
L6
1
EC1
+
100U/D/10V/57
3
C51
0/6
C56
4.7U/8/Y/10V
POWER
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VCC_AGP
VSSA_DAC
J6
VCC
J7
VCC
J8
VCC
J9
VCC
K6
VCC
K7
VCC
K8
VCC
K9
VCC
L6
VCC
L7
VCC
L9
VCC
L10
VCC
L11
VCC
M8
VCC
M9
VCC
M10
VCC
M11
VCC
N9
VCC
N10
VCC
N11
VCC
P10
VCC
P11
VCC
R11
VCC
T16
VCC
T17
VCC
T18
VCC
T19
VCC
T20
VCC
U16
VCC
U17
VCC
U20
VCC
V16
VCC
V18
VCC
V20
VCC
W16
VCC
W19
VCC
W20
VCC
Y16
VCC
Y17
VCC
Y18
VCC
Y19
VCC
Y20
VCC
J1
J2
J3
J4
J5
K2
K3
K4
K5
L1
L2
L3
L4
L5
Y1
D3
15 mil
VCCA_DPLL
C58
0/6
15 mil
VCCA_DAC
C52
0.01U/4/X/16V/X
15 mil
VCCA_FSB
C57
0.1U/6/Y/25V
40 mil
VCCA_SM
C59
0.1U/6/Y/25V
4
VDDQ
C46 0.1U/6/Y/25V
DDR25V
DDR25V
DDR25V
DDR25V
DDR25V
+
VTT_GMCH
VTT_GMCH
VDDQ
BC65
0.1U/6/Y/25V/X
BC68
0.1U/6/Y/25V/X
BC71
0.1U/6/Y/25V
SC3
0.1U/6/Y/25V/B/X
EC5
1000U/6.3V/8C
C47
0.1U/6/Y/25V
C53
0.1U/6/Y/25V/X
SC5
0.1U/6/Y/25V/B/X
BC66
0.1U/6/Y/25V/X
BC69
0.1U/6/Y/25V/X
BC72
0.1U/6/Y/25V/X
SC4
0.1U/6/Y/25V/B/X
+
EC4
1000U/6.3V/8C/X
C48
0.1U/6/Y/25V
C54
0.1U/6/Y/25V/X
SC6
0.1U/6/Y/25V/B/X
3
BC67
0.1U/6/Y/25V
BC70
0.1U/6/Y/25V
BC73
0.1U/6/Y/25V
C49
0.1U/6/Y/25V
C55
0.1U/6/Y/25V/X
SC7
0.1U/6/Y/25V/B/X
C50
0.1U/6/Y/25V
SC8
0.1U/6/Y/25V/B/X
AR32
AR29
AR27
AR25
AR23
AR20
AR16
AR13
AR11
AR9
AN32
AN30
AN28
AN26
AN24
AN22
AN20
AN18
AN16
AN14
AN12
AN10
AM35
AM29
AM27
AM25
AM23
AM21
AM19
AM17
AM15
AM13
AM11
AM9
AL32
AL1
AK28
AK26
AK24
AK22
AK20
AK18
AK16
AK14
AK12
AK10
AK8
AK3
AJ35
AJ32
AH33
AH30
AH24
AH22
AH20
AH18
AH16
AH14
AH12
AH10
AH6
AH3
AG35
AG32
AG28
AG26
AG24
AG22
AG20
AG18
AG16
AG14
AG8
AG4
AF33
AF30
AF25
AF24
AF22
AF20
AF18
AF16
AF14
AF11
AF9
AF6
AF3
AE35
AE32
AE26
AE25
AE13
AE12
AJ9
AJ4
AJ1
U2F
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
SPD-PE/A2
2
GND
AE11
VSS
AE10
VSS
AE4
VSS
AE1
VSS
AD33
VSS
AD30
VSS
AD28
VSS
AD10
VSS
AD9
VSS
AD8
VSS
AD6
VSS
AD3
VSS
AC35
VSS
AC32
VSS
AC4
VSS
AC1
VSS
AB33
VSS
AB30
VSS
AB28
VSS
AB27
VSS
AB26
VSS
AB10
VSS
AB9
VSS
AB8
VSS
AB6
VSS
AB3
VSS
AA32
VSS
AA4
VSS
AA1
VSS
Y35
VSS
Y33
VSS
Y30
VSS
Y28
VSS
Y27
VSS
Y26
VSS
Y10
VSS
Y9
VSS
Y8
VSS
Y6
VSS
Y3
VSS
W32
VSS
W18
VSS
W17
VSS
W4
VSS
V33
VSS
V30
VSS
V28
VSS
V27
VSS
V26
VSS
V19
VSS
V17
VSS
V10
VSS
V9
VSS
V8
VSS
V6
VSS
V3
VSS
U32
VSS
U19
VSS
U18
VSS
U4
VSS
T35
VSS
T33
VSS
T30
VSS
T28
VSS
T27
VSS
T26
VSS
T10
VSS
T9
VSS
T8
VSS
T6
VSS
T3
VSS
T1
VSS
R32
VSS
R4
VSS
R1
VSS
P33
VSS
P30
VSS
P28
VSS
P27
VSS
P26
VSS
P9
VSS
P8
VSS
P6
VSS
P3
VSS
N35
VSS
N32
VSS
N4
VSS
N1
VSS
M33
VSS
M30
VSS
M28
VSS
M27
VSS
M26
VSS
M6
VSS
M3
VSS
L35
VSS
Title
Size Document Number Rev
Custom
星期五, 八月
Date: Sheet of
15, 2003
U2G
L31
L26
L25
L24
K33
K29
K27
K25
K22
K20
K18
K16
K14
K12
K11
J35
J32
J28
J22
J20
J18
J16
J14
J12
J10
H33
H30
H26
H24
H22
H20
H18
H16
H14
H12
H9
H8
H5
H2
G35
G31
G28
F26
F24
F22
F20
F18
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
SPD-PE/A2
GND
F16
VSS
F14
VSS
F12
VSS
F10
VSS
F8
VSS
F5
VSS
F3
VSS
F1
VSS
E3
VSS
E1
VSS
D35
VSS
D33
VSS
D31
VSS
D29
VSS
D27
VSS
D25
VSS
D23
VSS
D21
VSS
D19
VSS
D17
VSS
D15
VSS
D13
VSS
D11
VSS
D9
VSS
D1
VSS
C28
VSS
C26
VSS
C24
VSS
C22
VSS
C20
VSS
C18
VSS
C16
VSS
C14
VSS
C12
VSS
C10
VSS
C8
VSS
C4
VSS
A32
VSS
A29
VSS
A27
VSS
A25
VSS
A23
VSS
A20
VSS
A16
VSS
A13
VSS
A11
VSS
A9
VSS
A7
VSS
SPRINGDALE PWR
GA-8ISMJPE-LE 1.03
1
10 40
Page 11
8
7
6
5
4
3
2
1
DDR25V
D D
DMA[0..7](8,13)
C C
-SCASA(8,13)
-SRASA(8,13)
DCLKA1(8)
-DCLKA1(8)
DCLKA0(8)
-DCLKA0(8)
DCLKA2(8)
-DCLKA2(8)
DQSA[0..7](8,13)
B B
SMBDATA(12,16,19,20,22,23,35)
SMBCLK(12,16,19,20,22,23,35)
C60
0.1U/6/Y/25V
MAAA0
48
VDDQ
130
125
122
141
118
115
103
113
157
158
163
107
119
129
149
159
169
177
140
154
111
137
138
181
182
183
184
101
102
173
167
43
41
37
32
29
27
59
52
71
97
63
65
21
16
17
76
75
5
14
25
36
56
67
78
86
47
91
92
1
82
9
10
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
BA0
BA1
BA2
CS0
CS1
NC/CS2
NC/CS3
DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8
WE
CAS
RAS
CKE0
CKE1
CK0/DNU
CK0/DNU
CK1
CK1
CK2/DNU
CK2/DNU
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
SDA
SCL
SA0
SA1
SA2
VREF
VDDID
VDDSPD
NC
NC
NC
NC
NC
NC/FETEN
MAAA1
MAAA2
MAAA3
MAAA4
MAAA5
MAAA6
MAAA7
MAAA8
MAAA9
MAAA10
MAAA11
MAAA12
SBAA0
SBAA0(8,13)
SBAA1
SBAA1(8,13)
-CSA0
-CSA0(8,13)
-CSA1
-CSA1(8,13)
DMA0
DMA1
DMA2
DMA3
DMA4
DMA5
DMA6
DMA7
-SWEA
-SWEA(8,13)
-SCASA
-SRASA
CKEA0
CKEA0(8,13)
CKEA1
CKEA1(8,13)
DCLKA1
-DCLKA1
DCLKA0
-DCLKA0
DCLKA2
-DCLKA2
DQSA0
DQSA1
DQSA2
DQSA3
DQSA4
DQSA5
DQSA6
DQSA7
SMBDATA
SMBCLK
DVREFA
DDR25V
DDR25V
R801
15223054627796
8
75/6/1
DVREFA
R802
75/6/1
BC457
1U/6/Y/10V/X
DVREFA
7
A A
104
112
128
136
143
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
3111826344250586674818993
156
VDDQ
GND
164
VDDQ
VDDQ
GND
GND
172
VDDQ
GND
180738467085108
VDD
VDD
VDD
VDD
VDD
VDDQ
GND
GND
GND
GND
GND
GND
GND
100
116
124
132
139
145
6
120
148
168
VDD
VDD
VDD
GND
GND
GND
DDR/GF
152
160
176
Black
FOXCONN ONLY
DIMM1
VDD
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
D33
D34
D35
D36
D37
D38
D39
D40
D41
D42
D43
D44
D45
D46
D47
D48
D49
D50
D51
D52
D53
D54
D55
D56
D57
D58
D59
D60
D61
D62
D63
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
WP
MDA0
2
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
MDA1
4
MDA2
6
MDA3
8
MDA4
94
MDA5
95
MDA6
98
MDA7
99
MDA8
12
MDA9
13
MDA10
19
MDA11
20
MDA12
105
MDA13
106
MDA14
109
MDA15
110
MDA16
23
MDA17
24
MDA18
28
MDA19
31
MDA20
114
MDA21
117
MDA22
121
MDA23
123
MDA24
33
MDA25
35
MDA26
39
MDA27
40
MDA28
126
MDA29
127
MDA30
131
MDA31
133
MDA32
53
MDA33
55
MDA34
57
MDA35
60
MDA36
146
MDA37
147
MDA38
150
MDA39
151
MDA40
61
MDA41
64
MDA42
68
MDA43
69
MDA44
153
MDA45
155
MDA46
161
MDA47
162
MDA48
72
MDA49
73
MDA50
79
MDA51
80
MDA52
165
MDA53
166
MDA54
170
MDA55
171
MDA56
83
MDA57
84
MDA59
87
MDA58
88
MDA60
174
MDA61
175
MDA62
178
MDA63
179
44
45
49
51
134
135
142
144
MDA[0..63] (8,13)MAAA[0..12](8,13)
90
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
5
4
3
Date: Sheet of
2
DDR1 CHANNEL A
15, 2003
GA-8ISMJPE-LE 1.03
11 40
1
Page 12
8
7
6
5
4
3
2
1
DDR25V
D D
MAAB[0..12](8,13)
DMB[0..7](8,13)
C C
-SCASB(8,13)
-SRASB(8,13)
DCLKB1(8)
-DCLKB1(8)
DCLKB0(8)
-DCLKB0(8)
DCLKB2(8)
-DCLKB2(8)
DQSB[0..7](8,13)
B B
SMBDATA(11,16,19,20,22,23,35)
SMBCLK(11,16,19,20,22,23,35)
DDR25V
C61
0.1U/6/Y/25V
MAAB0
48
VDDQ
130
125
122
141
118
115
103
113
157
158
163
107
119
129
149
159
169
177
140
154
111
137
138
181
182
183
184
101
102
173
167
43
41
37
32
29
27
59
52
71
97
63
65
21
16
17
76
75
5
14
25
36
56
67
78
86
47
91
92
1
82
9
10
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
BA0
BA1
BA2
CS0
CS1
NC/CS2
NC/CS3
DQM0
DQM1
DQM2
DQM3
DQM4
DQM5
DQM6
DQM7
DQM8
WE
CAS
RAS
CKE0
CKE1
CK0/DNU
CK0/DNU
CK1
CK1
CK2/DNU
CK2/DNU
DQS0
DQS1
DQS2
DQS3
DQS4
DQS5
DQS6
DQS7
DQS8
SDA
SCL
SA0
SA1
SA2
VREF
VDDID
VDDSPD
NC
NC
NC
NC
NC
NC/FETEN
MAAB1
MAAB2
MAAB3
MAAB4
MAAB5
MAAB6
MAAB7
MAAB8
MAAB9
MAAB10
MAAB11
MAAB12
SBAB0
SBAB0(8,13)
SBAB1
SBAB1(8,13)
-CSB0
-CSB0(8,13)
-CSB1
-CSB1(8,13)
DMB0
DMB1
DMB2
DMB3
DMB4
DMB5
DMB6
DMB7
-SWEB
-SWEB(8,13)
-SCASB
-SRASB
CKEB0
CKEB0(8,13)
CKEB1
CKEB1(8,13)
DCLKB1
-DCLKB1
DCLKB0
-DCLKB0
DCLKB2
-DCLKB2
DQSB0
DQSB1
DQSB2
DQSB3
DQSB4
DQSB5
DQSB6
DQSB7
SMBDATA
SMBCLK
DVREFB
DDR25V
DDR25V
R803
75/6/1
15223054627796
A A
DVREFB
R804
75/6/1
8
BC458
1U/6/Y/10V/X
DVREFB
7
104
112
128
136
143
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
VDDQ
GND
GND
GND
GND
GND
GND
GND
GND
3111826344250586674818993
156
VDDQ
GND
164
VDDQ
VDDQ
GND
GND
172
VDDQ
GND
180738467085108
VDD
VDD
VDD
VDD
VDD
VDDQ
GND
GND
GND
GND
GND
GND
GND
100
116
124
132
139
145
6
120
148
168
VDD
VDD
VDD
GND
GND
GND
DDR/GF
152
160
176
Black
FOXCONN ONLY
DIMM2
VDD
D10
D11
D12
D13
D14
D15
D16
D17
D18
D19
D20
D21
D22
D23
D24
D25
D26
D27
D28
D29
D30
D31
D32
D33
D34
D35
D36
D37
D38
D39
D40
D41
D42
D43
D44
D45
D46
D47
D48
D49
D50
D51
D52
D53
D54
D55
D56
D57
D58
D59
D60
D61
D62
D63
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
WP
MDB0
2
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
MDB1
4
MDB2
6
MDB3
8
MDB4
94
MDB5
95
MDB6
98
MDB7
99
MDB8
12
MDB9
13
MDB10
19
MDB11
20
MDB12
105
MDB13
106
MDB14
109
MDB15
110
MDB16
23
MDB17
24
MDB18
28
MDB19
31
MDB20
114
MDB21
117
MDB22
121
MDB23
123
MDB24
33
MDB25
35
MDB30
39
MDB27
40
MDB28
126
MDB29
127
MDB26
131
MDB31
133
MDB32
53
MDB33
55
MDB34
57
MDB35
60
MDB36
146
MDB37
147
MDB38
150
MDB39
151
MDB40
61
MDB41
64
MDB42
68
MDB43
69
MDB44
153
MDB45
155
MDB46
161
MDB47
162
MDB48
72
MDB49
73
MDB50
79
MDB51
80
MDB52
165
MDB53
166
MDB54
170
MDB55
171
MDB61
83
MDB57
84
MDB59
87
MDB63
88
MDB60
174
MDB56
175
MDB62
178
MDB58
179
44
45
49
51
134
135
142
144
MDB[0..63] (8,13)
90
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
5
4
3
Date: Sheet of
2
15, 2003
DDR2 CHANNEL B
GA-8ISMJPE-LE 1.03
12 40
1

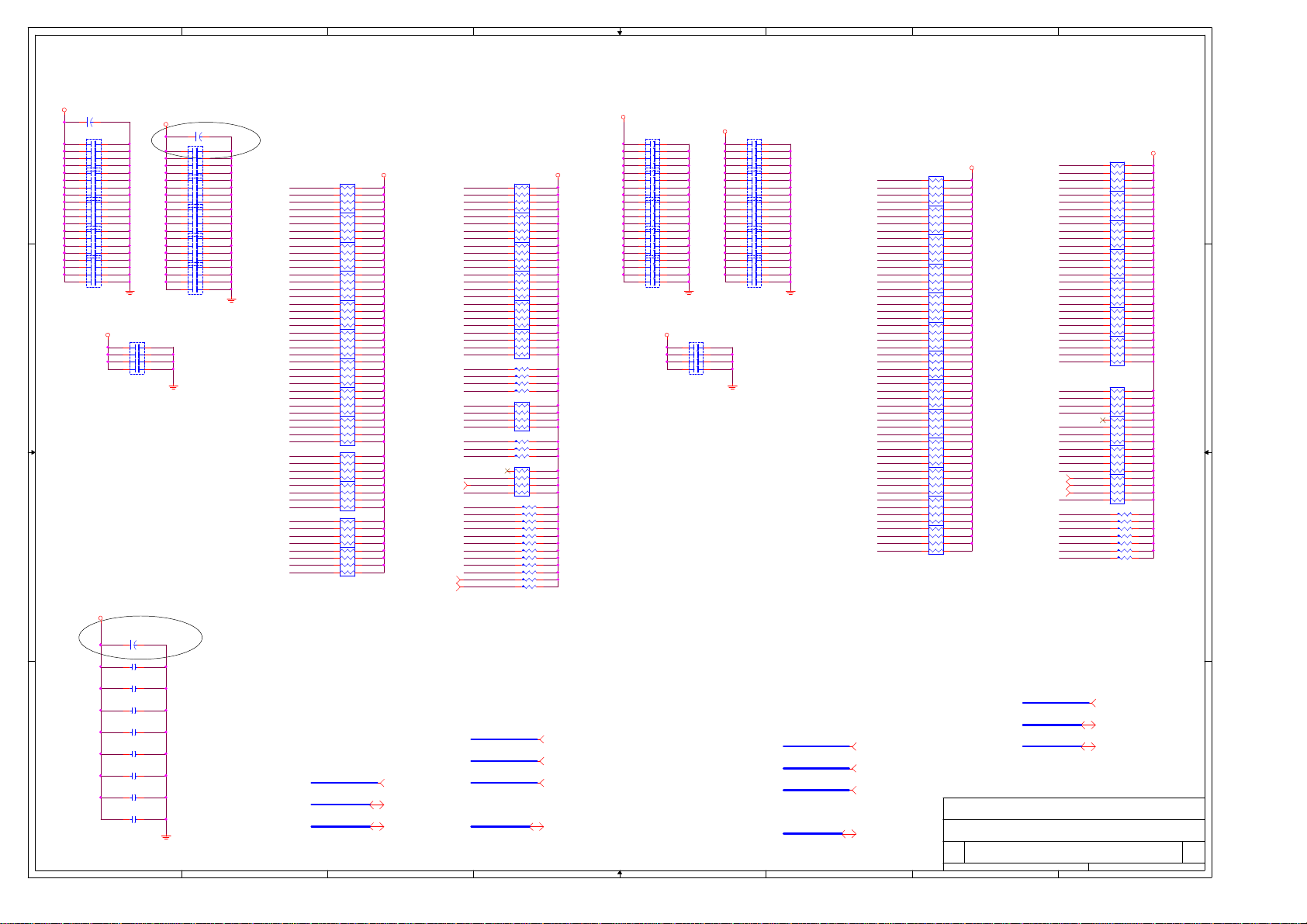

Page 13
8
7
6
5
4
3
2
1
DDR TERMINATION
DDRVTT
+
EC3 1000U/6.3V/8C
CN1 0.1U/8P4C
D D
C C
B B
1
3
5
7
CN5 0.1U/8P4C
1
3
5
7
CN9 0.1U/8P4C
1
3
5
7
CN13 0.1U/8P4C
1
3
5
7
CN17 0.1U/8P4C
1
3
5
7
DDRVTT
CN21 0.1U/8P4C
DDR25V
Decouple
DDR25V
DDRVTT Decouple
DDRVTT
2
4
6
8
2
4
6
8
2
4
6
8
2
4
6
8
2
4
6
8
1
2
3
4
5
6
7
8
+
EC61 1000U/6.3V/8C
1
2
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
CN3
4
0.1U/8P4C
6
8
2
CN7
4
0.1U/8P4C
6
8
2
CN11
4
0.1U/8P4C
6
8
2
CN15
4
0.1U/8P4C
6
8
2
4
CN19
6
0.1U/8P4C
8
CHANNEL A
MDA6
1 2
MDA2
3 4
DMA0
5 6
DQSA0
7 8
MDA1
1 2
MDA5
3 4
MDA4
5 6
MDA0
7 8
DMA1
1 2
MDA13
3 4
DQSA1
5 6
MDA12
7 8
MDA11
1 2
MDA10
3 4
MDA15
5 6
MDA14
7 8
MDA22
1 2
MDA18
3 4
DMA2
5 6
DQSA2
7 8
DMA3
1 2
DQSA3
3 4
MDA29
5 6
MDA25
7 8
MDA31
1 2
MDA27
3 4
MDA26
5 6
MDA30
7 8
MDA28
1 2
MDA24
3 4
MDA19
5 6
MDA23
7 8
MDA38
1 2
DMA4
3 4
MDA34
5 6
DQSA4
7 8
MDA21
1 2
MDA17
3 4
MDA16
5 6
MDA20
7 8
MDA53
1 2
MDA52
3 4
MDA49
5 6
MDA48
7 8
MDA9
1 2
MDA8
3 4
MDA3
5 6
MDA7
7 8
MDA37
1 2
MDA33
3 4
MDA36
5 6
MDA32
7 8
DDRVTT DDRVTT
MDA40
1 2
RN7
56/8P4R
RN11
56/8P4R
RN15
56/8P4R
RN19
56/8P4R
RN23
56/8P4R
RN27
56/8P4R
56/8P4R
RN33
56/8P4R
RN37
56/8P4R
RN42
56/8P4R
RN46
56/8P4R
RN51
56/8P4R
RN55
56/8P4R
MDA44
3 4
MDA35
5 6
MDA39
7 8
MDA47
1 2
MDA46
3 4
MDA43
5 6
MDA42
7 8
MDA61
1 2
MDA60
3 4
MDA51
5 6
MDA50
7 8
MDA55
1 2
MDA54
3 4
DQSA6
5 6
DMA6
7 8
MDA58
1 2
MDA59
3 4
MDA63
5 6
MDA62
7 8
DQSA7
1 2
DMA7
3 4
MDA57
5 6
MDA56
7 8
DQSA5
R847 56/6RN31
DMA5
R848 56/6
MDA45
R835 56/6
MDA41
R836 56/6
MAAA10
1 2
MAAA0
3 4
MAAA1
5 6
MAAA2
7 8
MAAA5
R851 47/6
MAAA8
R852 47/6
MAAA7
R837 47/6
1 2
-CSA1
3 4
-CSA0
CKEA0
CKEA1
MAAA9
MAAA6
MAAA11
SBAA0
SBAA1
MAAA12
MAAA3
MAAA4
5 6
7 8
R853 47/6
R854 47/6
R838 47/6
R839 47/6
R840 47/6
R841 47/6
R842 47/6
R843 47/6
R849 47/6
R850 47/6
R844 47/6
R845 47/6
-SCASA(8,11)
-SWEA(8,11)
-SRASA(8,11)
DDRVTT Decouple
DDRVTT
CN2 0.1U/8P4C
1
3
5
7
CN6 0.1U/8P4C
1
3
RN5
56/8P4R
RN9
56/8P4R
RN13
56/8P4R
RN17
56/8P4R
RN21
56/8P4R
RN25
56/8P4R
RN35
47/8P4R
RN39
47/8P4R
5
7
CN10 0.1U/8P4C
1
3
5
7
CN14 0.1U/8P4C
1
3
5
7
CN18 0.1U/8P4C
1
3
5
7
CN22 0.1U/8P4C
2
4
6
8
2
4
6
8
2
4
6
8
2
4
6
8
2
4
6
8
DDRVTT
DDRVTT
1
2
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
3
5
7
1
2
3
4
5
6
7
8
CN4
4
0.1U/8P4C
6
8
2
CN8
4
0.1U/8P4C
6
8
2
CN12
4
0.1U/8P4C
6
8
2
CN16
4
0.1U/8P4C
6
8
2
4
CN20
6
0.1U/8P4C
8
MDB0
MDB4
MDB1
MDB5
DQSB0
MDB2
DMB0
MDB6
MDB15
DMB1
MDB10
MDB14
MDB9
MDB13
MDB12
MDB11
MDB21
MDB18
DMB2
MDB19
MDB17
MDB16
MDB20
DQSB2
MDB29
MDB25
DMB3
DQSB3
MDB26
MDB27
MDB31
MDB30
MDB32
MDB36
MDB33
MDB37
MDB22
MDB24
MDB23
MDB28
DQSB7
MDB59
MDB58
MDB63
MDB7
MDB3
MDB8
DQSB1
MDB46
MDB47
MDB43
MDB42
CHANNEL B
DDRVTT
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
RN6
56/8P4R
RN10
56/8P4R
RN14
56/8P4R
RN18
56/8P4R
RN22
56/8P4R
RN26
56/8P4R
RN30
56/8P4R
RN32
56/8P4R
RN36
56/8P4R
RN40
56/8P4R
RN44
56/8P4R
RN50
56/8P4R
RN54
56/8P4R
DDRVTT
DQSB4
1 2
MDB34
3 4
DMB4
5 6
MDB38
7 8
MDB39
1 2
MDB35
3 4
MDB40
5 6
MDB44
7 8
MDB45
1 2
DMB5
3 4
DQSB5
5 6
MDB41
7 8
DMB6
1 2
DQSB6
3 4
MDB54
5 6
MDB55
7 8
MDB52
1 2
MDB49
3 4
MDB53
5 6
MDB48
7 8
MDB50
1 2
MDB51
3 4
MDB60
5 6
MDB56
7 8
MDB61
1 2
MDB57
3 4
DMB7
5 6
MDB62
7 8
MAAB2
1 2
MAAB1
3 4
MAAB3
5 6
MAAB0
7 8
1 2
MAAB6
3 4
MAAB5
5 6
MAAB4
7 8
MAAB9
1 2
MAAB12
3 4
MAAB11
5 6
MAAB7
7 8
-CSB1
CKEB0
SBAB0
SBAB1
MAAB10
CKEB1
MAAB8
-CSB0
1 2
3 4
5 6
7 8
R831 47/6
R832 47/6
R833 47/6
R834 47/6
R815 47/6
R846 47/6
R817 47/6
-SRASB(8,12)
-SWEB(8,12)
-SCASB(8,12)
RN4
56/8P4R
RN8
56/8P4R
RN12
56/8P4R
RN16
56/8P4R
RN20
56/8P4R
RN24
56/8P4R
RN28
56/8P4R
RN34
47/8P4R
RN38
47/8P4R
RN41
47/8P4R
RN52
47/8P4R
+
EC8 1000U/6.3V/8C
0.1U/6/Y/25VBC79
0.1U/6/Y/25VBC81
0.1U/6/Y/25V/XBC83
0.1U/6/Y/25V/XBC85
0.1U/6/Y/25V/XBC87
A A
0.1U/6/Y/25VBC89
0.1U/6/Y/25V/XBC91
0.1U/6/Y/25VBC92
8
7
DQSA[0..7]
DMA[0..7]
MDA[0..63]
DQSA[0..7] (8,11)
DMA[0..7] (8,11)
MDA[0..63] (8,11)
6
SBAA[0:1]
-CSA[0:1]
CKEA[0:1]
MAAA[0..12]
SBAA[0:1] (8,11)
-CSA[0:1] (8,11)
CKEA[0:1] (8,11)
MAAA[0..12] (8,11)
5
SBAB[0:1]
-CSB[0:1]
CKEB[0:1]
MAAB[0..12]
4
SBAB[0:1] (8,12)
-CSB[0:1] (8,12)
CKEB[0:1] (8,12)
MAAB[0..12] (8,12)
3
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
Date: Sheet of
2
DQSB[0..7]
DMB[0..7]
MDB[0..63]
DDR TERMINATION
15, 2003
DQSB[0..7] (8,12)
DMB[0..7] (8,12)
MDB[0..63] (8,12)
GA-8ISMJPE-LE 1.03
13 40
1

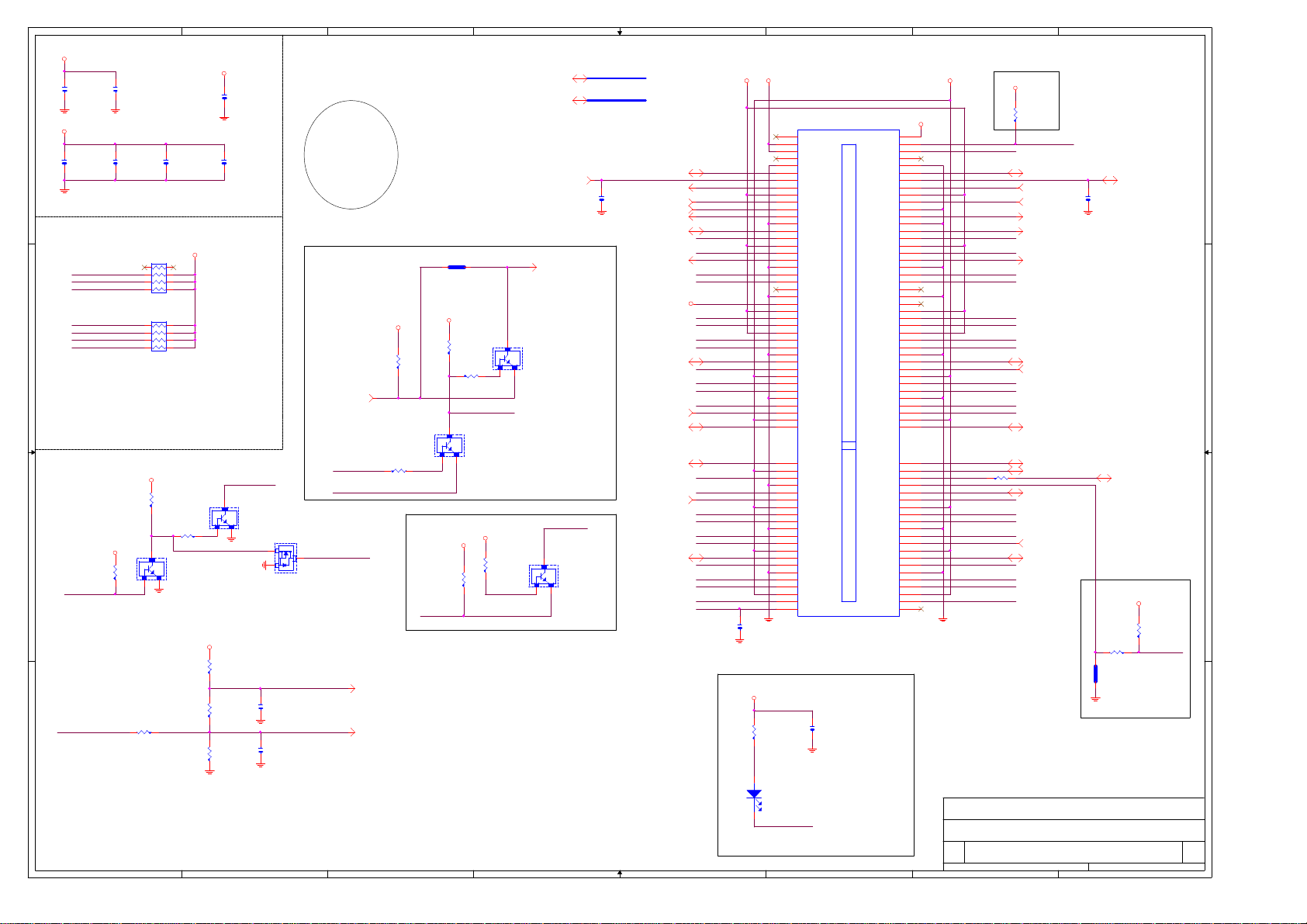

Page 14
8
7
6
5
4
3
2
1
VDDQ
BC93
0.1U/6/Y/25V
BC94
0.1U/6/Y/25V
VCC
BC95
0.1U/6/Y/25V
GAD[0..31](9)
SBA[0..7](9)
VCC3
D D
BC96
0.1U/6/Y/25V
BC97
0.1U/6/Y/25V
BC98
0.1U/6/Y/25V/X
BC99
0.1U/6/Y/25V/X
10P/4/N/50V/X
VDDQ
GPAR
-GSERR
-GPERR
RN58
7 8
5 6
3 4
1 2
R792
0/6S/X
-ATX_PS_ON (32)
8.2K/8P4R
ST2
ST1
ST0
C C
-GGNT
RN59
7 8
5 6
3 4
1 2
8.2K/8P4R/X
R794
8.2K/6/X
5VSB
-PS_ON(22,34)
Q78
MMBT2222A/SOT23/X
R796
1K/6/X
D
3
-TYPE_DET
AGP_GND
GCDETREF
+12V
R85
3.3K/6
R86
22K/6
VDDQ
B B
R87
1K/6
-GC_DET
Q6
MMBT2222A/SOT23
SOT23
132
-GPERR
Q4
MMBT2222A/SOT23
SOT23
132
2N7002/SOT23
G
2
S
1
Q5
5VSB
R985
8.2K/6/X
R793
1K/6/X
R795
8.2K/6/X
132
5VSB
WARNING
SOT23
5VSB
Q77
MMBT2222A/SOT23/X
SOT23
132
R984
1K/6/X
-TYPE_DET
Q116
MMBT2222A/SOT23/X
132
-GC_DET
VDDQ
R88
60.4/6/1
R89
GCDETREF MCH_AGPREF
A A
R90 41.2/6/1
39.2/6/1
R91
100/6/1
GSWING
C65
0.1U/6/Y/25V
C66
0.1U/6/Y/25V
GSWING (9)
MCH_AGPREF (9)
GAD[0..31]
AGP 4X/8X only
VDDQVCCVCC3
5VSB
SBA[0..7]
R791
8.2K/6/X
-TYPE_DET
-PIRQA (15,20,21)
-GGNT (9)
ST1 (9)
-PIPE (9)
-WBF (9)
-SBSTB (9)
-ADSTB1 (9)
-GCBE3 (9)
-GFRAME (9)
-GTRDY (9)
-GSTOP (9)
-PCIPME
GPAR (9)
-GCBE0 (9)
-ADSTB0 (9)
-AGPRST (21)
C63
22P/4/N/50V/X
-PCIPME (15,16,20,21)
5VSB
R798
0/6/X
R799
0/6S/X
R797
8.2K/6/X
AGP_GND
RESV
USB-
GND
INTA#
RST#
GNT#
VCC3.3
ST1
RESV
PIPE#
GND
WBF#
SBA1
VCC3.3
SBA3
GND
SBA5
SBA7
RESV
GND
RESV
VCC3.3
AD30
AD28
VCC3.3
AD26
AD24
GND
AD22
AD20
GND
AD18
AD16
FRAME#
TRDY#
STOP#
PME#
GND
PAR
AD15
AD13
AD11
GND
AD9
C/BE0#
AD6
GND
AD4
AD2
AD0
+12V
A1
12V
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
-GC_DET
-PIRQA
-AGPRSTAGPCLK
-GGNT
ST1
-PIPE
-WBF
SBA1
SBA3
-SBSTB
SBA5
SBA7
GAD30
GAD28
GAD26
GAD24
-ADSTB1
-GCBE3
GAD22
GAD20
GAD18
GAD16
-GFRAME
-GTRDY
-GSTOP
R822 0/6/X
GPAR
GAD15
GAD13
GAD11
GAD9
-GCBE0
-ADSTB0
GAD6
GAD4
GAD2
GAD0
AGP
B1
OVRCNT#
B2
5V
B3
5V
B4
USB+
B5
-PIRQB
-GDEVSEL(9)
-PIRQB(15,16)
-GREQ(9)
GDBI_LO(9)
SBSTB(9)
3VDUAL
ADSTB1(9)
-GCBE2(9)
-GIRDY(9)
-GCBE1(9)
ADSTB0(9)
ST0(9)
ST2(9)
-RBF(9)
-GREQ
ST0
ST2
-RBF
GDBI_LO
SBA0
SBA2
SBSTB
SBA4
SBA6
GAD31
GAD29
GAD27
GAD25
ADSTB1
GAD23
GAD21
GAD19
GAD17
-GCBE2
-GIRDY
-GDEVSEL
-GPERR
-GSERR
-GCBE1
GAD14
GAD12
GAD10
GAD8
ADSTB0
GAD7
GAD5
GAD3
GAD1
MCH_AGPREF
C64
1U/4/Y/6.3V
AGPCLK(19)
C62
SOT23
GND
B6
INTB#
B7
CLK
B8
REQ#
B9
VCC3.3
B10
ST0
B11
ST2
B12
RBF#
B13
GND
B14
RESV
B15
SBA0
B16
VCC3.3
B17
SBA2
B18
SB_STB
B19
GND
B20
SBA4
B21
SBA6
B22
RESV
B23
GND
B24
3VSB
B25
VCC3.3
B26
AD31
B27
AD29
B28
VCC3.3
B29
AD27
B30
AD25
B31
GND
B32
AD_STB1
B33
AD23
B34
VDDQ3.3
B35
AD21
B36
AD19
B37
GND
B38
AD17
B39
C/BE2#
B40
VDDQ3.3
B41
IRDY#
B46
DEVSEL#
B47
VDDQ3.3
B48
PERR#
B49
GND
B50
SERR#
B51
C/BE1#
B52
VDDQ3.3
B53
AD14
B54
AD12
B55
GND
B56
AD10
B57
AD8
B58
VDDQ3.3
B59
AD_STB0
B60
AD7
B61
GND
B62
AD5
B63
AD3
B64
VDDQ3.3
B65
AD1
B66
VREF_CG
AGP SLOT/GIGABYTE GREEN
Green
TYPEDET#
SB_STB#
AD_STB1#
GC/BE3#
VDDQ3.3
VDDQ3.3
VDDQ3.3
VDDQ3.3
AD_STB0
VDDQ3.3
VREF_GC
3VDUAL
R790
330/6/X
BC453
0.1U/6/Y/25V/X
AGP WARNING LED
At least 15mils
2X_DET
LED/Y/S/X
WARNING
8
7
6
5
4
3
GIGABYTE CORP.
Title
Size Document Number Rev
Custom
星期五, 八月
Date: Sheet of
2
15, 2003
AGP SLOT
GA-8ISMJPE-LE 1.03
14 40
1
Page 15
8
7
6
5
4
3
2
1
AC_SDIN0
D D
AC_SDIN1
AC_SDIN2
-GNTB
A_D[0..31]
-FRAME(20,21)
-IRDY(20,21)
-TRDY(20,21)
-DEVSEL(20,21)
-STOP(20,21)
C C
-PCIRST(9,18,21)
B B
TP19
PAR(20,21)
-PERR(20,21)
-PLOCK(20,21)
-SERR(20,21)
-PCIPME(14,16,20,21)
C67 100P/4/N/50V
ICH33(19)
-PIRQA(14,20,21)
-PIRQB(14,16)
-PIRQC(20,21)
-PIRQD(16)
-PIRQE(16,35)
-PIRQF(20,21)
-PIRQG(20,21)
-PIRQH(16)
-REQ0(20)
-REQ1(20)
-REQ2(20,21)
-REQ3(20)
-REQ4(20)
-REQA(16)
-REQB(16)
-GNT0(20)
-GNT1(20)
-GNT2(20,21)
-GNT3(20)
-GNT4(20)
-FRAME
-IRDY
-TRDY
-DEVSEL
-STOP
PAR
-PERR
-PLOCK
-SERR
-PCIPME
R96 22/6
ICH33
-PIRQA
-PIRQB
-PIRQC
-PIRQD
-PIRQF
-PIRQG
-PIRQH
-REQ0
-REQ1
-REQ2
-REQ3
-REQ4
-REQA
-REQB
-GNT0
-GNT1
-GNT2
-GNT3
-GNT4
-GNTA
-GNTB
U12A
D2
FRAME#
M3
IRDY#
E4
TRDY#
L3
DEVSEL#
E5
STOP#
F1
PAR
K2
PERR#
L2
PLOCK#
L4
SERR#
V2
PME#
V4
PCIRST#
N1
PCICLK
B3
PIRQA#
E1
PIRQB#
A2
PIRQC#
C2
PIRQD#
D7
PIRQE#/GPI2
A6
PIRQF#/GPI3
E2
PIRQG#/GPI4
B1
PIRQH#/GPI5
D5
REQ0#
C1
REQ1#
C5
REQ2#
B6
REQ3#
C6
REQ4#/GPI40
A5
REQA#/GPI0
E7
REQB#REQ5#/GPI1
D4
GNT0#
A3
GNT1#
B7
GNT2#
C7
GNT3#
A4
GNT4#/GPO48
E8
GNTA#/GPO16
B4
GNTB#/GNT5#/GPO17
FW82801EB/A3
A_D[0..31] (20,21)
AD31
AD30
AD29
AD28
AD27
AD26
AD25
AD24
AD23
AD22
AD21
AD20
AD19
AD18
AD17
AD16
AD15
AD14
AD13
AD12
AD11
AD10
AD9
AD8
AD7
AD6
AD5
AD4
AD3
AD2
AD1
AD0
C/BE3#
C/BE2#
C/BE1#
C/BE0#
FRONT USB AND REAR USB
PORTS ARE DIFFERENT
A_D31
P2
A_D30
F4
A_D29
P4
A_D28
F5
A_D27
N2
A_D26
D3
A_D25
P3
A_D24
E6
A_D23
N4
A_D22
C4
A_D21
N5
A_D20
H3
A_D19
P5
A_D18
B2
A_D17
L1
A_D16
G4
A_D15
G5
A_D14-PIRQE
K1
A_D13
G2
A_D12
L5
A_D11
H4
A_D10
M4
A_D9
F2
A_D8
K5
A_D7
J2
A_D6
J3
A_D5
H2
A_D4
H5
A_D3
K4
A_D2
G3
A_D1
J5
A_D0
J4
-C_BE3
M2
-C_BE2
N3
-C_BE1 -AC_RST
J1
-C_BE0
E3
-C_BE3 (20,21)
-C_BE2 (20,21)
-C_BE1 (20,21)
-C_BE0 (20,21)
+USBP0(27)
-USBP0(27)
+USBP1(27)
-USBP1(27)
+USBP2(27)
-USBP2(27)
+USBP3(27)
-USBP3(27)
+USBP4(36)
-USBP4(36)
+USBP5(36)
-USBP5(36)
+USBP6(27)
-USBP6(27)
+USBP7(27)
-USBP7(27)
-F_USBOC(27)
-R_USBOC(36)
Follow Intel Layout
Less than
500mils from
ICH5
USBCLK(19)
+USBP0
-USBP0
+USBP1
-USBP1
+USBP2
-USBP2
+USBP3
-USBP3
+USBP4
-USBP4
+USBP5
-USBP5
+USBP6
-USBP6
+USBP7
-USBP7
-F_USBOC
-R_USBOC
R99
22.6/6/1
USBCLK
C23
D23
A22
B22
C21
D21
A20
B20
C19
D19
A18
B18
C17
D17
A16
B16
C15
D15
D14
C14
B14
A14
D13
C13
A24
B24
F24
U12B
USBP0P
USBP0N
USBP1P
USBP1N
USBP2P
USBP2N
USBP3P
USBP3N
USBP4P
USBP4N
USBP5P
USBP5N
USBP6P
USBP6N
USBP7P
USBP7N
OC0#
OC1#
OC2#
OC3#
OC4#/GPI9
OC5#/GPI10
OC6#/GPI14
OC7#/GPI15
USBRBIAS
USBRBIAS#
CLK48
HI10
HI11
HI_STBF
HI_STBS
HIRCOMP
HI_VSWING
HIREF
CLK66
LAN_RXD0
LAN_RXD1
LAN_RXD2
LAN_TXD0
LAN_TXD1
LAN_TXD2
LAN_RSTSYNC
LAN_CLK
LAN_RST#
EE_DIN
EE_CS
EE_SHCLK
EE_DOUT
AC_SYNC
AC_RST#
AC_SDOUT
AC_SDIN0
AC_SDIN1
AC_SDIN2
AC_BIT_CLK
HI0
HI1
HI2
HI3
HI4
HI5
HI6
HI7
HI8
HI9
H20
H21
J20
H23
M23
M21
N21
M20
L22
J22
K21
G22
K23
J24
N24
L20
L24
N22
C10
C9
C11
D9
E9
B12
D10
E10
AA1
B11
B10
A12
B9
B8
C12
A9
E12
D12
A13
D8
HL0
HL1
HL2
HL3
HL4
HL5
HL6
HL7
HL8
HL9
HL10
HL11
HLSTBF
HLSTBS
HLRCOMP_I
HL_SWING_ICH
HL_VREF_ICH
ICH3V66
L_RXD0
L_RXD1
L_RXD2
L_TXD0
L_TXD1
L_TXD2
L_RST
L_CLK
-LAN_RST
EEDI
EECS
EESK
EEDO
R100 33/6
R101 33/6
AC_SDIN0
AC_SDIN1
AC_SDIN2
AC_BITCLK
FW82801EB/A3
EEDO
EEDI
EESK
EECS
EEDO
A A
R102
8.2K/6/X
R92 8.2K/6/X
R93 8.2K/6/X
R94 8.2K/6
R95 8.2K/6/X
HL[0..10]
HL[0..10] (9)
R97 61.9/6/1
HLSTBF (9)
HLSTBS (9)
ICH3V66 (19)
L_RXD0 (35)
L_RXD1 (35)
L_RXD2 (35)
L_TXD0 (35)
L_TXD1 (35)
L_TXD2 (35)
L_RST (35)
L_CLK (35)
-LAN_RST (35)
-AC_RST (29)
AC_SDIN2 (29)
AC_BITCLK (29)
R899
8.2K/6/X
VDDQ
AC_SYNC
AC_SDOUT
[K]
BC480
0.1U/6/Y/25V
3
EEDI
4
EEDO
2
EESK
1
EECS
R98
52.3/6/1
3VDUAL
C68
1U/4/Y/6.3V
HL_SWING_ICH (9)
HL_VREF_ICH (9)
C69
0.01U/4/X/16V
AC_SYNC (29)
AC_SDOUT (29)
[K]
8
U38
VCC
NC2
NC1
GND
AT93C46/2.7V/S
5
R900
R901
0/6/X
0/6/X
7
6
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
8
7
6
5
4
3
Date: Sheet of
ICH5 PCI, USB, HUB, LAN
15, 2003
2
GA-8ISMJPE-LE 1.03
15 40
1

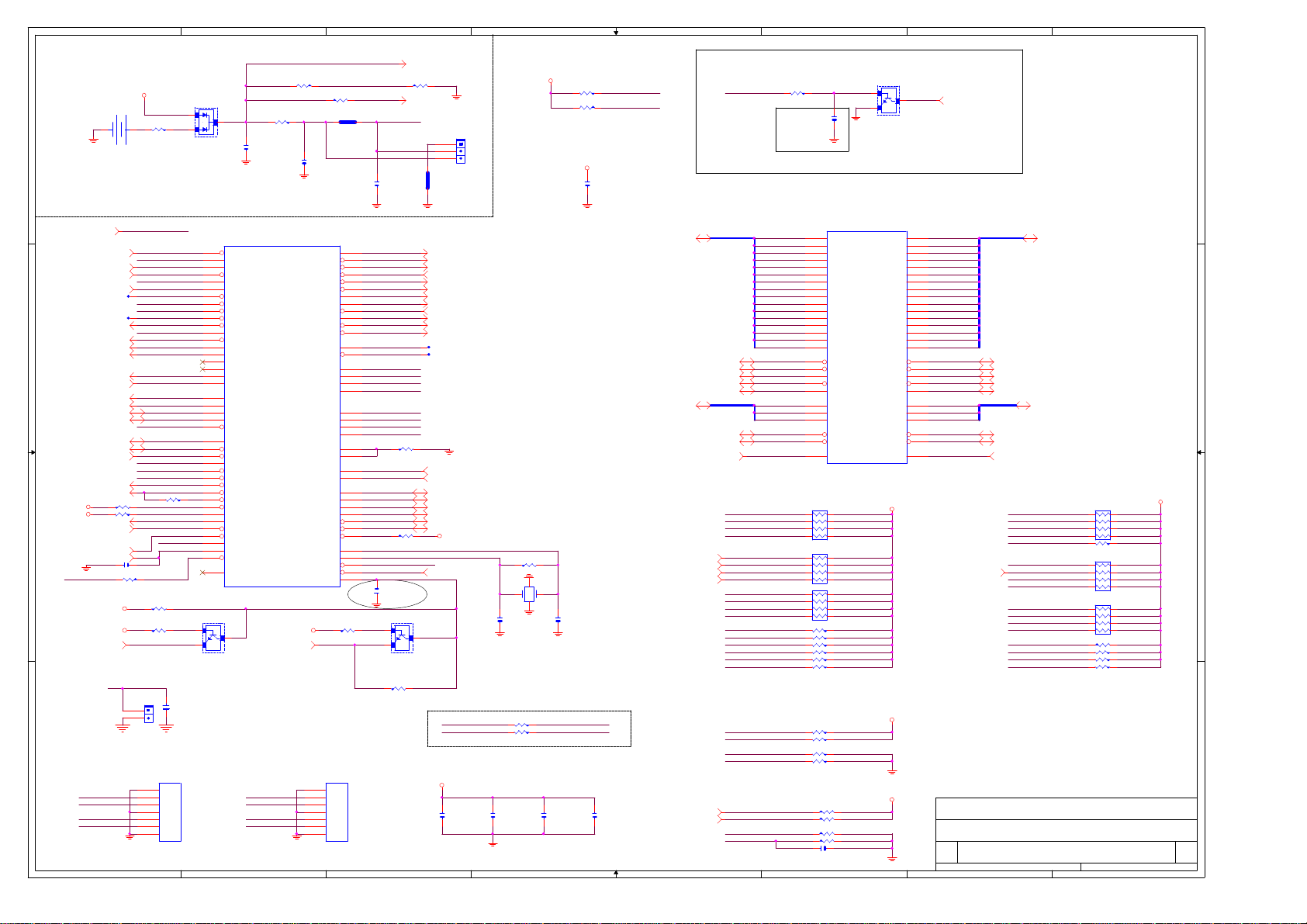

Page 16
8
7
6
5
4
3
2
1
RTCVDD
R105 1K/6
R108
0/6S/X
C71
1U/6/Y/10V
T22
A20GATE
V23
A20M#
P22
CPUSLP#
U24
FERR#
R21
IGNNE#
R23
INIT#
U23
INTR
R22
NMI
P23
RCIN#
F23
SERIRQ
V24
SMI#
T24
STPCLK#
P20
R24
DPSLP#
AA8
AB8
AD7
AC7
AA10
AB10
AD9
AC9
Y11
Y9
AC5
CLK100P
AD5
CLK100N
T5
LAD0
R4
LAD1
R3
LAD2
U4
LAD3
T4
LFRAME#
U5
LDRQ0#
R2
AC11
RTCX1
AB12
RTCX2
AA12
AB13
AC12
PWROK
R820 8.2K/6/X
INTVRMEN
3VDUAL
D21
2
R109
12
1K/6
D D
BAT
BAT+BAT SOCKET(high)
-SYS_RST(28)
GPI6(28)
-CSAPME(35)
-SMBALRT(35)
-LPCPME(22)
TP46
TP47
GPO22(18)
GPO24(35)
C C
3VDUAL
B B
GPO25
GPO27
GPO33(24)
-BIOS_WP(18)
SMBCLK(11,12,19,20,22,23,35)
SMBDATA
SMLINK0(20)
SMLINK1(20)
SPKR(28)
-RI(28)
PWRBTSW(22)
-SLP_S3(19,22,28,32,34)
-S4_S5(22,28,34)
R113 8.2K/6
R114 8.2K/6
VCC3
CPUPWROK(5)
-THERM(5)
-THRMO(23)
ICHCLK14(19)
BC101 10P/4/N/50V/X
RTCVDD -INTRUDER
R118
1M/6
VCC3
BAT54C/SOT23
-SYS_RST
GPI6
MBID0
-CSAPME
-SMBALRT
MBID1
-LPCPME
GPO18
GPO19
GPO20
GPO21
GPO22
GPO23
GPO24
GPO25
GPO27
GPO33
-BIOS_WP
SMBCLK
SMBDATA
SMLINK0
SMLINK1
LINK_ALT
SPKR
-RI
PWRBTSW
SUSCLK
-BATLOW
-SUS_STAT
-SLP_S3
-S4_S5
R112 0/6/X
-SYS_RST
VRMPWRGD
CPUPWROK
-THERM
-THRMO
INTVRMEN
ICHCLK14
R818 2.2K/6/X
R819 8.2K/6/X
-ICHSYNC PWROK
-INTRUDER
CI
1
10000P/4/X/50V/X
2
3
1
U12D
R5
U3
Y2
AC3
W4
W5
U21
T20
U22
R1
U20
F22
AC1
W3
V3
W2
T1
G23
F21
AD2
AD1
AD3
AA2
V5
E24
AB3
Y4
Y1
AB2
AB1
W1
U2
AA3
U1
R20
P24
T21
T2
AD10
F20
Y12
A11
FW82801EB/A3
SIGNAL INTEGRATE
Q80
2
1
SOT23
MMBT2222A/SOT23/X
C100
R103 390K/6
R107
200K/6
C70
1U/6/Y/10V
AGPBUSY#/GPI6
GPI7
GPI8
SMBALERT#/GPI11
GPI12
GPI13
STP_PCI#/GPO18
SLP_S1#/GPO19
STP_CPU#/GPO20
C3_STAT#/GPO21
CPUPERF#/GPO22
SSMUXSEL/GPO23
CLKRUN#/GPIO24
GPIO25
GPIO27
GPIO28
GPIO32
GPIO33
GPIO34
SMBCLK
SMBDATA
SMLINK0
SMLINK1
LINKALERT#
SPKR
RI#
PWRBTN#
SUSCLK
BATLOW#
SUS_STAT#
SLP_S3#
SLP_S4#
SLP_S5#
SYS_RESET#
VGATE/VRMPWRGD
CPUPWRGD/GPO49
THRMTRIP#
THRM#
INTVRMEN
CLK14
INTRUDER#
NC
3
DPRSLPVR
SATA0TXP
SATA0TXN
SATA0RXN
SATA0RXP
SATA1TXP
SATA1TXN
SATA1RXN
SATA1RXP
SATARBIASP
SATARBIASN
LDRQ1#/GPI41
RTCRST#
RSMRST#
VCC3VCC3
PWROK(7,21,22,28,33)-ICHSYNC(9)
H1X2
A A
SATA0TXP
SATA0TXN
SATA0RXN
SATA0RXP
8
S_ATA1
1
GND
2
A+
3
A-
4
GND
5
B-
6
B+
7
GND
SATA/1*7/HOUSING
SATA1TXP
SATA1TXN
SATA1RXN
SATA1RXP
7
S_ATA2
1
GND
2
A+
3
A-
4
GND
5
B-
6
B+
7
GND
SATA/1*7/HOUSING
RTCVDD (17)
R823 8.2K/6/X
VBAT (22)
-RTCRST
C72
1U/6/Y/10V
A20GATE
-A20M
-CPUSLP
-FERR
-IGNNE
-HINIT
INTR
NMI
-KBRST
SERIRQ
-SMI
-STPCLK
TP_ICH_P20
TP_ICH_R24
SATA0TXP
SATA0TXN
SATA0RXN
SATA0RXP
SATA1TXP
SATA1TXN
SATA1RXN
SATA1RXP
R111 24.9/6/1
SRCCLK
-SRCCLK
LAD0
LAD1
LAD2
LAD3
-LFRAME
-LDRQ0
R115 8.2K/6/X
-RTCRST
-RSMRST
C290
18P/4/N/50V/X
Q81
2
3
1
SOT23
MMBT2222A/SOT23/X
R821 0/6
6
CLR_CMOS
1
2
3
H1X3/(2-3 CLOSE BLACK)
R110
0/6S/X
Black
A20GATE (22)
-A20M (5)
-CPUSLP (5)
-FERR (5)
-IGNNE (5)
-HINIT (4,18)
INTR (5)
NMI (5)
-KBRST (22)
SERIRQ (22)
-SMI (5)
-STPCLK (5)
Trace less than
500 mils
SRCCLK (19)
-SRCCLK (19)
LAD0 (18,22)
LAD1 (18,22)
LAD2 (18,22)
LAD3 (18,22)
-LFRAME (18,22)
-LDRQ0 (22)
VCC3
-RSMRST (22,34,35)
SMLINK0
SMLINK1
VCC3
BC102
1U/6/Y/10V
VCORE
R117 10M/6
34
C73
18P/4/N/50V
R128 0/6/X
R129 0/6/X
BC103
0.1U/6/Y/25V
R104 62/6
R106 62/6
-FERR
-THERM
CPU Signal Term
3VDUAL
BC100
1U/6/Y/10V
X1
32.768KHZ/XTAL CYL [KDS]+SHORT_WIRE
C74
18P/4/N/50V
SMBCLK
SMBDATA
BC104
0.1U/6/Y/25V
5
BC105
0.1U/6/Y/25V
DEFAULT LOW
GPO23
R1021 330/6/X
C283
1U/6/X/50V/X
Q121
2
3
1
SOT23
MMBT2222A/SOT23/X
RESET (28)
RESERVED
FOR LAN CSA ( PWROK LOW TO HIGH LATCH )
PDD[0..15] PDD15
-PDIOW(24)
-PDDACK(24)
PDDREQ(24)
-PDIOR(24)
PIORDY(24)
PDA[0..2](24)
PDA[0..2]
-PCS3(24)
-PCS1(24)
IRQ14(24) IRQ15 (24)
-PIRQB(14,15)
-PIRQD(15)
-PIRQH(15)
-PIRQE(15,35)
-REQA(15)
-REQB(15)
4
PDD14
PDD13
PDD12
PDD11
PDD10
PDD9
PDD8
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0
-PDIOW
-PDDACK
PDDREQ
-PDIOR
PIORDY
PDA2
PDA1
PDA0
-PCS3
-PCS1
IRQ14
GPI6
RN60 8.2K/8P4R
GPO22
-THRMO
-LPCPME
RN62 8.2K/8P4R
-PIRQD
-PIRQH
-PIRQE
-KBRST
RN64 8.2K/8P4R
A20GATE
SERIRQ
-LDRQ0
-SUS_STAT
GPO19
GPO20
GPO23
GPO33
SPKR -SMBALRT
MBID0
MBID1
MBID0
MBID1
-REQA
-REQB
-RSMRST
PWROK
U12C
AB17
PDD15
AA16
PDD14
Y16
PDD13
AC16
PDD12
AA15
PDD11
AD16
PDD10
Y15
PDD9
AD15
PDD8
AB14
PDD7
AD14
PDD6
AC15
PDD5
AA14
PDD4
AC14
PDD3
Y14
PDD2
Y13
PDD1
AB16
PDD0
AA17
PDIOW#
AC18
PDDACK#
AC17
PDDREQ
AD18
PDIOR#
AA18
PIORDY
AC19
PDA2
AD19
PDA1
AA19
PDA0
Y18
PDCS3#
AB19
PDCS1#
Y17
IRQ14
FW82801EB/A3
12
34
56
78
1 2
3 4
5 6
7 8
1 2
3 4
5 6
7 8
R119 8.2K/6
R120 8.2K/6/X
R122 8.2K/6/X
R124 8.2K/6/X
R813 8.2K/6
R824 8.2K/6/X
R130 8.2K/6
R131 8.2K/6
R133 8.2K/6/X
R135 8.2K/6/X
R136 8.2K/6
R137 8.2K/6
R138 220K/6
R139 22K/6
C75 10P/4/N/50V/X
3
SDD15
SDD14
SDD13
SDD12
SDD11
SDD10
SDD9
SDD8
SDD7
SDD6
SDD5
SDD4
SDD3
SDD2
SDD1
SDD0
SDIOW#
SDDACK#
SDDREQ
SDIOR#
SIORDY
SDA2
SDA1
SDA0
SDCS3#
SDCS1#
IRQ15
VCC3
3VDUAL
VCC
AA23
AB24
AC24
AB22
AA20
AC22
AD22
Y19
AC20
AB20
AC21
AB21
AD24
AD23
AB23
AA22
Y22
W20
Y20
Y23
Y21
W21
W23
W22
V20
V22
Y24
SDD14
SDD13
SDD12
SDD11
SDD10
SDD9
SDD8
SDD7
SDD6
SDD5
SDD4
SDD3
SDD2
SDD1
SDD0
-SDIOW
-SDDACK
SDDREQ
-SDIOR
SIORDY
SDA2
SDA1
SDA0
-SCS3
-SCS1
IRQ15
SDA[0..2]
-PCIPME(14,15,20,21)
-SDIOW (24)
-SDDACK (24)
SDDREQ (24)
-SDIOR (24)
SIORDY (24)
-SCS3 (24)
-SCS1 (24)
GPO24
SMBDATA
SMLINK0
PWRBTSW
SMBCLK
GPO27
-PCIPME
LINK_ALT
SUSCLK
-CSAPME
SMLINK1
-BATLOW
-RI
GPO25
-SLP_S3
-S4_S5
SDD[0..15] (24)PDD[0..15](24)
SDA[0..2] (24)
RN61 8.2K/8P4R
R116 8.2K/6
RN63 8.2K/8P4R
RN65 8.2K/8P4R
R123 8.2K/6
R125 8.2K/6/X
R126 8.2K/6/X
R132 8.2K/6
12
34
56
78
12
34
56
78
12
34
56
78
SDD[0..15]
SDD15
GIGABYTE CORP.
Title
Size Document Number Rev
Custom
Date: Sheet of
ICH5 IDE, GPIO, SATA, CTRL
星期五, 八月
15, 2003
2
GA-8ISMJPE-LE 1.03
16 40
1
3VDUAL

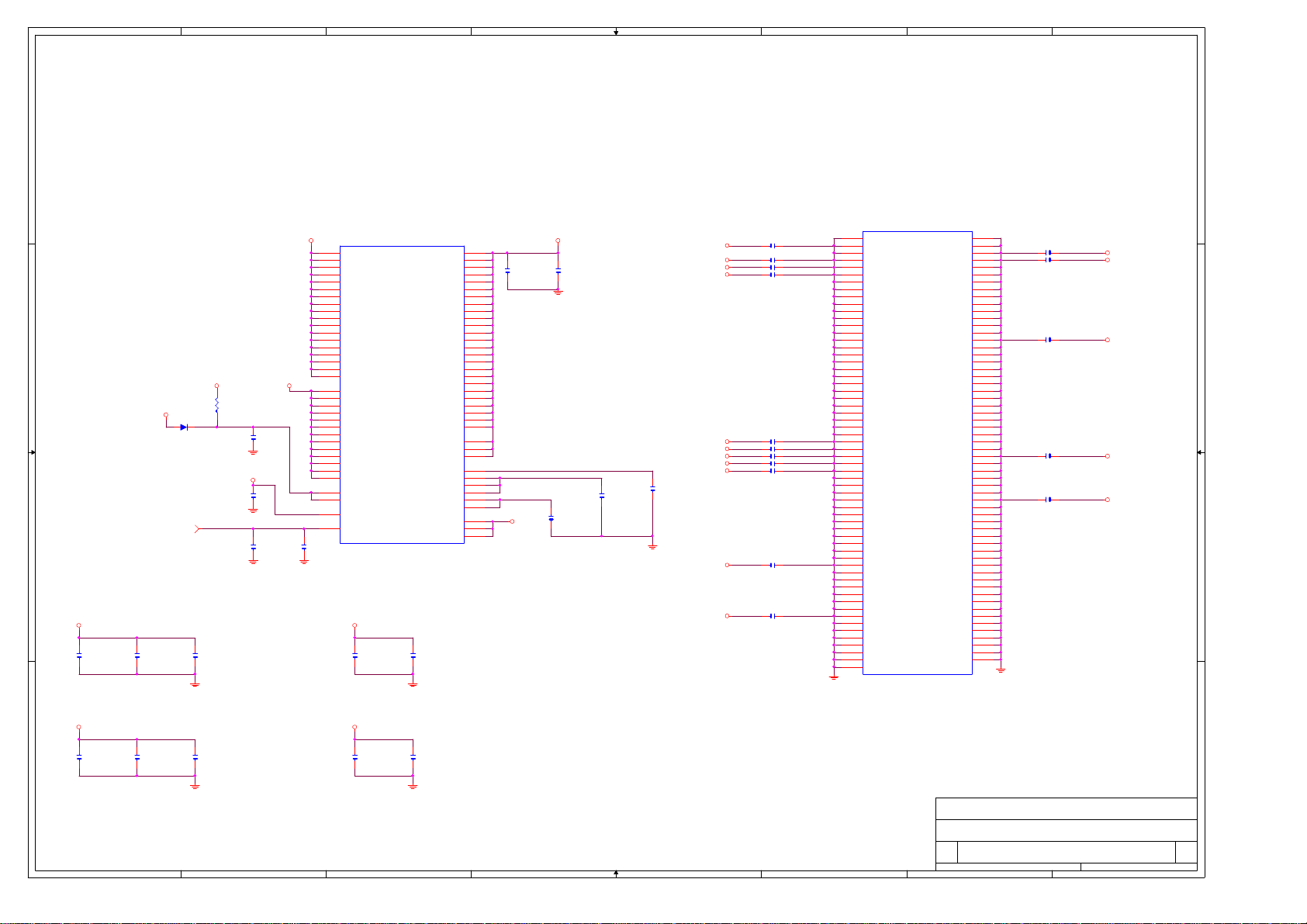

Page 17
8
D D
7
6
5
4
3
2
1
AA11
AA13
AA21
AA24
AB11
AB15
AB18
AC2
AC4
AC6
AC8
AC10
AC13
AC23
AD4
AD6
AD8
AD17
AD21
AD12
A1
A7
A10
A15
A17
A19
A21
A23
AA5
AA7
AA9
AB5
AB7
AB9
B13
B17
B19
B21
B23
C3
C8
C16
C18
C20
C22
D1
D6
D11
D16
D18
D20
D22
D24
E17
E19
E20
E21
E23
F3
F9
U12F
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
FW82801EB/A3
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
VSS
G6
G20
G24
H1
H19
H22
J6
J21
J23
K3
K11
K14
K20
K22
K24
L10
L11
L12
L13
L14
L15
L21
L23
M1
M5
M11
M12
M13
M14
M22
M24
N11
N12
N13
N14
N20
P1
P10
P11
P12
P13
P14
P15
P21
R11
R14
T23
T3
T6
U19
V1
V21
W16
W18
Y3
Y6
Y7
Y8
Y10
BC460 0.1U/6/Y/25V
BC462 0.1U/6/Y/25V
BC465 0.1U/6/Y/25V
BC469 0.1U/6/Y/25V
BC472 0.1U/6/Y/25V
VDDQ
VCC3
VDDQ
VDDQ
VCC3
VCC3
U12E
B5
VCC3_3
F6
VCC3_3
G1
VCC3_3
H6
VCC3_3
K6
VCC3_3
L6
VCC3_3
M10
VCC3_3
N10
VCC3_3
P6
VCC3_3
R13
VCC3_3
V19
VCC3_3
W15
VCC3_3
W17
VCC3_3
W24
C C
3VDUAL
VCC3
VCC
R140
1K/6
ICH5VREF
D3
BC108
1N5817/S
1U/6/Y/10V
5VSB
BC110
0.1U/6/Y/25V
RTCVDD(16)
B B
RTCVDD
BC113
0.01U/4/X/16V
BC114
0.1U/6/Y/25V
AD13
AD20
G19
G21
W14
AD11
E18
B15
E11
F10
F11
E13
E14
U6
V6
F16
F17
F18
K15
A8
E16
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCC3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
VCCSUS3_3
V5REF
V5REF
V5REF_SUS
VCCRTC
FW82801EB/A3
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCC1_5
VCCSATAPLL
VCCSATAPLL
VCCUSBPLL
VCCSUS1_5_A
VCCSUS1_5_B
VCCSUS1_5_B
VCCSUS1_5_B
VCCSUS1_5_C
VCCSUS1_5_C
V_CPU_IO
V_CPU_IO
V_CPU_IO
Close to ICH
K10
K12
K13
L19
P19
R10
R6
H24
J19
K19
M15
N15
N23
E15
F15
F14
W19
R12
W9
W10
W11
W6
W7
W8
E22
AA6
AB6
C24
F19
Y5
AA4
AB4
F7
F8
R15
R19
T19
Close to ICH
VCC3
BC115
0.1U/6/Y/25V
BC116
0.1U/6/Y/25V/X
BC117
0.1U/6/Y/25V/X
VCORE
BC118
0.1U/6/Y/25V
BC119
0.01U/4/X/16V
BC106
0.1U/6/Y/25V
VCORE
VDDQ
BC107
0.01U/4/X/16V
BC112
0.1U/6/Y/25V
BC111
0.1U/6/Y/25V
BC109
0.1U/6/Y/25V
VCC3
3VDUAL
3VDUAL
3VDUAL
VDDQ
VDDQ
VDDQ
VCC3
VCC3
VCC3
VDDQ
BC459 0.1U/6/Y/25V
BC461 0.1U/6/Y/25V
BC463 0.01U/4/X/16V
BC464 1U/6/Y/10V
BC466 0.1U/6/Y/25V
BC467 0.1U/6/Y/25V
BC468 0.01U/4/X/16V
BC470 0.1U/6/Y/25V
BC471 0.1U/6/Y/25V
BC473 0.1U/6/Y/25V
BC474 0.1U/6/Y/25V
3VDUAL VDDQ
BC120
A A
0.1U/6/Y/25V
BC121
0.1U/6/Y/25V/X
BC122
0.1U/6/Y/25V/X
BC123
0.1U/6/Y/25V
BC124
0.01U/4/X/16V
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
8
7
6
5
4
3
Date: Sheet of
2
15, 2003
ICH5 VCC, GND
GA-8ISMJPE-LE 1.03
17 40
1

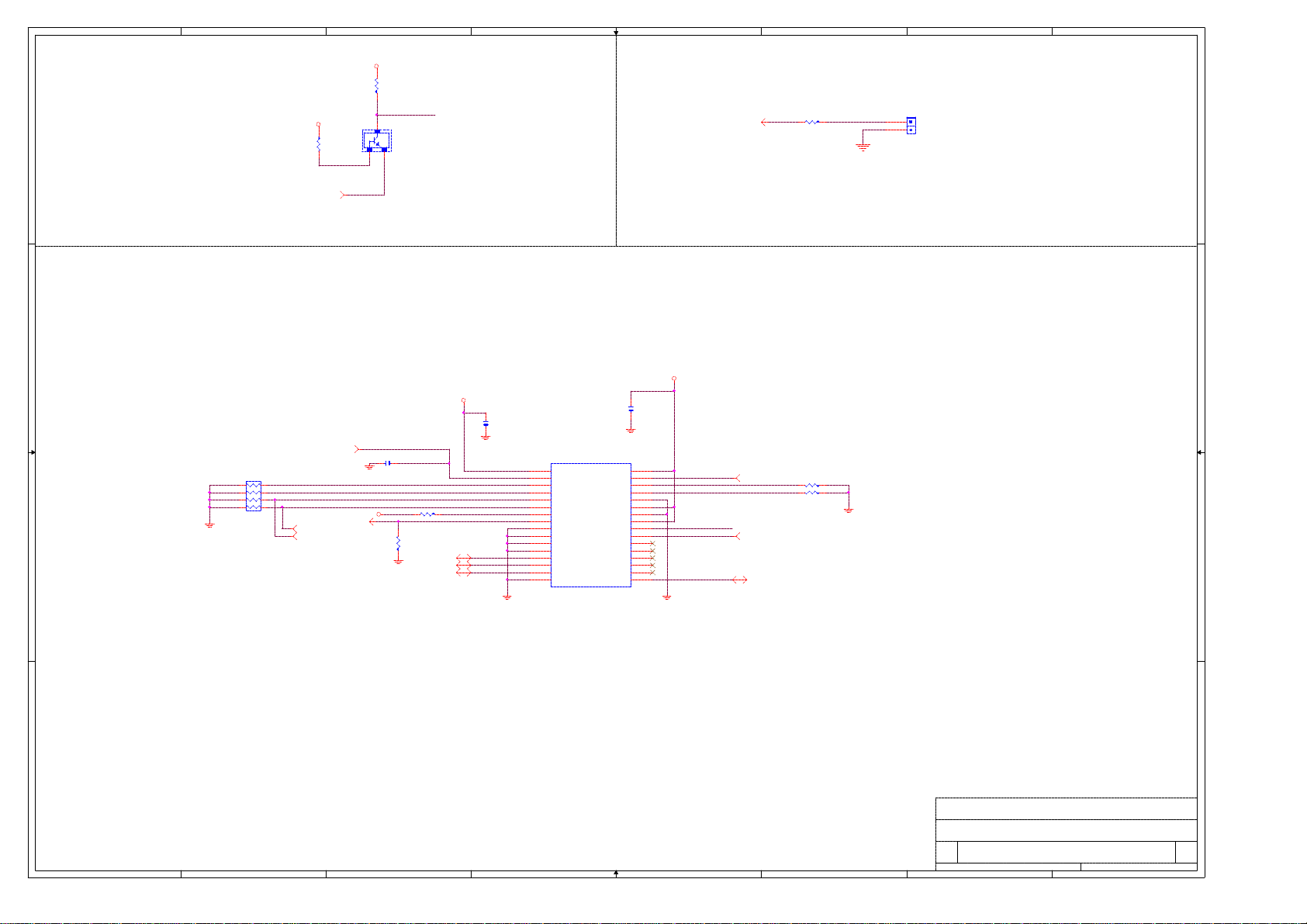

Page 18
8
7
6
5
4
3
2
1
VCC3
R141
1K/6
-HINIT
-HINIT1
Q8
MMBT2222A/SOT23
SOT23
132
-BIOS_WP(16)
R142 1K/6
VCORE
D D
R143
8.2K/6
-HINIT(4,16)
C C
-FWP
BIOS_WP
1
2
H1X2
BIOS_WP
OPEN FW EN
SHORT FW DIS
VCC3
VCC3
BC126
-PCIRST(9,15,21)
C76 10P/4/N/50V/X
RN66 8.2K/8P4R
1 2
3 4
5 6
7 8
P66DET (24)
S66DET (24)
B B
VCC3
GPO22(16)
-PCIRST
R146 8.2K/6
R147
8.2K/6/X
LAD0(16,22)
LAD1(16,22)
LAD2(16,22)
1U/6/Y/10V
1
2
FGPI3
3
FGPI2 IC
4
FGPI1
5
FGPI0
-FWP
TBLLOCK1
LAD0
LAD1
LAD2
6
7
8
9
10
11
12
13
14
15
16 17
BC125
0.1U/6/Y/25V
U13
VPP
RST#
FGPI3
FGPI2
FGPI1
FPGI0
WP#
TBL#
ID3
ID2
ID1
ID0
FWH0
FWH1
FWH2
GND FWH3
SST49LF004A_4M/NON-SOCKET
VCC
CLK
FGPI4
IC(VIL)
GND
VCC
GND
VCC
INIT#
FWH4
RFU
RFU
RFU
RFU
RFU
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
FWH33
FGPI4
-HINIT1
-LFRAME
LAD3
FWH33 (19)
-LFRAME (16,22)
LAD3 (16,22)
R144 8.2K/6
R145 8.2K/6
A A
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
8
7
6
5
4
3
Date: Sheet of
15, 2003
2
FWH
GA-8ISMJPE-LE 1.03
18 40
1

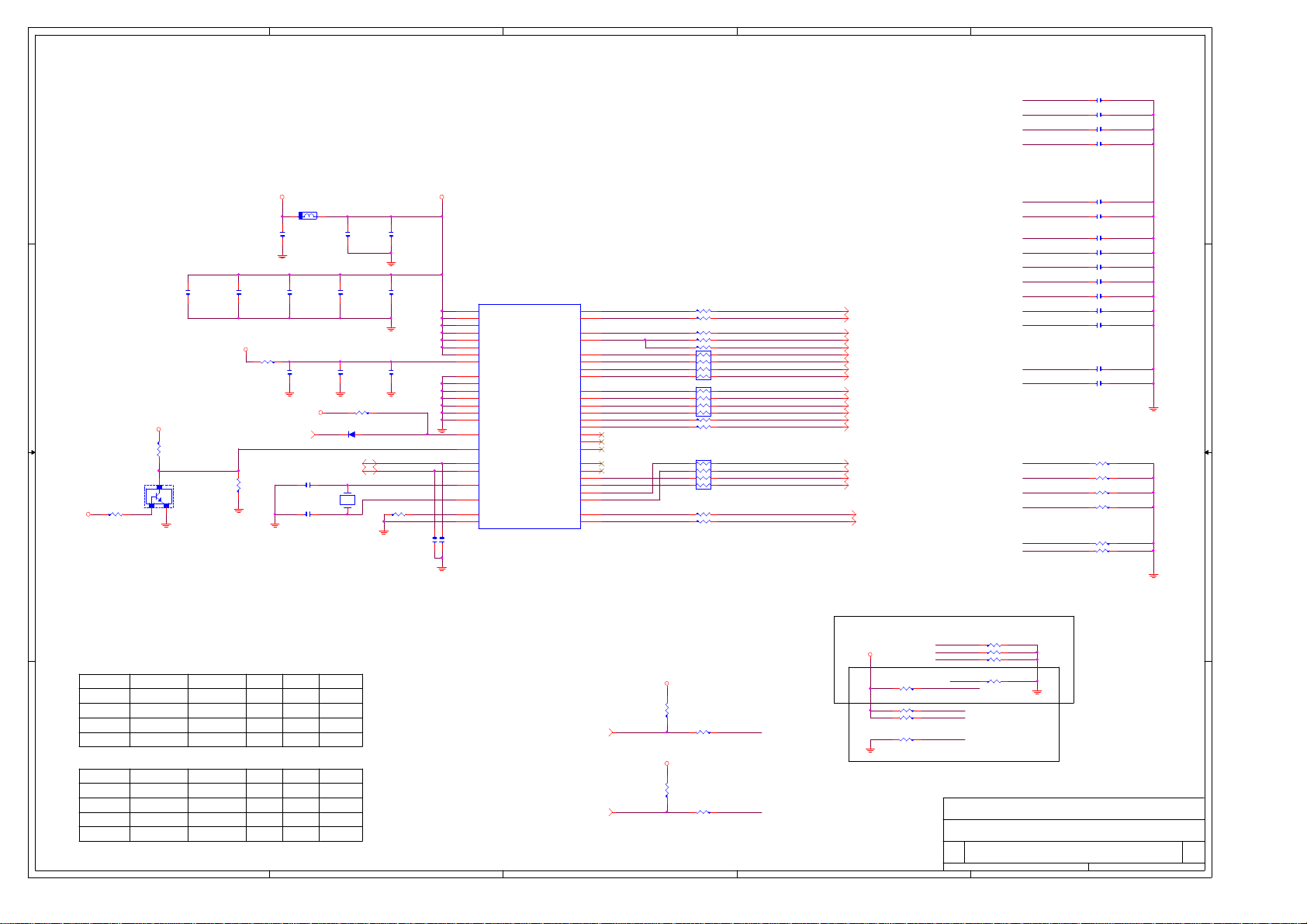

Page 19
5
D D
4
3
2
CPUCLK
-CPUCLK
MCHCLK
-MCHCLK
1
C77 10P/4/N/50V/X
C78 10P/4/N/50V/X
C79 10P/4/N/50V/X
C80 10P/4/N/50V/X
BC129
1U/6/Y/10V
BC132
1U/6/Y/10V
BC135
0.1U/6/Y/25V
SMBDATA
SMBCLK
R165
475/6/1
100P/4/N/50V
C212
CKVDD
3
10
16
24
27
34
40
48
6
11
17
23
28
37
43
20
33
32
31
4
5
46
47
C213
100P/4/N/50V
U14
VDDREF
VDDPCI
VDDPCI
VDD48
VDD3V66
VDD_SRC
VDDCPU
VDDCPU
GND
GND
GND
GND
GND
GND
GND
RST#/PD#
VTT_PWRGD#
SDATA
SCLK
X1
X2
I REF
GND
ICS952603DF
FS_A/REF1
FS_B/REF0
48MHz_DOT
48MHz_USB
3V66_0
3V66_1
3V66_2/MODE
3V66_3/VCH
FS_C/PCICLK_F0
FS_D/PCICLK_F1
FS_E/PCICLK_F2
PCICLK0
PCICLK1
PCICLK2
PCICLK3
PCICLK4
PCICLK5
CPUCLK0
CPUCLK0#
CPUCLK1
CPUCLK1#
CPUCLK2
CPUCLK2#
SRCCLK
SRCCLK#
FSA
1
FSB
2
SEL48
21
FS3
22
30
29
MODE ICH3V66
26
25
FSC
7
FSD
8
FSE
9
MODE_I
12
13
14
15
18
19
39
38
42
41
45
44
36
35
FS4
R148 33/6
R149 33/6/X
R150 33/6/X
R151 33/6
7 8
RN67 33/8P4R
5 6
3 4
1 2
7 8
RN68 33/8P4R
5 6
3 4
1 2
R1003 33/6
R1004 33/6
1 2
RN70 33/8P4R
3 4
5 6
7 8
R1005 33/6
R1006 33/6
ICHCLK14
CODEC14
DOTCLK
USBCLK
LPCCLK48
GMCH3V66
AGPCLKFSF
PCLK0
PCLK1
PCLK2
ICH33
FWH33
LPC33
CPUCLK
-CPUCLK
MCHCLK
-MCHCLK
SRCCLK
-SRCCLK
ICHCLK14 (16)
CODEC14 (29)
DOTCLK (9)
USBCLK (15)
LPCCLK48 (22)
CSA3V66 (35)
GMCH3V66 (9)
ICH3V66 (15)
AGPCLK (14)
PCLK0 (20)
PCLK1 (20)
PCLK2 (21)
ICH33 (15)
FWH33 (18)
LPC33 (22)
CPUCLK (5)
-CPUCLK (5)
MCHCLK (7)
-MCHCLK (7)
SRCCLK (16)
-SRCCLK (16)
SRCCLK
-SRCCLK
CSA3V66
GMCH3V66
ICH3V66
AGPCLK
ICH33
FWH33
LPC33
USBCLK
LPCCLK48
CPUCLK
-CPUCLK
MCHCLK
-MCHCLK
SRCCLK
-SRCCLK
C83 10P/4/N/50V/X
C84 10P/4/N/50V/X
C229 10P/4/N/50V/XBC127
C85 10P/4/N/50V
C86 10P/4/N/50V/X
C87 10P/4/N/50V/X
C88 10P/4/N/50V/X
C89 10P/4/N/50V/X
C90 10P/4/N/50V/X
C93 10P/4/N/50V
C94 10P/4/N/50V
R154 51.1/6/1
R157 51.1/6/1
R158 51.1/6/1
R159 51.1/6/1
R164 51.1/6/1
R166 51.1/6/1
VCC3
FB4 30/8
0.1U/6/Y/25V
BC134
10U/8/X/6.3V
C C
VCC3
R156
1K/6
Q9
VCORE
B B
R163
8.2K/6
MMBT2222A/SOT23
SOT23
132
BC136
1U/6/Y/10V
VCC3 R152 33/6
R160
1K/6/X
BC130
1U/6/Y/10V
R876
1/6
BC478
10U/8/X/6.3V
CKVDD
-SLP_S3(16,22,28,32,34)
C95
20P/4/N/50V
C96
20P/4/N/50V
14.318MHz/16p/20ppm/H/DIP
BC128
1U/6/Y/10V
BC131
1U/6/Y/10V
BC479
10U/8/X/6.3V
R153
8.2K/6
D4 1N4148/S
SMBDATA(11,12,16,20,22,23,35)
SMBCLK(11,12,16,20,22,23,35)
X2
ICS + CYPRESS CO-LAYOUT
MODE_I
CYPRESS CY28405
FS_CFS_DFS_E
1 1
1 1
1
1
A A
ICS952603
1
1
1
1
1
1
FS_C(2)FS_D(4) FS_3
0
0
0
0
5
0
0
0
0
0
0
0
0
FS_A FS_B
0
1
1
0
FS_A FS_B
Clock
0 100MHz
0 133MHz
1 166MHz
200MHz1
Clock
0 0 100MHz
1 0 133MHz
1 1 166MHz
200MHz10
4
BSEL0 Pull-up at another page.
CKVDD
R167
1K/6
FS_A
FS_A(5,7)
FS_B(5,7)
3
CKVDD
R806 1K/6
R168
1K/6
R810 1K/6
FSA
FSBFS_B
CKVDD
2
R808 8.2K/6
R809 8.2K/6/X
R859 8.2K/6/X
R830 8.2K/6/X
R993 8.2K/6
SEL48
R856 8.2K/6
FS3
R857 8.2K/6
FSC
R858 8.2K/6
FSD
FSE
FSF
MODE
GIGABYTE CORP.
Title
Size Document Number Rev
Custom
星期五, 八月
Date: Sheet of
CLOCK GENERATOR
15, 2003
GA-8ISMJPE-LE 1.03
1
19 40

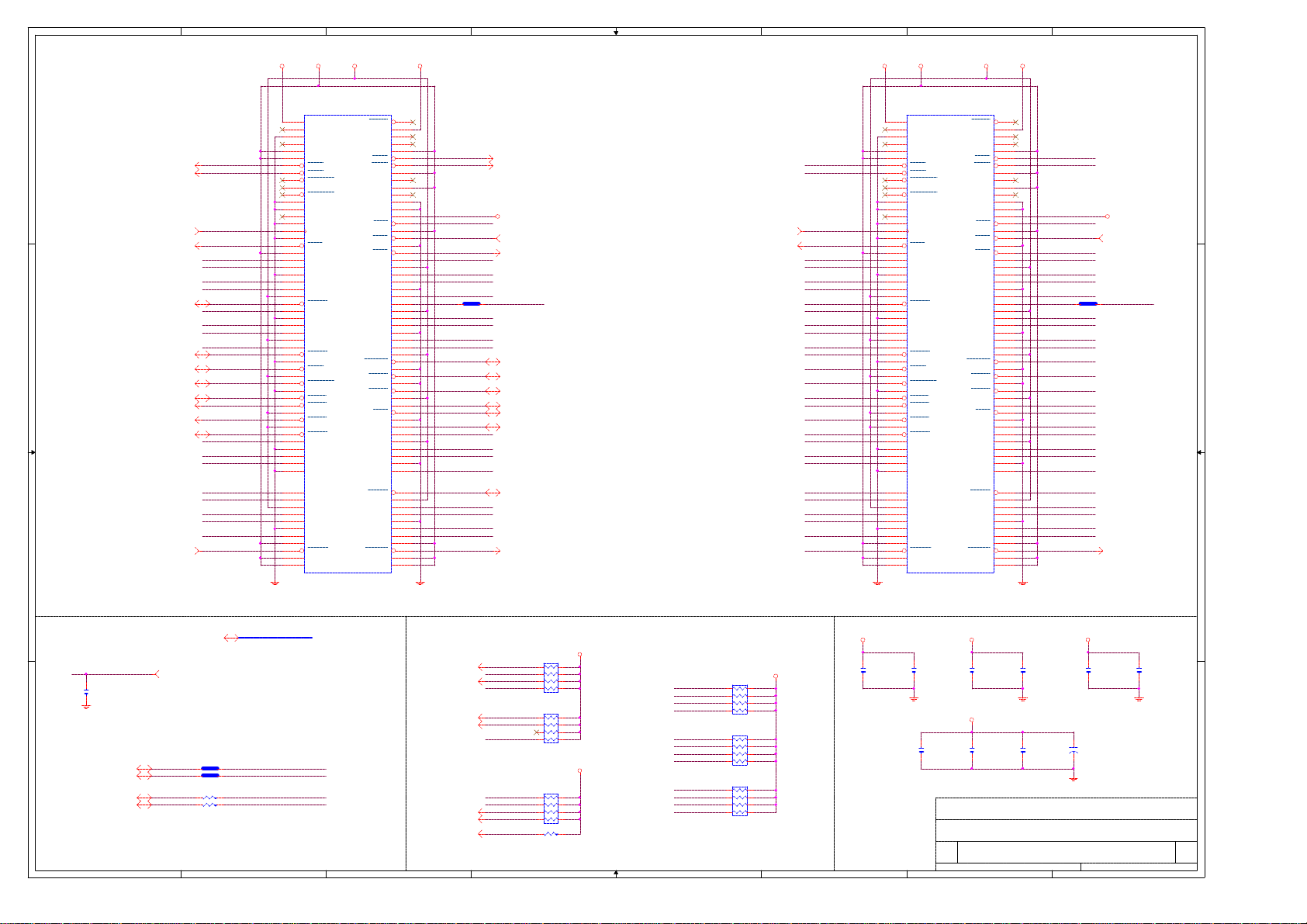

Page 20
8
7
6
5
4
3
2
1
-12V +12VVCC3
VCC
PCI1
B1
-12V
B2
TCK
B3
GND
D D
-PIRQF
-PIRQF(15,21)
-PIRQA(14,15,21)
C C
-DEVSEL(15,21)
-PLOCK(15,21)
-PIRQA
PCLK0
PCLK0(19)
-REQ0
-REQ0(15)
A_D31
A_D29
A_D27 A_D26
A_D25
-C_BE3 A_D16
-C_BE3(15,21)
A_D23
A_D21 A_D20
A_D19
A_D17 A_D16
-C_BE2
-C_BE2(15,21)
-IRDY
-IRDY(15,21)
-DEVSEL
-PLOCK
-PERR PCI_A40
-PERR(15,21)
-SERR
-SERR(15,21)
-C_BE1 A_D15
-C_BE1(15,21)
A_D14
A_D12 A_D11
A_D10
A_D8 -C_BE0
A_D7
A_D5 A_D4
A_D3
A_D1 A_D0
ACK64
B B
ACK64(21)
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
TDO
+5V
+5V
INTB
INTD
PRSNT1
RESERVED
PRSNT2
GND
GND
RESERVED
GND
CLK
GND
REQ
+5V
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE2
GND
IRDY
+3.3V
DEVSEL
GND
LOCK
PERR
+3.3V
SERR
+3.3V
C/BE1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V
ACK64
+5V
+5V
PCI/CO/GF
TRST
+12V
TMS
INTA
INTC
RESERVED
RESERVED
GND
GND
3.3V_AUX
RST
GNT
GND
PME
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3V
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME
GND
TRDY
GND
STOP
+3.3V
SDONE
SBO
GND
PAR
AD15
+3.3V
AD13
AD11
GND
C/BE0
+3.3V
GND
REQ64
+5V
+5V
+5V
+5V
AD9
AD6
AD4
AD2
AD0
+5V
+5V
+5V
A1
A2
A3
A4
TDI
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
-PIRQC
-PIRQC (15,21)
-PIRQG
-PIRQG (15,21)
-PCIRST1
3VDUAL
-GNT0
-PCIPME
A_D30
-PCIPME (14,15,16,21)
A_D28
A_D24
R169 0/6S/X R170 0/6S/X
A_D22
A_D18
-FRAME
-TRDY
-STOP
PCI_A41
PAR
-FRAME (15,21)
-TRDY (15,21)
-STOP (15,21)
PCI_A40 (21)
PCI_A41 (21)
PAR (15,21)
A_D13
A_D9
A_D6
-C_BE0 (15,21)
A_D2
-PCI1_REQ64 ACK64
-PCI1_REQ64 (21) -PCI2_REQ64 (21)
-PIRQG
-PIRQC
PCLK1
PCLK1(19)
-REQ1
-REQ1(15)
A_D31
A_D29
A_D27 A_D26
A_D25
-C_BE3 A_D17
A_D23
A_D21 A_D20
A_D19
A_D17 A_D16
-C_BE2
-IRDY
-DEVSEL
-PLOCK
-PERR PCI_A40
-SERR
-C_BE1 A_D15
A_D14
A_D12 A_D11
A_D10
A_D8 -C_BE0
A_D7
A_D5 A_D4
A_D3
A_D1 A_D0
-12V +12VVCC3
VCC
PCI2
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B47
B48
B49
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
-12V
TCK
GND
TDO
+5V
+5V
INTB
INTD
PRSNT1
RESERVED
PRSNT2
GND
GND
RESERVED
GND
CLK
GND
REQ
+5V
AD31
AD29
GND
AD27
AD25
+3.3V
C/BE3
AD23
GND
AD21
AD19
+3.3V
AD17
C/BE2
GND
IRDY
+3.3V
DEVSEL
GND
LOCK
PERR
+3.3V
SERR
+3.3V
C/BE1
AD14
GND
AD12
AD10
GND
AD8
AD7
+3.3V
AD5
AD3
GND
AD1
+5V
ACK64
+5V
+5V
PCI/CO/GF
TRST
+12V
TMS
+5V
INTA
INTC
+5V
RESERVED
+5V
RESERVED
GND
GND
3.3V_AUX
RST
+5V
GNT
GND
PME
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3V
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME
GND
TRDY
GND
STOP
+3.3V
SDONE
SBO
GND
PAR
AD15
+3.3V
AD13
AD11
GND
AD9
C/BE0
+3.3V
AD6
AD4
GND
AD2
AD0
+5V
REQ64
+5V
+5V
TDI
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
-PIRQF
-PIRQA
-PCIRST1
-GNT1
-PCIPME
A_D30
A_D28
A_D24
A_D22
A_D18
-FRAME
-TRDY
-STOP
PCI_A41
PAR
A_D13
A_D9
A_D6
A_D2
-PCI2_REQ64
3VDUAL
-GNT1 (15)-GNT0 (15)
A_D[0..31](15,21)
-PCIRST1
C97
100P/4/N/50V/X
-PCIRST1 (21,22)
Place close to PCI1
A A
SMBCLK(11,12,16,19,22,23,35)
SMBDATA(11,12,16,19,22,23,35)
SMLINK0(16)
SMLINK1(16)
8
R986 0/6S/X
R987 0/6S/X
R902 0/6/X
R903 0/6/X
A_D[0..31]
7
PCI_A40
PCI_A41
PCI_A40
PCI_A41
VCC
RN73
8.2K/8P4R
-REQ4
-REQ4(15)
-REQ3(15)
-REQ2(15,21)
-REQ1(15)
-GNT2(15,21)
-GNT3(15)
-GNT4(15)
6
1 2
PAR
3 4
-REQ3
5 6
ACK64
7 8
RN75
8.2K/8P4R
-REQ2
1 2
-REQ1
3 4
5 6
-REQ0 -SERR
7 8
VCC
RN109 8.2K/8P4R/X
-GNT1
1 2
-GNT0
3 4
-GNT2
5 6
-GNT3
7 8
-GNT4
R1002 8.2K/6/X
5
-DEVSEL
-TRDY
-IRDY
-FRAME
-PERR
-PLOCK
-STOP
-PIRQC
-PIRQF
-PIRQG
-PIRQA
4
RN72
8.2K/8P4R
1 2
3 4
5 6
7 8
RN74
8.2K/8P4R
1 2
3 4
5 6
7 8
RN76
8.2K/8P4R
1 2
3 4
5 6
7 8
VCC3
-12V
BC137
0.1U/6/Y/25V/X
BC138
0.01U/4/X/16V/X
+12V
BC139
0.1U/6/Y/25V/X
BC140
0.01U/4/X/16V/X
VCC
BC141
0.1U/6/Y/25V/X
BC142
0.1U/6/Y/25V/X
VCC3
BC143
0.1U/6/Y/25V/X
BC144
0.1U/6/Y/25V/X
BC145
0.1U/6/Y/25V/X
+
EC10
1000U/6.3V/8C
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
3
Date: Sheet of
2
15, 2003
PCI SLOT 1, 2
GA-8ISMJPE-LE 1.03
20 40
1
Page 21

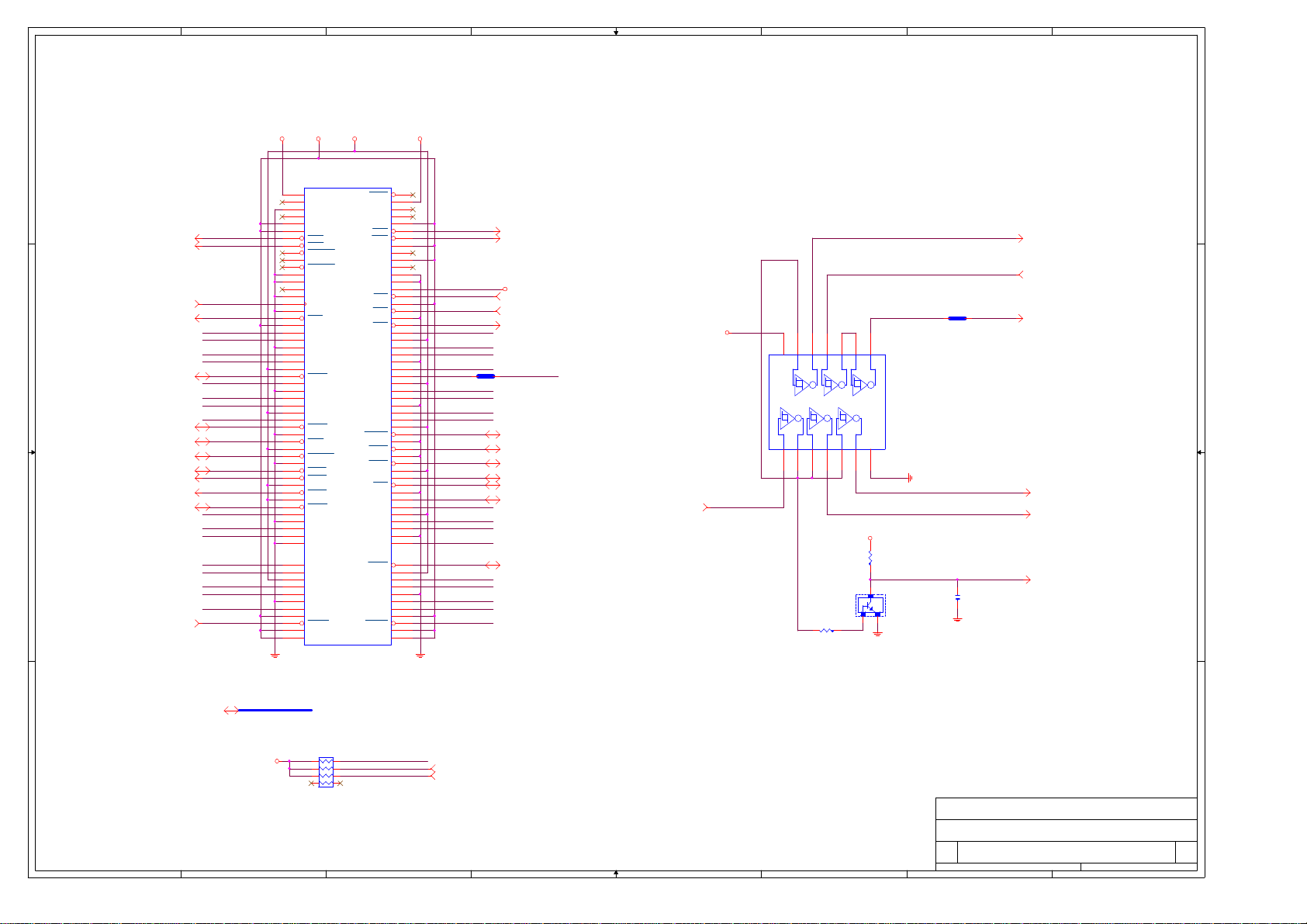

8
7
6
5
4
3
2
1
D D
-PIRQA(14,15,20)
C C
-DEVSEL(15,20)
-PLOCK(15,20)
B B
-PIRQA
-PIRQF
-PIRQF(15,20)
PCLK2
PCLK2(19)
-REQ2
-REQ2(15,20)
A_D31
A_D29
A_D27
A_D25
-C_BE3
-C_BE3(15,20)
A_D23
A_D21
A_D19
A_D17
-C_BE2
-C_BE2(15,20)
-IRDY
-IRDY(15,20)
-DEVSEL
-PLOCK
-PERR
-PERR(15,20)
-SERR
-SERR(15,20)
-C_BE1
-C_BE1(15,20)
A_D14
A_D12
A_D10
A_D8
A_D7
A_D5
A_D3
A_D1
ACK64
ACK64(20)
-12V +12VVCC3VCC
PCI3
B1
-12V
B2
TCK
B3
GND
B4
TDO
B5
+5V
B6
+5V
B7
INTB
B8
INTD
B9
PRSNT1
B10
RESERVED
B11
PRSNT2
B12
GND
B13
GND
B14
RESERVED
B15
GND
B16
CLK
B17
GND
B18
REQ
B19
+5V
B20
AD31
B21
AD29
B22
GND
B23
AD27
B24
AD25
B25
+3.3V
B26
C/BE3
B27
AD23
B28
GND
B29
AD21
B30
AD19
B31
+3.3V
B32
AD17
B33
C/BE2
B34
GND
B35
IRDY
B36
+3.3V
B37
DEVSEL
B38
GND
B39
LOCK
B40
PERR
B41
+3.3V
B42
SERR
B43
+3.3V
B44
C/BE1
B45
AD14
B46
GND
B47
AD12
B48
AD10
B49
GND
B52
AD8
B53
AD7
B54
+3.3V
B55
AD5
B56
AD3
B57
GND
B58
AD1
B59
+5V
B60
ACK64
B61
+5V
B62
+5V
PCI/CO/GF
TRST
+12V
TMS
INTA
INTC
RESERVED
RESERVED
GND
GND
3.3V_AUX
RST
GNT
GND
PME
AD30
+3.3V
AD28
AD26
GND
AD24
IDSEL
+3.3V
AD22
AD20
GND
AD18
AD16
+3.3V
FRAME
GND
TRDY
GND
STOP
+3.3V
SDONE
SBO
GND
PAR
AD15
+3.3V
AD13
AD11
GND
C/BE0
+3.3V
GND
REQ64
+5V
+5V
+5V
+5V
AD9
AD6
AD4
AD2
AD0
+5V
+5V
+5V
A1
A2
A3
A4
TDI
A5
A6
A7
A8
A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A44
A45
A46
A47
A48
A49
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
-PIRQG
-PIRQC
-PCIRST1
-GNT2
-PCIPME
A_D30
A_D28
A_D26
A_D24
R172 0/6S/X
A_D22
A_D20
A_D18
A_D16
-FRAME
-TRDY
-STOP
PCI_A40
PCI_A41
PAR
A_D15
A_D13
A_D11
A_D9
-C_BE0
A_D6
A_D4
A_D2
A_D0
-PCI3_REQ64
-PIRQG (15,20)
-PIRQC (15,20)
3VDUAL
-PCIRST1 (20,22)
-GNT2 (15,20)
-PCIPME (14,15,16,20)
A_D18
-FRAME (15,20)
-TRDY (15,20)
-STOP (15,20)
PCI_A40 (20)
PCI_A41 (20)
PAR (15,20)
-C_BE0 (15,20)
VCC3
141312111098
I5O5I4O4I3
VCC
-PCIRST2
R171
0/S6/X
U15
O3
74HC14
PWOK
PWROK
-PCIRST2 (35)
PWOK (25,28,32,34)
PWROK (7,16,22,28,33)
I0O0I1O1I2O2GND
1234567
FROM ICH5
-PCIRST(9,15,18)
-PCIRST
TO AGP SLOT
TO PCI SLOT
-PCIRST1
-AGPRST (14)
-PCIRST1 (20,22)
5VDUAL
R173
R174
1K/6
Q10
MMBT2222A/SOT23
SOT23
132
-IDERST
C98
1000P/4/X/50V/X
-IDERST (24)
8.2K/6
A_D[0..31](15,20)
A A
8
A_D[0..31]
VCC
7
RN77
1 2
3 4
5 6
7 8
8.2K/8P4R
-PCI3_REQ64
-PCI1_REQ64
-PCI2_REQ64
6
-PCI1_REQ64 (20)
-PCI2_REQ64 (20)
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
5
4
3
Date: Sheet of
2
15, 2003
PCI SLOT 3
GA-8ISMJPE-LE 1.03
21 40
1

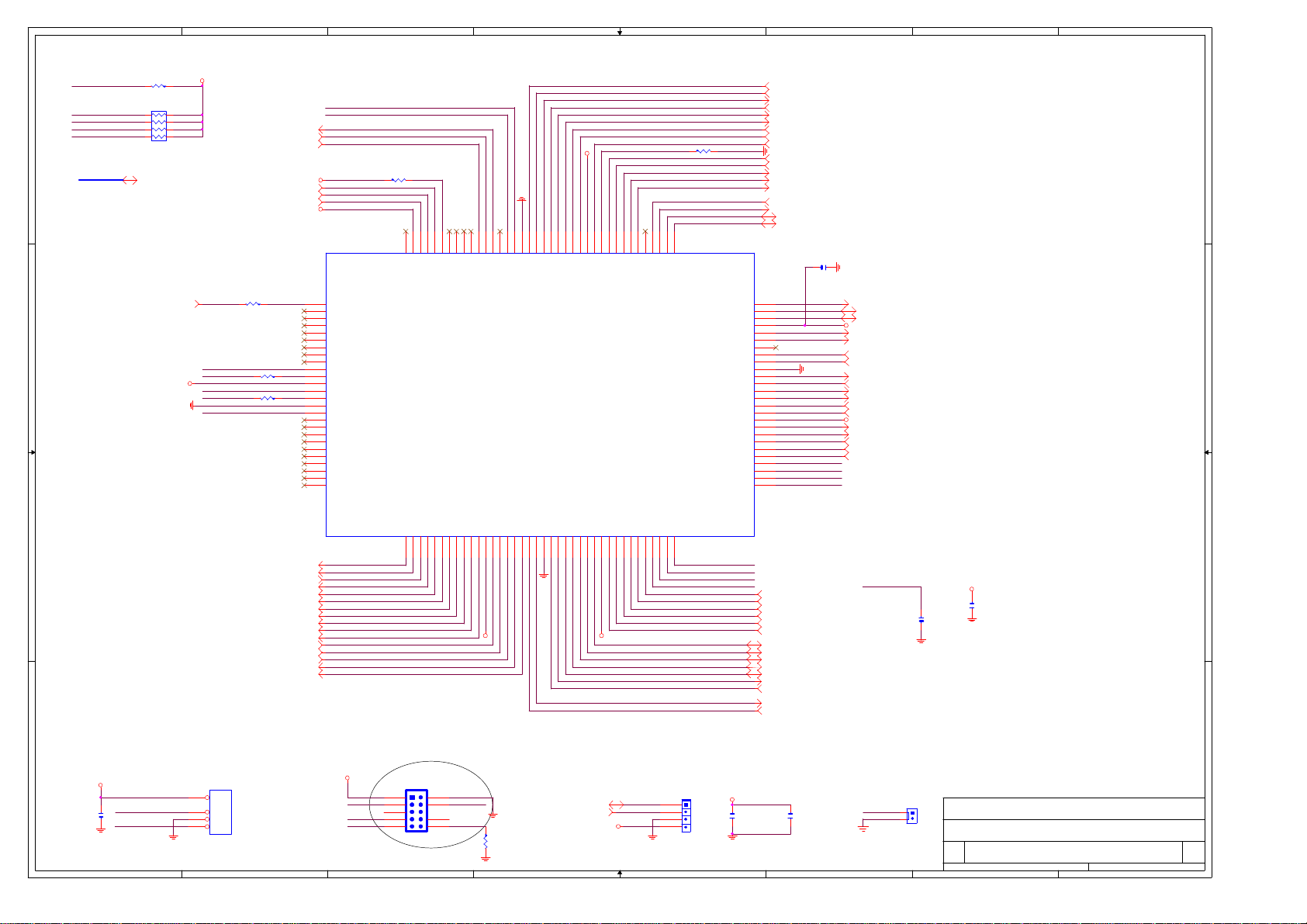

Page 22
8
7
6
5
4
3
2
1
-WPT
R175 470/6
-INDEX
-TRAK0
-RDATA
D D
C C
-DSKCHG
PD[0..7]
PD[0..7] (26)
RN78
470/8P4R
VCC
IRTX
PWRLED(28)
5VDUAL
VID4(5,23,33)
VID3(5,23,33)
VCC
VID2(5,23,33)
VID1(5,23,33)
VID0(5,23,33)
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
IRRX
PWRLED
VID4
VID3
R963 8.2K/6
VID2
VID1
VID0
S5IN#/GP41
STRCTL/GP40
GP56/PVIDLIM1
GP55/VIDO4
GP54/VIDO3
GP53/VIDO2
GP52/VIDO1
GP51/VIDO0
GP50/PVIDLIM0
SCPSNT/GP74
SCIO/GP73
VCC
SCPWR/GP72
SCCLK/GP71
VSS
SCRST#/GP70
MSI/GP20
MSO/IRQIN0
GPSA2/GP17
GPSB2/GP16
GPY1/GP15
GPY2/P16/GP14
GPX2/P15/GP13
GPX1/P14/GP12
GPSB1/P13/GP11
GPSA1/P12/GP10
100
101
102
GP4PWR
GP60/VIDI0
GP42/STREN
XOUT
32KOUT
GP62/VIDI2
GP61/VIDI1
GP57CLK/VIDSEL
VBAT
XIN
PLED/GP23
GP22/VID14
GP21/VID13
WDTO/GP24
VSS
RIB#
IRTX/GP26
IRRX/GP25
DCDB#
SOUTB
SINB
RTSB#
DTRB#
VCC
CTSB#
DSRB#
VCC
SUSCLKIN
CASEOPEN#
-SUSCLK
VBAT
PWROK/GP32
SLP_SX#/GP30
RSMRST#/GP33
PWRCTL#/GP31
R962 8.2K/6
6566676869707172737475767778798081828384858687888990919293949596979899
MDAT
PSIN#
PSOUT#
CIRRX/GP34
MCLK
12
34
56
78
-S4_S5
-S4_S5(16,28,34)
VCC
R904 0/6/X
SCRPSNT
SCRIO
-SCRPWR
SCRCLK
R964 33/6
R965 33/6
SCRRST
-RIB
-DCDB
SOUTB
SINB
-DTRB
-RTSB
-DSRB
-CTSB
VBAT
-SLP_S3
-PS_ON
PWROK
-RSMRST
-PWRBTSW
PWRBTSW
MDAT
MCLK
SUSLED/GP35
KDAT
KCLK
VSB
KBRST
GA20M
KBLOCK#
RIA#
DCDA#
VSS
SOUTA
SINA
DTRA#
RTSA#
DSRA#
CTSA#
VCC
STB#
AFD#
ERR#
INIT#
SLIN#
PD0
PD1
PD2
PD3
-RIB (26)
-DCDB (26)
SOUTB (26)
SINB (26)
-DTRB (26)
-RTSB (26)
-DSRB (26)
-CTSB (26)
VID5 (5,23,33)
VBAT (16)
-SLP_S3 (16,19,28,32,34)
-PS_ON (14,34)
PWROK (7,16,21,28,33)
-RSMRST (16,34,35)
-PWRBTSW (28)
PWRBTSW (16)
MDAT (25)
MCLK (25)
U16
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
BC150
0.1U/4/Y/16V
KDAT
KCLK
-KBRST
A20GATE
-RIA
-DCDA
SOUTA
SINA
-DTRA
-RTSA
-DSRA
-CTSA
-STB
-AFD
-ERR
-INIT
-SLIN
PD0
PD1
PD2
PD3
SUSLED (28)
KDAT (25)
KCLK (25)
5VDUAL
-KBRST (16)
A20GATE (16)
-RIA (26)
-DCDA (26)
SOUTA (26)
SINA (26)
-DTRA (26)
-RTSA (26)
-DSRA (26)
-CTSA (26)
VCC
-STB (26)
-AFD (26)
-ERR (26)
-INIT (26)
-SLIN (26)
DRVDEN0
DRVDEN1/IRQIN1/
INDEX#
MOA#
DSB#
DSA#
MOB#
DIR#
STEP#
WD#
WE#
VCC
TRAK0#
WP#
RDATA#
HEAD#
DSKCHG#
CLKIN
PME#
VSS
PCICLK
LDRQ#
SERIRQ
LAD3
LAD2
LAD1
LAD0
VCC3V
LFRAME#
LRESET#
SLCTPEBUSY
ACK#
PD7
PD6
PD5
PD4
B B
A A
BC152
0.1U/6/Y/25V
VCC
IR/CIR CONNECTOR
IRRX
IRTX
8
IRDA
1
3
4
5
H1x5-2
-DENSEL(26)
-DS1(26)
-INDEX(26)
-MOTEA(26)
-DRVB(26)
-DRVA(26)
-MOTEB(26)
-STEP(26)
-WDATA(26)
-WGATE(26)
-TK00(26)
-WPT(26)
-RDATA(26)
-SIDE1(26)
-DSKCHG(26)
7
-RWC
-DS1
-INDEX
-MOA
-DSB
-DSA
-MOB
-DIR
-DIR(26)
-STEP
-WD
-WE
-TRAK0
-WPT
-RDATA
-HEAD
-DSKCHG
VCC
-SCRPWR
SCRIO
SCRCLK
12345678910111213141516171819202122232425262728293031323334353637
VCC VCC3
SC
1
2
3 4
5
7
9
BOX 2X5-CUT6/BLACK
6
SCRRST
8
SCRPSNT
10
R906
1M/6
SMBDATA(11,12,16,19,20,23,35)
SMBCLK(11,12,16,19,20,23,35)
5VDUAL
5
SMBDATA
SMBCLK
38
SMB_CONN
1
2
3
4
H1X4
4
PD4
PD5
PD6
PD7
-ACK
BUSY
PE
SLCT
-PCIRST1
-LFRAME
LAD0
LAD1
LAD2
LAD3
SERIRQ
-LDRQ0
LPC33
-LPCPME
LPCCLK48
VCC
W83627SF
-ACK (26)
BUSY (26)
PE (26)
SLCT (26)
-PCIRST1 (20,21)
-LFRAME (16,18)
LAD0 (16,18)
LAD1 (16,18)
LAD2 (16,18)
LAD3 (16,18)
SERIRQ (16)
-LDRQ0 (16)
LPC33 (19)
-LPCPME (16)
LPCCLK48 (19)
BC148
0.1U/6/Y/25V
BC149
0.1U/6/Y/25V/X
-PCIRST1
C99
10P/4/N/50V/X
S_IRQ
SERIRQ
1
2
SIRQ/O
3
3VDUAL
BC151
0.1U/6/Y/25V
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
Date: Sheet of
15, 2003
2
W83627SF (LPC I/O)
GA-8ISMJPE-LE 1.03
22 40
1

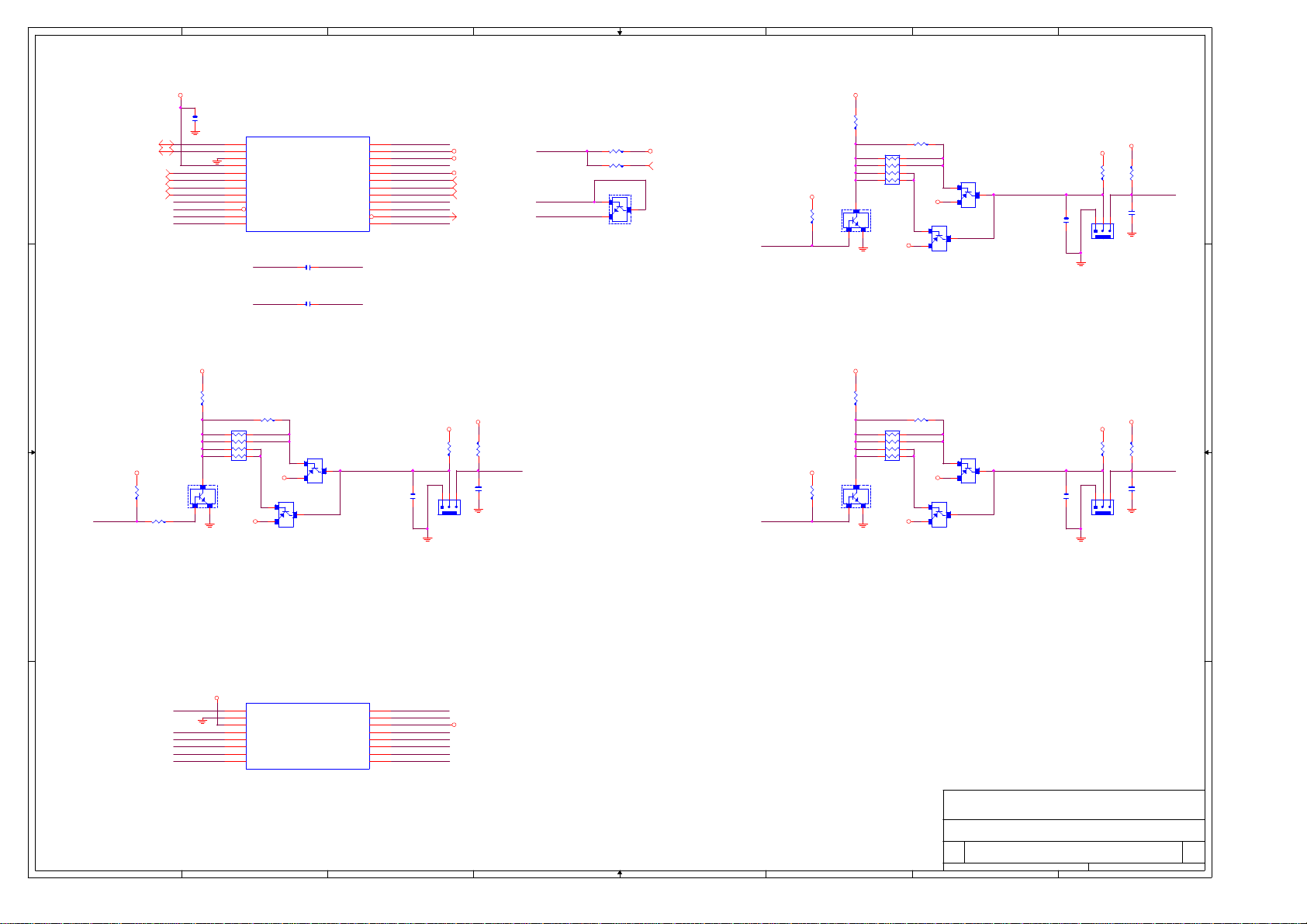

Page 23
8
7
6
5
4
3
2
1
VCC3
LOCATED BETWEEN
BC498
0.1U/6/Y/25V/X
D D
C C
B B
SFAN_PWM
SMBDATA(11,12,16,19,20,22,35)
SMBCLK(11,12,16,19,20,22,35)
VCC3
SMBDATA CFAN_PWM
SMBCLK
VID0
VID0(5,22,33)
VID1
VID1(5,22,33)
VID2
VID2(5,22,33)
VID3(5,22,33)
SFAN_RPM
PFAN_PWM
CFAN_RPM
PFAN_RPM
+12V
R973
1K/6
1K/8P4R
R981
1K/6
R983
8.2K/6
132
Q112
MMBT2222A/SOT23
CPU AND DIMM
U41
1
SDA
2
SCL
3
GND
4
VCC
5
VID0
6
VID1
7
VID2
8
VID3
9
TACH3
11
TACH1
12
TACH2
ADM1027
CPU_TEMP THERMDC
SYS_TEMP SYS_GND
R975 1K/6
RN106
1 2
3 4
5 6
7 8
2
SOT23
+12V
1
TACH4/PROCHOT#
PWM3/ADDRESS_EN#
BC500
2.2N/6/X/50V
BC501
2.2N/6/X/50V
Q110
2
+12V
1
NDS352AP/SOT23
Q114
3
2N2907A/SOT23
PWM1/XTO
VCCP
VID4
3
2.5V
D1+
D2+
24
23
22
+12V_VID5
21
12V
20
5V
VID4
19
CPU_TEMP
18
THERMDCVID3
17
D1-
SYS_TEMP
16
SYS_GND
1510
D2-PWM2/SMBALERT#
-THRMO
14
SFAN_PWM
13
BC502
0.1U/6/Y/25V
VCORE
DDR25V
VCC
VID4 (5,22,33)
CPU_TEMP (5)
THERMDC (5)
-THRMO (16)
+12V
R977
0/6/X
213
CVS
SYS_FAN
FAN1X3/W
VCC3
R978
8.2K/6
SFAN_RPM
C273
1N/4/X/50V
+12V_VID5
SYS_TEMP
SYS_GND
R968 0/6/X
R969 0/6
Q107
2
1
2N3904/SOT23
SOT23
LOCATED BETWEEN
CPU AND AGP SLOT
+12V
VID5 (5,22,33)
3
CFAN_PWM
PFAN_PWM
VCC3
VCC3
R972
8.2K/6
Q108
MMBT2222A/SOT23
R982
8.2K/6
Q113
MMBT2222A/SOT23
+12V
+12V
R966
1K/6
132
R974
1K/6
132
1 2
3 4
5 6
7 8
1K/8P4R
SOT23
1 2
3 4
5 6
7 8
1K/8P4R
SOT23
R967 1K/6
RN105
2
+12V
1
R976 1K/6
RN107
2
+12V
1
Q106
2
+12V
1
NDS352AP/SOT23
Q109
3
2N2907A/SOT23
Q111
2
+12V
1
NDS352AP/SOT23
Q115
3
2N2907A/SOT23
VCC3
+12V
R970
R971
0/6/X
8.2K/6
213
CVS
CPU_FAN
FAN1X3/W
+12V
R979
0/6/X
213
CVS
PWR_FAN
FAN1X3/W
VCC3
CFAN_RPM
C272
1N/4/X/50V
R980
8.2K/6
PFAN_RPM
C274
1N/4/X/50V
3
BC499
0.1U/6/Y/25V
3
BC503
0.1U/6/Y/25V
LOCATED BETWEEN
VCC3
SMBCLK SMBDATA
SFAN_RPM
PFAN_PWM
CFAN_RPM
PFAN_RPM
A A
8
SFAN_PWM
CPU AND DIMM
U42
1
SCL
2
GND
3
VCC
4
TACH3
5
PWM2/SMBALRT#
6
TACH1
7
TACH2
8
PWM3/ADDR_EN#
ADT7460/X
7
PWM1
25V/SMBALRT#
TACH4/THERM#
SDA
D1+
D2+
16
CFAN_PWM
15
14
CPU_TEMP
13
THERMDC
12
D1-
SYS_TEMP
11
SYS_GND
10
D2-
-THRMO
9
6
DDR25V
GIGABYTE CORP.
Title
Size Document Number Rev
B
5
4
3
Date: Sheet of
ADM1027/ADT7463/7460
星期五, 八月
15, 2003
2
GA-8ISMJPE-LE
23 40
1
1.03

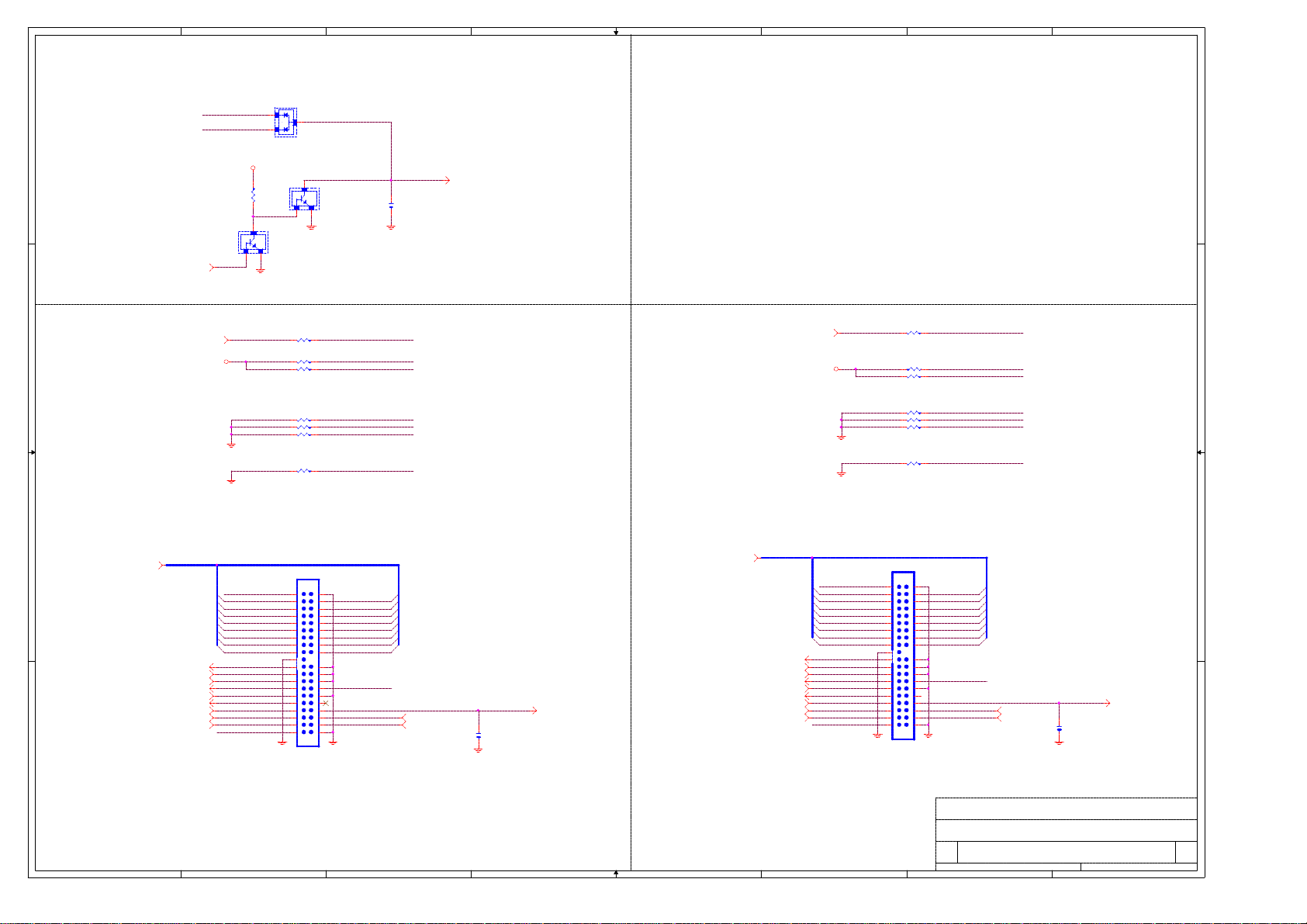

Page 24
8
7
6
5
4
3
2
1
VCC3
132
-IDERST
Q87
SOT23
BAW56
R862
1K/6
Q89
MMBT2222A/SOT23
SOT23
R208 33/6
R210 1K/6
R211 8.2K/6
R215 8.2K/6/X
R217 5.6K/6/X
R219 470/6
R221 15K/6/X
-HDLED
Q88
MMBT2222A/SOT23
SOT23
132
-IDE1RST
PIORDY
IRQ14
PDD7
PDDREQ
IDEPU0
P66DET
C107
180P/4/N/50V/X
-HDLED (28)
-IDERST -IDE2RST
-IDERST(21)
VCC3
R907 33/6
R212 1K/6
R213 8.2K/6
R214 8.2K/6/X
R216 5.6K/6/X
R218 470/6
R220 15K/6/X
SIORDY
IRQ15
SDD7
SDDREQ
IDEPU1
S66DET
-IDEACTS
-IDEACTP
D D
FOR GPO33 SINK
CURRENT < 4mA
C C
GPO33(16)
-IDERST(21)
VCC3
PRIMARY IDE CONNECTOR SECONDARY IDE CONNECTOR
B B
A A
PDD[0..15](16)
8
PDD[0..15]
PDDREQ(16)
-PDIOW(16)
-PDIOR(16)
PIORDY(16)
-PDDACK(16)
IRQ14(16)
PDA1(16)
PDA0(16)
-PCS1(16)
7
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
IDE1
1 2
3 4
5 6
7 8
9 10
IDE/BLUE/11NH3-000220-34
IDE1
-IDE1RST
PDD7 PDD8
PDD6 PDD9
PDD5 PDD10
PDD4 PDD11
PDD3 PDD12
PDD2 PDD13
PDD1 PDD14
PDD0 PDD15
PDDREQ
-PDIOW
-PDIOR
PIORDY IDEPU0
-PDDACK
IRQ14
PDA1
PDA0 PDA2
-PCS1 -PCS3
-IDEACTP
PDA2 (16)
-PCS3 (16)
6
P66DET
C109
0.047U/4/Y/16V
Close to
connector
To ICH5 GPI0
P66DET (18)
5
SDD[0..15](16)
4
SDD[0..15]
SDDREQ(16)
-SDIOW(16)
-SDIOR(16)
SIORDY(16)
-SDDACK(16)
IRQ15(16)
SDA1(16)
SDA0(16)
-SCS1(16)
-IDE2RST
SDD7
SDD6
SDD5
SDD4
SDD3
SDD2
SDD1
SDD0
SDDREQ
-SDIOW
-SDIOR
SIORDY
-SDDACK
IRQ15
SDA1
SDA0
-SCS1
-IDEACTS
3
IDE2
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
IDE/WHITE/11NH3-000220-25
IDE2
SDD8
SDD9
SDD10
SDD11
SDD12
SDD13
SDD14
SDD15
IDEPU1
SDA2
-SCS3
GIGABYTE CORP.
Title
Size Document Number Rev
B
Date: Sheet of
星期五, 八月
2
SDA2 (16)
-SCS3 (16)
IDE CONNECTOR
15, 2003
To ICH5 GPI1
S66DET
S66DET (18)
C108
0.047U/4/Y/16V
Close to
connector
GA-8ISMJPE-LE 1.03
24 40
1

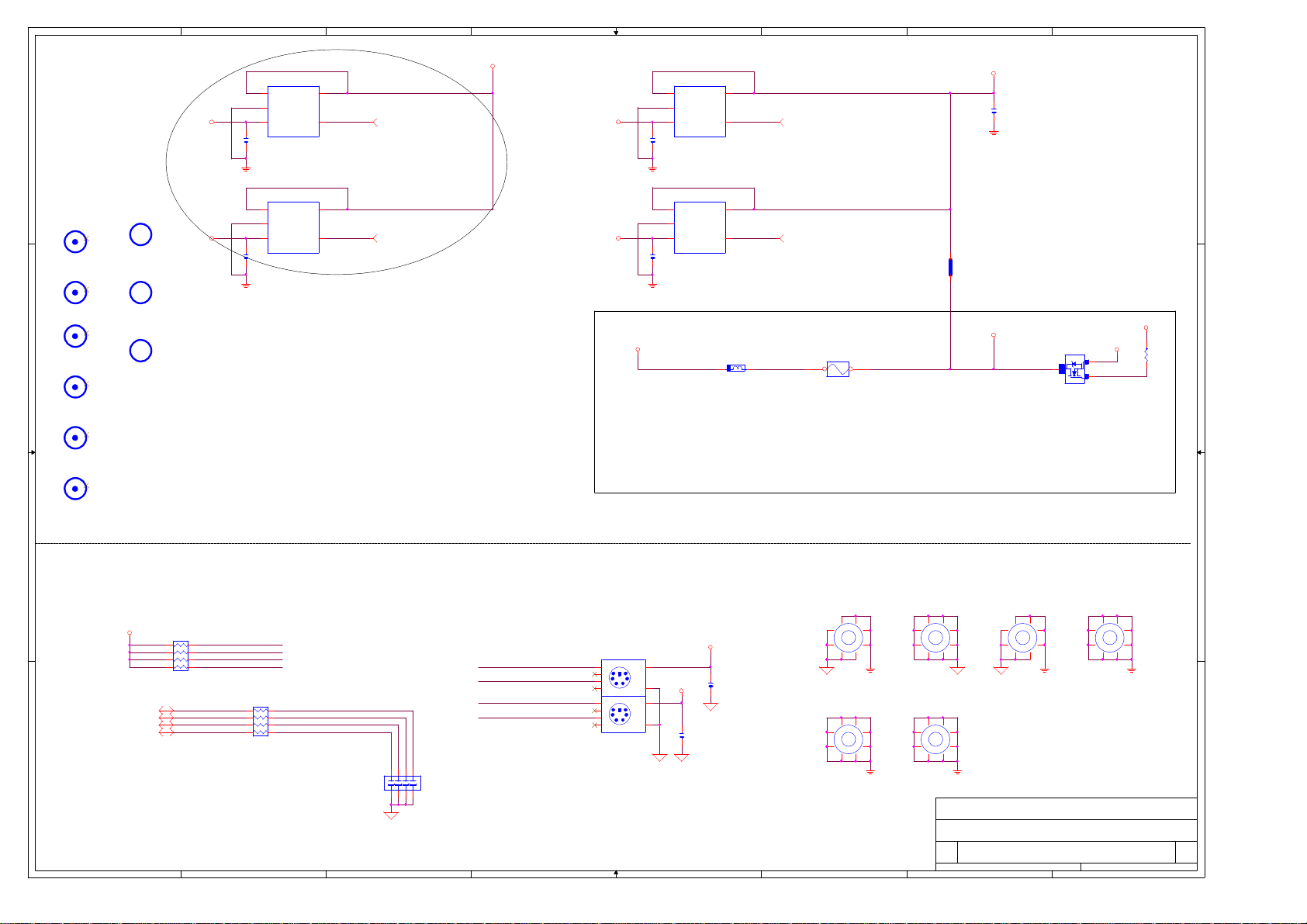

Page 25
8
7
6
5
4
3
2
1
60mil
U43
1
VOUT
2
60mil
VCC
D D
GND
3 4
VIN CE
9701/SOT23-5
BC510
0.1U/4/X/50V/X
5
VOUT
PWOK
PLACE BESIDE REAR USB
PWOK (21,28,32,34)
FUSEVCC
60mil
VCC
60mil
U44
1
K1
1
K_ICT/X
K2
1
K_ICT/X
K3
1
C C
K_ICT/X
K4
1
K_ICT/X
K5
1
K_ICT/X
K6
1
K_ICT/X
I1
60mil
1
HOLD/X
I2
HOLD/X
I3
HOLD/X
1
1
1
1
1
1
1
1
1
1
1
VOUT
2
GND
3 4
VIN CE
9701/SOT23-5
BC511
0.1U/4/X/50V/X
5
VOUT
PWOK
PWOK (21,28,32,34)
PLACE BESIDE REAR USB
CLOSE REAR USB CONNECTOR
60mil
VCCVCC
60mil
U32
1
VOUT
VOUT
2
GND
3 4
VIN CE
9701/SOT23-5
BC454
0.1U/4/X/50V/X
60mil
U33
1
VOUT
VOUT
2
GND
3 4
VIN CE
9701/SOT23-5
BC455
0.1U/4/X/50V/X
CLOSE FRONT USB CONNECTOR
FB100/DIP
CLOSE REAR USB CONNECTOR
5
PWOK
PWOK (21,28,32,34)
PLACE BESIDE F_USB1
5
PWOK
PWOK (21,28,32,34)
PLACE BESIDE F_USB2
FB6
120mil120mil
POLY SW PSR24251 RAY/DIP
F2
2.5A/16V
40mil
12
120mil
FUSEVCC1
40mil
R800
0/S6/X
120mil
FUSEVCC
BC162
1U/6/Y/10V/X
Q19
3
D
2N7002/SOT23
SOT23
1
2
G S
20mil
GVCC5VDUAL
+12V
GR1
1K/6
B B
MH1
2
MH5
3
8
7
6
5
2
3
8
7
6
5
3
FUSEVCC
A A
8
RN83
1K/8P4R
KDAT(22)
KCLK(22)
MDAT(22)
MCLK(22)
MCLK
78
MDAT
56
KCLK
34
12
KDAT
KCLK
MDAT
MCLK
RN84
82/8P4R
7
KBDATA
12
KBCLK
34
MSDATA
56
MSCLK
78
CN31
180P/8P4C
2 1
4 3
6 5
8 7
6
MSDATAKDAT
MSCLK
KBDATA
KBCLK
5
KB_MS
7
8
11
12
MS
1
2
5
6
KB
PS2/P/2/W_SHIELD
10
9
4
3
FUSEVCC
FUSEVCC
BC166
0.1U/6/Y/25V
4
BC165
0.1U/6/Y/25V
4
1
4
1
HOLE_3
HOLE_3
MH2
2
3
8
7
6
5
MH6
2
3
8
7
6
5
GIGABYTE CORP.
Title
Size Document Number Rev
B
Date: Sheet of
4
1
HOLE_3
4
1
HOLE_3
星期五, 八月
MH3
8
7
15, 2003
2
2
3
6
5
PS2 KB & MOUSE
MH4
2
3
8
7
6
5
25 40
1
4
1
HOLE_3
4
1
HOLE_3
GA-8ISMJPE-LE 1.03

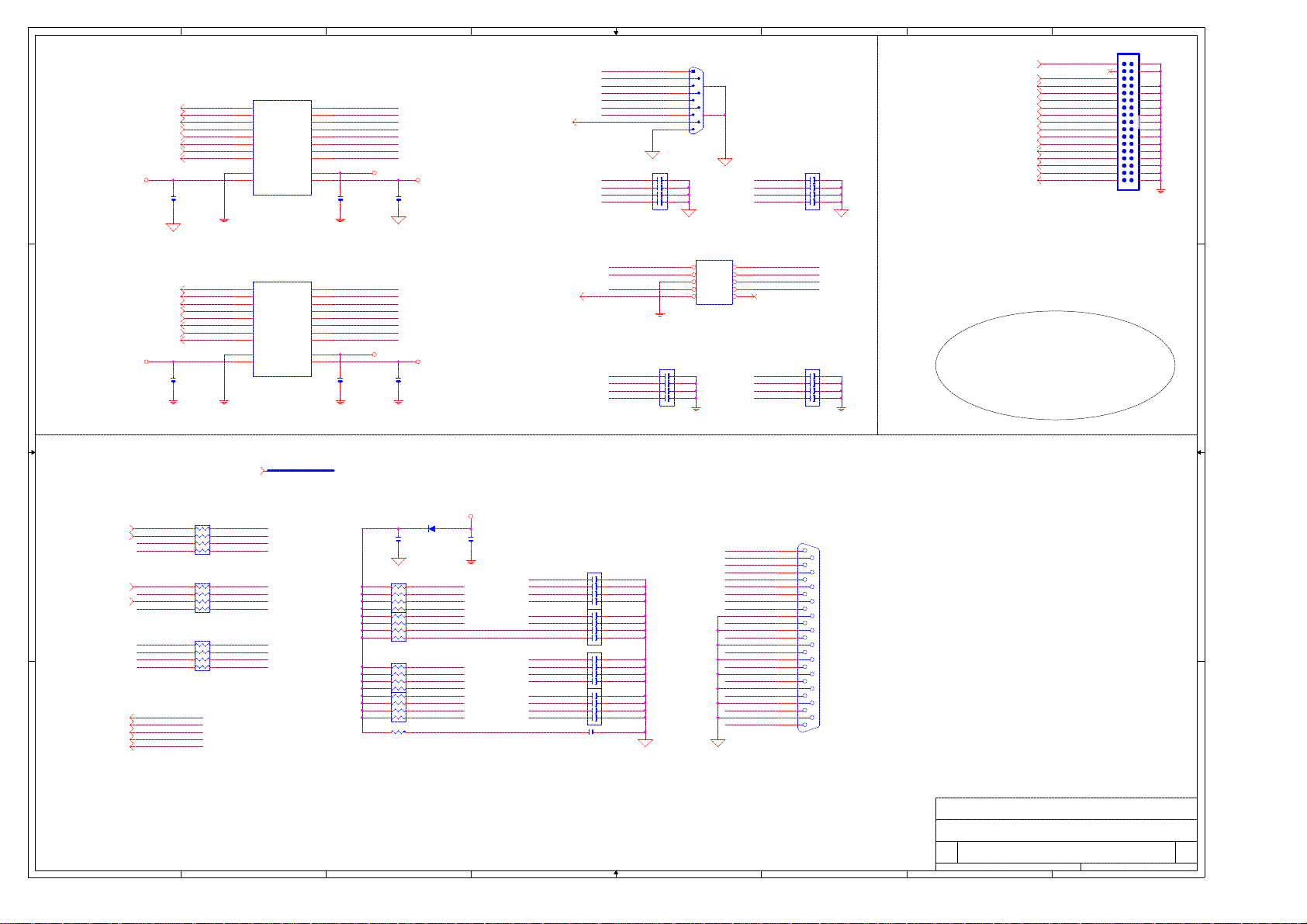

Page 26
8
-RIA
-RIA(22)
-CTSA
-CTSA(22)
-DSRA
-DSRA(22)
-RTSA
-RTSA(22)
-DTRA
-DTRA(22)
-DCDA(22)
SINA(22)
SINA
SOUTA
-DCDA
BC167
0.1U/6/Y/25V
D D
SOUTA(22)
-12V
7
COMA
U17
19
RY1
18
RY2
17
RY3
16
DA1
15
DA2
14
RY4
13
DA3
12
RY5
11
GND
10
-12V
GD75232/TSSOP
RA1
RA2
RA3
DY1
DY2
RA4
DY3
RA5
6
-NRIA
2
-NCTSA
3
-NDSRA
4
-NRTSA
5
-NDTRA
6
NSINA
7
NSOUTA
8
-NDCDA
9
20
5V
1
12V
BC168
0.1U/6/Y/25V
VCC
+12V
BC169
0.1U/6/Y/25V
5
-NDCDA
-NDSRA
NSINA
-NRTSA
NSOUTA
-NCTSA
-NDTRA
-NRIA(28)
-NRIA
-NRIA -NDTRA
-NCTSA
-NDSRA
-NRTSA
CN32
180P/8P4C
87
65
43
21
4
COM1
1
6
2
7
3
8
4
9
5
COM/P
3
FLOPPY
10
11
CN33
180P/8P4C
87
65
43
21
NSINA
NSOUTA
-NDCDA
2
-DENSEL(22)
-MOTEA(22)
-MOTEB(22)
-WDATA(22)
-WGATE(22)
-RDATA(22)
-DSKCHG(22)
-DENSEL
-DS1
-DS1(22)
-INDEX
-INDEX(22)
-MOTEA
-DRVB
-DRVB(22)
-DRVA
-DRVA(22)
-MOTEB
-DIR
-DIR(22)
-STEP
-STEP(22)
-WDATA
-WGATE
-TK00
-TK00(22)
-WPT
-WPT(22)
-RDATA
-SIDE1
-SIDE1(22)
-DSKCHG
1
FDD
12
4
3
6
78
910
1112
1314
1516
1718
19
20
2122
2324
2526
2728
2930
3132
3334
FLOPPY/-pin5/11NH3-000217-13
H2X5/-10/WHITE+9M_CABLE
CN34
21
43
65
87
180P/8P4C
CN36
180P/8P4C
CN37
180P/8P4C
CN38
180P/8P4C
CN39
180P/8P4C
COM2
1 2
3 4
5 6
7 8
9 10
LPT1
LPT14
LPT2
-ERR
LPT3
LPT16
LPT4
LPT17
LPT5
LPT6
LPT7
LPT8
LPT9
-ACK
BUSY
PE
SLCT
NSINB-NDCDB
-NDTRB
-NDSRB
-NCTSB
-NDCDB
NSOUTB
NSINB
1
14
2
15
3
16
4
17
5
18
6
19
7
20
8
21
9
22
10
23
11
24
12
25
13
CN35
180P/8P4C
LPT
LPT/P
21
43
65
87
COMB
PD[0..7](22)
19
18
17
16
15
14
13
12
11
10
LPT1
LPT14
LPT2
LPT3
LPT16
LPT4
LPT17
LPT5
LPT6PD4
LPT9PD7
U18
RY1
RY2
RY3
DA1
DA2
RY4
DA3
RY5
GND
-12V
GD75232/TSSOP
PD[0..7]
RA1
RA2
RA3
DY1
DY2
RA4
DY3
RA5
5V
12V
-NCTSB
3
-NDSRB
4
-NRTSB
5
-NDTRB
6
NSINB
7
NSOUTB
8
-NDCDB
9
20
1
RN87
1K/8P4R
RN88
1K/8P4R
RN90
1K/8P4R
RN91
1K/8P4R
R222
1K/6 C110 180P/4/N/50V
BC171
0.1U/6/Y/25V
VCC
+12V
BC172
0.1U/6/Y/25V
D9
1N4148/S
BC173
0.1U/6/Y/25V
78
56
34
12
78
56
34
12
78
56
34
12
78
56
34
12
LPT16
LPT4
LPT17
LPT5
LPT6
LPT7
-ACK
BUSY
PE
SLCT
LPT14
LPT2
LPT3
-ERR
VCC
BC174
0.1U/6/Y/25V/X
LPT8
LPT9
LPT1
LPT5
LPT17
LPT4
LPT16
LPT6
LPT7
LPT14
LPT2
LPT3
-ERR
-ACK
BUSY
PE
SLCT
-NRIB
2
-NRIB(28)
-RIB
-RIB(22)
-CTSB
-CTSB(22)
-DSRB
-DSRB(22)
-RTSB
-RTSB(22)
-DTRB
-DTRB(22)
SINB
SINB(22)
-DCDB(22)
-ERR
-ACK
BUSY
PE
SLCT
SOUTB
-DCDB
BC170
0.1U/6/Y/25V
RN85
1 2
3 4
5 6
7 8
33/8P4R
RN86
1 2
3 4
5 6
7 8
33/8P4R
RN89
1 2
3 4
5 6
7 8
33/8P4R
SOUTB(22)
C C
B B
A A
-12V
-STB
-STB(22)
-AFD
-AFD(22)
PD0
PD1
-INIT
-INIT(22)
PD2
-SLIN
-SLIN(22)
PD3
PD5 LPT7
PD6 LPT8
-ERR(22)
-ACK(22)
BUSY(22)
PE(22)
SLCT(22)
NSOUTB
-NRTSB
-NRIB
-NRTSB
-NDSRB
-NCTSB
-NRIB -NDTRB
87
65
43
21
21
43
65
87
21
43
65
87
21
43
65
87
GIGABYTE CORP.
Title
Size Document Number Rev
B
8
7
6
5
4
3
Date: Sheet of
COM & IR & LPT PORT &FLOOPY
星期五, 八月
2
15, 2003
GA-8ISMJPE-LE 1.03
26 40
1

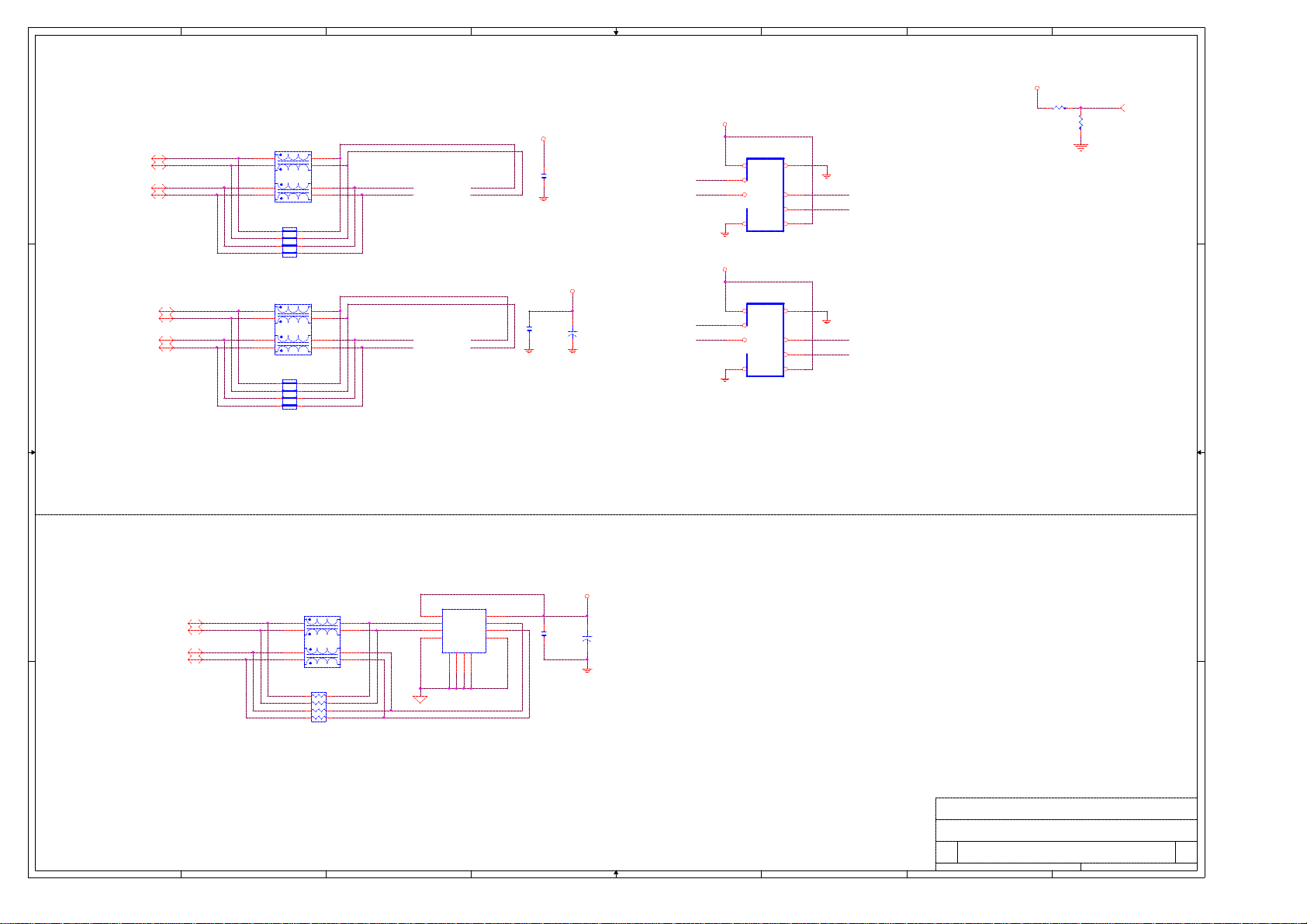

Page 27
8
7
6
5
4
3
2
1
FRONT USB
D D
-USBP3(15)
+USBP3(15)
-USBP2(15)
+USBP2(15)
C C
-USBP3
+USBP3
-USBP2
+USBP2
-USBP1(15)
+USBP1(15)
-USBP0(15)
+USBP0(15)
-USBP1
+USBP1
-USBP0
+USBP0
L9
4 5
3
2
1
OD6560T/S/X
1 2
3
4
5 6
7 8
RN92
0/8P4RS/X
L10
4 5
3
2
1
OD6560T/S/X
1 2
3
4
5 6
7 8
RN93
0/8P4RS/X
6
7
8
6
7
8
ICH5 USB2.0
-FUSB2
-FUSB0 -FUSB1
+FUSB0
-FUSB3
+FUSB3+FUSB2
+FUSB1
FUSEVCC1
0.1U/6/Y/25V
BC176
0.1U/6/Y/25V
BC175
FUSEVCC1
1
+
1000U/6.3V/8C
EC13
FUSEVCC1
-FUSB2
+FUSB2
FUSEVCC1
-FUSB0
+FUSB0
USB3
1 2
3
5 6
8
9 10
PIN HEADER 2X5/-4-7/B
USB4
1 2
3
5 6
8
9 10
PIN HEADER 2X5/-4-7/B
+FUSB3
-FUSB3
+FUSB1
-FUSB1
FUSEVCC1
R863
150K/6
-F_USBOC
R864
270K/6
-F_USBOC (15)
REAR USB
B B
BC177
0.1U/6/Y/25V
5
FUSEVCC
1
+
EC14
1000U/6.3V/8C
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
4
3
Date: Sheet of
2
ICH USB+LAN PORT
15, 2003
GA-8ISMJPE-LE 1.03
27 40
1
-USBP7(15)
+USBP7(15)
-USBP6(15)
+USBP6(15)
A A
8
-USBP7
+USBP7
-USBP6
+USBP6
7
L11
4 5
3
2
1
OD6560T-600/S
RN94
1 2
3 4
5 6
7 8
0/8P4R/X
6
7
8
R_USB
1
3
5
7
6
S1
S2
S3
S4
91011
GGG
2
P1
4
P2
6
P3
8
P4
G
12

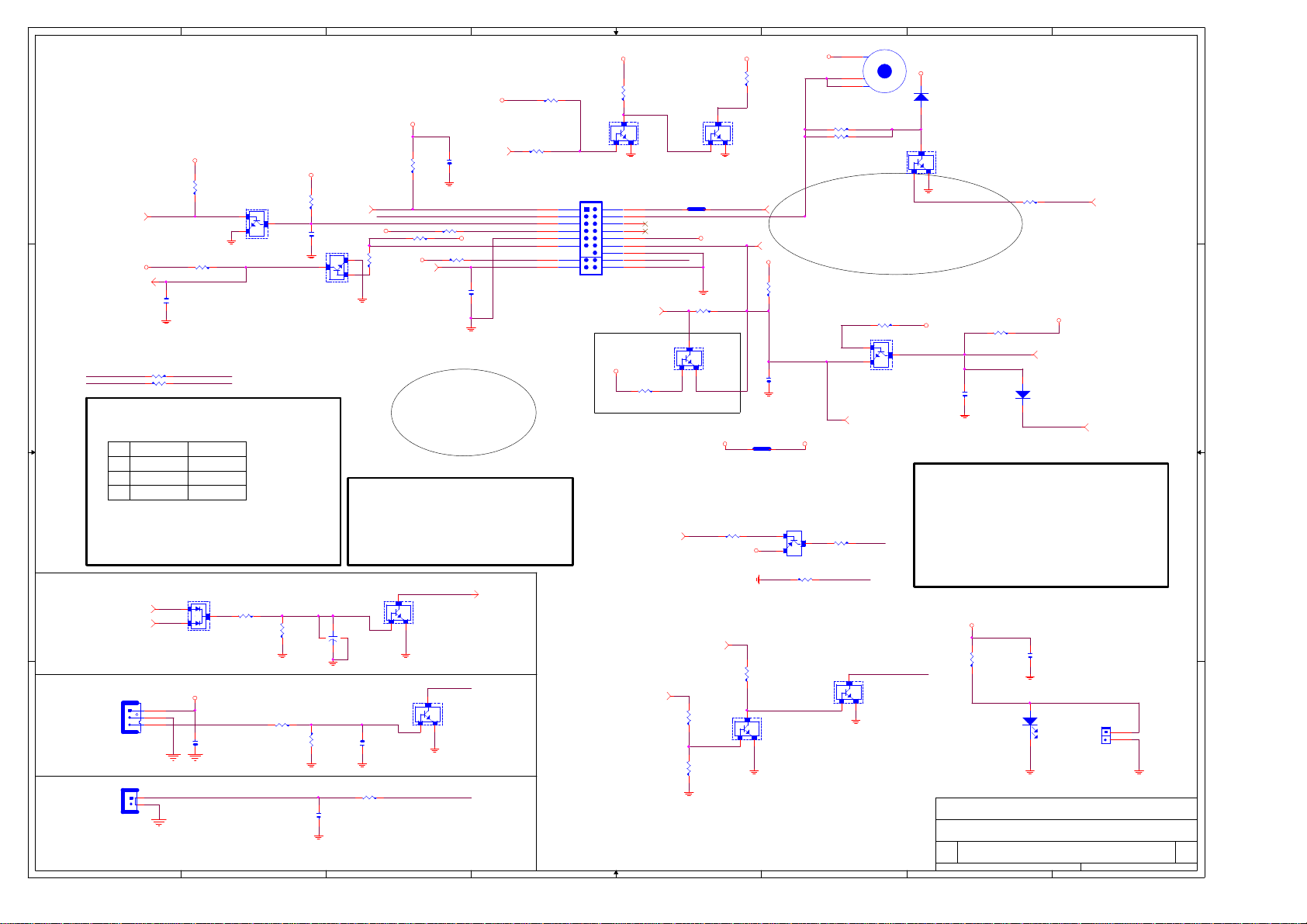

Page 28
8
D D
PWRLED(22)
5VSB
-PWRBTSW(22)
C C
FOR LEGEND FRONT PANEL
-PD_Y
R247 0/6/X
-PLED
R248 0/6/X
Dual-Color Power
LED Status
PD_G-
S0
ON
S1
Blinking
S3
OFF
PVCC
R232
8.2K/6
R242 8.2K/6
-PWRBTSW
C113
0.01U/4/X/16V
-PD_G
-PD_Y
PD_YOFF
OFF
ON
Do not mirror physical package.
LEGEND DUAL COLOR LED
B B
Q90
1
2
1
2
3
2
1
BAV70/SOT23
5VSB
BC180
0.1U/6/Y/25V/X
-NRIA(26)
-NRIB(26)
WOL
WOL1X3/X
A A
WOM
H1X2/WOR/X
8
3
7
Q24
2
3
1
MMBT2222A/SOT23
SOT23
R254
75K/6
7
-PLED
0.01U/4/X/16V
MMBT2222A/SOT23
R255
8.2K/6
R259
8.2K/6/X
5VSB
3
R233
330/6
C111
Q118
1
+
3
R260
8.2K/6/X
R262 1K/6/X
C116
1N/4/X/50V/X
6
5VSB
PVCC
BC178
0.01U/4/X/16V
5VSB
R240 330/6/X
C112
-RI
-RI
Q32
MMBT2222A/SOT23/X
SOT23
132
-RI
SUSLED(22)
-RI (16)
R231
330/6
+HD
5VSB
SOT23
1
2
EC15
22U/D/16V/47/X
BC181
0.1U/6/Y/25V/X
R238 330/6
R989 8.2K/6
R991
5VSB
1K/6
GPI6(16)
180P/4/X/50V/X
LEGEND CONSUMER USE 2X7
(PIN 1~14)
LEGEND COMMERICAL USE 2X9
(PIN 1~18)
Q30
MMBT2222A/SOT23
SOT23
132
6
5
R227
8.2K/6/X
R230
1K/6/X
+HD
-PD_Y
-PD_G
+PD
PW+
11 12
15 16
17 18
5
5VSB
Q21
MMBT2222A/SOT23/X
PANEL
HD+
1 2
3 4
5 6
7 8
9 10
HD-
PD-Y
SPK-
PD-G
NC
PD+
NC
PW-
SPK+
PW+
RST+
RST-
GD+
GD-
GN+
GN-
H2X7[-13]/INSERT 1~14
MMBT2222A/SOT23/X
VCC3
R226
8.2K/6/X
132
14
-SYS_RST(16)
SOT23
Q28
R249
8.2K/6/X
-SLP_S3(16,19,22,32,34)
-HD
-SP
-PD_Y
-HDLED(24)
4
8.2K/6/X
Q22
MMBT2222A/SOT23/X
R235 0/S6/X
PVCC
R244 2.2/6
SOT23
132
VCC
R251 1K/6/X
-S4_S5(16,22,34)
R258
8.2K/6
R261
8.2K/6
4
5VSB
R225
-PD_Y
SOT23
132
-HDLED
-HDLED (24)
+RST (16)
PVCC
R243
1K/6/X
C114
1U/6/Y/10V
R250 0/S6/X
PVCC
HDD LED
Power Control
PVCC
Q29
2
1
2N3906/SOT23/X
R253 0/6/X
R257
8.2K/6
DDR LED CONN
Q33
MMBT2222A/SOT23
SOT23
132
3
VCC
R228 75/6
R229 75/6
R245 8.2K/6
RESET (16)
R252
3
330/6/X
-HD
3
1
BZ
2
3
BZ
BUZZER
2
1
SOT23
+HD
-PD_Y
Q31
MMBT2222A/SOT23
SOT23
132
2
PVCC
D10
1N4148/S
Q23
MMBT2222A/SOT23
SOT23
132
VCC3
3
Q27
MMBT2222A/SOT23
C115
0.1U/4/Y/16V
R234 1K/6
R246 1K/6/X
PWROK
VCC3
PWROK (7,16,21,22,33)
D12
1N4148/S/X
PWOK
GIGABYTE STANDARD
STATUS
S0
S1
S3
S5
GIGABYTE CORP.
Title
Size Document Number Rev
Date: Sheet of
2x7 PIN (PIN 1~14)
POWER LED
ON
OFF
DIMM LED
ON
ONBLINKING
ON
OFFOFF
DIMM LED CONNECTOR DEFAULT EMPTY
DDR25V
R256
150/6/X
DIMM LED
BC179
0.1U/6/Y/25V/X
DIMM_LED
LED/Y/S/X
DIMM_LED_CONN
DIMM LED CONN
PANEL & STR LED & RI
B
星期五, 八月
2
15, 2003
GA-8ISMJPE-LE 1.03
1
SPKR (16)
PWOK (21,25,32,34)
1
2
H1X2/X
28 40
1

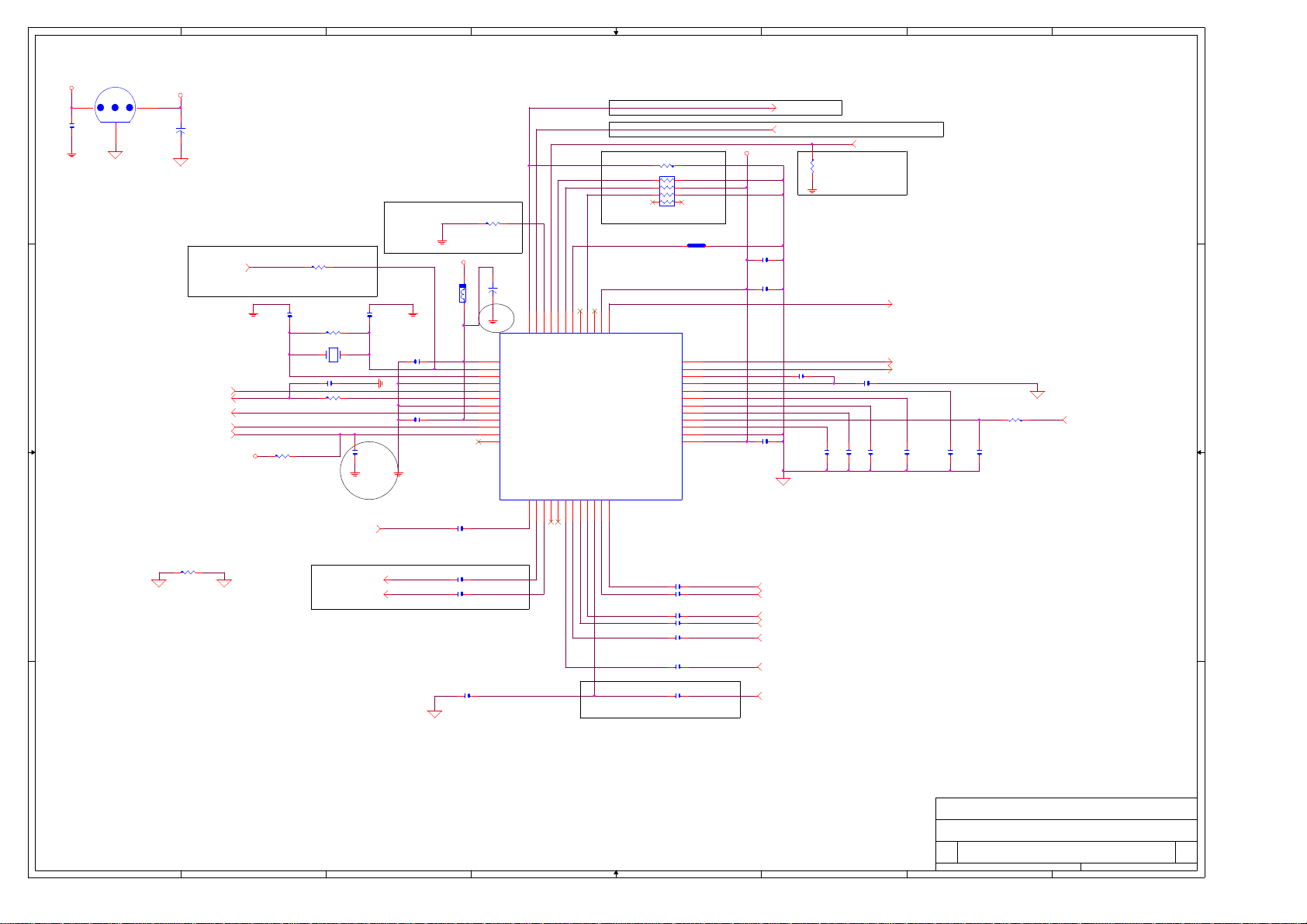

Page 29
8
Q42
+12V
78L05/D
TOP
3
OUTGNDIN
BC182
2
0.1U/6/Y/25V
D D
C C
AVDD
1
1
+
EC16
100U/D/10V/57
AC_SDOUT(15)
AC_BITCLK(15)
AC_SDIN2(15)
AC_SYNC(15)
-AC_RST(15)
B B
R24
2.2/6
7
CODEC14(19)
R1007 0/6/X
FOR ALC202A/ALC650
C117
22P/4/N/50V
24.576M/20p/30ppm/49US/D
3VDUAL
R288
1K/6
TECH. REPORT 130
R284
1M/6
X3
C120 10P/4/N/50V/X
R286 33/6
C289
1N/4/X/50V
MONO_PHONE(31)
AUX_INL(31)
AUX_INR(31)
6
FOR ALC650(EXTERNAL CLK)
R282 0/6/X
VCC3
FB7
BC185
0.1U/6/Y/25V
AUX_INL
AUX_INR
FB30/8/S
C230 0.1U/6/Y/25V
C124 0.1U/6/Y/25V/X
C125 0.1U/6/Y/25V/X
BC196 0.1U/6/Y/25V
C118
22P/4/N/50V
BC186 10N/4/X/16V/X
1
+
EC56
100U/D/10V/57
1
DVDD1
2
XTL_IN
3
XTL_OUT
4
DVSS1
5
SDATA_OUT
6
BIT_CLK
7
DVSS2
8
SDATA_IN
9
DVDD2
10
SYNC
11
RESET#
12
PC_BEEP
5
48
NC
NC
PHONE
AUX_L
TEST5
TEST6
AUX_R
VIDEO_L
TEST1
TEST4
AVSS2
VIDEO_R
CD_LNCCD_R
TEST2
TEST3
MIC1
1314151617181920212223
FOR AD1885
R279 8.2K/6/X
1 2
RN95 0/8P4R/X
3 4
5 6
7 8
R283 0/6S/X
3738394041424344454647
NC
AVDD2
LINE_OUT_R
LINE_OUT_L
MIC2
LINE_IN_L
24
MONO_OUT
LINE_IN_R
NC
NC
VRDA
VRAD
AFILT2
AFILT1
NC
VREF
AVSS1
AVDD1
ALC202A/ALC201A/ALC650
BC192 2.2U/8/Y/16V
BC193 2.2U/8/Y/16V
C126 1U/6/Y/10V
C127 0.1U/6/Y/25V
C128 0.1U/6/Y/25V
C129 0.1U/6/Y/25V
C276 1U/6/Y/10V/X
FOR ALC650
4
SPDIFO
SPDIFI
SPDIFO (30)
SPDIFI (30)
AVDD
BC183
1U/6/Y/10V/X
R1008
8.2K/6/X
3
FOR ALC650 "E"
AGPIO0 (31)
FOR ALC650
2
1
BC184 0.1U/6/Y/25V
MONO_OUT (31)
U19
36
35
34
33
32
31
30
29
28
27
26
25
C119 0.1U/6/Y/25V/X
BC187
0.1U/6/Y/25V
LINE_INR (31)
LINE_INL (31)
MIC1 (31)
CD_R (31)
BC188
2.2U/8/Y/16V
C121 47N/4/Y/16V/X
C122
1N/4/X/50V
C123
1N/4/X/50V
LINE_OUTR (30)
LINE_OUTL (30)
BC189
1U/6/Y/10V
BC190
1U/6/Y/10V
R287 4.7K/6/X
BC191
1U/6/Y/10V
AUD_REF (31)
CDGND (31)
CD_L (31)
MIC2 (31)
A A
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
8
7
6
5
4
3
Date: Sheet of
15, 2003
2
AC97
GA-8ISMJPE-LE 1.03
29 40
1
Page 30

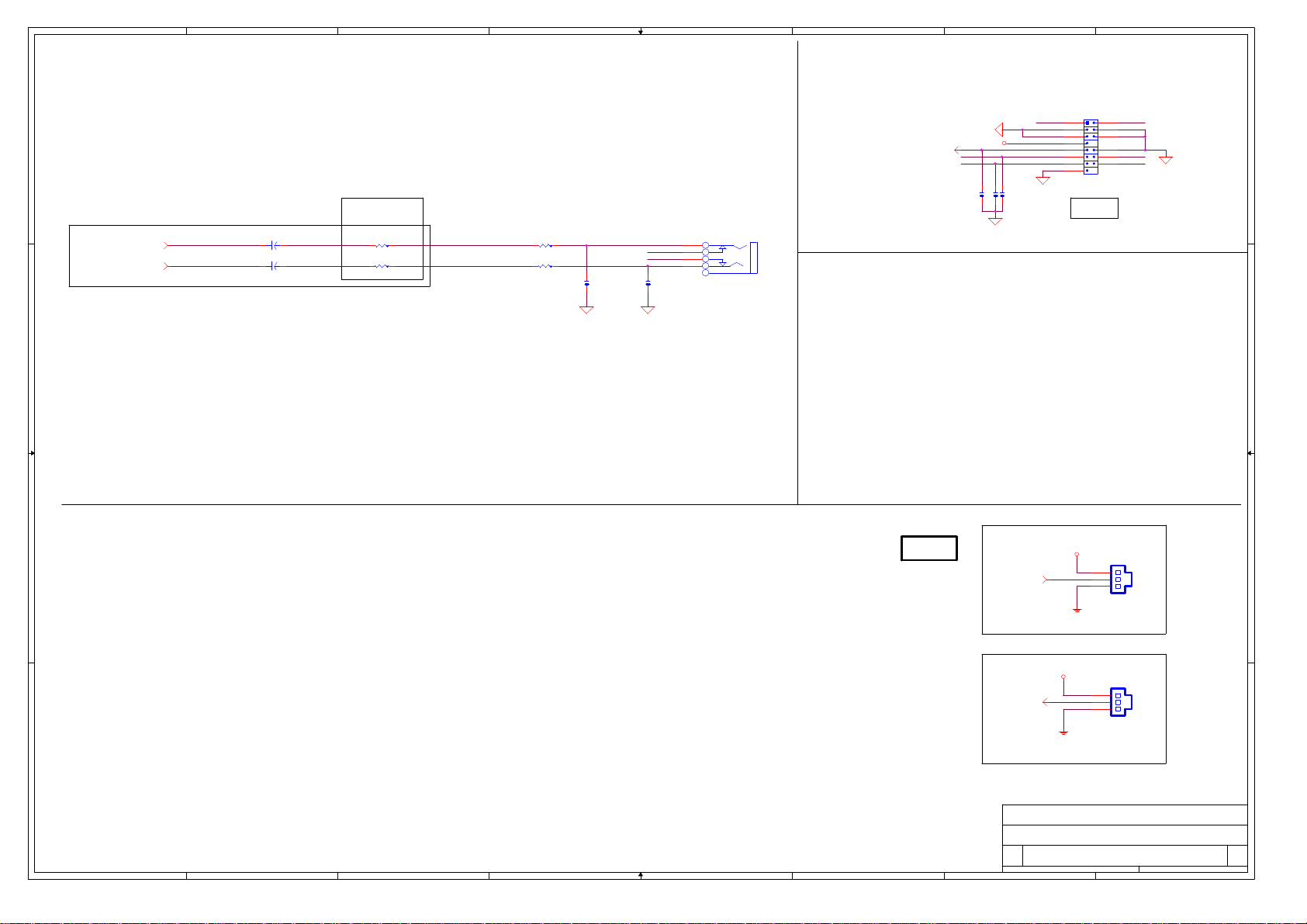

8
D D
FOR ALC202A/650E
LINE_OUTR(29)
LINE_OUTL(29)
C C
LINE_OUTR
LINE_OUTL
7
EC17 100U/D/10V/57
1
+
EC18 100U/D/10V/57
1
+
FOR ALC650
上
22 OHM
R290 0/6
R292 0/6
6
FLOR
R291 0/6/X
FLOL
R293 0/6/X
5
LNR
ALOR
ALOL
LNL
C131
180P/4/X/50V
C132
180P/4/X/50V
B5
B4
B3
B2
AUDIO_B
3RJ+15F
4
3
+12V(Pin 7) At Least 30mil
FOR LEGEND
FR_MIC(31)
180P/4/X/50V/X
C286
+12V
C288
180P/4/X/50V/X
C287
180P/4/X/50V/X
2
FR_MIC
FLOR
FLOL
JP2X8/-8-16/H/JU1x2/11-12/13-14[BL]
F_AUDIO
1
3
5
7
9
11 12
131514
F_AUDIO
1
ALOLALOR
2
4
6
10
LNR
LNL
VCC
VCC
SPDIF_O
1
2
3
BX1x3/11NH5-010103-41/B
SPDIF_IN
1
2
3
BX1x3/0/B/X
B B
SPDIF
SPDIFO(29)
SPDIFI(29)
FOR ALC650 "E"
A A
GIGABYTE CORP.
Title
Size Document Number Rev
Custom
星期五, 八月
8
7
6
5
4
3
Date: Sheet of
2
PHONE JACK, GAME PORT
15, 2003
GA-8ISMJPE-LE 1.03
30 40
1

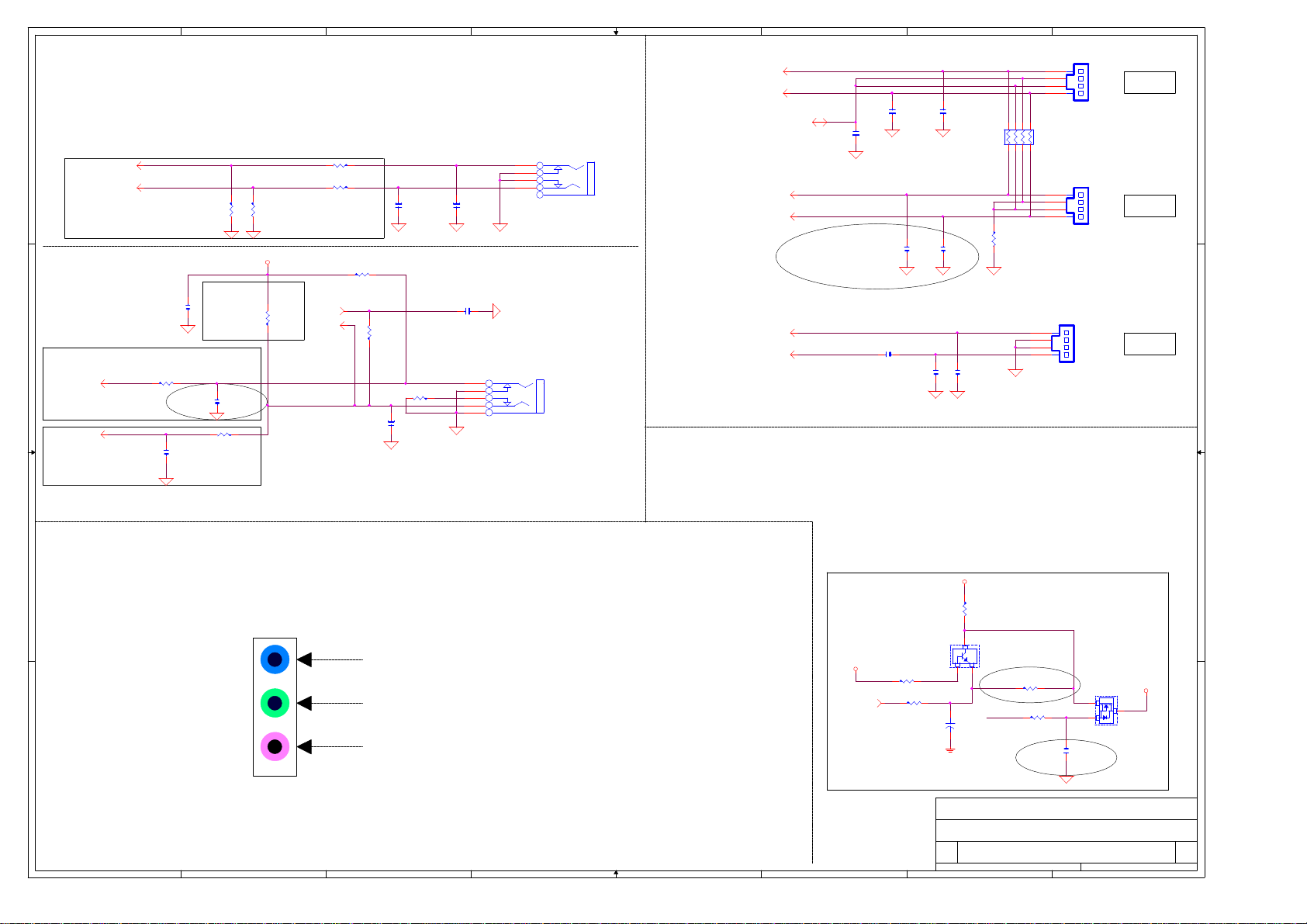

Page 31
8
D D
LINE_INR(29)
LINE_INL(29)
R302
FOR LINE_IN
1U/6/Y/10V
C C
MIC2(29)
1K/6/X
FOR 650 LFE OUT ONLY
MIC1(29)
FOR MIC
8.2K/6/X
C142
R1015
預留不上
R310 1K/6
C148
1N/4/X/50V
7
R303
8.2K/6/X
AVDD
FOR ALC201A MIC
R306
8.2K/6
C278
180P/4/X/50V
R300 8.2K/6
R301 8.2K/6
R305 1K/6/X
AUD_REF(29)
FR_MIC(30)
FR_MIC
6
21
C138
180P/4/X/50V
R307
0/6/X
R309 0/6/X
21
C146
180P/4/X/50V
21
C139
180P/4/X/50V
C143
0.1U/6/Y/25V/X
A5
A4
A3
A2
A1
5
4
LINE-IN CDIN
CD_L(29)
CD_R(29)
CDGND
CDGND(29)
AUDIO_C
C5
C4
C3
C2
3RJ+15F
21
AUDIO_A
3RJ+15F
MH1
AUX_INL(29)
AUX_INR(29)
10K/6 FOR DC LOOP
1000P/6 FOR EMI
MONO_PHONE(29)
MONO_OUT(29)
MONO_PHONE
MONO_OUT
3
C135
8.2K/4
2 1
C137
2 1
8.2K/4
C140
10K/6/X
C231
0.1U/6/Y/25V
C232
1000P/4/X/50V/X
2 1
C136
8.2K/4
C141
10K/6/X
2
C233
1000P/4/X/50V/X
78
R304
0/6/X
123456
RN108
0/8P4R/X
1
2
3
4
WF1x4/G
CD_IN1
1
2
3
4
BX1x4/0/B
CD_IN2
1
2
3
4
BX1x4/0/W/X
MODEM_IN
1
CD_IN1
AUX_IN
TELE
B B
+12V
R1016
47K/6/X
Q119
1
+
EC60
100U/D/10V/57/X
B
星期五, 八月
MMBT2222A/SOT23/X
預留不上
132
R1018 0/6/X
FR_MIC
預留不上
15, 2003
2
AVDD
Q120
G
2
R1020
8.2K/6/X
S
1
2N7002/SOT23/X
C282
1U/6/X
D
3
PHONE JACK
GA-8ISMJPE-LE 1.03
31 40
1
LINE IN(C)
LINE OUT(B)
MIC IN(A)
A A
AUDIO PANEL
8
7
6
5
4
VCC3
R1017 8.2K/6/X
AGPIO0(29)
FOR ALC650
6 CHANNEL
3
R1019 100/6/X
GIGABYTE CORP.
Title
Size Document Number Rev
Date: Sheet of
Page 32

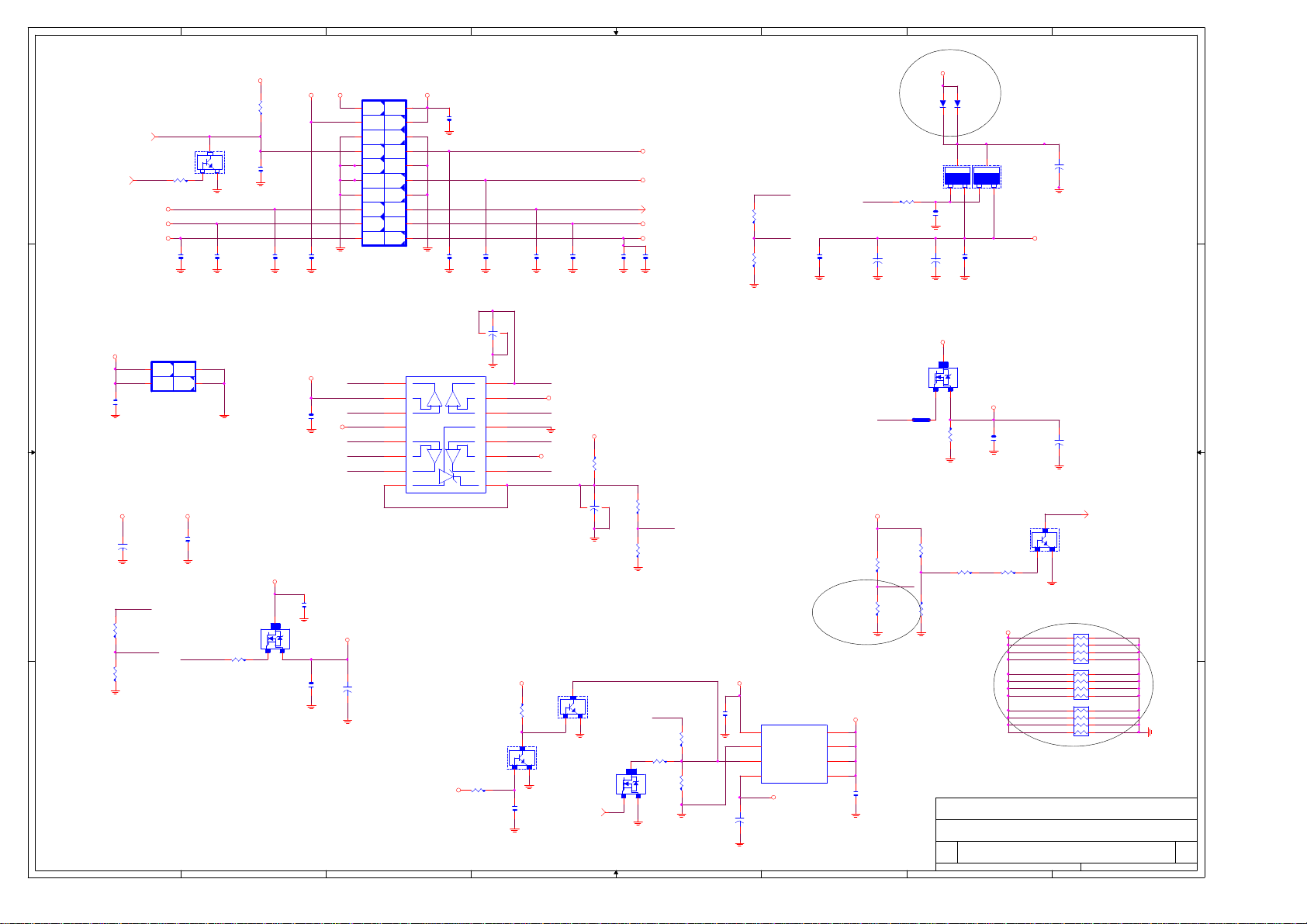

8
7
6
5
4
3
2
1
ATX POWER CONNECTOR
5VSB
R316
470K/6
D D
C C
B B
A A
-ATX_PS_ON(14)
-SLP_S3(16,19,22,28,34)
V12
8
BC211
0.1U/6/Y/25V
VCC
+
TSM_89
R331
665/6/1/X
R333
1K/6/1/X
Q48
MMBT2222A/SOT23/X
R319
-SLP_S3
4.7K/6/X
-5V
VCC
VCC
BC201
0.1U/6/Y/25V
ATX12V
4
GND
+12V
GND+12V
ATX12V
VCC3
EC28
1000U/6.3V/8C/X
TSM_12
132
BC202
0.1U/6/Y/25V
1
23
C156
4.7U/8/Y/10V/X
TSM_10
R332
1K/6/X
BC200
0.1U/4/Y/16V
BC203
0.1U/6/Y/25V
BC210
0.01U/4/X/16V
VCC3
3
D
G S
2
7
1
-12V
BC204
0.1U/6/Y/25V
VCCVID
+12V
C157
0.1U/6/Y/25V/X
Q52
2N7002/SOT23/X
C158
0.01U/4/X/16V/X
VCC3
ATX_POWER
11
3.3V
12
-12V
13
GND
14
PSON
15
GND
16
GND
17
GND
18
-5V
19
5V
20
5V
TSM_1
TSM_3
TSM_5
TSM_6
TSM_7
VDD_1_7V=1.5 V
VDD_1_7V
EC29
1
100U/D/10V/57/X
+
3.3V
3.3V
GND
GND
GND
POK
5VSB
12V
ATXPWR
5V
5V
6
VCC3
1
BC199
2
0.1U/6/Y/25V
3
4
5
6
7
8
9
10
BC205
0.1U/6/Y/25V
U21
1
2
+ +
3
VCC+ VCC-
4
5
-
6
7
8 9
TSM104/A/S
MMBT2222A/SOT23
VCORE
BC206
0.1U/6/Y/25V
BC207
0.1U/6/Y/25V
EC25
1
100U/D/10V/57
+
3
16
--
15
14
13
++
12
-
11
10
TSM_16
TSM_14
TSM_12
TSM_10
TSM_89
VDD_1_7V
100U/D/10V/57
POWER SEQUENCE
VCC
R870
15K/6
R871
47K/6
1U/6/Y/10V
Q93
C216
SOT23
132
5
VDDQ
2N7002/SOT23
BOOTSEL12(33)
PWOK
BC208
0.1U/6/Y/25V
5VSB
1
+
3
EC27
Q92
MMBT2222A/SOT23
SOT23
132
Q53
R325
220/6
BC209
0.1U/6/Y/25V
3
D
G S
2
1
VCC
VCC
PWOK (21,25,28,34)
5VSB
+12V
C155
0.1U/6/Y/25V
R321
1.07K/6/1
TSM_3
R323
1K/6/1
TSM_89
R334
1.54K/6/1
R335
5.1K/6/1
R336
2.21K/6/1
4
VCC3
+
1
TSM_89
R868
665/6/1
TSM_14
R869
1K/6/1
BC213
0.1U/6/Y/25V
U22
1
VIN
2
GND
3
REFEN
4
VOUT
RT9173-CS/S
VTT_GMCH
EC30
1000U/6.3V/8C
C153
0.1U/6/Y/25V
CLOSE PWM
MOS
VCC3
8
VCNTL
7
VCNTL
6
VCNTL
5
VCNTL
NWD=1.45 V
PSC=1.225 V
3
TSM_16
1
+
EC23
1000U/6.3V/8C
TSM_1
VCC
C159
0.1U/6/Y/25V
0.1U/6/Y/25V
1000U/6.3V/8C
R328
10K/6/1
TSM_6
RS2
HR10K/6
DDR25V
D26
1N5820/S
APM3055/TO252
R318
100/6
C152
EC24
R322
0/6S/X
D27
1N5820/S
Q47
APM3055/TO252
2
1
3
2N7002/SOT23
1
R324
100/6/X
R326
8.2K/6/X
B
2
3
1
C154
0.1U/6/Y/25V
Q49
VCCVID
TSM_7
星期五, 八月
2
3
BC212
4.7U/8/Y/10V
R329
8.2K/6
VCC3
15, 2003
Q46
1
+
VCC3
D
G S
2
R327
604/6/1
TSM_5
R330
10K/6/1
GIGABYTE CORP.
Title
Size Document Number Rev
Date: Sheet of
THERMAL
ISSURE
2.6V/6.6A
1
EC22
+
100U/D/10V/57
VDDQ
VCCVID=1.2V
1
+
EC26
100U/D/10V/57
-PROCHOT
Q51
MMBT2222A/SOT23
SOT23
132
7 8
RN110 120/8P4R
5 6
3 4
1 2
7 8
RN111 120/8P4R
5 6
3 4
1 2
7 8
RN112 120/8P4R
5 6
3 4
1 2
Misc. PWR & ATX CONN.
GA-8ISMJPE-LE 1.03
-PROCHOT (5,7)
32 40
1

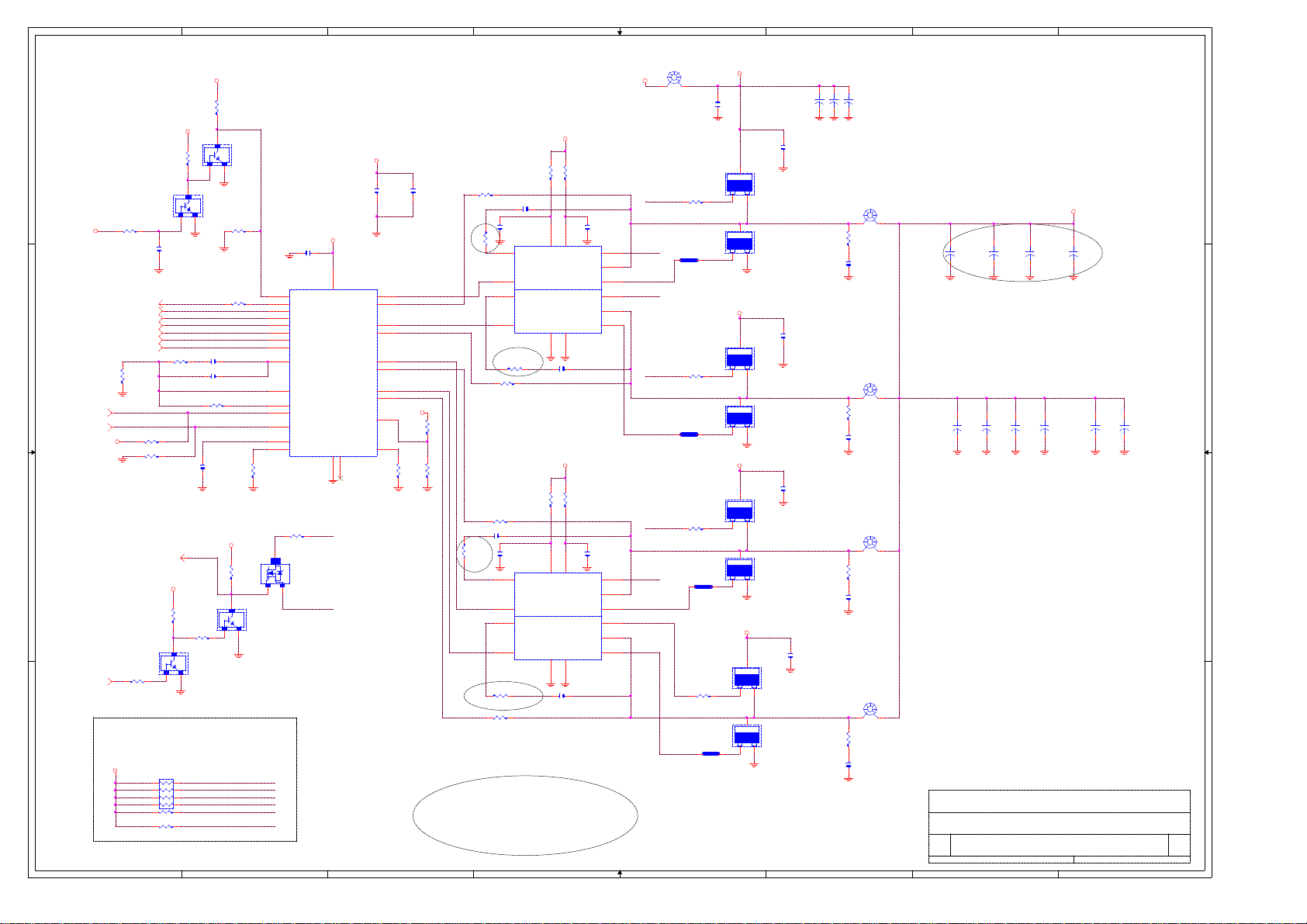

Page 33
8
7
6
5
4
3
2
1
L12
+12V
R872
8.2K/6
+12V
D D
MMBT2222A/SOT23
R874 8.2K/6
VCCVID
C C
VCC_SENSE(5)
VSS_SENSE(5)
VCORE
Q95
PWROK(7,16,21,22,28)
VID4(5,22,23)
VID3(5,22,23)
VID2(5,22,23)
VID1(5,22,23)
VID0(5,22,23)
VID5(5,22,23)
R347
100K/6/X
R356 100/6
R357 100/6
R873
8.2K/6
BC477
1U/6/Y/10V/X
PWROK
VID4
VID3
VID2
VID1
VID0
VID5
R346
30K/6/1
C167
470P/4/50V/X
A
MMBT2222A/SOT23
132
R350 5.6K/6/1
Differential Pair 10 mil
R371
8.2K/6
BOOTSEL12(32)
5VSB
R369
1K/6
R370
8.2K/6
Q63
MMBT2222A/SOT23
SOT23
132
B B
BOOTSEL(4)
PWR SEQUENCE
SOT23
132
Q94
SOT23
R908
4.7K/6
R345 2.2/6
COMP
C165
5600P/4/X/16V
FB
B
C169
0.01U/4/X/16V
+12V
R366
8.2K/6
Q62
MMBT2222A/SOT23
SOT23
132
R358
150K/6
3
D
G S
2
BC216
1U/6/Y/10V
U24
ISL6556B
27
EN
2
PGOOD
3
VID4
4
VID3
5
VID2
6
VID1
7
VID0
8
VID12.5
13
COMP
12
FB
14
VDIFF
15
VSEN
16
RGND
11
REF
28
FS
R365
20K/6/1
Q60
2N7002/SOT23
1
CLOSE PWM
V12
VCC
VCC
R338
R340 3.9K/6
BC505
BC504
10U/8/X/6.3V
10U/8/Y/6.3V/X
R1025
2.2/6
26
PWM2
VCC
ISEN2
PWM1
ISEN1
PWM3
ISEN3
PWM4
ISEN4
OFS
TCOMP
OVP
GND
1
17
R359
6.8K/6/1
PWM1
22
ISEN1
23
PWM2
21
ISEN2
20
PWM3
18
ISEN3
19
PWM4
25
ISEN4
24
VCC
9
R354
2M/6
R349 3.9K/6
10
R360
2K/6/X
C161 0.1U/6/Y/25V
C162
1U/8/Y/25V
U23
11
BOOT1
1
PWM1
10
BOOT2
2
PWM2
HIP6602B/SO14
R1026
2.2/6
4.7/6
R361
4.7/6
R339
4.7/6
C163
1U/8/Y/25V
5
14
UGATE1
VCC
PVCC
PHASE1
LGATE1
UGATE2
PHASE2
LGATE2
GND
PGND
3
6
C166 0.1U/6/Y/25V
V12
R362
4.7/6
12
13
4
9
8
7
R363 4.3K/6
A
B
C170 0.1U/6/Y/25V
R1027
2.2/6
B_DR
C171
1U/8/Y/25V
U25
11
BOOT1
1
PWM1
10
BOOT2
2
PWM2
HIP6602B/SO14
V_DR2 V_DR1
14
VCC
GND
3
UGATE1
PVCC
PHASE1
LGATE1
UGATE2
PHASE2
PGND
LGATE2
6
12
13
4
9
8
7
C172
1U/8/Y/25V
5
R1028 2.2/6 C174 0.1U/6/Y/25V
2.8uH/D/20A/3P
V12
2.2U/8/Y/16V
PHD66NQ03LT/TO252
UG1
R341 4.7/6
PH1
UG1
R344 0/6S/X
LG1
UG2
PHD66NQ03LT/TO252
UG2
R348 4.7/6
PH2
LG2
R355 0/6S/X
PHD66NQ03LT/TO252
UG3
R364 4.7/6
PH3
UG3
R368 0/6S/X
LG3
UG4
LG4
R372 4.7/6
R373 3.3K/6
CPU Voltage ID output
A A
VCC3
RN97 1K/8P4R
1 2
3 4
5 6
7 8
R376 1K/6
R377 1K/6
8
VID3
VID2
VID1
VID0
VID4
VID5
7
6
5
R375 0/6S/X
C160
PHD98N03LT/TO252
PH4
PHD98N03LT/TO252
4
VIN
1500U/D/16V/AK
Q54
2
1
3
2
Q56
PHD98N03LT/TO252
1
3
VIN
Q57
2
1
3
2
Q58
1
3
PHD98N03LT/TO252
VIN
Q59
2
1
3
2
Q61
1
3
VIN
Q64
2
PHD66NQ03LT/TO252
1
3
2
Q65
1
3
EC31
BC214
1U/8/Y/25V
BC217
1U/8/Y/25V
BC218
1U/8/Y/25V
BC219
1U/8/Y/25V
EC33
EC32
1
1
1
+
+
+
1500U/D/16V/AK
1500U/D/16V/AK
0.6UH/D/V/20A/3P/5mm
L13
R343
2.2/6
C164
0.01U/4/X/16V
0.6UH/D/V/20A/3P/5mm
L14
R352
2.2/6
C168
0.01U/4/X/16V
0.6UH/D/V/20A/3P/5mm
L15
R367
2.2/6
C173
0.01U/4/X/16V
0.6UH/D/V/20A/3P/5mm
L16
R374
2.2/6
C175
0.01U/4/X/16V
3
VCORE
1
1
1
+
+
EC36
1800U/6.3V/8K/RUBY
EC43
1800U/6.3V/8K/RUBY
1
EC40
1
EC42
+
+
560U/4V/8C/PSA/CHEMI-CON
1800U/6.3V/8K/RUBY
560U/4V/8C/PSA/CHEMI-CON
+
EC37
1800U/6.3V/8K/RUBY
1
EC44
+
EC41
1800U/6.3V/8K/RUBY
+
EC63
3300U/D/6.3V/AP/RUBY
1
+
1
1
1
+
+
EC35
1800U/6.3V/8K/RUBY
EC45
560U/4V/8C/PSA/CHEMI-CON
GIGABYTE CORP.
Title
Vcore PWM HIP6302CB & DRIVER HIP6602CB
Size Document Number Rev
Custom
星期五, 八月
Date: Sheet of
15, 2003
2
GA-8ISMJPE-LE 1.03
33 40
1

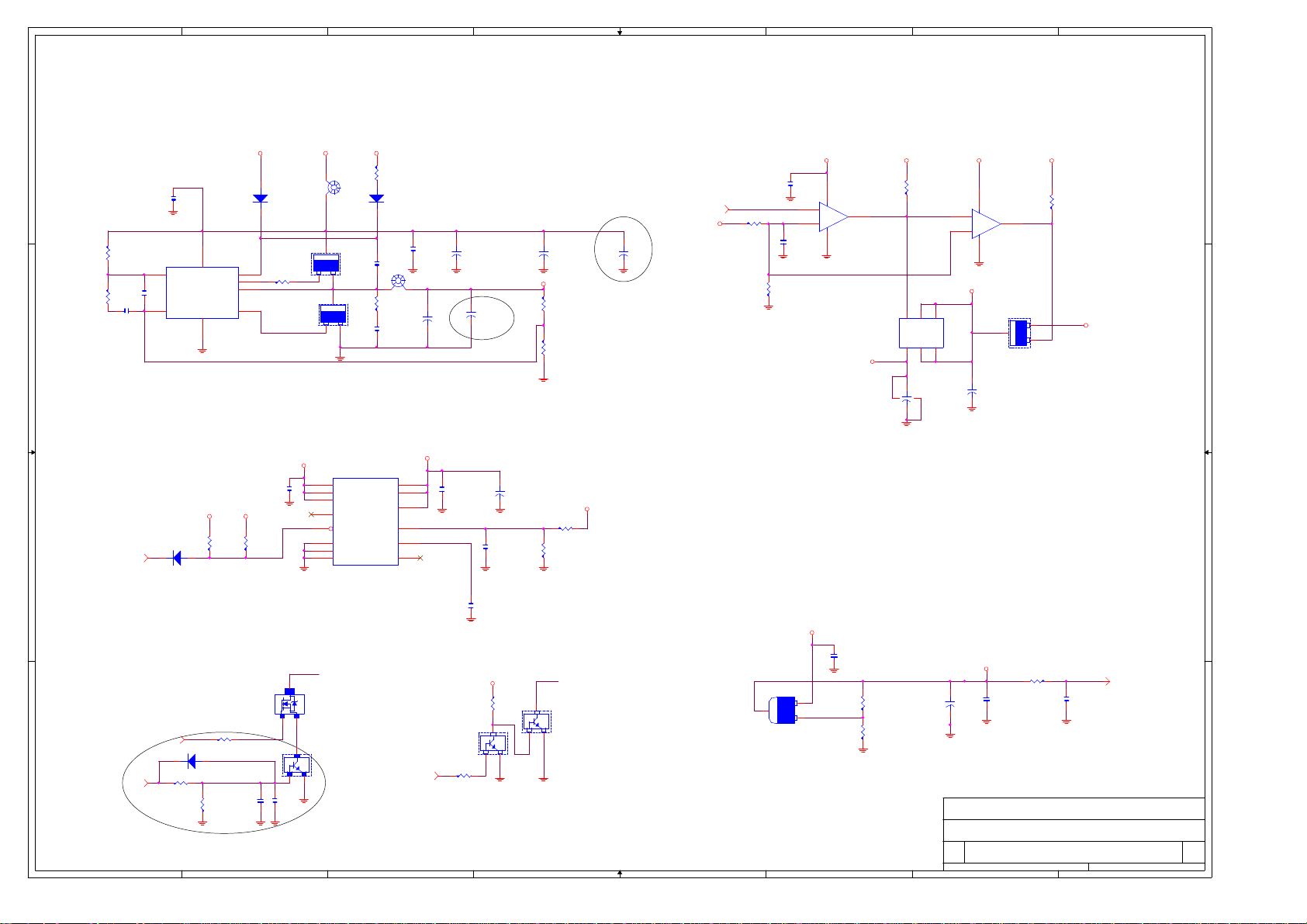

Page 34
8
7
DDR25V FOR DDR DIMM & NB
6
5
4
3
2
1
D D
C218
4.7U/8/Y/10V
R885
30K/6
EN
7
COMP
R888
20K/6
C223
4.7N/4/X/25V
C C
C222
10P/4/N/50V
5
BOOT
VCC
UGATE
PHASE
LGATEFB
GND
ISL6520ACB-T
3
U35
1
2
8
46
D22
1N5817/X
R886
2.2/6
Q97
FDD6035AL/TO252
GDS
VCC3
C225
0.1U/6/Y/25V
3VDUAL
VCC3
D24
R893
R894
8.2K/6
B B
-SLP_S3(16,19,22,28,32)
1N4148/S/X
8.2K/6/X
L18
1UH/10A/D
Q96
9N306/6670/TO252
2
1
3
2
GDS
1
3
U37
1
VDD
2
VDD
7
VDD
14
VDDQ
4
VSS
5
VSS
8
VSS
FAN1655
5VDUAL5VDUAL+12V
C221
25V
R889
2.2/6
VREFOUT
R881
1/6
1U/8/Y/25V
C224
0.01U/4/X/16V
VTTOUT
VTTOUT
VTTSEN
VREFINSHDN#
VSSQ
D23
1N5817
1U/6/Y/10V
L19
3UH/10A/D
DDRVTT
3
6
9
1011
13
12
C220
1
+
EC48
1000U/6.3V/8C
VTTREFSHDNVREFOUT
1
+
EC52
1500U/6.3V/8K/SANYO
+
EC7
1000U/6.3V/8C
C226
0.01U/4/X/16V
1
+
EC49
1000U/6.3V/8C
C227
0.1U/6/Y/25V
2.6V/19A
1
+
EC53
1500U/6.3V/8K/SANYO
DDR25V
R890
2.26K/6/1
R891
1K/6/1
R892
1K/6/1
R895
1K/6/1
DDR25V
1
+
EC62
1500U/6.3V/8K/SANYO
5VSB
PWOK(21,25,28,32)
C217
0.1U/6/Y/25V
R884 1K/6
R887
1K/6
C219
0.1U/6/Y/25V
5VSB
84
U34A
3
+
1
2
-
KA393/SO8
U36
SI3443DV/PMOS/TSOP-6
5VSB
5VSB +12V5VSB
R882
1K/6
5VDUAL
1
2
34
D
D
GS
D
D
6
5
1
EC54
+
100U/D/10V/57
3
84
5
+
6
-
EC55
1
+
1000U/6.3V/8C
U34B
7
KA393/SO8
Q98
2
D
NEC_K3296/TO263
R883
8.2K/6
3
S
1
G
VCC
C228
1N/4/X/50V
5VDUAL
C176
EN
3
Q72
D
2N7002/SOT23
R390
R392
8.2K/6
R1031
8.2K/6/X
8.2K/6
C285
10U/12/X/6.3V
-PS_ON(14,22)
D28 1N5817/S/X
A A
-SLP_S3(16,19,22,28,32)
8
G S
2
1
Q74
MMBT2222A/SOT23
SOT23
132
C291
1U/6/Y/10V/X
7
-S4_S5(16,22,28)
6
5VSB
R897
8.2K/6
EN
R896
1K/6
MMBT2222A/SOT23
132
132
Q100
MMBT2222A/SOT23
5
Q73
2
APL1084/TO252
Q99
4
0.1U/6/Y/25V
EC50
R389
3
Z204
1
3
100U/D/10V/57 C177
100/6/1
R391
169/6/1
3VDUAL
1
+
0.1U/6/Y/25V
R388
22K/6
BC232
1U/6/Y/10V
-RSMRST (16,22,35)
GIGABYTE CORP.
Title
Size Document Number Rev
B
星期五, 八月
Date: Sheet of
DDR POWER & 1_5VSTR
15, 2003
2
GA-8ISMJPE-LE 1.03
34 40
1

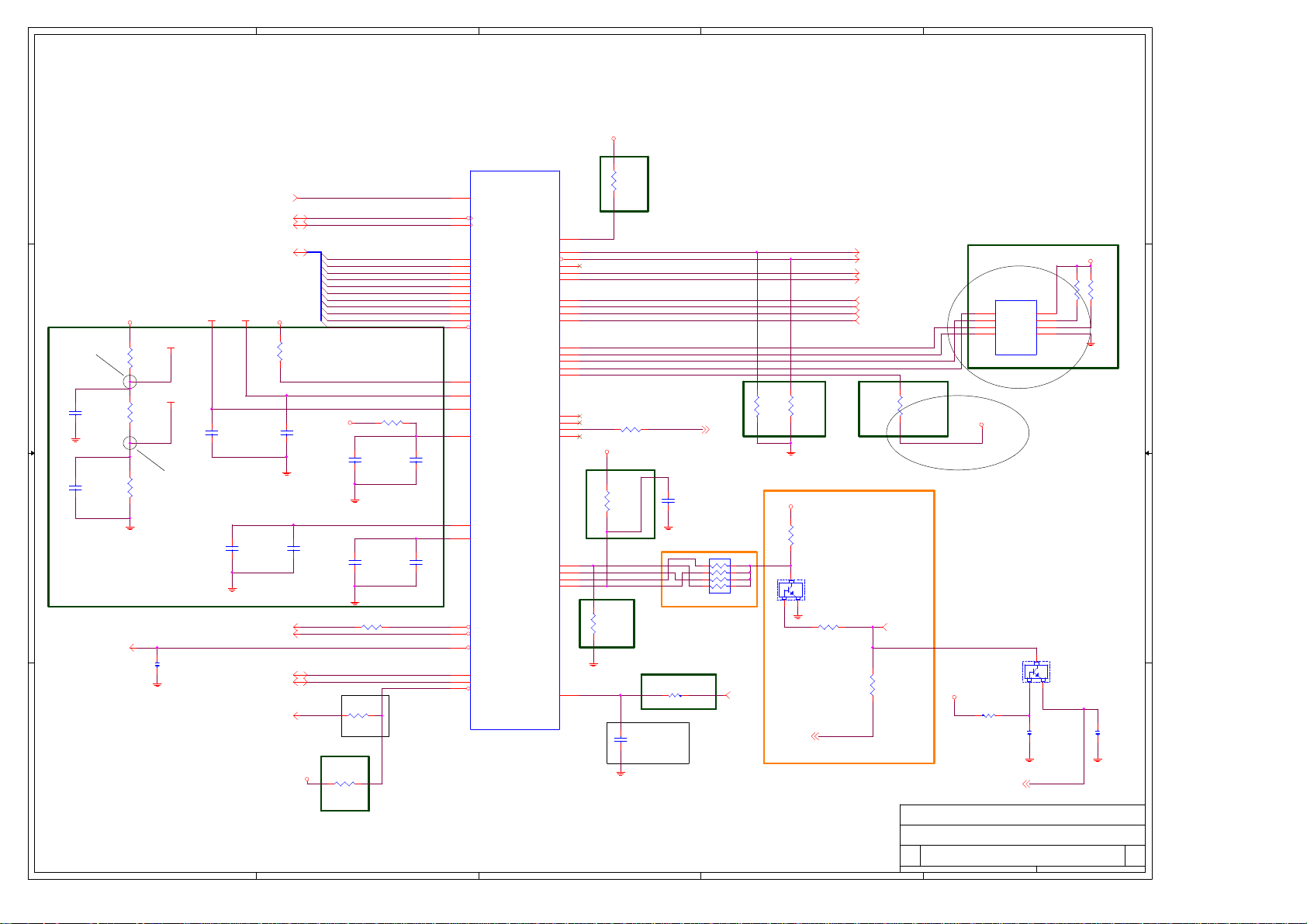

Page 35
5
4
3
2
1
AUXPWR
J12
L14
L13
L12
M14
M13
N14
P13
N13
M12
P10
N10
M10
P7
C4
N9
M9
P9
M11
A13
D14
D10
D12
A9
3
3VDUAL
Tanacross
12
R914
3.3K/6/X
LANEEDI
LANEEDO
LANEESK
LANEECS
EEMODE
R923 0/6
1_8VSB
12
Tanacross
R925
0/6/X
1 2
IEEE_TEST_M
18VSB_D12
R927
Tanacross
0/6/X
1 2
LAN_PWR_GD
12
C248
1000P/4/X/50V/X
R931 1K/6/X
GPO24
12
C242
0.01U/4/X/50V/X
Tanacross
GPO24 (16)
7
5
3
1
RN103
0/8P4R
Kinnereth-R+
12
R919
1K/6/X
N16885847LANTEST
8
6
4
2
-RSMRST (16,22,34)
3VDUAL
12
R920
1K/6/X
Tanacross
12
R926
1K/6
132
GPO24(16)
L_TXD2
L_TXD1
L_TXD0CI2
L_RST
L_CLK
L_RXD0
L_RXD1
L_RXD2
Kinnereth-R+
Q101
MMBT2222/SOT23
R929
1 2
8.2K/6
GPO24
2
L_TXD2 (15)
L_TXD1 (15)
L_TXD0 (15)
L_RST (15)
L_CLK (15)
L_RXD0 (15)
L_RXD1 (15)
L_RXD2 (15)
12
R921
1K/6/X
U40
1
CS#
6
SCL
5
SI
2
SO
AT25160/25080/2.7V/S/X
Tanacross
3VDUAL
VCC
HOLD#
WP#
GND
8
7
3
4
Tanacross
-LAN_RST (15)
R930
1K/6
1 2
3VDUAL
R933 8.2K/6
-RSMRST(16,22,34)
GIGABYTE CORP.
Title
Size Document Number Rev
Custom
Date: Sheet of
CSA TANACROSS_1
132
BC481
1U/6/Y/10V/X
GA-8ISMJPE-LE 1.03
1
3VDUAL
12
12
R915
0/6/X
Q102
MMBT2222/SOT23
35 40
R916
0/6/X
BC482
1U/6/Y/10V/X
D D
U39-1
R992 0/6/X
12
C239
1000P/4/X/50V/X
Closed to Tanacross
12
1000P/4/X/50V/X
R928 0/6/X
1 2
R932
1 2
100K/6/X
R934
1 2
8.2K/6/X
CSA3V66
CISTBF
CISTBS
CI0
CI1
CI3
CI4
CI5
CI6
CI7
CI8
CI9
CI10
CICOMP_L
1 2
CLKRCAP
XTALCAP
C245
Closed to Tanacross
CSA3V66(19)
CISTBF(9)
CISTBS(9)
CI[0..10](9)
Tanacross
C C
B B
A A
1_2VSB 1_2VSB
12
GBSWING
0.8V
C236
0.1U/6/Y/25V/X
1 2
C241
0.1U/6/Y/25V/X
1 2
R918
604/6/1/X
12
GBREF
R922
665/6/1/X
12
0.35V
R924
523/6/1/X
-PCIRST2(21)
C247
10P/4/N/50V/X
GBSWINGGBREF
12
C237
0.01U/4/X/50V/X
Closed to
Tanacross
Closed to Tanacross
12
1000P/4/X/50V/X
C243
12
Close to
R917
30/6/1/X
Tanacross
12
+VSBLAN
C238
0.01U/4/X/50V/X
12
C244
10U/8/Y/10V/X
-PIRQE
-PIRQE(15,16)
-CSAPME
-CSAPME(16)
SMBDATA(11,12,16,19,20,22,23)
SMBCLK(11,12,16,19,20,22,23)
-SMBALRT(16)
-SMBALRT
VCC3
-PCIRST2
SMBDATA
SMBCLK
12
C240
10U/8/Y/10V/X
12
C246
10U/8/Y/10V/X
SMB_ALRT-
G1
CICLK
L2
CISTRF
L1
CISTRS
J1
CI0
J2
CI1
J3
CI2
K1
CI3
L3
CI4
M2
CI5
M1
CI6
N2
CI7
H3
CI8
G2
CI9
H1
CI10
N3
CIRCOMP
P3
CISWING
N4
CIVREF
N5
PLLCAP
F12
CLKRCAP
H12
XTALCAP
A2
INTA#
A6
PME#
B9
PCIRST#
C9
SMBDAT
A10
SMBCLK
B10
SMBALERT#
INTEL 82562EZ 196BGA
CSA/LCI/SMBUS/EEPROM
AUXPWR
JTAG_TCK
JTAG_TRST#
JTAG_TMS
JTAG_TDO
JTAG_TDI
SDP0
SDP1
SDP2
SDP3
EEDI
EEDO
EESK
EECS
EEMODE
FLSH_SCK
FLSH_CEN
FLSH_SO
FLSH_SI
TEST
NC-D14
NC-D10
VCCA1_8-D12
LANPWRGD
Tanacross
5
4

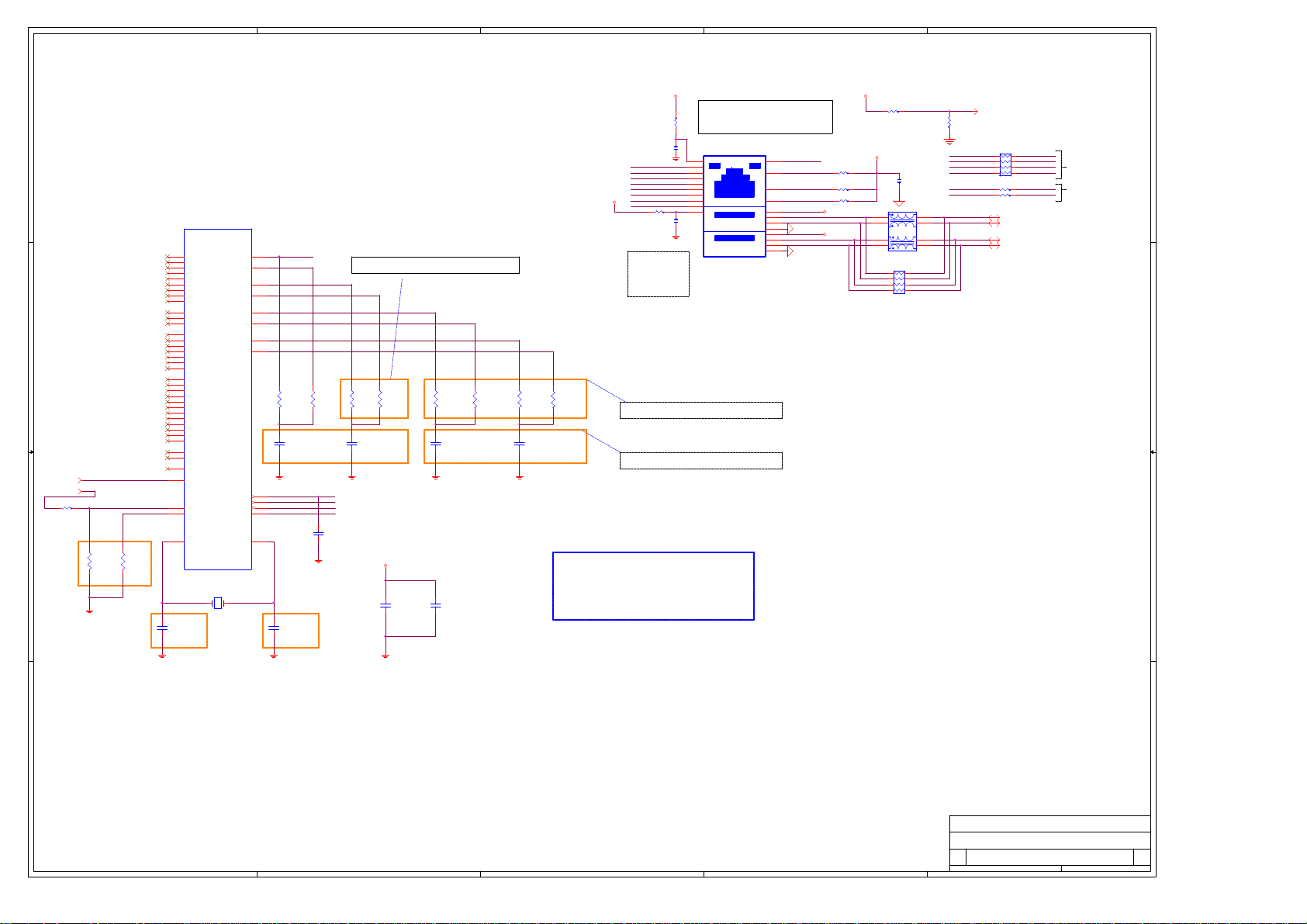

Page 36
5
4
3
2
1
1_8VSB
CONN.
R935
0/6/X
D D
U39-2
MDI0+
X4
MDI0+
MDI0-
MDI1+
MDI1-
MDI2+
MDI2-
MDI3+
MDI3-
ACT#
LINKUP#
LINK100#CTRL18
LINK1000#
C13
MDI0-
C14
MDI1+
E13
MDI1-
E14
MDI2+
F13
MDI2-
F14
MDI3+
H13
MDI3-
H14
Tanacross : 49.9Ohms Kinnereth-R+ : 75/6/1 Ohms
Tanacross
R942
49.9/6/1
2 1
12
C249
0.01U/4/X/50V/X
2 1
R943
49.9/6/1
R944
56.2/6/1
2 1
12
C250
0.01U/4/X/50V/X
2 1
R945
56.2/6/1
R946
49.9/6/1/X
2 1
12
C251
0.01U/4/X/50V/X
R947
49.9/6/1/X
2 1
49.9/6/1/X
2 1
12
C252
0.01U/4/X/50V/X
R949
49.9/6/1/X
2 1
R948
Tanacross
ACTLED-
C11
LILED-
A12
LINK100-
B11B13
LINK1G-
B12
C253
470P/4/X/50V/X
1 2
LVN_X2LVN_X1
12
C257
22P/4/N/50V
CSA
TANACROSS_2
RJ45, Magnetics
3VDUAL
Cap. for EMI
12
C254
1000P/4/X/50V
12
C255
1000P/4/X/50V
Lan Led Indicator Yellow Green Orange
10Mbit
100Mbit
1000Mbit
Cable Link
Active
A4
NC-A4
A5
NC-A5
A8
NC-A8
B1
NC-B1
B2
NC-B2
B4
NC-B4
B5
NC-B5
B6
NC-B6
B8
NC-B8
C1
NC-C1
C2
NC-C2
C3
NC-C3
C5
NC-C5
C6
NC-C6
C7
C C
CTRL12(37)
CTRL18(37)
R950 0/6/X
B B
Kinnereth-R+
CTRL12
CTRL18LAN
LANRB10
R951
R952
619/6/1
549/6/1
2 1
2 1
NC-C7
C8
NC-C8
D1
NC-D1
D2
NC-D2
D3
NC-D3
E3
NC-E3
F1
NC-F1
F2
NC-F2
F3
NC-F3
G3
NC-G3
M7
NC-M7
M8
NC-M8
N7
NC-N7
N11
NC-N11
P4
NC-P4
P5
NC-P5
P6
NC-P6
D9
NC-D9
L8
NC-L8
L7
NC-L7
P11
CTRL12
B14
NC-B14
K14 J14
XTAL1 XTAL2
INTEL 82562EZ 196BGA
PHY
1 2
25MHZ/XTAL/HALF
12
C256
22P/4/N/50V
[K32]
BC483
0.1U/6/Y/25V/X
MDI0+
MDI0MDI1+
MDI1MDI2+
MDI2-
1_8VSB
MDI3+
MDI3-
R941 0/6/X
[K/K32]
BC485
0.1U/6/Y/25V
LBC5
[K]:0.1 uF
[K32]:0 ohm
Tanacross : 49.9Ohms Kinnereth-R+ : unmount
Tanacross : 10000pF Kinnereth-R+ : numount
OFF OFF
ON
OFF
ON
Blinking
[K] : P35-152-11Z9
[K32] : P35-152-19W9
[K/K32]
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
DOWN
USB/LAN[S-TECHP35-152-11Z9/FOXCONN]
OFF
ON
D1
D2
D3
D4
U1
U2
U3
UP
U4
U5
U6
U7
U8
YELLOWYELLOW
GREENORANGE-
USBDT5USBDT5+
USBDT4USBDT4+
FUSEVCC
[K]
R936 150/6
R937 150/6/X
R940 150/6
[K]
FUSEVCC
FUSEVCC
UR1 150K/6
3VDUAL
UL1
4 5
3
2
1
OD6560T-600/S
LRN1
1 2
3 4
5 6
7 8
0/8P4R/X
[K]
BC484
0.1U/6/Y/25V
6
7
8
-R_USBOC
-R_USBOC (15)
UR2
270K/6
ACTLED- YELLOW
LINK100- GREEN-
LINK1G- ORANGE-
LILED-
R938 150/6
ACTLED-
R939 150/6
-USBP5
+USBP5
-USBP4
+USBP4
RN104
150/8P4R/X
1 2
3 4
5 6
7 8
-USBP5 (15)
+USBP5 (15)
-USBP4 (15)
+USBP4 (15)
YELLOW-LILED-
[K32]
GREEN-
[K]-GBT
YELLOW-
A A
GIGABYTE CORP.
Title
Size Document Number Rev
C
5
4
3
2
Date: Sheet of
CSA TANACROSS_2
GA-8ISMJPE-LE 1.03
1
36 40

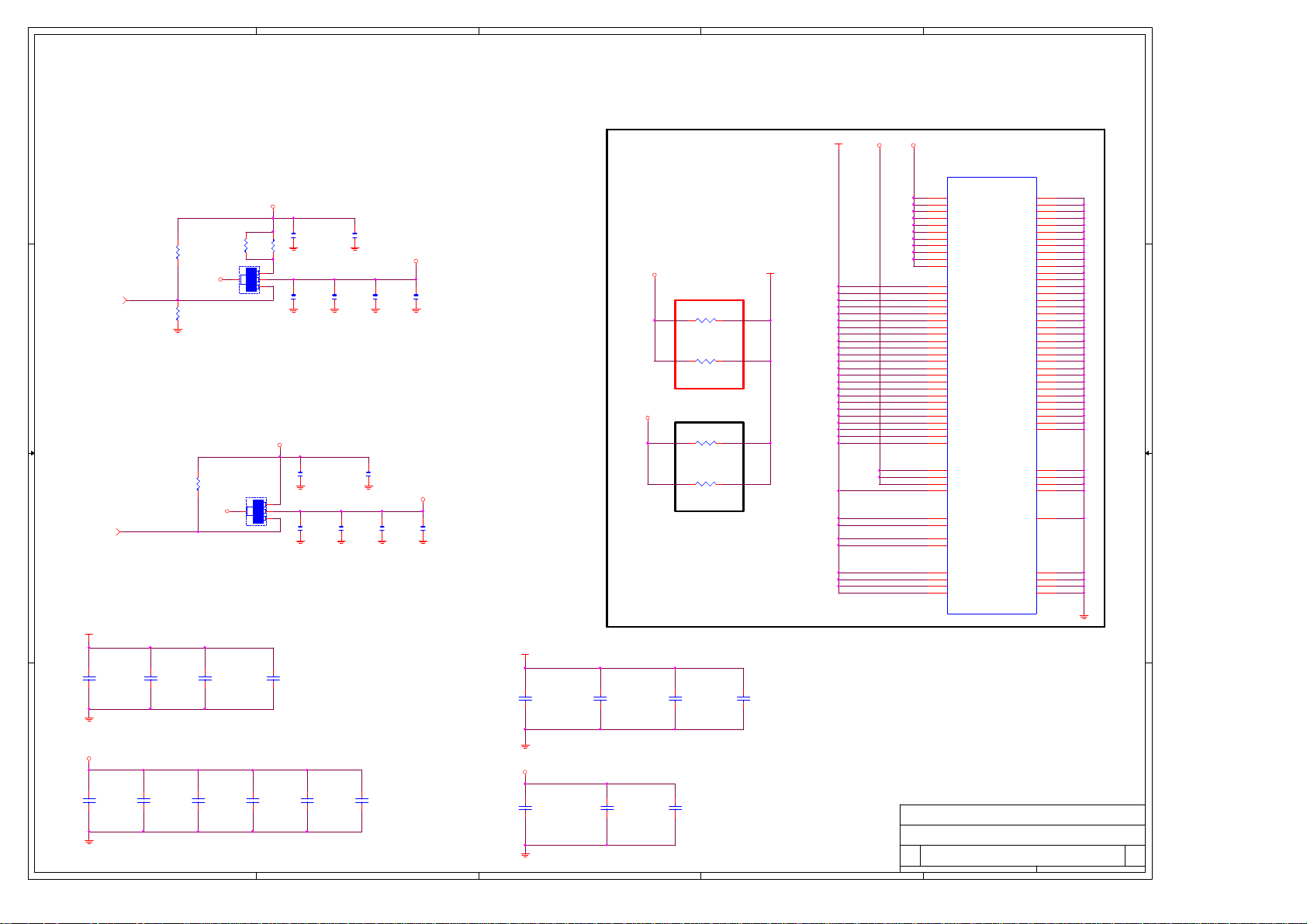

Page 37
5
D D
4
3
2
+VSBLAN
1_8VSB
1
3VDUAL
+1.2VSB
Max800mA Typ500mA
3VDUAL
BC486
3
2
1
4.7U/8/Y/10V/X
BC488
4.7U/8/Y/10V/X
0.1U/6/Y/25V/X
R955
8.2K/6/X
1_2VSB
CTRL12
CTRL12(36)
C C
BCP69-16(Philips)/SOT223/X
R956
30K/6/X
2/12/X
Q103
2/12/X
4
R954
R953
BC489
4.7U/8/Y/10V/X
BC487
0.1U/6/Y/25V
BC490
1_2VSB
BC491
0.1U/6/Y/25V/X
3VDUAL
Kinnereth-R+
R957
1 2
0/6
R958
1 2
0/6
+VSBLAN
+1.8VSB
Max500mA Typ250mA
3VDUAL
BC492
3
2
1
4.7U/8/Y/10V/X
12
C261
0.1U/6/Y/25V
4.7U/8/Y/10V/X
BC494
0.1U/6/Y/25V/X
R960
5.1K/6/X
Q104
4
1_8VSB
CTRL18
CTRL18(36)
B B
+VSBLAN
12
C258
4.7U/8/Y/10V
BYPASS Cap.
12
C259
4.7U/8/Y/10V
BCP69T1/SOT223/X
12
C260
1U/6/Y/10V
BC495
BC493
0.1U/6/Y/25V
BC496
4.7U/8/Y/10V/X
1_8VSB
BC497
0.1U/6/Y/25V/X
+VSBLAN
12
BYPASS Cap.
SC9
4.7U/8/Y/10V/B/X
12
SC10
0.1U/6/Y/25V/B/X
1_2VSB
Tanacross
R959
1 2
0/6/X
R961
1 2
0/6/X
12
SC11
0.1U/6/Y/25V/B/X
12
C262
0.01U/4/X/50V/X
U39-3
A3
VCC3_3-A3
A7
VCC3_3-A7
A11
VCC3_3-A11
E1
VCC3_3-E1
K3
VCC3_3-K3
K4
VCC3_3-K4
K13
VCC3_3-K13
N6
VCC3_3-N6
N8
VCC3_3-N8
P2
VCC3_3-P2
P12
VCC3_3-P12
G5
VCC1_2-G5
G6
VCC1_2-G6
H5
VCC1_2-H5
H6
VCC1_2-H6
H7
VCC1_2-H7
H8
VCC1_2-H8
J5
VCC1_2-J5
J6
VCC1_2-J6
J7
VCC1_2-J7
J8
VCC1_2-J8
J9
VCC1_2-J9
J10
VCC1_2-J10
J11
VCC1_2-J11
K5
VCC1_2-K5
K6
VCC1_2-K6
K7
VCC1_2-K7
K8
VCC1_2-K8
K9
VCC1_2-K9
K10
VCC1_2-K10
K11
VCC1_2-K11
L4
VCC1_2-L4
L5
VCC1_2-L5
L9
VCC1_2-L9
L10
VCC1_2-L10
D11
VCCA1_8-D11
G12 D13
VCCA1_8-G12 VSSA-D13
J13
VCCA1_8-J13
M5
VCCPLL1_8-M5
E11
VCCA1_2-E11
E12
VCCA1_2-E12
G13
VCCA1_2-G13
H11
VCCA1_2-H11
G4
VCSA1_2-G4
H4
VCSA1_2-H4
J4
VCSA1_2-J4
M4
VCSA1_2-M4
INTEL 82562EZ 196BGA
PWR/GND
VSS-B3
VSS-B7
VSS-C10
VSS-D4
VSS-D5
VSS-D6
VSS-D7
VSS-D8
VSS-E2
VSS-E4
VSS-E5
VSS-E6
VSS-E7
VSS-E8
VSS-E9
VSS-E10
VSS-F4
VSS-F5
VSS-F6
VSS-F7
VSS-F8
VSS-F9
VSS-F10
VSS-F11
VSS-G7
VSS-G8
VSS-G9
VSS-G10
VSS-G11
VSS-H9
VSS-H10
VSS-L11
VSS-M6
VSS-N12
VSS-P8
VSSA-C12
VSSA-G14
VSSA-K12
VSSPLL-L6
VSSCSA-H2
VSSCSA-K2
VSSCSA-M3
VSSCSA-N1
B3
B7
C10
D4
D5
D6
D7
D8
E2
E4
E5
E6
E7
E8
E9
E10
F4
F5
F6
F7
F8
F9
F10
F11
G7
G8
G9
G10
G11
H9
H10
L11
M6
N12
P8
C12
G14
K12
L6
H2
K2
M3
N1
3VDUAL
A A
12
0.1U/6/Y/25V
C263
BYPASS Cap.
12
C264
0.1U/6/Y/25V
5
12
C265
0.1U/6/Y/25V
12
0.1U/6/Y/25V
C266
12
C267
4.7U/8/Y/10V
12
4.7U/8/Y/10V
4
C268
1_8VSB
12
BYPASS Cap.
C269
4.7U/8/Y/10V/X
3
12
C270
0.1U/6/Y/25V/X
12
C271
0.01U/4/X/50V/X
GIGABYTE CORP.
Title
Size Document Number Rev
Custom
2
Date: Sheet of
CSA TANACROSS_3
GA-8ISMJPE-LE 1.03
37 40
1
Page 38
5
4
3
2
1
Model Name: GA-8ISMJPE-LE
Circuit or PCB layout change
for next version
Version: 1.01
D D
244mm X 224mm 60+-15% C Type
PAGE Change Item Reason
Component value change
history
Data Change Item Reason
92 / 03 / 22 CHANGE CLK GENERATOR VERSION U14 CHANGE TO ICS950603DF
92 / 03 / 22 VDDQ THERMAL ISSUE ADD D26,D27 1N5820
92 / 03 / 22 ATI9500 VCC3 LEAKAGE ISSUE ADD RN110~RN112 120/8P4R
92 / 03 / 22 EMI ISSUE C131,C132,C138,C139,C146,C278 ADD
92 / 03 / 22 CHIPSET VERSION CHANGE SPRINGDALE-PE AND ICH5 VERSION
C C
92 / 03 / 22
92 / 03 / 22
92 / 03 / 22
92 / 03 / 22 FMB1 ISSUE L13~L16 CHANGE TO 0.6UH/20A/3P
92 / 03 / 22 F_USB CONNECTOR CHANGE USB3,USB4 CHANGE TO PIN HEADER
92 / 03 / 22 DDRVTT POWER IMPROVE
B B
92 / 03 / 22 DDR25V POWER IMPROVE
92 / 03 / 22
92 / 03 / 22 BUZZER NON-WORKABLE ISSUE DEL R990 1K/X
92 / 03 / 31 USB DROP ISSUE U43,U44 ADD RT9701
PWROK SIGNAL QUALITY IMPROVE
PCIRST- SIGNAL QUALITY IMPROVE
AC97RST- SIGNAL QUALITY IMPROVE
SPECIFICATION CHANGE
180P/4/X/50V
C93,C94,C85 ADD 10P/4/N/50V
L11,UL1 CHANGE TO OD6560T-600/S
USB_LAN REMOVED
SPEEDTECH P35-152-11K9
CHANGE TO A2
C115 ADD 0.1U/4/X/16V
C67 ADD 100P/4/N/50V
C289 ADD 1000P/4/X/50V
Q56,Q58,Q61,Q65 NTD80N02
CHANGE TO ISL 9N306
R365 CHANGE TO 20K/6/1
R346 CHANGE TO 22.6K/6/1
R350 CHANGR TO 5.9K/6/1
R354 ADD 1.5M/6
R359 CHANGE TO 2.32K/6/1
BC11,BC13 CHANGE TO 220U/2V SP-CAP
BC12,BC14 CHANGE TO 150U/2V SP-CAP
EC36,EC43 CHANGE TO 3300UF/6.3V/AP
EC35,EC40~EC45 CHANGE TO
560U/4V/8C/PSA
R1025~R1028 ADD 2.2/6
2*5-4-7
ADD EC61 1000U/6.3V/8C
EC7 CHANGE TO 1000U/6.3V/8C
ADD EC62 1500U/6.3V/8K/SANYO
ADD CN34,CN35 180P/8P4C
DEL VGA_COMB
BC508,BC809 ADD 0.01U/4/X/16V
DEL DIMM_LED
DEL R256 150/6
R1022~R1024 ADD 0/6
U41 H/W MONITOR CHANGE TO ADM1027
FDD CHANGE TO 11NH3-000217-13
FDD CHANGE TO 11NH3-000217-13
ADD COM2 H2*5-10/W
BC60 DEL 0.1U/6/Y/25V
R55,R56,R74 CHANGE TO SHORT PAD
DEL CN41,CN42 180P/8P4C
SPDIF_O CHANGE TO 11NH5-010103-41
DEL Q117 MMBT2222A
A A
Title
Size Document Number Rev
Custom
星期五, 八月
5
4
3
2
Date: Sheet of
GIGABYTE CORP.
BOM & PCB MODIFY HISTORY
15, 2003
GA-8ISMJPE-LE 1.03
1
38 40
Page 39
5
4
3
2
1
Model Name: GA-8ISMJPE-LE
Circuit or PCB layout change
for next version
Version: 1.02
D D
244mm X 224mm 60+-15% C Type
PAGE Change Item Reason
Component value change
history
Data Change Item Reason
92 / 04 / 14 N/B HEATSINK MECHANICAL ISSUE
FMB1 ISSUE92 / 04 / 14 BC512~BC514 ADD 220UF/2V
92 / 04 / 17 SPECIFICATION CHANGE DEL FRISW CONN
92 / 04 / 30 ADD/DEL 2ND SOURCE BC11~BC14,BC512~BC514
C C
92 / 04 / 30 POWER QUALITY
IMPROVE
DEL EC4 100UF/6.3V
ADD EC5 100UF/6.3V
DEL BC2~BC7,BC10,BC21~BC27,BC30
DEL 10CL3-202200-22
EC63 ADD NICHICON
3300UF/6.3V
EC26 ADD 11CE2-471000-02
C32,C64,C68 ADD
1UF/6.3V/0402/Y5V
C37 ADD 1UF/10V/0603/Y5V
B B
A A
Title
Size Document Number Rev
Custom
星期五, 八月
5
4
3
2
Date: Sheet of
GIGABYTE CORP.
BOM & PCB MODIFY HISTORY
15, 2003
GA-8ISMJPE-LE 1.03
1
39 40
Page 40
5
4
3
2
1
Model Name: GA-8ISMJPE-LE
Circuit or PCB layout change
for next version
Version: 1.03
D D
244mm X 224mm 60+-15% C Type
PAGE Change Item Reason
Component value change
history
Data Change Item Reason
92 / 07 / 09 C6 del 1000pFFix CPU temperature detect incorrect
92 / 07 / 09
92 / 07 / 09
92 / 07 / 09
92 / 07 / 09
C C
issue
Fix LAN return loss issue R944,R945 change to 56.2 ohm
CD_IN crosstalk issue C135~C137 add 8.2K/4
Fix PS2 long cable issue RN83 change to 1K/8P4R
Add FAN control
BC499值為 0.1U/6/Y/25V
BC502值為 0.1U/6/Y/25V
BC503值為 0.1U/6/Y/25V
Q106值為 NDS352AP/SOT23
Q108值為 MMBT2222A/SOT23
Q109值為 2N2907A/SOT23
Q110值為 NDS352AP/SOT23
Q111值為 NDS352AP/SOT23
Q112值為 MMBT2222A/SOT23
Q113值為 MMBT2222A/SOT23
Q114值為 2N2907A/SOT23
Q115值為 2N2907A/SOT23
R966值為 1K/6
R967值為 1K/6
R972值為 8.2K/6
R973值為 1K/6
R974值為 1K/6
R975值為 1K/6
R976值為 1K/6
R982值為 8.2K/6
R983值為 8.2K/6
RN105值為 1K/8P4R
RN106值為 1K/8P4R
RN107值為 1K/8P4
B B
A A
Title
Size Document Number Rev
Custom
星期五, 八月
5
4
3
2
Date: Sheet of
GIGABYTE CORP.
BOM & PCB MODIFY HISTORY
15, 2003
GA-8ISMJPE-LE 1.03
1
40 40
Loading...
