Rex Lin

7ZMMH

TM

AMD AthlonTM/Duron

Socket A Processor

Motherboard

USER'S MANUAL

AMD AthlonTM/DuronTM Socket A Processor Motherboard

REV. 2.0 First Edition

R-20-01-010402

How This Manual Is Organized

This manual is divided into the following sections:

1) Revision List

2) Item Checklist

3) Features

4) Installation Guide

5) Performance & Block Diagram

6) Suspend to RAM

7) Four Speaker & SPDIF

Manual revision information

Product item list

Product information & specification

Instructions on CPU & Memory

Product performance & block diagram

Instructions on STR

Four Speaker & SPDIF introduction

8) @BIOS™

9) BIOS Setup

Instructions on setting up the BIOS

10) Technical Support / RMA Sheet

11) Appendix

Installation

@BIOS

introduction

™

software
Document equipment used for after sales

service

General reference

Table Of Content

Revision History P.1
Item Checklist P.2
Summary of Features P.3
7ZMMH Motherboard Layout P.5
Installation Guide P. 6
Page Index for Connectors / Panel and Jumper Definition P.12
Performance List P.27
Block Diagram P.29
Suspend to RAM Installation P.30
Four Speaker & SPDIF Introduction P.36
@BIOSTM Introduction P.42
Page Index for BIOS Setup P.43
Technical Support / RMA Sheet P.69
Appendix P.70

7ZMMH Motherboard

Revision History

Revision Revision Note Date

2.0 Initial release of the 7ZMMH motherboard user’s manual. Apr. 2001

The author assumes no responsibility for any errors or omissions that may appear in this
document nor does the author make a commitment to update the information contained herein.
Third-party brands and names are the property of their respective owners.

Apr. 2, 2001 Taipei, Taiwan, R.O.C

1

Item Checklist

Item Checklist

The 7ZMMH motherboard

;

Cable for IDE / floppy device

;

CD (GA-7ZMM CD) for motherboard driver & utility

;

7ZMMH user’s manual

;

2

7ZMMH Motherboard

Features Summary

Form factor

24.4 cm x 23.1 cm Micro ATX size form factor, 4 layers

y

PCB.

CPU

AMD AthlonTM/DuronTM (K7) Socket A Processor

y

256K/64K L2 cache on die

y

Supports 600MHz ~ 1GHz and above

y

Chipset Pro Savage KM133A, consisting of:

VT8365A Memory/AGP/PCI Controller(PAC)

y

VT82C686B PCI Super-I/O Integrated Peripheral

y

Controller (PSIPC)

Clock Generator

Memory

I/O Control
Slots

On-Board IDE

ICS 94236AF

y

100/102/105/110/113/115/120/133/135/137/139/141 MHz

95/

system bus

2 168-pin DIMM sockets

y

Supports PC-100/133 and VCM SDRAM

y

Supports up to 1.0GB DRAM

y

Supports only 3.3V SDRAM DIMM

y

VT82C686B

y

1 AGP slot supports 4X mode & AGP 2.0 compliant

y

3 PCI slots supports 33MHz & PCI 2.2 compliant

y

1 AMR (Audio Modem Riser) slot

y

2 IDE bus master (UDMA 33/ATA 66/ATA100) IDE ports

y

speeds

for up to 4 ATAPI devices

Supports PIO mode 3, 4 (UDMA 33/ATA 66/ATA 100) IDE

y

& ATAPI CD-ROM
On-Board
Peripherals

Hardware Monitor

1 floppy port supports 2 FDD with 360K, 720K, 1.2M,

y

1.44M and 2.88M bytes
1 parallel port supports Normal/EPP/ECP mode

y

1 serial port (COM A)

y

4 USB ports

y

CPU/System fan revolution detection

y

CPU/Power/System fan control

y

System voltage detection

y

CPU/System temperature detection

y

To be continued…

3

On-Board Sound

PS/2 Connector
BIOS
On-Board VGA

Additional Features

Features Summary

Creative CT5880 sound

y

AC’97 CODEC

y

Line In / Line Out / Mic In / AUX In / CD In / TEL /

y

SPDIF / Game Port / Four Speaker

PS/2 Keyboard interface and PS/2 Mouse interface

y

Licensed AMI BIOS, 2M bit flash ROM

y

Build S3 Savage4 (86C370) in VT8365A

y

Support shared memory architecture

y

Support Wake-On-LAN (WOL)

y

Support Internal / External Modem Ring On

y

Support USB KB/MS Wake up from S3-S5

y

Includes 3 fan power connectors

y

Poly fuse for keyboard over-current protection

y

Support STR (Suspend-To-RAM) function

y

Support @BIOS™

y

4

7ZMMH Motherboard

7ZMMH Motherboard Layout

JP4

PS/2

USB1

J3

COM A

LPT

Socket A CPU

VGA

J9

J7

GAME & AUDIO

Creative
CT5880

JP2

VT8365A

7ZMMH

DIMM1

AGP 1

CODEC

PCI1

PCI2

JP1

J16

J8

JP11

PCI3

J18

AMR

J17

USB2

VT82C

686B

DIMM2

JP10

J11

ATX POWER

JP7

BIOS

JP8

LED1

IDE2

BAT1

JP6

FLOPPY

IDE1

SW1

JP9

JP3

J13

J12

J2

5

Installation Guide

Installation Guide

Getting Started

WARNING!

Computer motherboards and expansion cards contain very delicate Integrated
Circuit (IC) chips. To protect them against damage from static electricity, you
should follow some precautions whenever you work on your computer.

1. Unplug your computer when working on the inside.

2. Use a grounded wrist strap before handling computer components. If you do not have one,
touch both of your hands to a safely grounded object or to a metal object, such as the
power supply case.

3. Hold components by the edges and try not touch the IC chips, leads or connectors, or
other components.

4. Place components on a grounded antistatic pad or on the bag that came with the
components whenever the components are separated from the system.

5. Ensure that the ATX power supply is switched off before you plug in or remove the ATX
power connector on the motherboard.

Installing the motherboard to the chassis…

If the motherboard has mounting holes, but they don’t line up with the holes on the base and
there are no slo ts to attach the spacers, do not become alarmed you can still attach the spacers
to the mounting holes. Just cut the bottom portion of the spacers (the spacer may be a little hard
to cut off, so be careful of your hands). In this way you can still attach the motherboard to the
base without worrying about short circuits. Sometimes you may need to use the plastic springs
to isolate the screw from the motherboard PCB surface, because the circuit wire may be near by
the hole. Be careful, don’t let the screw contact any printed circuit write or parts on the PCB that
are near the fixing hole, otherwise it may damage the board or cause board malfunctioning.

6

7ZMMH Motherboard

To set up your computer, you must complete the following steps:

Step 1 - Set system jumpers
Step 2- Install the Central Processing Unit (CPU)
Step 3-Install memory modules
Step 4-Install expansion cards
Step 5-Connect ribbon cables, cabinet wires, and power supply
Step 6-Set up BIOS software
Step 7-Install supporting software tools

Step 5

Step 4

Step 2

Step 3

Step 5

Step 1

7

Installation Guide

CPU Speed Setup

The system bus frequency can be switched at 95MHz-145MHz by adjusting SW 1.
(The frequency ratio depend on CPU).

SW1 Select the System Speed at 95MHz - 145MHz. O: ON, X: OFF

FSB 1 2 3 4

95 O O O O
100 O O X O
102 O O O X
105 O O X X
110 X O O O
113 X O X O
115 X O O X
120 X O X X
133 O X O O
135 O X X O
137 O X O X
139 O X X X
141 X X O O
143 X X X O
145 X X O X

JP10: CPU Clock Frequency

1 1

100MHz

(Default)

133MHz

Pin No. Definition
1-2 close 133MHz
2-3 close 100MHz (Default)

Please make sure that JP10 setting is in accordance with your CPU clock frequency. Wrong

setting may cause system unable to boot.

8

7ZMMH Motherboard

CPU Installation

Please make sure the CPU should be supported to the motherboard.

CPU Top View

CPU Bottom View

Socket Actuation Lever

Blank

1.Pull the lever out and lift it up.

CPU Heat Sink Installation:

Beware: Please check that the heat sink is in good contact with the CPU before you turn on your

The poor contact will cause over heat, and might cause damage to your

system.

processor!

2.The notched corner should be orientated
toward the blank space on the socket nearest
the lever. The CPU will only fit in the orientation
as shown.

9

Installation Guide

3.Align CPU and insert it
(Please refer to your heatsink installation

manual for application of thermal grease to
provide better heat conduction between your
CPU and heatsink.)

5.Hook one end of the cooler bracket to the CPU socket.

6. Hook the other end of the cooler bracket to the CPU socket.
(Please refer to the cooler’s installation manual for detailed installation steps)

4.Use compliant fan approved by AMD.

10

7ZMMH Motherboard

Memory Installation

The motherboard has 2 dual inline memory mod ule (DIM M) sock ets supp ort 4 banks. The BIOS
will automatically detects memory type and size. To install the memory module, just push it
vertically into the DIMM Slot .The DIMM module can only fit in one direction due to the two notch.
Memory size can vary between sockets.

SDRAM

1. The DIMM slot has two notch, so the DIMM
memory module can only fit in one direction.

3. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
Reverse the installation steps when you wish to remove the DIMM module.

2. Insert the DIMM memory module vertically
into the DIMM slot. Then push it down.

11

Installation Guide

Page Index for Connectors/Panel and Jumper Definition Page
Connectors P.13
ATX Power P.13
COM A / VGA / LPT Port P.13
Floppy Connector P.15
Game & Audio Port P.16
IDE 1(Primary) / IDE 2(Secondary) Connector P.16
J2 (System Fan) P.19
J3 (CPU Fan) P.20
J7 (AUX_IN) P.17
J8 (TEL) P.18
J9 (CD Audio Line In) P.17
J12 (Wake On LAN) P.20
J13 (Ring Power On) P.18
JP2 (Front Audio) P.21
JP6 (Power Fan) P.19
JP8 / LED1 (STR LED Connector & DIMM LED) P.21
PS/2 Keyboard & PS/2 Mouse Port P.14
USB1 (Rear USB Port) P.14
USB2 (Front USB Connector) P.15
Panel and Jumper Definition P.22
BAT1 (Battery) P.26
J11 (2x11 Pins Jumper) P.22
J16/J17/J18 (AMR Select) [Optional] P.24
JP1 (Front MIC) P.24
JP3 (Clear CMOS Function) P.23
JP4 (USB Device Wake up Selection) P.23
JP7 (STR Selection) P.25
JP9 (BIOS Write Protection) P.25
JP11 (Onboard Sound Function Selection) P.26

12

7ZMMH Motherboard

Connectors

ATX Power

Please note:

AC power cord should only be inserted to your power supply unit after ATX power
cable and other related devices are firmly connected to the mainboard.

COM A / VGA / LPT Port

10

20

11

1

Pin No. Definition

3,5,7,13,15-17 GND

1,2,11 3.3V

4,6,19,20 VCC

10 +12V
12 -12V
18 -5V

8 Power Good
9 5V SB (stand by+5V)

14 PS-ON(Soft On/Off)

LPT Port

COM A

Please note:

This mainboard supports 1 standard COM port, 1 VGA port and 1 LPT port. Device
like printer can be connected to LPT port ; mouse and modem etc can be
connected to COM port.

13

VGA

Connectors

PS/2 Keyboard & PS/2 Mouse Connector

PS/2 Mouse

6

4

PS/2 Keyboard

Please note:

This mainboard supports standard PS/2 keyboard and PS/2 mouse interface
connector.

USB1: USB Connector

5

6

7

2

1

3

PS/2 Mouse/ Keyboard
Pin No. Definition

5

3

1 Data
2 NC
3 GND
4 POWER

1 2

5 Clock
6 NC

Pin No. Definition

8

1 USB Power
2 USB D0­3 USB D0+
4 GND
5 USB Power
6 USB D1-

4

7 USB D1+
8 GND

Please note:

Before you connect your device(s) into USB connector(s), please make sure your
device(s) such as USB keyboard, mouse, scanner, zip, speaker..etc. have a
standard USB interface. Also make sure your OS (Win 95 w/ USB supperment,
Win98, Windows 2000, Windows ME, Win NT w/ SP 6) supports USB controller. If
your OS does not support USB controller, please contact OS vendor for possible
patch or driver upgrade. For more information please contact your OS or device(s)
vendors.

14

7ZMMH Motherboard

USB2: Front USB Connector

Please note:

Be careful with the polarity of the front panel USB connector. Check the pin
assignment while you connect the front panel USB cable. Please contact your
nearest dealer for optional front panel USB cable.

Floppy Port

Pin No. Definition

2

1

10

9

1 POWER
2 GND
3 USB D2­4 NC
5 USB D2+
6 USB D3+
7 NC
8 USB D3­9 GND

10 POWER

RED LINE

15

Connectors

Game & Audio Port

Line Out 1

Please note:

Line Out 1: Line Out or SPDIF (The SPDIF output is capable of providing digital
audio to external speakers or compressed AC3 data to an external Dolby digital
decoder). To enable SPDIF, simply insert SPDIF connector into Line Out1. Line
Out1 will become SPDIF Out automatically. (see page 39 for more information). To
enable Four Speaker (for Creative 5880 audio only), simply follow instructions on
page 36 and Line In will become Line Out2 to support second pair of stereo
speakers.

IDE1 (Primary), IDE2 (Secondary) Port

Game

Port

MIC In

Line In/Line Out 2

IDE 2 IDE 1

16

RED LINE

7ZMMH Motherboard

J9: CD Audio Line In

J7: AUX IN

1

Pin No. Definition

1 CD-L
2 GND
3 GND
4 CD-R

1

Pin No. Definition

1 AUX-L
2 GND
3 GND
4 AUX-R

17

Connectors

J8: TEL (The connector is for internal modem card with voi ce connector )

1

Pin No. Definition

1 Signal-In
2 GND
3 GND
4 Signal-Out

J13: Ring Power On

1

Pin No. Definition

1 Signal
2 GND

18

7ZMMH Motherboard

J2: System FAN

JP6: Power FAN

1

Pin No. Definition

1 Control
2 +12V
3 SENSE

1

Pin No. Definition

1 Control
2 +12V
3 SENSE

19

Connectors

A

J3: CPU FAN

Please note:

proper installation of the CPU cooler is essential to prevent the CPU from running

under abnormal condition or damaged by overheating.

J12: Wake on LAN

1

Pin No. Definition

1 Control
2 +12V
3 SENSE

1

Pin No. Definition

1 +5V SB
2 GND
3 Signal

20

7ZMMH Motherboard

JP8 / LED1: STR LED Connector & DIMM LED

STR LED Connector External.

1

+

Please note:

Do not remove memory modules while DIMM LED is on. It might cause short or
other unexpected damages due to the 3.3V stand by voltage. Remove memory
modules only when STR function is disabled by jumper and AC Power cord is
disconnected.

JP2: Front Audio

`

Pin No. Definition

1

2

4,5,6,10,15

15

Please note:
If you want to use “Front Audio” connector, you must move 11-12,13-14
Jumper.

In order to utilize the fro nt audio header, your chassis must have front audio
connector. Also please make sure the pin assigment on the cable is the same as
the pin assigment on the MB header. To find out if the chassis you are buying
support front audio connector, please contact your dealer.

16

21

8,16 NC

11 Front Audio (R)
13 Front Audio (L)
12 Rear Audio (R)
14 Rear Audio (L)

DIMM LED

1 Incase speaker (R)
2 Incase speaker (L)
3,

7 +12V

9 MIC

GND

Panel And Jumper Definition

Panel and Jumper Definiti on

J11: For 2X11 Pins Jumper

GN

HD

S P K

P−P−P+

RE

1

1 1

PW

GN (Green Switch) Open: Normal Operation

Close: Entering Green Mode

GD (Green LED) Pin 1: LED anode(+)

Pin 2: LED cathode(−)

HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)

Pin 2: LED cathode(−)

SPK (Speaker Connector) Pin 1: VCC(+)

Pin 2- Pin 3: NC
Pin 4: Data(−)

RE (Reset Switch) Open: Normal Operation

Close: Reset Hardware System

P+P−P−(Power LED)

Pin 1: LED anode(+)
Pin 2: LED cathode(−)
Pin 3: LED cathode(−)

PW (Soft Power Connector) Open: Normal Operation

Close: Power On/Off

Please note:

Please connect the power LED, PC speaker, reset switch and power switch etc of

your chassis front panel to the front panel jumper according to the pin assignment above.

GD

1

22

7ZMMH Motherboard

Pl

JP3: Clear CMOS Function

Pin No . Defin itio n
1-2 close N orm al (Default)
2-3 close C lear CMO S

Please note:

You may clear the CMOS data to its default values by this jumper.

JP4: USB Device Wake up Selection

Pin No. Definition

1-2 close Normal (Defaul t)
2-3 close USB Device Wake up

1

Normal

(Default)

1

Normal

(Default)

1

Clear CMOS

1

Enable

ease note:

(If you want to use “
BIOS setting “
enabled).
*(Power on the computer and as soon as memory counting starts, press <Del>.
You will enter BIOS Setup. Select the item “
then select “
the setting by pressing "ESC" and choose the “SAVE & EXIT SETUP” option.)

USB Dev Wakeup from S3~S5

USB Dev Wakeup from S3~S5

USB Dev Wakeup from S3~S5: Enabled

” function, you have to set the

” enabled, and the jumper “

POWER MANAGEMENT SETUP

JP4

”. Remember to save

”

”,

23

Panel and Jumper Definiti on

J16 /J17/J18: AMR (Primary or Secondary) Select [Optional]

(AMR

Audio Modem Riser)

ÆÆÆÆ

1

J16

1

J18

Please note:

This MB supports AMR slot, you can look up the table above to choose the
appropriate AMR card for your board.

JP1: Front MIC

1

J16 J17 J18
Onboard AC97 1-2 1-2 1-2
AMR (Primary )
(Default)
Onboard AC97 MR
(Secondary)

2-3 3-4 3-4
1-2 1-2

J17

1-2

3-4

1 1

Disable

(Default)

Enable

Pin No. Definition
1-2 close Enab le
2-3 close Disable (Default)

24

7ZMMH Motherboard

Pl

JP7: STR Selection

1 1

Normal

(Default)

Enable

Pin No. Defin itio n
1-2 close STR Enable
2-3 close Normal (Default)

JP9: BIOS Write Protection

1 1

Normal

(Default)

Write

Protection

Pin No . Definitio n
1-2close Write Protection
2-3close Normal (Default)

ease note:

To flash/upgrade BIOS on this MB JP9 must be set to 2-3 close. We recommend
JP9 to be set to “1-2 close”, whenever user does not need to flash/upgrade the
BIOS.

25

JP11: Onboard Sound Function Selection

1 1

Enable

(Default)

Pin No. Definition

1-2 close Onboard Soun d Enable
2-3 close Onboard Sound Disable

BAT1: Battery

Panel and Jumper Definiti on

Disable

(Default)

+

CAUTION

Danger of explosion if battery is

incorrectly replaced.
Replace only with the same or
equivalent type recommended by
the manufacturer.

Dispose of used batteries acco rd ing

to the manufacturer’s instructions.

26

7ZMMH Motherboard

Performance List

The following performance table lists the results of some popular benchmark testing programs.
These data are provided as reference only and in no way guarantee the system shall perform,
and there is no responsibility for different testing data at exactly the same level. (The different
Hardware & Software configuration will result in different benchmark testing results.)

CPU

•

DRAM

•

CACHE SIZE

•

DISPLAY

•

STORAGE

•

O.S.

•

DRIVER

•

AMD K7 AthlonTM 1333MHz / DuronTM 900MHz processor
(128x1) MB SDRAM (Kingmax KSV884T4A1A-07)
384 KB included in AlthonTM

192 KB included in DuronTM
Gigabyte GF2000
Onboard IDE (Quantum AS30000AT 30GB)
Windows 2000 + SP1 + DirectX8

Display Driver at 1024 x 768 x 64k colors x 75Hz.

Processor

Winbench99

Althon

AMD

1333MHz (266x5)

AMD Duron

900MHz (200x4.5)

TM

Business Disk Winmark 99 7860 7340

Hi-End Disk Winmark 99 17700 16300

Business Graphics Winmark 99 571 363

Hi-End Graphics Winmark 99 1300 872

Winstone 2001

Business Winstone 2001 45.3 34.5

Content Creative Winstone 2001

44.6 38

27

TM

CPU

•

Performance List

AMD K7 AthlonTM 1333MHz / DuronTM 900MHz processor

DRAM

•

CACHE SIZE

•

DISPLAY

•

STORAGE

•

O.S.

•

DRIVER

•

Processor

Winbench99

(128x1) MB SDRAM (Kingmax KSV884T4A1A-07)
384 KB included in AlthonTM

192 KB included in DuronTM
Onboard VGA
Onboard IDE (Quantum AS30000AT 30GB)
Windows 2000 + SP1 + DirectX8

Display Driver at 1024 x 768 x 64k colors x 75Hz.

TM

Althon

AMD

1333MHz (266x5)

AMD Duron

900MHz (200x4.5)

Business Disk Winmark 99 6240 7340

Hi-End Disk Winmark 99 15900 15900

Business Graphics Winmark 99 224 186

Hi-End Graphics Winmark 99 813 589

Winstone 2001

Business Winstone 2001 38.6 29.6

Content Creative Winstone 2001

40 33.8

TM

28

7ZMMH Motherboard

Block Diagram

AGPCLK (66MHz)

On Chip

VGA

3 PCI

PCI (33MHz)

AGP

2X/4X

PCI Bus 33MHz

CT5880

AC-Link

AC97

CODEC

AMR

AMD-K7

System Bus 100/133MHz

VT8365A

VT82C

686B

Floppy

PS/2

TM

100/133MHz

AGPCLK (66MHz)

33MHz

14.318MHz

LPT Port

CPUCLK (100/133MHz)

3.3V SDRAM

HCLK (100MHz)

48MHz

4 USB Ports

Game Port

COM Port

ATA66/100
IDE Channels

AGPCLK (66MHz)

PCI (33MHz)

48MHz

14.318MHz

ICS

94236AF

29

HCLK (100/133MHz)
AGPCLK (66MHz)

CPUCLK (100MHz)

33MHz

Suspend to RAM Installat i on

Suspend To RAM Installation

A.1 Introduce STR function:

Suspend-to-RAM (STR) is a Wi ndows 98 A CPI s leep mode function. When recovering from

STR (S3) sleep mode, the system is able, in just a few seconds, to r etrieve the last “state ” of
the system before it went to sleep and recover to that state. The “state” is stored in memory
(RAM) before the system goes to sleep. During STR sleep mode, your system uses only
enough energy to maintain critical information and system functions, primarily the system
state and the ability to recognize various “wake up” triggers or signals, respectively.

A.2 STR function Installation

Please use the following steps to complete the STR function installation.

Step-By-Step Setup

Step 1:

To utilize the STR function, the system must be in Windows 98 ACPI mode.

Putting Windows 98 into ACPI mode is fairly easy.

Setup with Windows 98 CD:

A. Insert the Windows 98 CD into your CD-ROM drive, select Start, and then Run.
B. Type (without quotes)
C. After setup completes, remove the CD, and reboot your system
(This manual assumes that your CD-ROM device drive letter is D:).

“D:\setup”

in the window provided. Hit the enter key or click OK.

30

7ZMMH Motherboard

Step 2:

(If you want to use STR Function, please set jumper JP7 Pin1-2 (Closed.)

1

Enable

Pin No. Defin itio n
1-2 close STR Enable
2-3 close Normal (Default)

Step 3:

Power on the computer and as soon as memory counting starts, press <Del>. You will enter
BIOS Setup. Select the item

State: S3 /STR”
EXIT SETUP”

Congratulation! You have completed the installation and now can use the STR function.

. Remember to save the settings by pres si ng "ESC" and c hoose the

option.

“POWER MANAGEMENT SETUP”,

then select

“ACPI Standby

“SAVE &

31

Suspend to RAM Installat i on

A.3 How to put your system into STR mode?

There are two ways to accomplish this:

1. Choose the “Stand by” item in the “Shut Down Windows” area.
A. Press the “Start” button and then select “Shut Down”

B. Choose the “Stand by” item and press “OK”

32

7ZMMH Motherboard

2. Define the system ”power on” button to initiate STR sleep mode:

A. Double click “My Computer” and then “Control Panel”

B. Double click the “ Power Management” item.

33

Suspend to RAM Installat i on

C. Select the “Advanced” tab and “Standby” mode in Power Buttons.

D. Restart your computer to complete setup.

Now when you want to enter STR sleep mode, just momentarily press the “Power on”
button.

A.4 How to recover from the STR sleep mode?

There are five ways to “wake up” the system:

1. Press the “Power On” button.

2. Use the “Resume by Alarm” function.

3. Use the “Modem Ring On” function.

4. Use the “Wake On LAN” function.

5. Use the “USB Device Wake Up” function.

34

7ZMMH Motherboard

A.5 Notices:

1. In order for ST R to function properl y, several hard ware and software req uirements must

be satisfied:

A. Your ATX power suppl y must comply with the ATX 2.01 specifi cation (provide more

than 720 mA 5V Stand-By current).

B. Your SDRAM must be PC-100/PC-133 compliant.

2. Jumper JP8 is provided to connect to the STR LED in your system chassis. [Some

chassis may not provide this feature.] The STR LED will be illuminated when your system
is in STR sleep mode.

STR LED Connector External.

1

+

DIMM LED

35

Four Speaker & SPDIF Introduction

Four Speaker & SPDIF Introduction

Four Speaker Introduction

A. What is Four Speaker?

The Creative CT5880 audio chip can support up to 4 speaker output. If you select “Four
speaker out”, Line In will be reconfigured as another line out to support a second pair of
speakers.

B. How to use Four Speaker?
Microsoft Windows 98 Second Edition setup procedure:

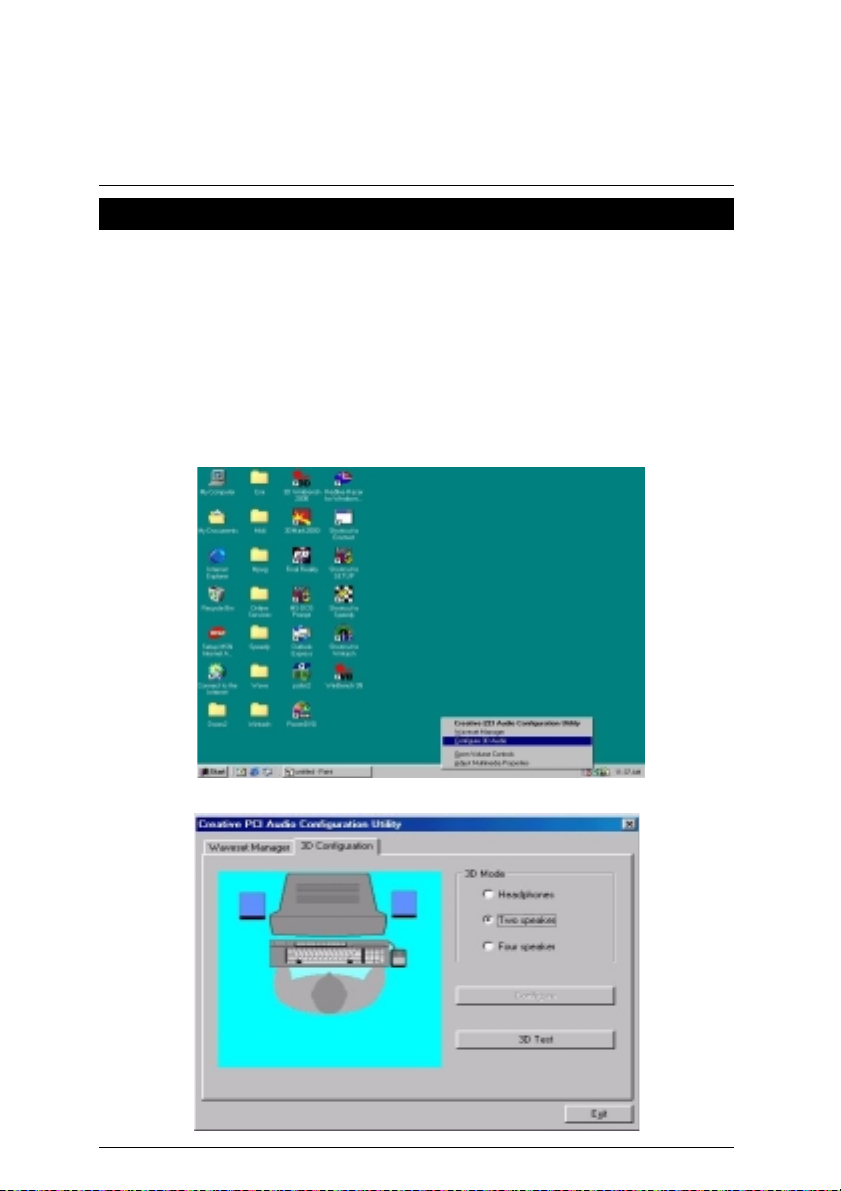

a. Click the audio icon along the task bar and select “Configure 3D Audio”

b. Select two speaker (Default)

36

7ZMMH Motherboard

. Select “Four speaker” item.

c

Microsoft W indows Me setup procedure:

a. Go to “Control Panel”

Double click “Sounds and Multimedia”.

37

b. Select “Audio” Page, and click “Advanced” button.

c. Select “Quadraphonic Speakers” and click ok.

Four Speaker & SPDIF Introduction

Click ”Advanced”.

Click “Quadraphonic Speakers”.

C. Four Speaker Application

The four speaker function will only be supported in application softwares that use Microsoft
DirectX and Creative EAX, for example, the game titles, software DVD player and MP3 player.

38

7ZMMH Motherboard

SPDIF Introduction

What is SPDIF?

A.

The SPDIF output is capable of providing digi tal audio to external speakers or compressed
AC3 data to an external Dolby digital decoder.

B. How to use SPDIF?

a. Click your mouse right button in “My Computer” and select the “Properties” item.

b. Click “Device Manager” item.

39

Four Speaker & SPDIF Introduction

c. Click “Sound, video and game controllers” item and select the “Creative Sound Blaster

PCI128” item.

d. Click “Settings” item and select the “Output Mode” item.

40

7ZMMH Motherboard

e. Click “Digital” item, Line Out will be reconfigure t o SPDIF Out.

f. Recommend you to select “Autosense”, It will automatically detect the type (mono or

stereo) of the audio connector that you plug into Line Out audio jack, then configure Line
Out to either SPDIF or Speaker accordingly.

41

@BIOS™ Introduction

@BIOSTM Introduction

Gigabyte announces

@BIOS™

Windows BIOS live update utility

Have you ever updated BIOS by yourself? Or
like many other people, you just know what
BIOS is, but always hesitate to update it?
Because you think updating newest BIOS is

unnecessary and actually you don’t know how to update it.

Maybe not like others, you are very experienced in BIOS updating and spend quite
a lot of time to do it. But of course you don’t like to do it too much. First, download
different BIOS from website and then switch the operating system to DOS mode.
Secondly, use different flash utility to update BIOS. The above process is not a
interesting job. Besides, always be carefully to store the BIOS source code correctly in
your disks as if you update the wrong BIOS, it will be a nightmare.

Certainly, you wonder why motherboard vendors could not just do something right
to save your time and effort and save you from the lousy BIOS updating work? Here it

comes! Now Gigabyte announces @BIOS
This is a smart BIOS update software. It could help you to download the BIOS from
internet and update it. Not like the other BIOS update software, it’s a Windows utility.

With the help of “@BIOS

Besides, no matter which mainboard you are using, if it’s a Gigabyte’s product*,

™

@BIOS
mainboard model and help you to choose the BIOS accordingly. It then downloads the
BIOS from the nearest Gigabyte ftp site automatically. There are several different
choices; you could use “Internet Update” to download and update your BIOS directly.
Or you may want to keep a backup for your current BIOS, just choose “Save Current

BIOS” to save it first. You make a wise choice to use Gigabyte, and @BIOS
your BIOS smartly. You are now worry free from updating wrong BIOS, and capable to
maintain and manage your BIOS easily. Again, Gigabyte’s innovative product erects a
milestone in mainboard industries.

buy a Gigabyte’s motherboard, you could find this amazing software in the attached
driver CD. But please remember, connected to internet at first, then you could have a

internet BIOS update from your Gigabyte @BIOS

help you to maintain the BIOS. This utility could detect your correct

For such a wonderful software, how much it costs? Impossible! It’s free! Now, if you

™

’, BIOS updating is no more than a click.

™

--the first Windows BIOS live update utility.

™

™

update

.

42

7ZMMH Motherboard

Page Index for BIOS Setup

Page
The Main Menu P.45
Standard CMOS Setup P.47
BIOS Features Setup P.50
Chipset Features Setup P.52
Power Management Setup P.54
PNP/ PCI Configuration P.57
Load BIOS Defaults P.59
Load Setup Defaults P.60
Integrated Peripherals P.61
Hardware Monitor & MISC Setup P.64
Supervisor Password / User Password P.65
IDE HDD Auto Detection P.66
Save & Exit Setup P.67
Exit Without Saving P.68

43

BIOS Setup

BIOS Setup

BIOS Setup is an overview of the BIOS Setup Interface. The i nterface al l ows users to modify the
basic system configuration, which is stored in battery-backed CMOS RAM so that it retains the
Setup information can be retained when the power is turned off.

ENTERING SETUP

Power ON the computer and press <Del> immediately will allow you to enter Setup. If
unsuccessful, you can restart the system and try again by pressing the "RESET" bottom on the
system case. You may also restart by simultaneously pressing <Ctrl> − <Alt>− <Del> keys.

CONTROL KEYS

<↑> Move to previous item

<↓> Move to next item
<←> Move to the item in the left hand
<→> Move to the item in the right hand

<Esc> Main Menu - Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu - Exit current page

and return to Main Menu
<+/PgUp> Increase the numeric value or make changes
<-/PgDn> Decrease the numeric value or make changes

<F1> General help, only for Status Page Setup Menu and Option Pa ge Setup

Menu

<F2> Reserved
<F3> Reserved
<F4> Reserved
<F5> Restore the previous CMOS value from CMOS, only for Option Page

Setup Menu

<F6> Load the default CMOS value from BIOS default table, only for Option

Page Setup Menu

<F7>
<F8> Reserved
<F9> Reserved

<F10> Save all the CMOS changes, only for Main Menu

Load the Setup Defaults

44

7ZMMH Motherboard

GETTING HELP

Main Menu

The on-line description of the highlighted setup function is displayed at the
bottom of the screen.

Status Page Setup Menu / Option Page Setup Menu

Press F1 to pop up a small help window that describes the ap propriate keys to use and the
possible selections for the highlighted item. To exit the Help Window press <Esc>.

The Main Menu

Once you enter AMI BIOS CMOS Setup Utility, the Main Men u (Figure 1) will appear on the
screen. The Main Menu allows you t o sel ec t from nine s e tup fu ncti ons an d two exi t choi c es. Us e
arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24b

( C ) 1999 American Megatrends, Inc. All Rights Reserved

STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CHIPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MANAGEMENT SETUP USER PASSWORD
PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION
LOAD BIOS DEFAULTS SAVE & EXIT SETUP
LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit
F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

: Select Item (Shift) F2 : Change Color F5 : Old Values

↑↓←→

Time, Date, Hard Disk Type, …

Figure 1: Main Menu

Standard CMOS Setup

••••

This setup page includes all the adjustable items in standard compatible BIOS.

BIOS Features Setup

••••

This setup page includes all the adjustable items of Award special enhanced features.

Chipset Features Setup

••••

This setup page includes all the adjustable items of chipset special features.

45

BIOS Setup

Power Management Setup

••••

This setup page includes all the adjustable items of Green function features.

PnP/PCI Configuration

••••

This setup page includes all the adjustable configurations of PCI & PnP ISA resources.

Load BIOS Defaults

••••

Load BIOS Defaults option loads preset system parameter values to set the system in its
most stable configurations.

Load Setup Defaults

••••

Load Setup Defaults option loads preset system parameter values to set the system in its
highest performance configurations

Integrated Peripherals

••••

This setup page includes all onboard peripherals.

Hardware Monitor & MISC Setup

••••

This setup page is auto detect fan and temperature status.

Set Supervisor Password

••••

Set Cha nge or disable password. It allows you to limit access to the system and/or BIOS

setup.

Set User Password

••••

Set Change or disable password. It allows you to limit access to the system.

.

IDE HDD auto detection

••••

Automatically configure hard disk parameters

Save & Exit Setup

••••

Save CMOS value settings to CMOS and exit setup.

Exit Without Saving

••••

Abandon all CMOS value changes and exit setup.

.

46

7ZMMH Motherboard

Standard CMOS Setup

The items in Standard CMOS Setup Menu (Figure 2) are divided into 10 categories. Each
category includes none, one or mo re than one set up items. Use the ar rows to highl ight the item
and then use the <PgUp> or <PgDn> keys to select the value in each item.

AMIBIOS SETUP – STANDARD CMOS SETUP

( C ) 1999 American Megatrends, Inc. All Rights Reserved

Date (mm/dd/yyyy) : Mon Feb 05, 2001
Time (hh/mm/ss) : 10:36:24

Pri Master : Auto
Pri Slave : Auto
Sec Master : Auto
Sec Slave : Auto

Floppy Drive A: 1.44 MB 3 ½
Floppy Drive B: Not Installed

Boot Sector Virus Protection : Disabled

Month: Jan – Dec ESC : Exit
Day: 01 – 31 ↑↓ : Select Item
Year : 1990– 2099 PU/PD/+/– : Modify
(Shift)F2 : Color

Date

••••

TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Base Memory : 640 Kb
Other Memory: 384 Kb
Extended Memory: 111Mb
Total Memory: 112M b

Figure 2: Standard CMOS Setup

The date format is <Week> <Month> <Day>, <Year>.

Week The week, from Sun to Sat, determined by the BIOS and is display-only
Month The month, Jan. Through Dec.
Day The day, from 1 to 31 (or the maximum allowed in the month)
Year The year, from 1990 through 2099

47

BIOS Setup

Time

••••

The times format in <hour> <minute> <second>. The time is calculated base on the
24-hour military-time clock. For example, 1 p.m. is 13:00:00.

Primary Master / Slave, Secondary Master / Slave

••••

The category identifies the type of ha rd di sk from d riv e C to F that has been installed in the
computer. There are two settings: Auto, and Manual. Manual : HDD type is user-definable;
Auto will automatically detect HDD type.

Note that the specifications of your d r iv e must matc h wi th the d rive tabl e. T he hard dis k wi l l
not work properly if you enter improper information for this category.

If you select User Type, related information will be asked to enter to the following items.
Enter the information directly from the keyboard and press <Enter>. Such information
should be provided in the documentation form your hard disk vendor or the system
manufacturer.

CYLS. Number of cylinders
HEADS number of heads
PRECOMP write precomp
LANDZONE Landing zone
SECTORS number of sectors

If a hard disk has not been installed select NONE and press <Enter>.

Floppy Drive A / Drive B

••••

The category identifies the type of fl oppy disk drive A or drive B that has been installed i n
the computer.

None No floppy drive installed
360K, 5.25 in. 5.25 inch PC-type standard drive; 360K byte capacity.

1.2M, 5.25 in. 5.25 inch AT-type high-density drive; 1.2M by te capacity (3.5 inc h
when 3 Mode is Enabled).

720K, 3.5 in. 3.5 inch double-sided drive; 720K byte capacity

1.44M, 3.5 in. 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5 in. 3.5 inch double-sided drive; 2.88M byte capacity.

48

7ZMMH Motherboard

Boot Sector Virus Protection

••••

If it is set to enable, the category will flash on the screen when there is an y attempt t o write
to the boot sector or partition table of the hard disk drive. The system will halt and the
following error message will appear in the mean time. You can run anti-virus program to
locate the problem.

Enabled Activate automatically when the system boots up causing a warning

Disabled No warning message to appear when anything attempts to access the

Memory

••••

The category is display-only which is determined by POST (Power On Self Test) of the
BIOS.

message to appear when anything attempts to access the boot sector or
hard disk partition table

boot sector or hard disk partition table.

(Default Value)

Base Memory

The POST of the BIOS will determine the amount of base (or conventional)
memory installed in the system.

The value of the base memory is typically 512 K for systems with 512 K
memory installed on the motherboard, or 640 K for systems with 640 K or more
memory installed on the motherboard.

Extended Memory

The BIOS determines how much extended memory is present during the POST.
This is the amount of memory located above 1 MB in the CPU's memory

address map.

Other Memory

This refers to the memory loca ted in t he 640 K to 1024 K address space. This is
memory that can be used for different applications.

DOS uses this area to load device drivers to keep as much base memory free
for application programs. Most use for this area is Shadow RAM

49

BIOS Setup

BIOS Features Setup

AMIBIOS SETUP – BIOS FEATURES SETUP

( C ) 1999 American Megatrends, Inc. All Rights Reserved

1st Boot Device Floppy
2nd Boot Device IDE-0

3rd Boot Device CDROM
S.M.A.R.T. for Hard Disks Disabled
BootUp Num-Lock On
Floppy Drive Seek Disabled

Password Check Setup

F1 : Help PU/PD+/-/ : Modify

F6 : Load BIOS Defaults
F7 : Load SETUP Defaults

ESC : Quit
F5 :Old Values (Shift)F2:Color

↑↓→ ←

: Select Item

Figure 3: BIOS Features Setup

1st / 2nd / 3rd Boot Device

••••

Floppy
ZIP A: / LS120
CDROM
SCSI
NETWORK
USB FDD
IDE-0~IDE-3
Disabled
ATAPI ZIP C:

S.M.A.R.T. for Hard Disks

•

Set your boot device priority to Floppy.
Set your boot device priority to ZIP A: / LS120.
Set your boot device priority to CDROM.
Set your boot device priority to SCSI.
Set your boot device priority to NETWORK.
Set your boot device priority to USB FDD.
Set your boot device priority to IDE-0~IDE-3.
Disable this function.
Set your boot device priority to ATAPI ZIP C:.

Enabled Enabled S.M.A.R.T. Feature for Hard Disks.
Disabled Disabled S.M.A.R.T. Feature for Hard Disks.

50

(Default Value)

7ZMMH Motherboard

Boot Up Num-Lock

••••

On Keypad is number keys.
Off Keypad is arrow keys.

Floppy Drive Seek

••••

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360
type is 40 tracks while 720 , 1.2 and 1.44 are all 80 tracks.

Enabled BIOS searches for floppy disk drive to determine if it is 40 or 80 tracks.

Note that BIOS can’t differentiate b etween from 720, 1.2 or 1.44 driv e
type as they are all 80 tracks.

Disabled BIOS will not search for the type of floppy disk drive by track number.

Note that there will not be any warning message if the drive installed is

(Default Value)

360.

Password Check

•

Please refer to the detail on P.65

Setup

Always The user must enter correct password in order to access the system

The user must enter correct password in order to access BIOS setup

(Default Value)

utility.

and/or BIOS Setup.

(Default Value)

51

Chipset Features Setup

BIOS Setup

We would not suggest you change the chipset default setting unless you really need it.

AMIBIOS SETUP – CHIPSET FEATURES SETUP

( C ) 1999 American Megatrends, Inc. All Rights Reserved

Configure Timing by SPD Disabled

DRAM Frequency 100MHz
SDRAM CAS# Latency 3

AGP Mode 4X
AGP Comp. Driving Auto
Manual AGP Comp. Driving CB
AGP Fast Write Disabled
AGP Aperture Size 64MB
ClkGen Spread Spectrum Enabled
USB Controller All USB Port

USB Legacy Support Disabled

F1 : Help PU/PD+/-/ : Modify
F5 :Old Values (Shift)F2:Color
F6 : Load BIOS Defaults
F7 : Load SETUP Defaults

ESC : Quit

↑↓→ ←

: Select Item

Figure 4: Chipset Features Setup

Configure Time by SPD

••••

Disabled Disable Configure Time by SPD function.

(Default Value)

Enabled Enable Configure Time by SPD function.

DRAM Frequency

••••

100MHz Set DRAM Frequency to 100MHz.

(Default Value)

133MHz Set DRAM Frequency to 133MHz.

SDRAM CAS# Latency

••••

2 For Fastest SDRAM DIMM module.
3 For Slower SDRAM DIMM module.

AGP Mode

••••

(Default Value)

4X Set AGP Mode to 4X (Only if the AGP Card support 4X Rate).

(Default Value)

1X Set AGP Mode to 1X.
2X Set AGP Mode to 2X.

52

7ZMMH Motherboard

AGP Comp. Driving

••••

Auto Set AGP Comp. Driving to Auto.
Manual Set AGP Comp. Driving to Manual.

If AGP Comp. Driving is Manual.

Manual AGP Comp. Driving: 00~FF

AGP Fast Write

••••

Enabled Enable this function only if the AGP Card sup port Fast Write Function.

(Enable this function can increase AGP performance).

Disabled Disable this function.

AGP Aperture Size

••••

4MB Display AGP Aperture Size is 4MB.
8MB Display AGP Aperture Size is 8 MB.
16MB Display AGP Aperture Size is 16 MB.
32MB Display AGP Aperture Size is 32 MB.
64MB Display AGP Aperture Size is 64 MB.
128MB Display AGP Aperture Size is 128 MB.
256MB Display AGP Aperture Size is 256 MB.

ClkGen Spread Spectrum

••••

Disabled Disable this function.
Enabled Enable Clock Generator Spread Spectrum function to improve

CE/FCC.

(Default Value)

(Default value)

(Default Value)

(Default Value)

USB Controller

••••

53

(Default Value)

(Default Value)

.

All USB Port Enable All USB Ports 0,1,2,3.
Disabled Disable USB Controller.
USB Port 0&1 Enable USB Ports 0&1.
USB Port 2&3 Enable USB Ports 2&3.

USB Legacy Support

••••

Keyboard/FDD Enable USB Legacy Support for USB Keyboard & USB Floppy.
KB/Mouse/FDD Enable USB Legacy Support for USB Keyboard/USB Mouse &

USB Floppy.

Disabled Disable USB Legacy Support Function

BIOS Setup

Power Management Setup

AMIBIOS SETUP – POWER MANAGEMENT SETUP

( C ) 1999 American Megatrends, Inc. All Rights Reserved

ACPI Standby State S1/P OS RTC Alarm Hour 12
USB Dev Wakeup From S3~S5 Disabled RTC Alarm Minute 30

Suspend Time Out (Minute) Disabled RTC Alarm Second 30
Display Activity Ignore
IRQ3 Monitor
IRQ4 Monitor
IRQ5 Ignore
IRQ7 Monitor
IRQ9 Ignore
IRQ10 Ignore
IRQ11 Ignore
IRQ13 Ignore
IRQ14
IRQ15 Ignore

Soft-Off by Power Button

System after AC Back Last State
Resume On Ring/LAN Enabled F1 : Help PU/PD+/-/ : Modify
Resume On PME# Enabled F5 :Old Values (Shift)F2:Color
Resume On RTC Alarm Disabled F6 : Load BIOS Defaults

RTC Alarm Date 15 F7 : Load SETUP Defaults

ACPI Standby State

••••

S1/POS Set ACPI Standby State to S1/POS (Power On Suspend).

(Default value)

S3/STR Set ACPI Standby State to S3/STR (Suspend To RAM).

Monitor

Instant-Off

ESC : Quit

Figure 5: Power Management Setup

↑↓→ ←

: Select Item

USB Dev Wakeup From S3~S5

•

Enabled Enable USB Dev Wakeup from ACPI S3, S4 and S5 mode.
Disabled Disable USB Dev Wakeup from ACPI S3, S4 and S5 mode.

(Default Value)

Suspend Time Out (Minute.)

••••

System enters suspend power stat e when t he length of peri od selected b y this opti onal

has expired.

Disabled Disable the timer to enter suspend mode.

(Default Value)

1min ~ 60min Set the timer to enter suspend mode.

54

7ZMMH Motherboard

Display Activity

••••

Ignore System will ignore display activity and enter suspend mode.

Monitor System will not enter suspend mode when there is display activity.

IRQ3~IRQ15

••••

Ignore Ignore IRQ3 ~IRQ15.
Monitor IRQ3~IRQ15 event can wake up the system from sleep state (S1).

Soft-off by Power Button

•

Instant off The user press the power button once, he can turn off the system.

Suspend The us er press the power button once, then he can enter susp end

System after AC Back

••••

Off When AC-power back to the system, the system will be in “Off” state.
On When AC-power back to the system, the system will be in ”On” state.
Last State

Resume On Ring / LAN

•

(Default Value)

(Default Value)

mode.

When AC-power back to the system, the system will return to the
Last state before AC-power off.

(Default Value)

Disabled Disable Resume On Ring / LAN.
Enabled The modem ring / LAN wake up will bring the system out of soft-off or

suspend state if this option is set “Enabled”.

Resume On PME#

•

Disabled Disable Resume On PME#.
Enabled The PME event wake up will bring the system out of soft-off or

suspend state if this option is set “Enabled”.

Resume On RTC Alarm

••••

You can set “Resume On RTC Alarm” item to enabled and key in Data/time to power on
system.

Disabled Disable this function.
Enabled Enable alarm function to POWER ON system.

(Default Value)

55

(Default Value)

(Default Value)

If the default value is Enabled.

RTC Alarm Date: Every Day, 1~31
RTC Alarm Hour: 0~23
RTC Alarm Minute: 0~59
RTC Alarm Second: 0~59

BIOS Setup

56

7ZMMH Motherboard

PNP/PCI Configuration

AMIBIOS SETUP – PNP / PCI CONFIGURATION

( C ) 1999 American Megatrends, Inc. All Rights Reserved

VGA Frame Buffer Size
VGA Boot from PCI
PCI Slot 1 IRQ Priority Auto

PCI Slot 2 IRQ Priority Auto

PCI Slot 3 IRQ Priority Auto
IRQ 3 PCI/PnP

IRQ 4 PCI/PnP

IRQ 5 PCI/PnP

IRQ 7 PCI/PnP

IRQ 9 PCI/PnP

IRQ 10 PCI/PnP

IRQ 11 PCI/PnP

IRQ 14 PCI/PnP

IRQ 15

F1 : Help PU/PD+/-/ : Modify

F5 :Old Values (Shift)F2:Color

F6 : Load BIOS Defaults

F7 : Load SETUP Defaults

16MB

PCI/PnP

Figure 6: PNP/PCI Configuration

VGA Frame Buffer Size

••••

8MB Set VGA Frame Buffer Size to 8MB.
16MB Set VGA Frame Buffer Size to 16MB.
32MB Set VGA Frame Buffer Size to 32MB.

ESC: Quit

↑↓→ ←

: Select Item

(Default Value)

VGA Boot From

•

AGP Set VGA Boot from AGP VGA Card.
PCI Set VGA Boot from PCI VGA Card.

PCI Slot 1 / 2 / 3 IRQ Priority

•

(Default Value)

Auto The system will reserved a free IRQ for PCI slot 1 / 2 / 3 device.

(Default Value)

3 The system will reserved IRQ3 for PCI slot 1 / 2 / 3 device if no

legacy ISA device using IRQ3.

4 The system will reserved IRQ for PCI slot 1 / 2 / 3 device if no

legacy ISA device using IRQ4.

5 The system will reserved IRQ5 for PCI slot 1 / 2 / 3 device if no

legacy ISA device using IRQ5.

57

7 The system will reserved IRQ7 for PCI slot 1 / 2 / 3 device if no

legacy ISA device using IRQ7.

9 The system will reserved IRQ9 for PCI slot 1 / 2 / 3 device if no

legacy ISA device using IRQ9.

10 Th e system will reserved IRQ10 for PCI slot 1 / 2 / 3 device if no

legacy ISA device using IRQ10.

11 The system will reserved IRQ11 for PCI slot 1 / 2 / 3 device if no

legacy ISA device using IRQ11.

IRQ (3, 4, 5, 7, 9, 10, 11, 14, 15)

••••

ISA/ EISA The resource is used by Legacy ISA device.
PCI / PnP The resource is used by PCI/ PnP device.

(Default Value)

BIOS Setup

58

7ZMMH Motherboard

Load BIOS Defaults

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24b

( C ) 1999 American Megatrends, Inc. All Rights Reserved

STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CHIPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MANAGEMENT SETUP USER PASSWORD
PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION
LOAD BIOS DEFAULTS SAVE & EXIT SETUP
LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit
F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

Load BIOS Defaults

••••

↑↓→←

BIOS defaults contain the most appropriate system parameter values of to configure the
system to achieve maximum stability.

Load BIOS Defaults (Y/ N)? N

: Select Item (Shift) F2 : Change Color F5 : Old Values

Load BIOS Default except Standard CMOS Setup

Figure 7: Load BIOS Defaults

59

BIOS Setup

Load Setup Defaults

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24b

( C ) 1999 American Megatrends, Inc. All Rights Reserved

STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CHIPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MANAGEMENT SETUP USER PASSWORD
PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION
LOAD BIOS DEFAULTS SAVE & EXIT SETUP
LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit
F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

Load Setup Defaults

••••

Load Setup defaults contain the most appropriate system parameter values to configure the
system to achieve maximum performance.

Load SETUP Defaults (Y/N)? N

: Select Item (Shift) F2 : Change Color F5 : Old Values

↑↓→←

Load Setup Default except Standard CMOS Setup

Figure 8: Load Setup Defaults

60

7ZMMH Motherboard

Integrated Peripherals

AMIBIOS SETUP – INTEGRATED PERIPHERALS

( C ) 1999 American Megatrends, Inc. All Rights Reserved

OnBoard FDC
OnBoard Serial Port 1

OnBoard IR Port
Serial Port2 Mode IrDA
Duplex Mode N/A

OnBoard Parallel Port

Parallel Port Mode ECP
Parallel Port DMA Auto
Parallel Port IRQ Auto
OnBoard IDE Both
OnBoard AC’97 Audio Aut o
OnBoard MC’97 Modem Auto

F1 : Help PU/PD+/-/ : Modify

F5 :Old Values (Shift)F2:Color
F6 : Load BIOS Defaults
F7 : Load SETUP Defaults

Onboard FDC

••••

Disabled Disable this function.
Enabled Enable on board floppy disk controller.
Auto Set the floppy disk controller automatically.

Auto
Auto
Disabled

Auto

ESC: Quit

↑↓→ ←

: Select Item

Figure 9: Integrated Peripherals

(Default Value)

OnBoard Serial Port 1

•

Auto BIOS will automatically setup the port 1 address.
3F8/COM1 Enable onboard Serial port 1 and address is 3F8.
2F8/COM2 Enable onboard Serial port 1 and address is 2F8.
3E8/COM3 Enable onboard Serial port 1 and address is 3E8.
2E8/COM4 Enable onboard Serial port 1 and address is 2E8.
Disabled Disable onboard Serial port 1.

OnBoard IR Port

•

Auto BIOS will automatically setup the IR Port address.
Disabled Disable onboard IR Port.

(Default Value)

61

(Default Value)

Serial Port2 Mode

•

BIOS Setup

IrDA Onboard I/O chip supports IrDA.
ASK IR Onboard I/O chip supports ASK IR.

Duplex Mode

•

Half Duplex
N/A
Full Duplex

OnBoard Parallel port

•

378 Set On Board LPT port and address to 378.
278 Set On Board LPT port and address to 278.
3BC Set On Board LPT port and address to 3BC.
Auto Set On Board LPT port Automatically.
Disabled Disable this function.

Parallel Port Mode

•

EPP Using Parallel port as Enhanced Parallel Port.
ECP Using Parallel port as Extended Capabilities Port.
Normal Normal Operation.
EPP+ECP Using Parallel port as Enhanced Parallel Port & Extended Capabilities

Parallel Port DMA

••••

Auto Set Auto to parallel port mode DMA Channel.
3 Set Parallel Port DMA to 3.
1 Set Parallel Port DMA to 1.
0 Set Parallel Port DMA to 0.

IR Function Duplex Half.
Disable this function.
IR Function Duplex Full.

Port.

(Default Value)

(Default Value)

(Default Value)

(Default Value)

(Default Value)

Parallel Port IRQ

••••

7 Set Parallel Port IRQ to 7.
Auto Set Auto to parallel Port IRQ DMA Channel.
5 Set Parallel Port IRQ to 5.

62

(Default Value)

7ZMMH Motherboard

OnBoard IDE

•

Disabled Disable OnBoard IDE.
Both Both Primary & Secondary IDE channel will be enabled.

Primary Only Primary IDE channel is enable.
Secondary Only Secondary IDE channel is enable.

OnBoard AC’97 Audio

••••

Auto BIOS will search AC97 Codec. If found, AC97 function will be enabled.

Disabled Disable this function.

OnBoard MC’97 Modem

••••

Auto BIOS will search MC97 Codec (AMR Modem Card). If found, MC97

Disabled Disable this function.

(Default Value)

If no AC97 Codec found, AC97 function will be disabled.

function will be enabled. If no MC97 Codec found, MC97 function will be
disabled.

(Default Value)

(Default Value)

63

BIOS Setup

Hardware Monitor & MISC Setup

AMIBIOS SETUP – HARDWARE MONITOR & MISC SETUP

( C ) 1999 American Megatrends, Inc. All Rights Reserved
CPU Temperature
System Temperature

CPU Fan Speed 7123 RPM
System Fan Speed 0 RPM
Vcore 1.750 V
Vdd 3.050 V
Vcc3 3.340 V
+5.000V 4.996 V
+12.000V 12.166 V

F1 : Help PU/PD+/-/ : Modify
F5 :Old Values (Shift)F2:Color
F6 : Load BIOS Defaults

F7 : Load Setup Defaults

47°C/116°F
32°C/89°F

Figure 10: Hardware Monitor & MISC Setup

ESC: Quit

↑↓→ ←

: Select Item

CPU Temperature. (

••••

°°°°

C /

F)

°°°°

Detect CPU Temperature automatically.

System Temperature. (

••••

°°°°

C /

F)

°°°°

Detect System Temperature automatically.

CPU Fan Speed

••••

Detect CPU Fan speed status automatically.

System Fan Speed

••••

Detect System Fan speed status automatically.

Voltage (V) Vcore / Vdd / Vcc3 / +5V / +12V

••••

Detect system’s voltage status automatically .

64

7ZMMH Motherboard

Set Supervisor / User Password

When you select this function, the following message will appear at the center of the screen to
assist you in creating a password.

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24b

( C ) 1999 American Megatrends, Inc. All Rights Reserved

STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CHIPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MANAGEMENT SETUP USER PASSWORD
PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION
LOAD BIOS DEFAULTS SAVE & EXIT SETUP
LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit
F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

↑↓→←

Type the password, up to six characters, and press <Enter>. You will be asked to confirm the
password. Type the password again and press <Enter>. You may also press <Esc> to abort the
selection and not enter a password.

To disable password, just pres s <Enter> when y ou are prompted to enter password. A messag e

PASSWORD DISABLED

“
password is disabled, the system will boot and you can enter Setup freely.

The BIOS Setup program allows you to specify two separate passwords: a

PASSWORD

USER PASSWORD

and a
program function. When enabled, the Supervisor password is required for entering the BIOS
Setup program and having full configuration fields, the User password is required to access only
basic items.

If you select “

Always

” at “
prompted for the password every time the system is rebooted or any time you try to enter Set up
Menu.

If you select “
only when you try to enter Setup.

Setup

” at “

Enter new supervisor password:

: Select Item (Shift) F2 : Change Color F5 : Old Values

Chang /Set /Disabled Password

Figure 11: Password Setting

” will appear to confirm the password being disabled. Once the

SUPERVISOR

. When disabled, anyone may access all BIOS Setup

Password Check

Password Check

” in BIOS Features Setup Menu, you will be

” in BIOS Features Setup Menu, you will be prompted

65

IDE HDD AUTO Detection

AMIBIOS SETUP – STANDARD CMOS SETUP

( C ) 1999 American Megatrends, Inc. All Rights Reserved

Date (mm/dd/yyyy) : Mon Feb 05, 2001
Time (hh/mm/ss) : 10:36:24

Pri Master : Not Installed
Pri Slave : Not Installed
Sec Master : Not Installed
Sec Slave : Not Installed

Floppy Drive A: 1.44 MB 3 ½
Floppy Drive B: Not Installed

Boot Sector Virus Protection : Disabled
Month: Jan – Dec ESC : Exit

Day: 01 – 31 ↑↓ : Select Item
Year : 1990– 2099 PU/PD/+/– : Modify
(Shift)F2 : Color

TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Base Memory : 640 Kb
Other Memory: 384 Kb
Extended Memory: 111Mb
Total Memory: 112M b

BIOS Setup

Figure 12: IDE HDD Auto Detection
Type "Y" will accept the H.D.D. parameter reported by BIOS.
Type "N" will keep the old H.D.D. parameter setup. If the hard disk cylinder numbe r i s over 1024,

then the user can select LBA mode or LARGER mode for DOS partition larger than 528 MB.

66

7ZMMH Motherboard

Save & Exit Setup

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24b

( C ) 1999 American Megatrends, Inc. All Rights Reserved

STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CHIPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MANAGEMENT SETUP USER PASSWORD
PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION
LOAD BIOS DEFAULTS SAVE & EXIT SETUP
LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit
F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS.
Type "N" will return t o Setup Utility.

SAVE to CMOS and EXIT(Y/N)? Y

: Select Item (Shift) F2 : Change Color F5 : Old Values

↑↓→←

Save Data to CMOS & Exit Setup

Figure 13: Save & Exit Setup

67

Exit Without Saving

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24b

( C ) 1999 American Megatrends, Inc. All Rights Reserved

STANDARD CMOS SETUP INTEGRATED PERIPHERALS
BIOS FEATURES SETUP HARDWARE MONITOR & MISC SETUP
CHIPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MANAGEMENT SETUP USER PASSWORD
PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION
LOAD BIOS DEFAULTS SAVE & EXIT SETUP
LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit
F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

↑↓→←

Type "Y" will quit the Setup Utility without saving to RTC CMOS.
Type "N" will return t o Setup Utility.

Quit without saving (Y/N) ? N

: Select Item (Shift) F2 : Change Color F5 : Old Values

Abandon all Datas & Exit Setup

Figure 14: Exit Without Saving

BIOS Setup

68

7ZMMH Motherboard





Technical Support / RMA Sheet

Customer/Country: Company: Phone No.:
Contact Person: E-mail Add. :

Model name/Lot Number: PCB revision:
BIOS version: O.S./A.S.:

Hardware
Configuration

CPU
Memory

Brand
Video Card

Audio Card
HDD

CD-ROM /
DVD-ROM

Modem
Network
AMR / CNR
Keyboard
Mouse
Power supply
Other Device

Mfs. Model name Size: Driver/Utility:

Problem Description:

69

Appendix

Appendix A: VIA VT8365/VT8364 Chipsets Driver Installation
A.VIA 4 in 1 Service Pack Utility:

Insert the support CD that came with your motherboard into your CD-ROM driver or
double –click the CD driver icon in My Computer to bring up the screen.

Appendix

1.Click “VIA 4in 1 Service Pack
Driver” item.

(1)

3.Click “Yes”.

(3)

5.Click “Next”.

(5)

2.Click “Next”.

(2)

4.Click “Next”.

(4)

6.Click “Next”.

(6)

70

7ZMMH Motherboard

7.Click “Next”.

(7)

(9)

8.Click “Next”.

(8)

9.Click “Finish” to restart computer.

(10)

71

B.VT8365/VT8364 VGA Driver:

Insert the support CD that came with your motherboard into your CD-ROM driver or
double –click the CD driver icon in My Computer to bring up the screen.

Appendix

1.Click “VT8365/VT8364 VGA Driver”
item.

(1)

3.Click “Next”.

(3)

2.Click “Next”.

(2)

(4)

4.Click “Finish” to restart computer.

(5)

72

7ZMMH Motherboard

Appendix B: Creative Sound Driver Installation

Insert the support CD that came with your motherboard into your CD-ROM driver or
double –click the CD driver icon in My Computer to bring up the screen.

Press “Audio” icon.

1. Click “Creative CT5880 Sound
Driver” item.

(1)

2.Click “OK”.

(2)

3.Click “Yes”.

(3)

5.Click “Next”.

(5)

4.Click “Yes”.

(4)

6.Click”Next”.

(6)

73

Appendix

7.Click here.

8.Click”Next”.

(7)

9.Click “Finish” to
restart computer.

(9)

(8)

(10)

74

7ZMMH Motherboard

p

Appendix C: VIA AC’97 Audio Driver (Optional)

Insert the support CD that came with your motherboard into your CD-ROM driver or
double –click the CD driver icon in My Computer to bring up the screen.

Press “Audio” icon.

1.Click “VIA AC’97 Audio Driver”
item.

2.Click “Next”.

(1)

(2)

3.Click “Next”.

(3)

4. Click “Finish” to restart
uter.

com

(4)

75

Appendix

Appendix D: BIOS Flash Procedure

BIOS update procedure:

If your OS is Win9X, we recommend that you used Gigabyte @BIOSTM Program to flash BIOS.

Click “Tool”.

Click “@BIOS Writer v1.06”.

Click “9”.

Methods and steps:
I. Update BIOS through Internet

a. Click "Internet Update" icon
b. Click "Update New BIOS" icon
c.

Select @BIOSTM sever ( "Gigabyte @BIOSTM sever 1 in Taiwan" and "Gigabyte

TM

@BIOS
soon)

d. Select the exact model name on your motherboard
e. System will automatically download and update the BIOS.

sever 2 in Taiwan" are available for n ow, the o thers will be completed

Click Here.

76

7ZMMH Motherboard

II. Update BIOS NOT through Internet:

III. Save BIOS

IV. Check out supported motherboard and Flash ROM:

Note:

a. Do not click "Internet Update" icon
b. Click "Update New BIOS"
c. Please select "All Files" in dialog box while opening the old file.
d. Please search for BIOS unzip file, downloading from internet or any other methods

(such as: 7ZMMH.F1).

e. Complete update process following the instruction.

In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It
means to save the current BIOS version.

In the very beginning, there is "About this program" icon shown in dialog box. It can
help you check out which kind of motherboard and which brand of Flash ROM are
supported.

a. In method I, if it shows two or more motherboard's model names to be selected,

please make sure your motherboard's model name again. Sellecting name will
cause the system unbooted.

b. In method II, be sure that motherboard's model name in BIOS unzip file are the

same as your motherboard's. Otherwise, your system won't boot.

c.

In method I, if the BIOS file you need cannot be found in @BIOSTM server, please go
onto Gigabyte's web site for downloading and updating it according to method II.

d. Please note that any intercorruption during updating will cause system unbooted

77

Or else you can select flash BIOS in DOS mode.

Appendix

Please check your

0

version

on the motherboard.

1. Format a bootable system floppy diskette by the command “
mode.

2. Visit the Gigabyte website at http:// www.gigabyte.com.tw
need and download it to your bootable floppy diskette.

3. Insert the bootable diskette containing the BIOS file into the floppy diskette driver.

4. Assuming that the floppy diskette driver is A, reboot the system by using the A: driver.
At the A: > prompt, run the BIOS upgraded file by executing the Flash BIOS utility
and the BIOS file with its appropriate extension.

5. Upon pressing the <Enter> key, a flash memory writer menu will appear on screen.
Enter the new BIOS file name with its extension filename into the text box after file
name to program.

6. If you want to save the old BIOS file(perform as soon as system is operational, this is
recommended), select Y to
filename and the extension after filename to save: This option allows you to copy the
contents of the flash memory chip onto a diskette, giving you a backup copy of the
original motherboard BIOS in case you need to re-install it. Select N to

WANT TO SAVE BIOS

BIOS vendor (AMI or AWARD)

Example:

Example:

(AMI tool)

(Award tool)

A:>Awdflash.exe 7zmmh.f1

(Where 7zmmh.f1 is name of the BIOS file name)

A:>

flashxxx.exe 7zmmh.f1

(Where 7zmmh.f1 is name of the BIOS file name)

DO YOU WANT TO SAVE BIOS

, if you don’t want to save the old BIOS file.

motherboard name

, your





and

format a:/s

, Select the BIOS file you

, then type the old BIOS

” in command

DO YOU

PCB

7. After the decision to save the old BIOS file or not is made, select Y to

SURE TO PROGRAM

Power Off or Reset the system appears. Then turn off your system.

8. Remove the diskette and restart your system.

9. Hold down <Delete> key to enter BIOS setup. You must select “Load Setup BIOS
Default” to activate the new BIOS, then you may set other item from the main menu.

when the next menu appear; wait until a message showing

78

ARE YOU

7ZMMH Motherboard

Appendix E: Issues To Beware Of When Installing AMR

Please use inverse AMR card like the one in order to avoid mechanical problem. (See Figure A)

PCI Slot

PCI Slot

Figure A: Inverse AMR Card

Figure B: Non inverse AMR Card

79

Appendix F: Acronyms

Acronyms Meaning

ACPI Advanced Configuration and Power Interface

APM Advanced Power Management

AGP Accelerated Graphics Port

AMR Audio Modem Riser

ACR Advanced Communications Riser

BIOS Basic Input / Output System

CPU Central Processing Unit

CMOS Complementary Metal Oxide Semiconductor

CRIMM Continuity RIMM

CNR Communication and Networking Riser
DMA Direct Memory Access

DMI Desktop Management Interface

DIMM Dual Inline Memory Module

DRM Dual Retention Mechanism

DRAM Dynamic Random Access Memory

DDR Double Data Rate

ECP Extended Capabilities Port

ESCD Extended System Configuration Data

ECC Error Checking and Correcting

EMC Electromagnetic Compatibility

EPP Enhanced Parallel Port
ESD Electrostatic Discharge
FDD Floppy Disk Device
FSB Front Side Bus

HDD Hard Disk Device

IDE Integrated Dual Channel Enhanced

IRQ Interrupt Request

I/O Input / Output

IOAPIC Input Output Advanced Programmable Input Controller

ISA Industry Standard Architecture

LAN Local Area Network

LBA Logical Block Addressing
LED Light Emitting Diode
MHz Megahertz
MIDI Musical Interface Digital Interface

MTH Memory Translator Hub

MPT Memory Protocol Translator

NIC Network Interface Card
OS Operating System

Appendix

80

To be continued…

7ZMMH Motherboard

Acronyms Meaning

OEM Original Equipment Manufacturer

PAC PCI A.G.P. Controller

POST Power-On Self T est

PCI Peripheral Component Interconnect

RIMM Rambus in-line Memory Module

SCI Special Circumstance Instructions
SECC Single Edge Contact Cartridge
SRAM Static Random Access Memory

SMP Symmetric Multi-Processing

SMI System Management Interrupt

USB Universal Serial Bus

VID Voltage ID

81
