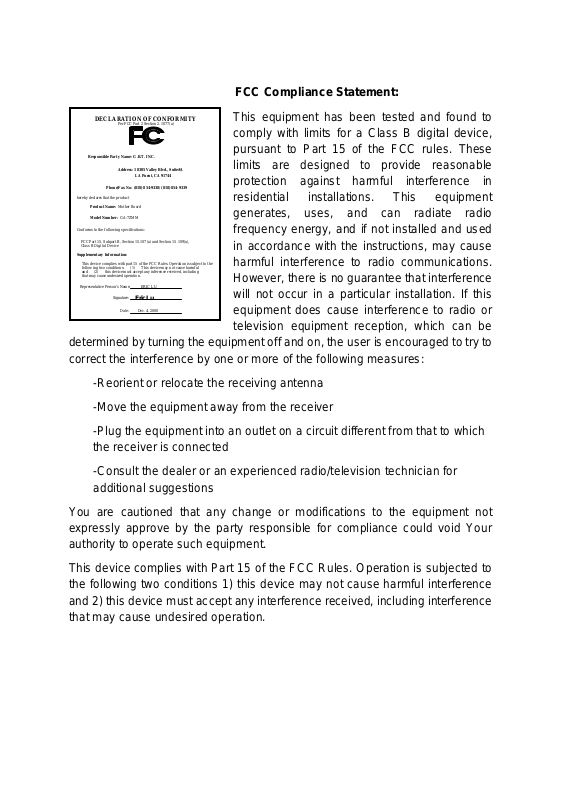

FCC Compliance Statement:

DECLARATION OF CONFORMITY

Per FCC Part 2 Section 2. 1077(a)

This equipment has been tested and found to comply with limits for a Class B digital device,

Responsible Party Name: G.B.T. INC.

Phone/Fax No: (818) 854-9338/ (818) 854-9339

hereby declares that the product

Product Name:

Model Number:

Conforms to the following specifications:

FCC Part 15, Subpart B, Section 15.107(a) and Section 15.109(a), Class B Digital Device

Supplementary Information:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmfu l and (2) this device must accept any inference received, including that may cause undesired operation.

Representative Person's Name: ERIC LU

Signature:

Address: 18305 Valley Blvd., Suite#A

Mother Board

Date: Dec. 4, 2000

LA Puent, CA 91744

GA-7ZMM

Er ic Lu

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accord ance with the instr uctions, may cause harmful interference to radio communications. However, there is no guara nte e tha t i nterfer ence will not occur in a particular installation. If this equipment does cause interference to radio or

television equipment reception, which can be determined by turning th e equi pment off and on, the user i s encour aged to try t o correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna

-Move the equipment away from the receiver

-Plug the equipment into an outlet on a circuit different from that to which the receiver is connected

-Consult the dealer or an experienced radio/television technician for additional suggestions

You are cautioned that any change or modifications to the equipment not expressly approve by the party responsible for compliance could void Your authority to operate such equipment.

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions 1) this device may not cause harmful interference and 2) this device must a ccept any interference received , in cl uding interference that may cause undesired operation.

Declaration of Conformity

We, Manufacturer/Importer

(full address)

G.B.T. Technology Träding GMbH

Ausschlager Weg 41, 1F, 20537 Hamburg, Germany

( description of the apparatus, system, installation to which it refers)

(reference to the specification under which conformity is declared)

in accordance with 89/336 EEC-EMC Directive

Limits and methods of measurement

EN 55011

of radio disturbance char ac teristics of

industrial, scient ific and medical (ISM electrical equipment “ Harmonics” high frequency equipment

Limits and methods of measurement

EN55013

of radio disturbance char ac teristics of broadcast receivers and associated electrical equi pment “Voltage fluctuations” equipment

Limits and methods of measurement

EN 55014

of radio disturbance char ac teristics of portable tools and similar electric al

apparatus Residual, commer c ial and light indust r y

EN 55015

of radio disturbance char ac teristics of Industrial env ironment fluorescent lam ps and luminaries

EN 55020

broadcast receivers and associated Industrial environment equipment

EN 55022

of radio disturbance char ac teristics of appliances tools and similar apparatus information technology equipment

DIN VDE 0855 part 10 part 12

household electrical appliances,

Limits and methods of measurement

Immunity fr om radio interference of

Limits and methods of measurement

Cabled distribution systems; Equipment for receiving and/or sound and television signals

distribution

declare that the product

from power systems (UPS)

Mother Board

GA-7ZMM

is in conformity with

EN 61000-3-2*

EN60555-2

EN61000-3-3* EN60555-3

EN 50081-1

EN 50082-1

EN 55081-2

EN 55082-2

ENV 55104

EN 50091- 2

Disturbances in supply systems caused

by household appliances and similar

Disturbances in supply systems caused

by household appliances and similar

Generic emission standar d P ar t 1:

Residual, commer c ial and light indust r y

Generic immunity standard Part 1:

Generic emission standard Par t 2:

Generic immunity standard Part 2:

Immunity requirem ents for household

EMC requirements for uninterruptible

CE marking

EN 60065

electronic and related apparatus for including electr ical business equipment household and similar general use

EN 60335

electrical appl iances uninterruptible power system s (UPS )

Signature

The manufacturer also declares the conformity of above mentioned product with the actual required safety standard s in accordance with LVD 73/23 EEC

Safety requirements for mains operated

Safety of household and similar

Date : Dec. 4, 2000 Name : Rex Lin

(Stamp)

Manufacturer/Importer

(EC conformity m ar k ing)

Safety f or information technology equipment

EN 60950

General and Safety r equirements for

EN 50091-1

Rex Lin

7ZMM Series

AMD AthlonTM/Duron

Motherboard

USER'S MANUAL

AMD AthlonTM/DuronTM Socket A Processor Motherboard

Socket A Pro cessor

REV. 1.2 First Edition

R-12-01-001201

How This Manual Is Organized

This manual is divided into the following sections:

1) Revision History

2) Item Checklist

3) Features

Product information & specification

4) Hardware Setup

Manual revision information

Product item list

Instructions on setting up the motherboard

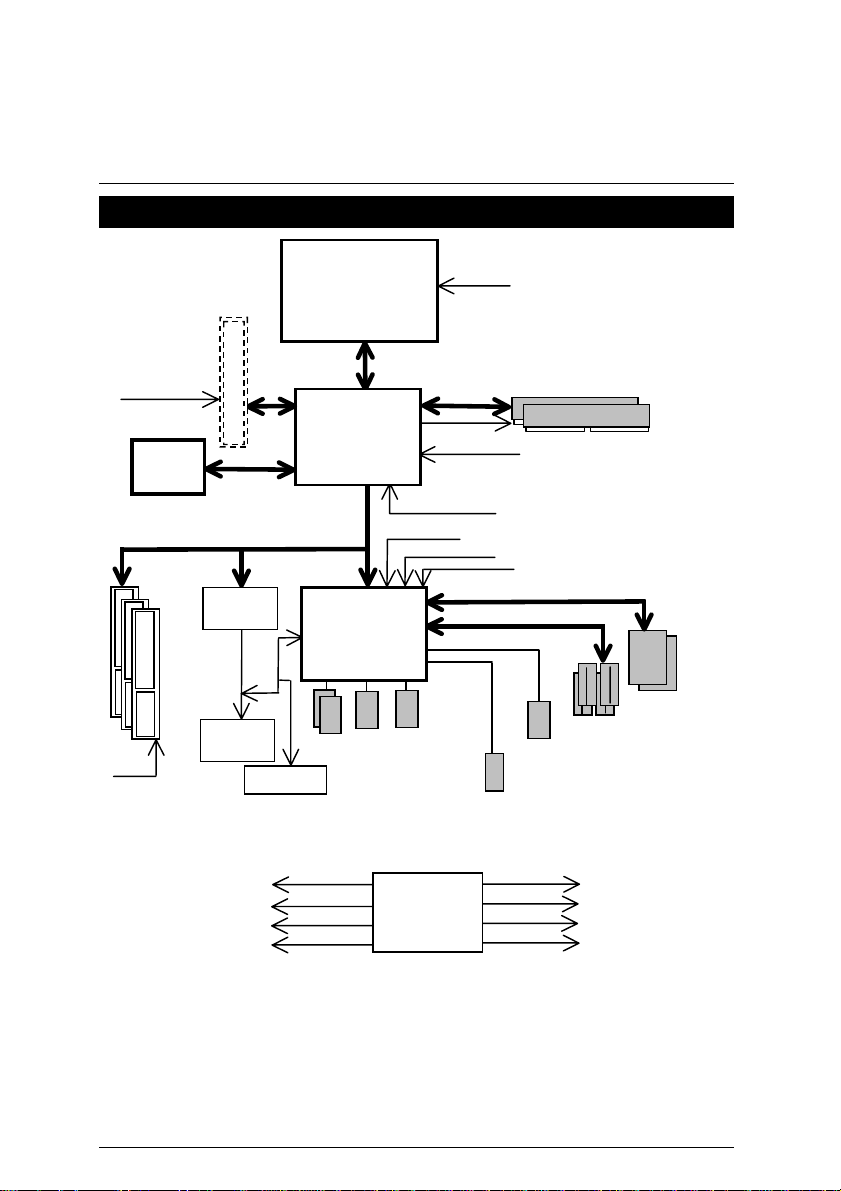

5) Performance & Block Diagram

6) Suspend to RAM

7) @BIOS

& EasyTune

8) BIOS Setup

Instructions STR installation

III

Instructions on setting up the BIOS

9) Appendix

Product performance & block diagram

@BIOS

& EasyTune

introduction

III

software General reference

Table Of Content

Revision History P.1 Item Checklist P.2 Feature Summary P.3 7ZMM Series Motherboard Layout P.5 Page Index for CPU Speed Setup / Connectors / Panel and Jumper

Definition Performance List P.23 Block Diagram P.25 Suspend to RAM Installation P.26 Four Speaker & SPDIF Introduction P.32 @BIOSTM Introduction P.37 EasyTune Memory Installation P.40 Page Index for BIOS Setup P.41 Appendix P.65

Introduction P.38

III

P.6

7ZMM Series Motherboard

Revision History

Revision Revision Note Date

1.2 Initial release of the 7ZMM Series motherboard user’s manual.

The author assumes no responsibility for any errors or omissions that may appear in this document nor does the author make a commitment to update the information contained herein. Third-party brands and names are the property of their respective owners.

Dec. 1, 2000 Taipei, Taiwan, R.O.C

Dec. 2000

Item Checklist

;

The 7ZMM Series motherboard

;

Cable for IDE / floppy device

;

Diskettes or CD (GA-7ZMM CD) for motherboard driver & utility

;

7ZMM Series user’s manual

7ZMM Series Motherboard

Feature Summary

Form Factor

y

24.4 cm x 22.2 cm Micro ATX size form factor, 4 layers PCB.

Motherboard CPU

y

7ZMM series includes 7ZMM, 7ZMM-1

y

AMD AthlonTM/DuronTM (K7) Socket A Processor

y

256K/64K L2 cache on die

y

Supports 600MHz ~ 1GHz and above

Chipset Pro Savage KM133, consisting of:

y

VT8365 Memory/AGP/PCI Controller (PAC)[For 7ZMM]

y

VT8364 Memory/AGP/PCI Controller (PAC)[For 7ZMM-1]

y

VT82C686B PCI Super-I/O Integrated Peripheral

Controller (PSIPC)

Clock Generator

Memory

I/O Control Slots

y

ICS 9248BF-141

100/102/104/106/108/110/112/133 MHz system bus speeds

y

2 168-pin DIMM sockets

y

Supports PC-100/133 and VCM SDRAM

y

Supports up to 1.0GB DRAM

y

Supports only 3.3V SDRAM DIMM

y

VT82C686B

y

1 AGP slot supports 4X mode & AGP 2.0 compliant

(7ZMM-1 does not have AGP slot)

y

3 PCI slots supports 33MHz & PCI 2.2 compliant

y

1 AMR (Audio Modem Riser) slot

On-Board IDE

y

2 IDE bus master (UDMA 33/ATA 66/ATA100) IDE ports for up to 4 ATAPI devices

y

Supports PIO mode 3, 4 (UDMA 33/ATA 66/ATA100) IDE

& ATAPI CD-ROM

On-Board Peripherals

Hardware Monitor

y

1 floppy port supports 2 FDD with 360K, 720K, 1.2M,

1.44M and 2.88M bytes

y

1 parallel port supports Normal/EPP/ECP mode

y

1 serial port (COM A)

y

4 USB ports

y

CPU/System fan revolution detection

y

CPU/Power/System fan control

y

System voltage detection

y

CPU/System temperature detection

To be continued…

PS/2 Connector On-Board VGA

On-Board Sound

BIOS Additional Features

Features Summary

y

PS/2 Keyboard interface and PS/2 Mouse interface

y

Build S3 Savage4 (86C370) in VT8365(VT8364)

y

Support shared memory architecture

y

Creative CT5880 sound

y

AC’97 CODEC

y

Line In / Line Out / Mic In / AUX In / CD In / TEL /

SPDIF / Game Port / Four Speaker

y

Licensed AMI BIOS, 2M bit flash ROM

y

Support Wake-On-LAN (WOL)

y

Support Internal / External Modem Ring On

y

Support USB KB/MS Wake up from S3-S5

y

Includes 3 fan power connectors

y

Poly fuse for keyboard over-current protection

y

Support STR (Suspend-To-RAM) function

y

Support @BIOS™ and EasyTune

III

™

7ZMM Series Motherboard

7ZMM Series Motherboard Layout

JP4

PS/2

USB1

Socket A CPU

COM A

LPT

VGA

GAME & AUDIO

Creative CT5880

JP2

VT8365

(VT8364)

7ZMM

DIMM1

AGP 1

CODEC

PCI1

PCI2

JP1

J16

JP11

PCI3

J18

AMR

J17

USB2

VT82C

686B

DIMM2

JP10

J11

ATX POWER

JP7

BIOS

JP8

LED1

IDE2

BAT1

JP6

FLOPPY

IDE1

SW1

JP9

JP3

J13

J12

7ZMM Series Motherboard Layout



Page Index for CPU Speed Setup/Connectors/Panel and Jumper Definition

Page

CPU Speed Setup P.7 SW1 P.7 Connectors P.8 ATX Power P.8 COM A / VGA / LPT Port P.8 Floppy Connector P.9 Game & Audio Port P.9 IDE 1(Primary) / IDE 2(Secondary) Connector P.10 J2 (System Fan) P.10 J3 (CPU Fan) P.11 J7 (AUX_IN) P.11 J8 (TEL) P.12 J9 (CD Audio Line In) P.12 J12 (Wake On LAN) P.13 J13 (Ring Power On) P.13 JP2 (Front Audio) P.14 JP6 (Power Fan) P.14 JP8 / LED1 (DIMM LED Connector & DIMM LED) P.15 PS/2 Keyboard & PS/2 Mouse Port P.15 USB1 (Rear USB Port) P.16 USB2 (Front USB Connector) P.16 Panel and Jumper Definition P.17 BAT1 (Battery) P.17 J11 (2x11 Pins Front Panel) P.17 J16/J17/J18 (AMR Select) [Optional] P.18 JP1 (Front MIC Function) P.19 JP3 (Clear CMOS Function) [Optional] P.19 JP4 (USB Device Wake up Selection) P.20 JP7 (STR Function Enable) P.20 JP9 (BIOS Write Protect Function) P.21 JP10 (CPU Clock Frequency) [Optional] P.21 JP11 (Onboard Sound Function Selection) P.22

7ZMM Series Motherboard

CPU Speed Setup

The system bus speed is selectable at 100MHz. The user can select the system bus speed by DIP switch

SW1: CPU Speed Setup

SW1:

Beware: Please check that the heat sink is in good contact with the CPU before you turn on your

SW1

O: ON, X: OFF

FSB 1 2 3 4

95 O O X O 100 X O X X 102 0 0 X X 103 X O X O 107 O X O 0 110 0 X 0 X 113 X X O O 115 X X X 0 133 X X X X

AMD CPU Heat Sink Installation:

system.

The poor contact will cause over heat, and might cause damage to your processor.

Connectors

ATX Power

COM A / VGA / LPT Port

Connectors

Pin No. Definition

3,5,7,13,

20 10

15-17

1,2,11 3.3V

4,6,19,20 VCC

10 +12V 12 -12V 18 -5V

8 Power Good 9 5V SB stand by+5V

14 PS-ON(Soft On/Off)

GND

LPT Port

COM A

VGA

7ZMM Series Motherboard

Floppy Connector

Game & Audio Port

FDD1

Red Line

Game Port

Line Out

MIC

Line In

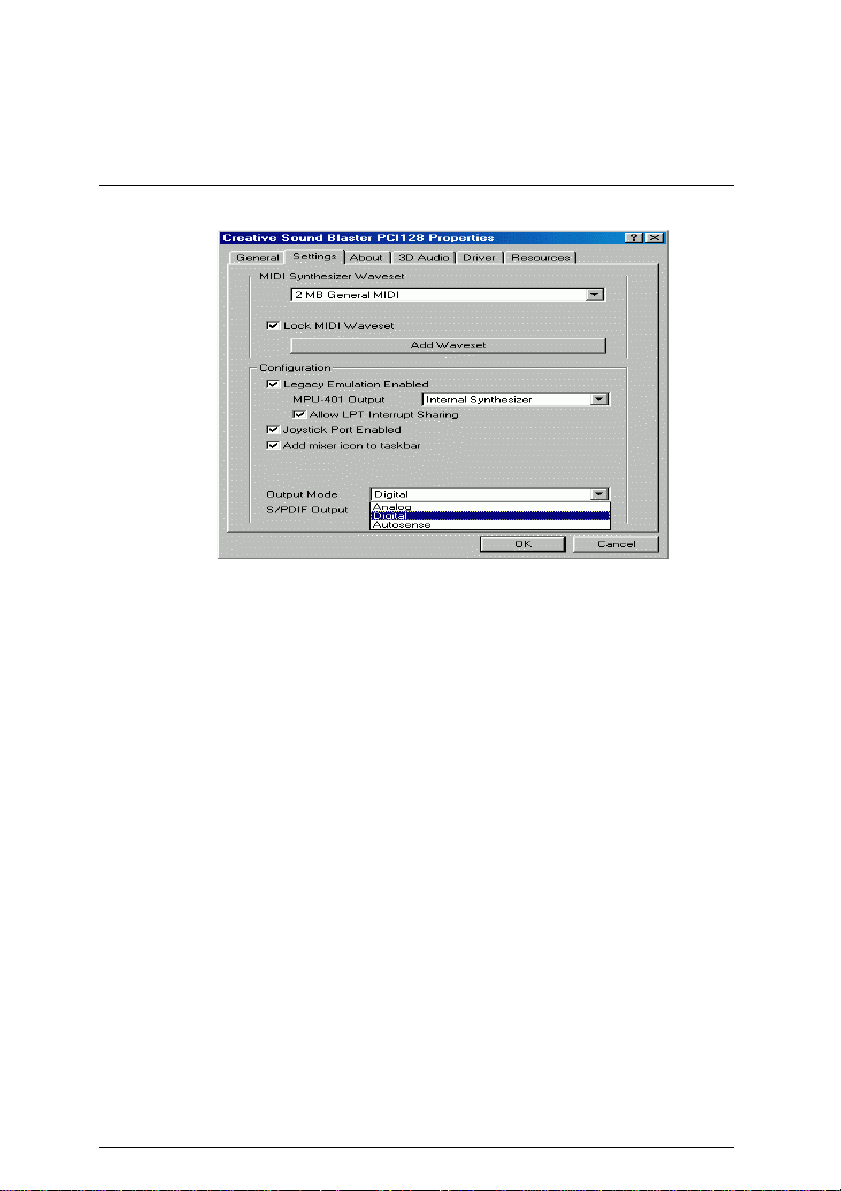

Line Out 1: Line Out or SPDIF (The SPDIF output is capable of providing digital audio to external speakers or compressed AC3 data to an external Dolby digital decoder). To enable SPDIF, simply insert SPDIF connector into Line Out1. Line Out1 will become SPDIF Out automatically. (see page 34 for more information). To enable Four Speaker (for Creative 5880 audio only), simply follow instructions on page 32 and Line In will become Line Out2 to support second pair of stereo speakers.

IDE1 (Primary), IDE2 (Secondary) Connector

IDE 2 IDE 1

Connectors

J2: Sysem Fan

Pin No. Definition

1 Control 2 +12V 3 SENSE

Red Line

7ZMM Series Motherboard

J3: CPU Fan

J7: AUX_IN

Pin No. Definition

1 Control 2 +12V 3 SENSE

Pin No. Definition

1 AUX-L 2 GND 3 GND 4 AUX-R

Connectors

J8 TEL: The connector is for Modem with internal voice connector

Pin No. Definition

1 Signal-In 2 GND 3 GND 4 Signal-Out

J9: CD Audio Line In

Pin No. Definition

1 CD-L 2 GND 3 GND 4 CD-R

7ZMM Series Motherboard

J12: Wake On LAN

Pin No. De fin itio n

1 +5V SB 2 GND 3 Signal

J13: Ring Power On (Internal Modem Card Wake Up)

Pin No. Definition

1 Signal 2 GND

JP2: Front Audio

JP6: Power Fan

Pin No. Definition

1 Incase speaker (R) 2 Incase speaker (L)

3,4,5,6,

10,15

7 +12V

8,16 NC

9 MIC 11 Front Audio (R) 13 Front Audio (L) 12 Rear Audio (R) 14 Rear Audio (L)

Connectors

GND

Pin No. Definition

1 Control 2 +12V 3 NC

7ZMM Series Motherboard

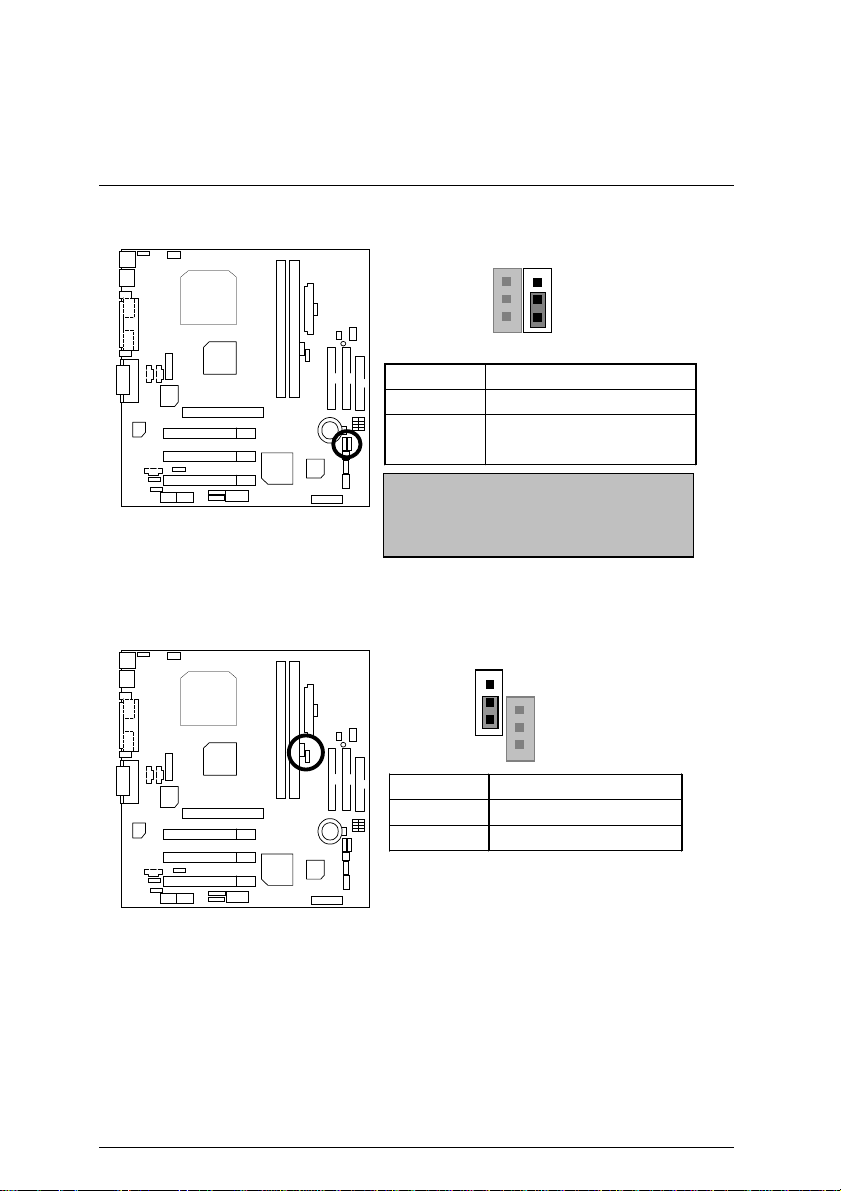

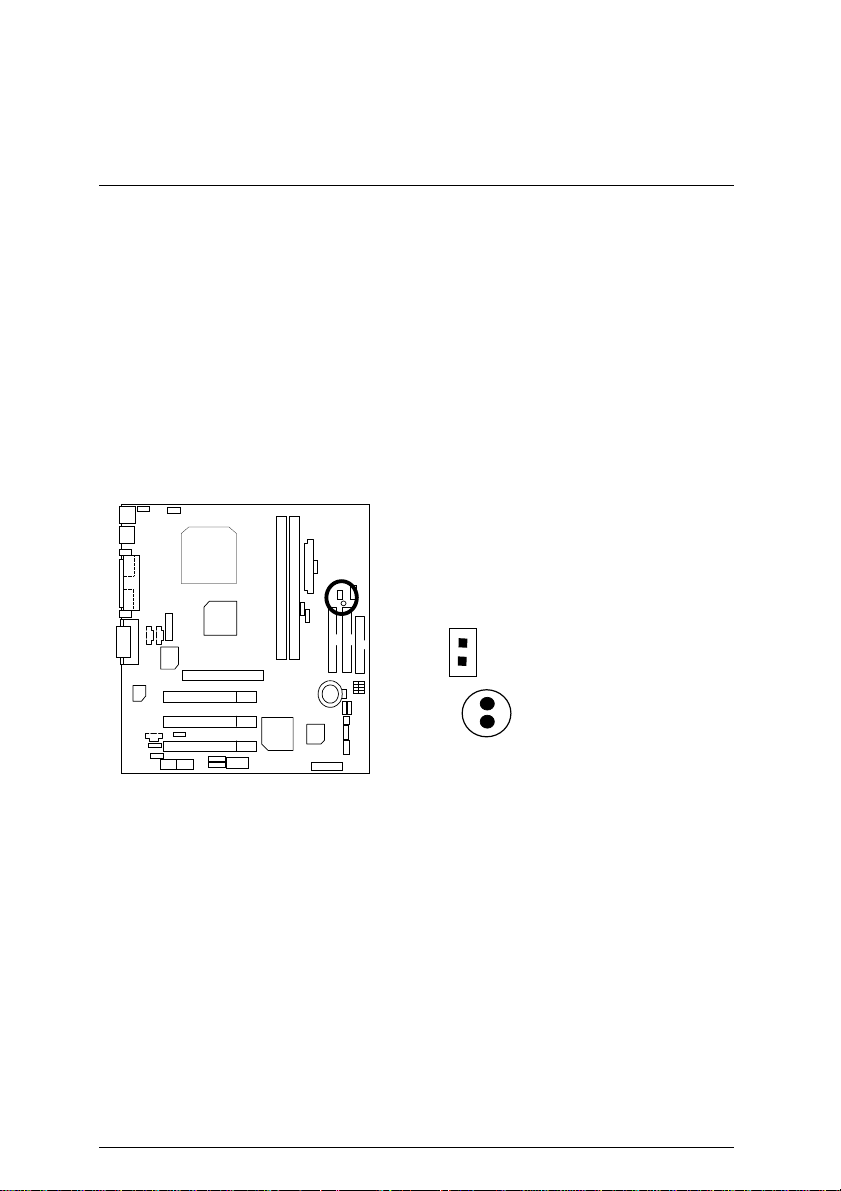

JP8 / LED1: STR LED Connector & DIMM LED

STR LED Connector External.

DIMM LED

PS/2 Keyboard & PS/2 Mouse Port

PS/2 Mouse

PS/2 Keyboard

PS/2

Mouse/Keyboard

Pin No. Definition

1 Data 2 NC 3 GND

4 VCC(+5V) 5 Clock 6 NC

USB 1: Rear USB Port

USB 2: Front USB Connector

1 2

Connectors

Pin No. Definition

6 5

1 USB V0 2 USB D03 USB D0+ 4 GND 5 USB V1

6 USB D17 USB D1+ 8 GND

Pin No. Definition

1 +5V

2 GND 3 USB D24 NC

5 USB D2+ 6 USB D3+ 7 NC 8 USB D39 GND

10 +5V

7ZMM Series Motherboard

Panel And Jumper Definition

BAT1: Battery

J11: 2x11 Pins Front Panel

CAUTION

Danger of explosion if battery

☞

is incorrectly replaced.

Replace only with the same or

☞

equivalent type recommended by the manufacturer.

Dispose of used batteries

☞

according to the manufacturer’s instructions.

S P K

P−P−P+

Panel and Jumper Definiti on

GN (Green Switch) Open: Normal Operation

Close: Entering Green Mode

GD (Green LED) Pin 1: LED anode(+)

Pin 2: LED cathode(−)

HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)

Pin 2: LED cathode(−)

SPK (Speaker Connector) Pin 1: VCC(+)

Pin 2- Pin 3: NC Pin 4: Data(−)

RE (Reset Switch) Open: Normal Operation

Close: Reset Hardware System

P+P−P−(Power LED)

Pin 1: LED anode(+) Pin 2: LED cathode(−) Pin 3: LED cathode(−)

PW (Soft Power Connector) Open: Normal Operation

Close: Power On/Off

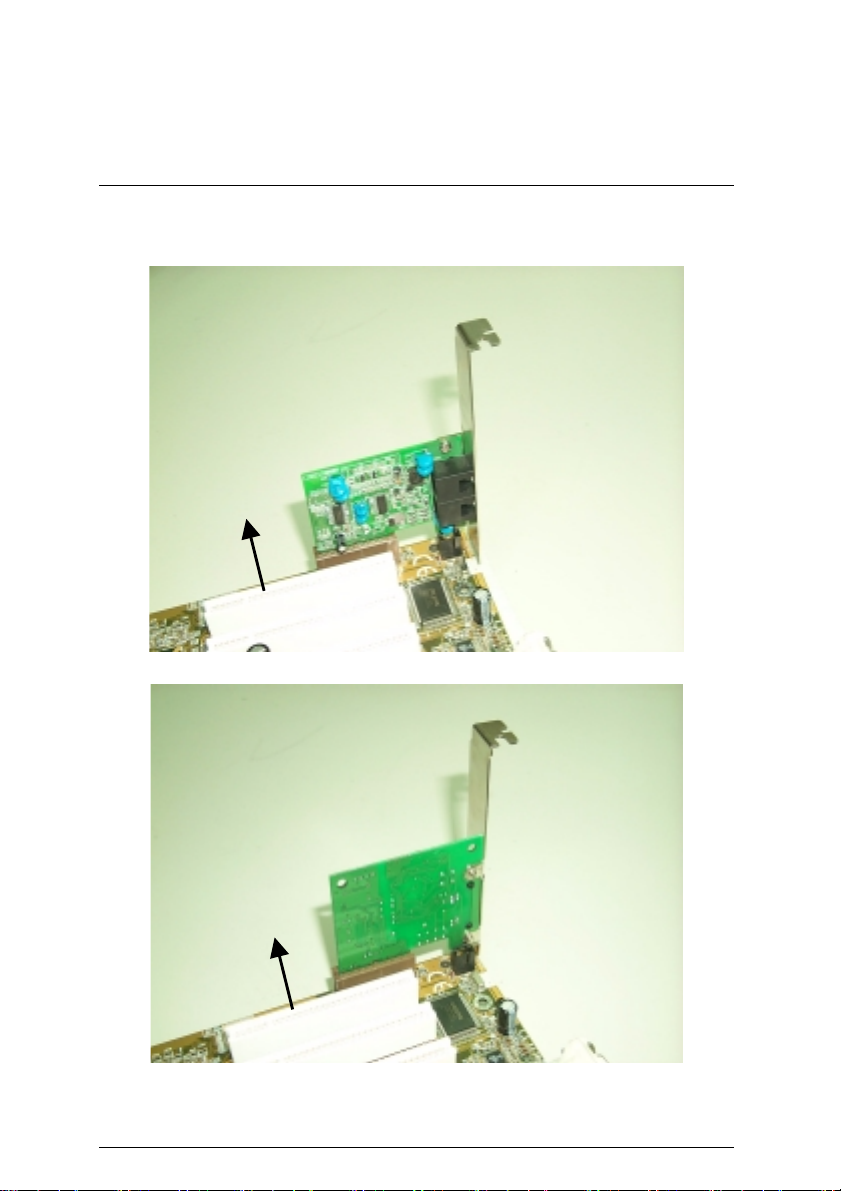

J16 /J17/J18: AMR (Primary or Secondary) Select [Optional]

(AMR

Audio Modem Riser)

ÆÆÆÆ

J16

J18

J16 J17 J18 Onboard AC97 1-2 1-2 1-2 AMR (Primary ) (Default) Onboard AC97 MR (Secondary)

2-3 3-4 3-4 1-2 1-2

3-4

J17

1-2

7ZMM Series Motherboard

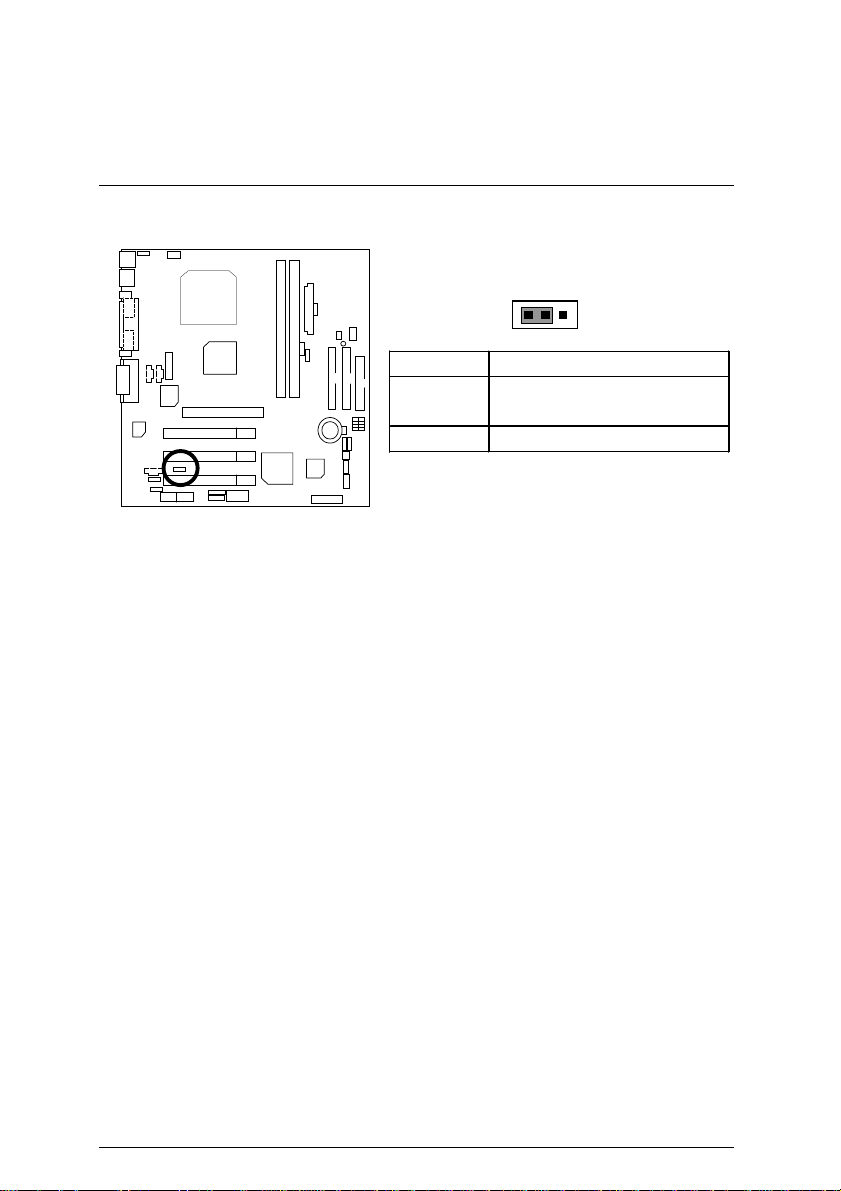

JP1: Front MIC Function

Pin No. Definition

1-2 close Enable Front MIC 2-3 close Disable Front MIC

JP3: Clear CMOS Function (Optional)

Pin No. Definition 1-2 close Normal (Default) 2-3 close Clear CMOS

Function Function

JP4: USB Device Wake up Selection

Pin No. Definition

1-2 close Normal (Default) 2-3 close USB Device Wake up

Panel and Jumper Definiti on

JP7: STR Function Enable

(If you want to use “ function, you have to set the BIOS setting “USB Dev Wakeup from S3~S5” enabled, and the jumper “ enabled) *(Power on the computer and as soon as memory counting starts, press <Del>. You will enter BIOS Setup. Select the item “ then select “ Remember to save the setting by pressing "ESC" and choose the “SAVE & EXIT SETUP” option.)

USB Dev Wakeup from S3~S5

POWER MANAGEMENT SETUP

USB Dev Wakeup from S3~S5

”.

JP4

”

”,

Pin No. Definitio n 1-2 close STR Enable 2-3 close Normal (Default)

7ZMM Series Motherboard

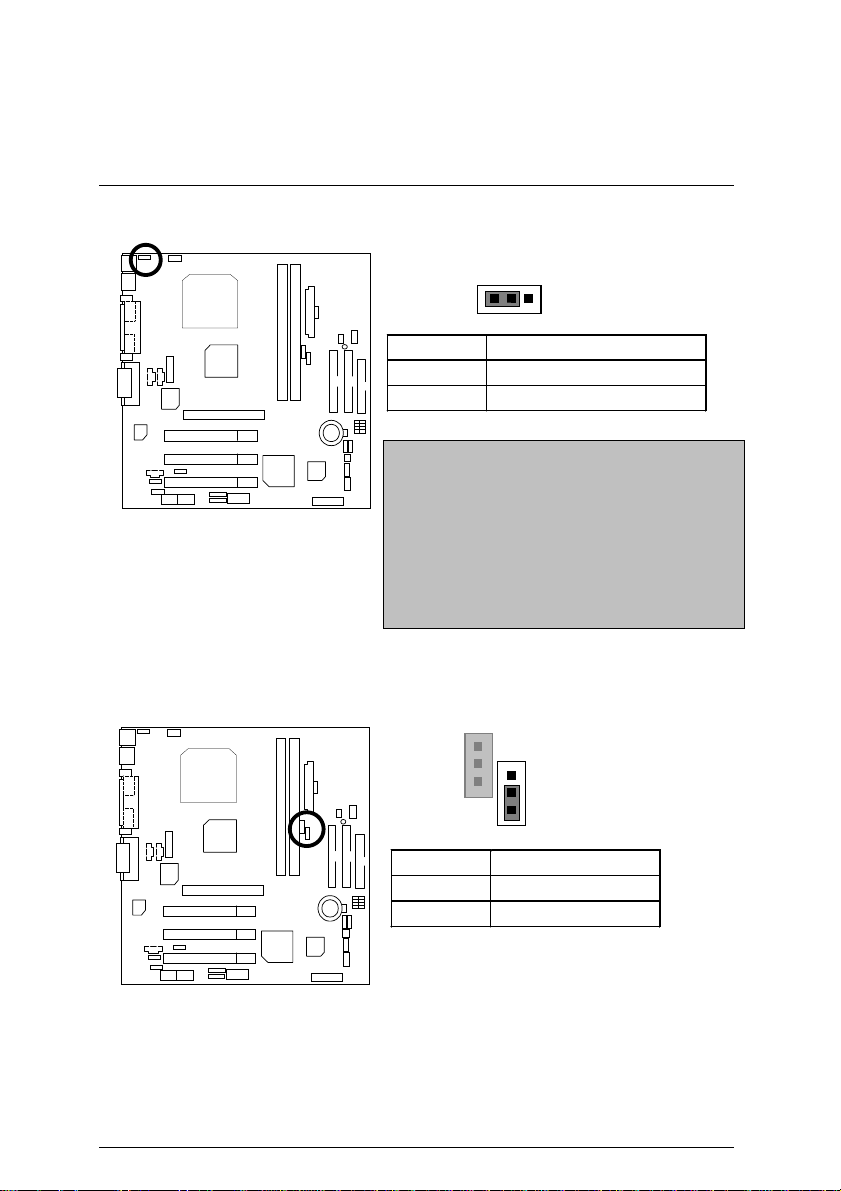

JP9: BIOS Write Protect Function

Pin No. Definition 1-2 close Write Protect Enable 2-3 close Write Protect Disable

Please set Jumper JP9 to “2-3 close”

to enabled BIOS write function when you update new BIOS or new device.

JP10: CPU Clock Frequency (Optional)

(Default)

Pin No. Definition 1-2 close 133MHz 2-3 close 100MHz (Default)

JP11: Onboard Sound Function Selection

Pin No. Definition 1-2 close Onboard Sound Enable

2-3 close Onboard Sound Dis able

Panel and Jumper Definiti on

(Default)

7ZMM Series Motherboard

Performance List

The following performance dat a list is the testing results of some popular bench mark testing programs. These data are just referred by users, and there is no responsibility for different testing data values gotten by users. (The different Hardware & Software configuration will result in different benchmark testing results.)

CPU

•

DRAM

•

CACHE SIZE

•

DISPLAY

•

STORAGE

•

O.S.

•

DRIVER

•

AMD K7 AthlonTM 1100MHz processor (128x2) MB SDRAM (MICRON MT48LC8M8A2-8E B) 256KB included in CPU Gigabyte GF2000 Onboard IDE (IBM DTLA-307045)

Windows NT Display Driver at 1024 x 768 x 16bit colors x 75Hz.

4.0 SP6a

Processor

Winbench99

CPU mark 99 99.6

FPU Winmark 99 6040

Business Disk Winmark 99 8600

Hi-End Disk Winmark 99 20900

Business Graphics Winmark 99 551

Hi-End Graphics Winmark 99 1100

Winstone99

Business Winstone 99 52.6

Hi-End Winstone 99 66.4

AMD AthlonTM 1100MHz

(100x11)

CPU

•

DRAM

•

CACHE SIZE

•

DISPLAY

•

STORAGE

•

O.S.

•

DRIVER

•

AMD K7 AthlonTM 1100MHz processor (128x2) MB SDRAM (KINGMAX KSV884T4A1A) 256KB included in CPU VIA OnChip Display Onboard IDE (IBM DTLA-307045)

Windows NT Display Driver at 1024 x 768 x 16bit colors x 75Hz.

4.0 SP6a

Performance List

Processor

Winbench99

CPU mark 99 94.3

FPU Winmark 99 6050

Business Disk Winmark 99 9100

Hi-End Disk Winmark 99 22600

Business Graphics Winmark 99 241

Hi-End Graphics Winmark 99 738

Winstone99

Business Winstone 99 46.5

Hi-End Winstone 99 61.7

AMD AthlonTM 1100MHz

(100x11)

7ZMM Series Motherboard

Block Diagram

AGPCLK (66MHz)

On Chip

VGA

3 PCI

PCI (33MHz)

AGP

2X/4X

PCI Bus 33MHz

CT5880

AC-Link

AC97

CODEC

AMR

AMD-K7

System Bus 100MHz

VT8365

(VT8364)

VT82C

686B

Floppy

PS/2

100/133MHz

AGPCLK (66MHz)

33MHz

14.318MHz

LPT Port

CPUCLK (100MHz)

3.3V SDRAM

HCLK (100MHz)

48MHz

Game Port

COM Port

4 USB Ports

ATA66/100 IDE Channels

AGPCLK (66MHz)

PCI (33MHz)

48MHz

14.318MHz

ICS

9248BF-141

HCLK (100MHz) AGPCLK (66MHz) CPUCLK (100MHz)

33MHz

Suspend To RAM Installation

Suspend to RAM Installat i on

A.1 Introduce STR function:

Suspend-to-RAM (STR) is a Wi ndows 98 ACPI sleep mode functi on. When recovering from

STR (S3) sleep mode, the system is able, in just a few seconds, to r etrieve the last “state ” of the system before it went to sleep and recover to that state. The “state” is stored in memory (RAM) before the system goes to sleep. During STR sleep mode, your system uses only enough energy to maintain critical information and system functions, primarily the system state and the ability to recognize various “wake up” triggers or signals, respectively.

A.2 STR function Installation

Please use the following steps to complete the STR function installation.

Step-By-Step Setup

Step 1:

To utilize the STR function, the system must be in Windows 98 ACPI mode.

Putting Windows 98 into ACPI mode is fairly easy.

Setup with Windows 98 CD:

A. Insert the Windows 98 CD into your CD-ROM drive, select Start, and then Run. B. Type (without quotes) C. After setup completes, remove the CD, and reboot your system (This manual assumes that your CD-ROM device drive letter is D:).

“D:\setup”

in the window provided. Hit the enter key or click OK.

7ZMM Series Motherboard

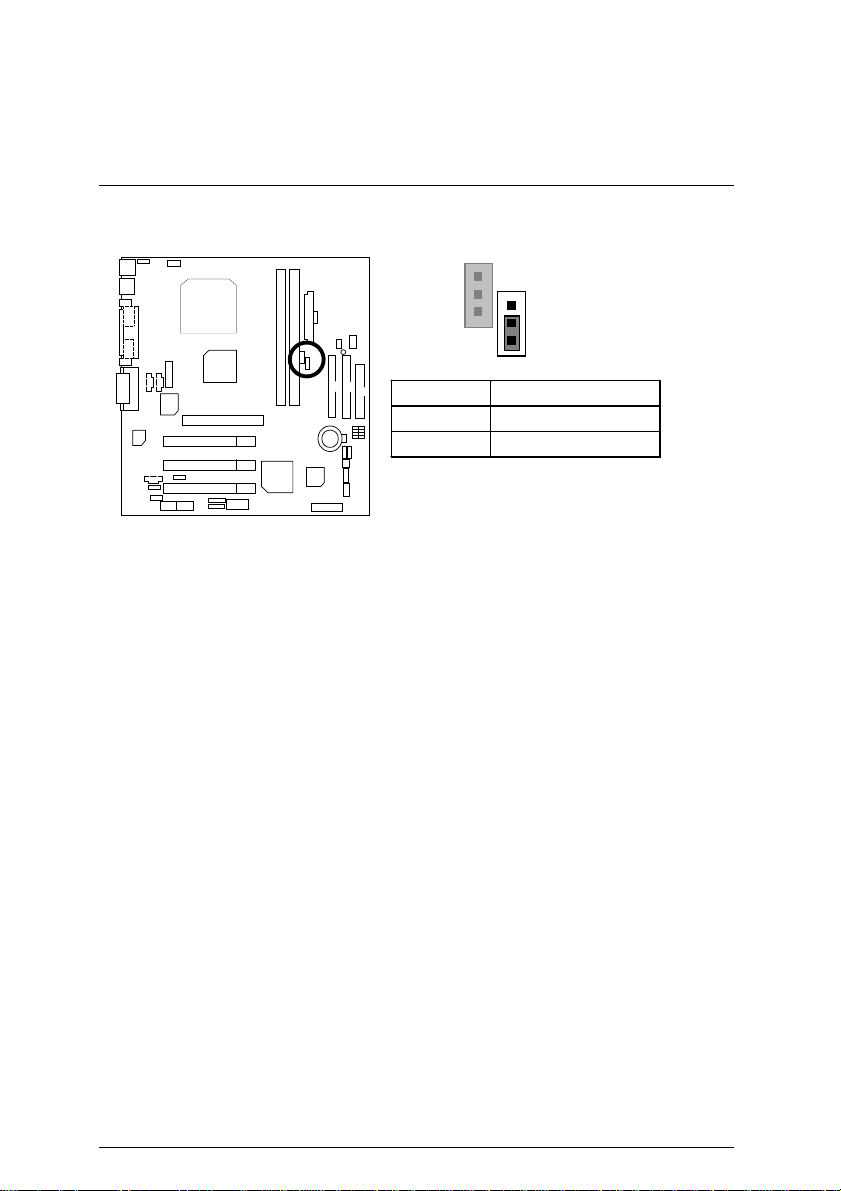

Step 2:

(If you want to use STR Function, please set jumper JP7 Closed.)

Pin No. Definitio n 1-2 close STR Enable 2-3 close Normal (Default)

Step 3:

Power on the computer and as soon as memory counting starts, press <Del>. You will enter BIOS Setup. Select the item

: S3 / STR”

Type

& EXIT SETUP”

Congratulation! You have completed the installation and now can use the STR function.

. Remember to save the settings by press ing "ESC" an d choose the

option.

“POWER MANAGEMENT SETUP”,

then select

“

ACPI Sleep

“SAVE

Suspend to RAM Installat i on

A.3 How to put your system into STR mode?

There are two ways to accomplish this:

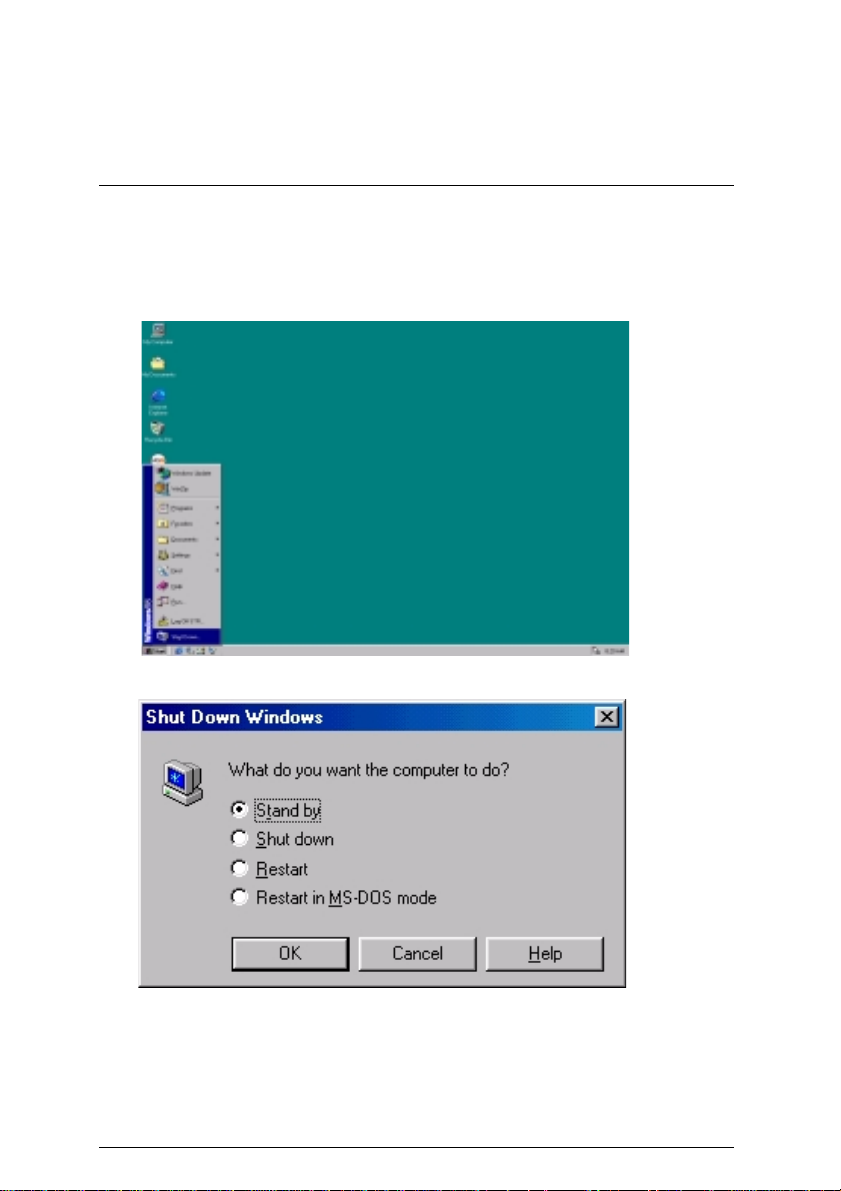

1. Choose the “Stand by” item in the “Shut Down Windows” area. A. Press the “Start” button and then select “Shut Down”

B. Choose the “Stand by” item and press “OK”

7ZMM Series Motherboard

2. Define the system ”power on” button to initiate STR sleep mode:

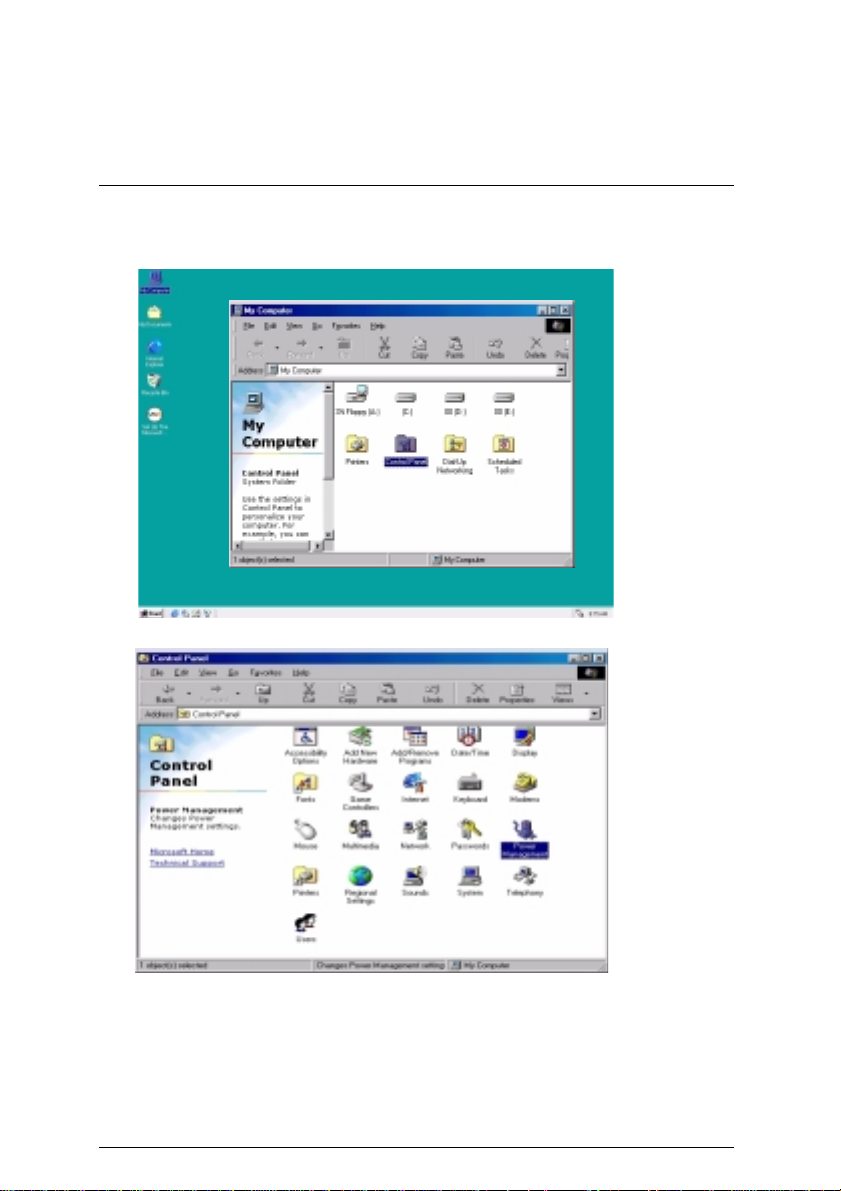

A. Double click “My Computer” and then “Control Panel”

B. Double click the “ Power Management” item.

Suspend to RAM Installat i on

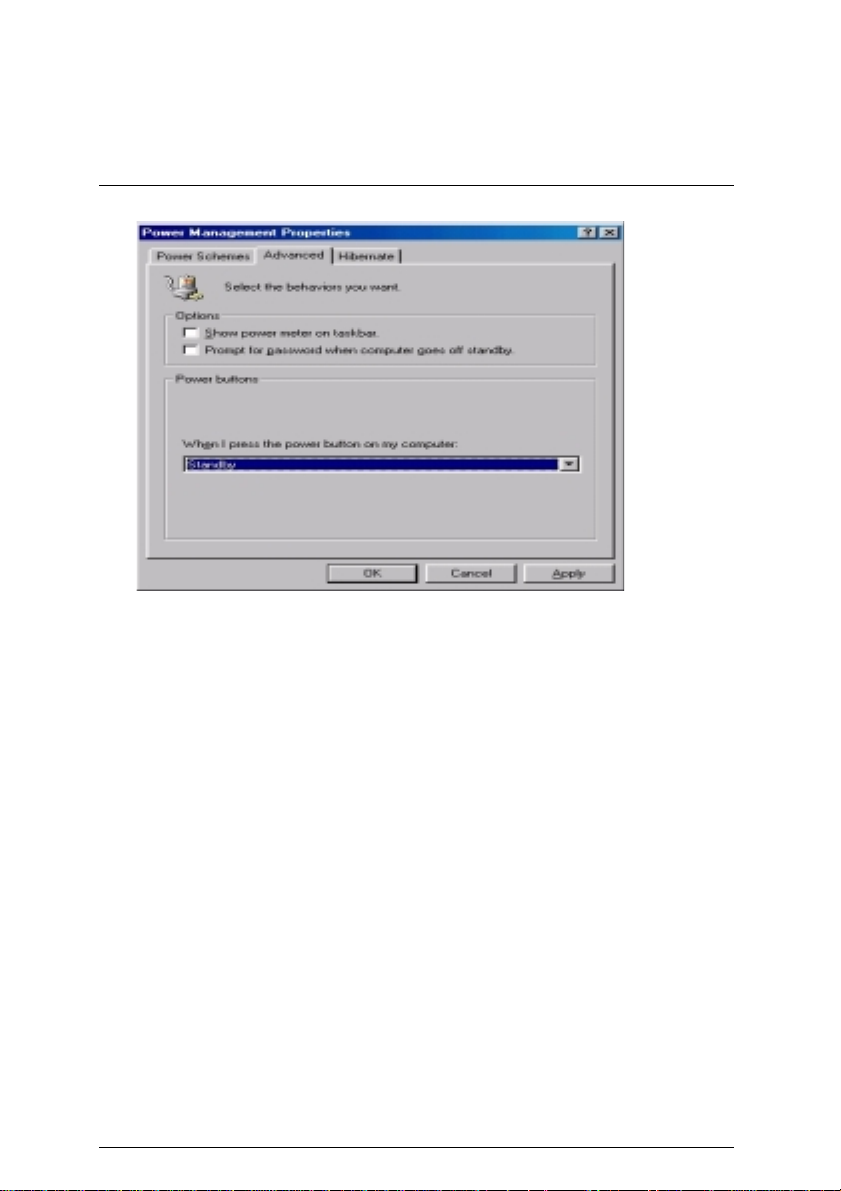

C. Select the “Advanced” tab and “ Standby” mode in Power Buttons.

D: Restart your computer to complete setup.

Now when you want to enter STR sleep mode, just momentarily press the “Power on”

button.

A.4 How to recover from the STR sleep mode?

There are five ways to “wake up” the system:

1. Press the “Power On” button.

2. Use the “Resume by Alarm” function.

3. Use the “Modem Ring On” function.

4. Use the “Wake On LAN” function.

5. Use the “USB Device Wake up” function

7ZMM Series Motherboard

A.5 Notices:

1. In order for ST R to function properly , several hardware and software req uirements must

be satisfied:

A. Your ATX power supply must comply with the ATX 2.01 specification (provide mo re

than 720 mA 5V Stand-By current).

B. Your SDRAM must be PC-100 compliant.

2. Jumper JP8 is provided to connect to the STR LED in your system chassis. [Your chassis may not provide this feature.] The STR LED will be illuminated when you r system is in STR sleep mode.

STR LED Connector External.

DIMM LED

Four Speaker & SPDIF Introduction

Four Speaker Introduction

A. What is Four Speaker?

The Creative CT5880 audio chip can support up to 4 speaker output. If you select “Four speaker out”, Line In will be reconfigured as another line out to support a second pair of speakers.

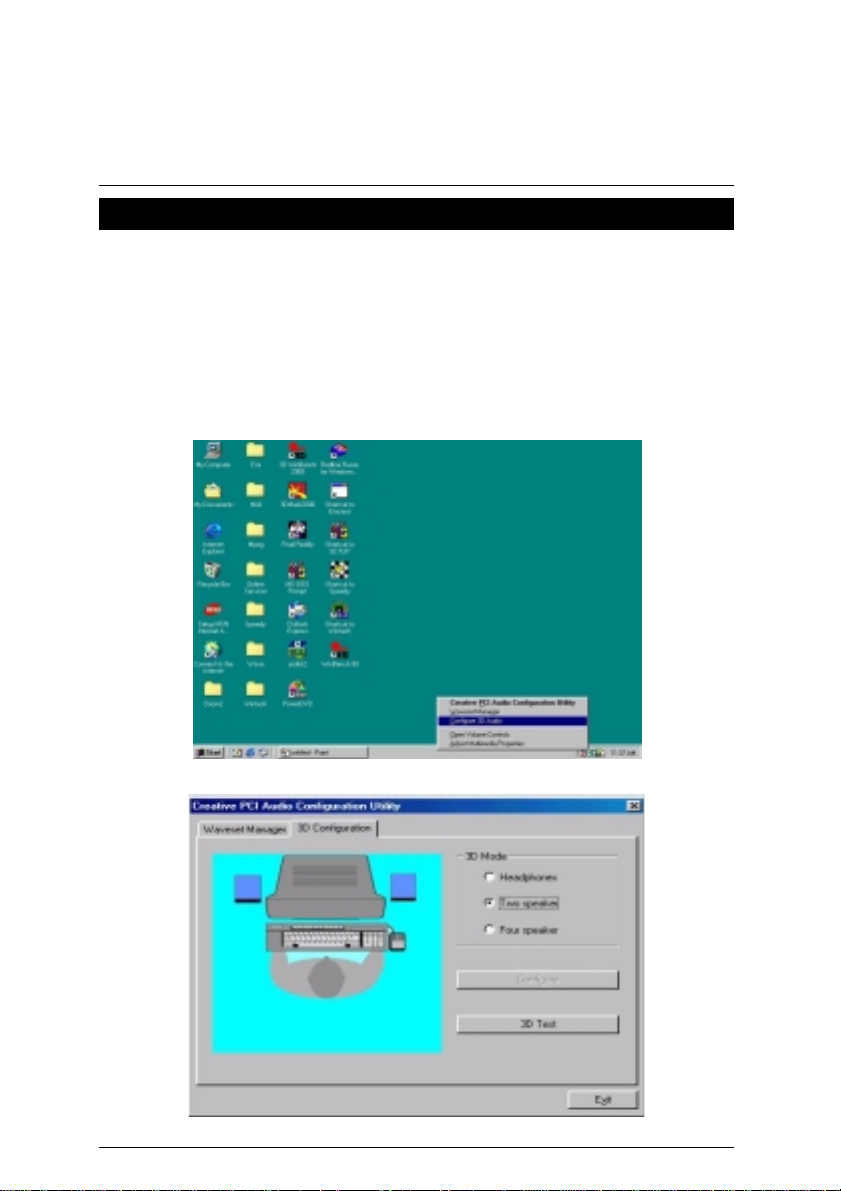

B. How to use Four Speaker?

a. Press the audio icon and then select “Configuration 3D Audio”

b. Two speaker (Default)

7ZMM Series Motherboard

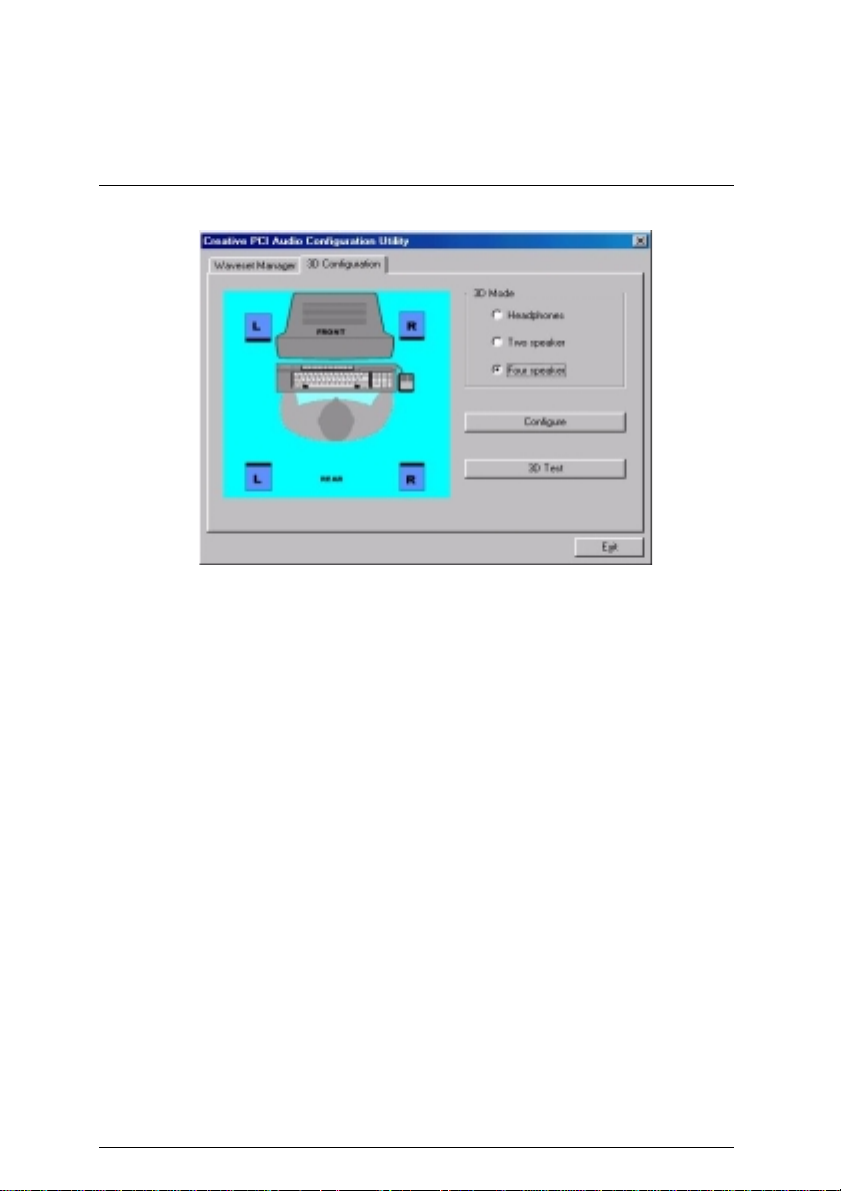

c. Click “Four speaker” item.

C. Four Speaker Application

The four speaker function will only be supported in application softwares that use Microsoft DirectX and Creative EAX, for example, the game titles, software DVD player and MP3 player.

SPDIF Introduction

Four Speaker and SPDIF Introducti on

What is SPDIF?

The SPDIF output is capable of providing digi tal audio to external speakers or compressed AC3 data to an external Dolby digital decoder.

B. How to use SPDIF?

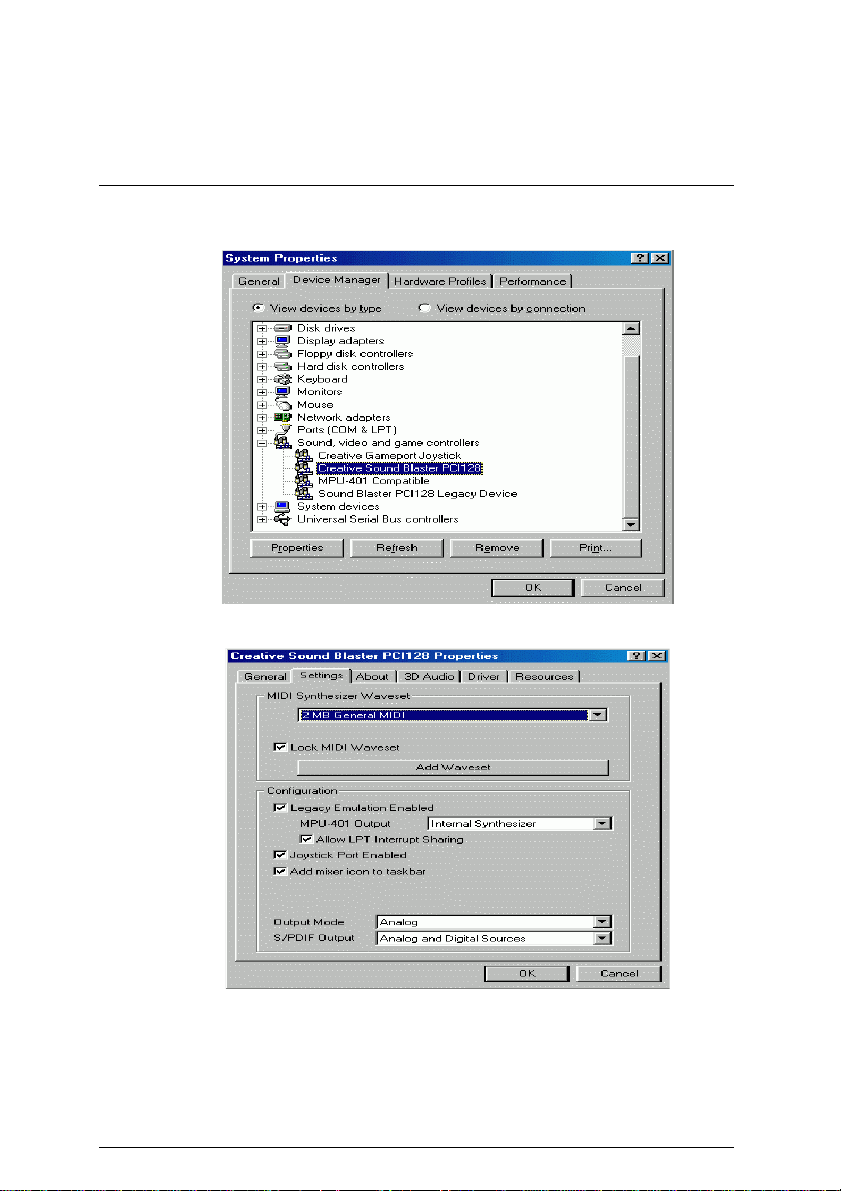

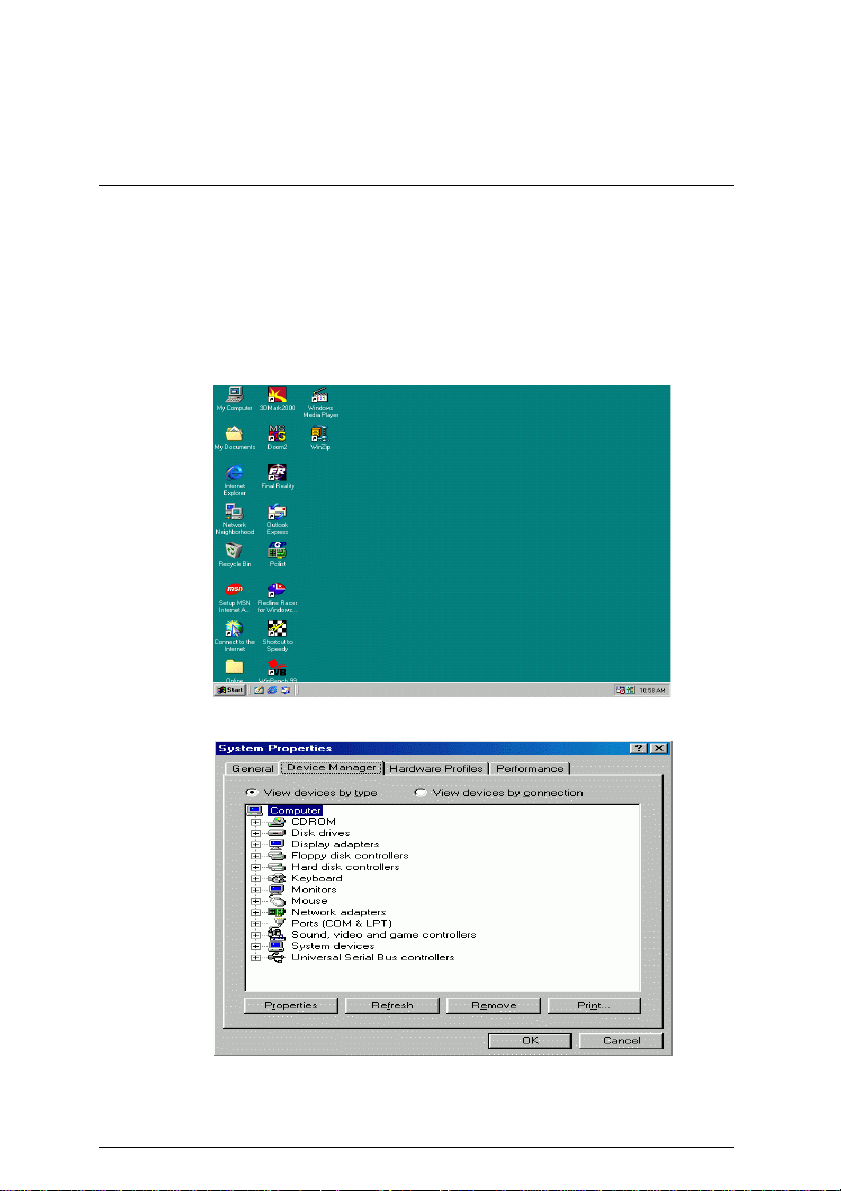

a. Press your mouse right button in “My Computer” and then select the “Properties” item.

b. Click “Device Manager” item.

7ZMM Series Motherboard

c. Press “Sound, video and game controllers” item and then select the “Creative Sound

Blaster PCI128” item.

d. Press “Settings” item and then select the “Output Mode” item.

Four Speaker and SPDIF Introducti on

e. Click “Digital” item, Line Out will be reconfigure t o SPDIF Out.

f. Recommend you to select “Autosense”, It will automatically detect the type (mono or stereo) of

the audio connector that you plug into Line Out audio jack, then configure Line Out to either SPDIF or Speaker accordingly.

7ZMM Series Motherboard

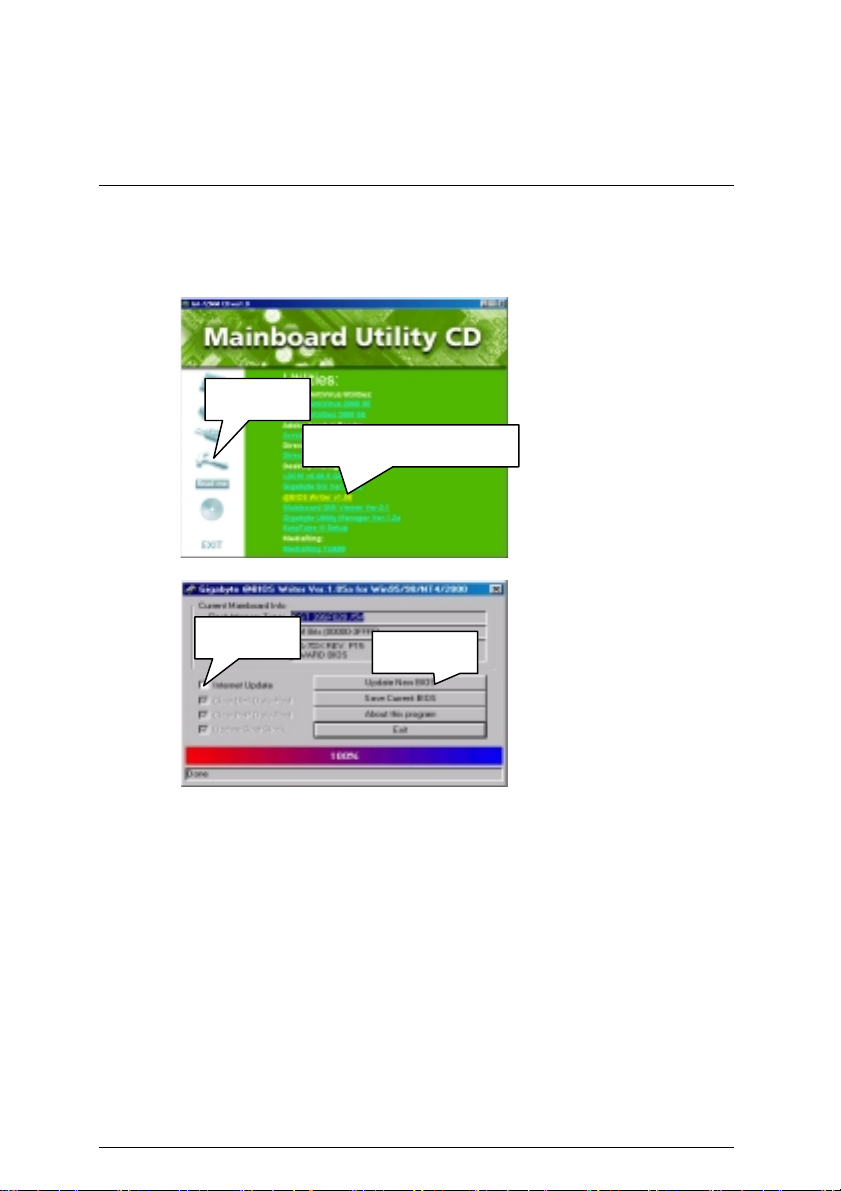

@BIOS™ Introduction

Gigabyte announces Windows BIOS live update utility

@ BIOS™

Have you ever updated BIOS by yourself? Or like many other people, you just know what BIOS is, but always hesitate to update it? Because you think updating newest BIOS is unnecessary and actually you don’t know how to update it.

Maybe not like others, you are very experienced in BIOS updating and spend quite a lot of time to do it. But of course you don’t like to do it too much. First, download different BIOS from website and then switch the operating system to DOS mode. Secondly, use different flash utility to update BIOS. The above process is not a interesting job. Besides, always be carefully to store the BIOS source code correctly in your disks as if you update the wrong BIOS, it will be a nightmare.

Certainly, you wonder why motherboard vendors could not just do something right to save your time and effort and save you from the lousy BIOS updating work? Here it

comes! Now Gigabyte announces @BIOS

™

--the first Windows BIOS live update utility. This is a smart BIOS update software. It could help you to download the BIOS from internet and update it. Not like the other BIOS update software, it’s a Windows utility.

With the help of “@BIOS

™

’, BIOS updating is no more than a click.

Besides, no matter which mainboard you are using, if it’s a Gigabyte’s product*,

™

@BIOS

help you to maintain the BIOS. This utility could detect your correct mainboard model and help you to choose the BIOS accordingly. It then downloads the BIOS from the nearest Gigabyte ftp site automatically. There are several different choices; you could use “Internet Update” to download and update your BIOS directly. Or you may want to keep a backup for your current BIOS, just choose “Save Current

BIOS” to save it first. You make a wise choice to use Gigabyte, and @BIOS

™

update your BIOS smartly. You are now worry free from updating wrong BIOS, and capable to maintain and manage your BIOS easily. Again, Gigabyte’s innovative product erects a milestone in mainboard industries.

For such a wonderful software, how much it costs? Impossible! It’s free! Now, if you buy a Gigabyte’s motherboard, you could find this amazing software in the attached driver CD. But please remember, connected to internet at first, then you could have a internet BIOS update from your Gigabyte @BIOS™.

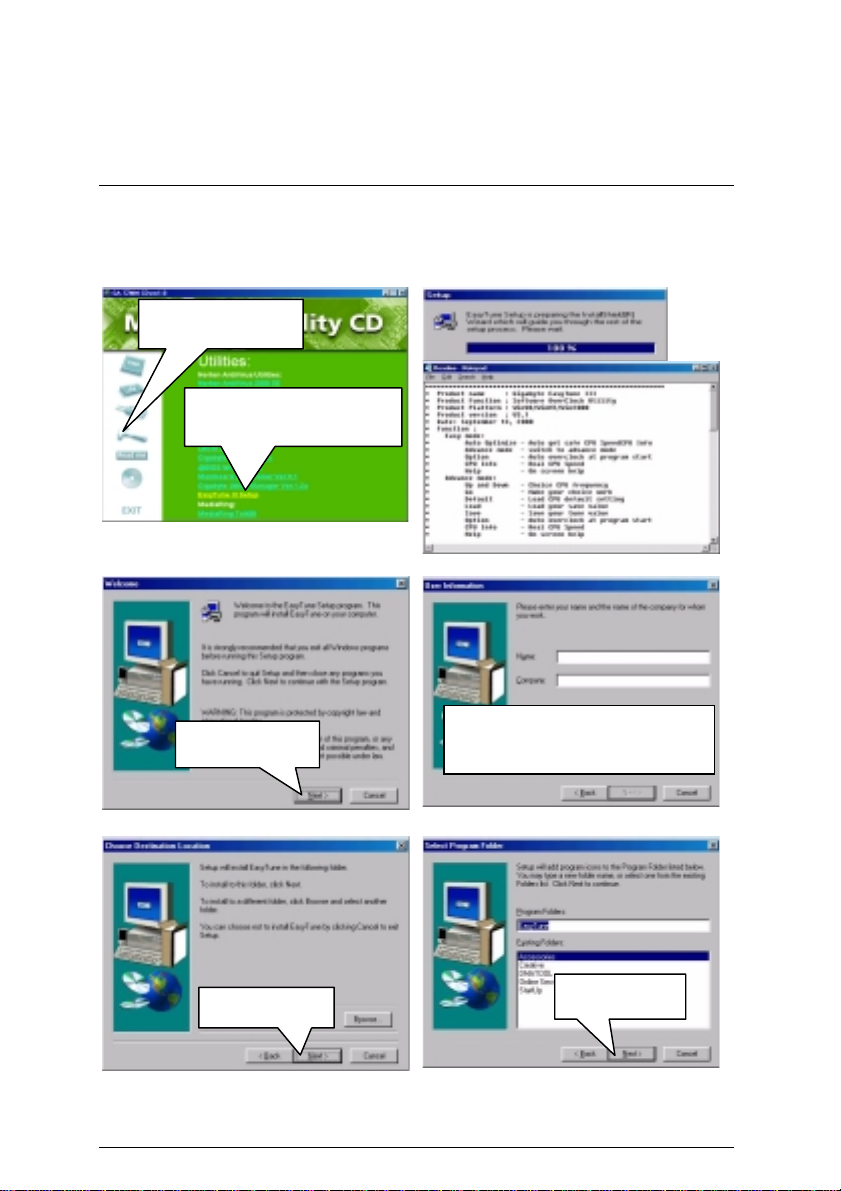

EasyTune

Introduction

III

EasyTune

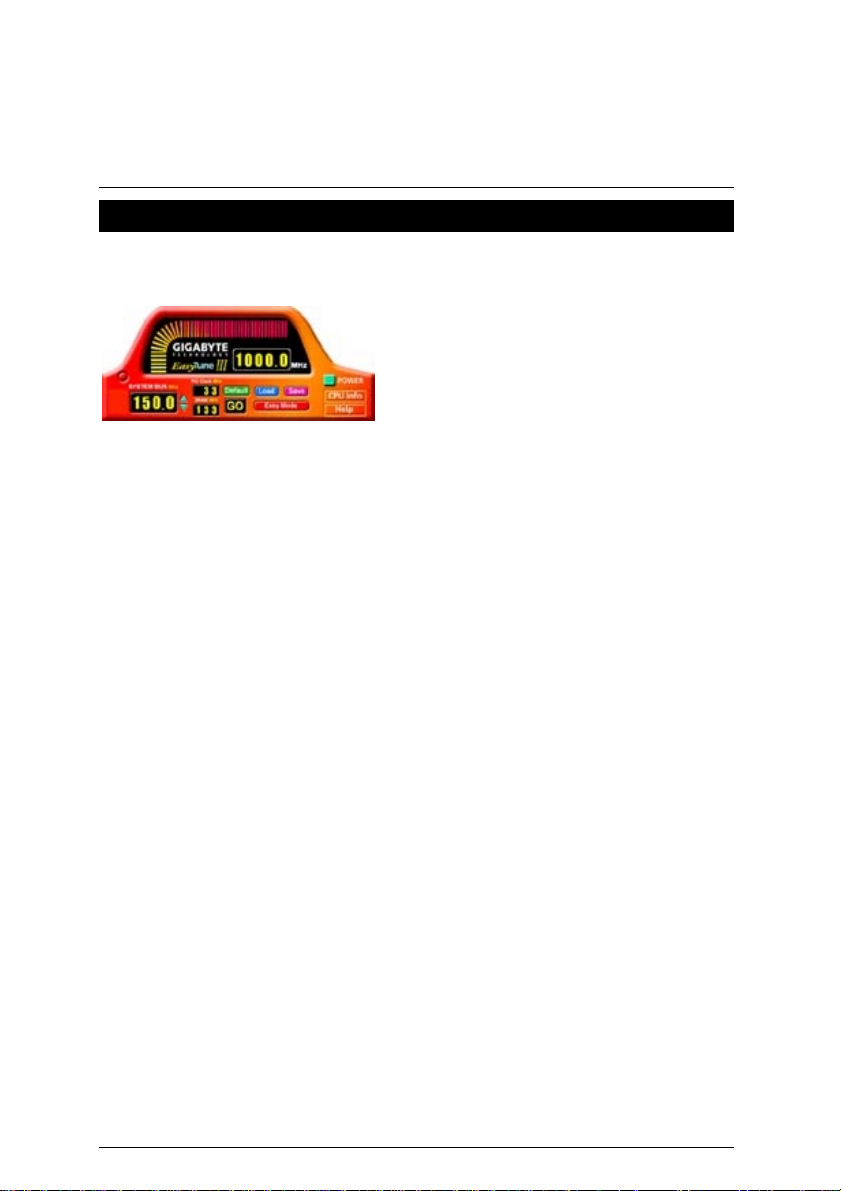

Gigabyte announces EasyTune

Introduction

III

™

Windows overdrive utilit y

“Overdrive” might be one of the most common issues in computer field. But have many users ever tried it? The answer is probably “no”. Because “overdrive” is thought to be very difficult and includes a lot of technical know-how, sometimes “overdrive” is even considered as special skills found only in some enthusiasts.

But as to the experts in “overdrive”, what’s the truth? They may spend quite a lot of time and money to study, try and use many different hardware and software tools to do “overdrive”. And even with these technologies, they still learn that it’s quite a risk because the safety and stability of an “overdrive“ system is unknown.

Now everything is different because of a Windows overdrive utility EasyTune

rule of “overdrive”. This is the first overdrive utility suitable for both normal and power users. Users can choose either “Easy Mode” or “Advanced Mode” to run “overdrive” at their convenience. For users who choose “Easy Mode”, they just need to click “Auto Optimize” to have auto and immediate CPU overclocking. This software will then overdrive CPU speed automatically with the result being shown in the control panel. If someone prefers to “overdrive” by oneself, there is also another choice. Click “Advanced Mode” to enjoy “sport drive” class overclocking. In “Advanced Mode”, one can change the system bus speed in small increments to get ultimate system performance. And no matter which mainboard is used, if it’s a Gigabyte’s

product*, EasyTune

Besides, different from other traditional over-clocking methods, EasyTune doesn’t require users to change neither BIOS nor hardware switch/ jumper setting; on the other hand, they can do “overdrive” at only one click. Therefore, this is a safer way for “overdrive” as nothing is changed on software or hardware. If user runs

EasyTune again and the side effect is then well controlled. Moreover, if one well-performed

system speed been tested in EasyTune “Load” it in next time. Obviously, Gigabyte EasyTune

“overdrive” technology toward to a newer generation.

™

--announced by Gigabyte. This utility has totally changed the gaming

III

™

helps to perform the best of system.

III

™

over system’s limitation, the biggest lost is only to restart the computer

III

™

III

™

III

, user can “Save” this bus speed and

™

has already turned the

III

7ZMM Series Motherboard

This wonderful software is now free bundled in Gigabyte motherboard attached driver CD. Users may make a test drive of “EasyTune

features by themselves.

™

” to find out more amazing

III

For further technical information, please link to: http://www.gigabyte.com.tw

Note: If your CD version is 1.6 or below, please visit our website and

ÚÚÚÚ

download the latest EasyTune

III

version.

Memory Installation

The motherboard has 2 dual inline memory module (DIMM) sockets. The BIOS will automatically detects memory type and size. To install the memory module, just push it vertically into the DIMM Slot .The DIMM module can only fit in one direction due to the two notch. Memory size can vary between sockets.

Install memory in any combination table:

DIMM 168-pin SDRAM DIMM Modules DIMM 1 Supports 16 / 32 / 64 / 128 / 256 / 512 MB X 1 pcs DIMM 2 Supports 16 / 32 / 64 / 128 / 256 / 512 MB X 1 pcs

★Total System Memory (Max 1.0GB)

7ZMM Series Motherboard



Page Index for BIOS Setup Page The Main Menu P.43 Standard CMOS Setup P.45 BIOS Features Setup P.48 Chipset Features Setup P.50 Power Management Setup P.52 PNP/ PCI Configuration P.55 Load BIOS Defaults P.56 Load Setup Defaults P.57 Integrated Peripherals P.58 Hardware Monitor P.60 Supervisor Password / User Password P.61 IDE HDD Auto Detection P.62 Save & Exit Setup P.63 Exit Without Saving P.64

BIOS Setup

BIOS Setup is an overview of the BIOS Setup Program. The program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off.

ENTERING SETUP

Power ON the computer and press <Del> immediately will allow you to enter Setup. If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON or pressing the "RESET" bottom on the system case. You may also restart by simultaneously press <Ctrl> − <Alt>− <Del> keys.

CONTROL KEYS

<↑> Move to previous item

<↓> Move to next item <←> Move to the item in the left hand <→> Move to the item in the right hand

<Esc> Main Menu - Quit and not save changes into CMOS

Status Page Setup Menu and Option Page Setup Menu - Exit current page and return to Main Menu

<+/PgUp> Increase the numeric value or make changes

<-/PgDn> Decrease the numeric value or make changes

<F1> General help, only for Status Page Setup Menu and Option Pa ge Setup

Menu <F2> Reserved <F3> Reserved <F4> Reserved <F5> Restore the previous CMOS value from CMOS, only for Option Page

Setup Menu <F6> Load the default CMOS value f rom BIOS default table, only for Option

Page Setup Menu <F7> <F8> Reserved <F9> Reserved

<F10> Save all the CMOS changes, only for Main Menu

Load the Setup Defaults

7ZMM Series Motherboard

GETTING HELP

Main Menu

The on-line description of the highlighted setup function is displayed at the bottom of the screen.

Status Page Setup Menu / Option Page Setup Me nu

Press F1 to pop up a small hel p window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc>.

The Main Menu

Once you enter AMI BIOS CMOS Setup Utility, the Main Menu (Figure 1) will appear on the screen. The Main Menu allows you to select from nine setup functions and two exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the sub-menu.

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24a

STANDARD CMOS SETUP INTEGRATED PERI PHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION LOAD BIOS DEFAULTS SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

: Select Item (Shift) F2 : Change Color F5 : Old Values

↑↓←→

Time, Date, Hard Disk Type, …

Figure 1: Main Menu

Standard CMOS Setup

••••

This setup page includes all the items in standard compatible BIOS.

BIOS Features Setup

••••

This setup page includes all the items of AMI special enhanced features.

Chipset Features Setup

••••

This setup page includes all the items of chipset special features.

BIOS Setup

Power Management Setup

••••

This setup page includes all the items of Green function features.

PnP/PCI Configurations

••••

This setup page includes all the configurations of PCI & PnP ISA resources.

Load BIOS Defaults

••••

Bios Defaults indicates the value of the system parameter which the system would be in the safe configuration.

Load Setup Defaults

••••

Setup Defaults indicates the value of the system parameter which the system would be in

the most appropriate configuration.

Integrated Peripherals

••••

This setup page includes all onboard peripherals.

Hardware Monitor Setup

••••

This setup page is auto detect fan and temperature status.

Supervisor password

••••

Change, set, or disable password. It allows you to limit access to the system and Setup, or just to Setup.

User password

••••

Change, set, or disable password. It allows you to limit access to the system.

IDE HDD auto detection

••••

Automatically configure hard disk parameters.

Save & Exit Setup

••••

Save CMOS value settings to CMOS and exit setup.

Exit Without Saving

••••

Abandon all CMOS value changes and exit setup.

7ZMM Series Motherboard

Standard CMOS Setup

The items in Standard CMOS F eatures Menu (Figure 2) are divided in to 9 categories. Each category includes no, one or more than one s etup items. Use the arrows to highlight the i tem and then use the <PgUp> or <PgDn> keys to select the value you want in each item.

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy) : Tue Jan 25, 2000 Time (hh/mm/ss) : 10:36:24

Pri Master : Auto Pri Slave : Auto Sec Master : Auto Sec Slave : Auto

Floppy Drive A: 1.44 MB 3 ½ Floppy Drive B: Not Installed

Boot Sector Virus Protection : Disabled

Month: Jan – Dec ESC : Exit Day: 01 – 31 ↑↓ : Select Item Year : 1990– 2099 PU/PD/+/– : Modify (Shift)F2 : Color

Date

••••

TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Base Memory : 640 Kb Other Memory: 384 Kb Extended Memory: 30Mb Total Memory: 31Mb

Figure 2: Standard CMOS Setup

The date format is <Week> <Month> <Day>, <Year>.

Week The week, from Sun to Sat, determined by the BIOS and is display-only Month The month, Jan. Through Dec. Day The day, from 1 to 31 (or the maximum allowed in the month) Year The year, from 1990 through 2099

BIOS Setup

Time

••••

The times format in <hour> <minute> <second>. The time is calculated base on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00.

Primary Master, Slave / Secondary Master, Slave

••••

The category identifies the types of hard disk from drive C to F that has been i nstalled in the computer. There are two types: auto type, and user definable type. User type is user-definable; Auto type which will automatically detect HDD type.

Note that the specifications of your drive must match with the drive table. The hard disk will not work properly if you enter improper information for this category.

If you select User Type, related information will be asked to enter to the following items. Enter the information directly from the keyboard and press <Enter>. Such information should be provided in the documentation form your hard disk vendor or the system manufacturer.

CYLS. Number of cylinders HEADS number of heads PRECOMP write precomp LANDZONE Landing zone SECTORS number of sectors

If a hard disk has not been installed select NONE and press <Enter>.

Floppy Drive A / Drive B

••••

The category identifies the types of floppy disk drive A or driv e B that has been installed in the computer.

None No floppy drive installed 360K, 5.25 in. 5.25 inch PC-type standard drive; 360K byte capacity.

1.2M, 5.25 in. 5.25 inch AT-type high-density drive; 1.2M by te capacity (3.5 inc h when 3 Mode is Enabled).

720K, 3.5 in. 3.5 inch double-sided drive; 720K byte capacity

1.44M, 3.5 in. 3.5 inch double-sided drive; 1.44M byte capacity.

2.88M, 3.5 in. 3.5 inch double-sided drive; 2.88M byte capacity.

7ZMM Series Motherboard

Boot Sector Virus Protection

••••

If it is set to enable, the category will flash on the screen when there is any attempt to write to the boot sector or partition table of the hard disk drive. The system will halt and the following error message will appear in the mean time. You can run anti-virus program to locate the problem.

Enabled Activate automatically when the system boots up causing a warning

Disabled No warning message to appear when anything attempts to access the

Memory

••••

The category is display-only which is determined by POST (Power On Self Test) of the BIOS.

message to appear when anything attempts to access the boot sector or hard disk partition table

boot sector or hard disk partition table.

(Default Value)

Base Memory

The POST of the BIOS will determine the amount of base (or conventional) memory installed in the system.

The value of the base memory is typically 512 K for systems with 512 K memory installed on the motherboard, or 640 K for systems with 640 K or more memory installed on the motherboard.

Extended Memory

Other Memory

The BIOS determines how much extended memory is present during the POST. This is the amount of memory located above 1 MB in the CPU's memory

address map.

This refers to the memory located in the 640 K to 1024 K address space. This is memory that can be used for different applications.

DOS uses this area to load device drivers to keep as much base memory free for application programs. Most use for this area is Shadow RAM

BIOS Setup

BIOS Features Setup

AMIBIOS SETUP – BIOS FEATURES SETUP

1st Boot Device Floppy 2nd Boot Device IDE-0

3rd Boot Device CDROM S.M.A.R.T. for Hard Disks Disabled BootUp Num-Lock On Floppy Drive Seek Disabled

Password Check Setup

F1 : Help PU/PD+/-/ : Modify

F6 : Load BIOS Defaults F7 : Load SETUP Defaults

ESC : Quit F5 :Old Values (Shift)F2:Color

↑↓→ ←

: Select Item

Figure 3: BIOS Features Setup

1st / 2nd / 3rd Boot Device

••••

Floppy ZIP A: / LS120 CDROM SCSI NETWORK USB FDD IDE-0~IDE-3 Disabled ATAPI ZIP C:

S.M.A.R.T. for Hard Disks

••••

Boot Device by Floppy. Boot Device by ZIP A: / LS120. Boot Device by CDROM. Boot Device by SCSI. Boot Device by NETWORK. Boot Device by USB FDD. Boot Device by IDE-0~IDE-3. Boot Device by Disabled. Boot Device by ATAPI ZIP C:.

Enabled Enable S.M.A.R.T. Hard for Disks. Disabled Disable S.M.A.R.T. Hard for Disks.

(Default Value)

7ZMM Series Motherboard

Boot Up Num-Lock

••••

On Keypad is number keys. Off Keypad is arrow keys.

Floppy Drive Seek

••••

During POST, BIOS will determine if the floppy disk drive installed is 40 or 80 tracks. 360 type is 40 tracks while 720 , 1.2 and 1.44 are all 80 tracks.

Enabled BIOS searches for floppy disk drive to determine if it is 40 or 80 tracks.

Note that BIOS can not tell from 720, 1.2 or 1.44 drive ty pe as they are all 80 tracks.

Disabled BIOS will not search for the type of floppy disk drive by track number.

Note that there will not be any warning message if the drive installed is

(Default Value)

360.

Password Check

••••

Setup Set Password Check to Setup. Always Set Password Check to Always.

(Default Value)

BIOS Setup

Chipset Features Setup

AMIBIOS SETUP – CHIPSET FEATURES SETUP

Configure Timing by SPD Disabled

DRAM Frequency 100MHz SDRAM CAS# Latency 3

AGP Mode 4X AGP Comp. Driving Auto Manual AGP Comp. Driving CB AGP Fast Write Disabled AGP Aperture Size 64MB ClkGen Spread Spectrum Enabled USB Controller All USB Port

USB Legacy Support Disabled

F1 : Help PU/PD+/-/ : Modify F5 :Old Values (Shift)F2:Color F6 : Load BIOS Defaults F7 : Load SETUP Defaults

ESC : Quit

↑↓→ ←

Figure 4: Chipset Features Setup

Configure Time by SPD

••••

: Select Item

Disabled Disable Configure Time by SPD function. Enabled Enable Configure Time by SPD function.

DRAM Frequency

••••

100MHz Set DRAM Frequency to 100MHz. 133MHz Set DRAM Frequency to 133MHz.

SDRAM CAS# Latency

••••

2 For Fastest SDRAM DIMM module. 3 For Slower SDRAM DIMM module.

AGP Mode

••••

4X Set AGP Mode to 4X.

(Default Value)

1X Set AGP Mode to 1X. 2X Set AGP Mode to 2X.

(Default Value)

7ZMM Series Motherboard

AGP Comp. Driving

••••

Auto Set AGP Comp. Driving to Auto. Manual Set AGP Comp. Driving to Manual.

If AGP Comp. Driving is Manual.

Manual AGP Comp. Driving: 00~FF

AGP Fast Write

••••

Enabled Enable AGP Fast Write function. Disabled Disable this function.

AGP Aperture Size

••••

4MB Set AGP Aperture Size to 4MB. 8MB Set AGP Aperture Size to 8 MB. 16MB Set AGP Aperture Size to 16 MB. 32MB Set AGP Aperture Size to 32 MB. 64MB Set AGP Aperture Size to 64 MB. 128MB Set AGP Aperture Size to 128 MB. 256MB Set AGP Aperture Size to 256 MB.

ClkGen Spread Spectrum

•

Disabled Disable ClkGen Spread Spectrum. Enabled Enable ClkGen Spread Spectrum.

USB Controller

••••

(Default Value)

All USB Port Set USB Controller to All USB Port. Disabled Disable USB Controller. USB Port 0&1 Set USB Controller to USB Port 0&1. USB Port 2&3 Set USB Controller to USB Port 2&3.

USB Legacy Support

••••

Keyboard/FDD Set USB Legacy Support Keyboard / Floppy. KB/Mouse/FDD Set USB Legacy Support Keyboard / Mouse / Floppy. Disabled Disable USB Legacy Support Function.

(Default Value)

BIOS Setup

Power Management Setup

AMIBIOS SETUP – POWER MANAGEMENT SETUP

ACPI Standby State S1/POS RTC Alarm Hour 12 USB Dev Wakeup From S3~S5 Disabled RTC Alarm Minute 30

Suspend Time Out (Minute) Disabled RTC Alarm Second 30 Display Activity Ignore IRQ3 Monitor IRQ4 Monitor IRQ5 Ignore IRQ7 Monitor IRQ9 Ignore IRQ10 Ignore IRQ11 Ignore IRQ13 Ignore IRQ14 IRQ15 Ignore

Soft-Off by Power Button

System after AC Back Last State Resume On Ring/LAN Enabled F1 : Help PU/PD+/-/ : Modify Resume On PME# Enabled F5 :Old Values (Shift)F2:Color Resume On RTC Alarm Disabled F6 : Load BIOS Defaults

RTC Alarm Date 15 F7 : Load SETUP Defaults

ACPI Standby State

••••

Monitor

Instant-Off

ESC : Quit

Figure 5: Power Management Setup

↑↓→ ←

: Select Item

S1/POS Set ACPI Standby State to S1.

(Default Value)

S3/STR Set ACPI Standby State to S3.

USB Dev Wakeup From S3~S5

•

Enabled Enable USB Dev Wakeup from ACPI S3, S4 and S5 mode. Disabled Disable USB Dev Wakeup from ACPI S3, S4 and S5 mode.

(Default Value)

Suspend Time Out (Minute.)

••••

Disabled Disable Suspend Time Out Function.

(Default Value)

1 Enable Suspend Time Out after 1min. 2 Enable Suspend Time Out after 2min. 4 Enable Suspend Time Out after 4min. 8 Enable Suspend Time Out after 8min. 10 Enable Suspend Time Out after 10min. 20 Enable Suspend Time Out after 20min. 30 Enable Suspend Time Out after 30min.

7ZMM Series Motherboard

40 Enable Suspend Time Out after 40min. 50 Enable Suspend Time Out after 50min. 60 Enable Suspend Time Out after 60min.

Display Activity

••••

Ignore Ignore Display Activity. Monitor Monitor Display Activity.

IRQ 3~IRQ15

••••

Ignore Ignore IRQ3 ~IRQ15. Monitor Monitor IRQ3~IRQ15.

Soft-off by Power Button

•

Instant-off Soft switch ON/OFF for POWER ON/OFF. Suspend Soft switch to enter Suspend Mode.

System after AC Back

•

Last State System power on depends on the status before AC lost.

(Default Value)

Off Always in Off state when AC back. On Always power on the system when AC back.

Resume On Ring / LAN

•

Disabled Disable Resume On Ring / LAN. Enabled Enable Resume On Ring / LAN.

Resume On PME#

•

Disabled Disable Resume On PME#. Enabled Enable Resume On PME#.

(Default Value)

(Default value)

Resume On RTC Alarm

••••

You can set “Resume On RTC Alarm” item to enabled and key in Data/time to power on system.

Disabled Disable this function. Enabled Enable alarm function to POWER ON system.

If the default value is Enabled.

RTC Alarm Date: Every Day, 1~31 RTC Alarm Hour: 0~23 RTC Alarm Minute: 0~59 RTC Alarm Second: 0~59

(Default Value)

BIOS Setup

7ZMM Series Motherboard

PNP/PCI Configurations

AMIBIOS SETUP – PNP / PCI CONFIGURATION

VGA Frame Buffer Size VGA Boot from PCI IRQ 3 PCI/PnP

IRQ 4 PCI/PnP

IRQ 5 PCI/PnP

IRQ 7 PCI/PnP

IRQ 9 PCI/PnP

IRQ 10 PCI/PnP

IRQ 11 PCI/PnP

IRQ 14 PCI/PnP

IRQ 15

F1 : Help PU/PD+/-/ : Modify

F5 :Old Values (Shift)F2:Color

F6 : Load BIOS Defaults

F7 : Load SETUP Defaults

16MB

PCI/PnP

Figure 6: PNP/PCI Configuration

VGA Frame Buffer Size

••••

8MB Set VGA Frame Buffer Size to 8MB. 16MB Set VGA Frame Buffer Size to 16MB. 32MB Set VGA Frame Buffer Size to 32MB.

ESC: Quit

↑↓→ ←

: Select Item

(Default Value)

VGA Boot From

•

AGP Primary Graphics Adapter From AGP. PCI Primary Graphics Adapter From PCI.

IRQ (3, 4, 5, 7, 9, 10, 11, 14, 15)

••••

ISA/ EISA The resource is used by Legacy ISA device. PCI / PnP The resource is used by PCI/ PnP device.

(Default Value)

Load BIOS Defaults

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24a

STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION LOAD BIOS DEFAULTS SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

Load BIOS Defaults

••••

↑↓→←

BIOS defaults contain the most appropriate values of the system parameters that allow minimum system performance.

Load BIOS Defaults (Y/ N)? N

: Select Item (Shift) F2 : Change Color F5 : Old Values

Load BIOS Default except Standard CMOS Setup

Figure 7: Load BIOS Defaults

BIOS Setup

7ZMM Series Motherboard

Load Setup Defaults

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24a

STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION LOAD BIOS DEFAULTS SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

Load Setup Defaults

••••

Selecting thi s field loads the factory defaults for BIOS and Chipset Features whic h the

system automatically detects.

Load SETUP Defaults (Y/N)? N

: Select Item (Shift) F2 : Change Color F5 : Old Values

↑↓→←

Load Setup Default except Standard CMOS Setup

Figure 8: Load Setup Defaults

BIOS Setup

Integrated Peripherals

AMIBIOS SETUP – INTEGRATED PERIPHERALS

OnBoard FDC OnBoard Serial Port 1

OnBoard Parallel Port

Parallel Port Mode ECP Parallel Port DMA Auto Parallel Port IRQ Auto OnBoard IDE Both OnBoard AC’97 Audio Auto OnBoard MC’97 Modem Auto

F1 : Help PU/PD+/- / : Modify

F5 :Old Values (Shift)F2:Color F6 : Load BIOS Defaults F7 : Load SETUP Defaults

Onboard FDC

••••

Auto Auto Auto

ESC: Quit

↑↓→ ←

: Select Item

Figure 9: Integrated Peripherals

Auto Auto detect OnBoard Floppy disk controller. Enabled Enable OnBoard Floppy disk controller. Disabled Disable OnBoard Floppy disk controller.

On Board Serial Port 1

•

Auto BIOS will automatically setup the port 1 address. 3F8/COM1 Enable on Board Serial port 1 and address is 3F8. 2F8/COM2 Enable on Board Serial port 1 and address is 2F8. 3E8/COM3 Enable on Board Serial port 1 and address is 3E8. 2E8/COM4 Enable on Board Serial port 1 and address is 2E8. Disabled Disable on Board Serial port 1.

OnBoard Parallel port

•

378 Enable On Board LPT port and address to 378. 278 Enable On Board LPT port and address to 278. 3BC Enable On Board LPT port and address to 3BC. Auto Set On Board LPT port to Auto.

(Default Value)

Disabled Disable On Board LPT port.

(Default value)

(Default Value)

7ZMM Series Motherboard

Parallel Port Mode

•

EPP Using Parallel port as Enhanced Parallel Port. ECP Using Parallel port as Extended Capabilities Port. Normal Normal Operation. EPP+ECP Using Parallel port as Enhanced Parallel Port & Extended Capabilities

Parallel Port DMA

••••

(Default Value)

Port.

Auto Set Auto to parallel port mode DMA Channel. . 3 Set Parallel Port DMA to 3. 1 Set Parallel Port DMA to 1. 0 Set Parallel Port DMA to 0.

Parallel Port IRQ

••••

7 Set Parallel Port IRQ to 7. Auto Set Auto to parallel Port IRQ DMA Channel. 5 Set Parallel Port IRQ to 5.

OnBoard IDE

•

Disabled Disable OnBoard IDE. Both Set OnBoard IDE to Both. Primary Set OnBoard IDE to Primary. Secondary Set OnBoard IDE to Secondary.

OnBoard AC’97 Audio

••••

Auto Auto detect OnBoard AC’97 Audio. Disabled Disable OnBoard AC’97 Audio.

OnBoard MC’97 Modem

••••

Auto Auto detect OnBoard MC’97 Modem. Disabled Disable OnBoard MC’97 Modem.

(Default Value)

BIOS Setup

Hardware Monitor

AMIBIOS SETUP – HARDWARE MONITOR SETUP

CPU Fan Speed 7123 RPM System Fan Speed 0 RPM Vcore 1.750 V Vdd 3.050 V Vcc3 3.340 V +5.000V 4.996 V +12.000V 12.166 V

F1 : Help PU/PD+/-/ : Modify F5 :Old Values (Shift)F2:Color F6 : Load BIOS Defaults

F7 : Load Setup Defaults

47°C/116°F 32°C/89°F

Figure 10: Hardware Monitor

ESC: Quit

↑↓→ ←

: Select Item

CPU Temperature. (

••••

°°°°

C /

°°°°

Detect CPU Temperature automatically.

System Temperature. (

••••

°°°°

C /

°°°°

Detect System Temperature automatically.

CPU Fan Speed

••••

Detect CPU Fan speed status automatically.

System Fan Speed

••••

Detect System Fan speed status automatically.

Voltage (V) Vcore / Vdd / Vcc3 / +5V / +12V

••••

Detect system’s voltage status automatically .

7ZMM Series Motherboard

Set Supervisor / User Password

When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24a

STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION LOAD BIOS DEFAULTS SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

↑↓→←

Type the password, up to six characters, and press <Enter>. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable password, just press <Enter> when you are p rompt ed to enter password. A mess age

PASSWORD DISABLED

“ password is disabled, the system will boot and you can enter Setup freely.

The BIOS Setup program allows you to specify two separate passwords: a

PASSWORD

USER PASSWORD

and a program function. When enabled, the Supervisor password is required for entering the BIOS Setup program and having full configuration fields, the User password is required to access only basic items.

If you select “

Always

” at “ prompted for the password every time the system is rebooted or any time you try to enter Setup Menu.

If you select “ only when you try to enter Setup.

Setup

” at “

Enter new supervisor password:

: Select Item (Shift) F2 : Change Color F5 : Old Values

Chang /Set /Disabled Password

Figure 11: Password Setting

” will appear to confirm the password being disabled. Once the

SUPERVISOR

. When disabled, anyone may access all BIOS Setup

Password Check

” in BIOS Features Setup Menu, you will be

” in BIOS Features Setup Menu, you will be prompted

IDE HDD AUTO Detection

AMIBIOS SETUP – STANDARD CMOS SETUP

Date (mm/dd/yyyy) : Tue Jan 25, 2000 Time (hh/mm/ss) : 10:36:24

Pri Master : Not Installed Pri Slave : Not Installed Sec Master : Not Installed Sec Slave : Not Installed

Floppy Drive A: 1.44 MB 3 ½ Floppy Drive B: Not Installed

Boot Sector Virus Protection : Disabled Month: Jan – Dec ESC : Exit

Day: 01 – 31 ↑↓ : Select Item Year : 1990– 2099 PU/PD/+/– : Modify (Shift)F2 : Color

TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE

Base Memory : 640 Kb Other Memory: 384 Kb Extended Memory: 31Mb Total Memory: 32Mb

BIOS Setup

Figure 12: IDE HDD Auto Detection Type "Y" will accept the H.D.D. parameter reported by BIOS. Type "N" will keep the old H.D.D. parameter setup. If the hard disk cylinder number is over 1024,

then the user can select LBA mode or LARGER mode for DOS partition larger than 528 MB.

7ZMM Series Motherboard

Save & Exit Setup

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24a

STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION LOAD BIOS DEFAULTS SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

Type "Y" will quit the Setup Utility and save the user setup value to RTC CMOS. Type "N" will return t o Setup Utility.

SAVE to CMOS and EXIT(Y/N)? Y

: Select Item (Shift) F2 : Change Color F5 : Old Values

↑↓→←

Save Data to CMOS & Exit Setup

Figure 13: Save & Exit Setup

Exit Without Saving

AMIBIOS SIMPLE SETUP UTILITY-VERSION 1.24a

STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP HARDWARE MONITOR SETUP CHIPSET FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD PNP/PCI CONFIGURATION IDE HDD AUTO DETECTION LOAD BIOS DEFAULTS SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING

ESC : Quit F6 : Load BIOS Defaults F7: Load Setup Defaults F10: Save & Exit

Type "Y" will quit the Setup Utility without saving to RTC CMOS. Type "N" will return t o Setup Utility.

Quit without saving (Y/N) ? N

: Select Item (Shift) F2 : Change Color F5 : Old Values

↑↓→←

Abandon all Datas & Exit Setup

Figure 14: Exit Without Saving

BIOS Setup

7ZMM Series Motherboard

Appendix

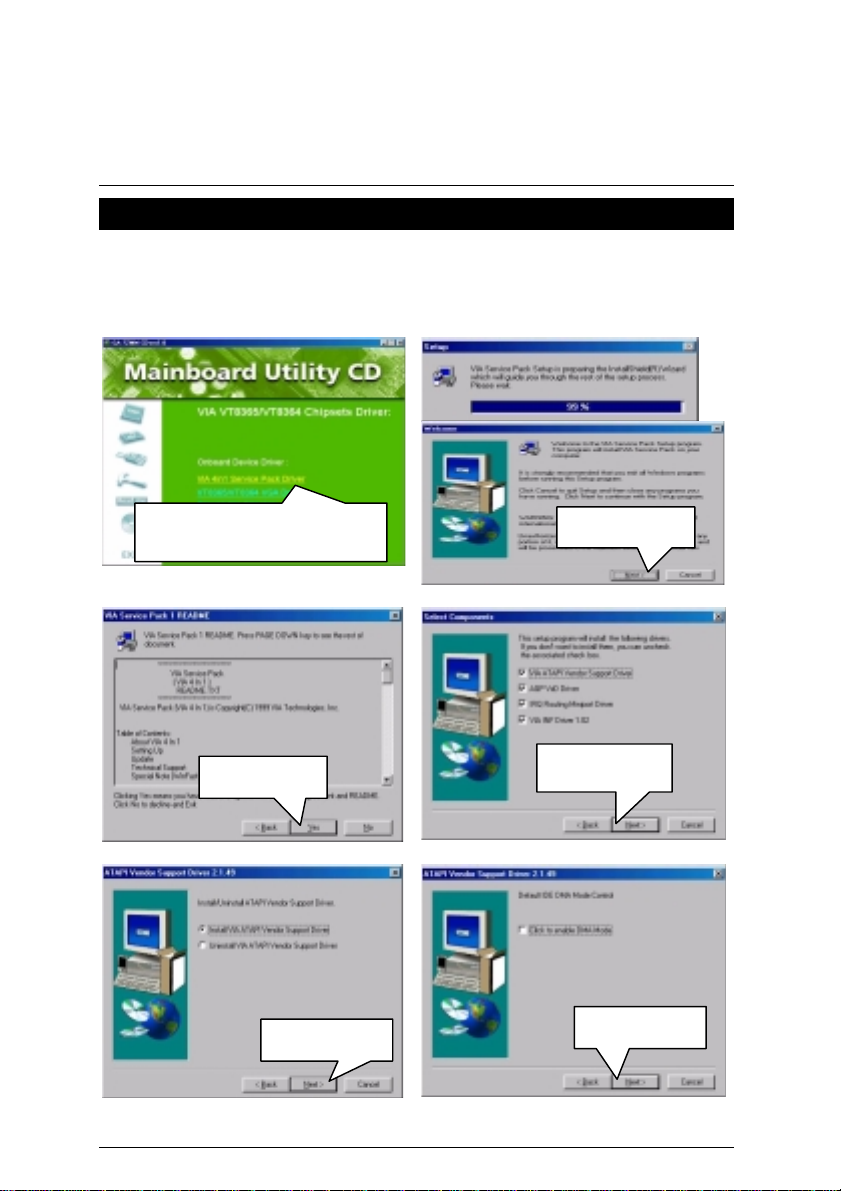

Appendix A: VIA VT8365/VT8364 Chipsets Driver Installation A.VIA 4 in 1 Service Pack Utility:

Insert the support CD that came with your motherboard into your CD-ROM driver or double –click the CD driver icon in My Computer to bring up the screen.

1.Click “VIA 4in 1 Service Pack Driver” item.

(1)

3.Click “Yes”.

(3)

5.Click “Next”.

(5)

2.Click “Next”.

(2)

4.Click “Next”.

(4)

6.Click “Next”.

(6)

Appendix

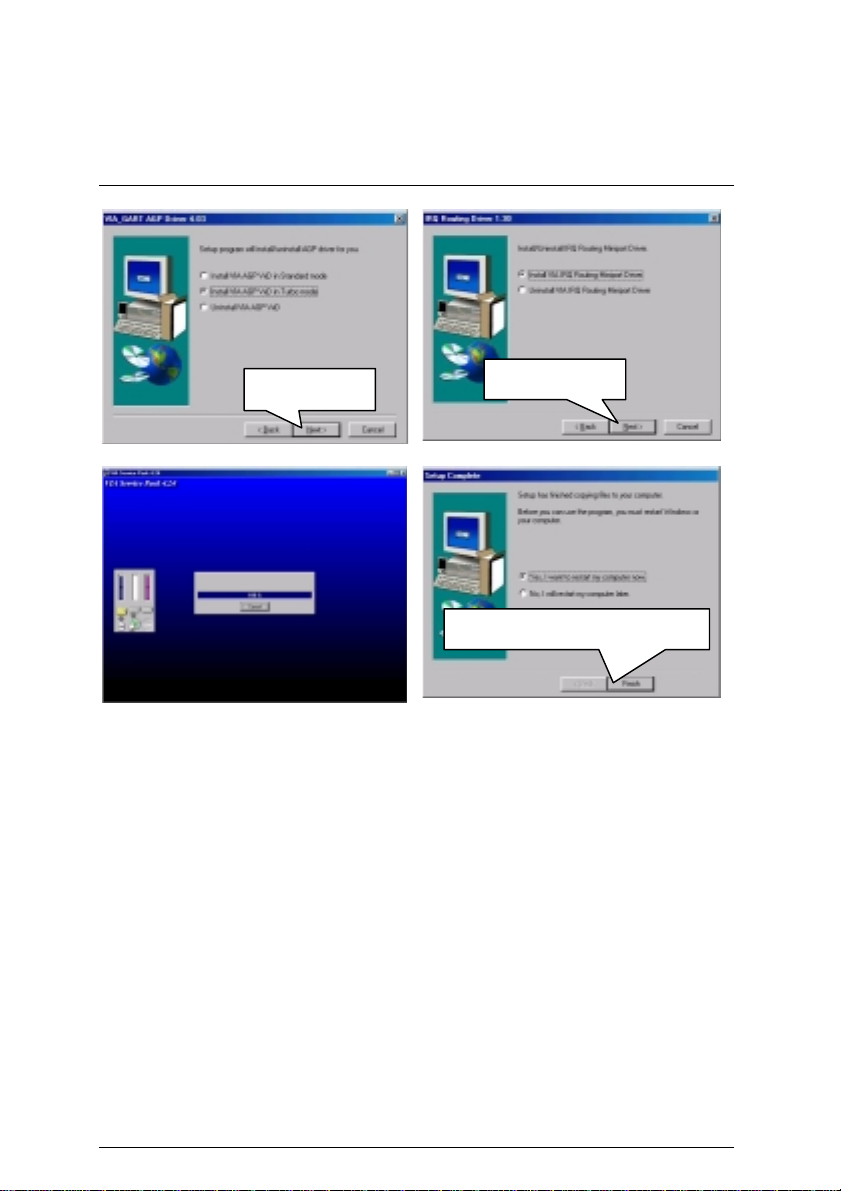

7.Click “Next”.

(7)

(9)

8.Click “Next”.

(8)

9.Click “Finish” to restart computer.

(10)

7ZMM Series Motherboard

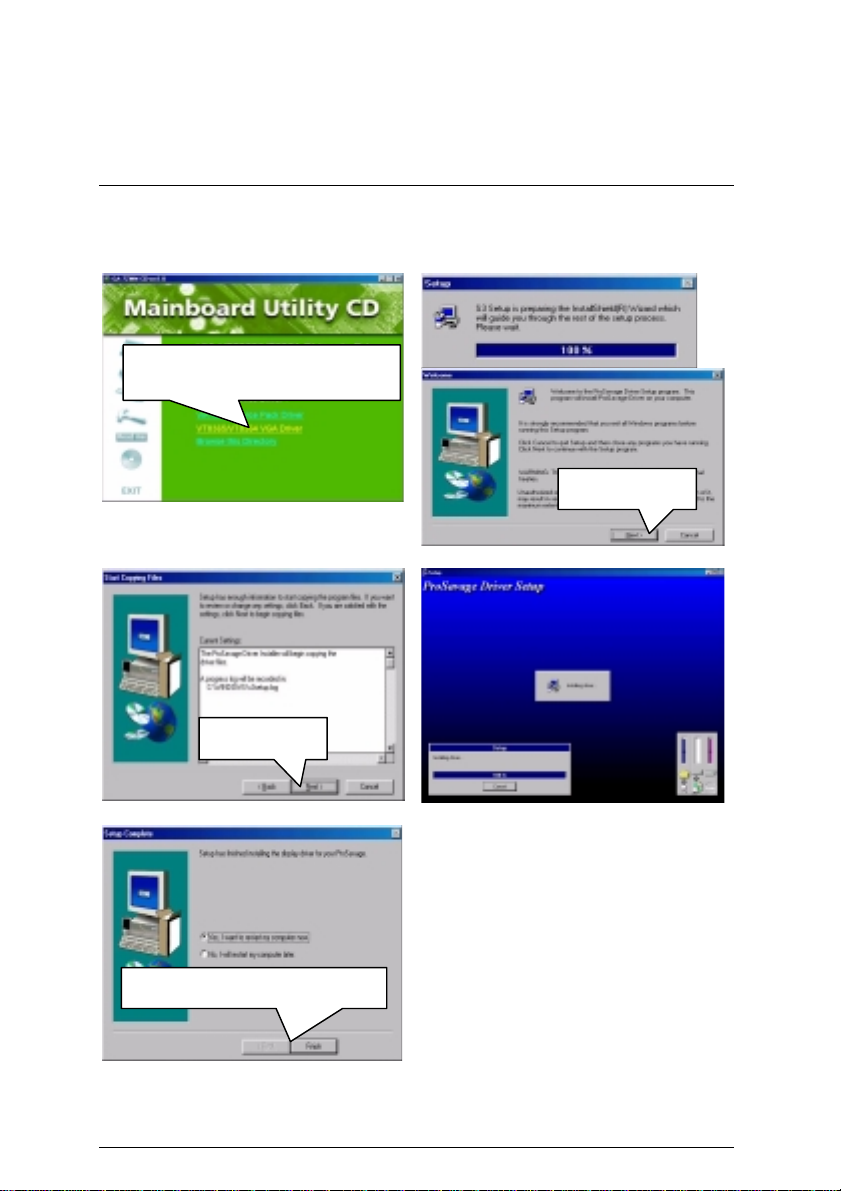

B.VT8365/VT8364 VGA Driver:

Insert the support CD that came with your motherboard into your CD-ROM driver or double –click the CD driver icon in My Computer to bring up the screen.

1.Click “VT8365/VT8364 VGA Driver” item.

(1)

3.Click “Next”.

(3)

2.Click “Next”.

(2)

(4)

4.Click “Finish” to restart computer.

(5)

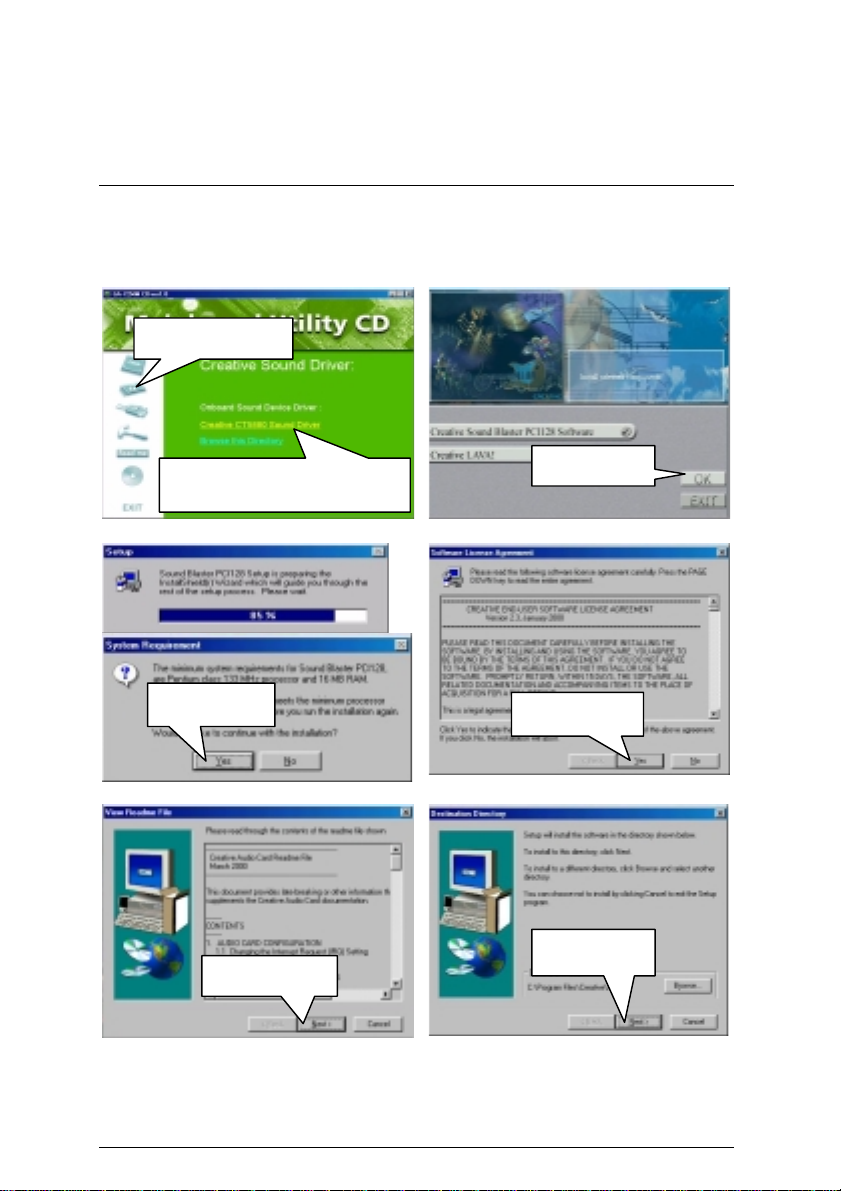

Appendix B: Creative Sound Driver Installation

Insert the support CD that came with your motherboard into your CD-ROM driver or double –click the CD driver icon in My Computer to bring up the screen.

Press “Audio” icon.

Appendix

1. Click “Creative CT5880 Sound Driver” item.

(1)

2.Click “OK”.

(2)

3.Click “Yes”.

(3)

5.Click “Next”.

(5)

4.Click “Yes”.

(4)

6.Click”Next”.

(6)

7ZMM Series Motherboard

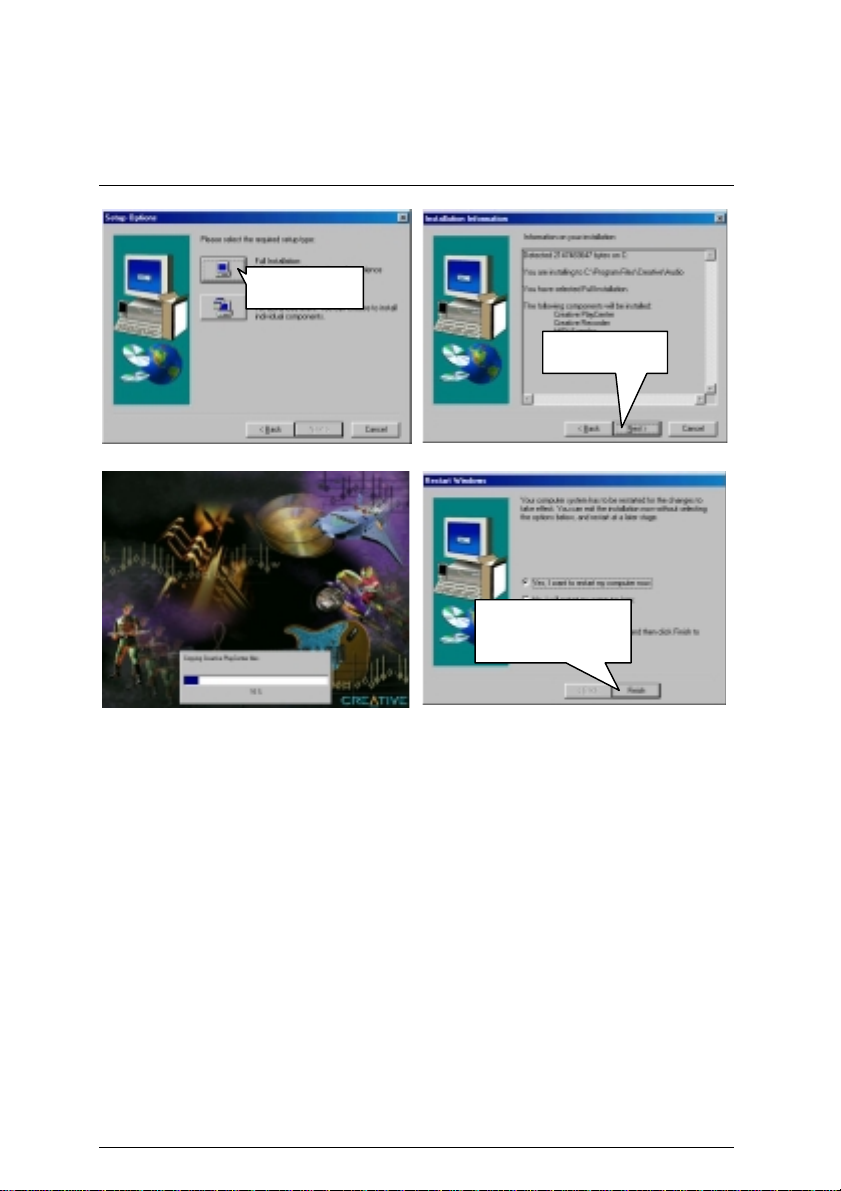

7.Click here.

8.Click”Next”.

(7)

9.Click “Finish” to restart computer.

(9)

(8)

(10)

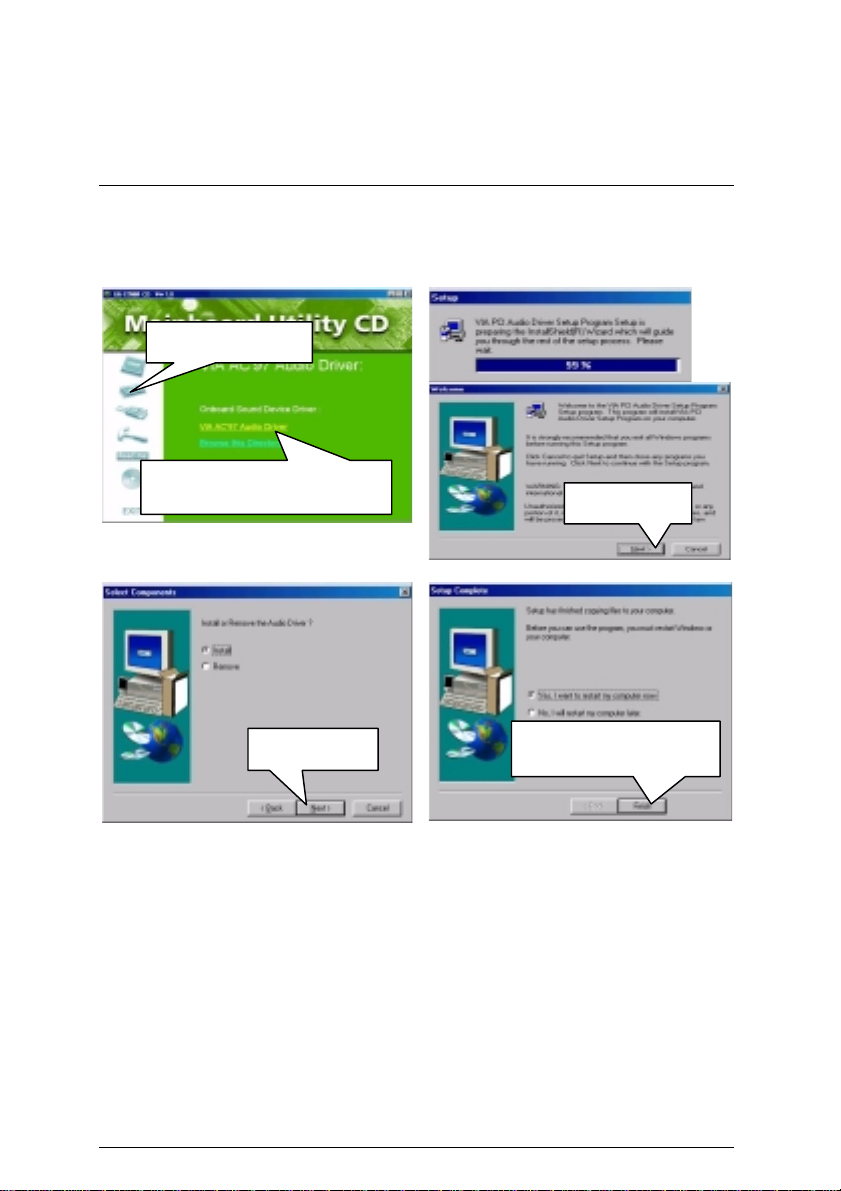

Appendix C: VIA AC’97 Audio Driver (Optional)

Insert the support CD that came with your motherboard into your CD-ROM driver or double –click the CD driver icon in My Computer to bring up the screen.

Press “Audio” icon.

1.Click “VIA AC’97 Audio Driver” item.

2.Click “Next”.

(1)

(2)

Appendix

3.Click “Next”.

(3)

4. Click “Finish” to restart uter.

com

(4)

7ZMM Series Motherboard

Appendix D: EasyTune

Insert the support CD that came with your motherboard into your CD-ROM driver or double –click the CD driver icon in My Computer to bring up the screen.

Press “tool” icon.

1.Click “EasyTune III Setup” item.

III

Setup

(1)

(2)

2.Click “Next”.

3. Please enter your name and company name, then click “Next”.

(3)

4.Click “Next”.

(5)

(4)

5. Click “Next”.

(6)

Appendix

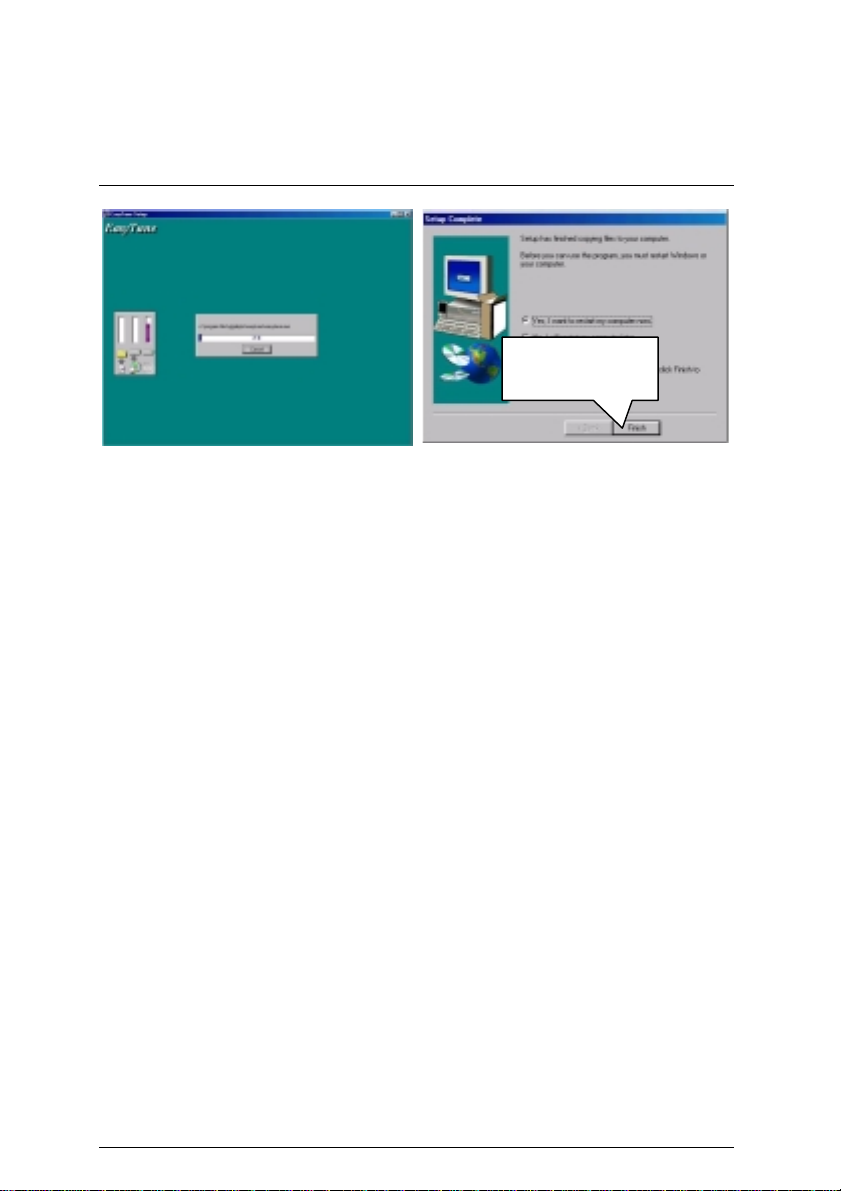

6.Click “Finish” to restart computer.

(7)

(8)

7ZMM Series Motherboard

Appendix E: BIOS Flash Procedure

BIOS update procedure:

If your OS is Win9X, we recommend that you used Gigabyte @BIOSTM Program to flash BIOS.

Click “Tool”.

Click “@BIOS Writer v1.06”.

Click “9”.

Methods and steps: I. Update BIOS through Internet

a. Click "Internet Update" icon b. Click "Update New BIOS" icon c.

Select @BIOSTM sever ( "Gigabyte @BIOSTM sever 1 in Taiwan" and "Gigabyte

@BIOS soon)

d. Select the exact model name on your motherboard e. System will automatically download and update the BIOS.

sever 2 in Taiwan" are available for n ow, the o thers will be completed

Click Here.

II. Update BIOS NOT through Internet:

III. Save BIOS

IV. Check out supported motherboard and Flash ROM:

Note:

a. Do not click "Internet Update" icon b. Click "Update New BIOS" c. Please select "All Files" in dialog box while opening the old file. d. Please search for BIOS unzip file, downloading from internet or any other methods

(such as: 7ZMM.F1).

e. Complete update process following the instruction.

In the very beginning, there is "Save Current BIOS" icon shown in dialog box. It means to save the current BIOS version.

In the very beginning, there is "About this program" icon shown in dialog box. It can help you check out which kind of motherboard and which brand of Flash ROM are supported.

a. In method I, if it shows two or more motherboard's model names to be selected,

please make sure your motherboard's model name again. Sellecting name will cause the system unbooted.

b. In method II, be sure that motherboard's model name in BIOS unzip file are the

same as your motherboard's. Otherwise, your system won't boot.

In method I, if the BIOS file you need cannot be found in @BIOSTM server, please go onto Gigabyte's web site for downloading and updating it according to method II.

d. Please note that any intercorruption during updating will cause system unbooted

Appendix

7ZMM Series Motherboard

Or else you can select flash BIOS in DOS mode.

Please check your

version

on the motherboard.

1. Format a bootable system floppy diskette by the command “ mode.

2. Visit the Gigabyte website at http:// www.gigabyte.com.tw need and download it to your bootable floppy diskette.

3. Insert the bootable diskette containing the BIOS file into the floppy diskette driver.

4. Assuming that the floppy diskette driver is A, reboot the system by using the A: driver. At the A: > prompt, run the BIOS upgraded file by executing the Flash BIOS utility and the BIOS file with its appropriate extension.

A:>Awdflash.exe 7zmm.f1

5. Upon pressing the <Enter> key, a flash memory writer menu will appear on screen. Enter the new BIOS file name with its extension filename into the text box after file name to program.

6. If you want to save the old BIOS file(perform as soon as system is operational, this is recommended), select Y to filename and the extension after filename to save: This option allows you to copy the contents of the flash memory chip onto a diskette, giving you a backup copy of the original motherboard BIOS in case you need to re-install it. Select N to

WANT TO SAVE BIOS

BIOS vendor (AMI or AWARD)

Example: (AMI tool)

Example: (Award tool)

(Where 7zmm.f1 is name of the BIOS file name)

A:>flashxxx.exe 7zmm.f1

(Where 7zmm.f1 is name of the BIOS file name)

DO YOU WANT TO SAVE BIOS

, if you don’t want to save the old BIOS file.

motherboard name

, your



and

format a:/s

, Select the BIOS file you

, then type the old BIOS

” in command

DO YOU

PCB

7. After the decision to save the old BIOS file or not is made, select Y to

SURE TO PROGRAM

Power Off or Reset the system appears. Then turn off your system.

8. Remove the diskette and restart your system.

9. Hold down <Delete> key to enter BIOS setup. You must select “Load Setup BIOS Default” to activate the new BIOS, then you may set other item from the main menu.

when the next menu appear; wait until a message showing

ARE YOU

Appendix

Appendix F: Issues To Beware Of When Installing AMR

Please use inverse AMR card like the one in order to avoid mechanical problem. (See Figure A)

PCI Slot

Figure A: Inverse AMR Card (Default)

PCI Slot

Figure B: Non inverse AMR Card

7ZMM Series Motherboard

Appendix G: Acronyms

Acronyms Meaning

ACPI Advanced Configuration and Power Interface

APM Advanced Power Management

AGP Accelerated Graphics Port

AMR Audio Modem Riser

ACR Audio Communication Riser

BIOS Basic Input / Output System

CPU Central Processing Unit

CMOS Complementary Metal Oxide Semiconductor

CRIMM Continuity RIMM

CNR Communication and Networking Riser DMA Direct Memory Access

DMI Desktop Management Interface

DIMM Dual Inline Memory Module

DRM Dual Retention Mechanism

DRAM Dynamic Random Access Memory

DDR Double Data Rate

ECP Extended Capabilities Port

ESCD Extended System Configuration Data

ECC Error Checking and Correcting

EMC Electromagnetic Compatibility

EPP Enhanced Parallel Port ESD Electrostatic Discharge FDD Floppy Disk Device

HDD Hard Disk Device

IDE Integrated Dual Channel Enhanced

IRQ Interrupt Request

I/O Input / Output

IOAPIC Input Output Advanced Programmable Input Controller

ISA Industry Standard Architecture

LAN Local Area Network

LBA Logical Block Addressing LED Light Emitting Diode MHz Megahertz MIDI Musical Interface Digital Interface

MTH Memory Translator Hub

MPT Memory Protocol Translator

NIC Network Interface Card OS Operating System

To be continued…

Acronyms Meaning

OEM Original Equipment Manufacturer

PAC PCI A.G.P. Controller

POST Power-On Self T est

PCI Peripheral Component Interconnect

RIMM Rambus in-line Memory Module

SCI Special Circumstance Instructions SECC Single Edge Contact Cartridge SRAM Static Random Access Memory

SMP Symmetric Multi-Processing

SMI System Management Interrupt

USB Universal Serial Bus

VID Voltage ID

Appendix

Gigabyte GA-7ZMM User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
